IU M215 Lab Practical

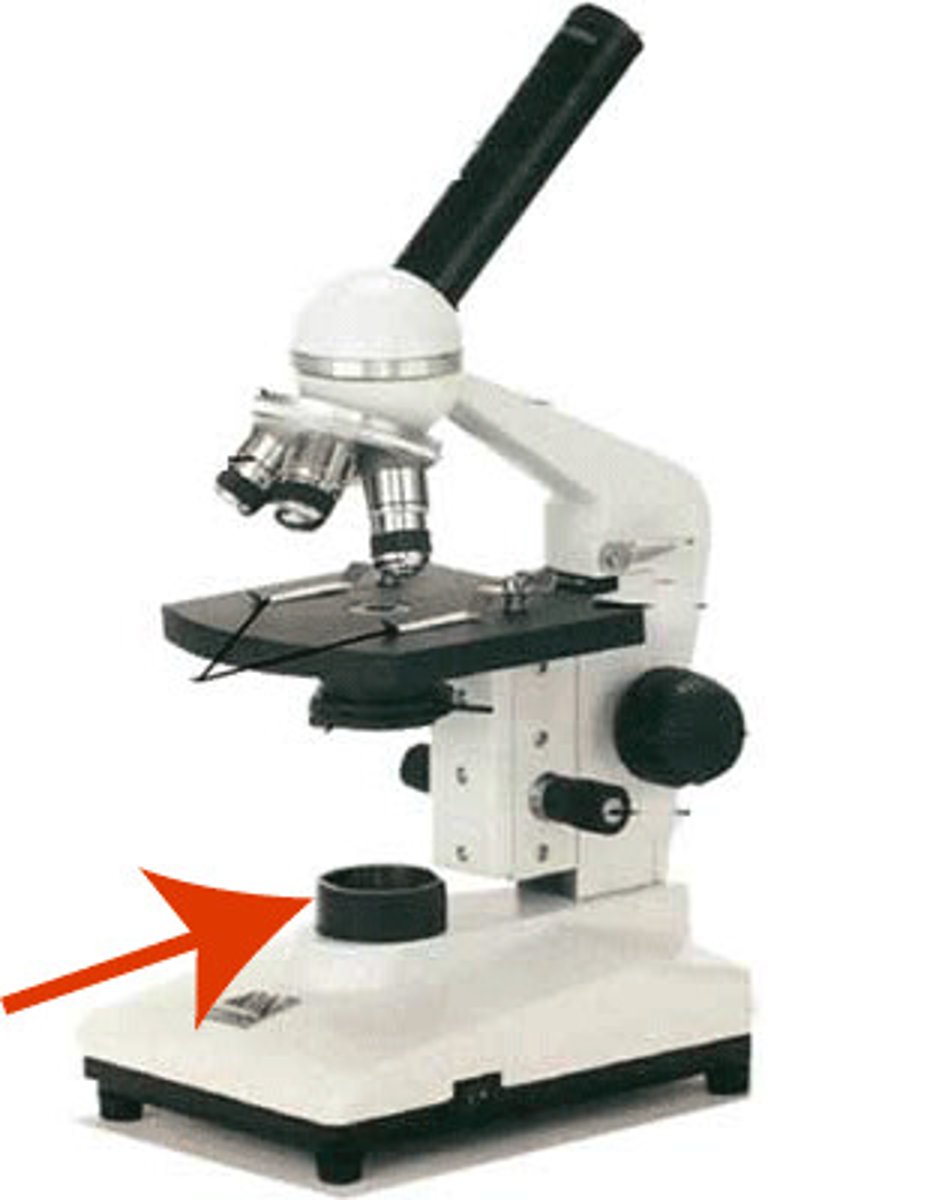

illuminator

what is this?

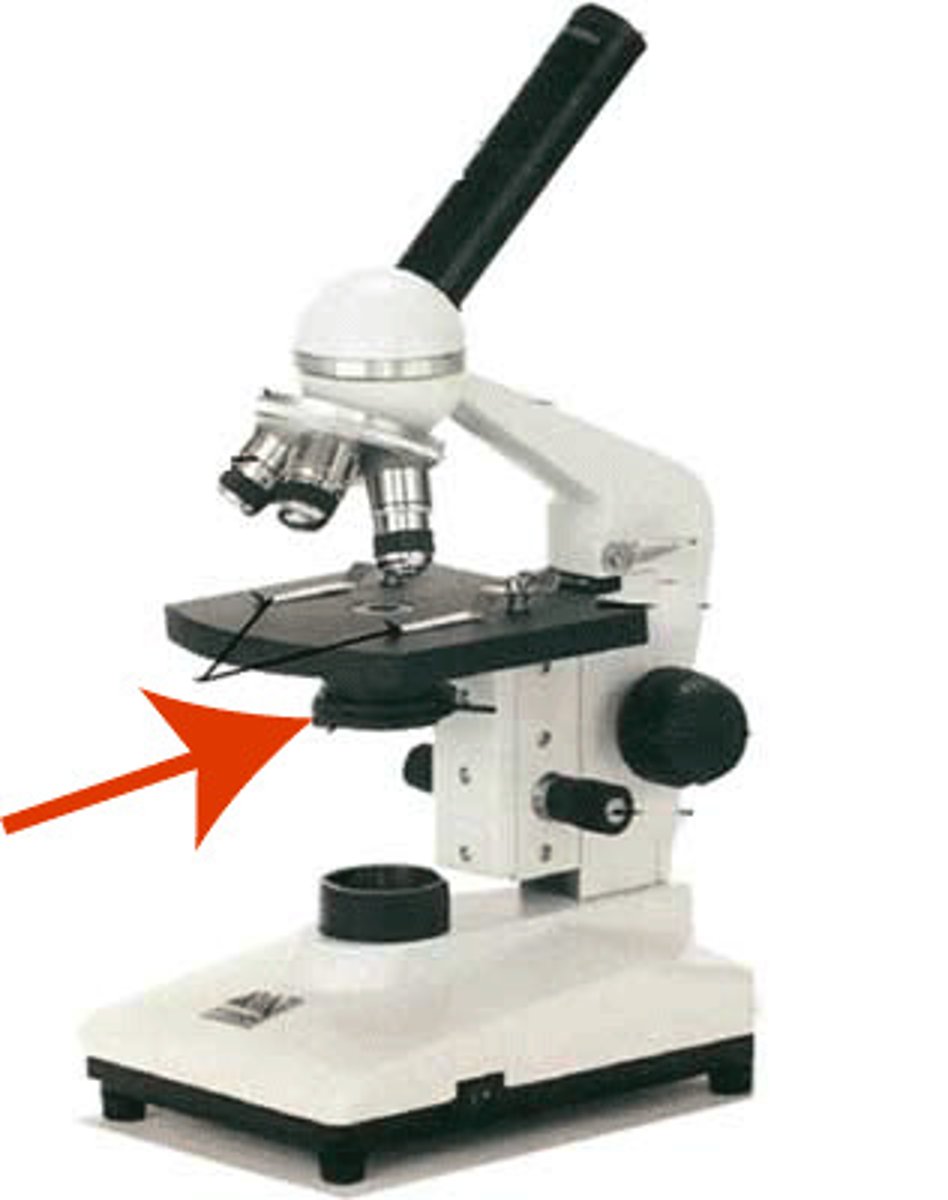

condenser

what is this?

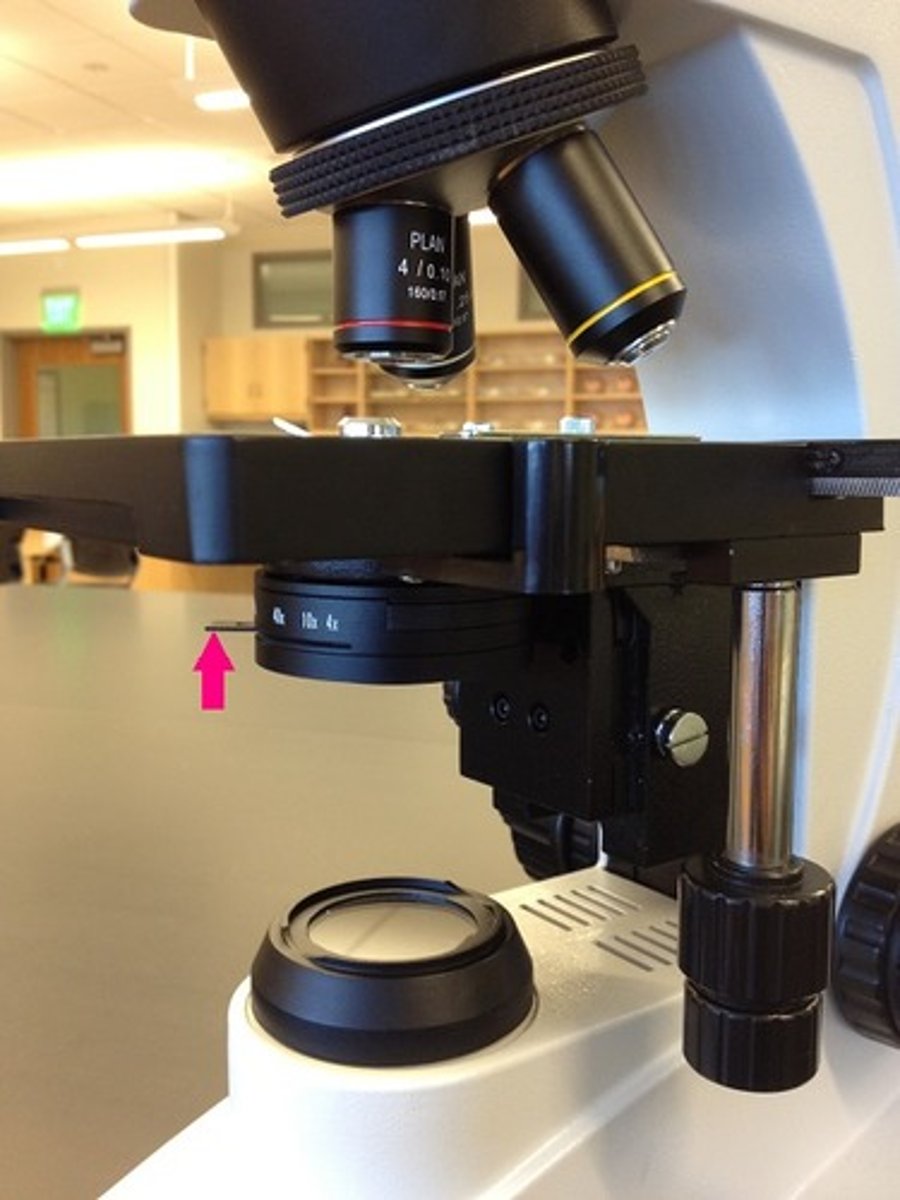

iris diaphragm

what is this?

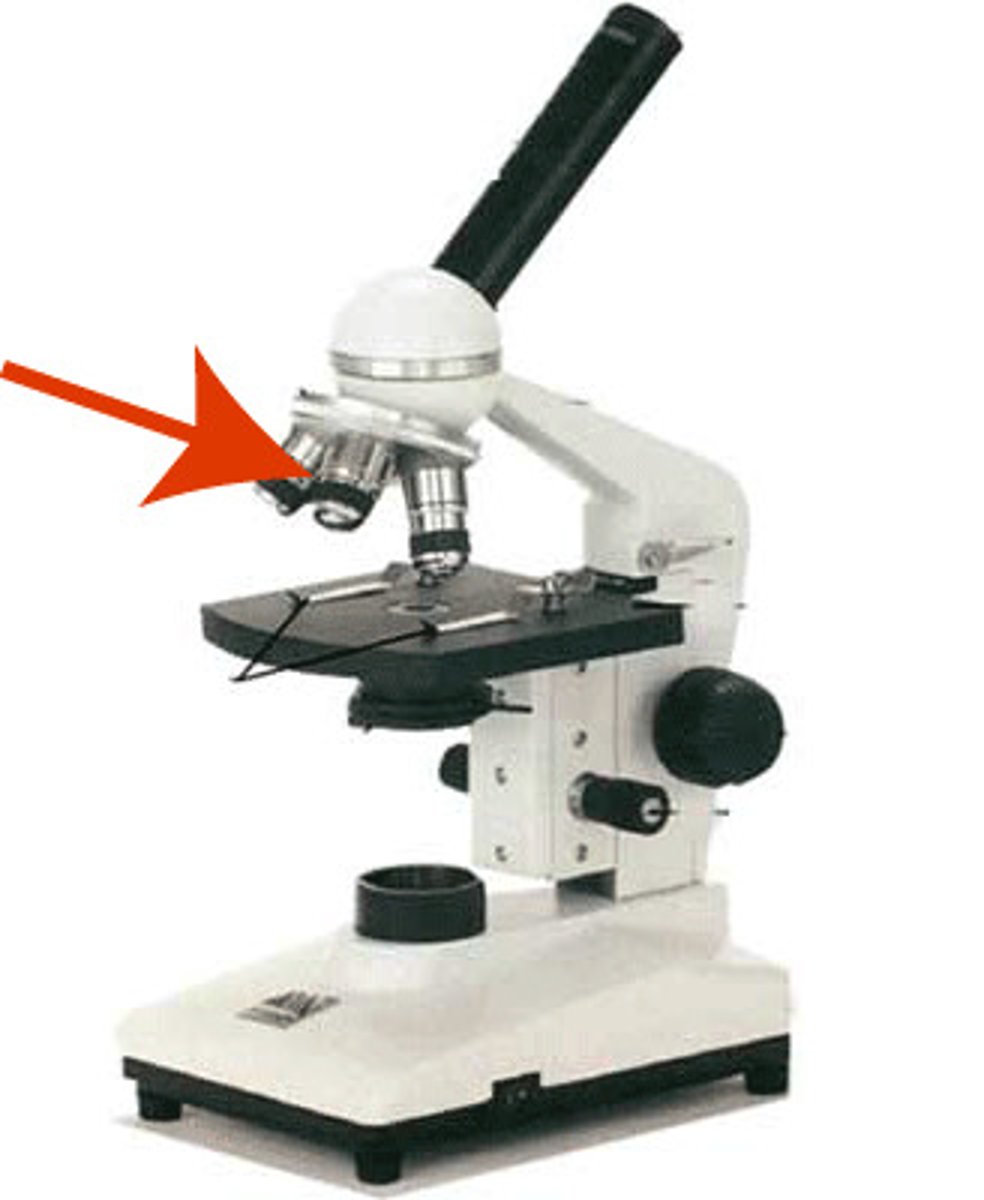

objective lens

what is this?

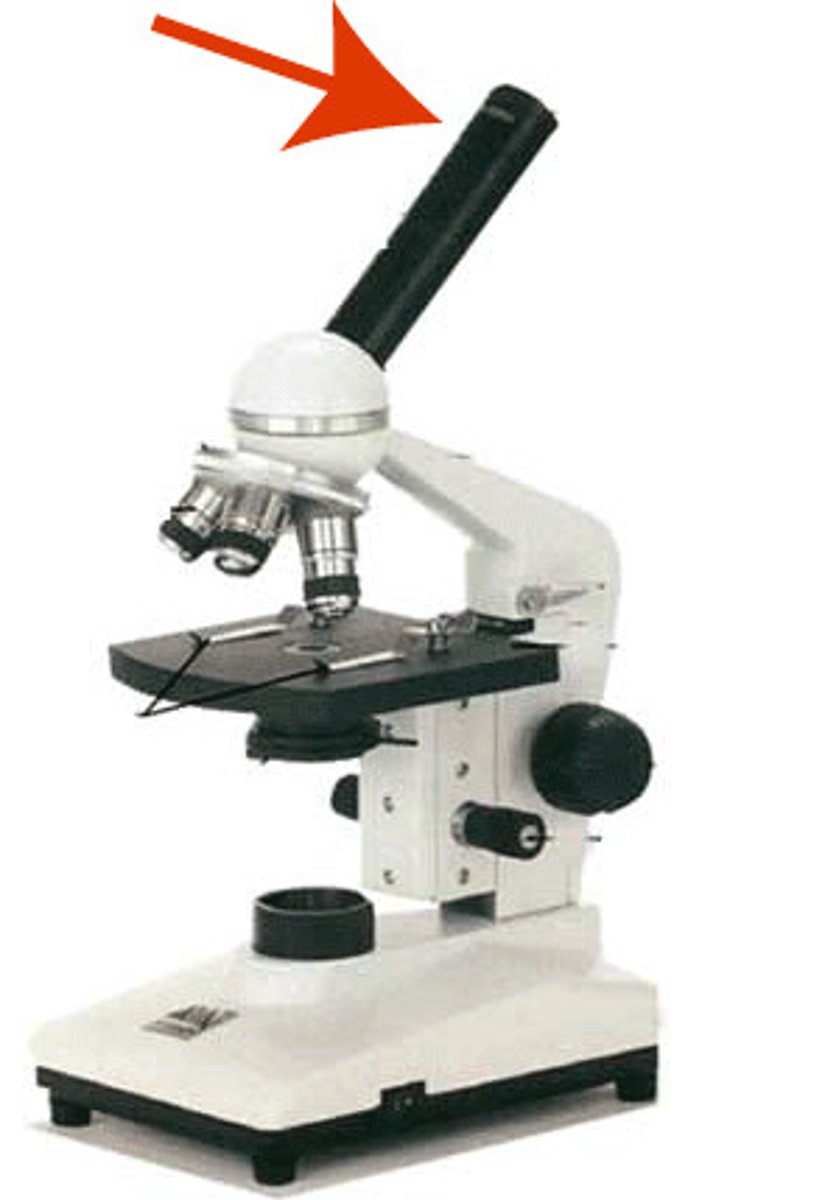

ocular lens

what is this?

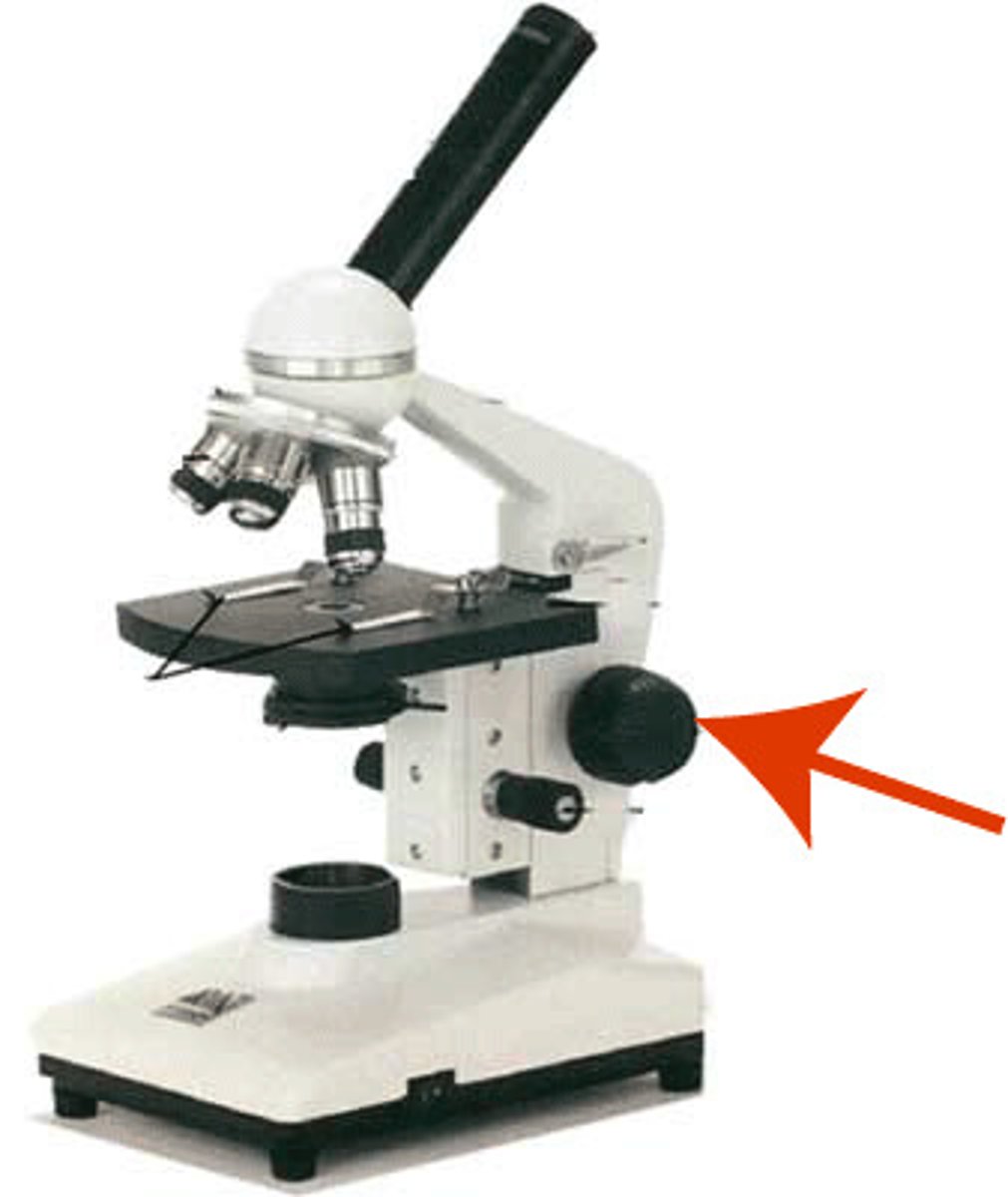

coarse adjustment knob

what is this?

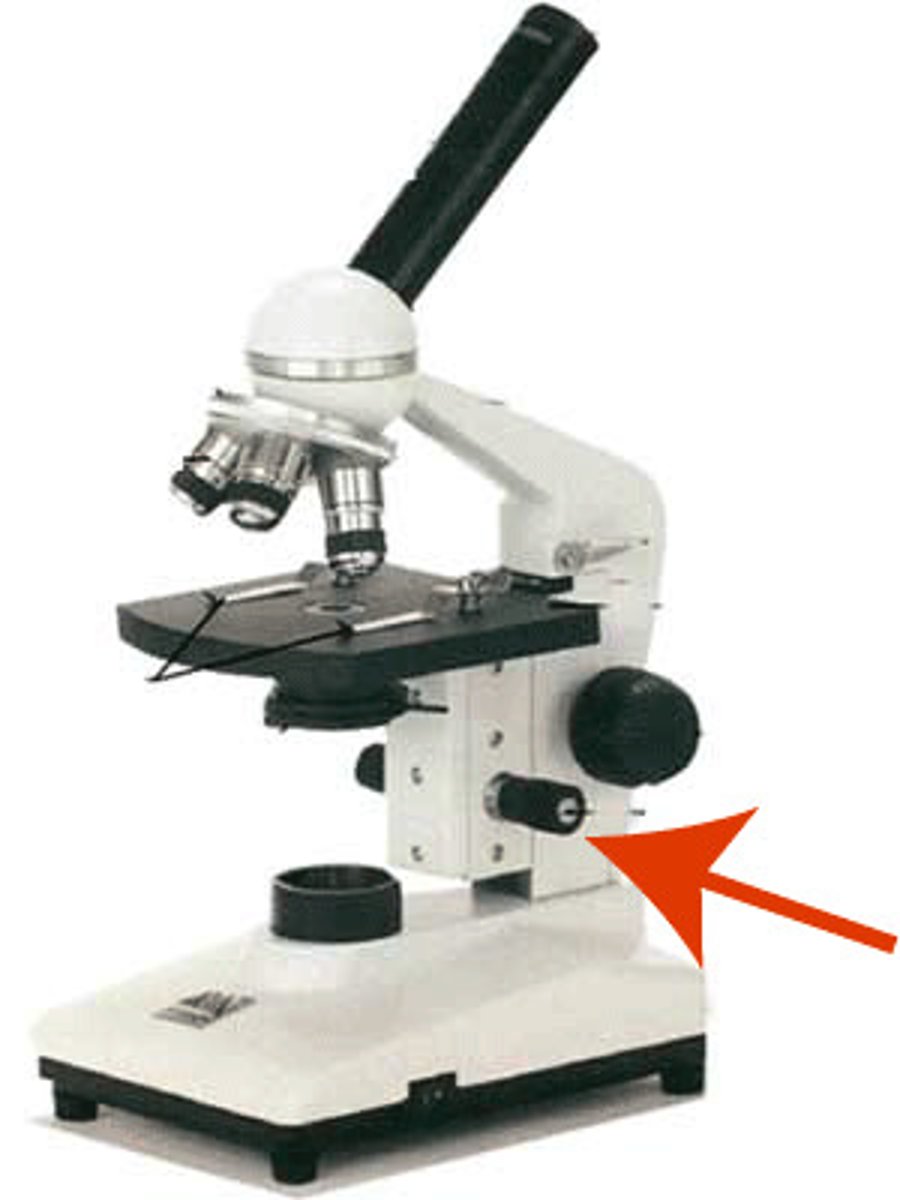

fine adjustment knob

what is this?

40x

The 4x objective lens is really ________________ magnification.

100x

The 10x objective lens is really ________________ magnification.

400x

The 40x objective lens is really ________________ magnification.

1000x

The 100x objective lens is really ________________ magnification.

aseptic

without contamination

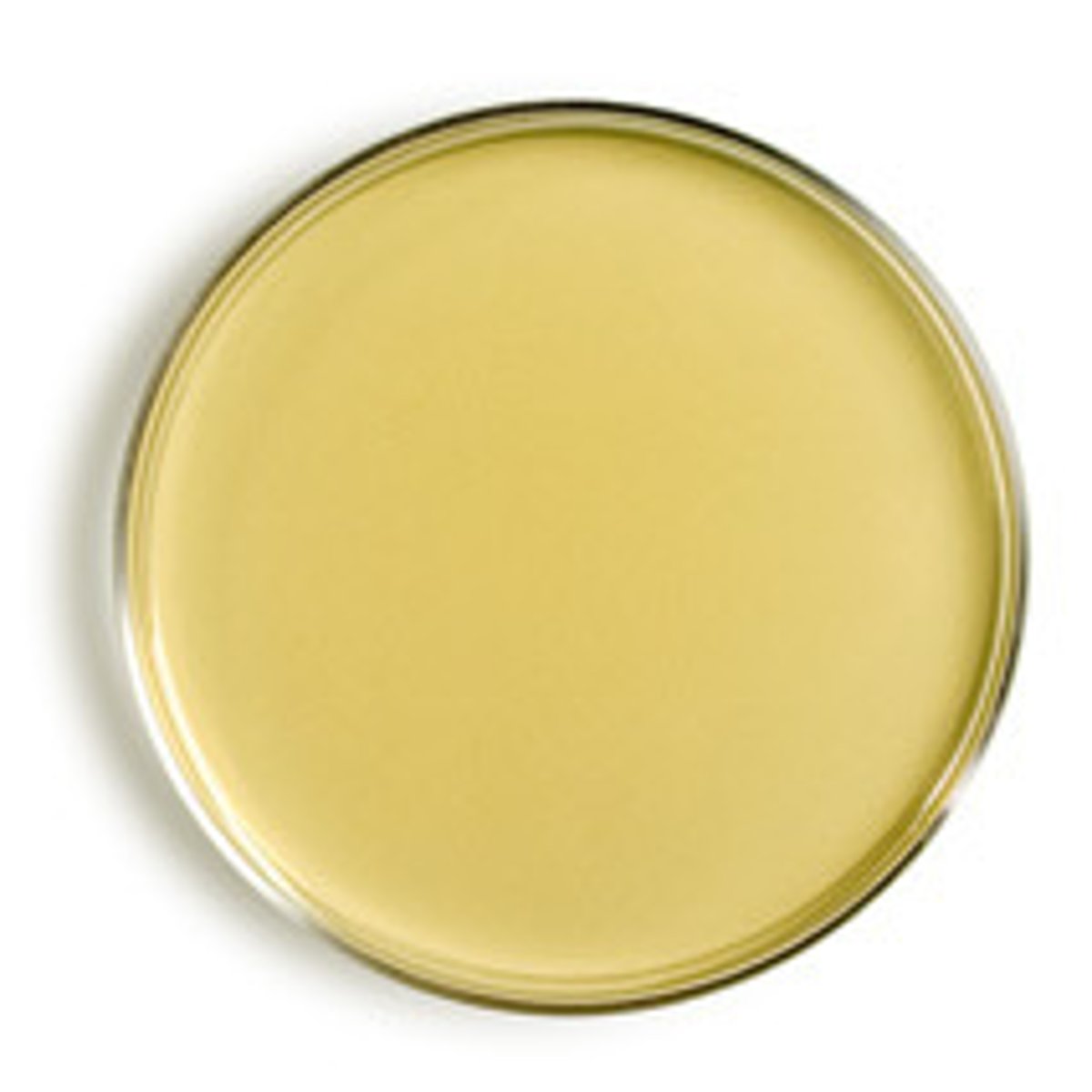

agar

a solidifying agent that forms a semi-solid at room temperature

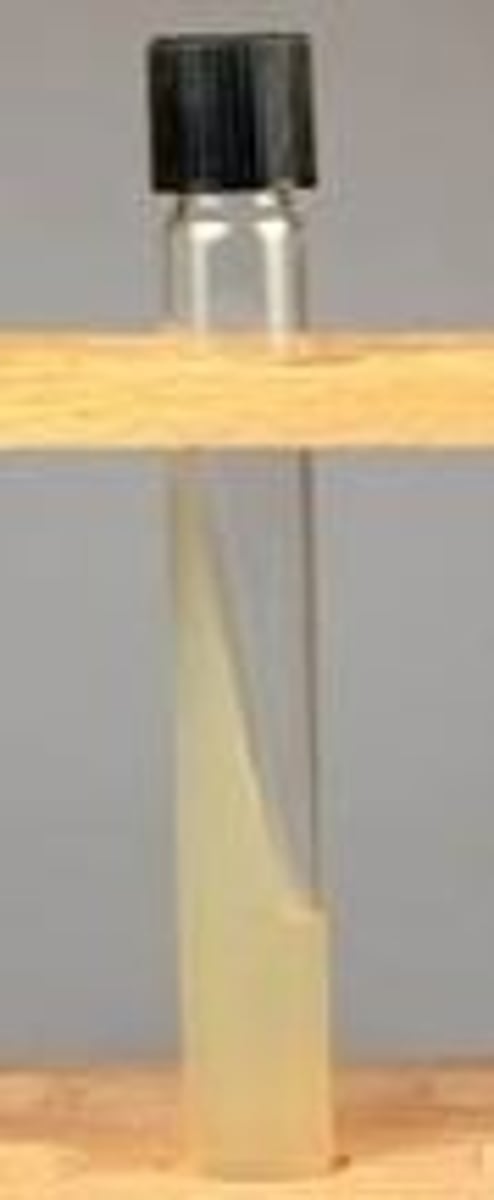

agar slants

solidify with the tube at an angle (hence the name), creating a large, solid surface area to support growth and provide useful short-term storage of cultures

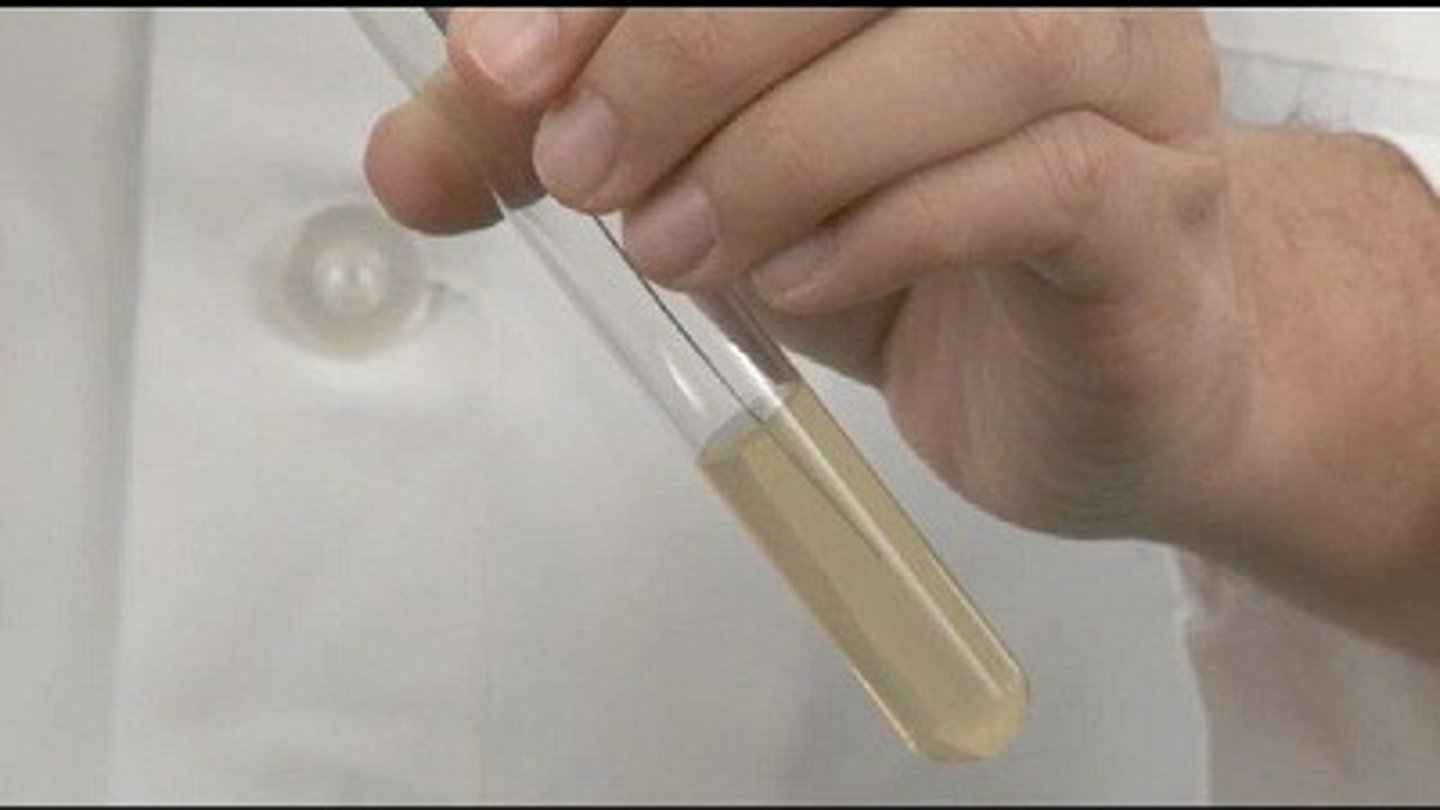

agar deeps

support the growth of microbes at a range of oxygen concentrations since the solidified medium acts as a barrier to atmospheric oxygen at depths below the surface.

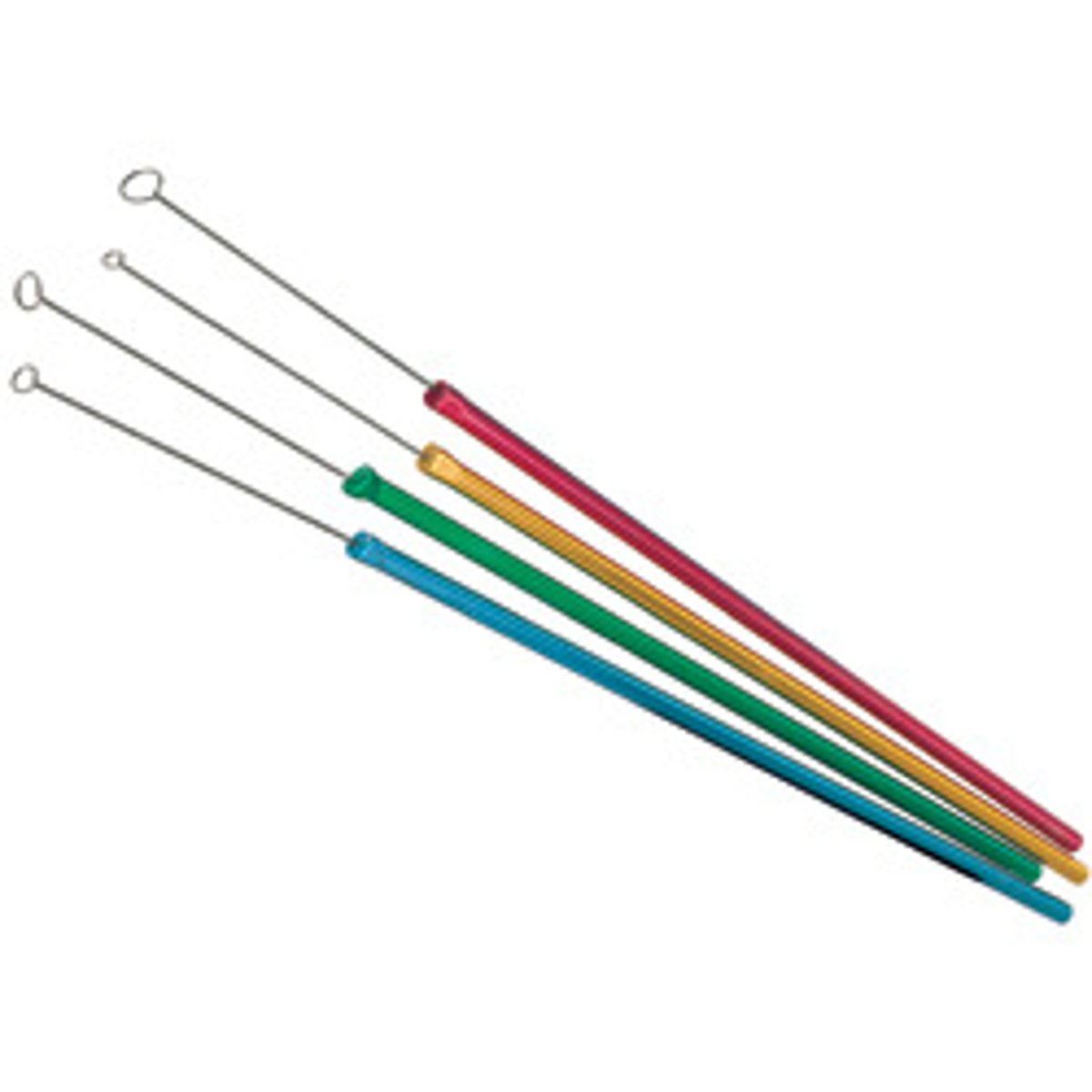

inoculating loop

a device used to aseptically transfer and streak microbes in the laboratory

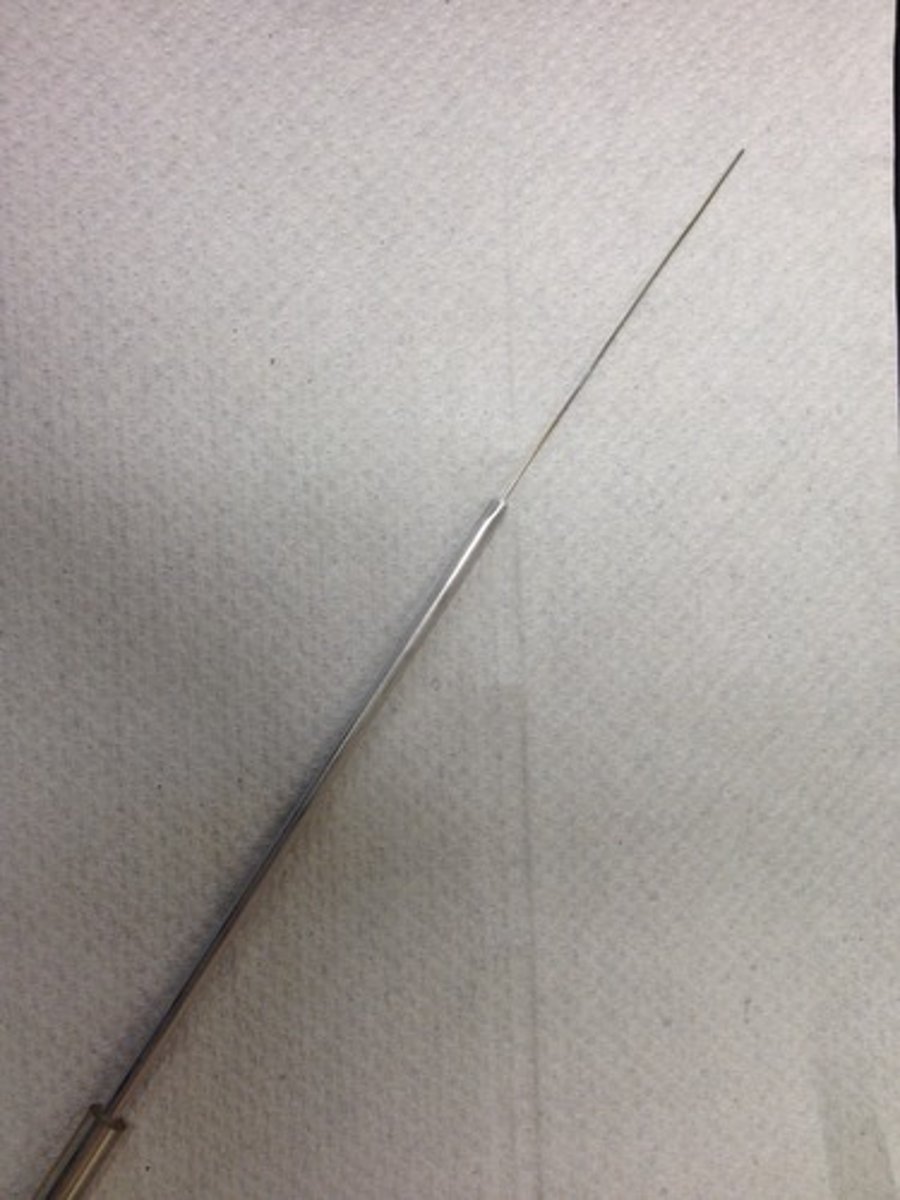

inoculating needle

Used to transfer a culture (by stabbing) to a semisolid medium like motility agar; used to inoculate a deep media

By placing the loop or needle into the Bunsen burner until it is red hot

how do you sterilize loops and needles?

in the hospital, to prevent healthcare-associated infections

why are hand-washing and aseptic technique important?

simple stain

The process by which a single stain is used to color the cells

gram stain

A classic technique used to differentiate bacteria and identify the causative agent of infection. This technique exploits structural differences in the peptidoglycan cell wall to separate bacteria into two groups, Gram-positive and Gram-negative.

gram-positive bacteria

Bacteria that have a thick peptidoglycan cell wall, and no outer membrane. They stain very darkly (purple) in Gram stain.

gram-negative bacteria

Bacteria that have a thin peptidoglycan cell wall covered by an outer plasma membrane. They stain very lightly (pink) in Gram stain.

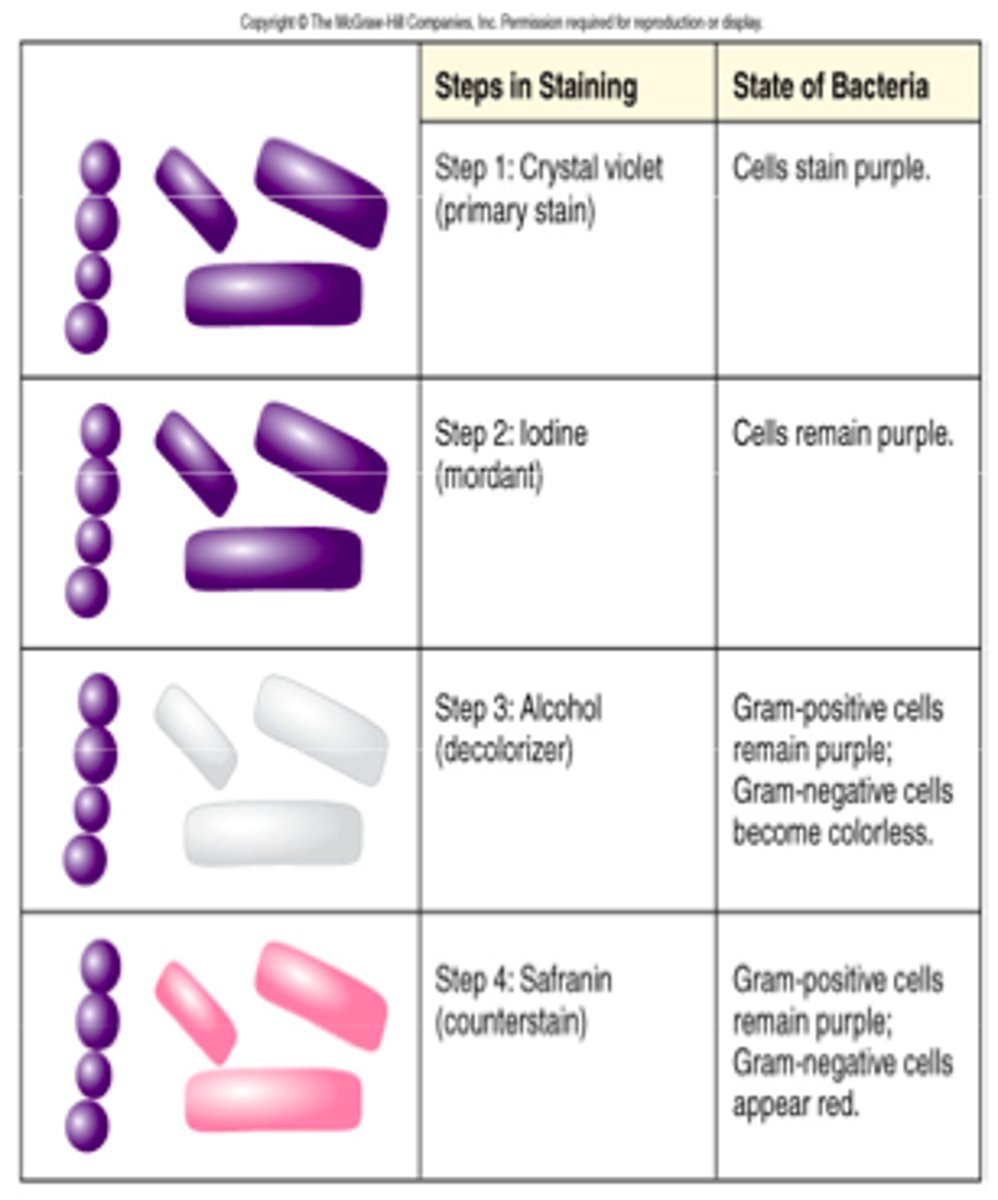

crystal violet, iodine, alcohol, safranin

what are the steps of the gram stain?

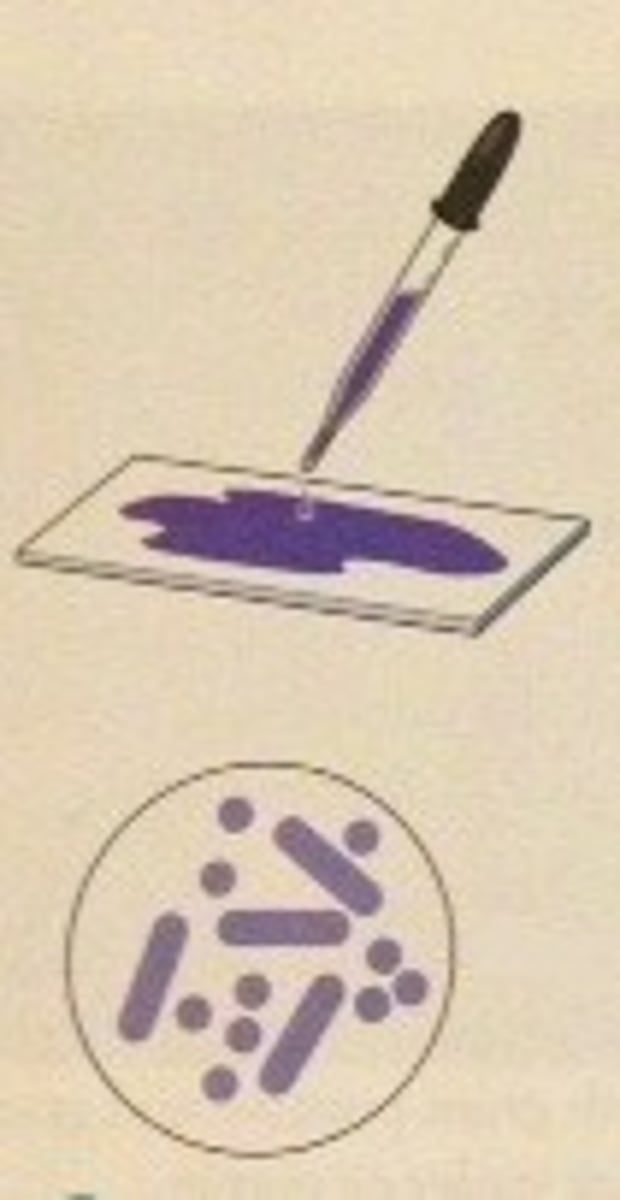

crystal violet

primary stain in gram stain

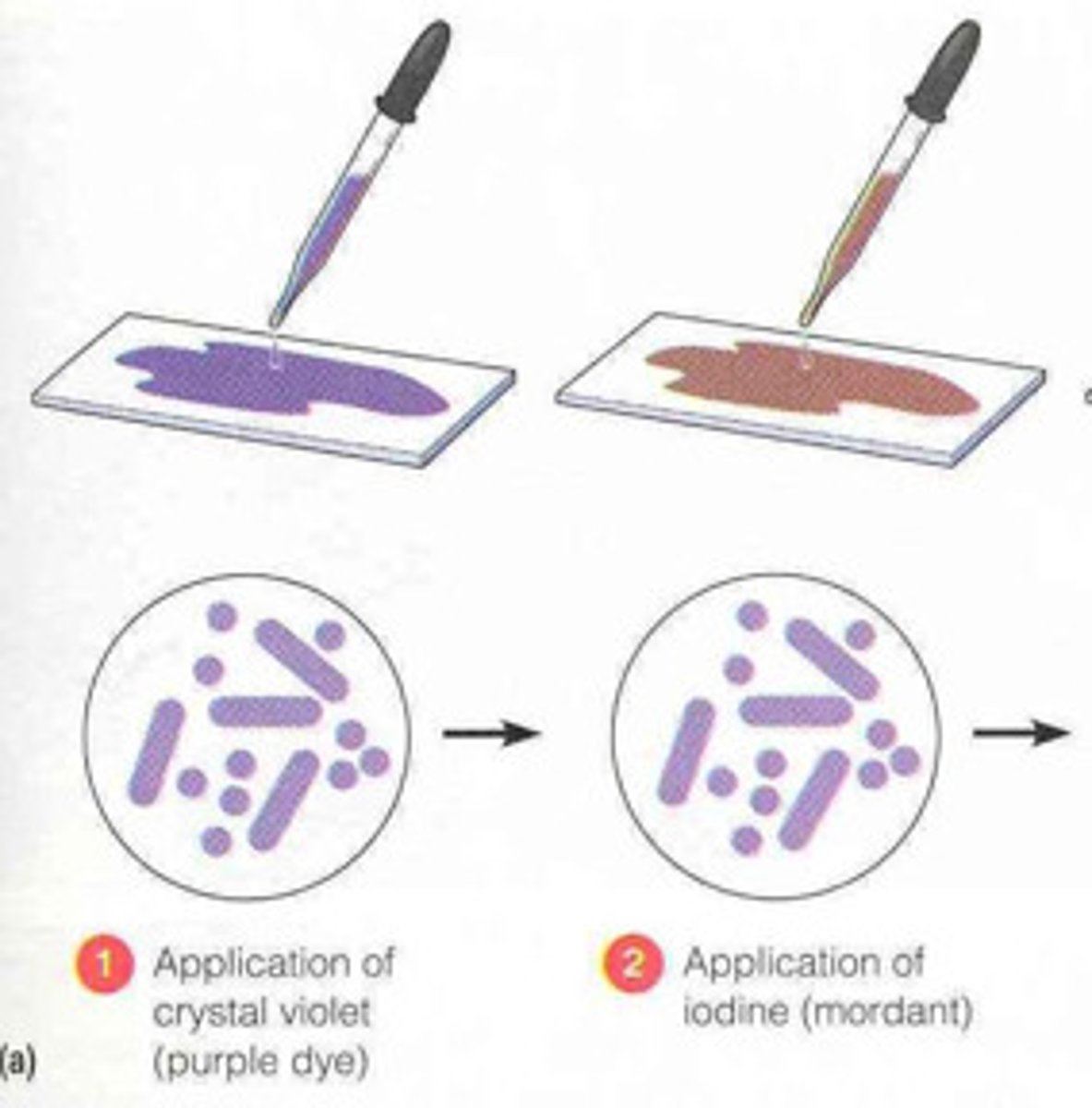

iodine

mordant in gram stain

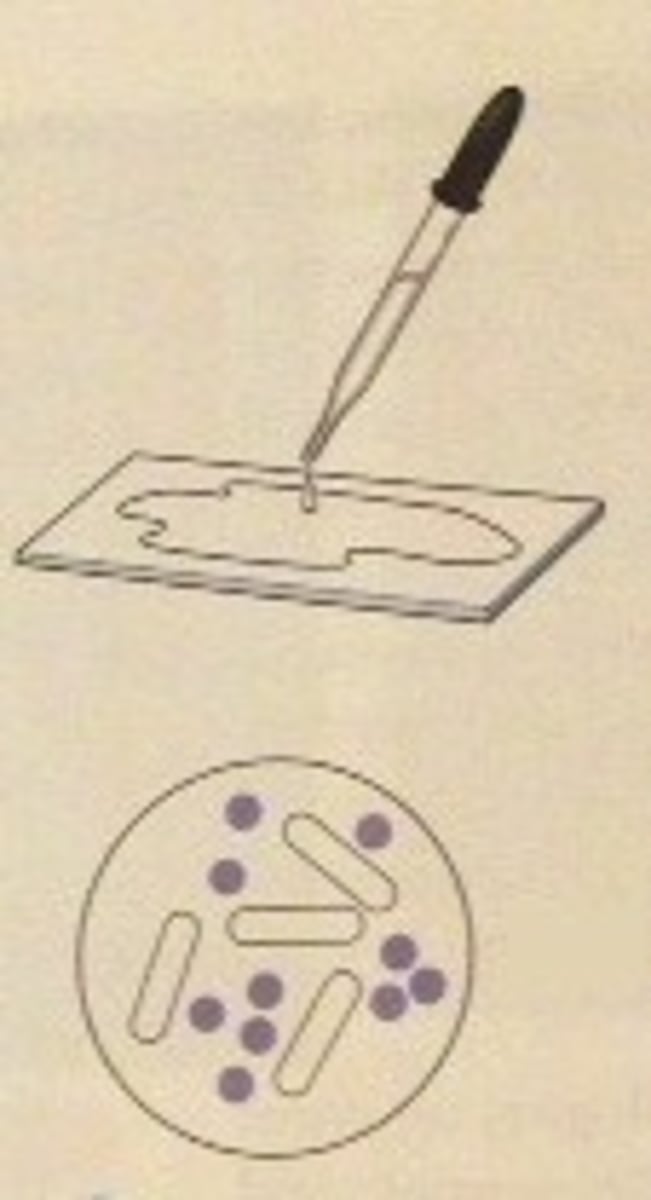

ethyl alcohol

decolorizer in gram stain

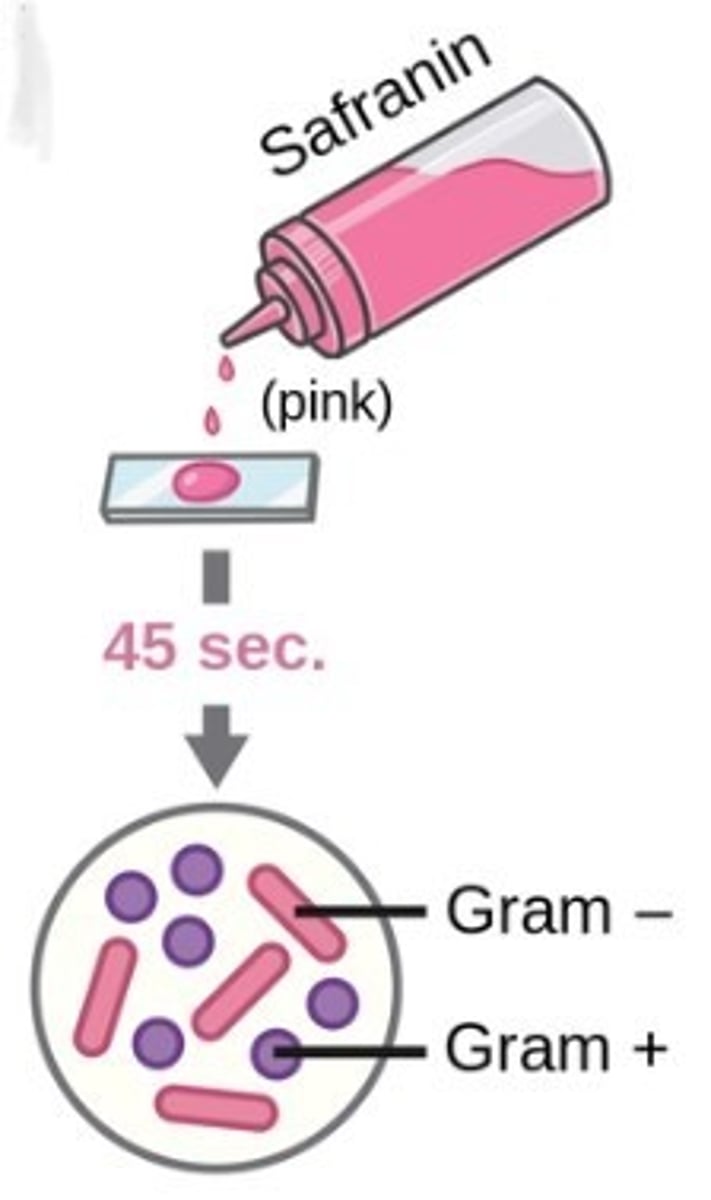

safranin

counter stain in gram stain

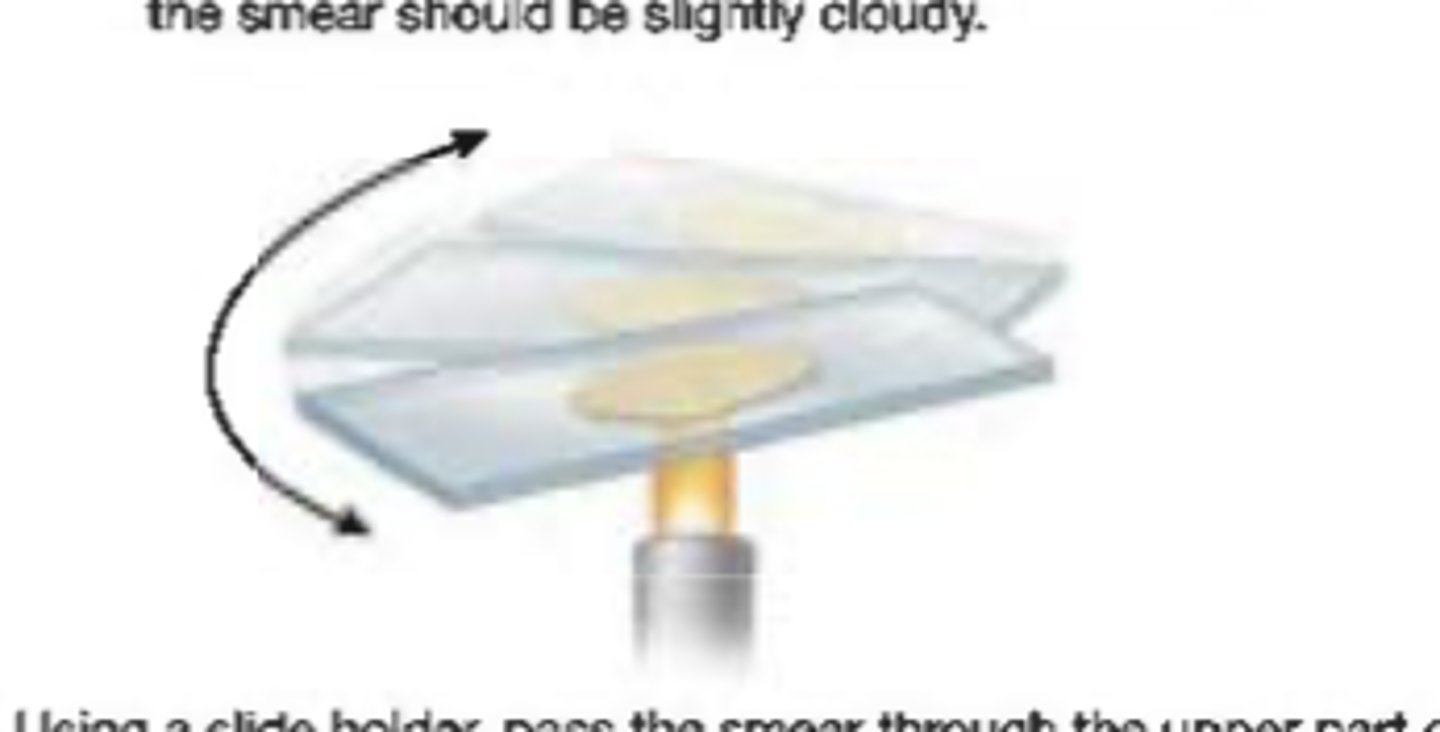

To fix specimen to slide and to kill the bacteria.

what is the purpose of heat fixing?

bacillus

which bacterium can have mixed gram reaction?

Neisseria (meningitidis)

what is the only gram-negative cocci that we have covered in lab?

Streptococcus pneumoniae

what is an example of a gram-positive cocci (streptococci)?

bacillus

rod-shaped bacterium

cocci

sphere shaped bacteria

both gram-negative and gram-positive bacteria will appear purple

If you forget to add the decoloring agent, what will happen?

it lightly colors Gram-negative cells pink so they can also be observed

purpose of safranin?

psychrophiles

cold-loving bacteria that exhibit an optimal growth temperature of less than 15°C

mesophiles

grow best at a temperature range of 20°C to 45°C

thermophiles and hyperthermophiles

thrive and grow at temperatures ranging from 45°C to temperatures exceeding 100°C, well above optimal for most organisms

psychotrophs

demonstrate growth at temperatures higher than psychrophiles: greater than 15°C for optimal growth and greater than 20°C for maximum growth temperature

obligate anaerobes

organisms that cannot live where molecular oxygen is present

obligate aerobes

require oxygen

facultative anaerobes

can survive with or without oxygen

microaerophiles

can use oxygen only when it is present at levels reduced from that in air

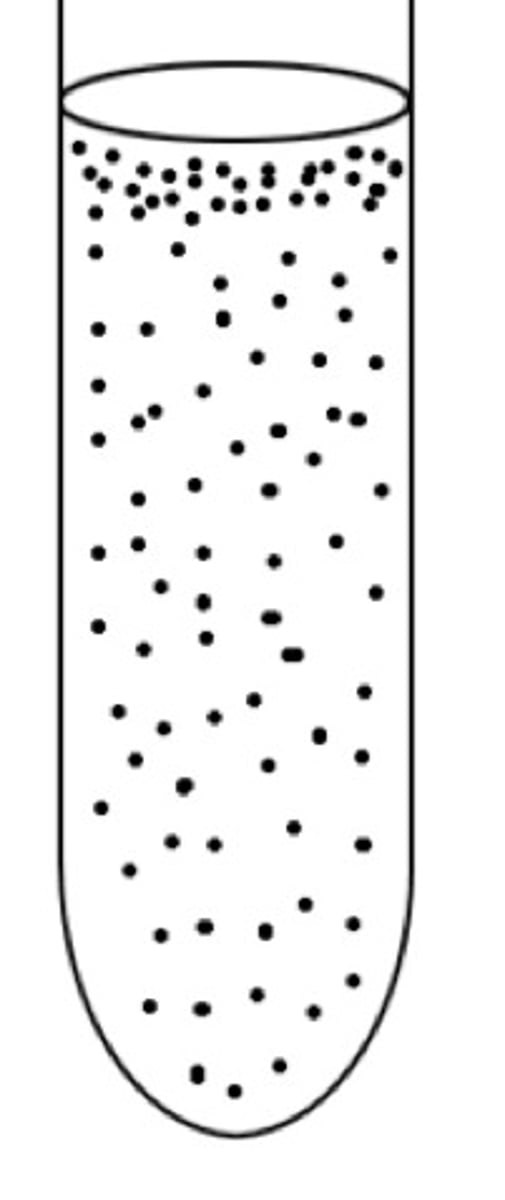

facultative anaerobe

what type of aerobic/anaerobic bacteria is e. coli?

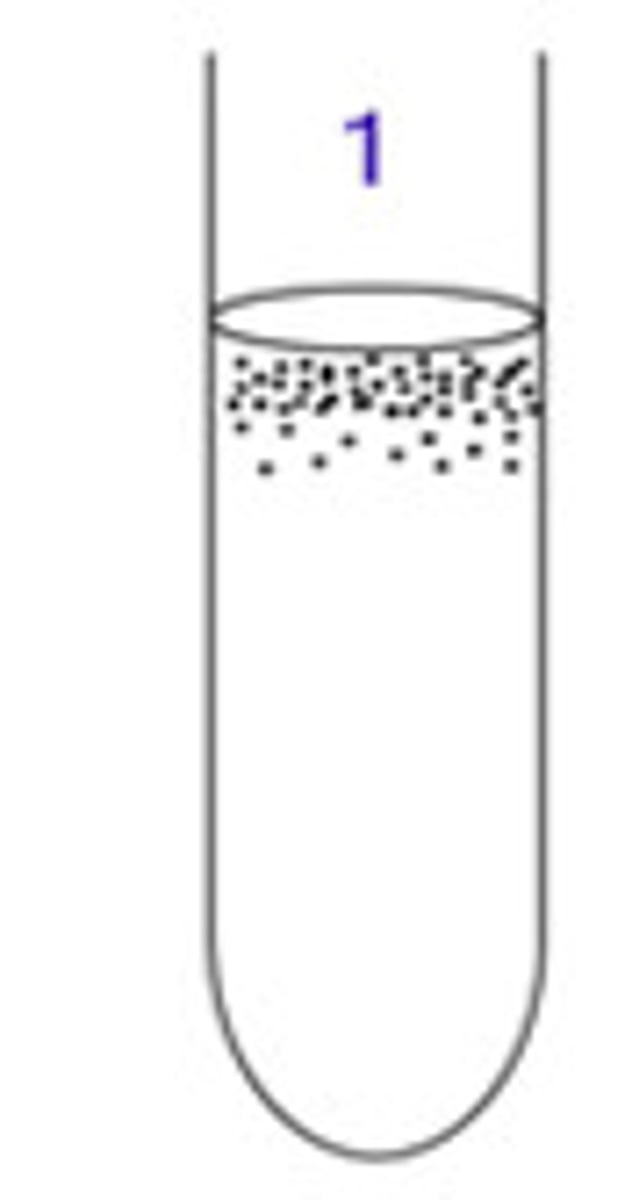

strict aerobe

bacterial growth is concentrated at the surface, where oxygen levels are the highest

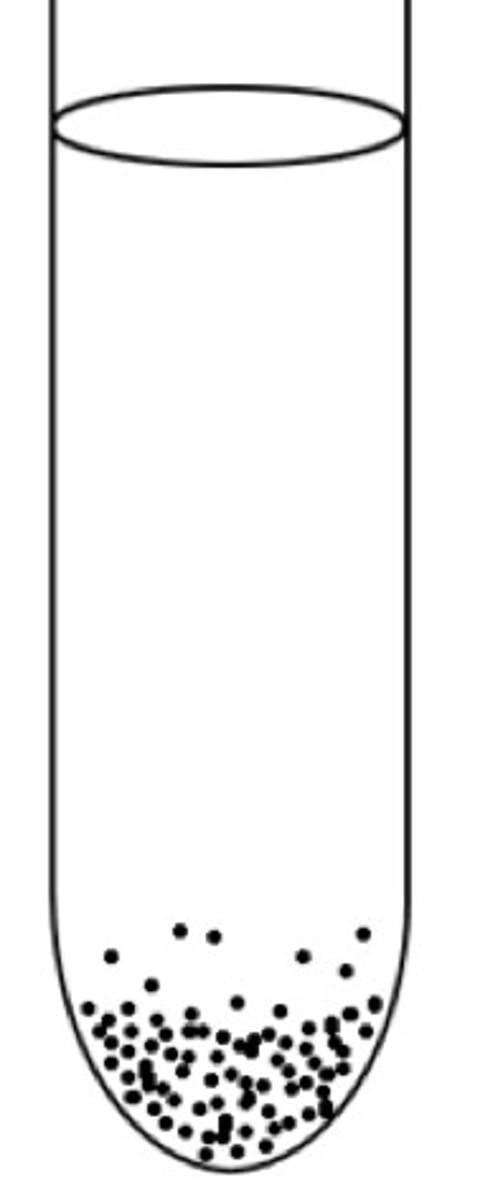

strict anaerobe

bacterial growth is concentrated well below the surface of the agar, where oxygen levels are the lowest

facultative anaerobe

bacterial growth is found throughout the medium, with a majority concentrated in the oxygen-rich top

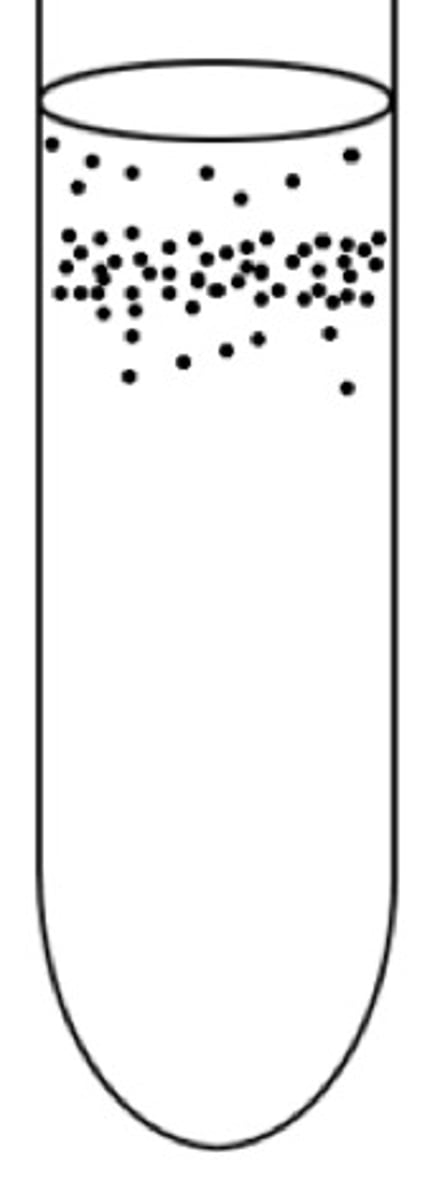

microaerophile

bacterial growth is concentrated just below the surface of the agar, where oxygen is present but at a lower concentration compared to the surface

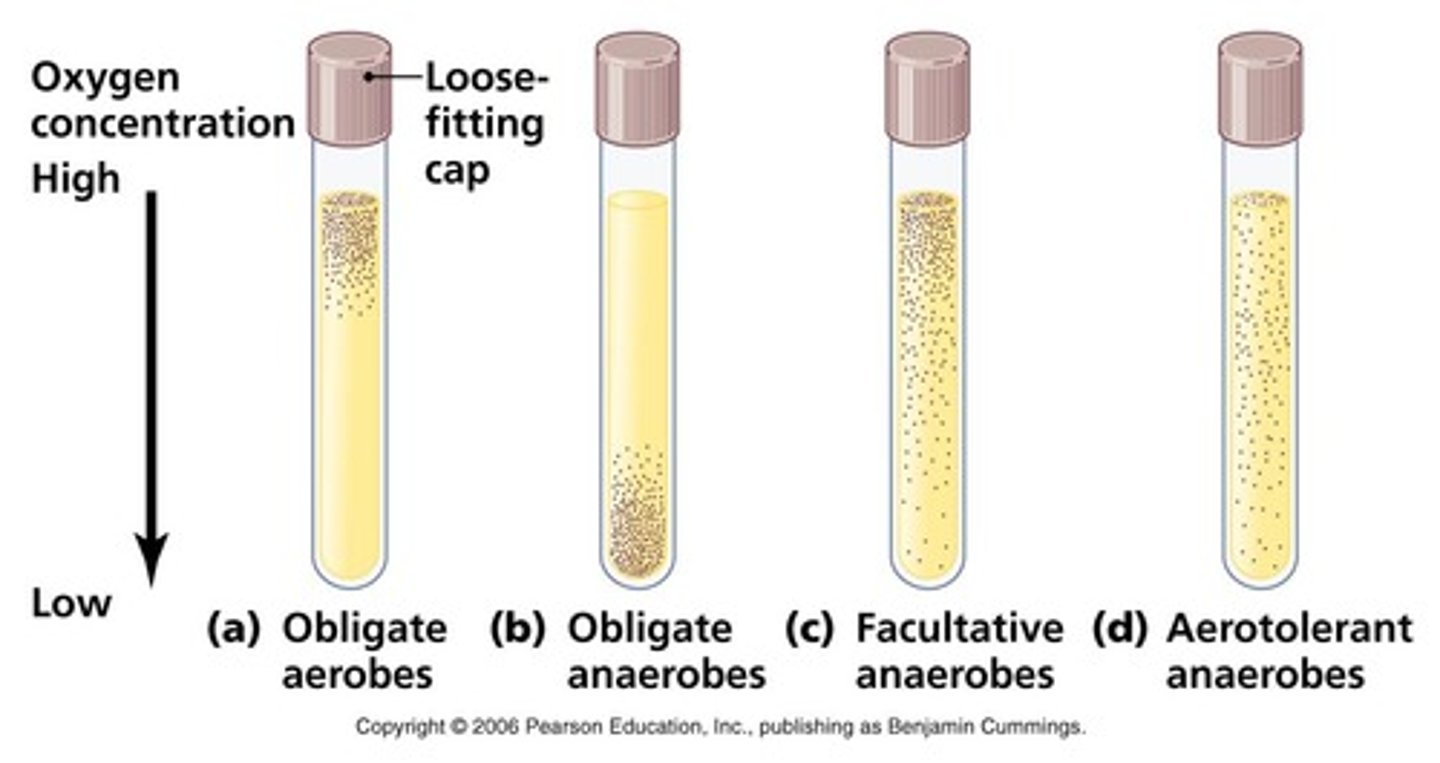

thioglycolate media

combines with oxygen to create anaerobic or microaerobic conditions

osmotic pressure

pressure that must be applied to prevent osmotic movement across a selectively permeable membrane

bacteria

________________ with their peptidoglycan cell wall are immune to the effects of rapid water uptake

halophile

"salt-loving" bacteria that live in environments that have very high salt concentrations

falcultative halophile

salt tolerant microorganisms that grow at both low and high salt concentrations

Staphylococcus epidermidis

this is a common halotolerant bacteria

E. coli

this is a halo INTOLERANT bacteria (right side of image)

neutrophile

an organism that grows best at neutral pH, between pH 5.5 and 8

acidophile

an organism that grows best at low pH; typically below pH 6

alkaliphile

an organism that has a growth pH optimum of 8 or higher

lactobacillus lactis

this bacteria is an acidophile

E. coli

this bacteria is a neutrophile

Alcaligenes faecalis

this bacteria is an alkaliphile (or at least alkali-tolerant)

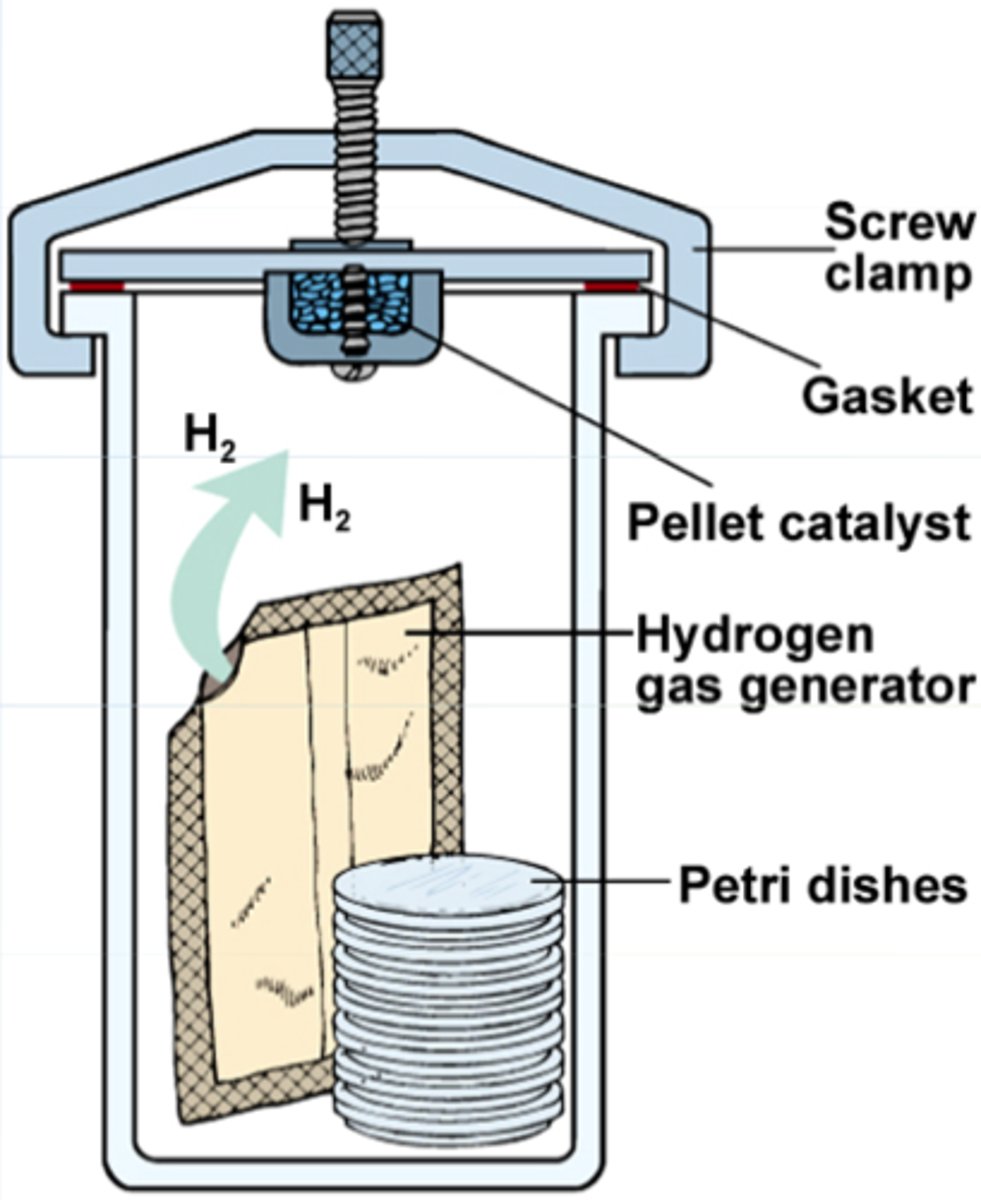

anaerobic jar

Used to create anaerobic, microaerophilic, CO2-enriched

conditions depending on specific needs of bacteria being cultivated

gaspak

anaerobic jar, H2 produced to combine with O2 to form water; should be colorless in absence of oxygen; also used in place of Brewers anaerobic agar

bacteriostatic

inhibits/slows bacterial growth

bactericidal

kills bacteria

disinfectant

antimicrobial agent used on inanimate surfaces like sinks, toilets, and floors to remove or reduce the number of microorganisms

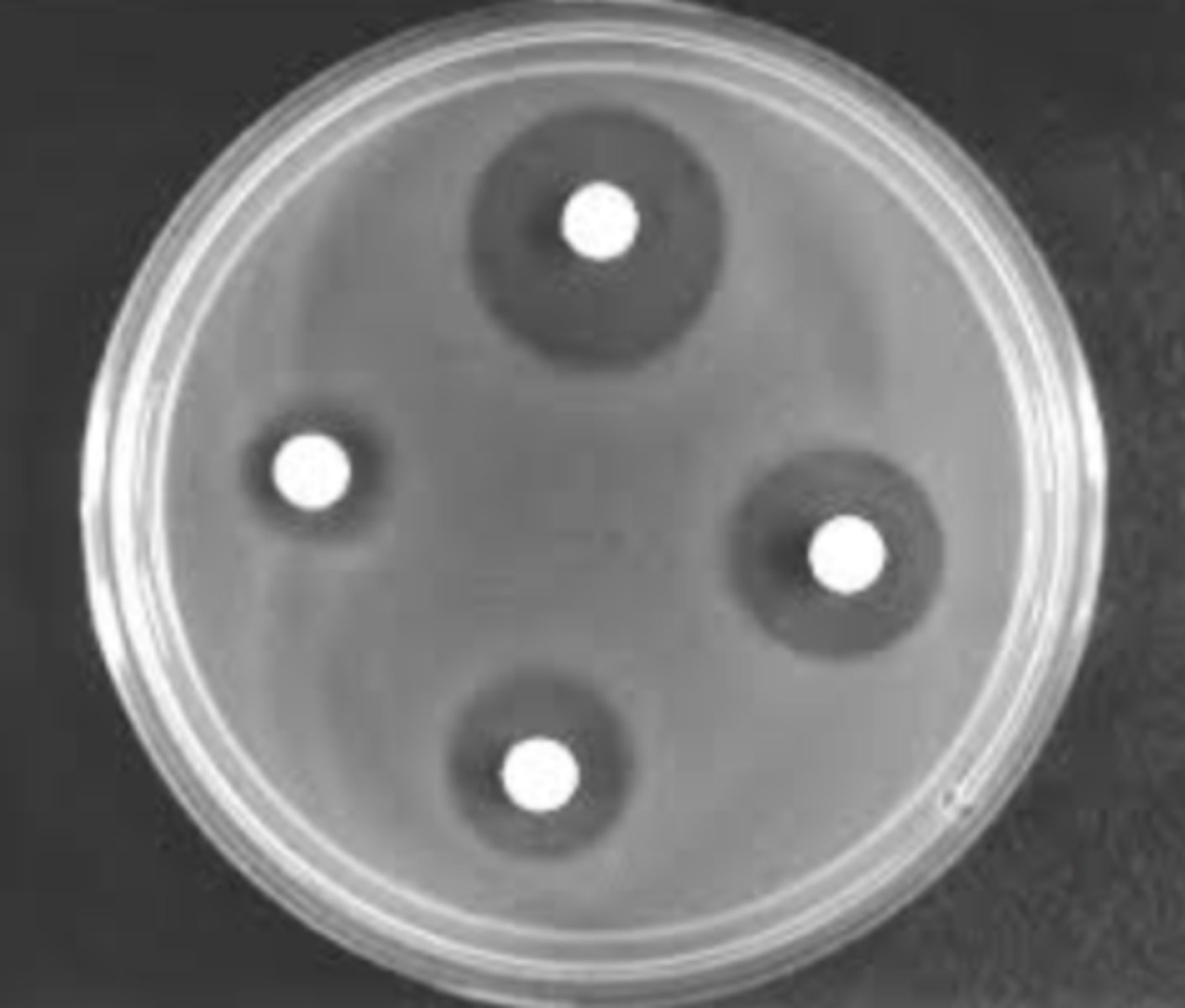

filter-paper disk method

Method of evaluating the antimicrobial properties of a chemical agent using filter paper disks placed on an inoculated agar plate

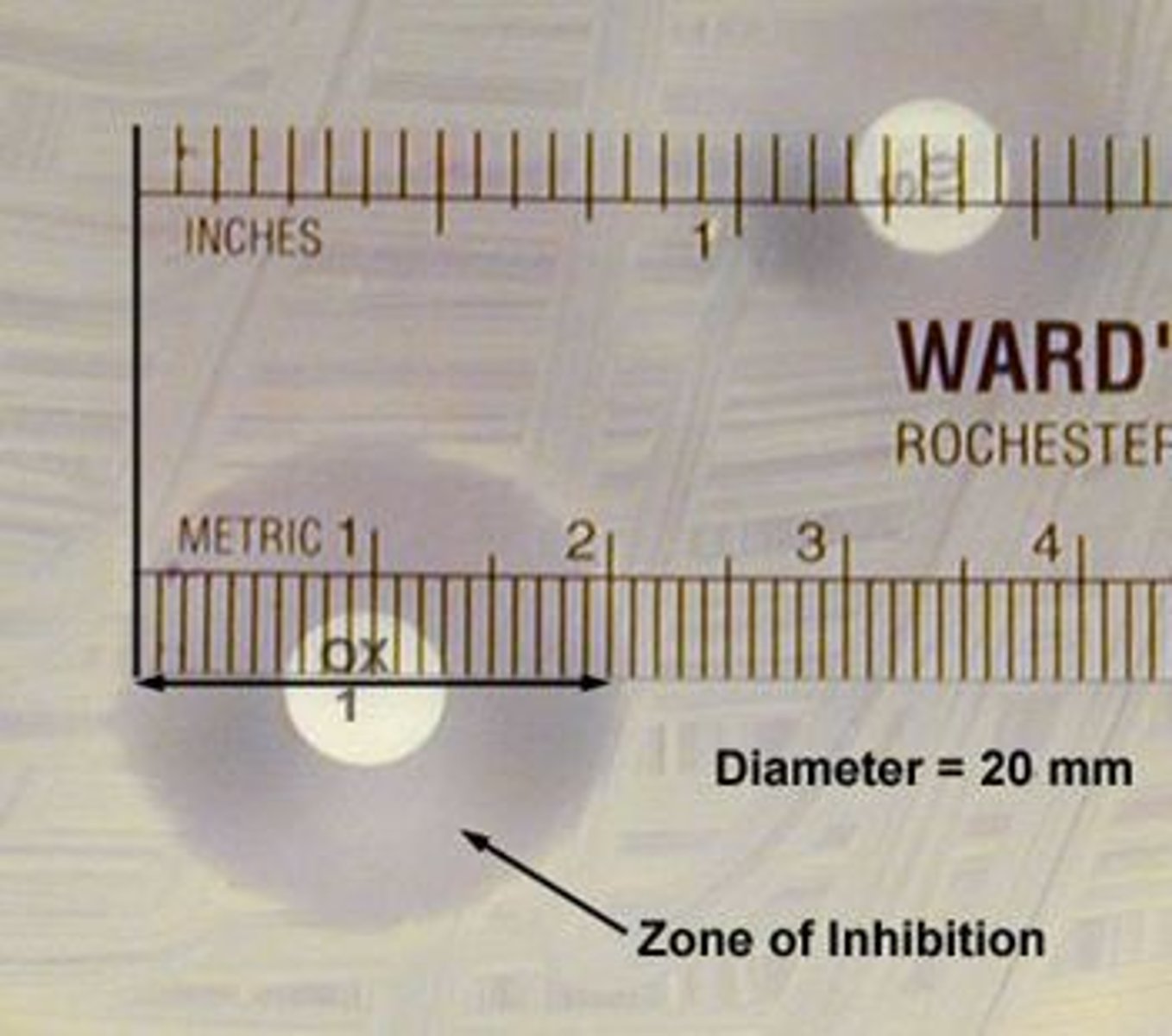

zone of inhibition

Region around a chemical saturated disc, where bacteria are unable to grow due to adverse effects of the compound in the disc.

1. hydrogen peroxide

2. bleach

3. isopropyl alcohol

order these three antibacterial agents from least to most effective (smallest to largest zone of inhibition):

- bleach, isopropyl alcohol, hydrogen peroxide

Bacillus subtilis

what is a bacteria that we have worked with that forms endospores?

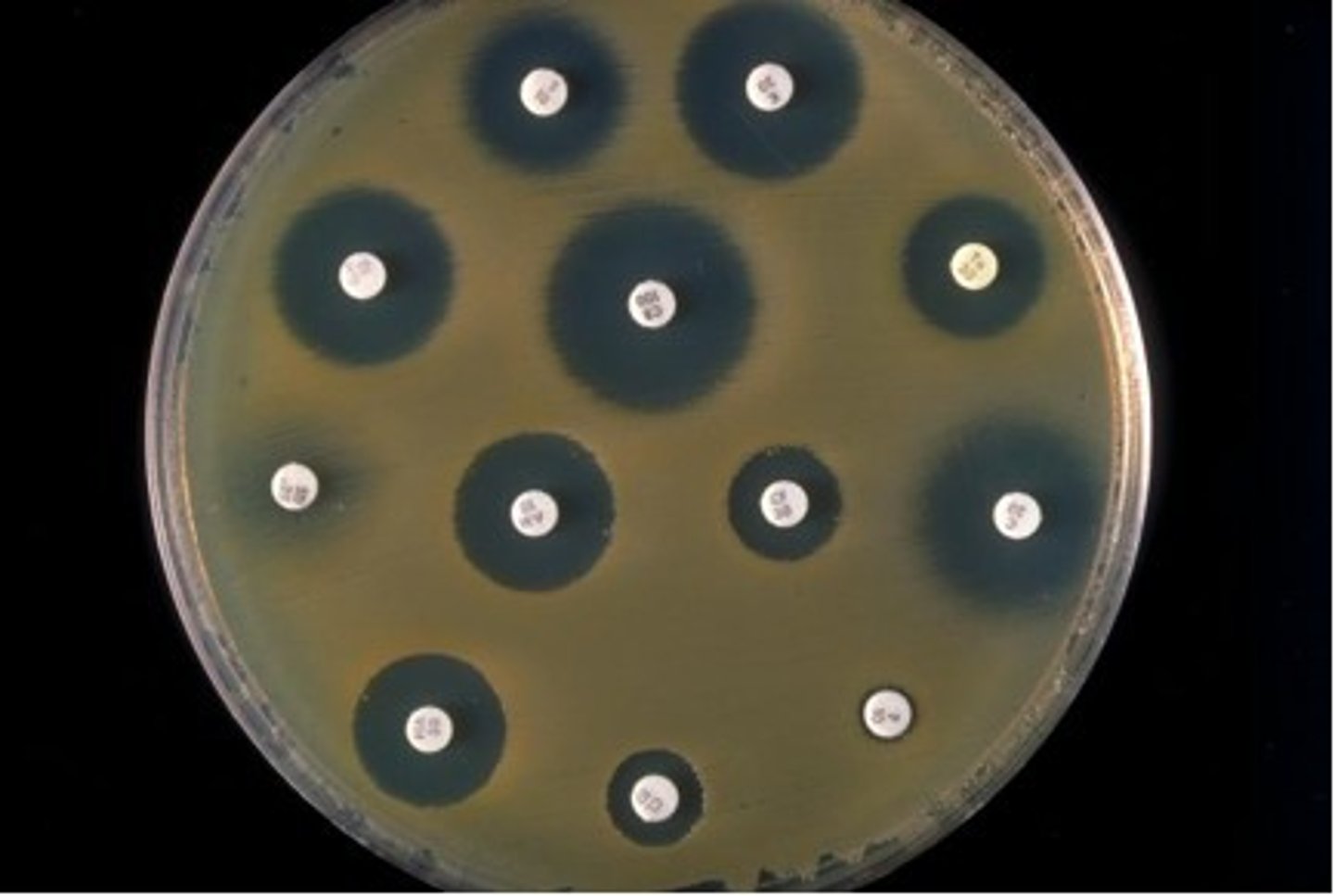

Kirby-Bauer Test

The test to determine the efficacy of antibiotics or the antibiotic resistance of bacteria.

bigger

The more susceptible a bacteria is to an antibiotic, the _____________ the zone of inhibition

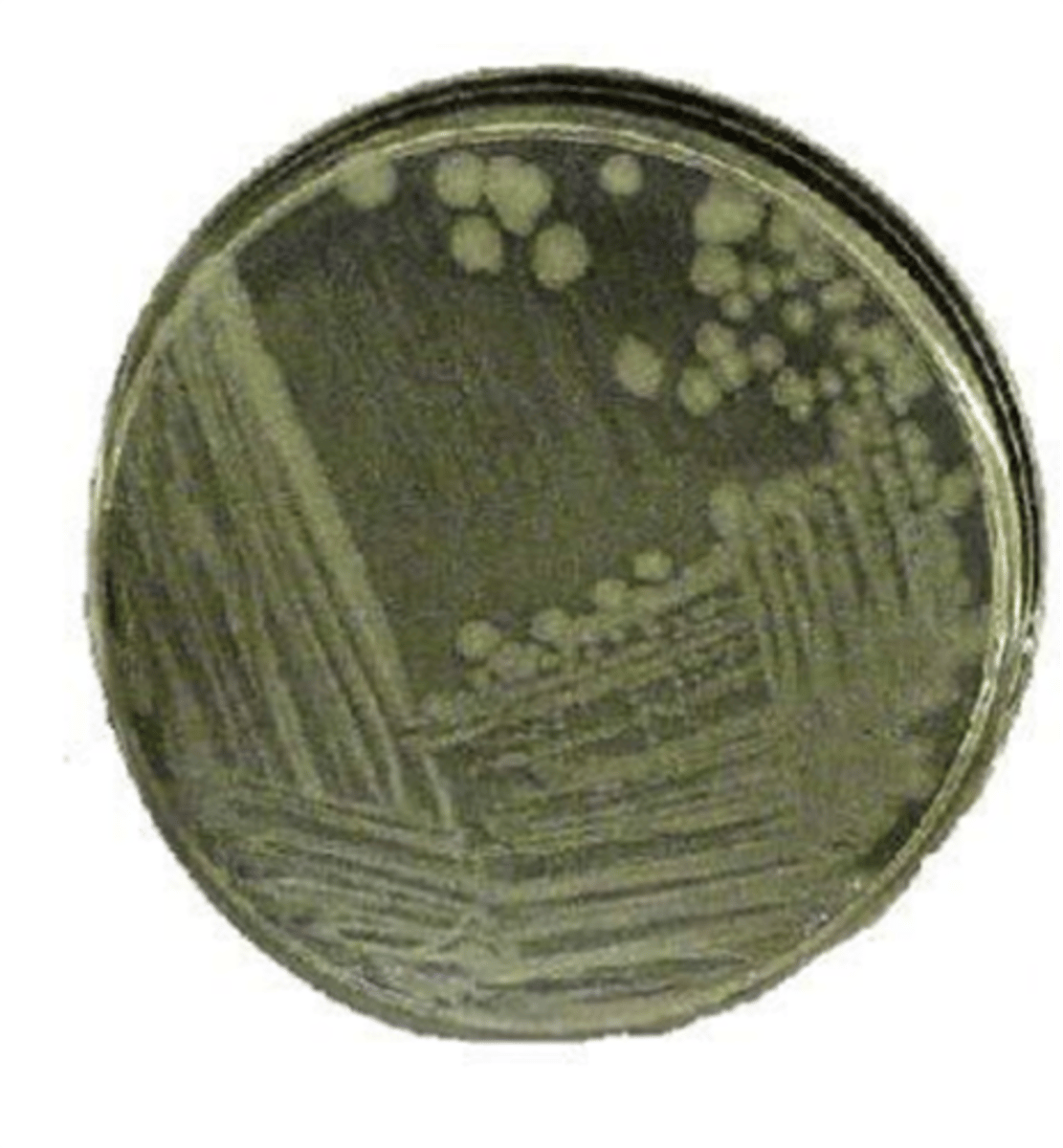

streak-plate isolation

Method used to separate a mixed culture and develop isolated colonies

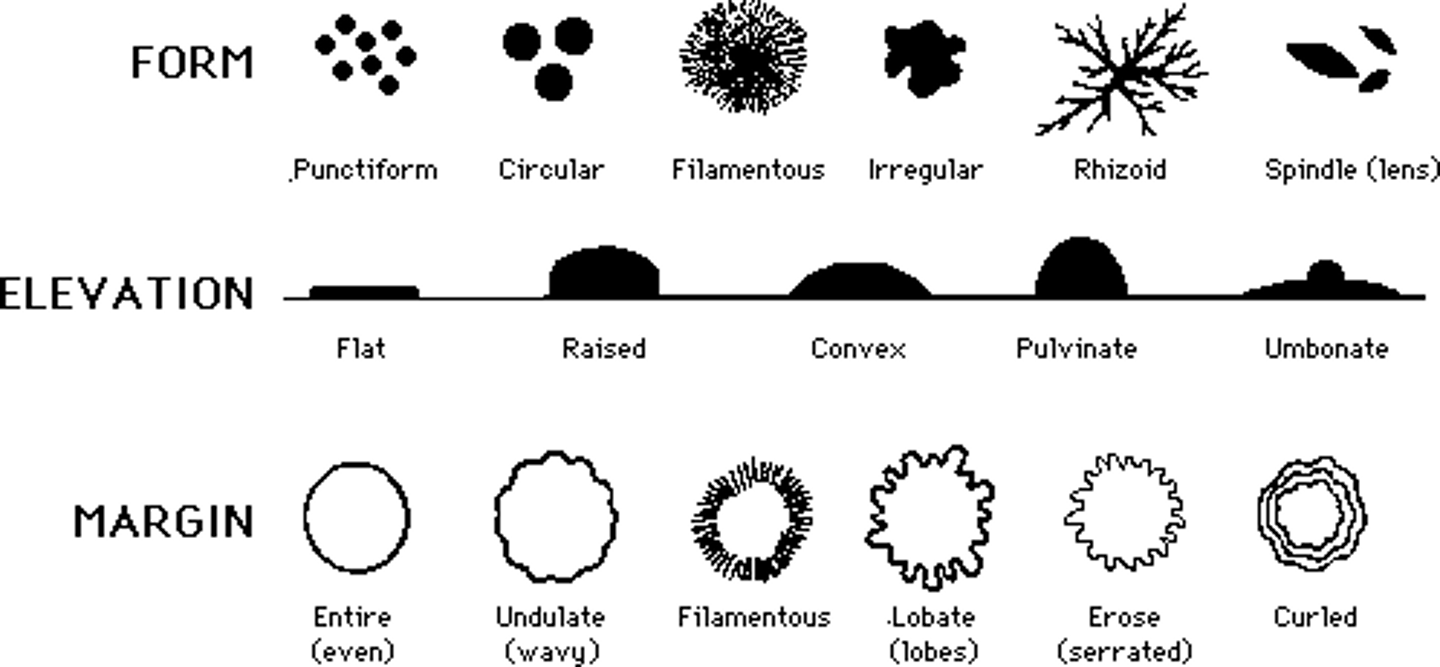

colony morphology

What is one of the most valuable pieces of information provided by streak-plate isolation?

selective medium

a culture medium with an ingredient that inhibits the growth of microbes other than the one being sought

1. select for the growth of one microbe

2. inhibit the growth of any other microbes

what are the two purposes of a selective medium?

Gram-positive cocci

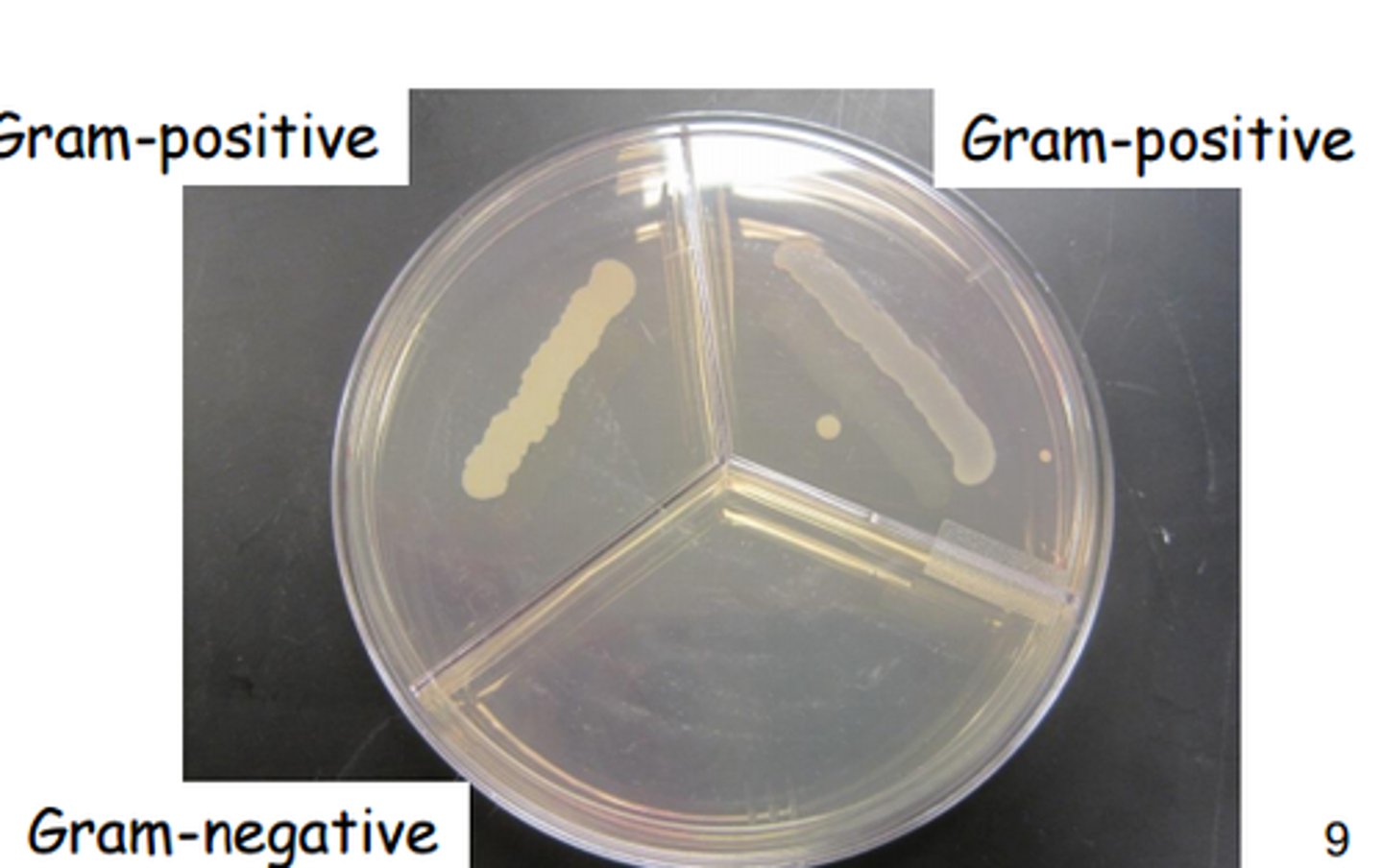

What does Phenylethyl alcohol agar (PEA) select for?

phenylethyl alcohol

What is the selective medium in the PEA medium?

halophilic Staphylococcus spp

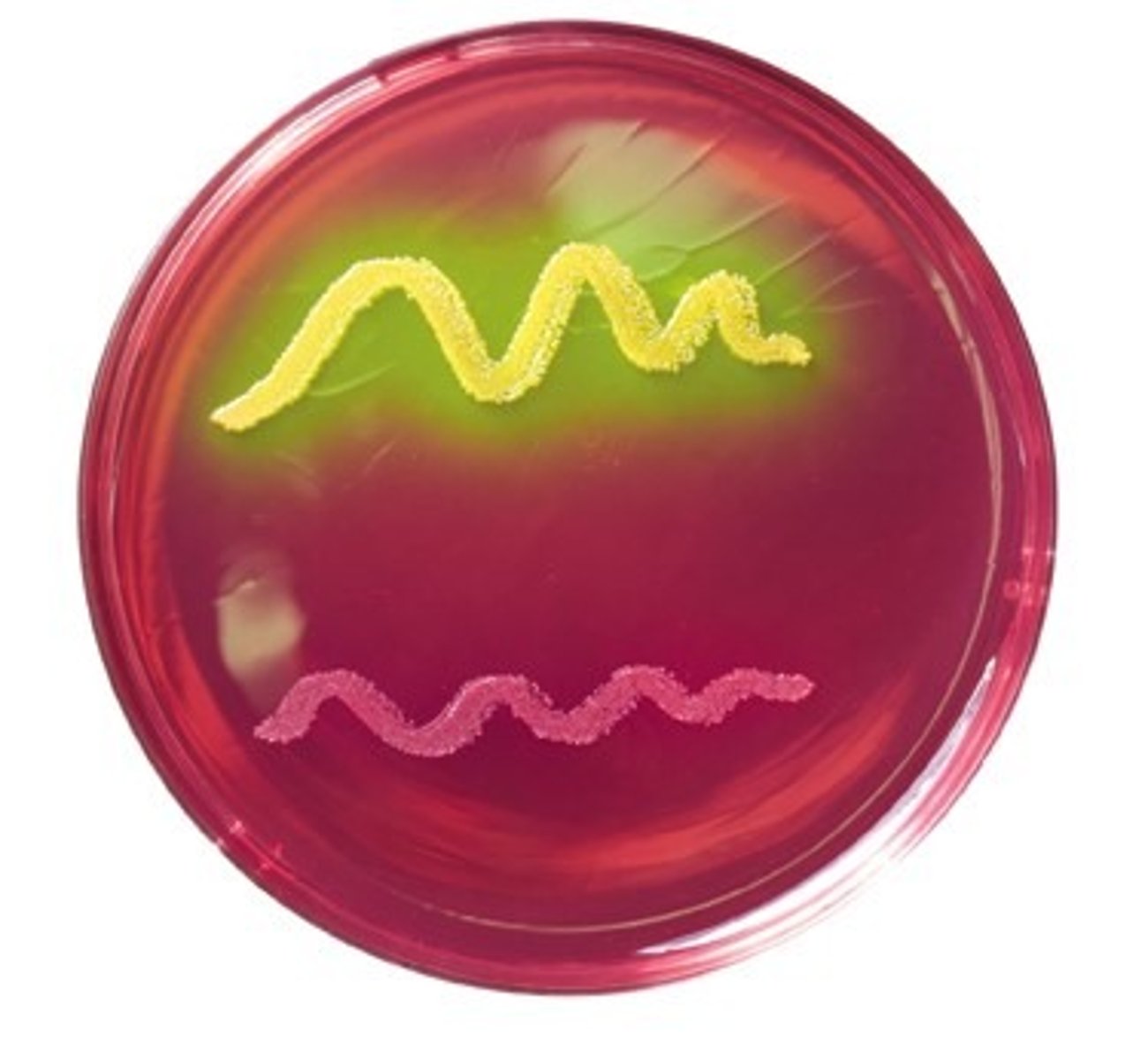

What does the Mannitol Salt Agar (MSA) select for?

Selective:

- has 7.5% NaCl, which inhibits the growth of non-halophiles and selects for halophiles such as staphylococcus spp.

Differential:

- includes the pH indicator phenol red, which differentiates bacteria based on their ability to ferment the carbohydrate mannitol.

What makes the MSA plate selective AND differential?

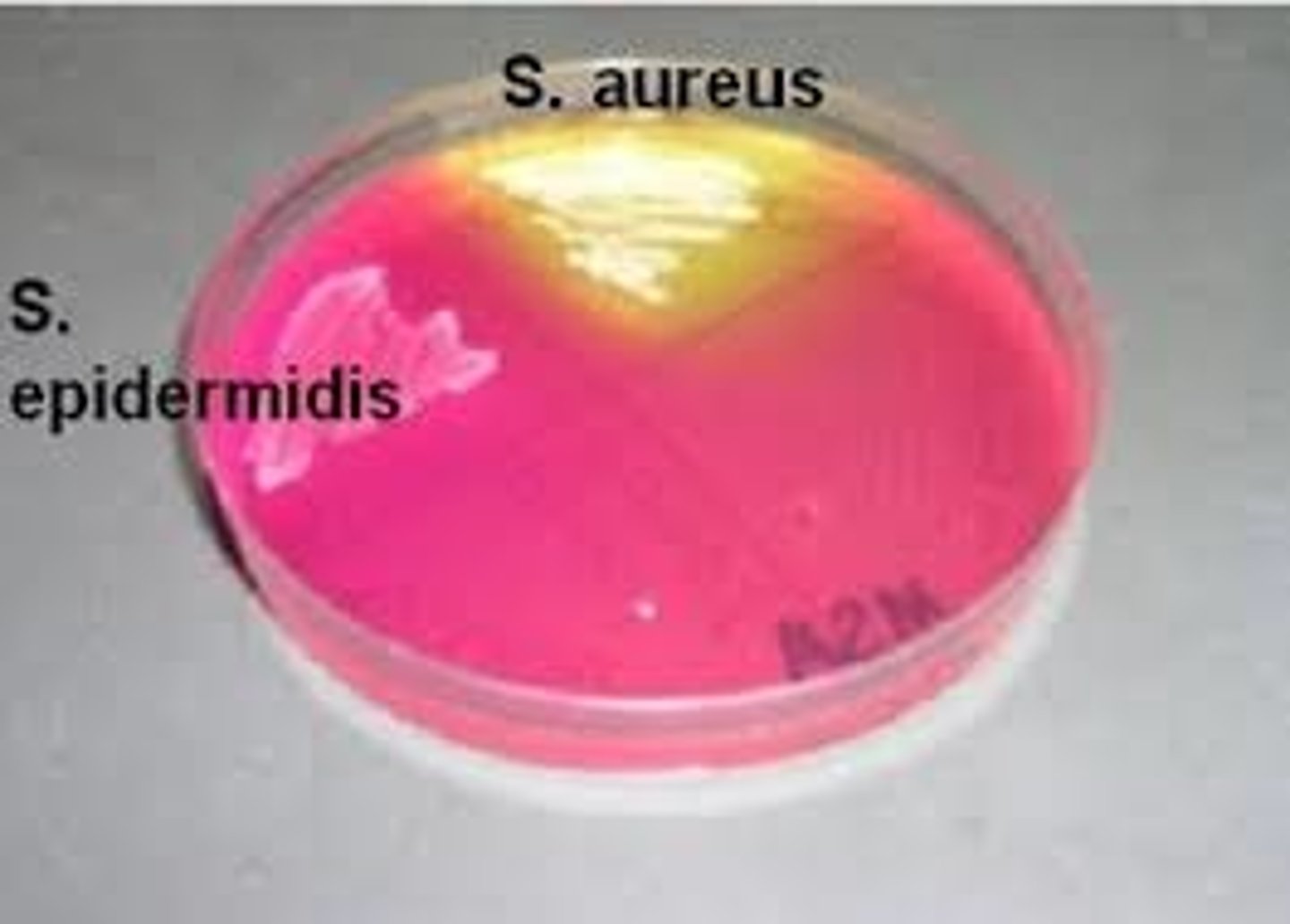

red-to-yellow color change, due to acid production and mannitol fermentation

What are the expected results of Staph aureus streaking on an MSA plate?

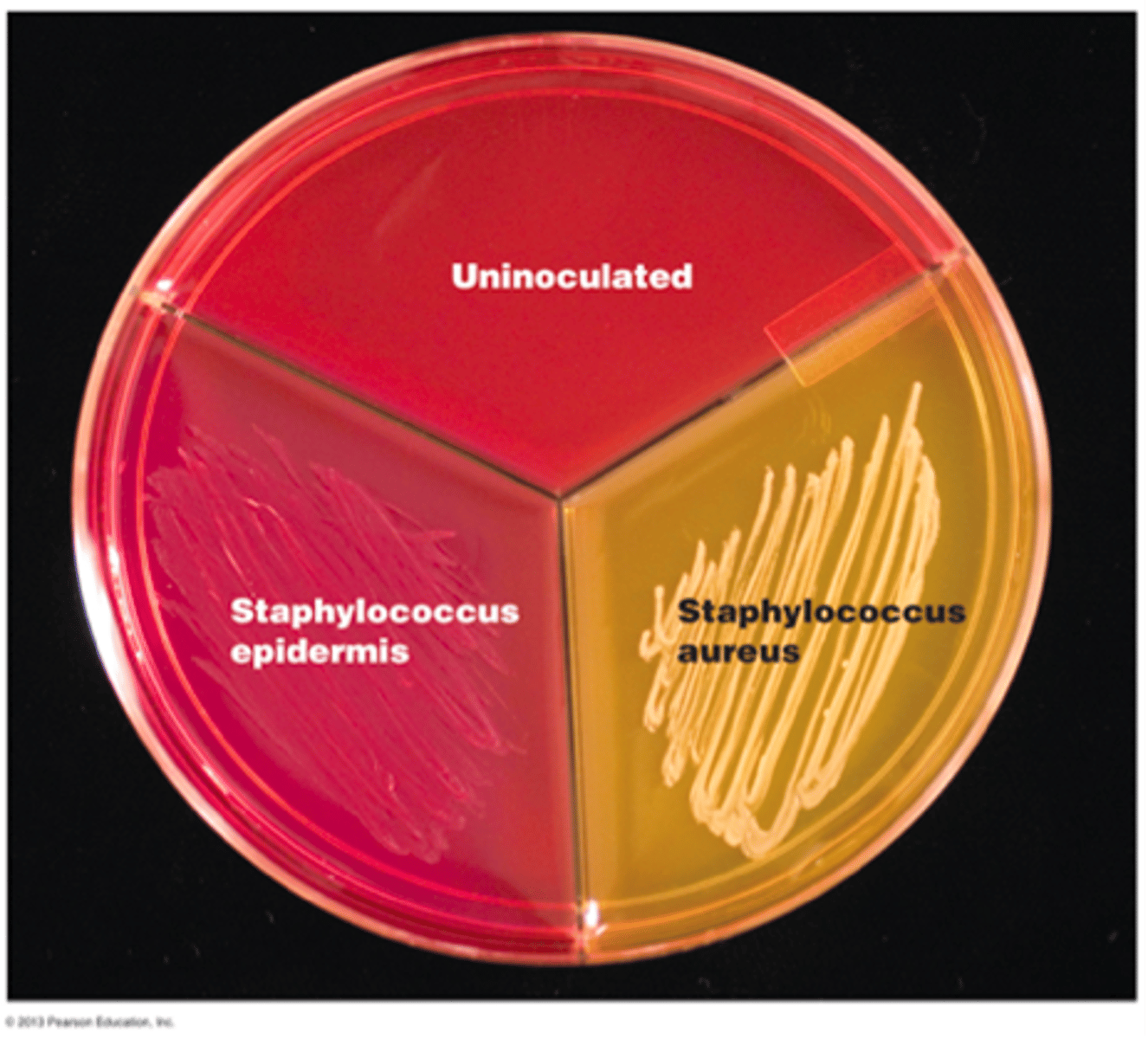

shows up but with no color change, since staph epi does not ferment mannitol

What are the expected results of Staph epi streaking on an MSA plate?

fecal coliforms

What does the Eosin-Methylene Blue Agar (EMB) agar attempt to identify?

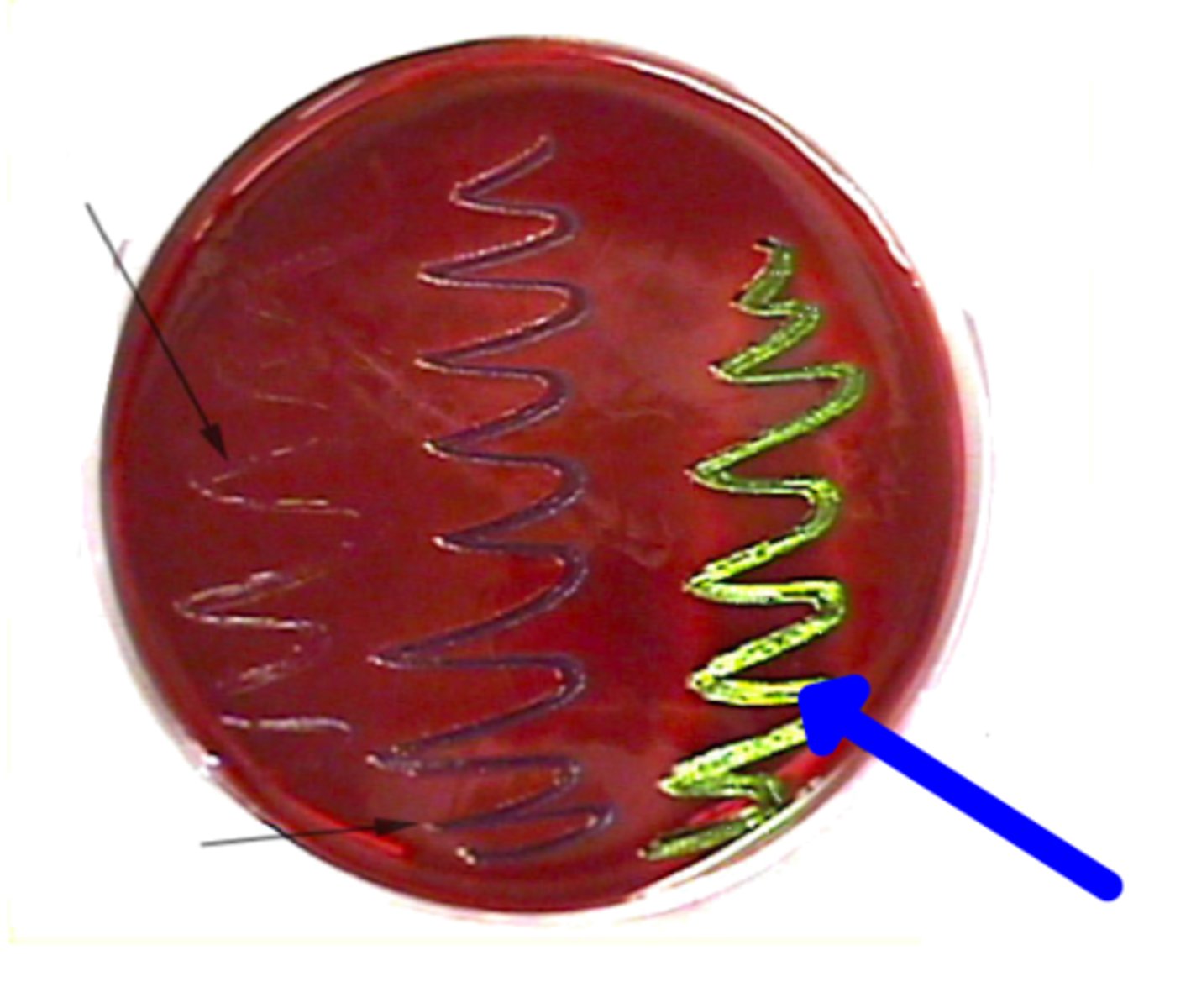

fecal coliform

a group of aerobic or facultatively anaerobic, Gram-negative, non-endospore forming rods that ferment glucose

Selective:

- based on the presence of two dyes, eosin and methylene blue, that moderately inhibit the growth of Gram-positive bacteria

Differential:

- based on their ability to ferment lactose

What makes the Eosin-Methylene Blue Agar (EMB) selective AND differential?

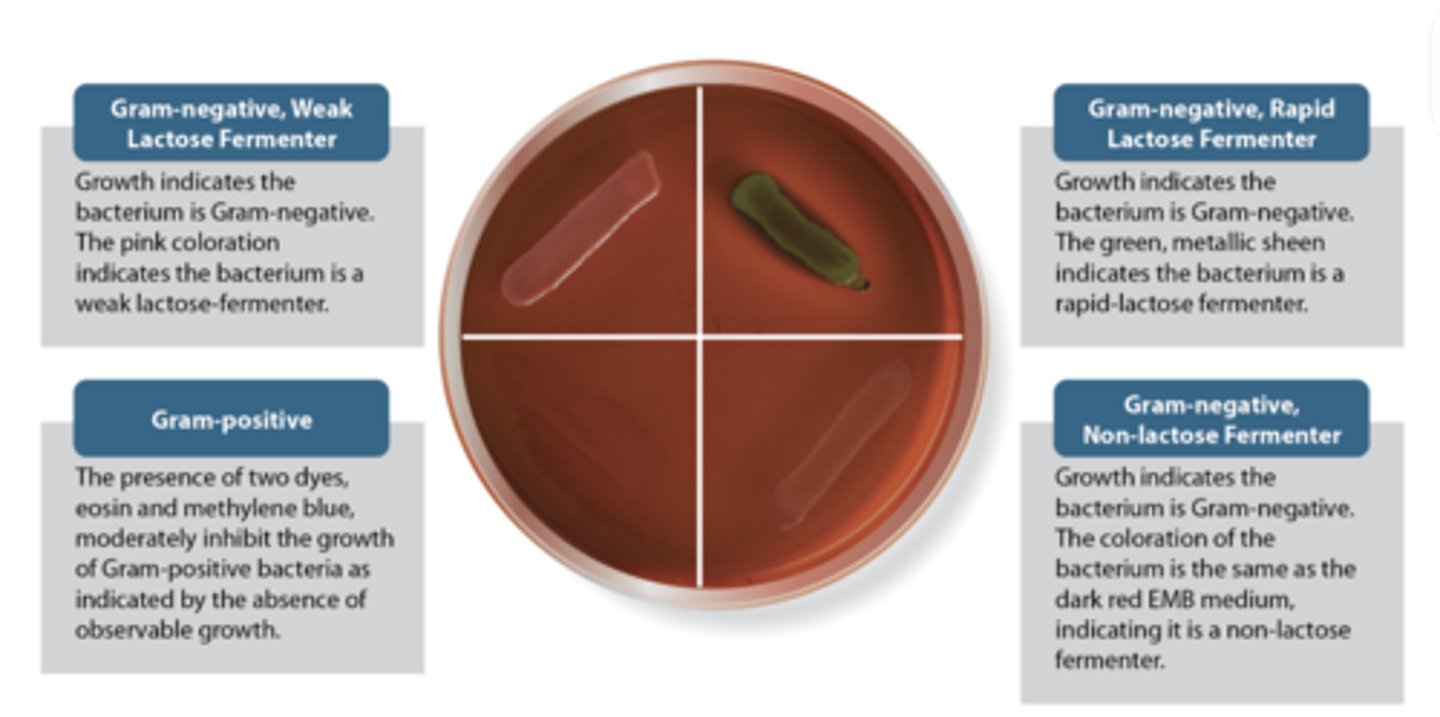

rapid - dark purple or black with a metallic green sheen

weak - bright pink to purple growth

What colors will rapid (strong) and weak lactose fermenters turn on a eosin-methylene blue agar?

fecal coliforms from feces

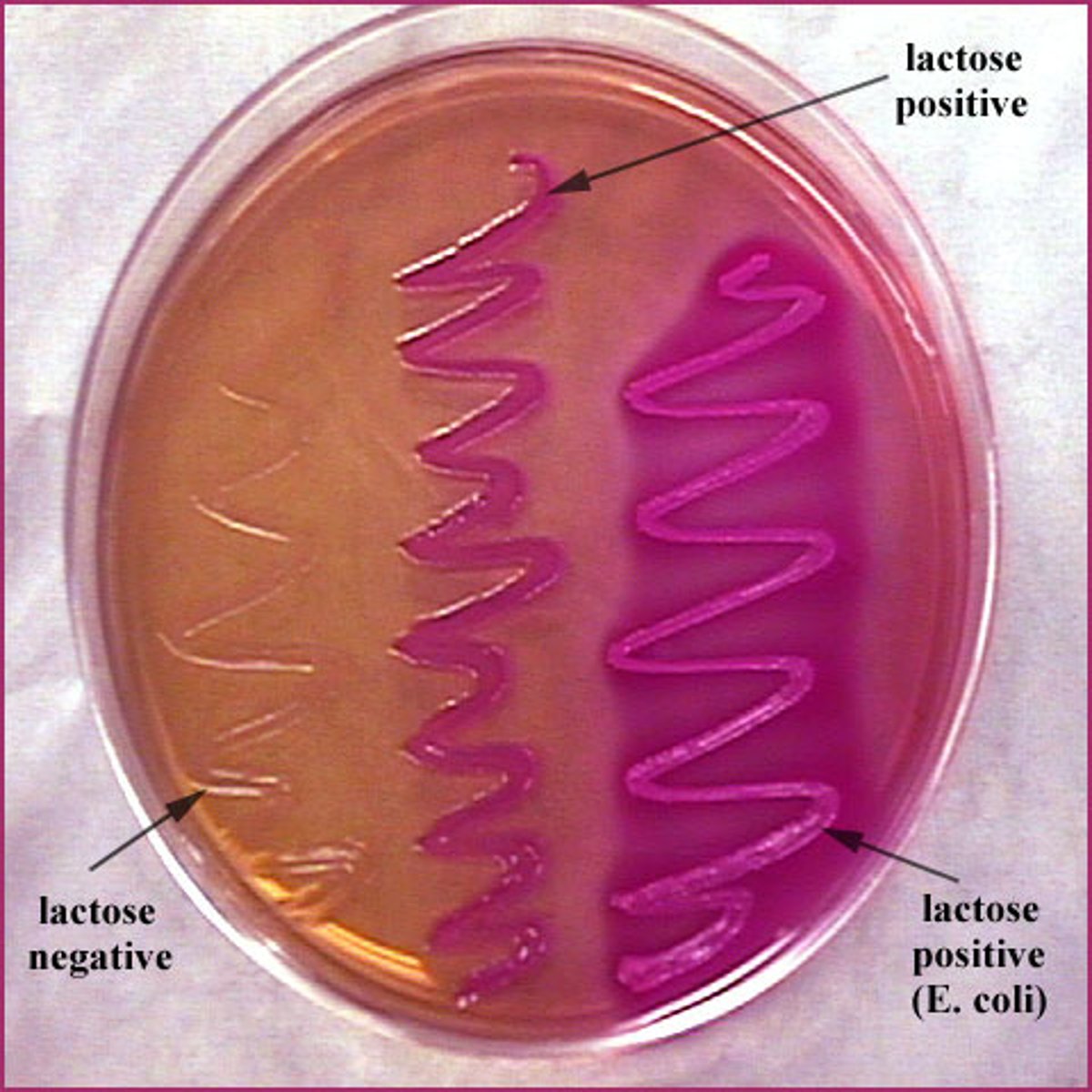

What does the MacConkey agar (MAC) attempt to identify?

Selective:

- the inclusion of crystal violet and bile salts, which inhibit the growth of Gram-positive bacteria

Differential:

- based on their capacity to ferment lactose, and the pH indicator neutral red

What makes MacConkey agar (MAC) selective AND differential?

no

Will the medium (on the MAC agar) change colors if there is no lactose fermentation?

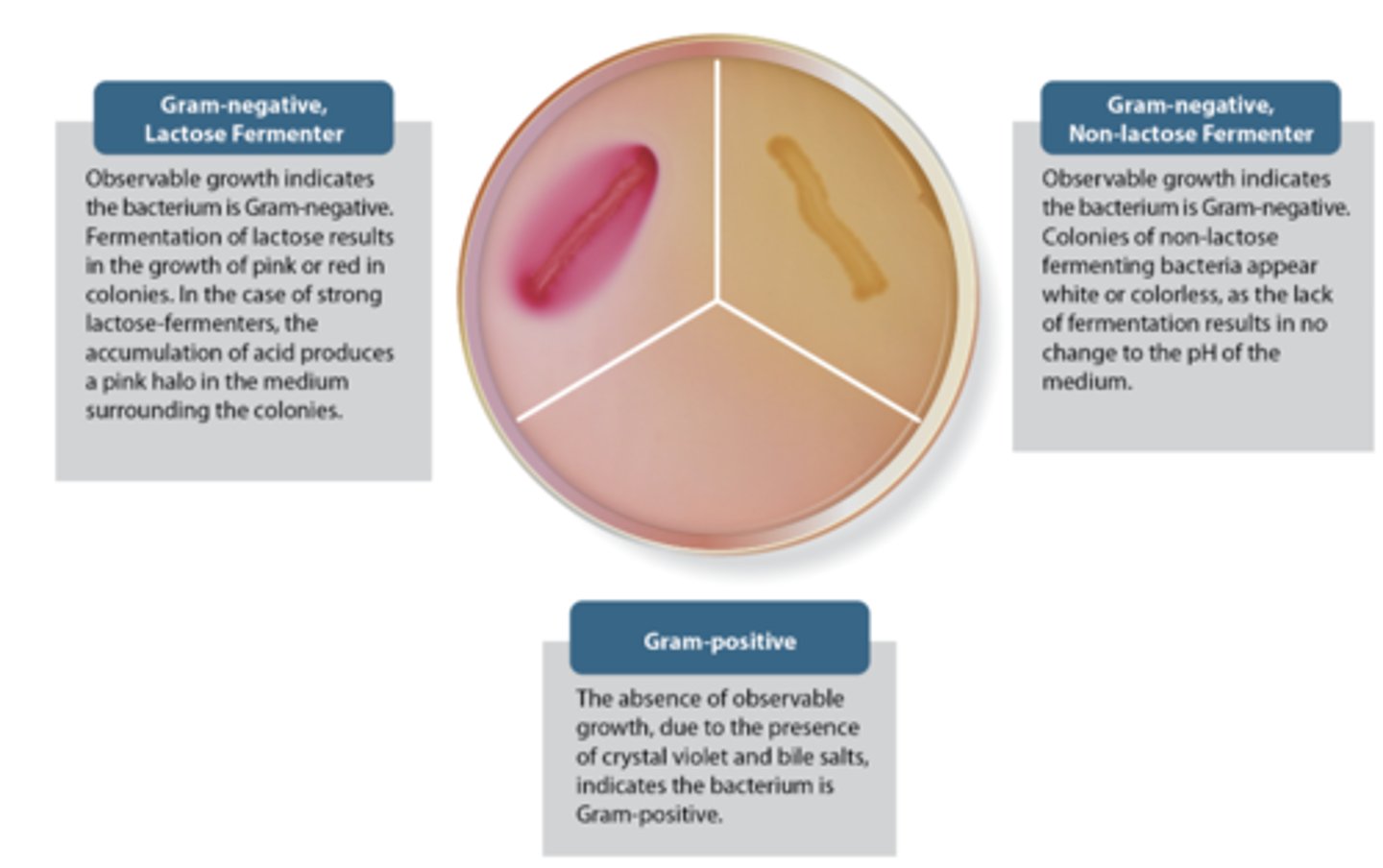

1. gram-negative, non-lactose fermenter (no color change)

2. gram-negative, lactose fermenter (pink color change)

What are the two results that you can get from the MacConkey agar experiment?

fastidious bacteria, including members of the genus Streptococcus

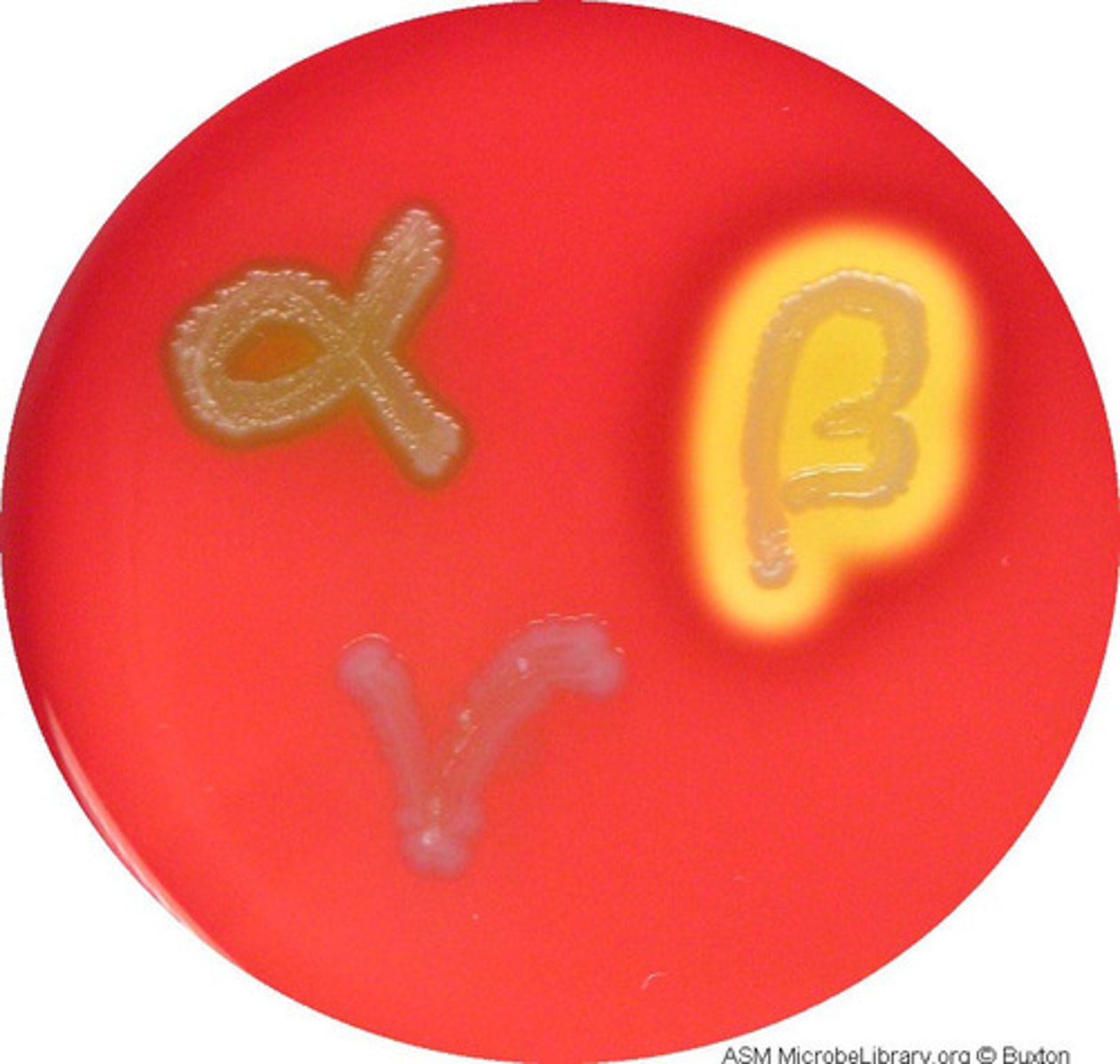

What does blood agar attempt to identify?

Enriched:

- enriched with sheep’s blood to promote the growth of Streptococcus spp

Differential:

- separates bacteria based on their ability to lyse red blood cells.

What makes blood agar enriched and differential?

1. beta-hemolysis

2. alpha-hemolysis

3. gamma-hemolysis

What are the three types of hemolysis observed in blood agar?

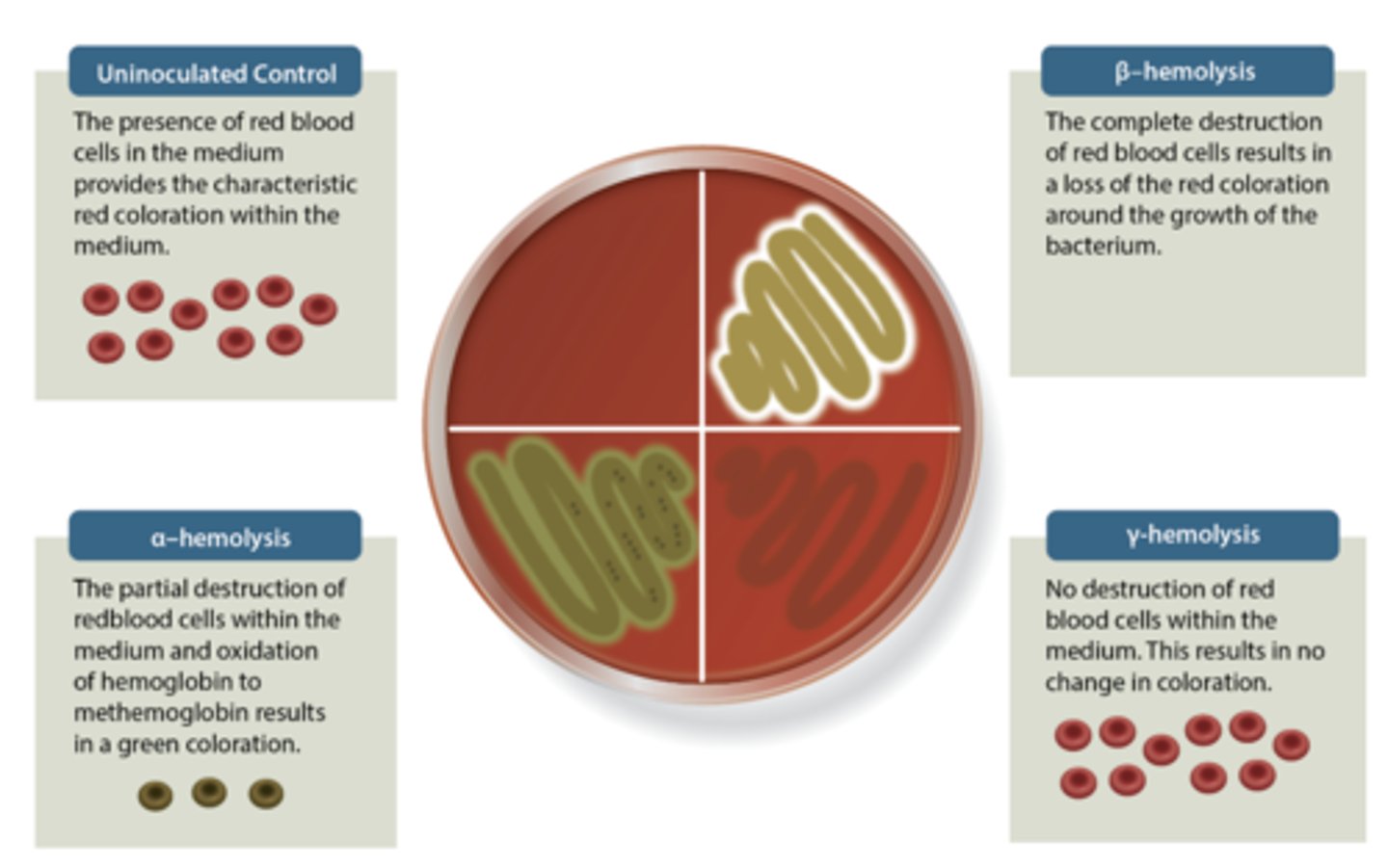

beta-hemolysis

- loss of red coloration due to complete destruction of RBCs

alpha-hemolysis

- green coloration due to partial destruction and hemoglobin oxidation

gamma-hemolysis

- no color change due to no destruction

What do the results of each type of hemolysis look like on the blood agar?

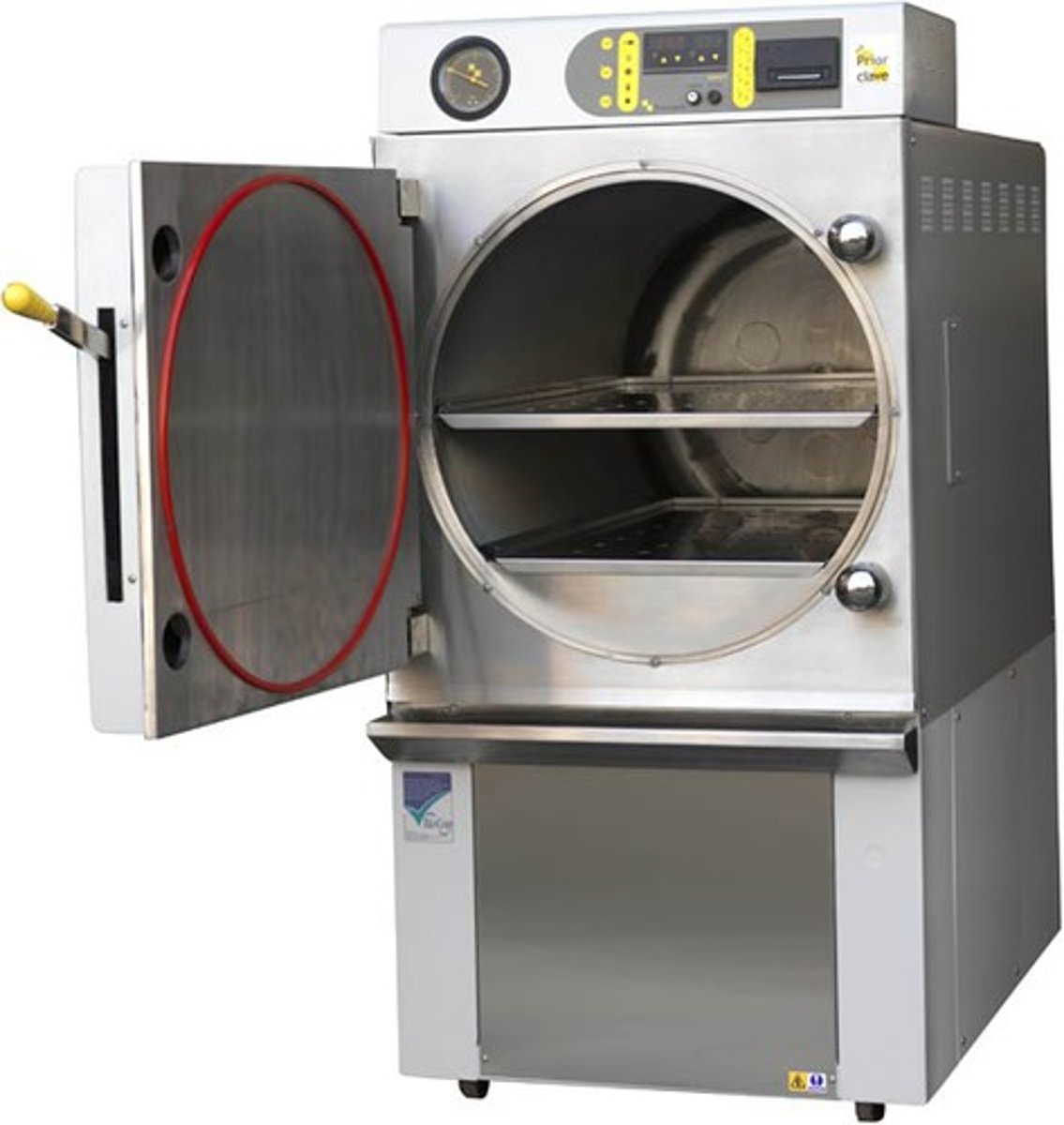

autoclave

how is media sterilized?

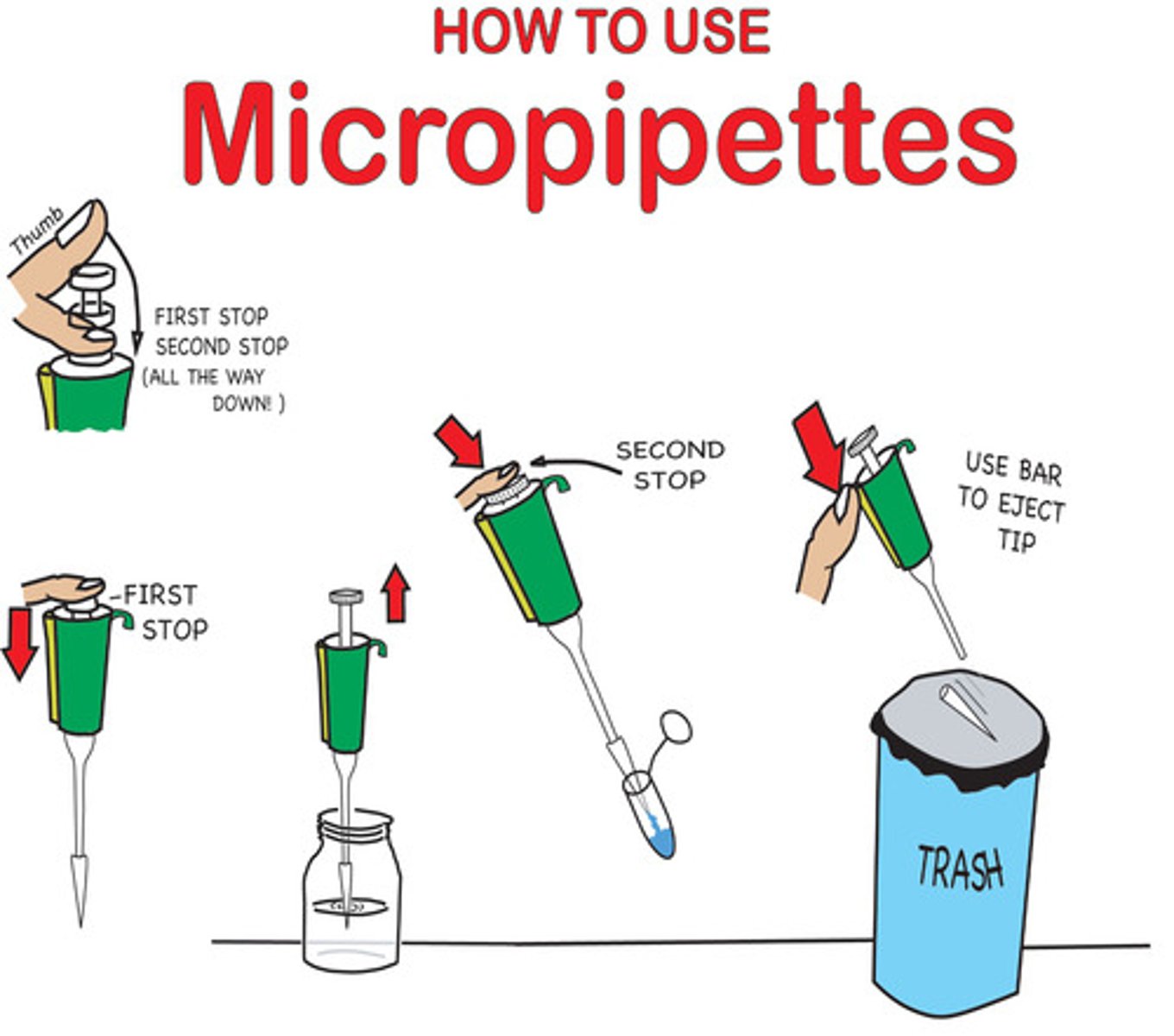

how to use a pipette

1. Apply a new tip to the pipette

2. Press to 1st stop and release to draw liquid in

3. Press to 2nd stop to expel liquid

4. Remove from sample before you release!

5. Press button to eject tip

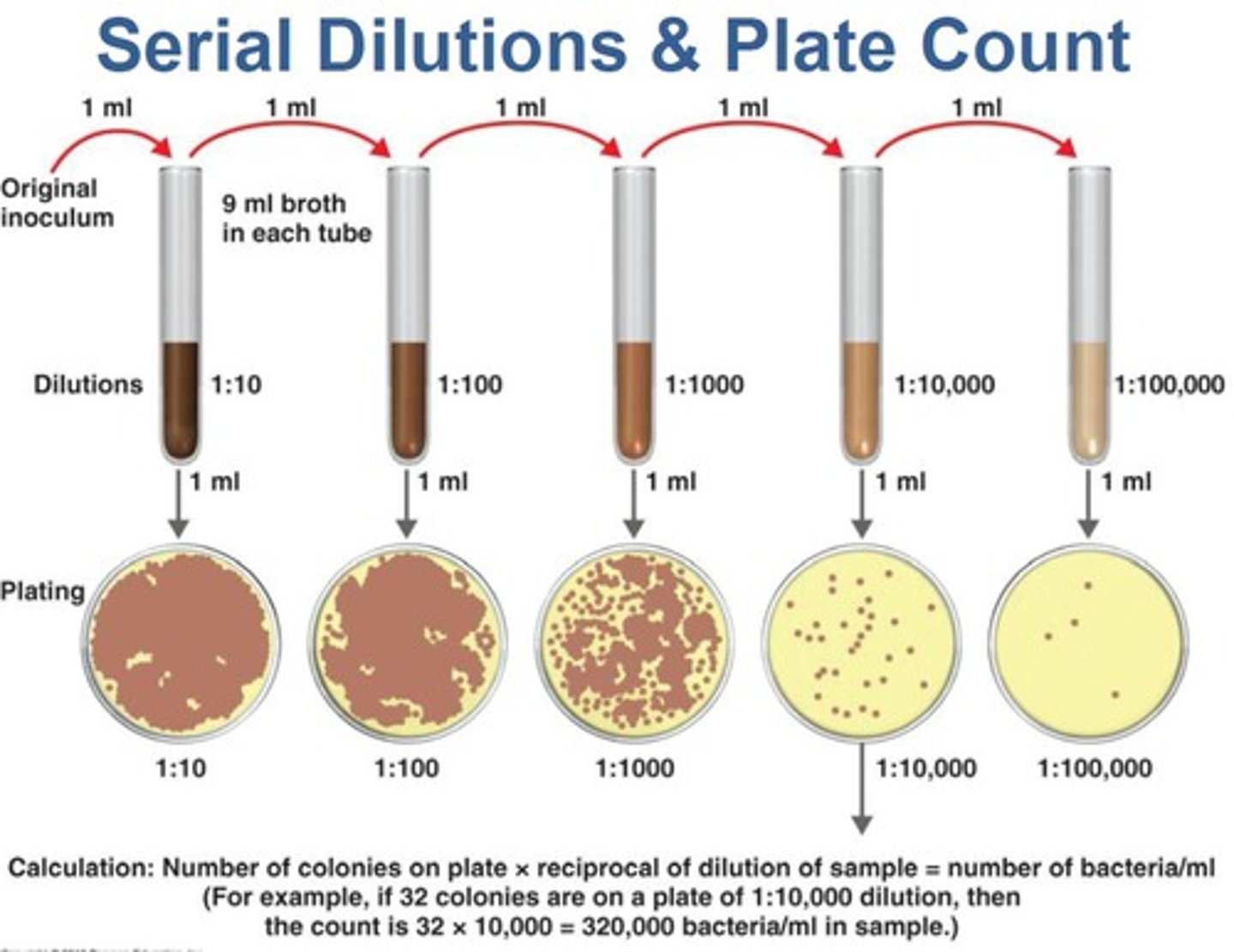

serial dilution

Dilution of a substance several times by the same amount each time

1. grab a certain number of tubes (ex. 4) and label them

2. add a sterile dilutant to each of the tubes

3. add a bacteria culture to the first tube

4. mix the tube by flicking or making a vortex

5. take 1 mL from that tube and add it to the next, repeating this step until you get to the last tube.

how do you complete a serial dilution?

Number of colonies​/volume plated (mL) x dilution factor

what is the formula for CFU/mL of cultures?
