Biopsychology Lab Practical Exam - Structures

sheep brain structure identification

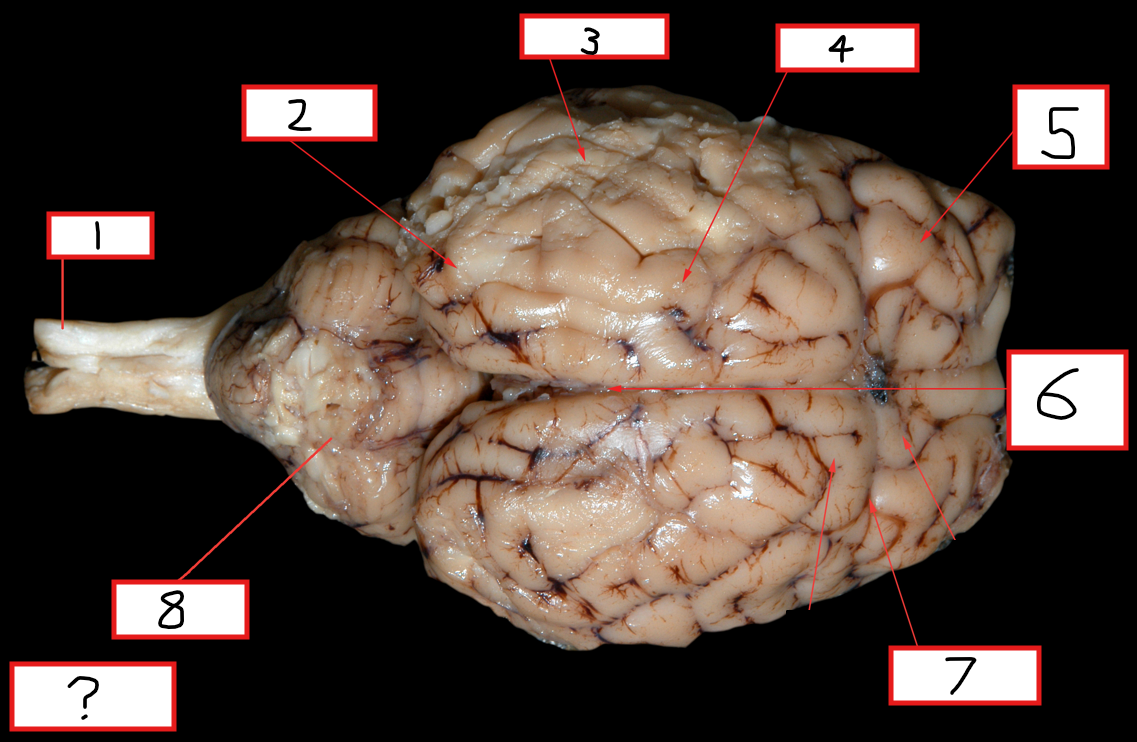

1?

brain stem

2?

occipital lobe

3?

temporal lobe

4?

parietal lobe

5?

frontal lobe

6?

midsagittal fissure

7?

central sulcus

8?

cerebellum

view?

dorsal

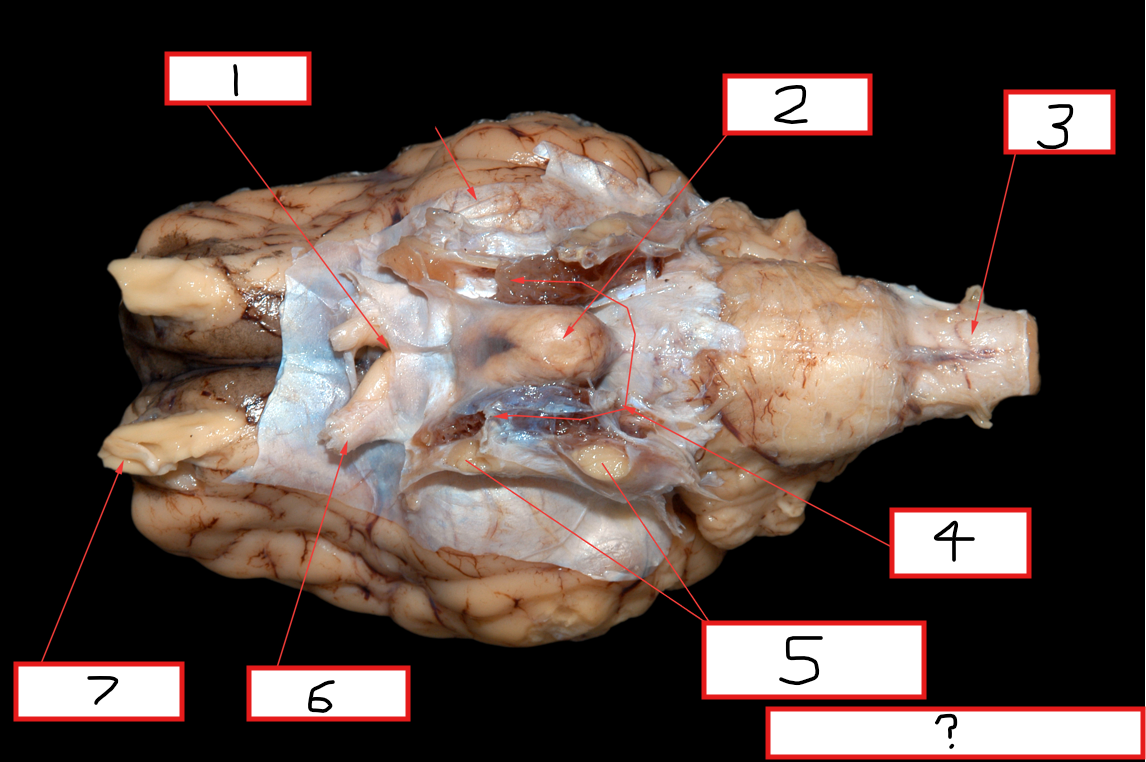

1?

optic chiasm

2?

pituitary gland

3?

brain stem

4?

circle of willis

5?

trigeminal nerve (V)

6?

optic nerve (II)

7?

olfactory bulb (I)

view?

ventral (with dura)

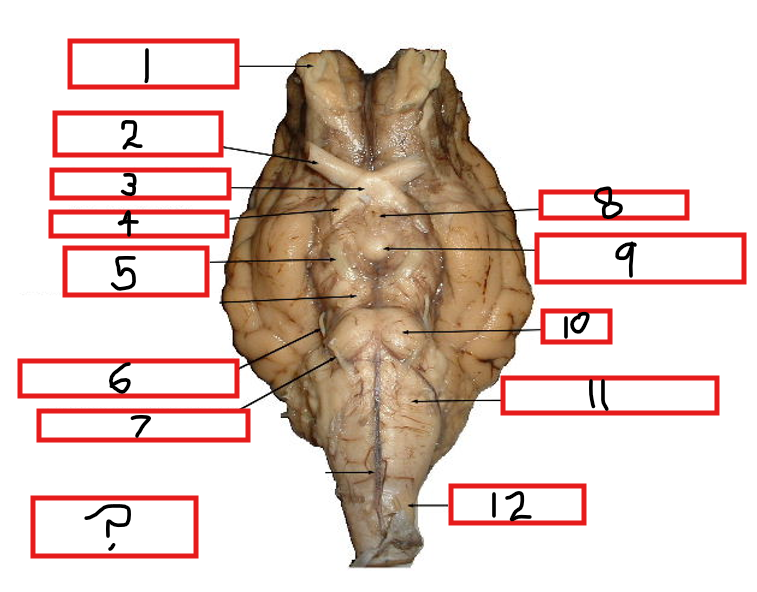

1?

olfactory bulb

2?

optic nerve (II)

3?

optic chiasm (A)

4?

optic tract

5?

oculomotor nerve (III)

6?

trochlear nerve (IV)

7?

abducens nerve (VI)

8?

infundibulum

9?

mammillary bodies of hypothalamus

10?

pons

11?

medulla oblongata

12?

spinal cord

view?

ventral

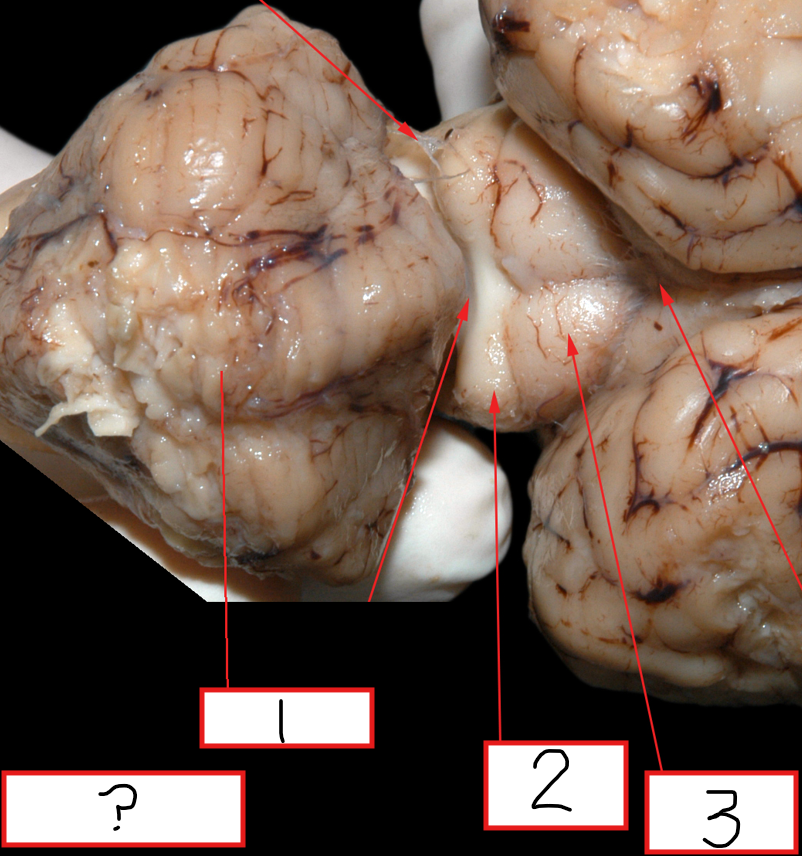

1?

cerebellum

2?

inferior colliculus

3?

superior colliculus

view?

tectum

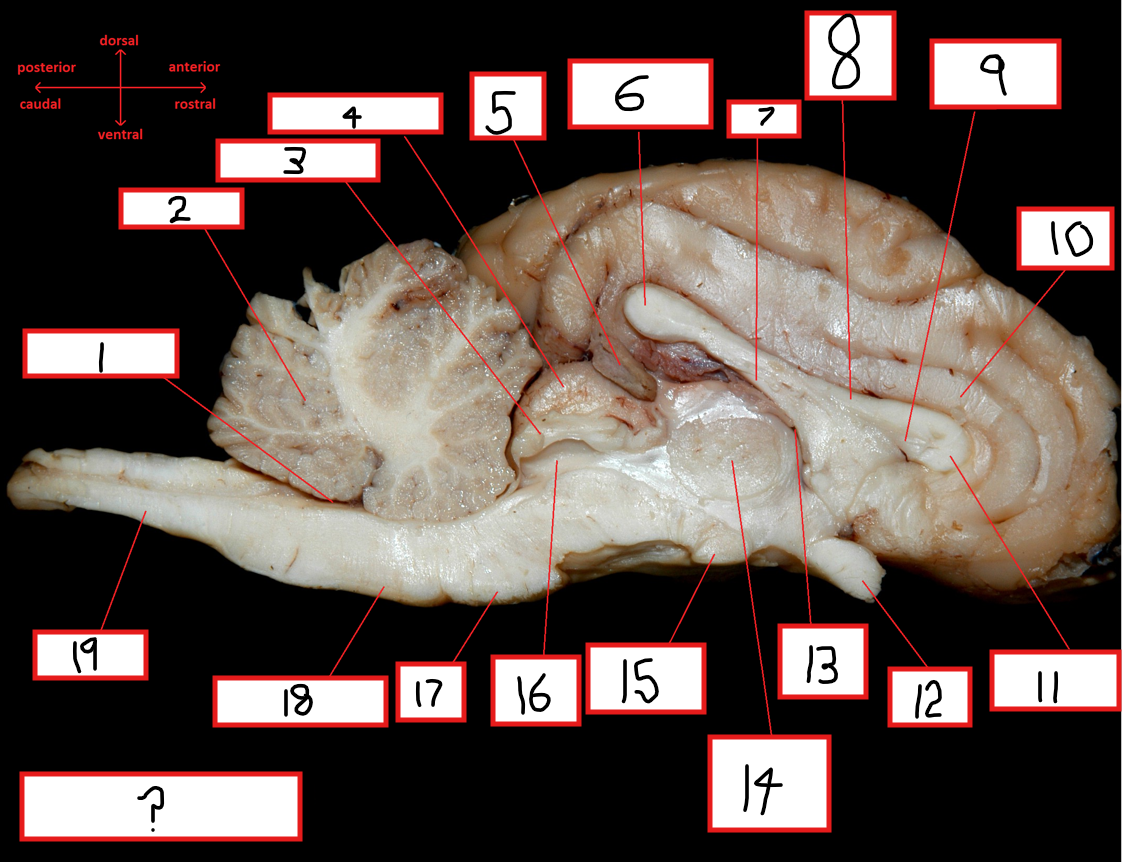

1

fourth ventricle

2

cerebellum

3

inferior colliculus

4

superior colliculus

5

pineal body

6

splenium of corpus callosum

7

fornix

8

body of corpus callosum

9

septum pellucidum

10

cingulate gyrus

11

genu of corpus callosum

12

optic chiasma

13

third ventricle

14

massa intermedia of thalamus

15

mammillary body

16

cerebral aqueduct

17

pons

18

medulla oblongata

19

spinal cord

view?

mid-sagittal

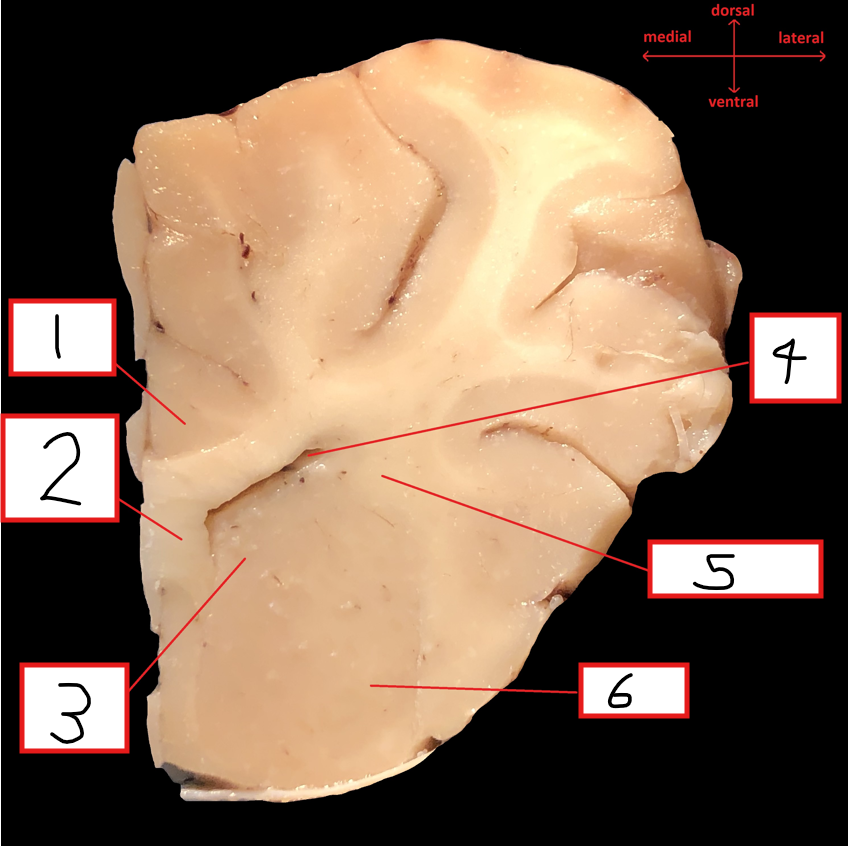

1

cingulate gyrus

2

genu of the corpus callosum

3

head of caudate

4

lateral ventricle

5

internal capsule

6

putamen

view?

A

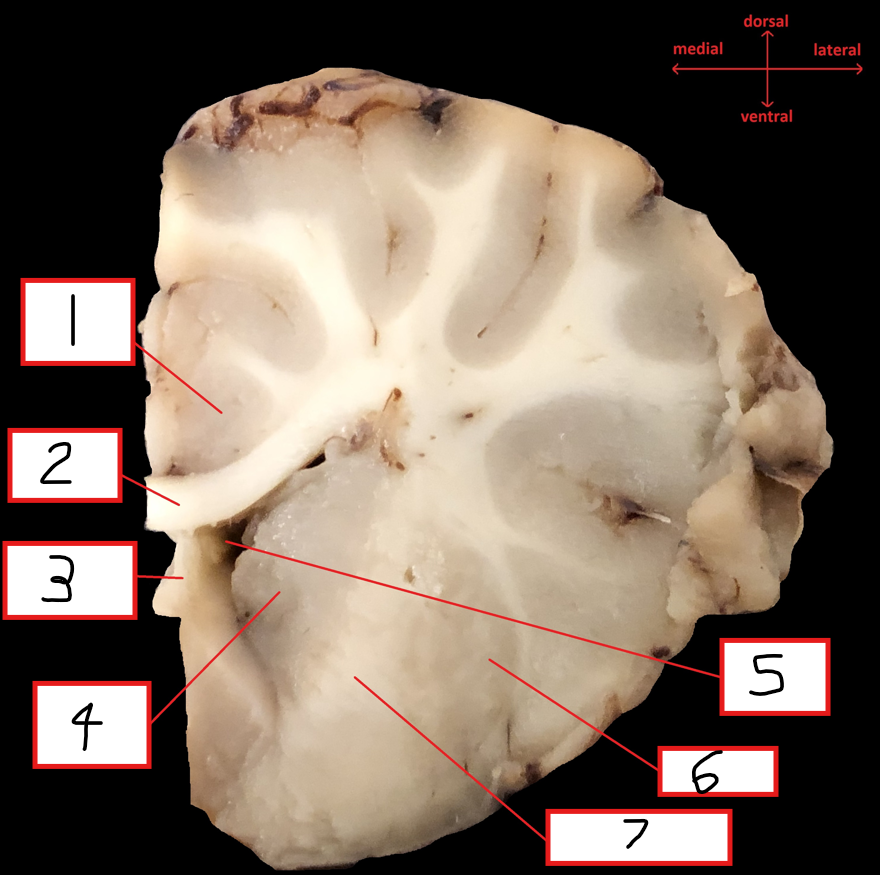

1

cingulate gyrus

2

corpus callosum

3

septum pellucidum

4

head of caudate

5

lateral ventricle

6

putamen

7

internal capsule

view?

B

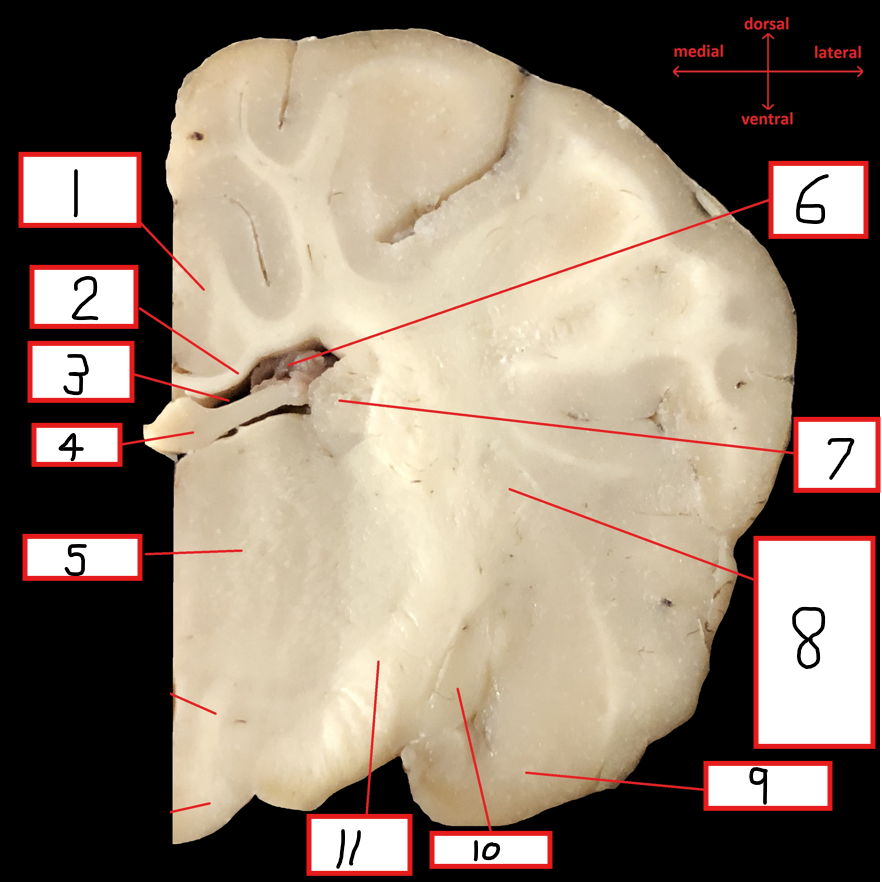

1

cingulate gyrus

2

corpus callosum

3

lateral ventricle

4

fornix

5

thalamus

6

choroid plexus

7

tail of caudate

8

lenticular nucleus (putamen & globus pallidus)

9

amygdala

10

optic tract

11

internal capsule

view?

D

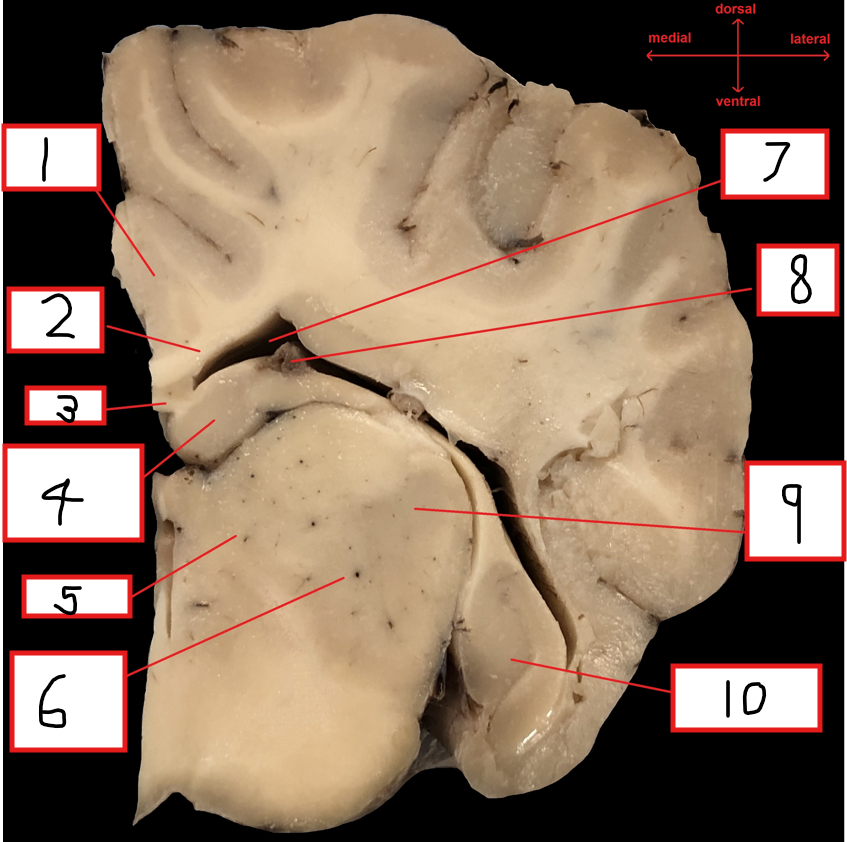

1

cingulate gyrus

2

corpus callosum

3

fornix

4

dentate gyrus of hippocampus

5

thalamus

6

medial geniculate body

7

lateral ventricle

8

choroid plexus

9

lateral geniculate body

10

ventral hippocampus

view?

F
