Module 11 - Single Ventricle

Define a single ventricle.

Only one ventricle is of adequate size due to hypoplasia of AV valve or ventricle.

List some conditions that a single ventricle repair is required.

• Tricuspid atresia (blocked TV)

• Hypoplastic left heart syndrome

• Double inlet LV (L-loop with double inlet)

• Severe Ebstein’s

• Unbalanced AVSD

Describe Fontan flow.

Passive flow to the lungs, single ventricle systemically pumps.

Describe the classic Fontan procedure.

1. Anastomose RA appendage to PA

2. Close connection from RA-RV and IAS

Describe hemodynamic consequences of the classic Fontan repair.

• RA dilation

• Blood stasis

• Arrhythmias

Describe stage 1 of the modified Fontan repair. When is this repair done and why?

Stage 1 (BDG shunt) at 4-6 months. Done after PA pressure drops.

1. Anastomosis of SVC to RPA

2. Close MPA

3. Remove IAS (ASD)

4. IVC still connected to RA

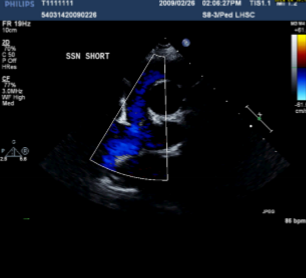

Describe the findings of this image.

Anastomosis between SVC and RPA → BDG shunt

Define the BDG shunt.

Bidirectional Glenn shunt. Connects the SVC to the RPA.

Describe stage 2 of the modified Fontan repair. When is this repair done and why?

Stage 2 at 2 years old.

1. Fenestration between conduit and RA

2. Connection between IVC and pulmonary arteries

3. Close fenestration via catheter

Explain why a fenestration is necessary between a conduit and RA.

If pressure in the pulmonary arteries increases during surgery or before healing, the fenestration allows a R-L shunt. This maintains CO until it can be repaired.

How is an intracardiac vs extracardiac conduit baffles be differentiated on echo?

Difficult to differentiate.

Both are seen posterior to the atria.

Both have low velocity biphasic forward flow.

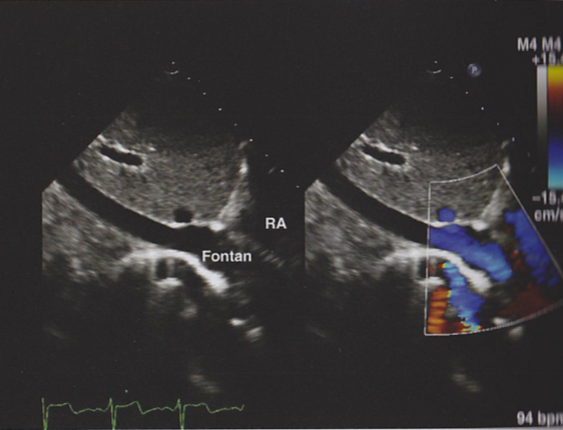

Describe the findings in this image.

Extracardiac conduit seen traveling behind the RA. Good forward flow.

A newborn patient is showing signs of cyanosis. Upon echo, pulmonary atresia with an intact IVS is found. What is the recommended treatment?

Cannot wait 4-6 months for BDG shunt.

Ductal dependent lesion but cant keep on prostaglandins that long.

BT shunt.

Describe a BT shunt.

1. RSA to RPA shunt to provide BF to lungs

2. Remove the BT shunt when Glenn performed at 4-6 months

What is the expected velocity through a T shunt?

High velocity because there is a large PG (systemic-pulmonary).

Describe the Norwood procedure. When is this repair done and why.

Norwood procedure at newborn period. Done for hypoplastic left heart syndrome.

Stage 1

1. MPA disconnected from branch PAs

2. Combine Ao and MPA to create neo-Ao

3. BT shunt to supply lungs

Stage 2 - Glenn repair at 4-6 months

Stage 3 - Fontan completion at 2 years

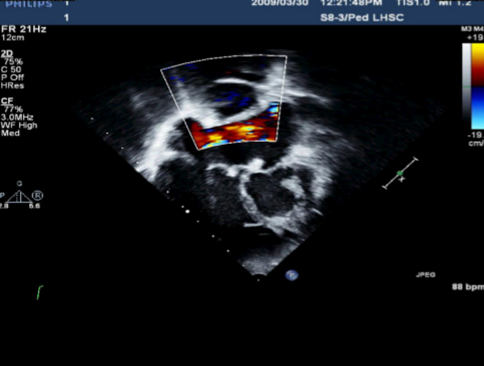

Describe the findings of this image.

No fenestration between extracardiac conduit and atrias.

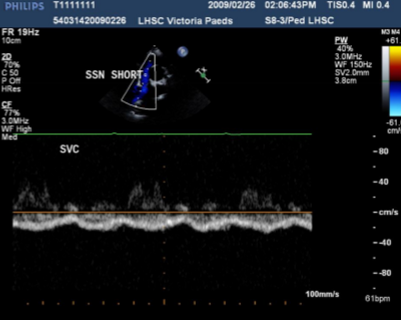

Describe the findings of this image.

Biphasic low velocity flow in a Glenn shunt.

Connection between RPA and SVC.
