16 Terms

1
New cards

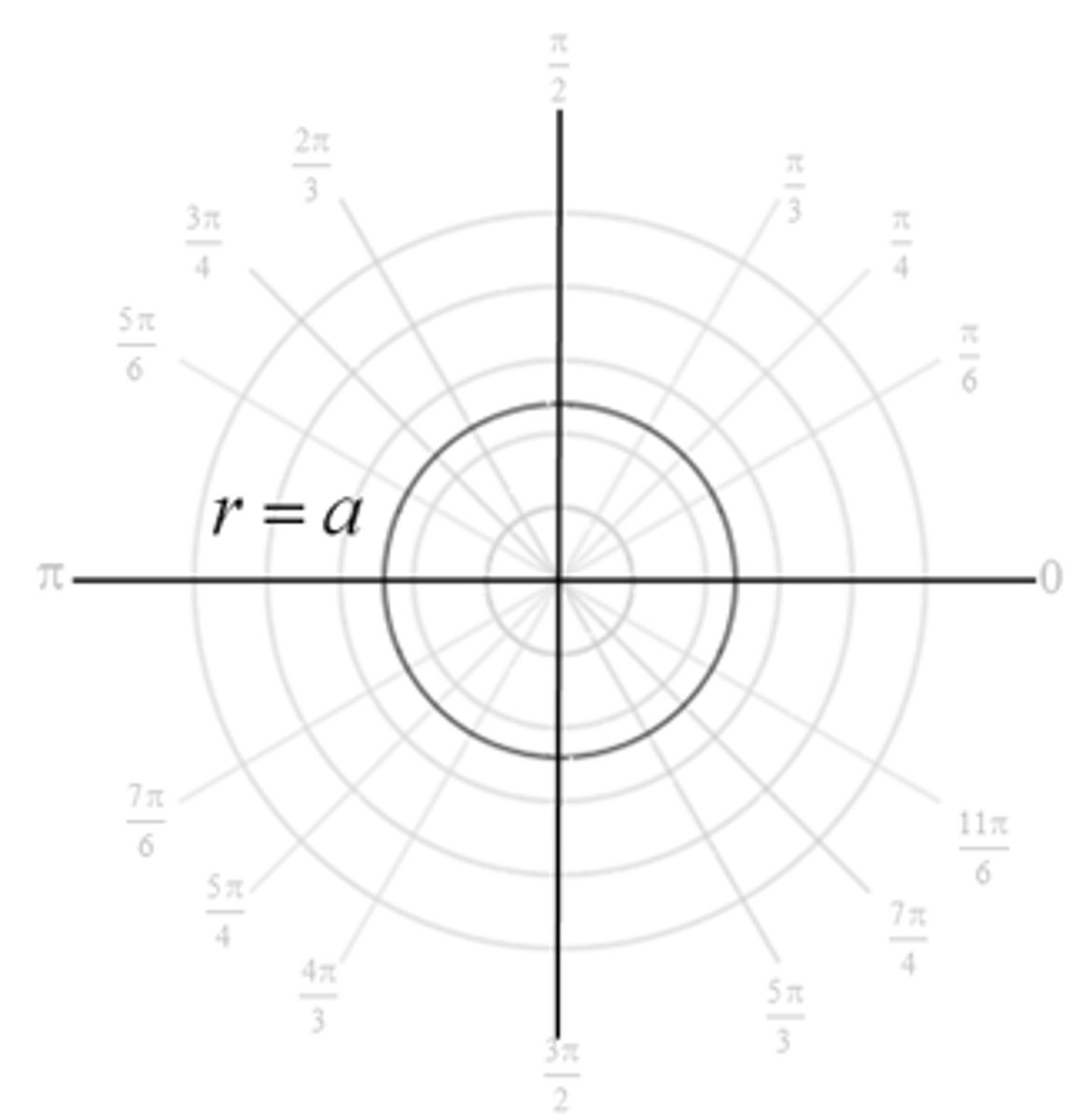

Graph of r = a

Circle centered at the pole with a radius of |a|

<p>Circle centered at the pole with a radius of |a|</p>
2
New cards

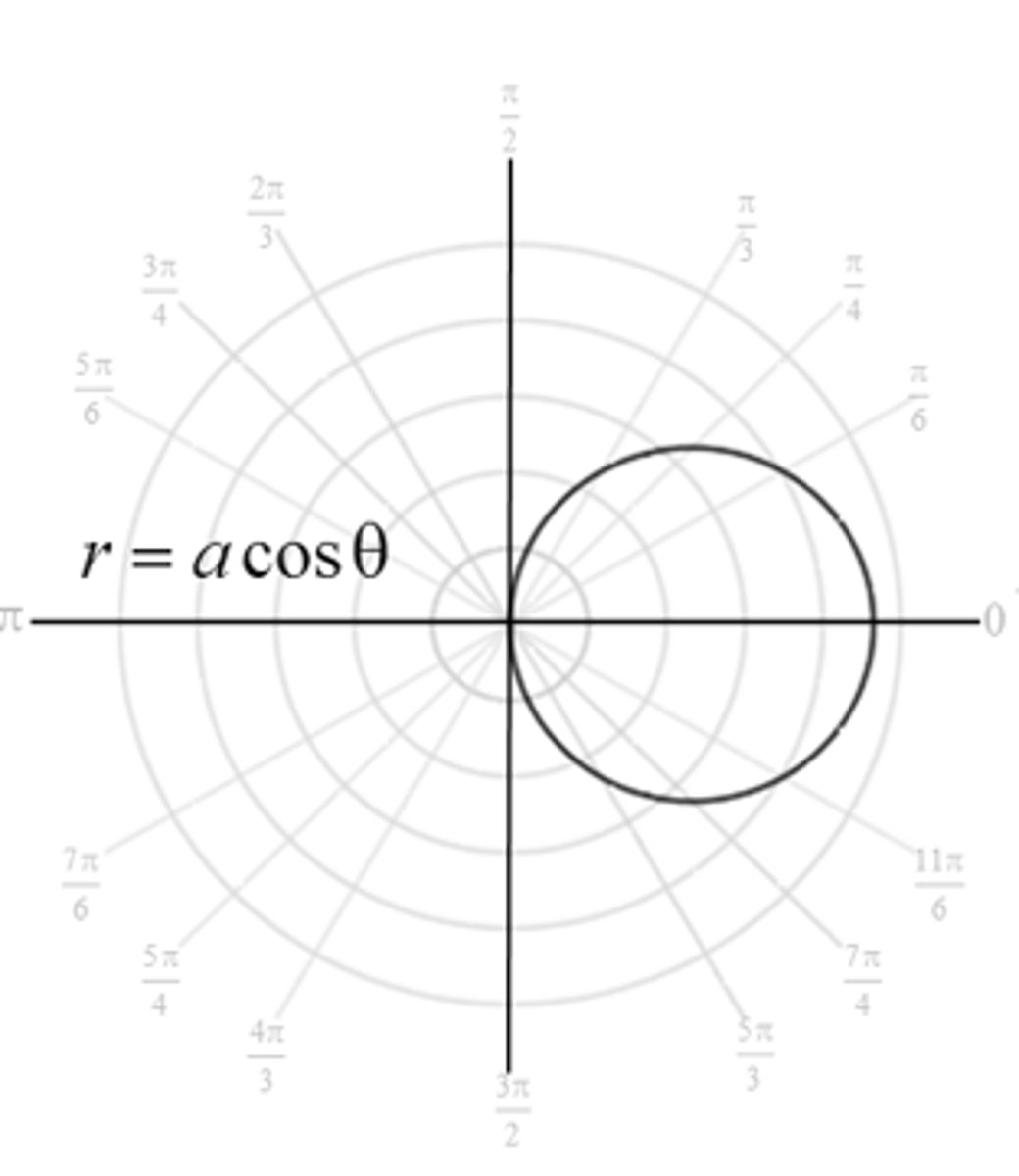

Graph of r = acosθ

Circle centered on the line θ = 0, |a|/2 units from the pole, radius = |a|/2

<p>Circle centered on the line θ = 0, |a|/2 units from the pole, radius = |a|/2</p>
3
New cards

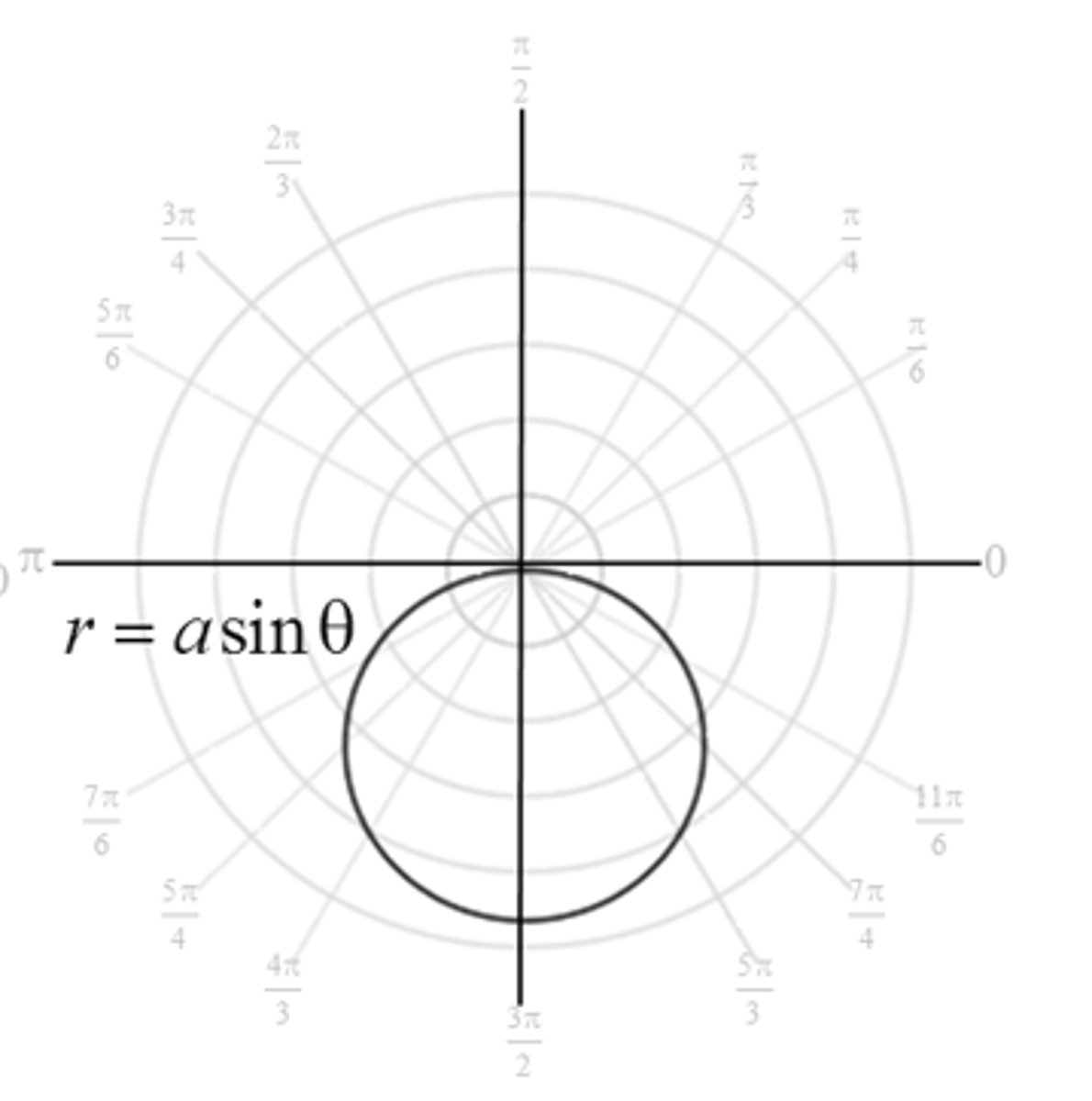

Graph of r = asinθ

Circle centered on line θ = π/2, |a|/2 units from pole, radius = |a|/2

<p>Circle centered on line θ = π/2, |a|/2 units from pole, radius = |a|/2</p>
4
New cards

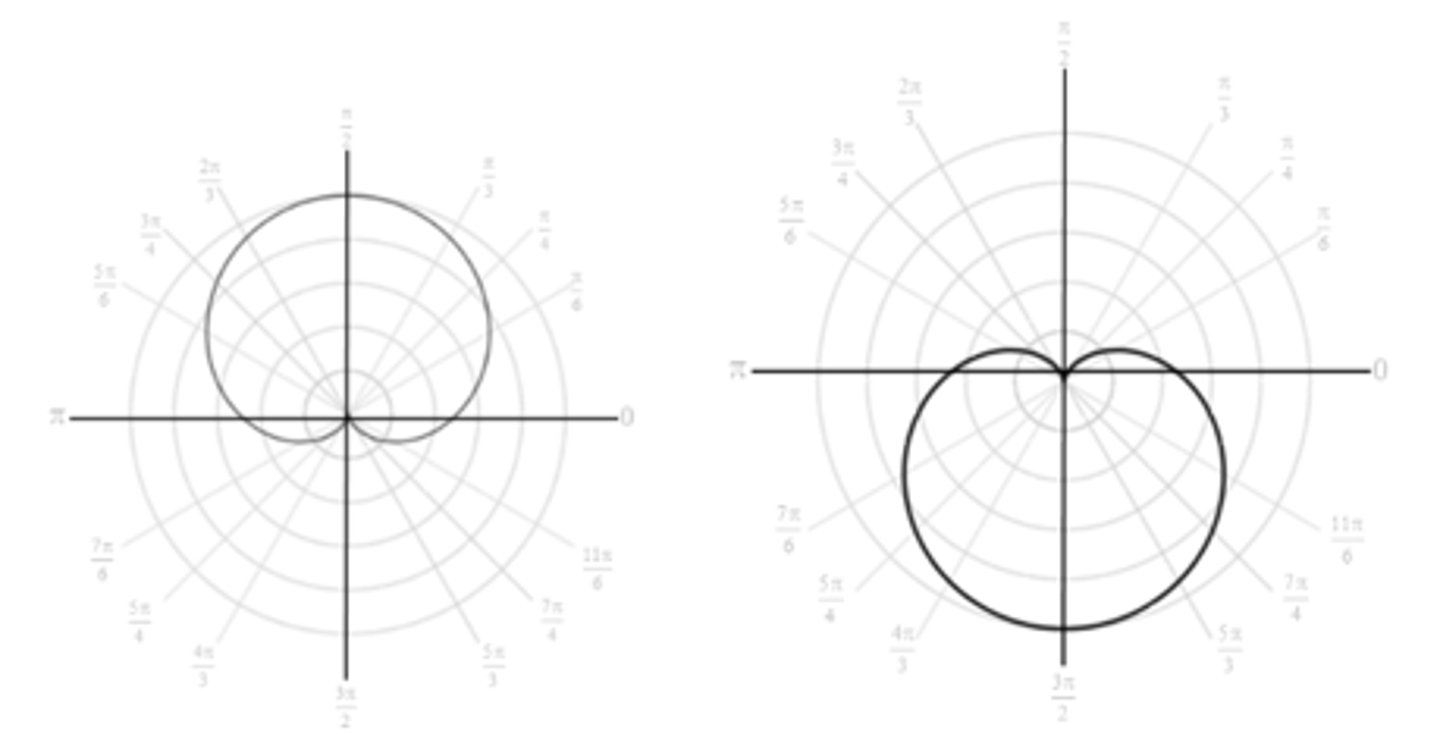

Graph of r = a ± bsinθ if a/b = 1

Cardioid, centered on line θ = π/2

<p>Cardioid, centered on line θ = π/2</p>
5
New cards

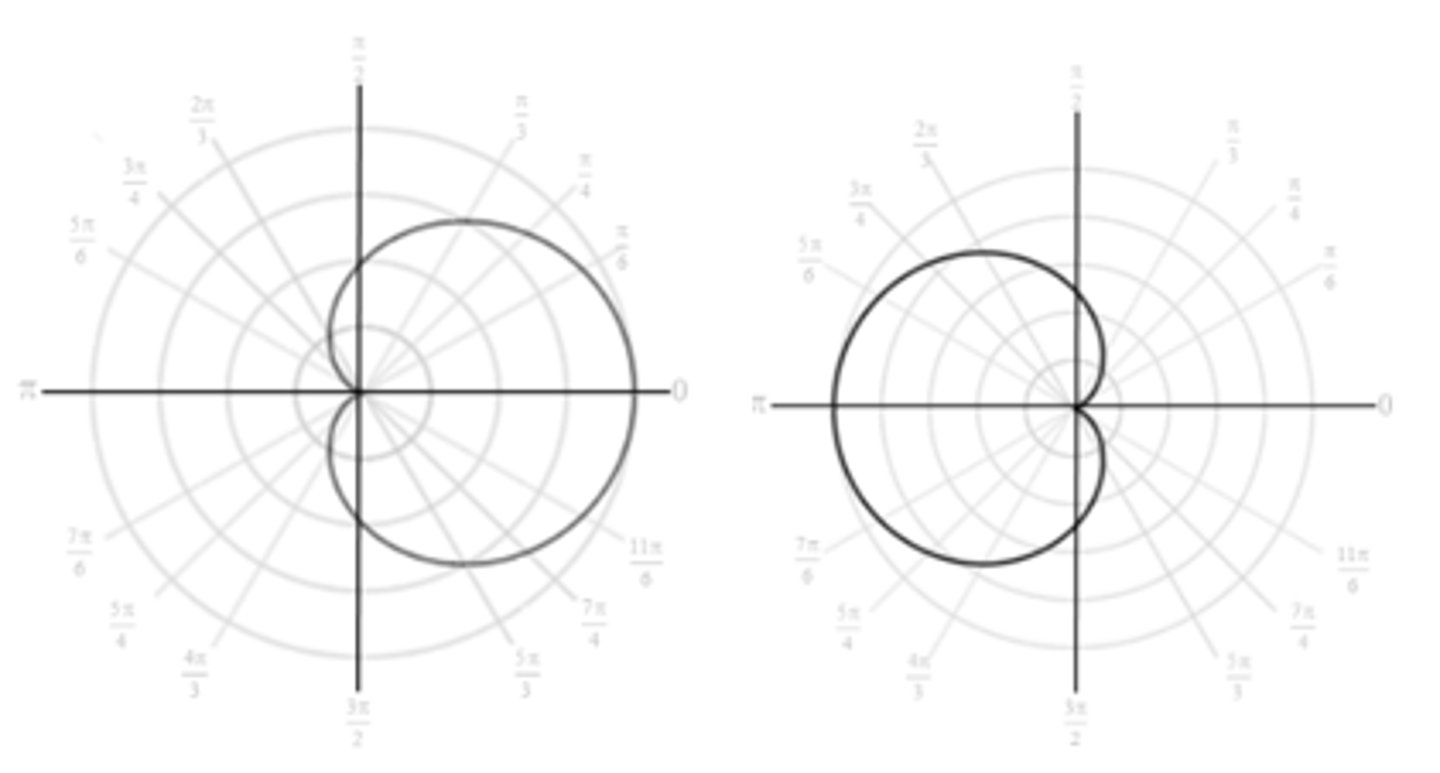

Graph of r = a ± bcosθ if a/b = 1

Cardioid, centered on line θ = 0

<p>Cardioid, centered on line θ = 0</p>
6
New cards

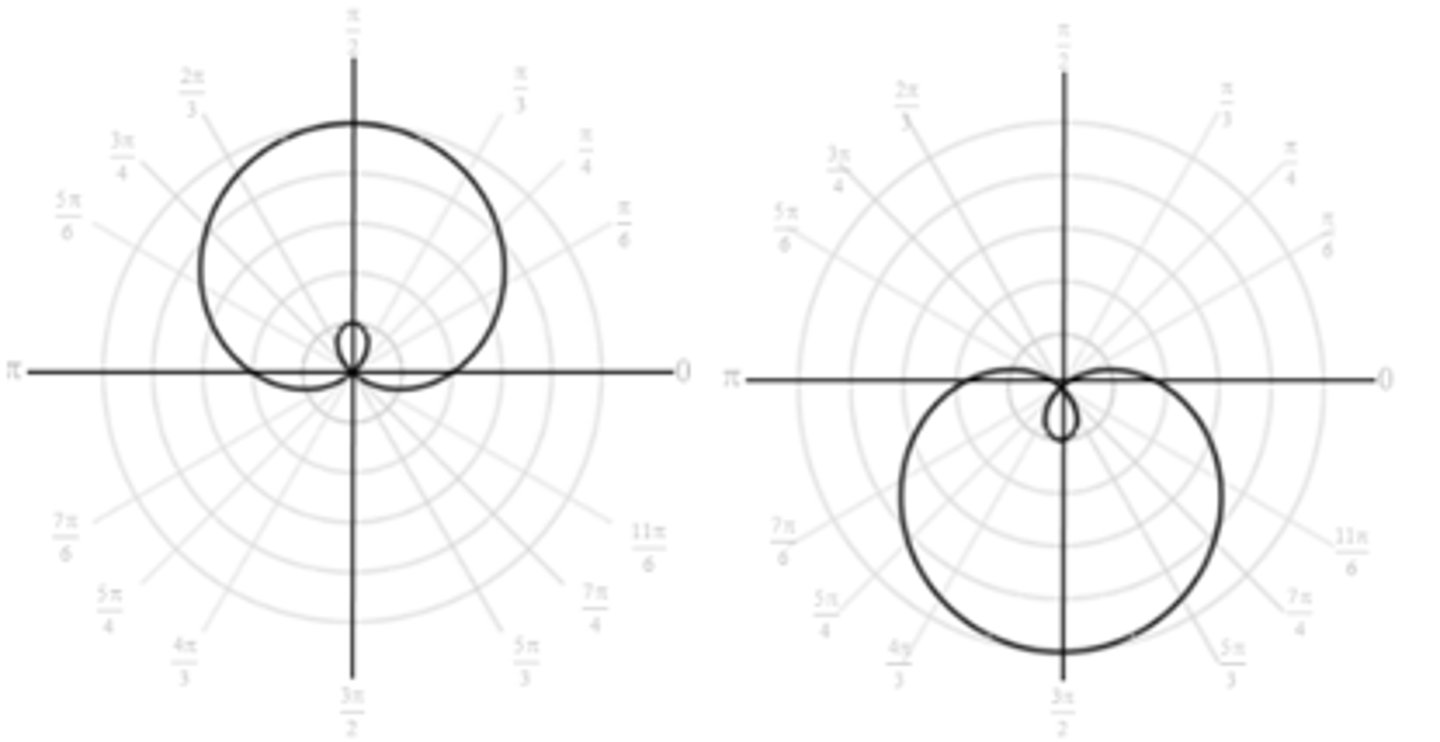

Graph of r = a ± bsinθ if a/b < 1

Limacon with an inner loop, centered on line θ = π/2

<p>Limacon with an inner loop, centered on line θ = π/2</p>
7
New cards

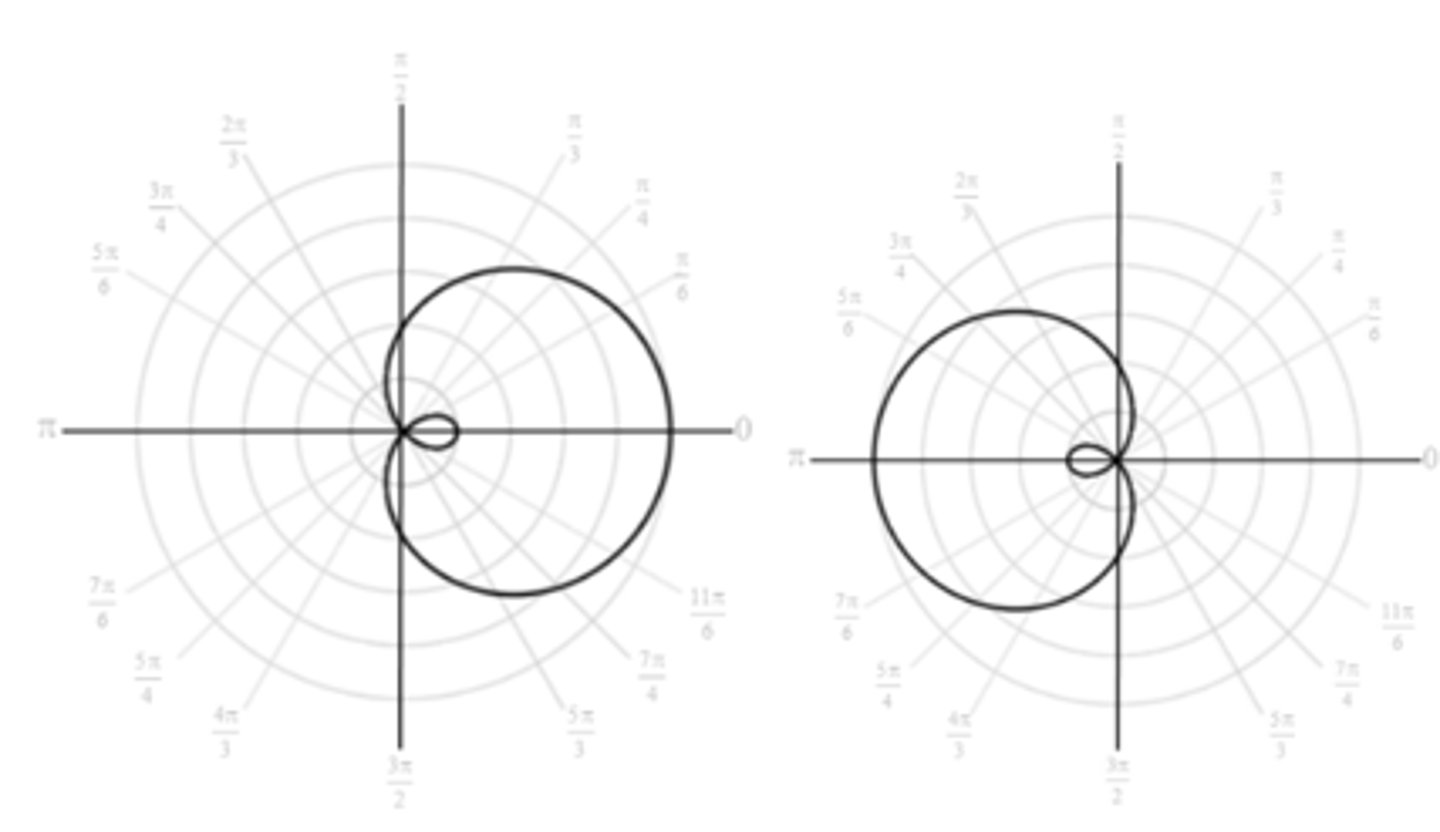

Graph of r = a ± bcosθ if a/b < 1

Limacon with an inner loop, centered on line θ = 0

<p>Limacon with an inner loop, centered on line θ = 0</p>
8
New cards

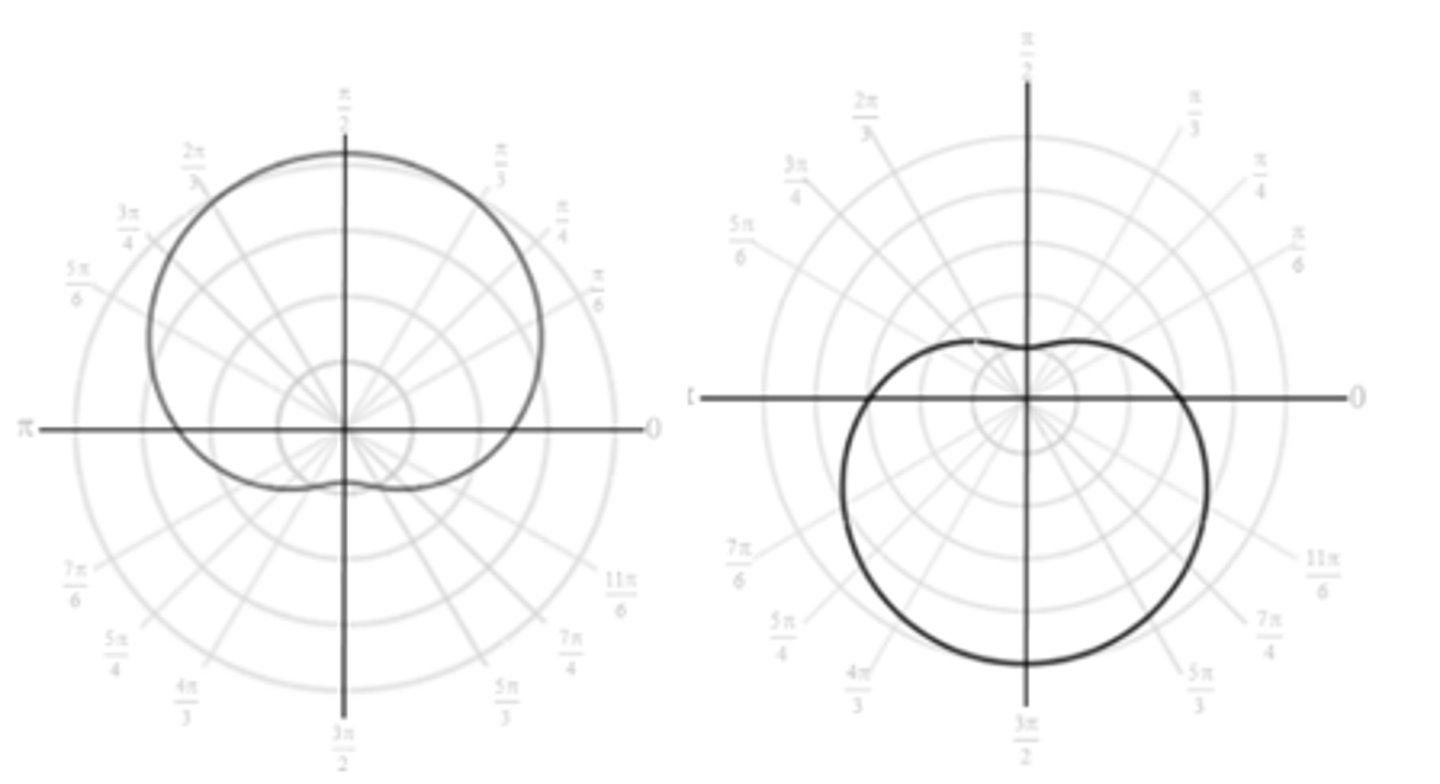

Graph of r = a ± bsinθ if 1 < a/b < 2

Limacon with a dimple, centered on line θ = π/2

<p>Limacon with a dimple, centered on line θ = π/2</p>
9
New cards

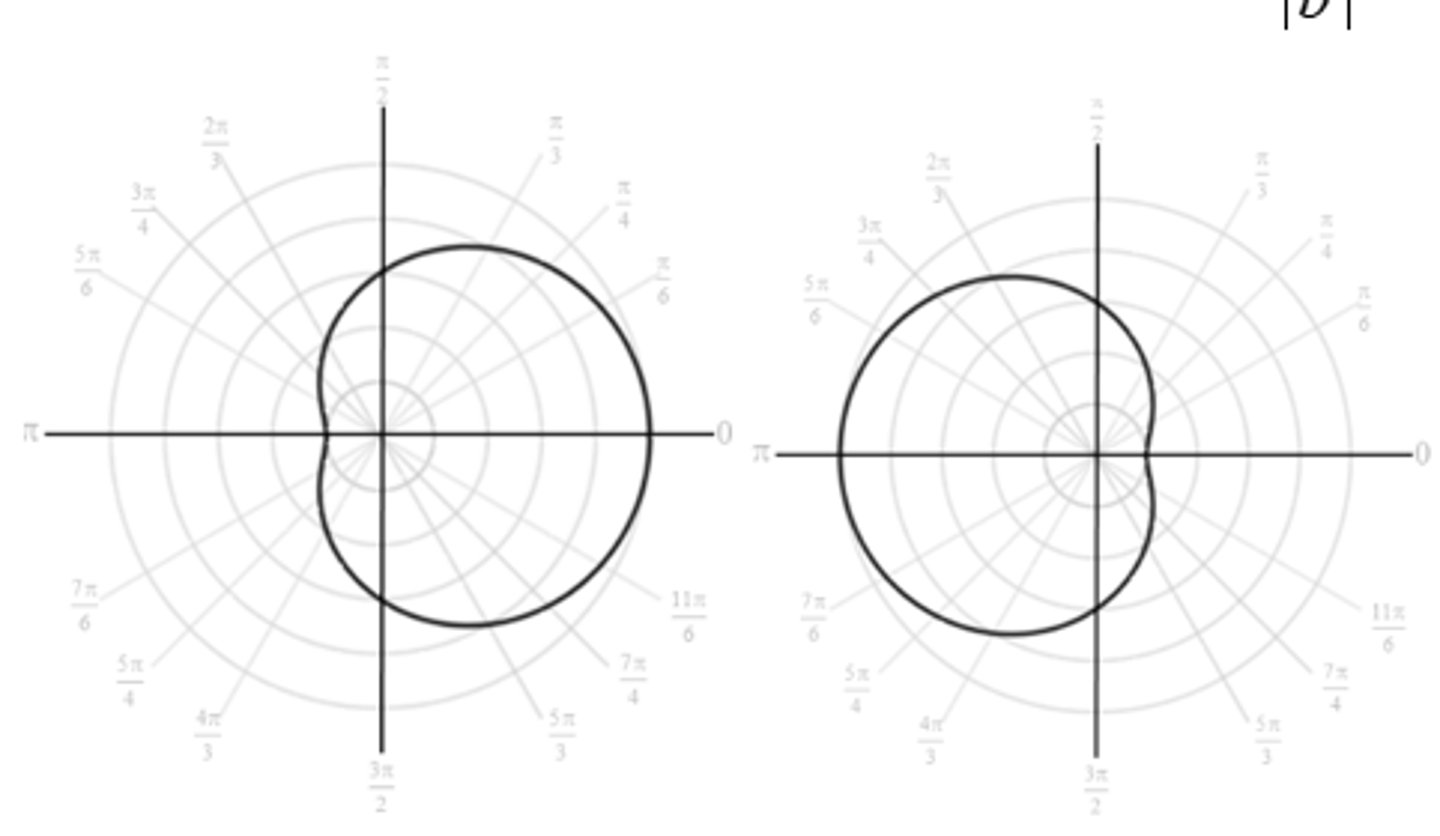

Graph of r = a ± bcosθ if 1 < a/b < 2

Limacon with a dimple, centered on line θ = 0

<p>Limacon with a dimple, centered on line θ = 0</p>
10
New cards

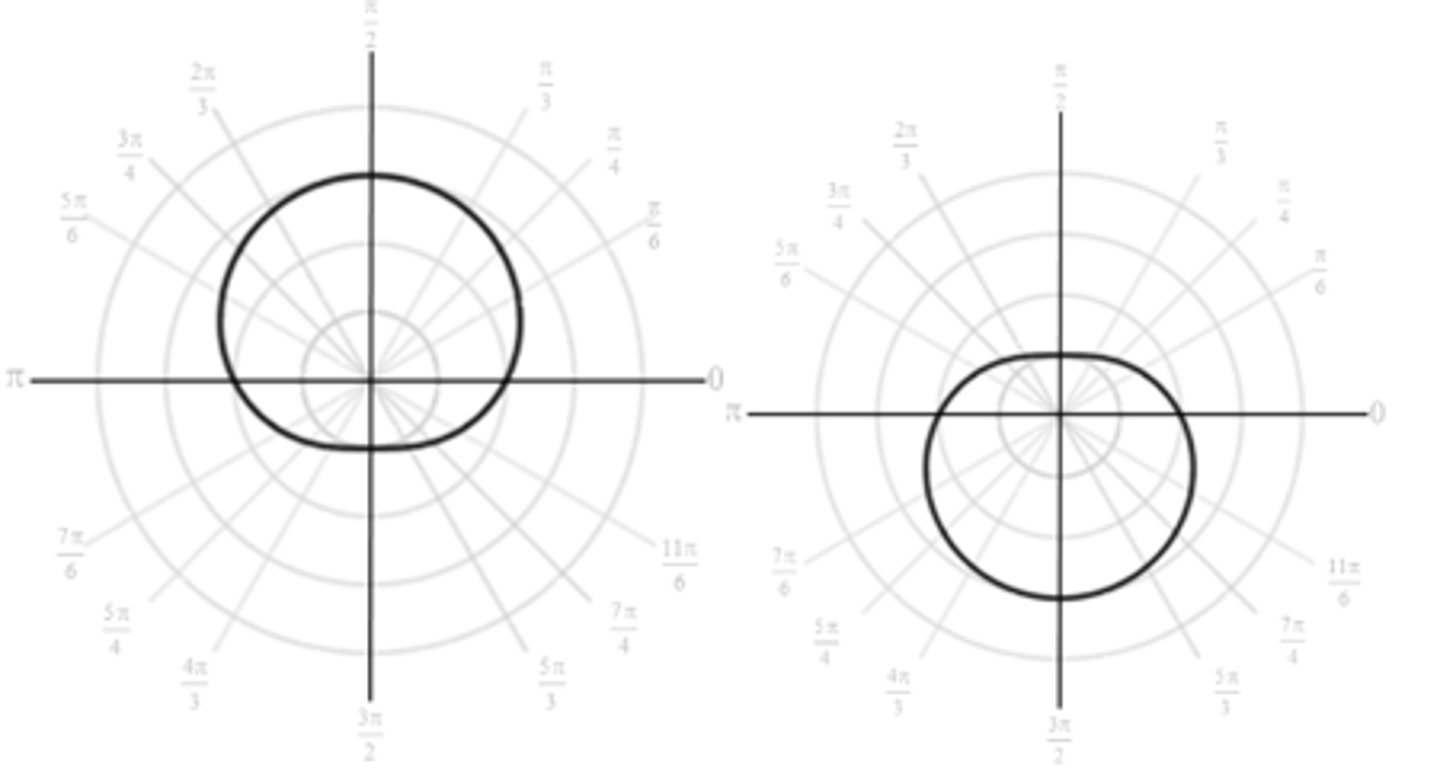

Graph of r = a ± bsinθ if a/b ≥ 2

Convex limacon with no inner loop or dimple, centered on line θ = π/2

<p>Convex limacon with no inner loop or dimple, centered on line θ = π/2</p>
11
New cards

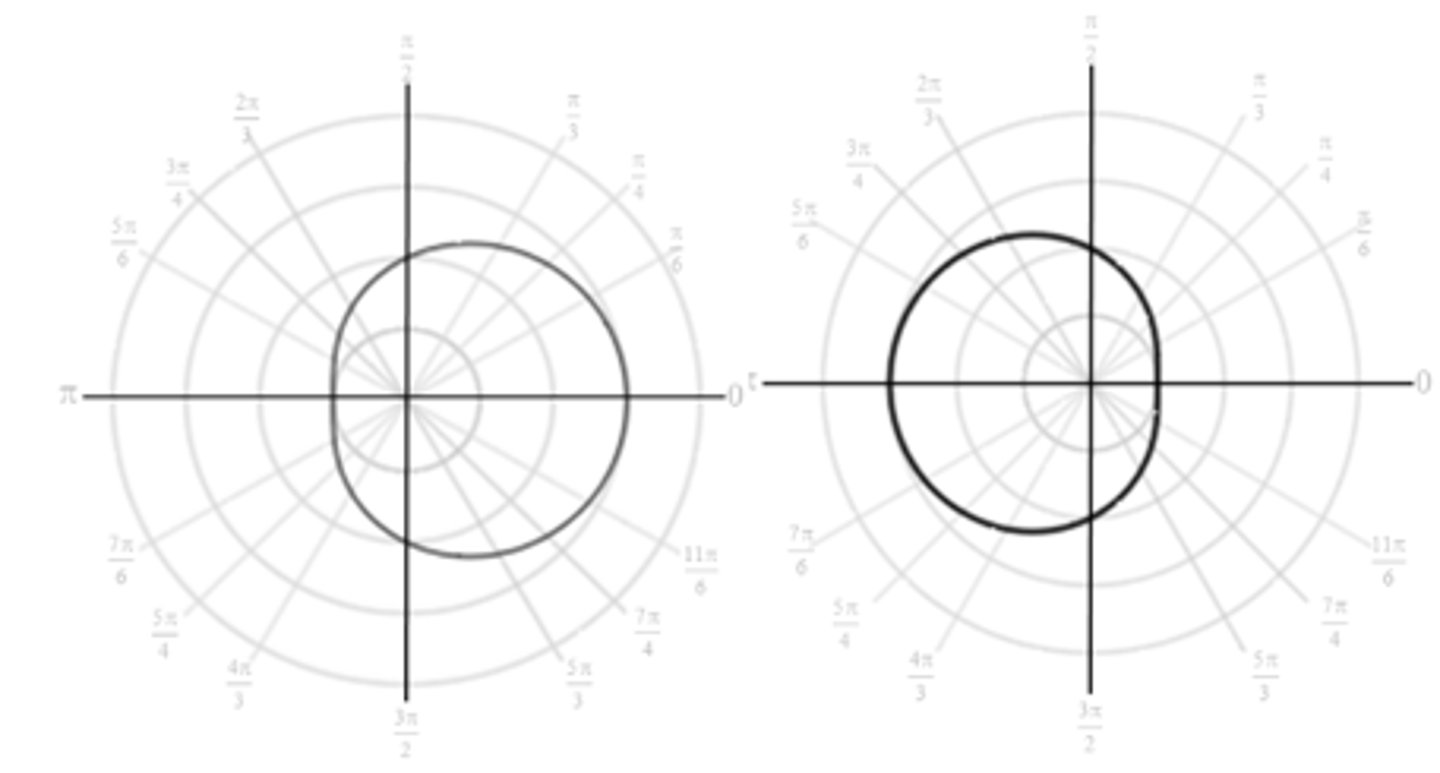

Graph of r = a ± bcosθ if a/b ≥ 2

Convex limacon with no inner loop or dimple, centered on line θ = 0

<p>Convex limacon with no inner loop or dimple, centered on line θ = 0</p>
12
New cards

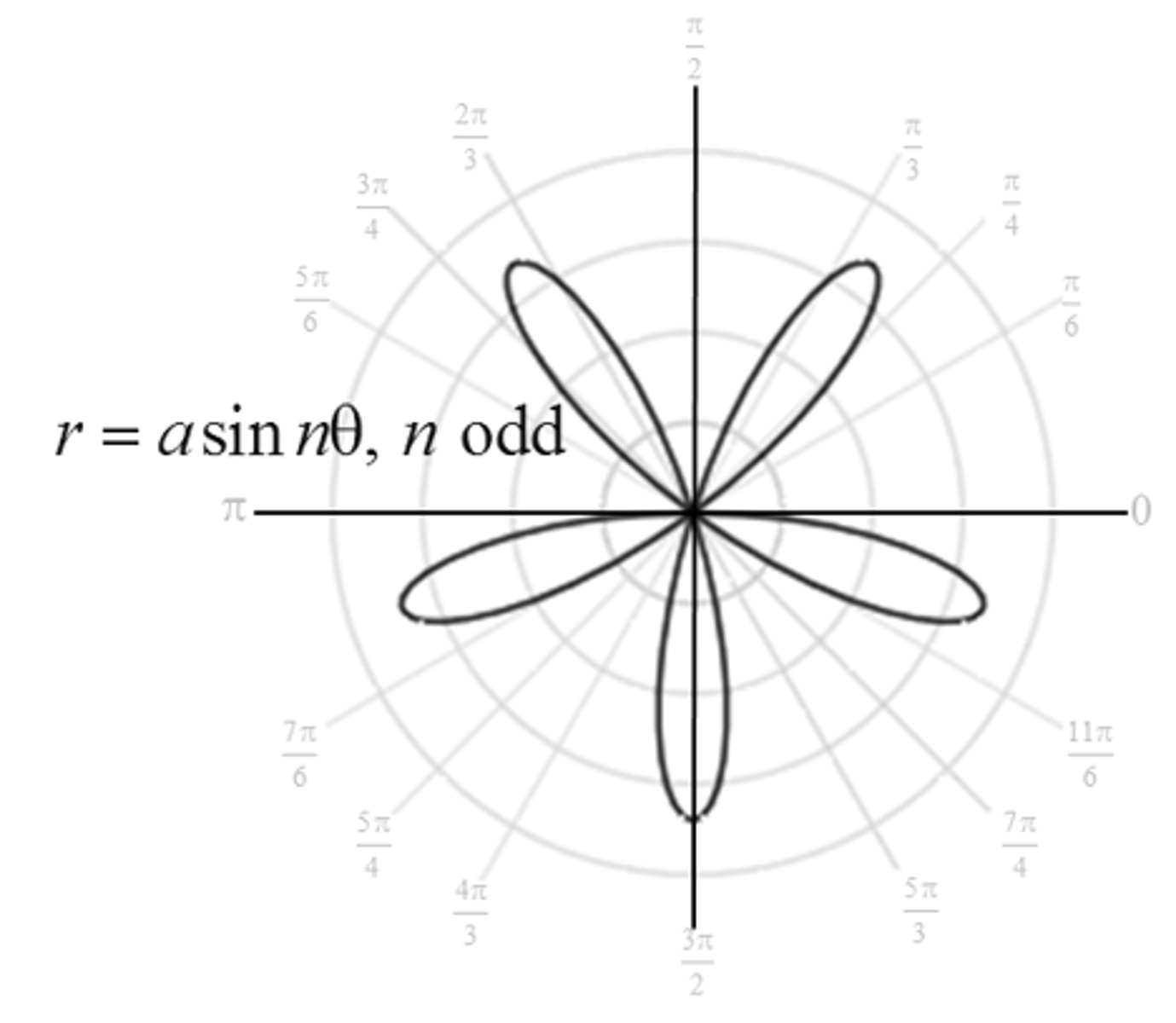

Graph of r=asinnθ where n is odd

Rose, n petals

<p>Rose, n petals</p>
13
New cards

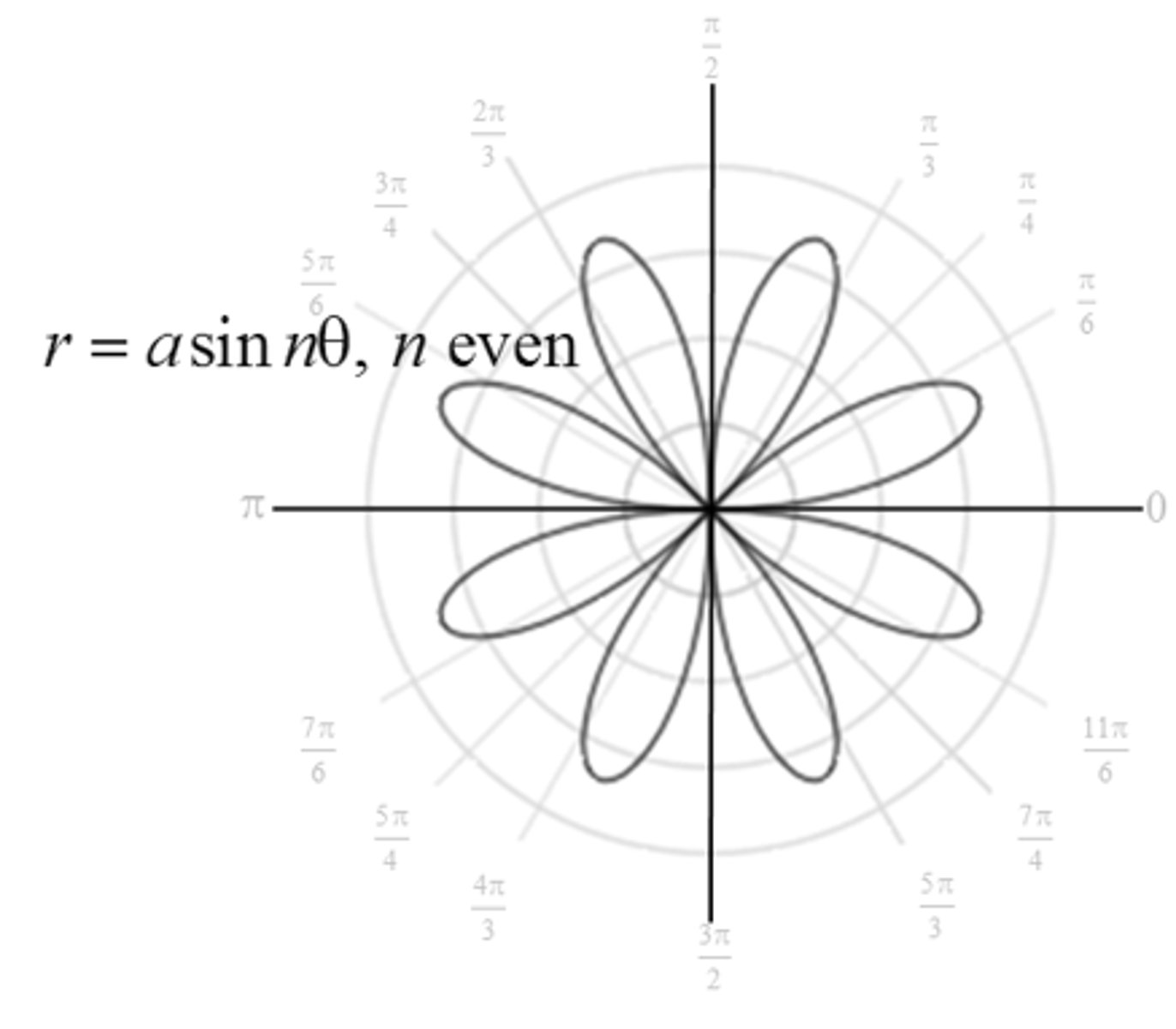

Graph of r=asinnθ where n is even

Rose, 2n petals,

<p>Rose, 2n petals,</p>
14
New cards

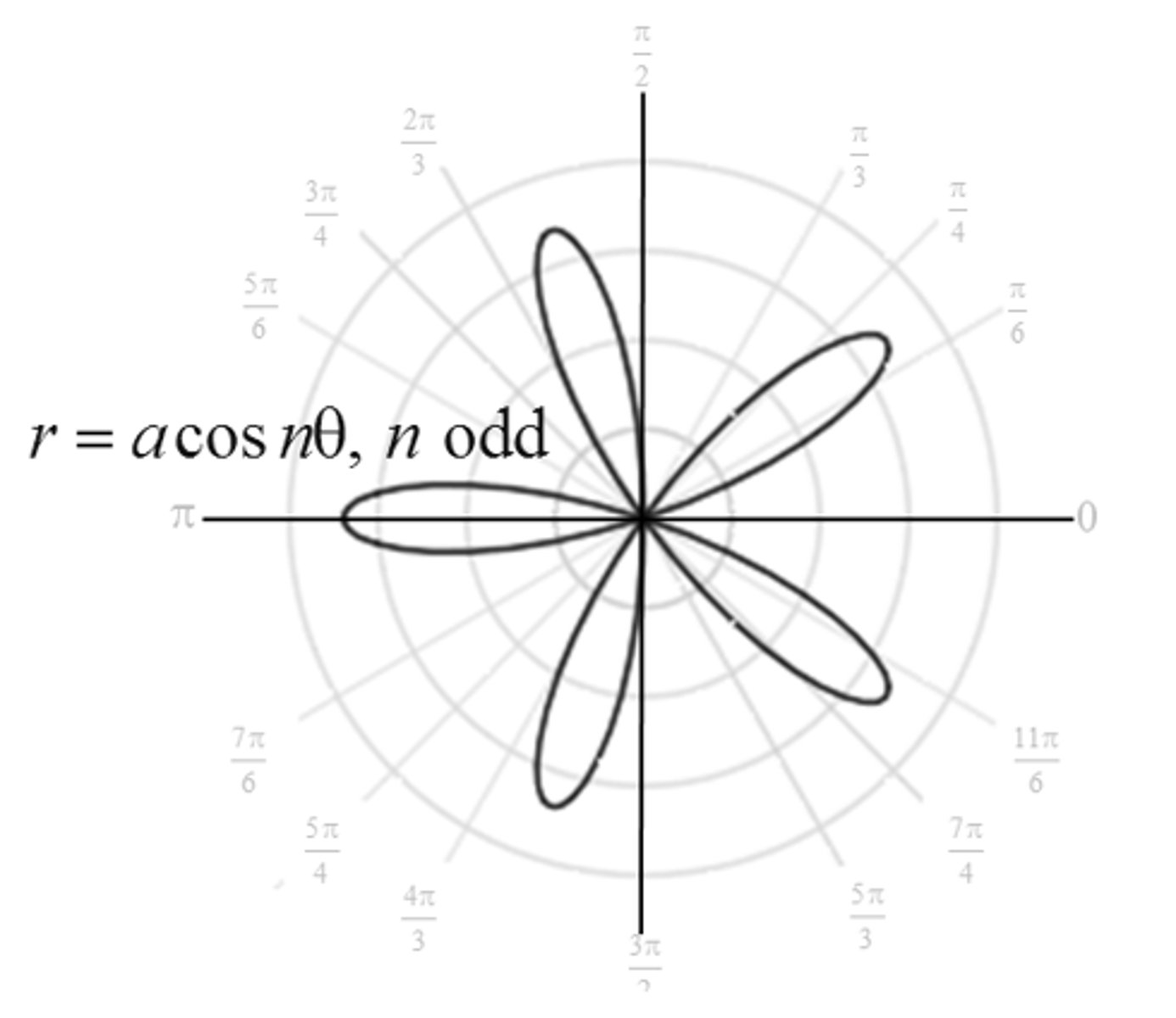

Graph of r=acosnθ where n is odd

Rose, n petals,

<p>Rose, n petals,</p>
15
New cards

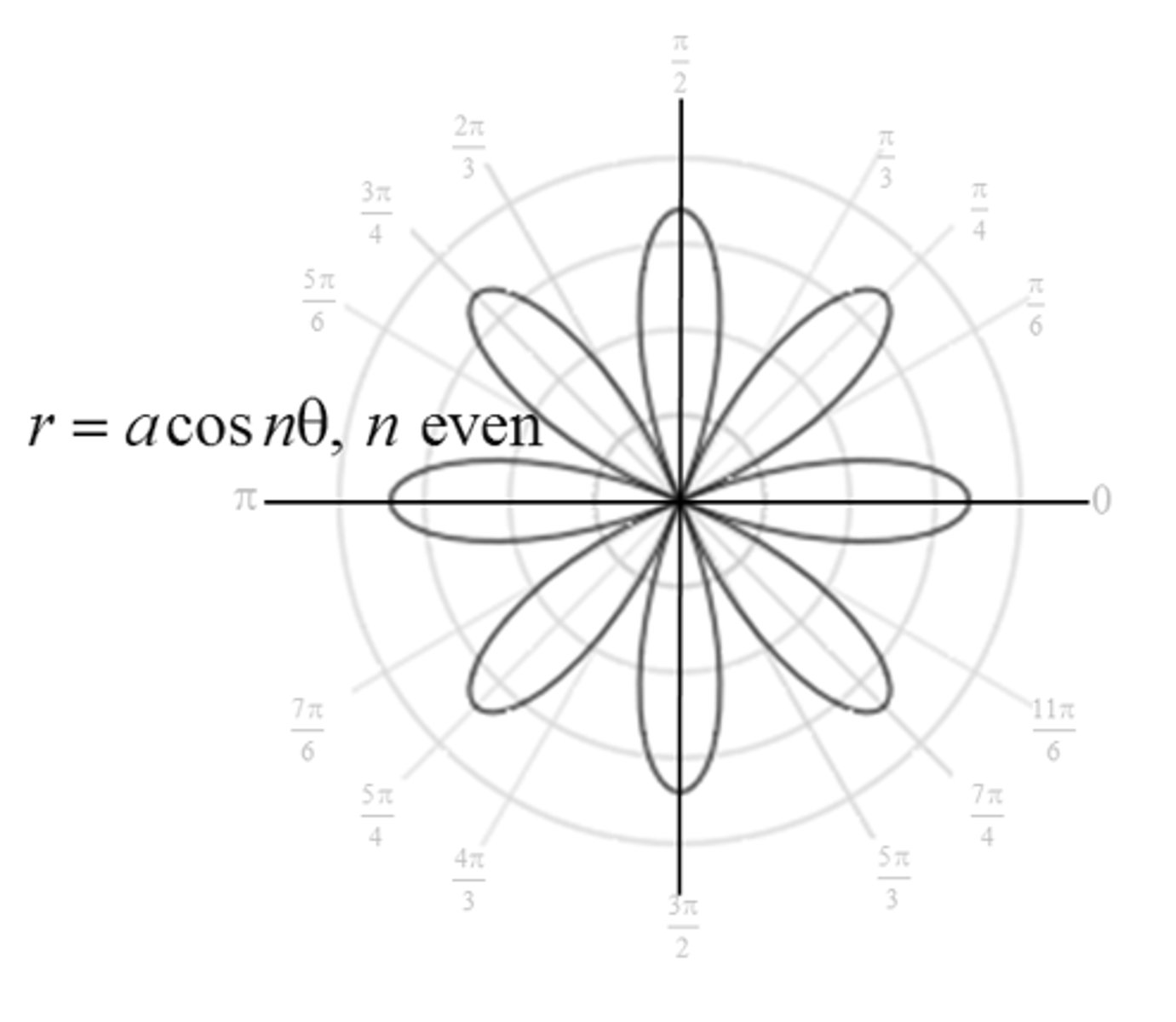

Graph of r=acosnθ where n is even

Rose, 2n petals,

<p>Rose, 2n petals,</p>
16
New cards

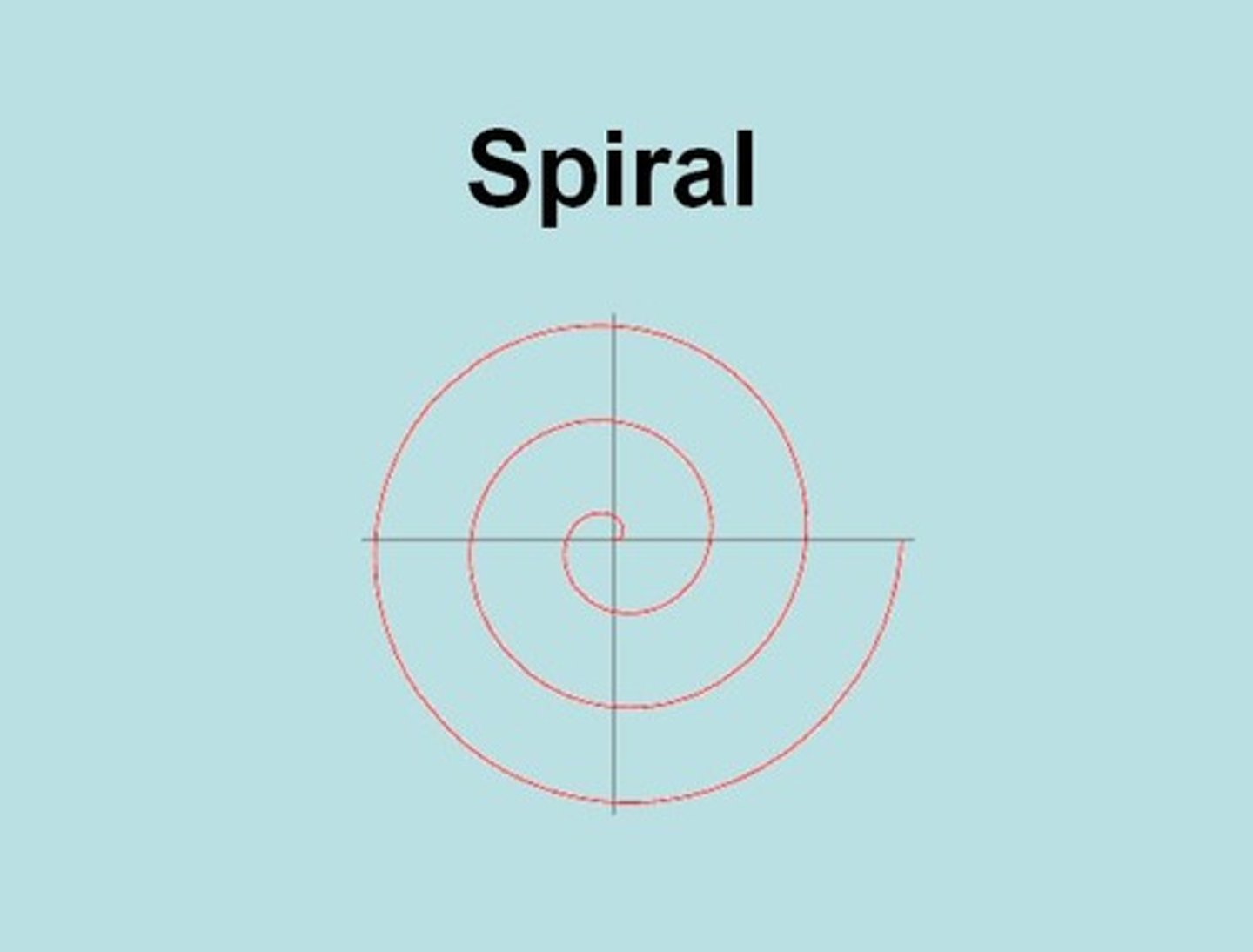

Graph of r = aθ

Spiral

<p>Spiral</p>
