Neuroanatomy Lec 4: Brainstem Anatomy

0.0(0)

Studied by 0 people

Call Kai

Learn

Practice Test

Spaced Repetition

Match

Flashcards

Knowt Play

Card Sorting

1/53

There's no tags or description

Looks like no tags are added yet.

Last updated 11:36 PM on 4/8/26

Name	Mastery	Learn	Test	Matching	Spaced	Call with Kai

No analytics yet

Send a link to your students to track their progress

54 Terms

1

New cards

<p>What Anterior Brainstem Structure is shaded in light blue?</p>

What Anterior Brainstem Structure is shaded in light blue?

Cerebral Peduncles/Crus of Midbrain

2

New cards

<p>What Anterior Brainstem Structure is shaded in orange? </p>

What Anterior Brainstem Structure is shaded in orange?

Interpeduncular fossa of Midbrain

3

New cards

<p>What Anterior Brainstem Structure is shaded in Red? </p>

What Anterior Brainstem Structure is shaded in Red?

Pons Proper

4

New cards

<p>What Anterior Brainstem Structure is shaded in Yellow? </p>

What Anterior Brainstem Structure is shaded in Yellow?

Cerebellar Peduncle

5

New cards

<p>What Anterior Brainstem Structure is #5 referring to? </p>

What Anterior Brainstem Structure is #5 referring to?

Anterior Medial Sulcus of Medulla

6

New cards

<p>What Anterior Brainstem Structure is shaded in brown?</p>

What Anterior Brainstem Structure is shaded in brown?

Pyramids of Medulla

7

New cards

<p>What Anterior Brainstem Structure is shaded is green? </p>

What Anterior Brainstem Structure is shaded is green?

Olives of Medulla

8

New cards

<p>What Anterior Brainstem Structure is the X region referring to? </p>

What Anterior Brainstem Structure is the X region referring to?

Pyramidal Decussation of Medulla

9

New cards

<p>What Anterior Brainstem Structure is shaded light pruple? </p>

What Anterior Brainstem Structure is shaded light pruple?

Optic Nerve

10

New cards

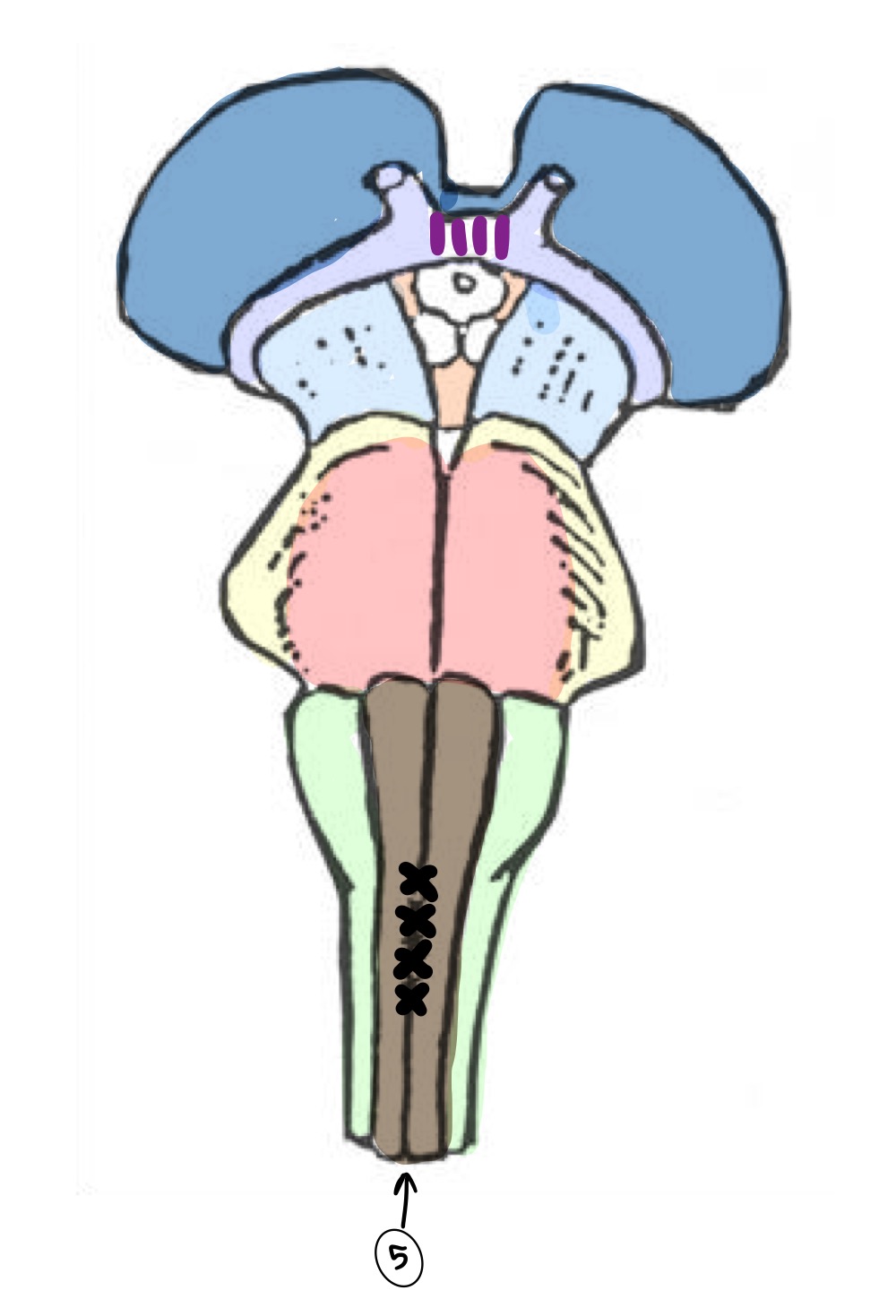

<p>What Anterior Brainstem Structure is the purple lines referring to? </p>

What Anterior Brainstem Structure is the purple lines referring to?

Optic Chiasm

11

New cards

<p>What Anterior Brainstem Structure is shaded in dark blue? </p>

What Anterior Brainstem Structure is shaded in dark blue?

Thalamus

12

New cards

<p>What Posterior Brainstem Structure is shaded in Blue? </p>

What Posterior Brainstem Structure is shaded in Blue?

Superior Colliculi of Midbrain

13

New cards

<p>What Posterior Brainstem Structure is shaded in Light Orange?</p>

What Posterior Brainstem Structure is shaded in Light Orange?

Inferior Colliculi of Midbrain

14

New cards

<p>What Posterior Brainstem Structure is shaded in Brown and has 3 parts? </p>

What Posterior Brainstem Structure is shaded in Brown and has 3 parts?

Cerebellar Peduncles of Pons (3 parts: Superior, Middle, Inferior)

15

New cards

<p>What Posterior Brainstem Structure is #4 referring to? </p>

What Posterior Brainstem Structure is #4 referring to?

Posterior Medial Sulcus of Medulla

16

New cards

<p>What Posterior Brainstem Structure does the green lines refer to?</p>

What Posterior Brainstem Structure does the green lines refer to?

Fasciculus Gracilis of Medulla

17

New cards

<p>What Posterior Brainstem Structure is the shaded region in Green referring to? </p>

What Posterior Brainstem Structure is the shaded region in Green referring to?

Tuberculum Gracilis (Tubercle) of Medulla

18

New cards

Tuberculum Gracilis and Fasciculus Gracilis recieve signals from which region of the body?

Lower Extremity

19

New cards

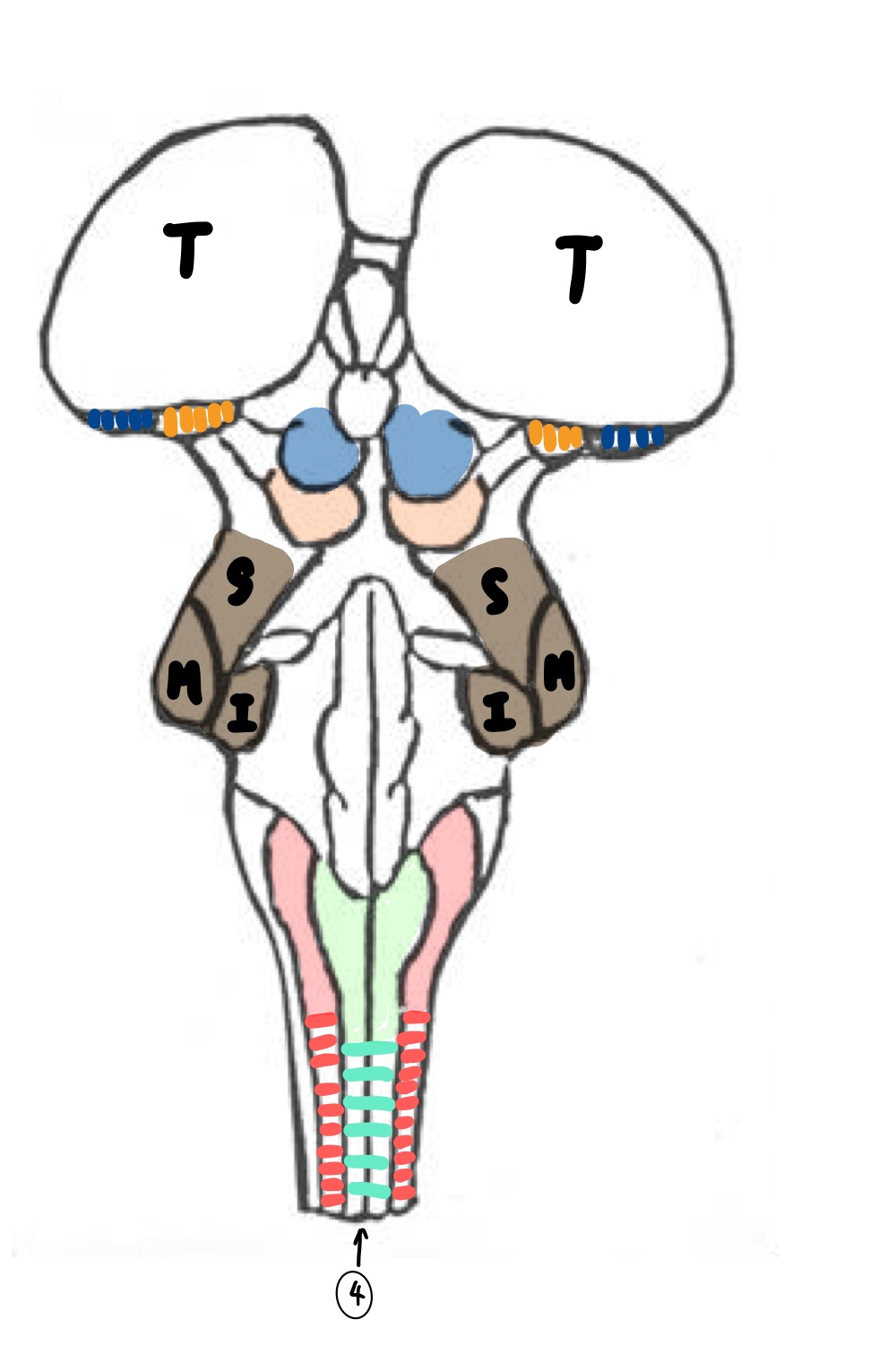

<p>What Posterior Brainstem Structure does the Red lines refer to?</p>

What Posterior Brainstem Structure does the Red lines refer to?

Tuberculum Cuneatus of Medulla

20

New cards

<p>What Posterior Brainstem Structure is shaded region in Red referring to? </p>

What Posterior Brainstem Structure is shaded region in Red referring to?

Tuberculum Cuneatus (Tubercle) of Medulla

21

New cards

Tuberculum Cuneatus & Fasciculus Cuneatus receive signals from which region of the body?

Upper Extremity

22

New cards

<p>What Posterior Brainstem structure does the orange lines indicate? </p>

What Posterior Brainstem structure does the orange lines indicate?

Medial Geniculate Body

23

New cards

<p>What Posterior Brainstem structure does the blue lines indicate?</p>

What Posterior Brainstem structure does the blue lines indicate?

Lateral geniculate body

24

New cards

<p>What Posterior Brainstem structure does the T indicate? </p>

What Posterior Brainstem structure does the T indicate?

Thalamus

25

New cards

<p>Within the brain stem, what structure does #1 refer to? </p>

Within the brain stem, what structure does #1 refer to?

Superior Colliculi of Brainstem

26

New cards

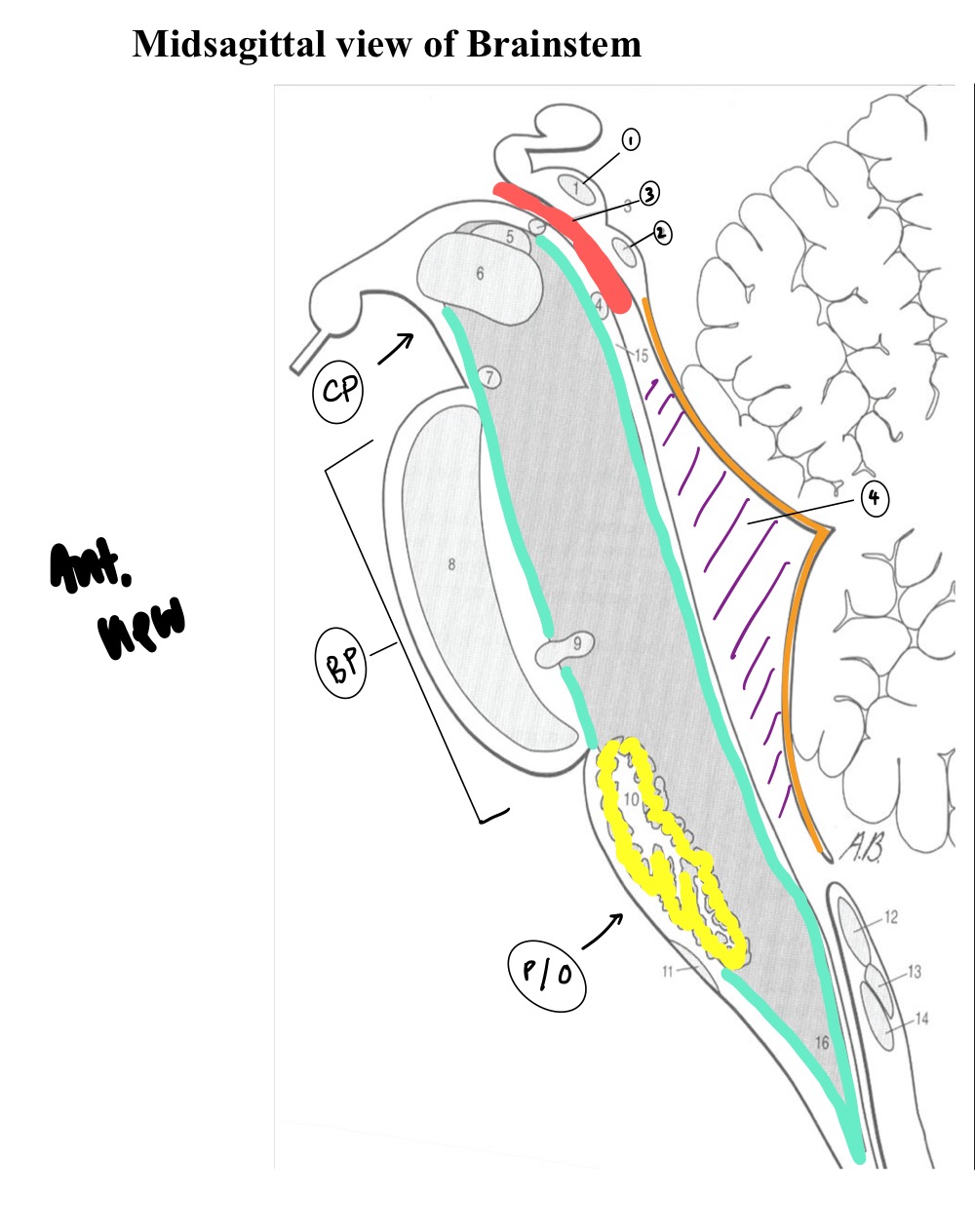

<p>Within the brain stem, what structure does #2 refer to? </p>

Within the brain stem, what structure does #2 refer to?

Inferior Colliculi of Brainstem

27

New cards

<p>Within the brain stem, what structure does #3 refer to? </p>

Within the brain stem, what structure does #3 refer to?

Cerebral Aqueduct

28

New cards

<p>Within the brain stem, what structures does the orange line refer to? </p>

Within the brain stem, what structures does the orange line refer to?

Superior Medullary Velum (SMV) and Inferior Medullary Velum (IMV)

29

New cards

<p>Within the brain stem, what structure does #4 refer to? </p>

Within the brain stem, what structure does #4 refer to?

4th Ventricle

30

New cards

<p>Within the brain stem, what structure does the green- lined border refer to?</p>

Within the brain stem, what structure does the green- lined border refer to?

Tegmentum (central core),

31

New cards

<p>Within the brain stem, what structure does CP refer to? </p>

Within the brain stem, what structure does CP refer to?

Cerebral Peduncles

32

New cards

<p>Within the brain stem, what structure does BP refer to? </p>

Within the brain stem, what structure does BP refer to?

Basilar Pons

33

New cards

<p>Within the brain stem, what structure does the yellow outlined region and P/O refer to? </p>

Within the brain stem, what structure does the yellow outlined region and P/O refer to?

Pyramids and Olives

34

New cards

35

New cards

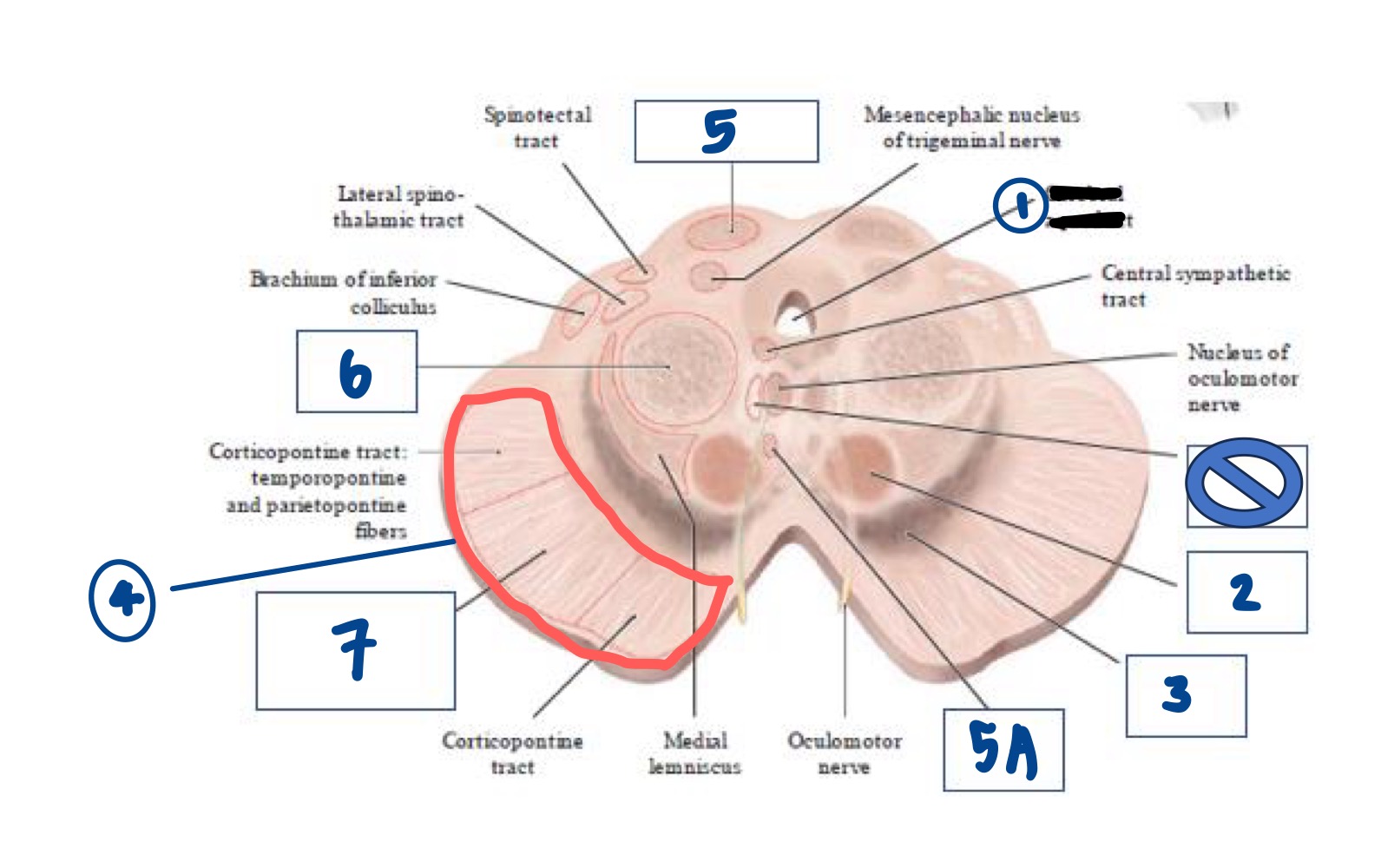

<p>Within the Midbrain, what structure does #1 represent? </p>

Within the Midbrain, what structure does #1 represent?

Cerebral Aqueduct

36

New cards

<p>Within the Midbrain, what structure does #2 represent? </p>

Within the Midbrain, what structure does #2 represent?

Red Nucleus

37

New cards

<p>Within the Midbrain, what structure does #3 represent? </p>

Within the Midbrain, what structure does #3 represent?

Substantia Nigra

38

New cards

<p>Within the Midbrain, what structure does #4 represent? </p>

Within the Midbrain, what structure does #4 represent?

Basis Pedunculi

39

New cards

<p>Within the Midbrain, what structure does #5 represent? </p>

Within the Midbrain, what structure does #5 represent?

Superior Colliculi

40

New cards

<p>Within the Midbrain, what structure does #6 represent? </p>

Within the Midbrain, what structure does #6 represent?

Reticular Formation

41

New cards

<p>Within the Midbrain, what structure does #7 represent? </p>

Within the Midbrain, what structure does #7 represent?

Pyramidal Tract (one home of CST)

42

New cards

<p>Within the Midbrain, what structure does #5A represent? </p>

Within the Midbrain, what structure does #5A represent?

Tectospinal Tract

43

New cards

<p>Within the Pons, what structure does #1 represent? </p>

Within the Pons, what structure does #1 represent?

Cerebellar Peduncles (SUP)

44

New cards

<p>Within the Pons, what structure does #2 represent?</p>

Within the Pons, what structure does #2 represent?

Tectospinal Tract

45

New cards

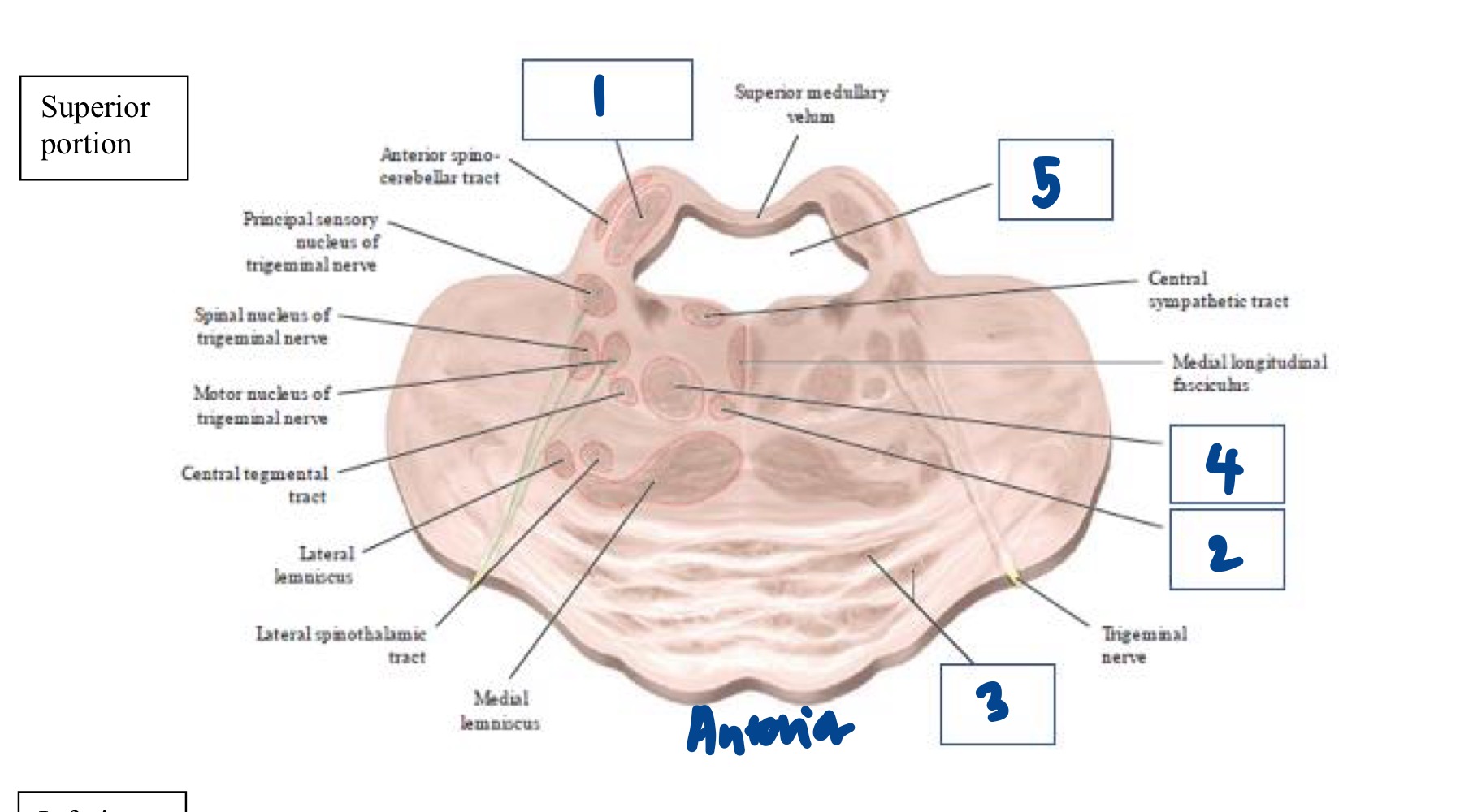

<p>Within the Pons, what structure does #3 represent?</p>

Within the Pons, what structure does #3 represent?

Pyramidal Tract

46

New cards

<p>Within the Pons, what structure does #4 represent?</p>

Within the Pons, what structure does #4 represent?

Reticular Formation of Pons

47

New cards

<p>Within the Pons, what structure does #5 represent?</p>

Within the Pons, what structure does #5 represent?

Fourth Ventricle

48

New cards

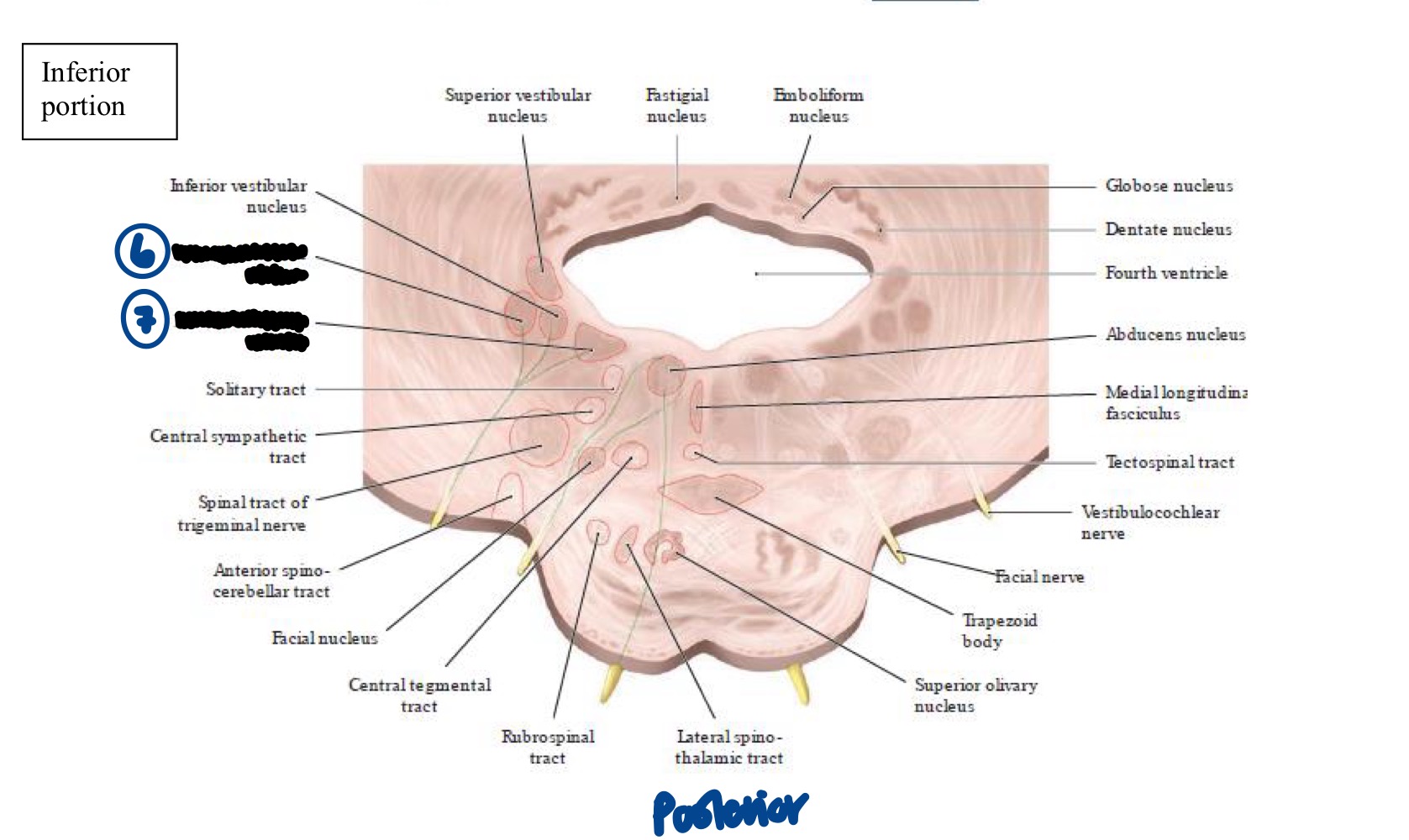

<p>Within the Pons, what structure does #6 represent?</p>

Within the Pons, what structure does #6 represent?

Lateral Vestibular Nucleus

49

New cards

<p>Within the Pons, what structure does #7 represent?</p>

Within the Pons, what structure does #7 represent?

Medial Vestibular Nucleus

50

New cards

<p>Within the Medulla, what structure does #1 represent? </p>

Within the Medulla, what structure does #1 represent?

Olivary Nucleus

51

New cards

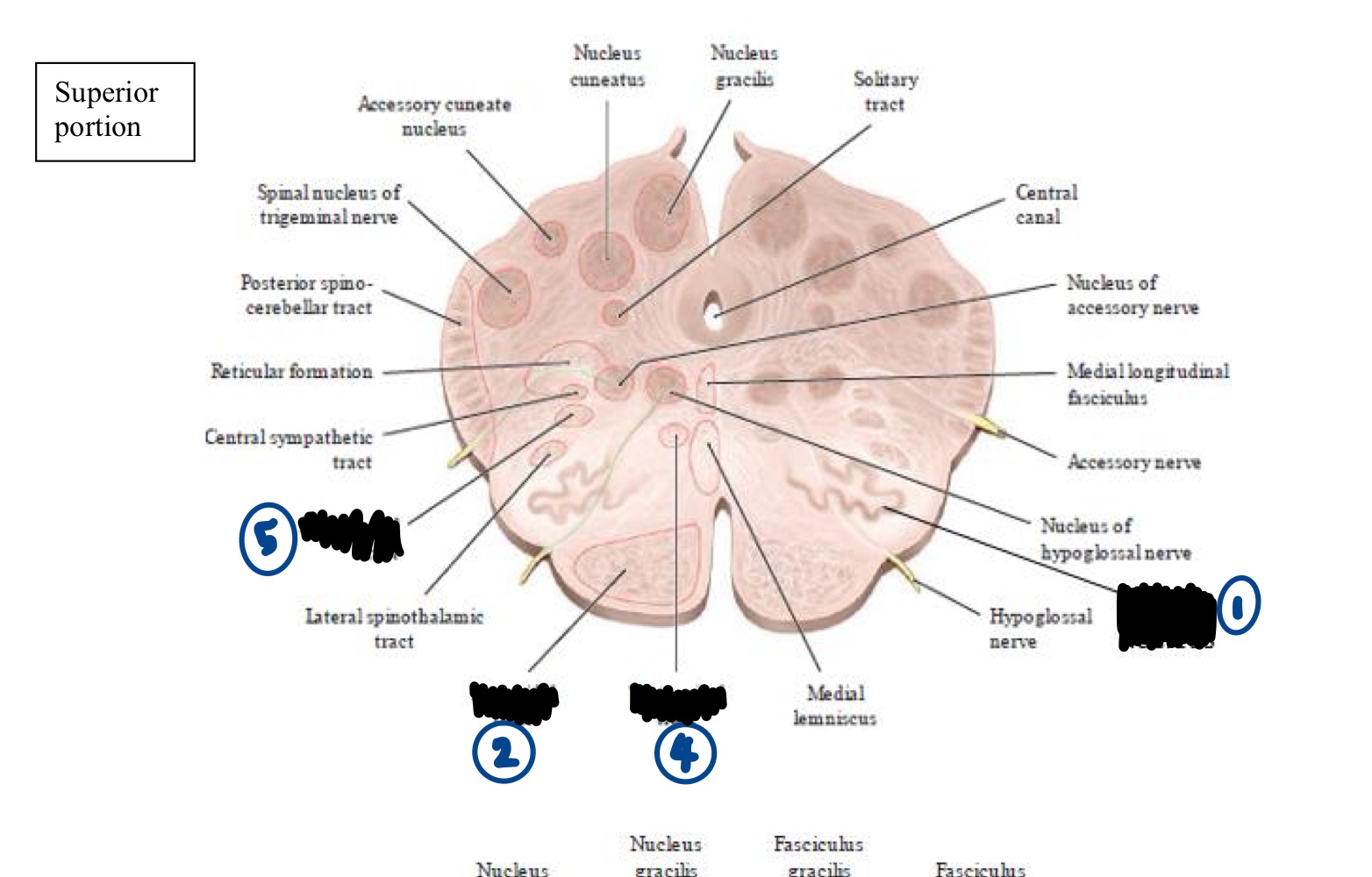

<p>Within the Medulla, what structure does #2 represent?</p>

Within the Medulla, what structure does #2 represent?

Pyramids/Pyramidal Tract

52

New cards

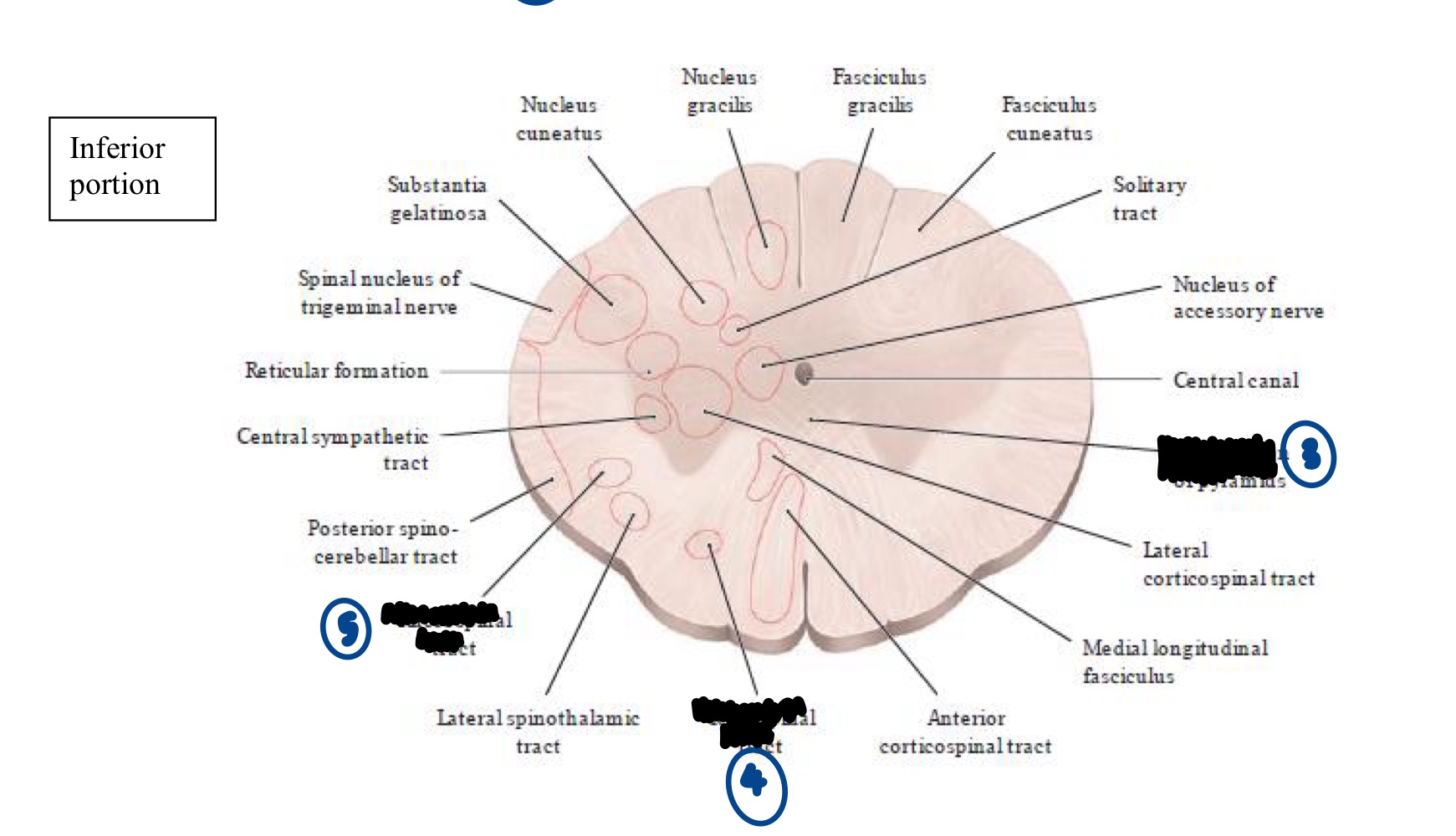

<p>Within the Medulla, what structure does #3 represent? </p>

Within the Medulla, what structure does #3 represent?

Pyramidal Decussation (low medulla)

53

New cards

<p>Within the Medulla, what structure does #4 represent? </p>

Within the Medulla, what structure does #4 represent?

Tectospinal Tract

54

New cards

<p>Within the Medulla, what structure does #5 represent? </p>

Within the Medulla, what structure does #5 represent?

Rubrospinal Tract
