EECS 3421 Second Half

What does SQL stand for

Structured Query Language

What is SQL

Developed by IBM

A standard query language for relational database access

can be used by most RDBMS tools such as IBM DB2…

SQL Commands

• Data Definition Language (DDL)

• Data Manipulation Language (DML)

• Data Control Language (DCL)

• Transaction Control Language (TCL)

Data Definition Language (DDL)

• Set of commands to create and modify the structure of database objects (e.g., tables, views, schemas, indexes, etc.)

• goal is to enable the implementation of the relational schema as an actual relational database

• Example commands: CREATE, ALTER, DROP

• Schema is the logical definition of a database (it defines table name, column names, data types, etc.)

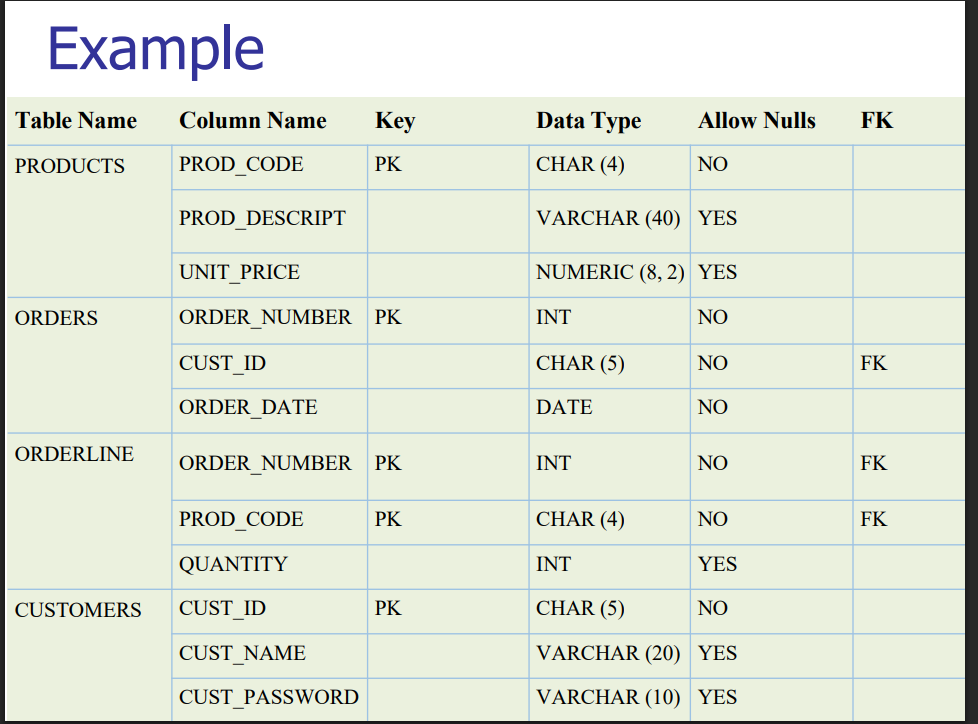

Data Definition Language (DDL) Example

SQL Data Types

• Numeric - int, numeric, float

• String - char, varchar, text

• Date amd time - date, datetime

Data Manipulation Language (DML)

used to insert, modify, delete, and retrieve data.

• Primary DML Commands:

  • SELECT

  • INSERT

  • UPDATE

  • DELETE

Data Manipulation Language (DML) Example

select Staff_Name, Salary

from Staff

where Salary > 15000;

n insert into Staff

(Staff_ID, Staff_Name, DeptNumb, Salary)

values (510, ‘Harrison’, ‘D38’, 15400);

n update Staff

set Salary = Salary * 1.15

where Staff_ID = 510;

n delete from Staff

where Staff_ID = 540;

SELECT

specifies the attributes to be returned by the query

SELECT DISTINCT

show one instance of all the different values of the selected attributes in the relation.

FROM

specifies the table(s) from which the data will be retrieved

ORDER BY

sorts the final query result rows in order based on the values of one or more ascending or descending attributes

WHERE

filters the rows of data based on provided criteria

Operations:

Arithmetic operators:

+ - * /

Comparison operators:

= > >= <= <>

Boolean operators:

AND OR NOT IN BETWEEN LIKE

GROUP BY

groups the rows of data into collections based on sharing the same values in one or more attributes

HAVING

filters the groups formed in the GROUP BY clause based on provided criteria (i.e., determines which groups will be displayed in the result).

JOIN

Combines data from two relations based on values for a common attribute

INNER JOIN Vs OUTERJOIN

• INNER JOIN (not allow null in join fields: if missing,

drop)

• OUTER JOIN (allow null in join fields)

  • LEFT OUTER JOIN (include all records in left join table course) --- include courses that do not have an instructor

  • RIGHT OUTER JOIN (include all records in right join table instructor) --- include instructors that do not teach any course

  • FULL OUTER JOIN (include all records in course and instructor tables)

ANY

ANY returns true if any of the subquery values meet the condition.

• Example: List employees who work in EASTERN division

SELECT STAFF_NAME, STAFF_ID

FROM STAFF

WHERE DEPTNUMB = ANY

(SELECT DEPTNUMB FROM ORG WHERE DIVISION = ‘EASTERN’)

ALL

• returns true if all of the subquery values meet the

condition.

• Example: Find the department with highest average salary

SELECT DEPTNUMB, AVG(SALARY)

FROM STAFF

GROUP BY DEPTNUMB

HAVING AVG(SALARY) >= ALL

(SELECT AVG(SALARY) FROM STAFF GROUP BY DEPTNUMB)
