lab exam 3

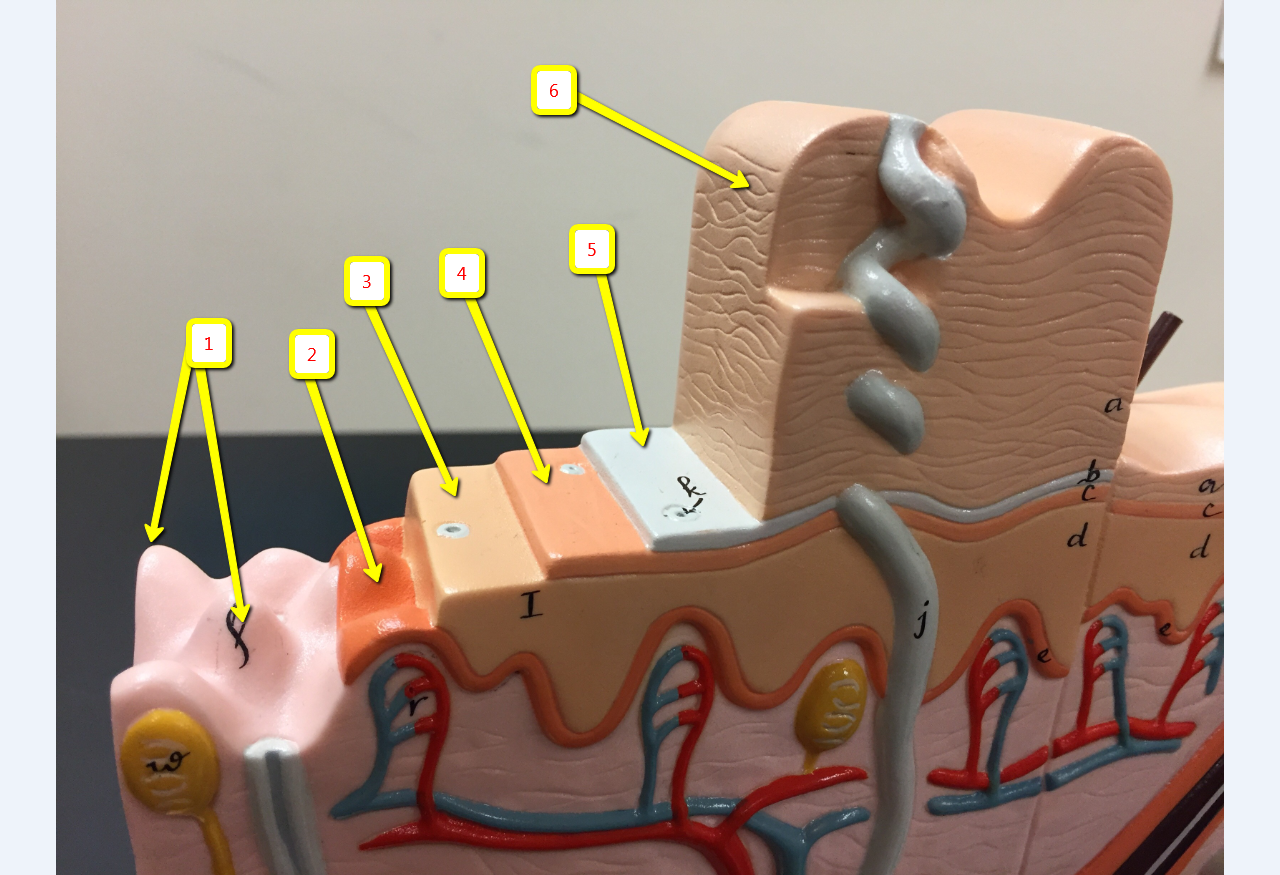

Name the layer indicated by arrow 2:

stratum basale

Name the layer indicated by arrow 3:

stratum spinosum

Name the layer indicated by arrow 4:

stratum granulosum

Name the layer indicated by arrow 5:

stratum lucidum

Name the layer indicated by arrow 6:

stratum corneum

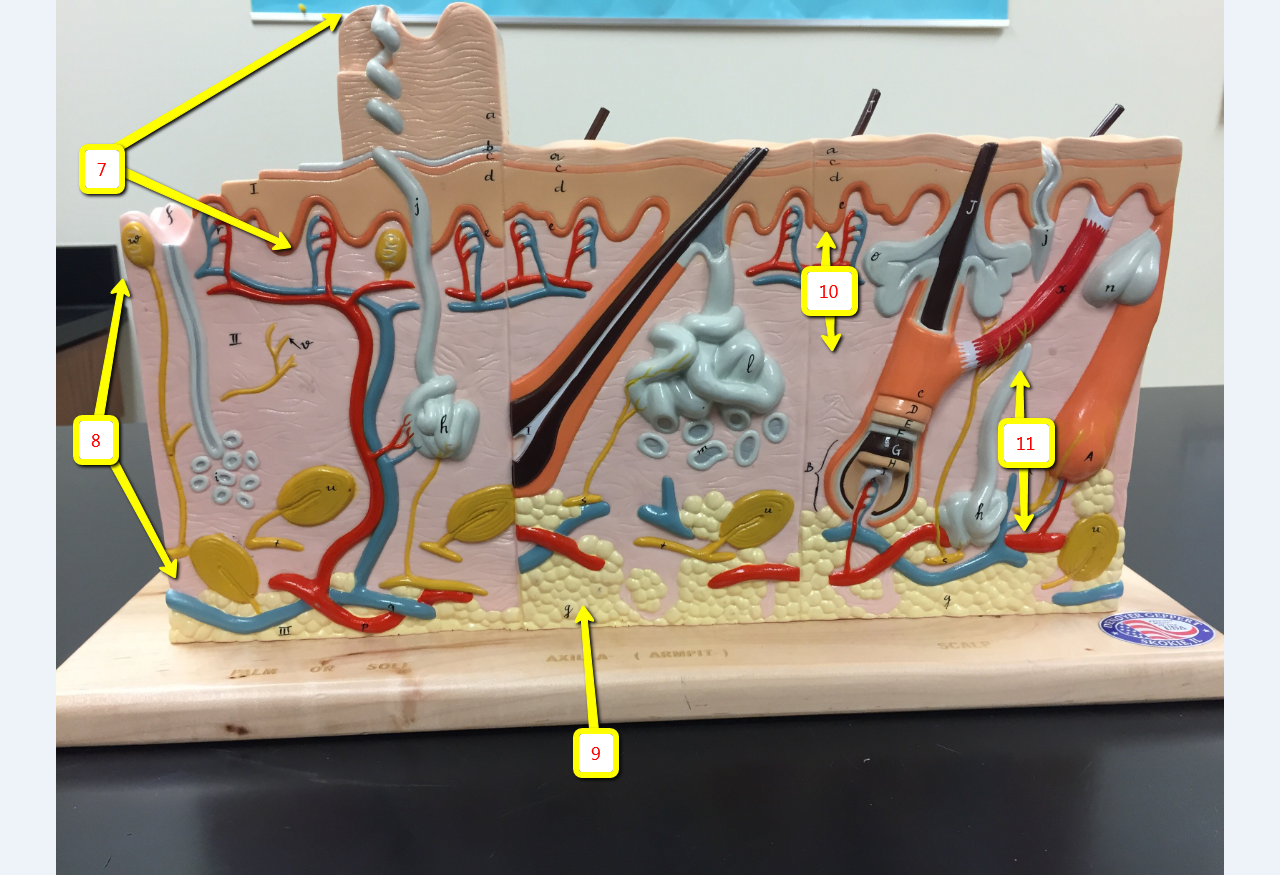

Name the layer indicated by #7

epidermis

Name the layer indicated by #8.

dermis

Name the layer indicated by #9.

hypodermis

Name the layer indicated by #10:

papillary layer

Name the layer indicated by #11:

reticular layer

Name the yellow structure indicated by arrow 12:

tactile corpuscle

Name the yellow structures indicated by arrow 13

free nerve endings

Name the yellow structure indicated by arrow 14:

lamellated corpuscle

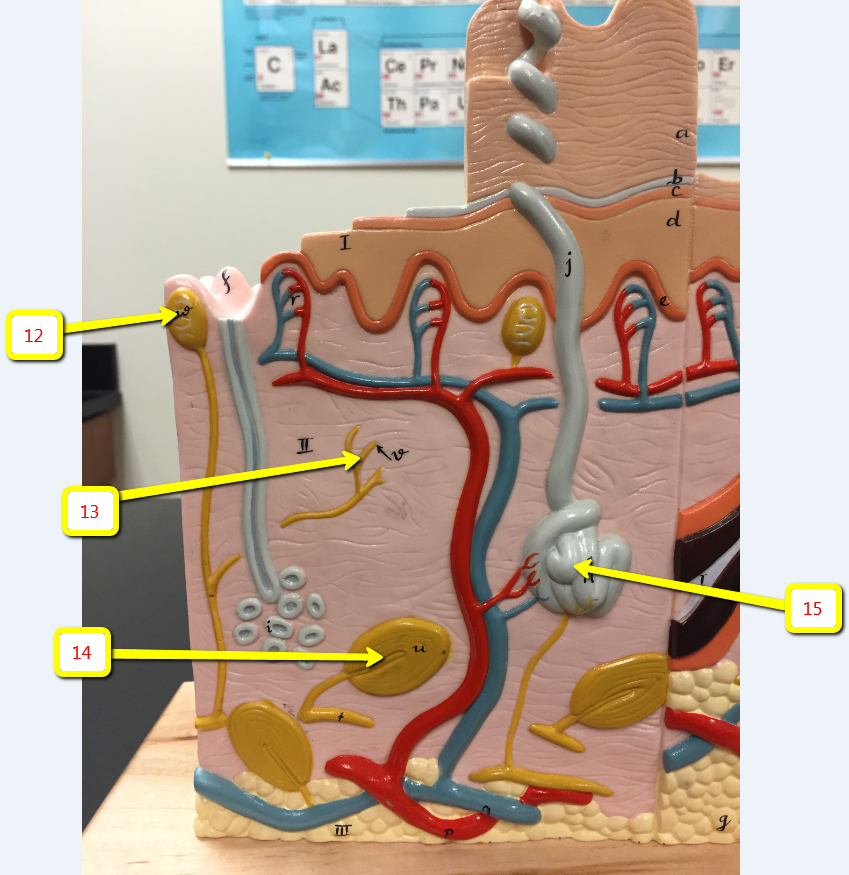

Name the structure indicated by arrow 15:

eccrine gland

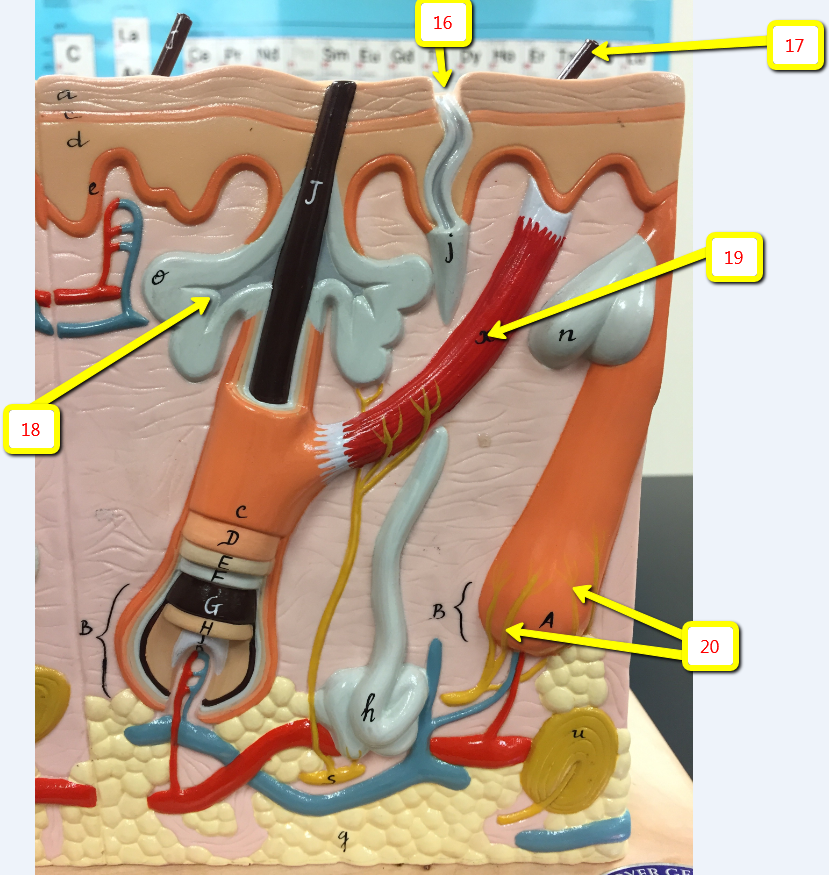

Name the opening indicated by arrow 16:

pore

Name the structure indicated by arrow 17:

shaft

Name the structure indicated by arrow 18:

sebaceous gland

Name the red structure indicated by arrow 19:

arrector pili muscle

Name the yellow structures indicated by arrow 20:

root hair plexus

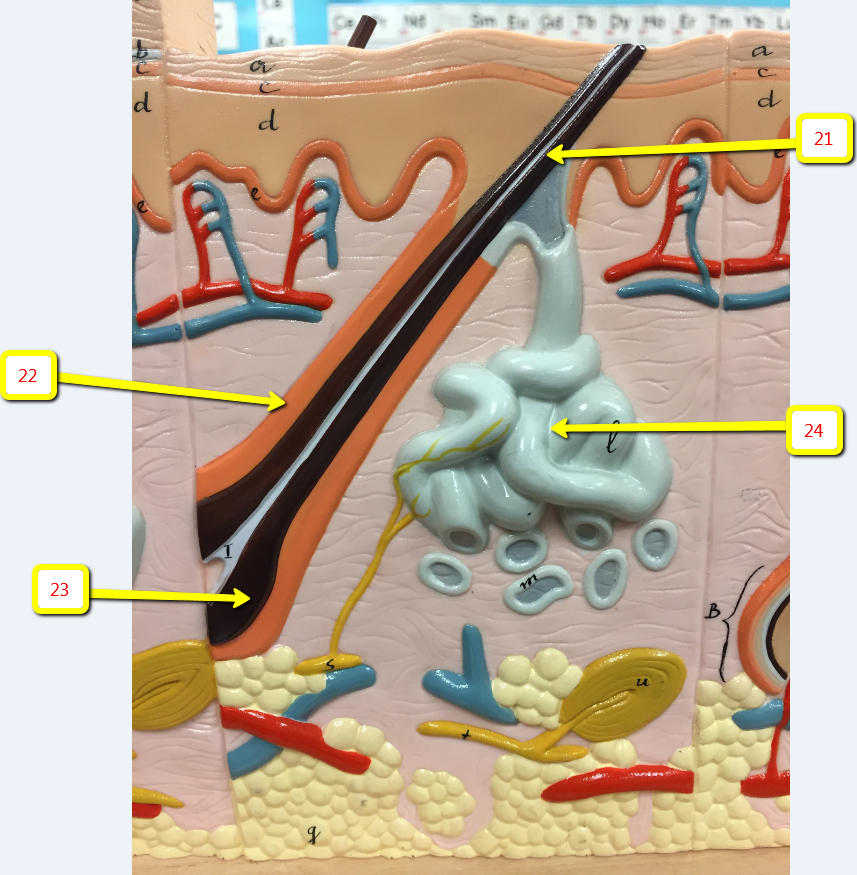

Name the structure indicated by arrow 21:

root

Name the structure indicated by arrow 22:

follicle

Name the structure indicated by arrow 23:

bulb

Name the structure indicated by arrow 24:

apocrine gland

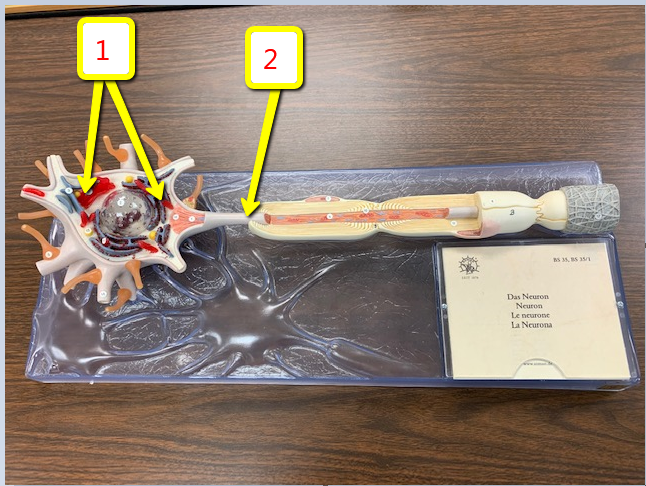

Name the part of the neuron indicated by arrow 1:

cell body

Name the long gray structure indicated by arrow 2:

axon

Name the structure indicated by arrow 3:

dendrite

Name the blue structures indicated by #4:

Nissl bodies

Name the structure indicated by arrow 5:

nucleus

Name the orange structure indicated by arrow 6:

synaptic terminal

Name the pink area indicated by arrow 7:

axon hillock

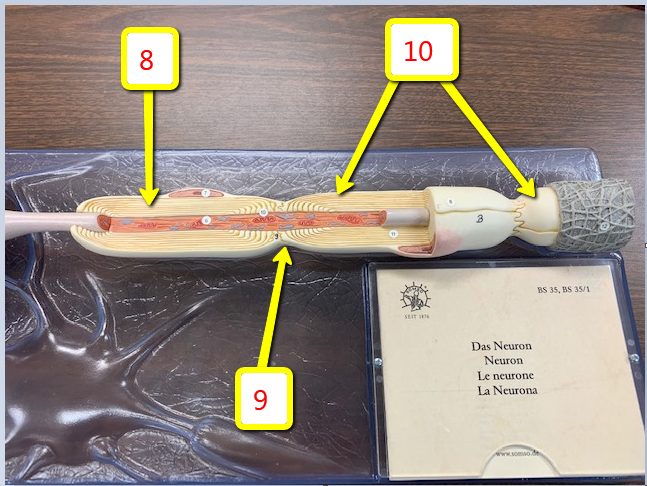

Name the white structure indicated by arrow 8:

Schwann cell

Name the area (gap) indicated by arrow 9:

node

Name the entire white covering indicated by arrow 10:

myelin sheath

Name the region indicated by #1.

cervical

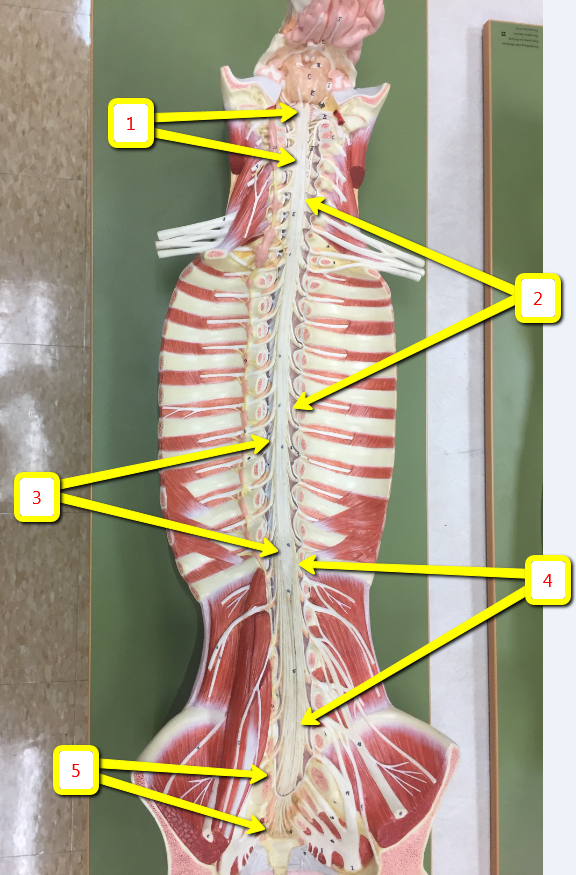

Name the region indicated by #2:

thoracic

Name the region indicated by #3:

lumbar

Name the region indicated by #4:

sacral

Name the region indicated by #5:

coccygeal

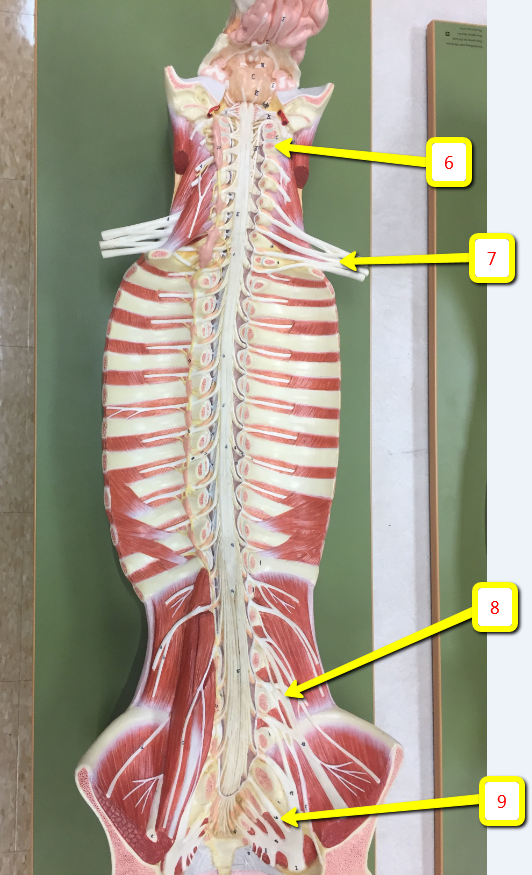

Name the nerve group or network indicated by arrow 6:

cervical plexus

Name the nerve group or network indicated by arrow 7:

brachial plexus

Name the nerve group or network indicated by arrow 8:

lumbar plexus

Name the nerve group or network indicated by arrow 9:

sacral plexus

Name the bulge indicated by arrow 10:

cervical enlargement

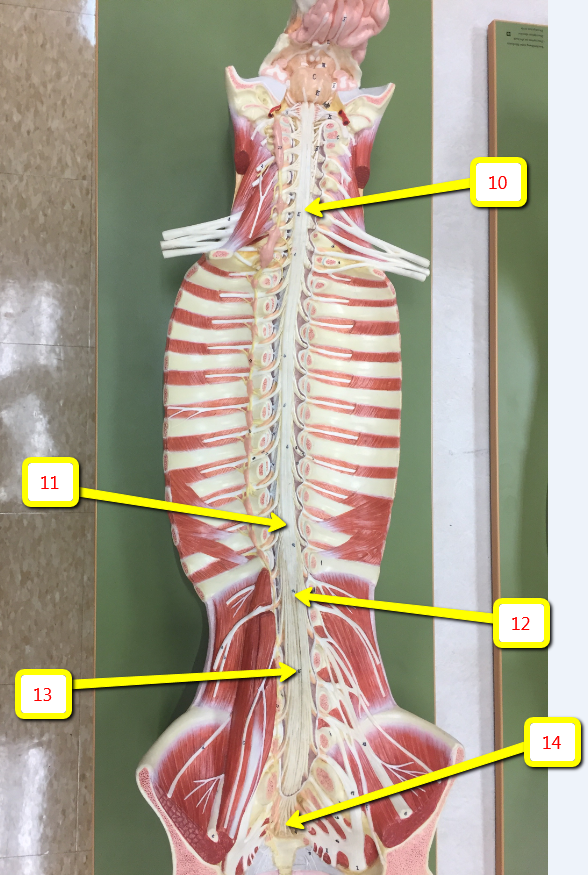

Name the bulge indicated by arrow 11:

lumbar enlargement

Name the point indicated by arrow 12:

conus medullaris

Name the structure indicated by arrow 13:

cauda equina

Name the structure indicated by arrow 14:

filum terminale

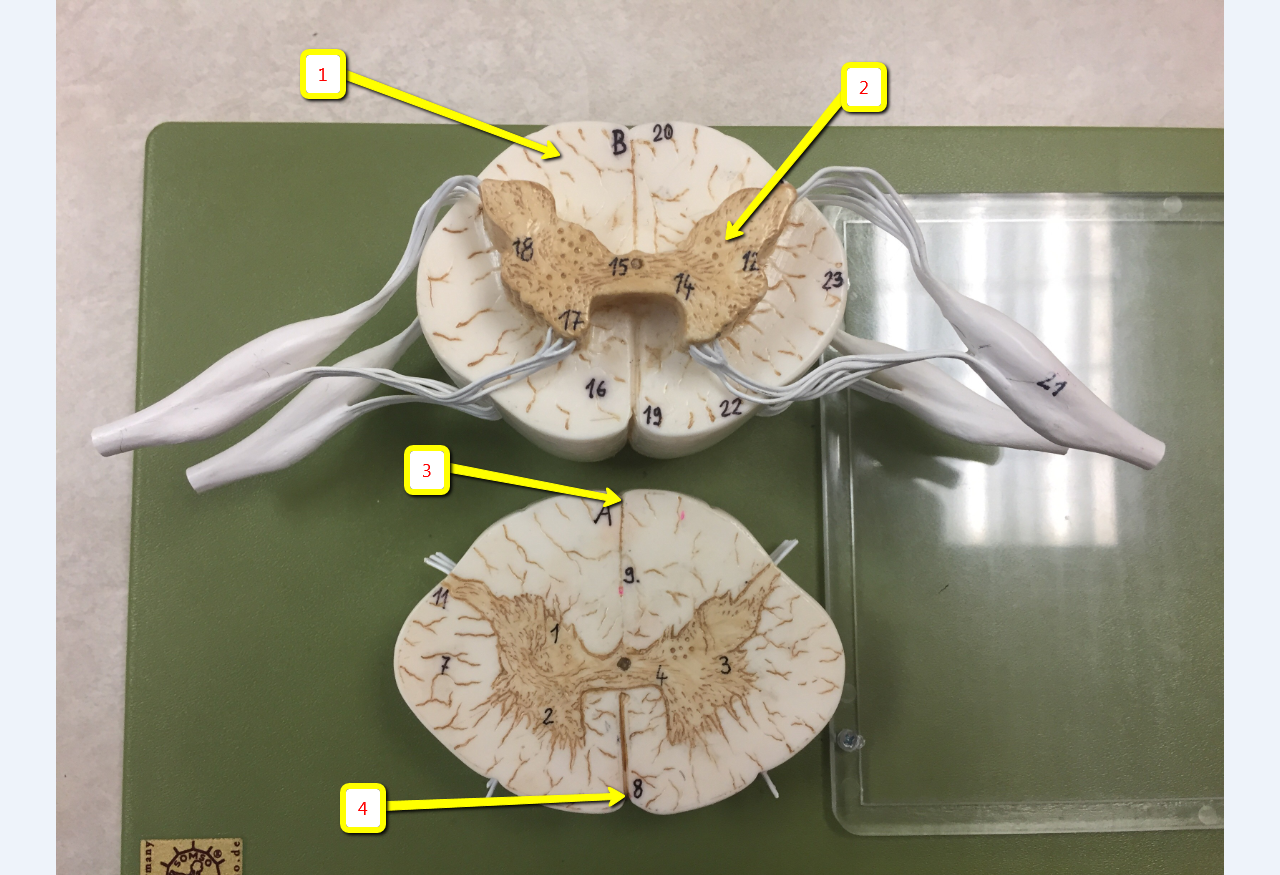

Name the light colored tissue indicated by arrow 1:

white matter

Name the dark colored tissue indicated by arrow 2:

gray matter

Name the shallow groove indicated by arrow 3:

posterior median sulcus

Name the deep groove indicated by arrow 4:

anterior median fissure

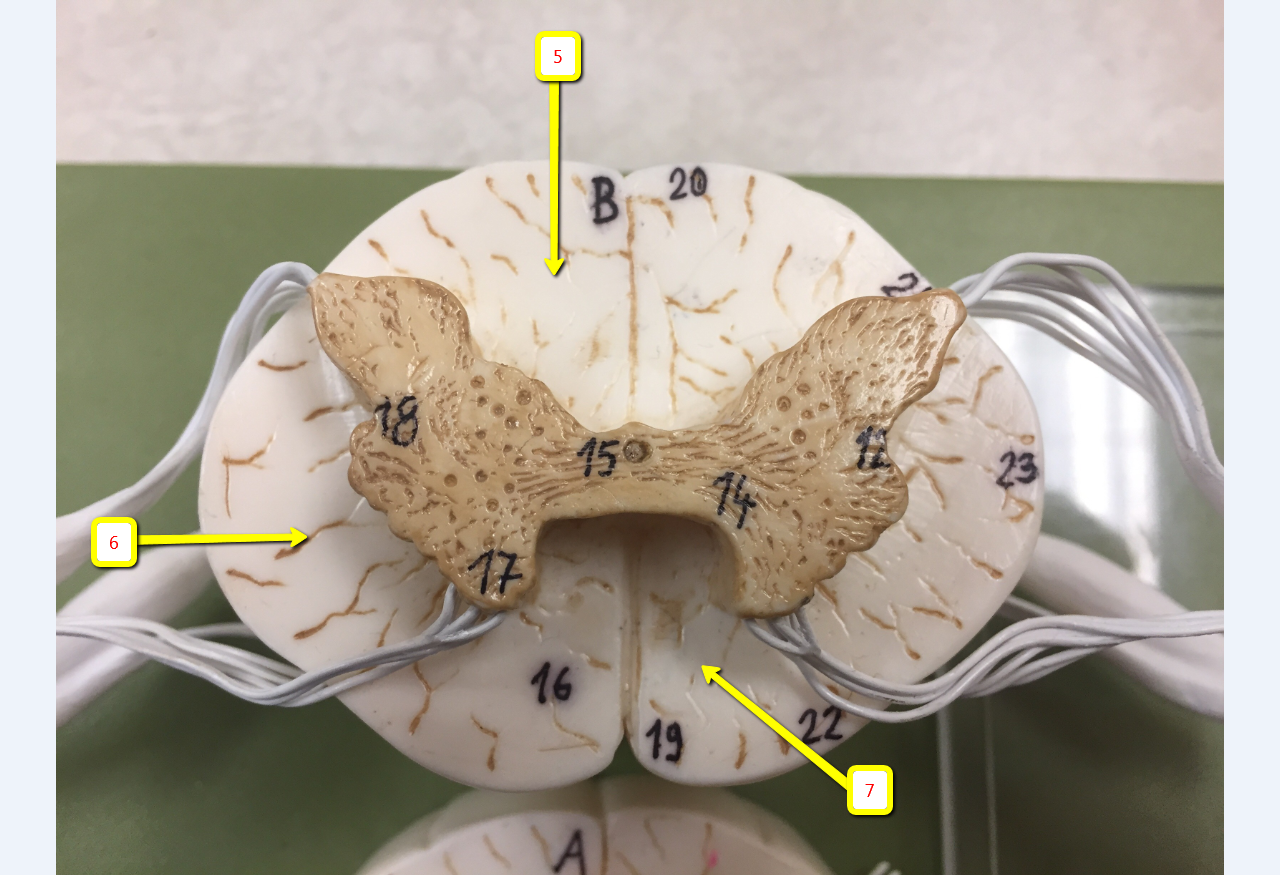

Name the specific area or structure indicated by arrow 5:

posterior white column

Name the specific area or structure indicated by arrow 6:

lateral white column

Name the specific area or structure indicated by arrow 7:

anterior white column

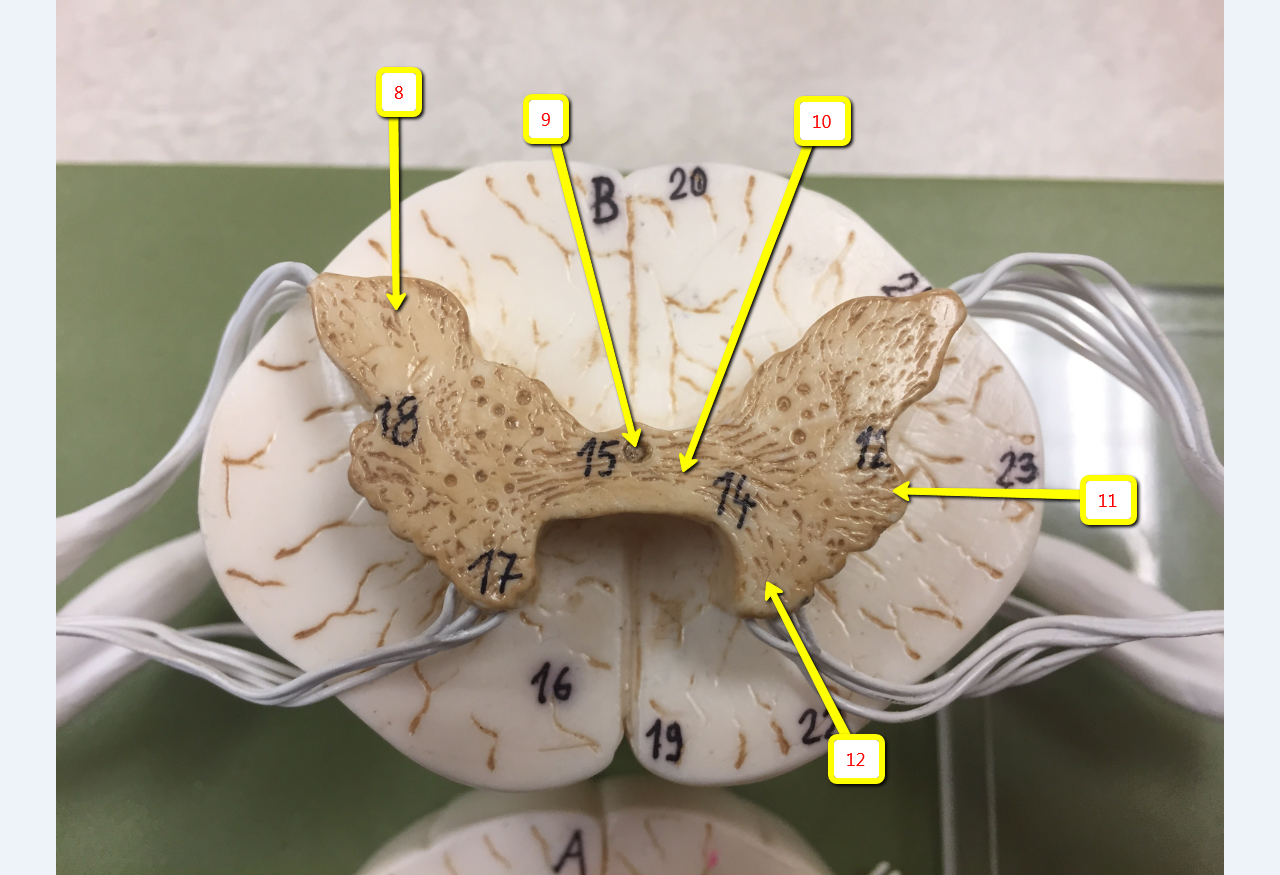

Name the specific area or structure indicated by arrow 8:

posterior gray horn

Name the hole indicated by arrow 9:

central canal

Name the dark colored strip indicated by arrow 10:

gray commissure

Name the specific area or structure indicated by arrow 11:

lateral gray horn

Name the specific area or structure indicated by arrow 12:

anterior gray horn

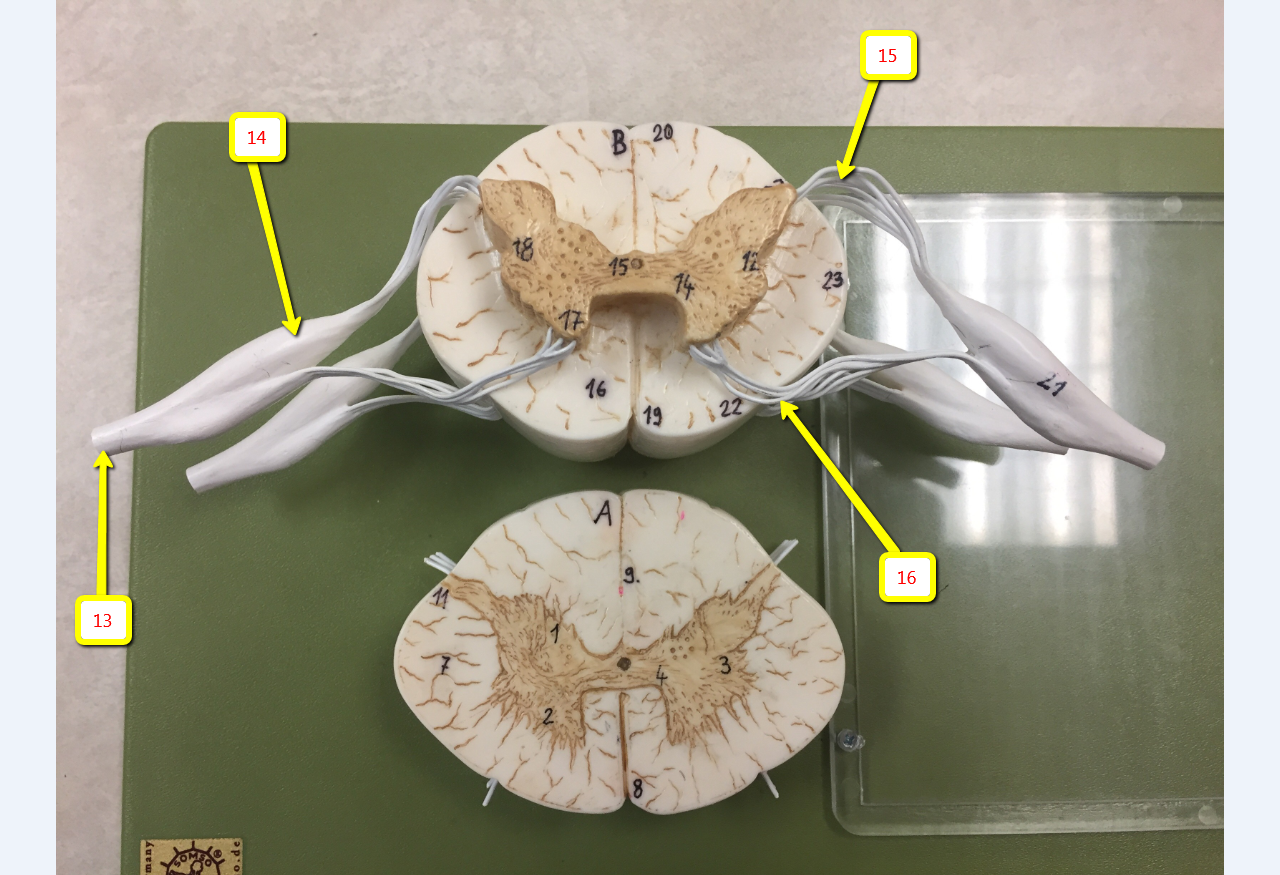

Name the structure indicated by arrow 13:

spinal nerve

Name the bulge indicated by arrow 14:

dorsal root ganglion

Name the structure indicated by arrow 15:

dorsal root

Name the structure indicated by arrow 16:

ventral root
