Fixed displacement pump
Pressure compensated fixed displacement pump
Load sensing fixed displacement pump
Motor
Direct acting pressure release valve (just the normal one)

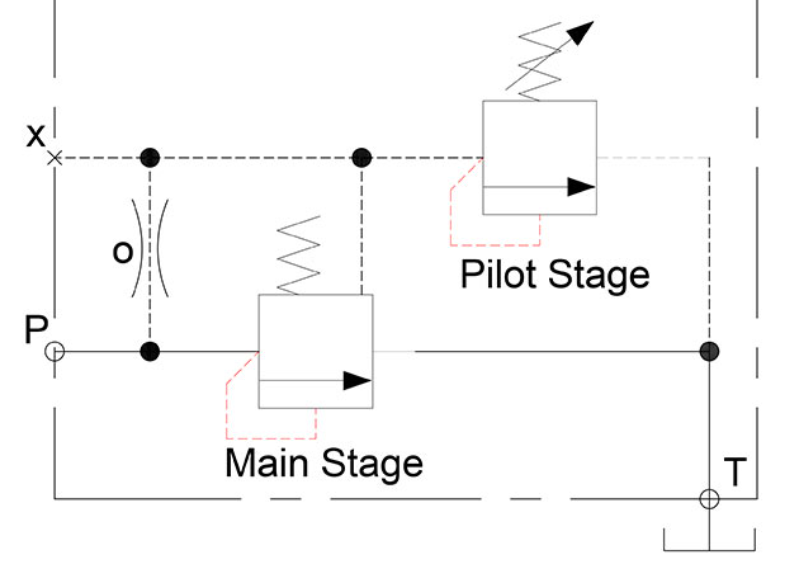

Pilot operated relief valve
Sequence valve

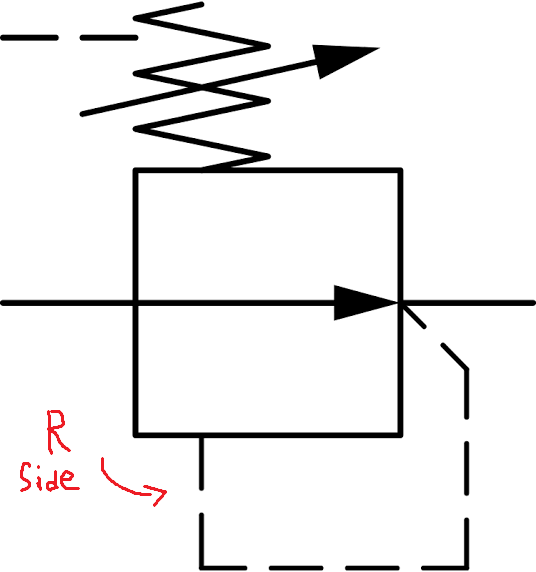

Pressure reducing valve
Solenoid operated DCV dual flow control (tandem center)
Solenoid operated DCV with pump port and modular flow (closed center)
Solenoid operated DCV with pump port and modular flow (float center)
Counter balance valve
Double acting single rod cylinder

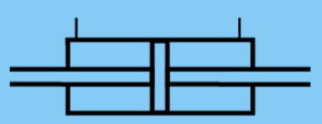

Double acting double rod cylinder
Bi-directional motor
Needle valve
Flow control valve
Pressure compensated flow control valve (restrictor type)
Mono-block mobile DCV

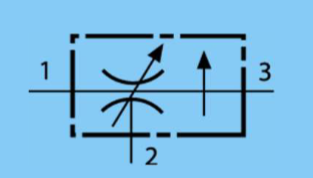

Solenoid operated 2 position 3 way control valve
Pressure compensated needle valve
Check valve
Ball valve
Return line filter
Flow meter
Pressure gauge
Temp gauge
Tachometer
Quick disconnect
Pilot to open check valve
Safety bleed valve (blue)
Reservoir
Safety bleed valve (red)
