12 Terms

1
New cards

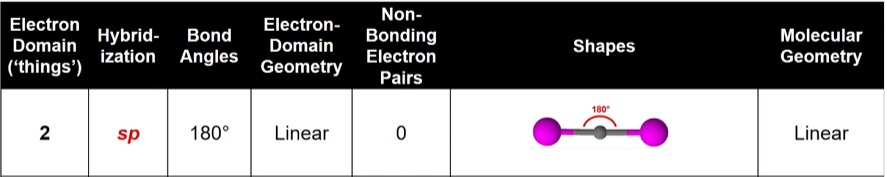

2 electron domains

Hybridization: sp

180 degree angle

Linear

<p>Hybridization: <strong>sp</strong></p><p><strong>180 degree angle </strong></p><p><strong>Linear</strong></p>
2
New cards

3 electron domains (no non electron bonding pairs)

Hybridization: sp²

120 degree angle

Trigonal planar

<p>Hybridization: <strong>sp²</strong></p><p><strong>120 degree angle </strong></p><p><strong>Trigonal planar </strong></p>
3
New cards

3 electron domains (w/ 1 non electron bonding pairs)

Hybridization: sp²

120 degree angle

bent

<p>Hybridization: <strong>sp²</strong></p><p><strong>120 degree angle </strong></p><p><strong>bent</strong></p>
4
New cards

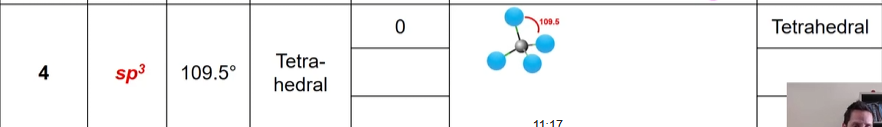

4 electron domains (w/ no electron bonding pairs)

Hybridization: sp³

109.5 degree angle

Tetrahedral

<p>Hybridization: <strong>sp³</strong></p><p><strong>109.5 degree angle </strong></p><p><strong>Tetrahedral </strong></p>
5
New cards

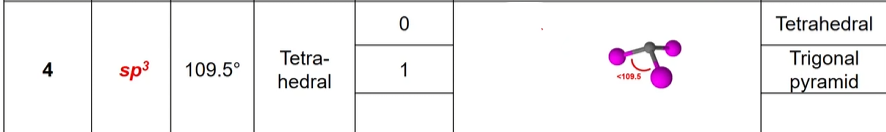

4 electron domains (w/ 1 electron bonding pairs)

Hybridization: sp3

<109.5 degree angle

Trigonal pyramidal

<p>Hybridization: <strong>sp<sup>3</sup></strong></p><p><strong>&lt;109.5 degree angle </strong></p><p><strong>Trigonal pyramidal </strong></p>
6
New cards

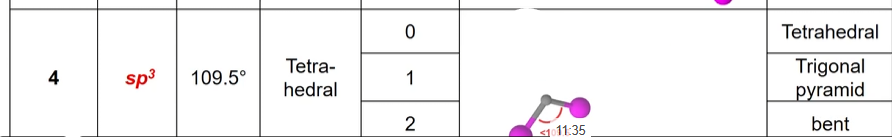

4 electron domains (w/ 2 electron bonding pairs)

Hybridization: sp3

<109.5 degree angle

bent

<p>Hybridization: <strong>sp<sup>3</sup></strong></p><p><strong>&lt;109.5 degree angle </strong></p><p><strong>bent</strong></p>
7
New cards

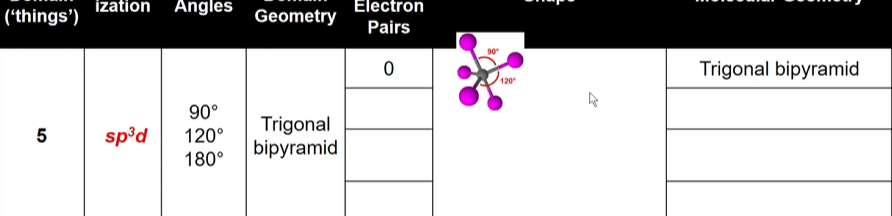

5 electron domains (w/ electron bonding pairs)

Hybridization: sp3d

180 degree angle

120 degree angle

90 degree angle

Trigonal bipyramid

<p>Hybridization: <strong>sp<sup>3</sup>d </strong></p><p><strong>180 degree angle </strong></p><p><strong>120 degree angle </strong></p><p><strong>90 degree angle </strong></p><p><strong>Trigonal bipyramid </strong></p>
8
New cards

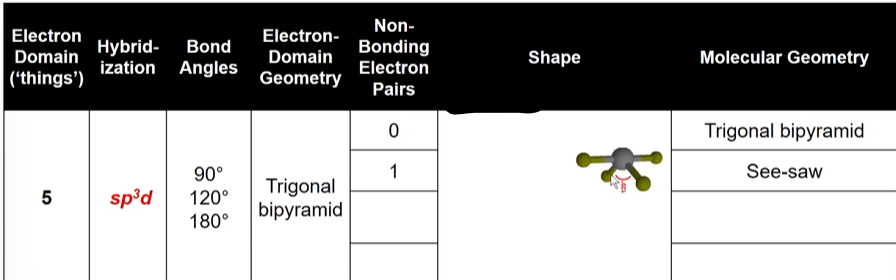

5 electron domains (w/ 1 electron bonding pairs)

Hybridization: sp3d

180 degree angle

120 degree angle

90 degree angle

Seesaw

<p>Hybridization: <strong>sp<sup>3</sup>d </strong></p><p><strong>180 degree angle </strong></p><p><strong>120 degree angle </strong></p><p><strong>90 degree angle </strong></p><p><strong>Seesaw</strong></p>
9
New cards

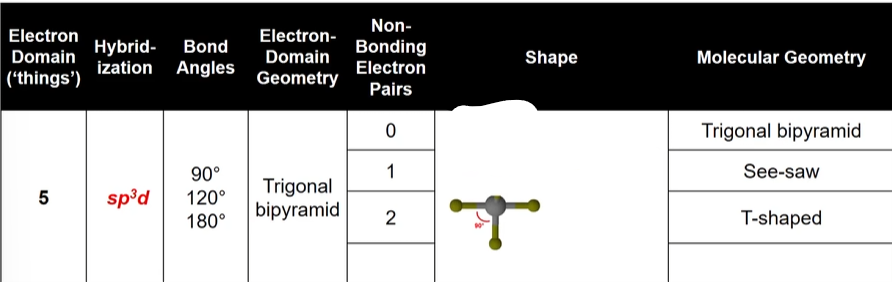

5 electron domains (w/ 2 electron bonding pairs)

Hybridization: sp3d

180 degree angle

90 degree angle

T shaped

<p>Hybridization: <strong>sp<sup>3</sup>d </strong></p><p><strong>180 degree angle </strong></p><p><strong>90 degree angle </strong></p><p><strong>T shaped</strong></p>
10
New cards

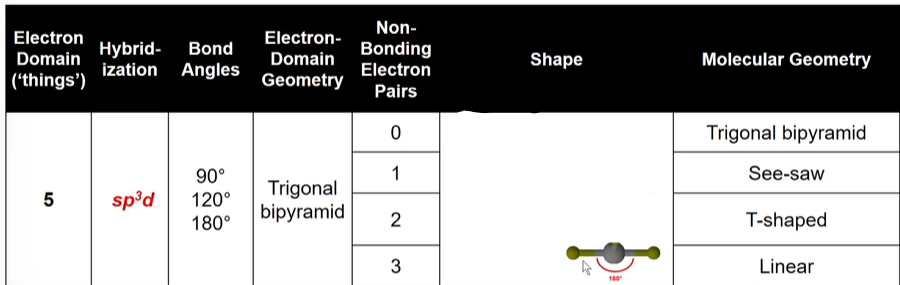

5 electron domains (w/ 3 electron bonding pairs)

Hybridization: sp3d

180 degree angle

linear

<p>Hybridization: <strong>sp<sup>3</sup>d </strong></p><p><strong>180 degree angle </strong></p><p><strong>linear</strong></p>
11
New cards

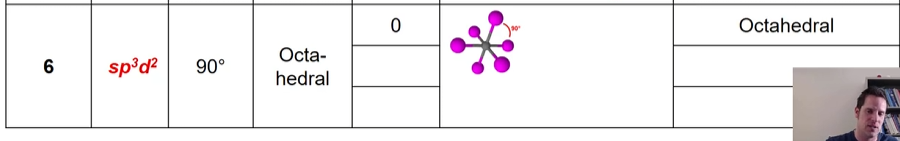

6 electron domains (w/ no electron bonding pairs)

Hybridization: sp3d²

90 degree angle

Octahedral

<p>Hybridization: <strong>sp<sup>3</sup>d² </strong></p><p><strong>90 degree angle </strong></p><p><strong>Octahedral </strong></p>
12
New cards

6 electron domains (w/ 1 electron bonding pairs)

Hybridization: sp3d²

90 degree angle

Square planar

<p>Hybridization: <strong>sp<sup>3</sup>d² </strong></p><p><strong>90 degree angle </strong></p><p><strong>Square planar</strong></p>
