Advanced Imaging XRAY pictures

are they accurate or inaccurate xray pictures? if inaccurate, explain why.

PA chest

inaccurate image

• superior MCP tilted anteriorly

PA Chest

inaccurate image

• superior MCP tilted posteriorly

AP neutral shoulder

accurate positioning

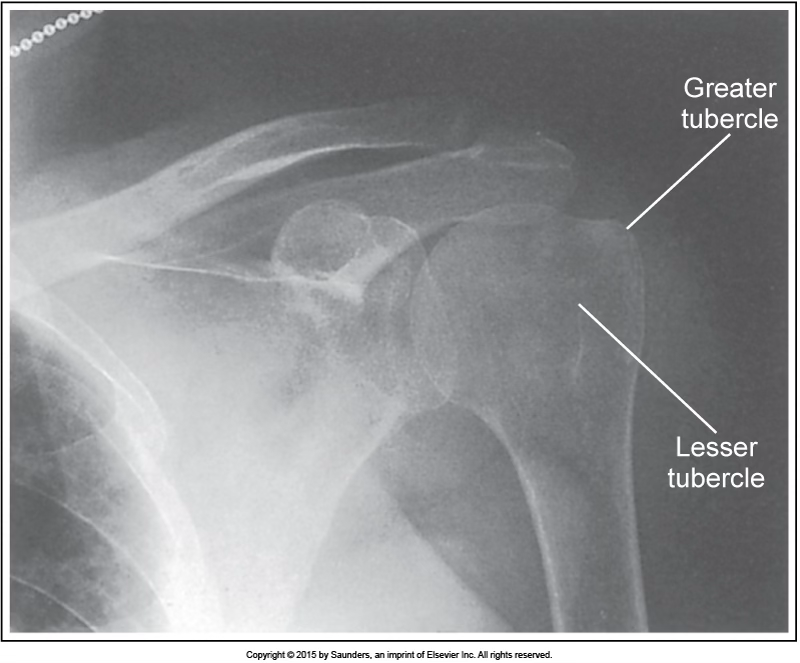

AP external shoulder

accurate positioning

AP internal shoulder

accurate positioning

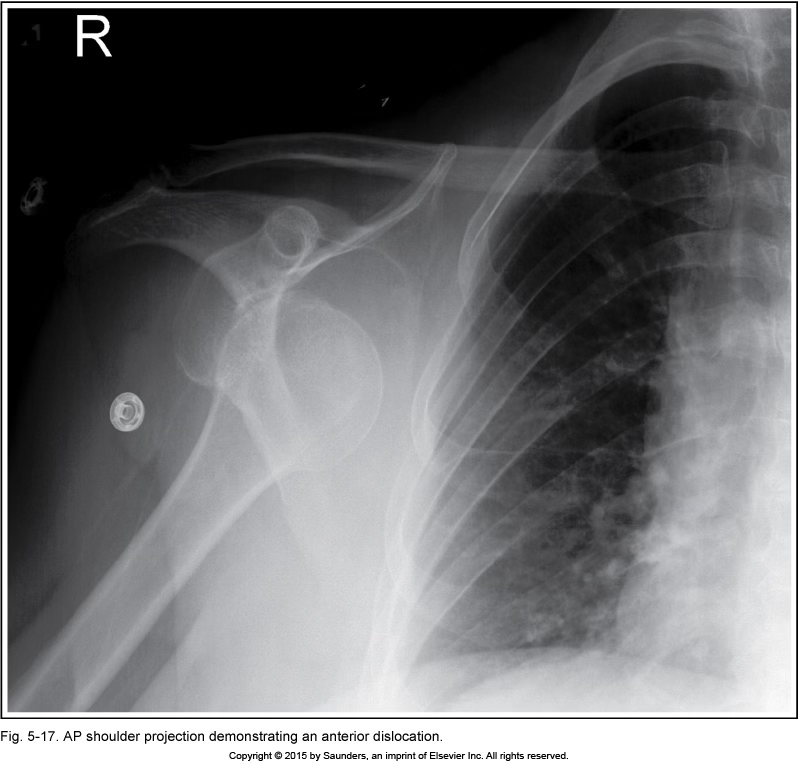

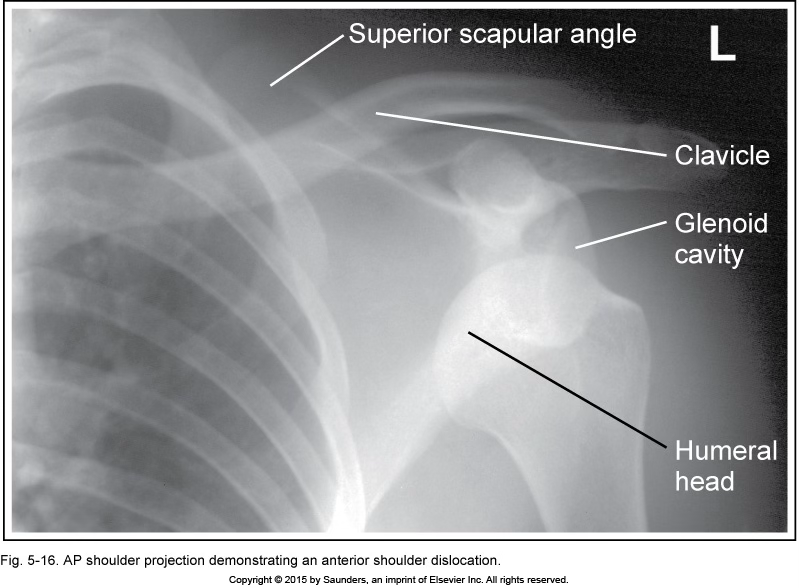

AP shoulder (dislocation)

• MCP tilt anteriorly (superior angle above clavicles)

• anterior dislocation

AP shoulder (dislocation)

• MCP tilt posteriorly (clavicle above superior angle)

• anterior dislocation

Inferosuperior Axial (lawrence)

accurate positioning

grashey

accurate positioning

grashey

excessive obliquity

grashey

insufficient obliquity

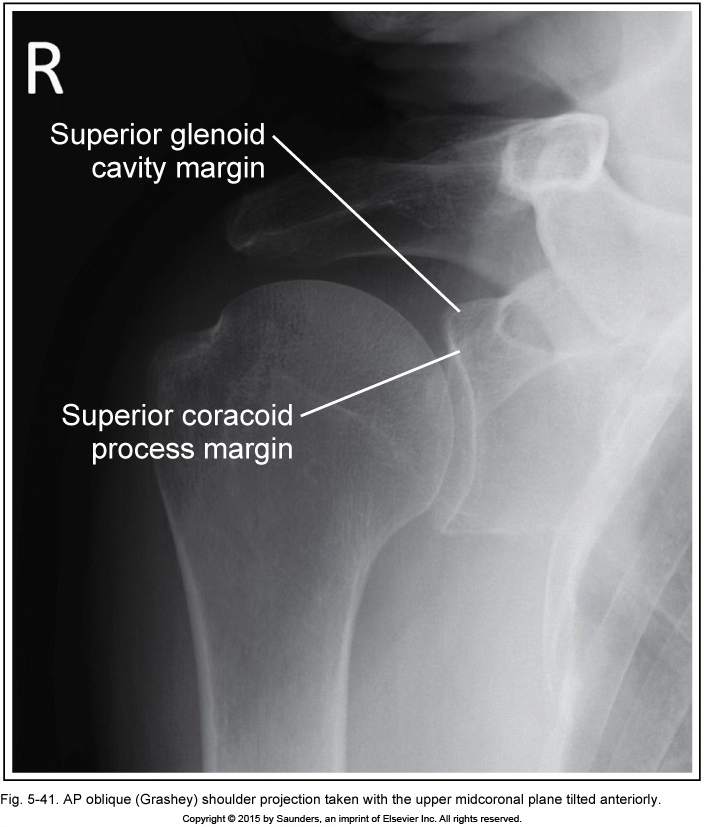

grashey

MCP tilt anteriorly

• (coracoid process is below glenoid cavity)

grashey

MCP tilt posteriorly

• (coracoid process above glenoid cavity)

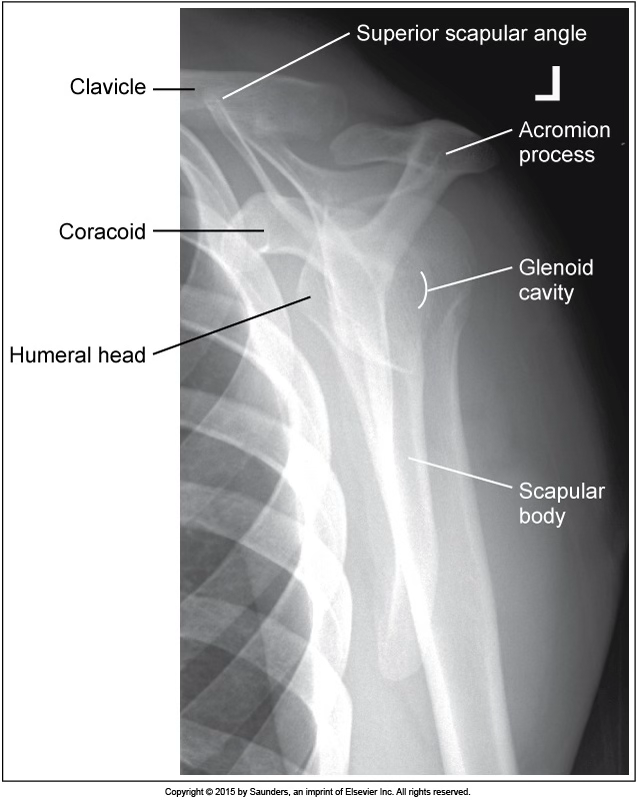

Y view

accurate positioning

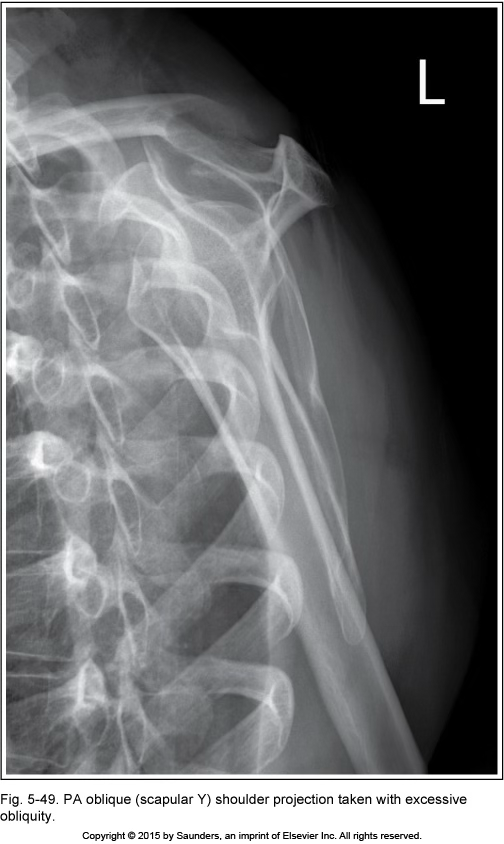

Y view

excessive obliquity

Y view

insufficient obliquity

• (head of humerus out of ribs)

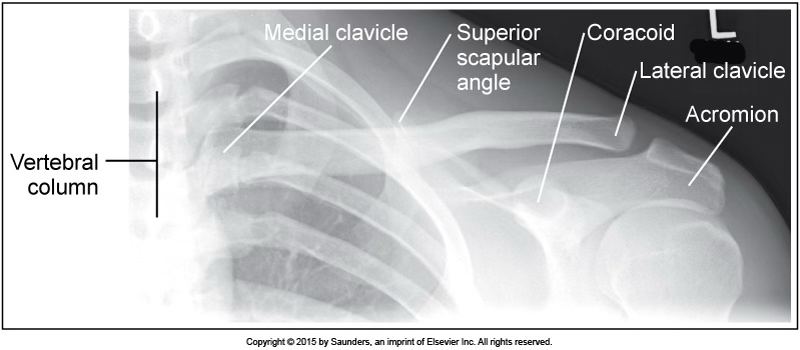

AP clavicle

accurate positioning

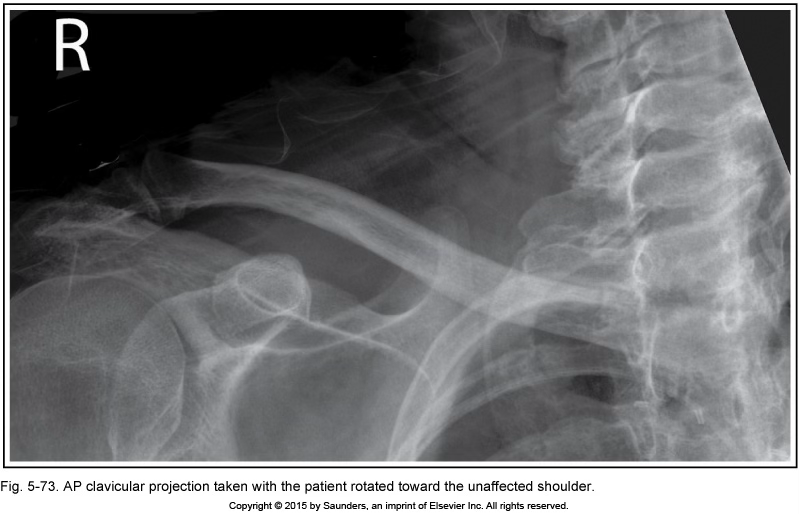

AP clavicle

• Pt rotated into LPO (unaffected shoulder)

• (medial end of clavicle is superimposing vertebral column)

AP clavicle

• Pt rotated into LPO (affected shoulder)

• open space between vertebral column and clavicle

• clavicle shortened

AP clavicle

• MCP tilt anteriorly

• (superior scapular angle above body of clavicle)

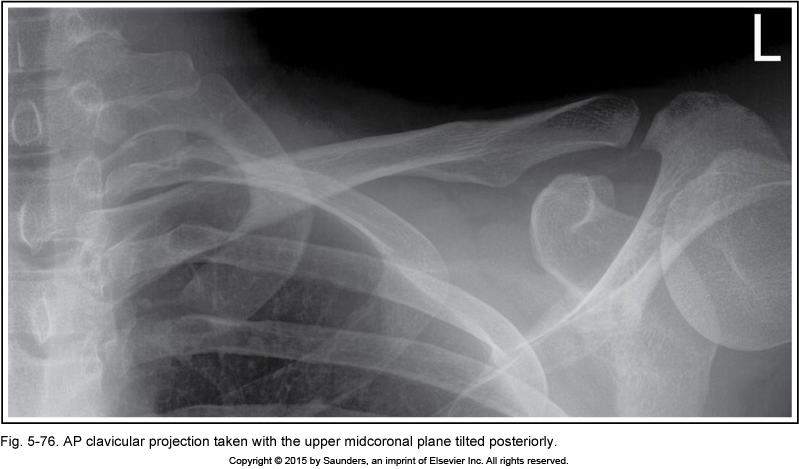

AP clavicle

• MCP tilt posteriorly

• angle in ribs

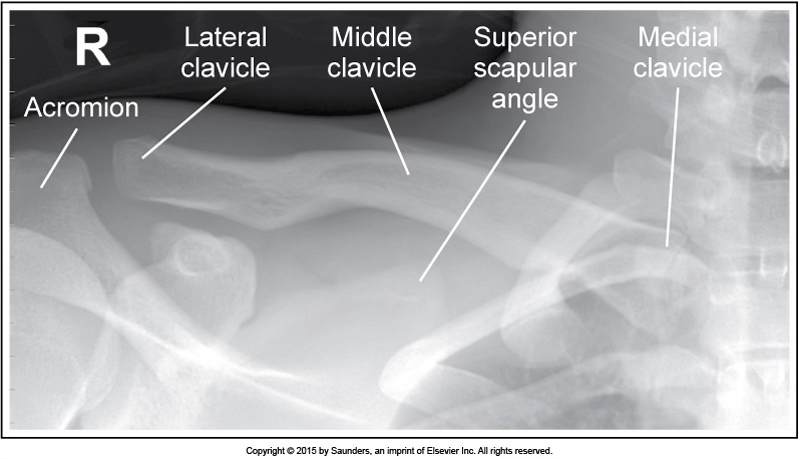

AP axial clavicle

accurate positioning

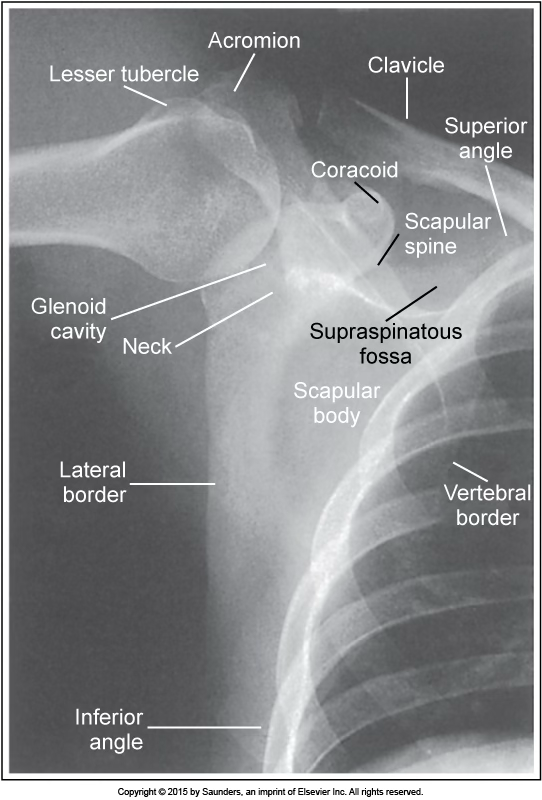

AP scapula

accurate positioning

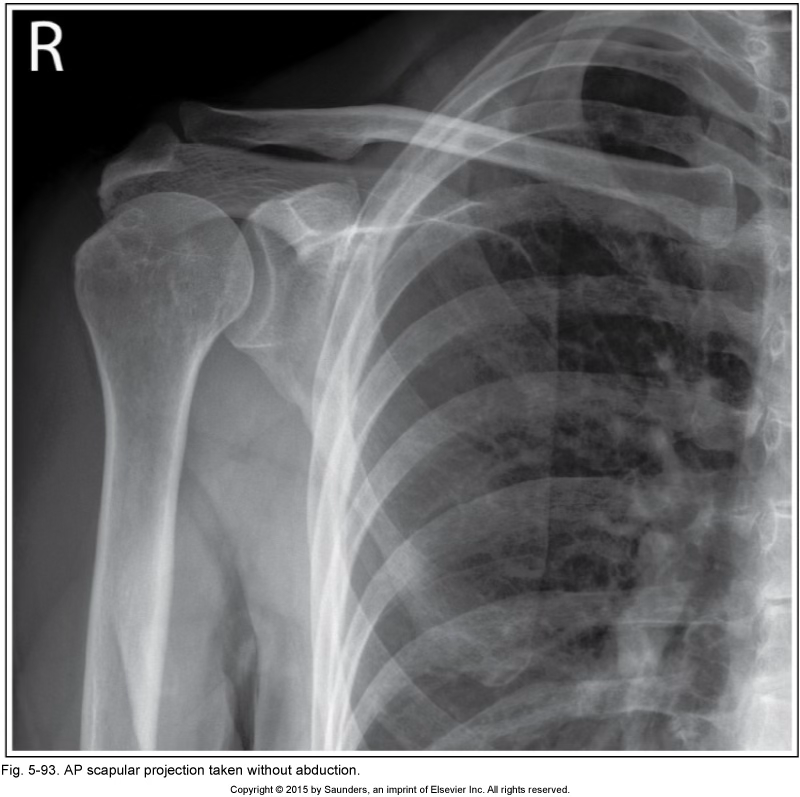

AP scapula

no hand abduction

AP scapula

unadequate shoulder retraction

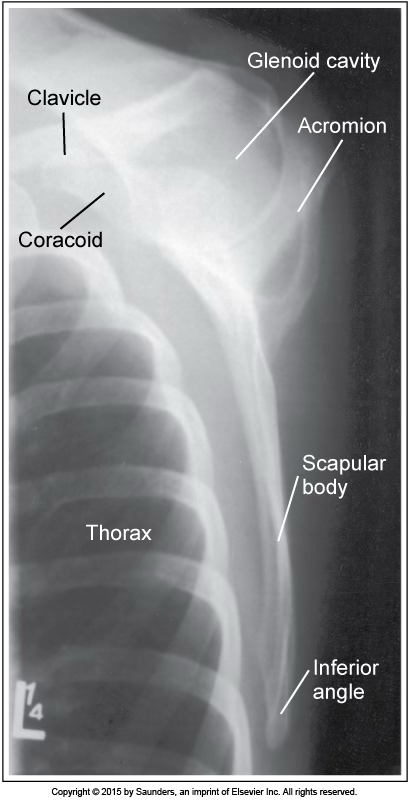

lateral scapula

accurate positioning

AP toe

accurate positioning

AP axial toe

accurate positioning

AP axial toe

toe rotated laterally

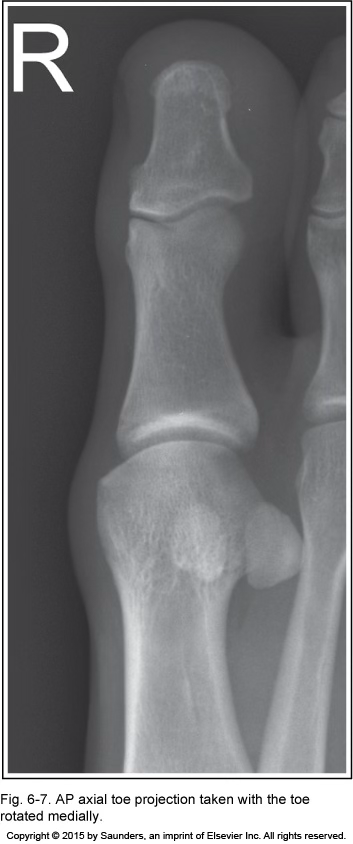

AP axial toe

rotated medially

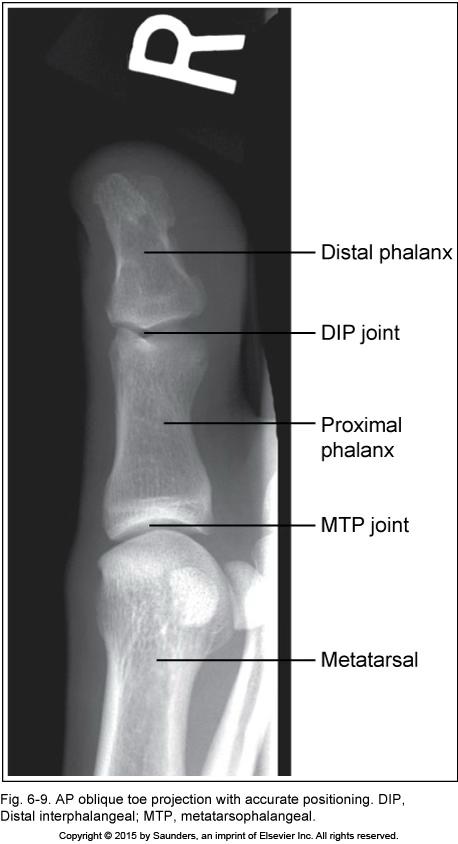

AP oblique toe

accurate positioning

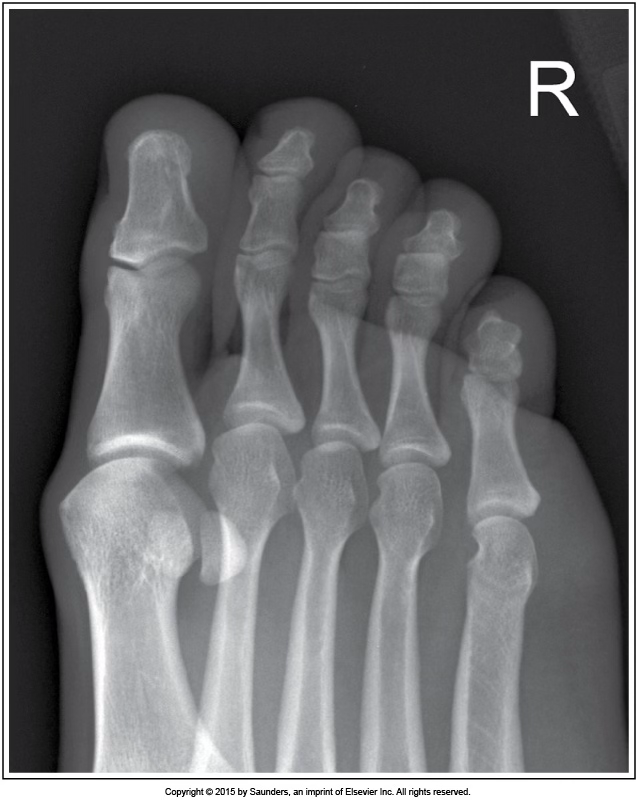

AP oblique toe

accurate positioning

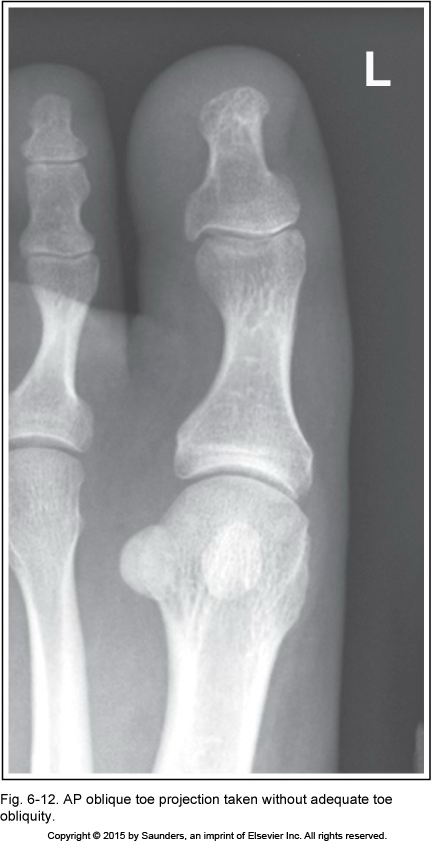

AP oblique toe

inadequate toe obliquity

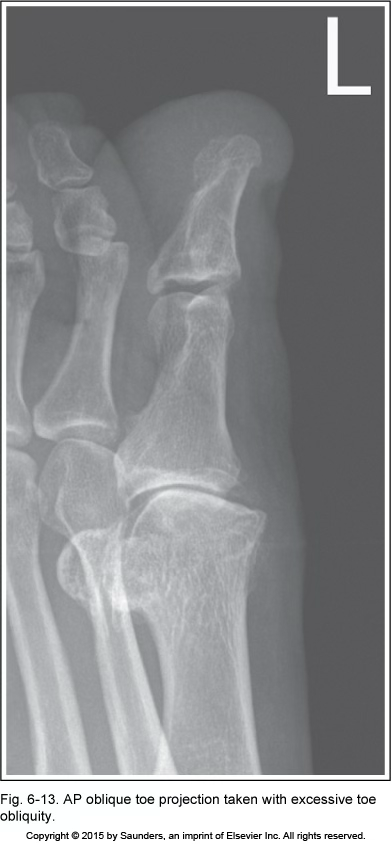

AP oblique toe

excessive toe obliquity

AP oblique toe

CR not aligned parallel with the IP and MTP jt spaces

lateral toe

accurate positioning

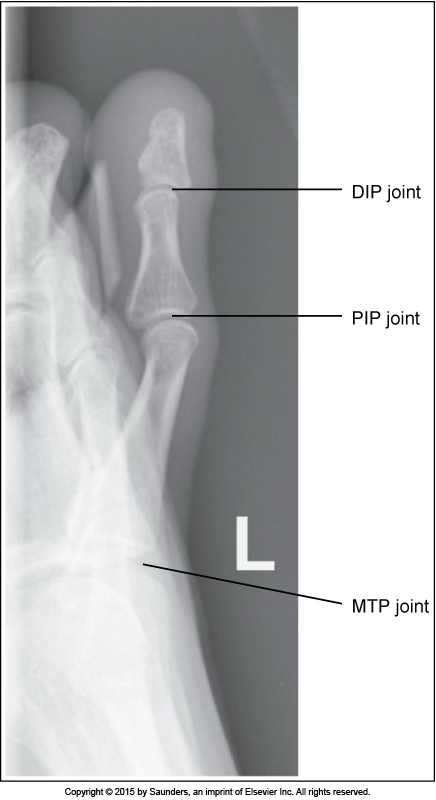

second toe lateral

accurate positioning

lateral toe

inadequate obliquity

lateral toe

unaffected toes are not pulled away

AP axial foot

accurate positioning

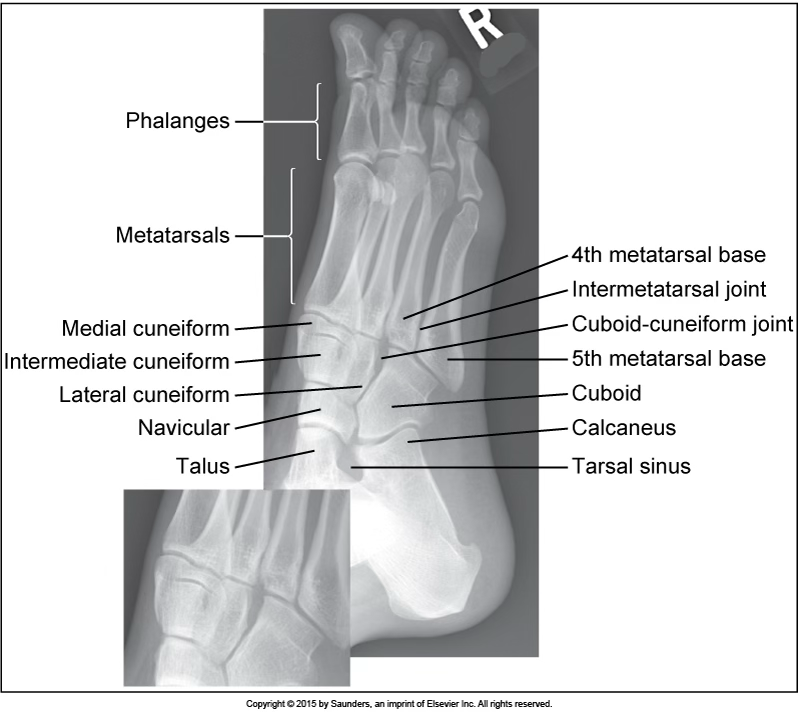

AP oblique foot

accurate positioning

AP oblique foot

insufficient foot obliquity

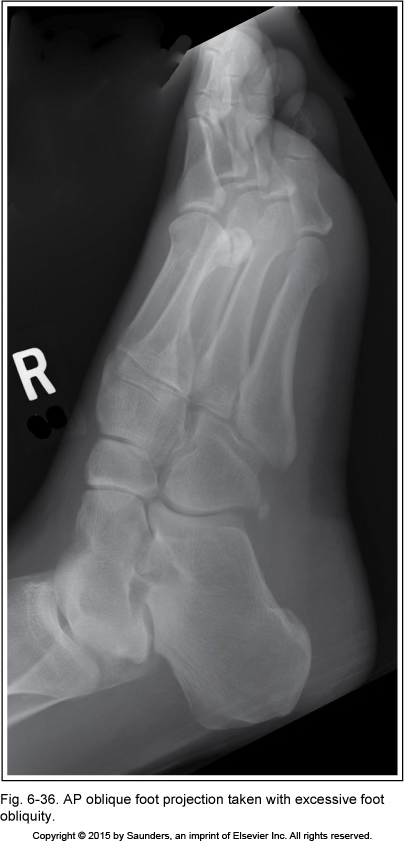

AP oblique foot

excessive foot obliquity

medialateral foot

accurate positioning

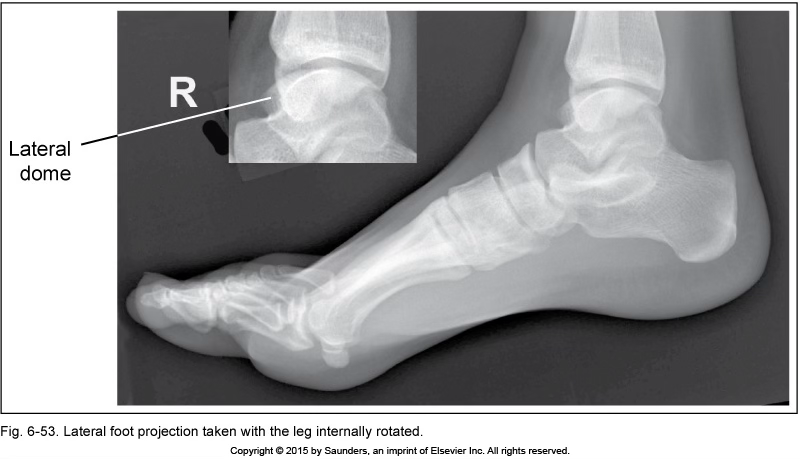

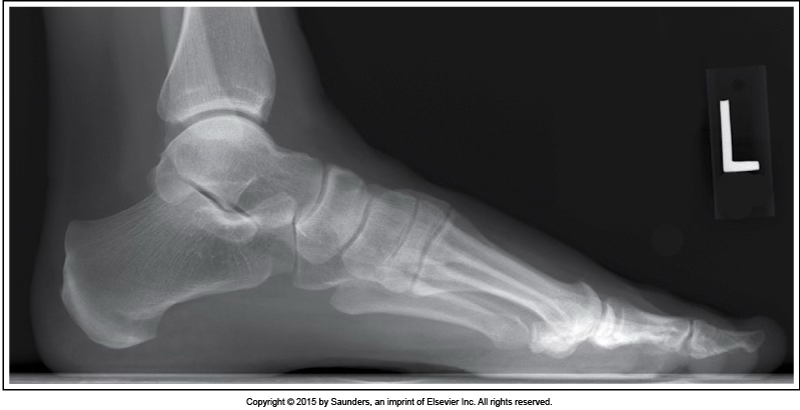

lateral foot

leg internally rotated

• check fibula

lateral foot

accurate positioning

• pt has an average medial foot arch

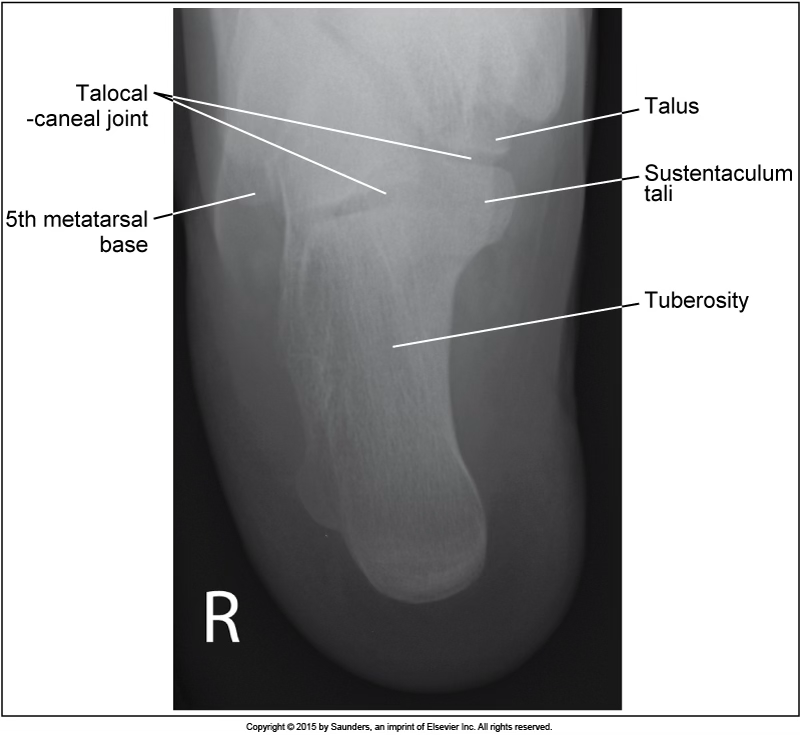

Axial calcaneus

accurate positioning

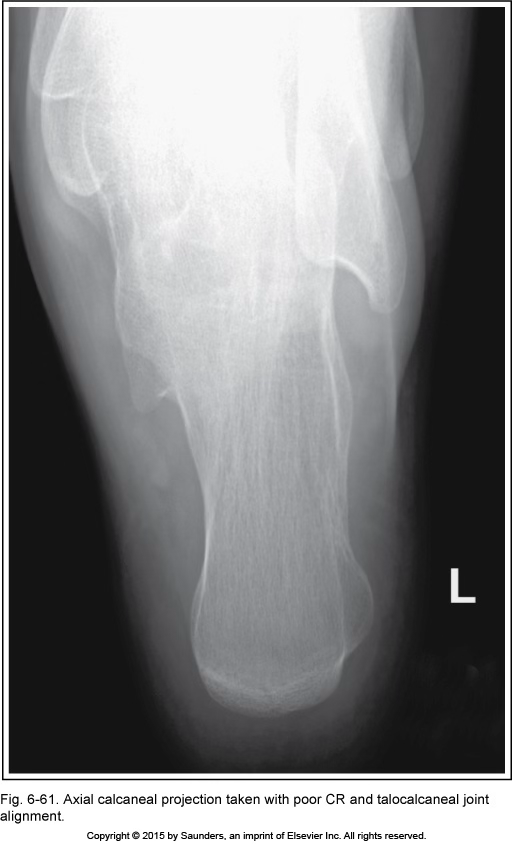

Axial calcaneus

poor CR and talocalcaneal jt alignment

• cant see jt space

axial calcaneus

external ankle rotation

• we see too much of toes

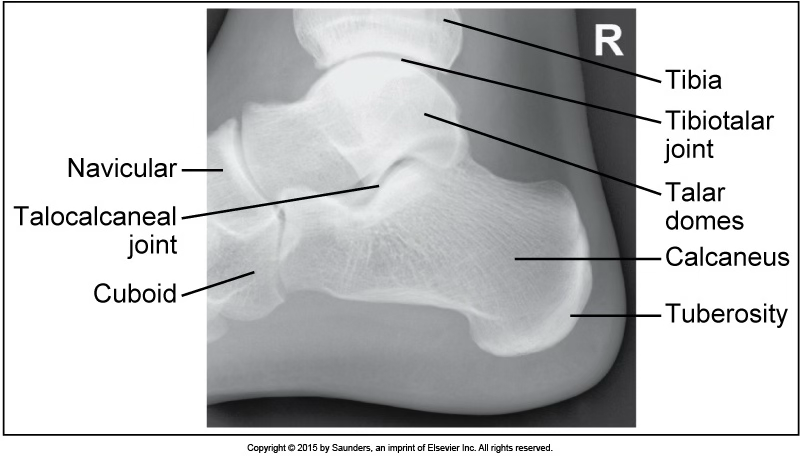

lateral calcaneus

accurate positioning

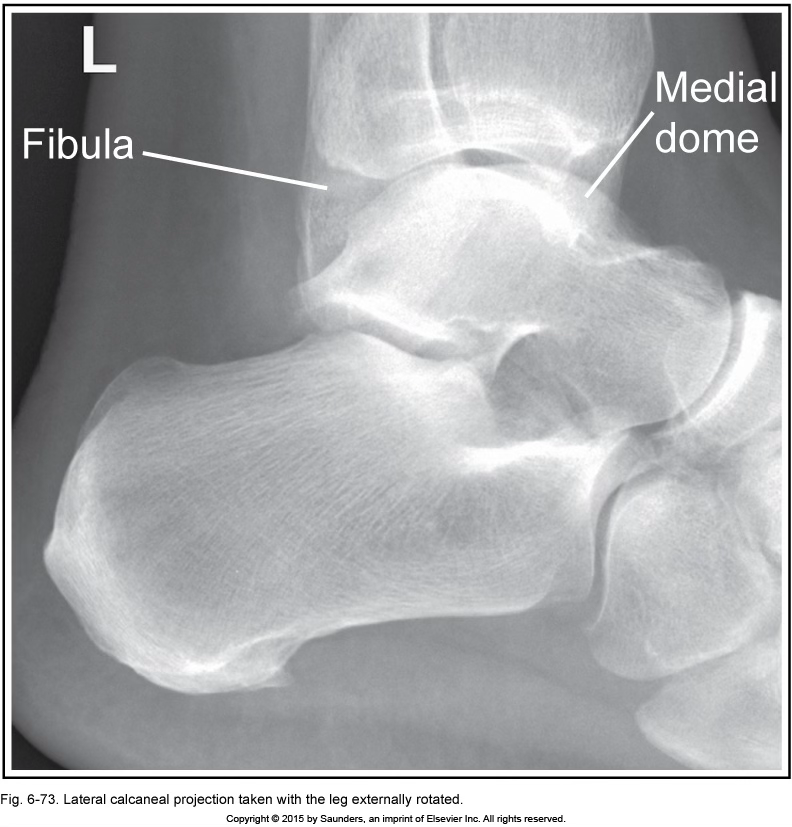

lateral calcaneus

leg externally rotated

lateral calcaneus

leg internally rotated

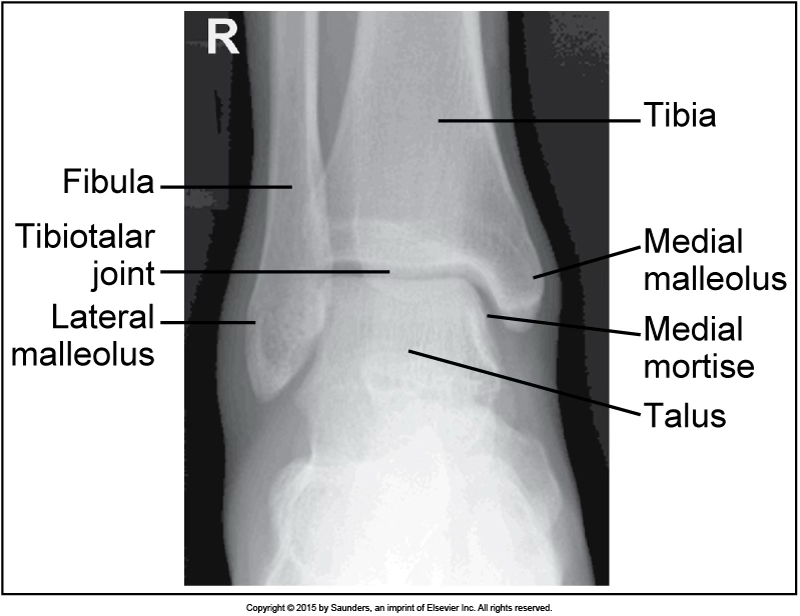

AP ankle

accurate positioning

AP ankle

ankle externally rotated

• tibia superimposing fibula

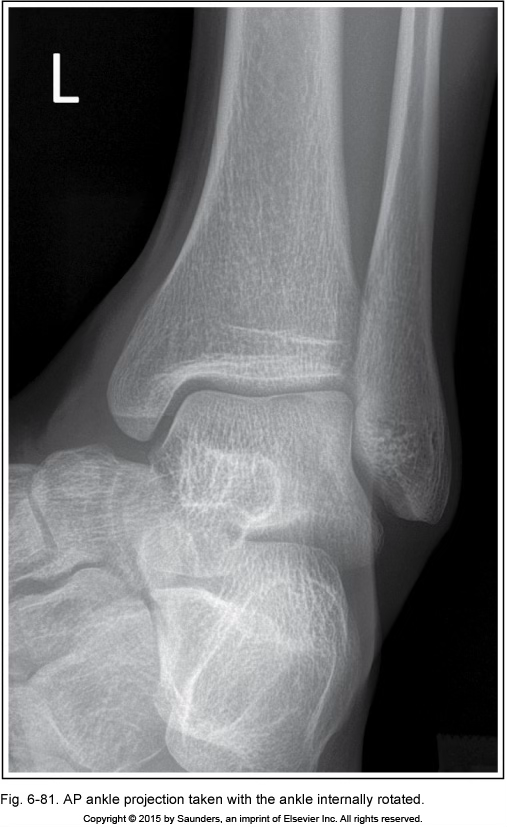

AP ankle

ankle internally rotated

• looks like a mortise

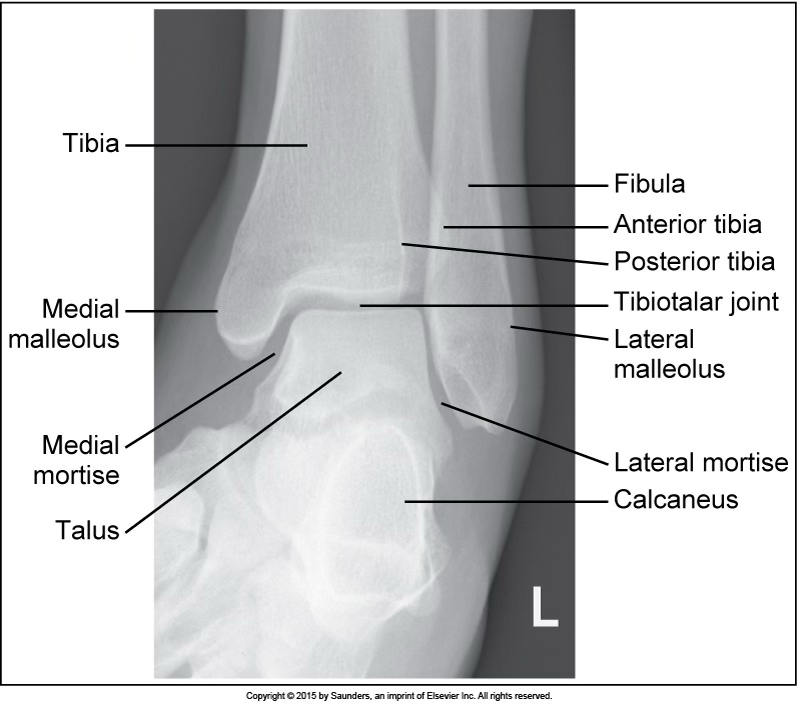

AP oblique ankle (mortise)

accurate positioning

AP ankle oblique (45 deg)

accurate positioning

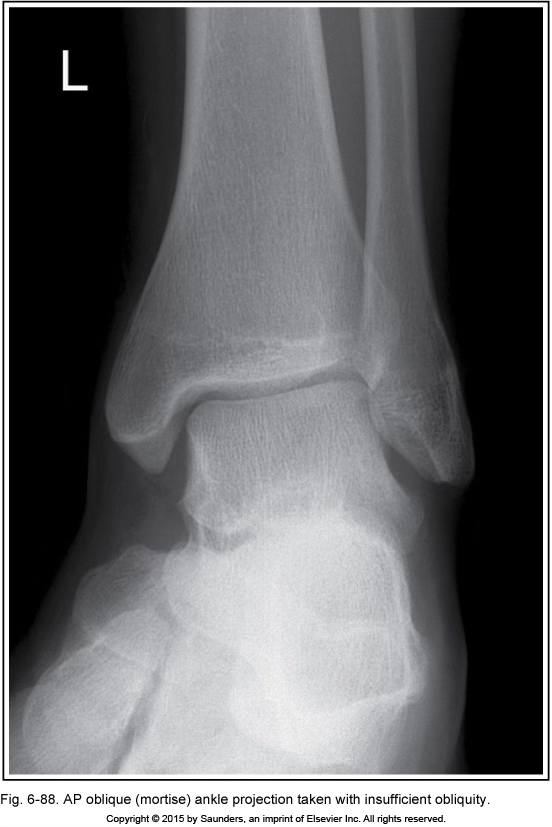

AP ankle oblique (mortise)

insufficient obliquity

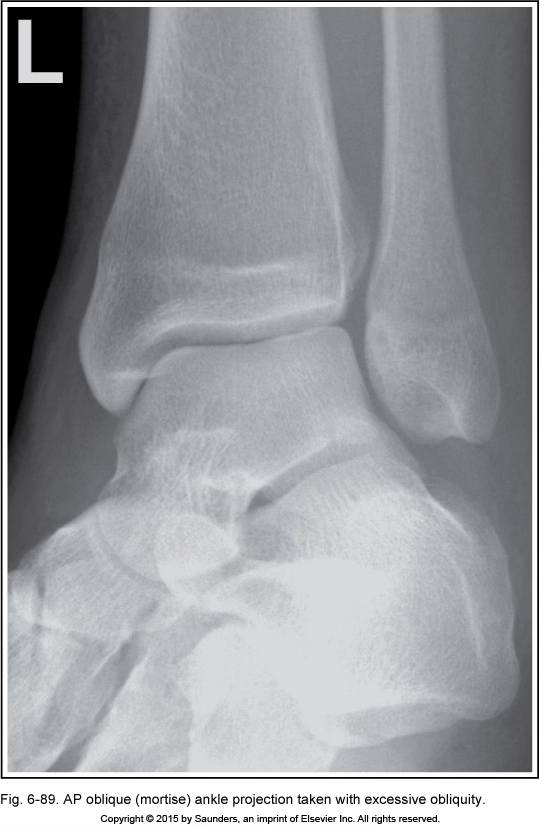

AP ankle oblique (mortise)

excessive obliquity

• too much joint space

AP oblique ankle (mortise)

foot not dorsiflexed

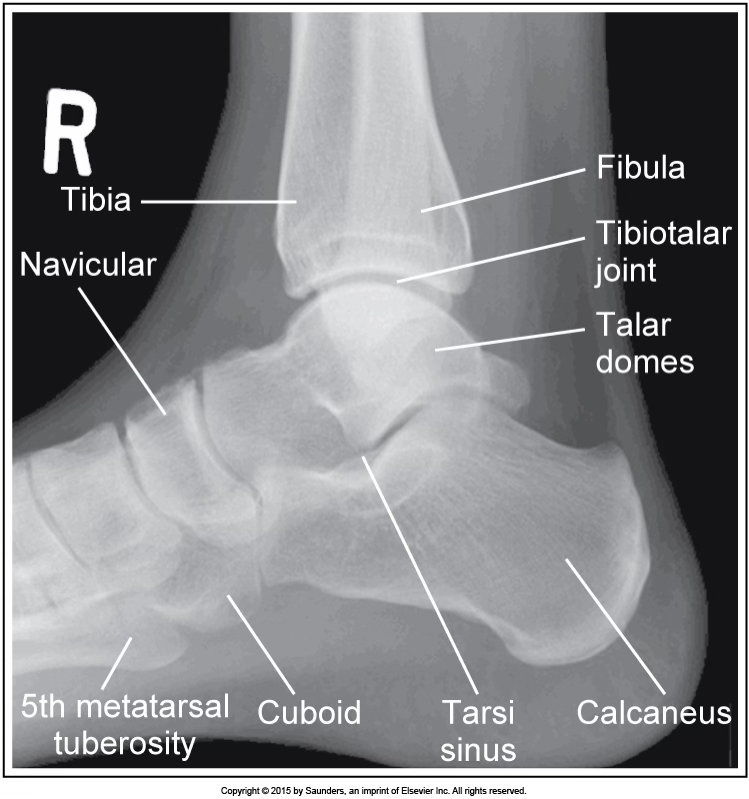

lateral ankle

accurate positioning

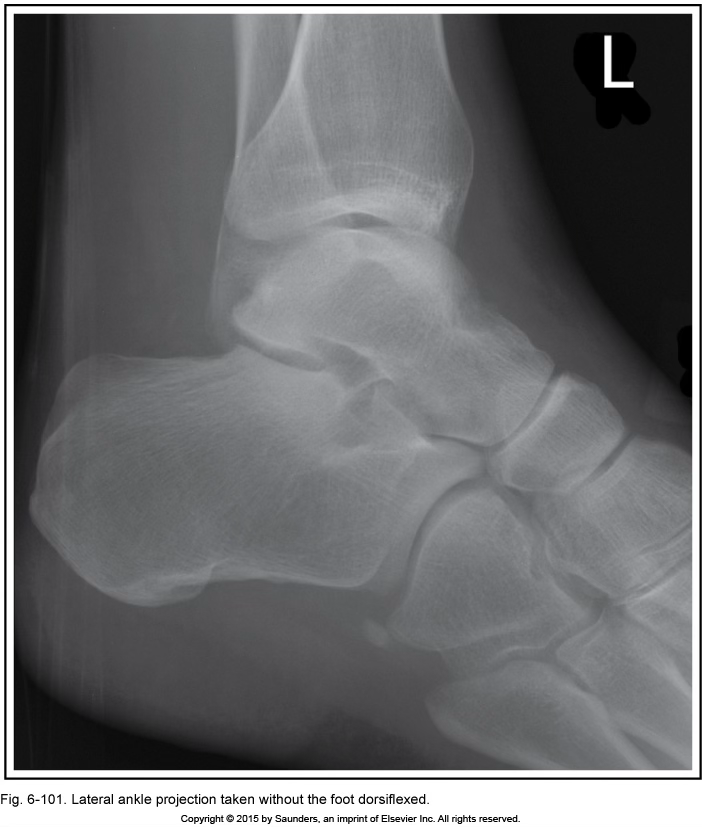

lateral ankle

foot not dorsiflexed

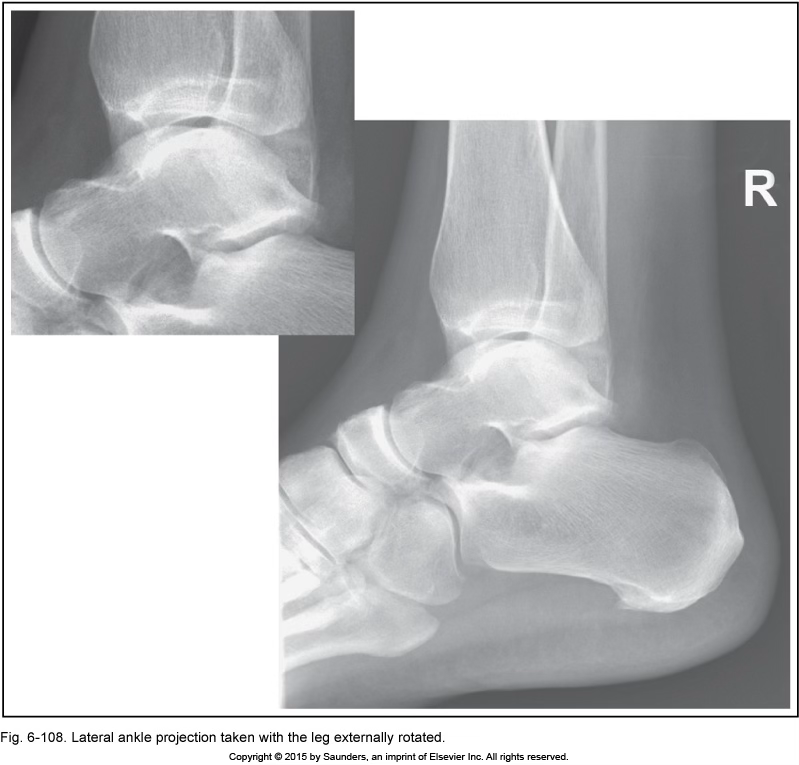

lateral ankle

leg externally rotated

• sinus tarsi more open

• fibula at the back of tibia

lateral ankle

leg internally rotated

• sinus tarsi closed

• fibula not in center

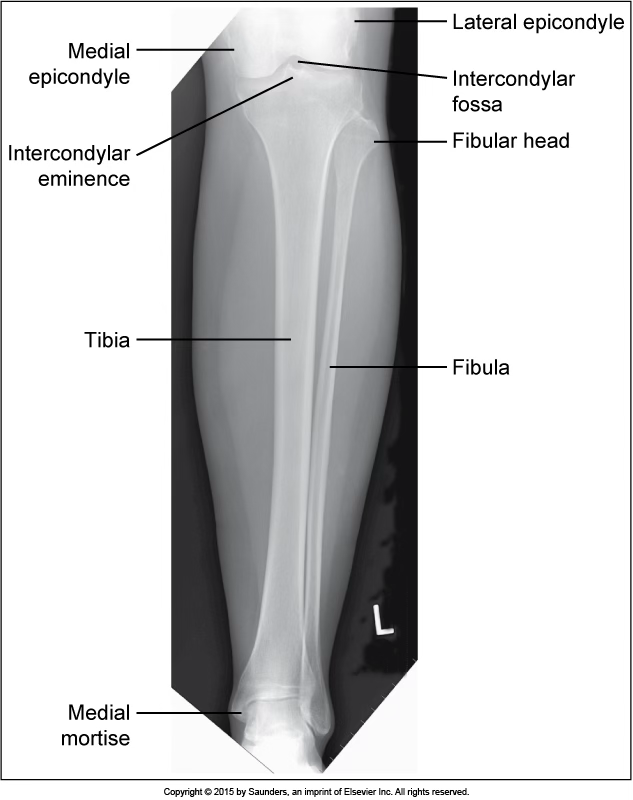

AP tibfib

accurate positioning

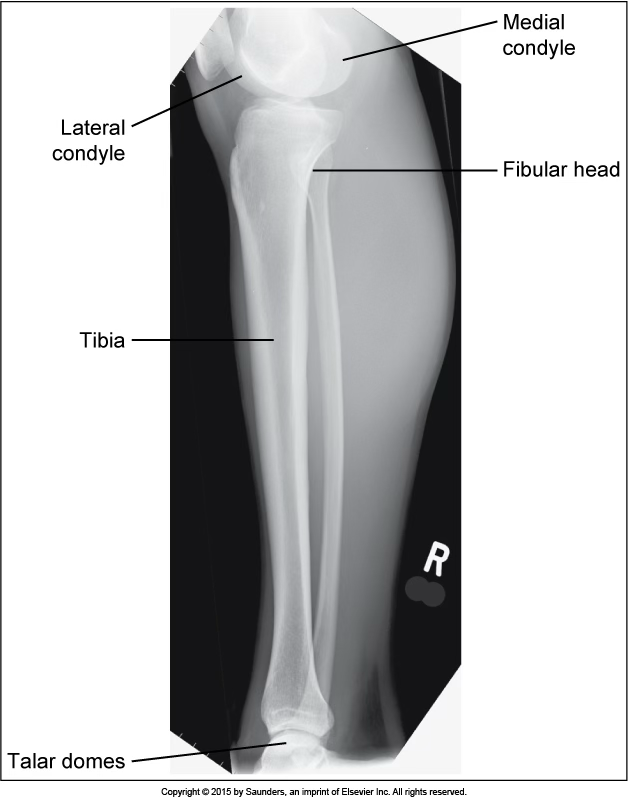

lateral tibfib

accurate positioning

lateral tib fib

excessive external rotation

lateral tibfib

insufficient external rotation

AP knee

accurate positioning

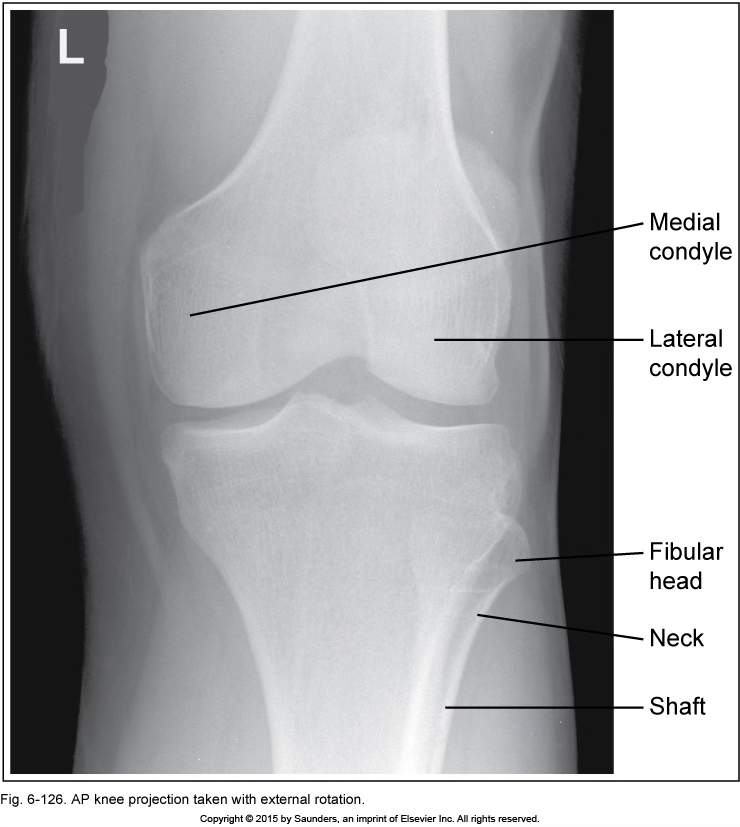

AP knee

external rotation

• patella out of place

• fibular head superimposing tibia

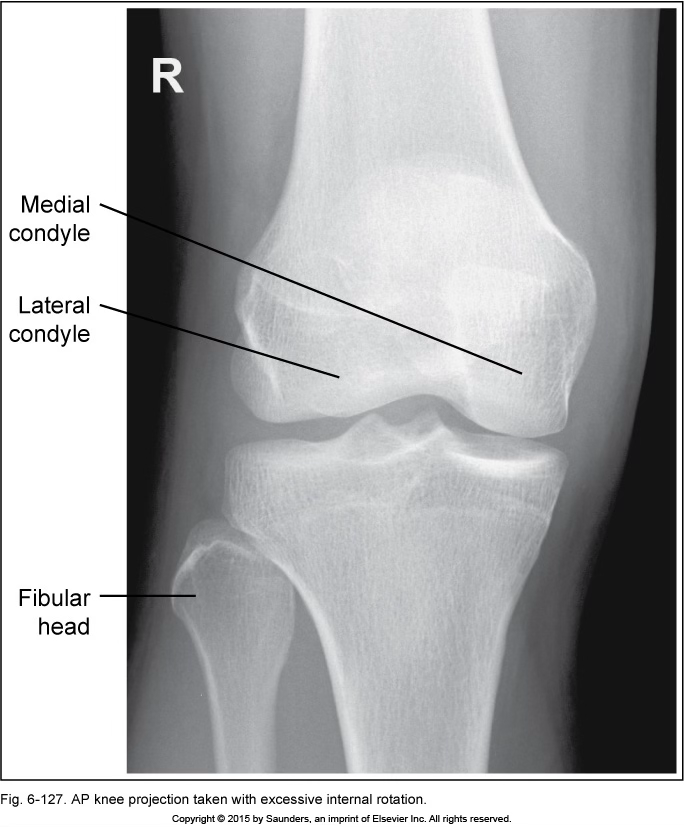

AP knee

excessive internal rotation

• fibular head is too out

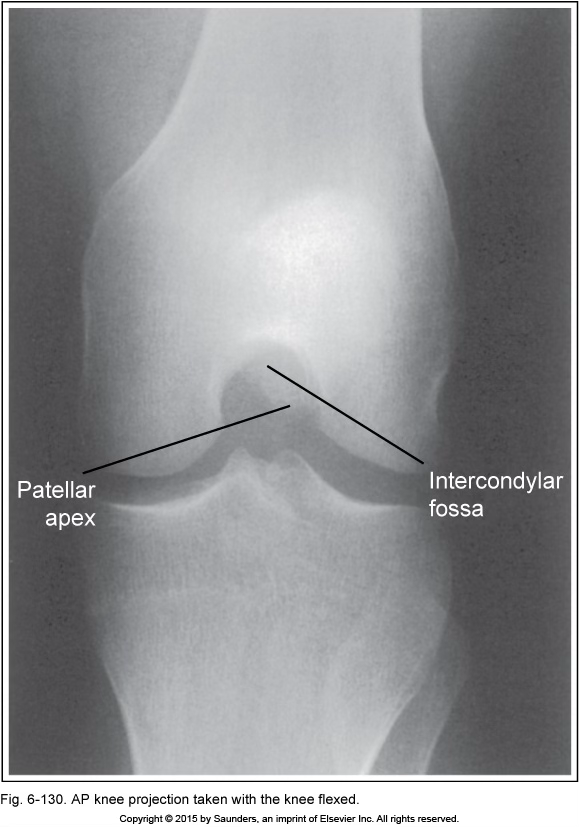

AP knee

knee flexed

lateral knee

accurate positioning

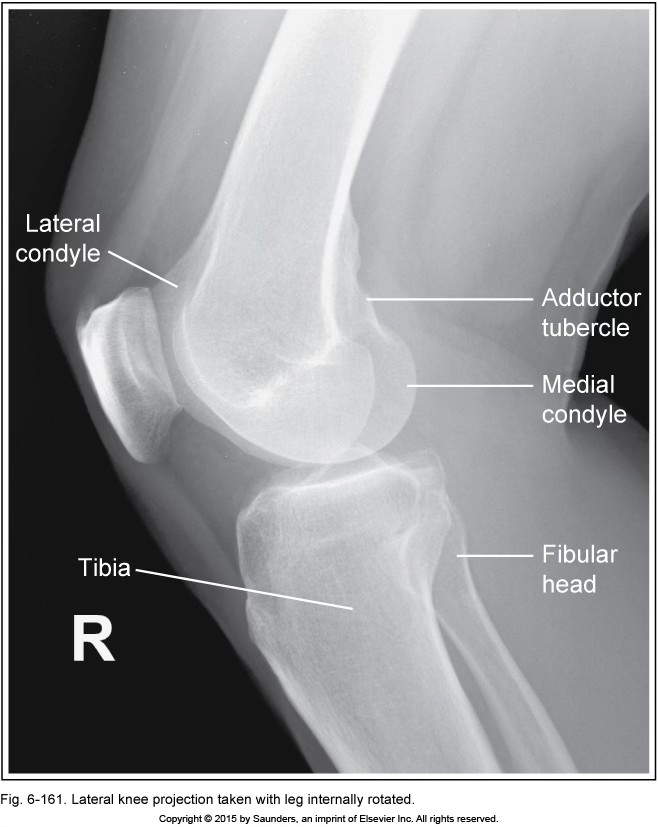

lateral knee

leg internally rotated

lateral knee

leg externally rotated

patella

accurate positioning

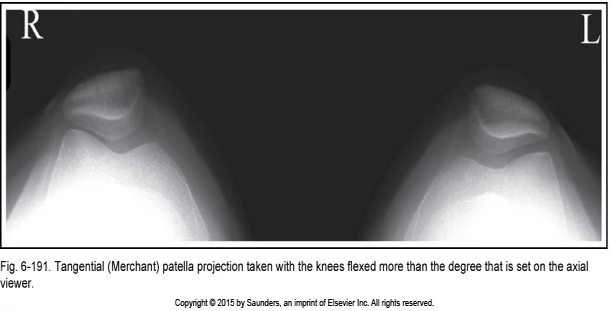

patella

knees are flexed more than the degree that is set

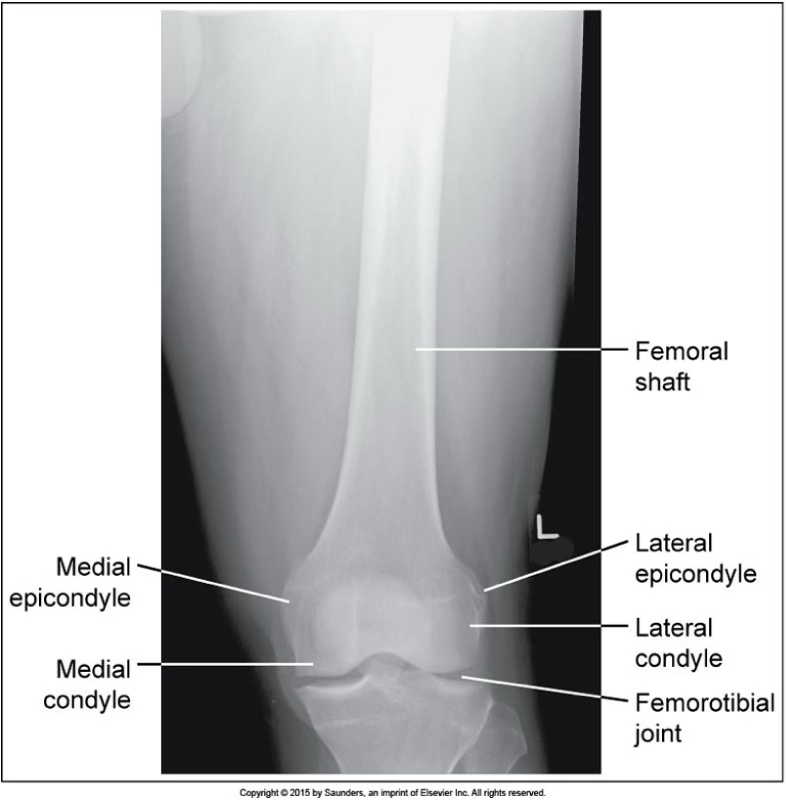

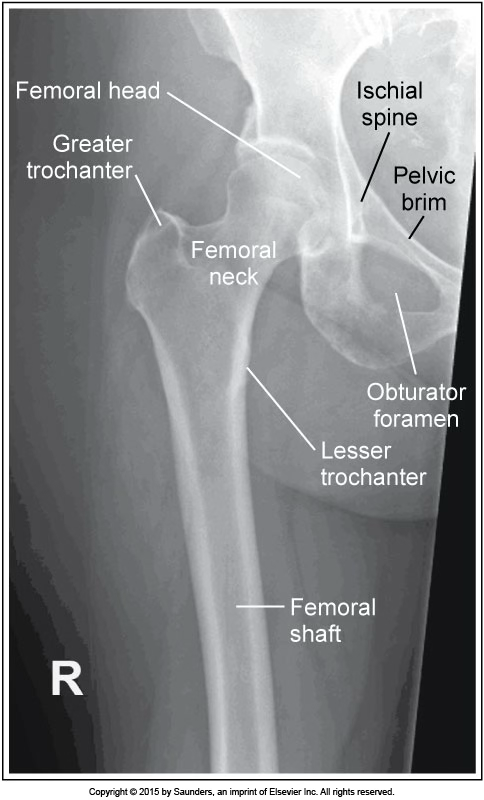

AP femur

accurate positioning

AP femur

accurate positioning

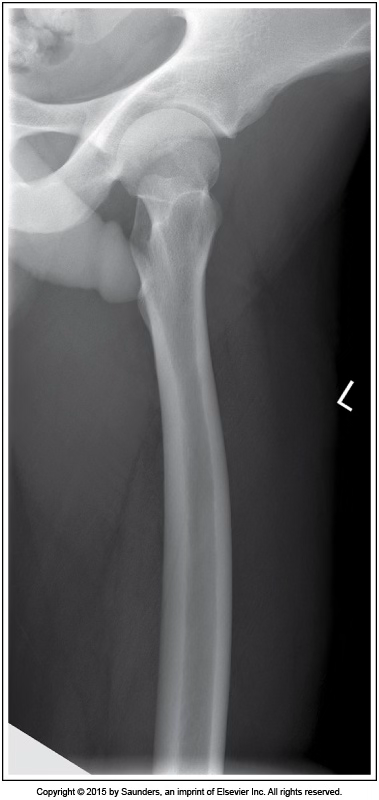

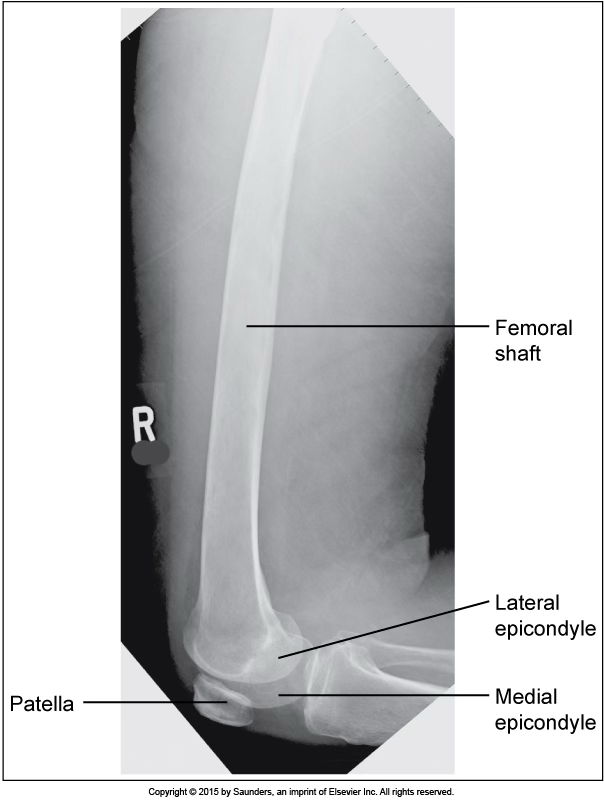

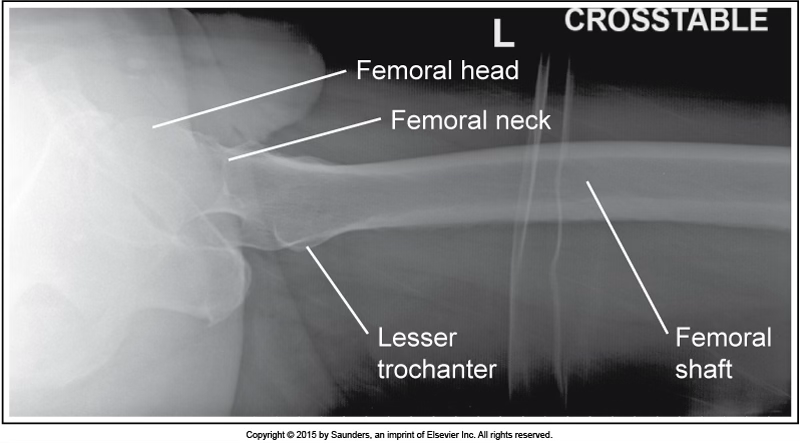

lateral femur

accurate positioning

lateral femur

accurate positioning

lateral femur

accurate positioning

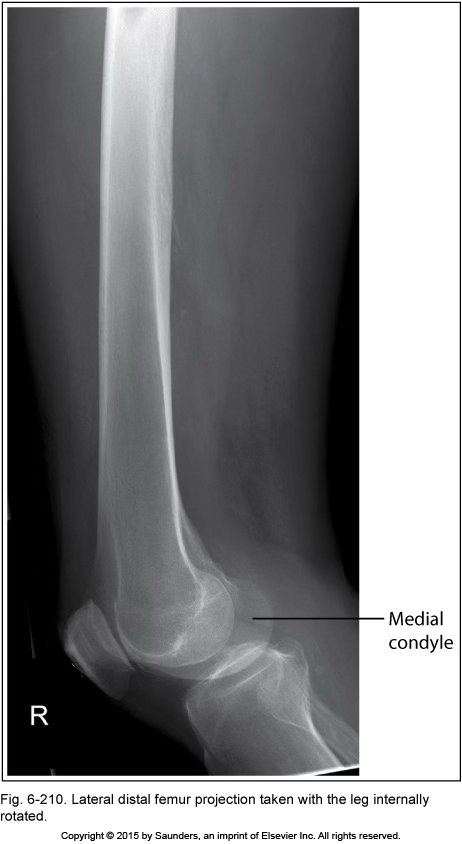

lateral femur

leg internally rotated

lateral femur

leg externally rotated

AP pelvis

• pelvis rotated towards the left (L ala is more flared, ischial rings not symmetrical, L obturator foramen closed)

• legs externally rotated with feet at 45 deg angle with table, and femoral necks not lengthened (we see the lesser trochanters)

AP pelvis

accurate positioning

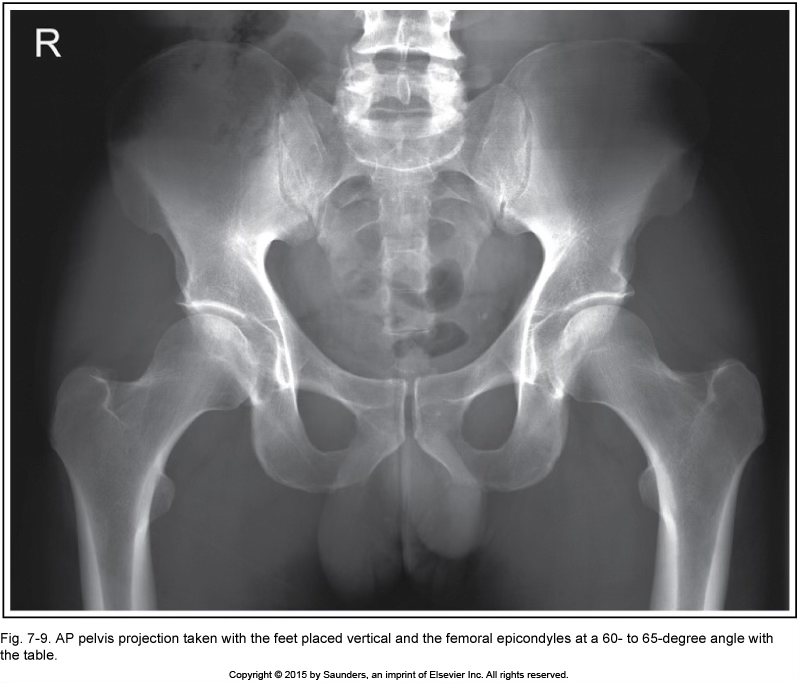

AP pelvis

toes are pointing straight up to ceiling

• femoral epicondyles at 60-65 deg angle with table

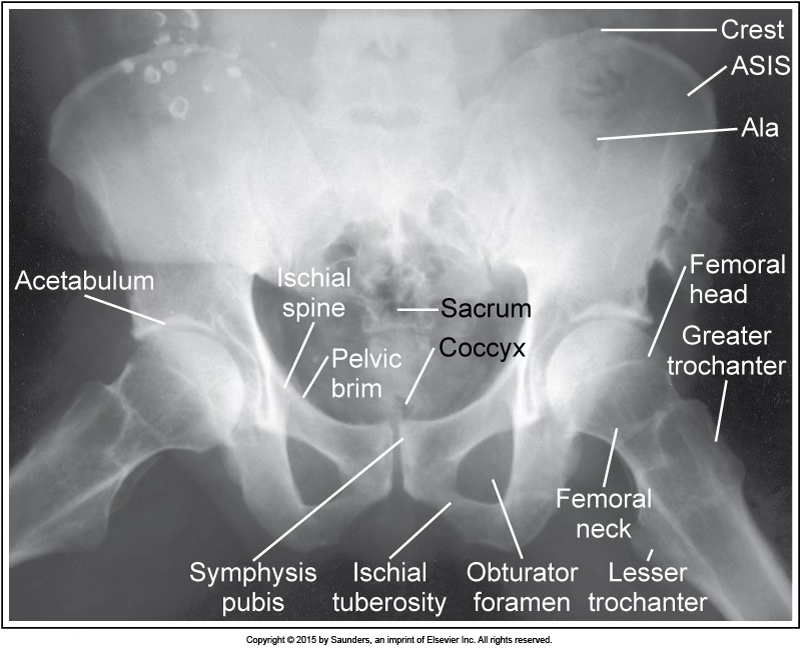

AP frog leg/pelvis

accurate

AP frog leg/pelvis

L side of pelvis rotate towards IR (LPO)

• obturator foramen forshortened

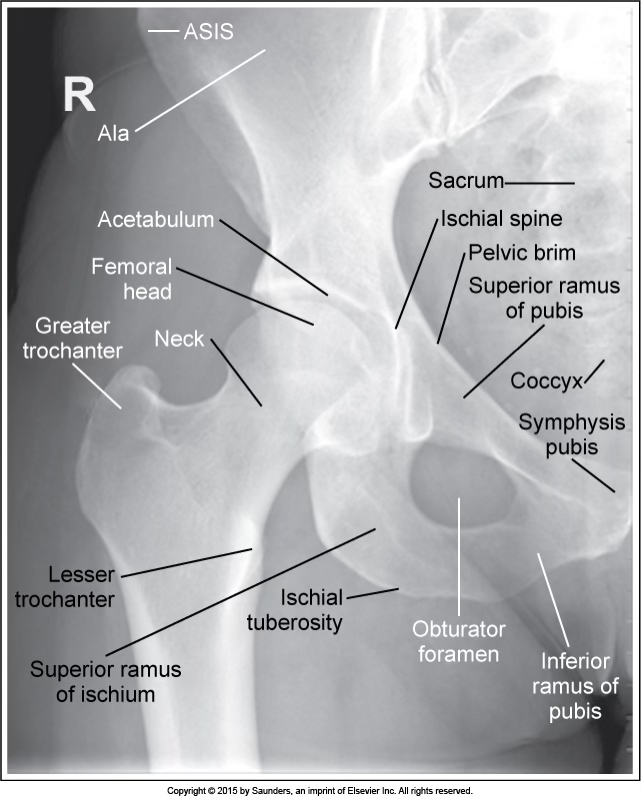

AP hip

accurate positioning

AP hip

pt rotated towards affected hip (LPO)

• obturator foramen foreshortened

AP hip

• patient rotated away from affected hip (sacrum not aligned to pubic symphysis, too much of lesser trochanter)

• foot externally rotated

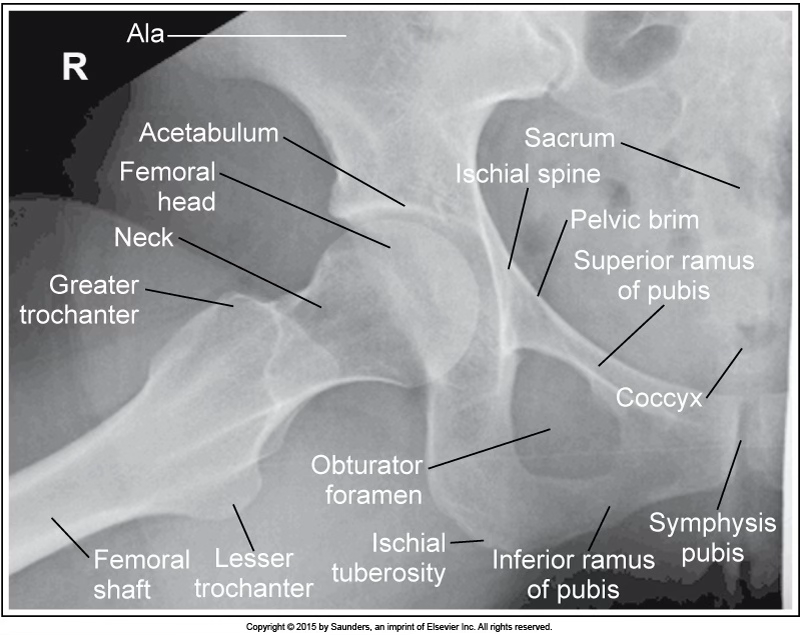

AP frog leg hip (modified cleaves)

accurate positioning

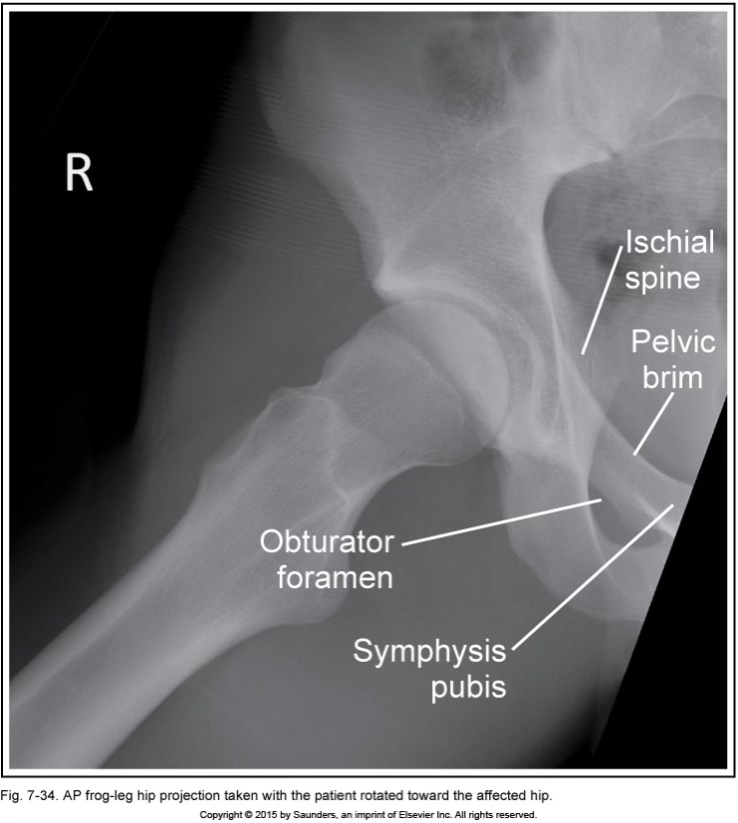

AP frog leg hip (modified cleaves)

• pt rotated towards right/affected hip (ischial spine not superimposed w/ pelvic brim, obturator foramen foreshortened)

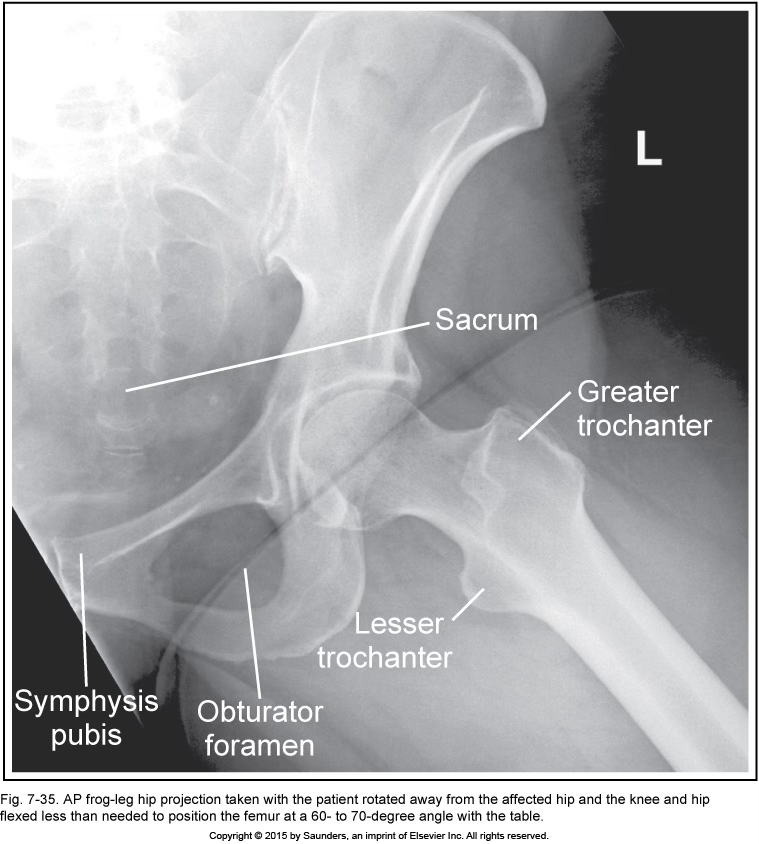

AP frog leg (modified cleaves)

femur was not 60-70 degrees rotated, more like 40-45 rotation

(sacrum shifted and large obturator foramen hole)

hip axiolateral (danelius-miller/x-table)

accurate positioning

hip axiolateral (danelius-miller/x-table)

• insufficient flexion adn abduction of unaffected leg

• acetabulum not visualized

hip axiolateral (danelius-miller/x-table)

CR is angled distally to femur instead of femoral neck

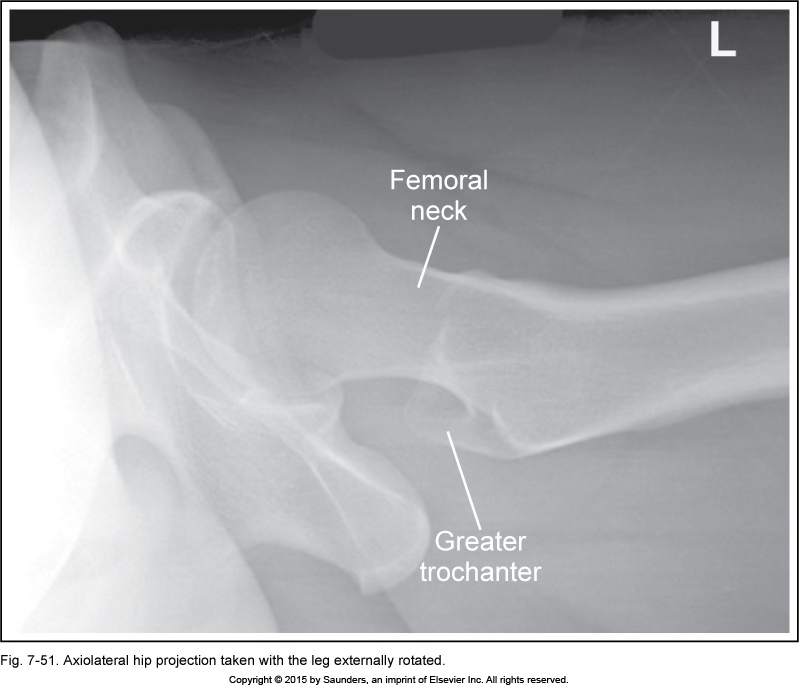

hip axiolateral (danelius-miller/x-table)

leg externally rotated (greater trochanter at the bottom)

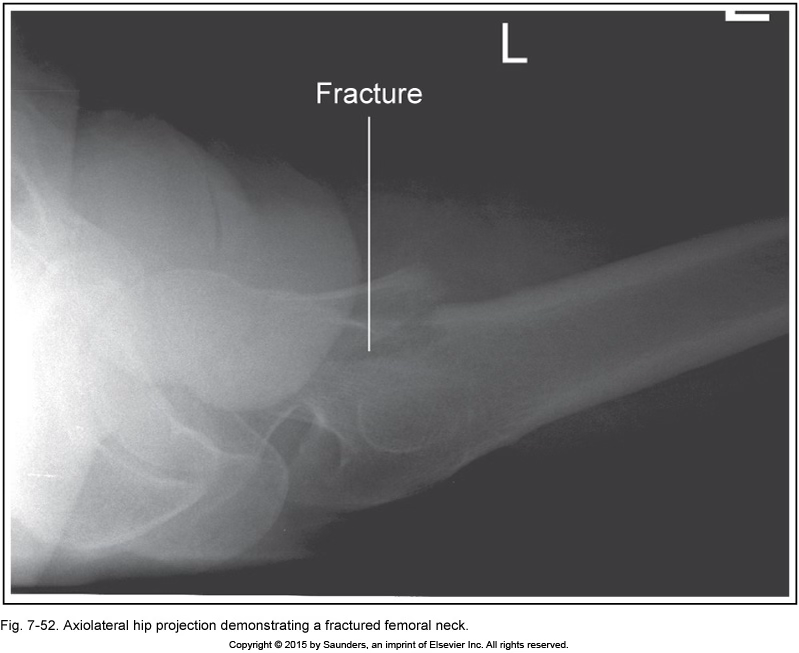

hip axiolateral (danelius-miller/x-table)

fracture of the femoral neck
