16 Terms

1
New cards
linear MG and EDG
2 electron domains: 2 bonding groups, 0 lone pairs (sp) (180)
2 electron domains: 2 bonding groups, 0 lone pairs (sp) (180)
2
New cards
linear MG and EDG
2 electron domains: 1 bonding group, 1 lone pair (sp) (n/a)
2 electron domains: 1 bonding group, 1 lone pair (sp) (n/a)
3
New cards
trigonal planar MG and EDG
3 electron domains: 3 bonding groups, 0 lone pairs (sp2) (120)
3 electron domains: 3 bonding groups, 0 lone pairs (sp2) (120)
4
New cards
bent MG, trigonal planar EDG
3 electron domains: 2 bonding groups, 1 lone pair (sp2) (
3 electron domains: 2 bonding groups, 1 lone pair (sp2) (<120)
5
New cards
linear MG, trigonal planar EDG
3 electron domains: 1 bonding group, 2 lone pairs (sp2) (n/a)
3 electron domains: 1 bonding group, 2 lone pairs (sp2) (n/a)
6
New cards
tetrahedral MG and EDG
4 electron domains: 4 bonding groups, 0 lone pairs (sp3) (109.5)
4 electron domains: 4 bonding groups, 0 lone pairs (sp3) (109.5)
7
New cards
trigonal planar MG, tetrahedral EDG
4 electron domains: 3 bonding groups, 1 lone pair (sp3) (
4 electron domains: 3 bonding groups, 1 lone pair (sp3) (<109.5)
8
New cards
bent MG, tetrahedral EDG
4 electron domains: 2 bonding groups, 2 lone pairs (sp3) (<
4 electron domains: 2 bonding groups, 2 lone pairs (sp3) (<<109.5)
9
New cards
bent MG, tetrahedral EDG
4 electron domains: 1 bonding group, 3 lone pairs (sp3) (n/a)
4 electron domains: 1 bonding group, 3 lone pairs (sp3) (n/a)
10
New cards

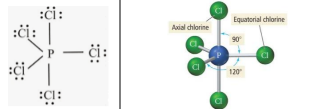

trigonal bipyramidal MG and EDG
5 electron domains, 5 bonding groups, 0 lone pairs (sp3d) (120)
5 electron domains, 5 bonding groups, 0 lone pairs (sp3d) (120)
11
New cards
seesaw MG, trigonal bipyramidal EDG
5 electron domains, 4 bonding groups, 1 lone pair (sp3d) (
5 electron domains, 4 bonding groups, 1 lone pair (sp3d) (<120/<90)
12
New cards
T-shaped MG, trigonal bipyramidal EDG
5 electron domains, 3 bonding groups, 2 lone pairs (sp3d) (
5 electron domains, 3 bonding groups, 2 lone pairs (sp3d) (<90)
13
New cards
linear MG, trigonal bipyramidal EDG
5 electron domains, 2 bonding groups, 3 lone pairs (sp3d) (180)
5 electron domains, 2 bonding groups, 3 lone pairs (sp3d) (180)
14
New cards
octahedral MG and EDG
6 electron domains, 6 bonding groups, 0 lone pairs (sp3d2) (180)
6 electron domains, 6 bonding groups, 0 lone pairs (sp3d2) (180)
15
New cards
square pyramidal MG, octahedral EDG
6 electron domains, 5 bonding groups, 1 lone pair (
6 electron domains, 5 bonding groups, 1 lone pair (<90)
16
New cards
square planar MG, octahedral EDG
6 electron domains, 4 bonding groups, 2 lone pairs (
6 electron domains, 4 bonding groups, 2 lone pairs (<90)
