lab 2: the axial skeleton

Process

Name this term:

A natural outgrowth, projection, or appendage

Condyle

Name this term:

Smooth, rounded articular process

Facet

Name this term:

Small, flat articular surface

Fossa

Name this term:

Shallow depression

Sulcus

Name this term:

Narrow groove

Foramen (plural: foramina)

Name this term:

Round passageway

Canal (meatus)

Name this term:

Passageway through the substance of a bone

Fissure

Name this term:

Elongated cleft

Sinus

Name this term:

Chamber within bone

Lambdoid suture

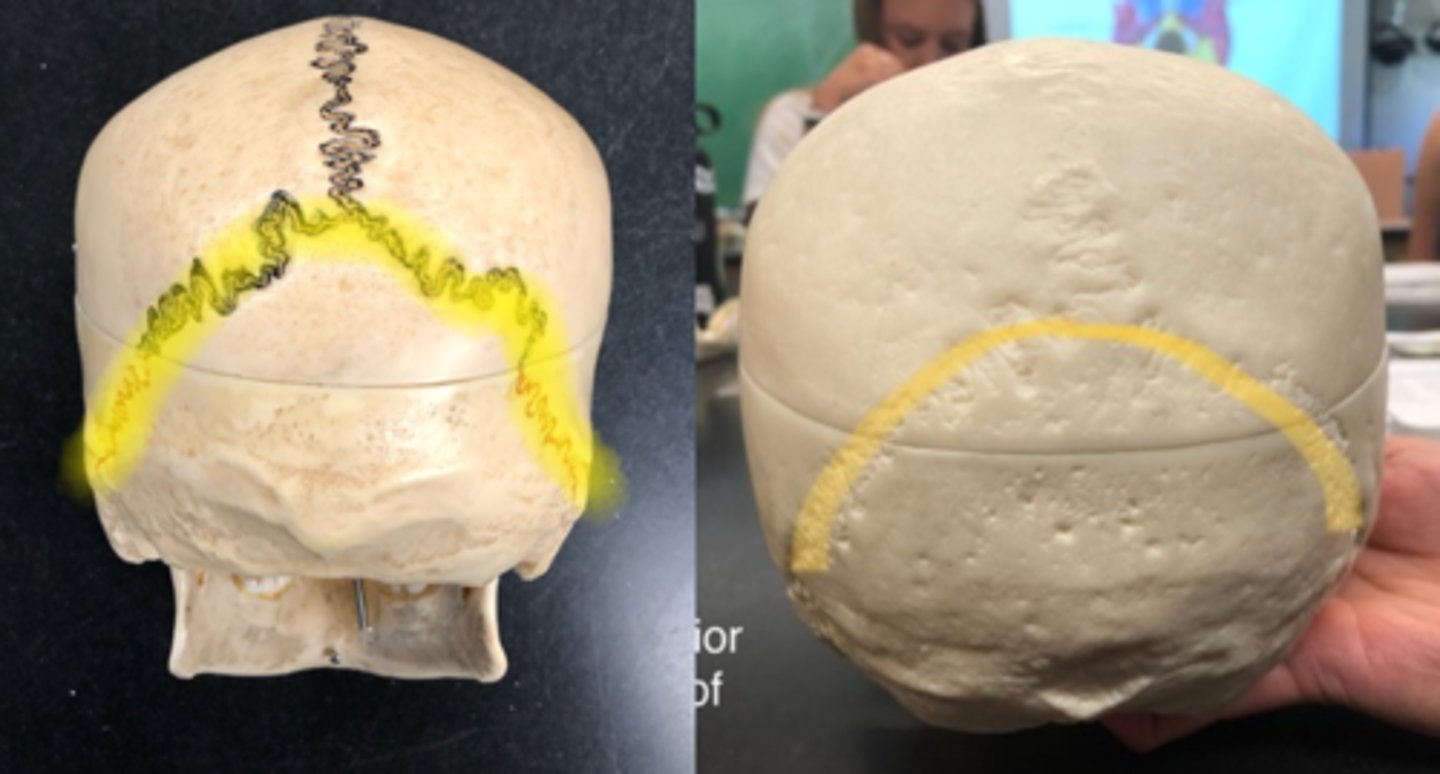

Separates occipital bone and parietal bone

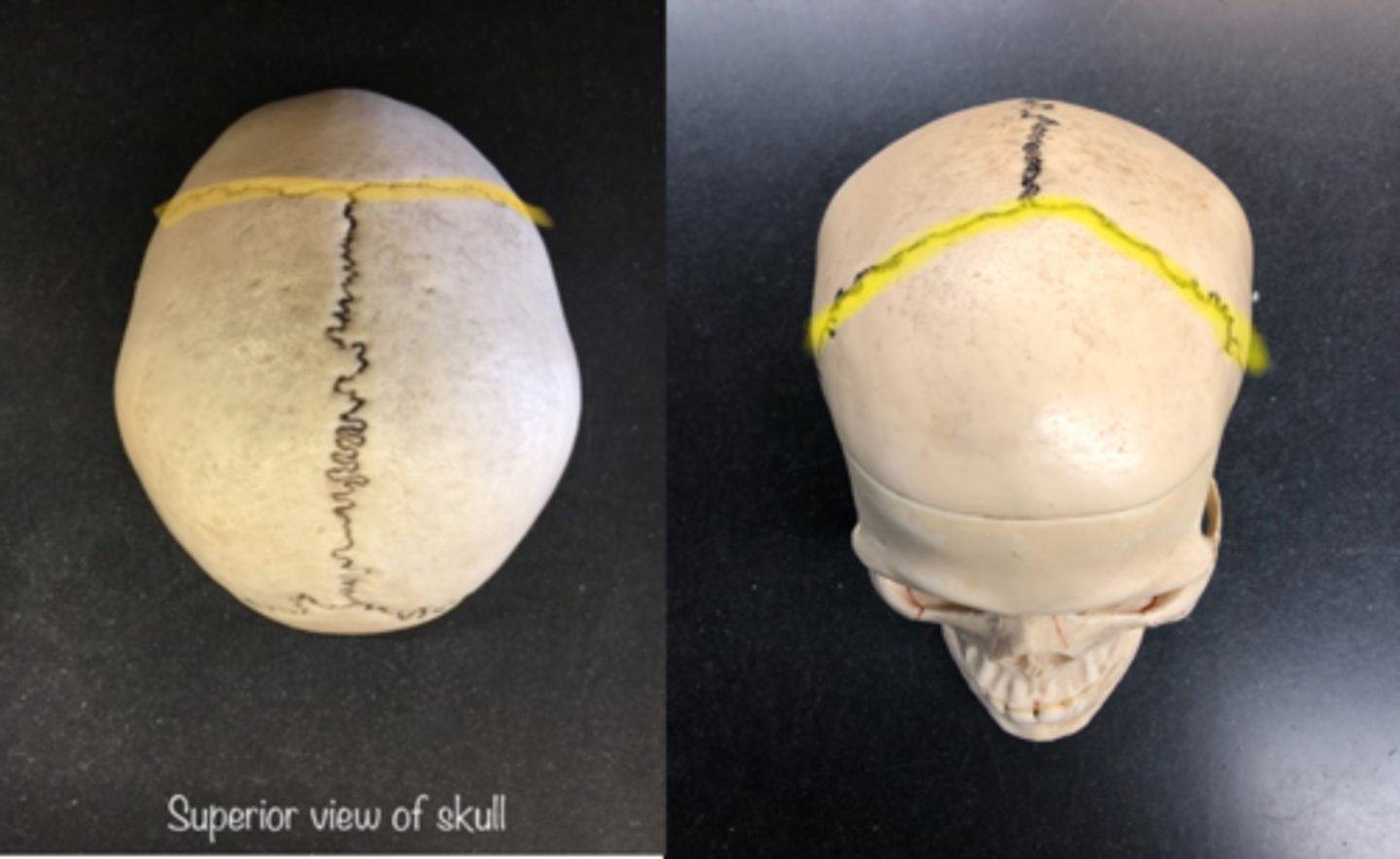

Coronal suture

Separates parietal and frontal bone

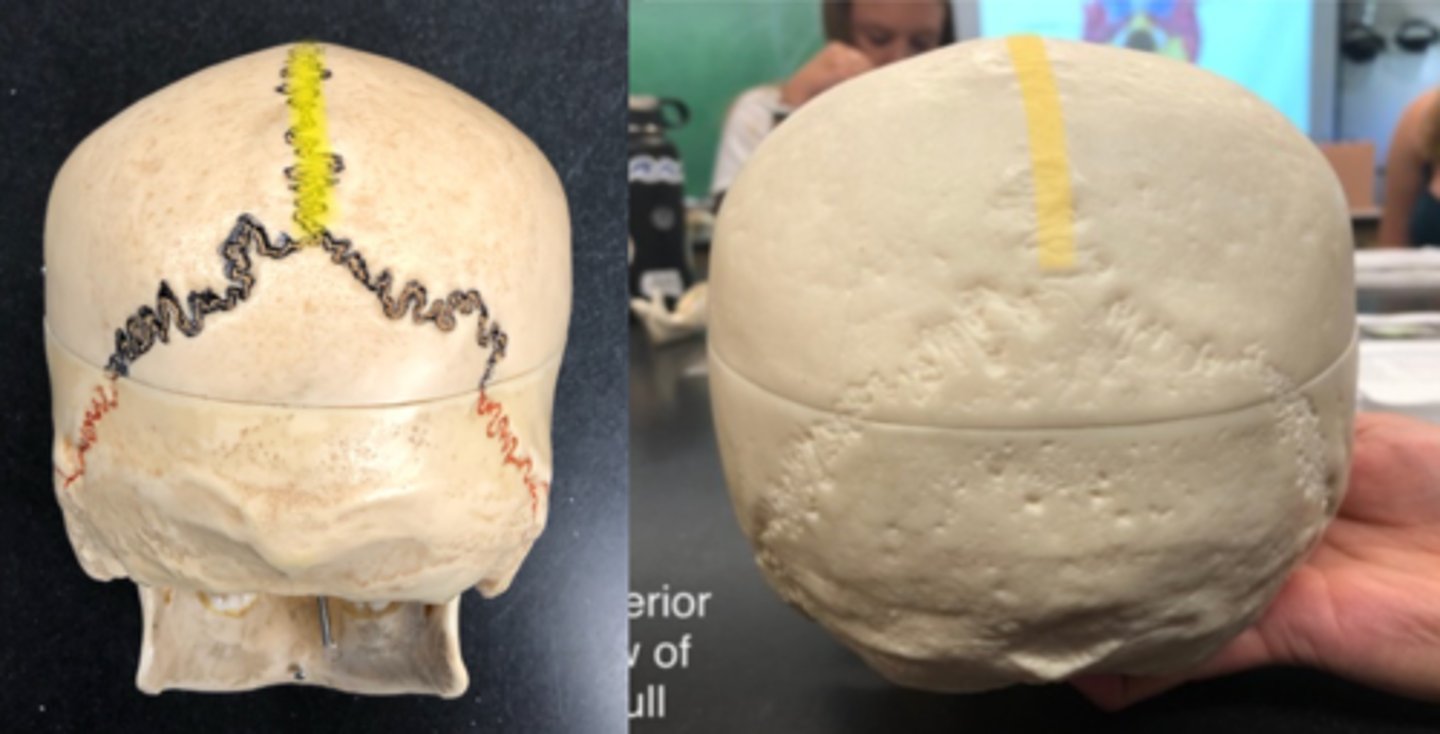

Sagittal suture

Divides the two parietal bones from each other

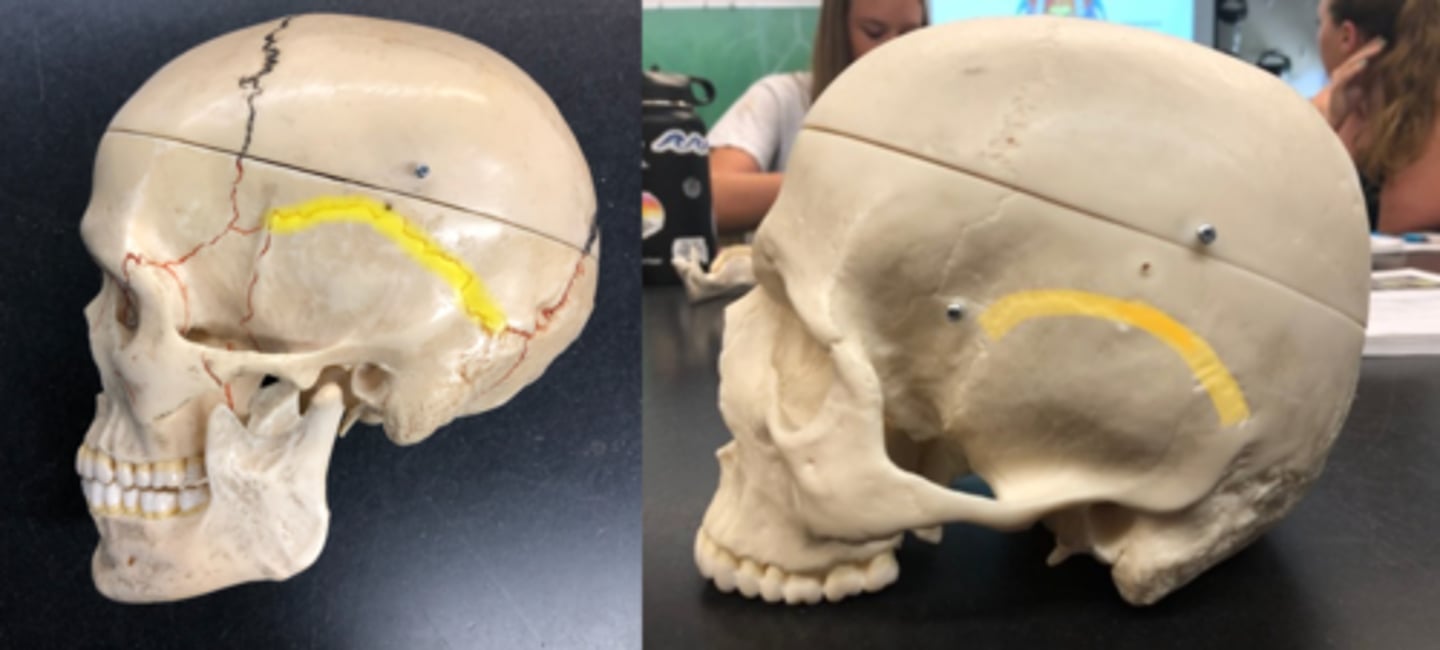

Squamous suture

Separates other bones from temporal bones

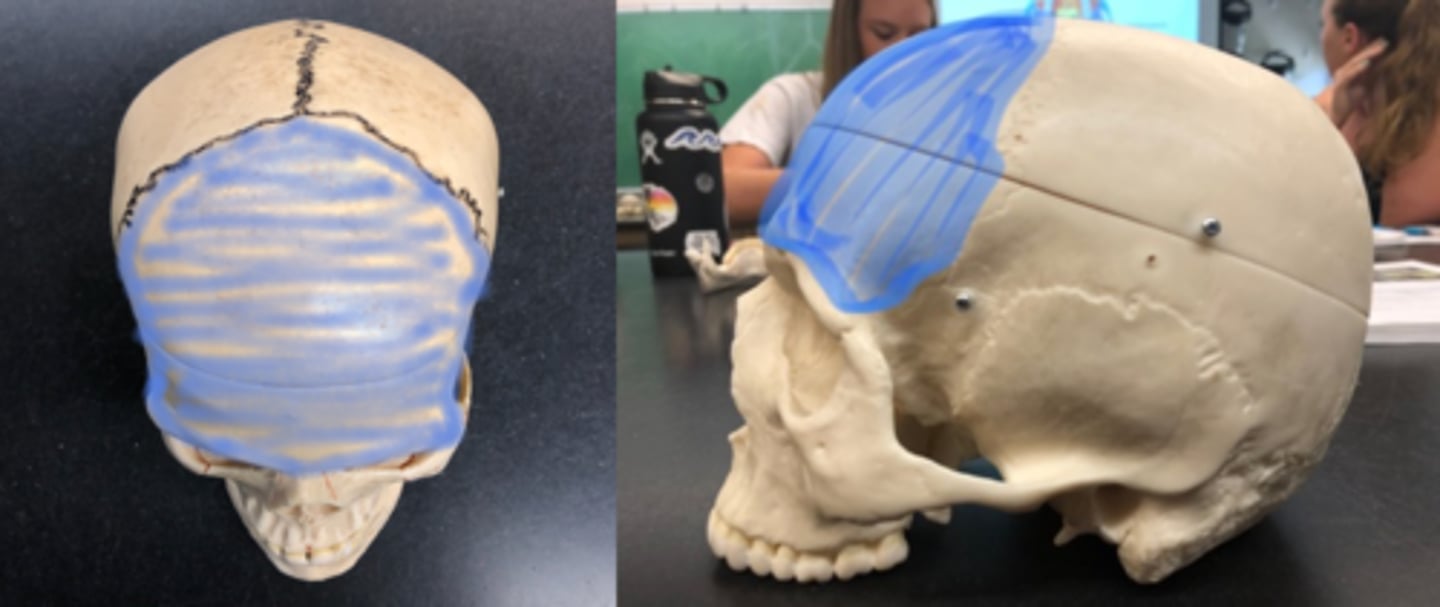

Frontal bone

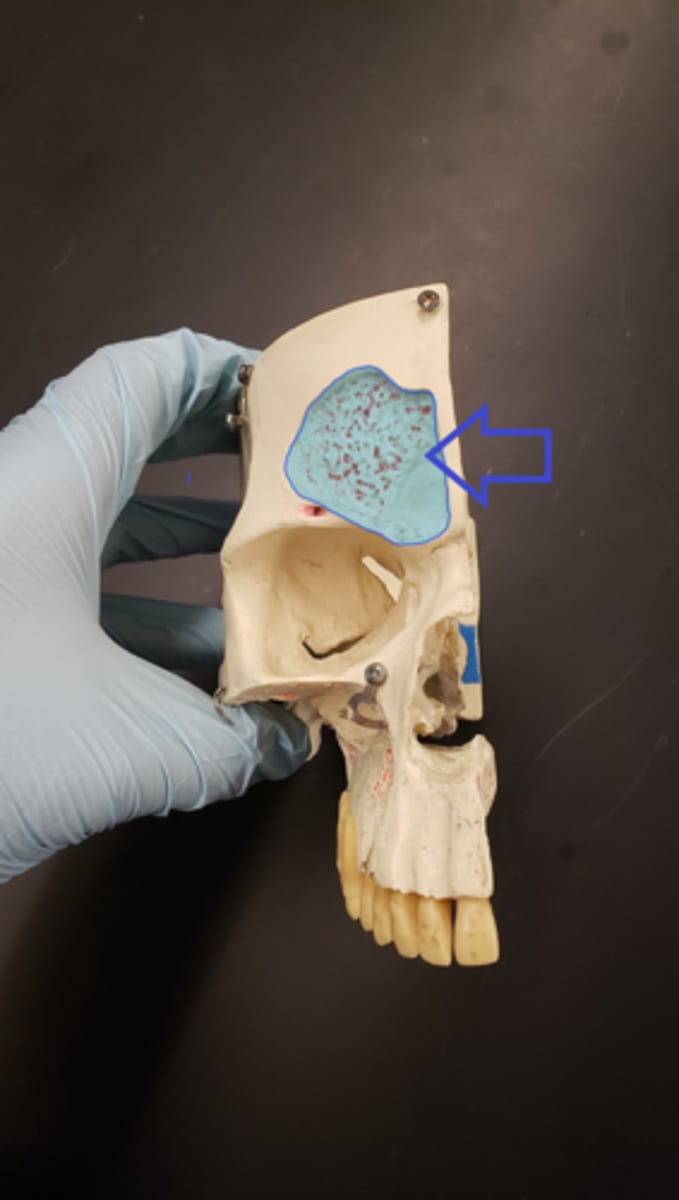

Frontal sinus

(Red dots on model) Spaced filled chamber

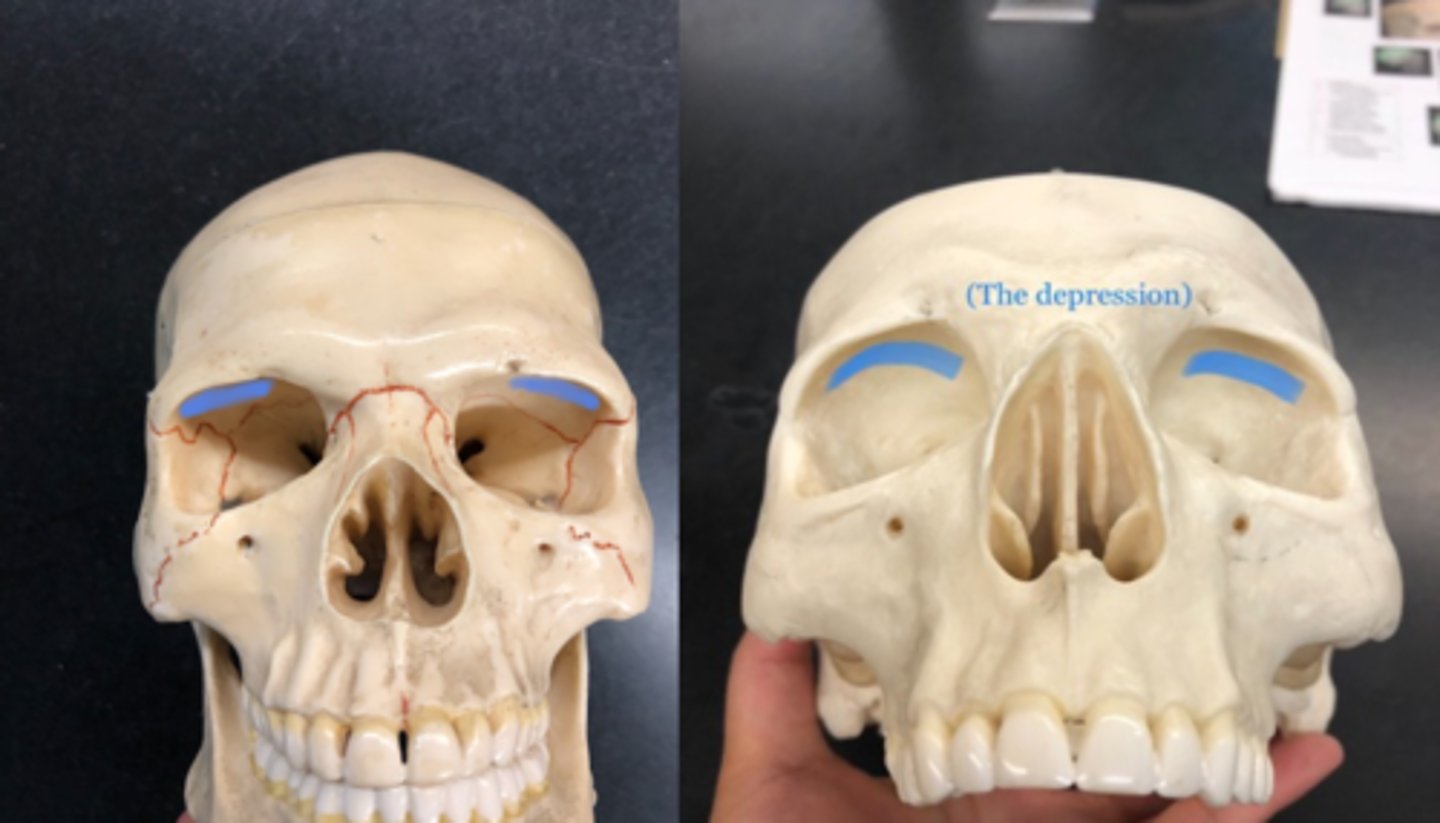

Lacrimal fossa

Superolateral (above and toward the side) depression within eye socket

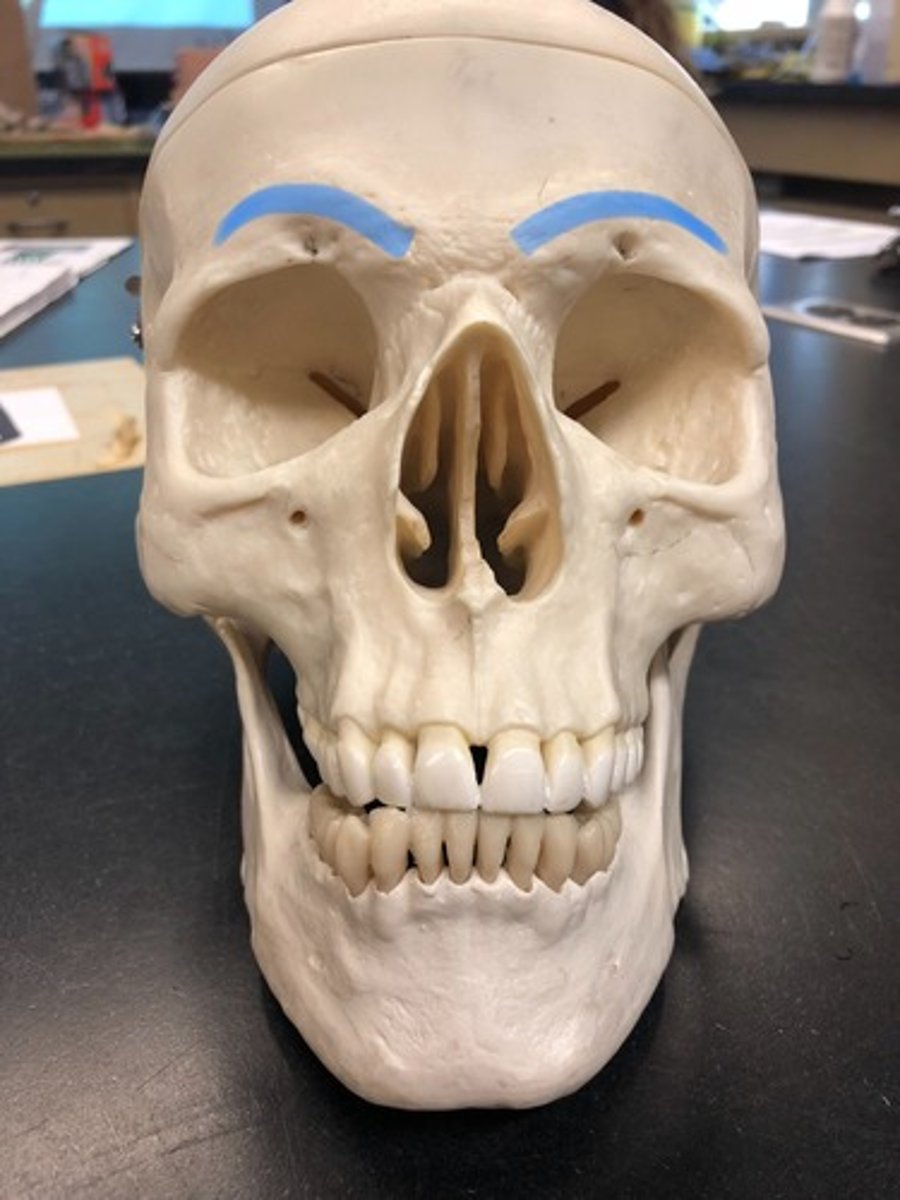

Supra-orbital margin

Thickening above eye sockets; eyebrows

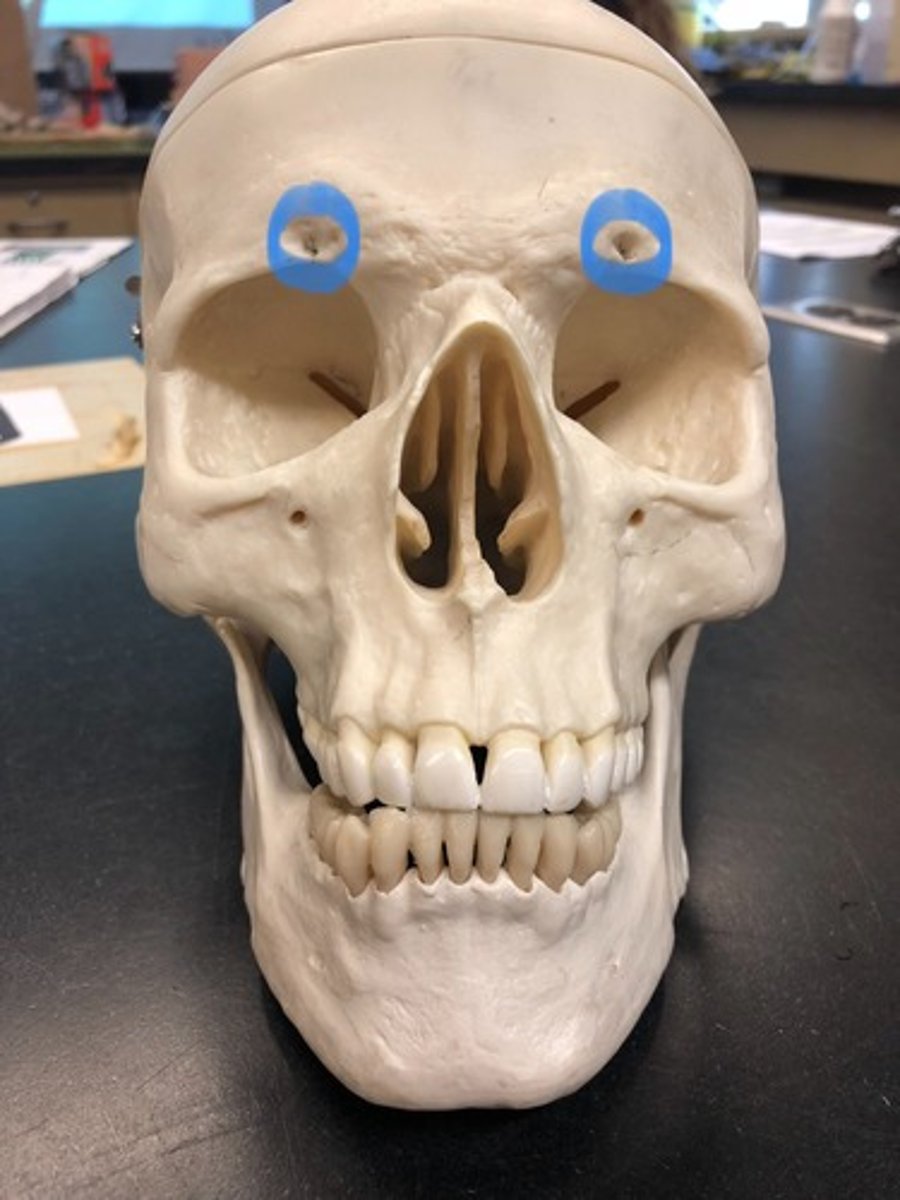

Supra-orbital foramen (or notch)

Small groove at superior and medial margin of the orbit in the frontal bone

Parietal bones (2)

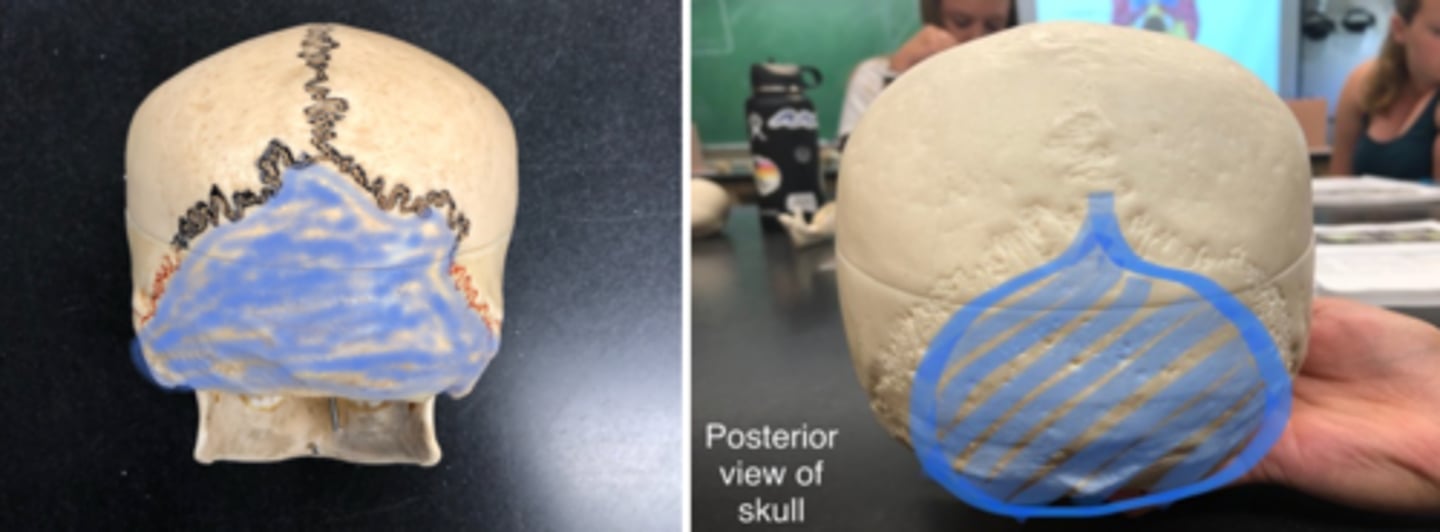

Occipital bone

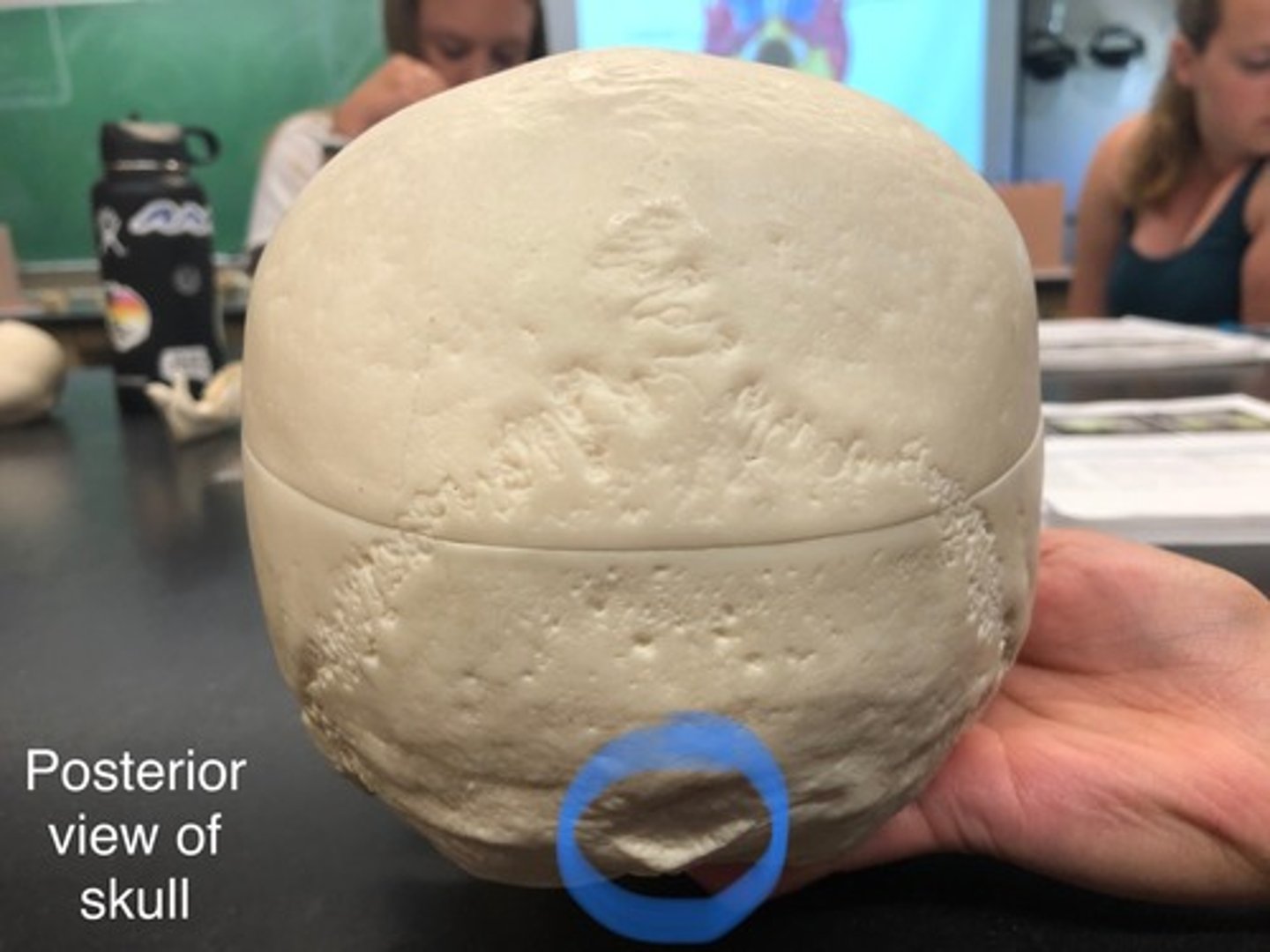

External occipital protuberance

Point of the occipital bone (outside view of skull)

Internal occipital protuberance

Point of the occipital bone (inside view of skull)

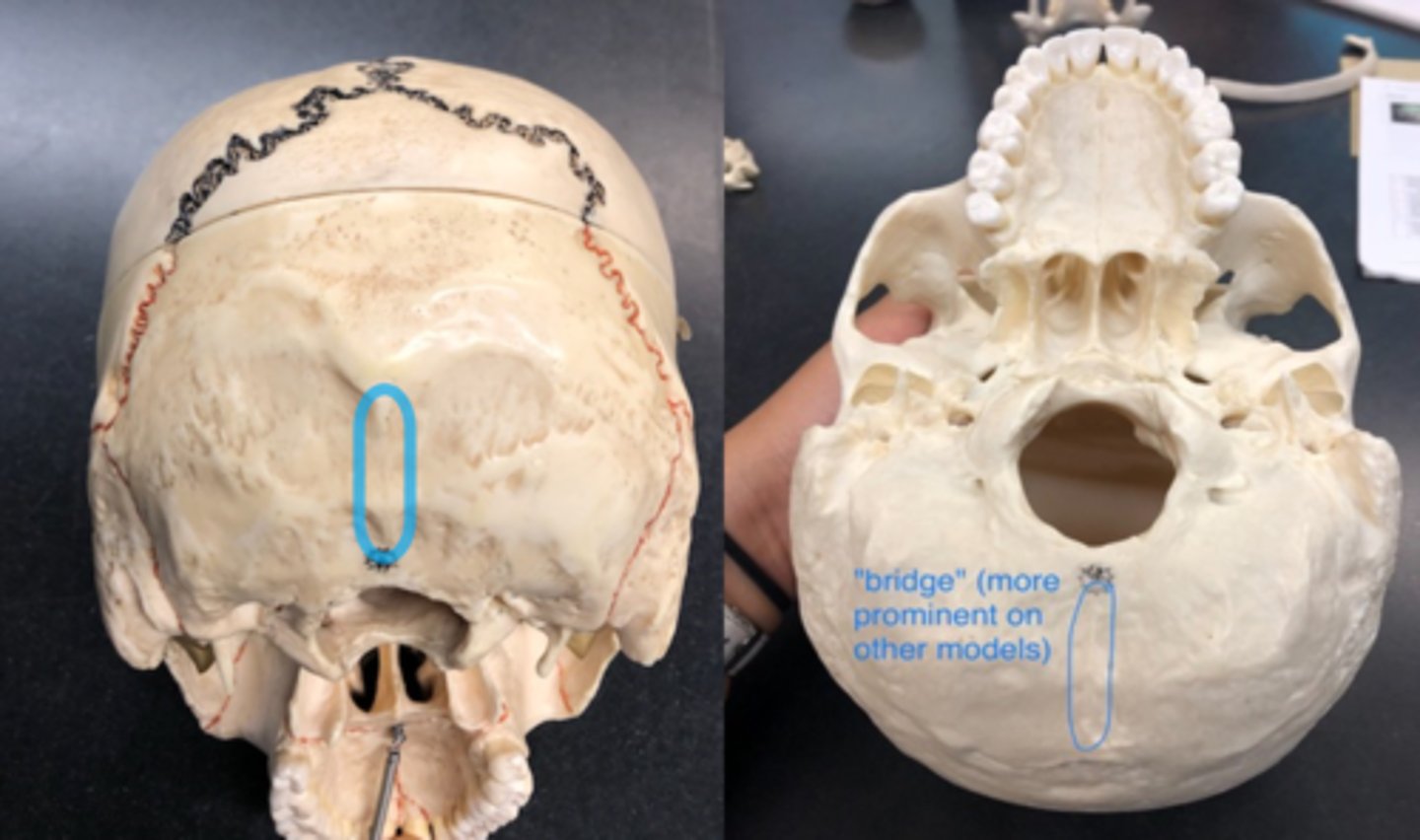

External occipital crest

Bridge leading to foramen magnum (outside view of skull)

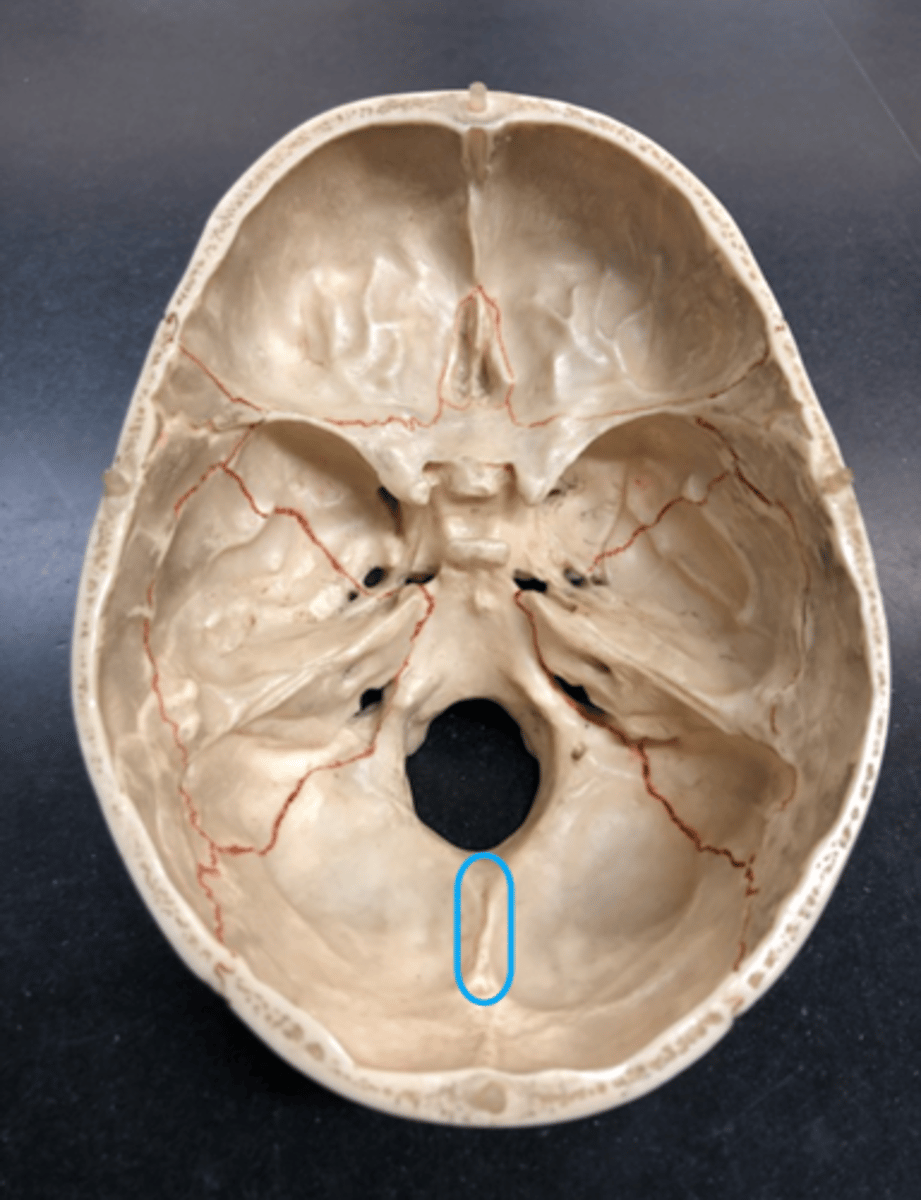

Internal occipital crest

Bridge leading to foramen magnum (inside view of skull)

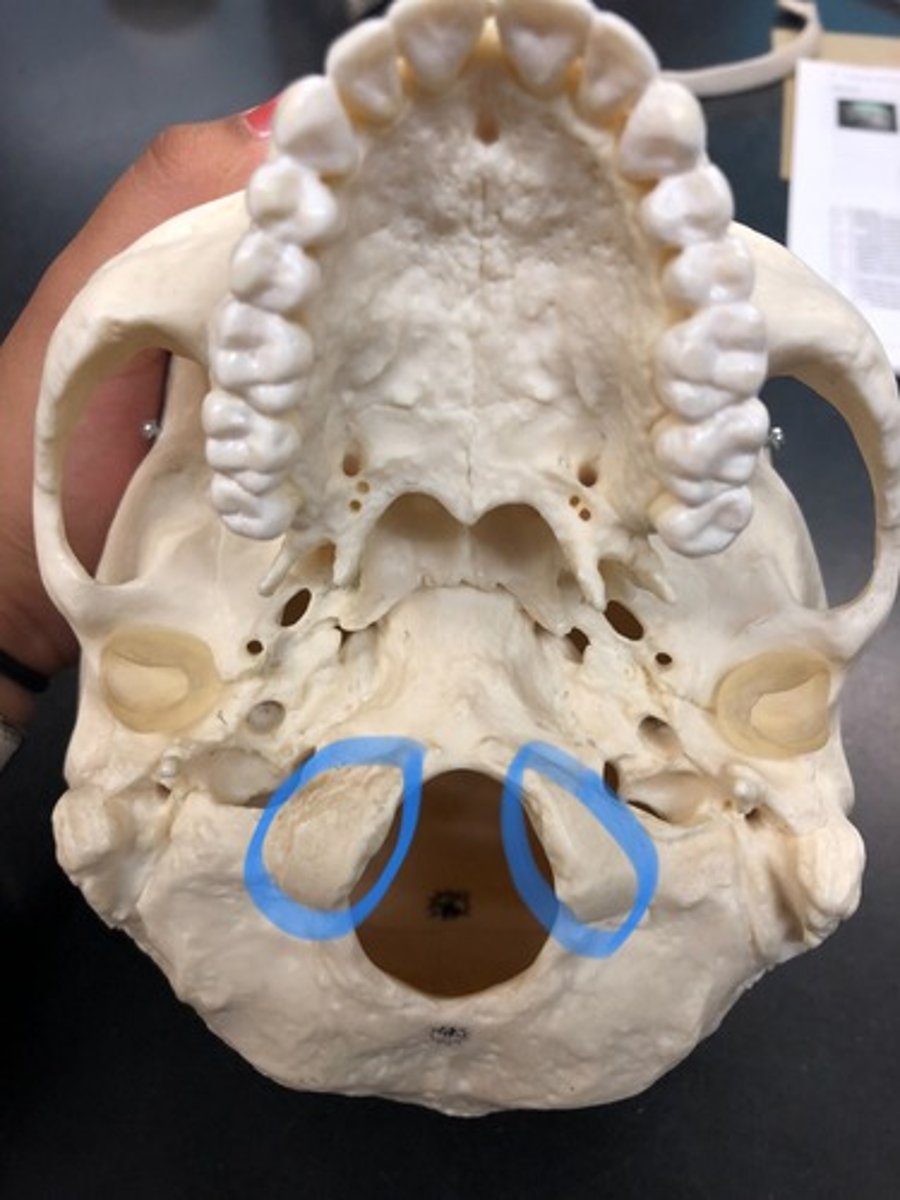

Occipital condyles

Either side of foramen magnum

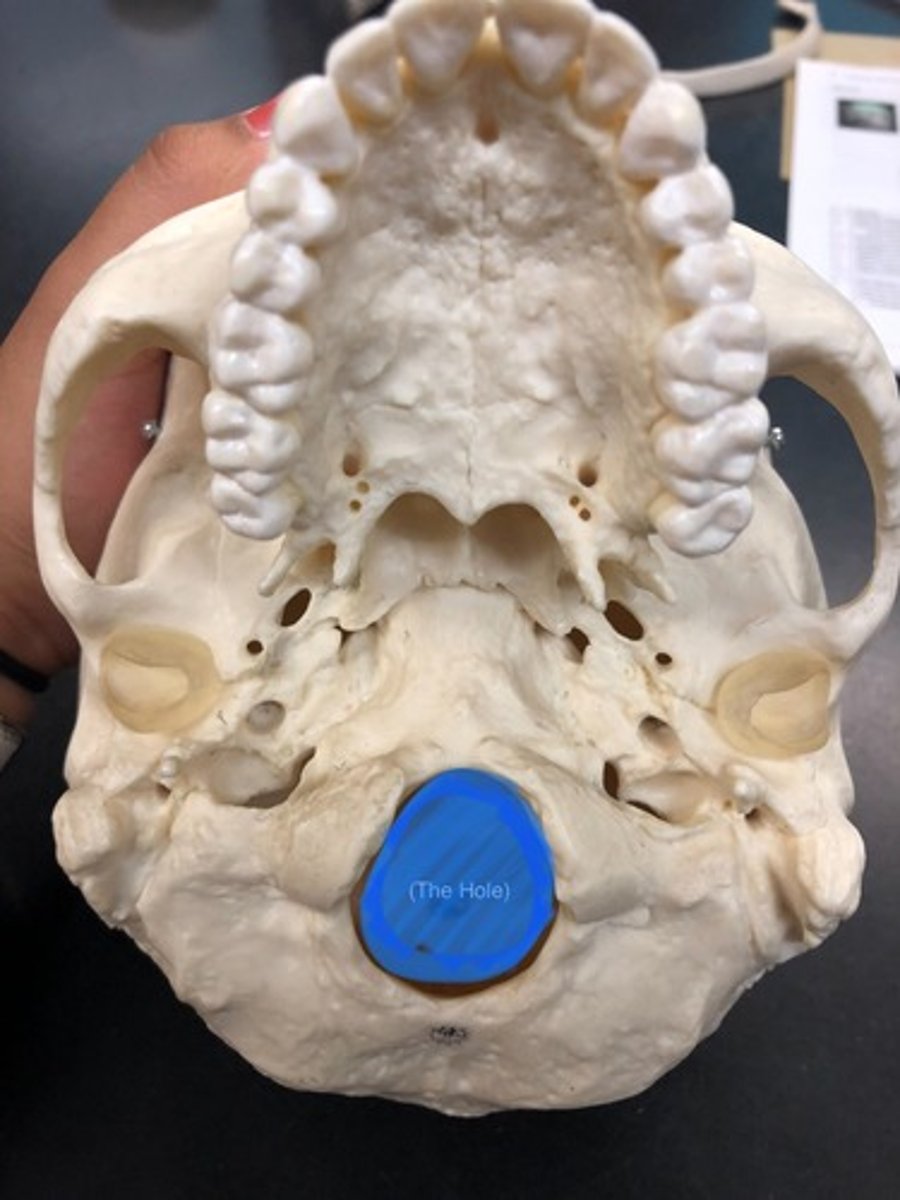

Foramen magnum

Hole connecting cranial to spinal cord

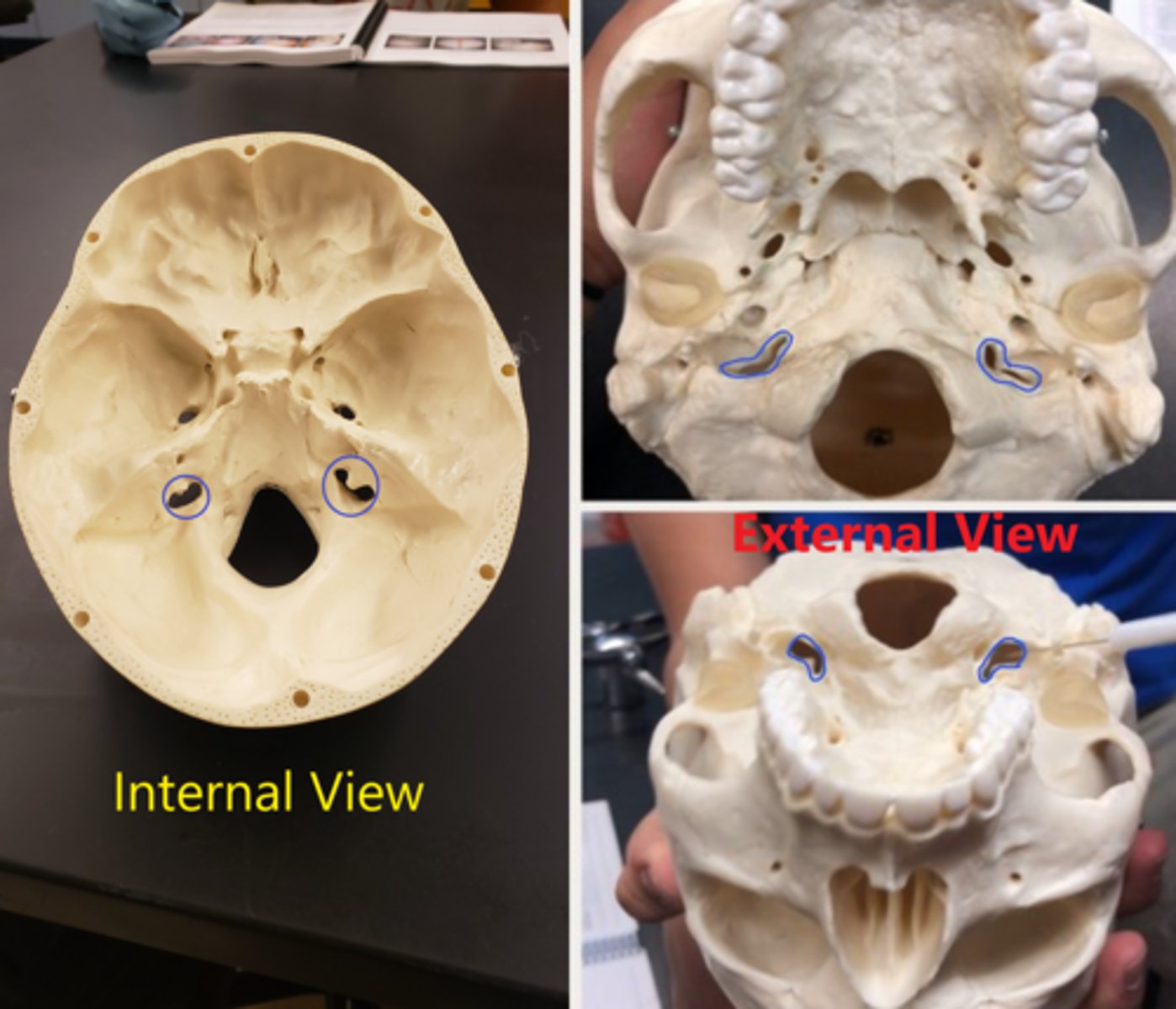

Jugular foramen

Holes just outside occipital condyles

Hypoglossal canal

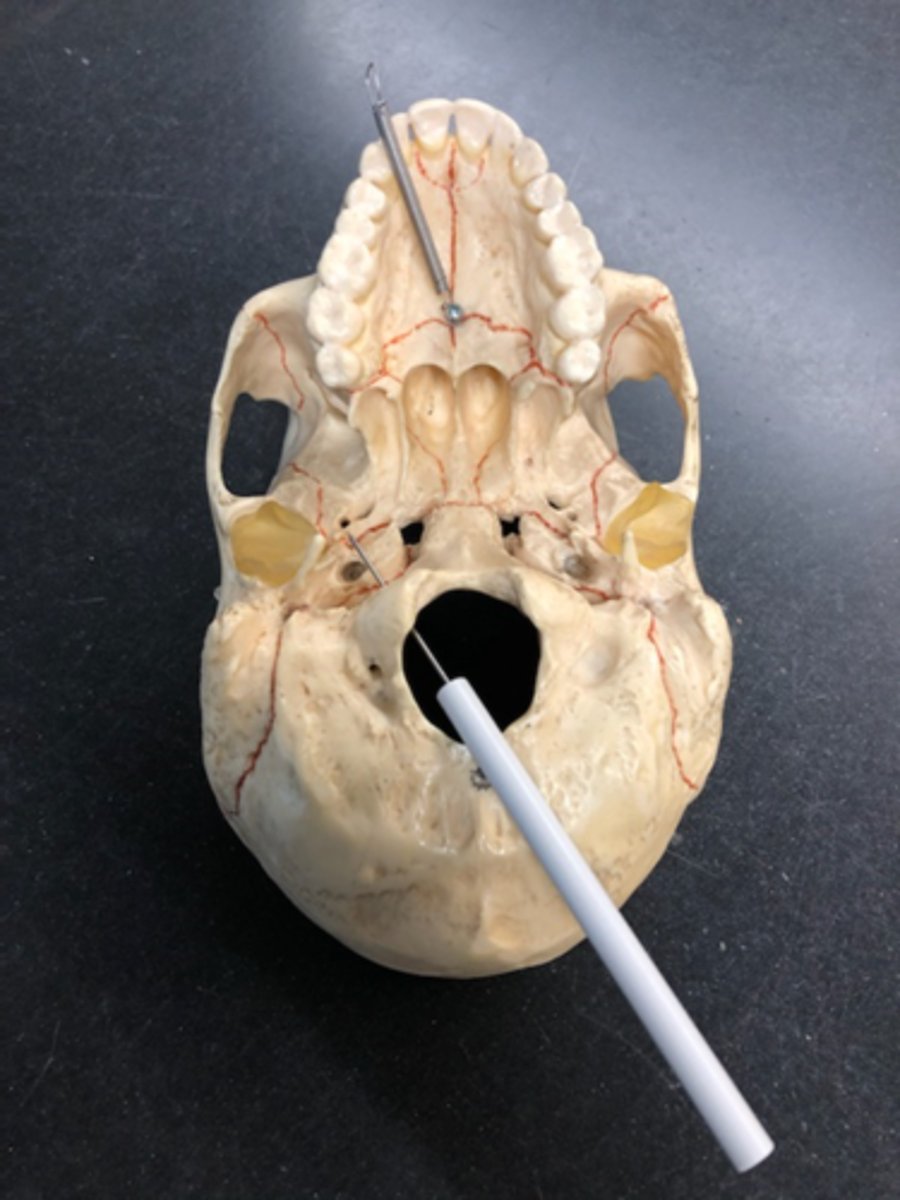

Hole that goes through condyles

Temporal bones (2)

Zygomatic process of temporal bone

Left half of zygomatic arch; before the suture

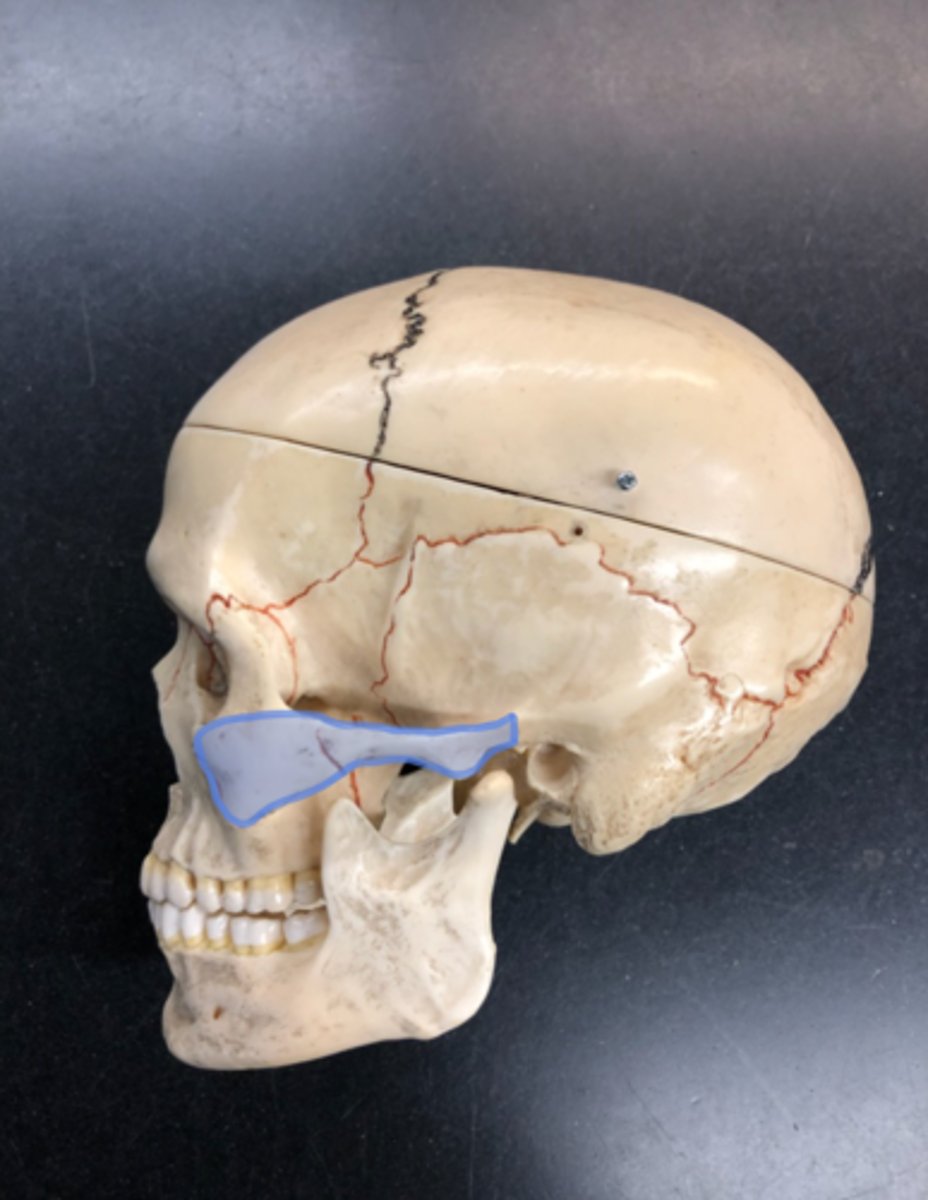

Zygomatic arch

Arch above mandible; Cheek bone

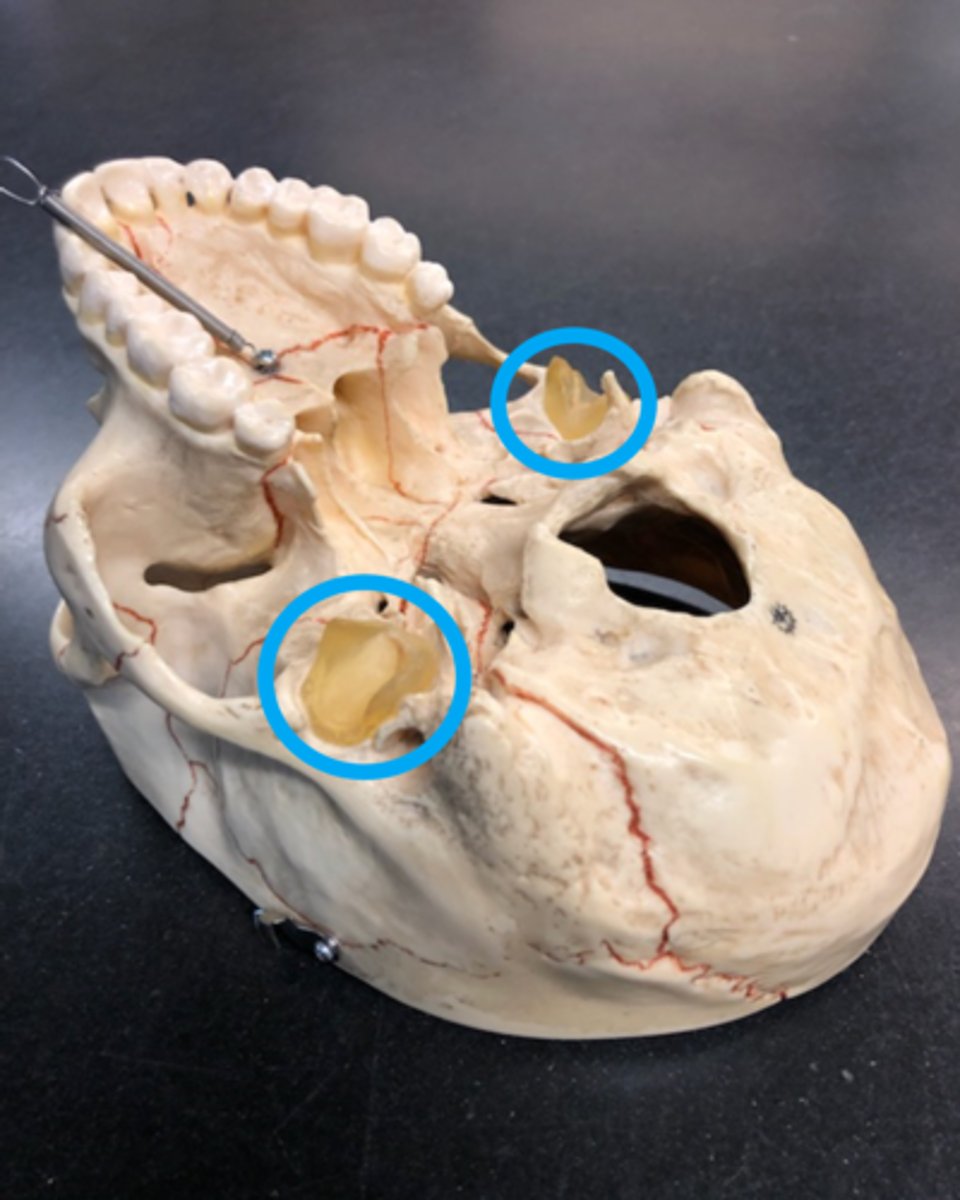

Mandibular fossa

Point where mandible attaches to temporal bone ("Gel like structure on model)

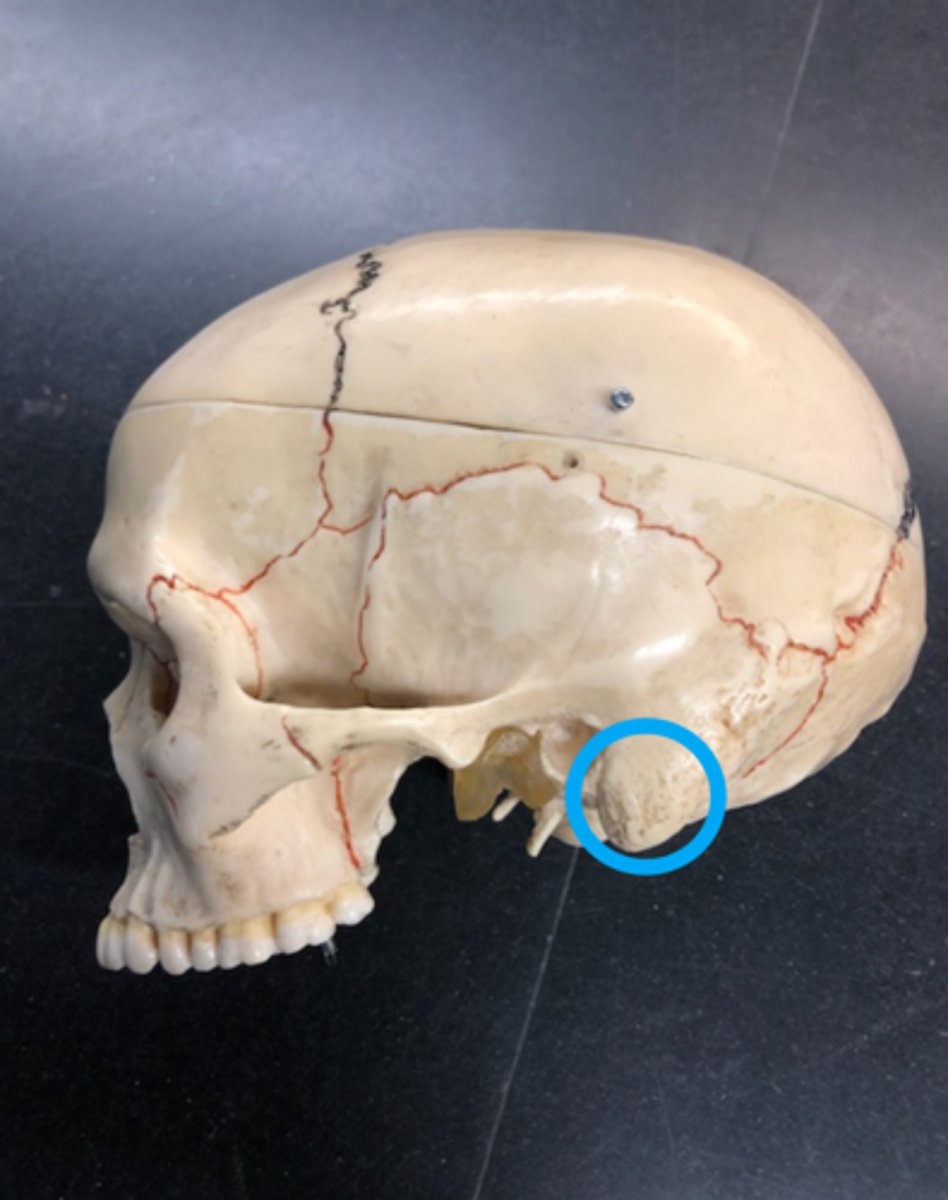

Mastoid process of temporal bone

Bottom part of the temporal bone closest to the occipital bone; Where the ear would be

Styloid process of temporal bone

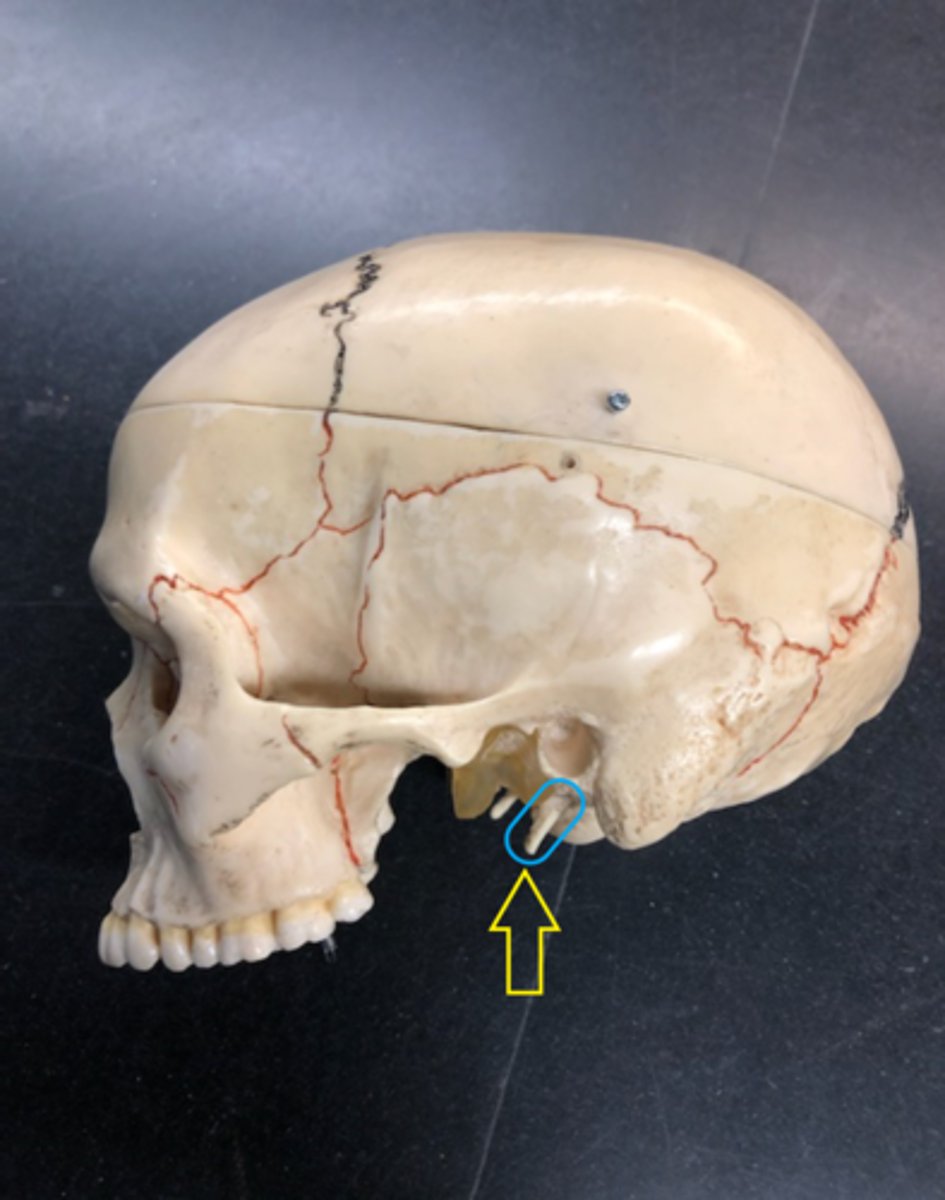

Stiletto like coming from mastoid process; point

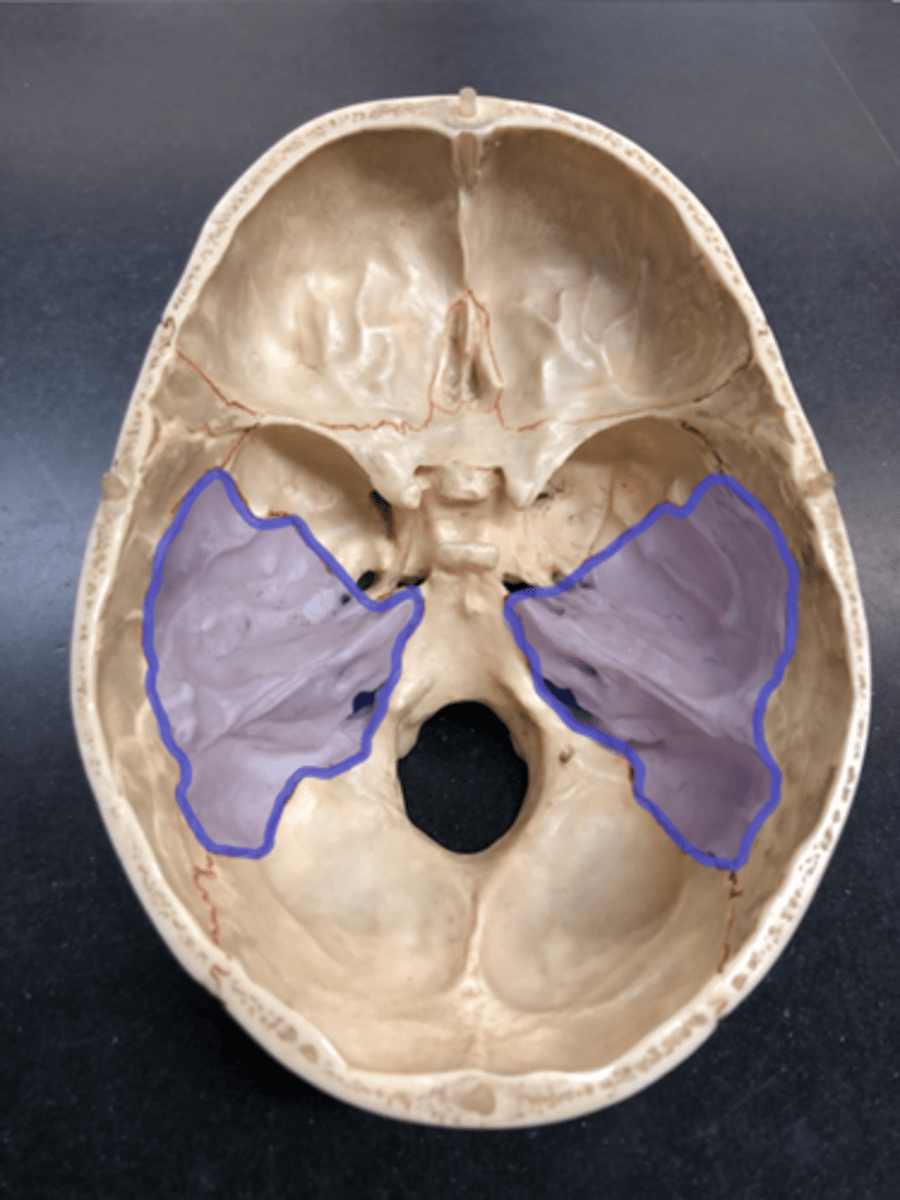

Squamous part of temporal bone

Lower portion; "valleys"; smooth part around mountains

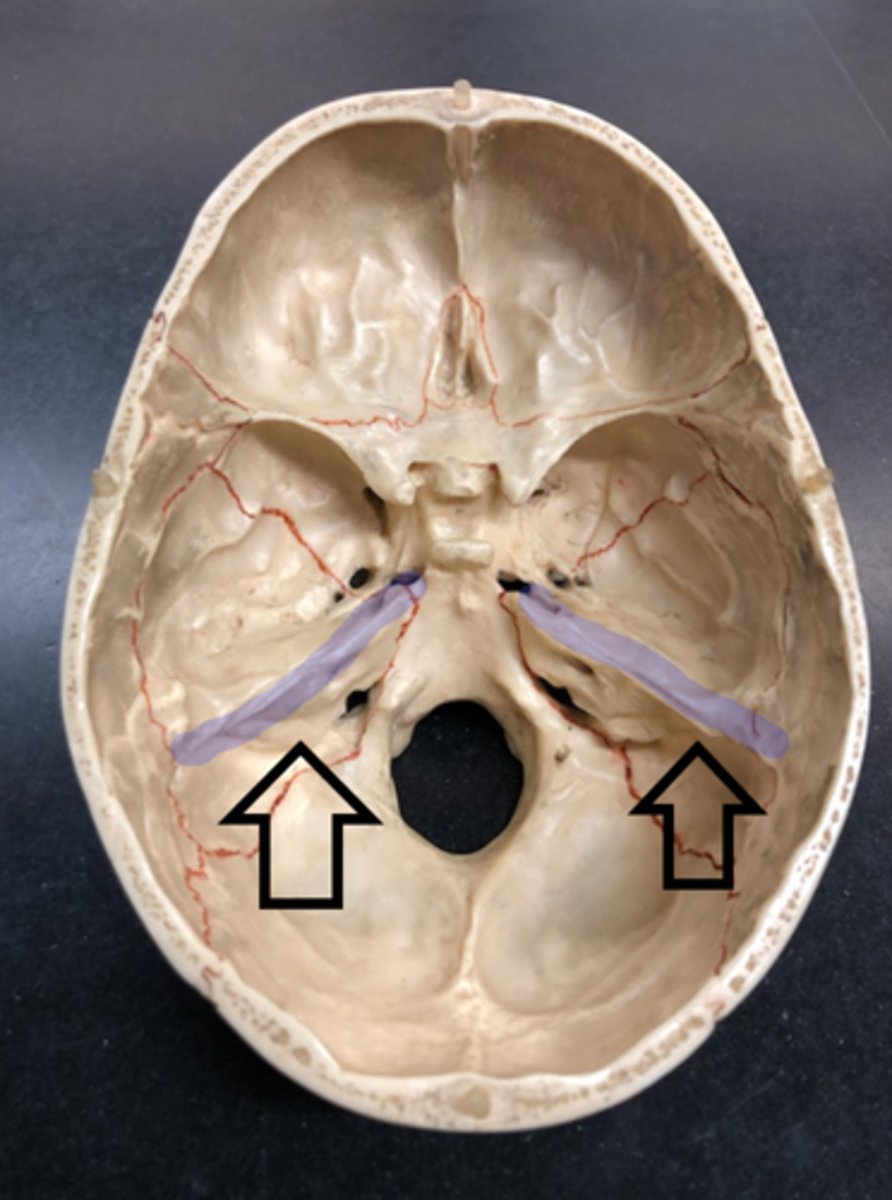

Petrous part of temporal bone

Higher portion; "mountains"

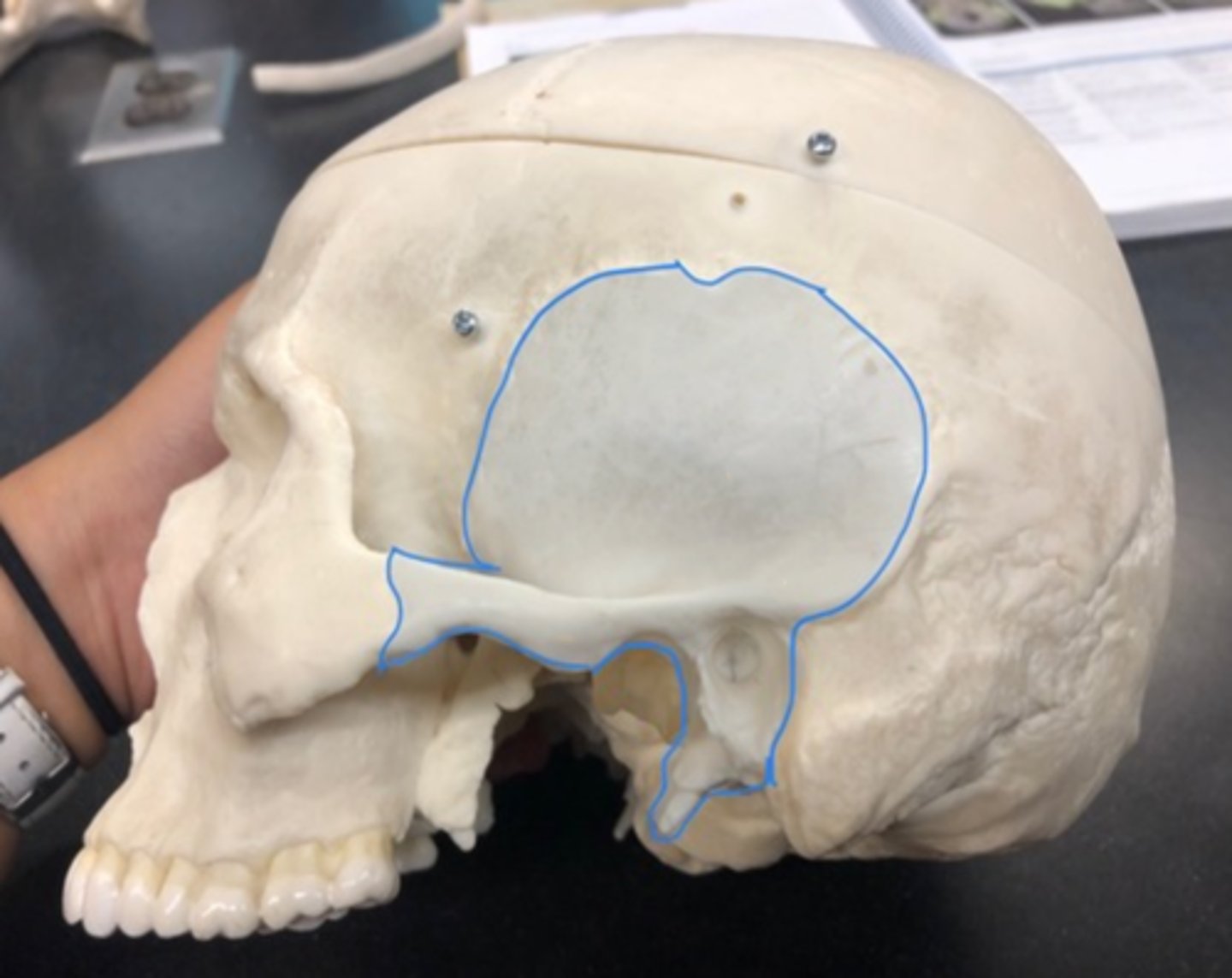

Temporal fossa

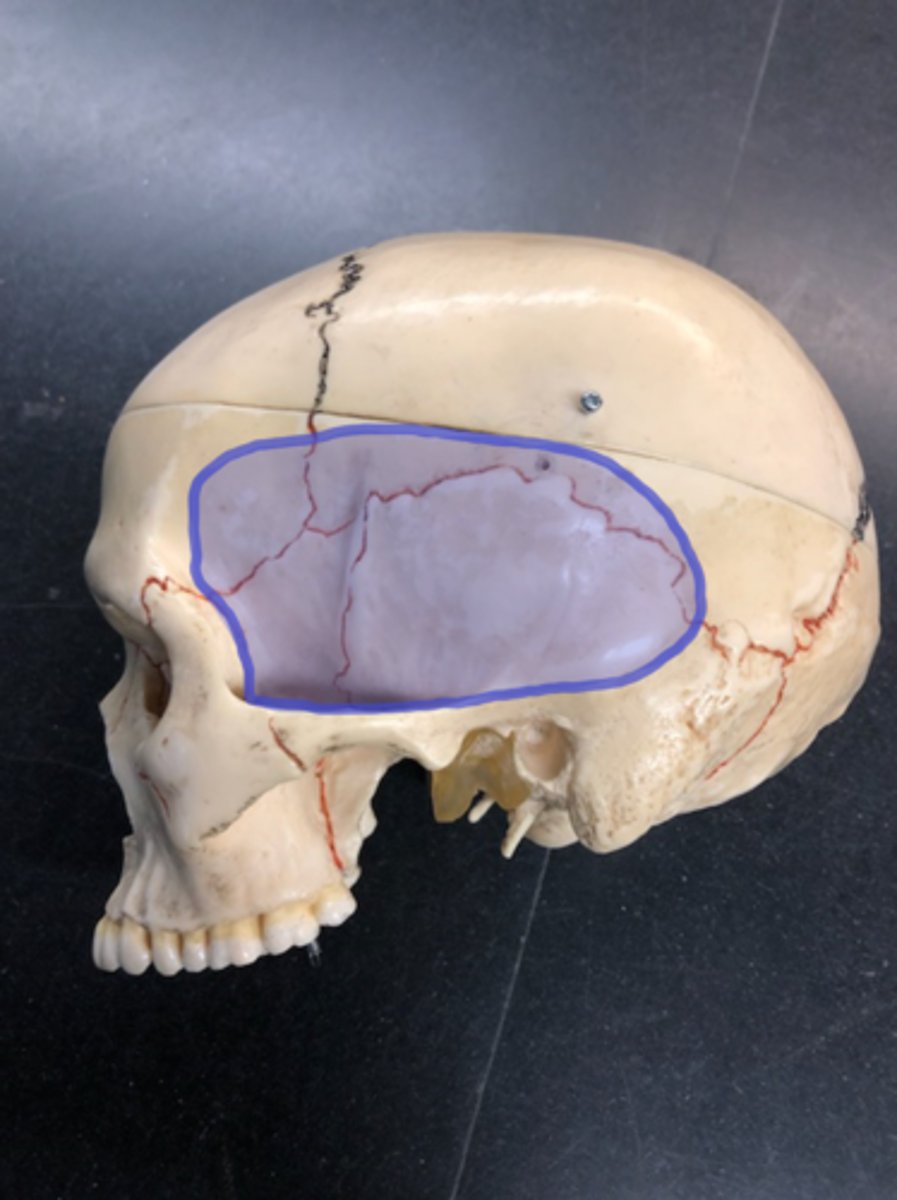

Depression that includes 4 bones; "rubbing your temples"

External acoustic canal

Right behind mandibular fossa

Internal acoustic canal

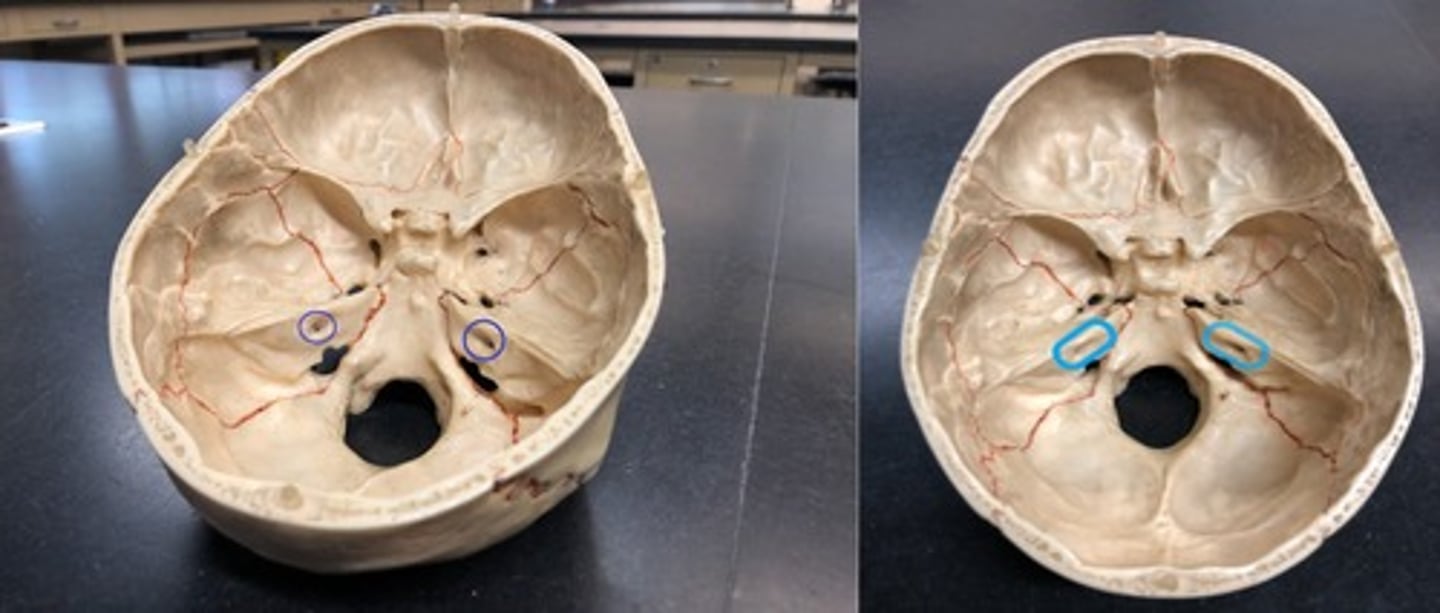

Shallow hole the side of the petrous part; "cave in the mountain"

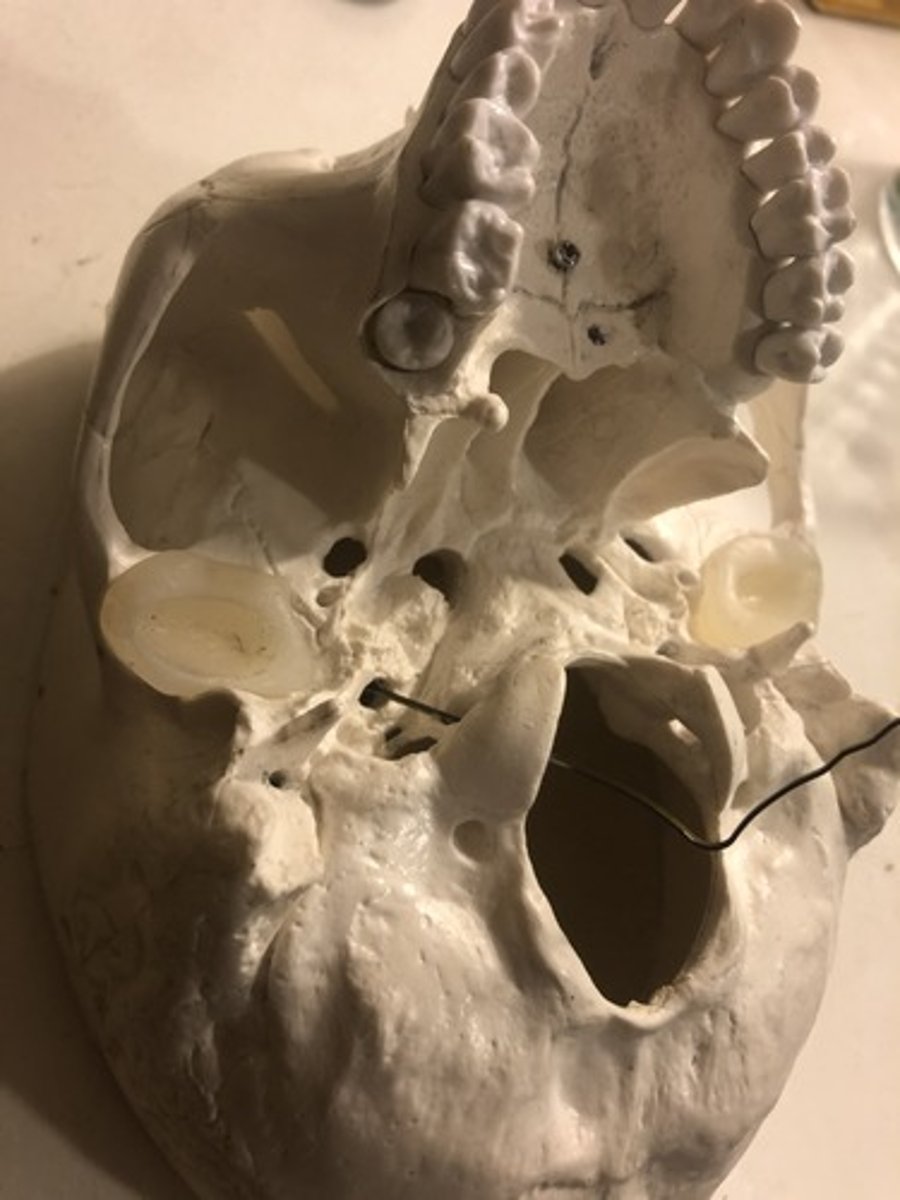

Carotid canal

Circular hole; medial to styloid process; stick needle through hypoglossal canal & it will point to this

Foramen lacerum

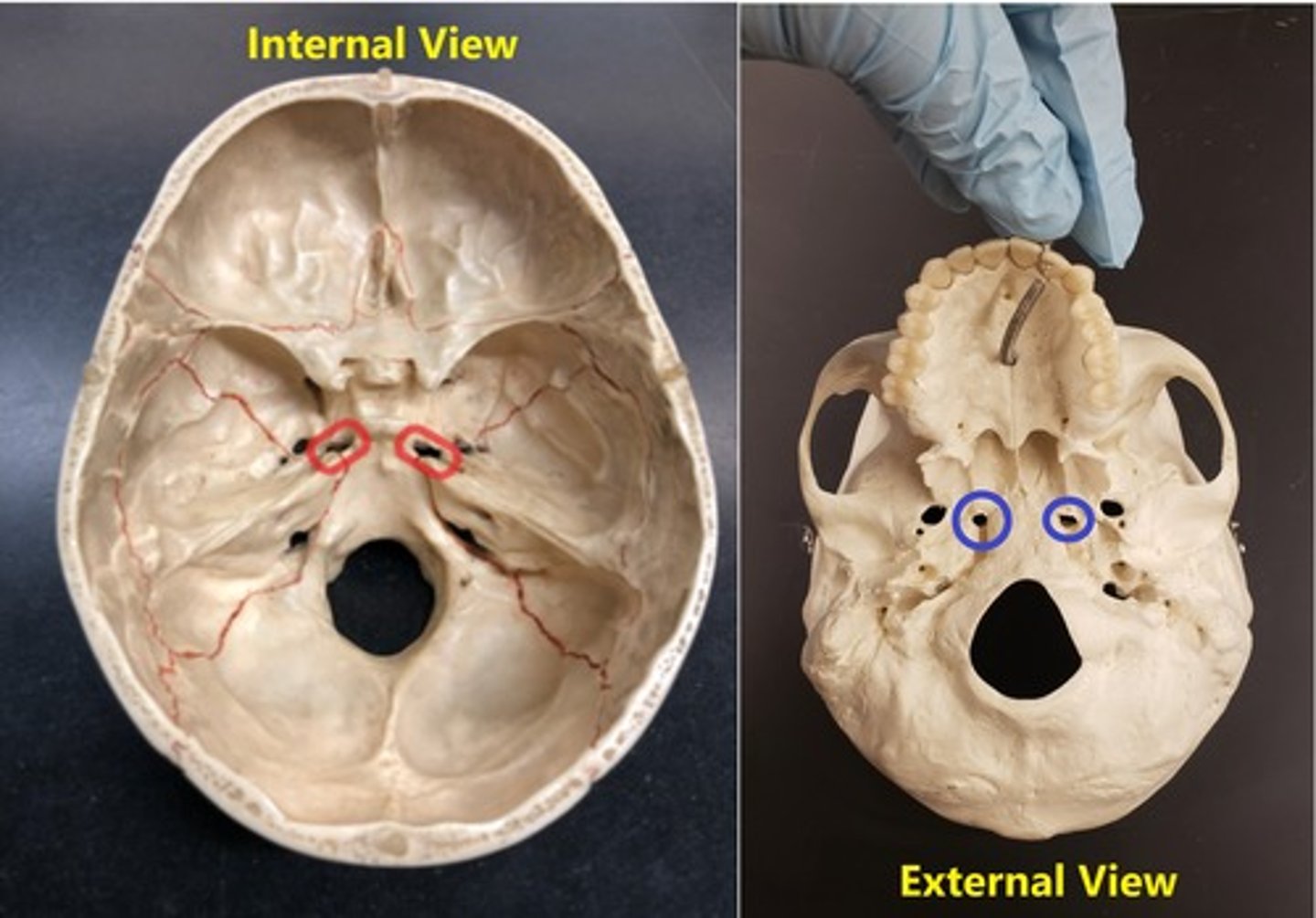

Holes closest to center line

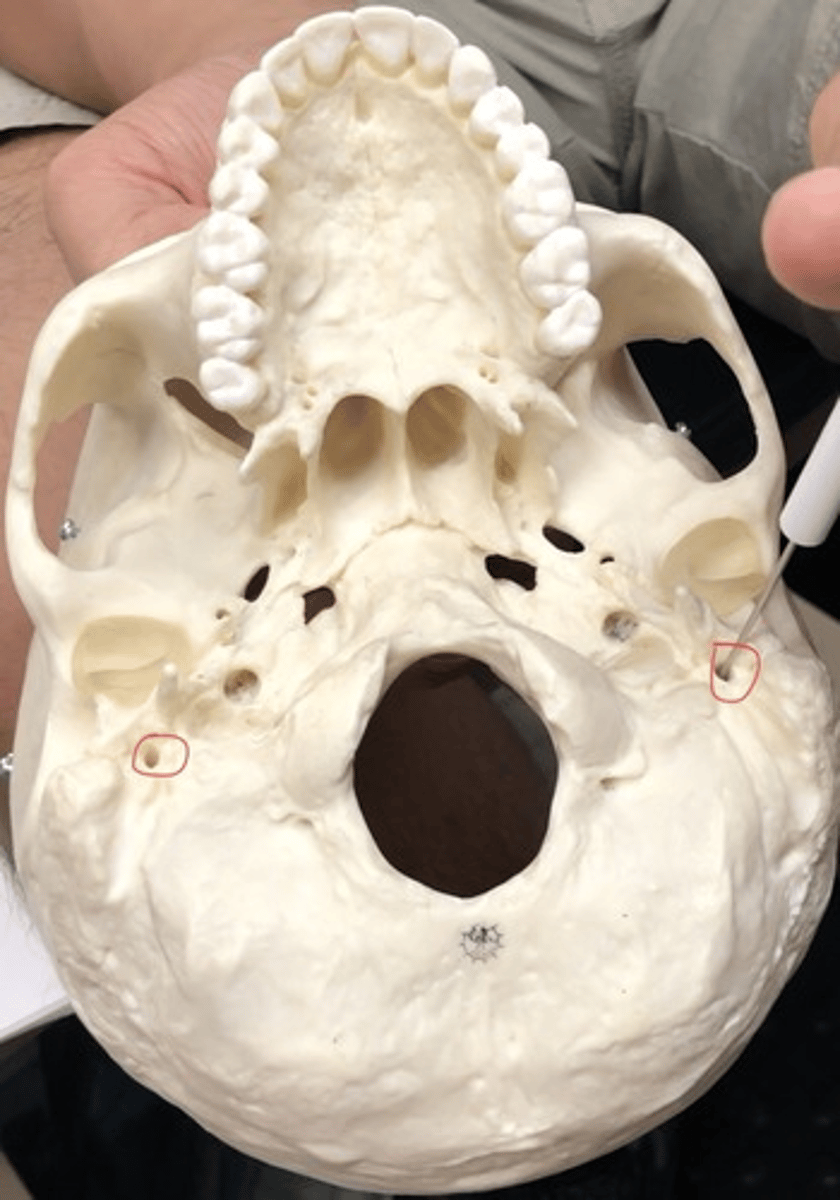

Stylomastoid foramen

Holes between styloid and mastoid process

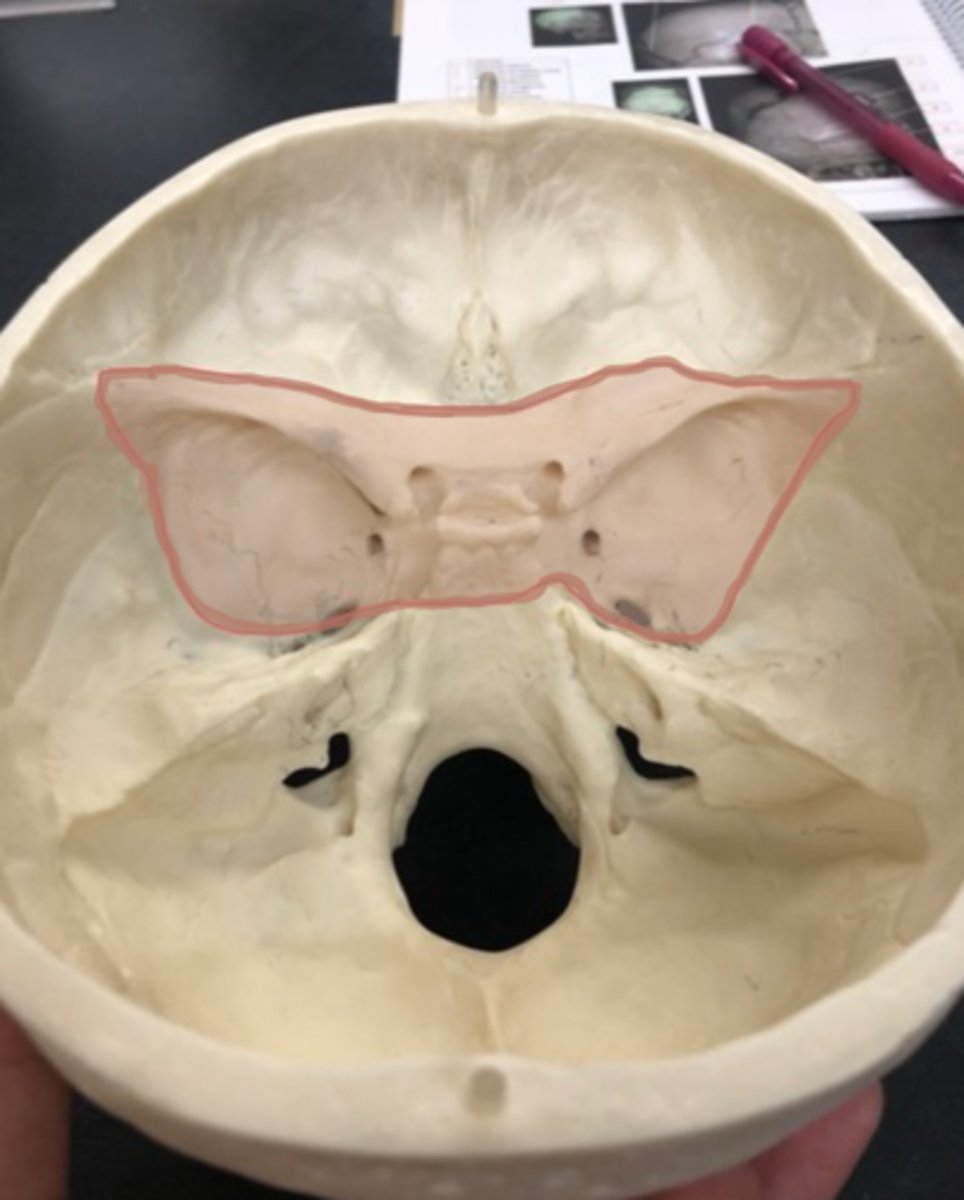

Sphenoid (or sphenoidal bone)

"Pterodactyl"

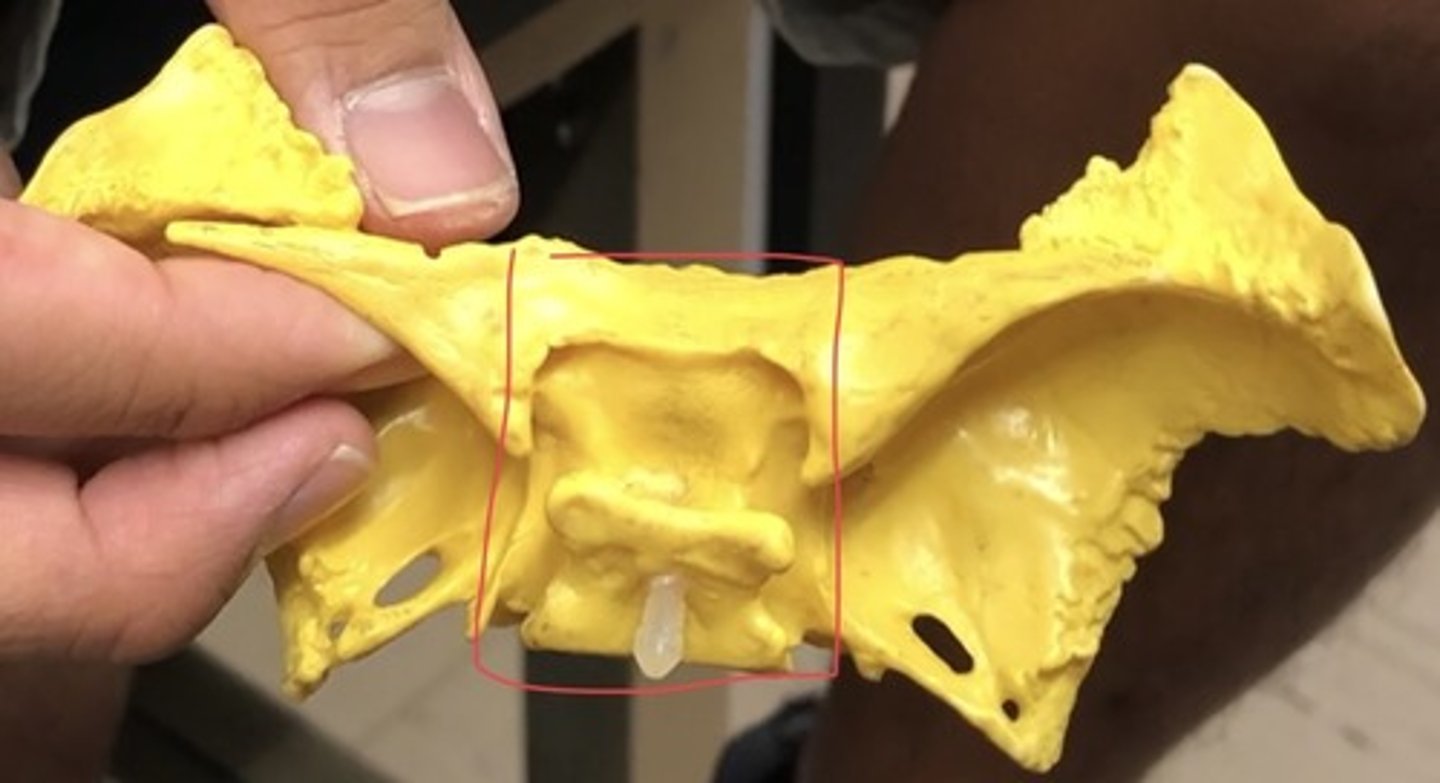

Body of sphenoid

center; portion of sphenoid that does not include wings

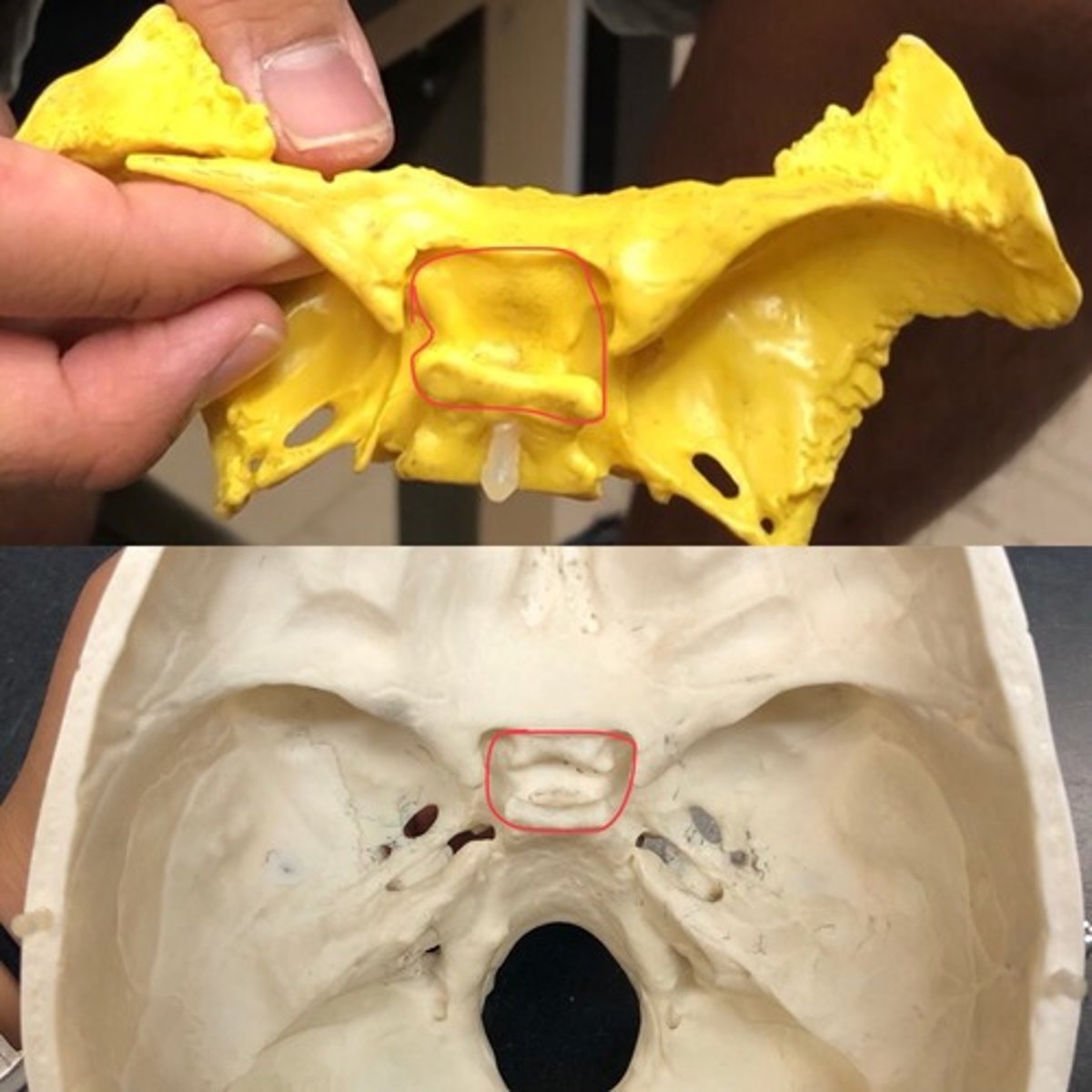

Sella turcica

"seat"

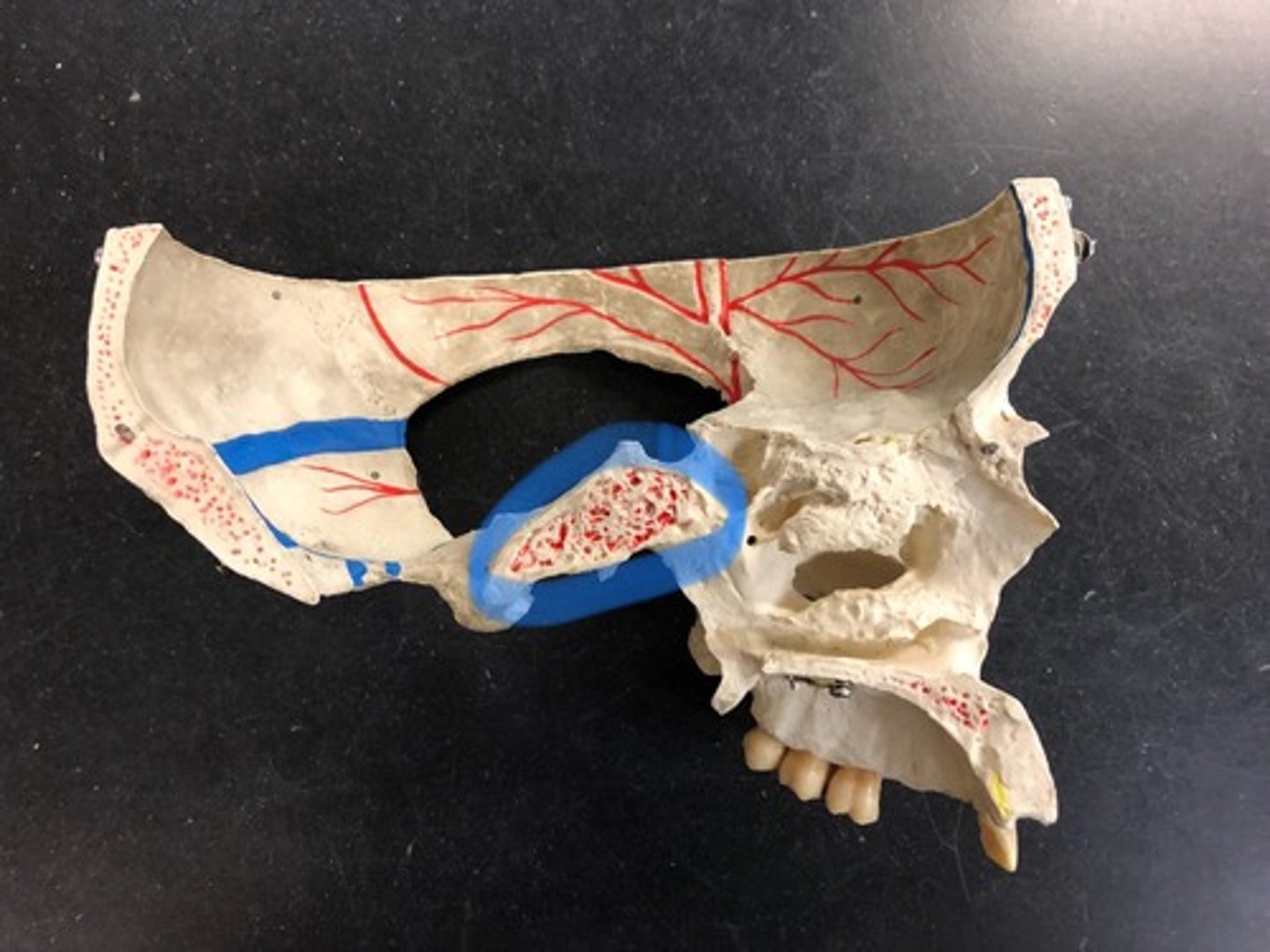

Sphenoidal sinuses

Red dots deep to sphenoid

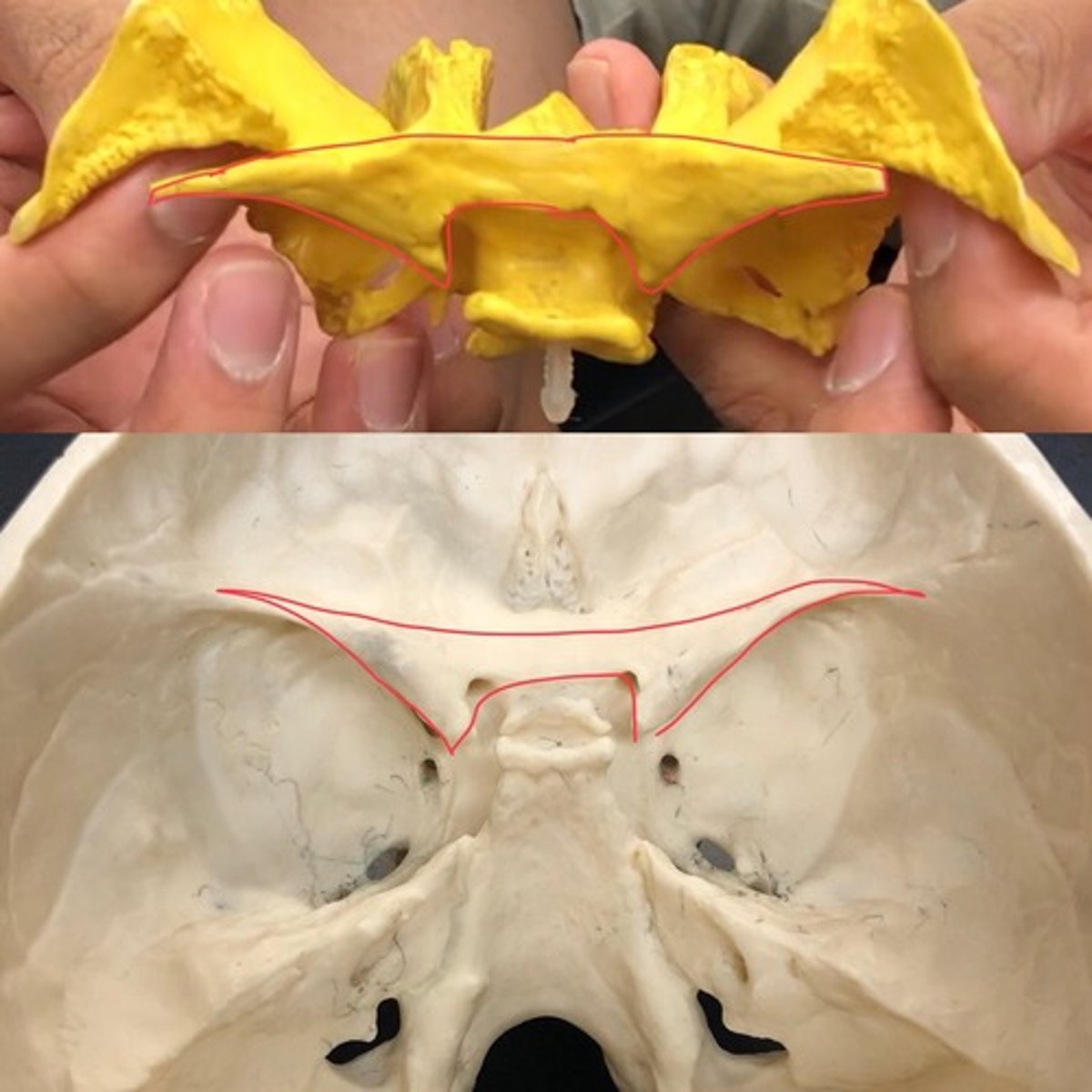

Lesser wings of sphenoid

"handle bars"; on top of the greater wings

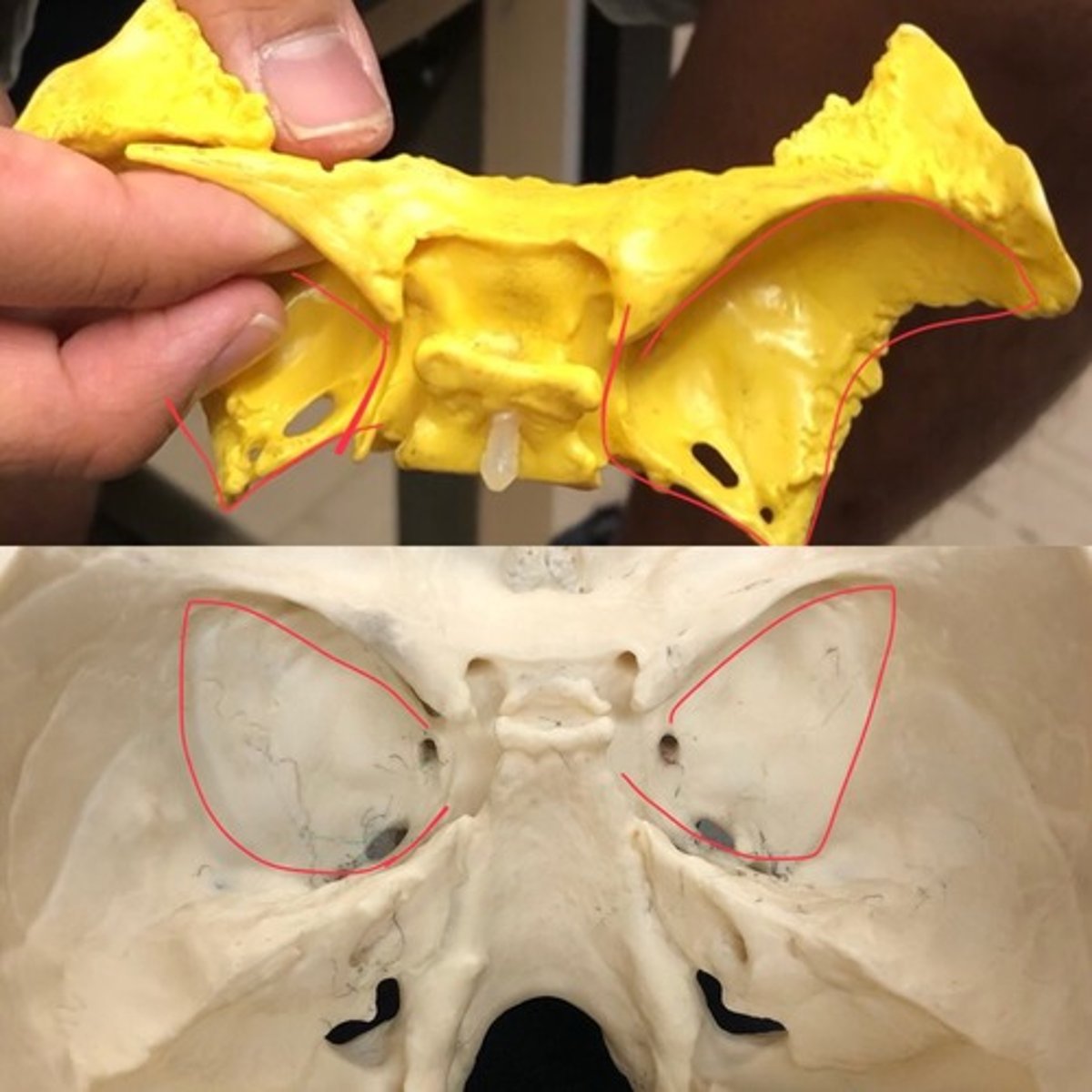

Greater wings of sphenoid

big wings on the sides; below lesser wings

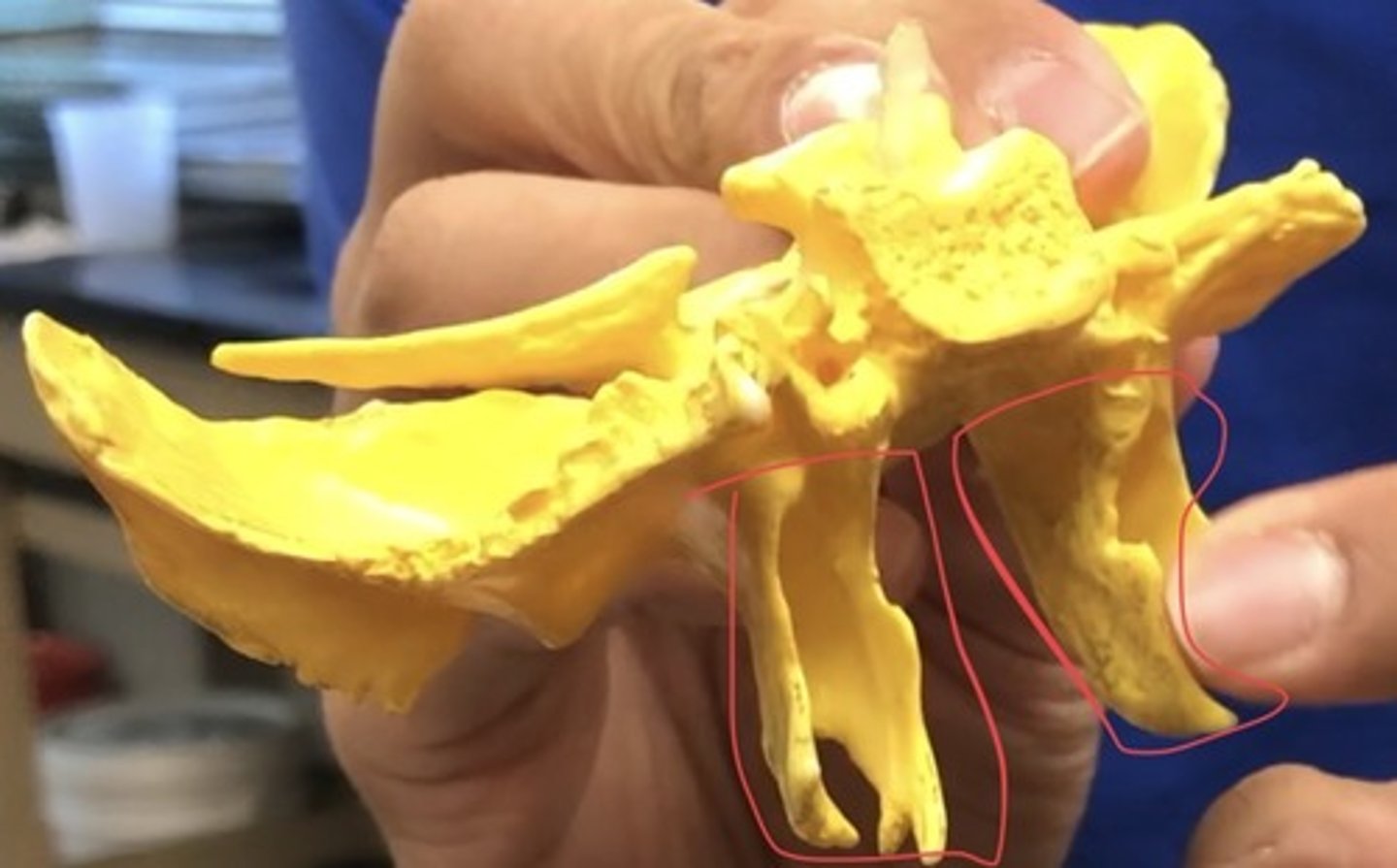

Pterygoid processes

"legs"

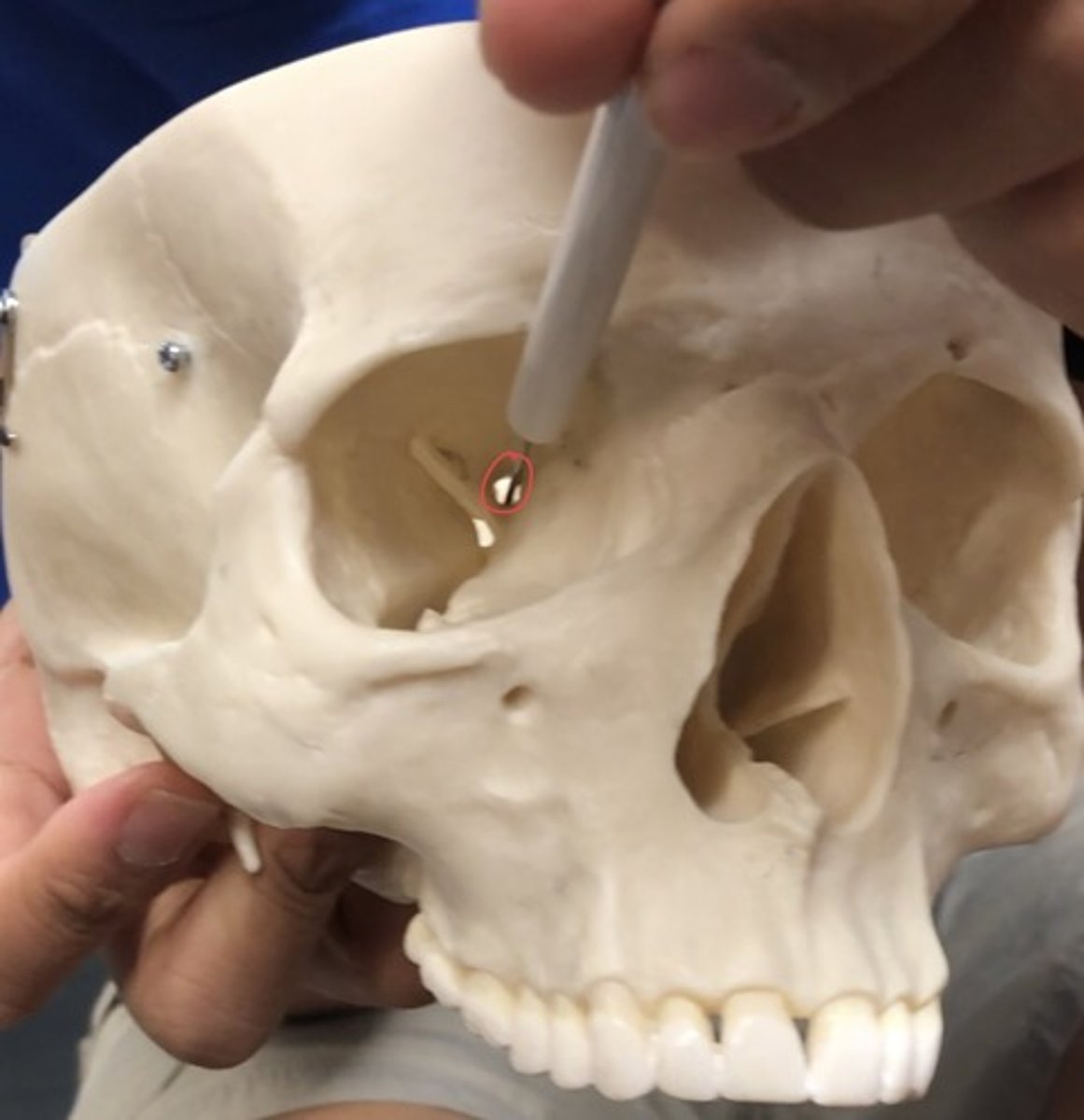

Optic canal

Most medial hole in the eye socket

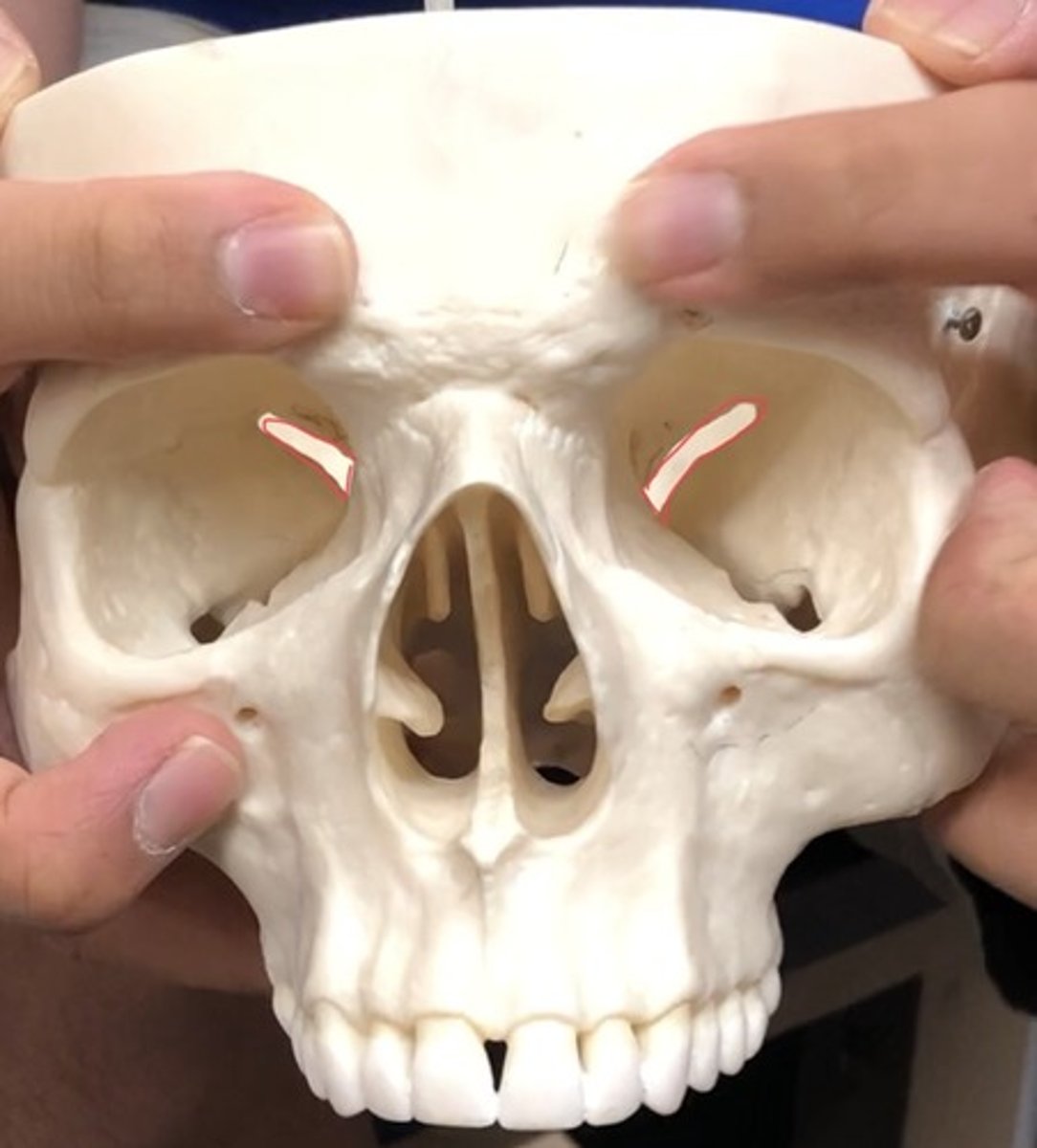

Superior orbital fissure

large hole next to optic canal

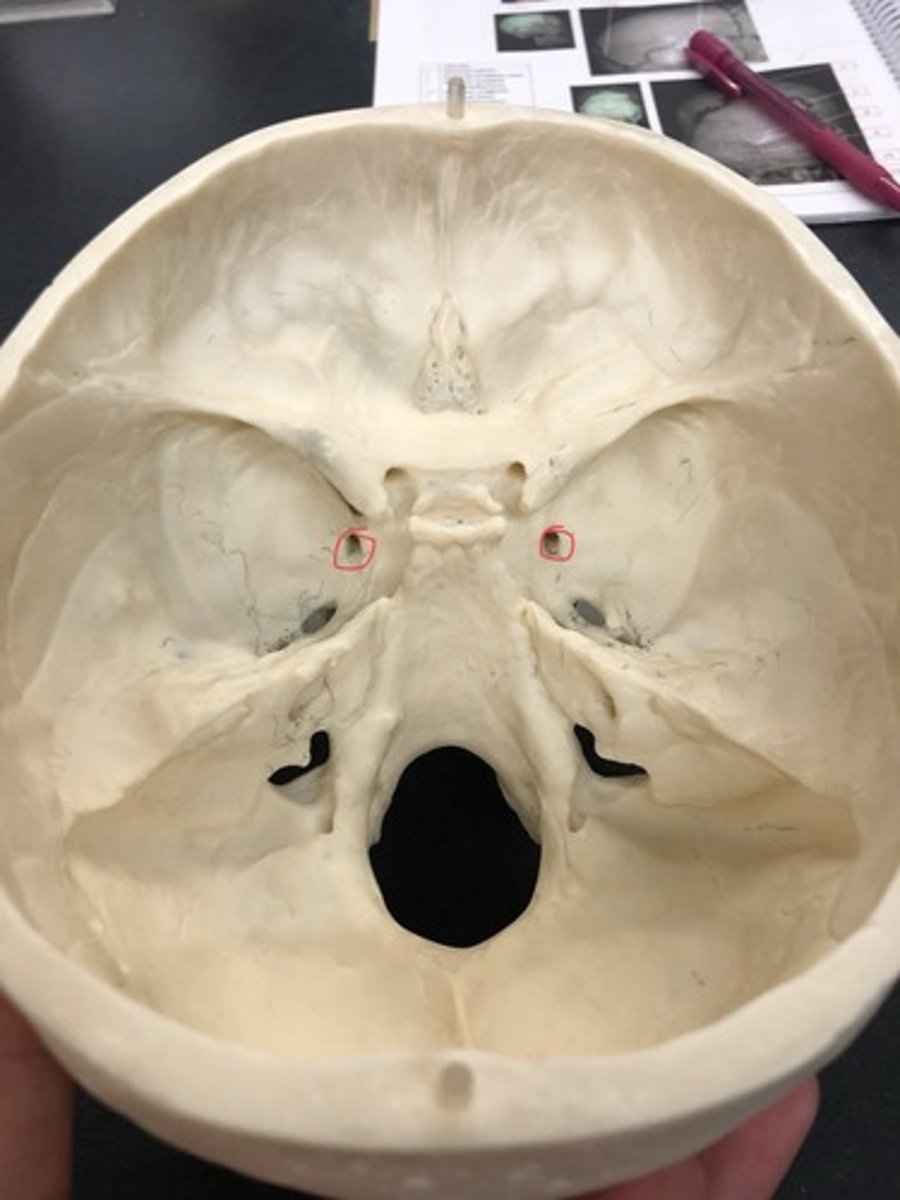

Foramen rotundum

Above the foramen ovale; hiding

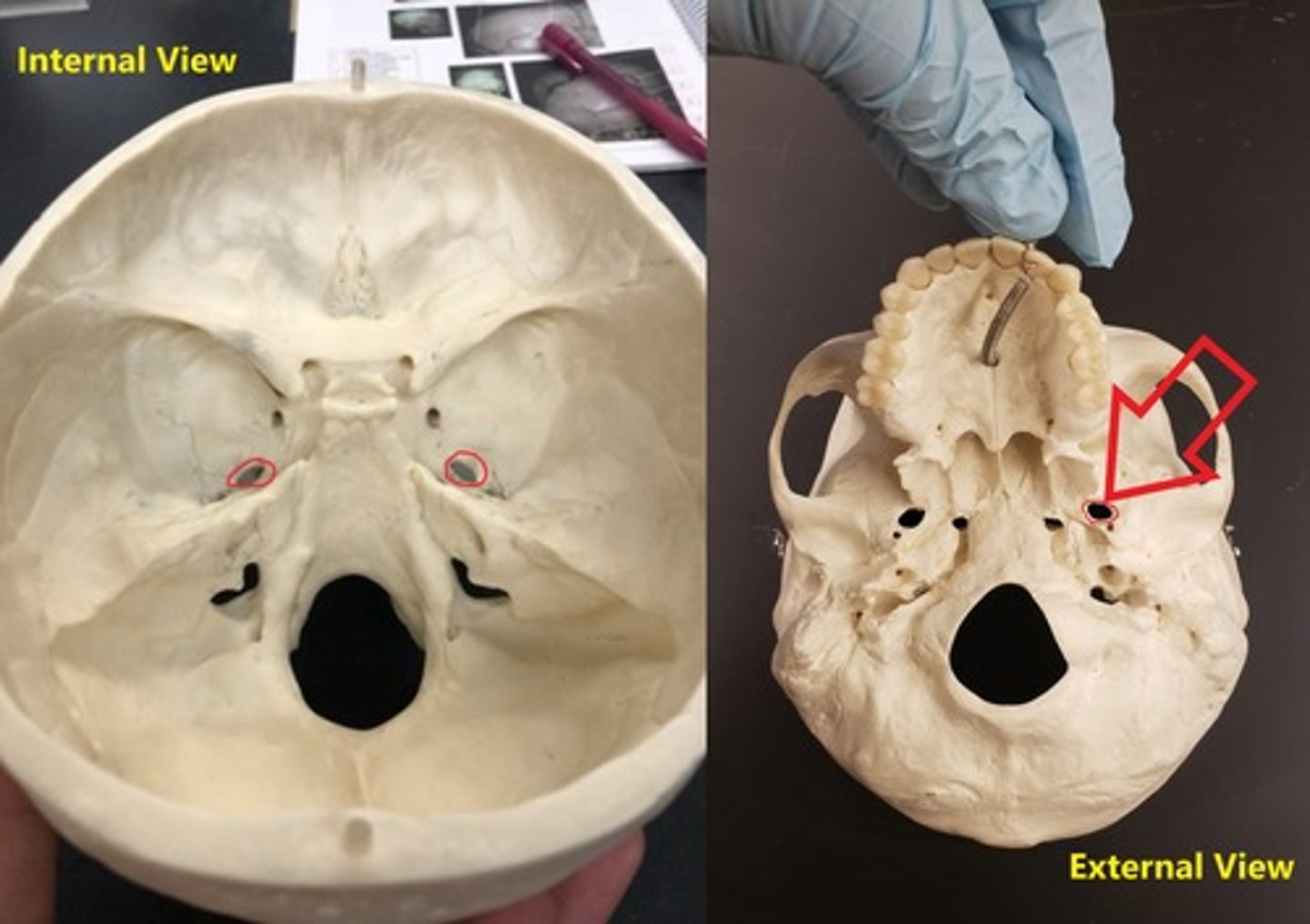

Foramen ovale

A bigger looking oval; before the foramen spinosum

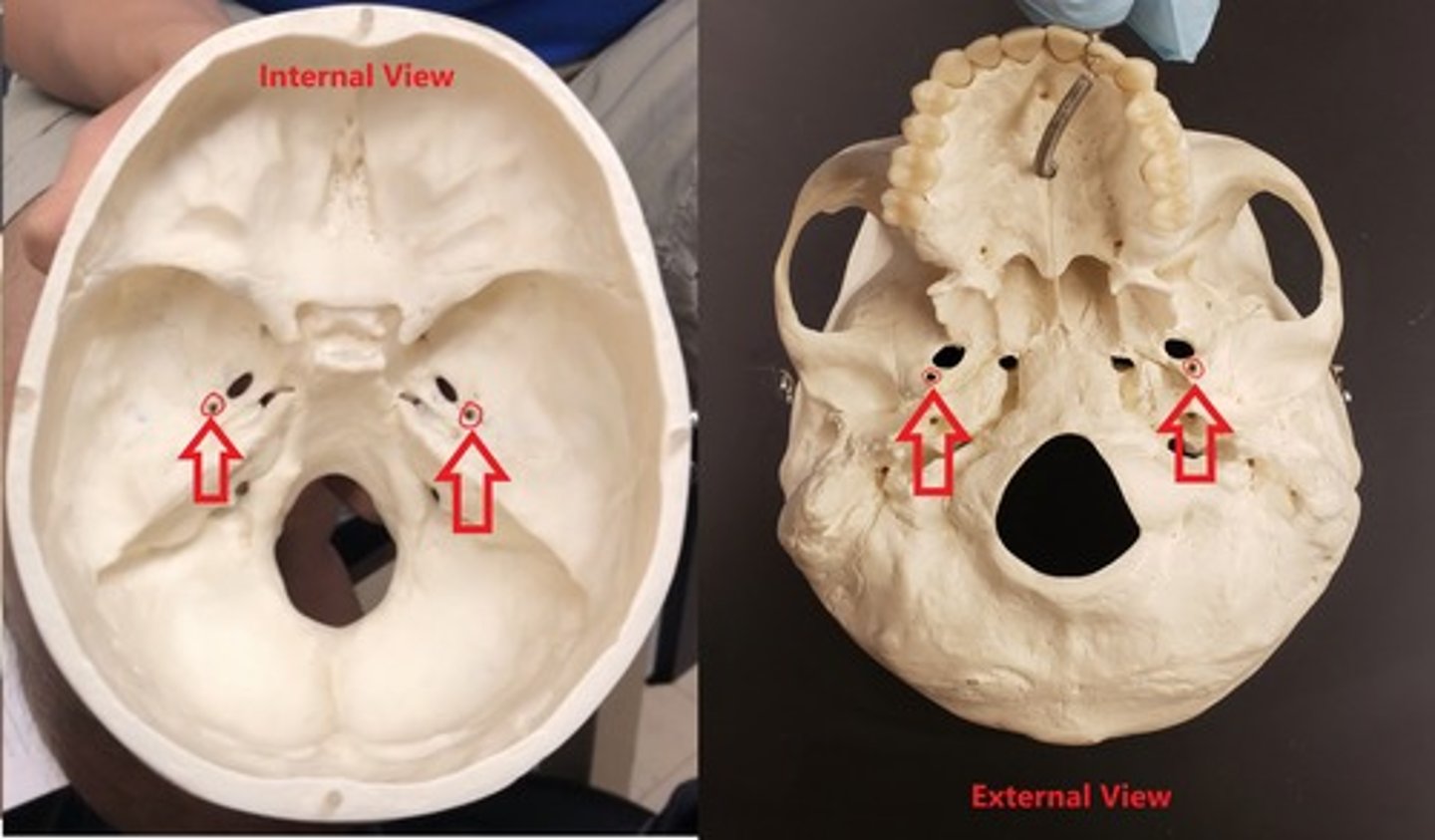

Foramen spinosum

smallest hole after the foramen ovale

Hypophyseal fossa

only the depression

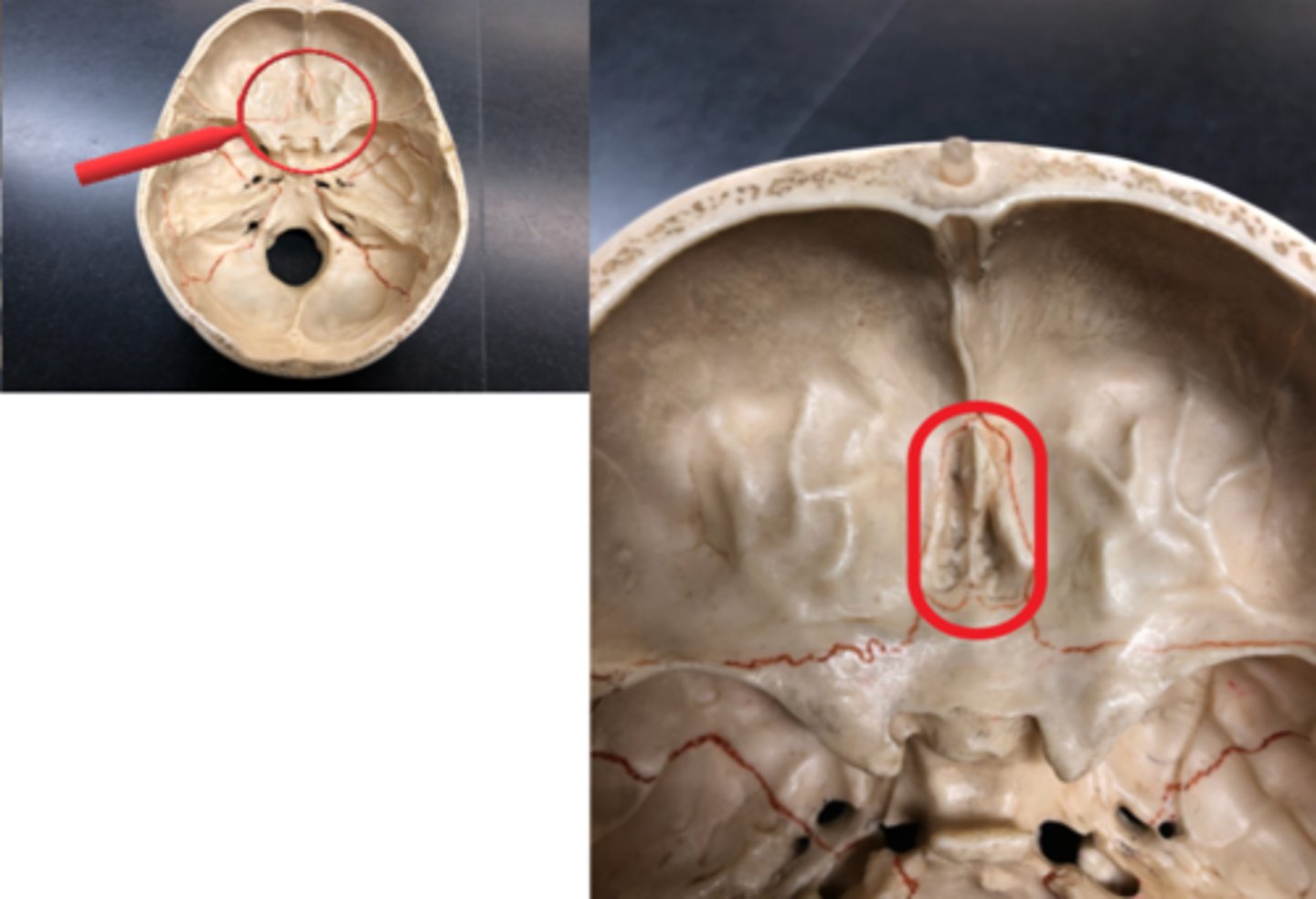

Ethmoid bone (Ethmoidal bone)

unpaired bone in the skull that separates the nasal cavity from the brain.

Cribriform plate

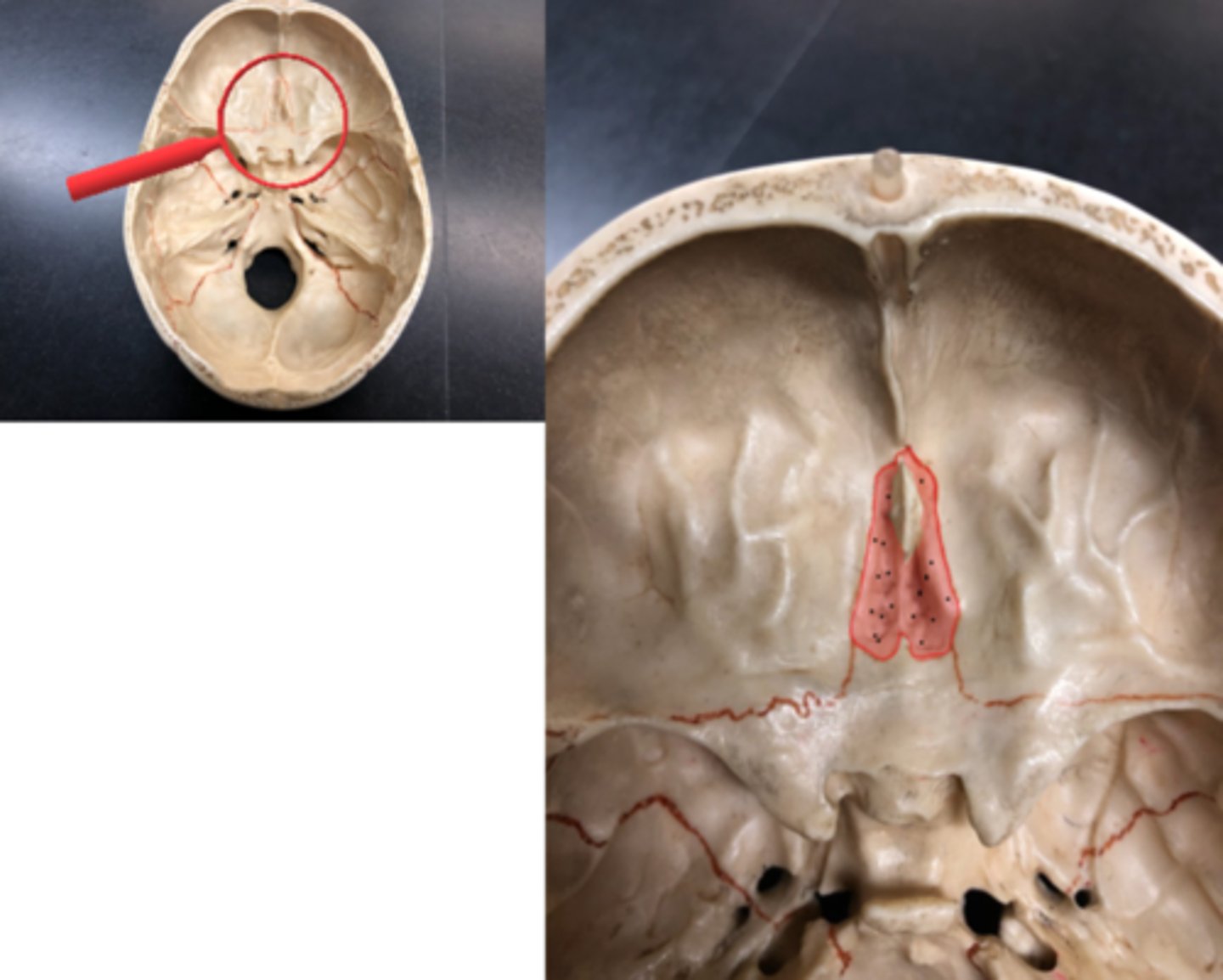

The colored structure that includes the olfactory foramina.

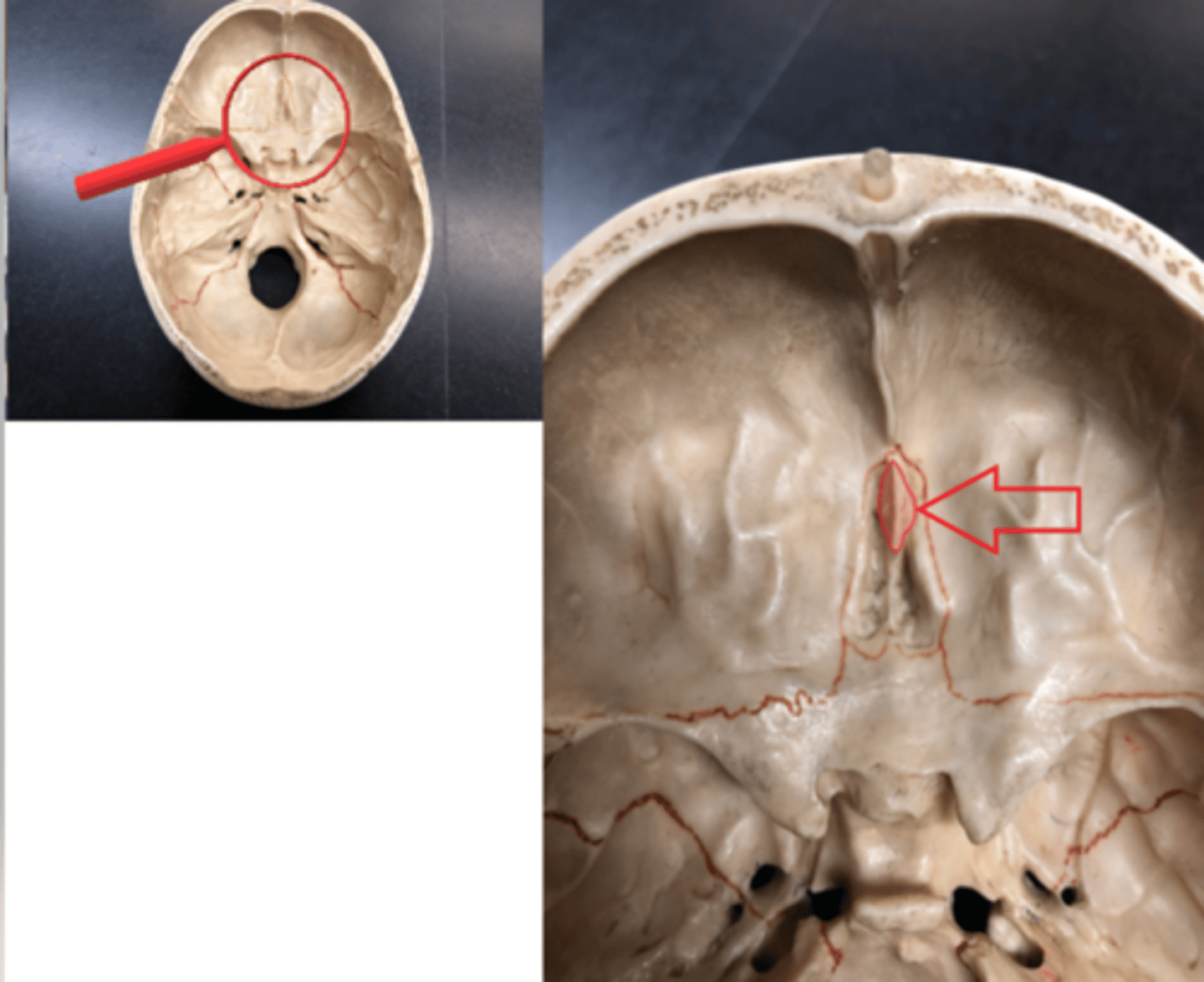

Crista galli

Ridge on top cribriform plate

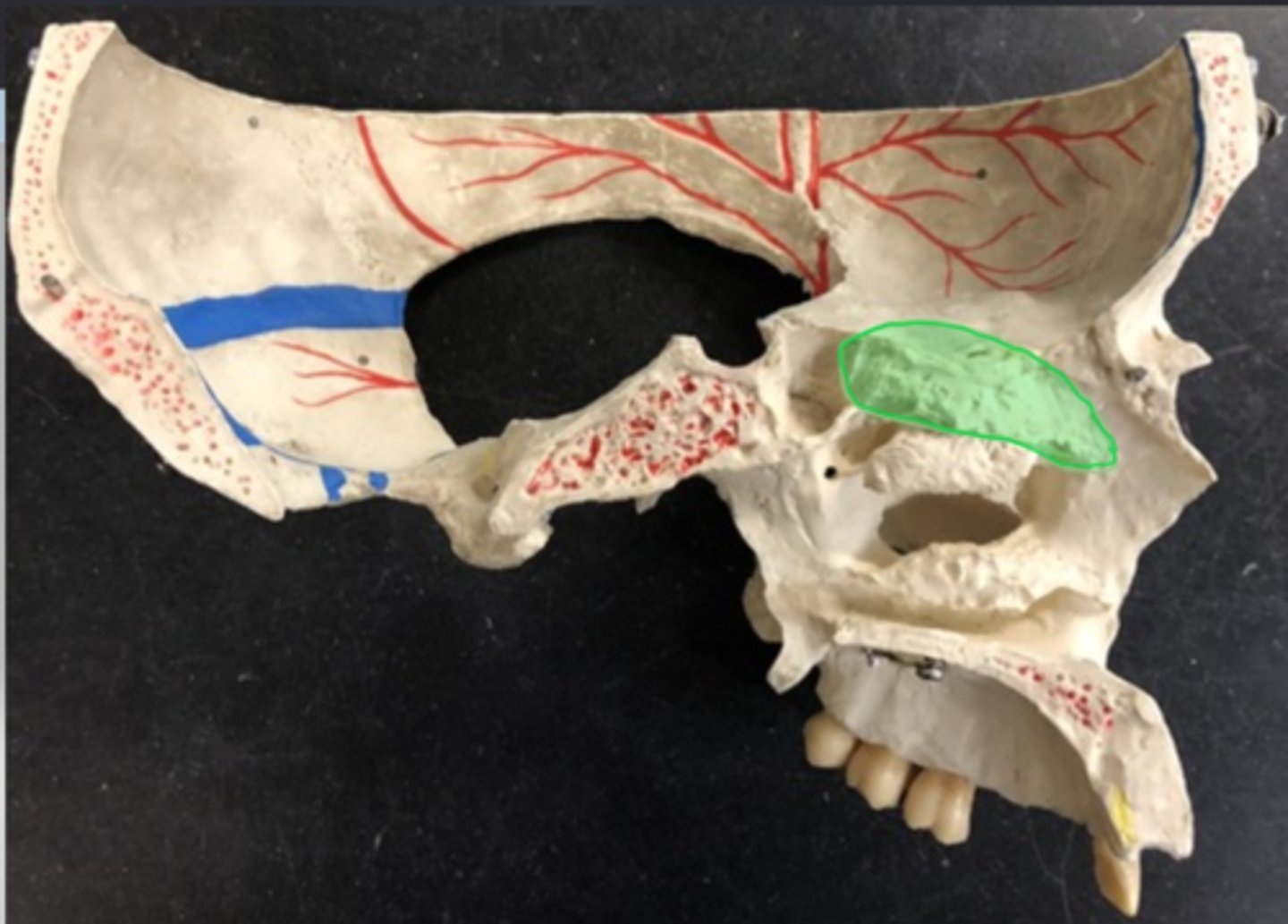

Superior nasal conchae

only on one model (more yellowish model); can see from the inside

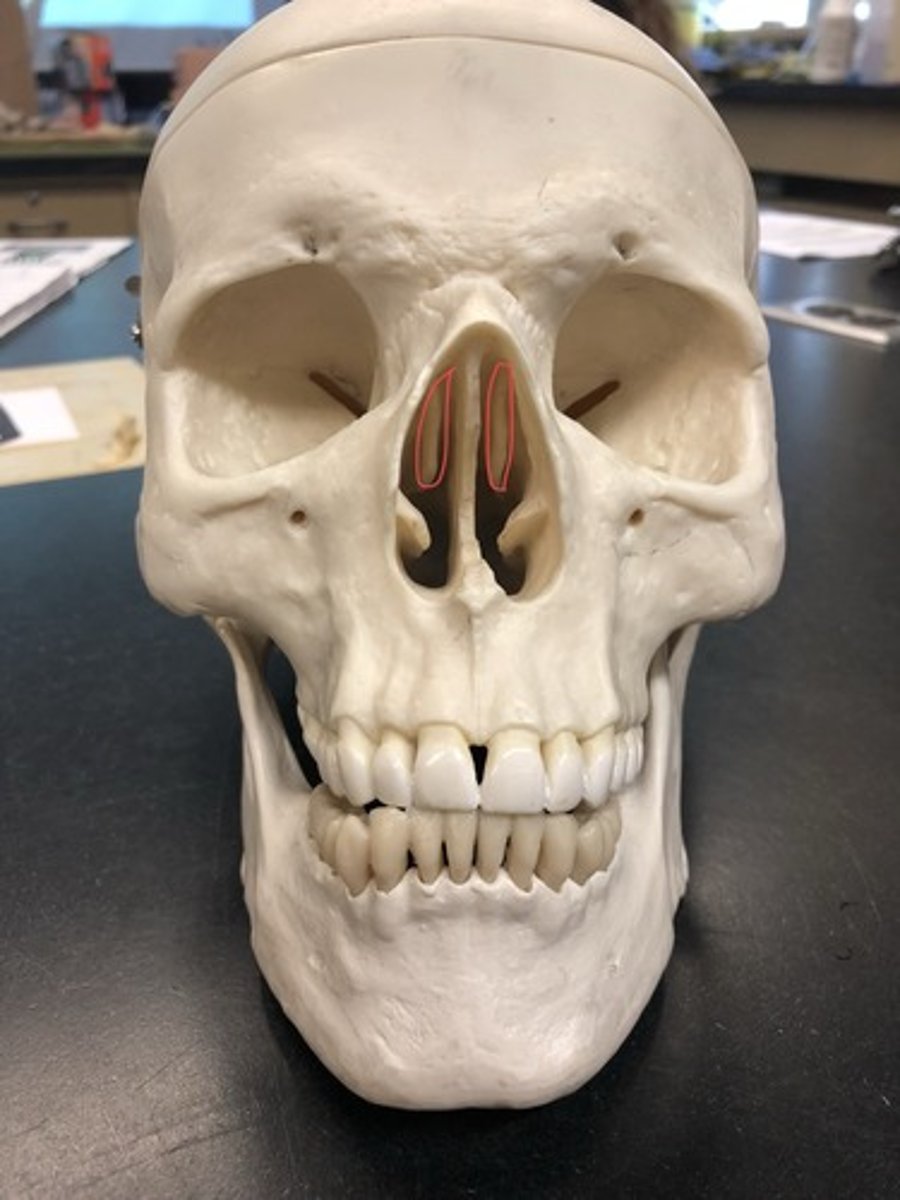

Middle nasal conchae

in the nasal cavity; in most models you can only see this one

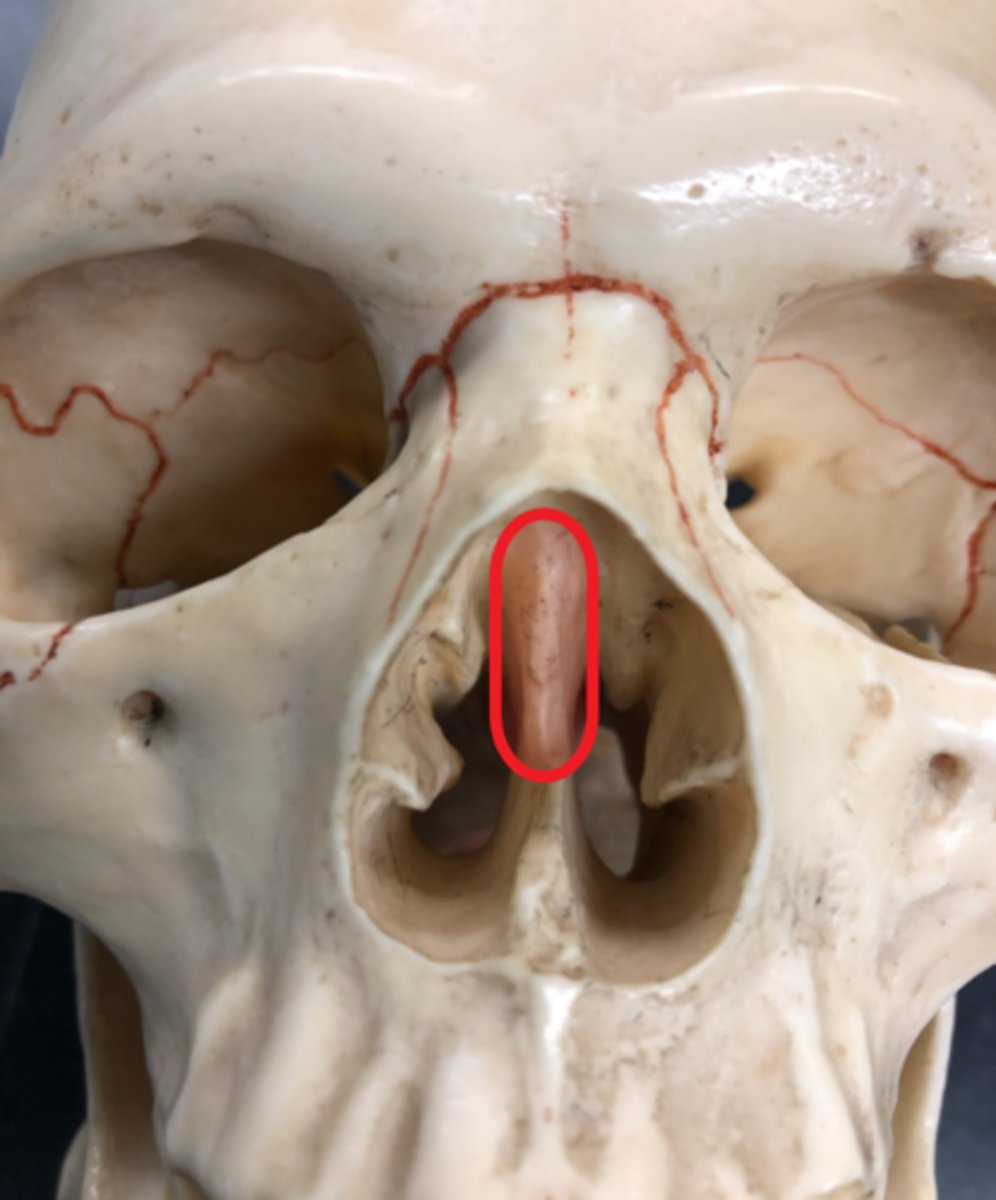

Perpendicular plate

Middle line between superior and inferior conchae

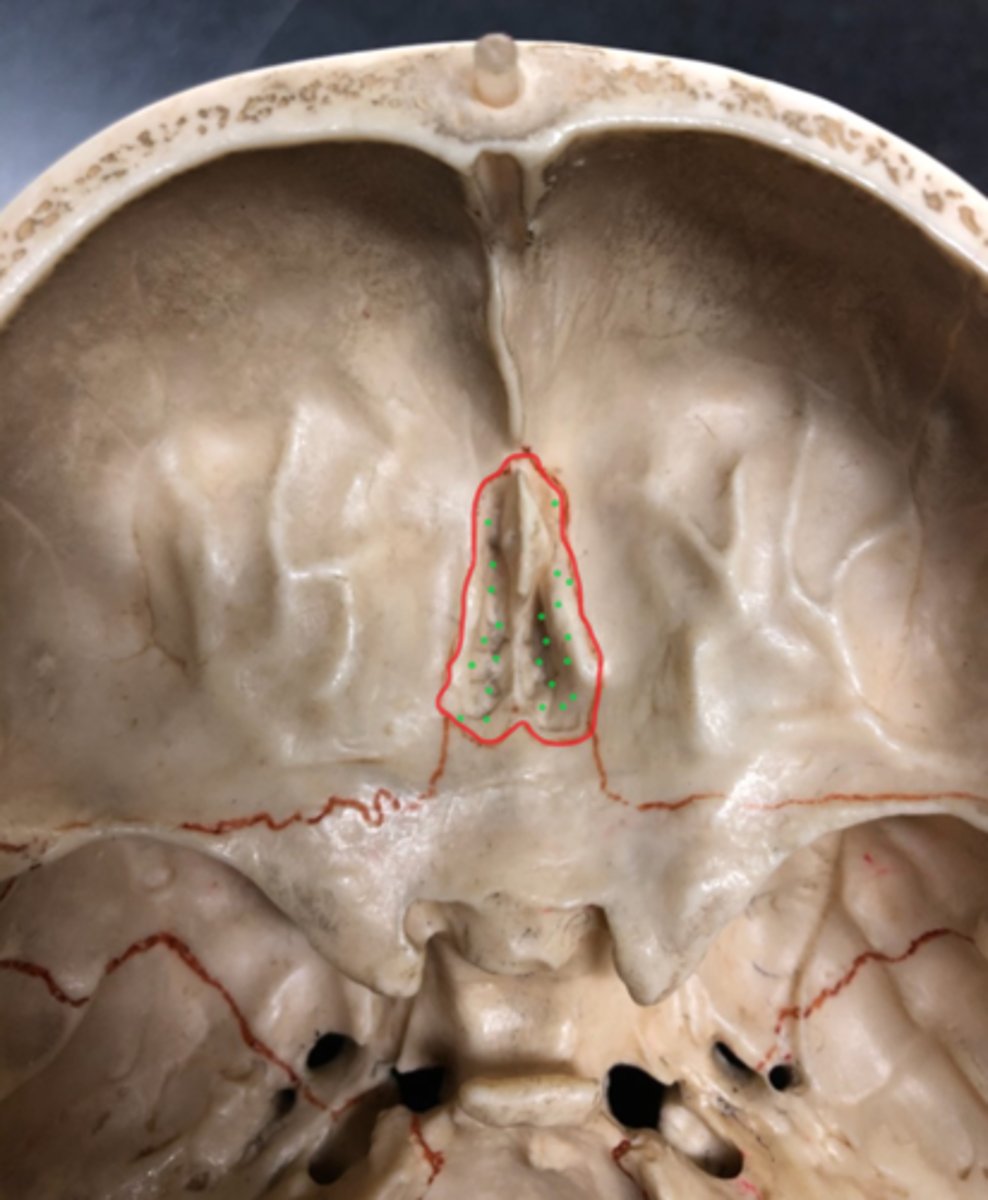

Olfactory foramina

Holes in cribriform plate

(the green dots on the pic)

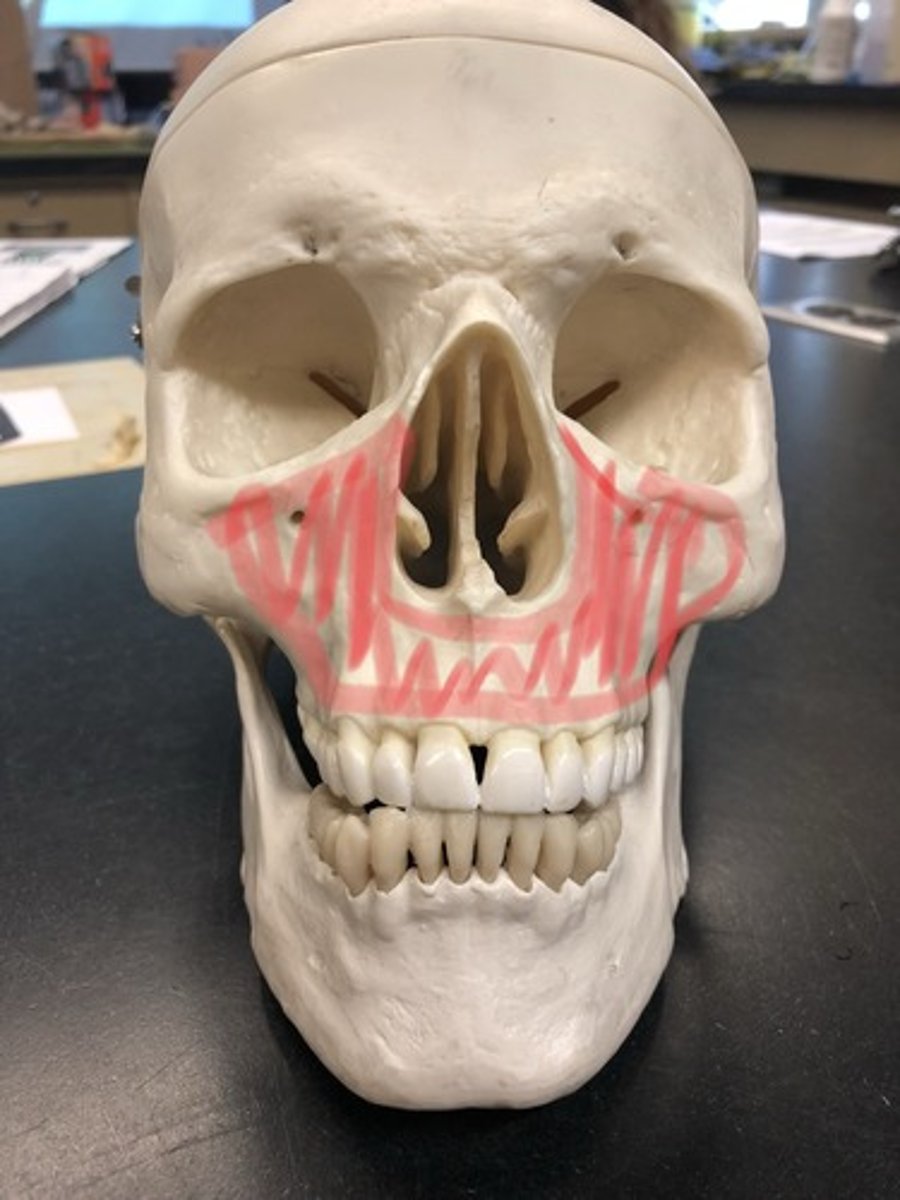

Maxillary bones (Maxillae; 2)

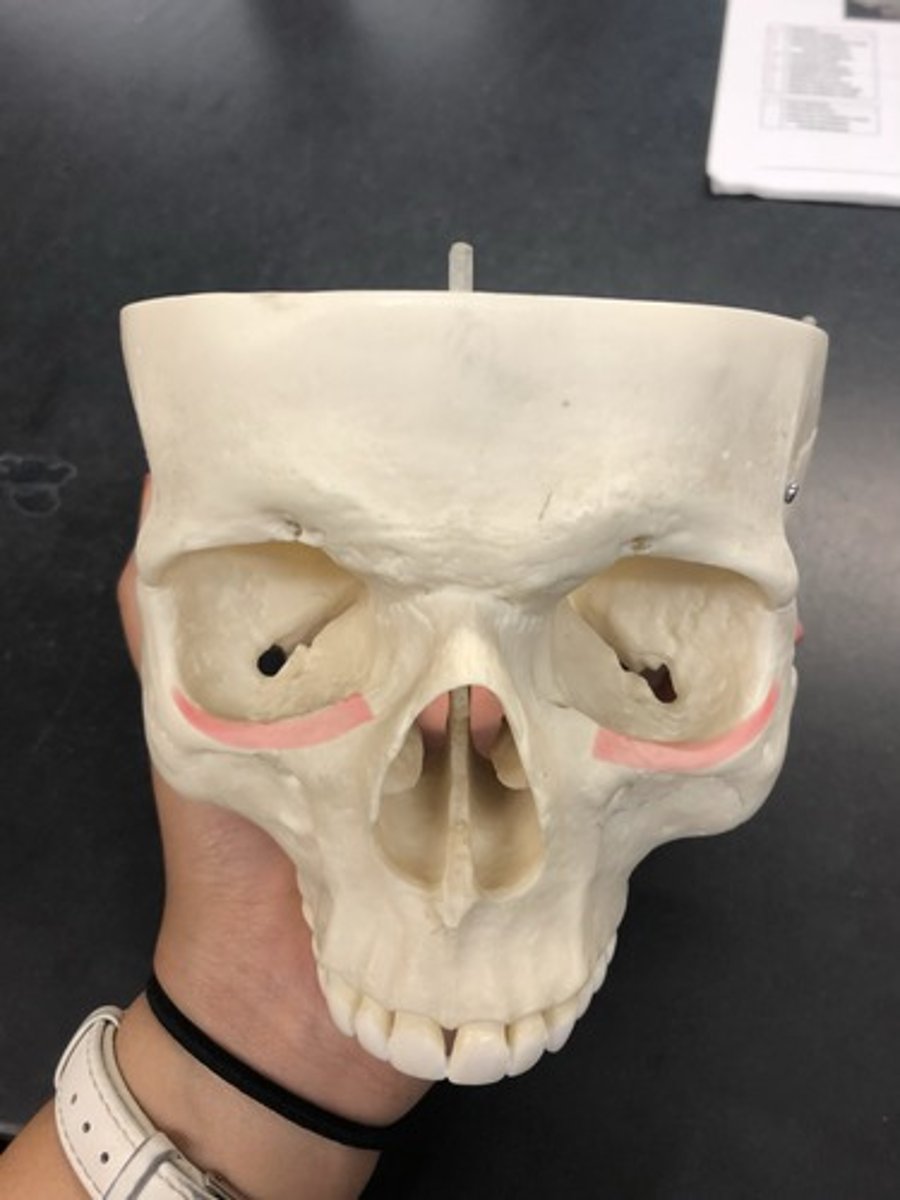

Orbital rim

Bottom ridge of eye-socket

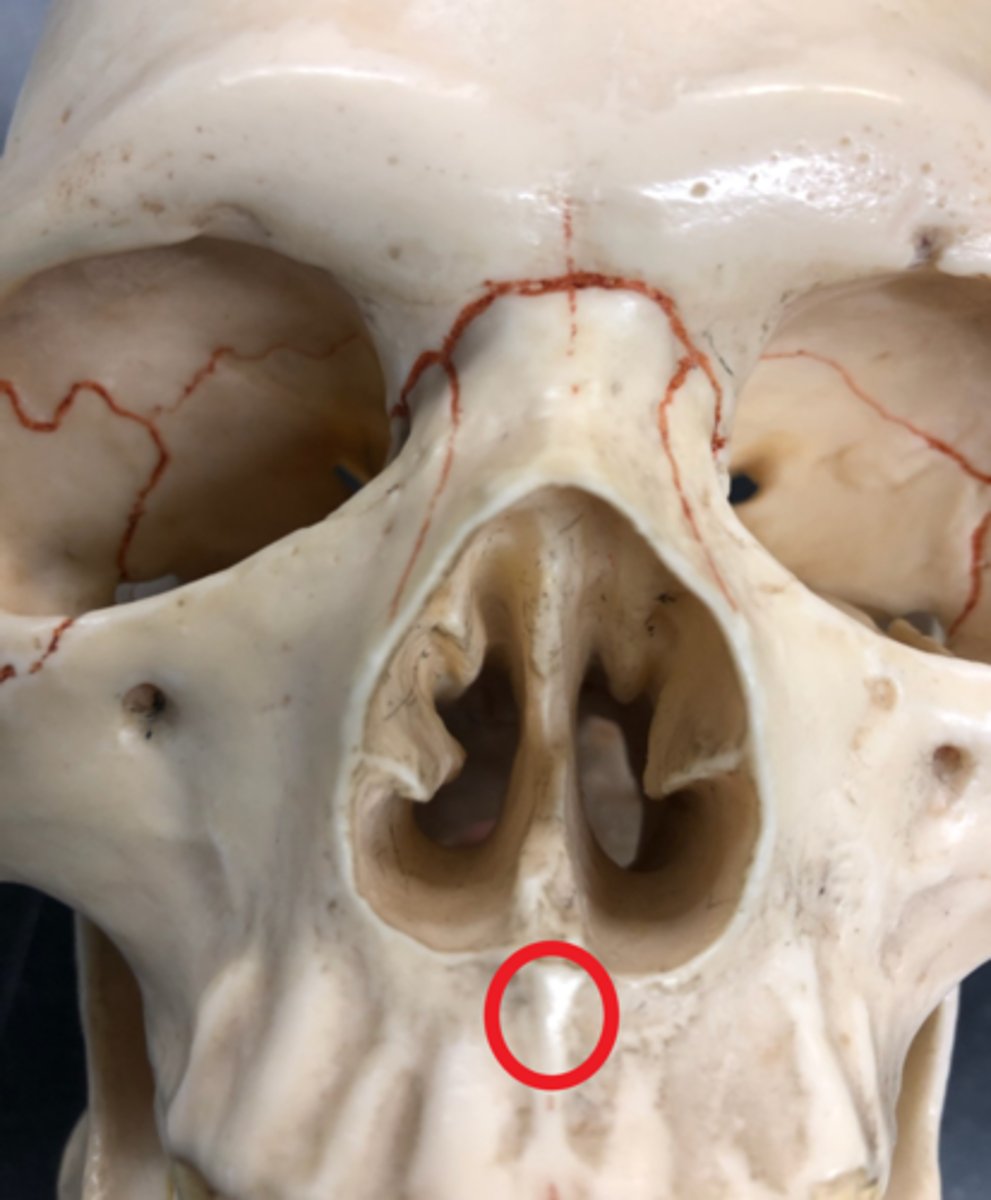

Anterior nasal spine

Point just below the nose hole

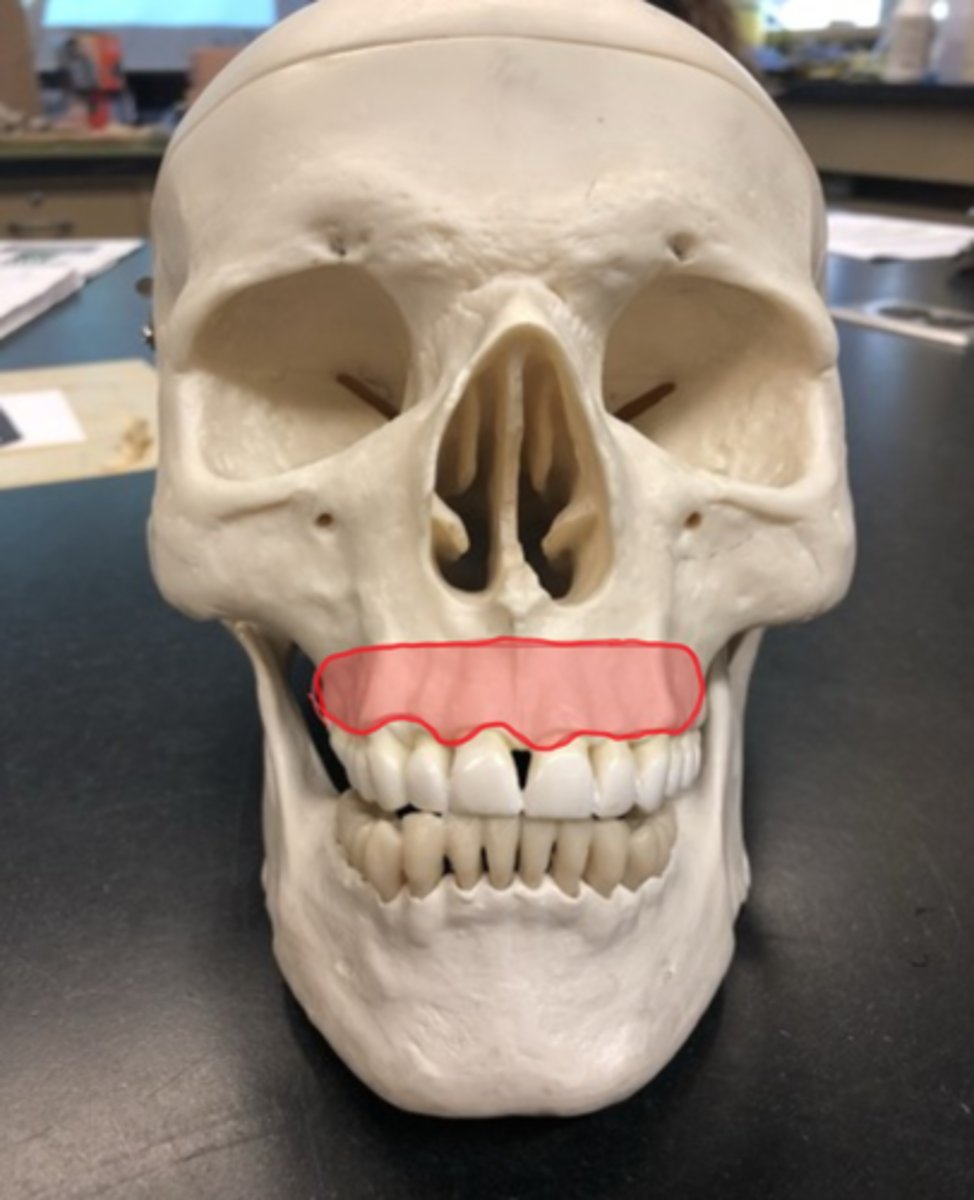

Alveolar process

Ridges where the teeth fit in; "gums"

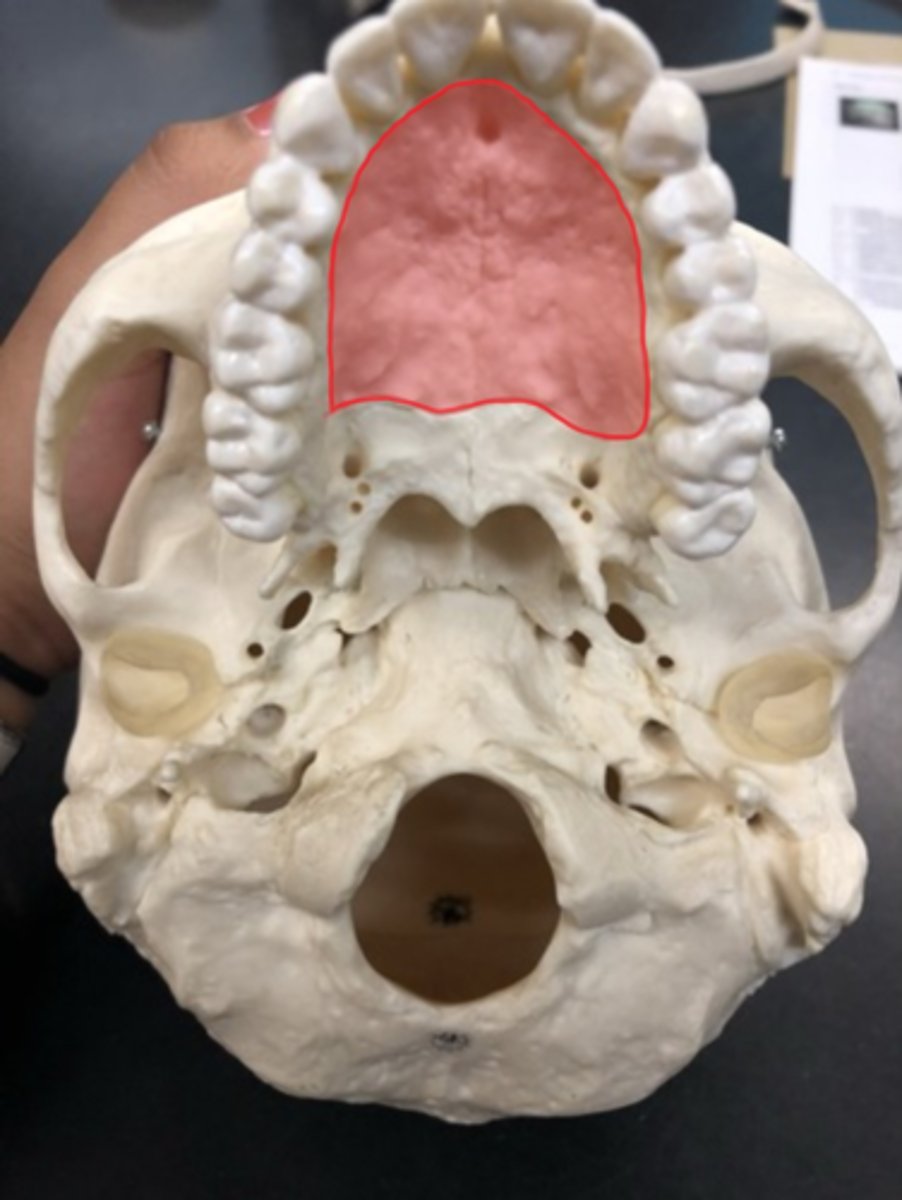

Palatine processes

Upper/frontal region of roof of mouth; closer to front teeth

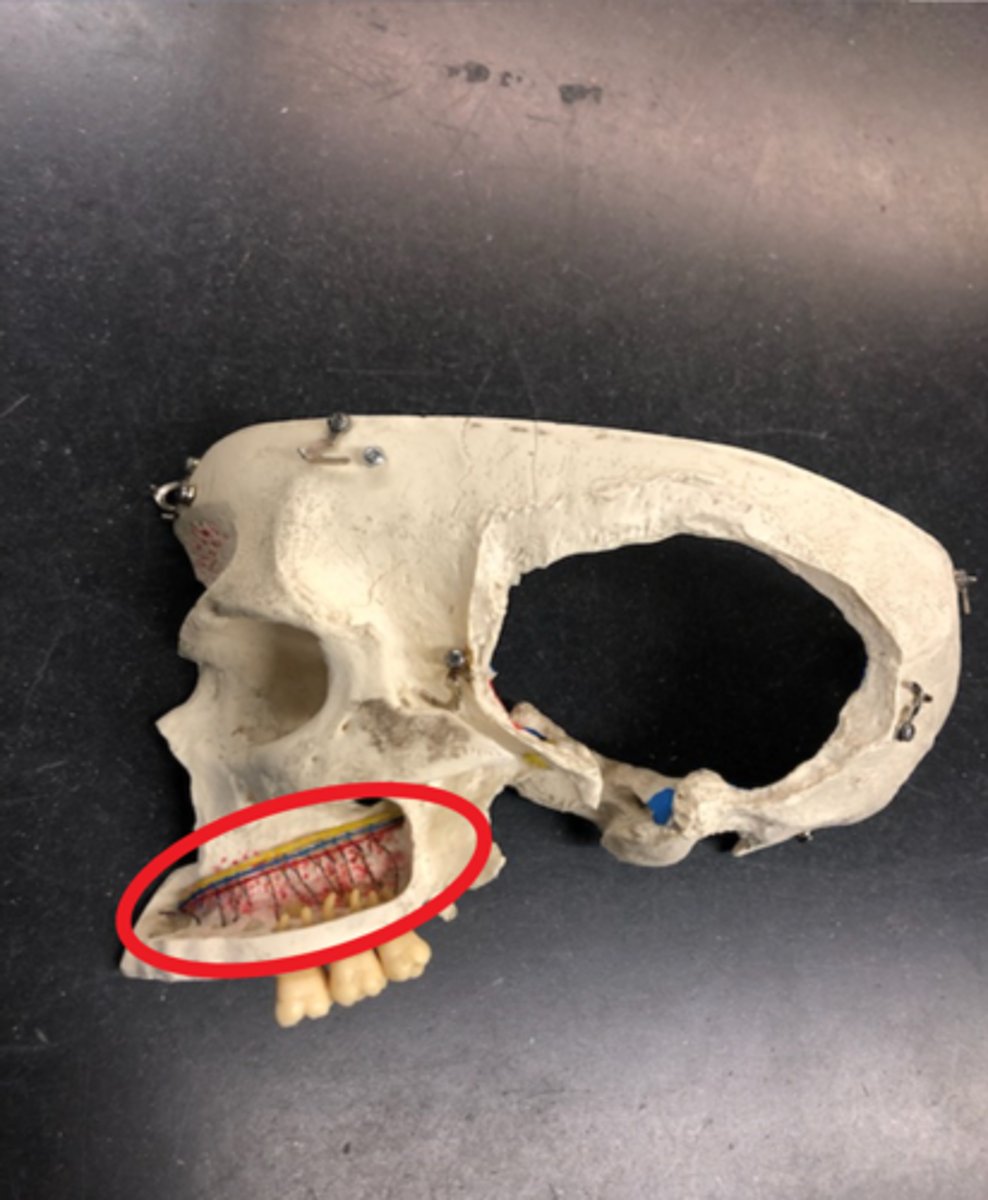

Maxillary sinuses

Red dots above teeth

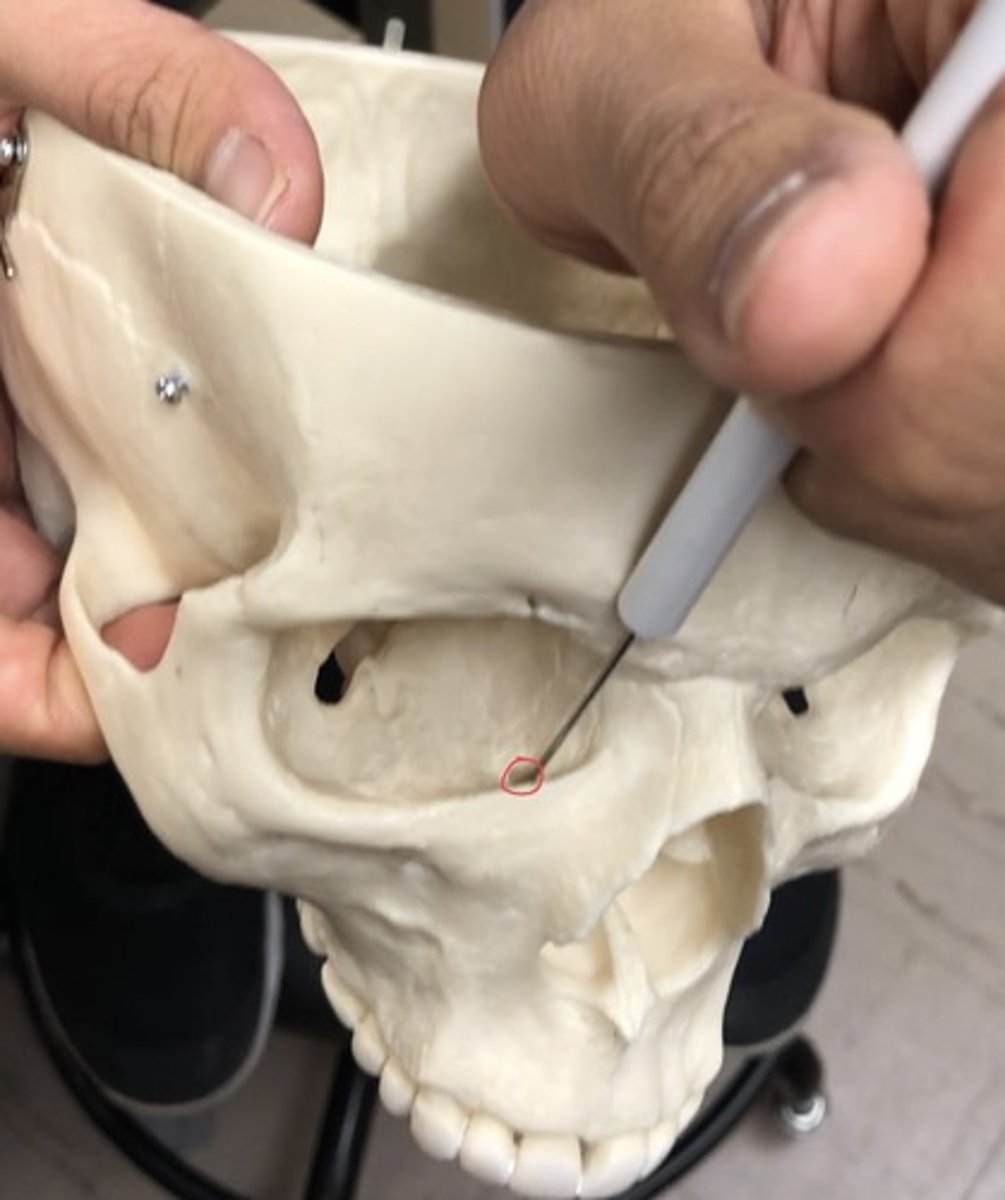

Nasolacrimal canal

Runs through the eye socket to the nose; more infront

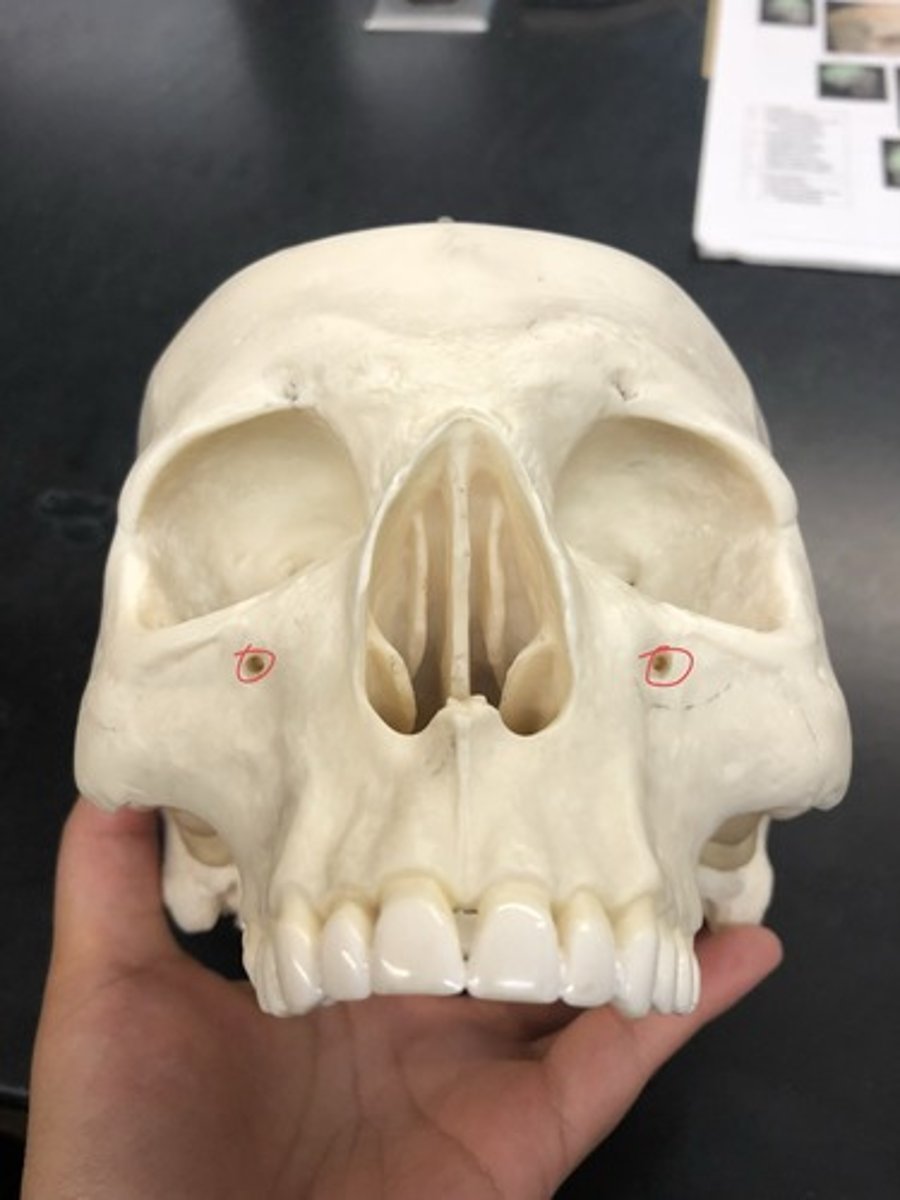

Infra-orbital foramina

Outside, just below eye socket, small holes on cheek bones

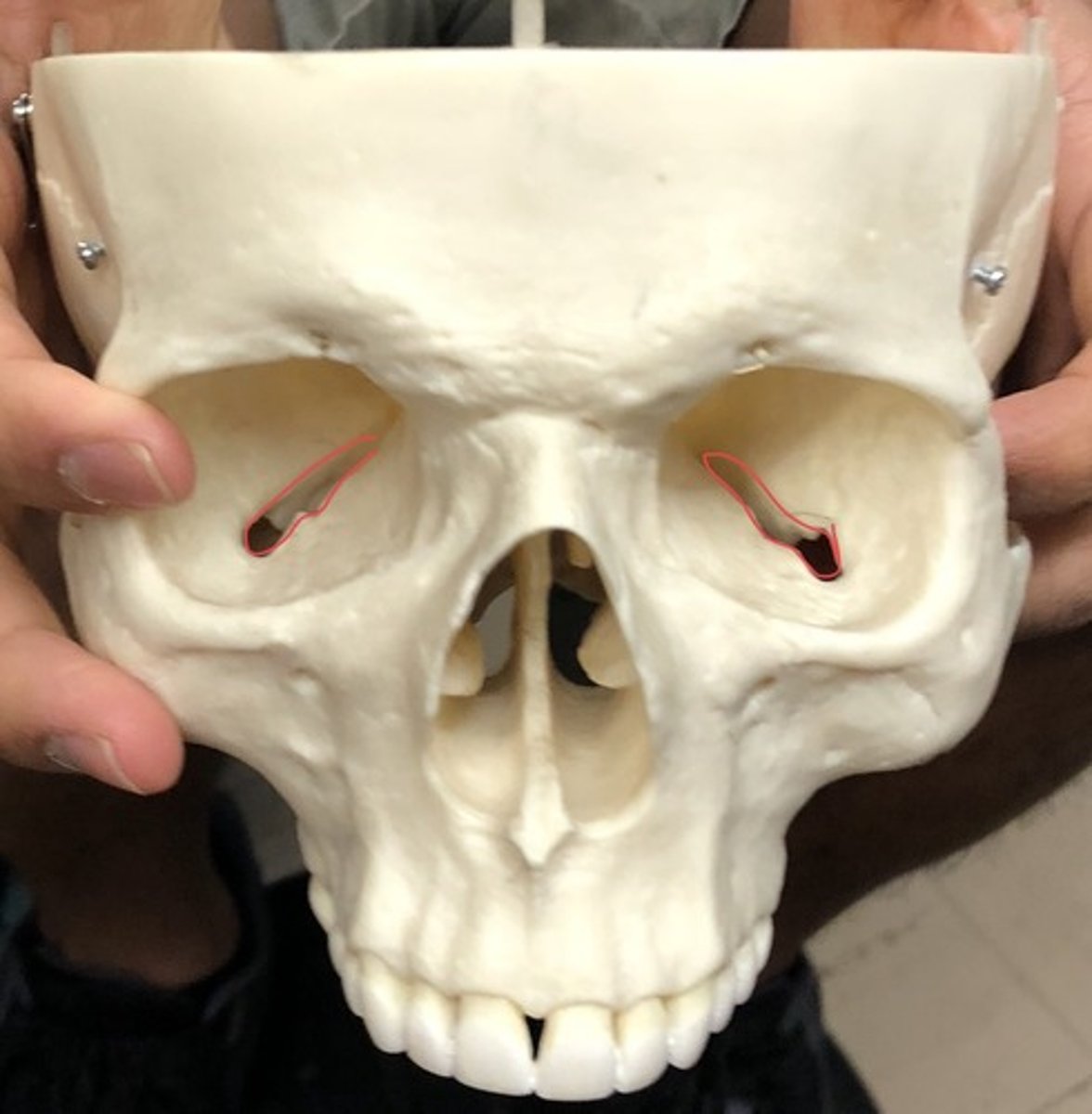

Inferior orbital fissure

Large gap in the bottom of eye socket; below superior

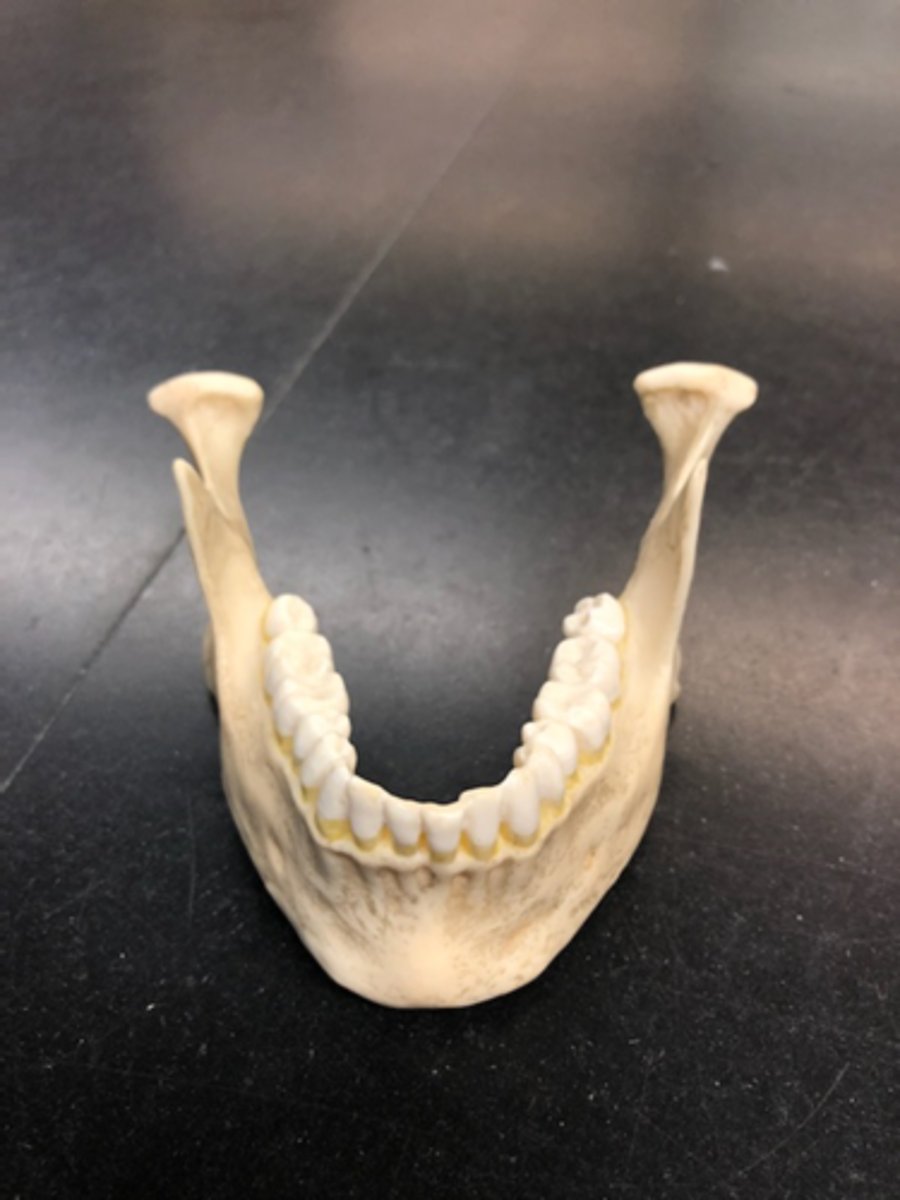

Mandible

Entire Structure

Jawbone

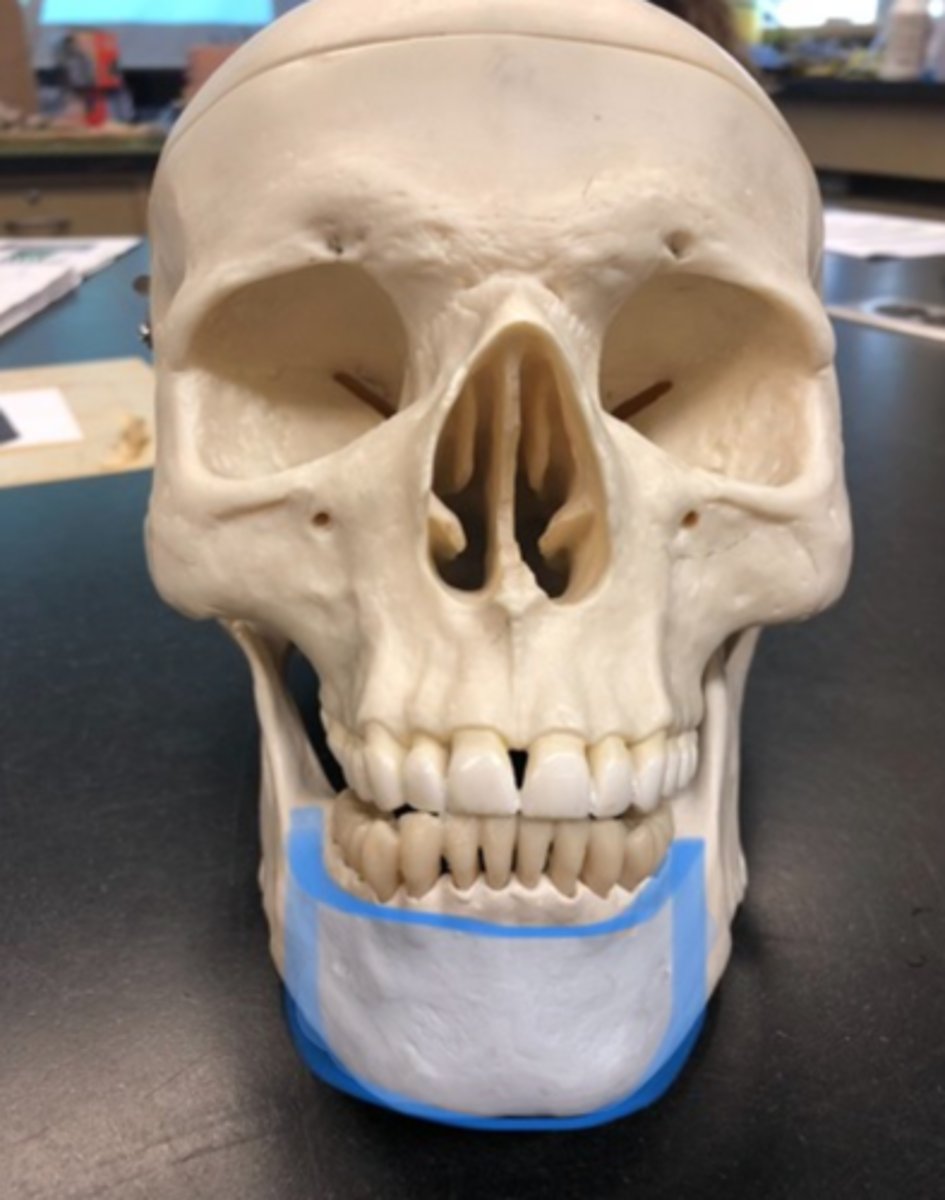

Body of mandible

Chin portion, where you can hold onto the mandible

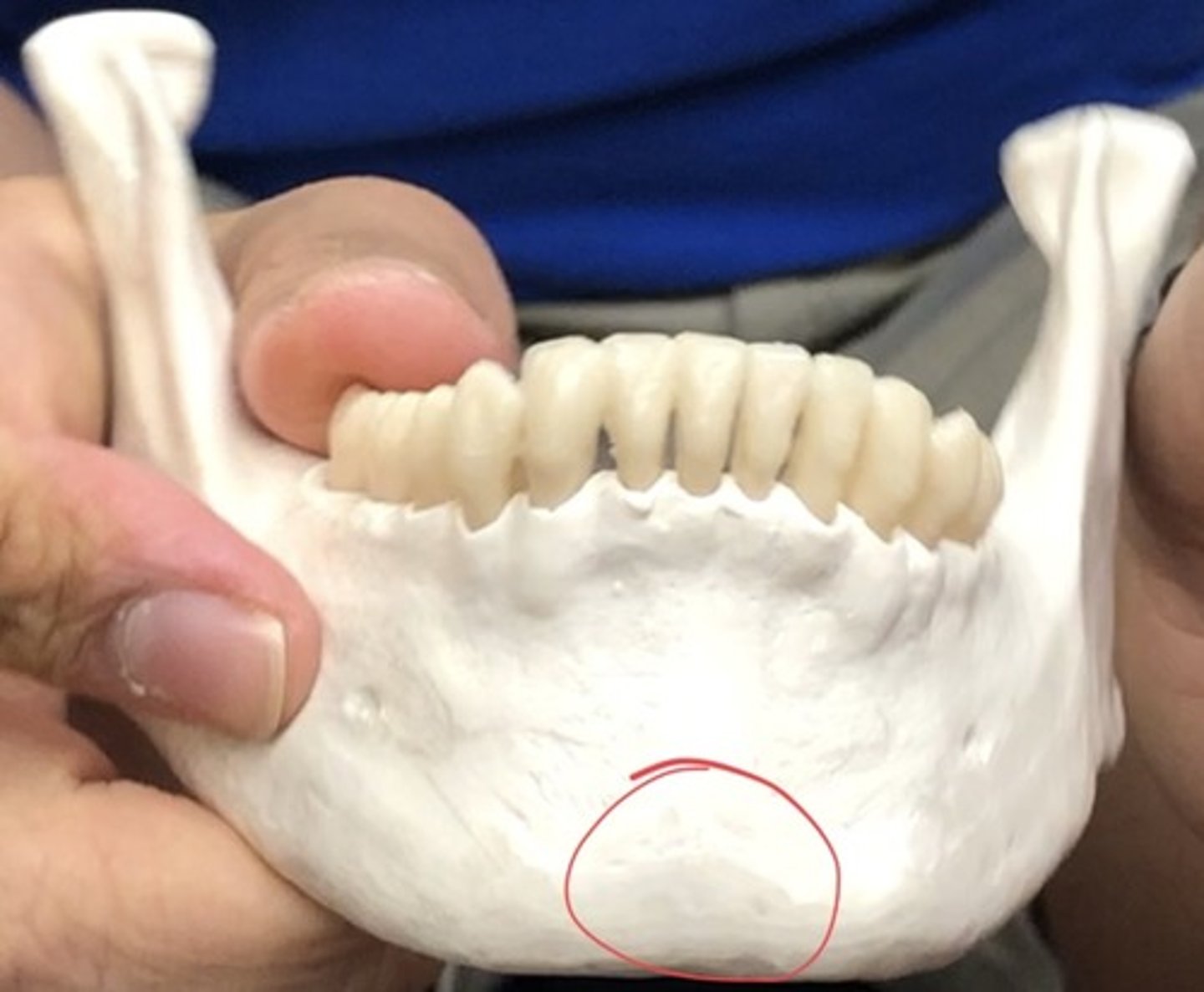

Mental protuberance

Bump in front of your chin

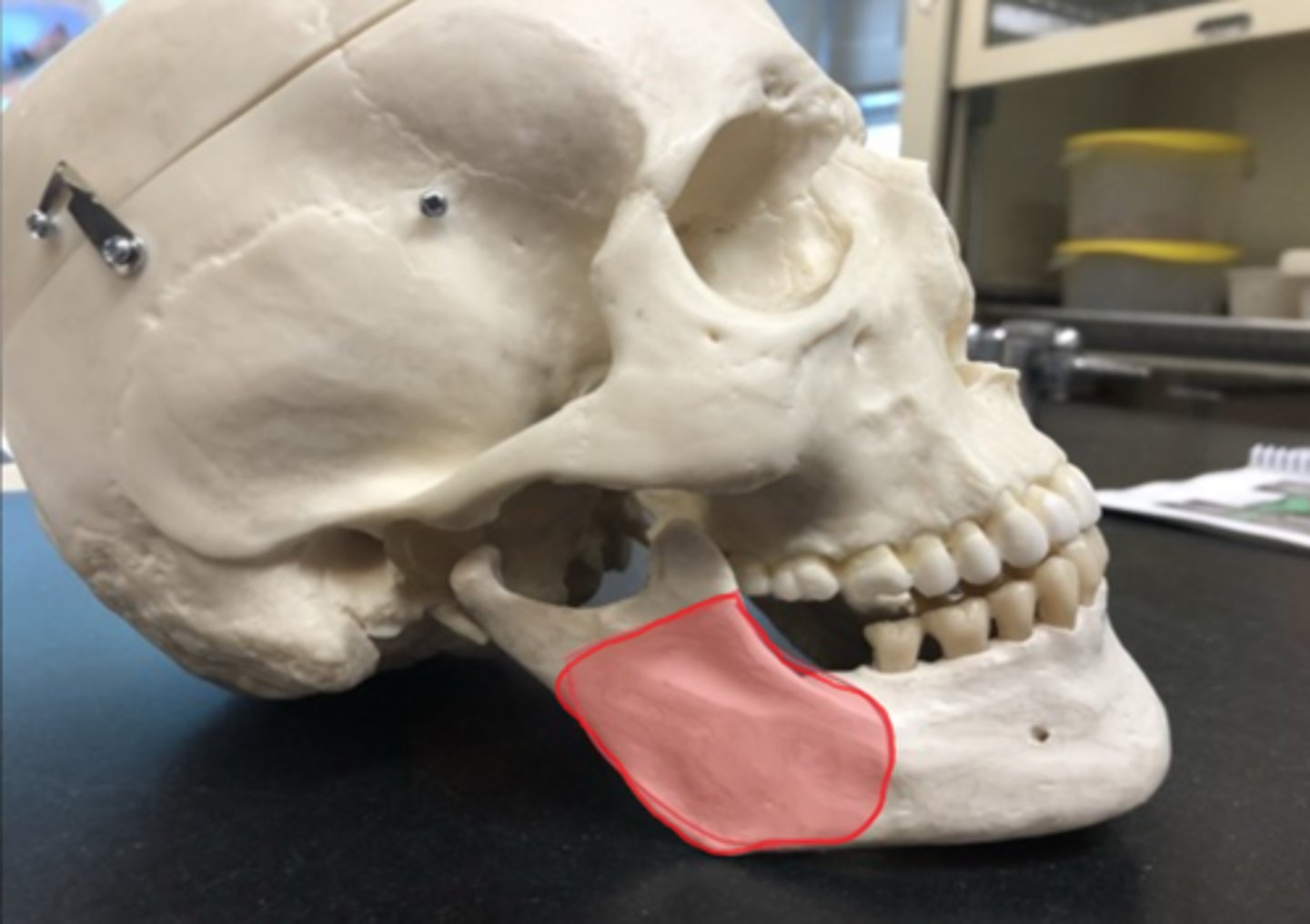

Ramus of mandible

Back part of mandible where 2 divots are

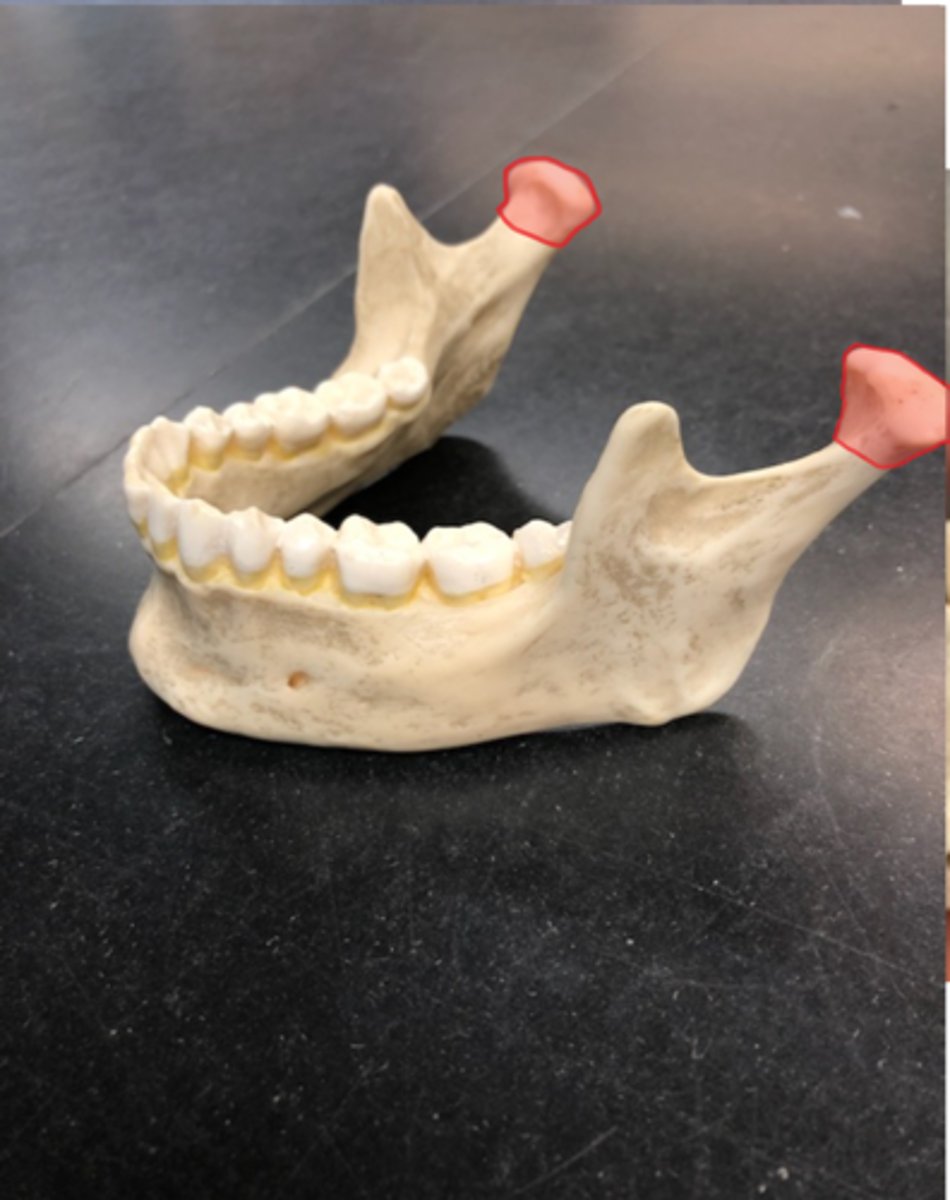

Condylar process of mandible

Back attachment; by the ear; connects to the ramus

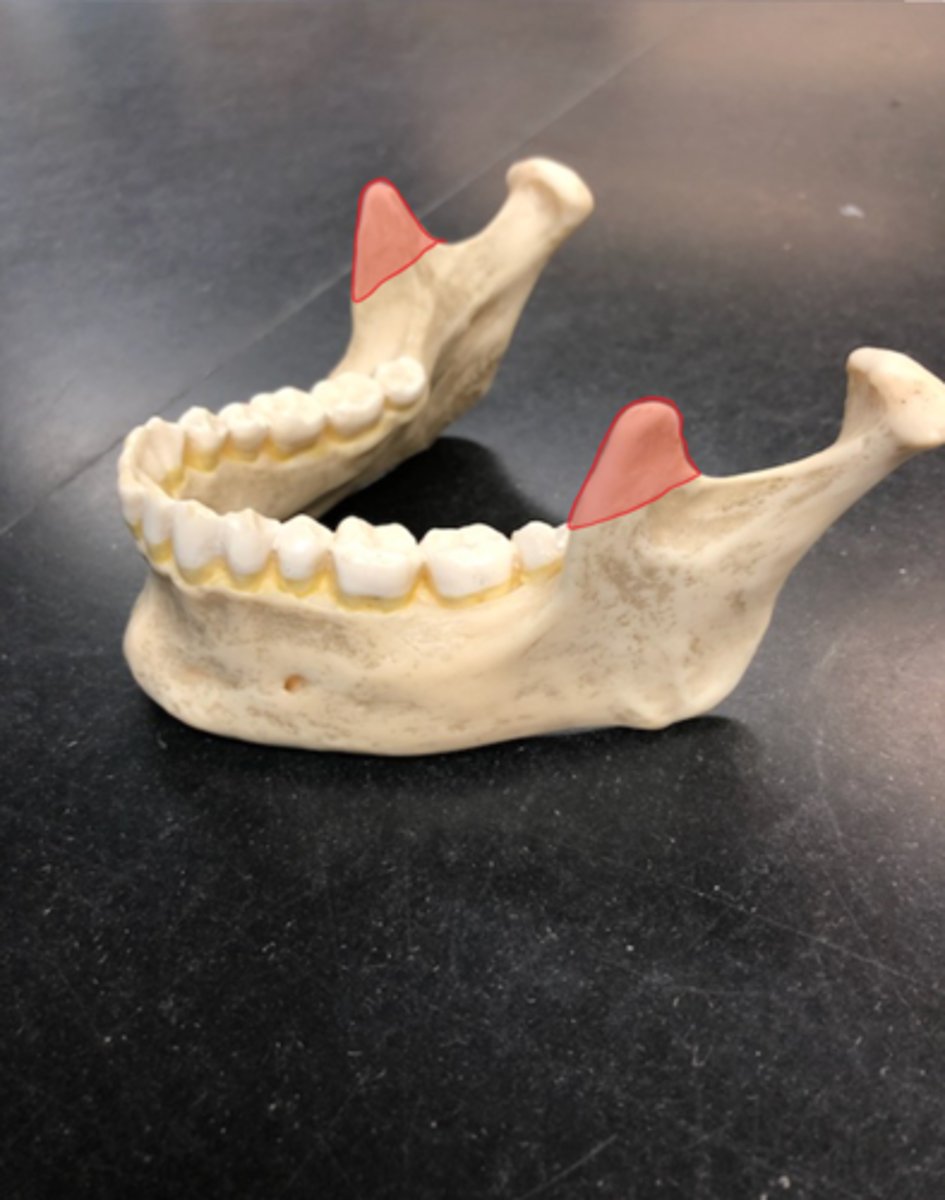

Coronoid process of mandible

Front attachment; towards the teeth; "where a corona would hit first"

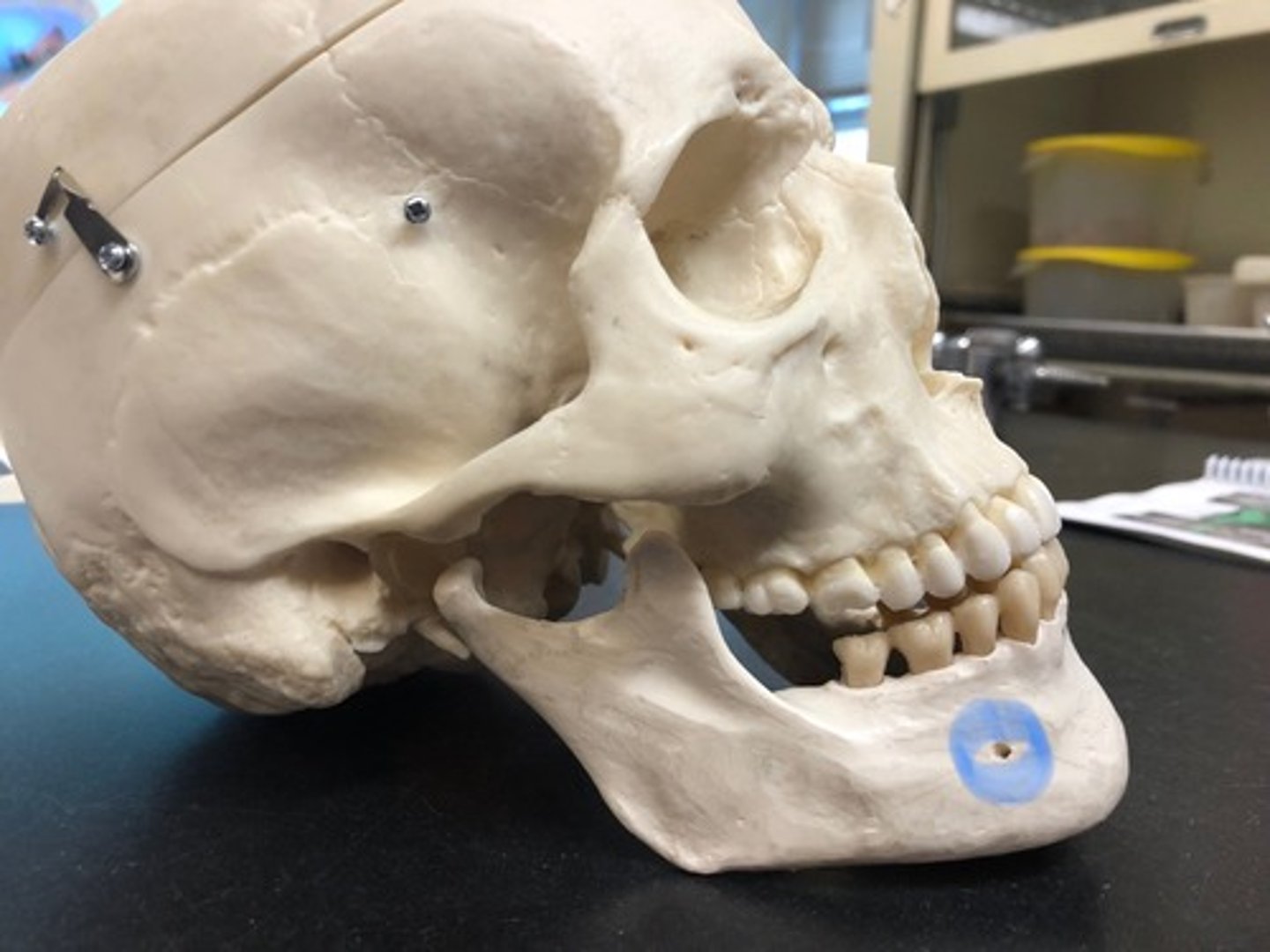

Mental foramina

Holes on side of the body of mandible (outside)

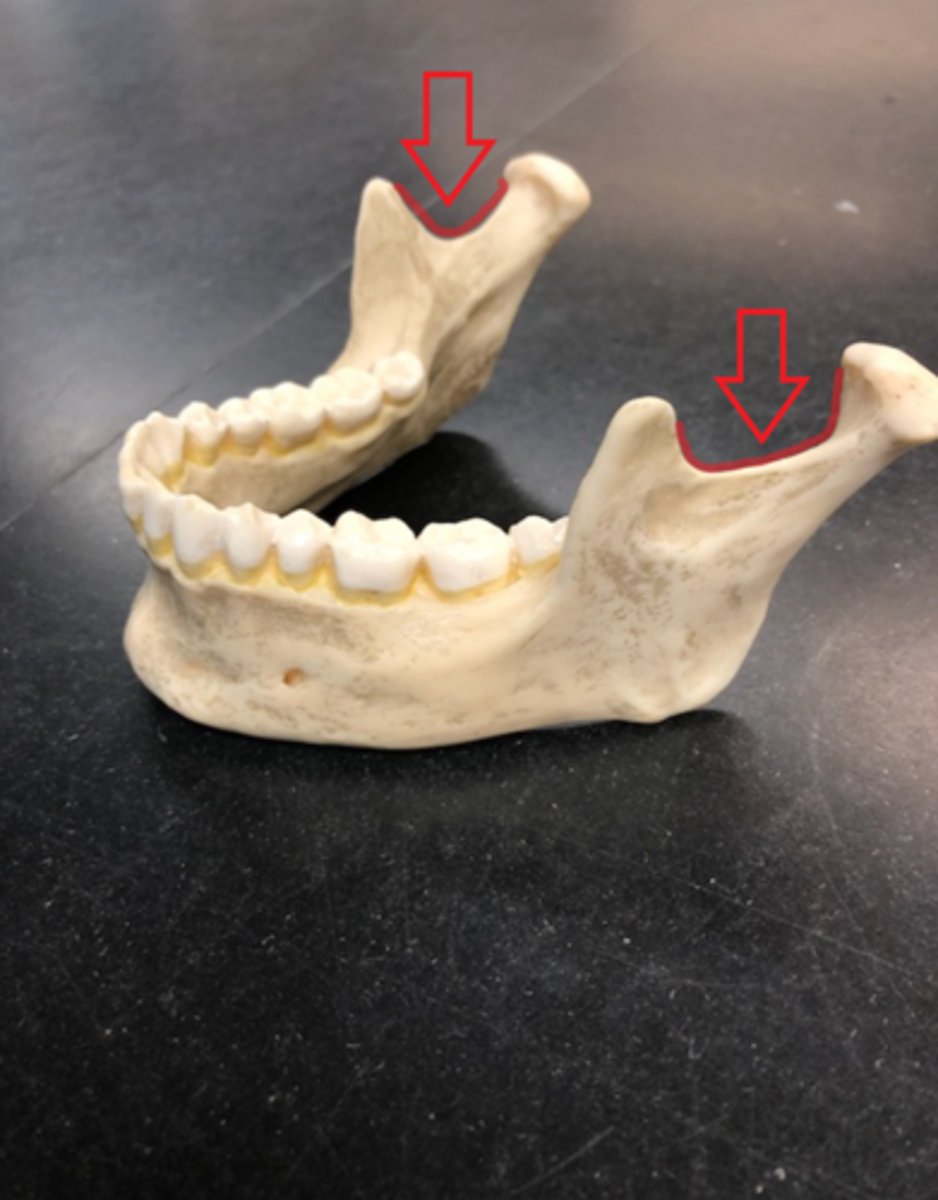

Mandibular notch

Separates the condylar and coronoid processes

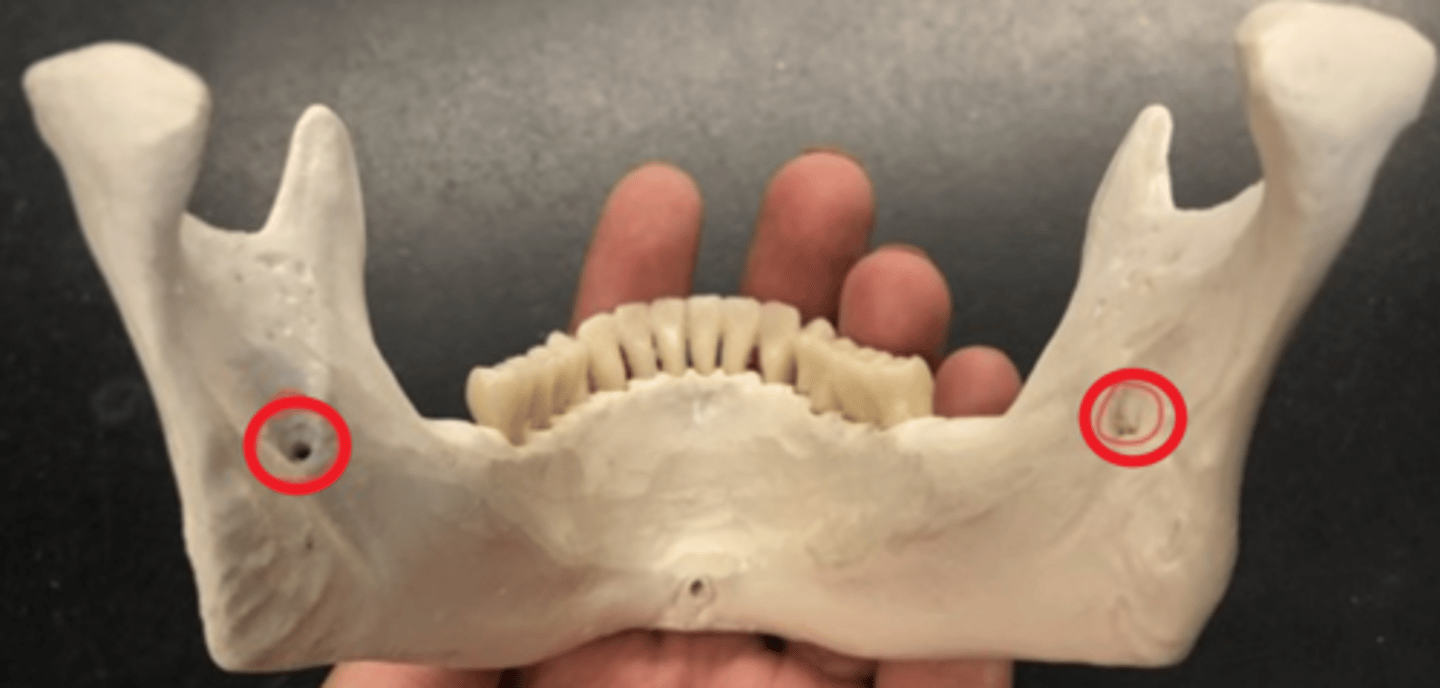

Mandibular foramen

Holes on the inside part of ramus

Zygomatic bones (2)

Temporal process of zygomatic bone

Connects to the temporal bone; infront of zygomatic arch

Palatine bones (2)

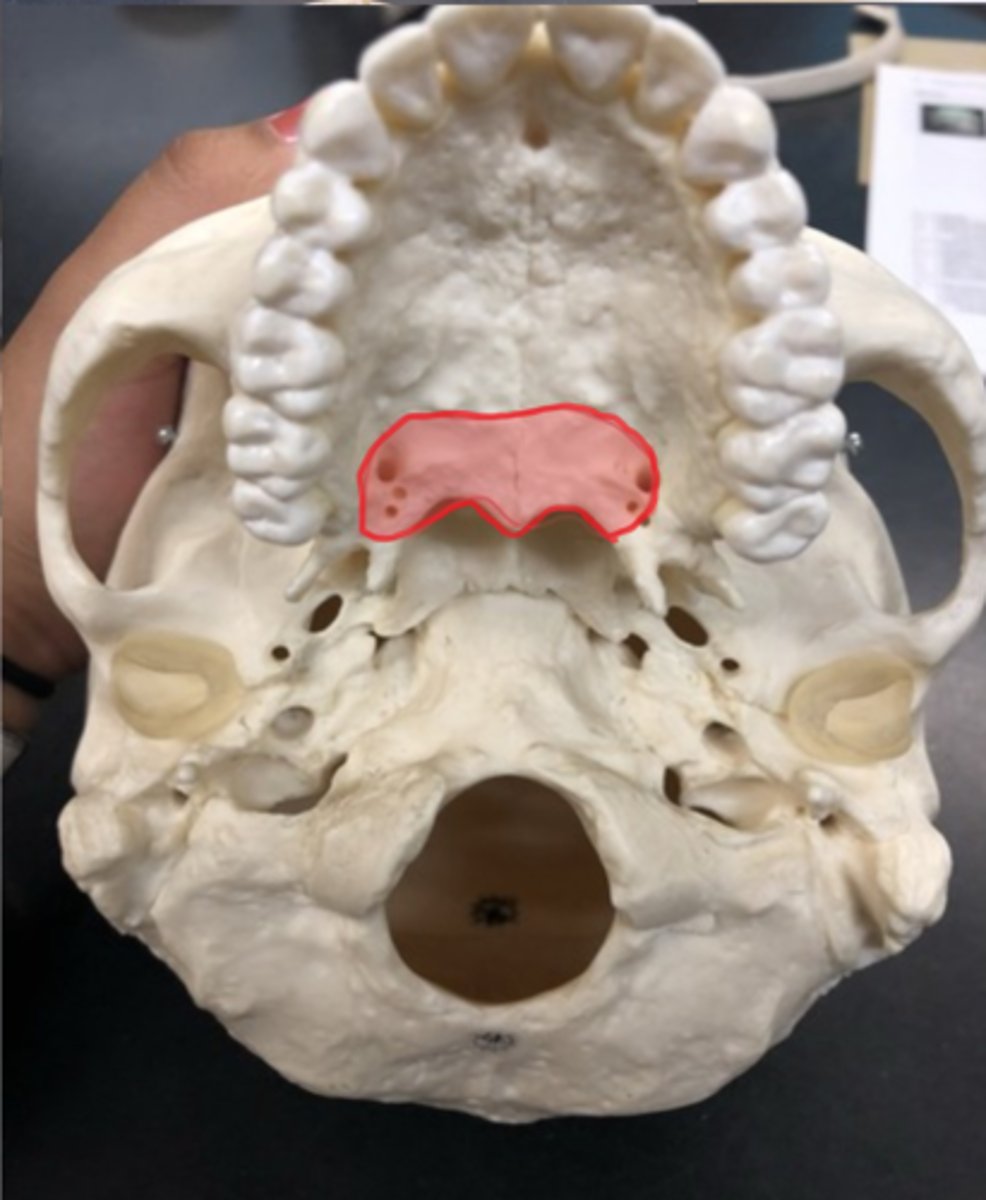

Lower part of the roof of the mouth; towards molars

Nasal bones (2)

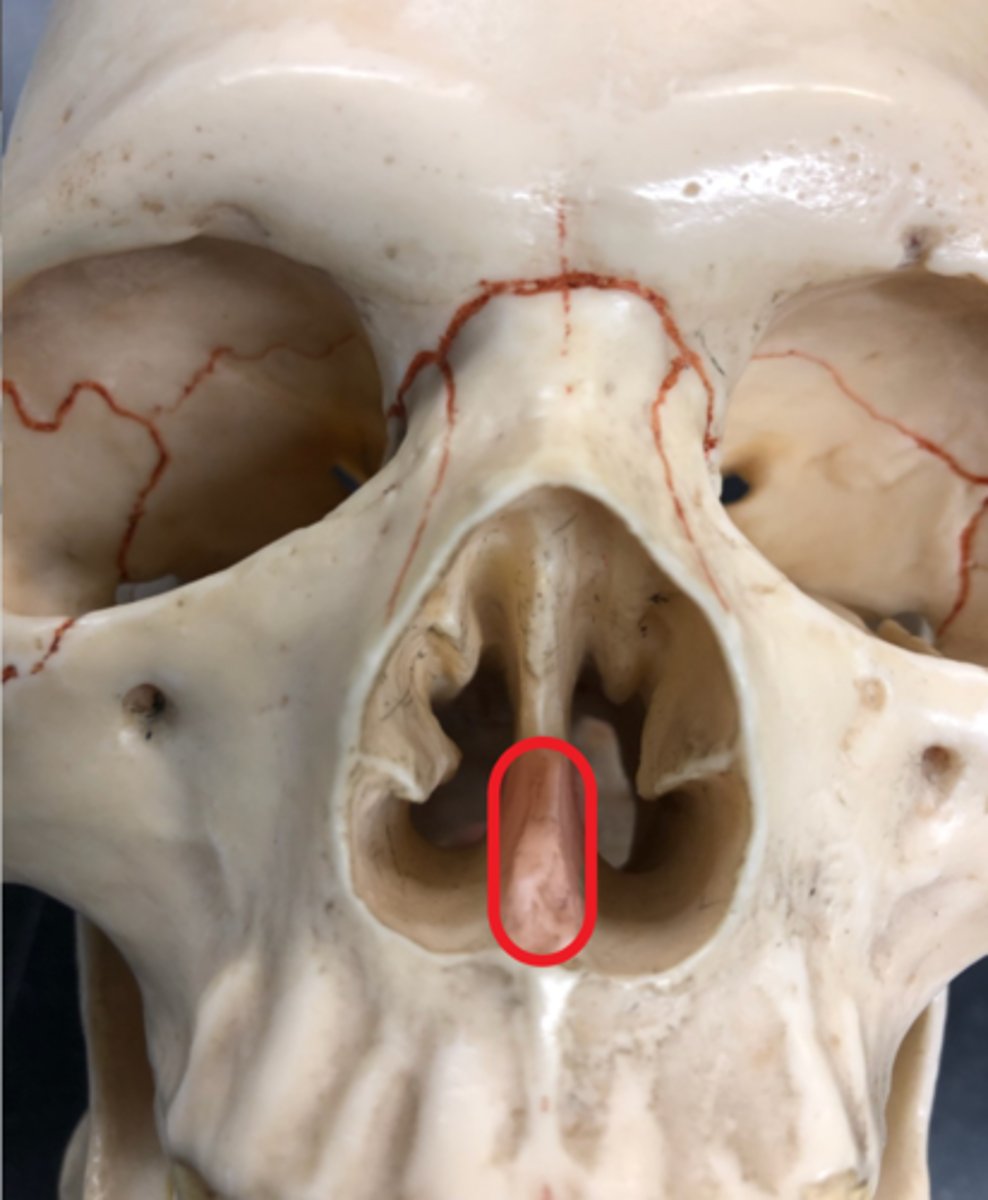

Vomer

Below perpendicular plate

Inferior nasal conchae (2)

Below middle nasal conchae

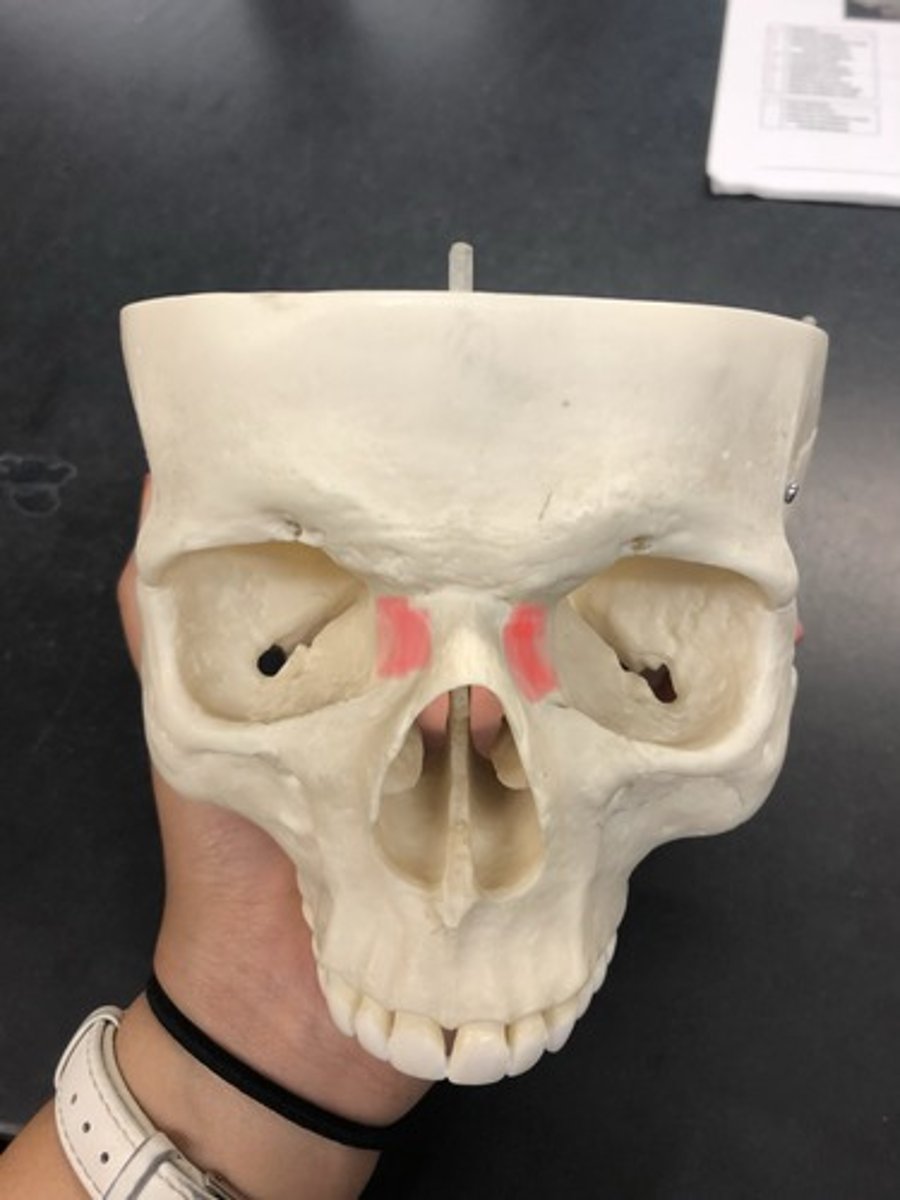

Lacrimal bones (2)

Medial portion of the eye socket

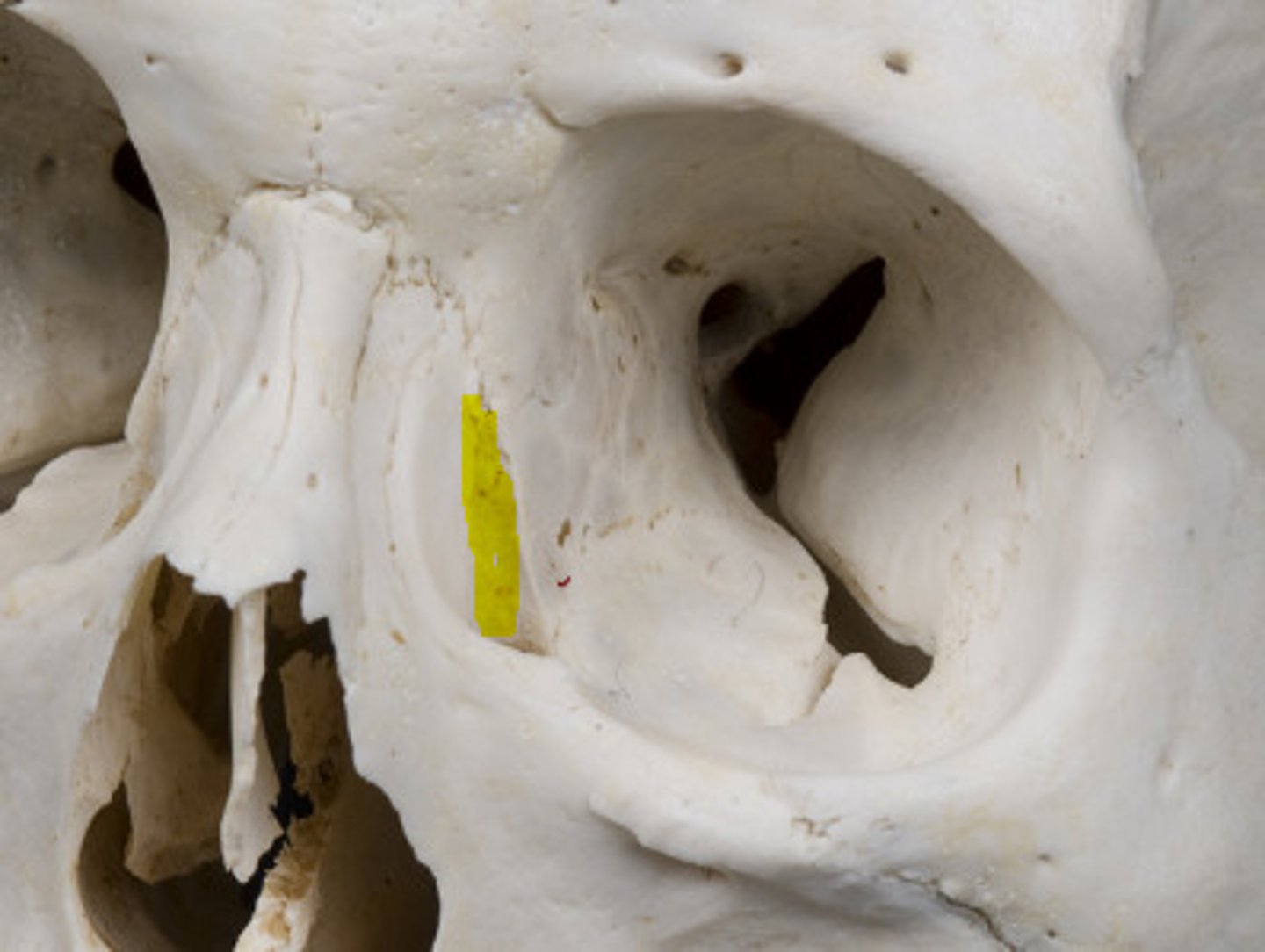

Lacrimal sulcus

depression leading to the nasolacrimal canal

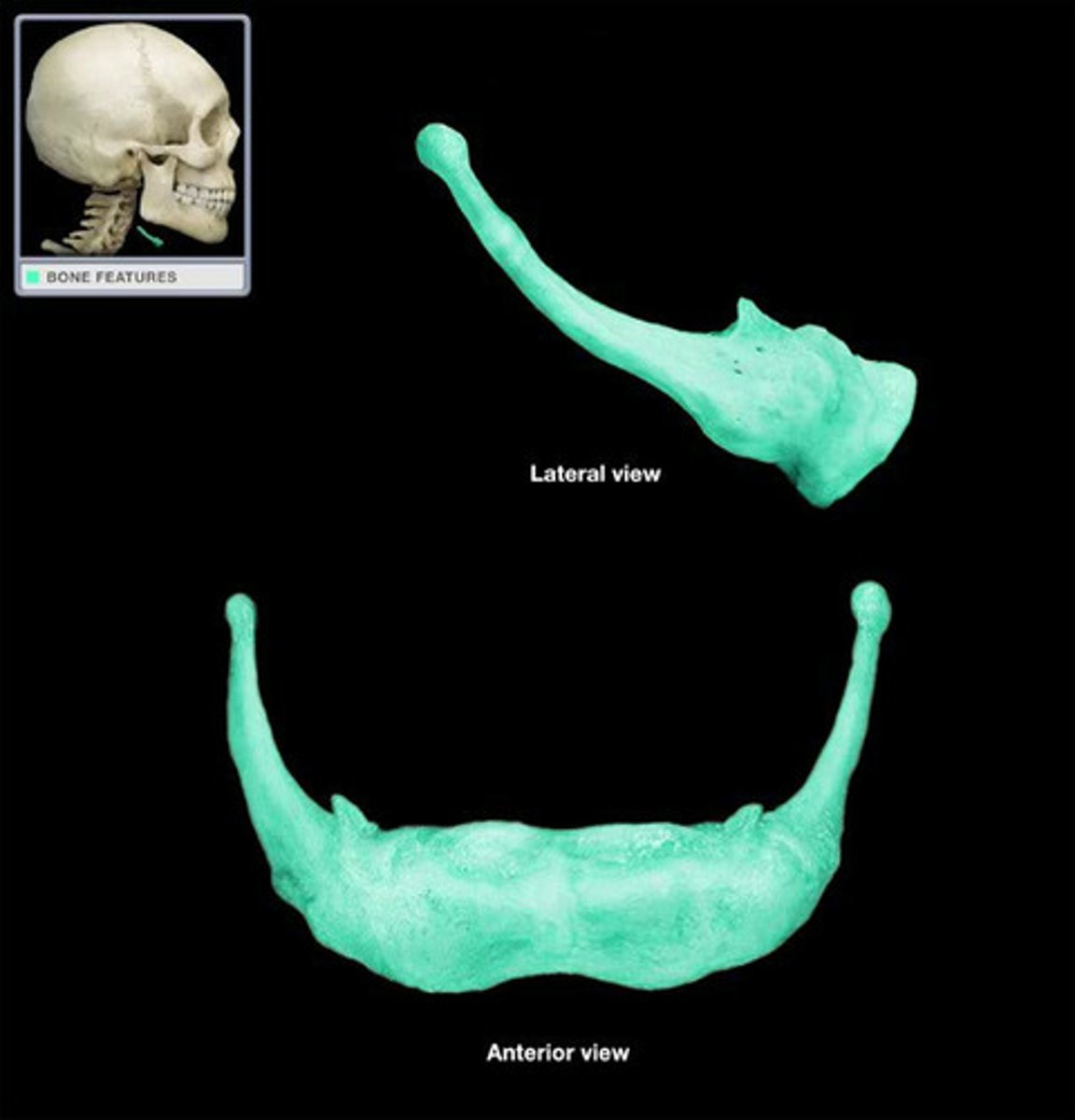

Hyoid bone

Neck bone

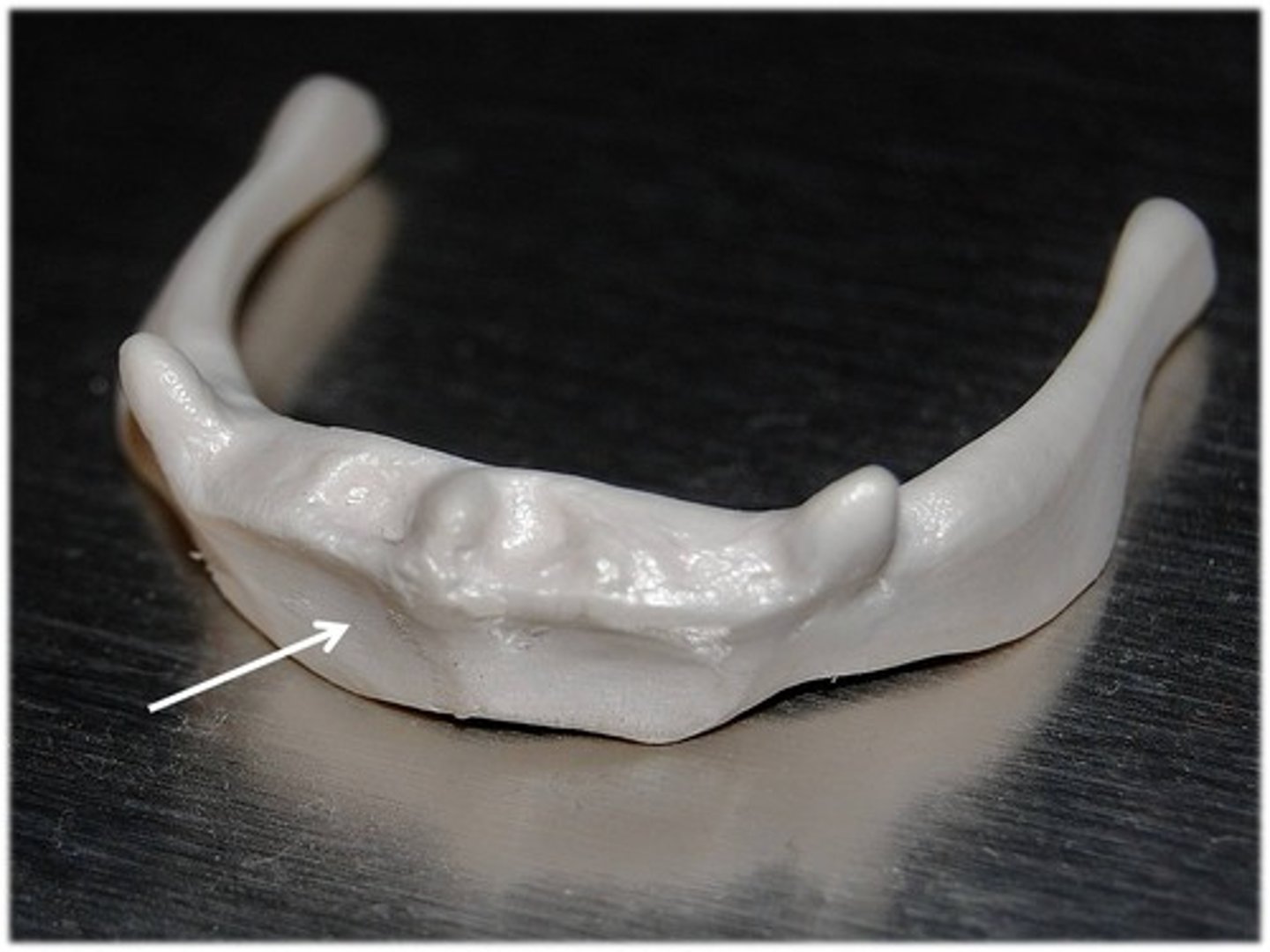

Body of hyoid

Part you can grab; central mass

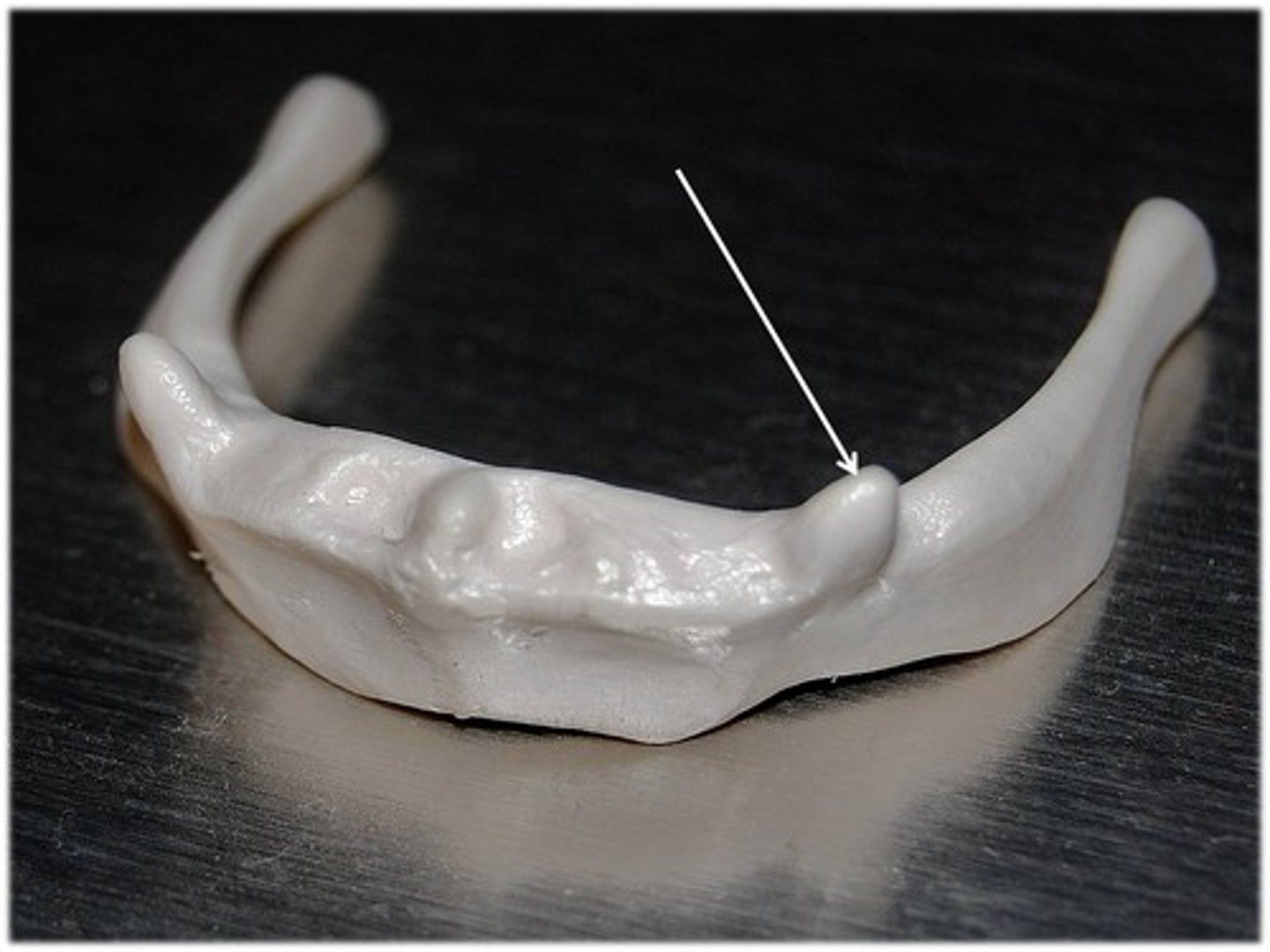

Lesser horns of hyoid

Smaller projections

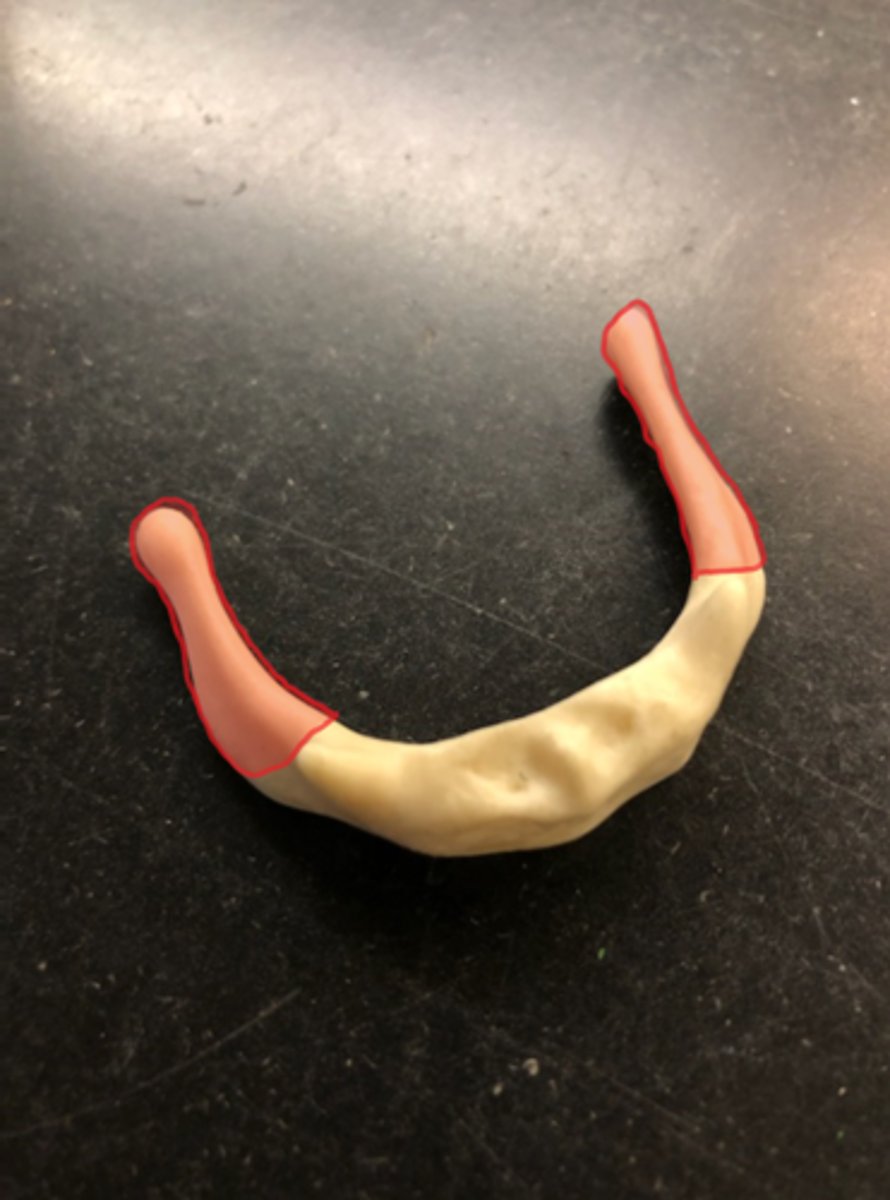

Greater horns of hyoid

Bigger horns in back

Fontanelles

allow for distortion during passage through vaginal canal and for brain growth

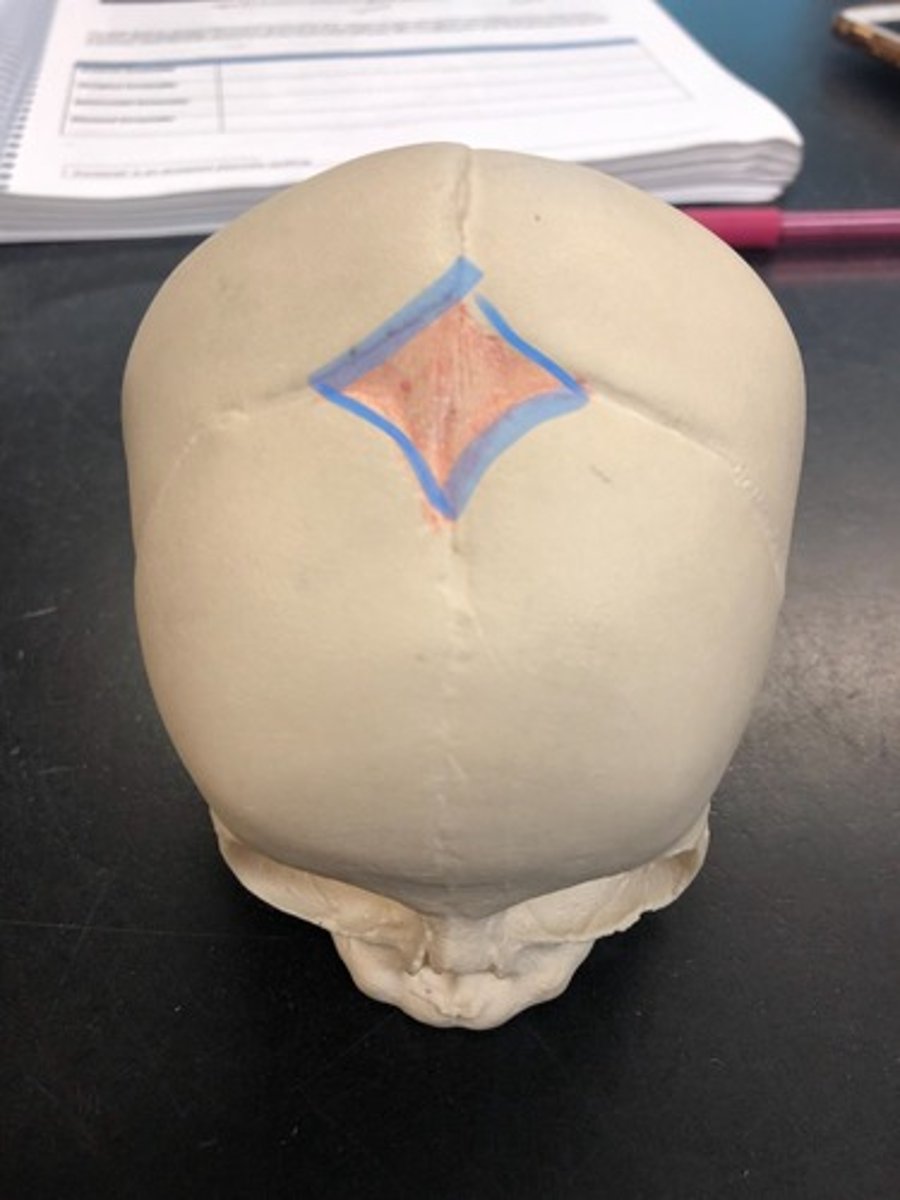

Anterior fontanelle

On top of the skull; pink spot

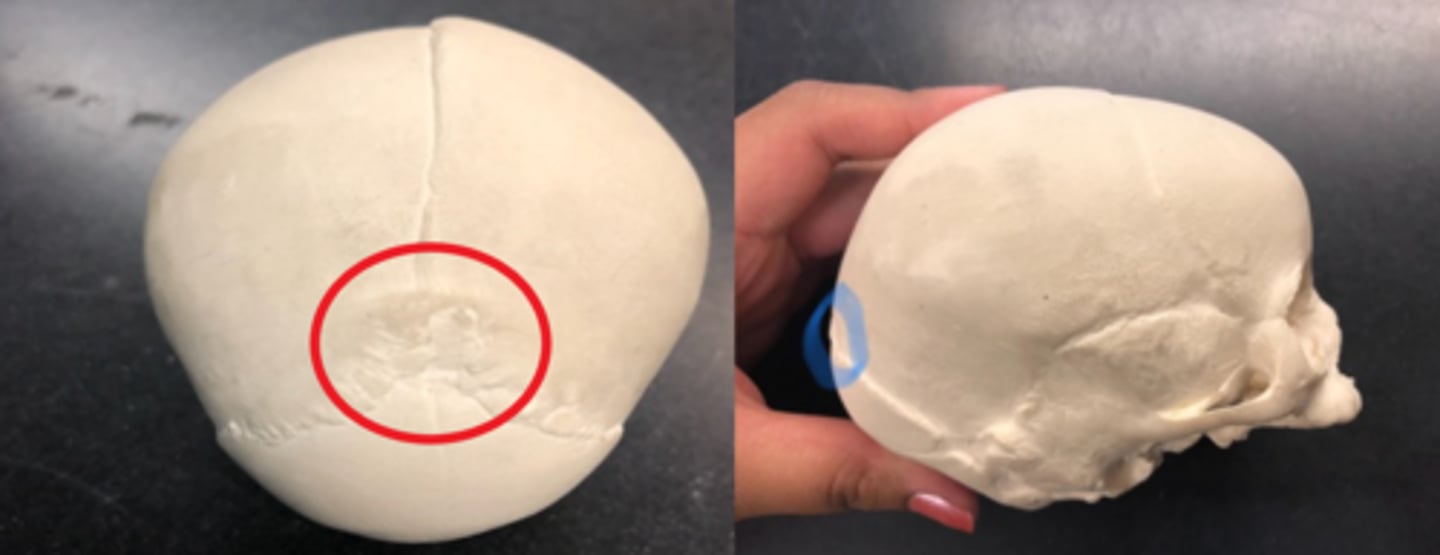

Occipital fontanelle

Above the occipital bone

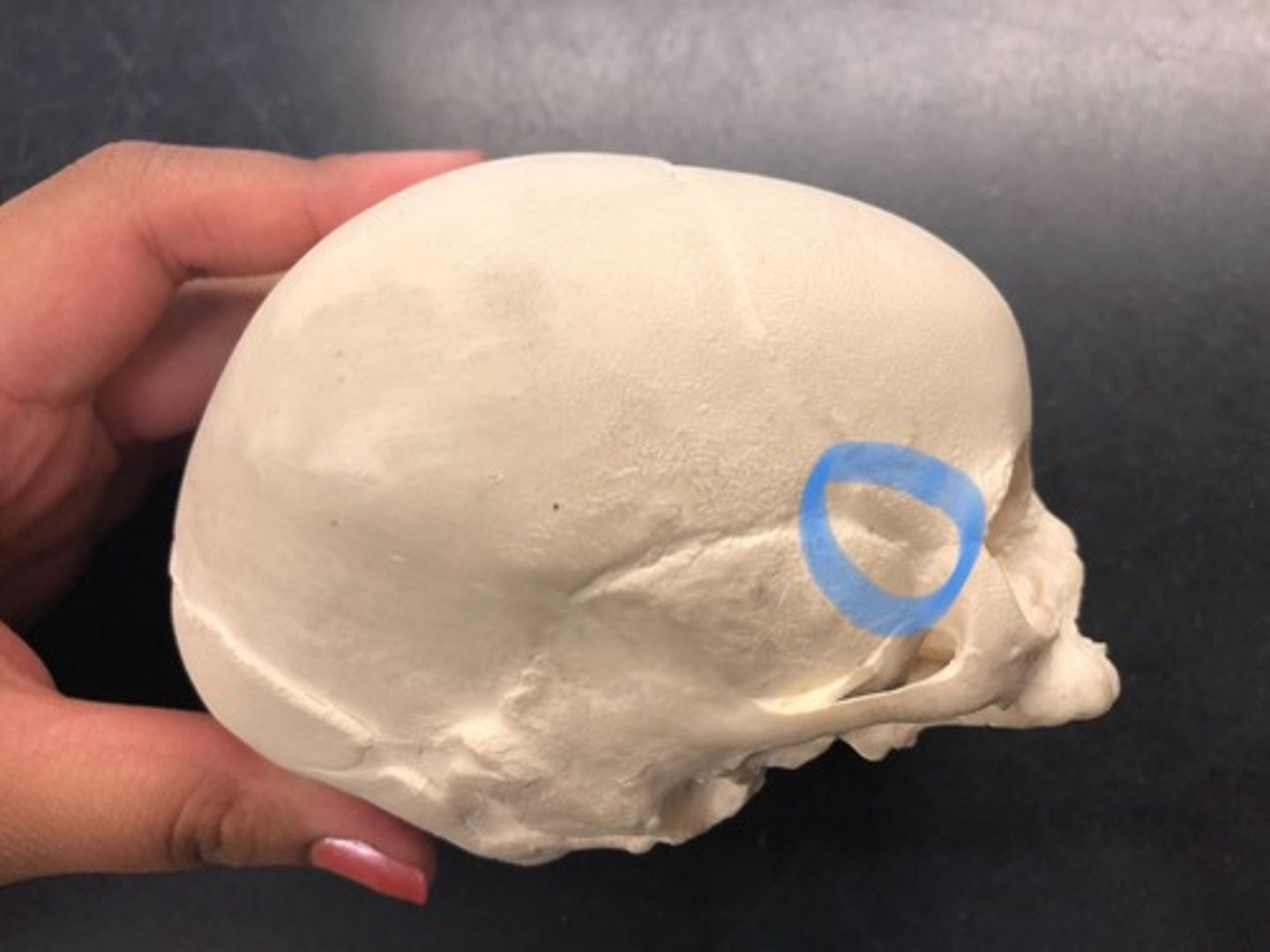

Sphenoidal fontanelle

Near temporal fossa (where 4 bones connect)

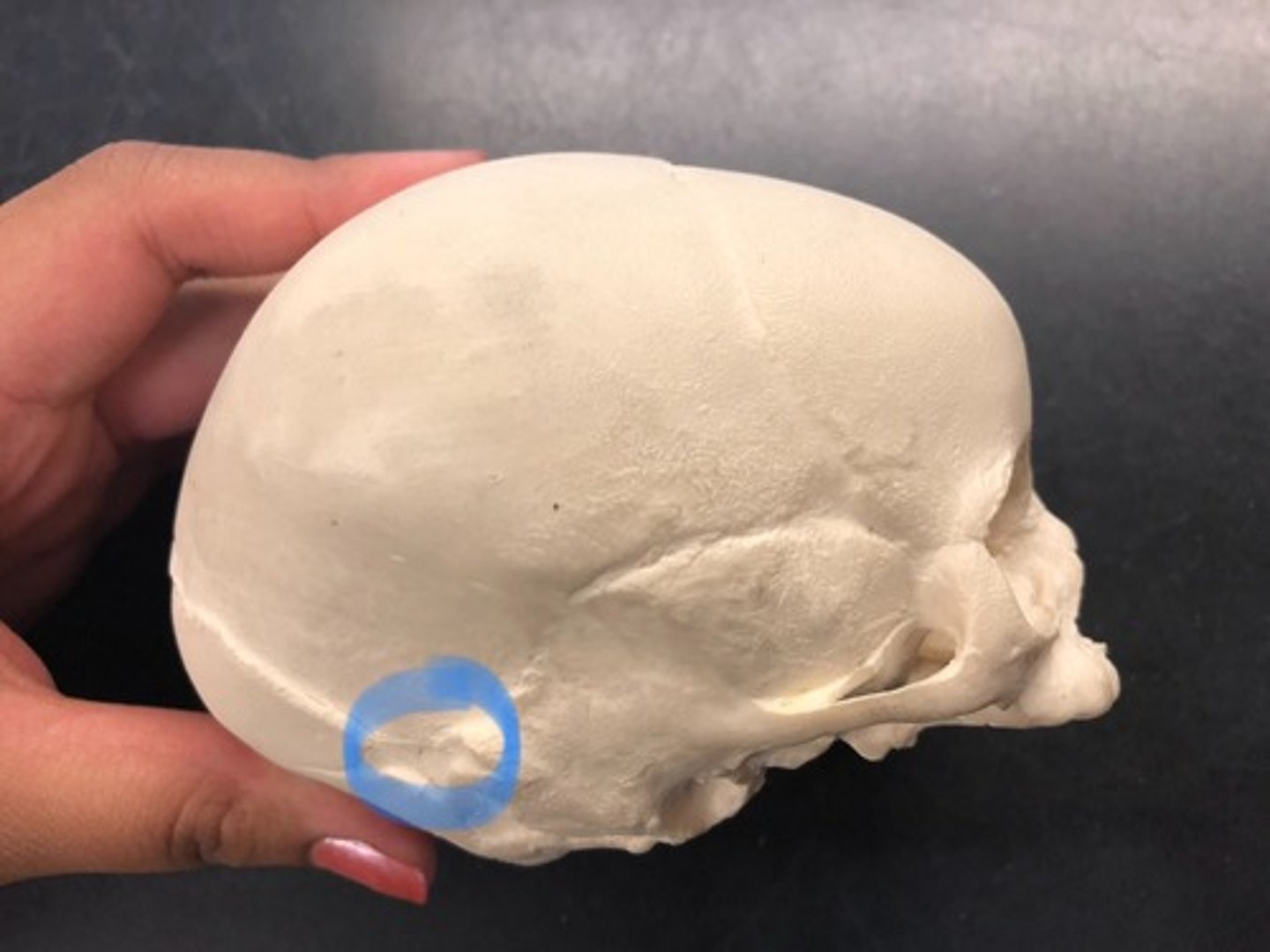

Mastoid fontanelle

Near Mastoid process; where ear would be

vertebral column

bears wights of upper body, upright posture, protecting the spine

12

How many Thoracic vertebrae do humans have?

5

How many Lumbar vertebrae do humans have?
