9 Terms

1
New cards

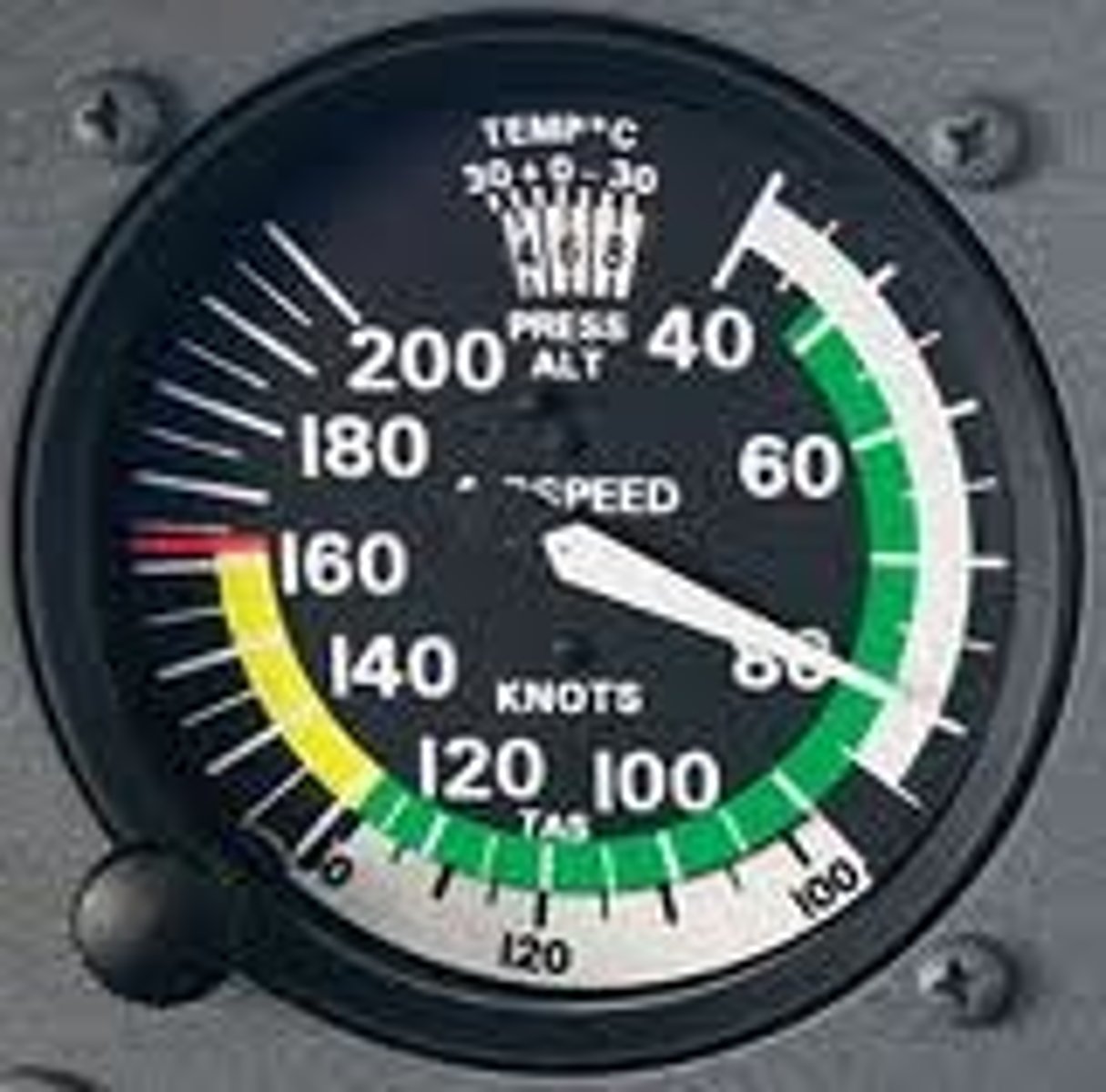

Air speed indicator

An instrument or device that measures the air speed of an aircraft through an air mass, but not its ground speed.

<p>An instrument or device that measures the air speed of an aircraft through an air mass, but not its ground speed.</p>
2
New cards

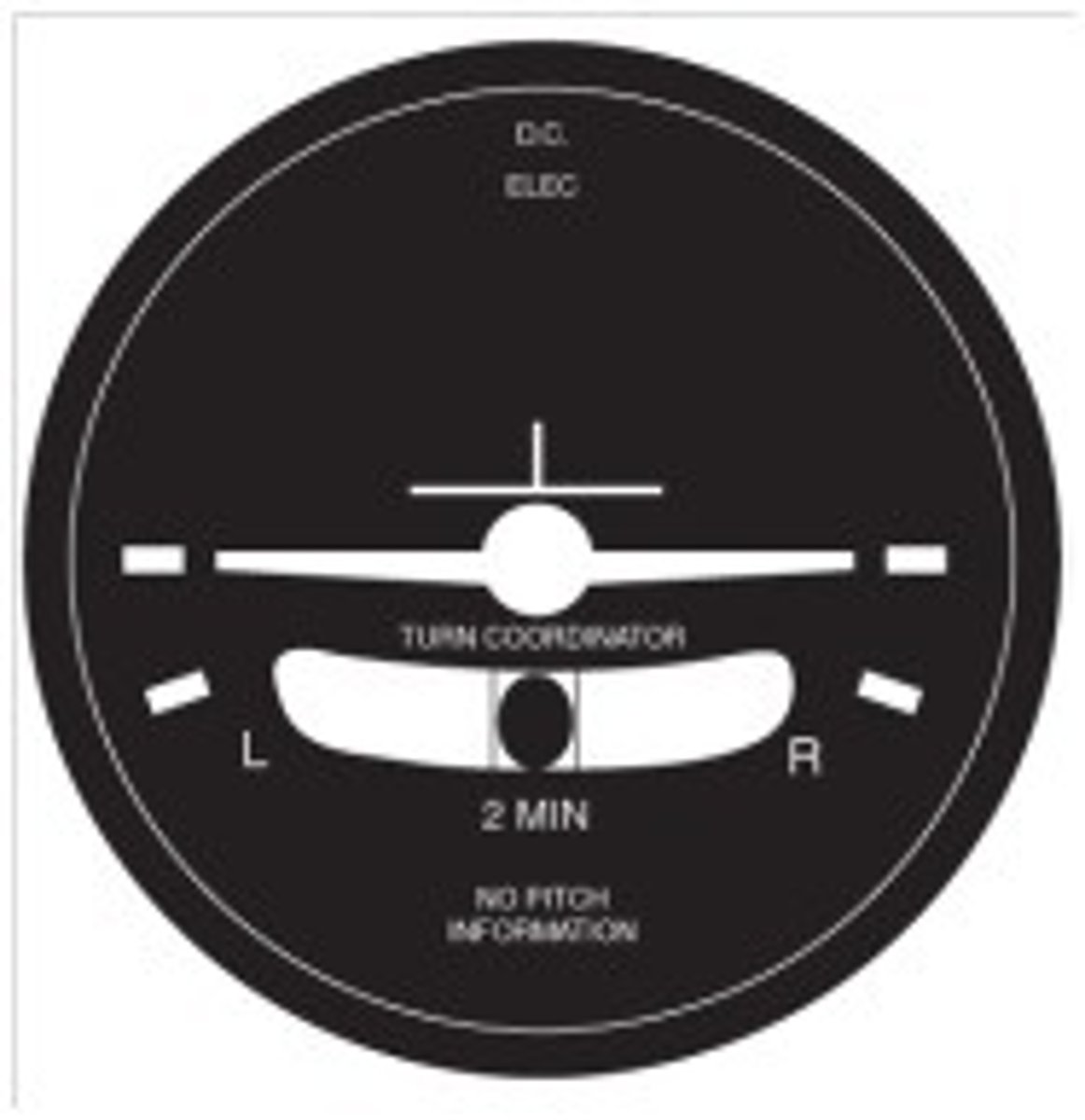

Turn Coordinator

Provide indication of turn direction and quality of turn; electrically powered.

<p>Provide indication of turn direction and quality of turn; electrically powered.</p>
3
New cards

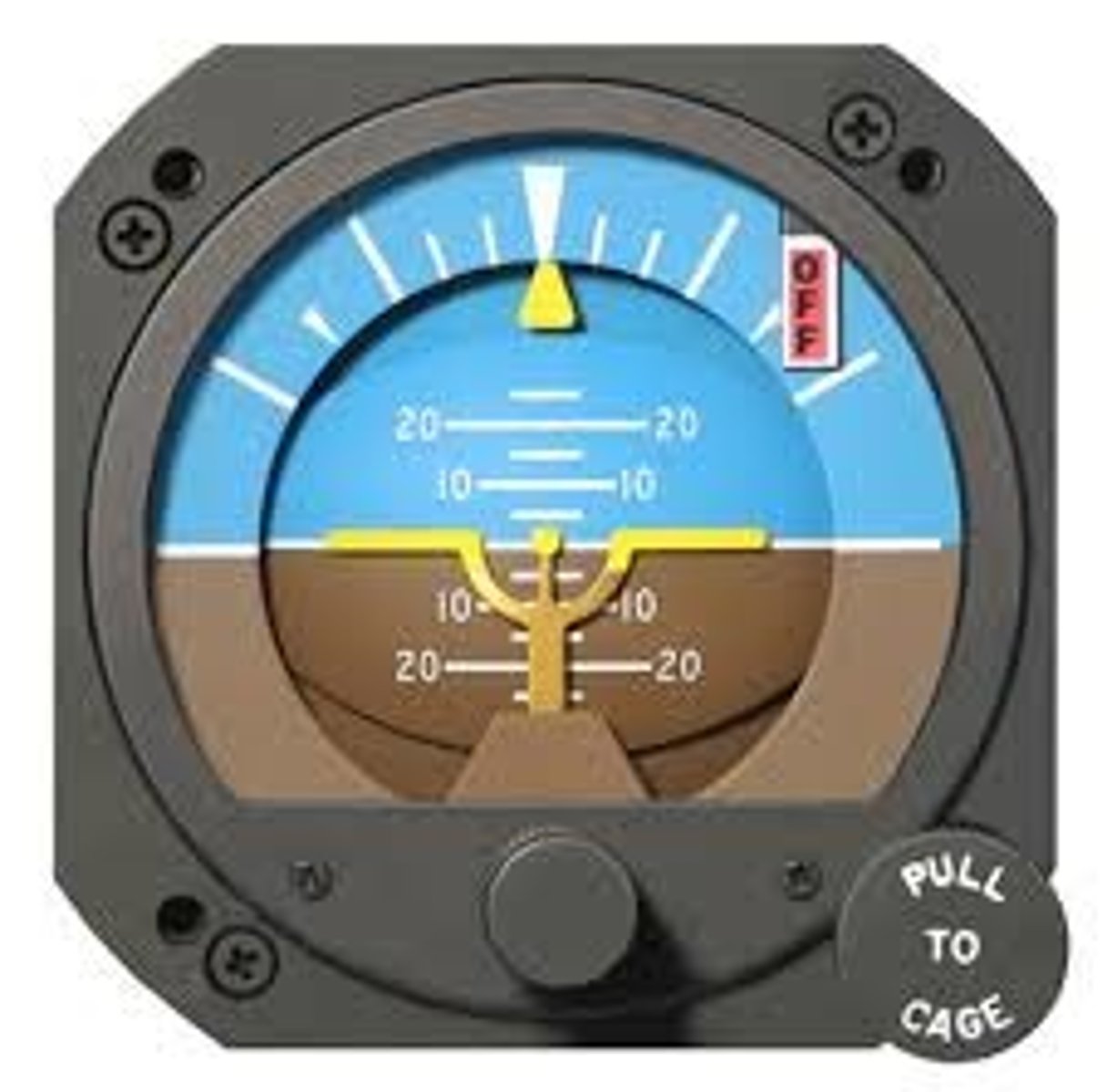

Attitude Indicator

instrument that shows how level the aircraft is

<p>instrument that shows how level the aircraft is</p>
4
New cards

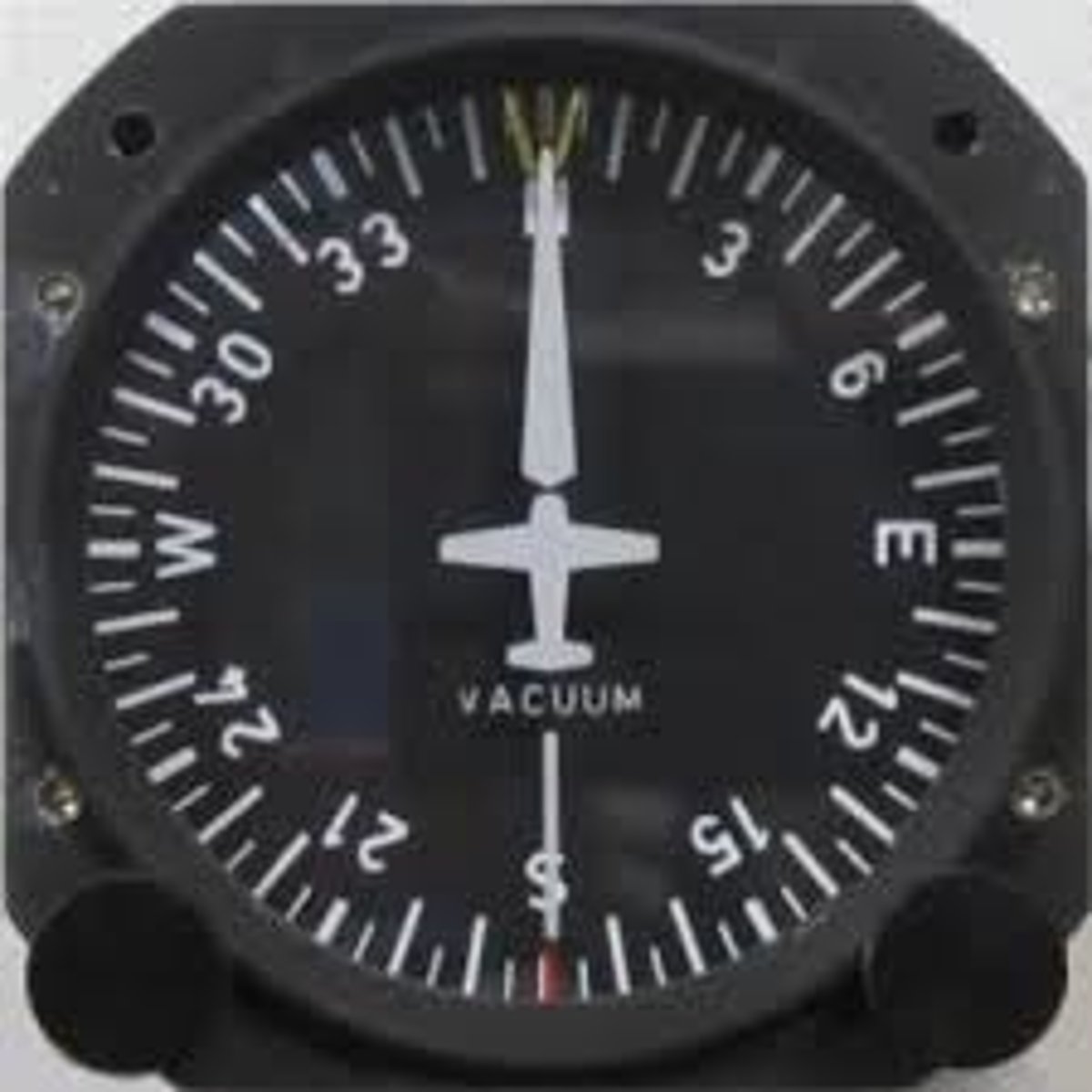

Heading Indicator

displays the aircraft relative to North; a compass with the aircraft in it

<p>displays the aircraft relative to North; a compass with the aircraft in it</p>
5
New cards

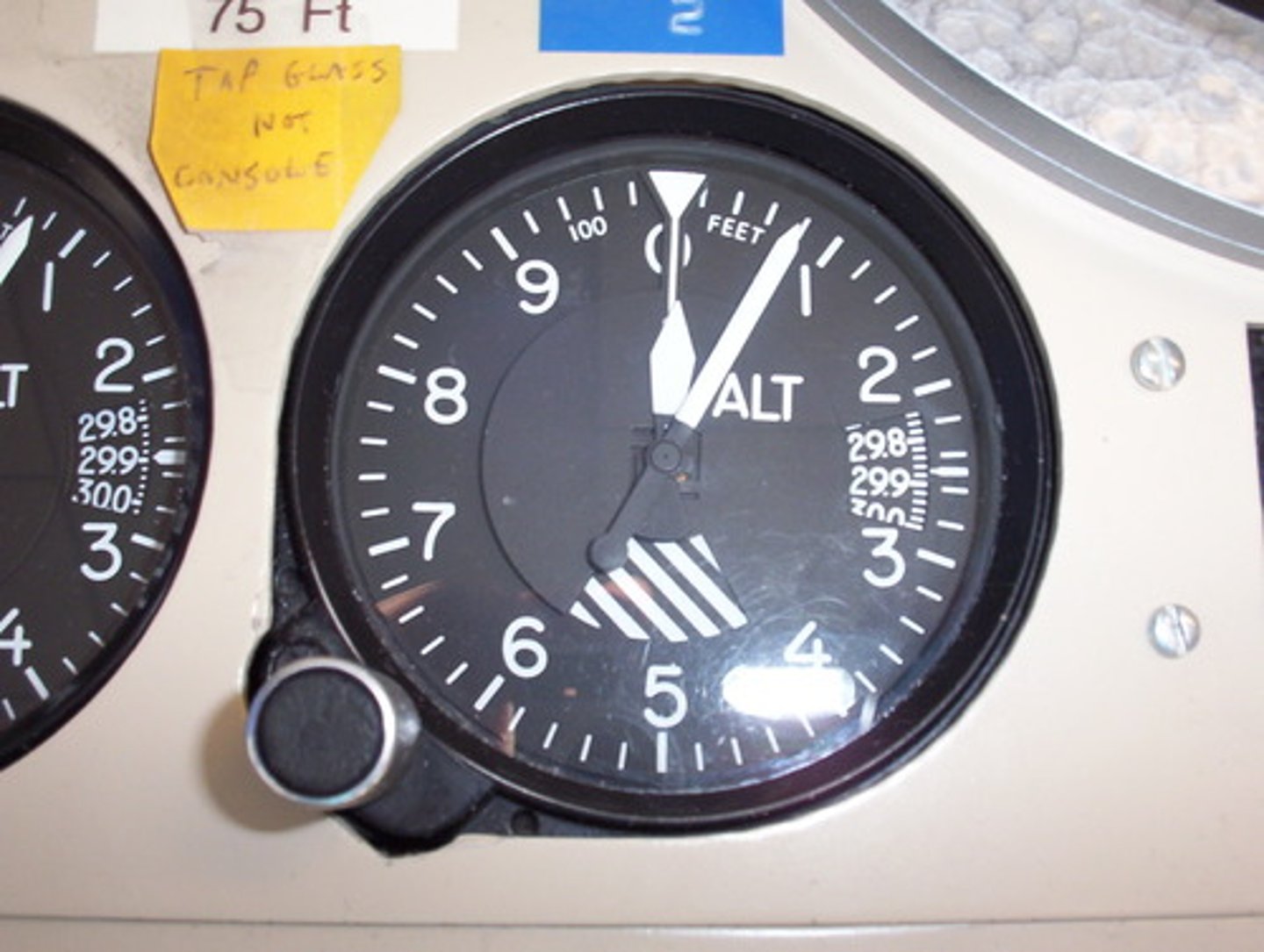

altimeter

an instrument that measures the height above ground

<p>an instrument that measures the height above ground</p>
6
New cards

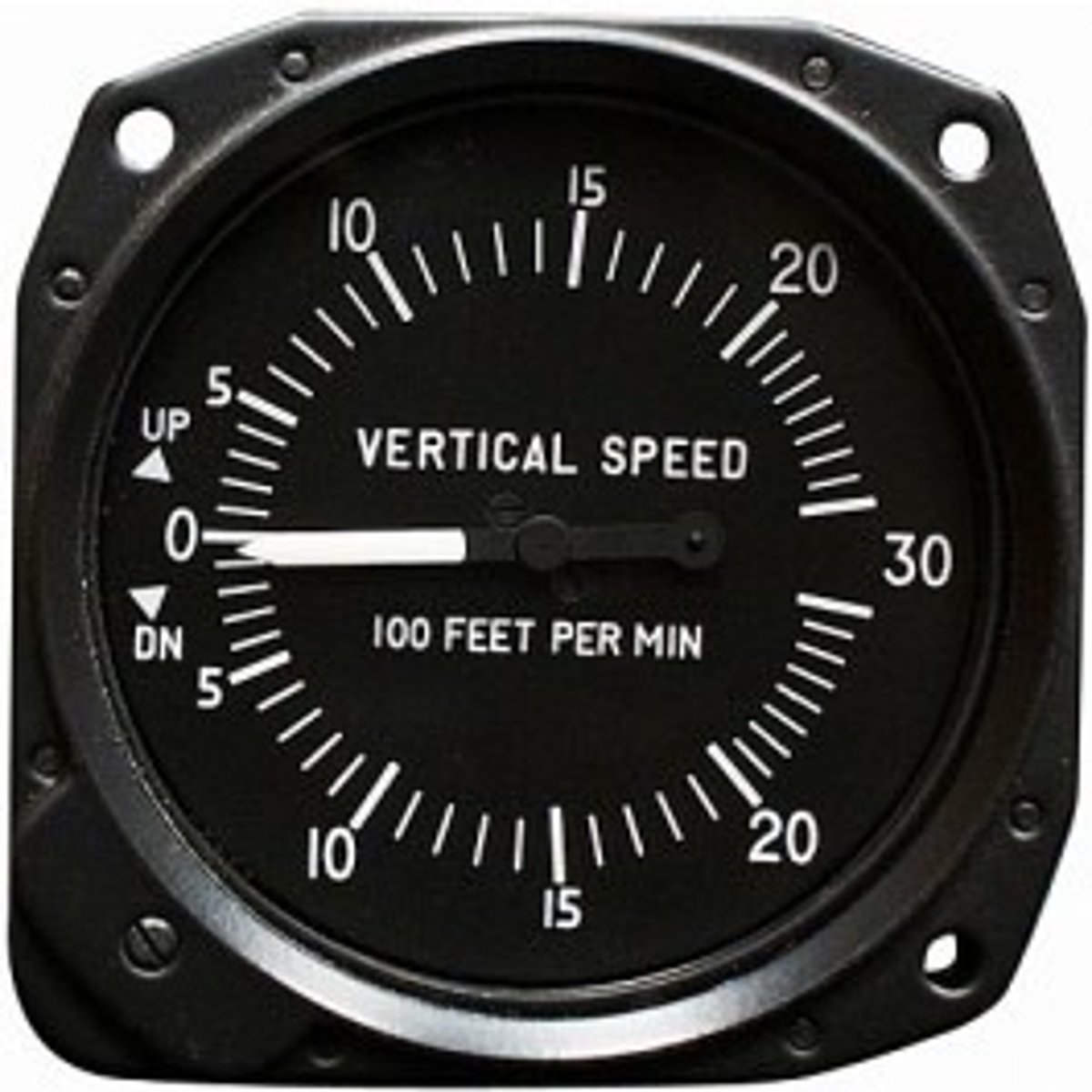

Vertical Speed Indicator

Instrument that shows an aircraft's moment-to-moment rate of descent or climb

<p>Instrument that shows an aircraft's moment-to-moment rate of descent or climb</p>
7
New cards

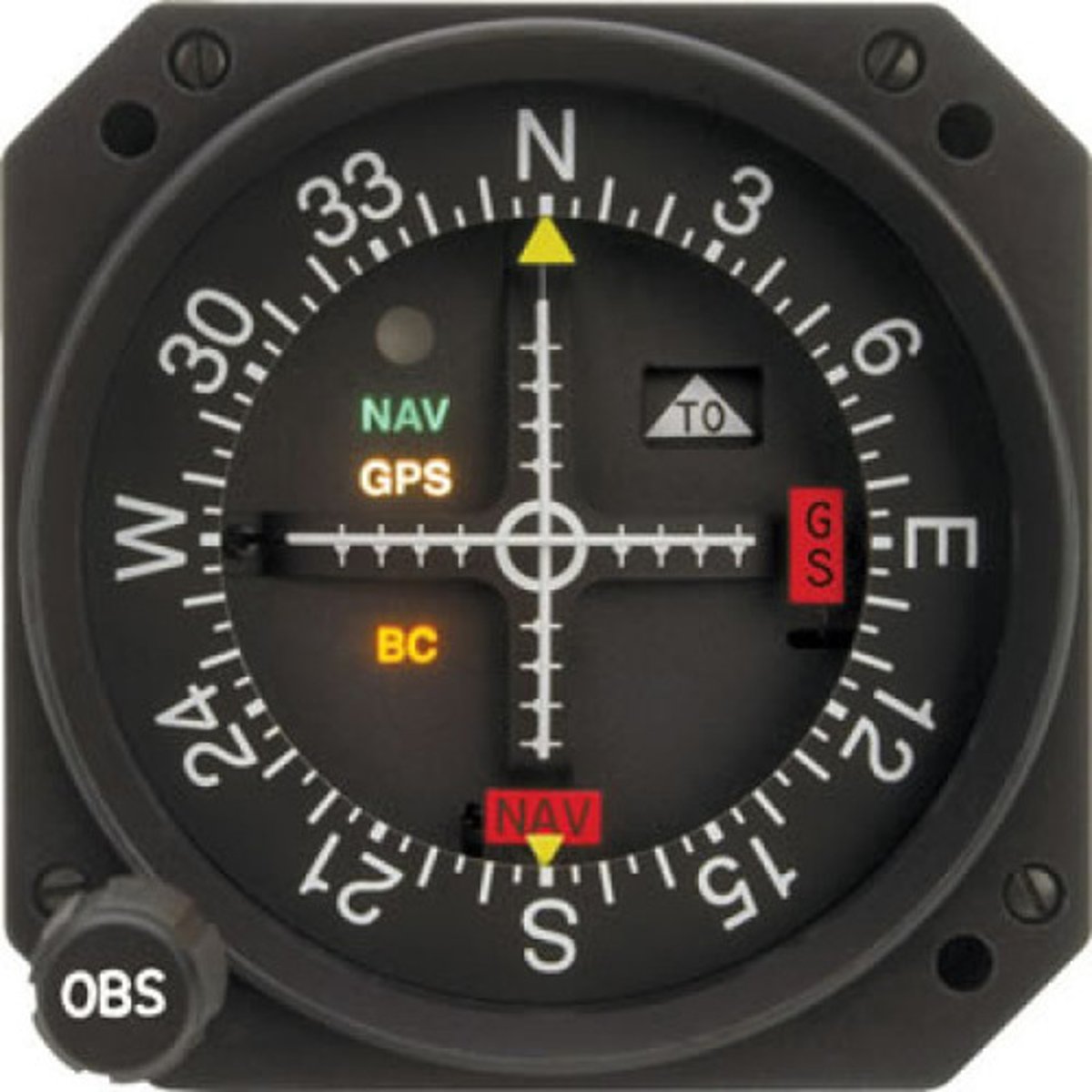

course deviation indicator for nav.1

This instrument indicates if the airplane is off course when tracking the radio station tuned with the NAV1 radio. It also has a glide slope indicator (horizontal bar) used when making precision approaches to an airport in bad weather

<p>This instrument indicates if the airplane is off course when tracking the radio station tuned with the NAV1 radio. It also has a glide slope indicator (horizontal bar) used when making precision approaches to an airport in bad weather</p>
8
New cards

course deviation indicator for nav.2

This instrument indicates if the airplane is off source when tracking the radio station tuned with the NAV2 radio. It does not have a glide slope indicator.

<p>This instrument indicates if the airplane is off source when tracking the radio station tuned with the NAV2 radio. It does not have a glide slope indicator.</p>
9
New cards

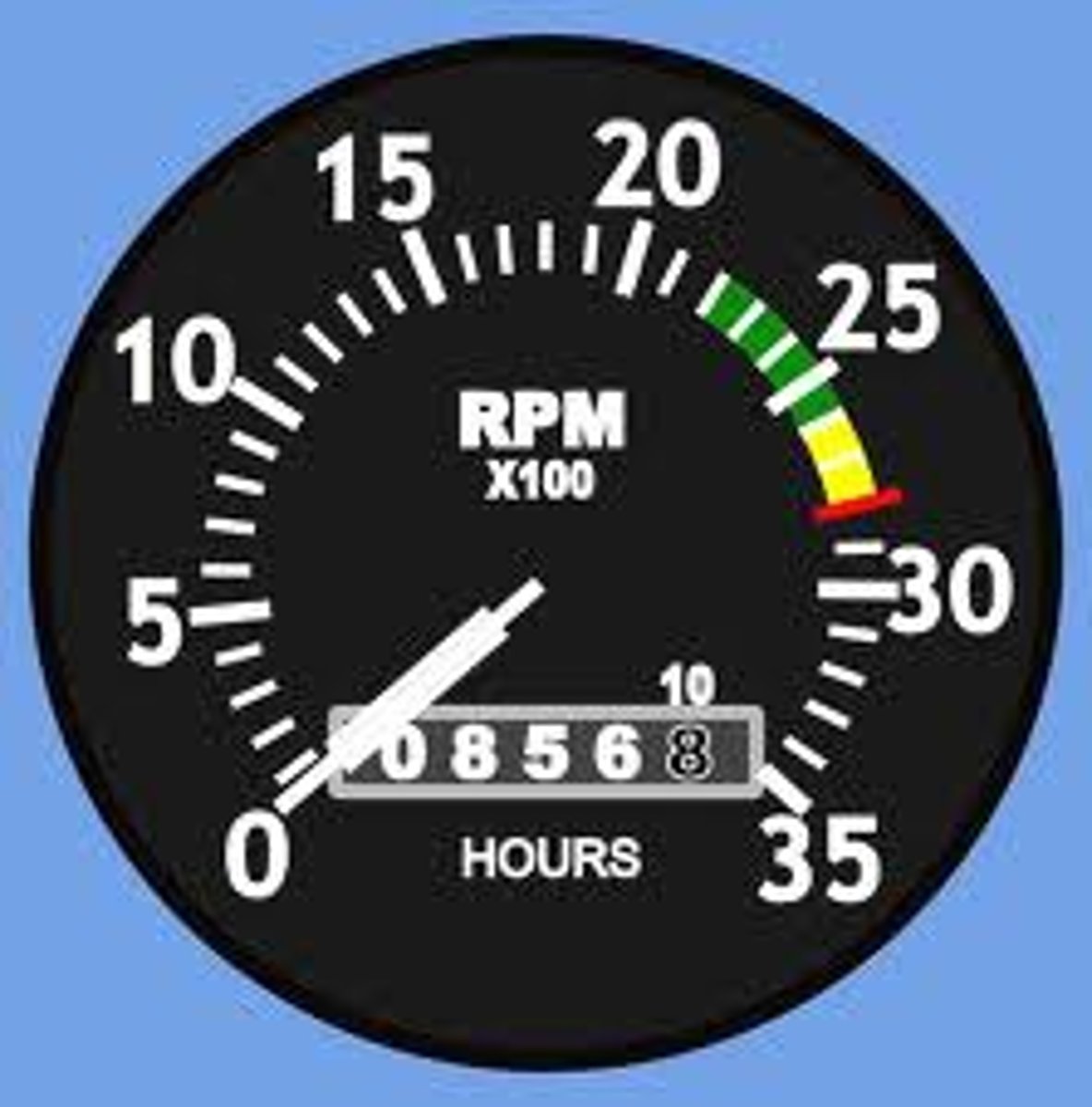

tachometer

A device used to measure speed of rotation.

<p>A device used to measure speed of rotation.</p>
