Lewis Structures shapes

linear, 180, s

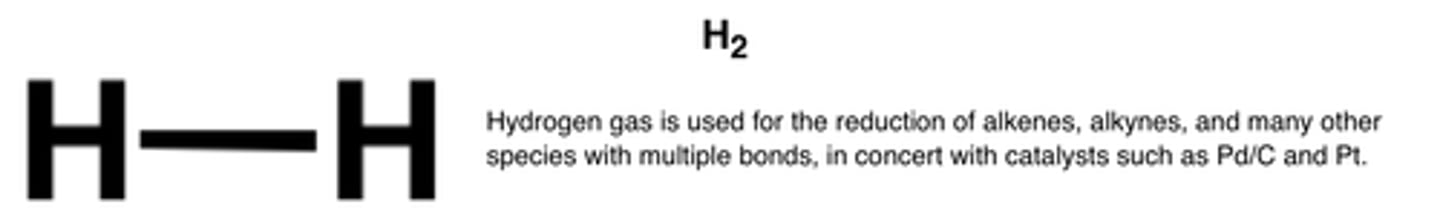

1 bond

linear, 180, sp

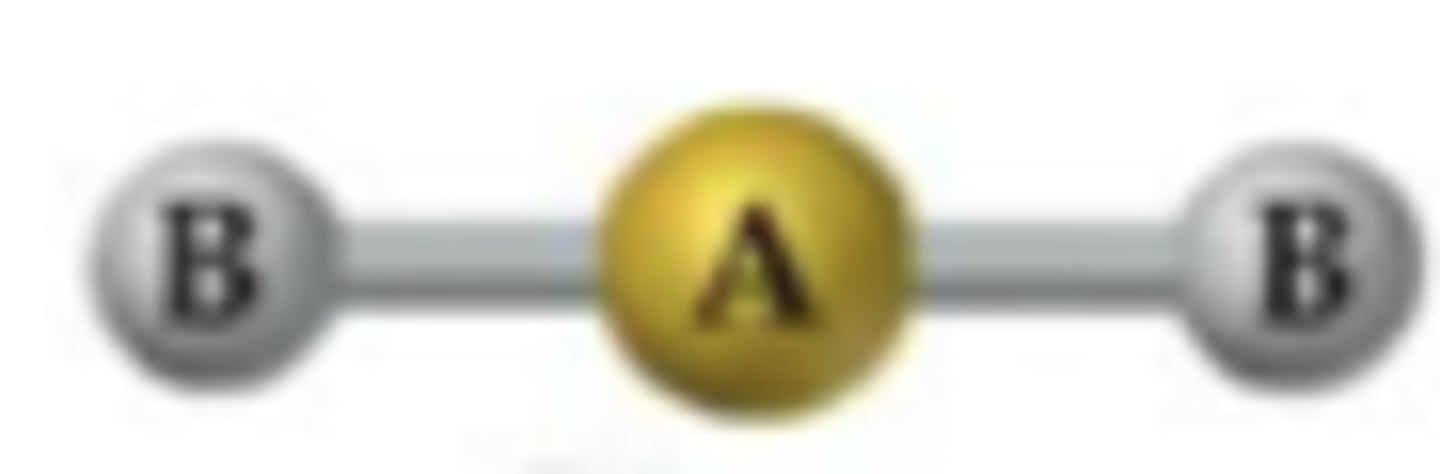

2 bonds

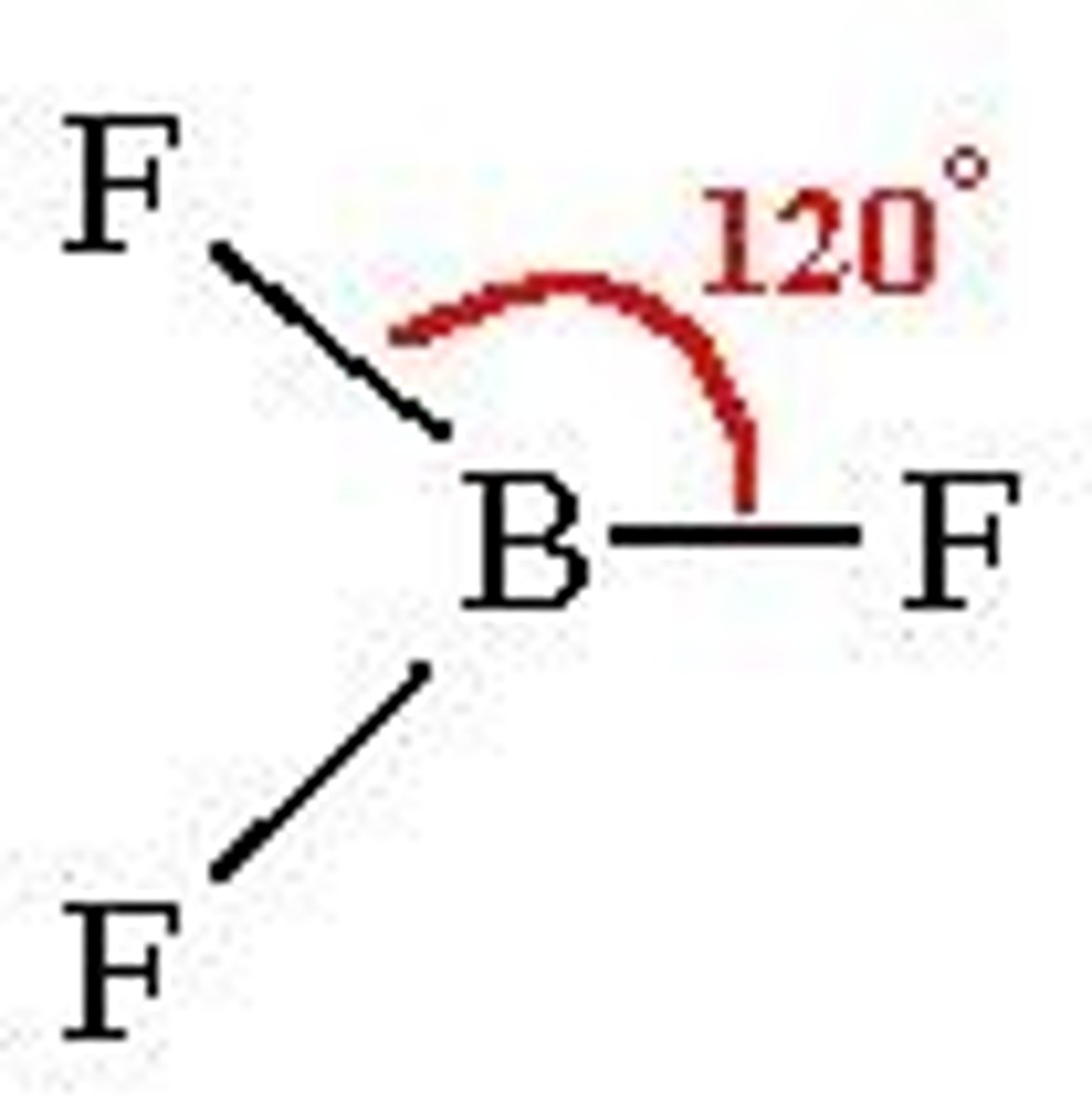

triangular planer, 120, sp2

3 bonds (all shared)

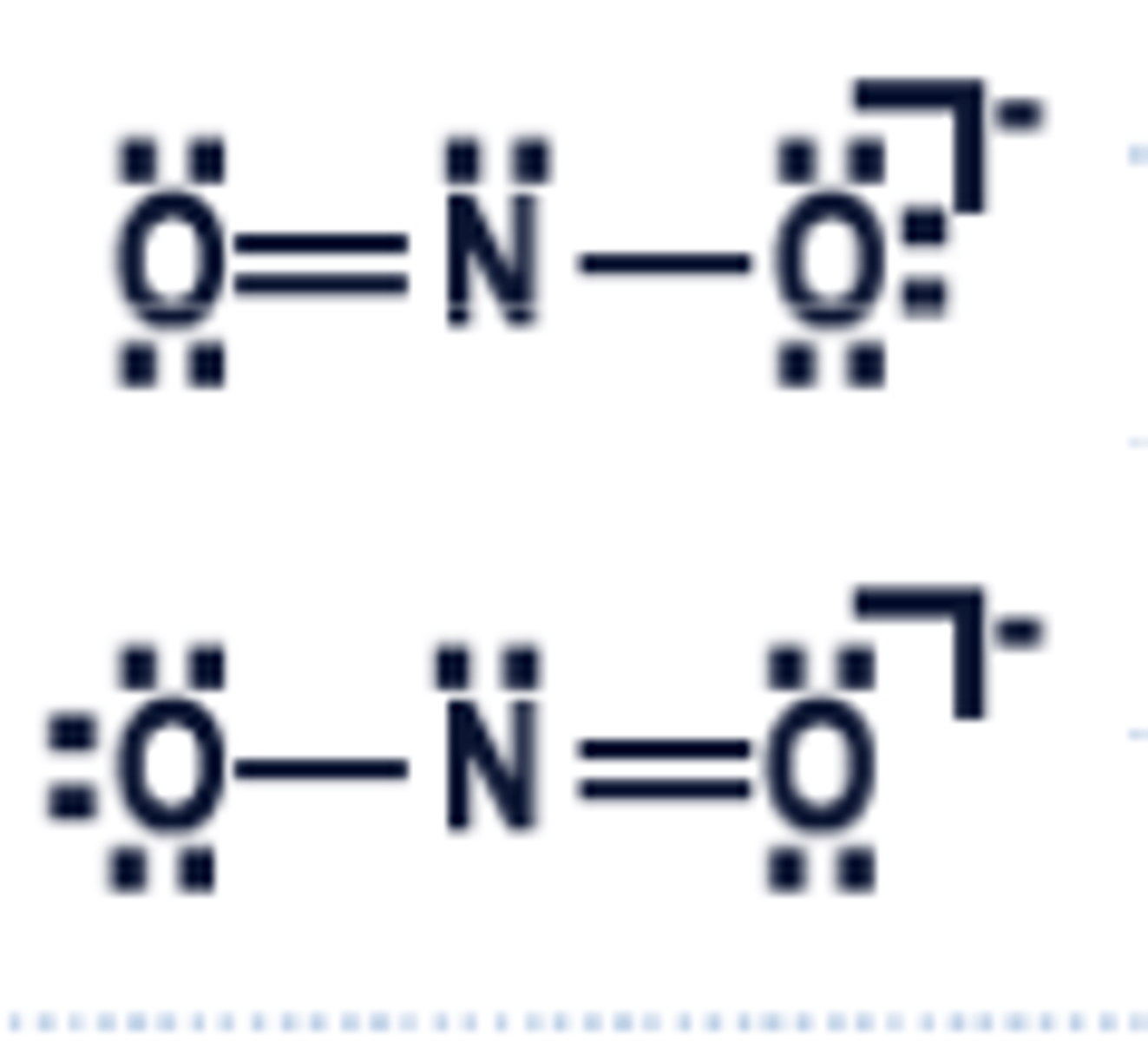

Bent, <120, sp2

3 bonds (one unshared)

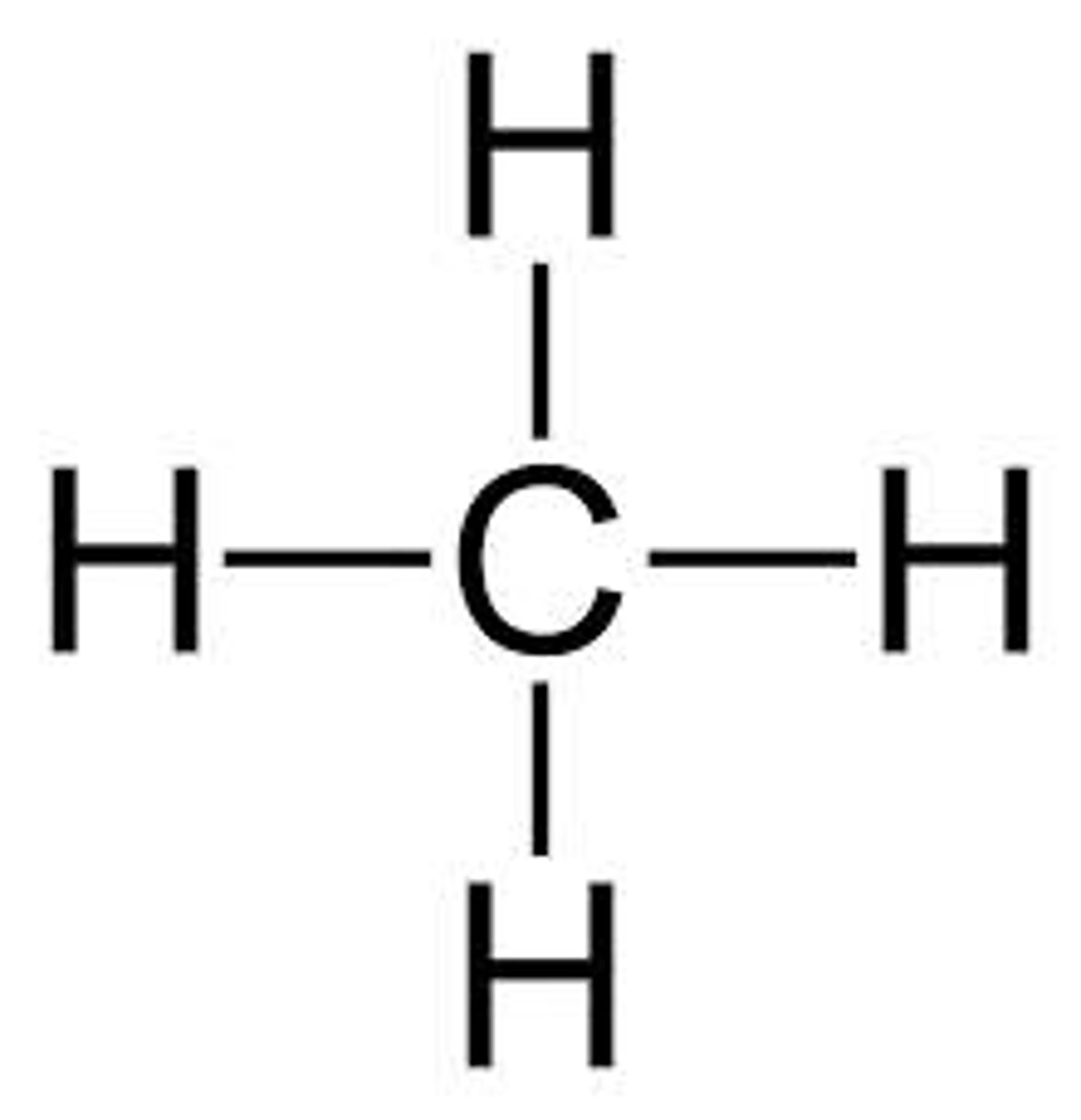

Tetrahedral, 109.47, sp3

4 bonds (all shared)

Trigonal pyramidal, a little <109.47, sp3

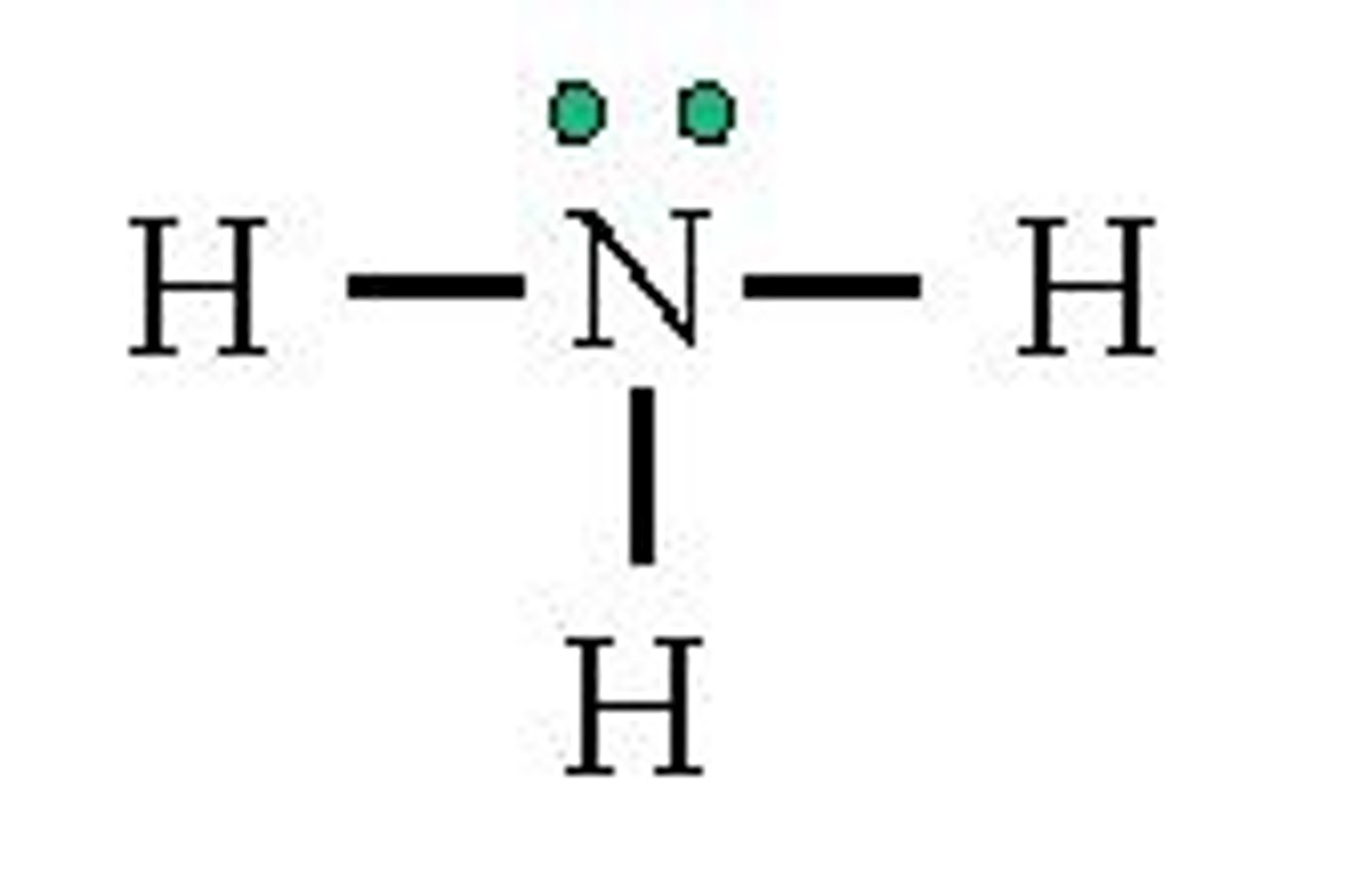

4 bonds (one unshared)

Bent, <109.47, sp3

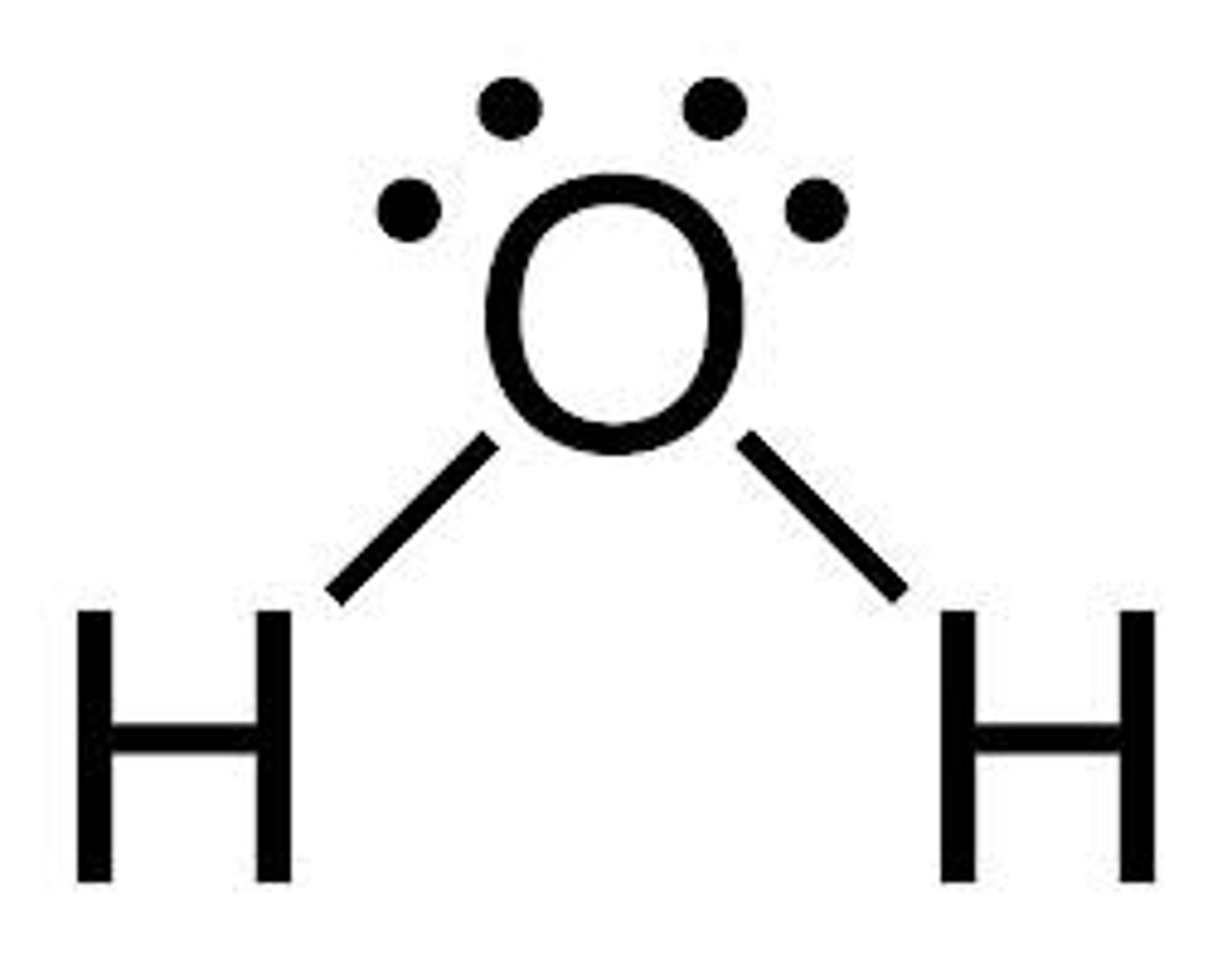

4 bonds (2 unshared)

Trigonal bipyramidal, 90 and 120, sp3d

5 bonds (all shared)

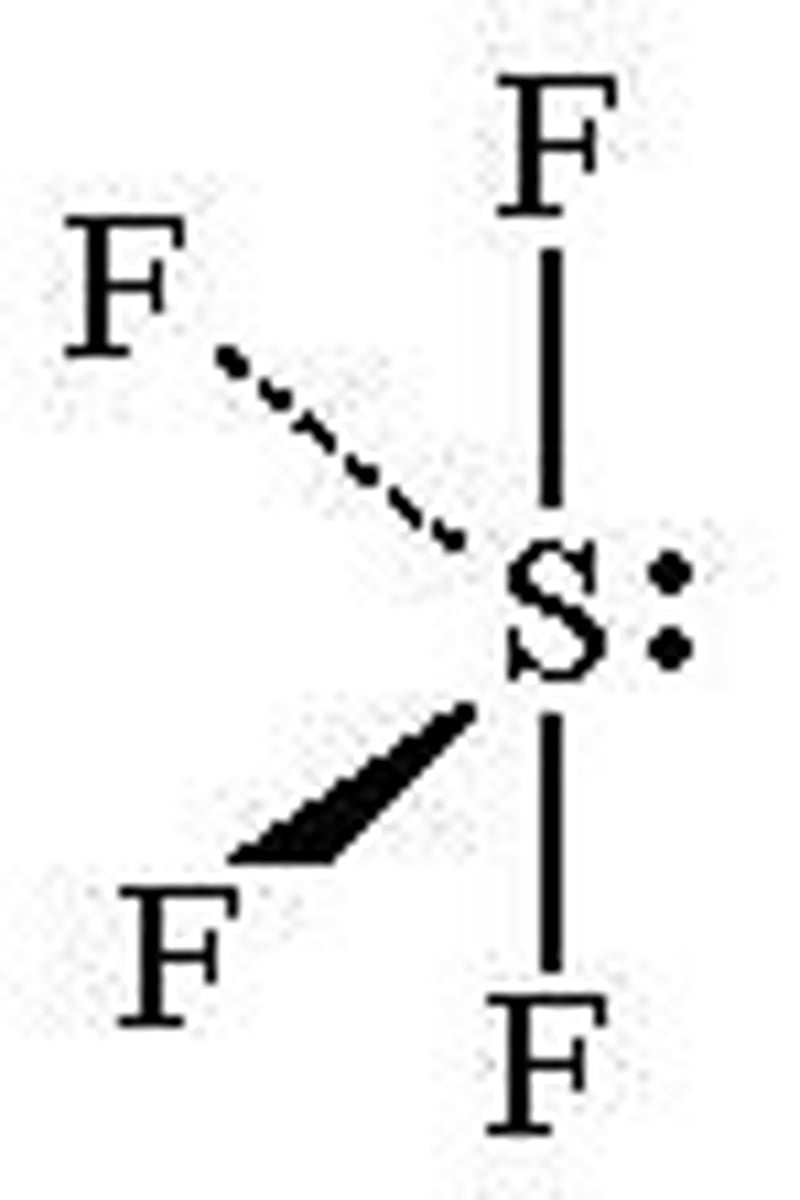

See-saw shape, 90 and <120, sp3d

5 bonds (one unshared)

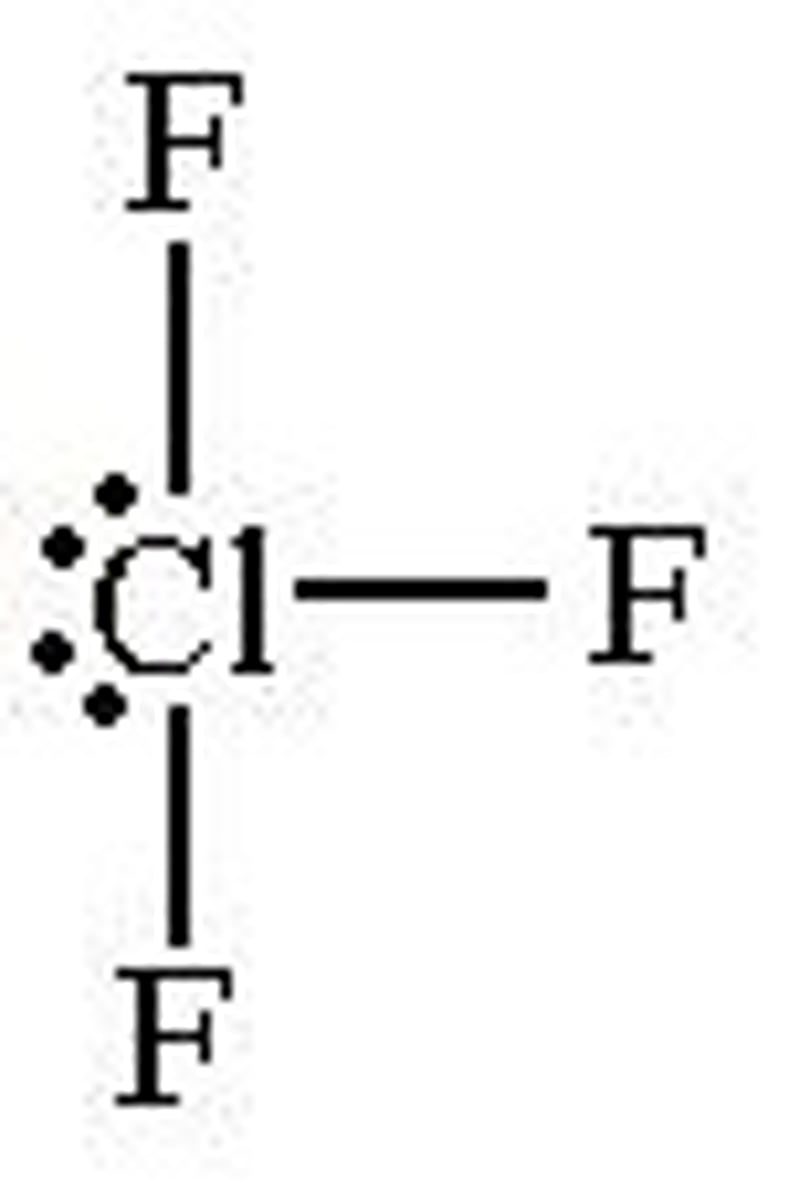

T shaped, 90, sp3d

5 bonds (two unshared)

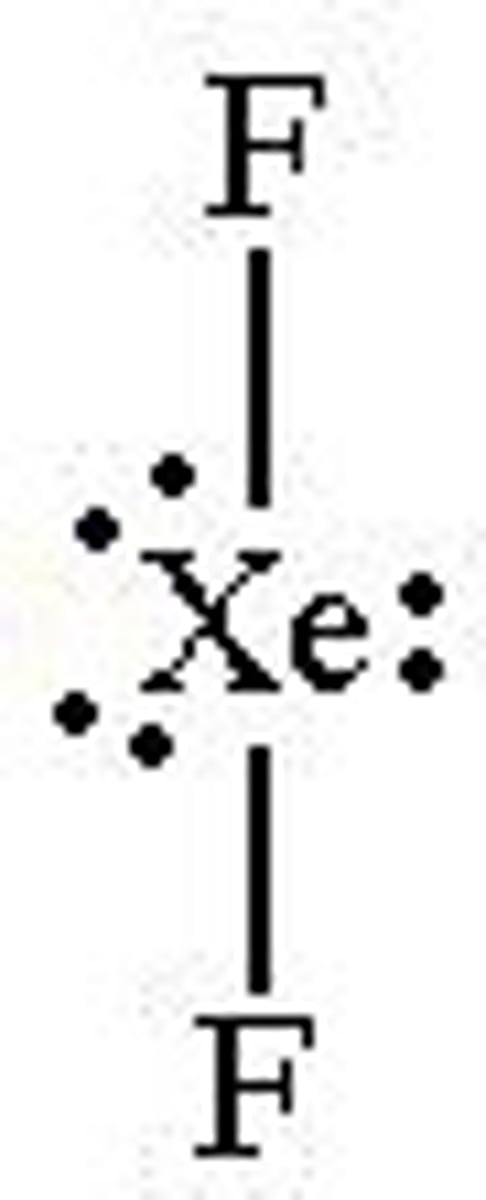

linear, 180, sp3d

5 bonds (three unshared)

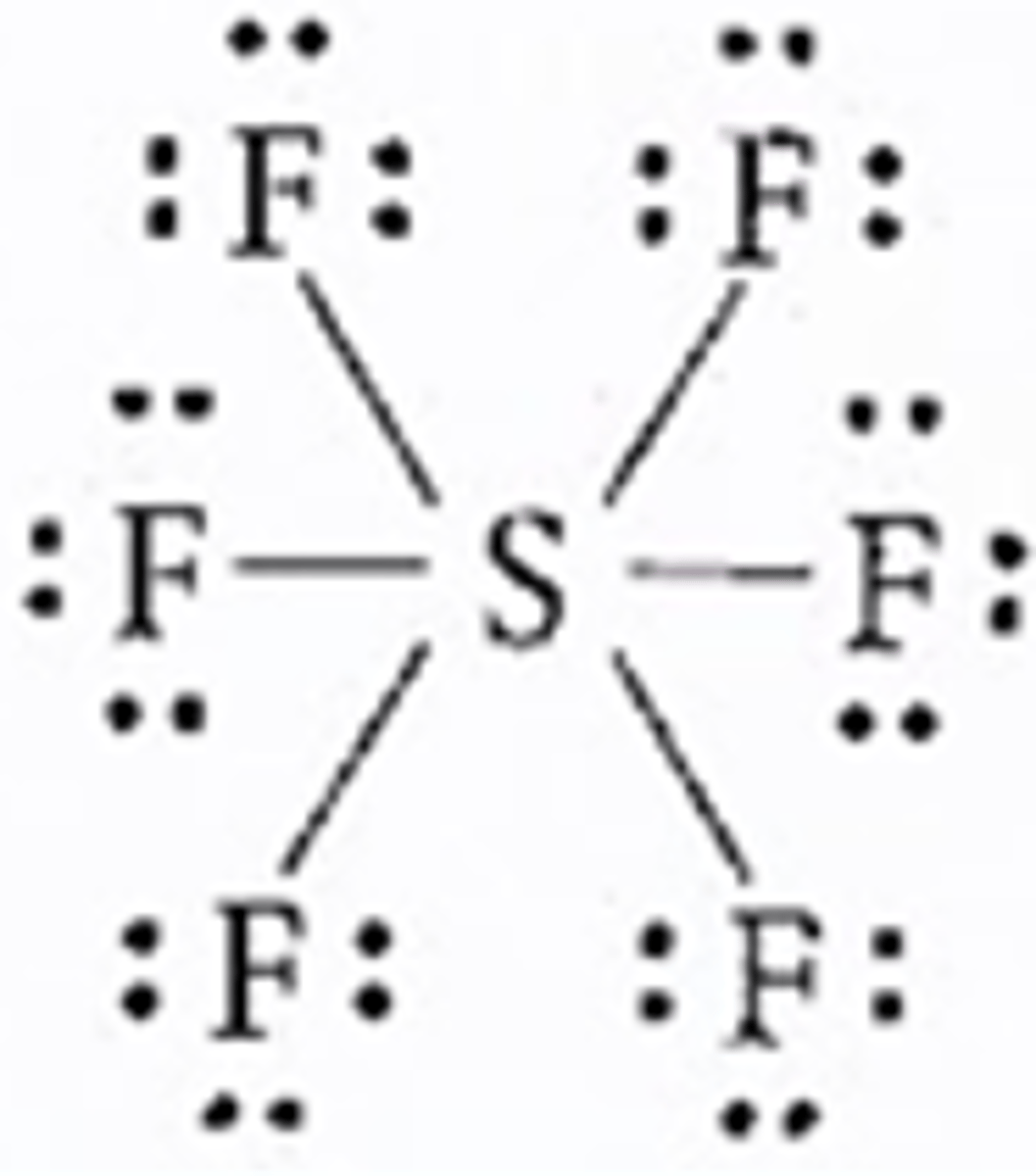

octahedral, 90, sp3d2

6 bonds (all shared)

square pyramidal, 90, sp3d2

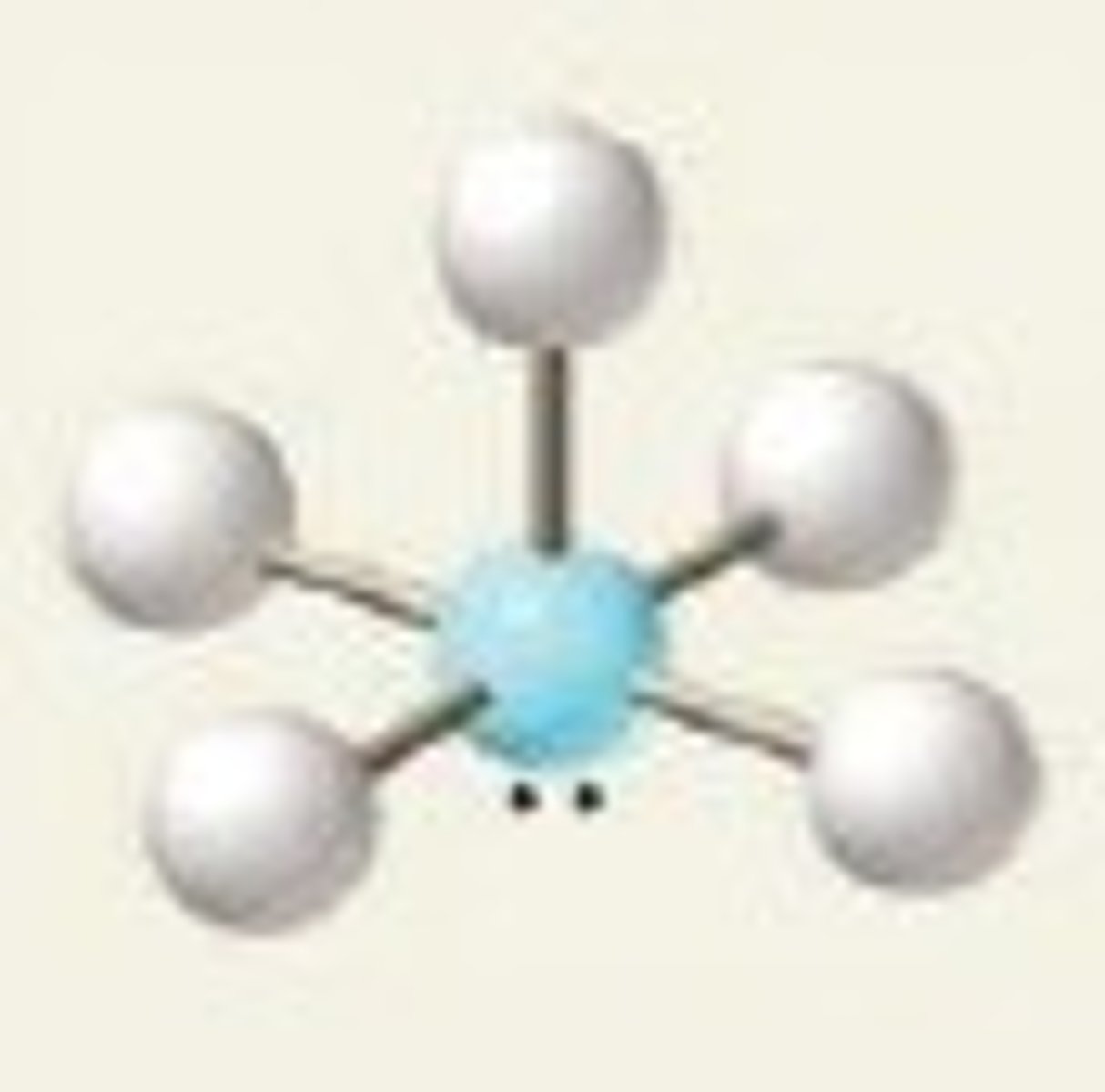

6 bonds (one unshared)

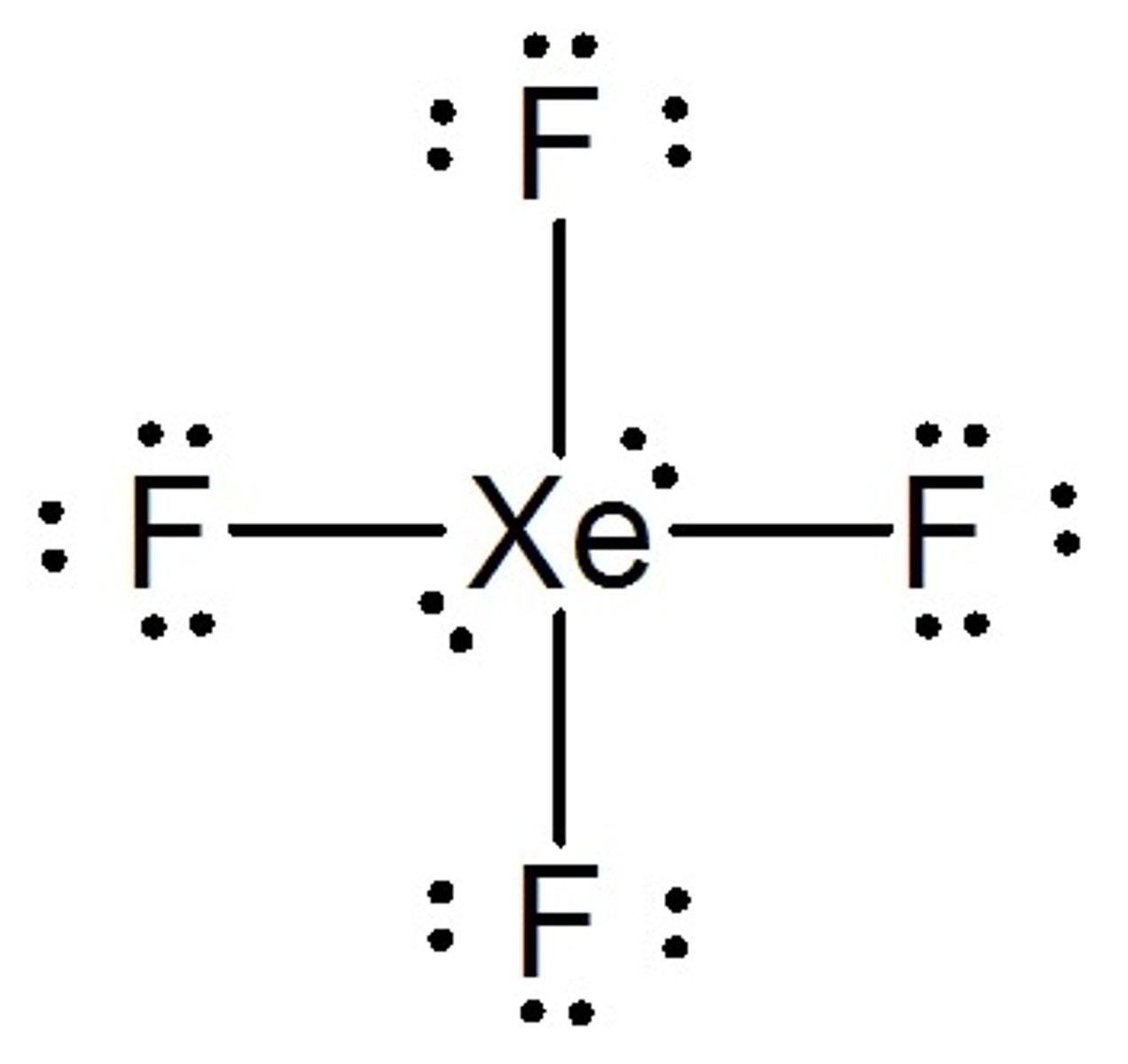

square planer, 90, sp3d2

6 bonds (two unshared)

Linear

One/two shared bonds

Trigonal Plane

Three shared bonds

Tetrahedral

Four shared bonds

Trigonal bi-pyramidal

Five shared bonds

Octahedral/square bi-pyramidal

Six shared bonds
