IGCSE DT: Wood Joints

Butt Joint

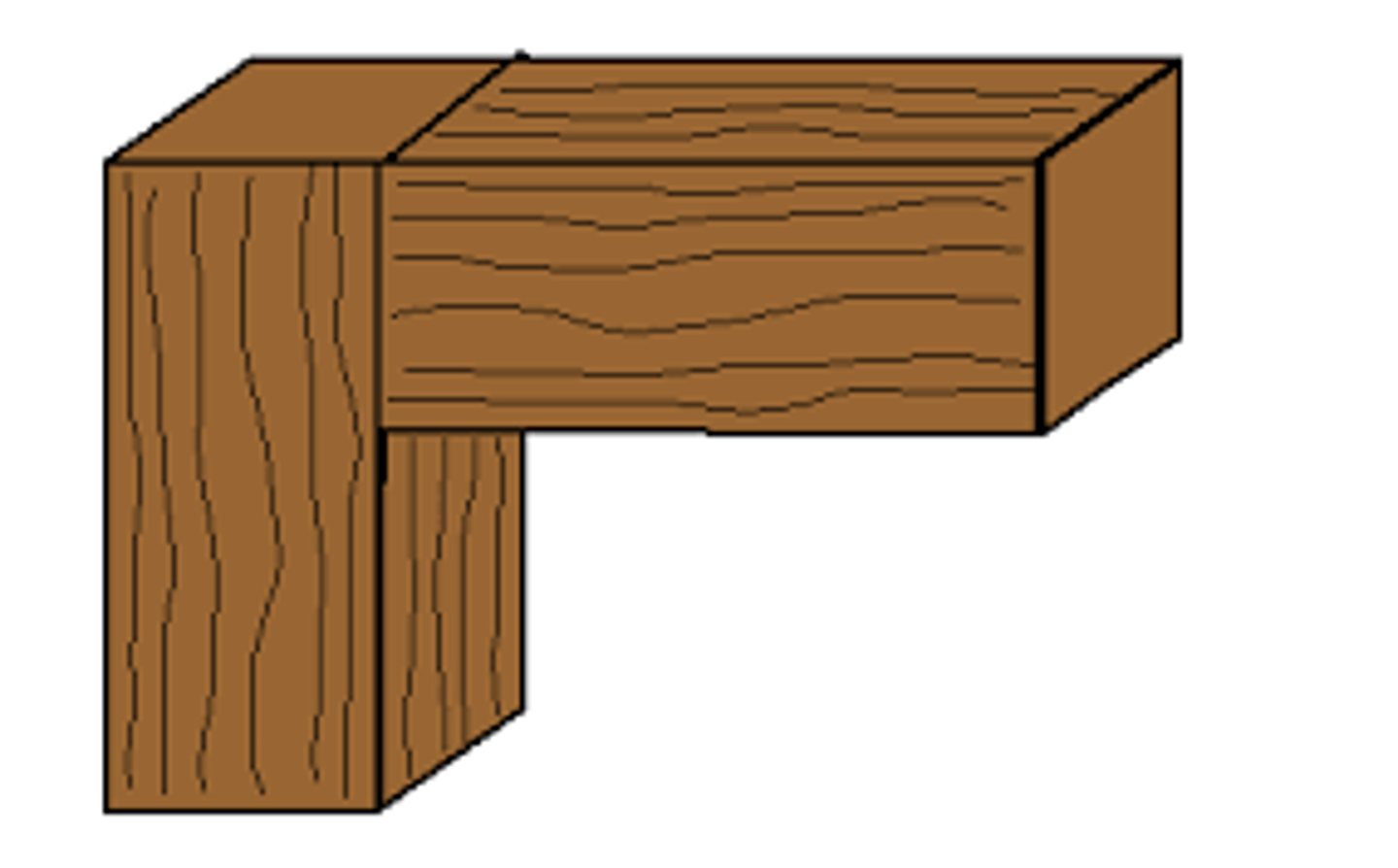

The end of a piece of wood is butted against another piece of wood. This is the simplest and weakest joint. Of those, there is the a) T-butt, b) end-to-end butt, c) T-lap d) Miter butt and e) edge-to-edge butt.

Bridle joint

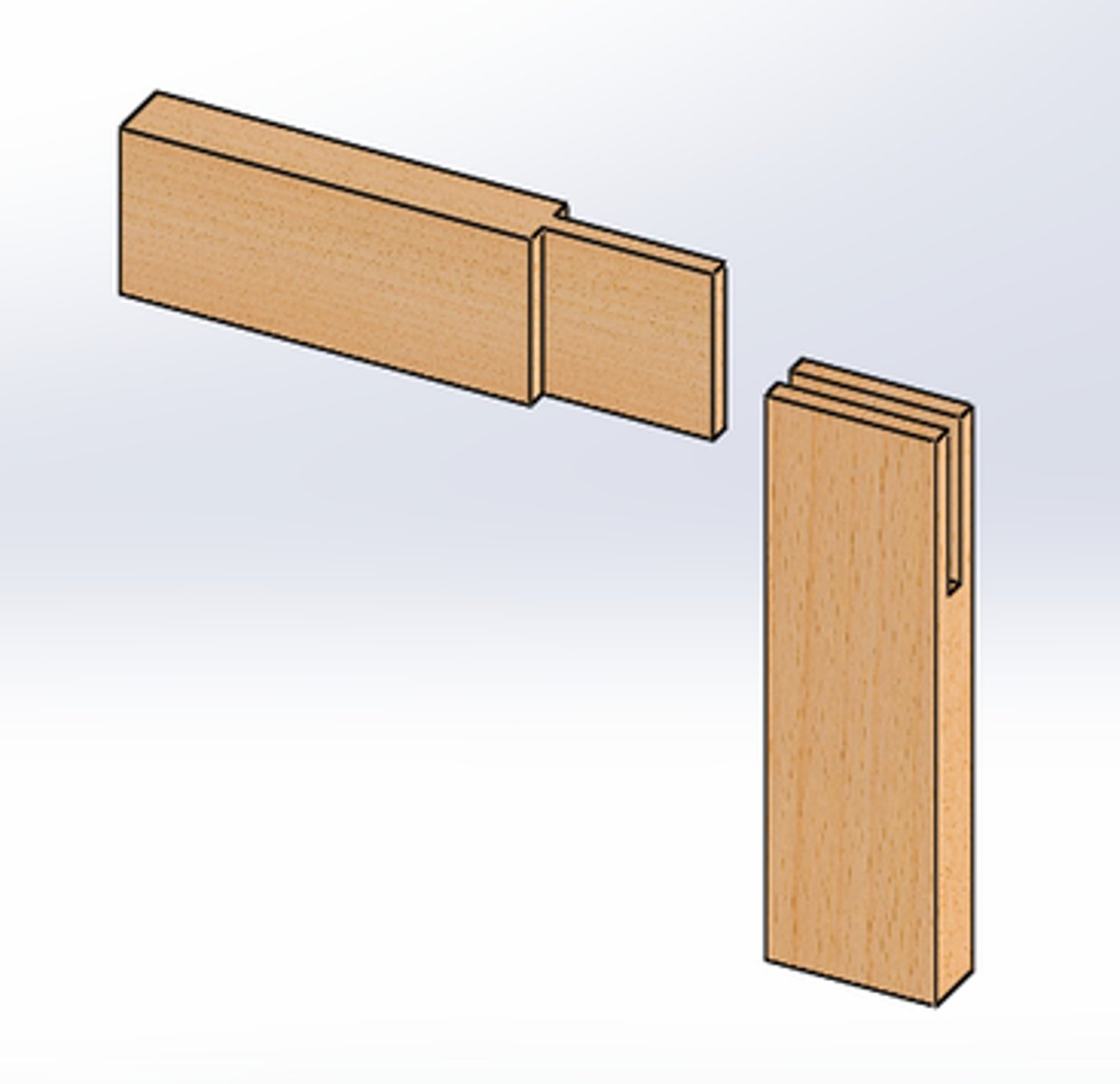

Also known as open tenon, open mortise and tenon, or tongue and fork joints, this joint is where the through mortise is open on one side and forms a fork shape. The mate has a through tenon or necked joint. Bridle joints are commonly used to join rafter tops, also used in scarf joints and sometimes sill corner joints in timber framing.

Dowel joint

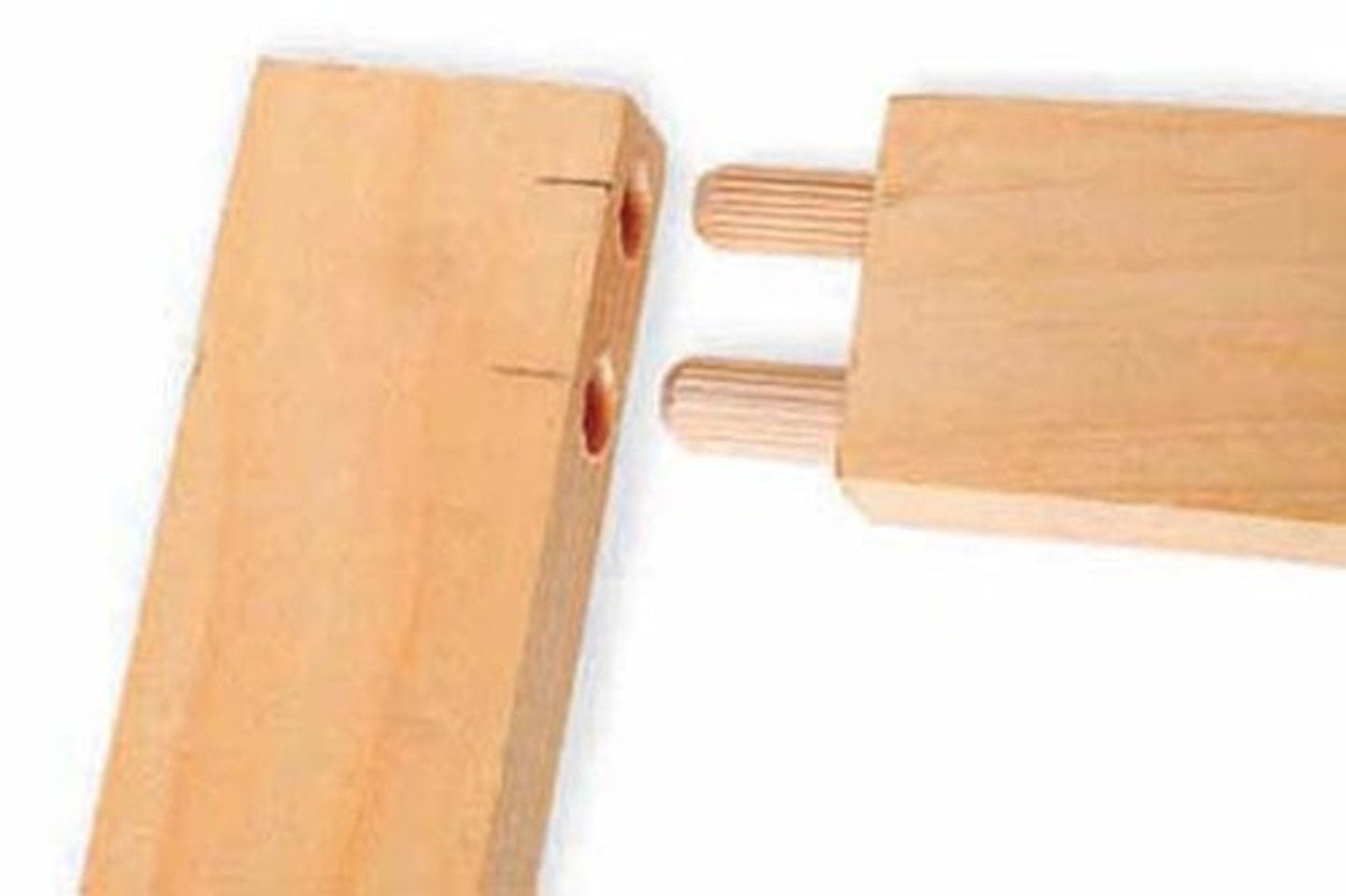

The end of a piece of wood is butted against another piece of wood. This is reinforced with dowel pins. This joint is quick to make with production line machinery and so is a very common joint in factory-made furniture.

Mitre joint

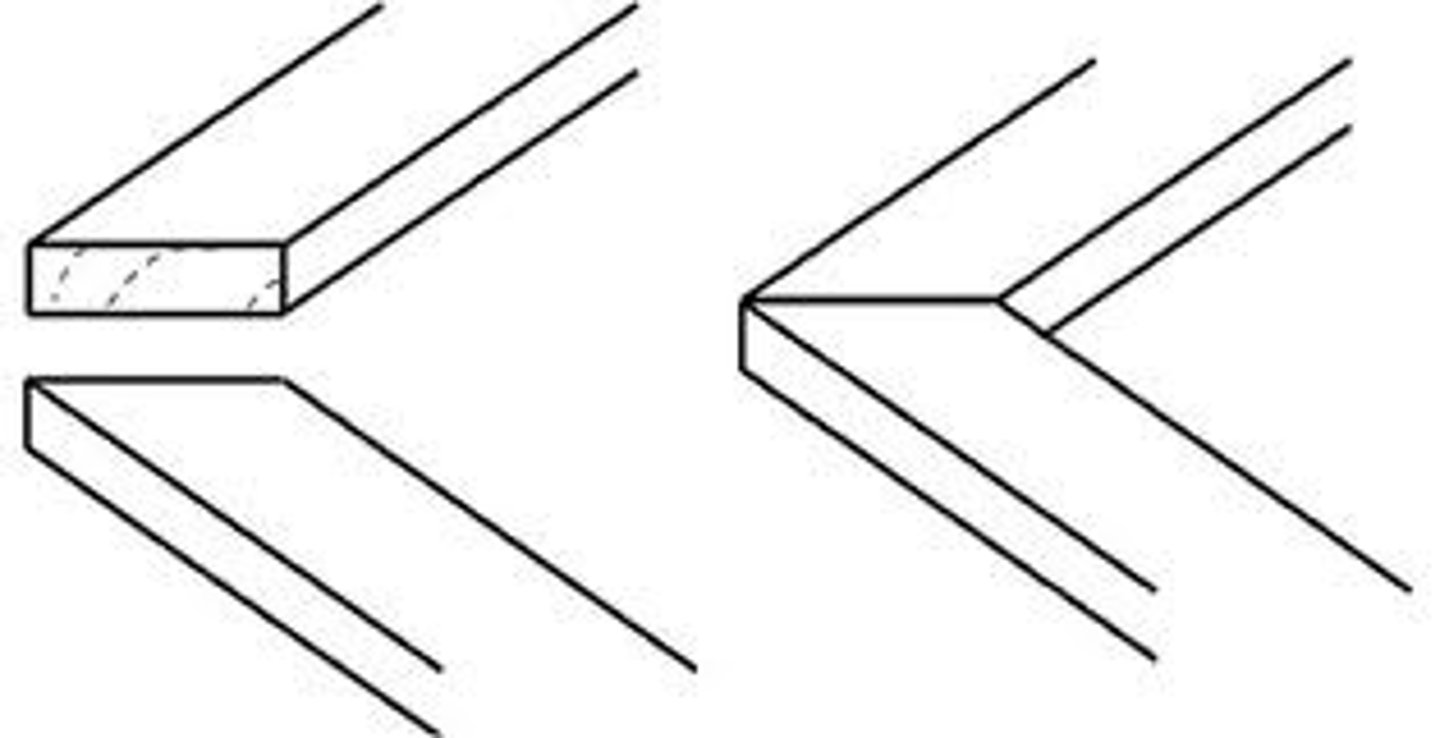

Similar to a butt joint, but both pieces have been bevelled (usually at a 45 degree angle).

Finger joint

Also known as a box joint, is a corner joint with interlocking fingers. Receives pressure from two directions.

Dovetail joint

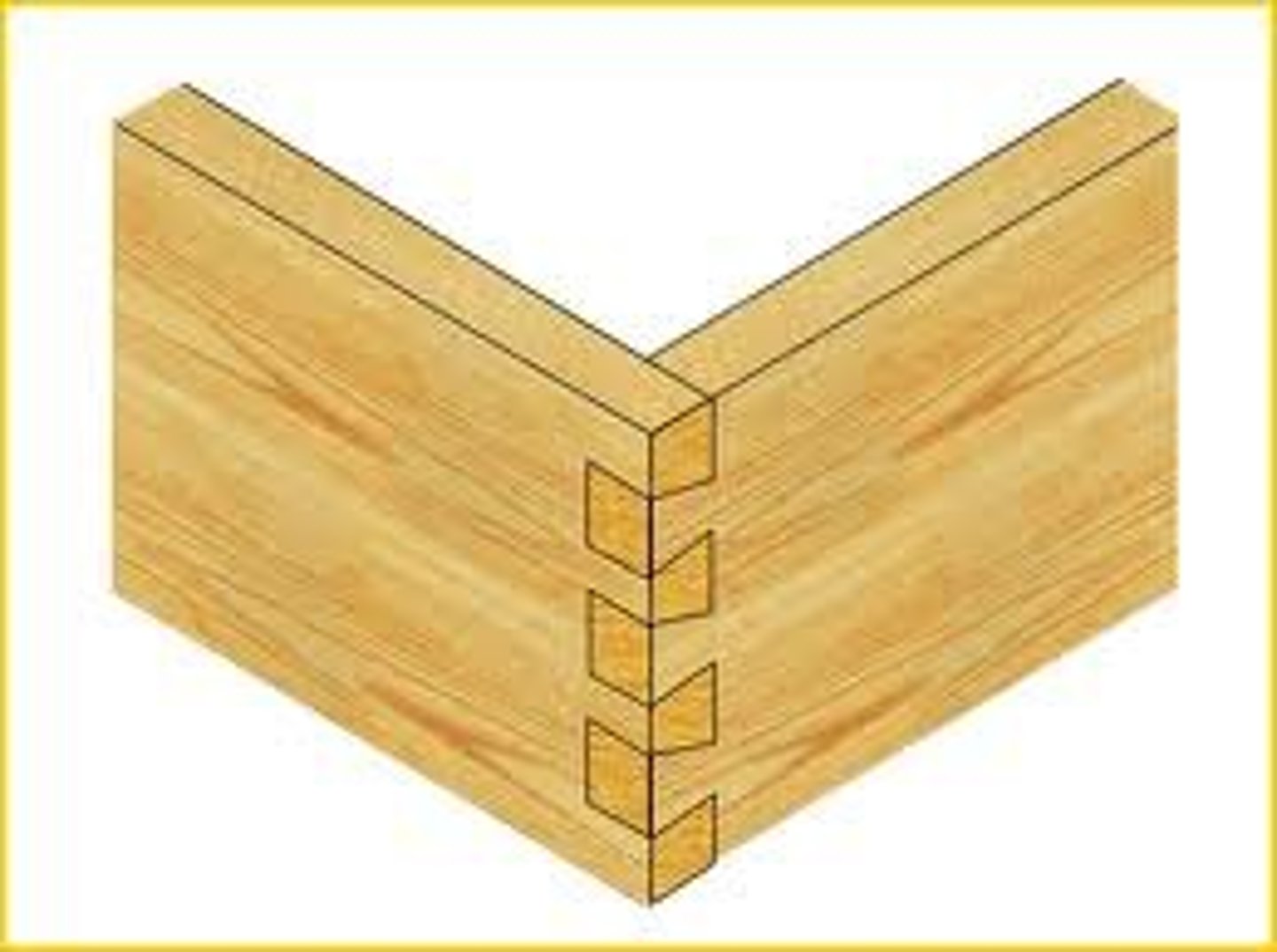

A form of box joint where the fingers are locked together by diagonal cuts. More secure than a finger joint.

Housing joint

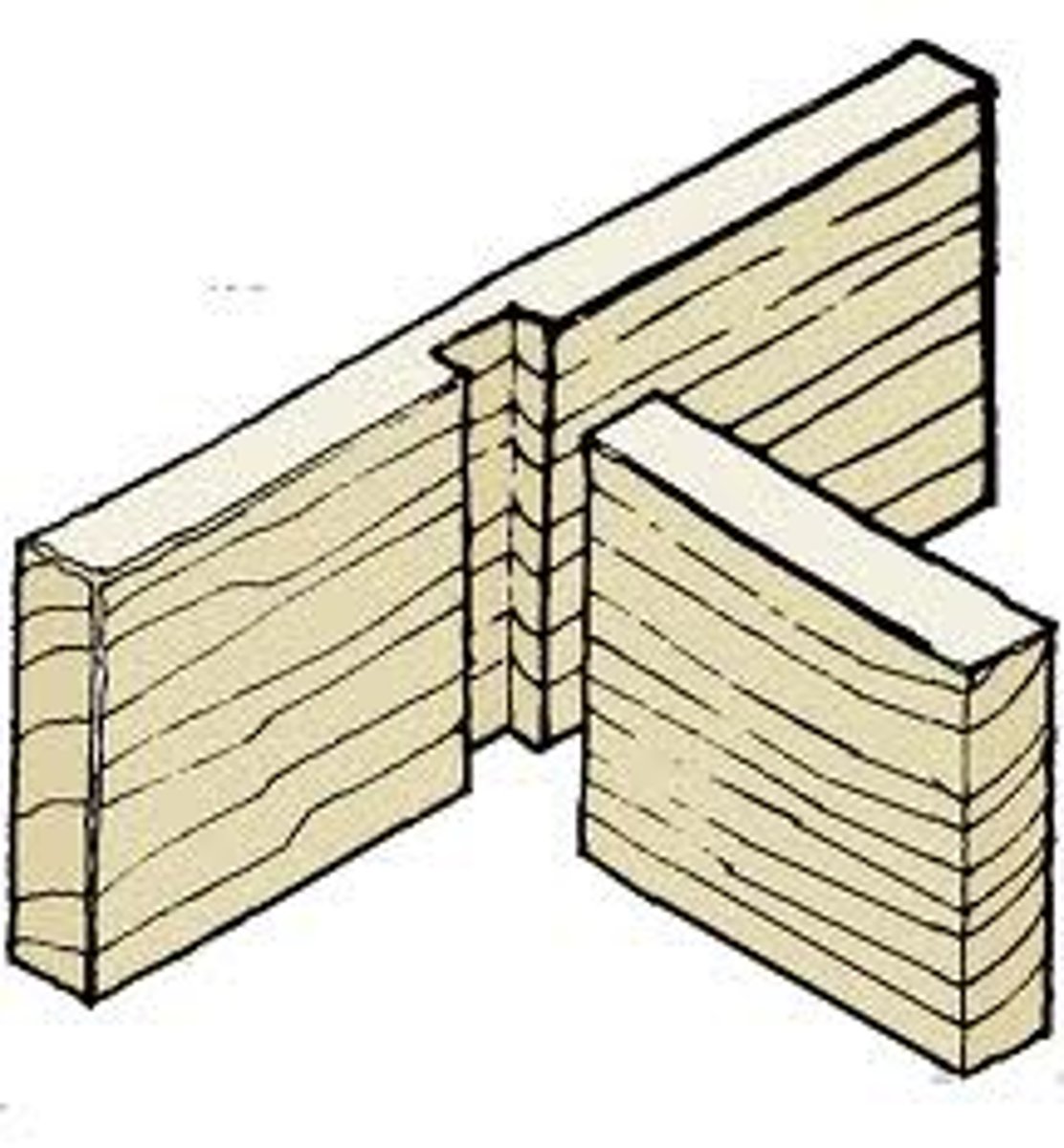

Also called a dado joint or trench joint, a slot is cut across the grain in one piece for another piece to set into; shelves on a bookshelf having slots cut into the sides of the shelf, for example.

Tongue and groove

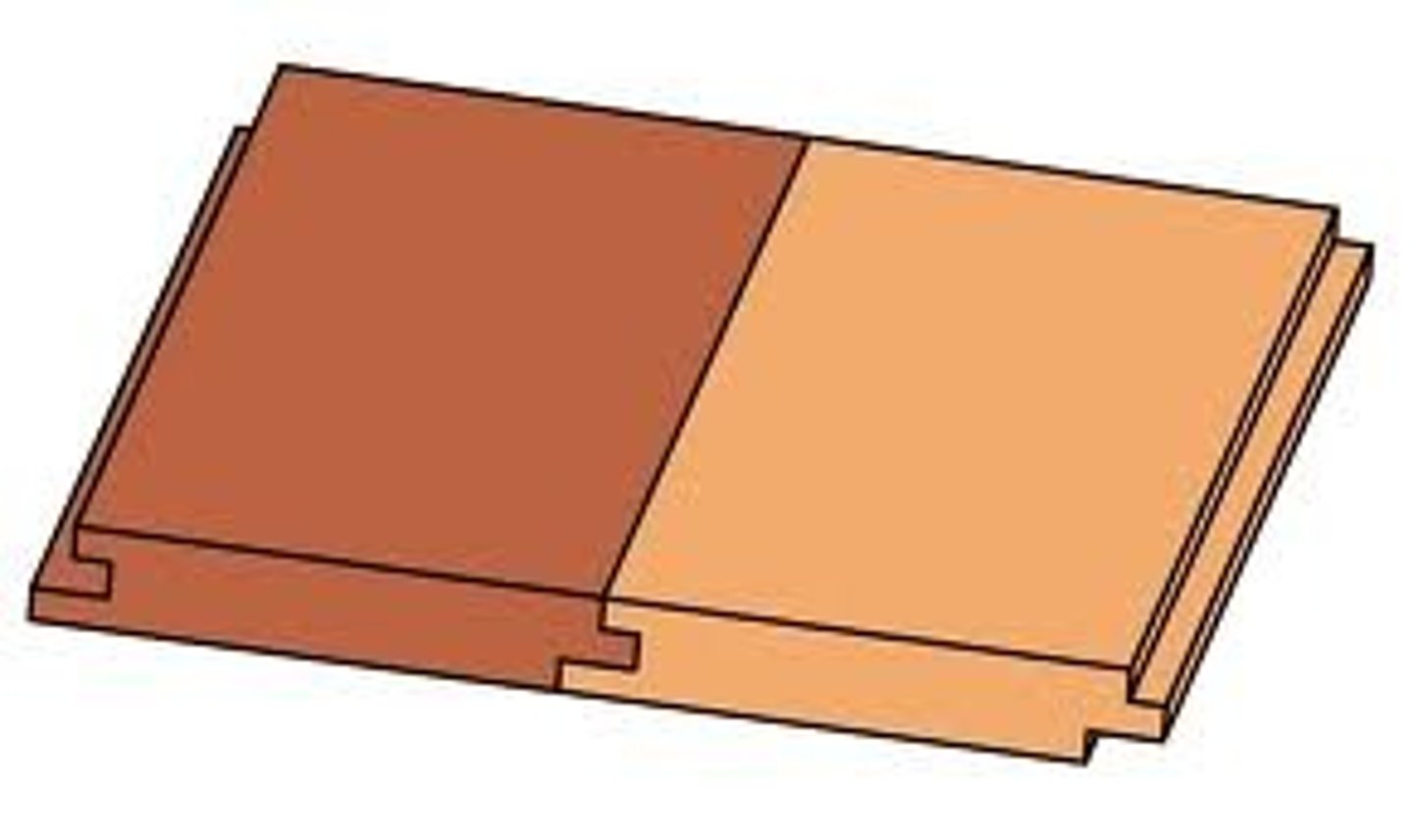

Each piece has a groove cut all along one edge, and a thin, deep ridge (the tongue) on the opposite edge. If the tongue is unattached, it is considered a spline joint.

Mortise and tenon

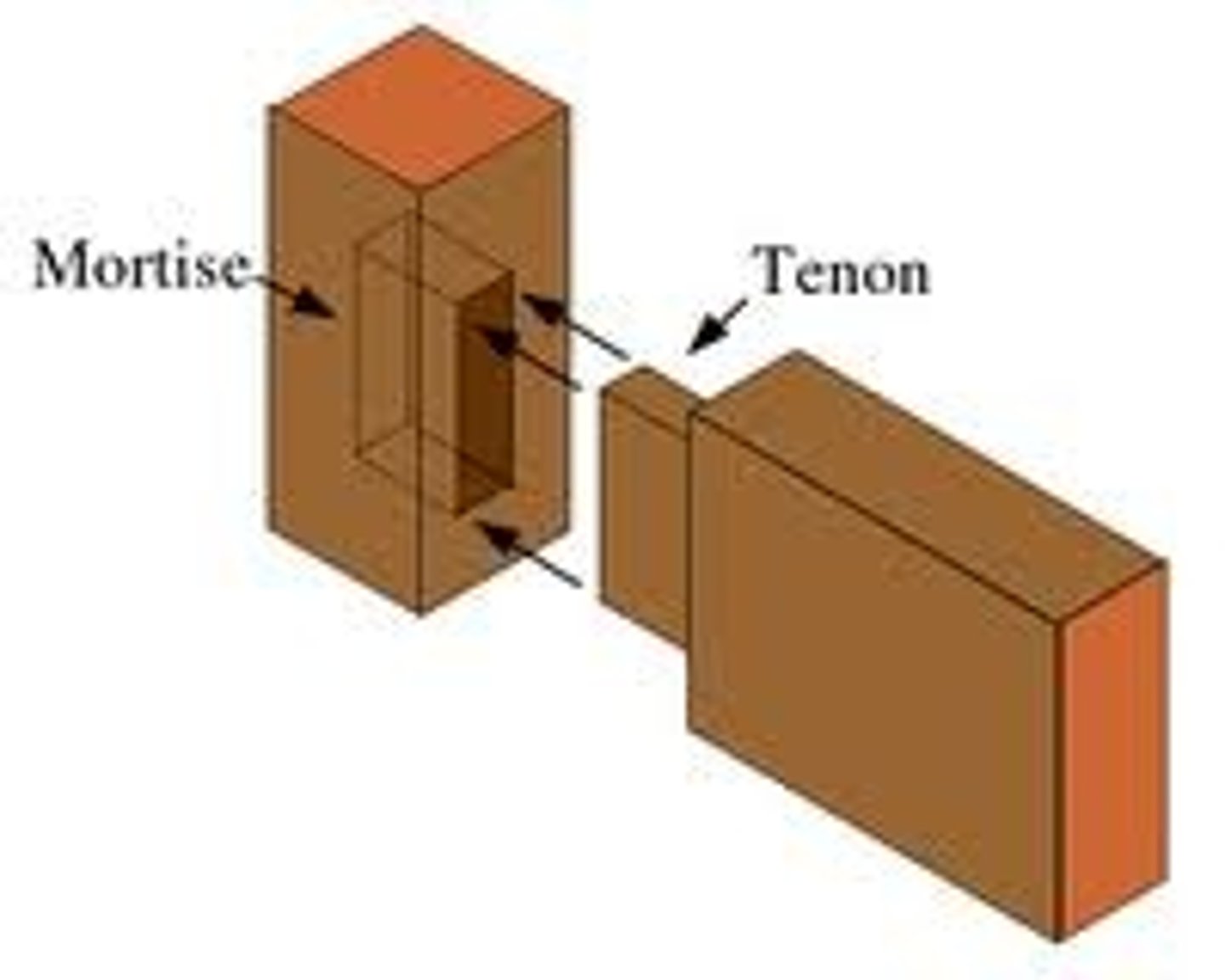

A stub (the tenon) will fit tightly into a hole cut for it (the mortise). This is a hallmark of Mission Style furniture, and also the traditional method of jointing frame and panel members in doors, windows, and cabinets. This joint is a good strong joint to use.
