12 Terms

1
New cards

What is a Resistor?

Electrical component, manufactured to have specific value of resistance

2
New cards

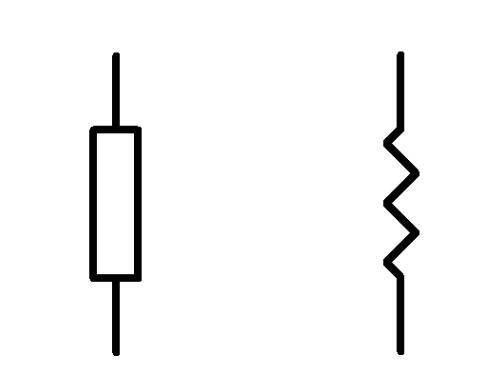

Resistor symbol

Zigzag line or hollow box

<p>Zigzag line or hollow box </p>
3
New cards

What are 2 types of Resistors?

Fixed value and variable

4
New cards

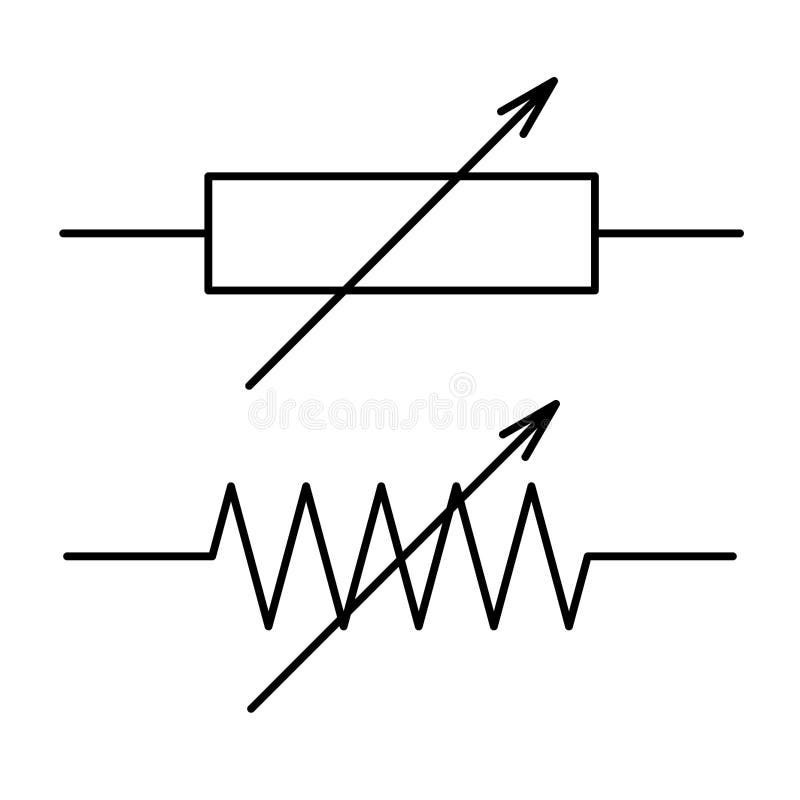

Variable resistor symbol?

Zigzag line and hollow line with arrow passing through

<p>Zigzag line and hollow line with arrow passing through </p>
5
New cards

What is potentiometers?

Used when the circuit flow is low; wide range of resistive values with limited current handling capability

6
New cards

When is a Rheostat used?

When the circuit flow is high; Limited resistance range of values with high current handling capability

7
New cards

What is power measured in?

Watts

8
New cards

What is wattage rating?

Rating expressing maximum power that a device can safely handle

9
New cards

What does the 3rd band in a resistor represent?

Multiplier

10
New cards

What does the 4th band in a resistor represent?

Resistor tolerance (how long it can be used till it wears down)

11
New cards
12
New cards
