Ethmoid Sinus

E

<p>E</p>
2
New cards

Sphenoid Sinus

S

<p>S</p>
3
New cards

Maxillary Sinus

M

<p>M</p>
4
New cards

Frontal Sinus

F

<p>F</p>
5
New cards

Lateral Sinuses

What projection is this?

<p>What projection is this?</p>
6
New cards

Midway between the EAM and the outer canthus

What is the CR for Lateral Sinuses?

<p>What is the CR for Lateral Sinuses?</p>
7
New cards

Ethmoid

Sphenoid

Frontal

Maxillary

What sinuses are demonstrated on a Lateral sinuses radiograph?

<p>What sinuses are demonstrated on a Lateral sinuses radiograph?</p>
8
New cards

Interpupillary line (IPL)

What line should be perpendicular to the IR for Lateral Sinuses?

<p>What line should be perpendicular to the IR for Lateral Sinuses?</p>
9
New cards

Midsagittal plane (MSP)

Orbitomeatal line (OML)

What lines should be parallel to the IR for Lateral Sinuses ?

<p>What lines should be parallel to the IR for Lateral Sinuses ?</p>
10
New cards

Ethmoid Sinus

E

<p>E</p>
11
New cards

Sphenoid sinus

S

<p>S</p>
12
New cards

Maxillary sinus

M

<p>M</p>
13
New cards

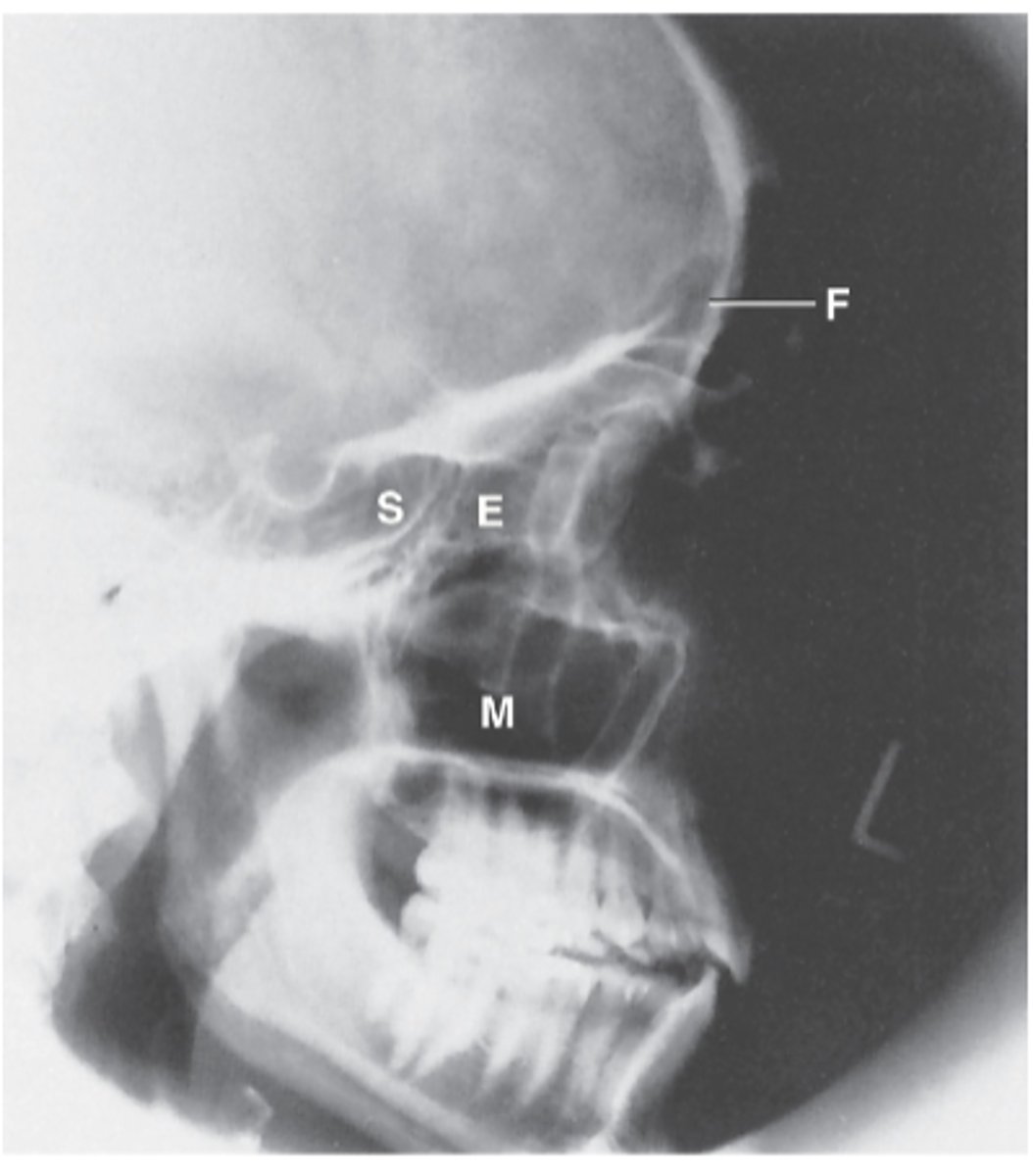

Frontal sinus

F

<p>F</p>
14
New cards

PA axial (Caldwell Method)

What projection is this?

<p>What projection is this?</p>
15
New cards

CR exits the nasion & 15 degree caudal angle

What is the CR for PA axial (Caldwell Method)?

<p>What is the CR for PA axial (Caldwell Method)?</p>
16
New cards

OML perpendicular to IR

What line should be perpendicular to the IR for a PA axial (Caldwell Method)?

<p>What line should be perpendicular to the IR for a PA axial (Caldwell Method)?</p>
17
New cards

Interpupillary line (IPL)

What line is parallel to the IR for a PA axial (Caldwell Method)?

<p>What line is parallel to the IR for a PA axial (Caldwell Method)?</p>
18
New cards

Frontal and Ethmoid

What sinuses are clearly demonstrated on the PA axial (Caldwell Method)?

<p>What sinuses are clearly demonstrated on the PA axial (Caldwell Method)?</p>
19
New cards

Lower 1/3 of orbits

Where are the petrous ridges located in a PA axial (Caldwell Method) radiograph?

<p>Where are the petrous ridges located in a PA axial (Caldwell Method) radiograph?</p>
20
New cards

Frontal Sinuses

A

<p>A</p>
21
New cards

Ethmoid Sinuses

B

<p>B</p>
22
New cards

Maxillary Sinus

C

<p>C</p>
23
New cards

Petrous ridge

D

<p>D</p>
24
New cards

Mastoid air cells

E

<p>E</p>
25
New cards

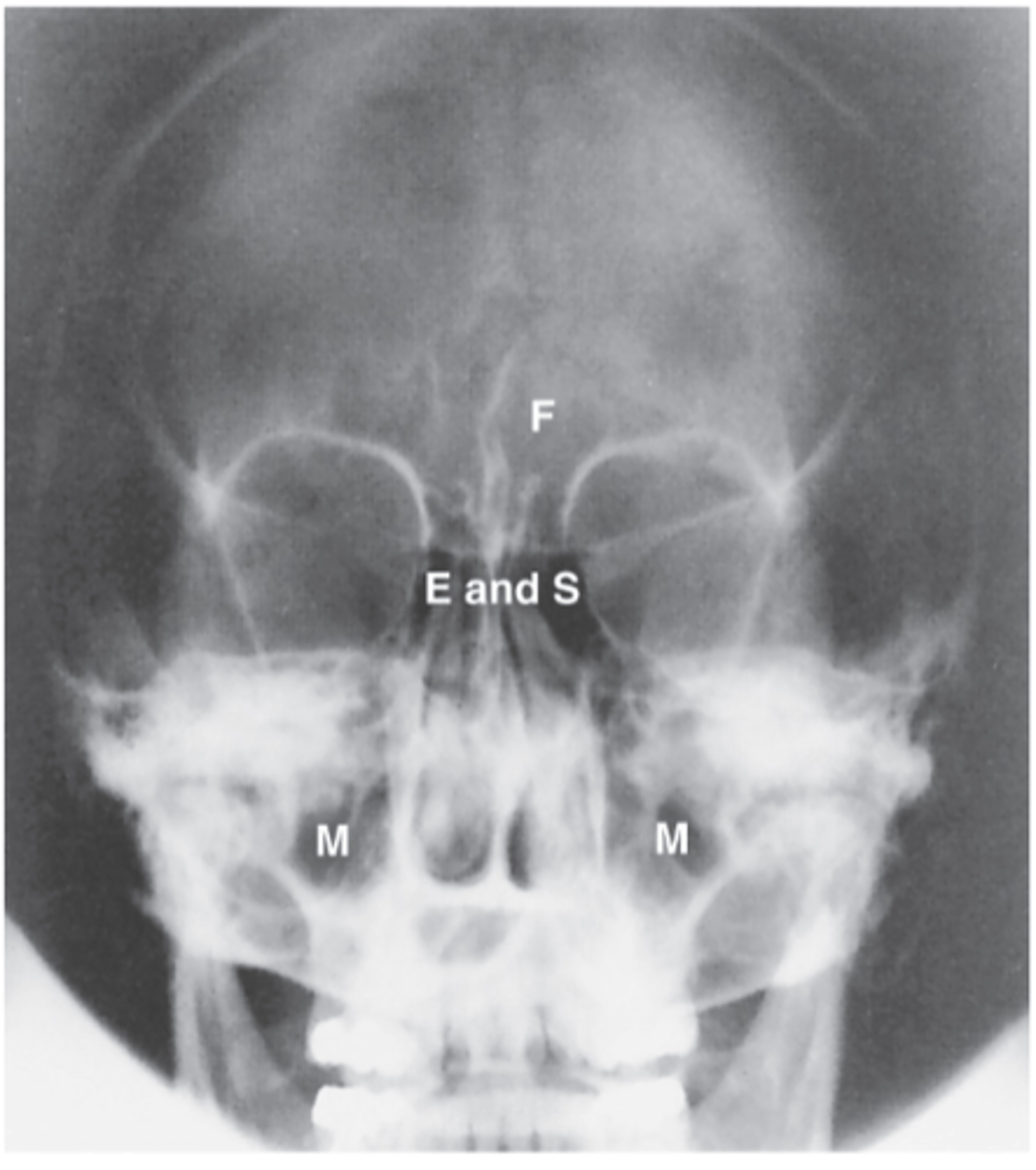

Parietoacanthial (Waters Method)

What projection is this?

<p>What projection is this?</p>
26
New cards

CR to exit at acanthion

What is the CR for the Parietoacanthial (Waters Method)?

<p>What is the CR for the Parietoacanthial (Waters Method)?</p>
27
New cards

MML perpendicular to IR

What line should be perpendicular to the IR on a Parietoacanthial (Waters Method)?

<p>What line should be perpendicular to the IR on a Parietoacanthial (Waters Method)?</p>
28
New cards

Maxillary Sinuses

What sinuses are best demonstrated on the Parietoacanthial (Waters Method)?

<p>What sinuses are best demonstrated on the Parietoacanthial (Waters Method)?</p>
29
New cards

37 degree angle from IR plane

What angle should the OML be at for a Parietoacanthial (Waters Method)?

<p>What angle should the OML be at for a Parietoacanthial (Waters Method)?</p>
30
New cards

Equidistant lateral border of skull and lateral borders of the orbits

How do we look for rotation/tilt for the PA Caldwell or Waters?

31
New cards

Pretrous ridges lie inferior to maxillary floor

Where do the petrous ridges (pyramids) lie on a Waters radiograph?

32
New cards

Maxillary sinus

A

<p>A</p>
33
New cards

Ethmoid air cells

B

<p>B</p>
34
New cards

Mandible

C

<p>C</p>
35
New cards

Sphenoid Sinus

D

<p>D</p>
36
New cards

Foramen spinosum

E

<p>E</p>
37
New cards

Mandibular condyle

F

<p>F</p>
38
New cards

Dens or odontoid process

G

<p>G</p>
39
New cards

Petrosa

H

<p>H</p>
40
New cards

Mastoid process

I

<p>I</p>
41
New cards

Occipital bone

J

<p>J</p>
42
New cards

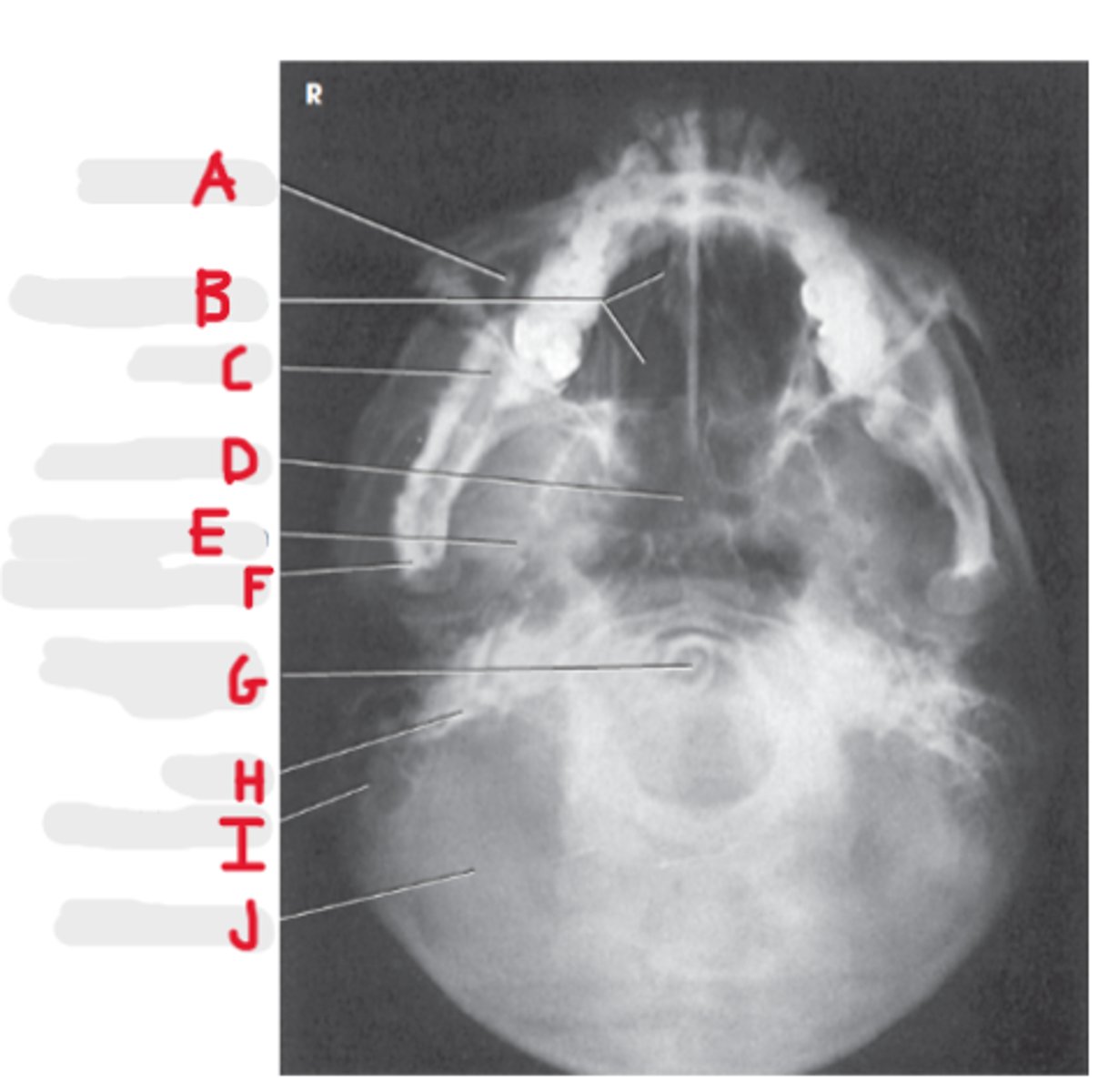

Submentovertex (or vertical) SMV

What projection is this?

<p>What projection is this?</p>
43
New cards

CR - perpendicular to IOML

enters 1-1 1/2 inch below the mentum

What is the CR for the SMV?

<p>What is the CR for the SMV?</p>
44
New cards

Infraorbital meatal line (IOML)

What line is parallel to the IR for the SMV?

<p>What line is parallel to the IR for the SMV?</p>
45
New cards

Basal view because it demonstrates the base of the skull

What is the SMV known as and why?

<p>What is the SMV known as and why?</p>
46
New cards

Sphenoid and ethmoid

What sinuses are best demonstrated on an SMV?

<p>What sinuses are best demonstrated on an SMV?</p>
47
New cards

Look for equidistant lateral border of skull to mandibular condyles

How do we look for rotation/tilt on an SMV radiograph?

<p>How do we look for rotation/tilt on an SMV radiograph?</p>
48
New cards

Lateral (affected side only)

PA Caldwell

Waters

SMV

What are the routine projections for sinuses?

49
New cards

Parietoacanthial transoral (Open-Mouth Waters Method)

What is the specialty projection for sinuses?

50
New cards

Maxillary sinus

A

<p>A</p>
51
New cards

Upper teeth

B

<p>B</p>
52
New cards

Sphenoid sinuses

C

<p>C</p>
53
New cards

Lower teeth

D

<p>D</p>
54
New cards

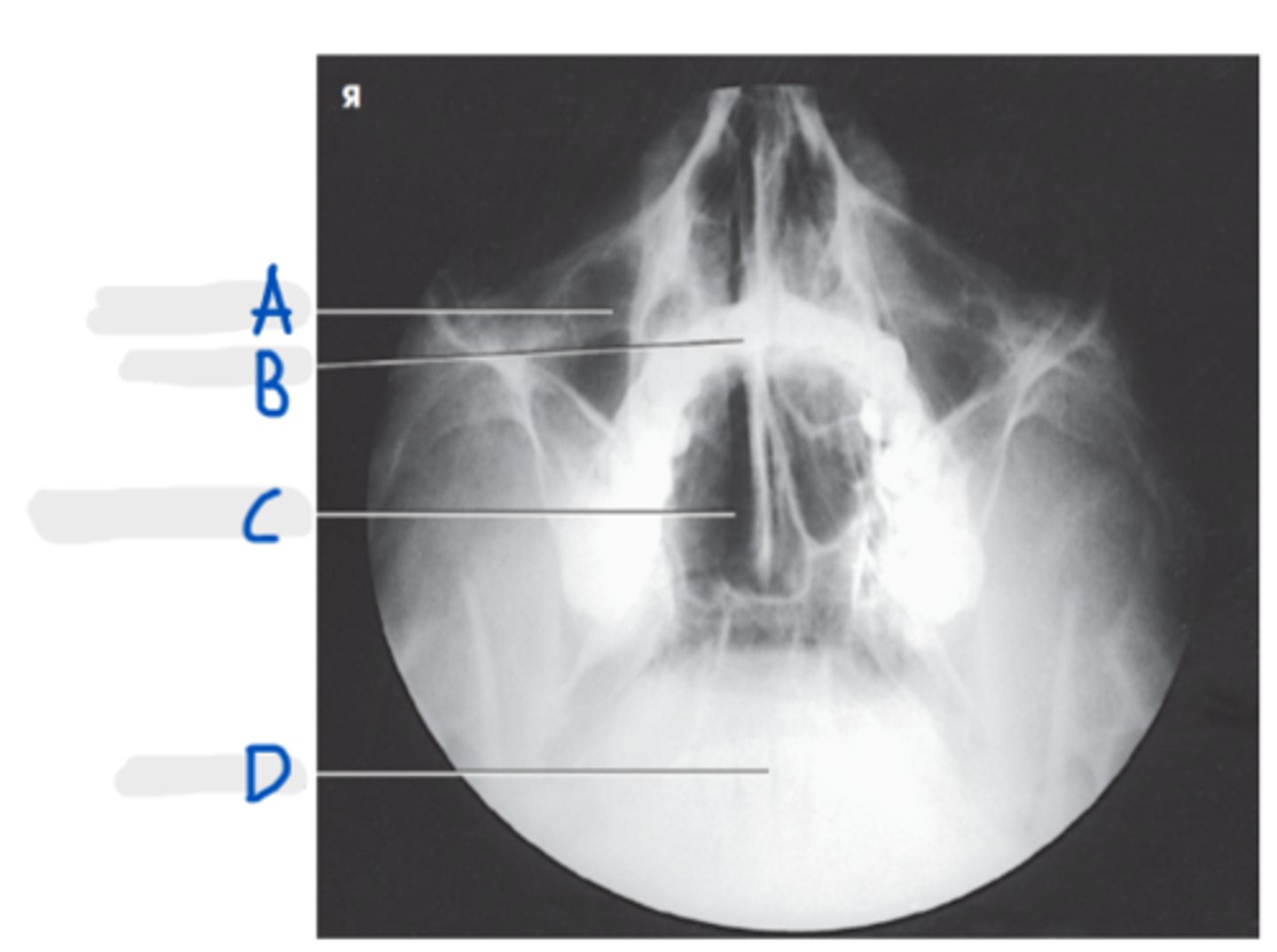

Parietoacanthial Transoral (Open-Mouth Waters)

What projection is this?

<p>What projection is this?</p>
55
New cards

Lips-meatal line (LML)

What line is perpendicular to the IR for PA Transoral (Open-Mouth Waters)?

<p>What line is perpendicular to the IR for PA Transoral (Open-Mouth Waters)?</p>
56
New cards

CR exit at acanthion

What is the CR for a PA Transoral (Open-Mouth Waters)?

<p>What is the CR for a PA Transoral (Open-Mouth Waters)?</p>
57
New cards

AP axial (Townes Method)

PA or PA axial (Caldwell Method)

Lateral (Both)

Submentovertex (SMV)

What are the routine projections for the skull?

58
New cards

PA Haas

What is the special projection for the skull?

59
New cards

Alternate position to the AP axial

When would we use the PA Haas?

60
New cards

Dorsum sellae

A

<p>A</p>
61
New cards

Posterior clinoid process

B

<p>B</p>
62
New cards

Petrous ridge

C

<p>C</p>
63
New cards

Foramen magnum

D

<p>D</p>
64
New cards

Occipital bone

E

<p>E</p>
65
New cards

Parietal bone

F

<p>F</p>
66
New cards

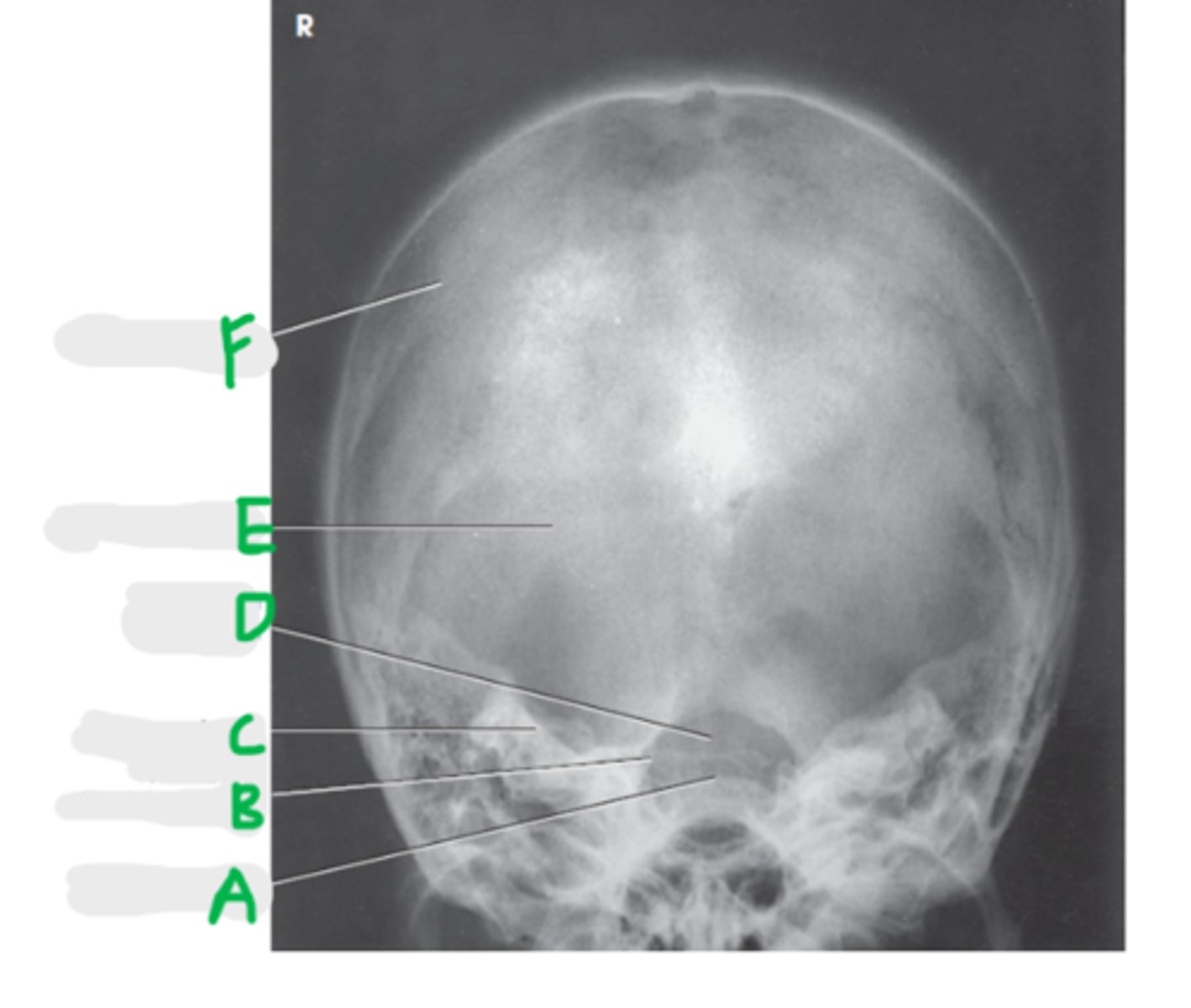

AP axial (Townes Method)

What projection is this?

<p>What projection is this?</p>
67
New cards

CR angled - 30 degree caudad to OML or 37 degree caudad to IOML

CR placement - 2 1/2 inches above the glabella (at hair line)

What is the CR for the AP axial (Townes)?

<p>What is the CR for the AP axial (Townes)?</p>
68
New cards

OML (preferred) or IOML

What line should be perpendicular to the IR?

<p>What line should be perpendicular to the IR?</p>
69
New cards

Dorsum sellae and posterior clinoid processes projected within the foramen magnum

What is demonstrated on the AP axial (Townes)?

<p>What is demonstrated on the AP axial (Townes)?</p>
70
New cards

Equidistant from lateral borders of skull to lateral margin of foramen

Symmetric petrous ridges

How do we look for rotation on an AP axial (Townes) radiograph?

<p>How do we look for rotation on an AP axial (Townes) radiograph?</p>
71
New cards

Coronal Suture

A

<p>A</p>
72
New cards

Orbital roof

B

<p>B</p>
73
New cards

Sella turcica

C

<p>C</p>
74
New cards

Sphenoid sinus

D

<p>D</p>
75
New cards

Petrous portion of temporal bone

E

<p>E</p>
76
New cards

Temporomandibular joint

F (jt)

<p>F (jt)</p>
77
New cards

EAM

G

<p>G</p>
78
New cards

Mandibular rami

H

<p>H</p>
79
New cards

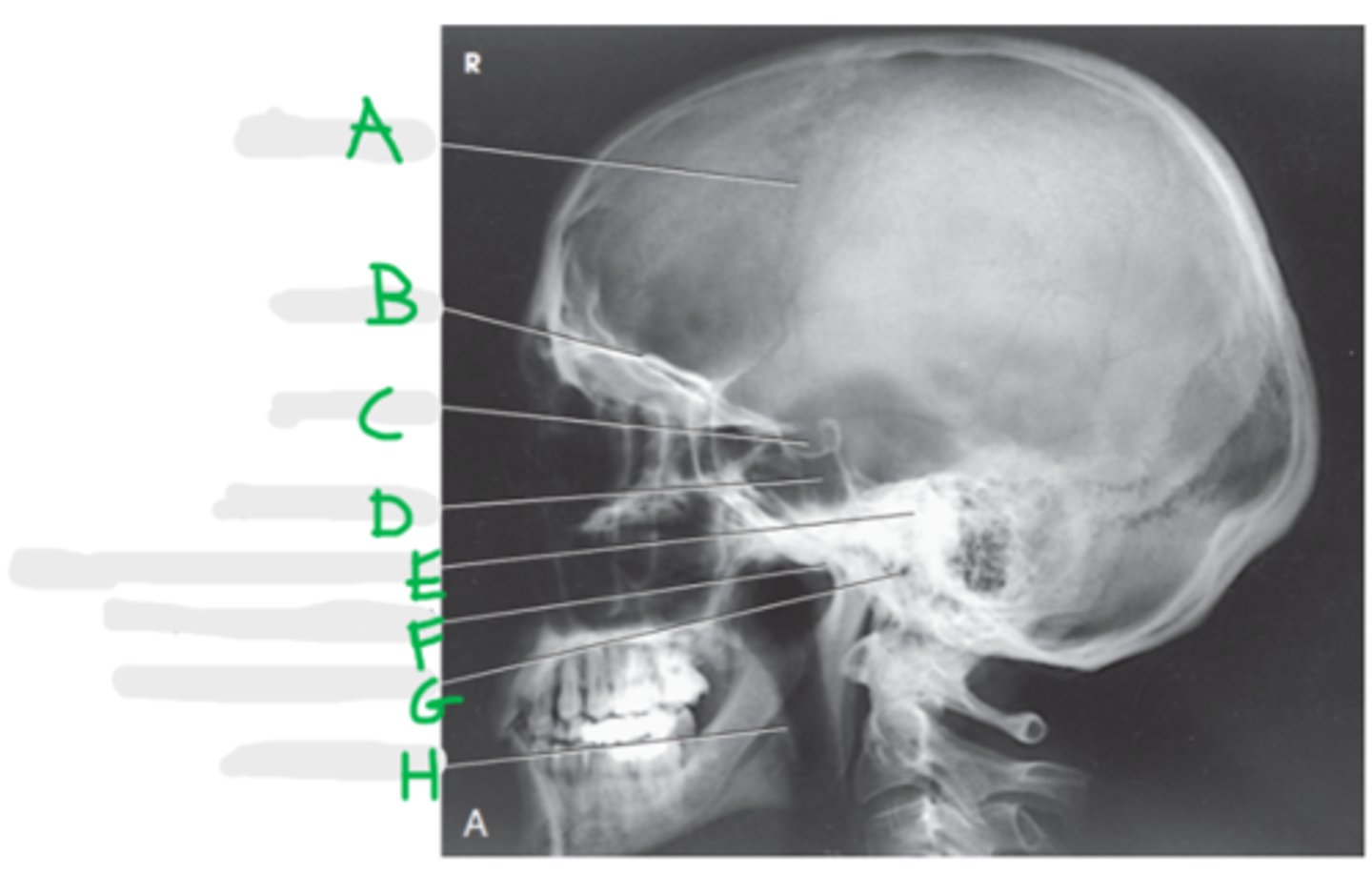

Lateral Skull

What projection is this?

<p>What projection is this?</p>
80
New cards

CR 2 inches superior to EAM

What is the CR for a lateral skull?

<p>What is the CR for a lateral skull?</p>
81
New cards

Interpupillary line (IPL)

What line is perpendicular to the IR for a lateral skull?

<p>What line is perpendicular to the IR for a lateral skull?</p>
82
New cards

IOML and MSP

What line is parallel to the IR?

<p>What line is parallel to the IR?</p>
83
New cards

BOTH!

What lateral do we do for a skull?

<p>What lateral do we do for a skull?</p>
84
New cards

Parietal bone

A

<p>A</p>
85
New cards

Frontal bone

B

<p>B</p>
86
New cards

Dorsum sella

C

<p>C</p>
87
New cards

Supraorbital margin

D

<p>D</p>
88
New cards

Petrous ridge

E

<p>E</p>
89
New cards

Crista galli

F

<p>F</p>
90
New cards

Ethmoidal sinus

G

<p>G</p>
91
New cards

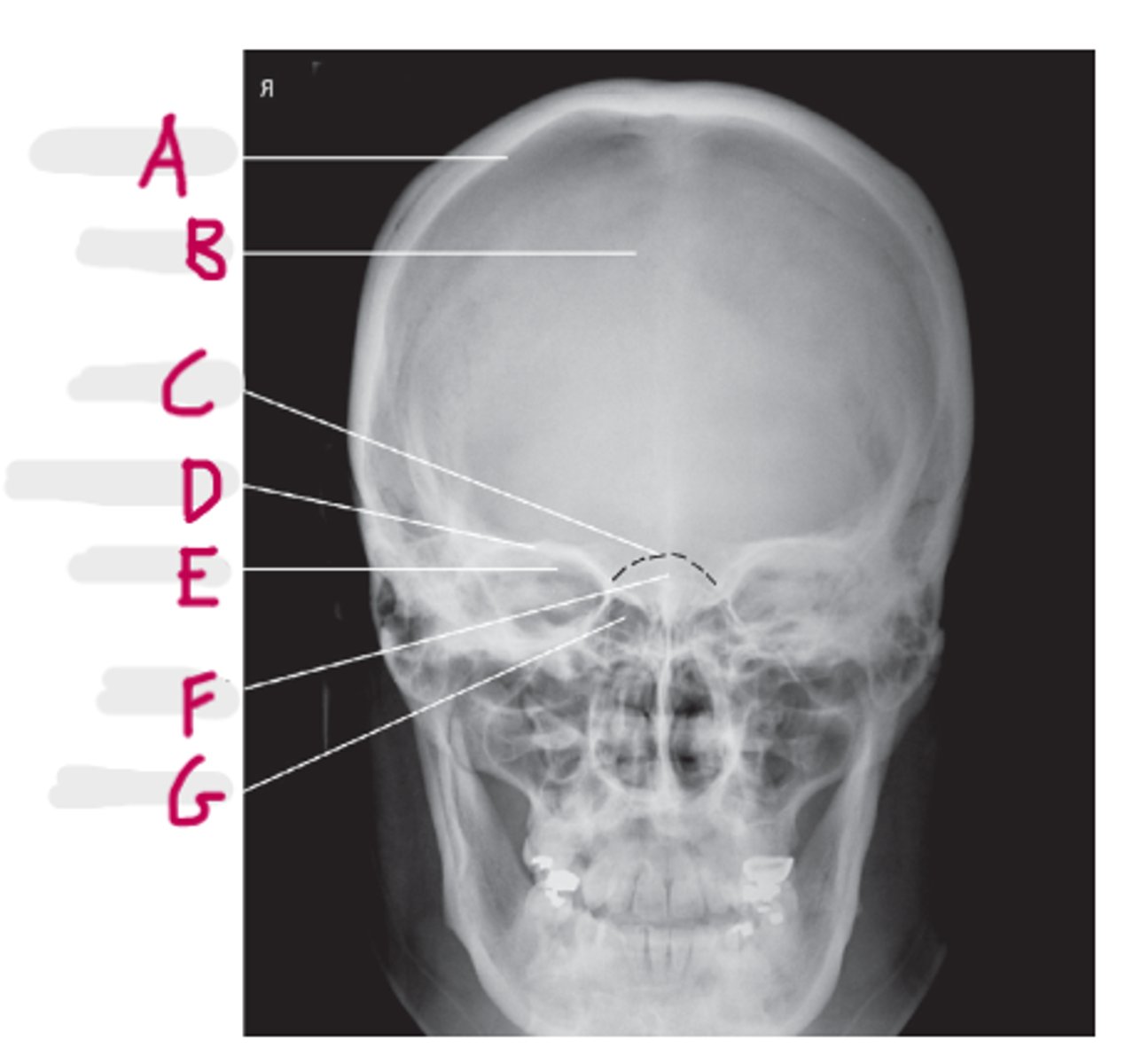

PA Skull

What projection is this?

<p>What projection is this?</p>
92
New cards

Orbits fill the petrous ridges

How can we tell this is a PA skull?

<p>How can we tell this is a PA skull?</p>
93
New cards

CR to exit the nasion

What is the CR for a PA or PA axial (Caldwell) skull?

94
New cards

OML perpendicular to IR

What line should be perpendicular to the IR for a PA or PA axial (Caldwell) skull?

95
New cards

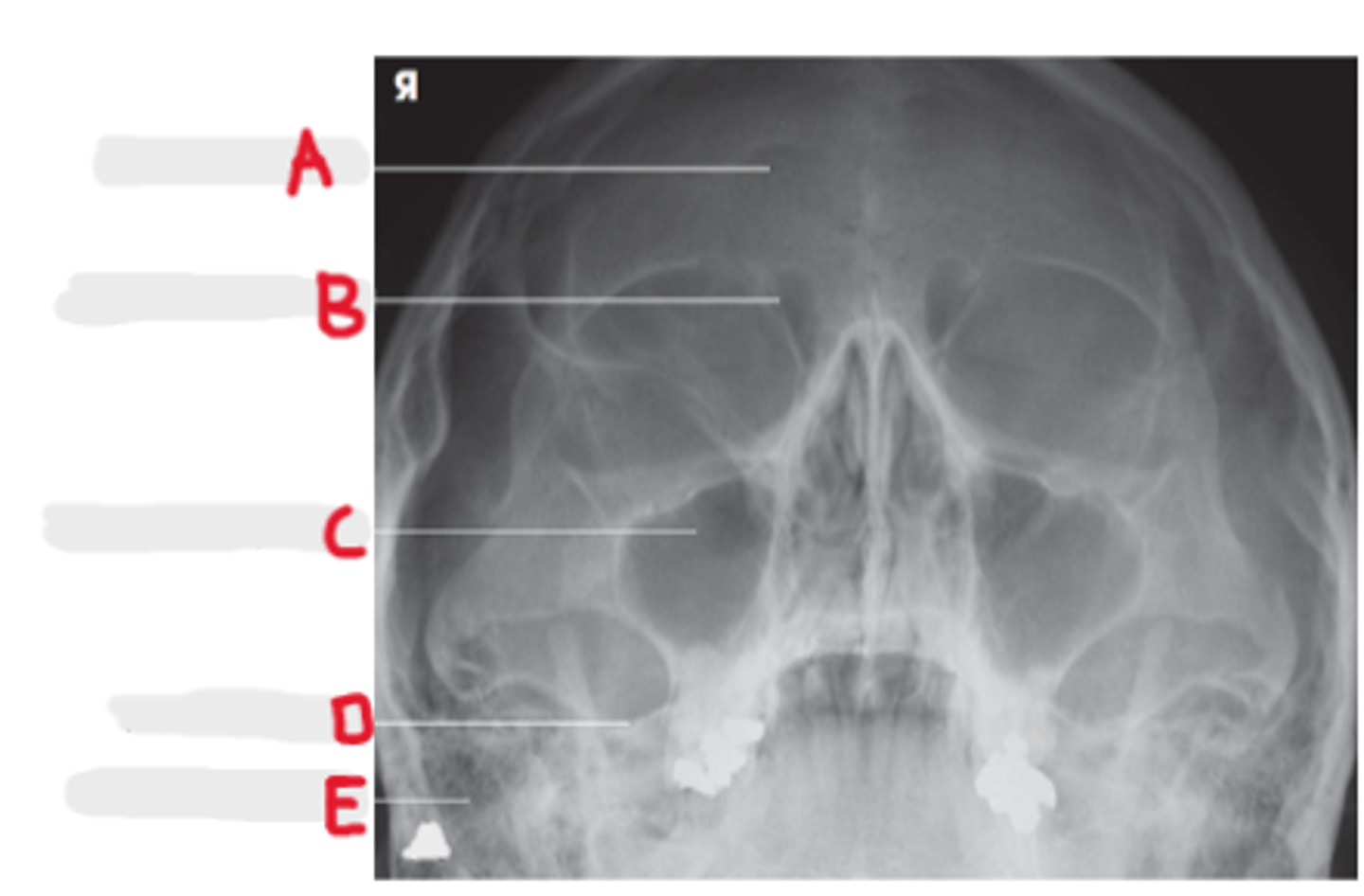

Frontal sinus

A

<p>A</p>
96
New cards

Crista galli

B

<p>B</p>
97
New cards

Superior orbital margin

C

<p>C</p>
98
New cards

Superior orbital fissure

D

<p>D</p>
99
New cards

Ethmoid sinus

E

<p>E</p>
100
New cards

Petrous ridge

F

<p>F</p>
