13 Terms

1
New cards

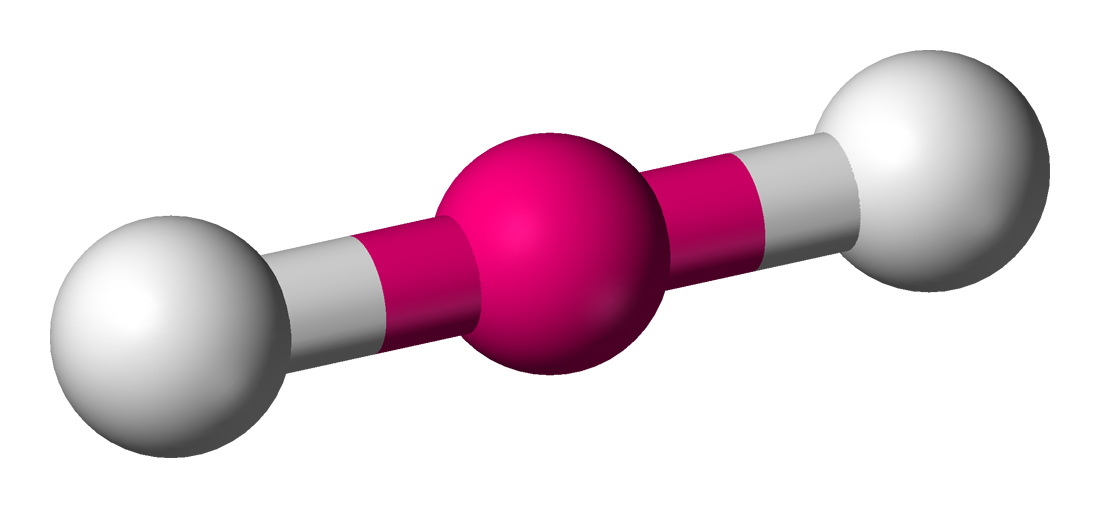

What is the Electron Group Geometry, Molecular Geometry, and bond angle of a Lewis structure with 2 electron groups and 0 lone pairs?

Linear; linear; 180

<p>Linear; linear; 180</p>
2
New cards

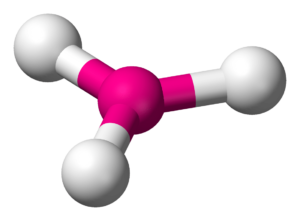

What is the Electron Group Geometry, Molecular Geometry, and bond angle of a Lewis structure with 3 electron groups and 0 lone pairs?

trigonal planar; trigonal planar; 120

<p>trigonal planar; trigonal planar; 120</p>
3
New cards

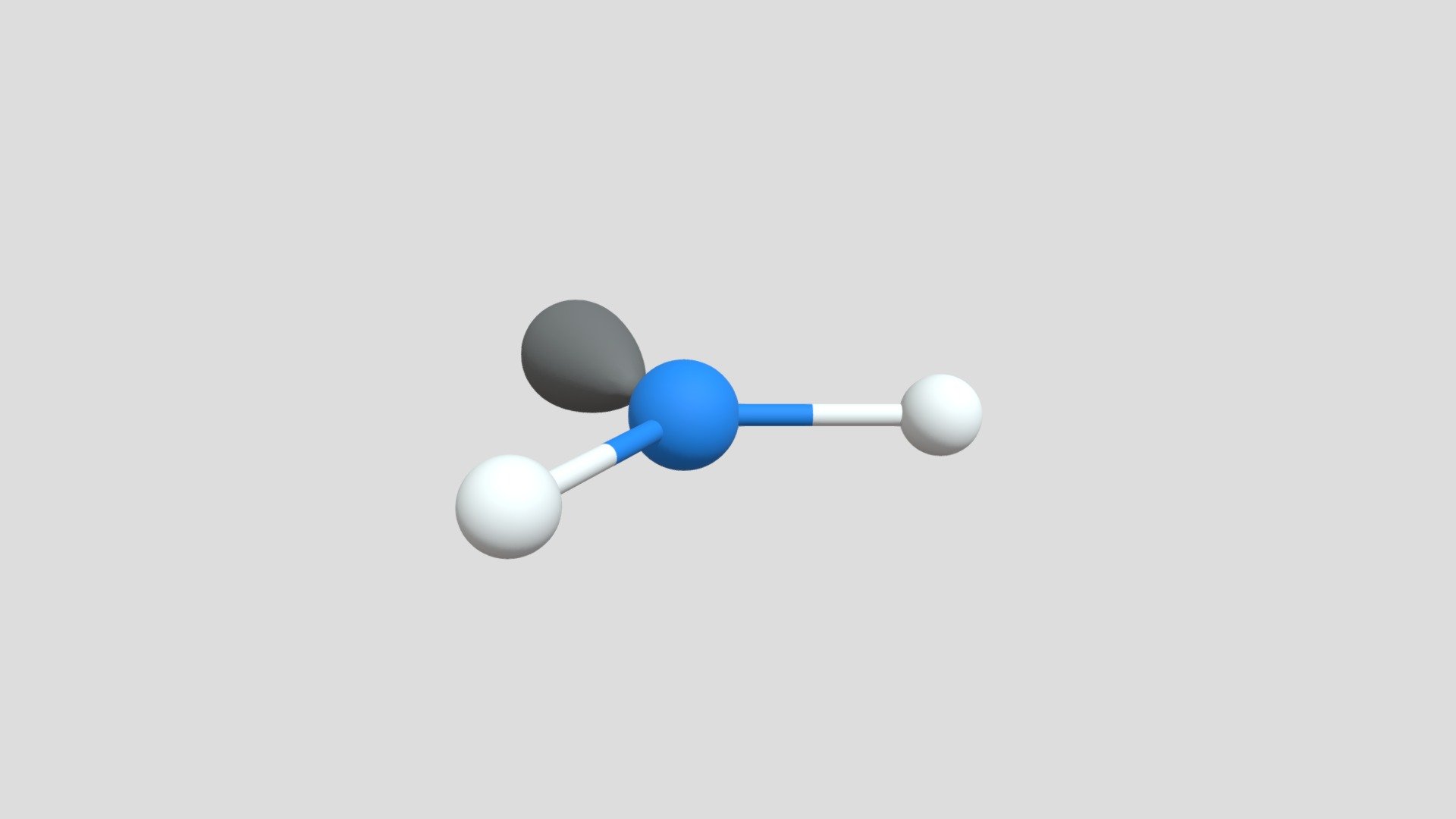

What is the Electron Group Geometry, Molecular Geometry, and bond angle of a Lewis structure with 3 electron groups and 1 lone pair?

trigonal planar; bent; 120

<p>trigonal planar; bent; 120</p>
4
New cards

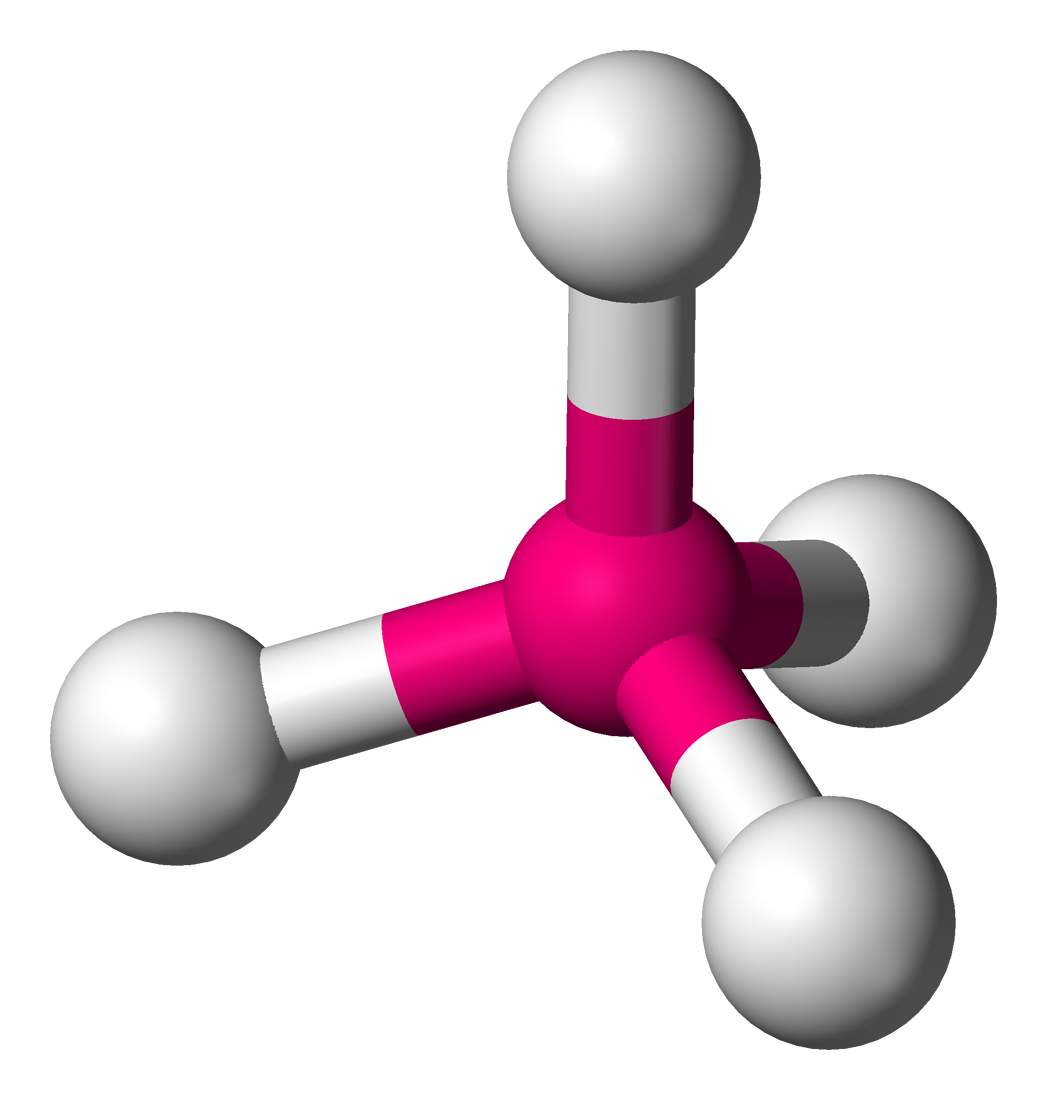

What is the Electron Group Geometry, Molecular Geometry, and bond angle of a Lewis structure with 4 electron groups and 0 lone pairs?

tetrahedral; tetrahedral; 109.5

<p>tetrahedral; tetrahedral; 109.5</p>
5
New cards

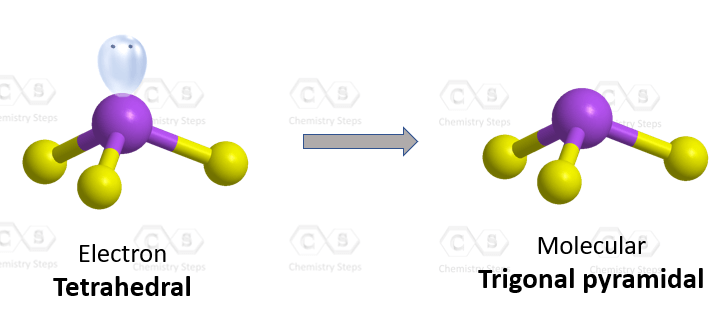

What is the Electron Group Geometry, Molecular Geometry, and bond angle of a Lewis structure with 4 electron groups and 1 lone pair?

tetrahedral; trigonal pyramidal; 109.5

<p>tetrahedral; trigonal pyramidal; 109.5</p>
6
New cards

What is the Electron Group Geometry, Molecular Geometry, and bond angle of a Lewis structure with 4 electron groups and 2 lone pairs?

tetrahedral; bent; 109.5

<p>tetrahedral; bent; 109.5</p>
7
New cards

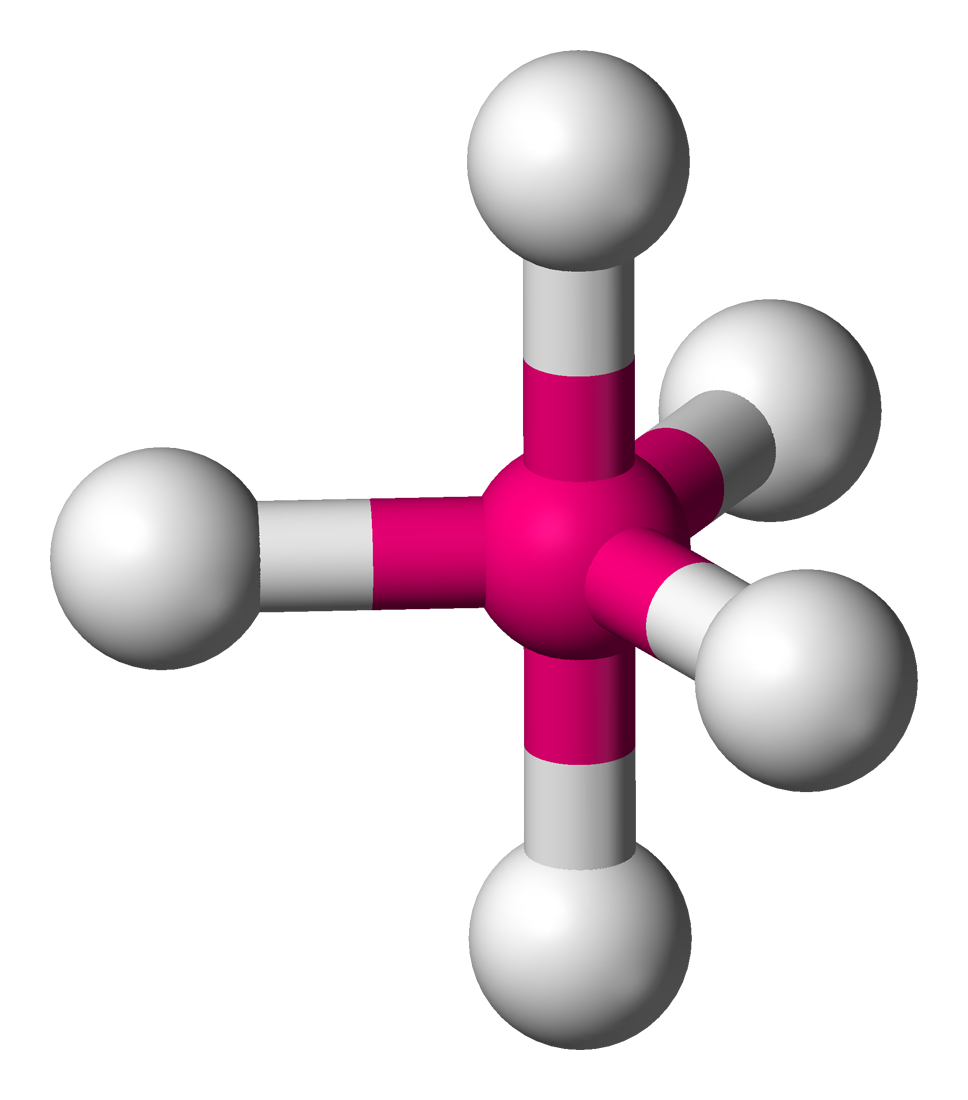

What is the Electron Group Geometry, Molecular Geometry, and bond angle of a Lewis structure with 5 electron groups and 0 lone pairs?

trigonal bipyramidal; trigonal bipyramidal; 90, 120, 180

<p>trigonal bipyramidal; trigonal bipyramidal; 90, 120, 180</p>
8
New cards

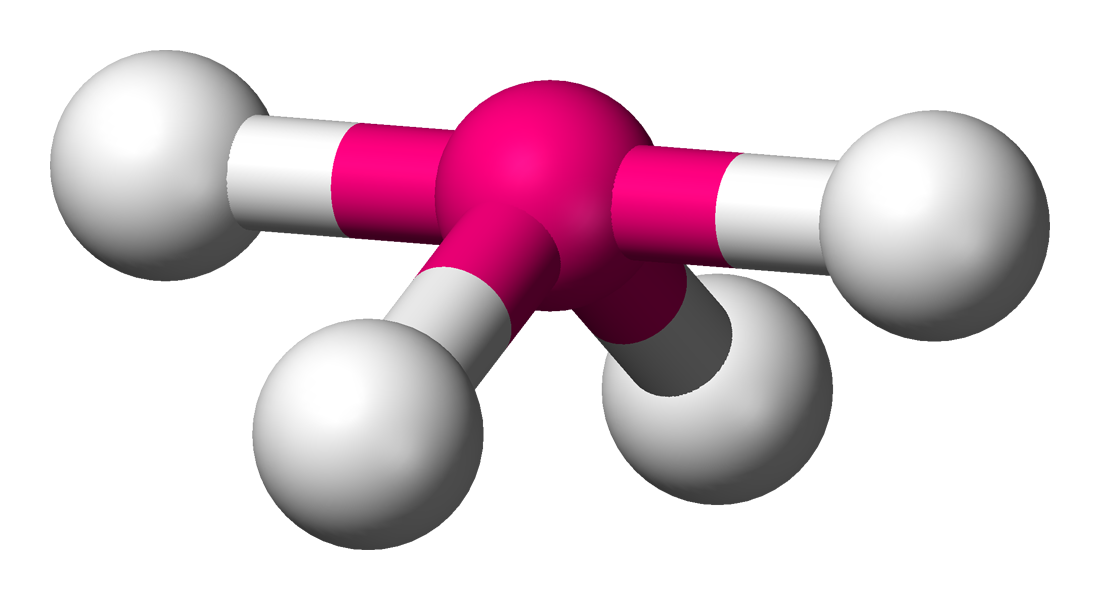

What is the Electron Group Geometry, Molecular Geometry, and bond angle of a Lewis structure with 5 electron groups and 1 lone pair?

trigonal bipyramidal; seesaw; 90, 120, 180

<p>trigonal bipyramidal; seesaw; 90, 120, 180</p>
9
New cards

What is the Electron Group Geometry, Molecular Geometry, and bond angle of a Lewis structure with 5 electron groups and 2 lone pairs?

trigonal bipyramidal; T-shape; 90, 180

<p>trigonal bipyramidal; T-shape; 90, 180</p>
10
New cards

What is the Electron Group Geometry, Molecular Geometry, and bond angle of a Lewis structure with 5 electron groups and 3 lone pairs?

trigonal bipyramidal; linear; 180

<p>trigonal bipyramidal; linear; 180</p>
11
New cards

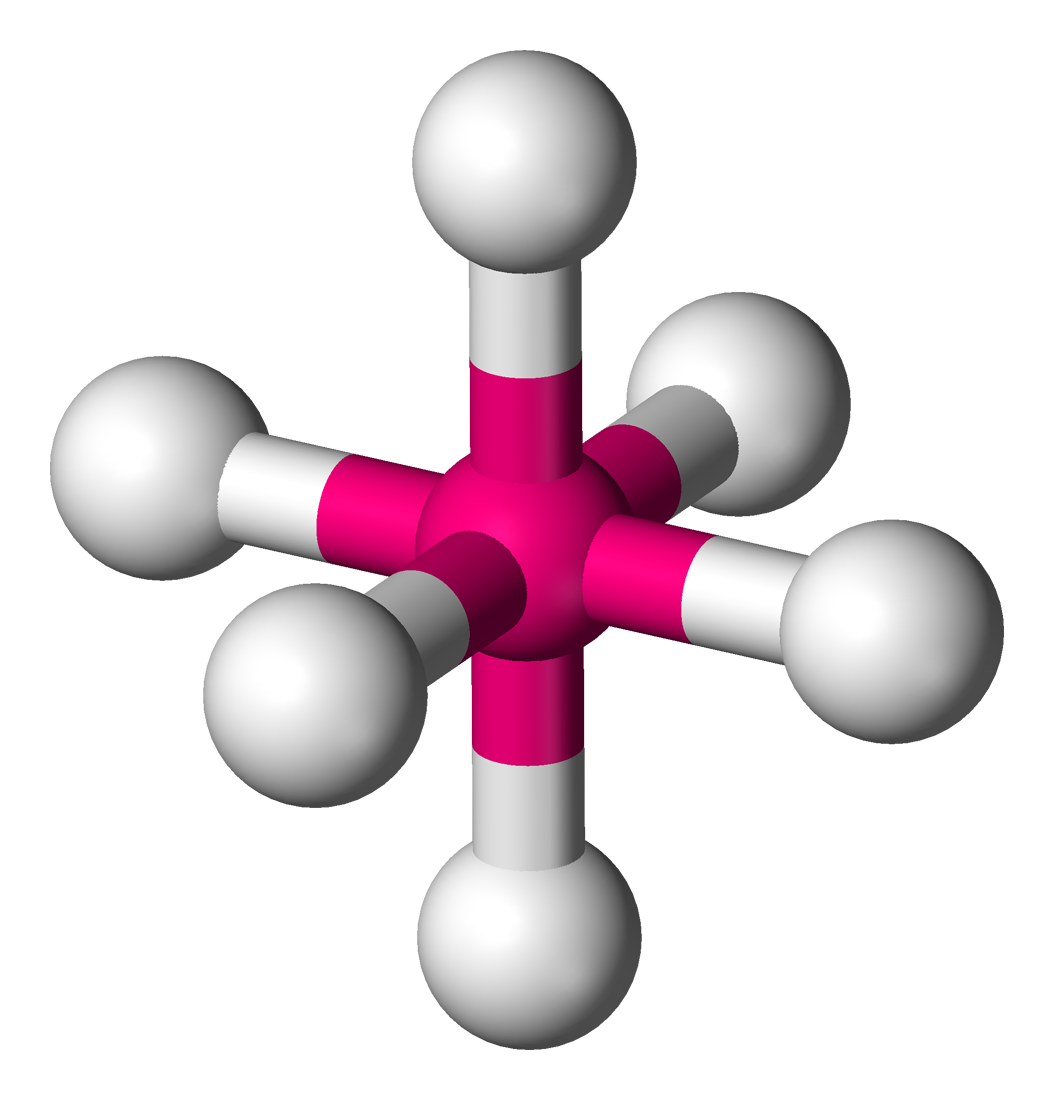

What is the Electron Group Geometry, Molecular Geometry, and bond angle of a Lewis structure with 6 electron groups and 0 lone pairs?

Octahedral; Octahedral; 90, 180

<p>Octahedral; Octahedral; 90, 180</p>
12
New cards

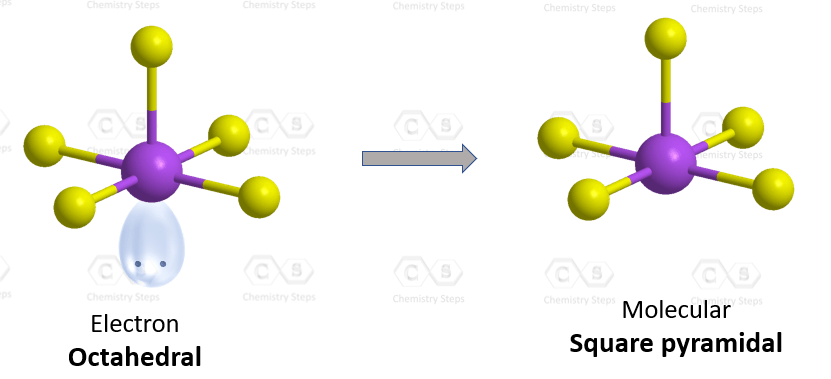

What is the Electron Group Geometry, Molecular Geometry, and bond angle of a Lewis structure with 6 electron groups and 1 lone pair?

Octahedral; square pyramid; 90, 180

<p>Octahedral; square pyramid; 90, 180</p>
13
New cards

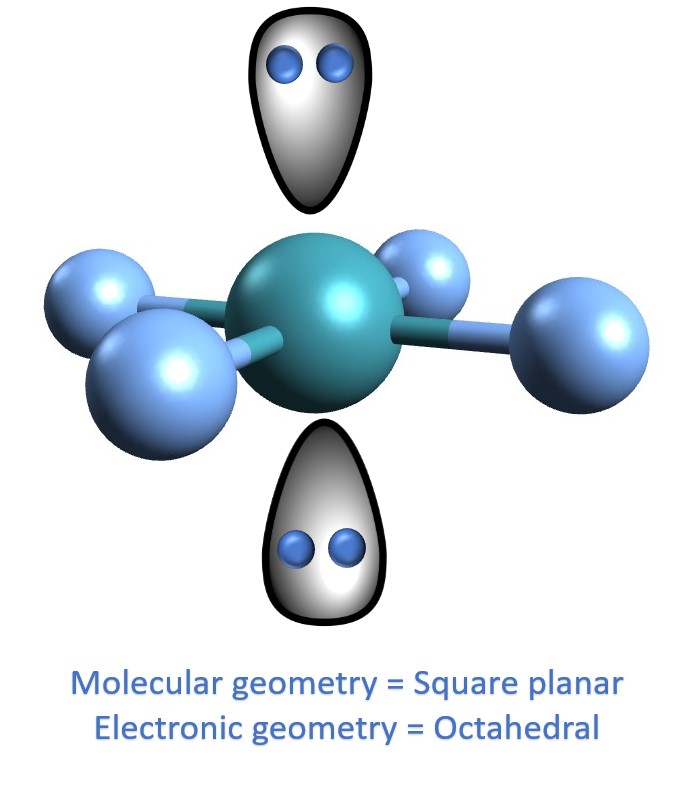

What is the Electron Group Geometry, Molecular Geometry, and bond angle of a Lewis structure with 6 electron groups and 2 lone pairs?

Octahedral; Square planar; 90, 180

<p>Octahedral; Square planar; 90, 180</p>
