BONY LANDMARK (FINAL LAB EXAM)

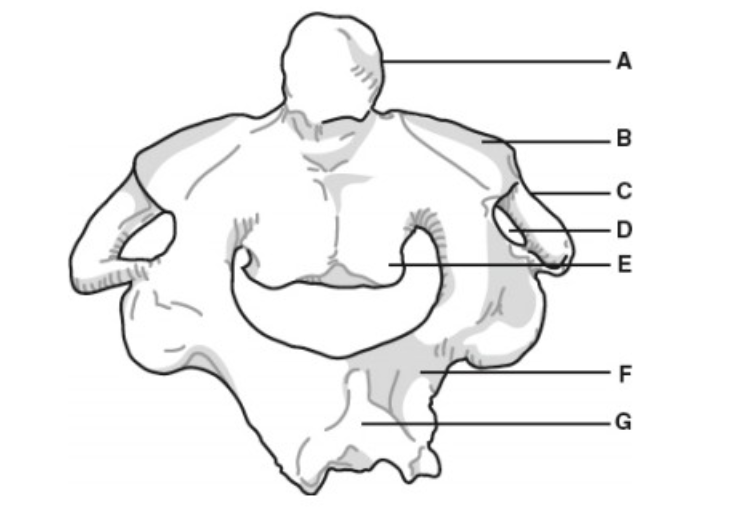

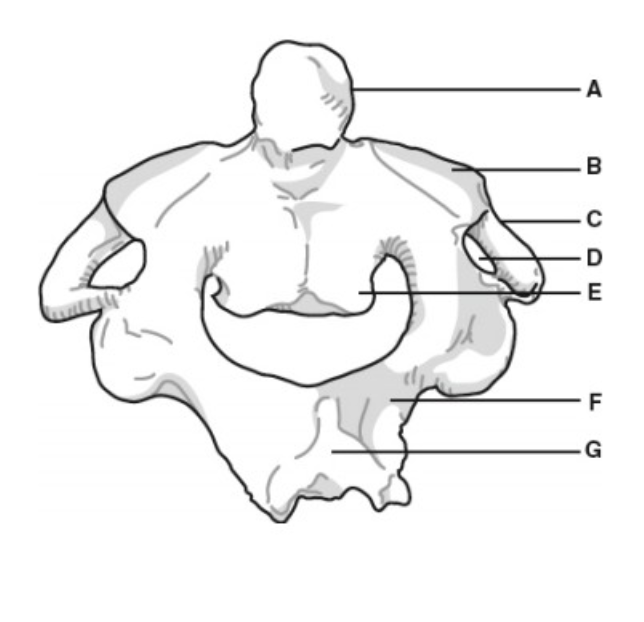

A

Dens

B

Superior Articular Process

C

Transverse Process

D

Transverse Process

E

Body

F

Lamina

G

Spinouse Process

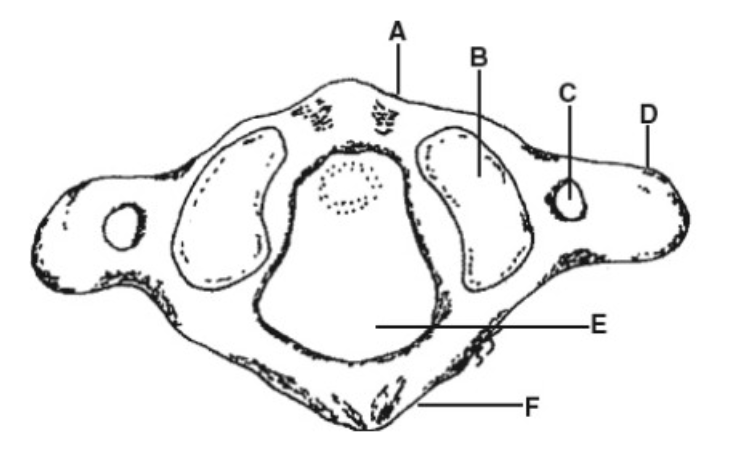

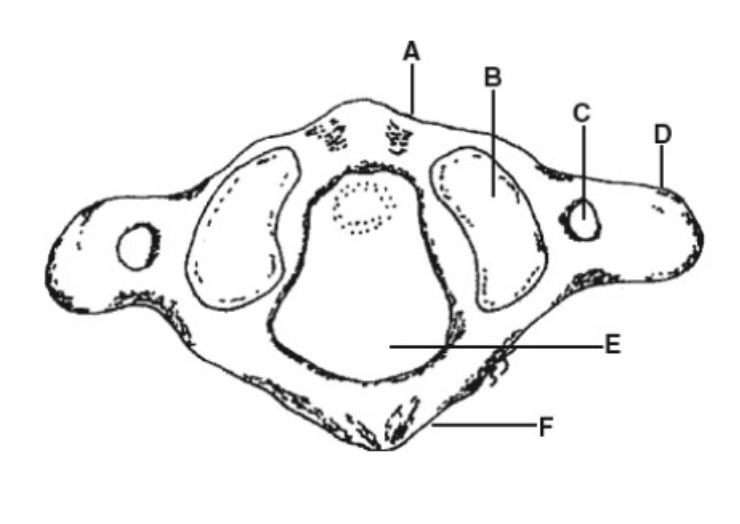

A

Anterior Arch

B

Articular Process

C

Transverse Foramen

D

Transverse Process

E

Vertebral Foramen

F

Posterior Arch

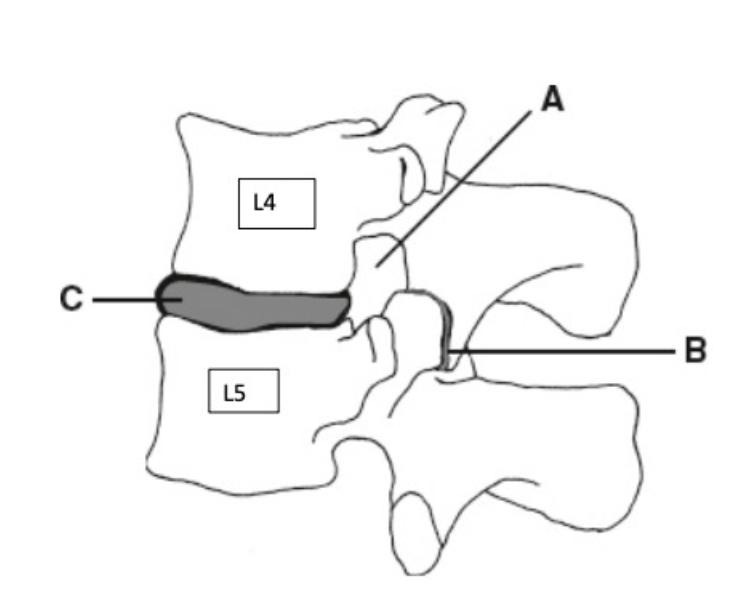

A (what is it and what inserts)

Intervertebral Foramen

L4 Spinal Nerve

B

Facet Joint

C

Intervertebral Disc

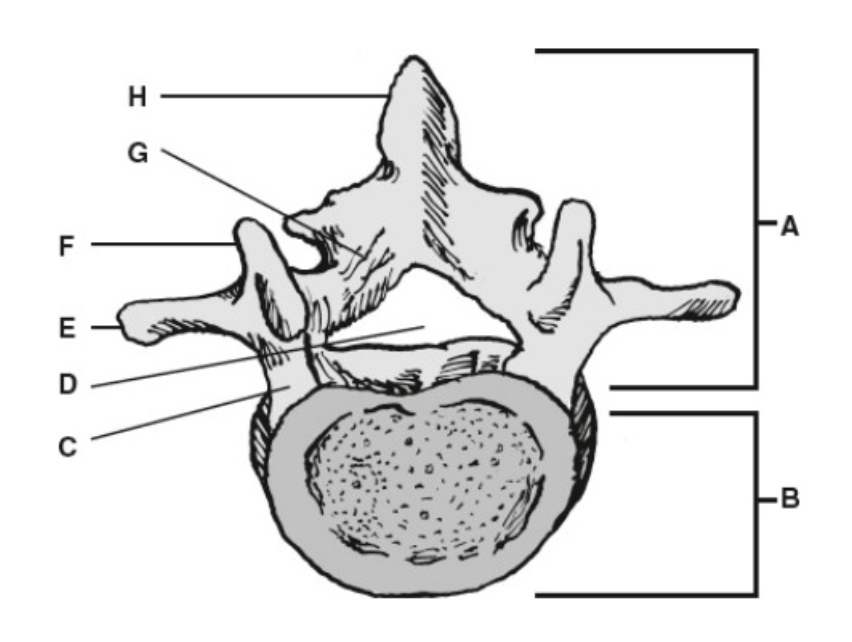

A

Neural Arch

B

Body of Vertebrae

C

Pedicle

D

Vertebral Foramen

E

Transverse Process

F

Superior Articular Process

G

Lamina

H

Spinous Process

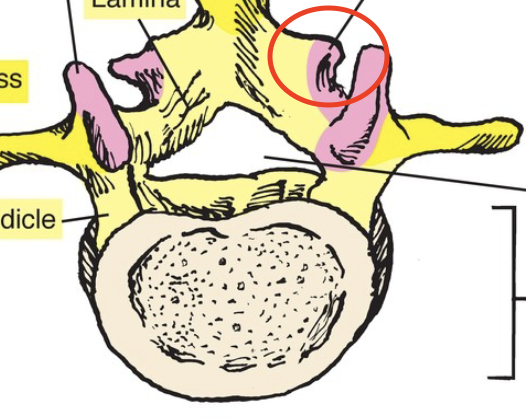

Identify

Inferior Articular Process

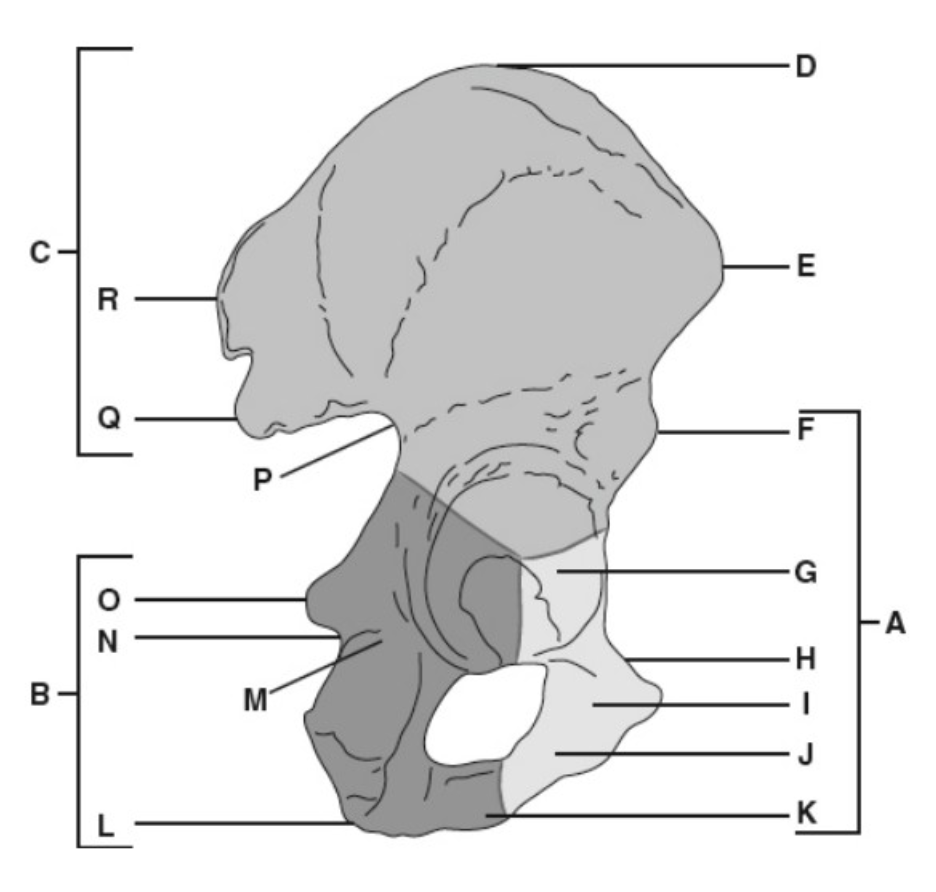

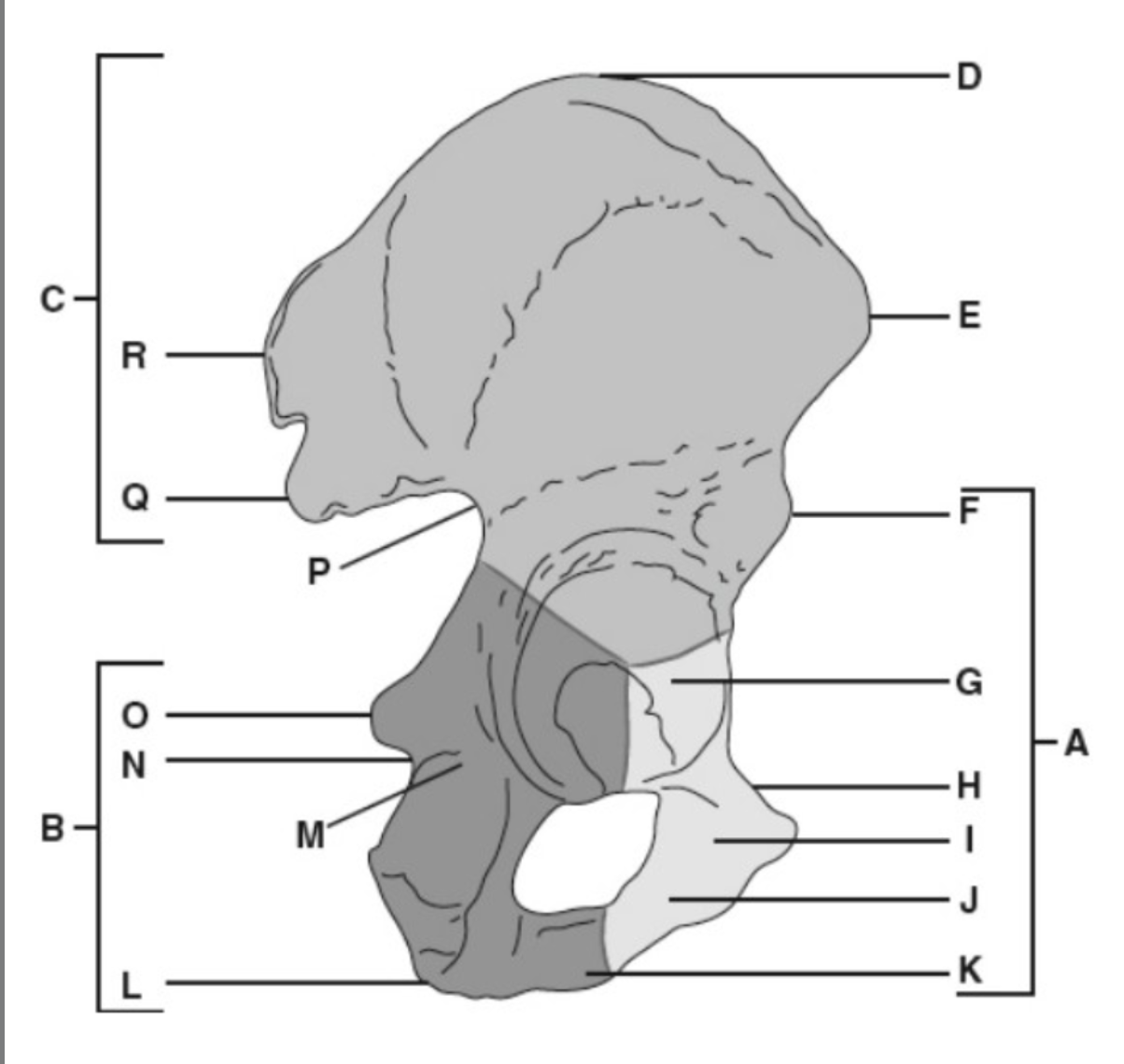

A

Pubis

B

Ischium

C

Ilium

D

Iliac Crest

E

Anterior Superior Iliac Spine (ASIS)

F

Anterior Inferior Iliac Spine (AIIS)

G

Acetabulum

H

Superior Pubic Ramus

I

Pubic Body

(pointy = Pubic Tubercle)

J

Inferior Pubic Ramus

K

Ischial Ramus

L

Ischial Tuberosity

M

Ischial Tuberosity

N

Lesser Sciatic Notch

O

Ischial Spine

P

Greater Sciatic Notch

Q

Posterior Inferior Iliac Spine (PIIS)

R

Posterior Superior Iliac Spine (PSIS)

Identify left to right

Neutral tilt, Posterior tilt, Anterior tilt

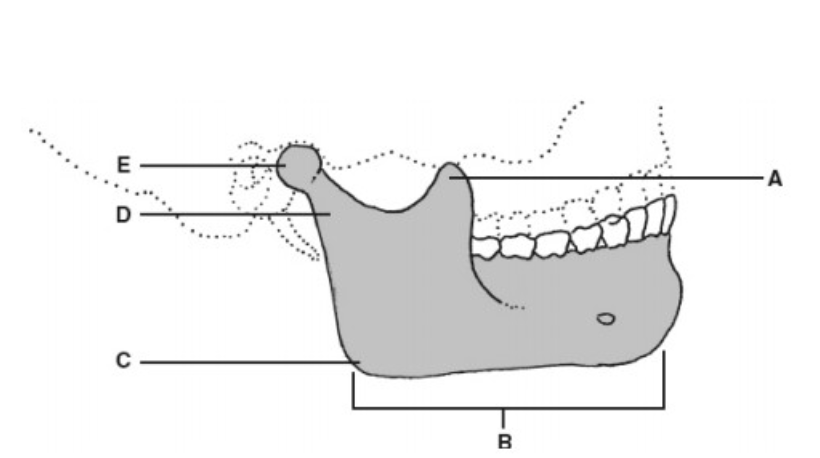

A

Coronoid Process

B

Body of Mandible

C

Angle of Mandible

D

Ramus

E

Condyle

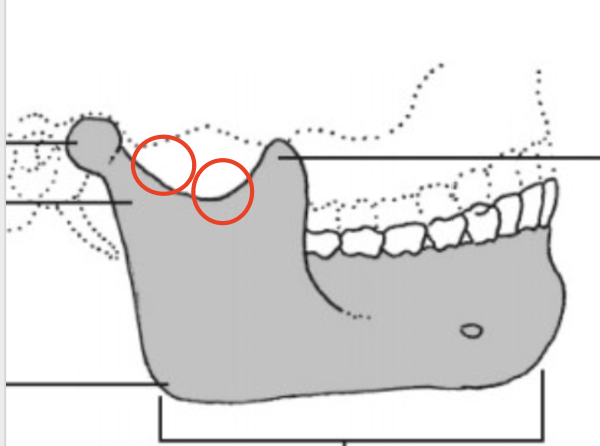

Identify

Neck, Notch

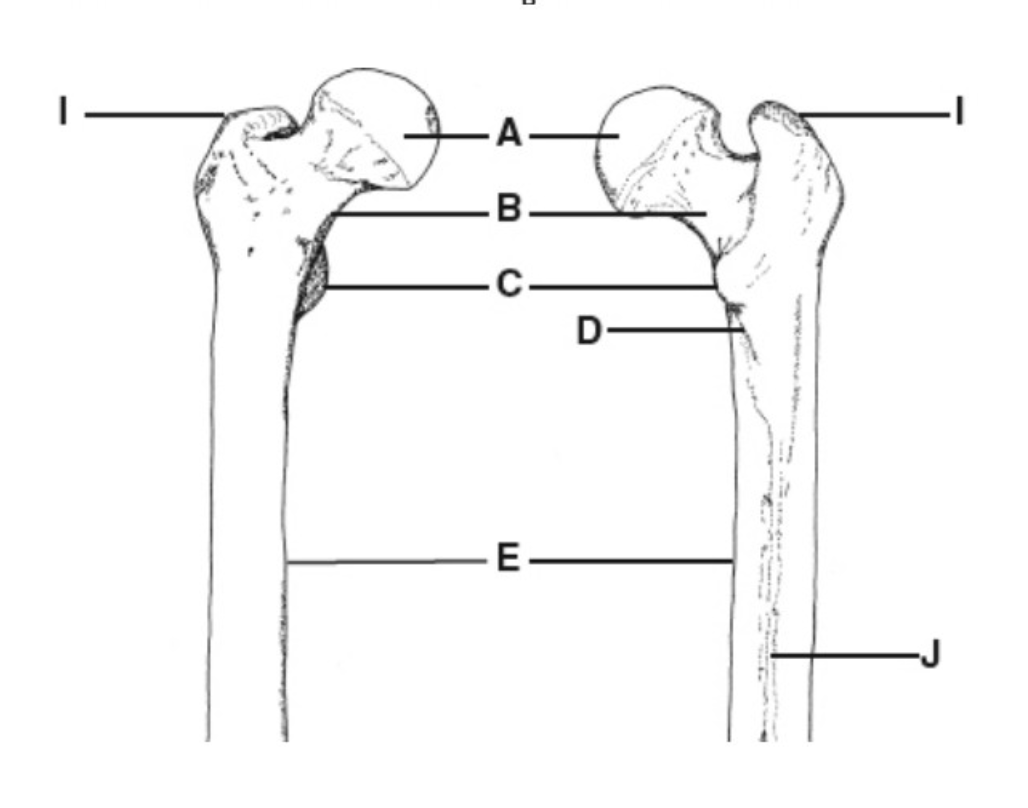

A

Head of Femur

B

Neck of Femur

C

Lesser Trochanter

D

Pectineal Line

E

Body (shaft)

I

Greater Trochanter

J

Linea Aspera

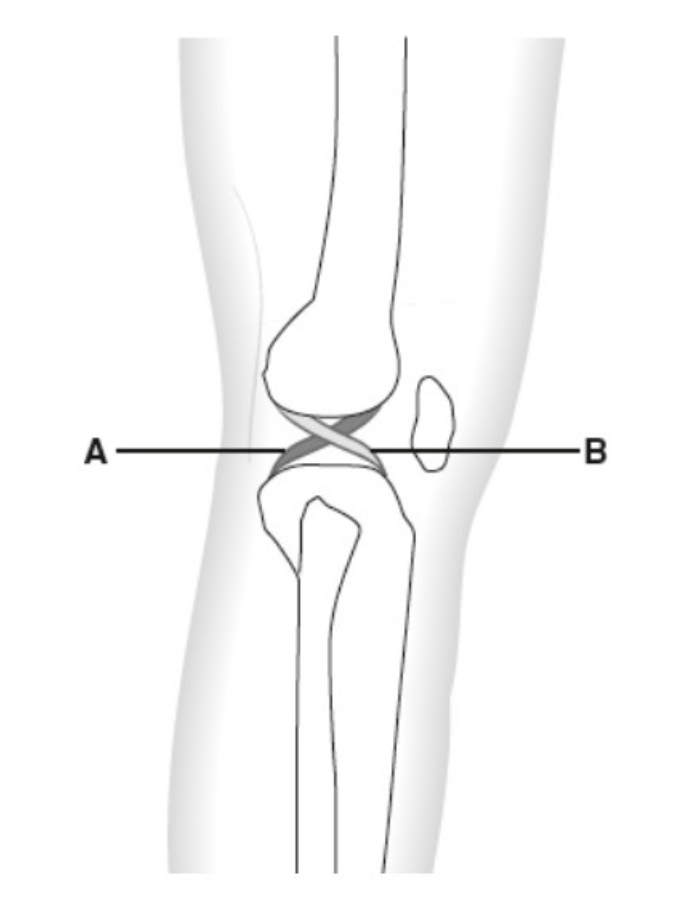

A

Posterior Cruciate Ligament (PCL)

B

Anterior Cruciate Ligemant (ACL)

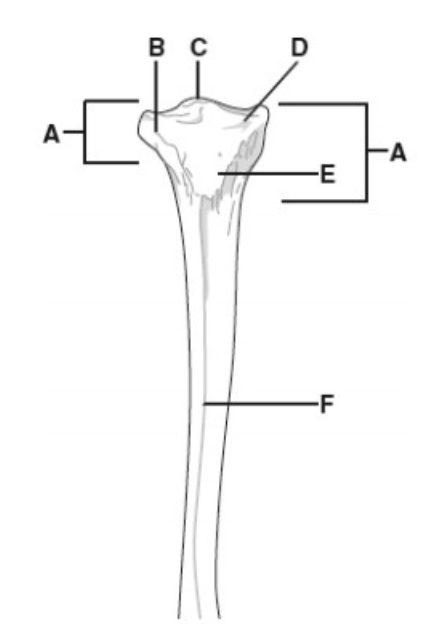

A

Tibial Plateau

B

Lateral Tibial Condyle

C

Intercondylar Eminence

D

Medial Tibial Condyle

E

Tibial Tuberosity

F

Crest of Tibia

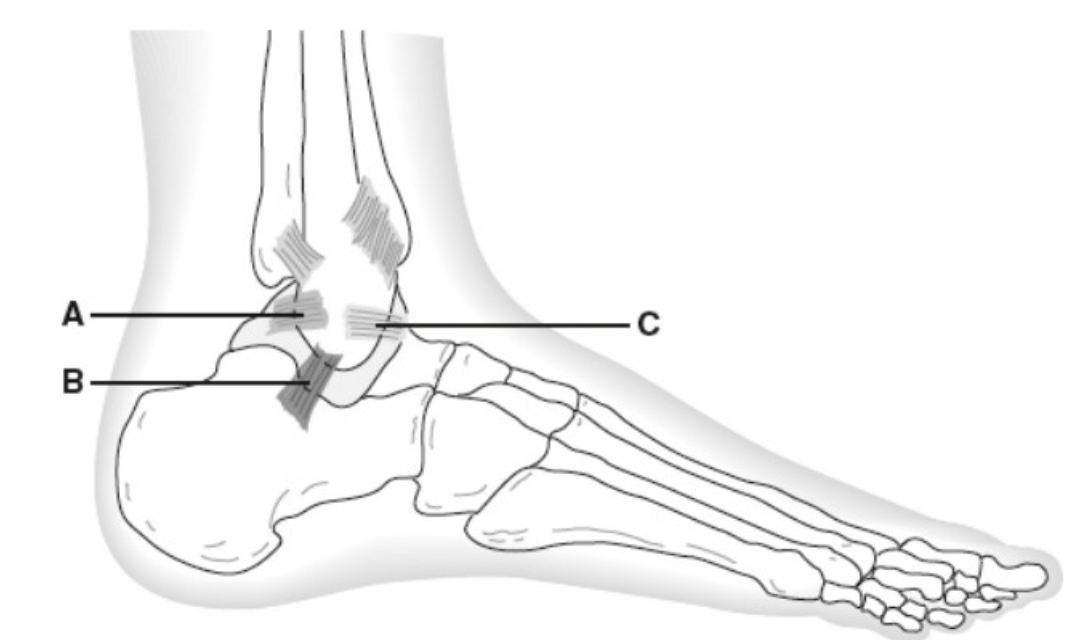

A

Posterior Talofibular Ligament

B

Calcaneofibular Ligament

C

Anterior Talofibular Ligament

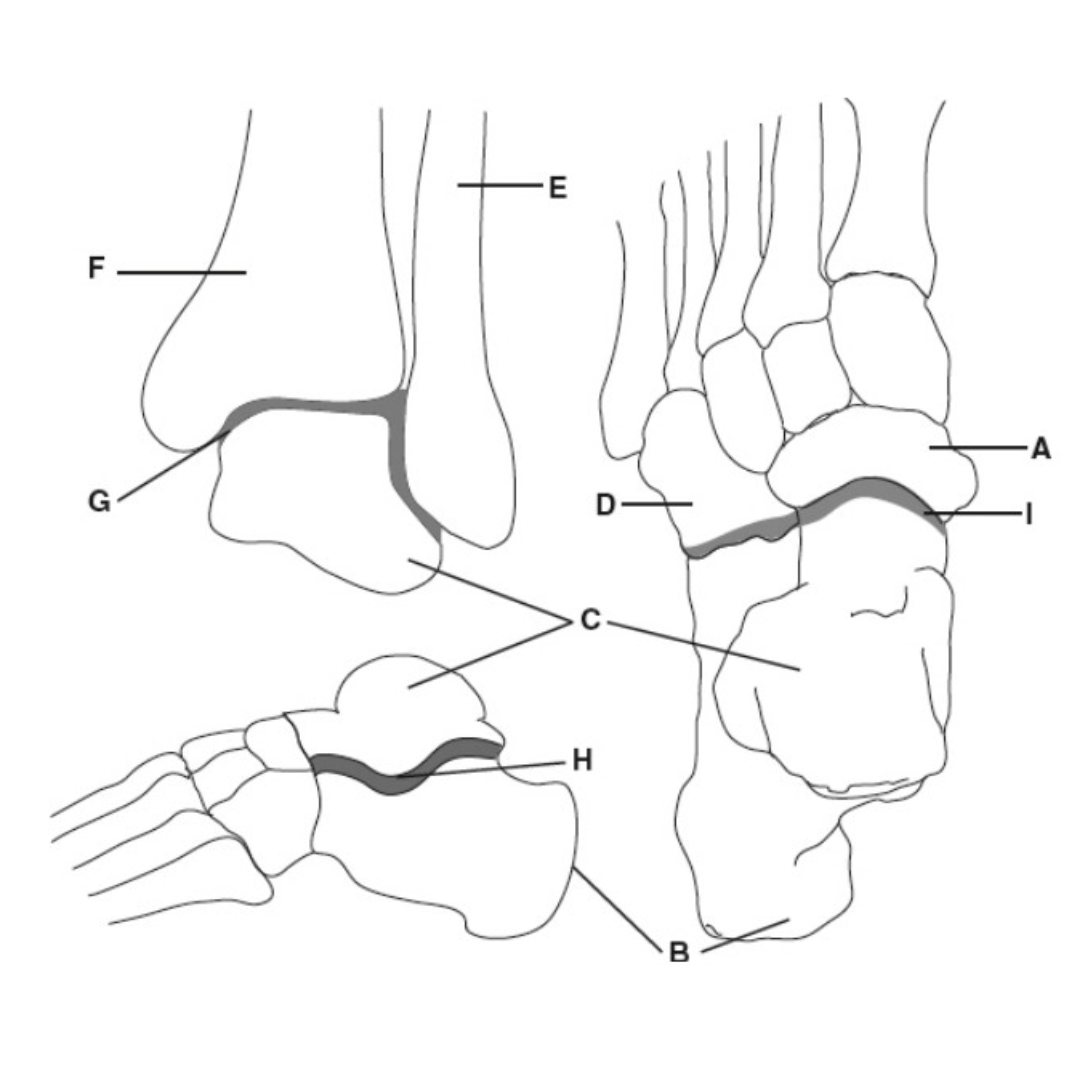

A

Navicular

B

Calcaneus

C

Talus

D

Cuboid

E

Fibular

F

Tibia

G

Talocrural Joint

H

Subtular Joint

I

Transverse Tarsal Joint

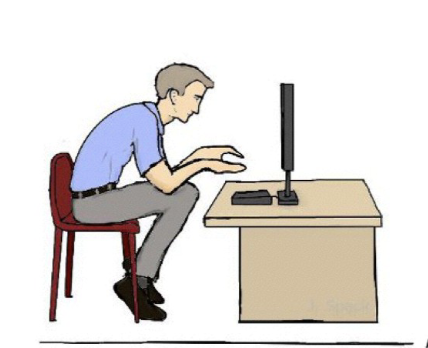

Describe posture

Cervical Protraction

Increase Thoracic Kyphosis

Decreased Lumbar Lordosis

Posterior Pelvic Tilt

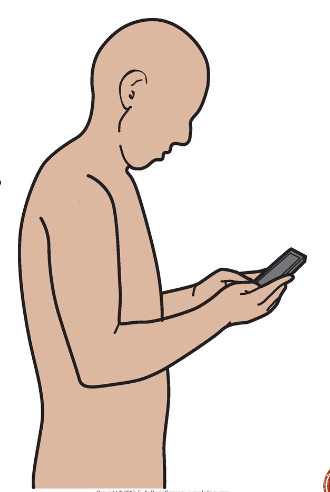

Describe Posture

Upper and Lower Cervical Flexion (text neck)

Describe Posture

Neck Protraction

Lower cervical flexion

Upper cervical extension

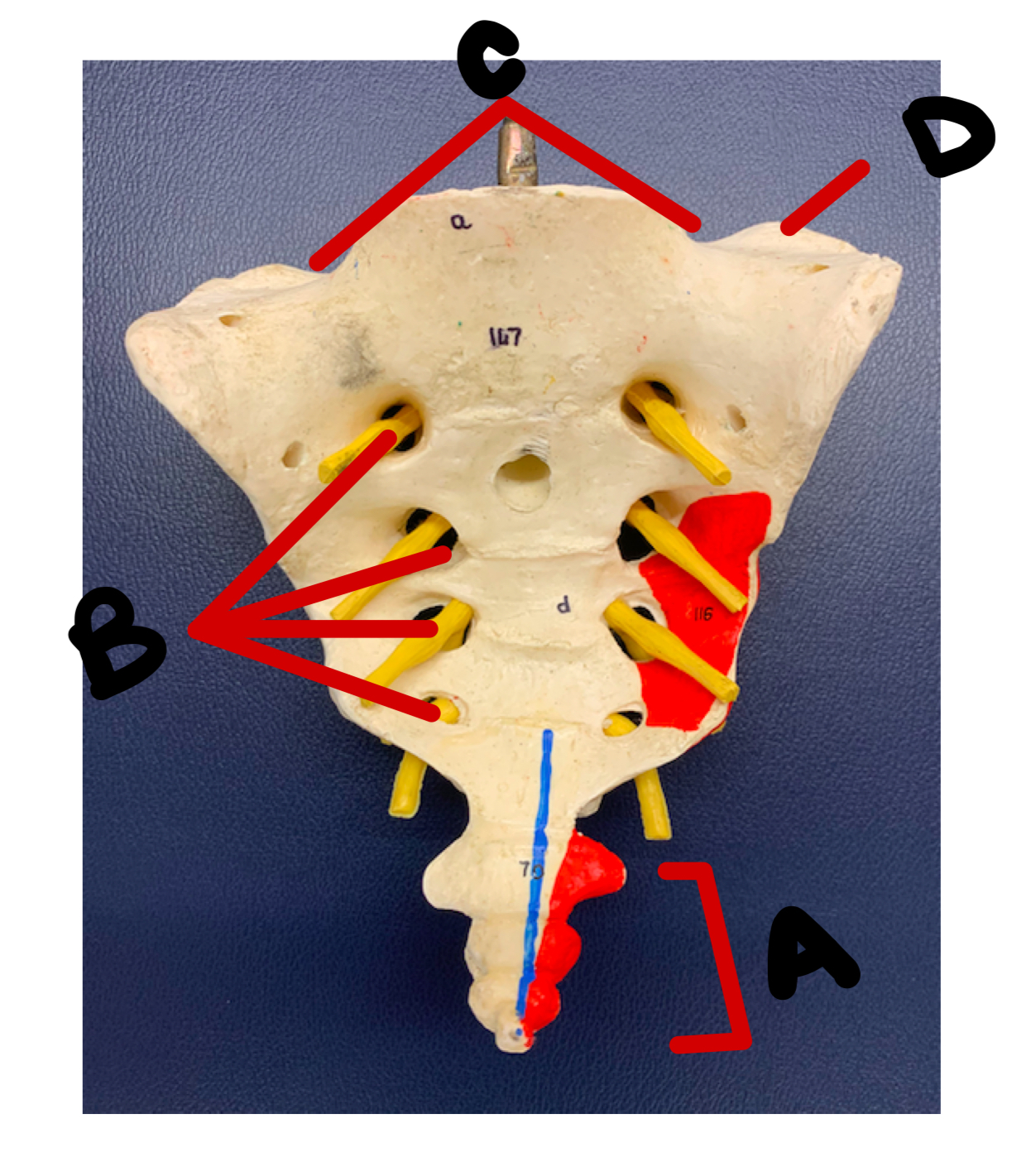

A

Coccyx

B (what and inserts)

Anterior Sacral Foramina

Sacral Nerves (S1-S4)

C

Superior Articular Process

D

Ala

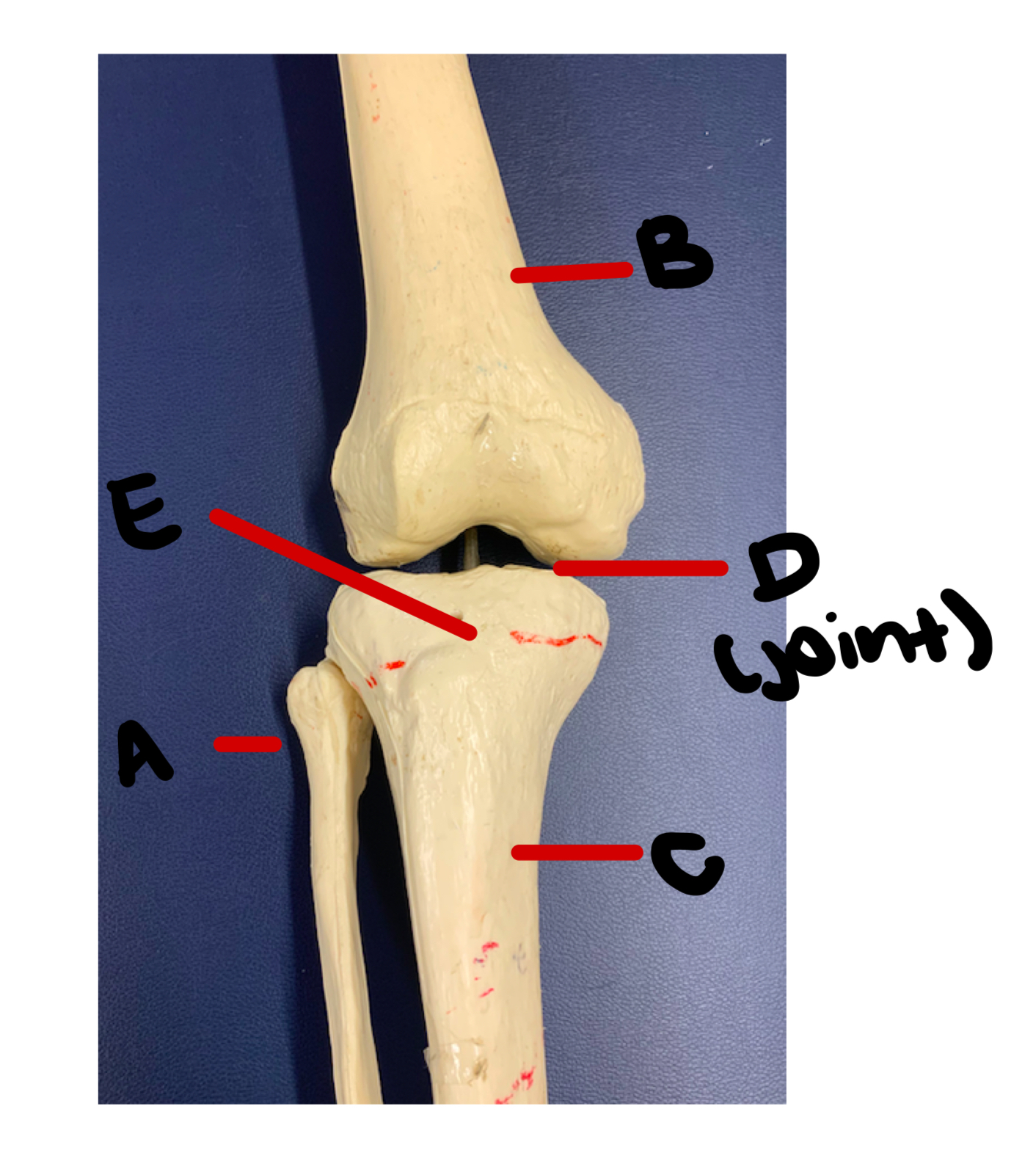

A, B, C

Fibula, Femur, Tibia

D

Tibiofemoral Joint

E

Tibial Tuberosity

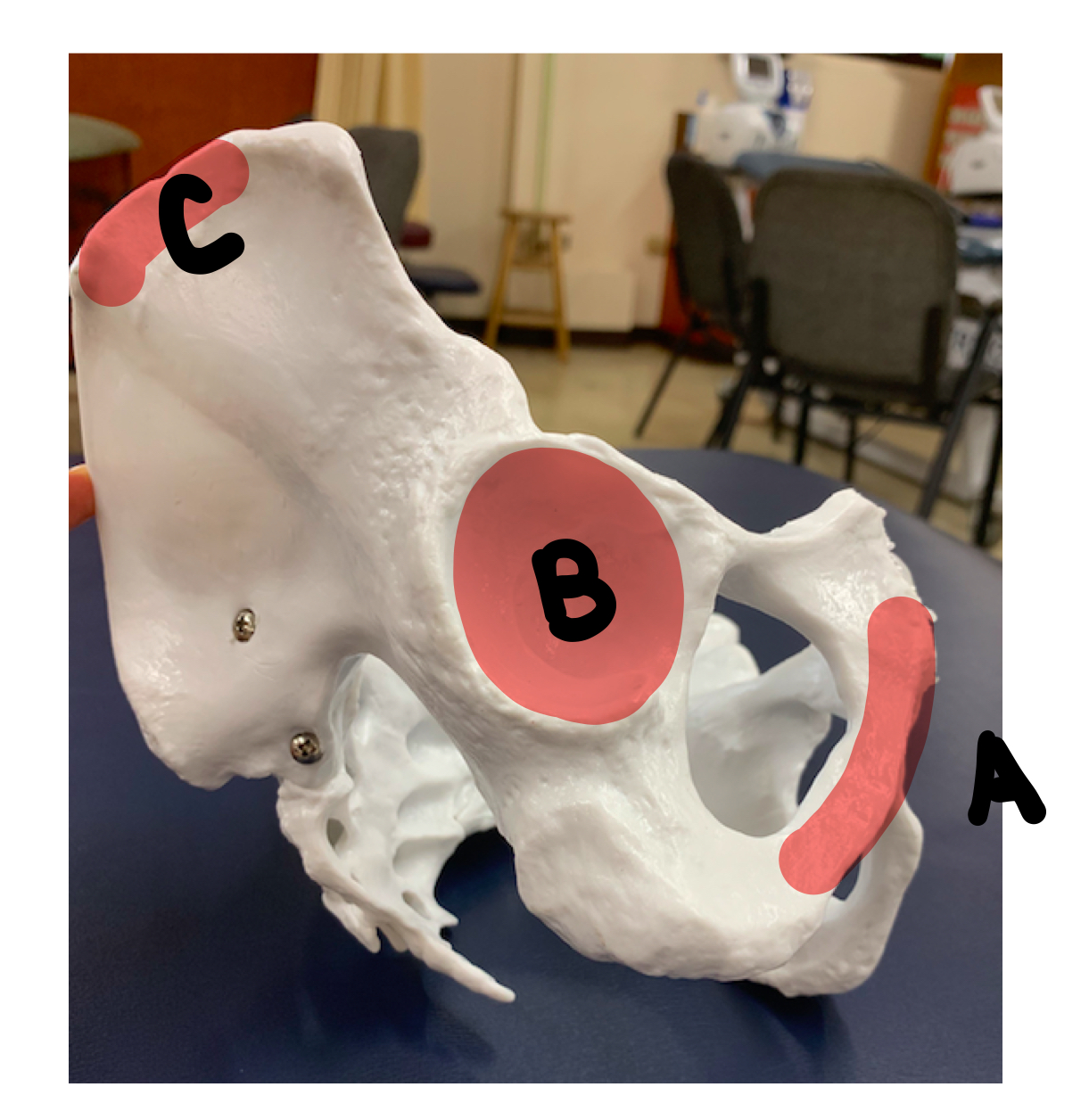

A

Ischial Tuberosity

B

Acetabulum

C

Iliac Crest

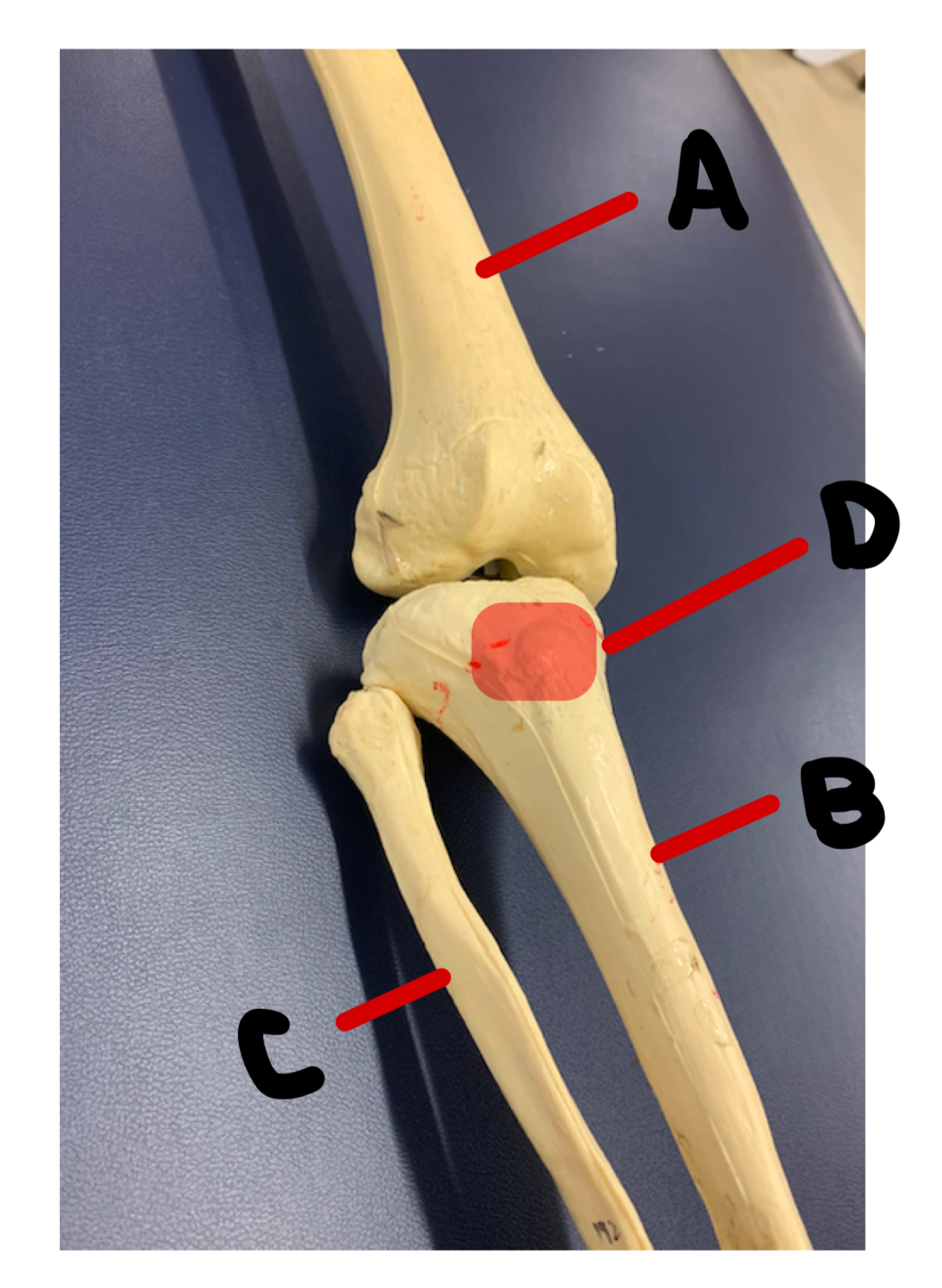

A B C

Femur, Tibia, Fibula

D

Tibial Tuberosity

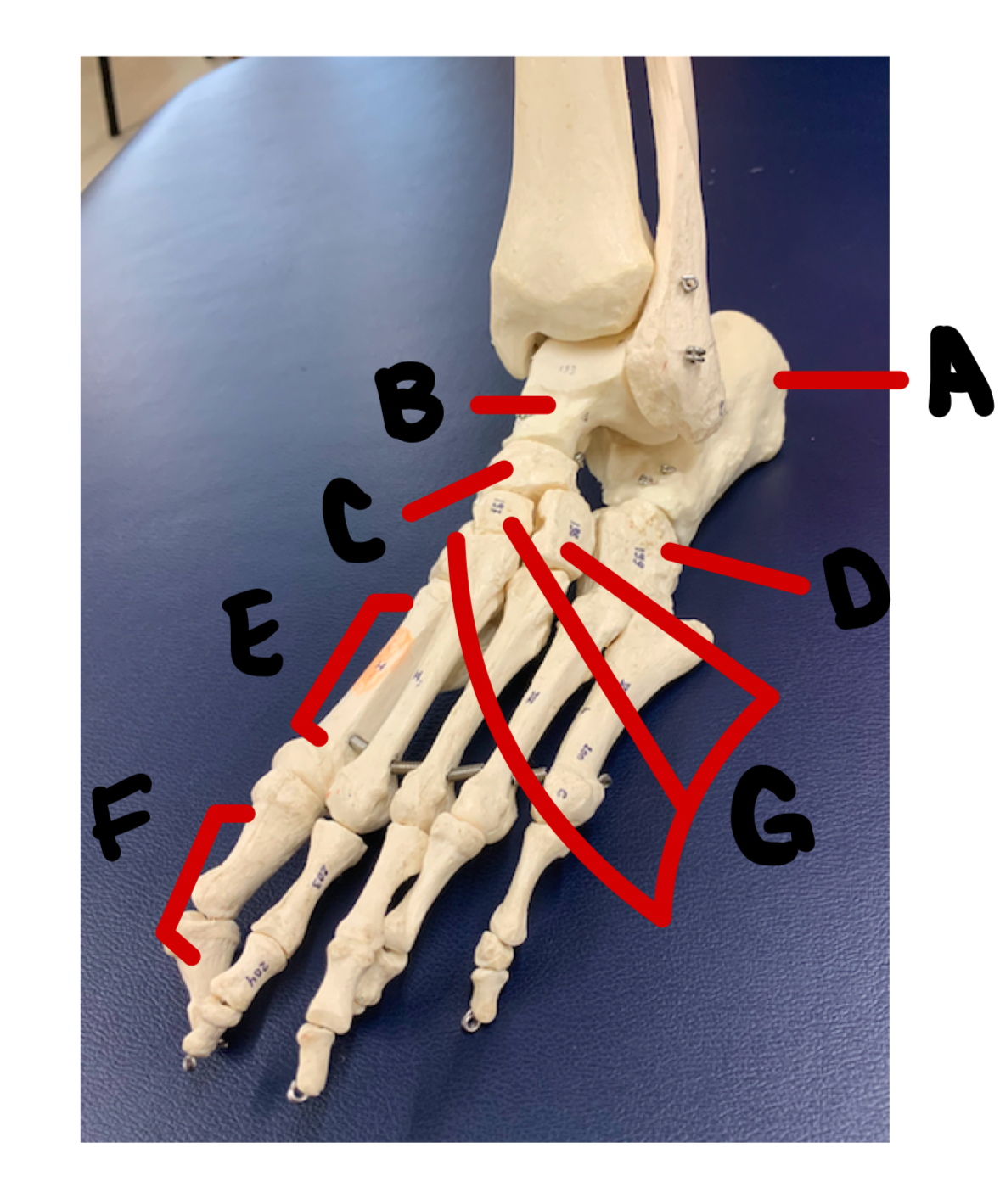

A

Calcaneus

B

Talus

C

Navicular

D

Cuboid

E

Metatarsals

F

Phalanges

G

1 -3 Cuneiform

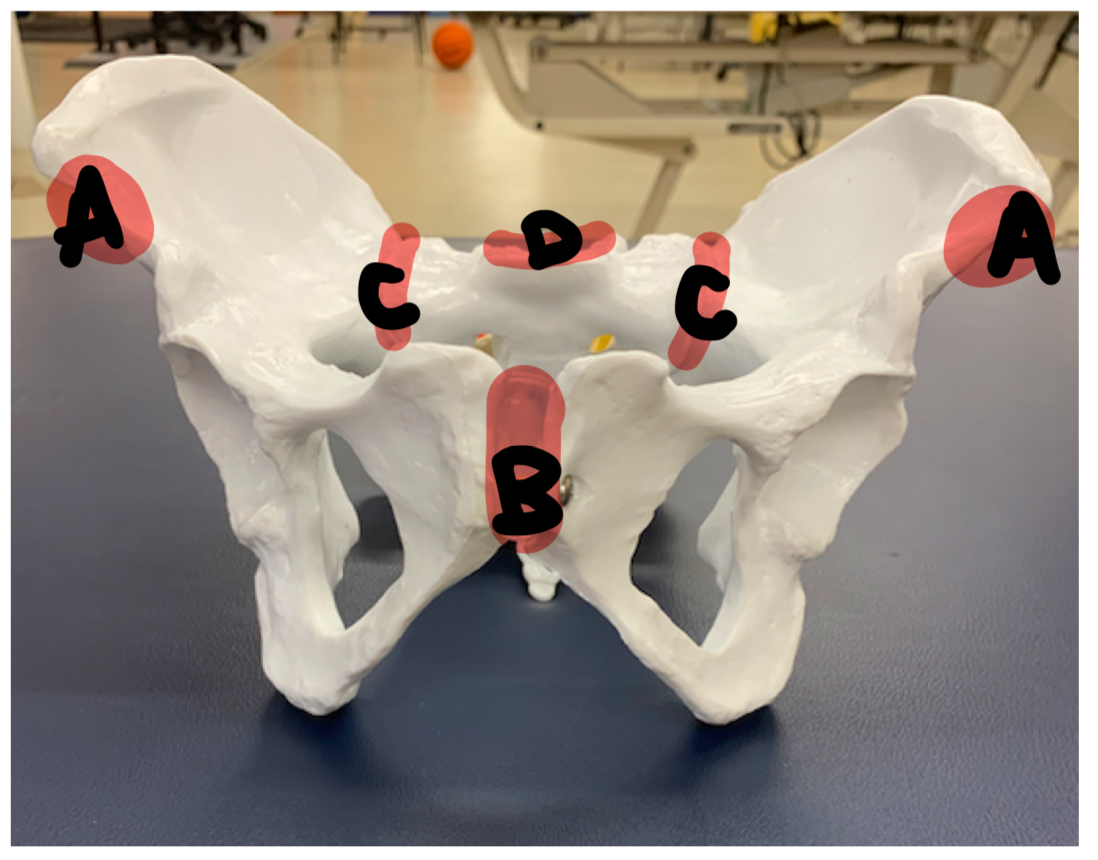

A

Anterior Superior Iliac Spine (ASIS)
