34 Terms

1
New cards

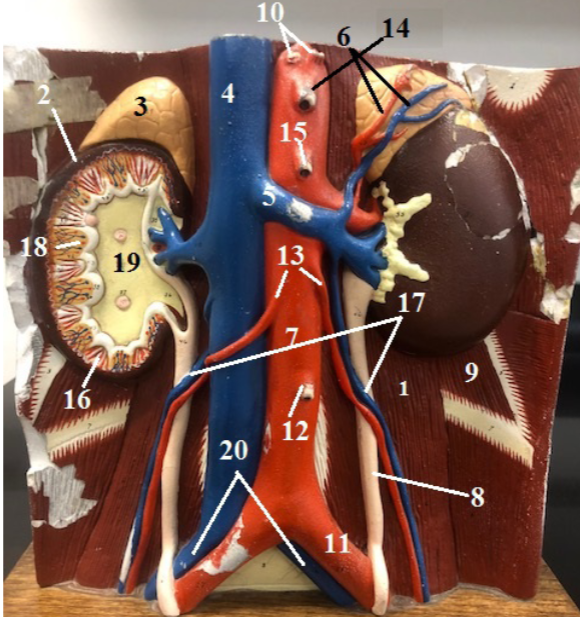

<p>Label 1-20</p>

Label 1-20

  1. psoas major muscle

  2. capsule of kidney

  3. adrenal gland

  4. inferior vena cava

  5. left renal vein

  6. suprarenal artery and vein

  7. abdominal aorta

  8. Ureter

  9. quadratus lumborum muscle

  10. inferior phrenic arteries

  11. common iliac artery

  12. inferior mesenteric artery

  13. gonadal arteries

  14. celiac trunk [three branches (not shown): common hepatic, splenic, and left gastric)

  15. superior mesenteric artery

  16. Renal pyramid

  17. Gonadal veins (notice left gonadal vein branches from left renal vein)

  18. Renal column

  19. Renal pelvis

  20. Common iliac veins

2
New cards

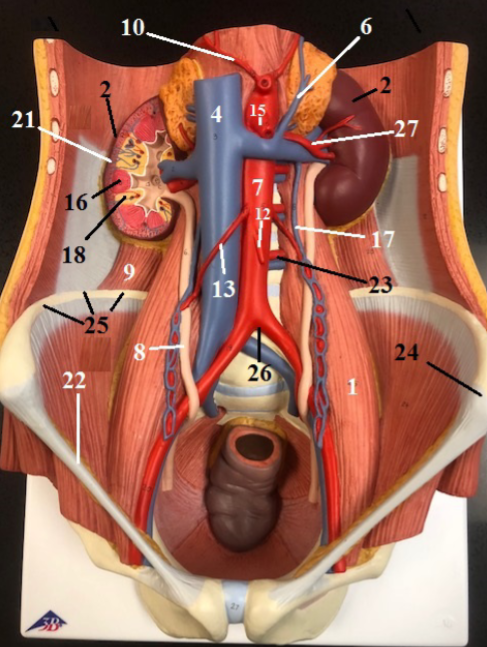

<p>Label All Points on The Diagram</p>

Label All Points on The Diagram

  1. Psoas Major Muscle

  2. Capsule of Kidney

  1. Inferior Vena Cava

  1. suprarenal vein

  2. Abdominal aorta

  3. Ureter

  4. Quadratus Lumborum Muscle

  5. Inferior Phrenic Arteries

  1. Inferior mesenteric artery

  2. gonadal arteries

  1. superior mesenteric artery

  2. renal pyramid

  3. Gonadal veins

  4. renal column

  1. renal cortex

  2. Inguinal ligament

  3. lumbar arteries and veins

  4. Anterior Superior Iliac Spine

  5. Iliac crest

  6. Crotch of Walker

  7. Renal Artery

3
New cards

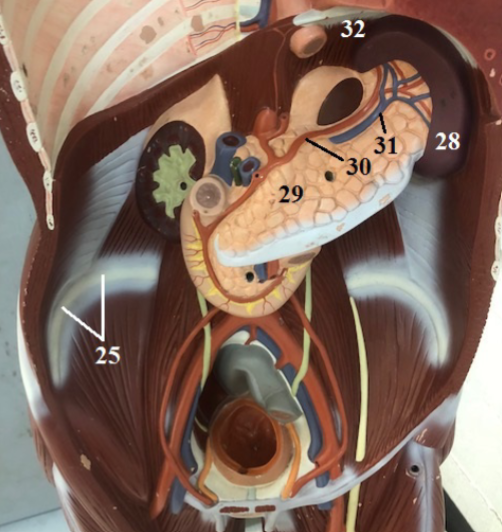

<p>Label 25, 28-32</p>

Label 25, 28-32

  1. Iliac Crest

  1. Spleen

  2. Pancreas

  3. Splenic artery

  4. Splenic vein

  5. Diaphragm

4
New cards

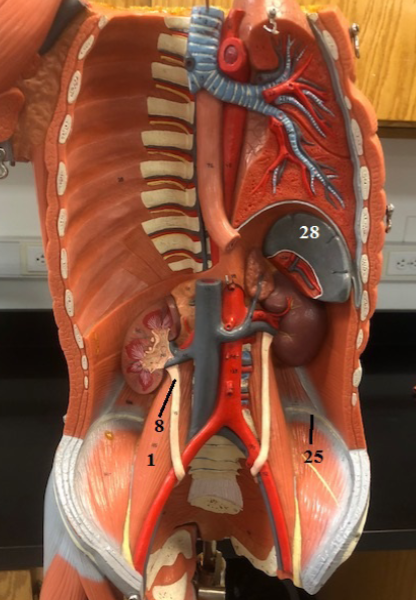

<p>Label all points</p>

Label all points

  1. Psoas Major

  1. Ureter

  1. Iliac Crest

  1. Spleen

5
New cards

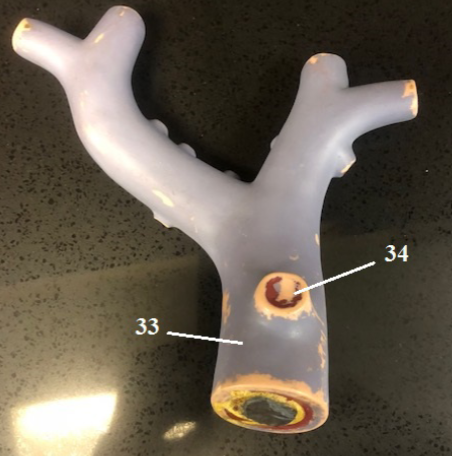

<p>Label 33 and 34</p>

Label 33 and 34

  1. Superior Vena Cava

  2. Azygos Vein

6
New cards

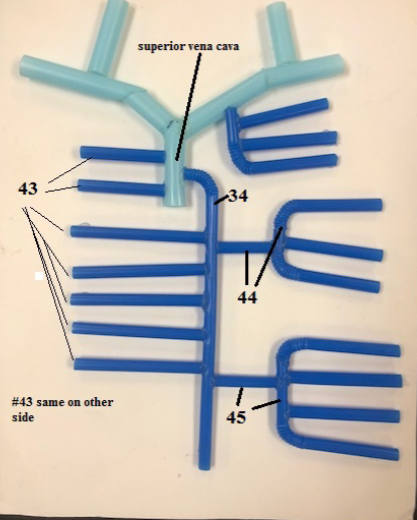

<p>Label all structures</p>

Label all structures

  1. Azygos Vein

  1. posterior intercostal veins

  2. accessory hemiazygos vein

  3. hemiazygos vein

7
New cards

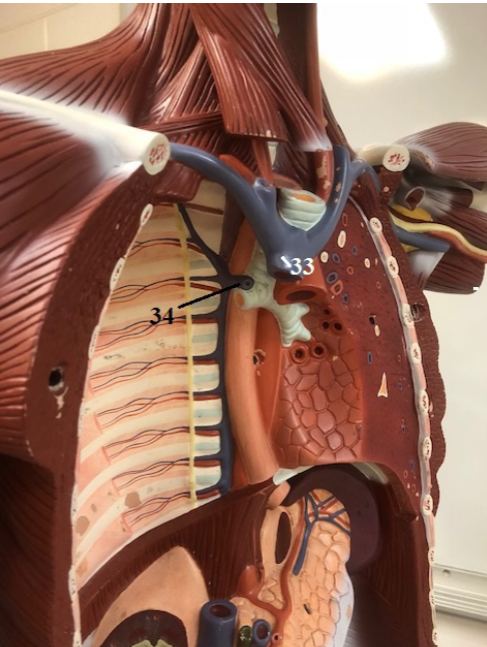

<p>Label 33 and 34</p><p></p>

Label 33 and 34

  1. Superior Vena Cava

  2. Azygos Vein

8
New cards

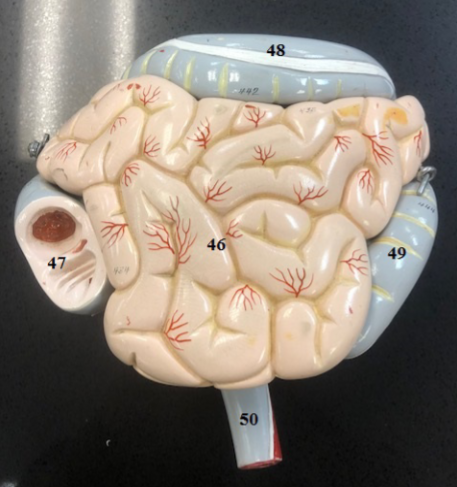

<p>Label 46-50</p>

Label 46-50

  1. Small intestine

  2. Cecum

  3. Transverse colon

  4. Descending colon

  5. Rectum

9
New cards

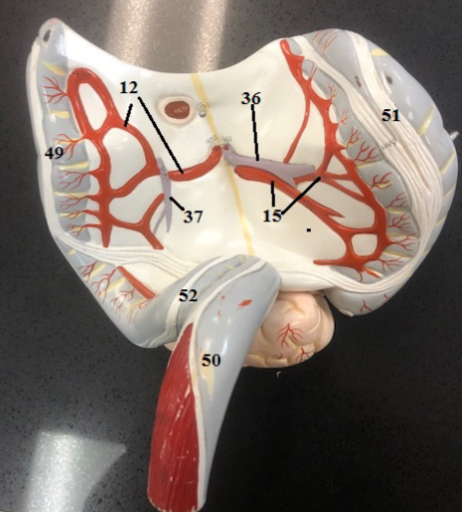

<p>Label 12, 15, 36, 37, 49, 50, 51, 52</p>

Label 12, 15, 36, 37, 49, 50, 51, 52

  1. inferior mesenteric artery

  1. superior mesenteric artery

  1. superior mesenteric vein

  2. inferior mesenteric vein

  1. descending colon

  2. Rectum

  3. ascending colon

  4. Sigmoid colon

10
New cards

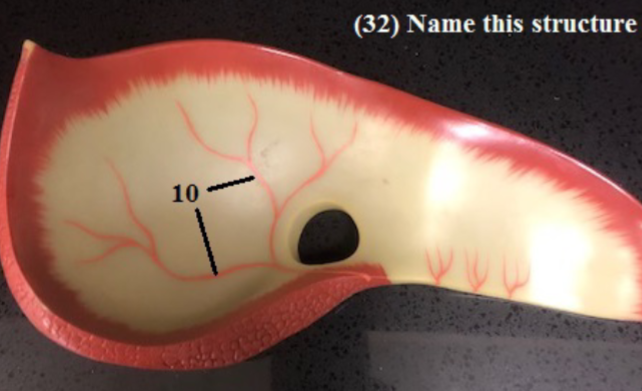

<p>Name this structure and label 10</p>

Name this structure and label 10

Diaphragm

  1. Inferior Phrenic Arteries

11
New cards

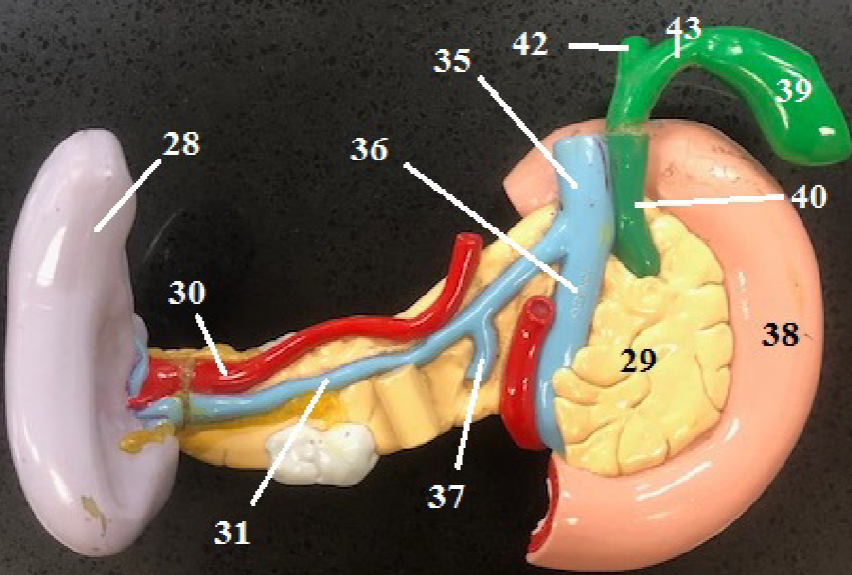

<p>Label All Structures</p>

Label All Structures

  1. Spleen

  2. Pancreas

  3. Splenic artery

  4. Splenic Vein

  1. hepatic portal vein

  2. superior mesenteric vein

  3. inferior mesenteric vein

  4. duodenum

  5. Gal Bladder

  6. common bile duct

  1. common hepatic duct

  2. pancreas/gallbladder picture) cystic duct

12
New cards

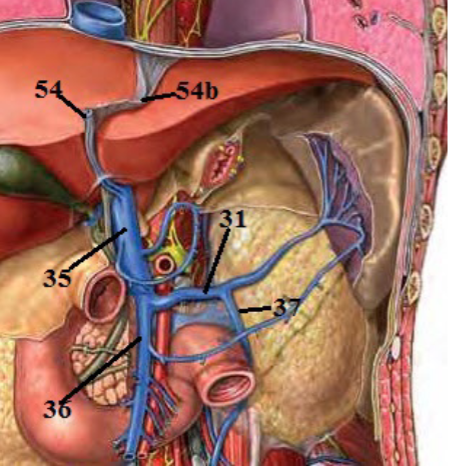

<p>Label these 6 structures</p>

Label these 6 structures

  1. splenic vein

  1. hepatic portal vein

  2. superior mesenteric vein

  3. inferior mesenteric vein

  1. igamentum teres hepatis (round ligament of liver)

54b. falciform ligament

13
New cards

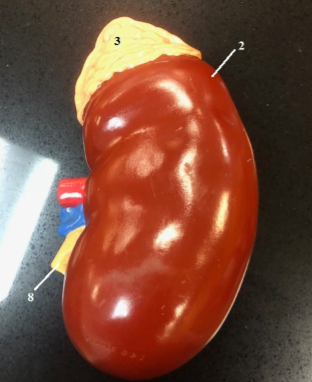

<p>Label 2, 3, and 8</p>

Label 2, 3, and 8

  1. Capsule of Kidney

  2. Adrenal Gland

  1. ureter

14
New cards

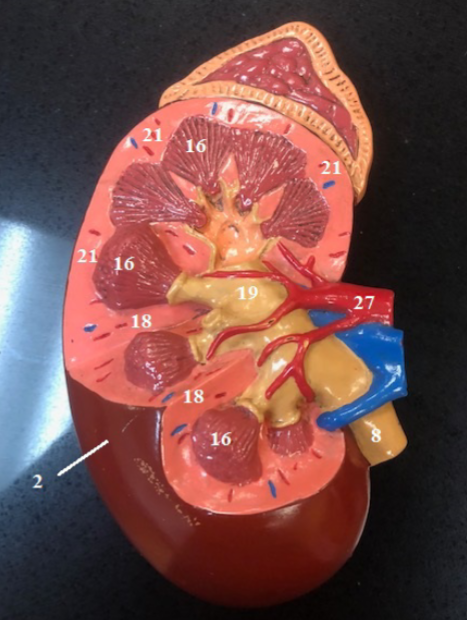

<p>Label Structures: 2, 8, 16, 18, 19, 21, 27</p>

Label Structures: 2, 8, 16, 18, 19, 21, 27

  1. Renal Capsule

  1. Ureter

  1. Renal Pyramid

  1. renal column

  2. renal pelvis

  1. renal cortex

  1. renal artery

15
New cards

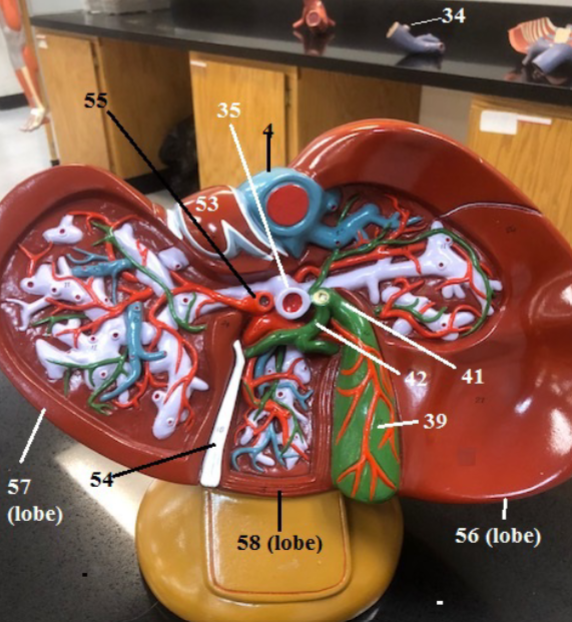

<p>Label 34 (In background), 35, 39, 41, 42, 53, 54, 55, 56, 57, 58</p>

Label 34 (In background), 35, 39, 41, 42, 53, 54, 55, 56, 57, 58

  1. azygos vein

  2. hepatic portal vein

  1. gall bladder

  1. Cystic Duct

  2. Common Hepatic Duct

  1. caudate lobe

  2. Ligamentum teres hepatis (round ligament of liver)

  3. Proper hepatic artery

  4. Right Lobe

  5. Left Lobe

  6. Quadrate lobe

16
New cards

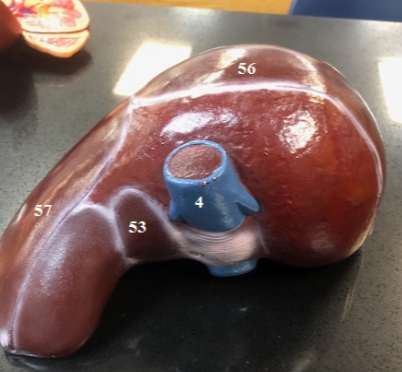

<p>Label structure 4 and the three shown lobes</p>

Label structure 4 and the three shown lobes

  1. inferior vena cava

  1. Caudate lobe

  1. Right Lobe

  2. Left lobe

17
New cards

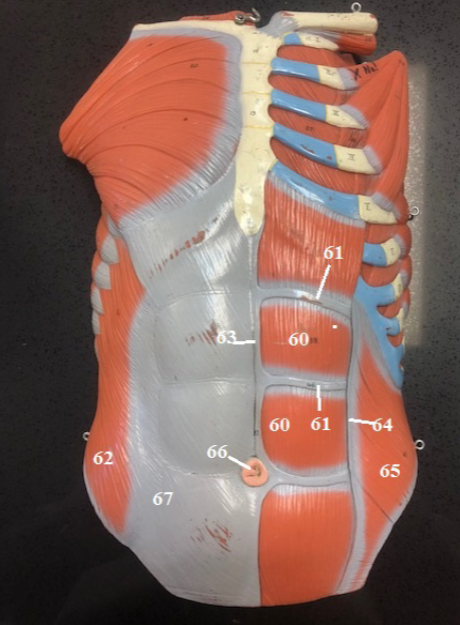

<p>Label 60-67</p>

Label 60-67

  1. rectus abdominis muscle

  2. tendinous intersections

  3. external oblique muscle

  4. linea alba

  5. linea semilunaris

  6. internal oblique muscle

  7. umbilicus

  8. External oblique aponeurosis

18
New cards

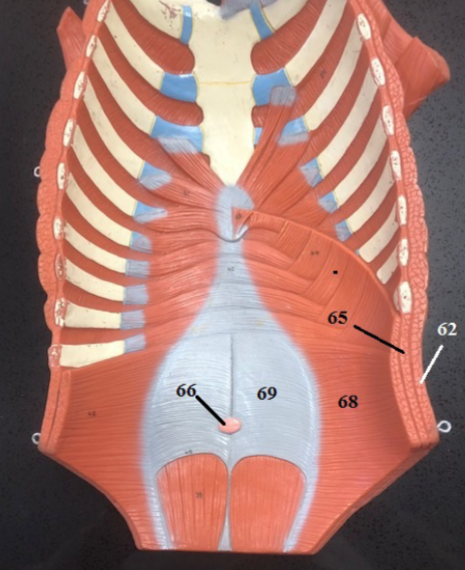

<p>Label 62, 65, 66, 68, 69</p>

Label 62, 65, 66, 68, 69

  1. external oblique muscle

  1. internal oblique muscle

  2. umbilicus

  1. transverse abdominis

  2. transverse abdominis aponeurosis

19
New cards

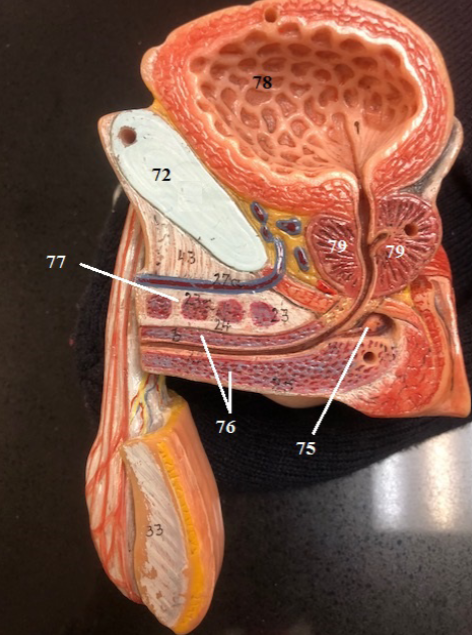

<p>Label These Structures</p>

Label These Structures

  1. pubic symphysis

  1. bulbourethral gland (Cowper’s gland)

  2. corpus spongiosum

  3. corpus cavernosum

  4. Bladder

  5. prostate gland

20
New cards

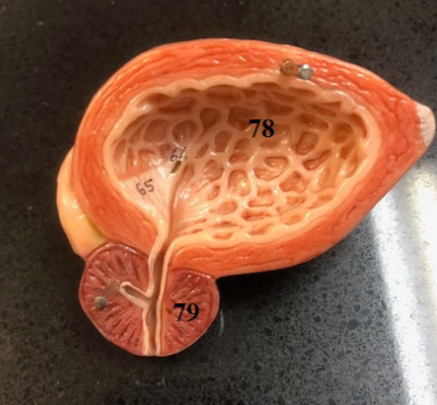

<p>What are the two structures in this picture?</p>

What are the two structures in this picture?

  1. Urinary Bladder

  2. Prostate Gland

21
New cards

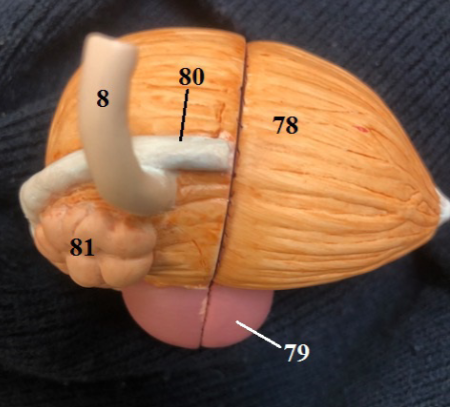

<p>Label all structures</p>

Label all structures

  1. Ureter

  1. Urinary bladder

  2. Prostate

  1. vas deferens

  2. seminal vesicle

22
New cards

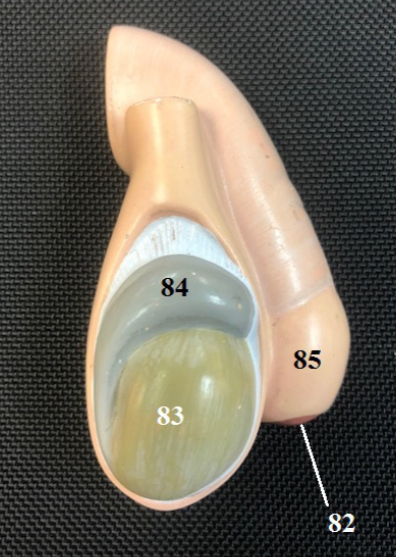

<p>Label 82-85</p>

Label 82-85

  1. glans penis

  2. testis

  3. epididymus

  4. Foreskin

23
New cards

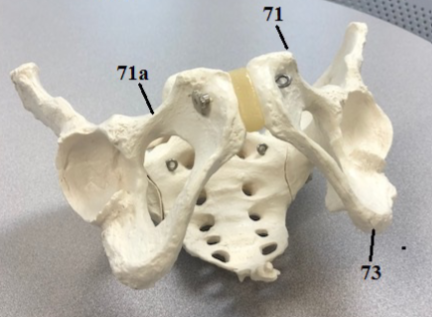

<p>Label The Structures</p>

Label The Structures

  1. pubic tubercle

71a. Pubic Crest

  1. Ischial tuberosity

24
New cards

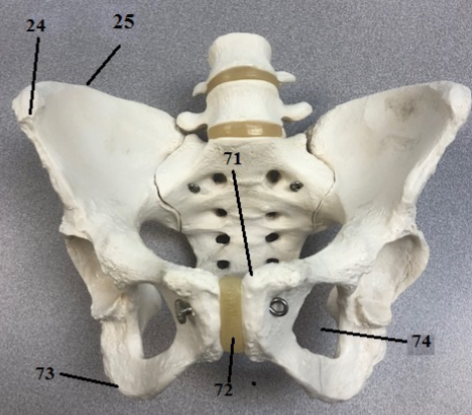

<p>Label these structures</p>

Label these structures

  1. anterior superior iliac spine (ASIS)

  2. Iliac Crest

  1. pubic tubercle

  2. Pubic Synthesis

  3. Ischial tuberosity

  4. obturator foramen

25
New cards

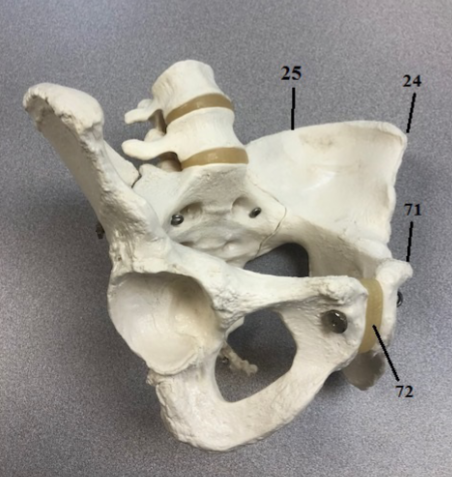

<p>Label these Structures</p>

Label these Structures

  1. anterior superior iliac spine (ASIS)

  2. Iliac Crest

  1. pubic tubercle

  2. pubic symphysis

26
New cards

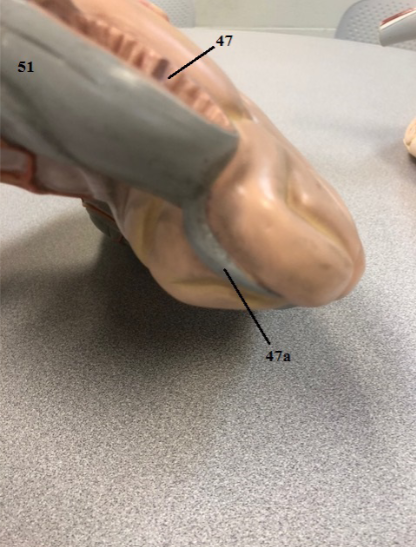

<p>Label 47, 47a, 51</p>

Label 47, 47a, 51

  1. cecum

47a. appendix

  1. ascending colon

27
New cards

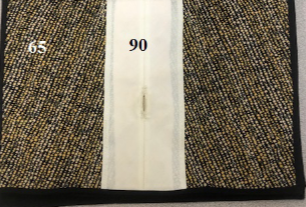

<p>What do these fibers represent?</p>

What do these fibers represent?

  1. External oblique muscle

  1. external oblique aponeurosis

28
New cards
<p>What do these fibers represent?</p>

What do these fibers represent?

  1. internal oblique muscle

  1. internal oblique aponeurosis

29
New cards

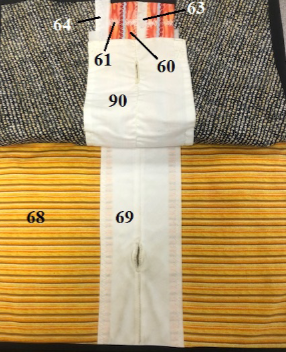

<p>Label the analogous muscle or tendon for these fiber angles</p>

Label the analogous muscle or tendon for these fiber angles

  1. rectus abdominis muscle

  1. tendinous intersections

  1. linea alba

  2. linea semilunaris

  1. transverse abdominis

  2. transverse abdominis aponeurosis

  1. internal oblique aponeurosis

30
New cards

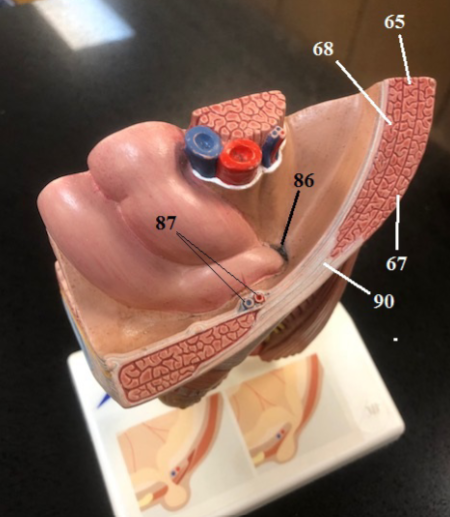

<p>Label all marks</p>

Label all marks

  1. internal oblique muscle

  1. external oblique muscle

  2. transverse abdominis muscle

  1. deep inguinal ring

  2. inferior epigastric artery and vein

  1. internal oblique aponeurosis

31
New cards

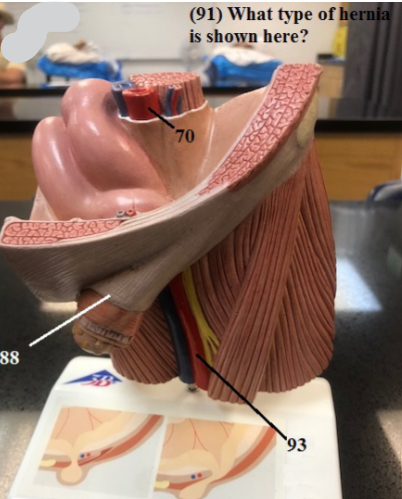

<p>Label 70, 88, 93<br>What Type of Hernia is Shown here?</p>

Label 70, 88, 93
What Type of Hernia is Shown here?

  1. External iliac artery

  1. Superficial inguinal ring

  1. Femoral artery

indirect hernia

32
New cards

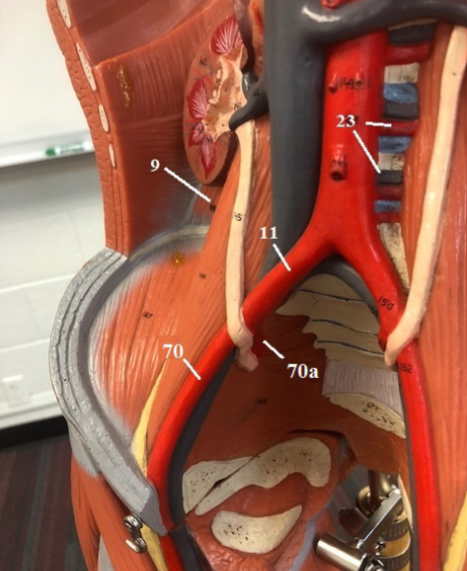

<p>Label 9, 11, 23, 70, 70a.</p>

Label 9, 11, 23, 70, 70a.

  1. quadratus lumborum muscle

  1. common iliac artery

  1. lumbar arteries and veins

  1. external iliac artery

70a. internal iliac artery

33
New cards
<p>Label 80, 83, 84 </p>

Label 80, 83, 84

  1. vas deferens

  1. testis

  2. epididymus

34
New cards
<p>Label 11, 12, 15.</p>

Label 11, 12, 15.

  1. common iliac artery

  2. inferior mesenteric artery

  1. superior mesenteric artery
