7 Terms

1
New cards

Apparatus and Equipment for experiment

Equipment:

  • Laser

  • Diffraction grating

  • White screen

  • Metre ruler

<p>Equipment: </p><ul><li><p>Laser </p></li></ul><ul><li><p>Diffraction grating</p></li></ul><ul><li><p>White screen </p></li></ul><ul><li><p>Metre ruler</p></li></ul><p></p>
2
New cards

Step 1 of experiment

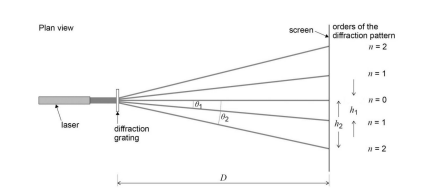

Ensuring that the laboratory is partially darkened, set up the apparatus as shown in the diagram

3
New cards

Step 2 of experiment

Adjust the apparatus so that D is 1.000m, measured using the metre ruler.

4
New cards

Step 3 of experiment

Measure the distances and on either side of the central maximum using the h1 h2 ruler and find the mean of each of them

5
New cards

Graphs and calculations

  • Work out the slit separation by finding the reciprocal of the number of slits per metre quoted on the diffraction grating.

  • Find θ1 and θ2 by using θn = tan-1 (hn/D)

  • Find λ from both of these angles using λ=dsin(θ)/n and then calculate the mean.

6
New cards

Safety

Shining a laser into someone’s eyes can be dangerous, so ensure that the lasers are pointed away from them

7
New cards

Improvements and notes

Make sure that the screen and double slit are aligned perfectly normal to the laser to avoid parallax error in the measurement of the fringe width. A set square can be used in conjunction with the ruler
