3.5 - 3.7 - chemical bonding

VSEPR theory

• The valence shell electron pair repulsion theory (VSEPR) predicts the shape and bond angles of molecules

what does VSEPR theory state

that the shape of a molecule or ion is caused by the repulsion between pairs of electrons

• In a molecule, bonding and lone pairs of electrons around the central atom will repel each other, so they arrange them as far apart as possible to minimize the repulsion forces, forcing the molecule to adopt a different shape

When determining the shape and bond angles of a molecule, the following VSEPR rules should be considered:

• Valence shell electrons are those electrons that are found in the outer shell

• Electron pairs (whether they are bonding or lone pairs) repel each other as they have similar/like charges

• Lone pair electrons repel each other more than bonded pairs

• Repulsion between a multiple (double and triple) and single bonds is treated the same as for repulsion between two single bonds

• Repulsion between pairs of double bonds are greater

• The most stable shape is adopted to minimize the repulsion forces

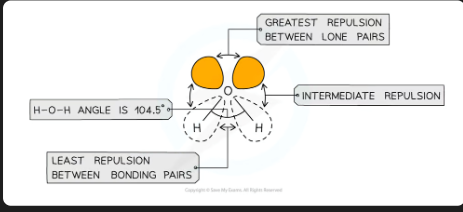

Different types of electron pairs have different repulsive forces

• Lone pairs of electrons have a more concentrated electron charge cloud than bonding pairs of electrons

• The cloud charges are wider and closer to the central atom’s nucleus than bonding pairs (which are between two nuclei)

• The order of repulsion is therefore: lone pair – lone pair > lone pair – bond pair > bond pair – bond pair

what is the shape of a molecule with 2 bonding pairs of electrons and zero lone pairs and what are the angles between each atom

linear, 180

what is shape of a molecule with 2 bonding pairs of electrons and 2 lone pairs and what are the angles between each atom

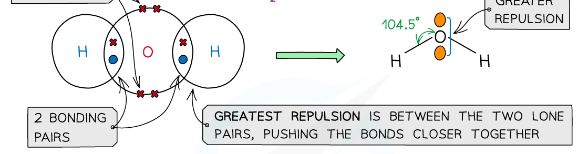

v-shape/non-linear/bent, 104.5

what is the shape of a molecule with 3 bonding pairs of electrons and zero lone pairs and what are the angles between each atom

trigonal planar, 120

what is the shape of a molecule with 4 bonding pairs of electrons and zero lone pairs and what are the angles between each atom

tetrahedral, 109.5

what is the shape of a molecule with 3 bonding pairs of electrons and one lone pair and what are the angles between each atom

pyramidal, 107

what is the shape of a molecule with 5 bonding pairs of electrons and zero lone pairs and what are the angles between each atom

trigonal bipyramid, 120 and 90

what is the shape of a molecule with 6 bonding pairs of electrons and zero lone pairs and what are the angles between each atom

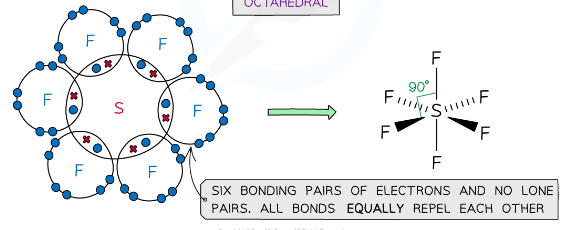

octahedral, 90

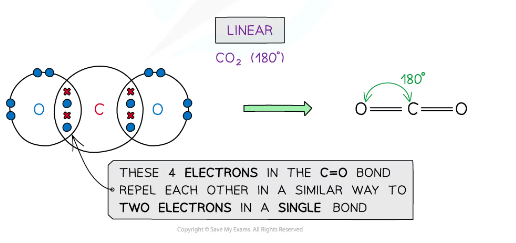

example of a molecules with a linear shape

CO2

example of a molecules with a bent/non-linear/v shape

H2O, H2S

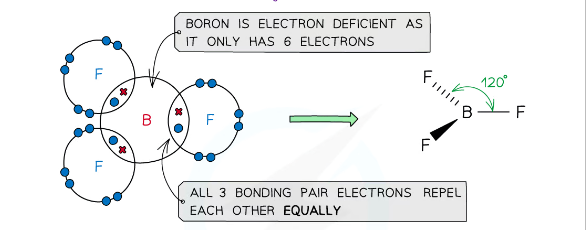

example of a molecules with a trigonal planar shape

BF3, AlF3

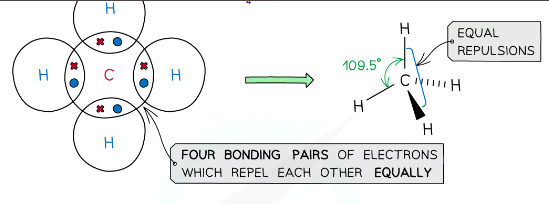

example of a molecules with tetrahedral shape

CH4, NH4+

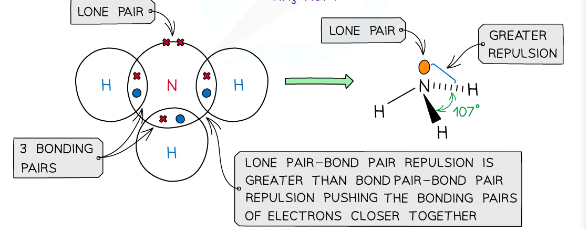

example of a molecules with pyramidal shape

NH3, PH3

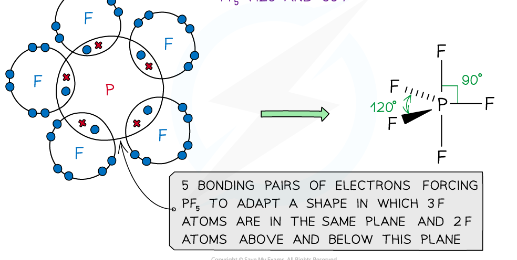

example of a molecules with a trigonal bipyramid shape

PF5, PCl5

example of a molecules with an octahedral shape

SF6, PCl6-

what type of bonding is hydrogen bonding

the strongest form of intermolecular bonding

• Intermolecular bonds are bonds between molecules

  • Hydrogen bonding is a type of permanent dipole – permanent dipole bonding

What is hydrogen bonding/where does it occur

It only occurs in molecules where hydrogen is covalently bonded to either O, N or F. These three elements are so electronegative that they withdraw the majority of the electron density in the covalent bond with hydrogen, leaving the H atom very electron-deficient. The H becomes so δ⁺ charged that it can form a bond with the lone pair of an O, N or F atom in another molecule

For it to happen, the following is needed:

• A species which has an O, N or F (very electronegative) atom with an available lone pair of electrons

• A species with an -OH or -NH or -FH group

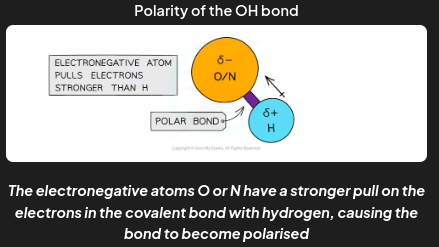

When hydrogen is covalently bonded to an electronegative atom, such as O, N or F, the bond becomes

• very highly polarised

• The H becomes so δ⁺ charged that it can form a bond with the lone pair of an O or N atom in another molecule

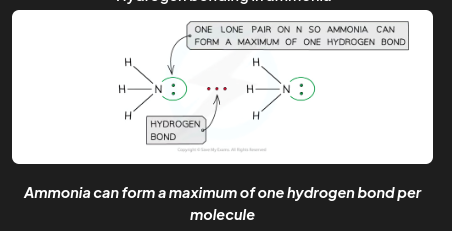

• For hydrogen bonding to take place, the angle between the -OH/-NH/-FH and the hydrogen bond is

• 180^o

The number of hydrogen bonds depends on:

• The number of hydrogen atoms attached to O or N in the molecule

• The number of lone pairs on the O or N

properties of water - summary

• Hydrogen bonding in water, causes it to have anomalous properties such as high melting and boiling points, high surface tension and anomalous density of ice compared to water

properties of water due to hydrogen bonding - high mp and bp

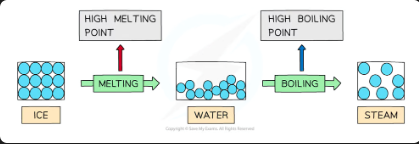

• Water has high melting and boiling points because of the strong intermolecular forces of hydrogen bonding between the molecules

• In ice (solid) and water (liquid) the molecules are tightly held together by hydrogen bonds

• A lot of energy is therefore required to break the water molecules apart and melt or boil them

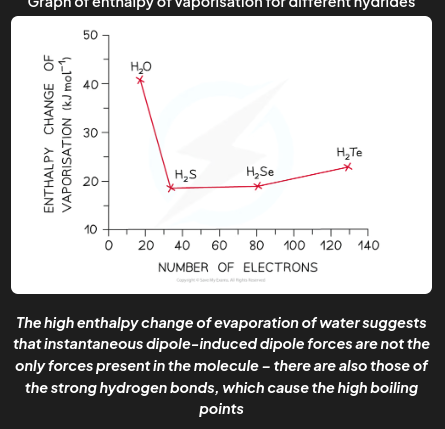

• The graph below compares the enthalpy of vaporisation (energy required to boil a substance) of different hydrides. Explain why H2O has the highest enthalpy of vaporization.

As you go from H₂S to H₂Te in Group 16 hydrides, the enthalpy changes increase because the molecules get larger and contain more electrons. This leads to stronger instantaneous dipole-induced dipole forces (also called London dispersion forces). Since H₂O is smaller, you’d expect its enthalpy change to be lower, around 17 kJ mol⁻¹. However, water’s enthalpy of vaporization is almost three times higher due to the strong hydrogen bonds that are unique to water among these hydrides.

properties of water - high surface tension

• Surface tension is the ability of a liquid surface to resist any external forces (i.e. to stay unaffected by forces acting on the surface)

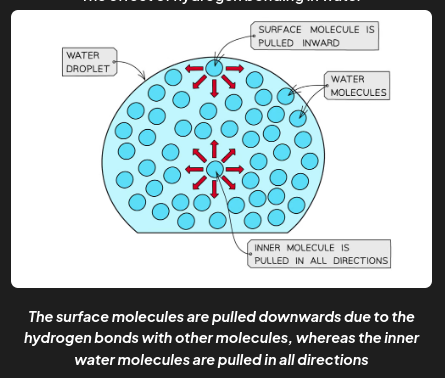

• The water molecules at the surface of liquid are bonded to other water molecules through hydrogen bonds

  These molecules pull downwards on the surface molecules, causing them to become more compressed and tightly packed at the surface

• This increases water’s surface tension

properties of water - density

• Solids are denser than their liquids as the particles in solids are more closely packed together than in their liquid state

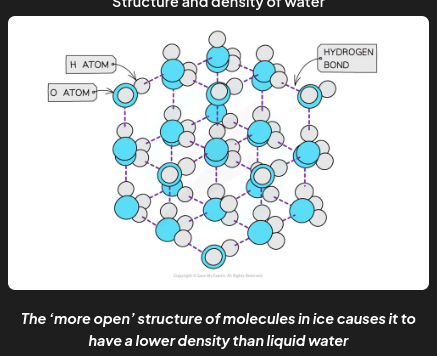

• In ice however, the water molecules are packed in a 3D hydrogen-bonded network in a rigid lattice

• Each oxygen atom has a lone pair of electrons causing it to be slightly negative and attracted to the slightly positive hydrogen atoms on adjacent water molecules.

• This happens many times so the water molecules are pushed apart into a hexagonal structure which has large spaces within it.

• This way of packing the molecules in a solid and the relatively long bond lengths of the hydrogen bonds means that the water molecules are slightly further apart than in the liquid form.

• Therefore, ice has a lower density than liquid water

nonpolar covalent bond

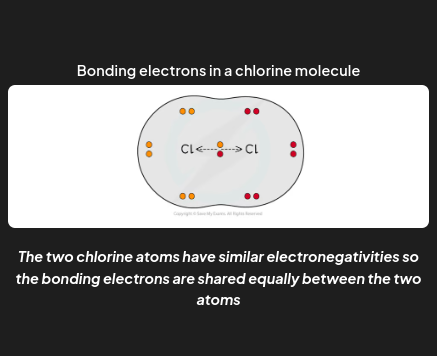

• When two atoms in a covalent bond have the same electronegativity the covalent bond is nonpolar

polar covalent bond

• When two atoms in a covalent bond have different electronegativities the covalent bond is polar and the electrons will be drawn towards the more electronegative atom

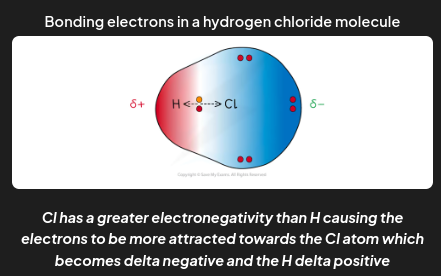

As a result of electrons being draw towards the more electronegative atom in a polar covalent bond,

• The negative charge centre and positive charge centre do not coincide with each other

• This means that the electron distribution is asymmetric

• The less electronegative atom gets a partial charge of δ+ (delta positive)

• The more electronegative atom gets a partial charge of δ- (delta negative)

• The greater the difference in electronegativity the more polar the bond becomes

dipole moment

a measure of how polar a bond is
The direction of the dipole moment is shown an arrow which points to the partially negatively charged end of the dipole:

To determine whether a molecule with more than two atoms is polar, the following things have to be taken into consideration:

• The polarity of each bond

• How the bonds are arranged in the molecule

Some molecules have polar bonds but are overall not polar because

the polar bonds in the molecule are arranged in such a way that the individual dipole moments cancel each other out - symmetrical non-polar molecules

The polar molecule is an asymmetrical molecule with polar

bonds.

polarity in chloromethane

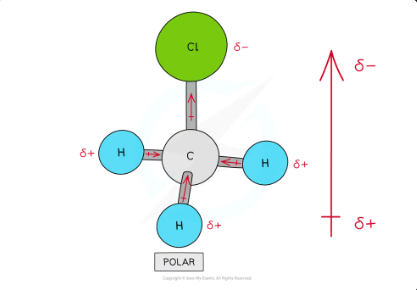

There are four polar covalent bonds in CH₃Cl which do not cancel each other out causing CH₃Cl to be a polar molecule; the overall dipole is towards the electronegative chlorine atom

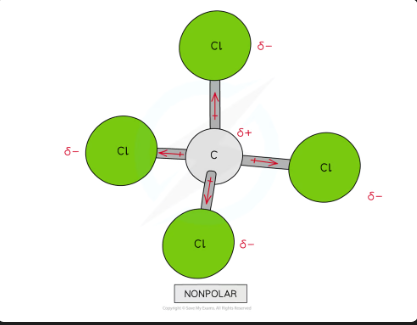

polarity in tetrachloromethane

Though CCl₄ has four polar covalent bonds, the individual dipole moments cancel each other out causing CCl₄ to be a nonpolar molecules

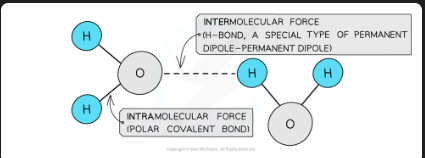

covalent bonds are

strong intramolecular forces

Molecules also contain weaker intermolecular forces which are

forces between molecules

• These intermolecular forces are called Van der Waals’ forces

There are two types of van der Waals’ forces:

• Instantaneous (temporary) dipole – induced dipole forces also called London dispersion forces

• Permanent dipole – permanent dipole forces

Instantaneous dipole - induced dipole (id - id)

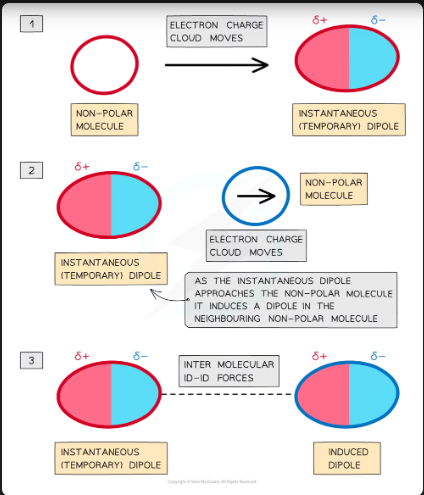

• Instantaneous dipole - induced dipole forces or London dispersion forces exist between all atoms or molecules.

• The electron charge cloud in non-polar molecules or atoms are constantly moving

• During this movement, the electron charge cloud can be more on one side of the atom or molecule than the other

• This causes a temporary dipole to arise

• This temporary dipole can induce a dipole on neighbouring molecules

• When this happens, the δ+ end of the dipole in one molecule and the δ- end of the dipole in a neighbouring molecule are attracted towards each other

• Because the electron clouds are moving constantly, the dipoles are only temporary

• Larger and heavier atoms and molecules exhibit stronger dispersion forces than smaller and lighter ones.

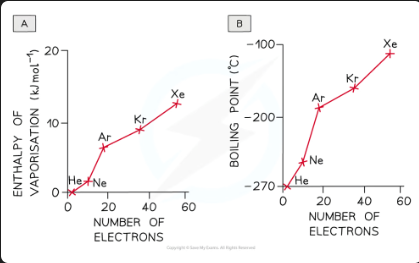

Id-id forces increase with:

• Increasing number of electrons (and atomic number) in the molecule

• Increasing the places where the molecules come close together

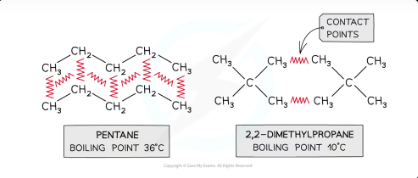

why does pentane have a higher boiling point

The increased number of contact points in pentane means that it has more id-id forces and therefore a higher boiling point

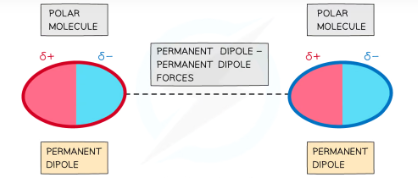

Permanent dipole - permanent dipole (pd - pd)

• Polar molecules have permanent dipoles

• The molecule will always have a negatively and positively charged end

• Forces between two molecules that have permanent dipoles are called permanent dipole - permanent dipole forces

• The δ+ end of the dipole in one molecule and the δ- end of the dipole in a neighbouring molecule are attracted towards each other

pd-pd vs id-id forces for small molecules with the same number of electrons,

pd - pd forces are stronger than id - id

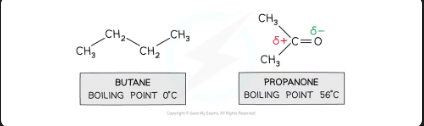

• Butane and propanone have the same number of electrons

• Butane is a nonpolar molecule and will have id - id forces

• Propanone is a polar molecule and will have pd - pd forces

• Therefore, more energy is required to break the intermolecular forces between propanone molecules than between butane molecules

• So, propanone has a higher boiling point than butane

hydrogen bonding as a permanent dipole

• Hydrogen bonding is an intermolecular force between molecules with an -OH/-NH group and molecules with an N/O atom

• Hydrogen bonding is a special case of a permanent dipole - dipole force between molecules

  • Hydrogen bonds are stronger forces than pd - pd forces

explanation of hydrogen bonding as a permanent dipole

• The hydrogen is bonded to an O/N atom which is so electronegative, that almost all the electron density from the covalent bond is drawn towards the O/N atom

• This leaves the H with a large delta positive and the O/N with a large delta negative charging resulting in the formation of a permanent dipole in the molecule

• A delta positive H in one molecule is electrostatically attracted to the delta negative O/N in a neighbouring molecule

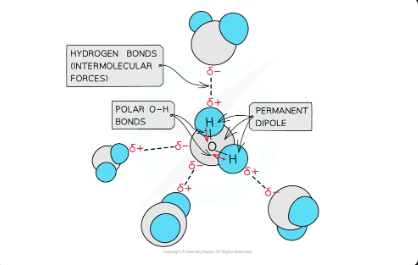

hydrogen bonds in water molecules

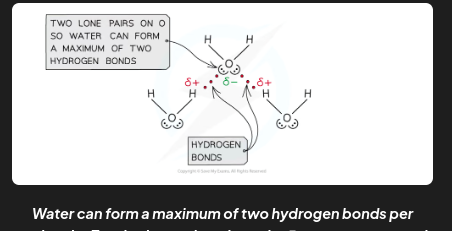

Hydrogen bonding in water occurs between the oxygen lone pair of one water molecule and the δ+ hydrogen atoms of another water molecule

intramolecular forces

forces within a molecule

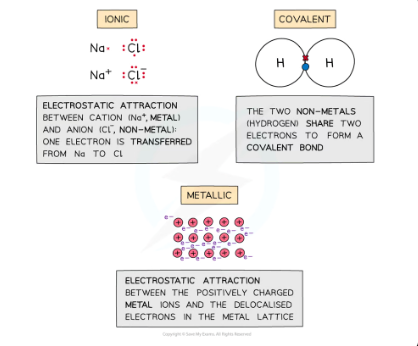

examples of intramolecular forces

ionic bonding, covalent bonding and metallic bonding

intermolecular forces

• Intermolecular forces are forces between molecules and are also called van der Waals’ forces

example 1 of intermolecular forces

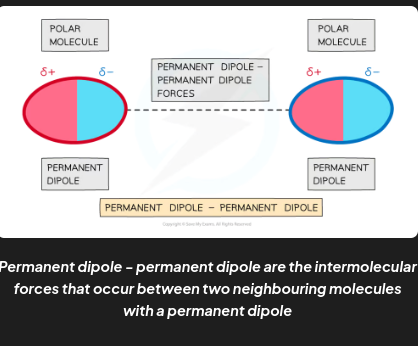

• Permanent dipole - permanent dipole are the attractive forces between two neighbouring molecules with a permanent dipole

example 2 of intermolecular forces

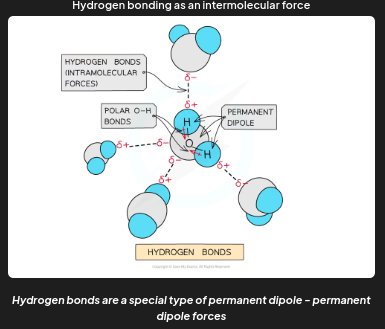

• Hydrogen bonds are a special type of permanent dipole - permanent dipole forces

example 3 of intermolecular forces

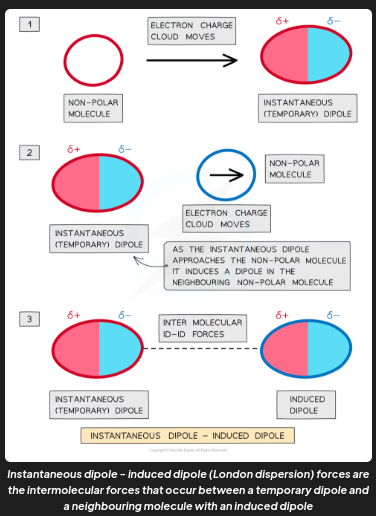

• Instantaneous dipole - induced dipole (London dispersion) forces are the attractive forces between a temporary dipole and a neighbouring molecule with an induced dipole

in general, intramolecular forces are

stronger than intermolecular forces

order the strengths of the types of bonds/forces (pd-pd, hydrogen, covalent, id-id and ionic) from strongest to weakest

ionic, covalent, hydrogen, pd-pd, id-id

dot and cross diagrams

diagrams that show the arrangement of the outer-shell electrons in an ionic or covalent compound or element

• The electrons are shown as dots and crosses

in a dot and cross diagram

• Only the outer electrons are shown

• The charge of the ion is spread evenly which is shown by using brackets

• The charge on each ion is written at the top right-hand corner

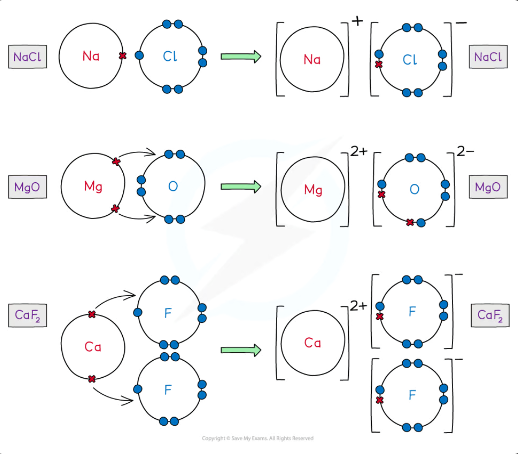

how are ionic bonds formed

• Ionic bonds are formed when metal transfer electrons to a non-metal to form a positively charged and negatively charged ion

• The atoms achieve a noble gas configuration

how are covalent bonds formed

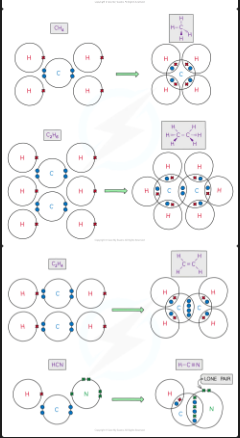

• when two atoms share their outer valence electrons to achieve a noble gas configuration

coordinative/dative covalent bonding

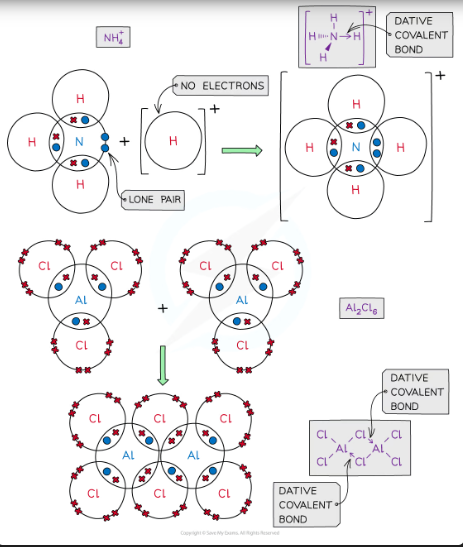

• A covalent bond in which both shared electrons are donated by the same atom.​

• In a displayed formula, the dative covalent bond is represented by an arrow

• The head of the arrow points away from the lone pair that forms the bond and towards the electron-deficient atom that accepts the electrons

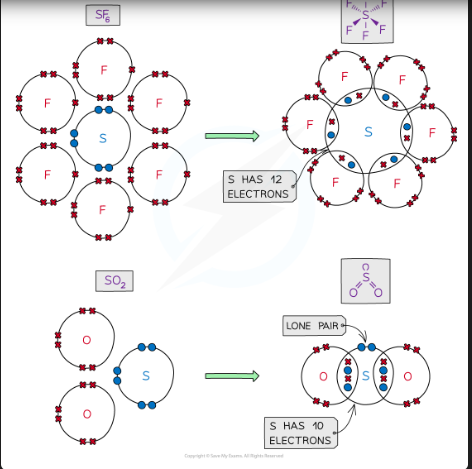

expanded octet rule

• Elements in period 3 and above have the possibility of having more than eight electrons in their valence shell

• This is because there is a d-subshell present which can accommodate additional pairs of electrons

• This is known as the expansion of the octet

• The concept explains why structures such as PCl₅ and SF₆ exist, which have 5 and 6 bonding pairs of electrons respectively, around the central atom

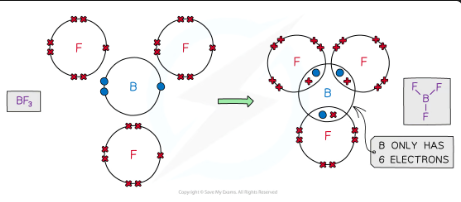

incomplete octet rule

An incomplete octet happens when an atom (in period 1 and 2) has fewer than 8 electrons in its valence shell after bonding. Some elements are stable with fewer than 8 electrons because they naturally don’t have enough valence electrons to form a full octet.

eg - 2⃣ Boron (B) → Only 3 valence electrons, so it forms 3 bonds and has only 6 electrons.

• Example: BF₃ (Boron trifluoride)

3⃣ Radicals (Odd Electron Molecules) → Some molecules have an odd number of electrons, so at least one atom can’t get 8 electrons.

• Example: NO (Nitrogen monoxide) → Nitrogen has only 7 electrons.
