CMS II: Ortho - Foot & Ankle

Review: Ankle/Foot Bones

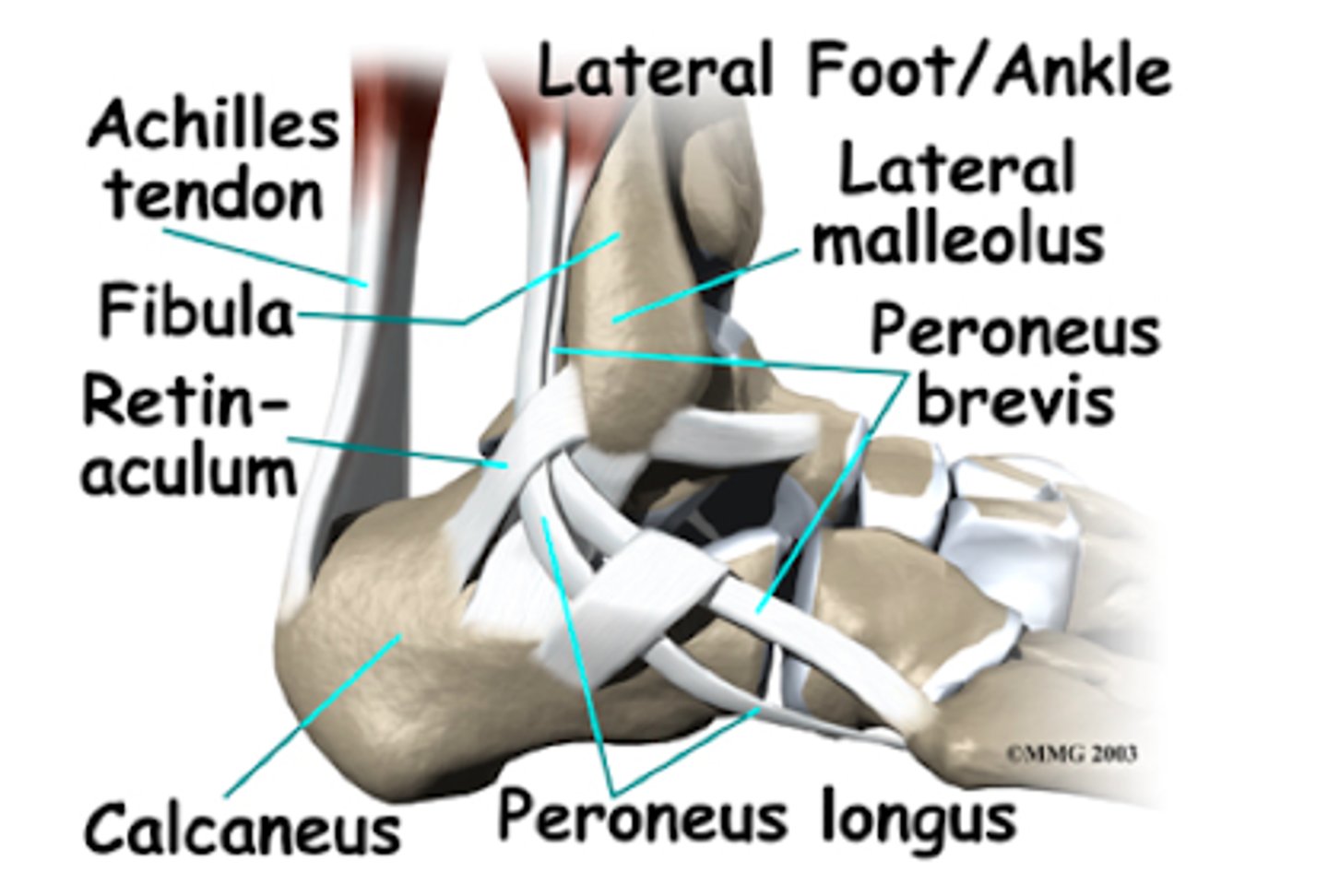

Review: Tendons/Bones

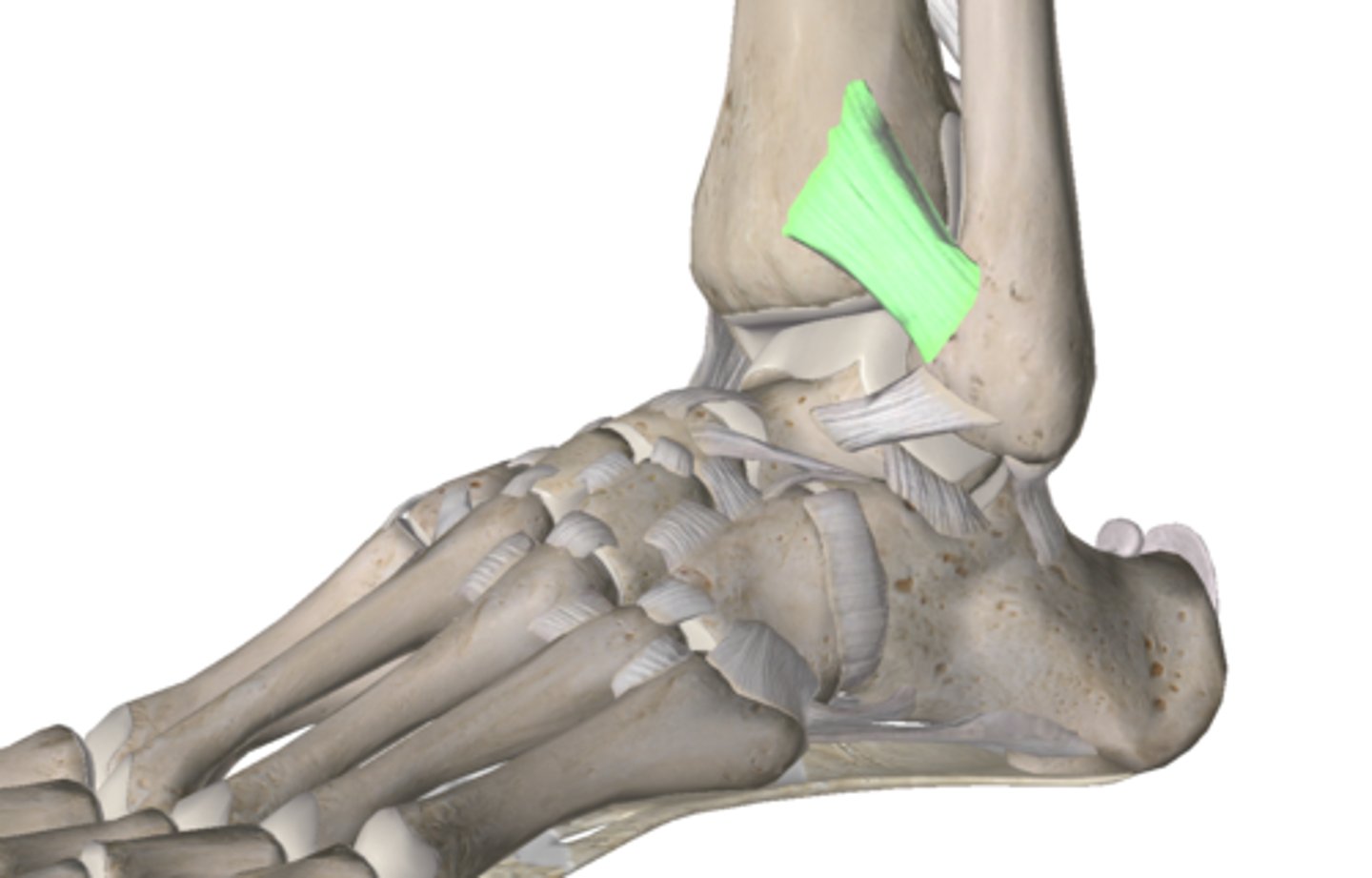

What ligament connects the distal end of the tibia to the fibula anteriorly?

anterior tibiofibular

What ligament connects the distal end of the tibia to the fibula posteriorly?

posterior tibiofibular

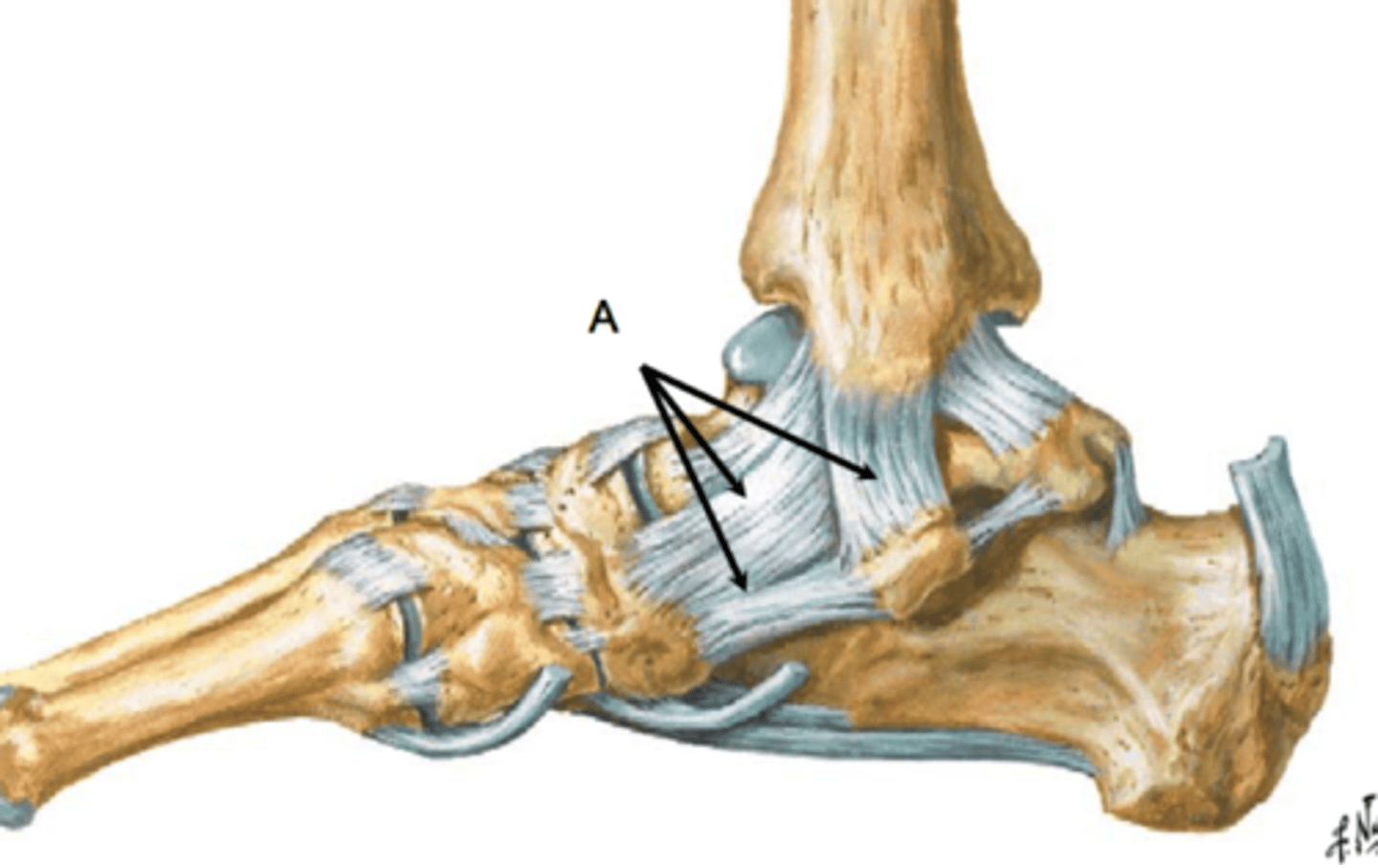

What is the medial ligament of the ankle?

deltoid ligament

Composed of:

- anterior tibiotalar

- tibionavicular

- tibiocalcaneal

- posterior tibiotalar

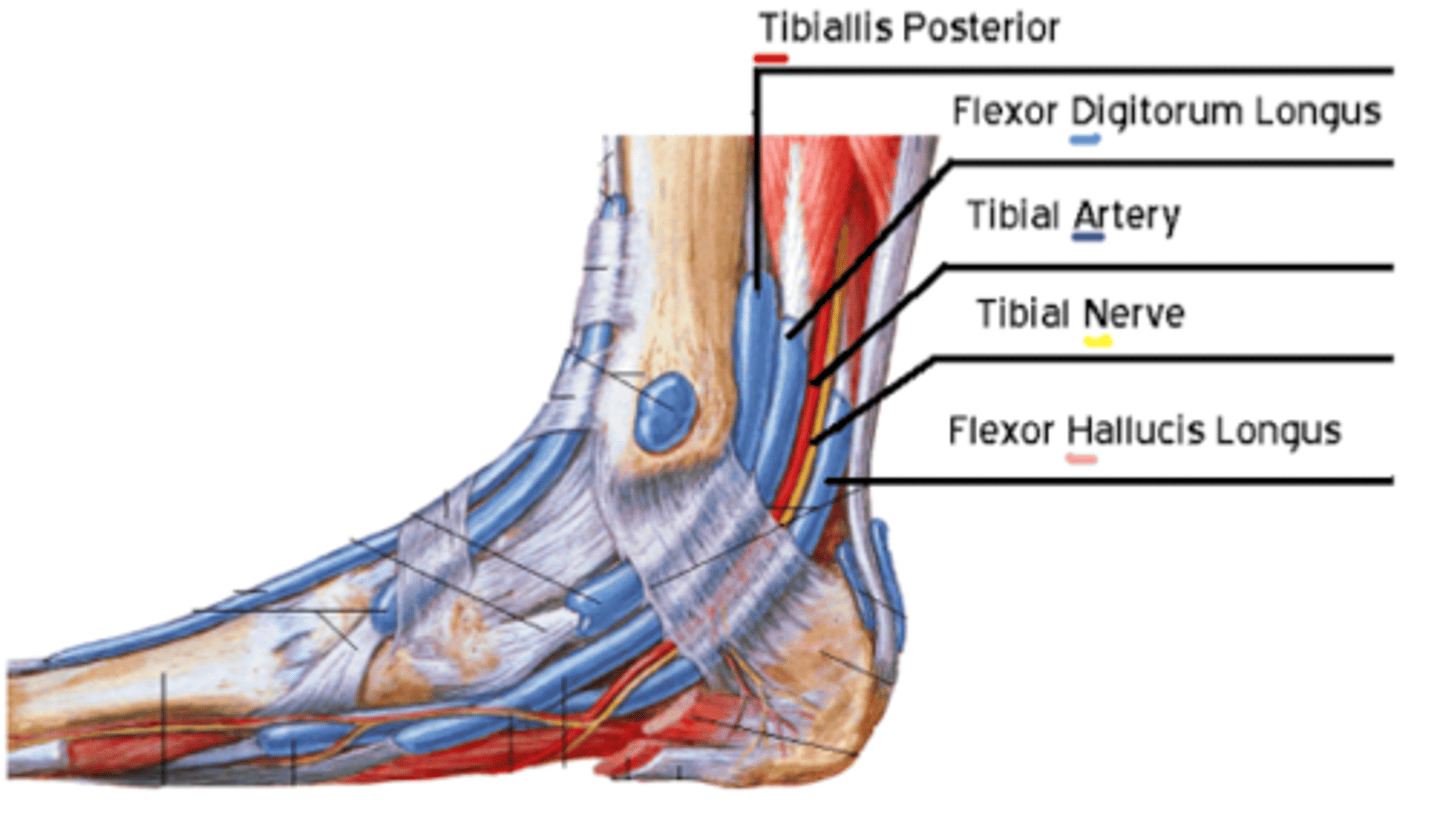

What is the pneumonic for the tarsal tunnel anatomy?

Tom, Dick And Nervous Harry

Tibialis Posterior

Flexor Digitorum Longus

Tibial Artery

Tibial Nerve

Flexor Hallucis Longus

What is the m/c deformity of the forefoot and toes?

valgus deformity

What are the TWO reflexes of the LE? What are the corresponding neurological levels?

Patellar reflex → L4

Achilles tendon reflex → S1

What is the dermatomal distribution of the foot?

Lateral + plantar → S1

Dorsal + great toe → L5

Medial → L4

_____ of the foot involves moving the PLANTAR surface INWARD.

inversion

_______ of the foot involves moving the PLANTAR surface OUTWARD.

eversion

What is the most common ankle sprain? What ligament is m/c affected?

inversion ankle sprain

- affects the anterior talofibular ligament

What test is used to assess the stability of the anterior talofibular ligament? What is a (+) test?

anterior drawer test

(+) → anterior dislocation; "clunk"

What does a (+) Homan's sign indicate?

DVT - will have pain in the calf

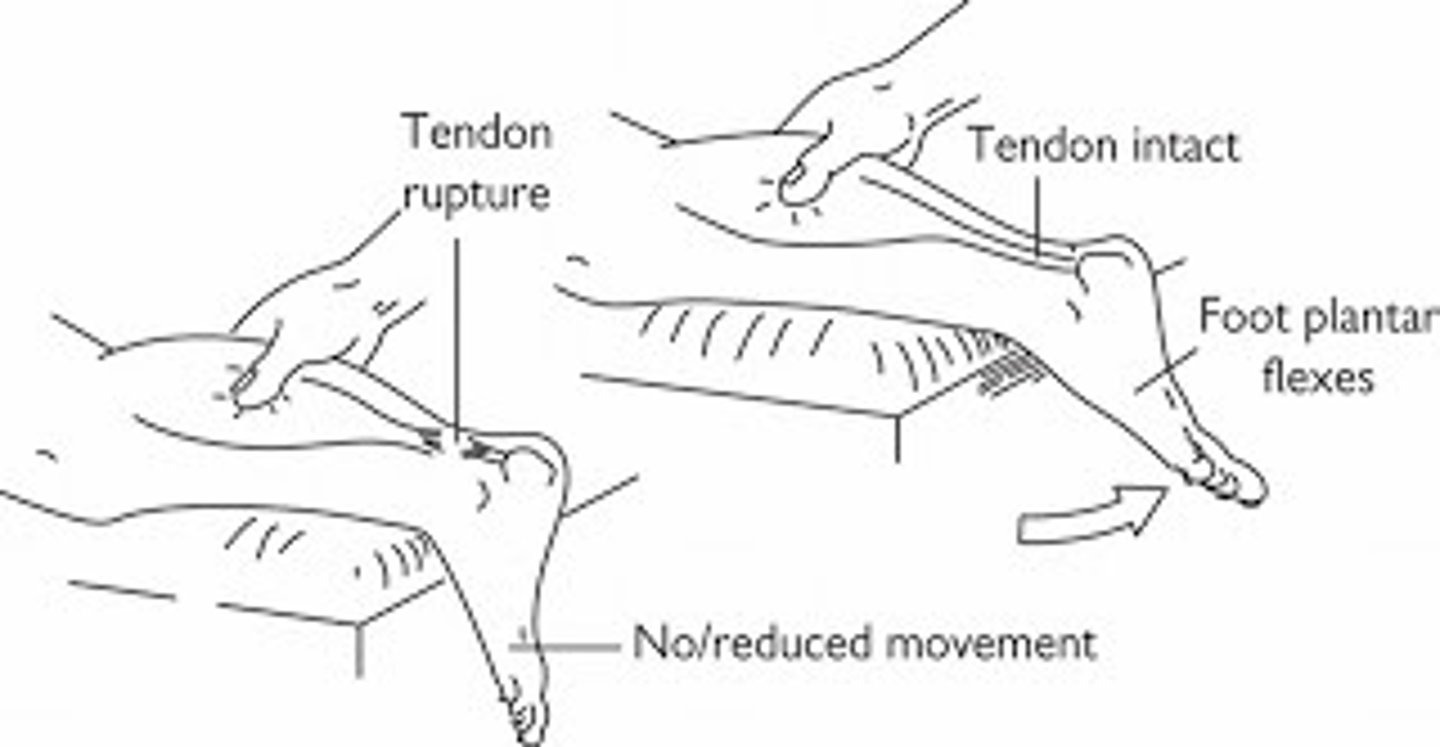

What does a (+) Thompson test indicate?

(+) → achilles tendon rupture

- will have absence of plantar flexion of foot with squeeze of calf muscle

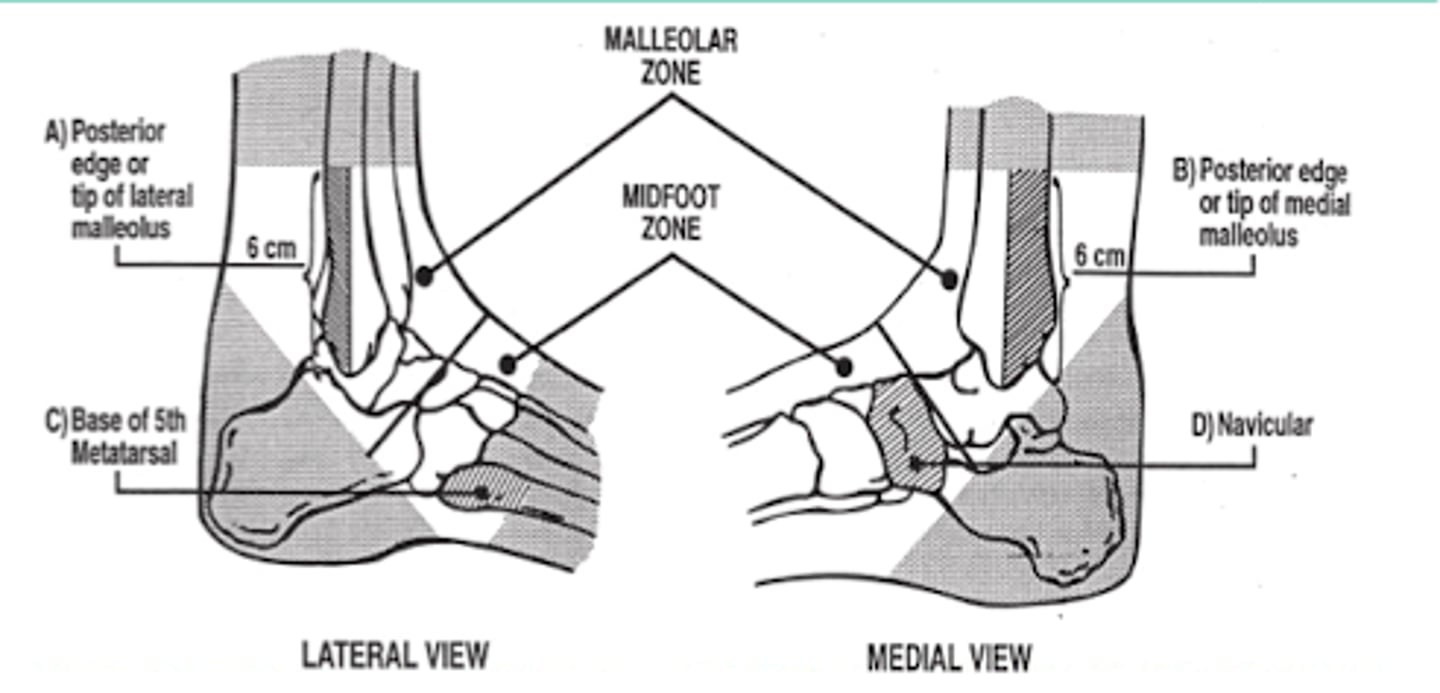

When is an ankle XR series required?

ONLY if there is pain in the malleolar region and any of the following:

(A)

or

(B)

or

- inability to wear weight

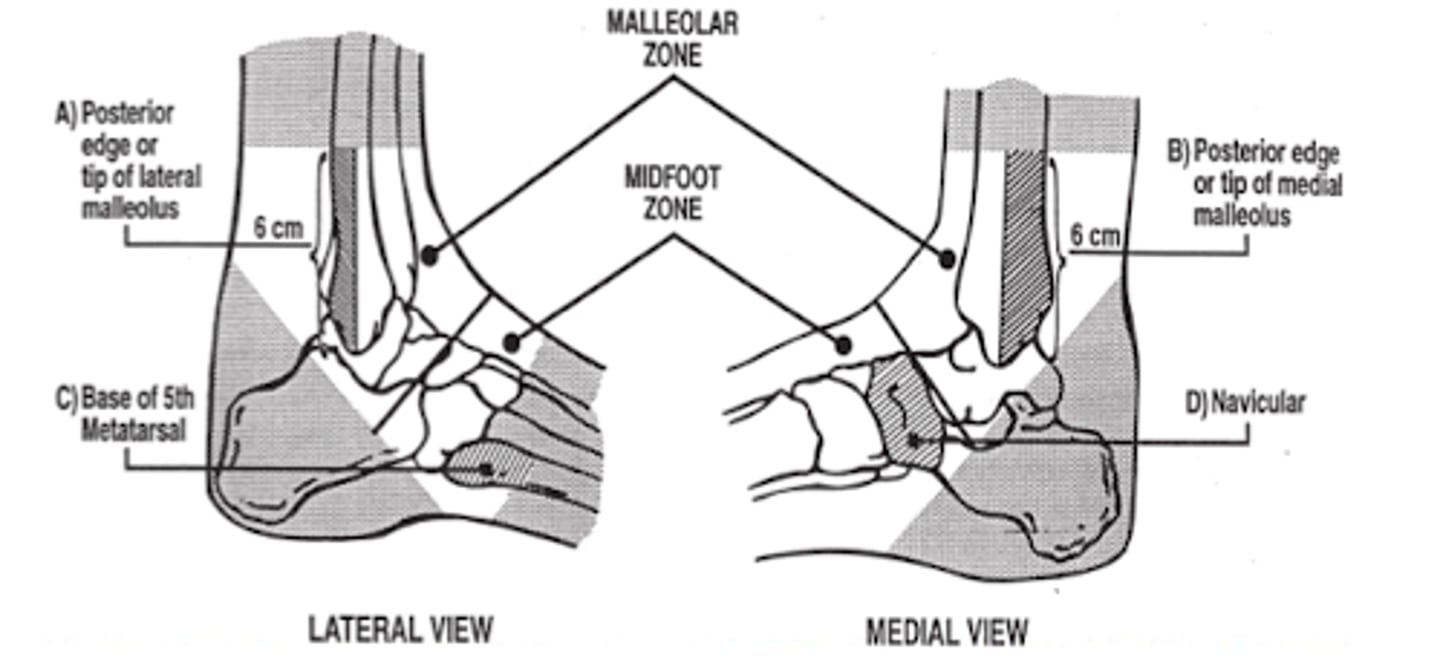

When is a foot XR series required?

ONLY if there is pain in the mid-foot region and any of the following:

(C)

or

(D)

or

- inability to wear weight

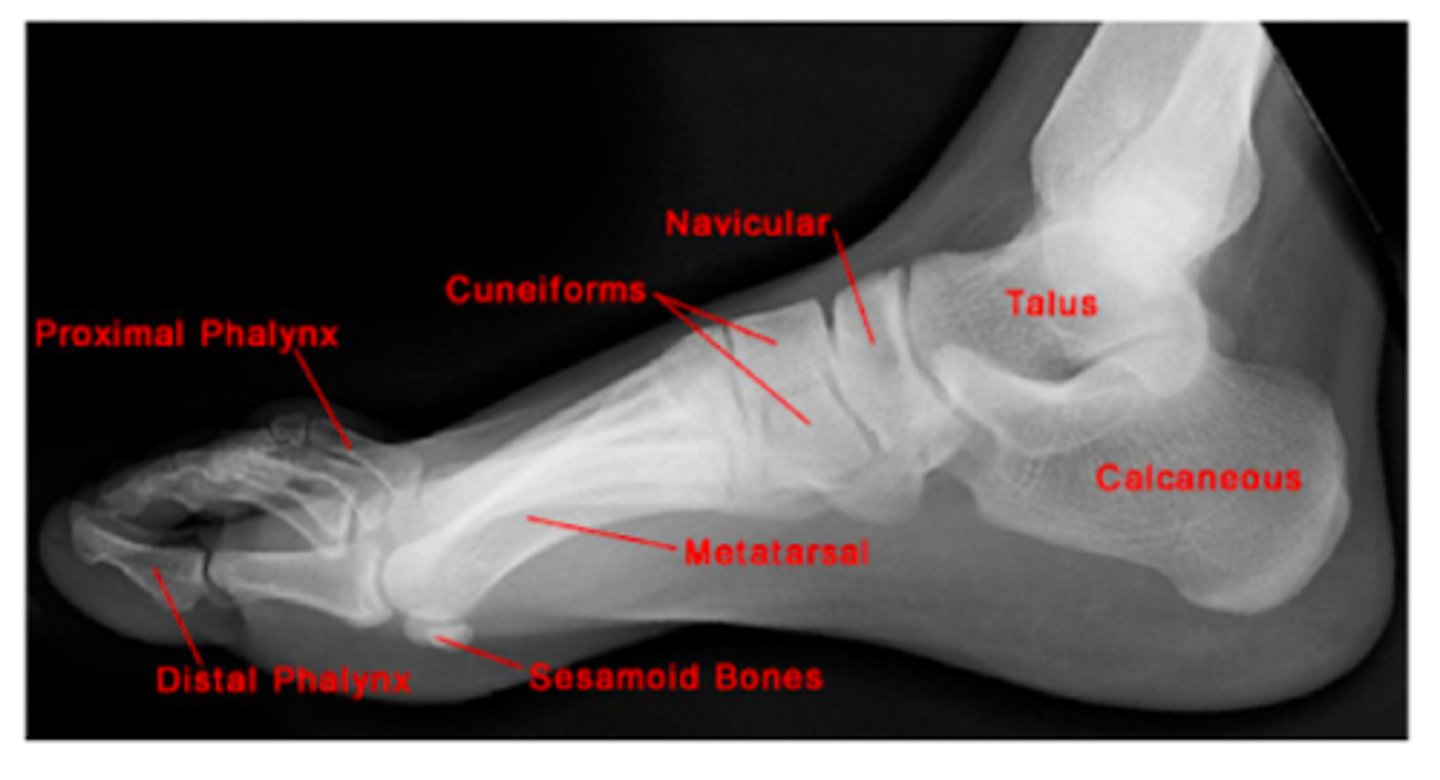

Review: Lateral Foot XR.

AP vs. Mortise ankle view?

AP → lateral malleolus will overlap

Mortise → no overlap; will show the mortise joint space (lateral)

What is another name for the distal fibula?

lateral malleolus

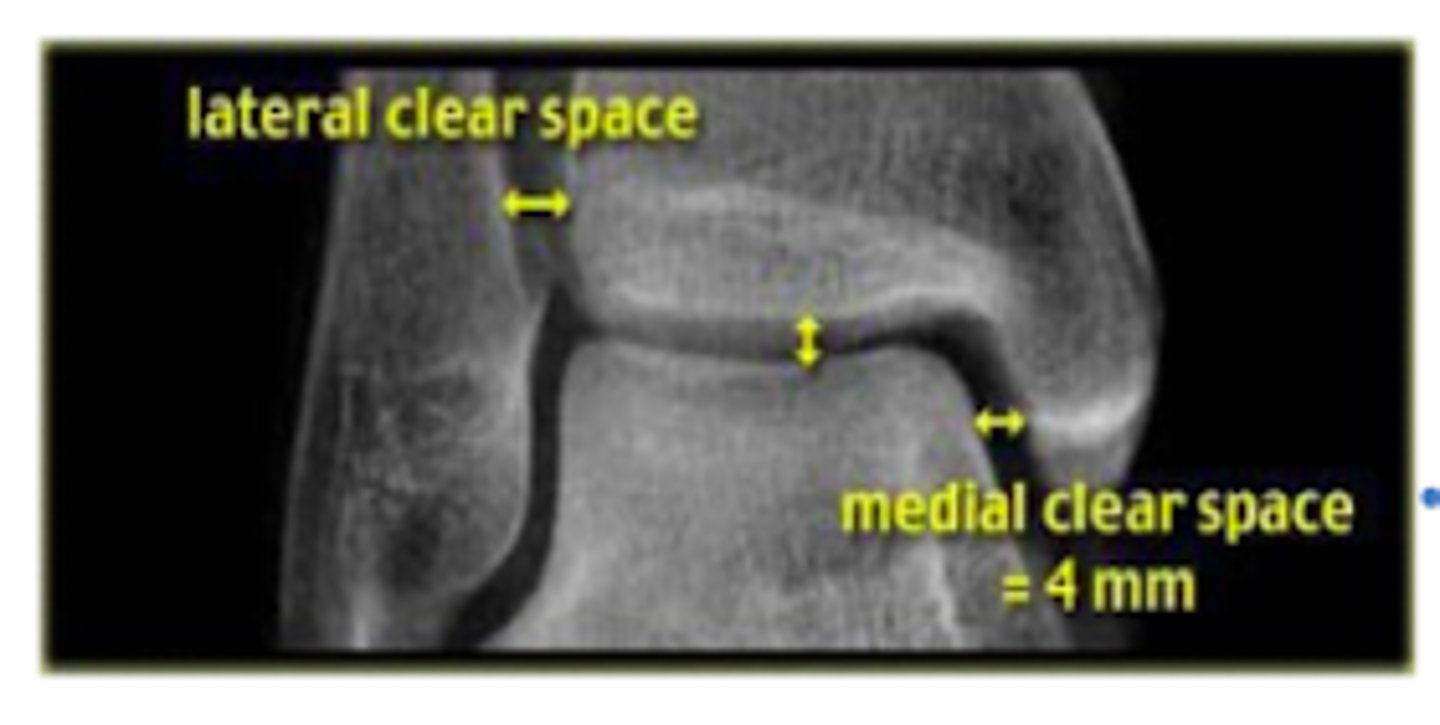

What does a medial clear space of >6mm indicate? What is a normal length?

indicates disruption of the medial collateral ligament

- should be <4mm

A lateral clear space of >1cm indicates what?

syndesmotic rupture (distal tibiofibular ligament rupture)

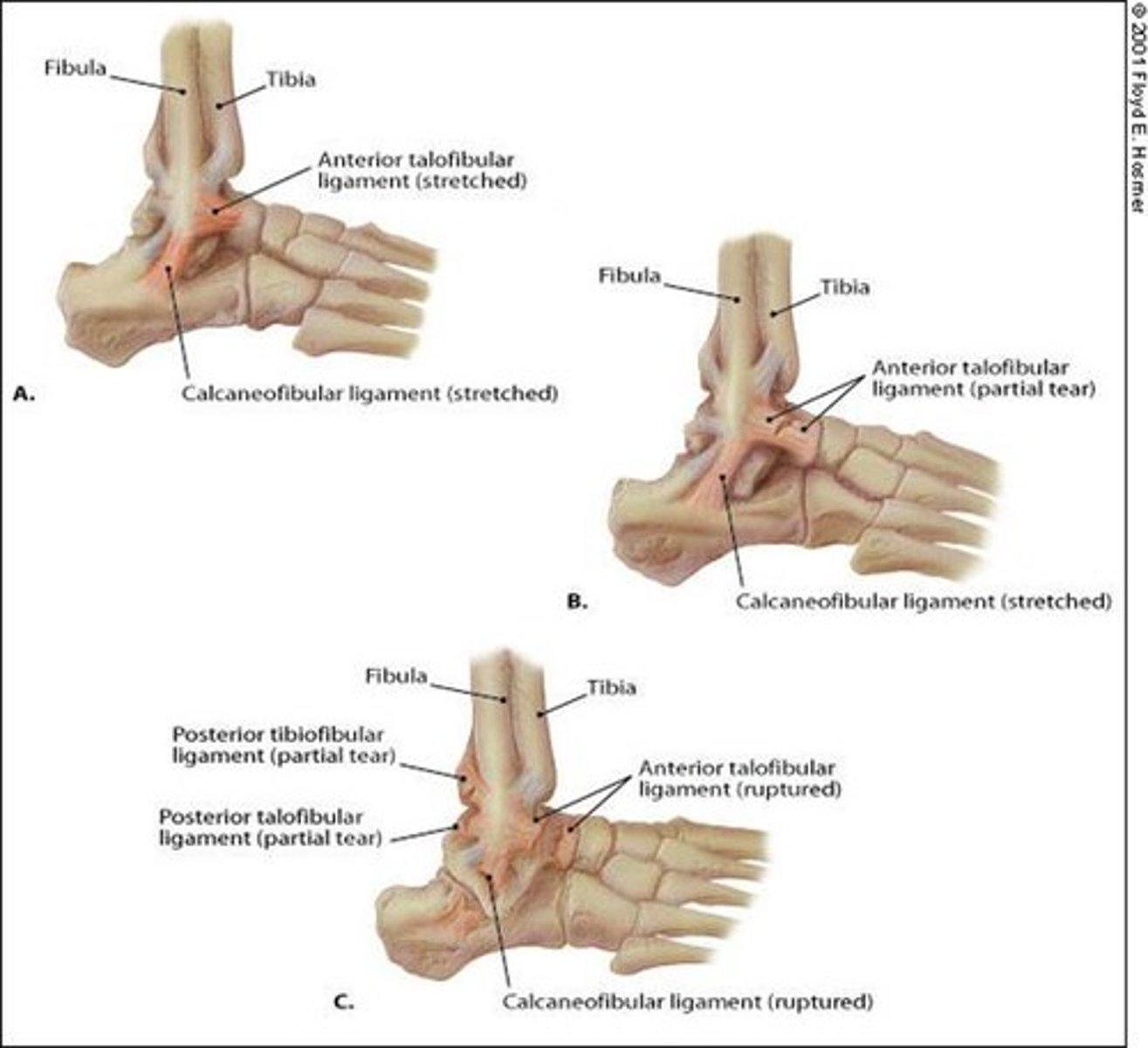

What are the THREE grades of ankle sprains?

Grade 1 → partial tear of the ATFL

Grade 2 → partial to complete tear of the ATLF + CFL

Grade 3 → complete rupture of the ATLF + CFL

XR of Medial Malleolus Fx.

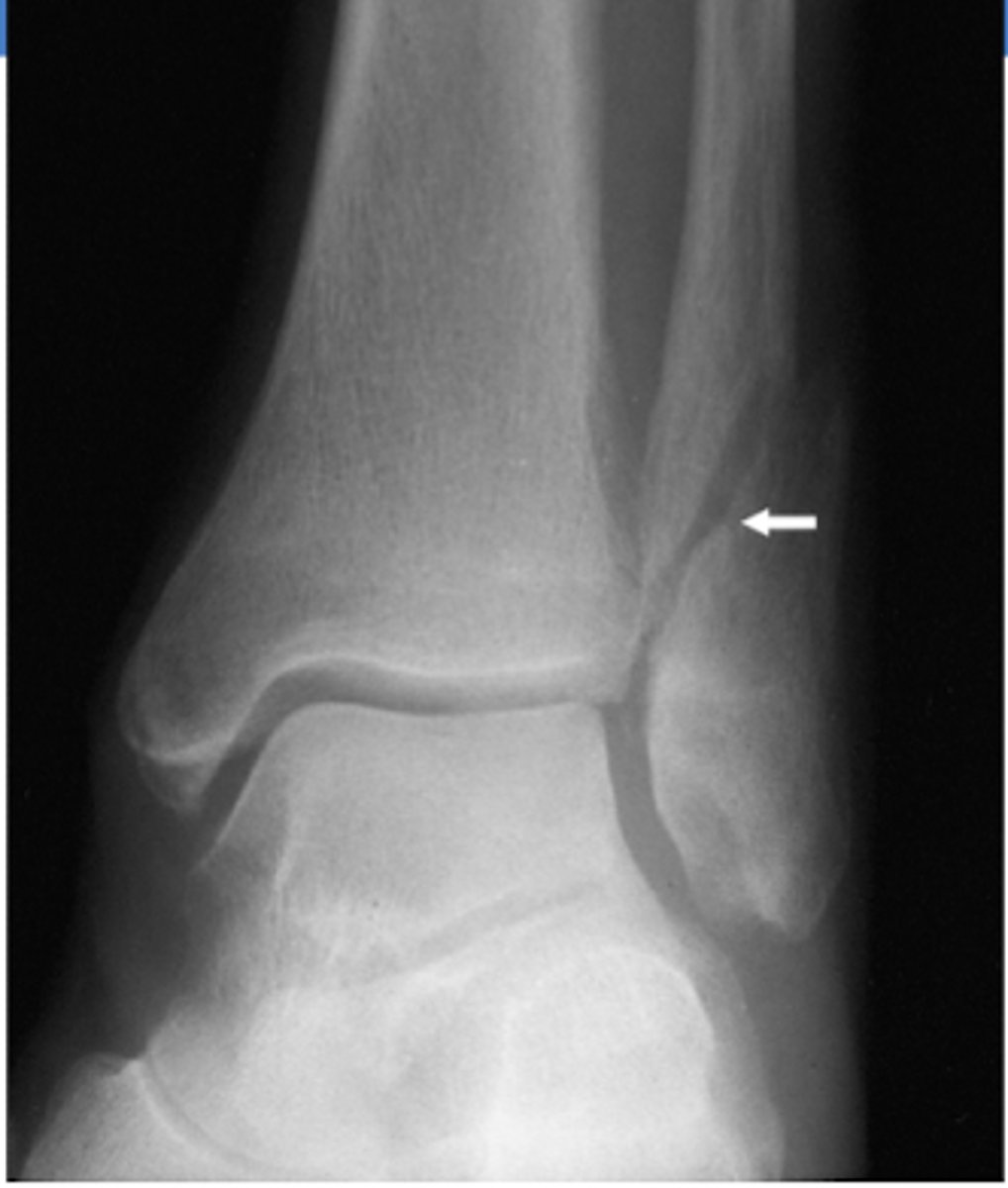

XR of Lateral Malleolus Fx with minimal displacement.

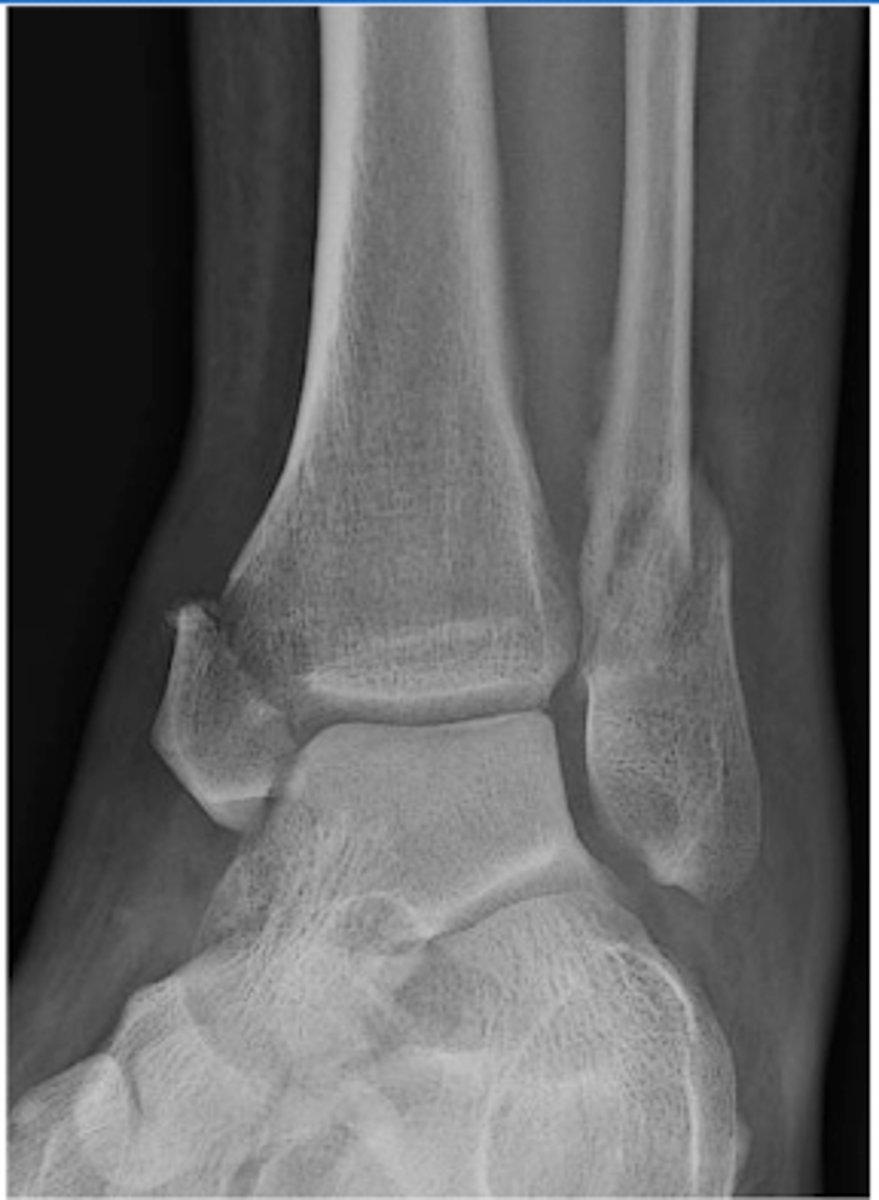

What is a bimalleolar ankle fracture?

involves BOTH the medial and lateral malleolus

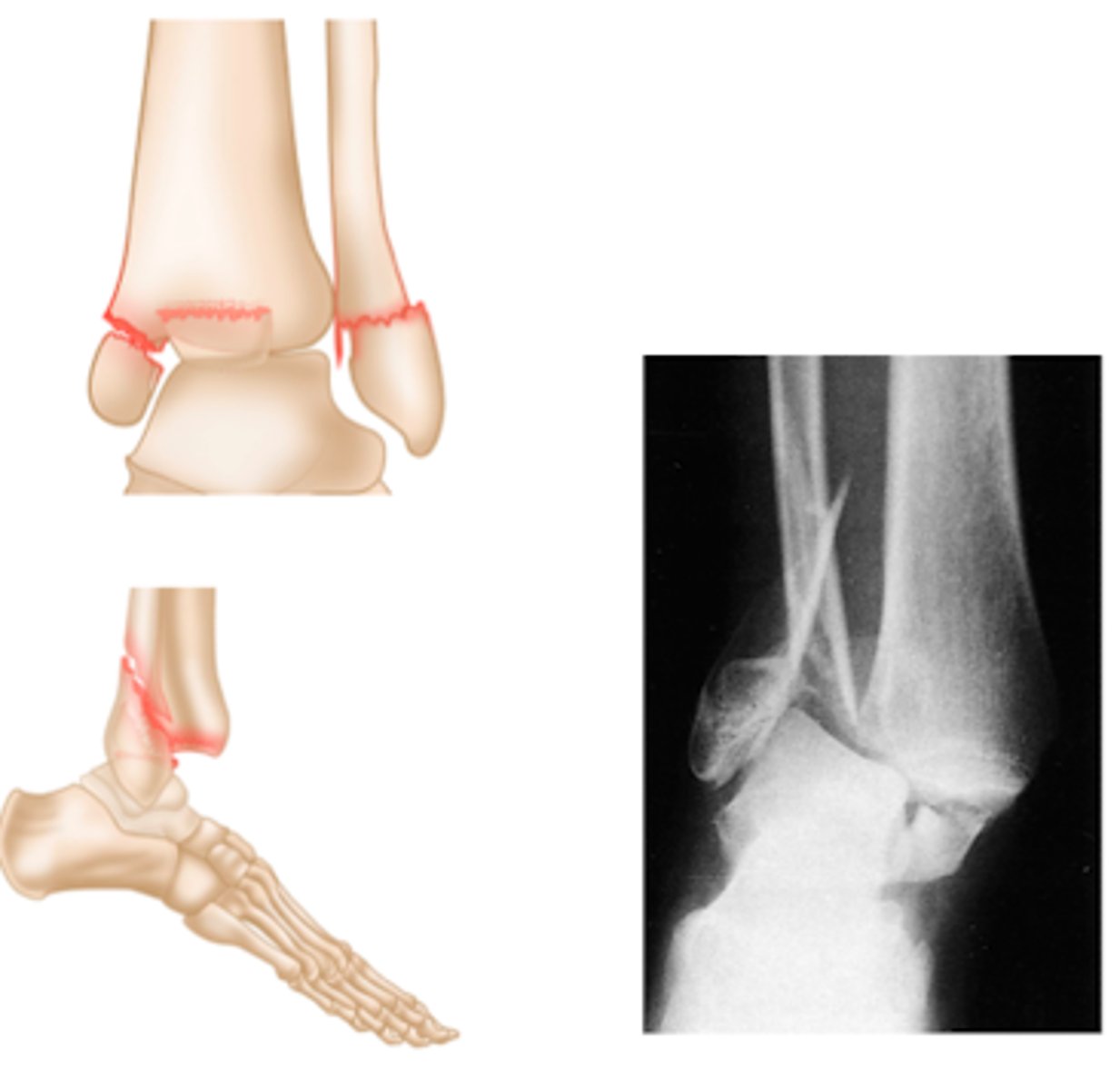

What is a trimalleolar ankle fracture?

involves all THREE malleoli - medial, lateral and

What TWO movements can lead to a Maisonneuve fracture?

pronation

external rotation

What TWO fractures occur together in a Maisonneuve fracture?

Fx of medial malleolus

Spiral fracture of the fibula

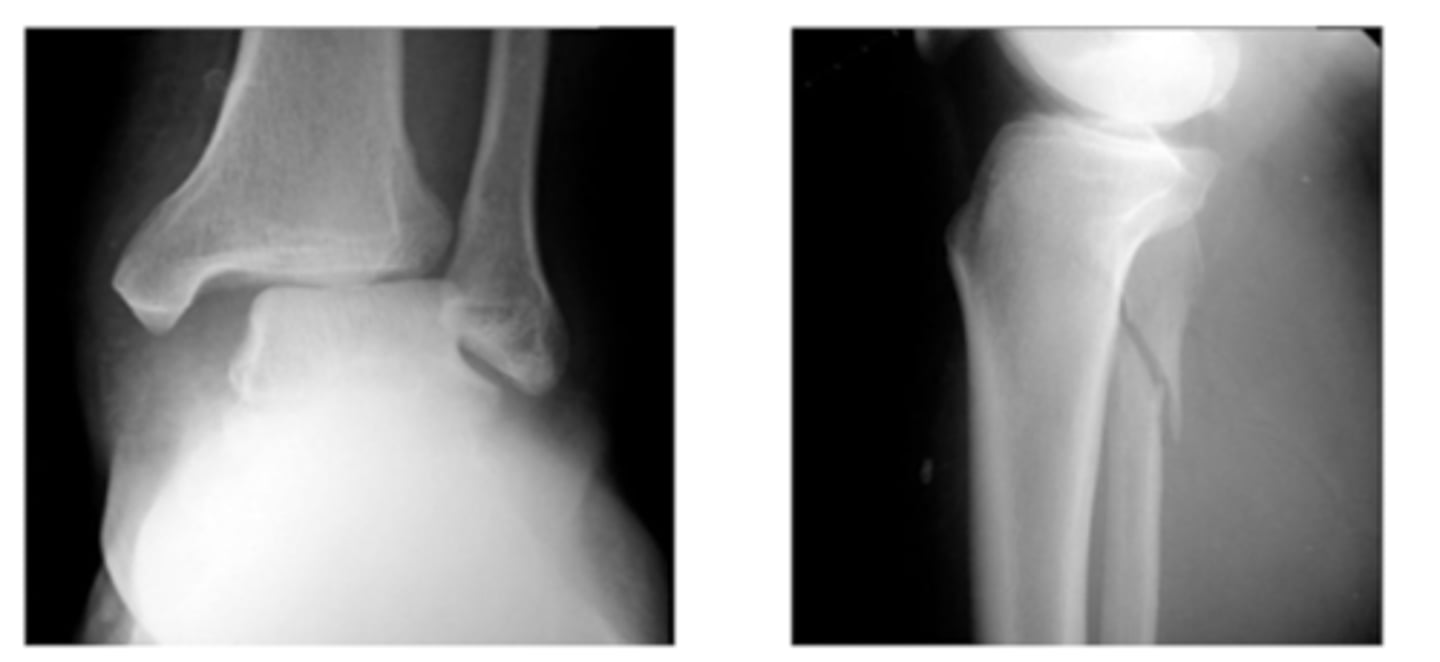

What TWO XR findings are consistent with a Maisonneuve fracture?

Tear of the tibiofibular ligament

Widening of the ankle mortise medially

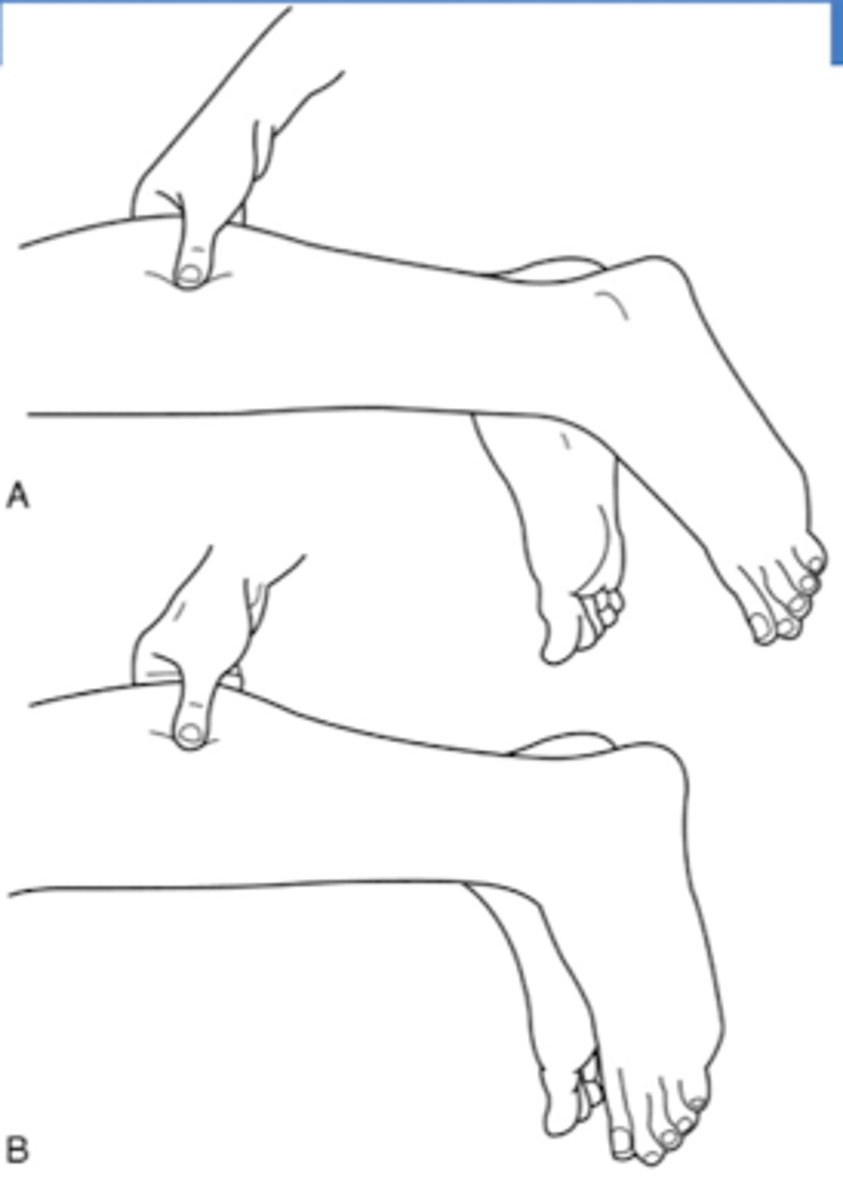

What PE findings are consistent with rupture of the achilles tendon?

(+) Thompson test

Not able to stand on tip toes on affected side

Review: Bones of the Foot.

What TWO bones comprise the FOREFOOT?

Phalanges

Metatarsals

What are the FIVE bones of the MID-FOOT?

Cuneiform x3

Navicular

Cuboid

What TWO bones comprise the HIND-FOOT?

Talus

Calcaneus (heel)

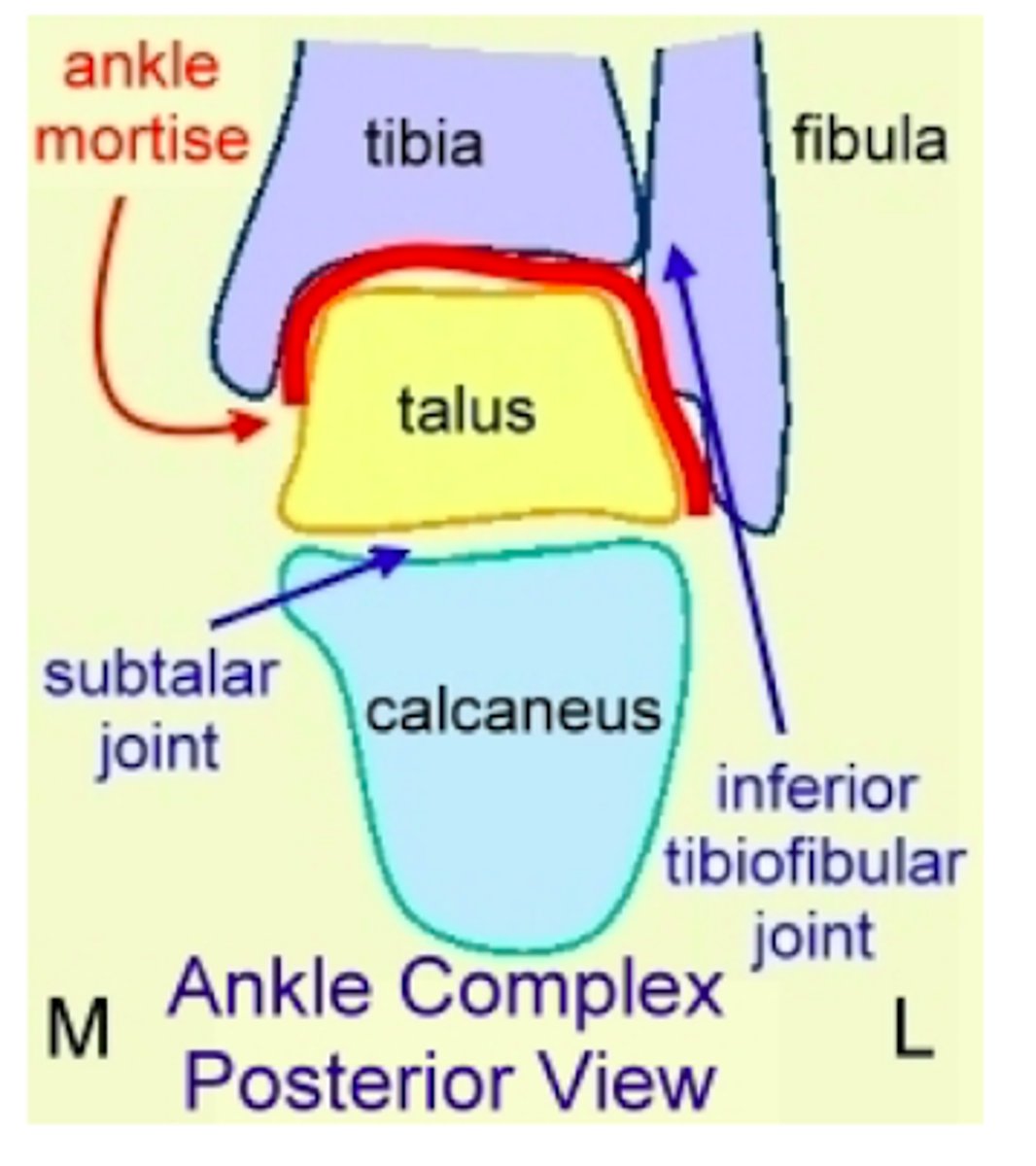

What THREE bones comprise the ankle joint?

Fibula (lateral)

Tibia (medial)

Talus

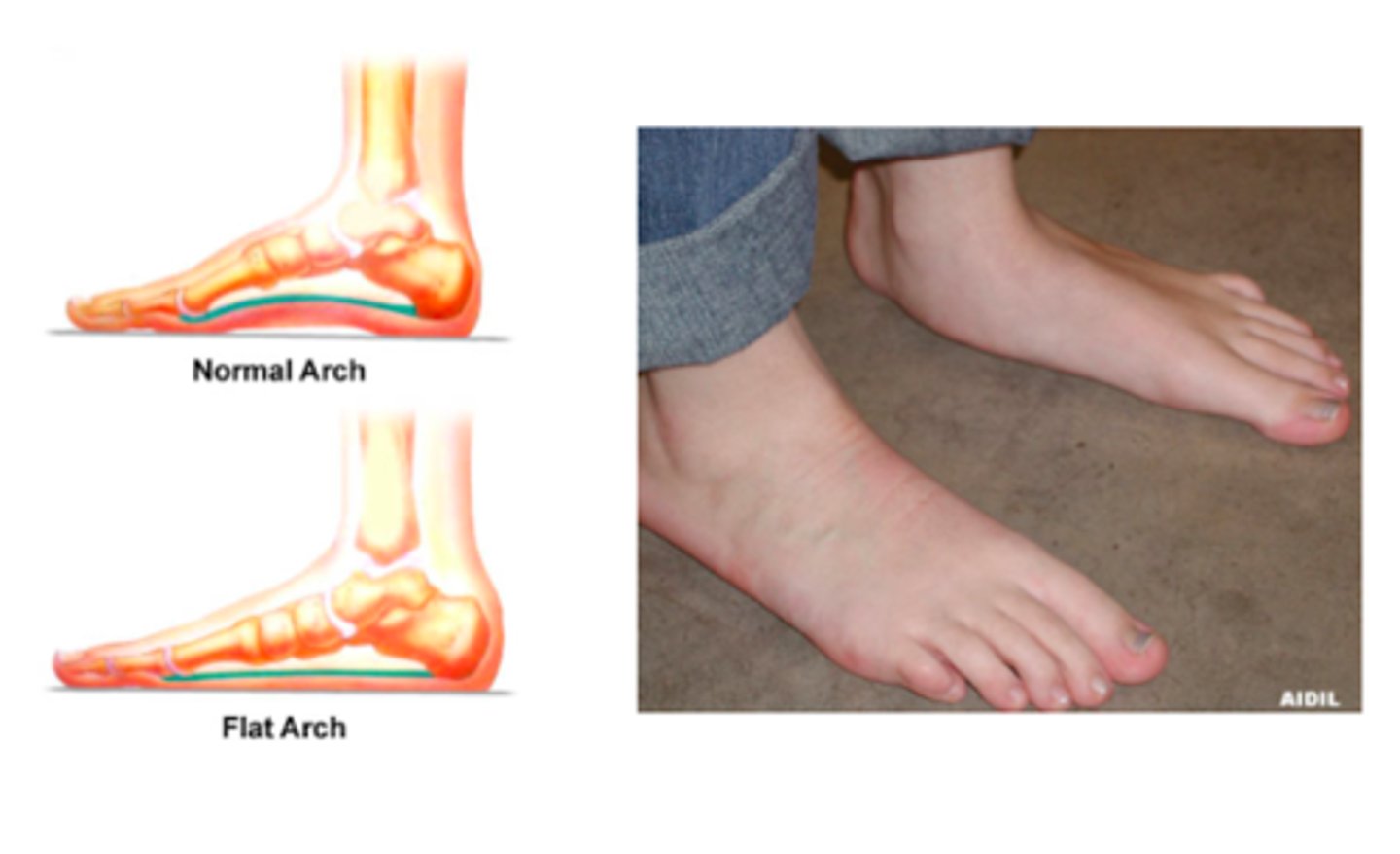

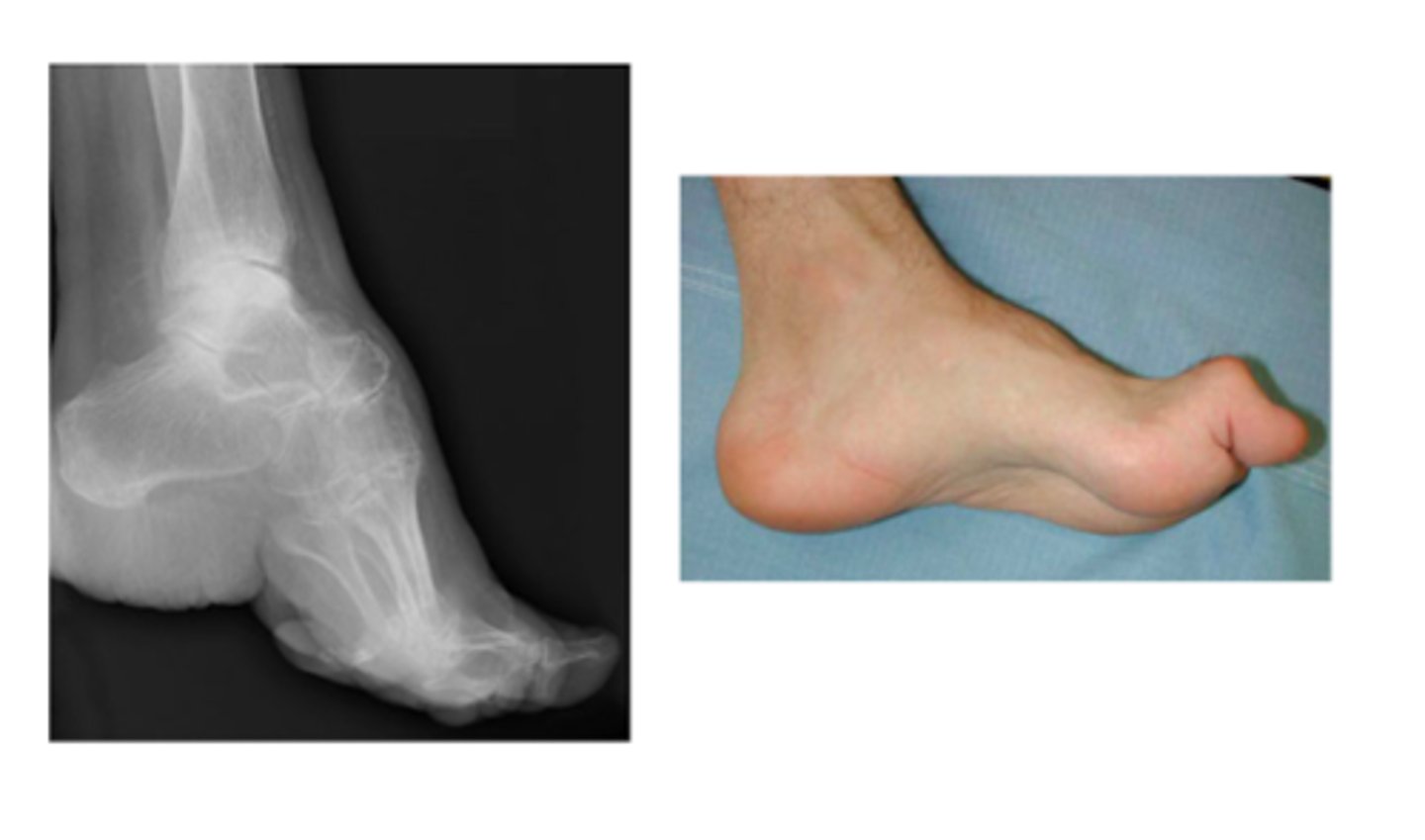

What is the difference between pes cavus and pes planus?

Pes cavus → elevated longitudinal arch

Pes planus → no longitudinal arch (flat feet)

What is the treatment for pes cavus?

surgery

What is the treatment for pes planus?

PT

Arch support

NSAIDs

If ADLs affected → ortho referral

When is plantar fasciitis most painful?

in the morning

- improves with stretching + activity

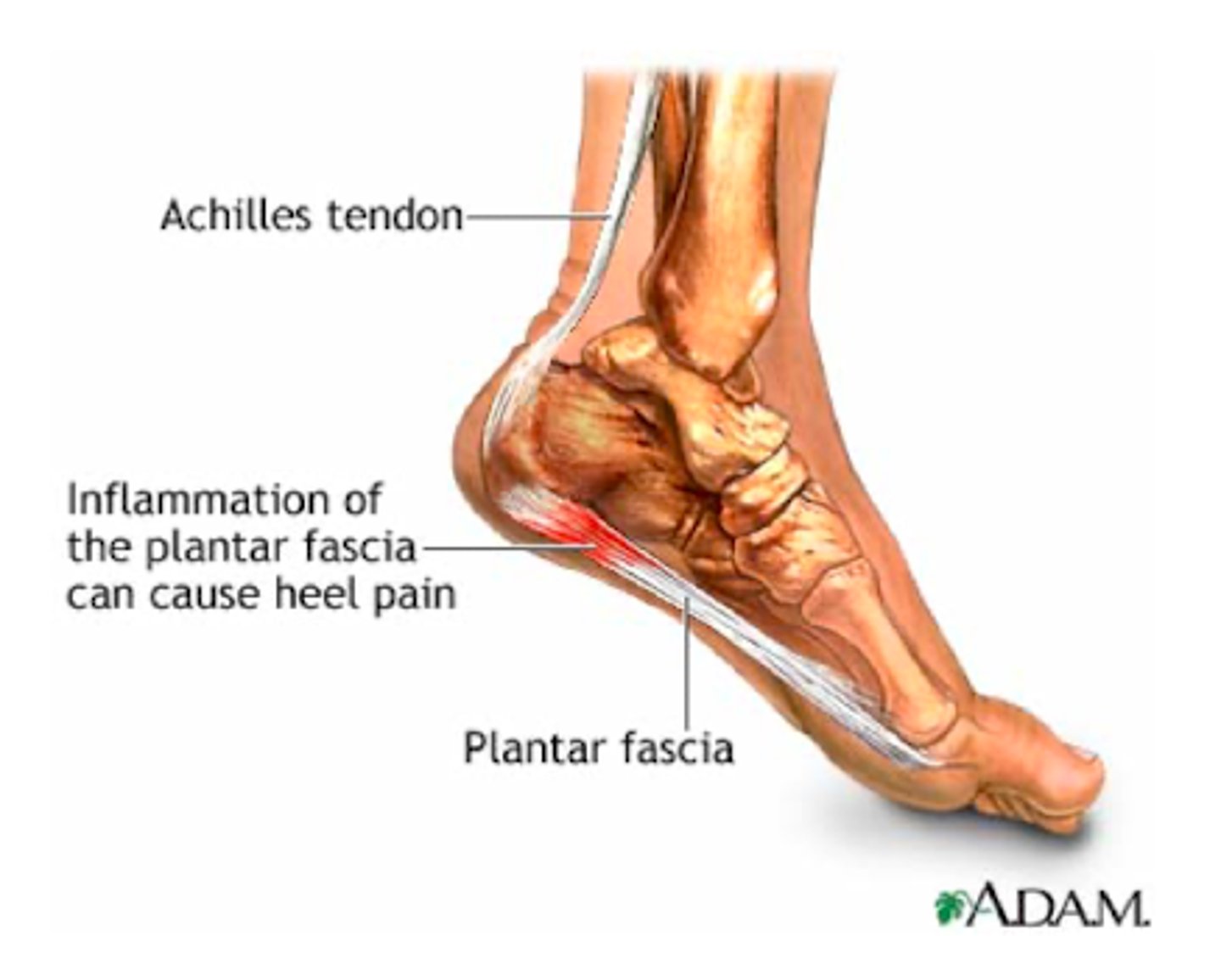

What type of pain will present with plantar fasciitis?

heel pain

- will be tender upon palpation

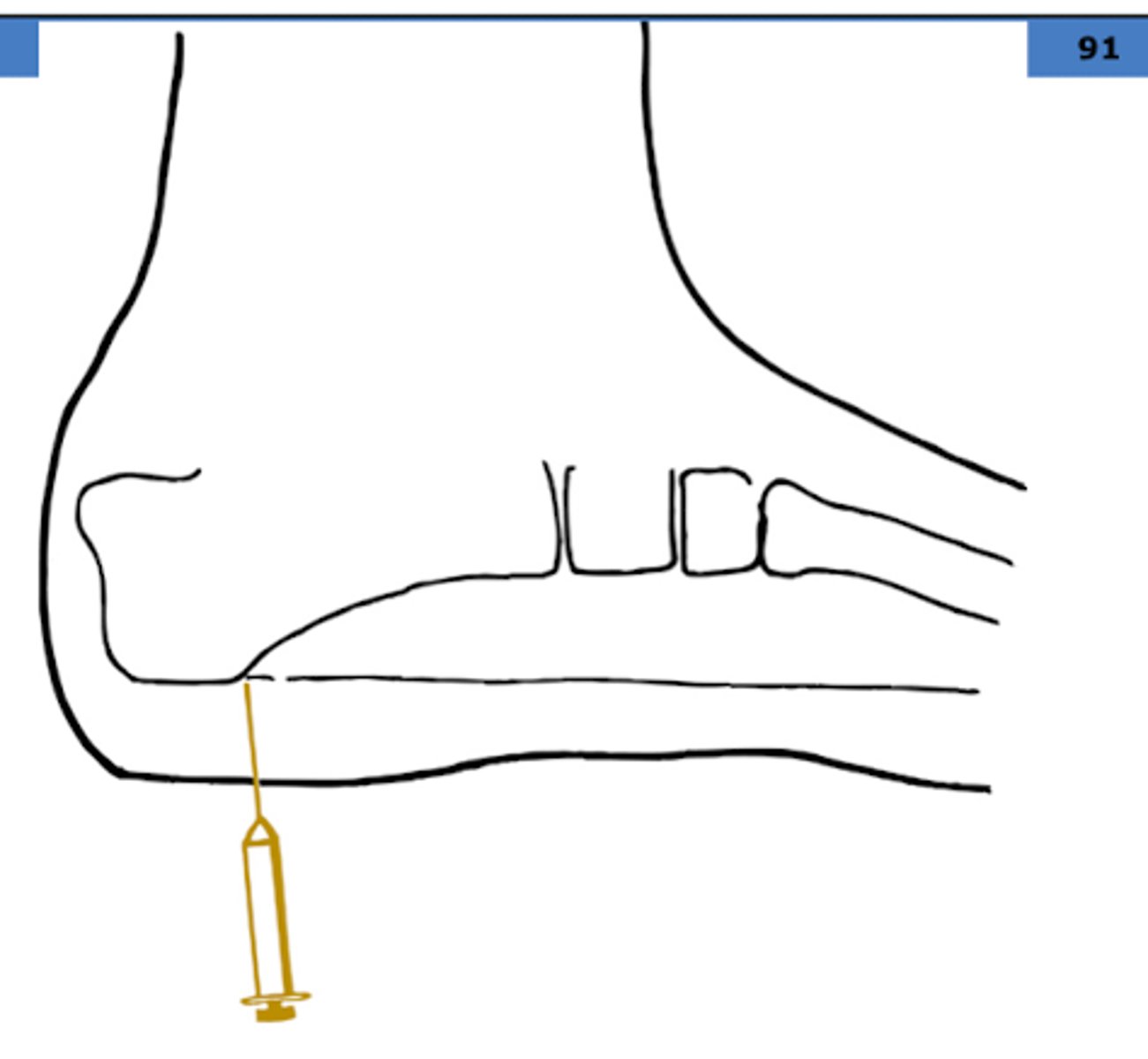

What is the treatment for plantar fasciitis?

NSAIDs

Ice

PT

Ortho → steroid injections

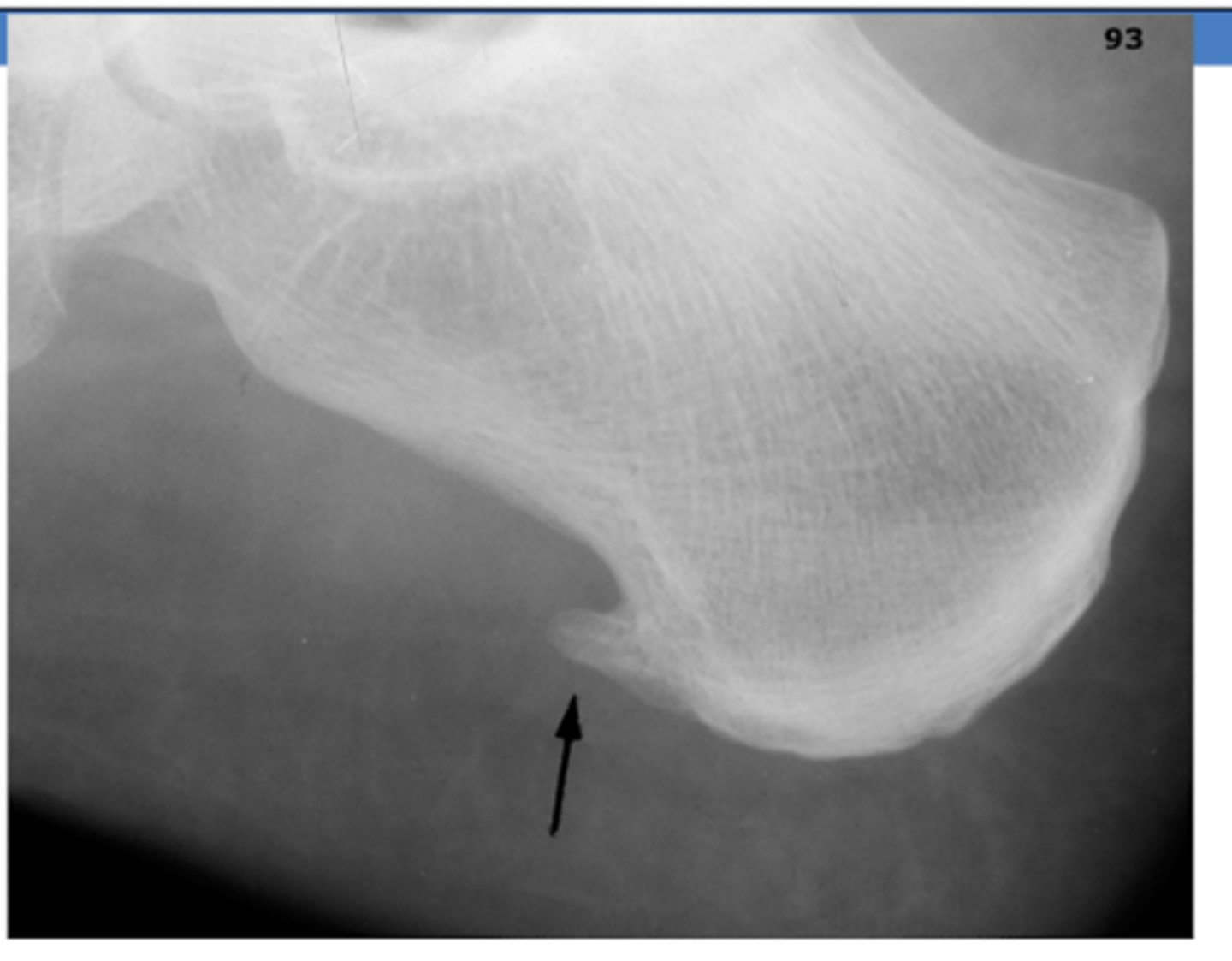

If a patient present with pain that "feels like I am walking on a stone," what is the most likely diagnosis?

heel spur

What is the treatment for heel spurs?

NSAIDs + ice

Heel pad

PT

Ortho → injection/surgery

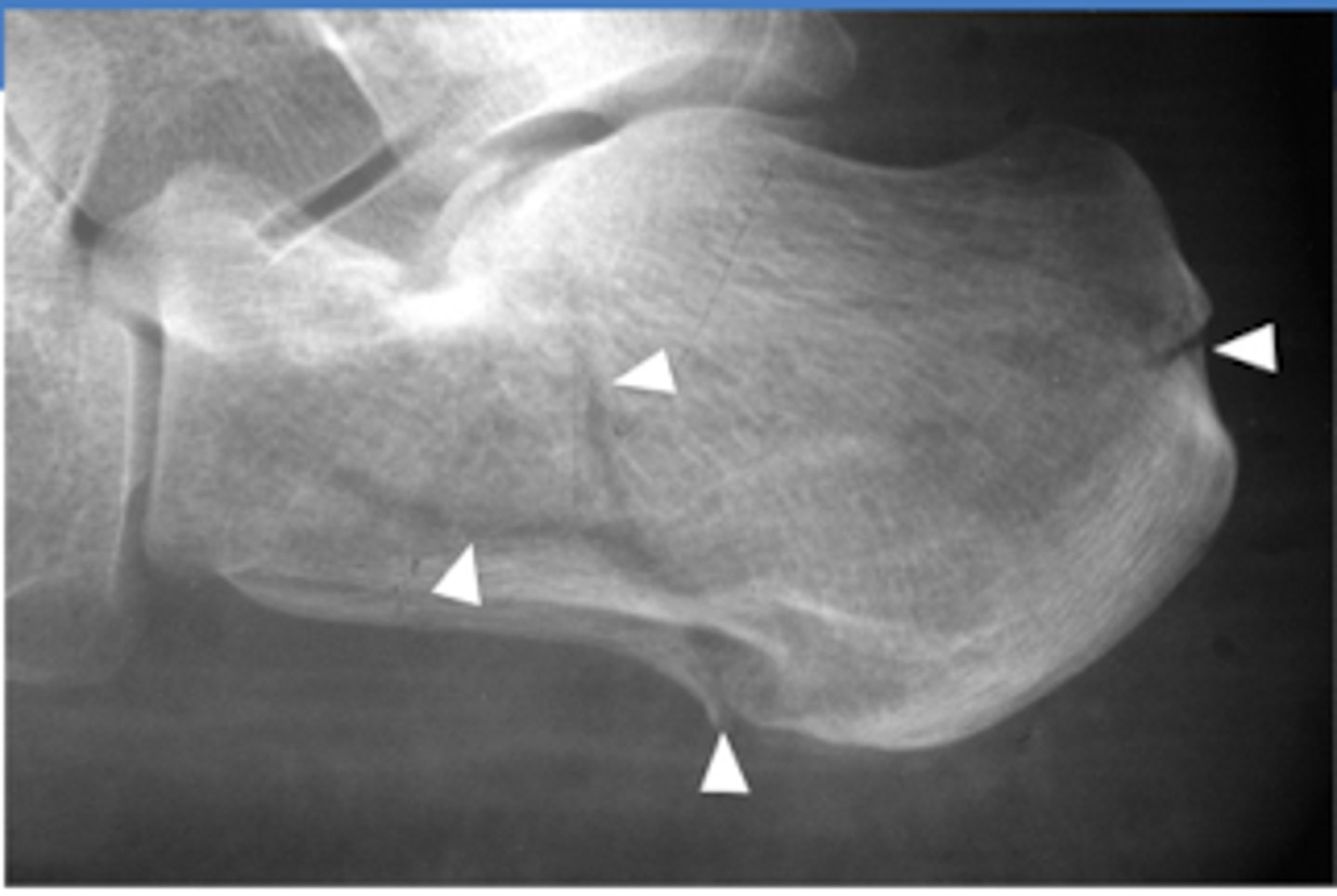

If a patient presents with heel pain and ecchymosis following fall/jump, what could be a possible diagnosis?

calcaneus fracture

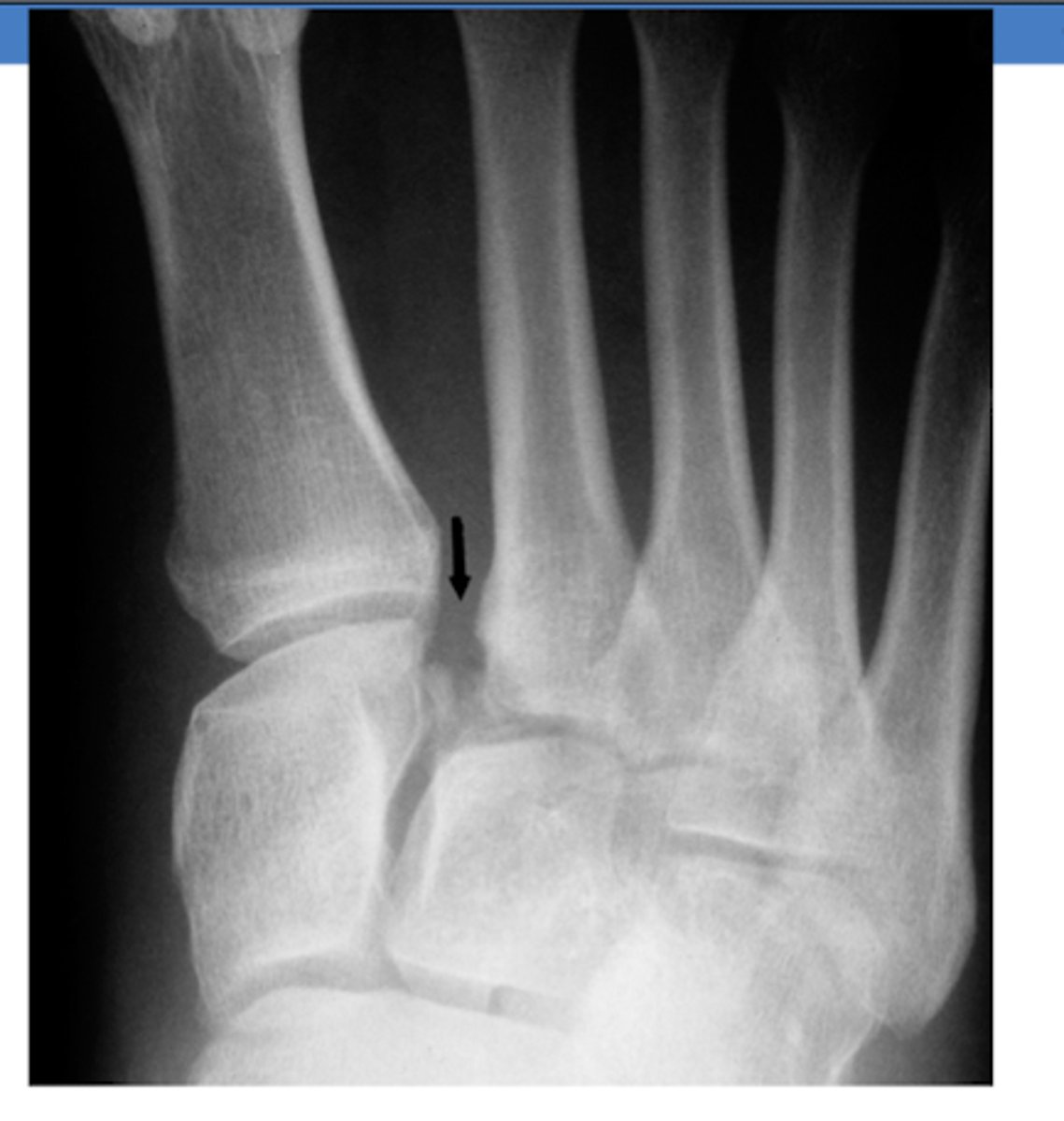

What joint is involved in a Lisfranc injury/fracture?

TMT (tarsometatarsal) joint

- between the articulation of the medial cuneiform and the base of the 2nd MT

What is the treatment for a Lisfranc injury/fracture that is <2mm?

casting for 6 weeks

- cannot bear weight

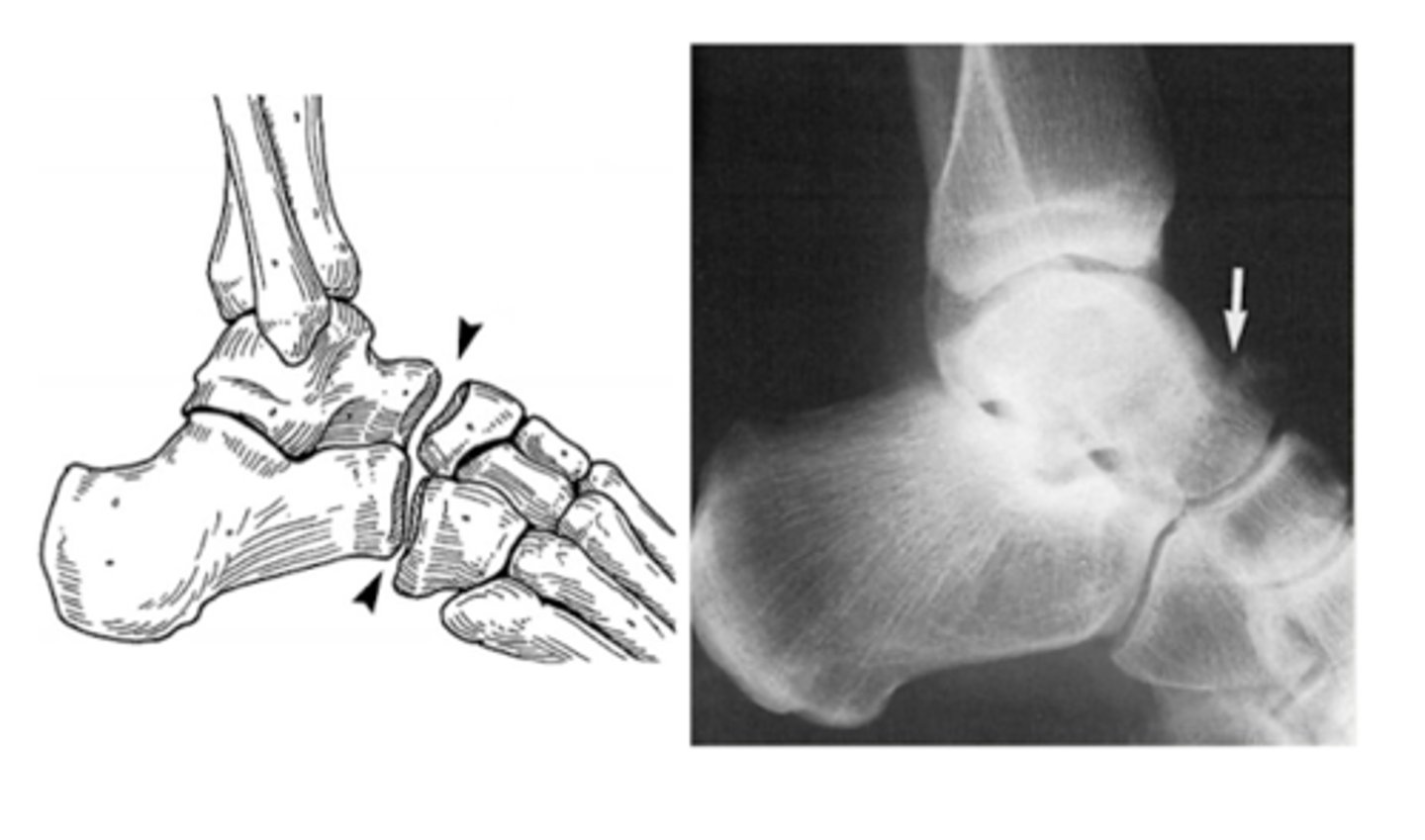

What is Chopart's Fracture-Dislocation?

Dislocation of the mid-tarsal joints (talonavicular + calcaneocuboid)

Fracture of the calcaneus, cuboid and navicular

What is the treatment for Chopart's Fracture-Dislocation?

open reduction w/ internal fixation

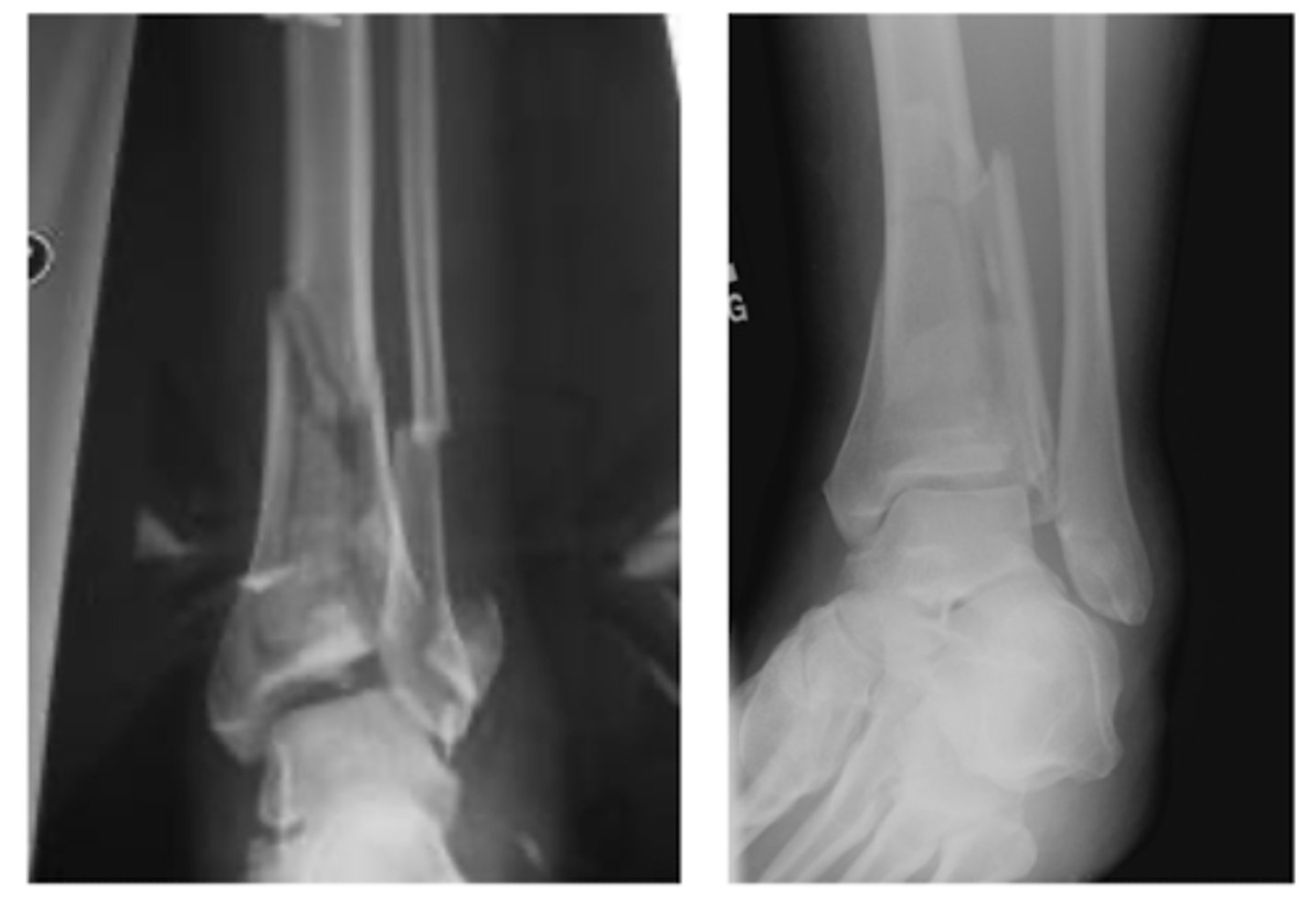

What type of fracture involves the distal tibia and the ankle joint at the tibiotalar articular surface?

pilon fracture

Due to extent of trauma usually associated with a pilon fracture, what type of fracture can also present with it?

fibula fracture

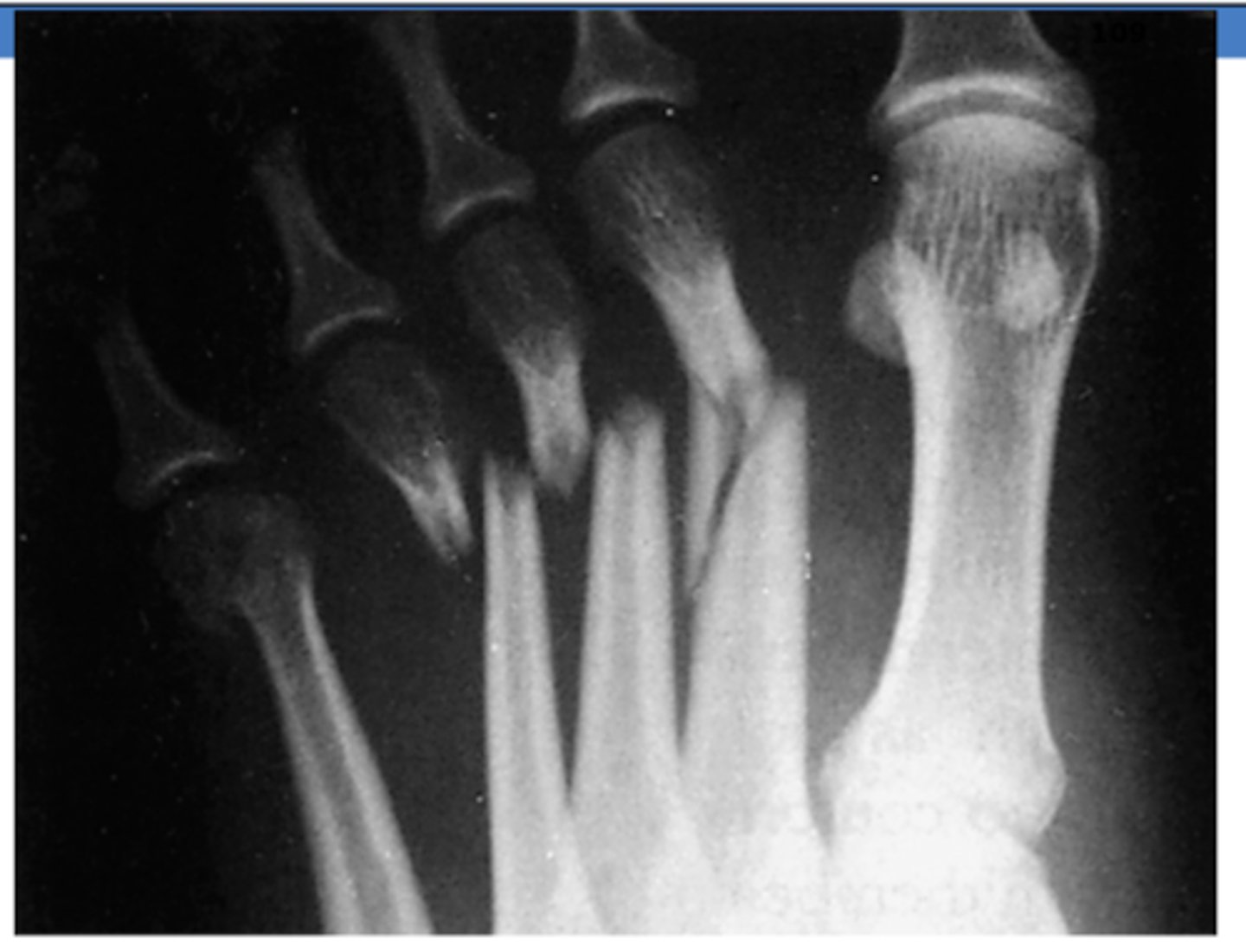

What is fractured in the following XR?

metatarsals

Fracture of the 5th metatarsal is also known as what?

Jone's fracture

What is Morton's neuroma?

pinched nerve/nerve tumor in the 2/3 or 3/4 metatarsal head space

- results in severe burning pain

What causes Morton's neuroma?

tight shoes

If a patient has an ingrown nail, what is the ABX typically administered?

Keflex (cephalexin)

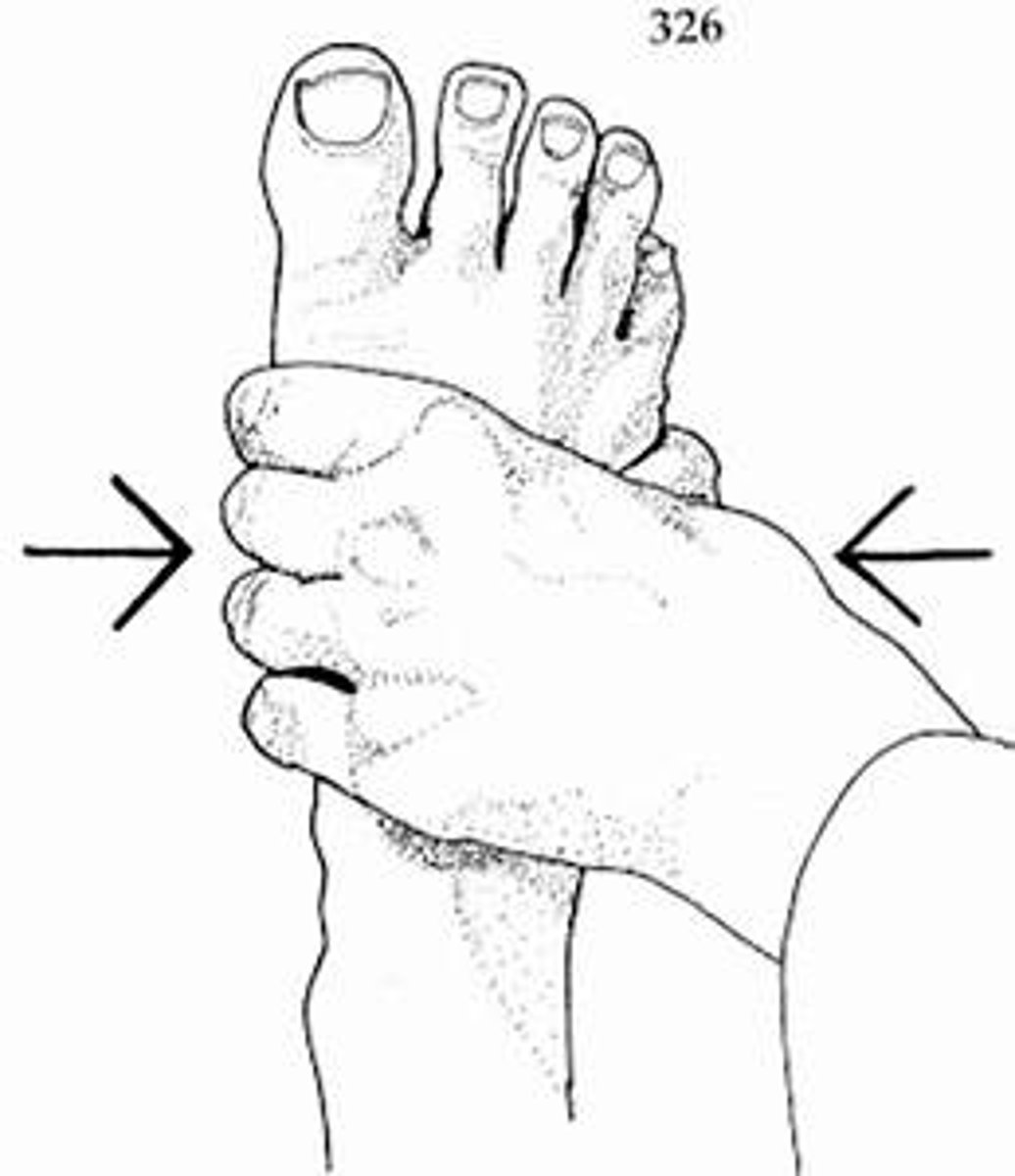

What is a (+) Morton's test?

pain between the 3rd and 4th metatarsal head

- where the examiner grabs the metatarsal head + squeezes the heads together

What is a subungual hematoma?

bleeding under the nail

What is tinea unguium?

onychomycosis, or nail fungus

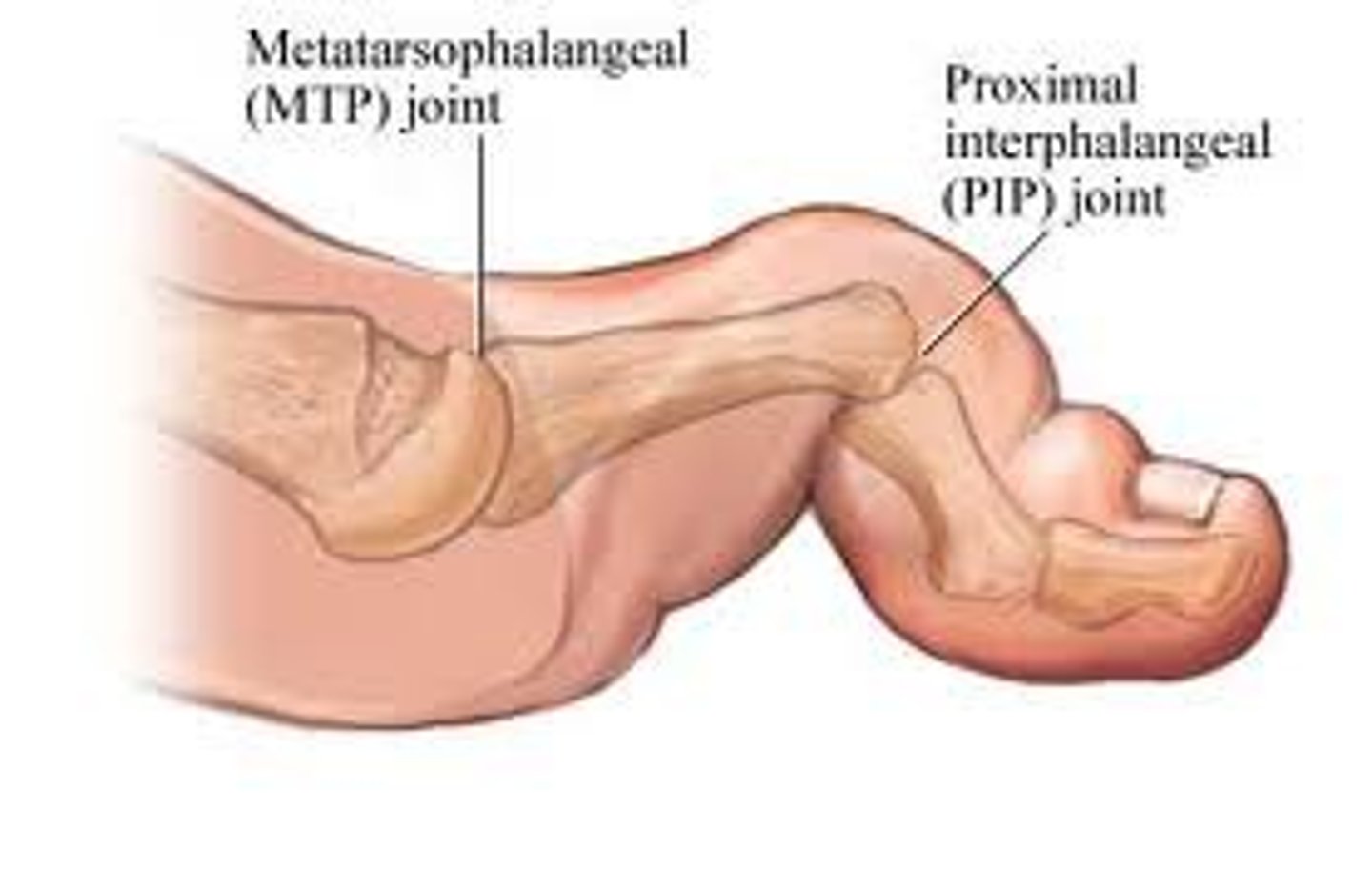

What type of deformity is associated with hammer toes?

PIP joint will be flexed

- typically affects only one toe (usually the 2nd)

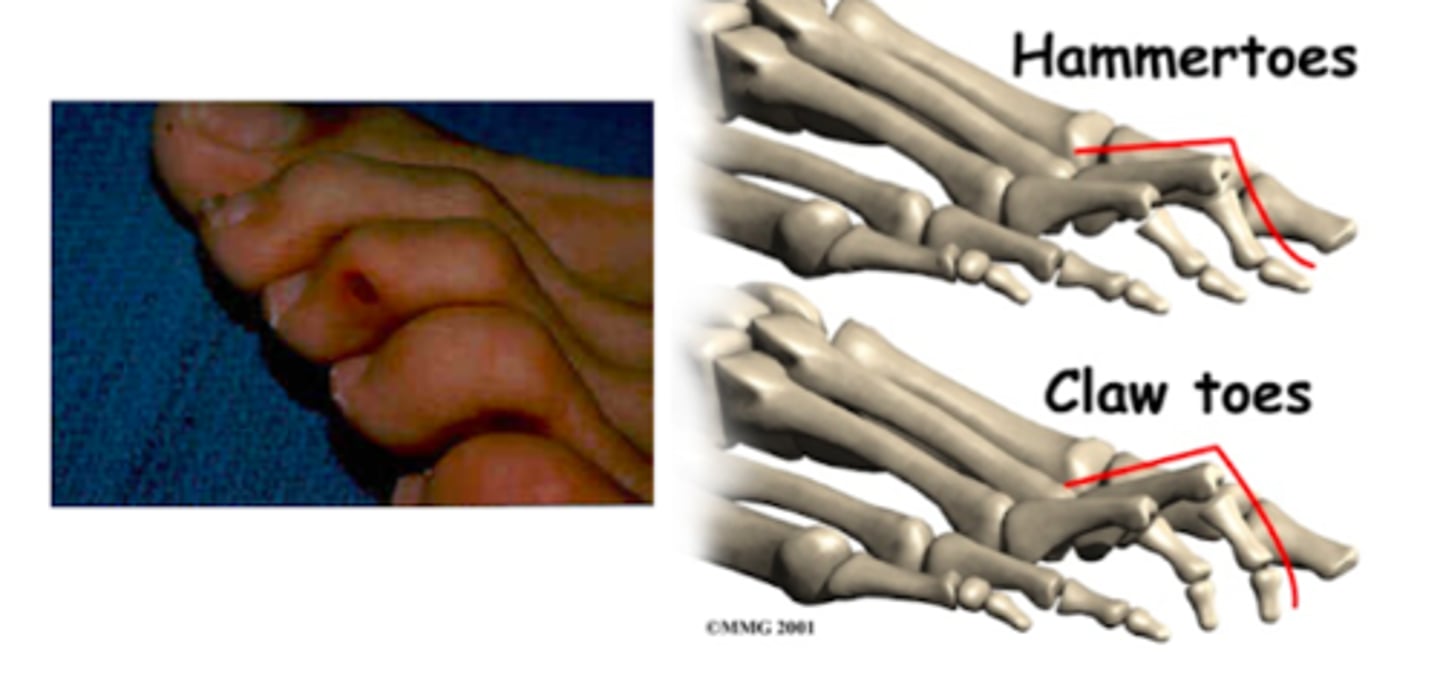

What type of deformity is associated with claw toes?

bent toes (usually multiple) in a claw-like fashion

What condition results in hyperkeratonic lesions between the toes or on the plantar aspect of the foot?

calluses

- NOT painful

**corn = painful

What term can be used to describe a lateral deviation of great toe?

hallux valgus (bunion)

What lab findings are consistent with acute osteomyelitis?

Increased WBC

Increased ESR/CRP

What term can be used to describe a neurogenic arthropathy that affects the joints of the foot?

Charcot's disease

- leads to joint deformities and loss of sensory function in the affected limb

What can lead to the development of Charcot's disease?

uncontrolled DM

- with peripheral neuropathy

What TWO findings on XR are suggestive for Charcot's foot?

Decline in calcaneal inclination with equinus (inability to dorsiflex)

Rocker-bottom deformity

**will initially not appear on XR

T/F. Individuals with Charcot's disease can have worsening trauma to the foot due to loss of sensation.

TRUE - will not notice they have an injury due inability to feel it
