Vertical Bandsaw Machine

First step is to always rotate ______ in _____ direction to disengage it.

e-stop and clockwise

How do you engage the blade?

Press Start

How do you disengage the blade?

Press e-stop

When can you decrease and increase blade speed with blade speed control?

When machine is ON!

What are the requirements to change gears from low speed to high speed and vice versa?

Machine is OFF and speed indicator is at lowest possible speed (blocker should go down)

How to change gears?

Lift and bring gear switcher to other side

One important thing about the gear switcher is that it is

heavy to move

The speed indicator is terrible at indicating since won’t really move thus _______ it will help it move.

Flicking

How to know if you are at right speed?

Make sure line on the moving speed indicator is aligned with the line of the selected material

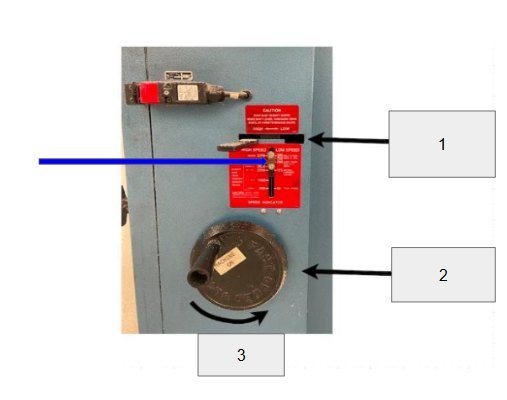

What is arrow 1 (box 1) pointing at? (be very specific)

Gear Switcher in High Speed

What is arrow 2 (box 2) pointing at?

Blade Speed Control

Arrow 3 (near box 3) is going CCW. What does that mean for blade speed control?

Moving blade speed control CCW increases blade speed

What is the blue arrow pointing at?

Line of the speed indicator to align with correct material speed
