Larynx

Structure of the Larynx

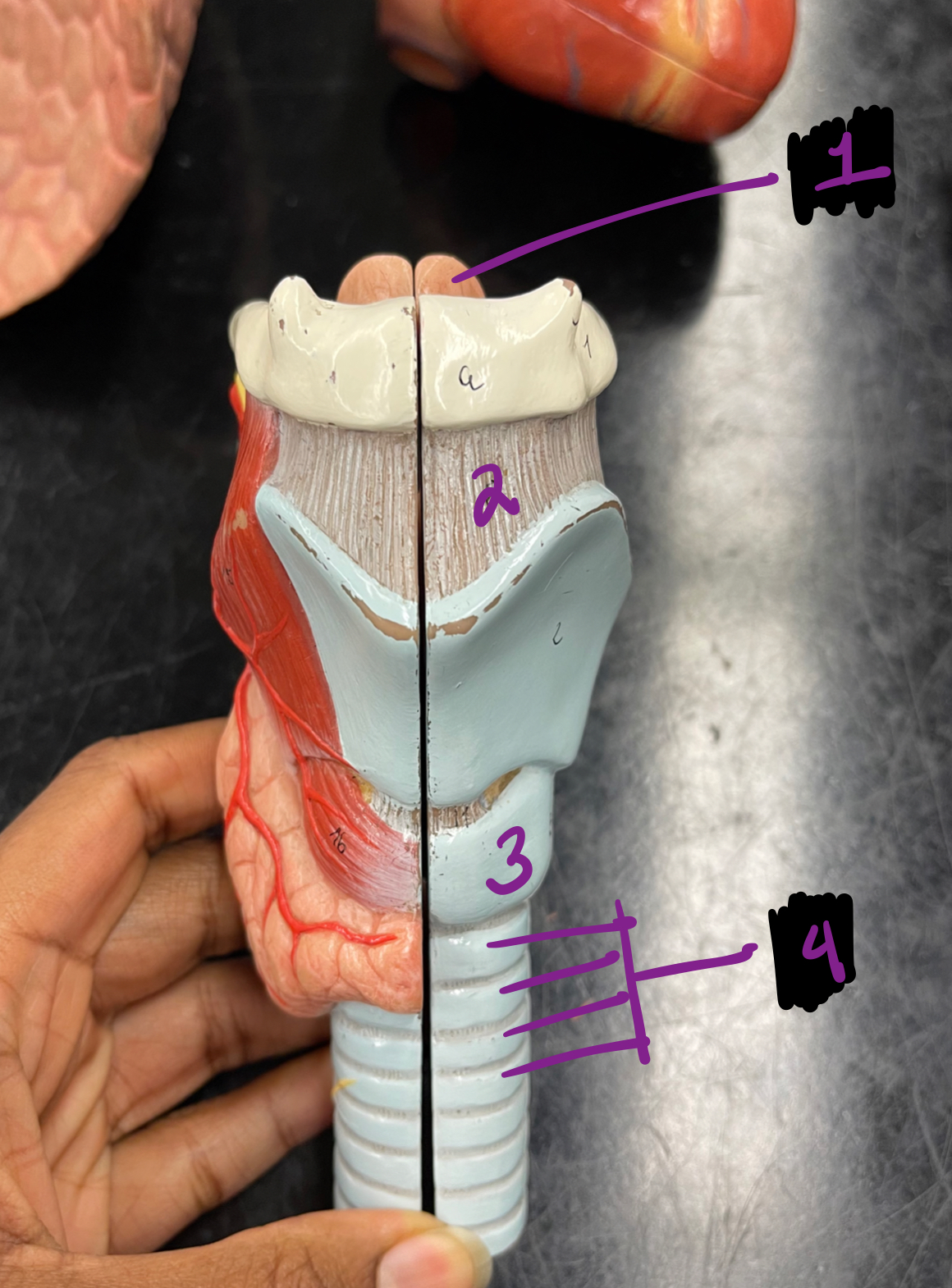

Body of hyoid Bone

1

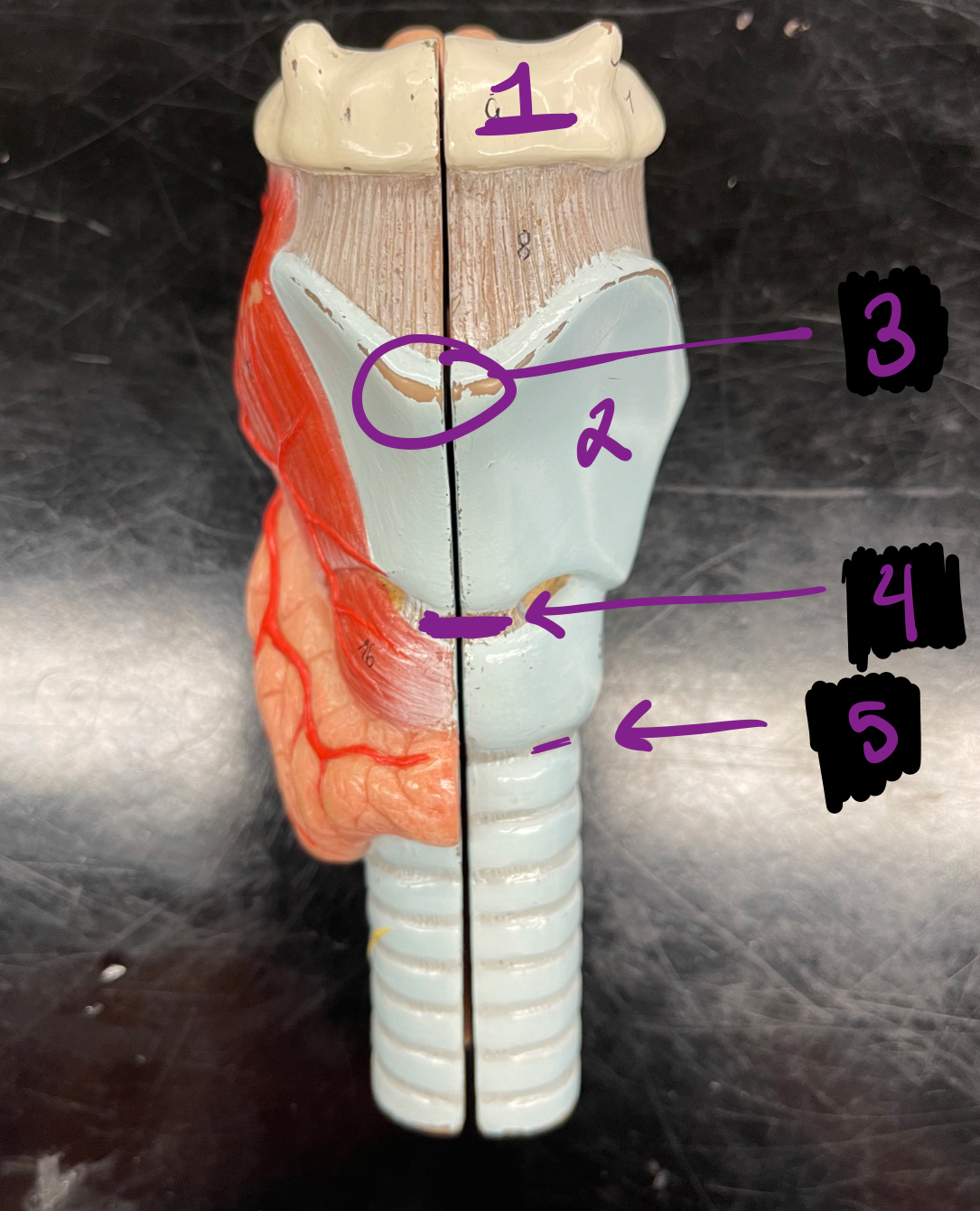

Thyroid Cartilage

2

Laryngeal Prominence (adam's apple)

3

Cricothyroid ligament

4

Cricotracheal ligament

5

Epiglottis

1

Thyroid Membrane

2

Cricoid Cartilage

3

Tracheal Cartilages

4

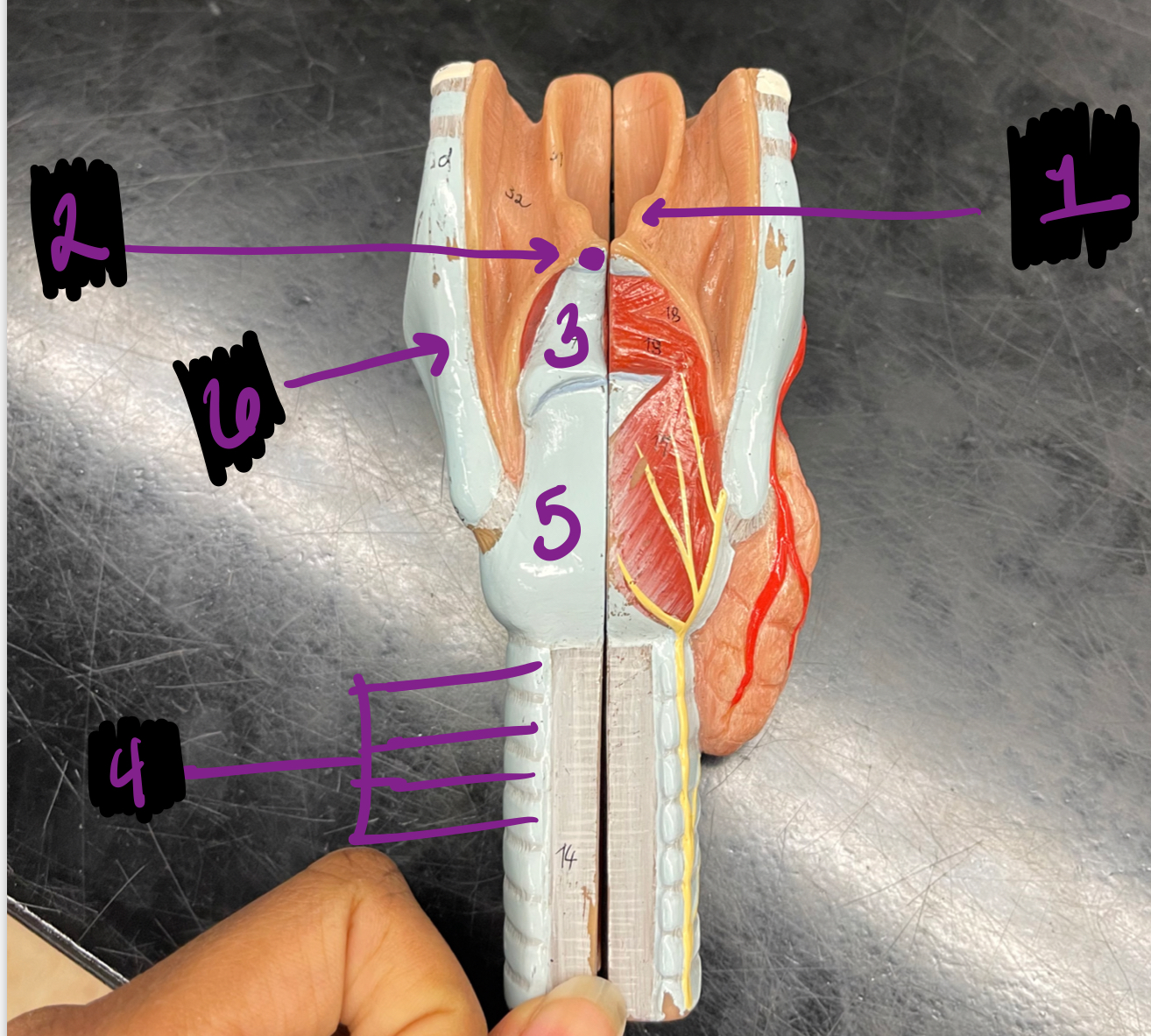

Cuneiform Cartilage is deep to this pink layer above. It is represented by the bump

1

Corniculate Cartilage

2

Arytenoid Cartilage

3

Tracheal Cartilage

4

Cricoid Cartilage

5

Thyroid Cartilage

6

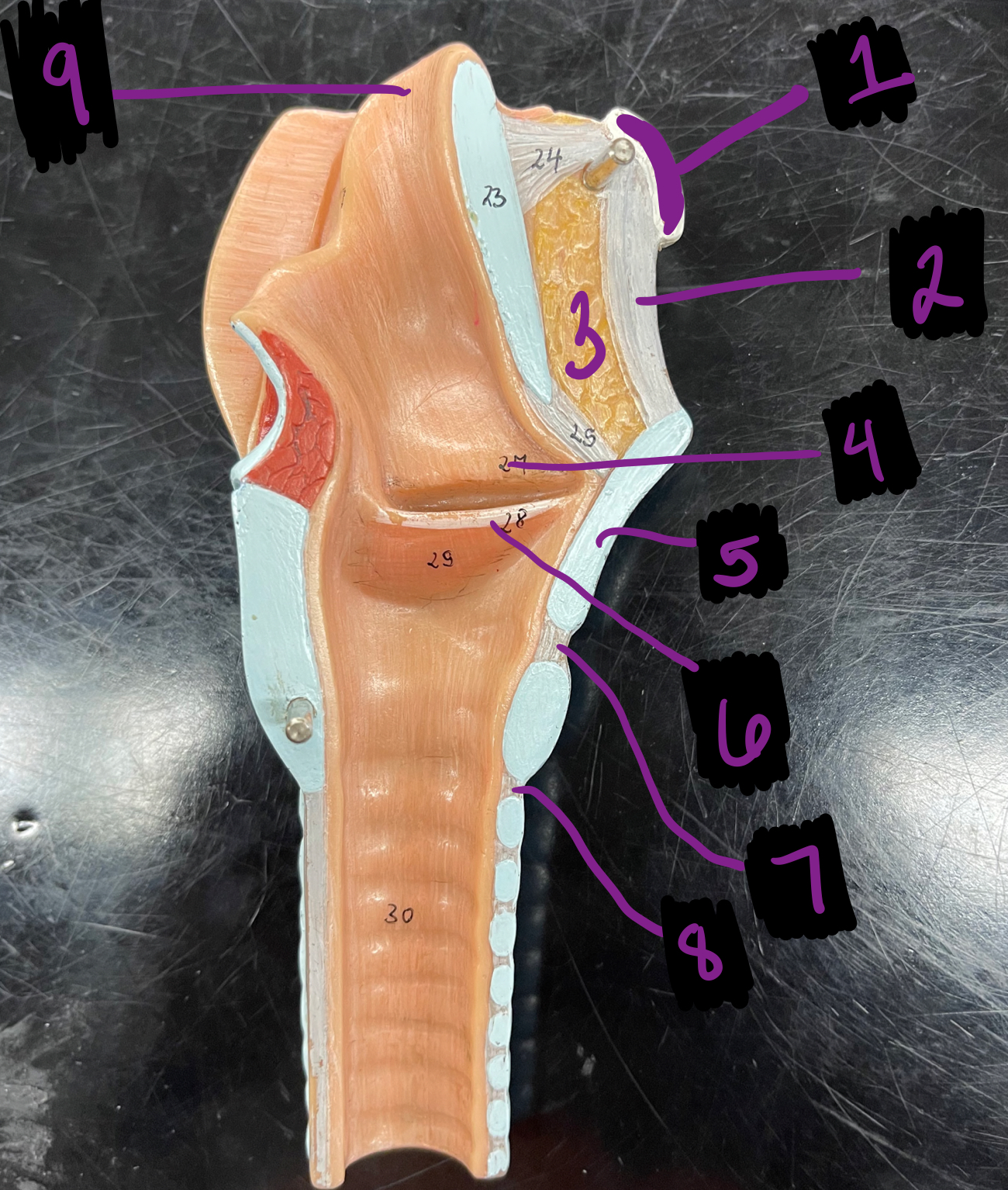

Body of Hyoid Bone

1

Thyrohyoid membrane

2

Fatty Pad

3

Vestibular fold(false vocal cord)

4

Thyroid Cartilage

5

Vocal Fold (True Vocal Cord)

6

Cricothyroid ligament

7

Cricotracheal ligament

8

Epiglottis

9
