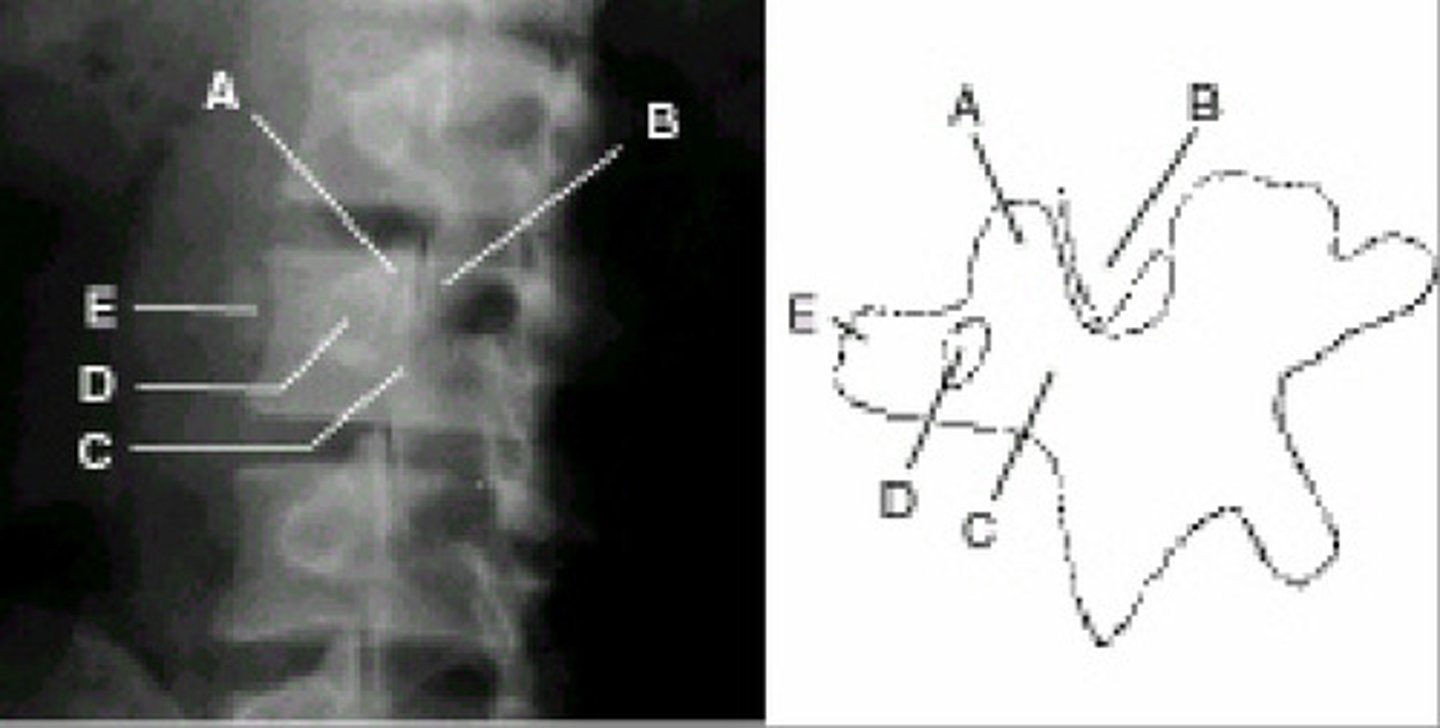

"Scotty Dog" is demonstrated on...

an oblique view of the Lumbar Spine

<p>an oblique view of the Lumbar Spine</p>
2
New cards

The nose of the scotty dog is the...

transverse process

<p>transverse process</p>
3
New cards

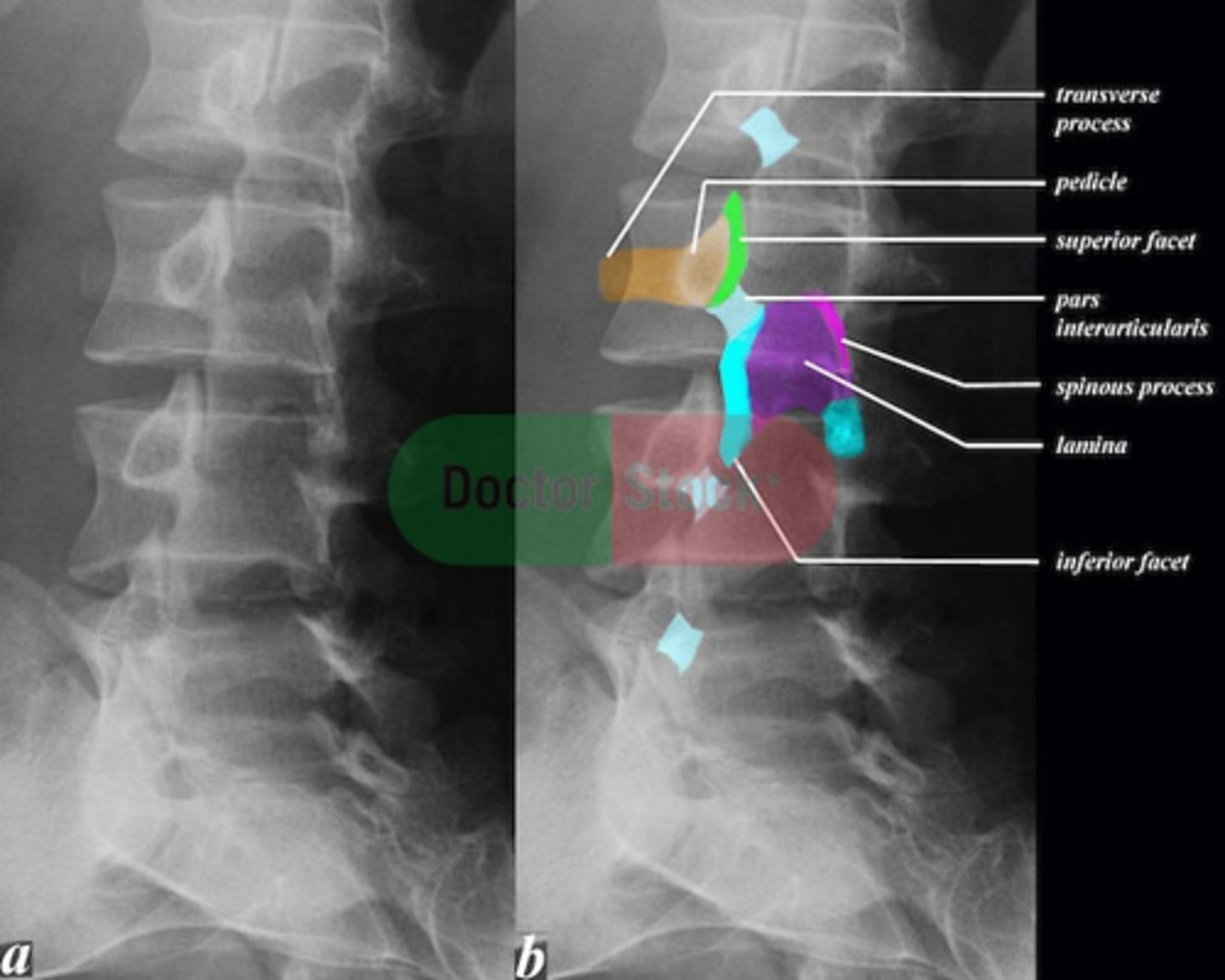

The eye of the scotty dog is the...

pedicle

<p>pedicle</p>
4
New cards

Front paw of the scotty dog is the...

inferior articular process

<p>inferior articular process</p>
5
New cards

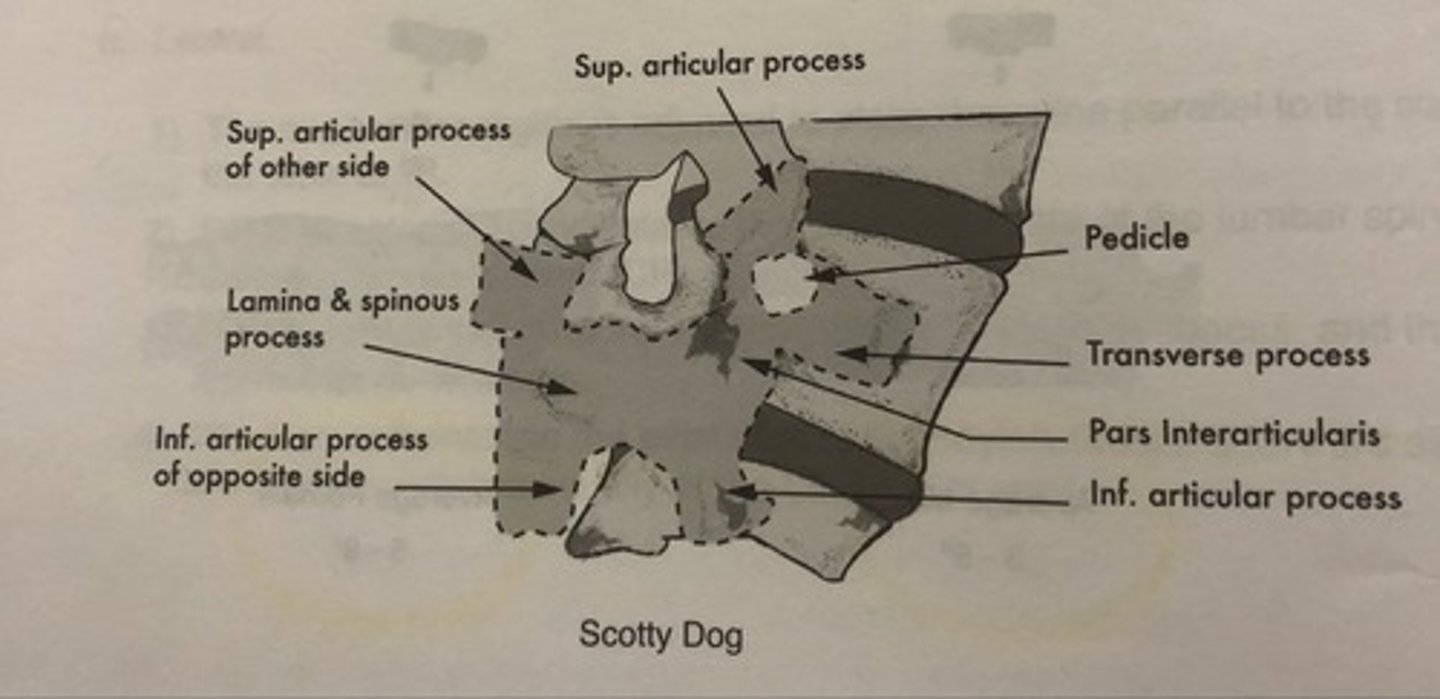

The ear of the scotty dog is the...

superior articular process

<p>superior articular process</p>
6
New cards

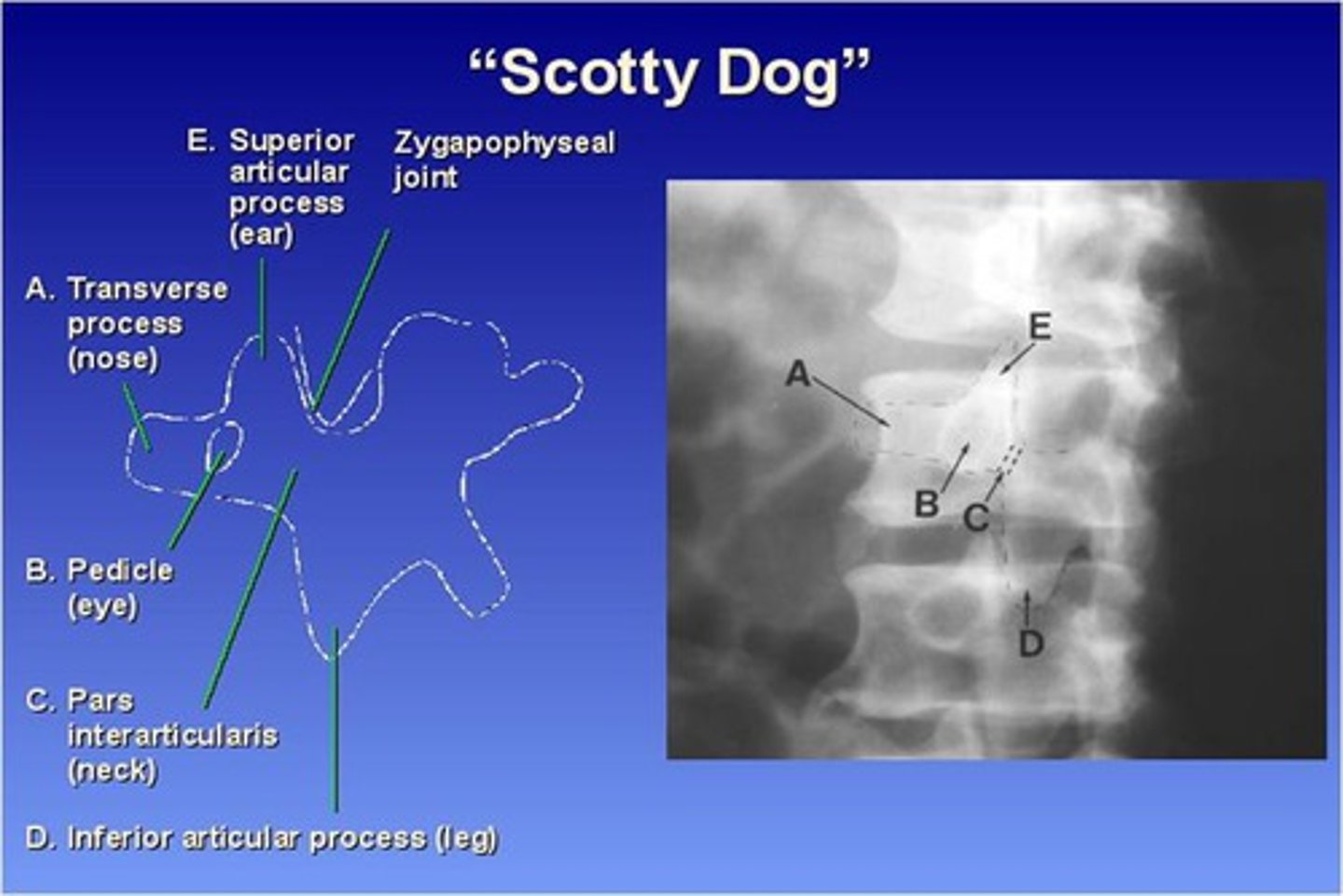

The neck of the scotty dog is the..

pars interarticularis (part in between the facets)

<p>pars interarticularis (part in between the facets)</p>
7
New cards

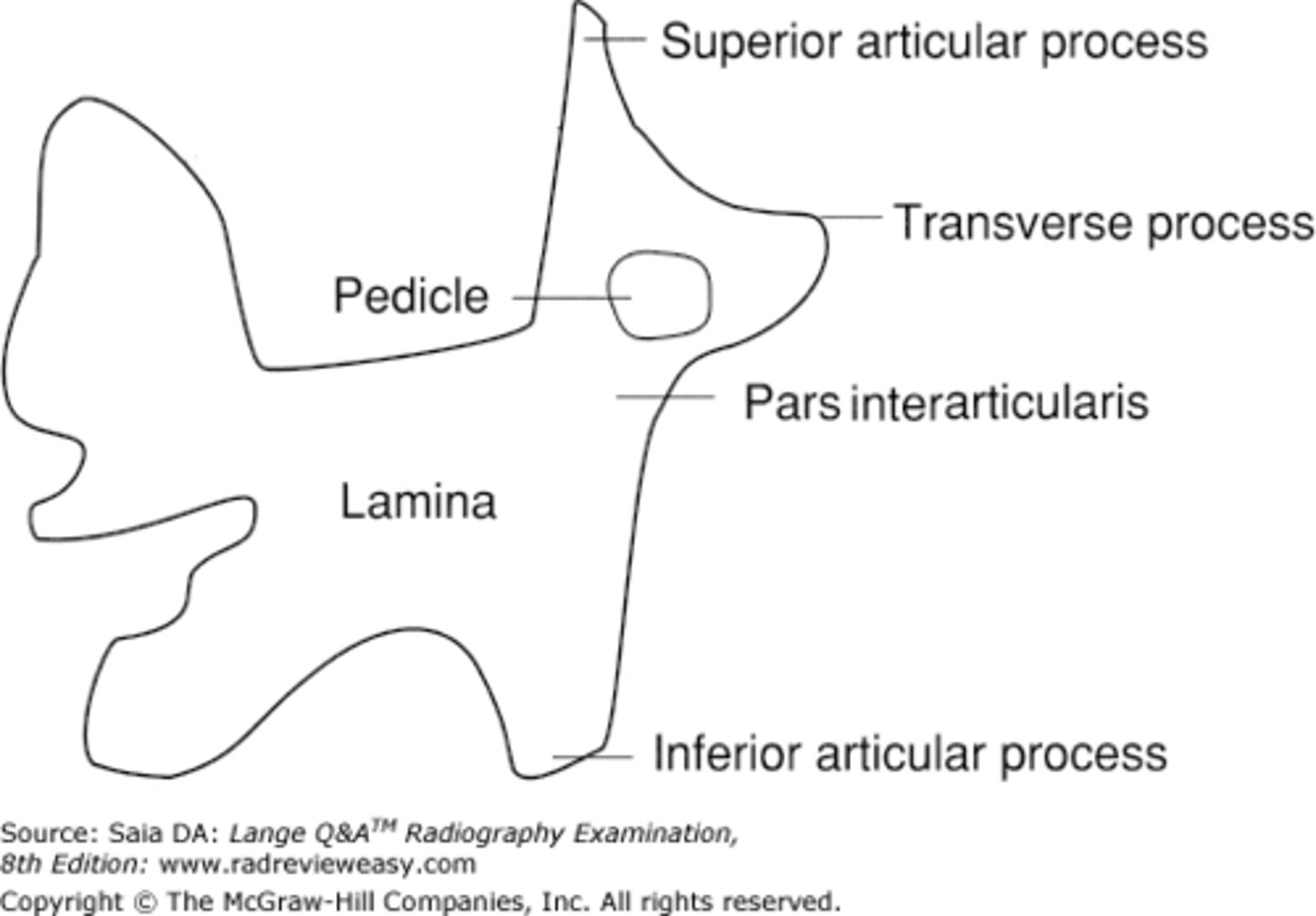

The body of the scotty dog is the...

lamina

<p>lamina</p>
8
New cards

The zygapophyseal joints are seen between the... on the scotty dog

Zygapophyseal joints = facet joint

ear of the lower Scotty Dog (superior articular facet) and the front paw of the upper dog (Inferior articular facet)

** Top Dawg Steps on Little Dawg

<p>Zygapophyseal joints = facet joint</p><p>ear of the lower Scotty Dog (superior articular facet) and the front paw of the upper dog (Inferior articular facet)</p><p>** Top Dawg Steps on Little Dawg</p>
9
New cards

If the pedicle is too far anterior to the vertebral body...

the patient isn't obliqued enough

<p>the patient isn't obliqued enough</p>
10
New cards

If the pedicle is posterior to the vertebral body...

the patient is obliqued. TOO much

<p>the patient is obliqued. TOO much</p>
11
New cards

Tail of the scotty dog...

superior articular process of the opposite side

12
New cards

Hind leg of the scotty dog...

inferior articular process of the opposite side
