11 Terms
DEFINITION

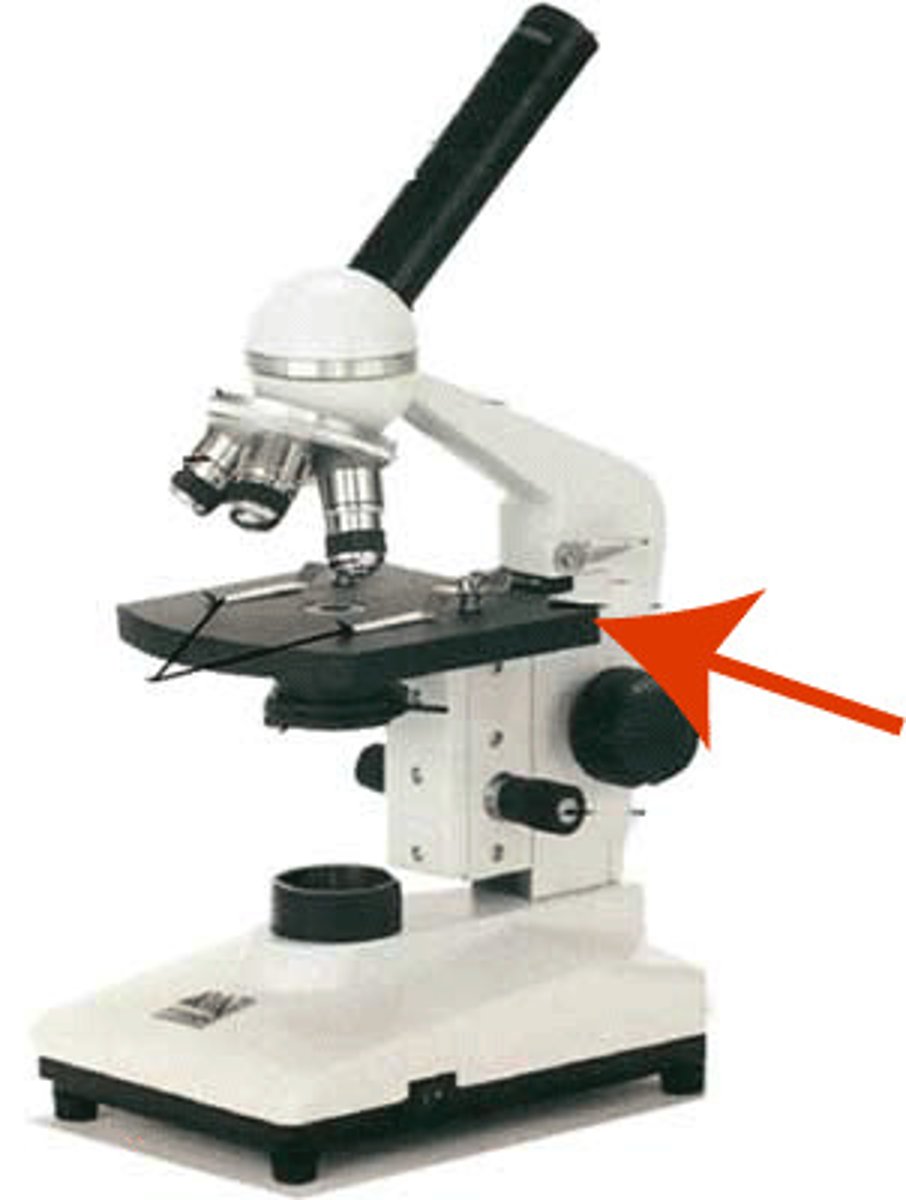

Where the slide is placed
TERM
Stage
DEFINITION

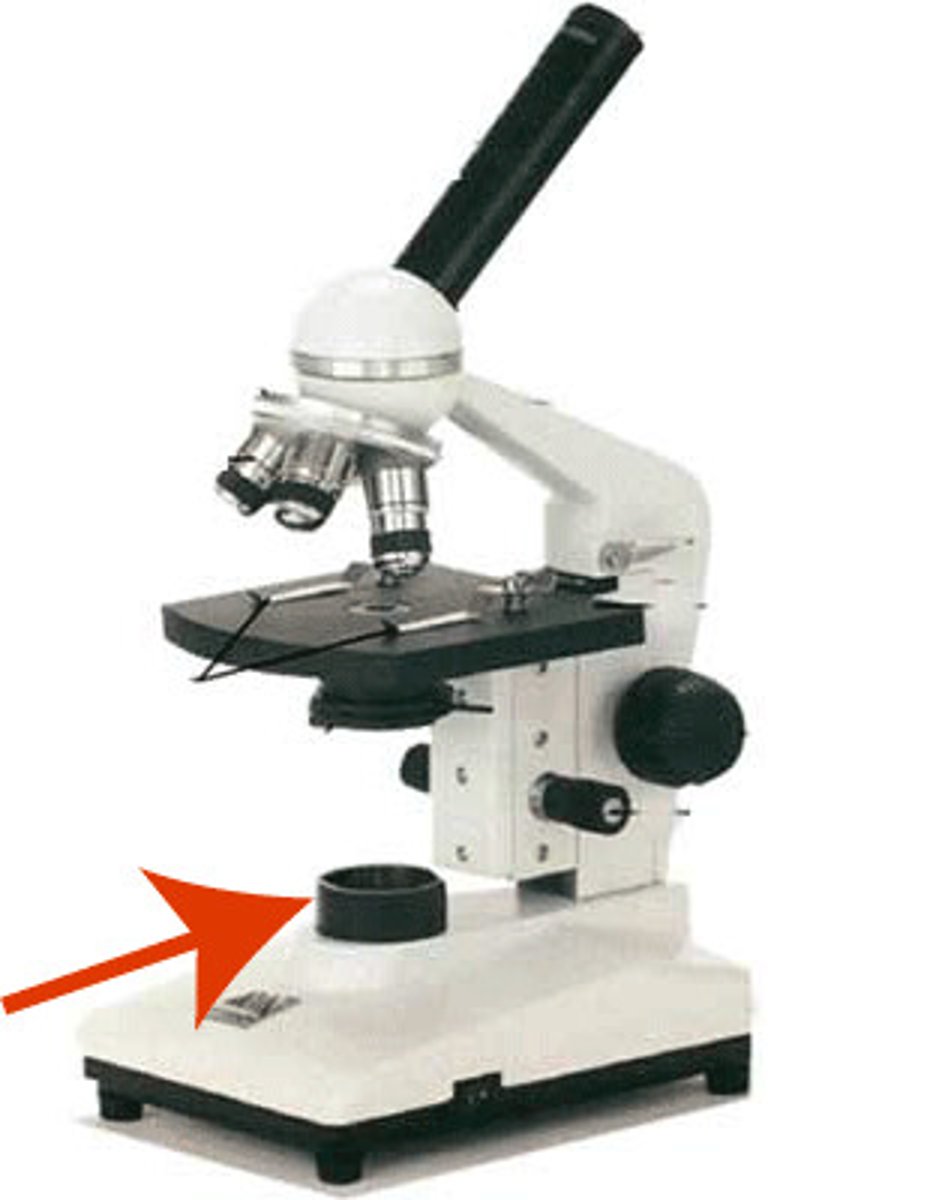

Light used under the stage to shine up through the slide and assist in observing what is on the slide.
TERM
Light source
DEFINITION

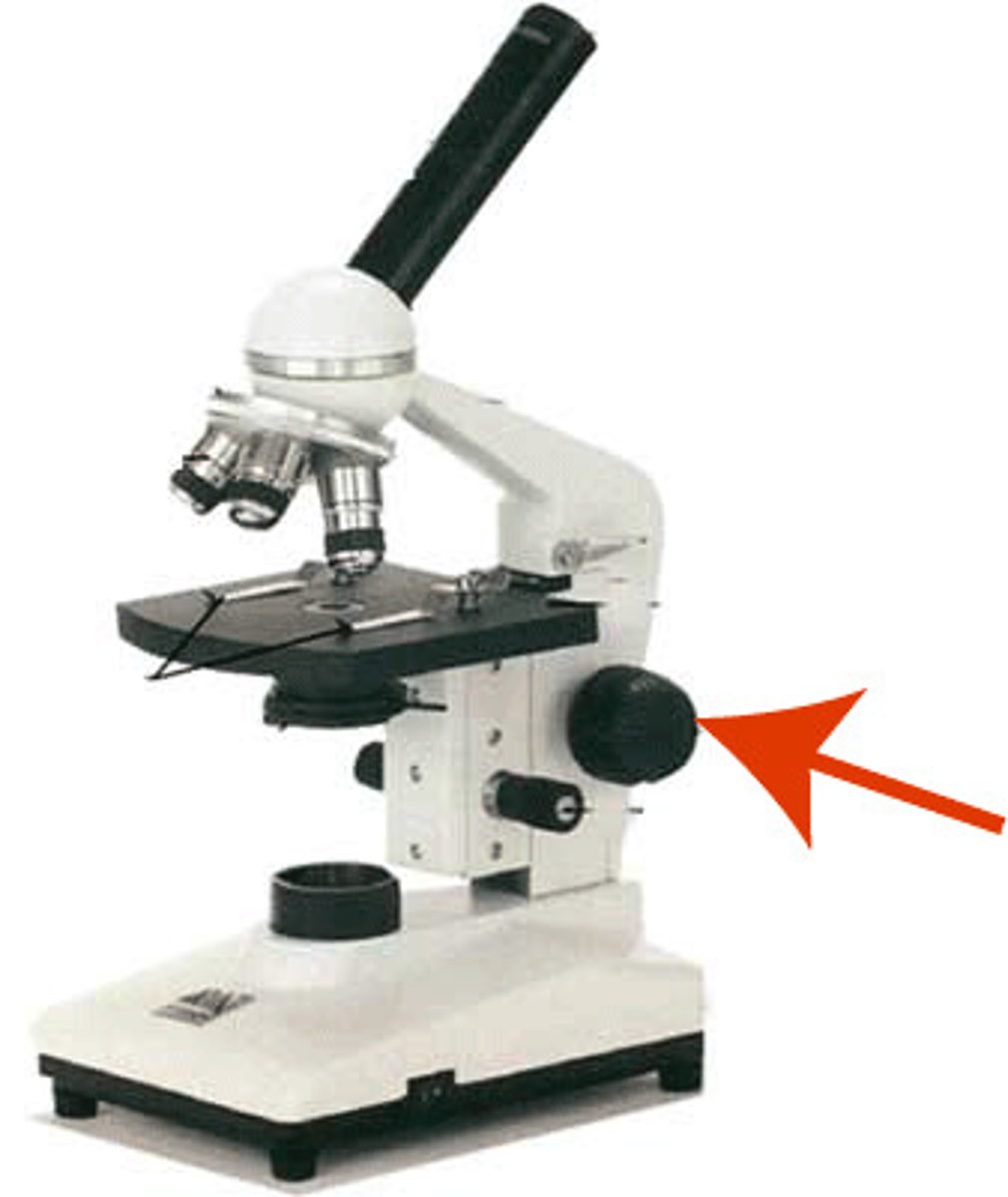

Large knob used to move the stage up and down for focusing on low and middle power.
TERM
Course Adjustment
DEFINITION

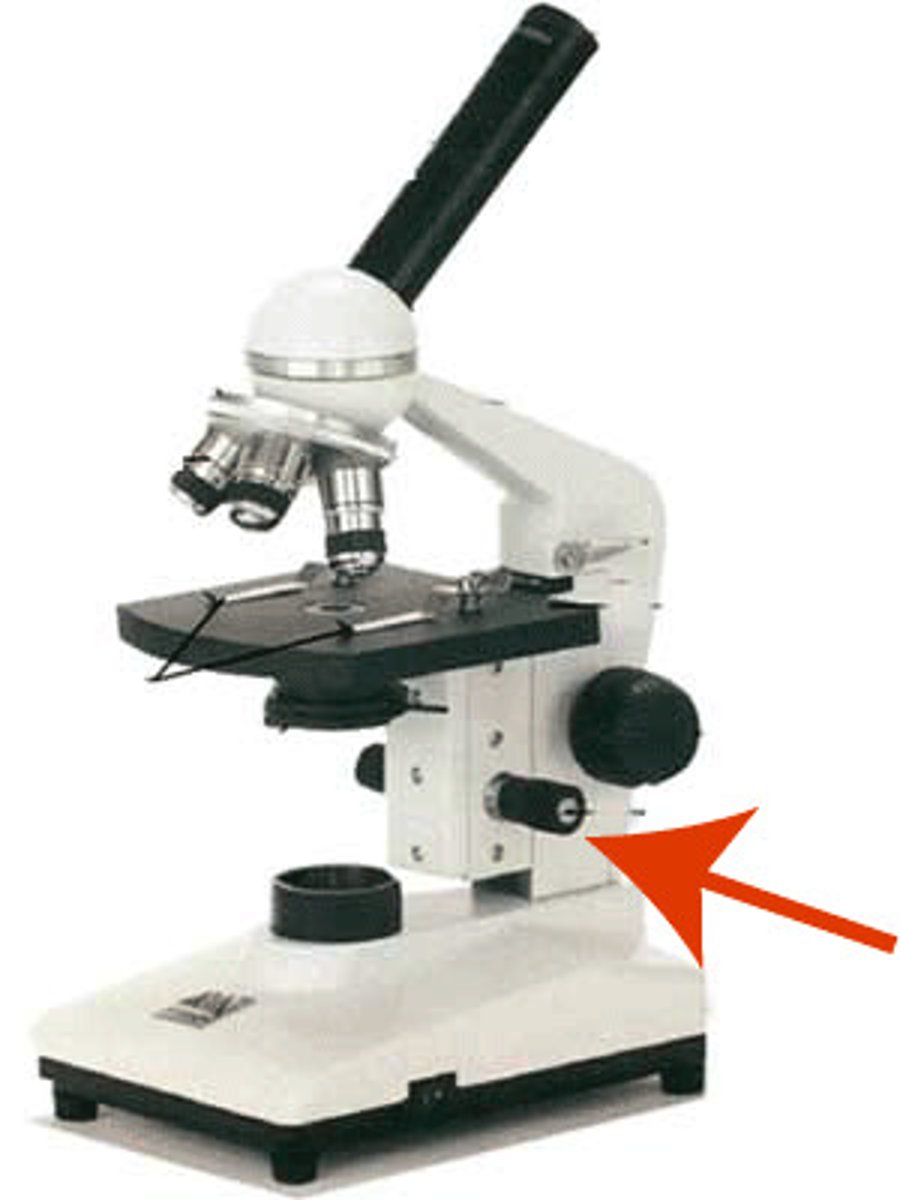

the small knob which moves the body tube to produce small changes in focus.
TERM
Fine Adjustment
DEFINITION

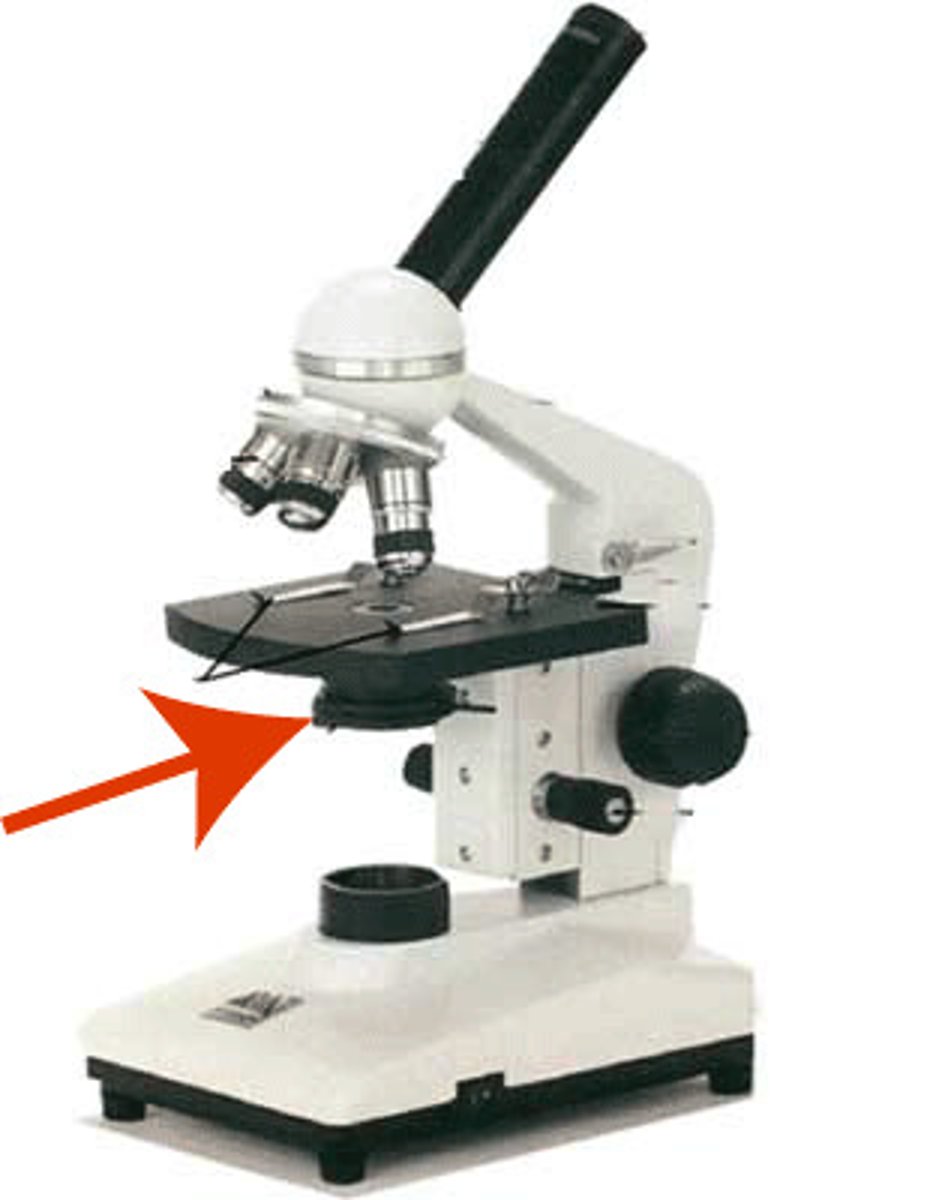

Controls the amount of light passing through the opening of the stage
TERM
Diaphragm
DEFINITION

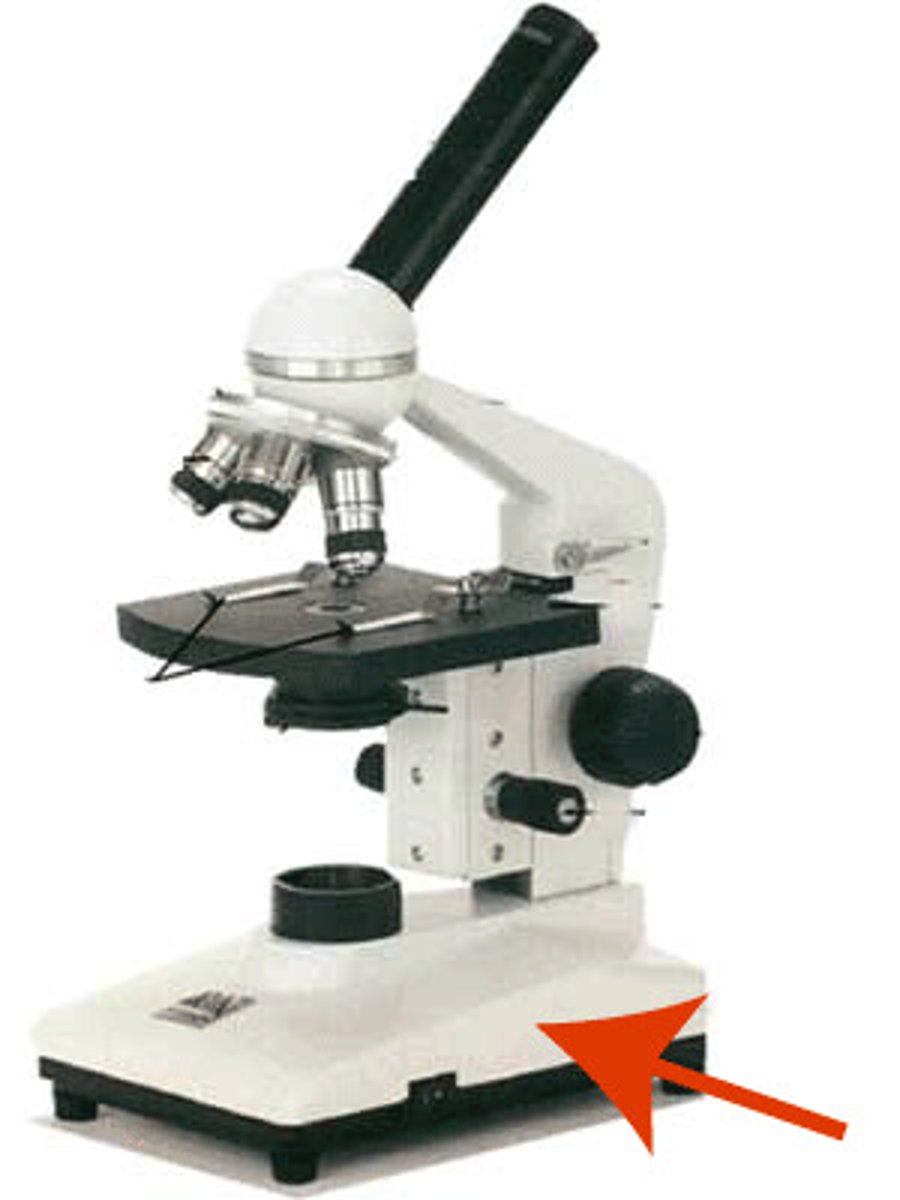

The bottom of the microscope that supports the microscope.
TERM
Base
DEFINITION

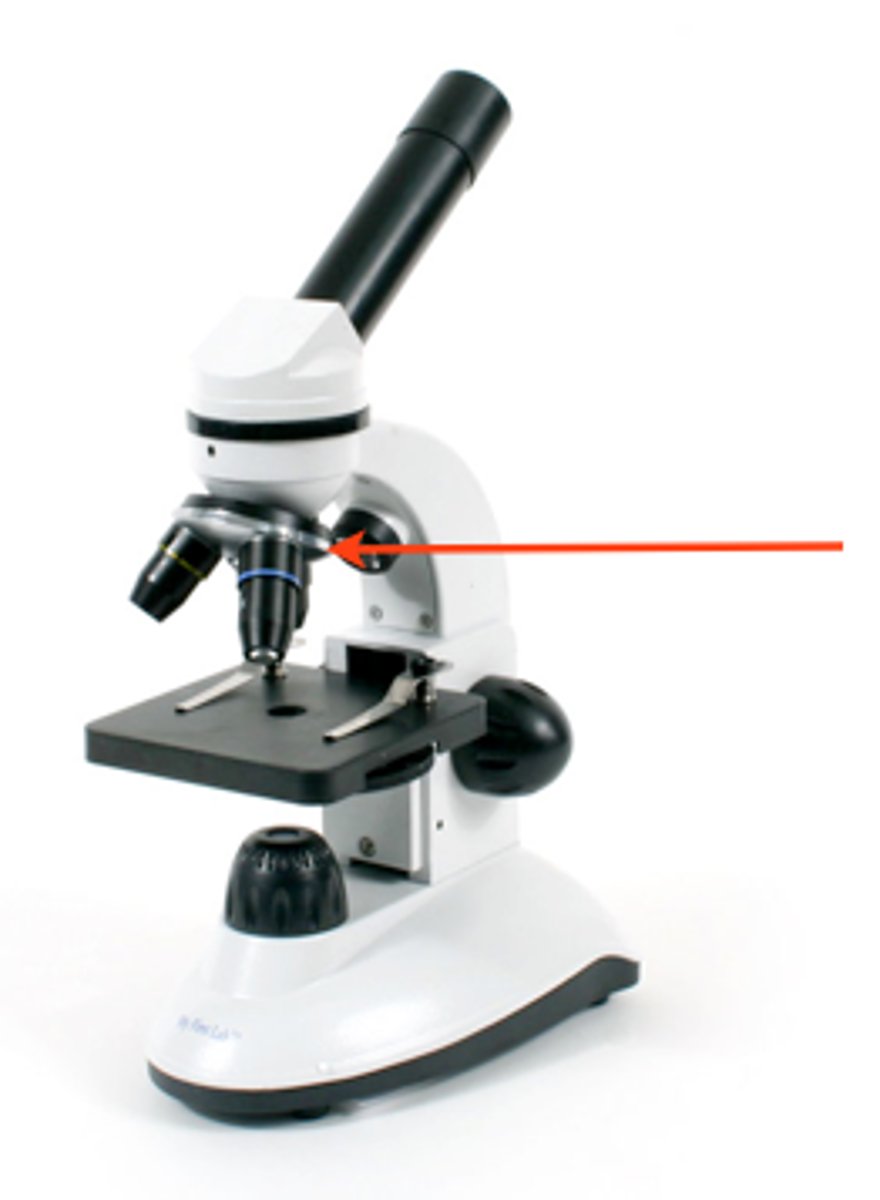

hold the objective lenses and allows them to be changed
TERM
Nose Piece
DEFINITION

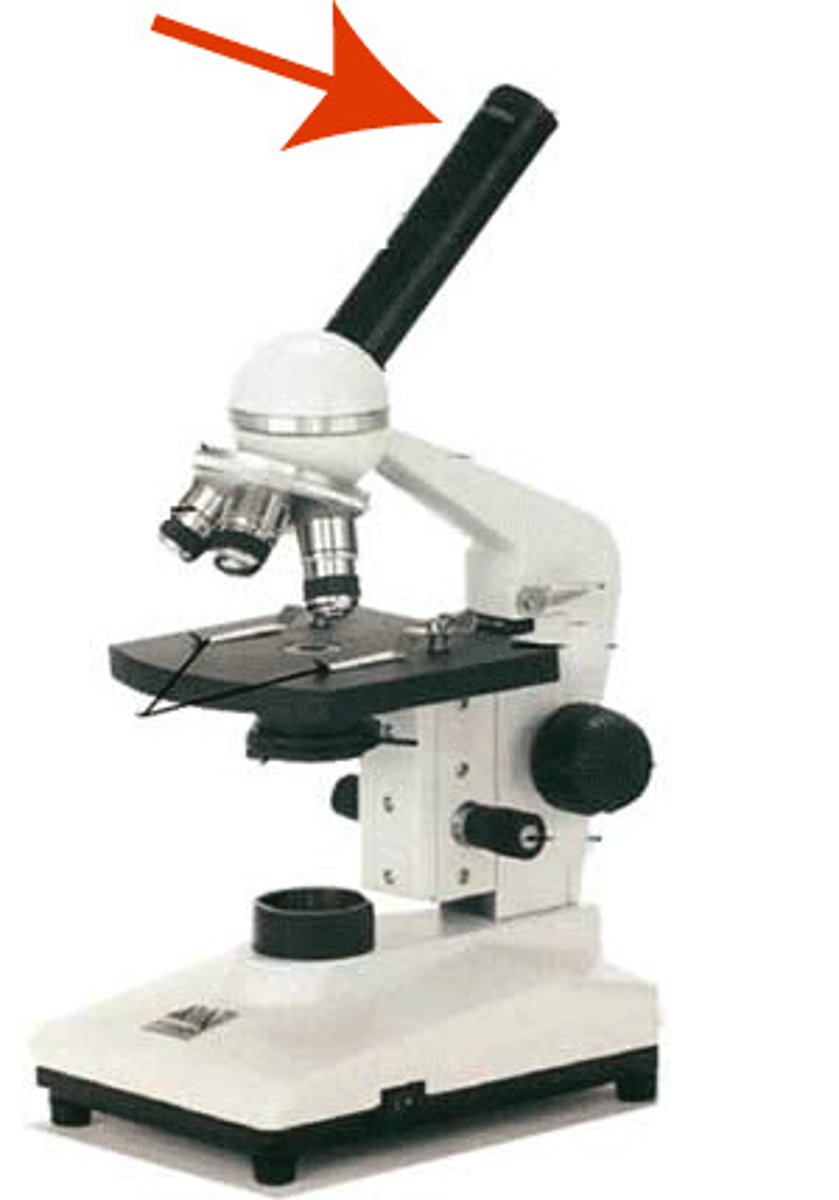

the part you look at with your eye (10x magnification)
TERM
Eye Piece
DEFINITION

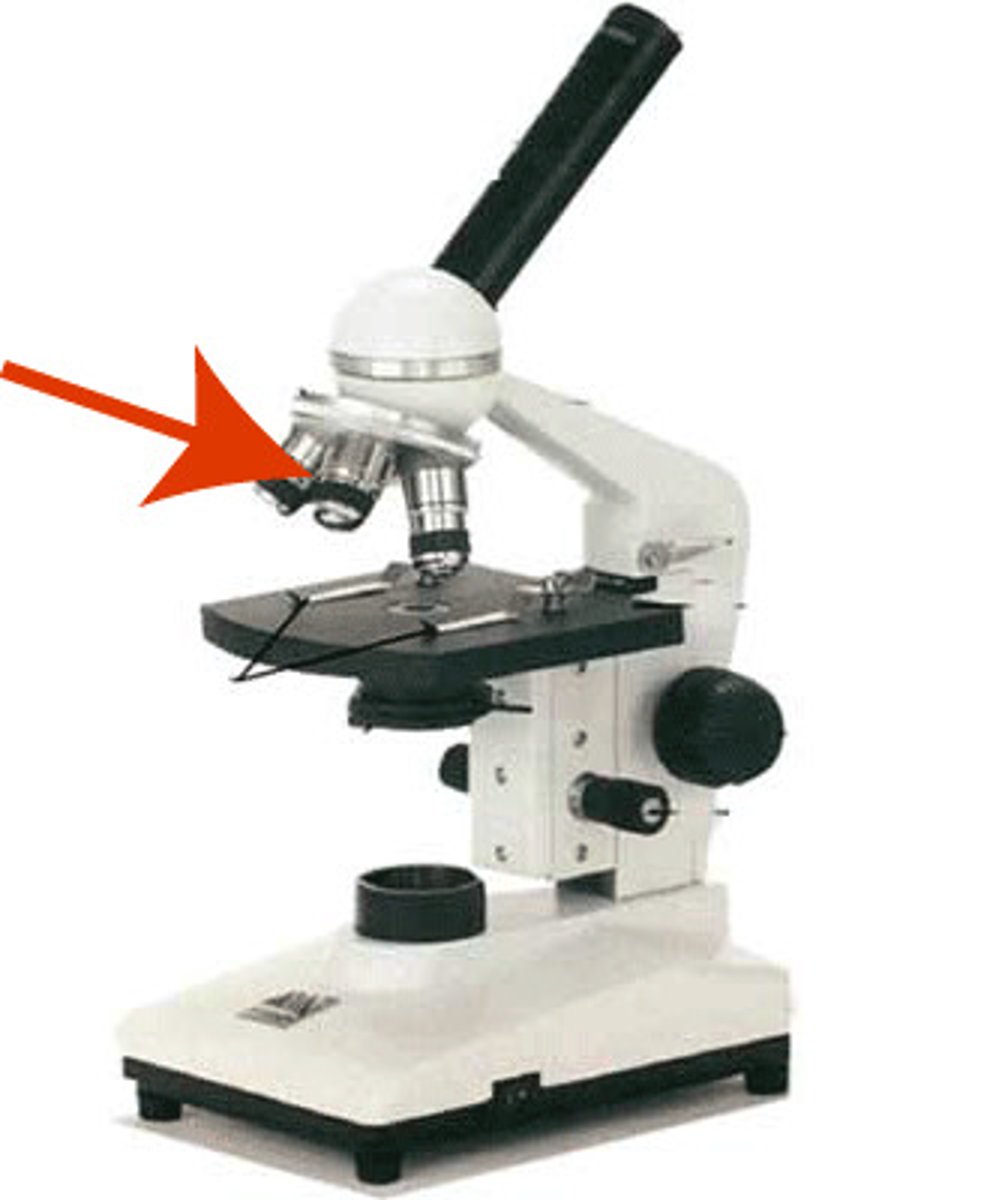

The lens of a compound microscope closest to the object; common powers are 4x, 10x, 40x, and 100x
TERM
Objective Lens
DEFINITION

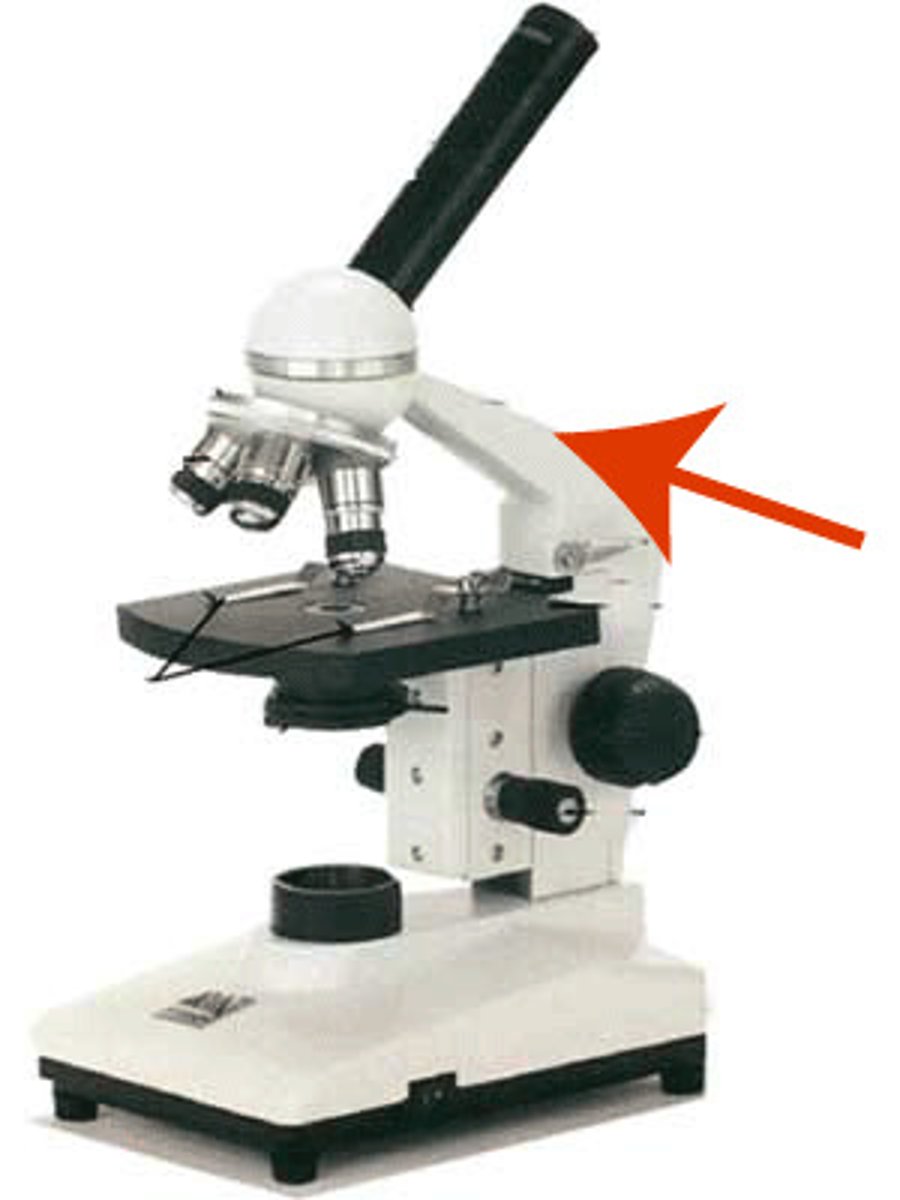

Supports the body tube and connects it to the base
TERM
Arm
DEFINITION

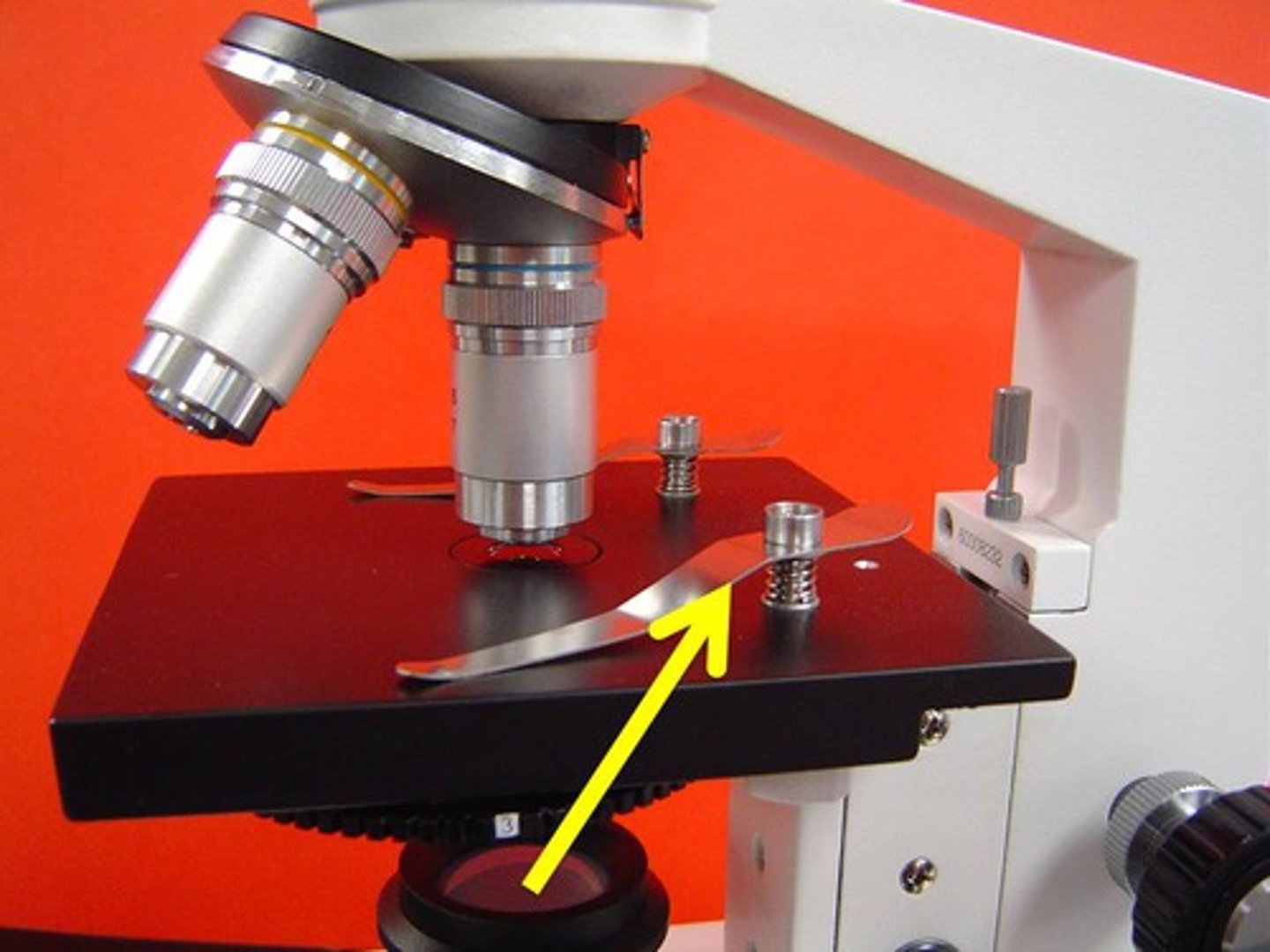

These are used to hold a slide in place on the stage
TERM
Stage Clips
