ABDO: Anatomy Liver, GB, Pancreas

Which of the following correctly, describes the location of the right hepatic vein?

courses superiorly through the right intersegmental fissure

What blood vessels separates the right and left lobes of the liver?

Middle hepatic vein

In a patient with complete situs inversus the liver will be:

Located in the left upper quadrant

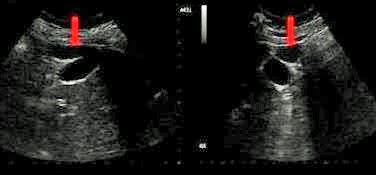

Which of the following statements is true regarding the image displayed?

The gallbladder has a normal variant called a Phrygian cap near the fundal area

The ligamentum venosum travels between:

The left portal vein and the IVC

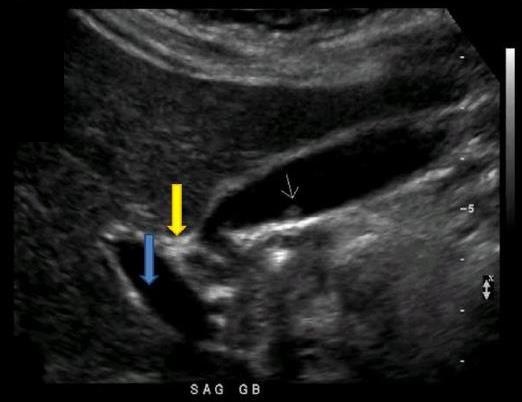

What structure is indicated by the blue arrow?

Right portal vein

Which of the following structures is labeled number #1?

Left hepatic vein

_________ more merged to form the ampulla of Vater just prior to the duct entering the second portion of the duodenum.

The CBD and duct of Wirsung

What structure/vessel is indicated by #3?

Gastroduodenal artery

Which of the following terms can be used to describe a normal Doppler tracing from the hepatic veins?

Triphasic

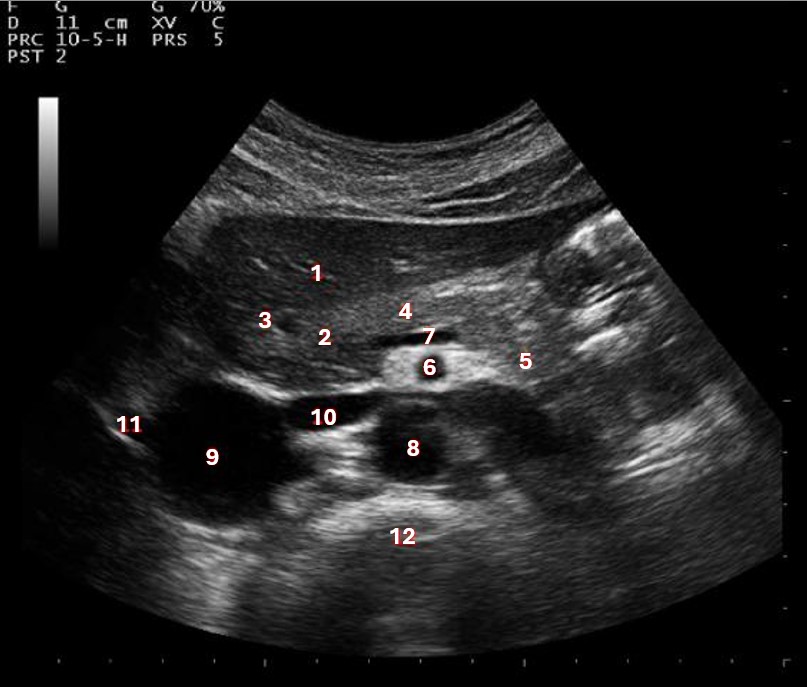

What structure/vessel is indicated by #2?

Head of pancreas

on a transverse sonogram, the CBD enter_______ aspect of the head of the pancreas and lays ______ to the IVC.

posterior, anterior

The _______ lobe of the liver is located between the right and middle hepatic vein

Anterior right

What vessel drains the blood from the caudate lobe?

Emissary veins

What lobe of the liver is indicated by #1?

Posterior right lobe

what liver vessels indicated by the yellow arrow?

Anterior right portal vein

The accessory duct of the pancreas is called

Duct of Santorini

Which of the following structures is labeled #2?

Middle hepatic vein

Which of the following correctly describes the ducts of Luschka?

Bile thickening occurs within them

The main lobar fissure

Separates anterior right lobe and medial left lobe

The hepatoduodenal ligament contains, which of the following structures?

Main portal vein, proper hepatic, artery, and common bile duct

The pancreatic duct should normally be less_____ in diameter in children and young adults

2mm

All of the following are intrasegmental vessels of the liver, except?

hepatic veins

During an abdominal ultrasound, a small circular anechoic structure is identified at the anterior portion of the pancreas head. Color flow is identified in the structure. What is it?

Gastroduodenal artery

During an abdominal ultrasound, a 4 mm circular anechoic structure is identified at the posterior portion of the pancreas head. Color flow is not identified in the structure. What is it?

Common bile duct

What structure is indicated by the yellow arrow?

Main lobar fissure

The _______ are called intersegmental vessels of the liver

Hepatic veins

Trypsin breaks down ______, amylase breaks down________ and lipase breaks down_____ during digestion

Protein, carbs, fat

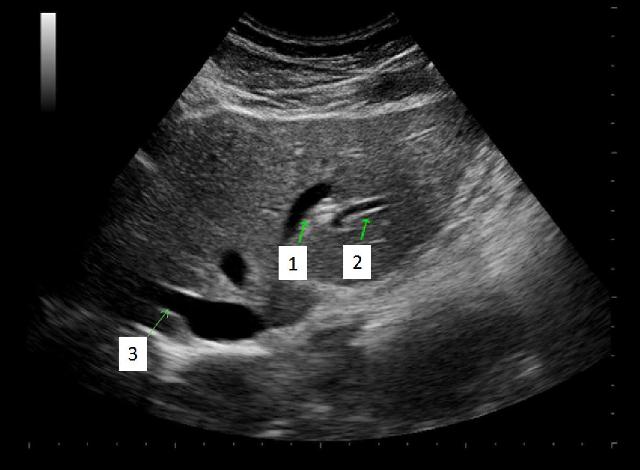

Which of the numbered vessels is part of the portal system?

2

the right and left hepatic ducts come together to form the common hepatic duct:

Inside the liver, near the Porta hepatis

the formation of a Hartmann pouch, usually occurs in what portion of the gallbladder?

Neck

The liver is divided into superior and inferior segments by the:

Branching of the portal veins

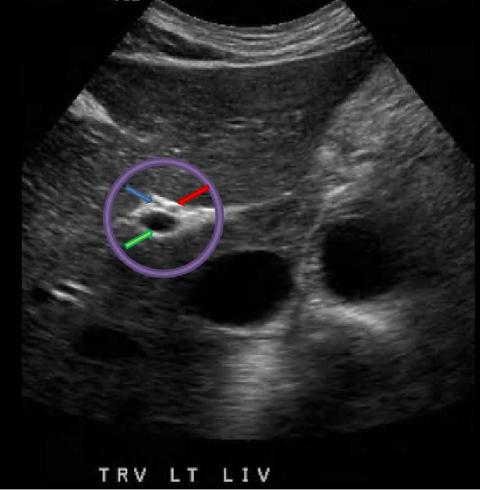

What structure is indicated by the purple circle?

Portal triad

______ is produced by the exocrine function of the pancreas _________ is produced by the endocrine function of the pancreas

Sodium Bicarbonate, insulin

if a liver mass is located between the middle hepatic vein and the right portal vein, and what lobe of the liver is the mass located?

Anterior right lobe

The IVC is located posterior to the pancreatic_________.

Head

The pancreas is found in what retroperitoneal space?

Anterior pararenal

Which of the following correctly list the structures found in an intrahepatic portal triad?

Portal vein, proper hepatic artery, and bile duct

What structure/vessel is indicated by #1?

Medial branch of LPV

Which of the following ligament separates the medial and lateral left lobes of the liver?

Ligamentum teres

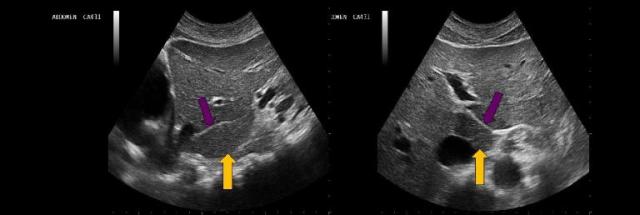

The yellow arrow on the image represents which of the following structures?

Caudate lobe

What causes the hepatic vein flow to have a triphasic waveform?

Right atrial contraction and relaxation

What structure/vessel is indicated by #6?

Superior mesenteric artery

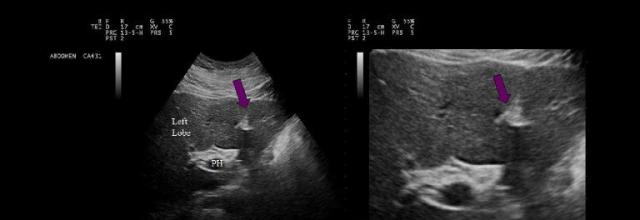

The purple arrows point to which of the following liver structures?

Ligamentum teres

Sonographically, the _______ appears to connect the GB neck and junction of right and left portal veins.

Main lobar fissure

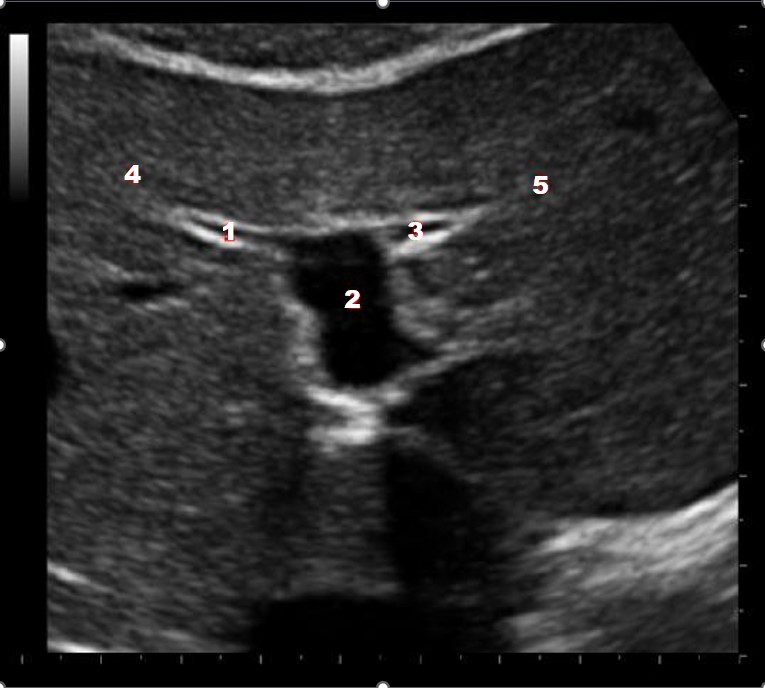

What structure/vessel is indicated by #2?

Left portal vein

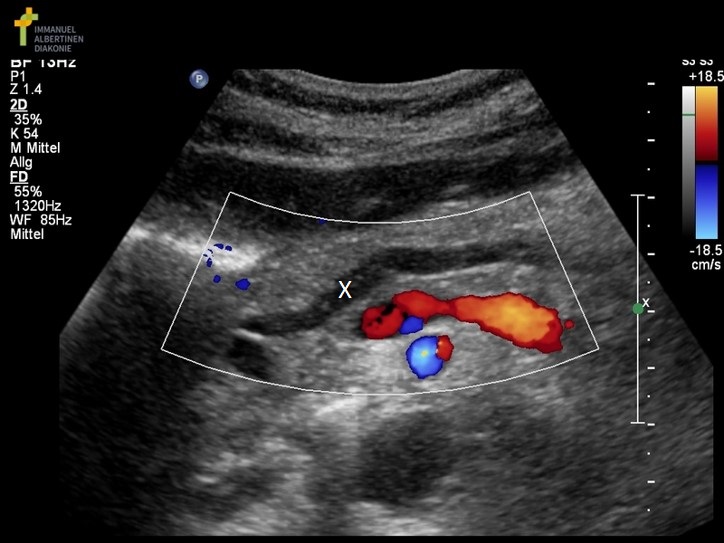

What structure is marked with the X on the image?

Main pancreatic duct

The first branch of the common hepatic artery is the

Gastroduodenal artery

a patient presents with a history of Reidel lobe. What are the expected findings on the ultrasound exam?

the right lobe of the liver will have a tongue like extension that extends inferior to the lower pole of the right kidney

Which statement best describes the location of the ligamentum venosum?

it forms the anterior border of the caudate lobe

The majority of the liver is covered with a thick capsule composed of fibrous and elastic elements called _______

Glisson capsule

in the porta hepatis, what structure is anterior to the portal vein and lateral to the proper hepatic artery?

Common hepatic duct

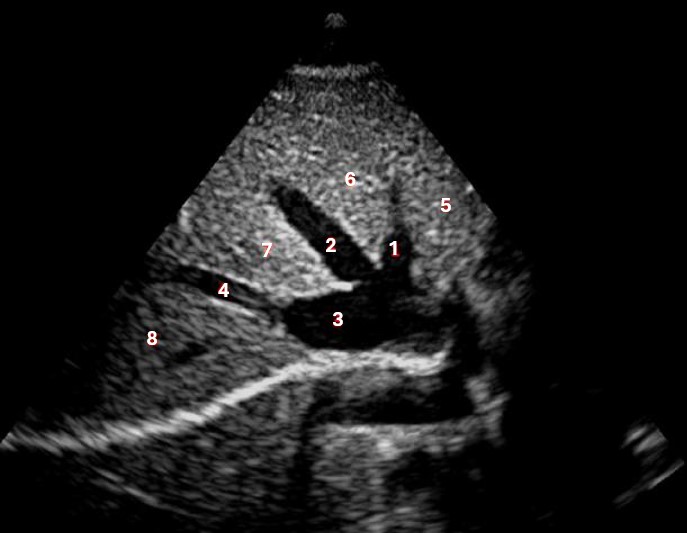

Which of the following structures is labeled #3?

IVC

Which of the following structures is labeled #6?

Medial left lobe

Which of the following produces insulin?

Islets of langerhans

which of the following blood vessels delivers the majority of oxygenated blood that enters the liver?

Main portal vein

What structures last vessel is indicated by #4?

Medial left lobe

in a normal adult patient, the intrahepatic, common hepatic duct lumen measures less than or equal to_____

4mm

Which lobe of the liver receives blood from the left and right portal veins?

Caudate lobe

Which of the following hormones is responsible for causing the gallbladder to contract?

Cholecystokinin

The ______ can be identified anterolateral to the pancreas tail

Stomach

in the normal liver, which of the following correctly, describes the changes and flow in the hepatic artery after eating?

Increased resistive index (RI)

Which of the following structures is labeled #4?

Right hepatic vein

Which structure/vessel is indicated by #5?

Lateral left lobe

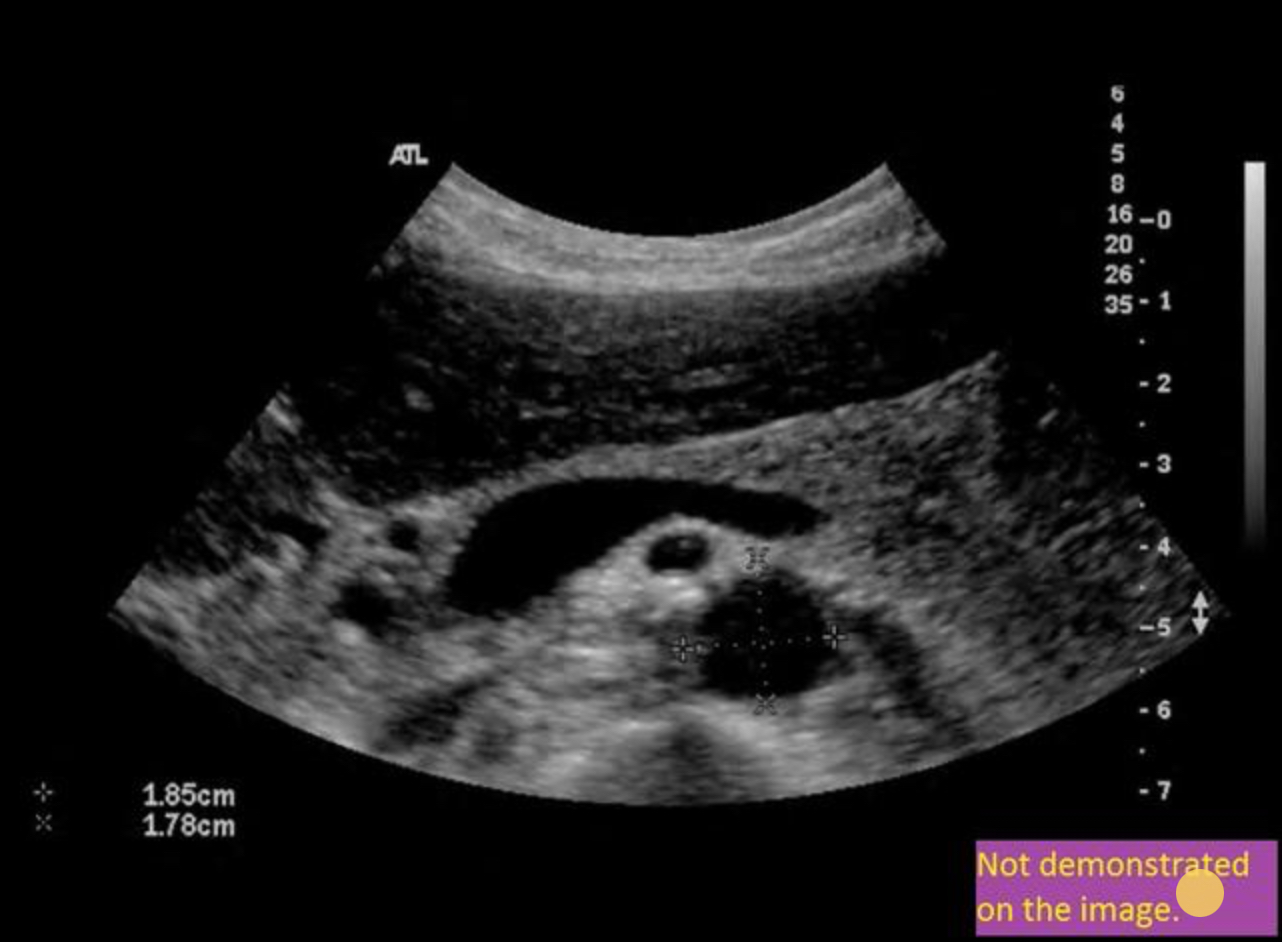

Use your mouse to place your cursor over the superior mesenteric vein and click to mark the vessel if the vessel is not demonstrated on the image, mark the purple box that says “not demonstrated on the angle”.

Which of the following can be used to differentiate Reidel lobe from hepatomegaly?

The left lobe is normal in size Reidel lobe but enlarged with hepatomegaly

In the Porta Hepatis, what structures anterior to the portal vein and medial to the common hepatic duct?

Proper hepatic artery

What structure is indicated by the green arrow?

Main portal vein

The cystic artery originates at the _______ and the cystic vein empties into the _______

Right hepatic artery, right portal vein

An ERCP is commonly performed to evaluate:

The ampulla of vater

Well discussing the medical history with a patient, he tells you that the doctor recommended that he increase his intake of vitamin K due to some recent abnormal lab results. Which of the following lab values was abnormal?

Prothrombin time

Branches of which of the following vessels supply the pancreas with blood?

Superior mesenteric artery and gastroduodenal artery

Which of the following structures is labeled #8?

Posterior right lobe

What structures/vessel is indicated by #5?

Tail of the pancreas

the purple arrow on the images represents, which of the following structures?

Ligamentum venosum

a patient presents for an abdominal sonogram due to a history of hepatic congestion. What structure(s) should be closely evaluated for related findings?

Portal system

The abdominal organ that produces the majority of alkaline phosphate is?

Liver

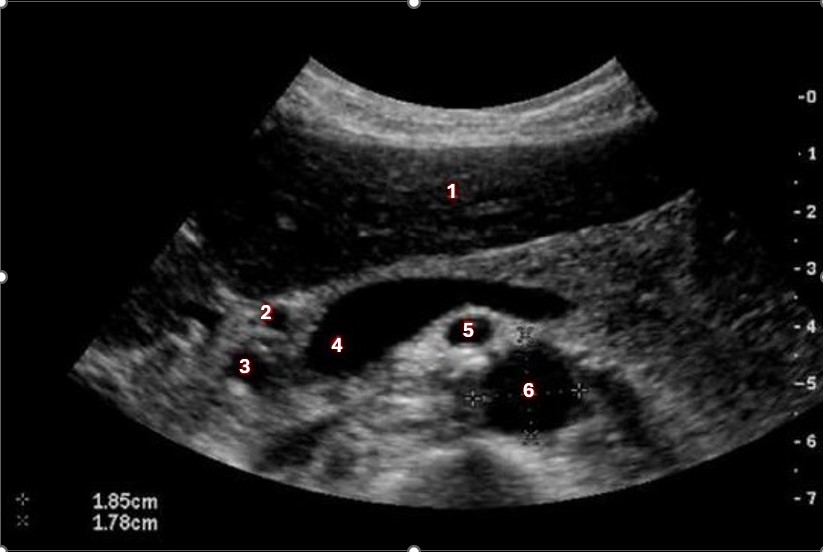

Which of the following structures is labeled #2?

gastroduodenal artery

The caudate lobe lies between what two structures?

IVC and medial left lobe

The right lobe of the liver is divided into ________ Segments, while the left lobe is divided into _______ Segments.

Anterior and posterior, medial and lateral

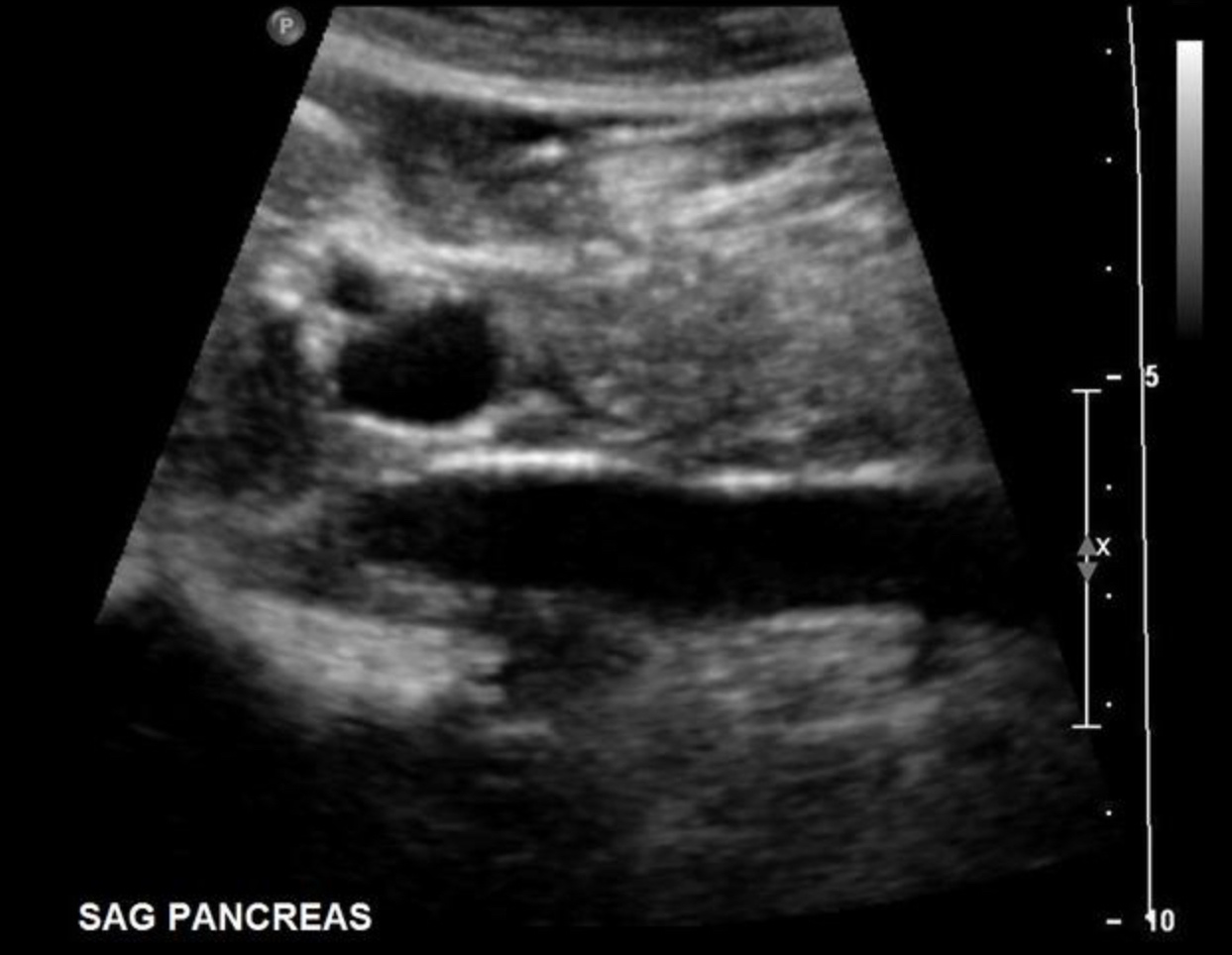

Use your mouth to place your cursor over the hepatic artery and click to mark the vessel.

The ______ separates the caudate lobe from the left lobe of the liver.

Ligamentum venosum

Which portions of the gallbladder and/or Billary tree are involved in the formation of a Phrygian cap?

Body and Fundus

The ____ is located within the inferior margin of the falciform ligament.

Ligamentum teres

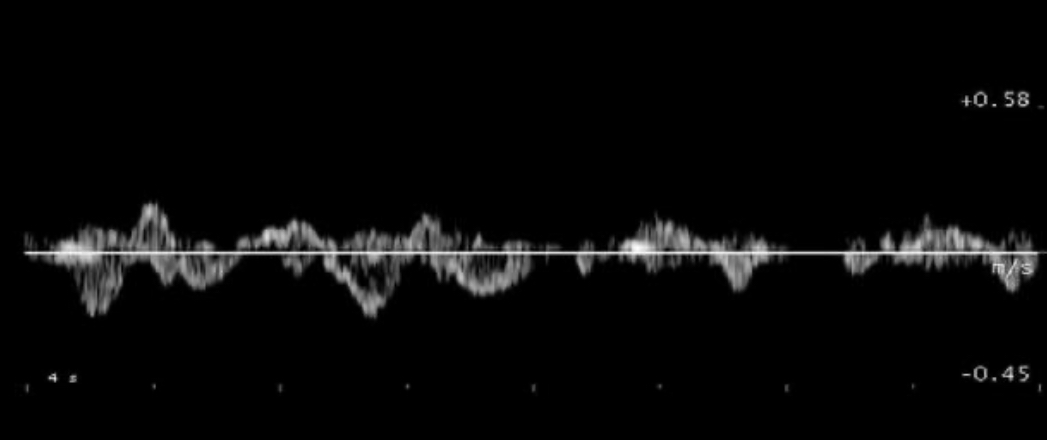

Which of the following statements is true regarding the Doppler tracing displayed?

it could represent a Doppler tracing of normal flow in the right hepatic vein

What structure/vessel is indicated by #12?

Spine

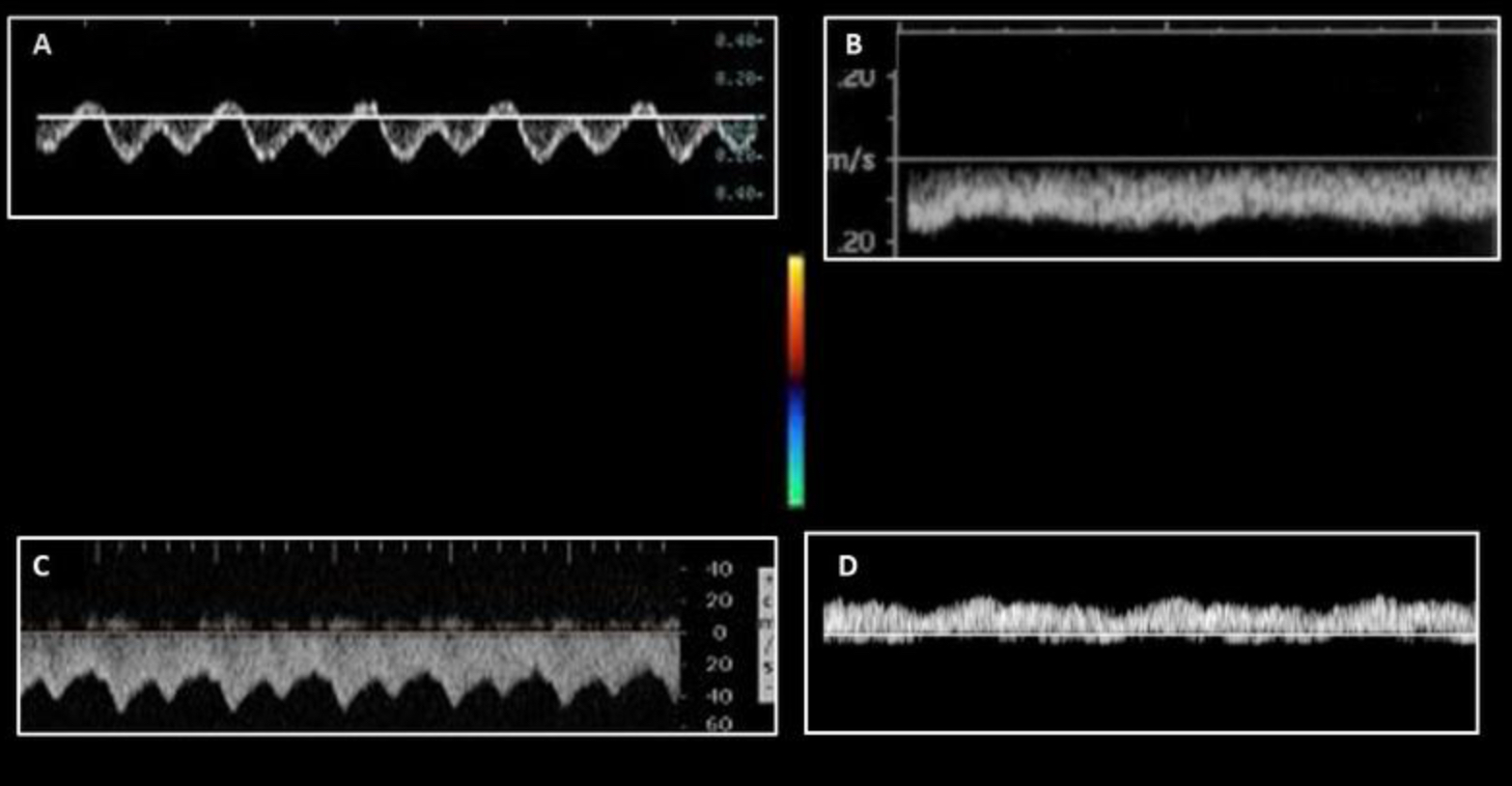

Which waveform represents a normal inferior vena cava waveform?

A

a patient presents with a history of choledocholithiasis. How will you assess the common bile duct for the presence of a stone?

Demonstrate a longitudinal view of the main portal vein and look for the CBD anterior to it

Which of the following hepatic ligament separates the medial and lateral left lobes of the liver?

Falciform ligament

Islets of langerhans secrete ______ into _____

Insulin, bloodstream

Which of the following correctly describes the pediatric pancreas?

Pancreatic echogenicity increases with age

Which structure/vessel is indicated by #4?

Body of the pancreas

All of the following are true regarding Couinaud liver, segmentation, except:

Right and left lobes are divided by the branches of the main hepatic vein

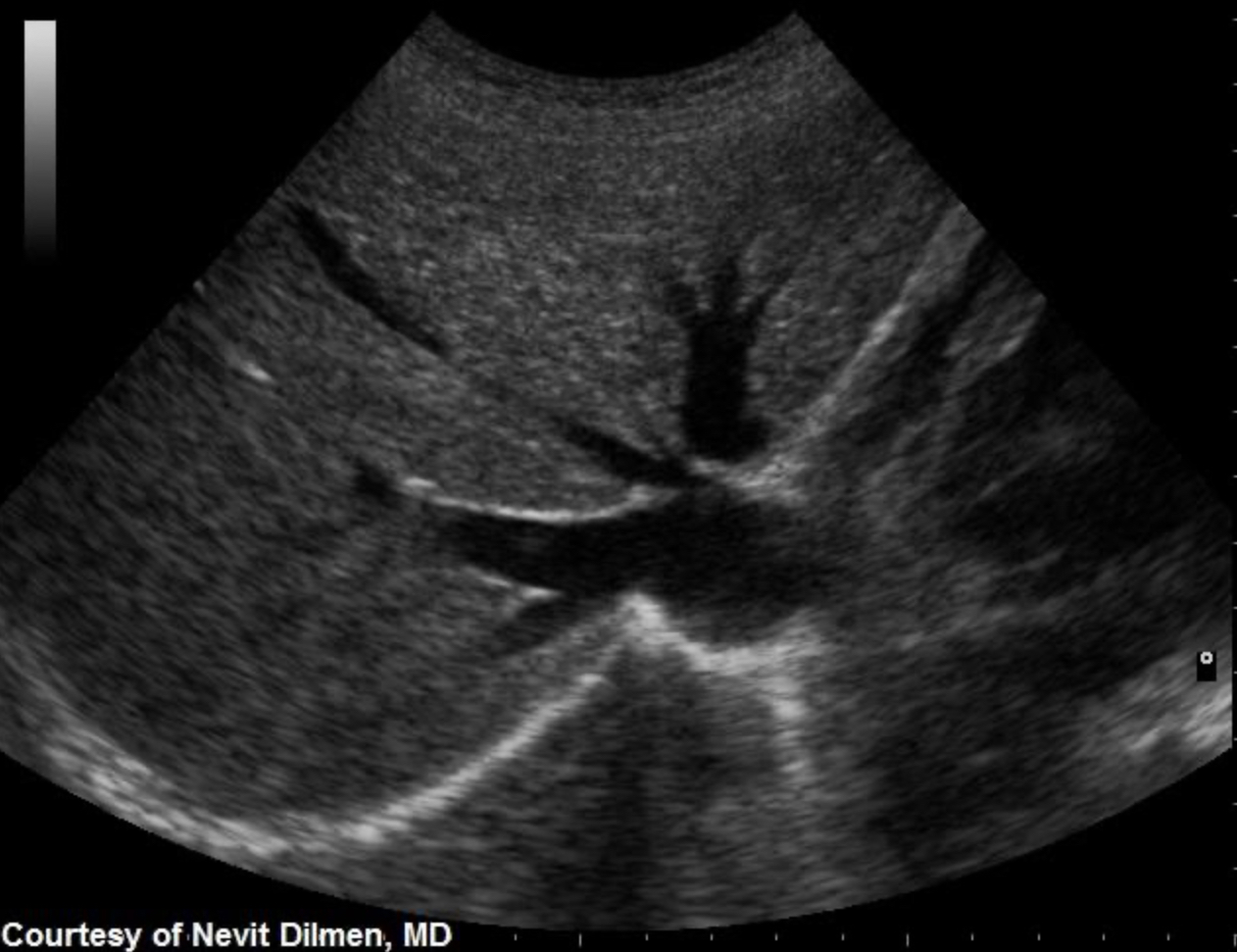

Use your mouse to place your cursor over the left medial superior segment of the liver and click to mark the structure

What structure/vessel is indicated by #3?

Lateral branch of LPV

What structure/vessel is indicated by #7?

Splenic vein

What causes the appearance of this normal variant of the uncinate process?

Reduce concentration of fat in the area of interest

The superior mesenteric vein

Joins the splenic vein posterior to the neck of the pancreas

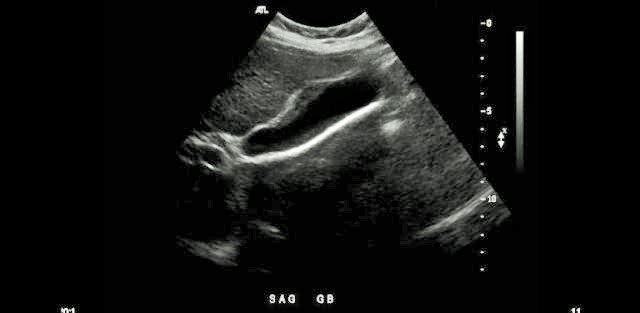

Use your mouth to place your cursor over the main lobar fissure

all of the following laboratory test are used to evaluate the liver function, except:

Sodium bicarbonate
