[A&P Lab Final] Bones Review

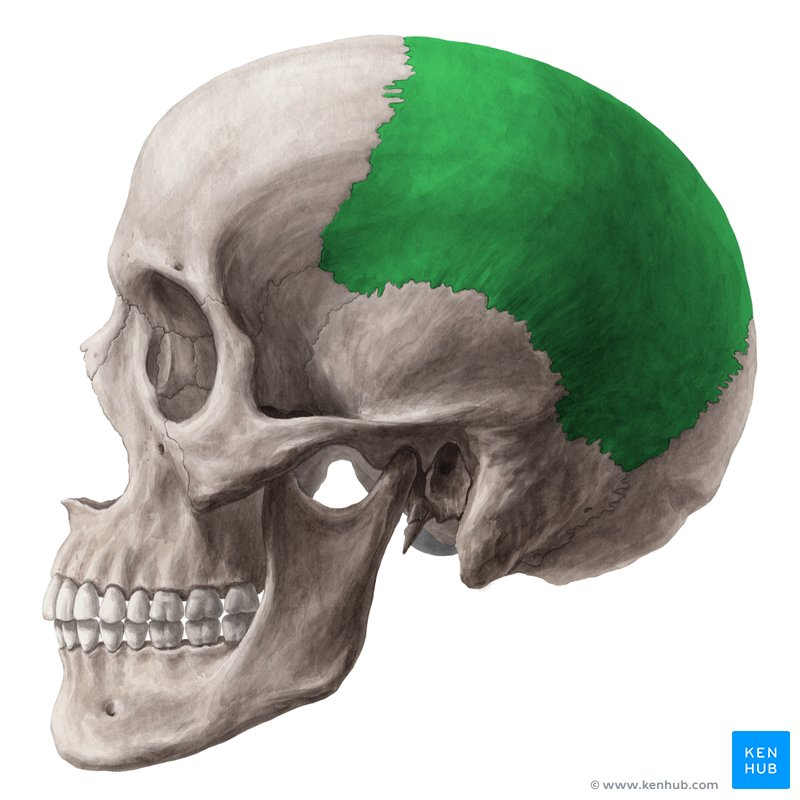

Identify this bone

Parietal bone (cranial)

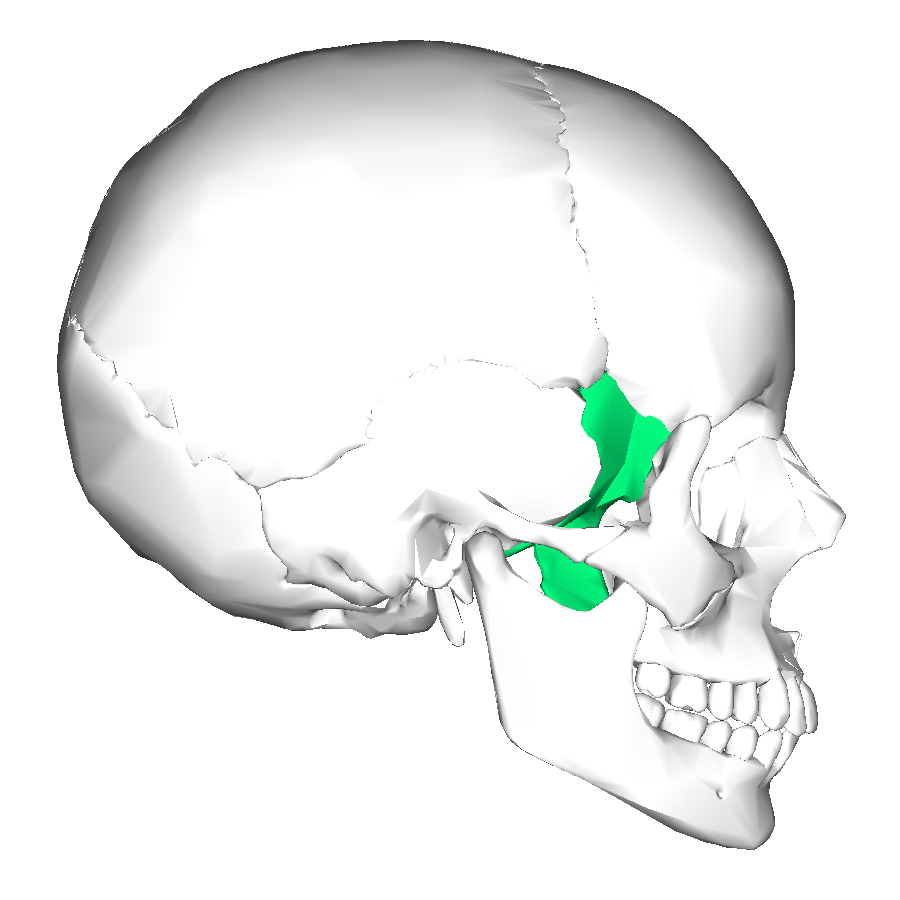

Identify this bone

Sphenoid (cranial)

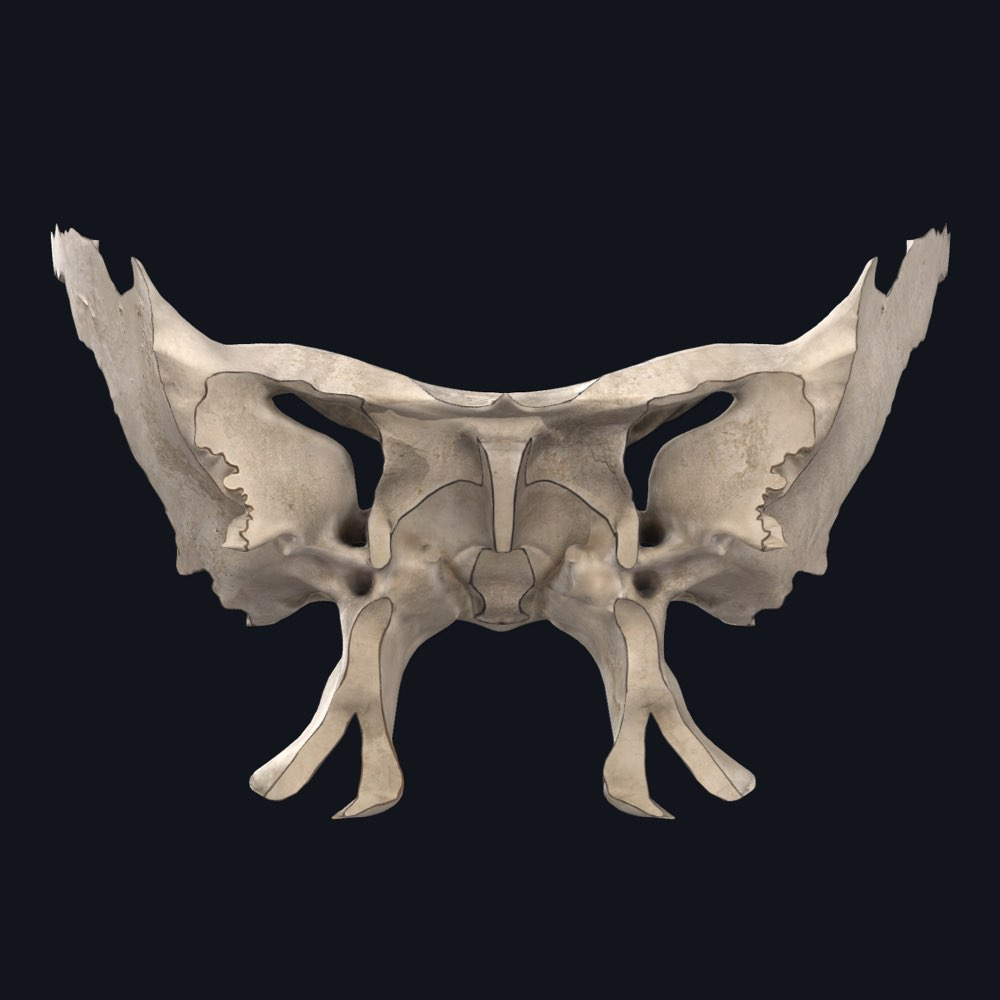

Identify this bone

Sphenoid (cranial)

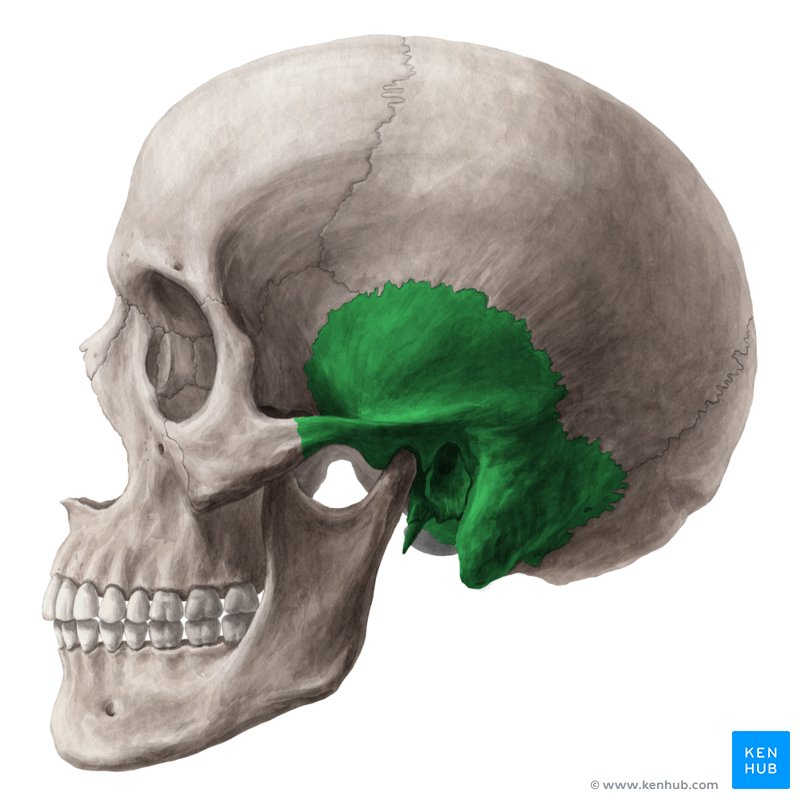

Identify this bone

Temporal (cranial)

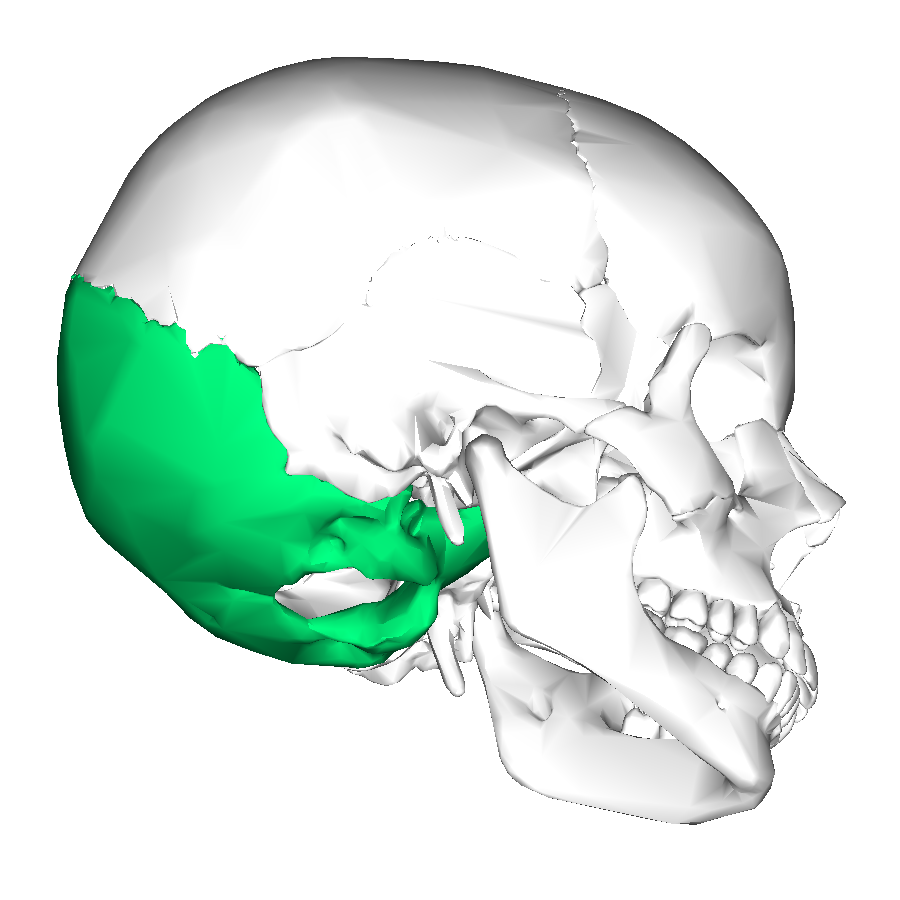

Identify this bone

Occipital (cranial)

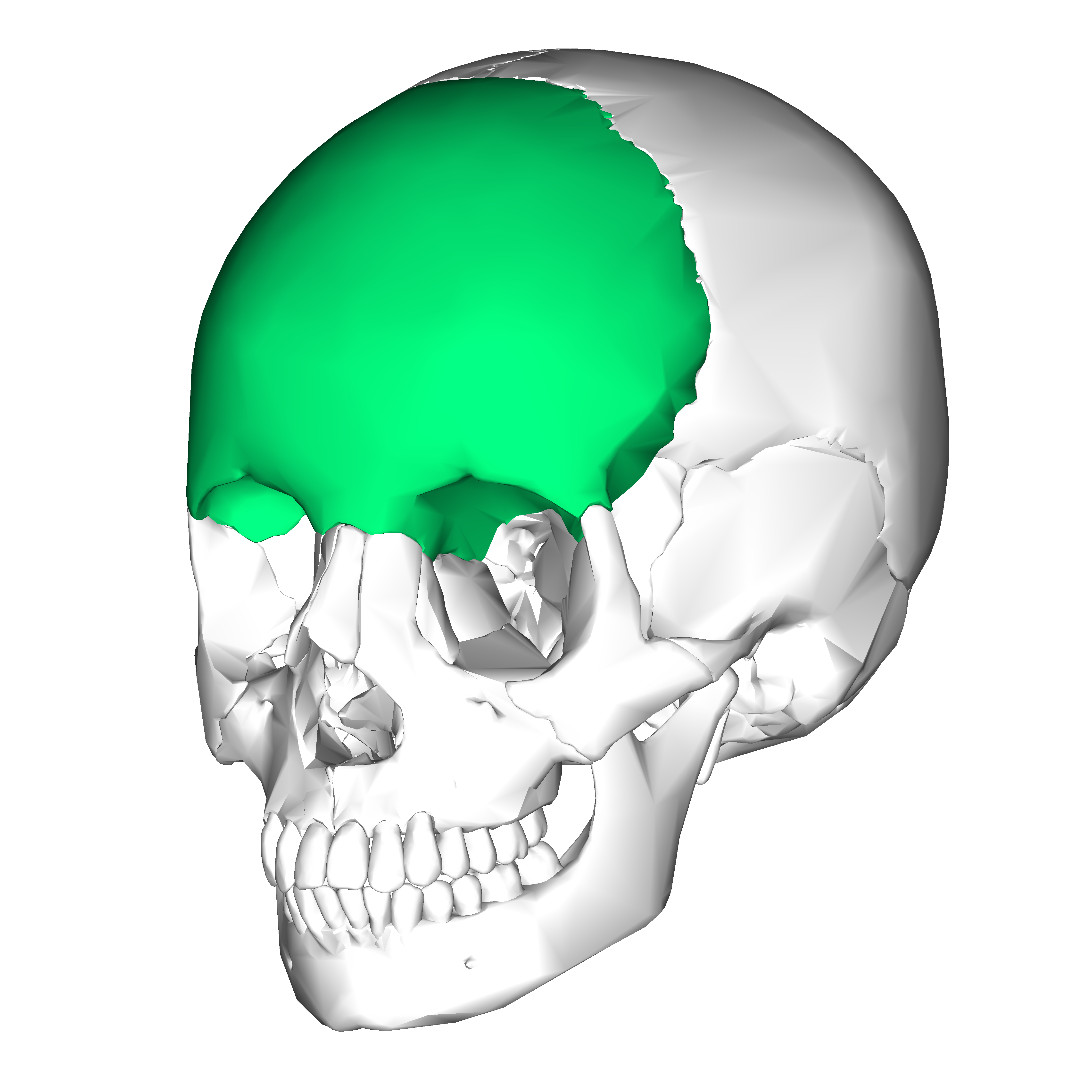

Identify this bone

Frontal (cranial)

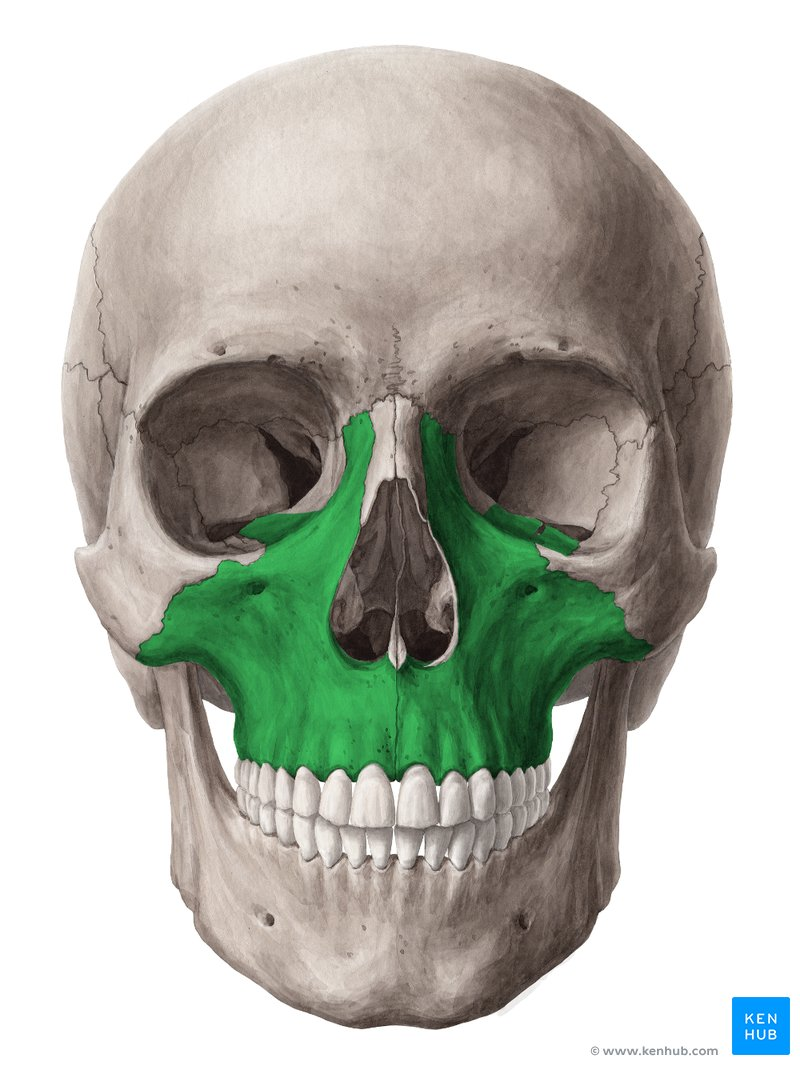

Identify this bone

Maxilla (facial)

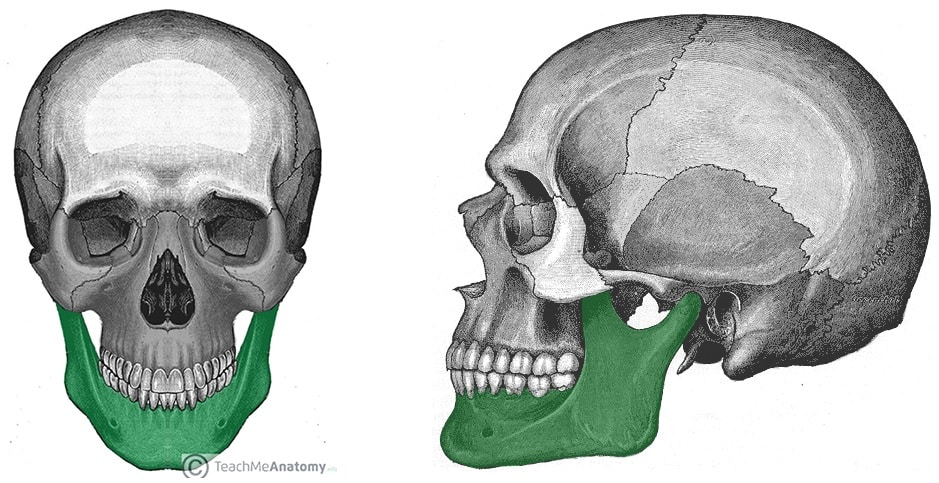

Identify this bone

Mandible (facial)

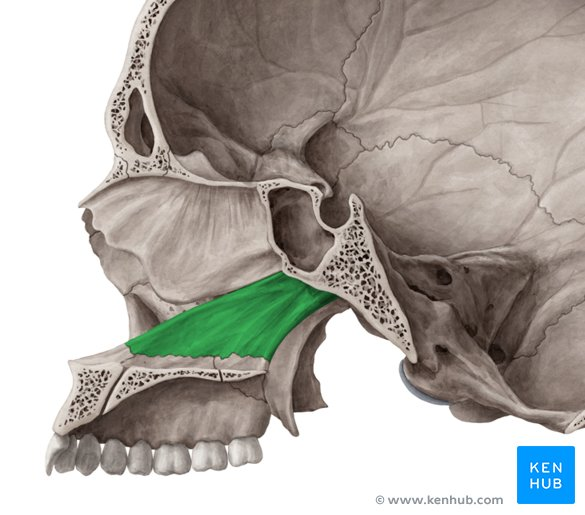

Identify this bone

Palatine (facial)

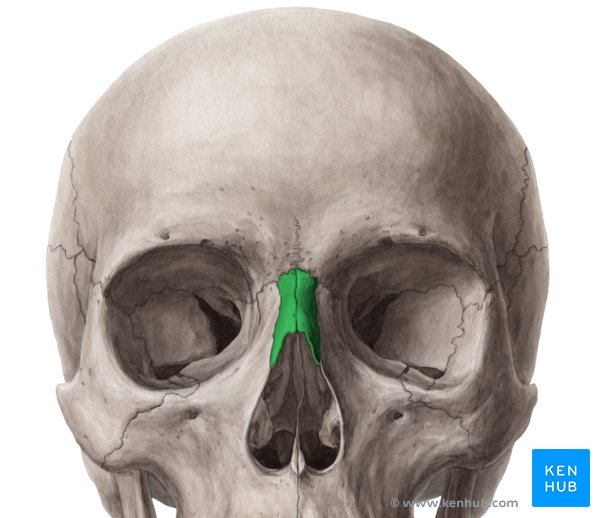

Identify this bone

Nasal (facial)

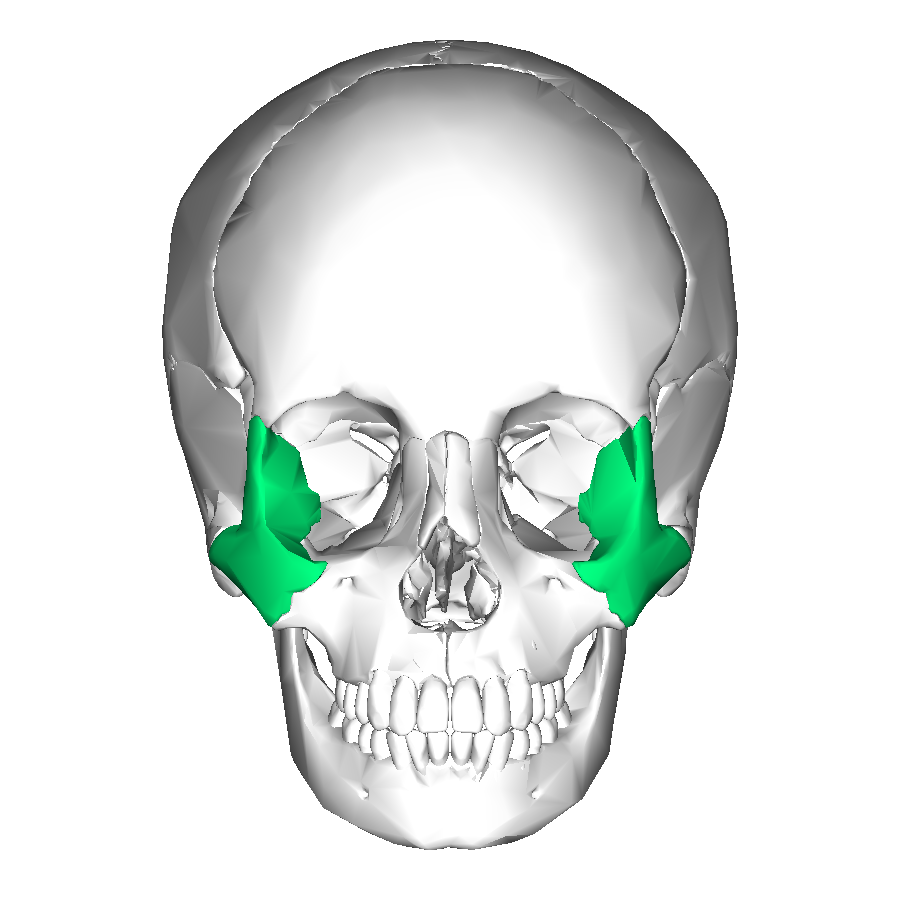

Identify this bone

Zygomatic (facial)

Identify this bone

Vomer (facial)

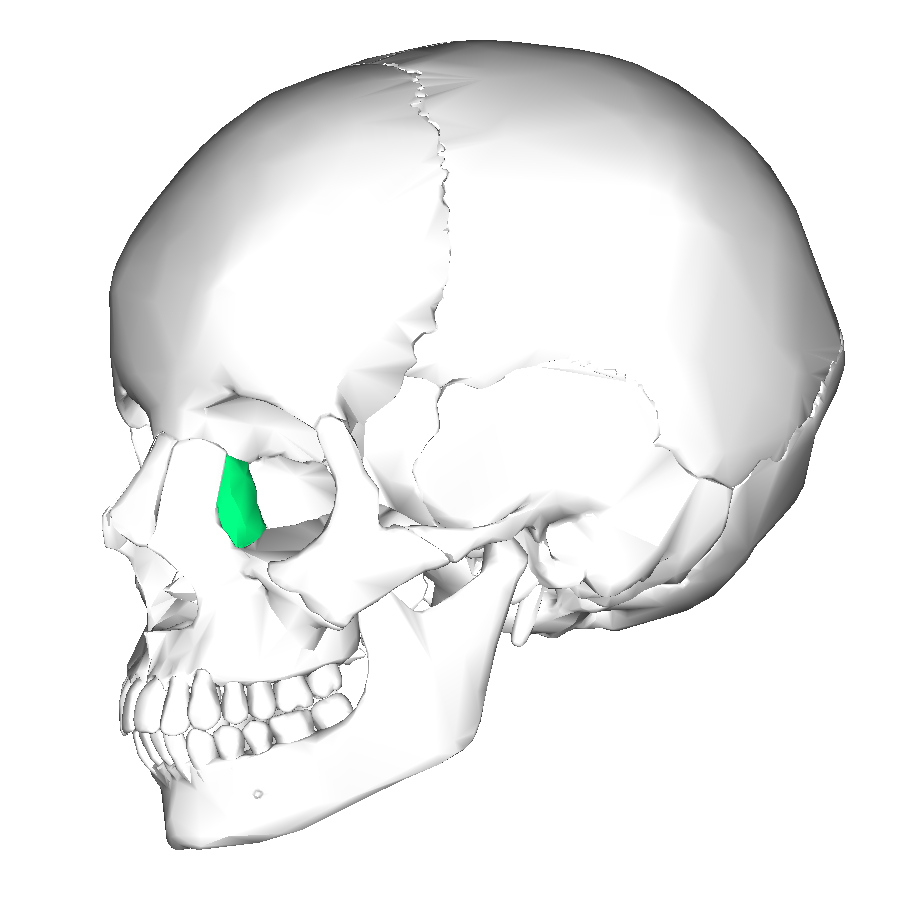

Identify this bone

Lacrimal (facial)

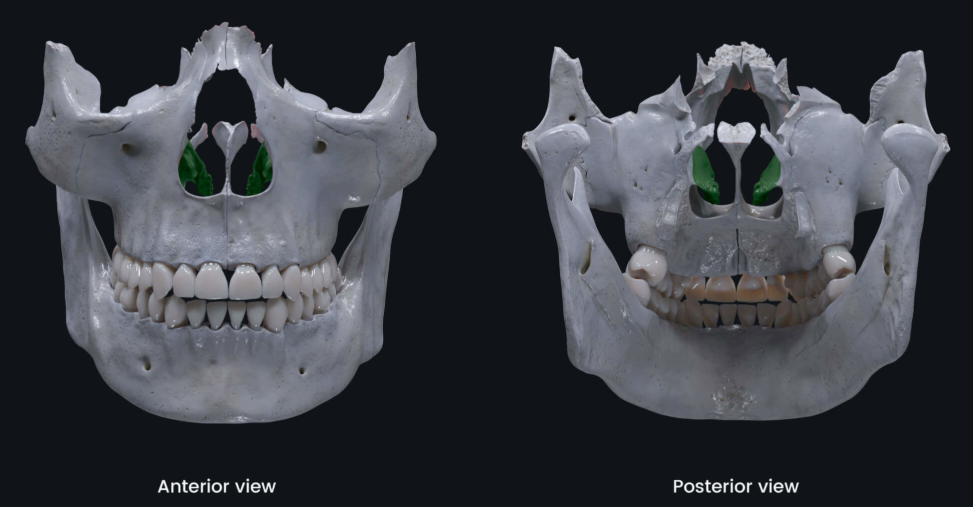

Identify the bone highlighted in green

Inferior nasal conchae (facial)

Most cranial bones are [paired/single] except for ___ and ___

Most cranial bones are single, except for the parietal and temporal bones, which are paired.

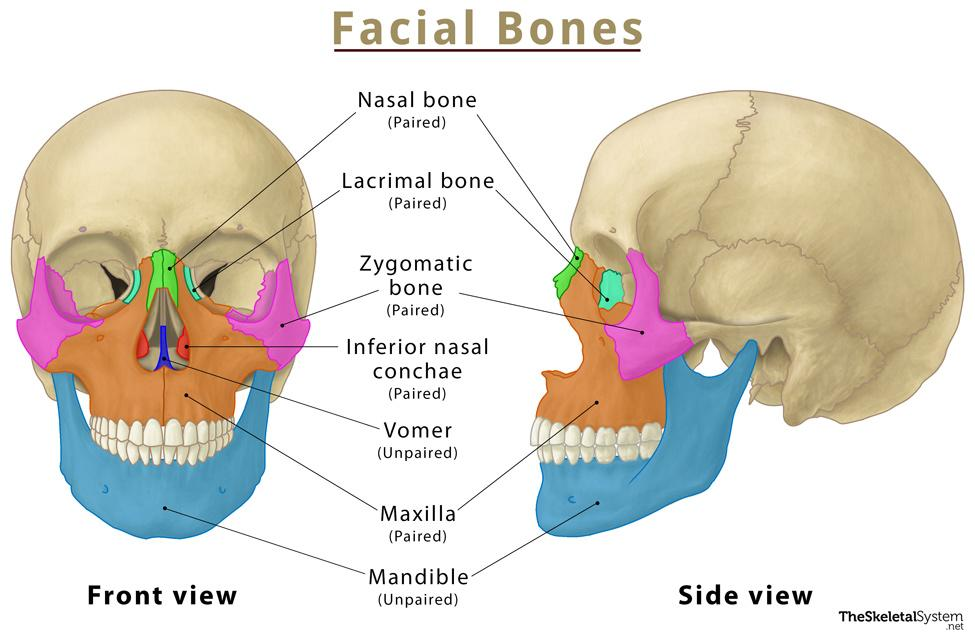

Most facial bones are [paired/single] except for ___ and ___

Most facial bones are paired, except for the vomer and mandible, which are single.

Define foramen

A hole in bone creating a passageway for nerves, blood vessels, or tendons/ligaments.

Define suture.

An immovable, fibrous joint connecting skull bones.

Define fissure.

A prominent groove in a bodily structure.

Define fossa.

A depression in the body where joints and muscles can attach.

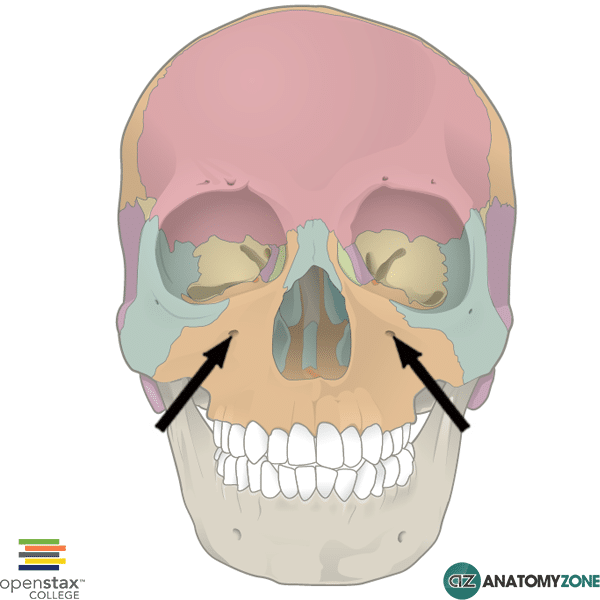

Identify this bony marking.

Infraorbital foramen (maxilla)

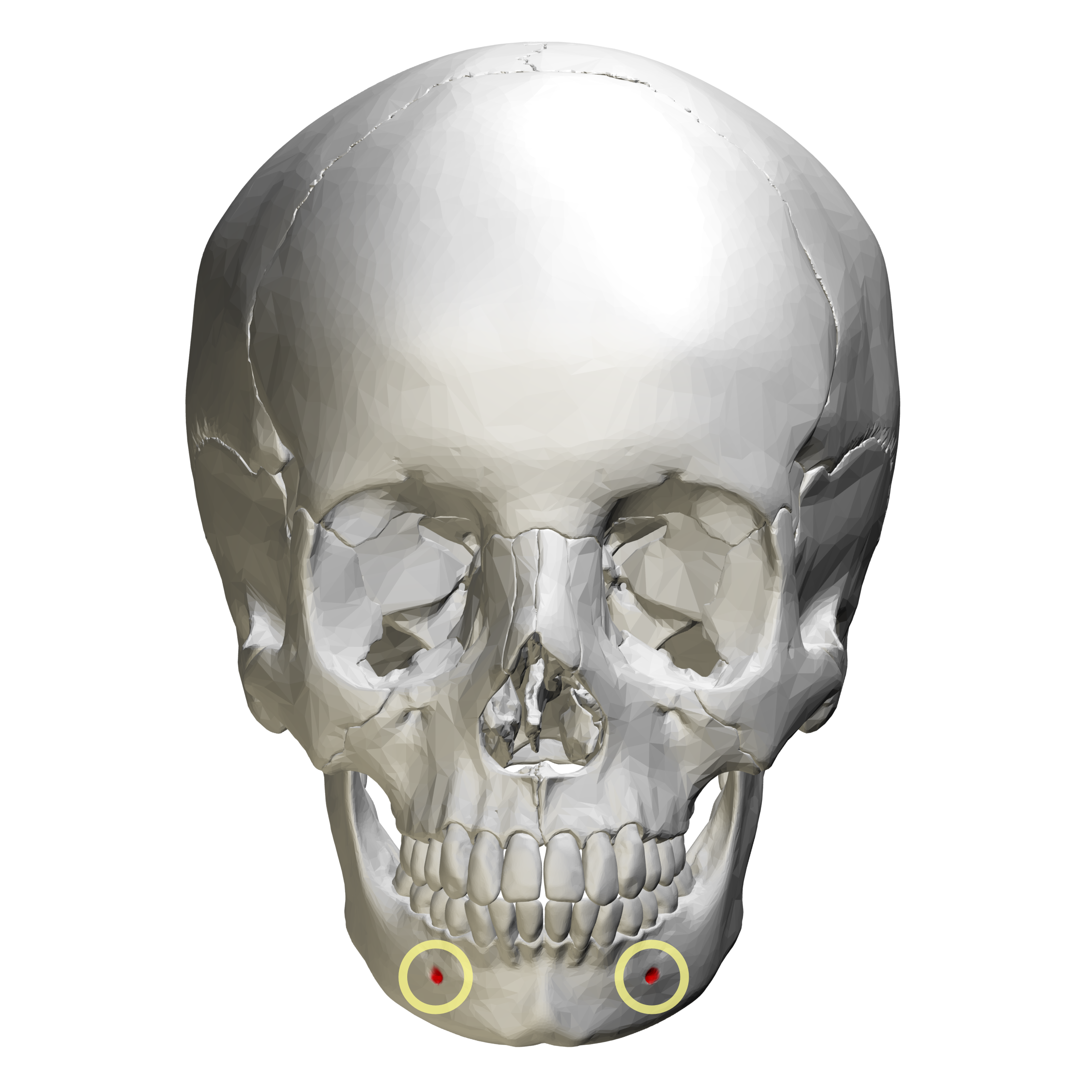

Identify this bony marking.

Mental foramen (mandible)

Identify bony marking A

Zygomaticotemporal foramen

Identify bony marking B

Zygomaticofacial foramen

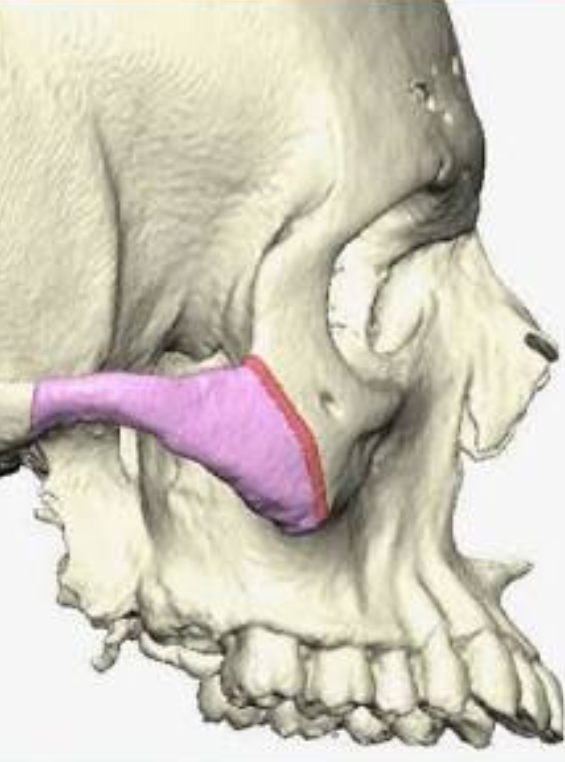

Identify this bony marking

Zygomatic arch

Identify this bony marking

Foramen ovale (sphenoid)

Identify this bony marking

Foramen magnum

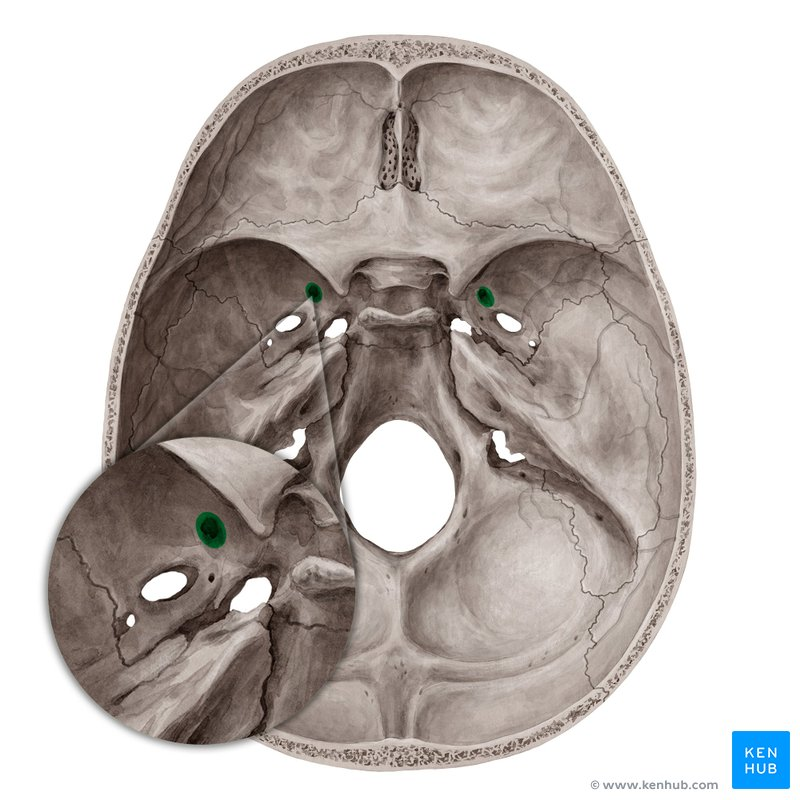

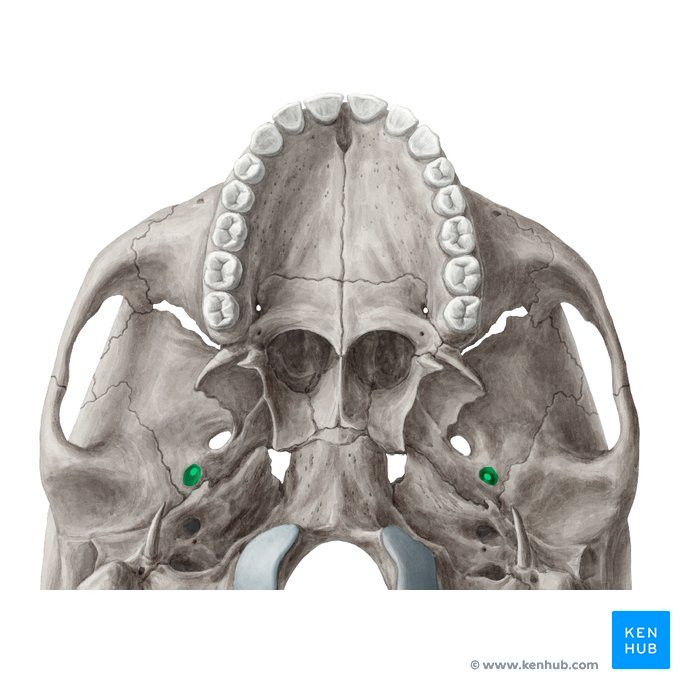

Identify this bony marking

Foramen spinosum (sphenoid)

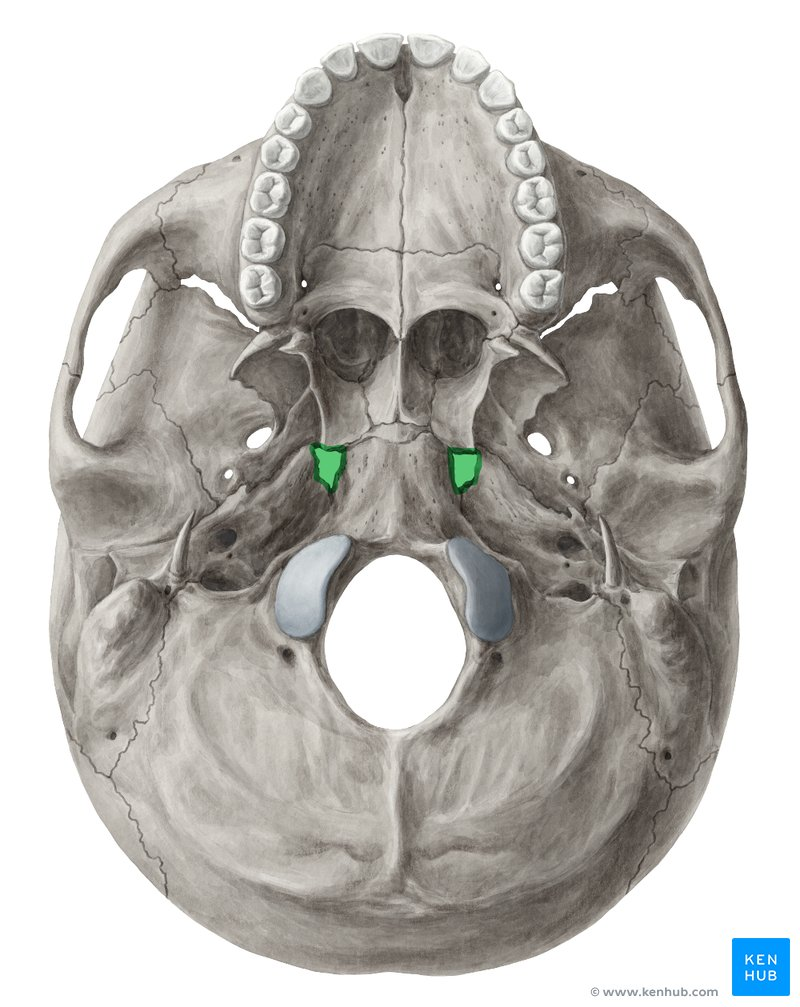

Identify this bony marking

Foramen lacerum

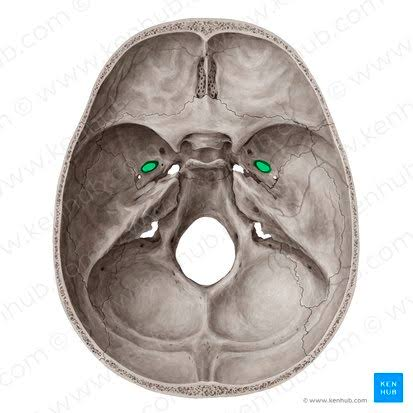

Identify this bony marking

Foramen rotundum (sphenoid)

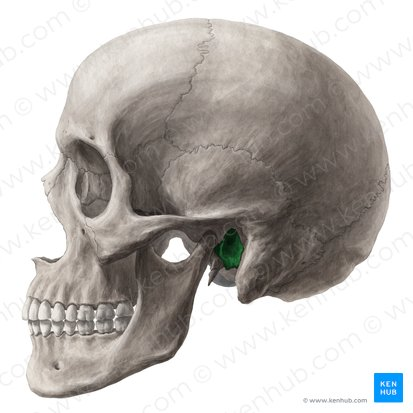

Identify this bony marking

External acoustic meatus (temporal)

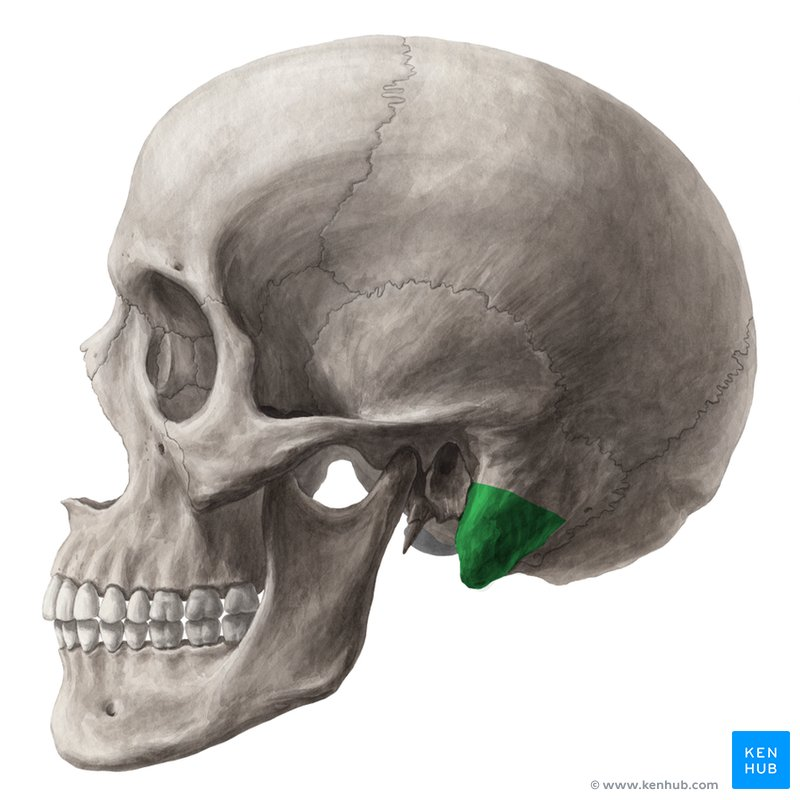

Identify this bony marking

Mastoid process (temporal)

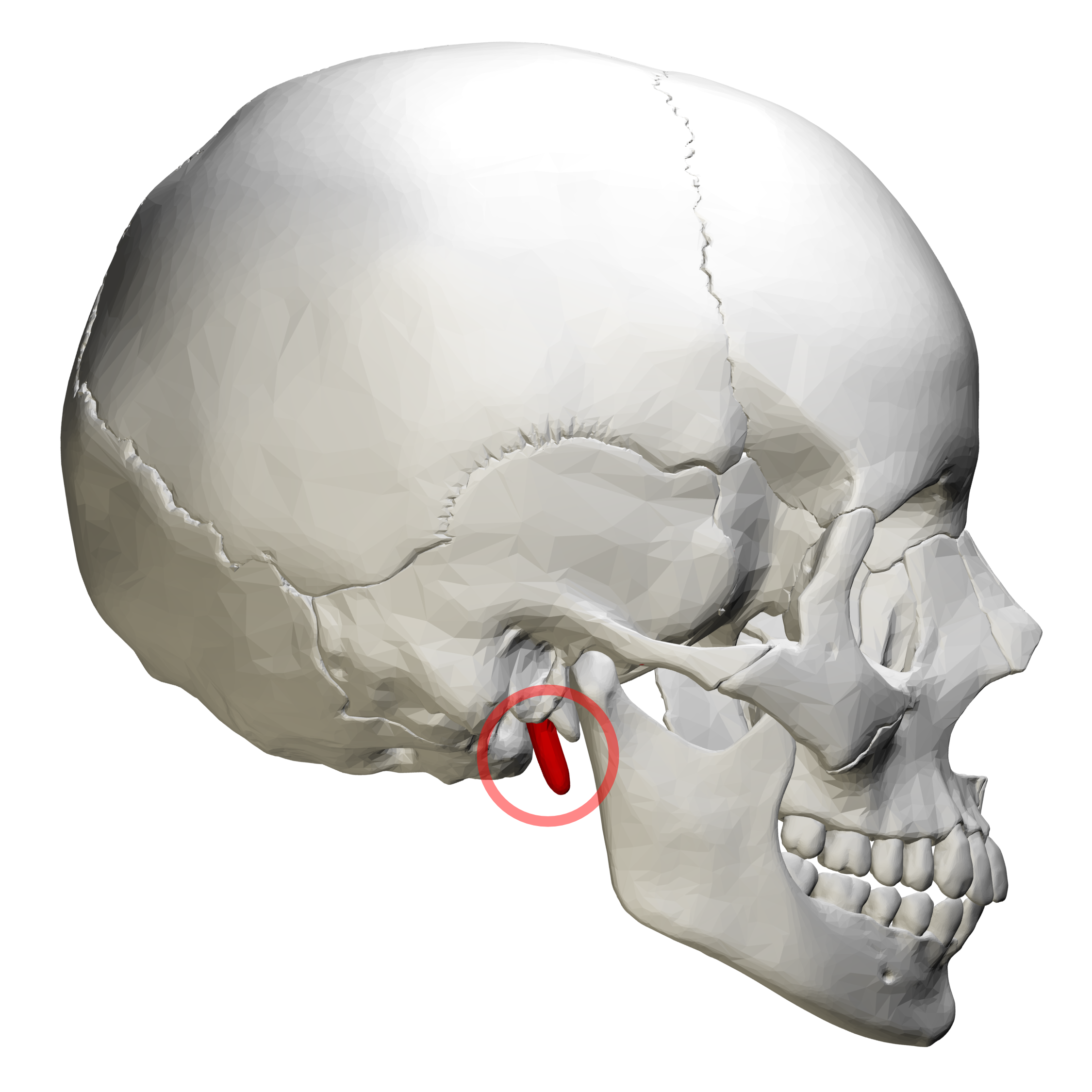

Identify this bony marking

Styloid process (temporal)

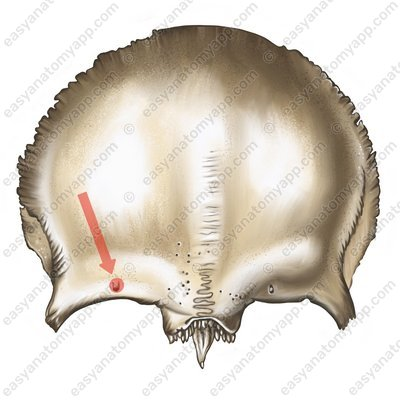

Identify this bony marking (anterior view)

Supraorbital foramen (frontal)

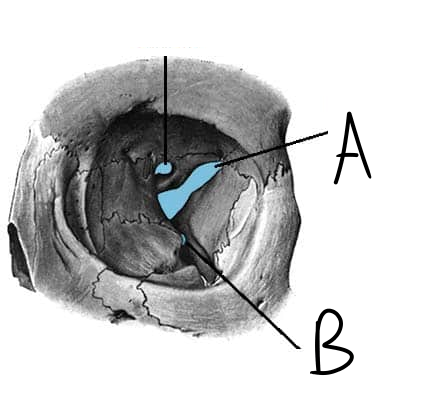

Identify bony marking A

Superior orbital fissure

Identify bony marking B

Inferior orbital fissure

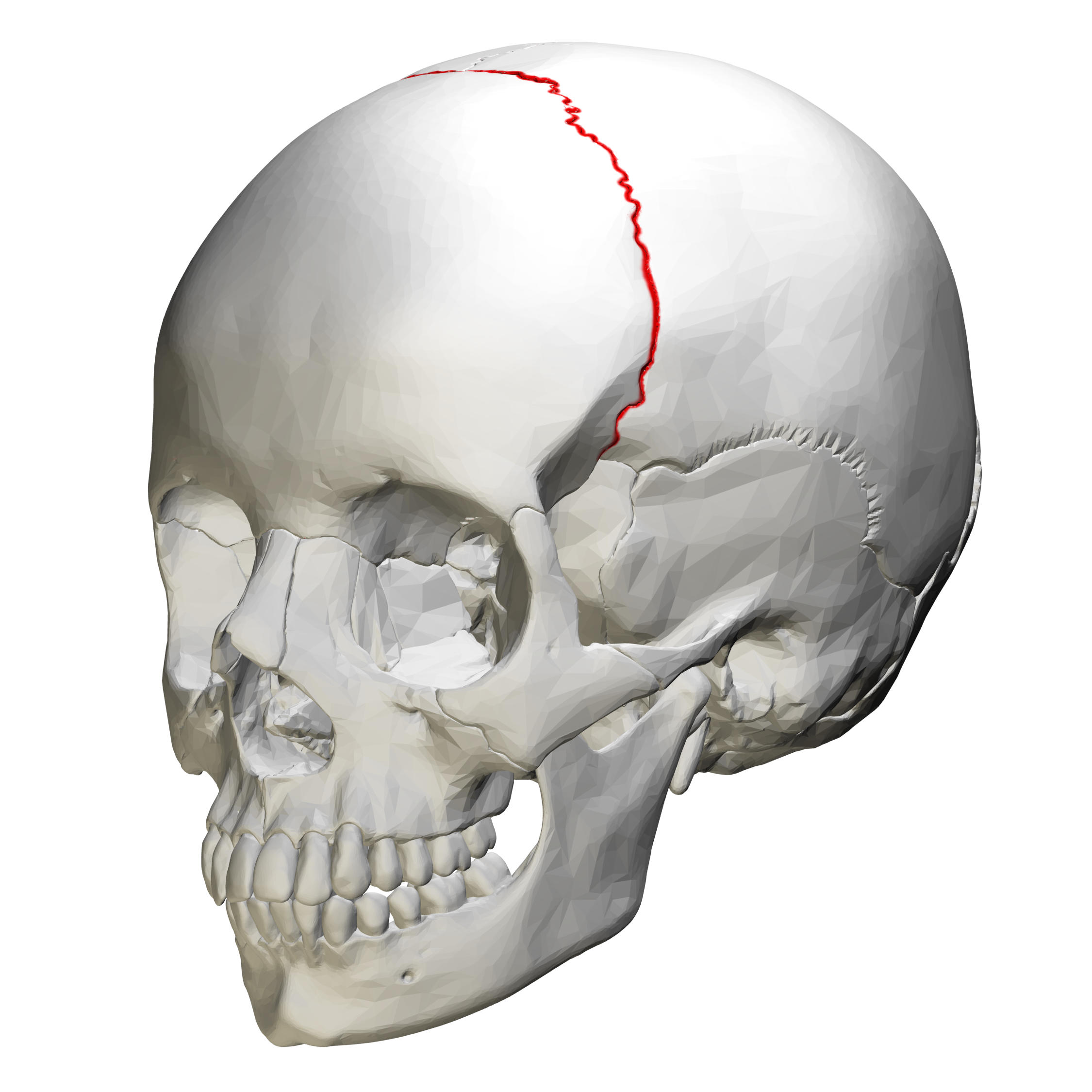

Identify this bony marking, as well as what it connects.

Coronal suture, connects frontal → parietal bones

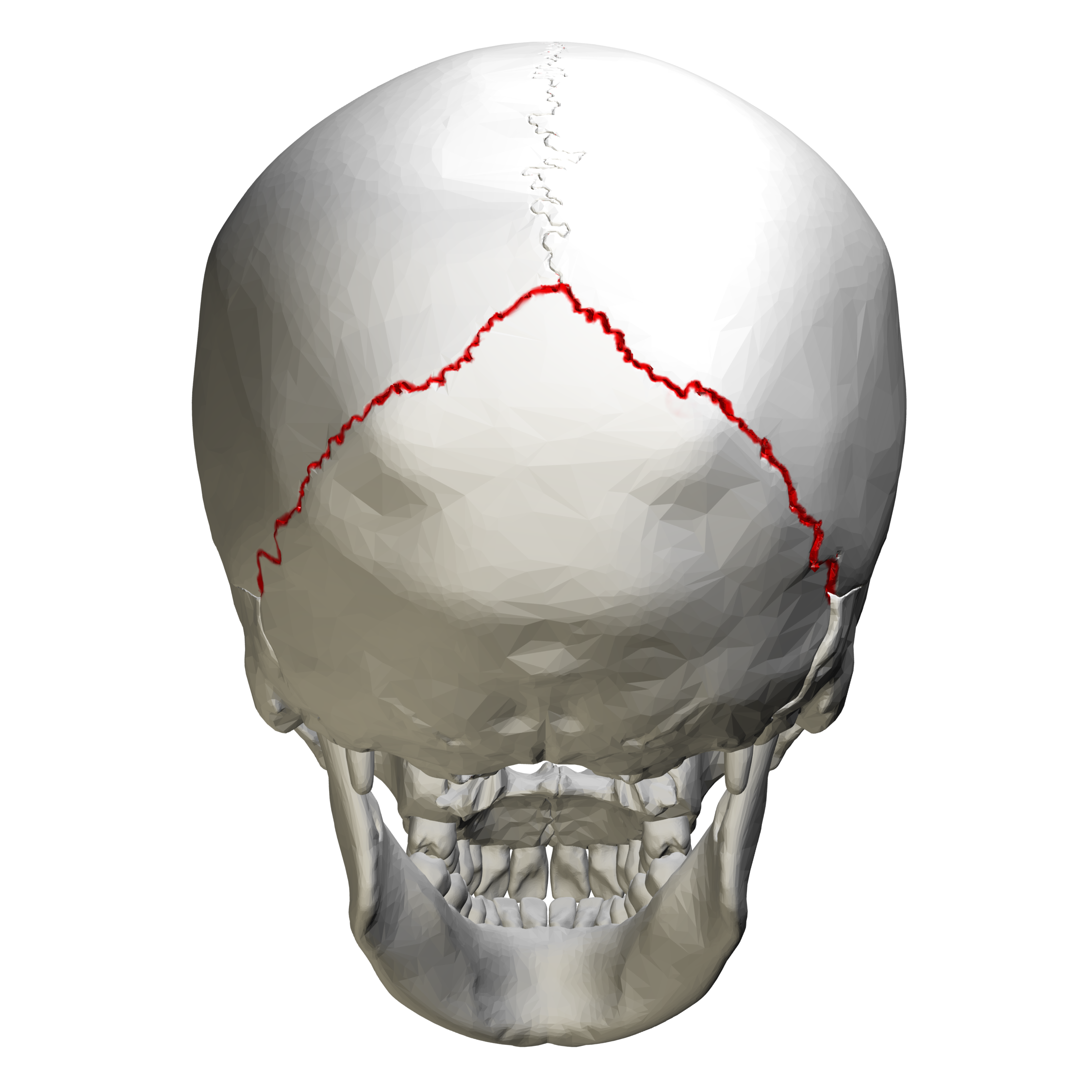

Identify this bony marking, as well as what it connects.

Lambdoid suture, connects parietal → occipital bones

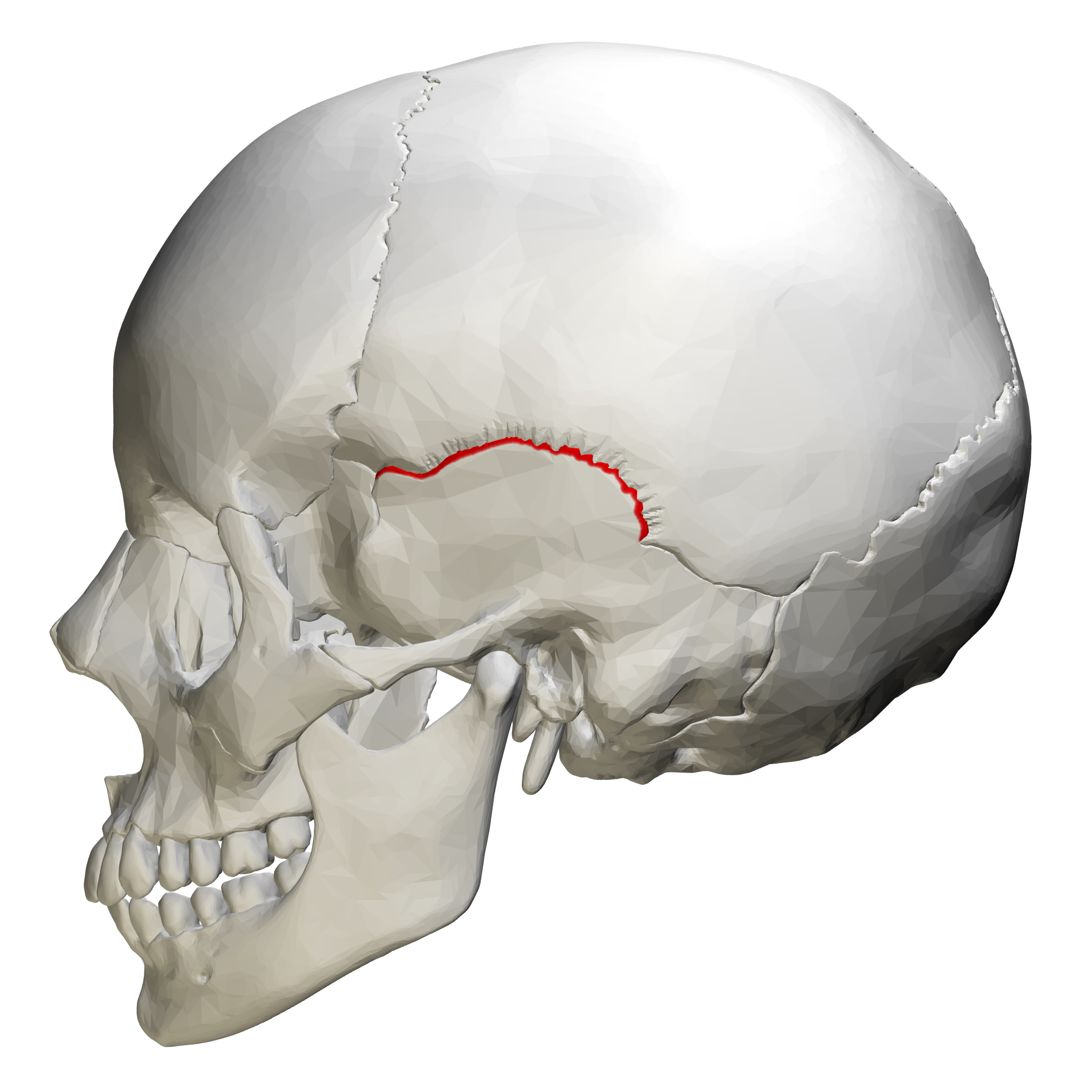

Identify this bony marking as well as what it connects

Squamous suture, connects parietal bone → squamous part of temporal bone

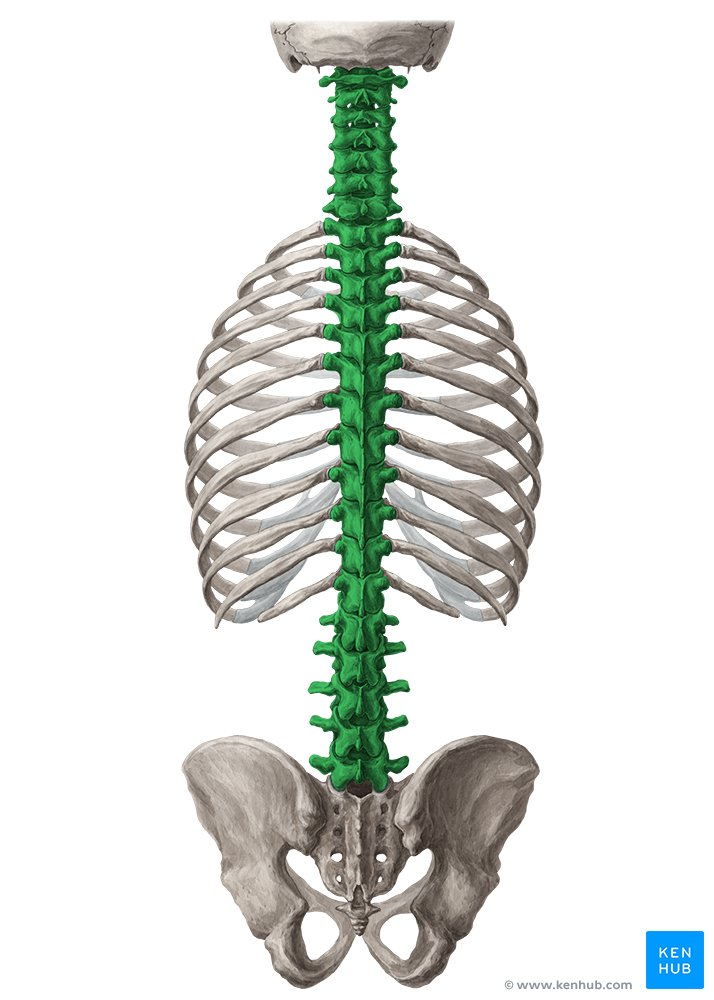

Identify the collective name for these bones

Vertebral column

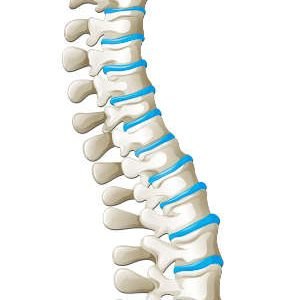

Identify the structures in blue and what they are composed of.

Intervertebral discs; cartilage

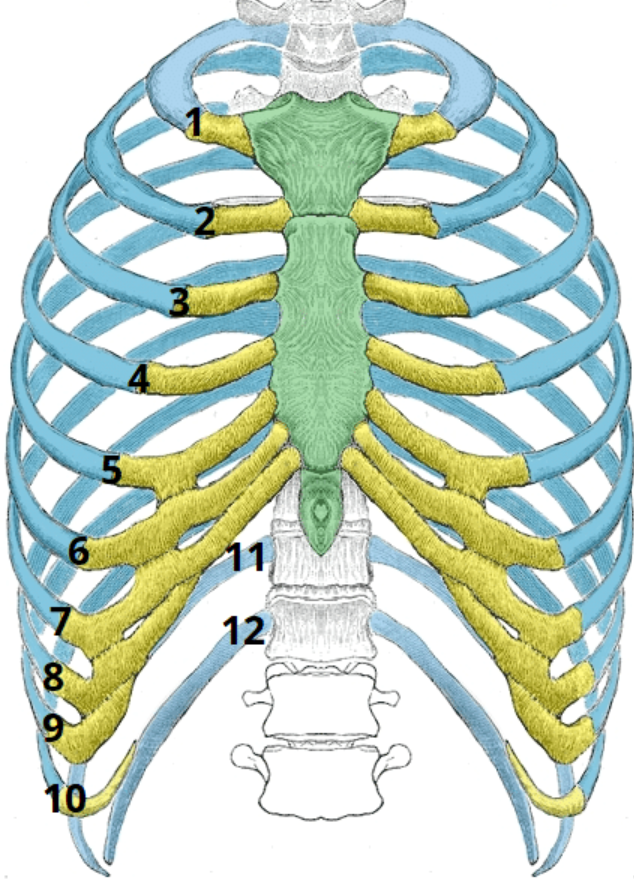

Identify the structure highlighted in yellow.

Costal cartilage

Identify the bone highlighted in green.

Sternum

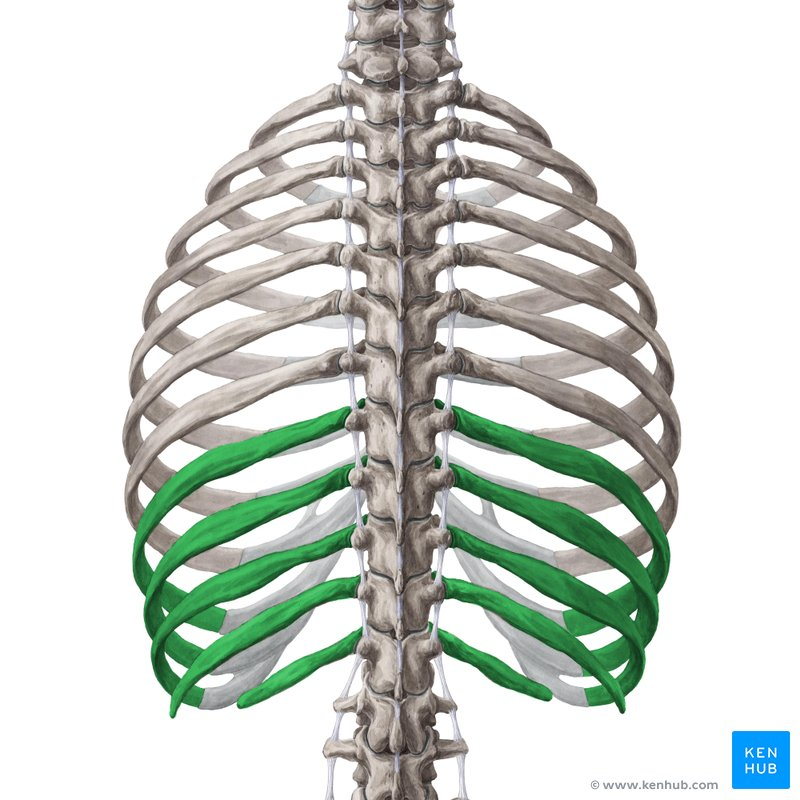

Identify the collective name for the structures in green and what defines them (posterior view)

False ribs; not connected to sternum

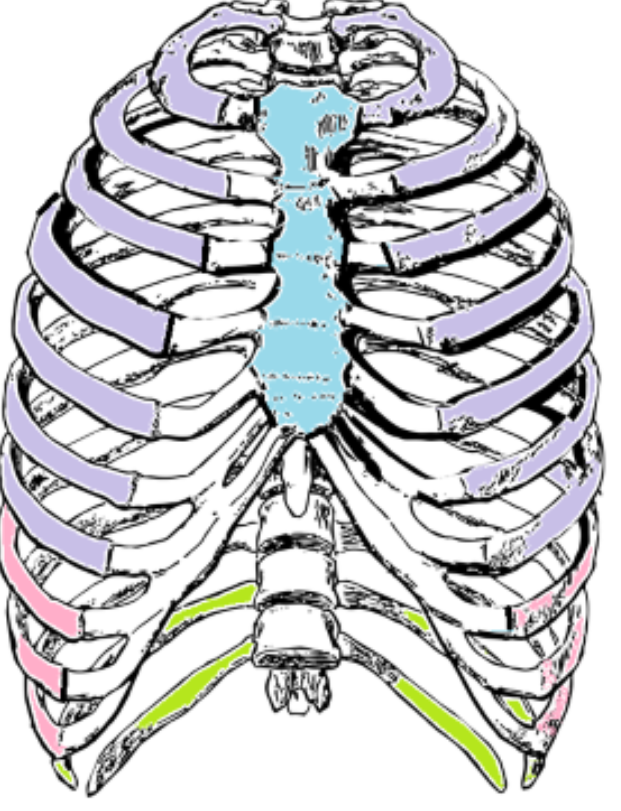

Identify the collective name for the structures in green and what defines them (anterior view)

Floating ribs; unattached at front

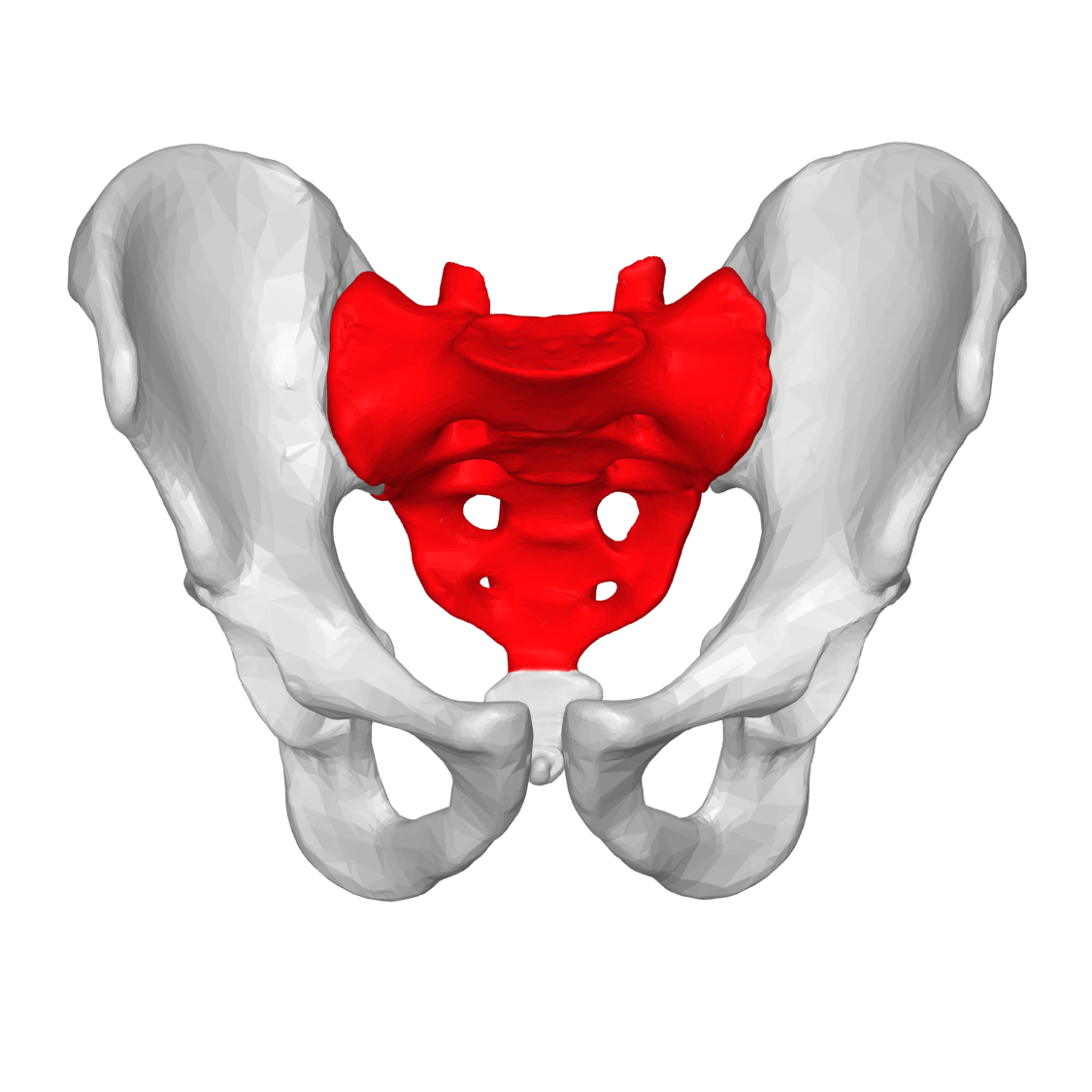

Identify this bone

Sacrum

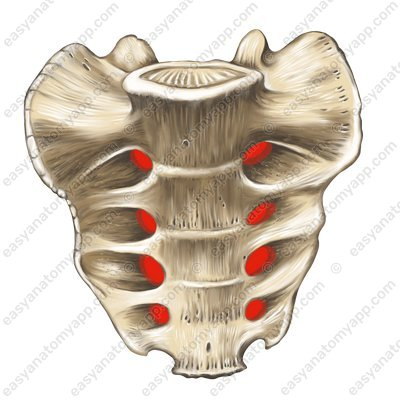

Identify the markings in red (16 in total)

Sacral foramen

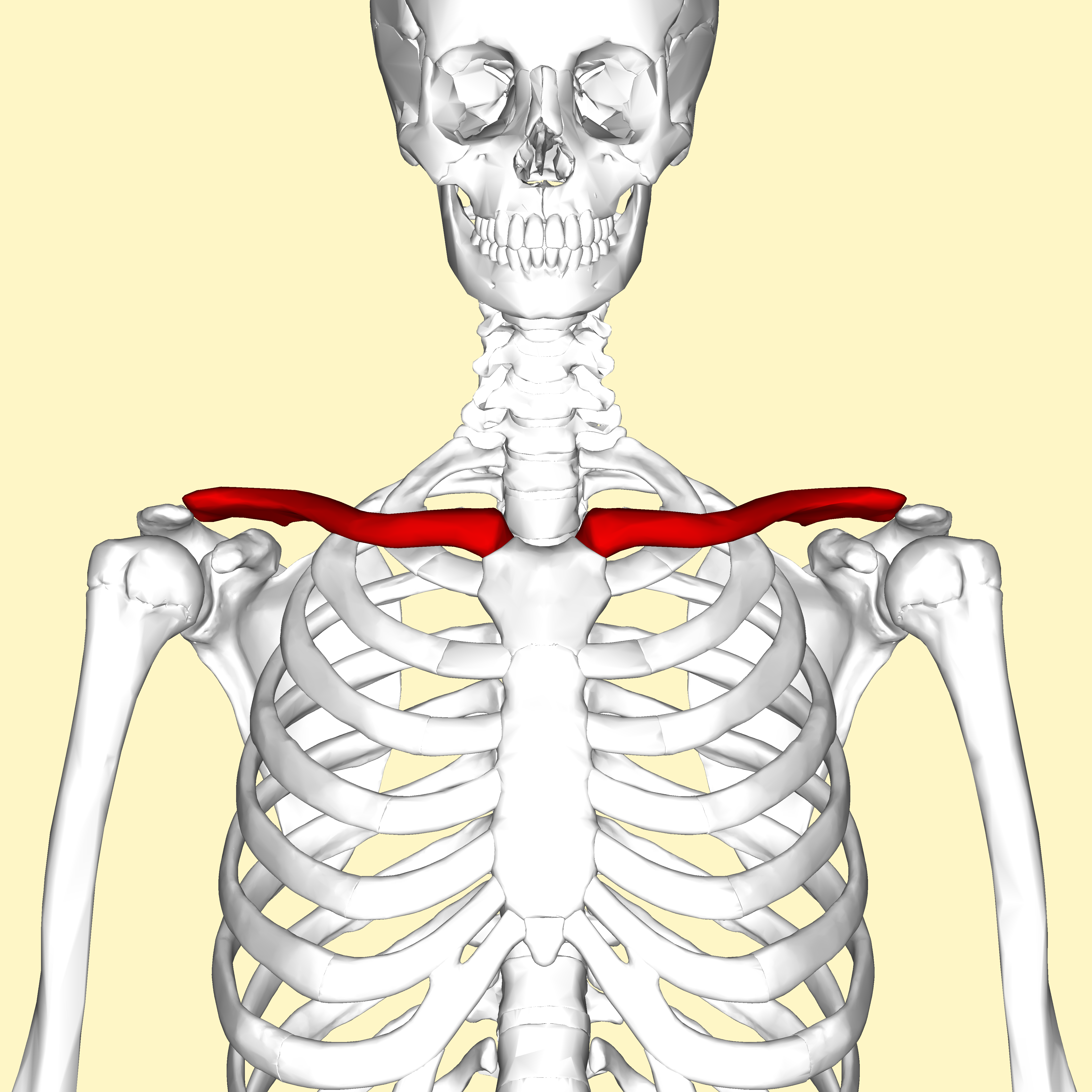

identify this bone

Clavicle

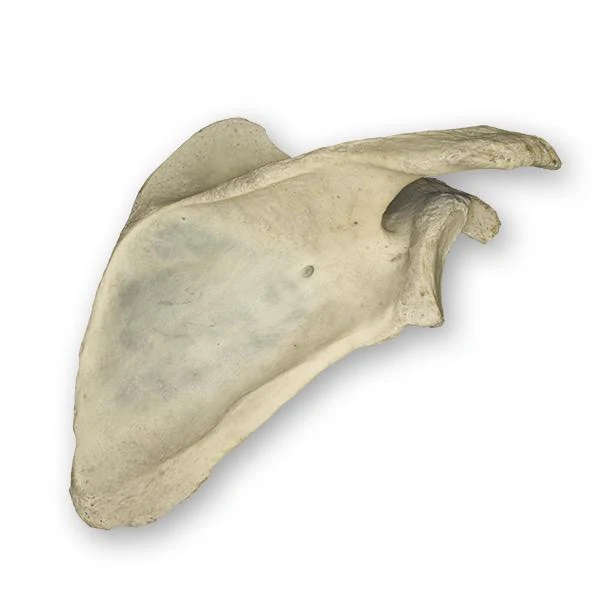

Identify this bone

Scapula

Which two bones make up the pectoral girdle that connects the upper limbs to the axial skeleton?

Clavicle and scapula

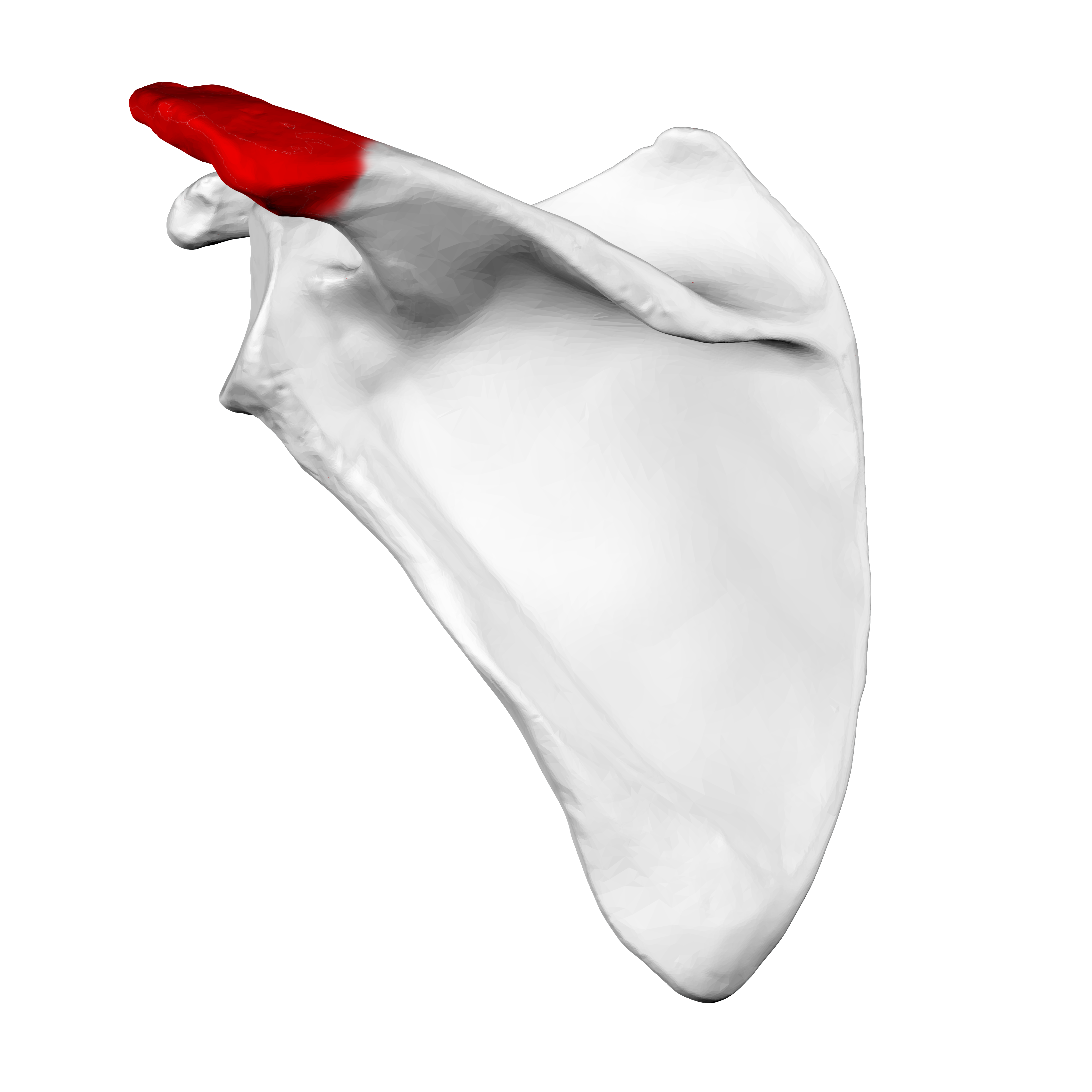

Identify the bony marking (left scapula, posterior view)

Acromion

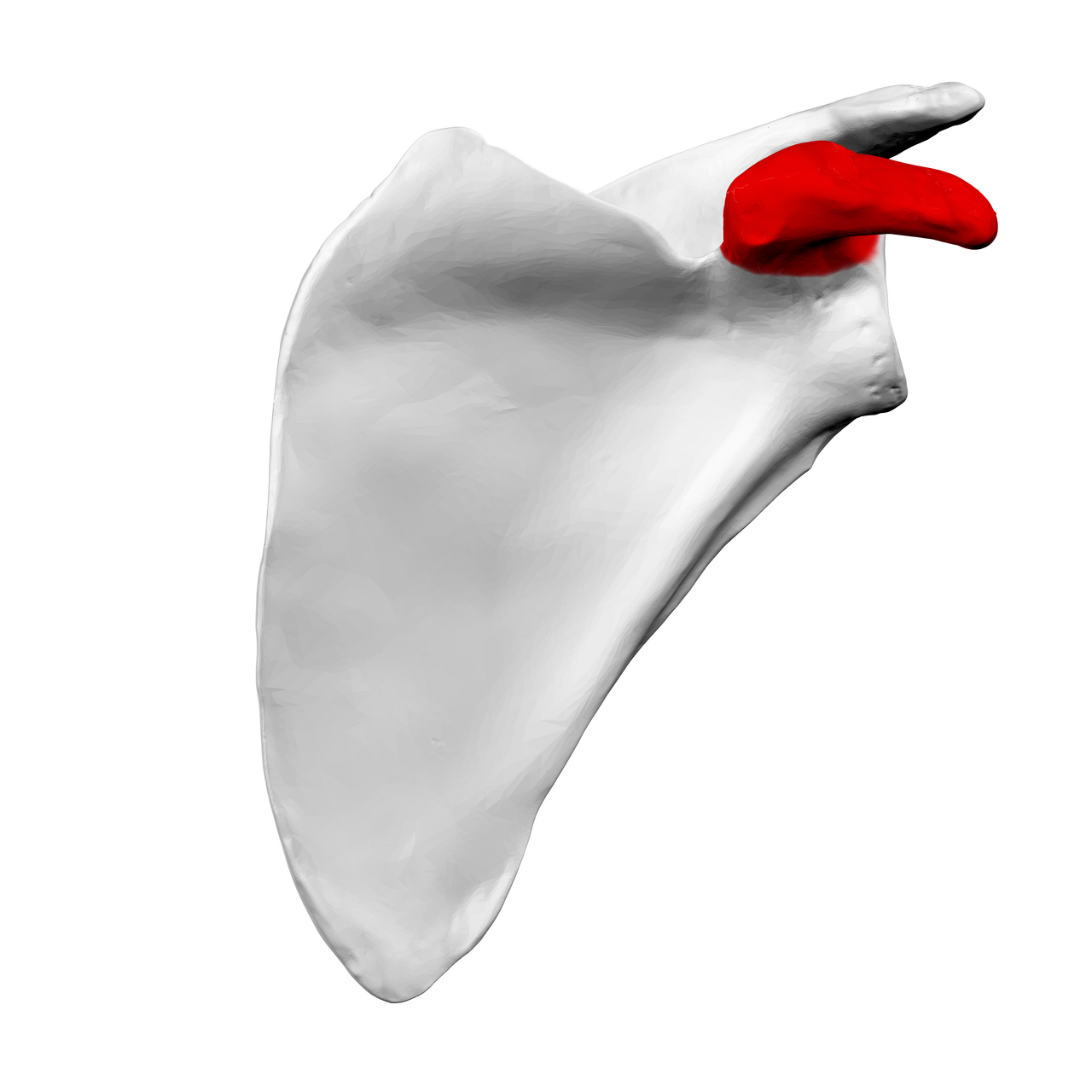

Identify the bony marking (left scapula, anterior view)

Coracoid process

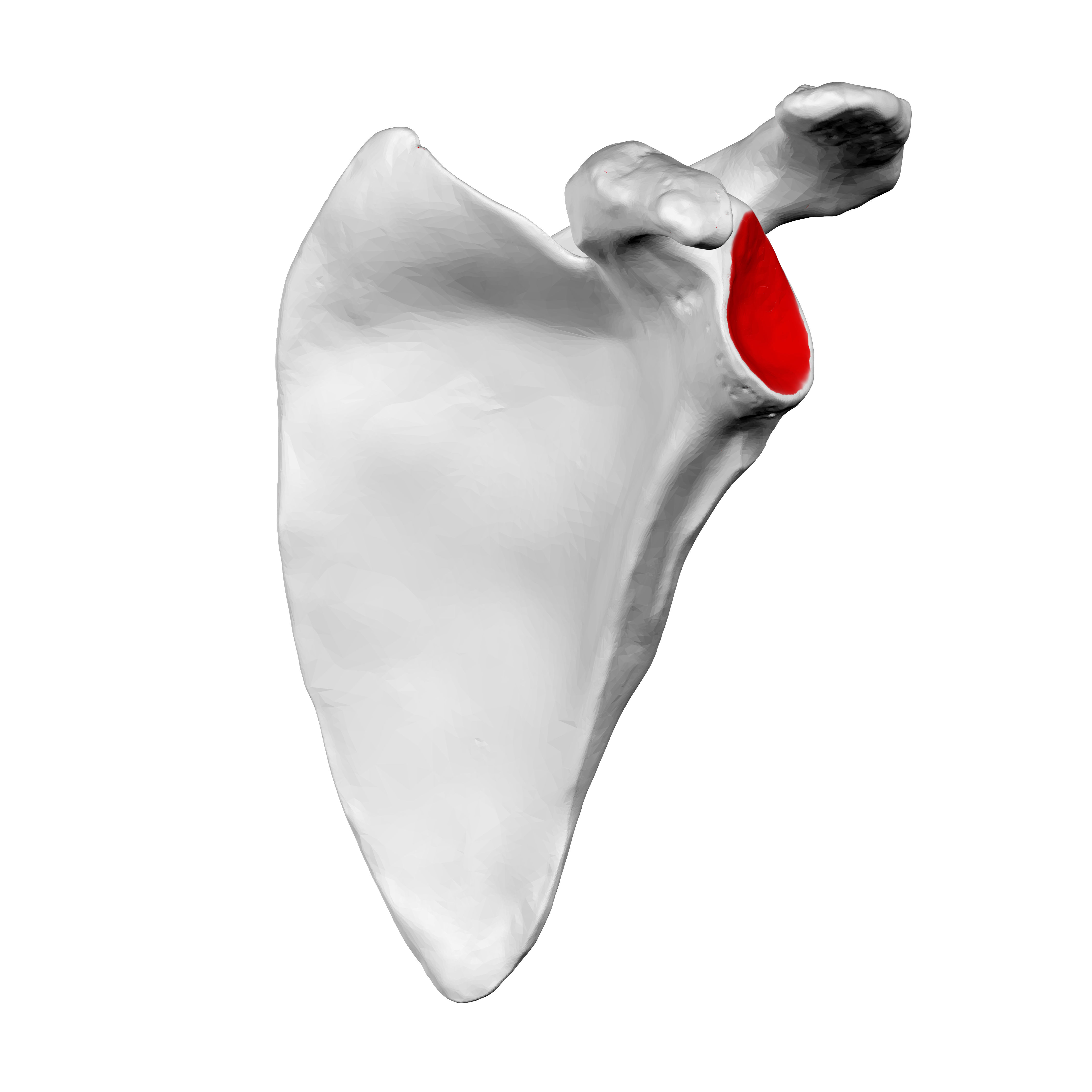

Identify the bony marking (left scapula, anterior view)

Glenoid cavity/glenoid fossa

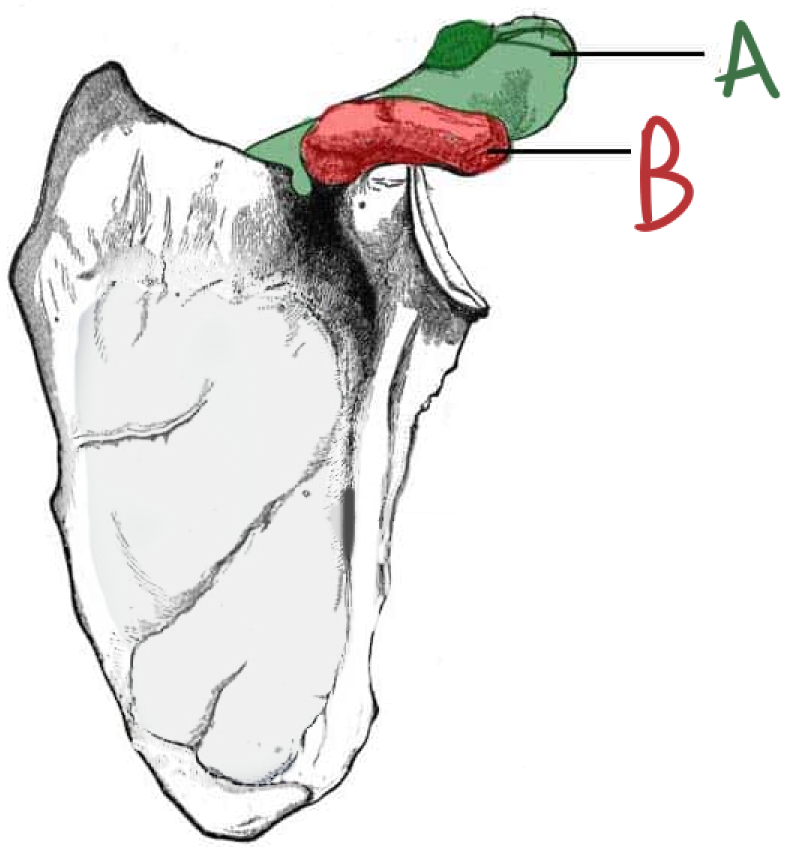

Identify bony markings A and B (anterior)

A: acromion; B: coracoid process

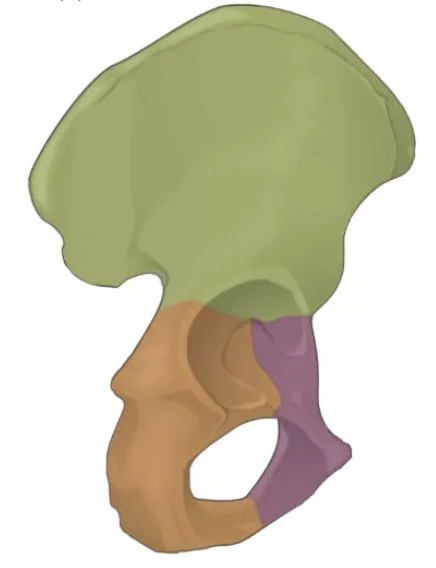

Identify this bone

Pelvic bone

Identify the bone in green

Ilium

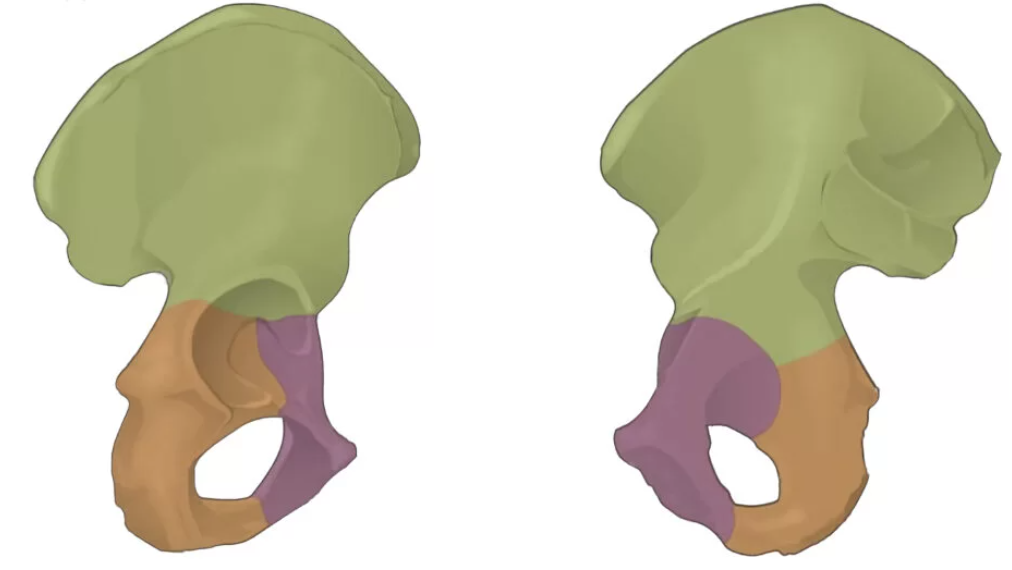

Identify the bone in orange

Ischium

Identify the bone in purple

Pubis

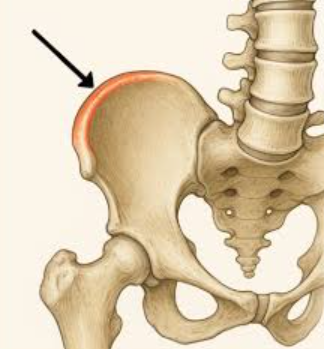

Identify this bone marking

Iliac crest

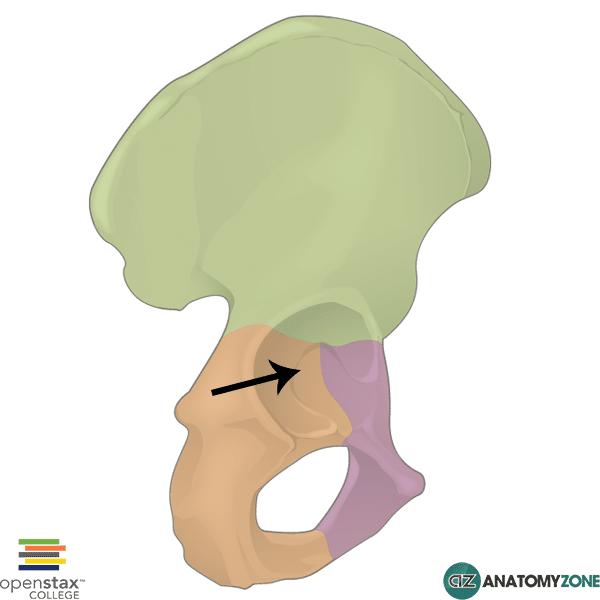

Identify this bone marking and what it attaches to

Acetabulum; femur

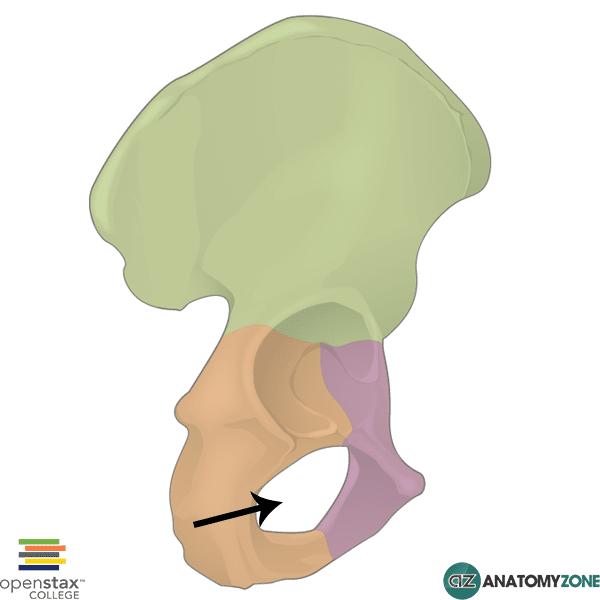

Identify this bony marking

Obturator foramen

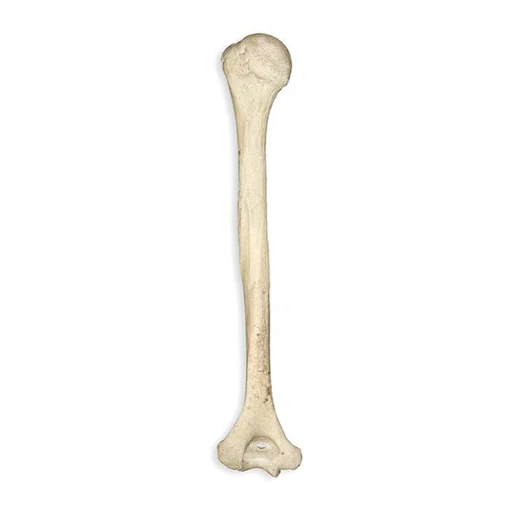

Identify this bone

Humerus

Identify A (highlighted in red)

Head of humerus

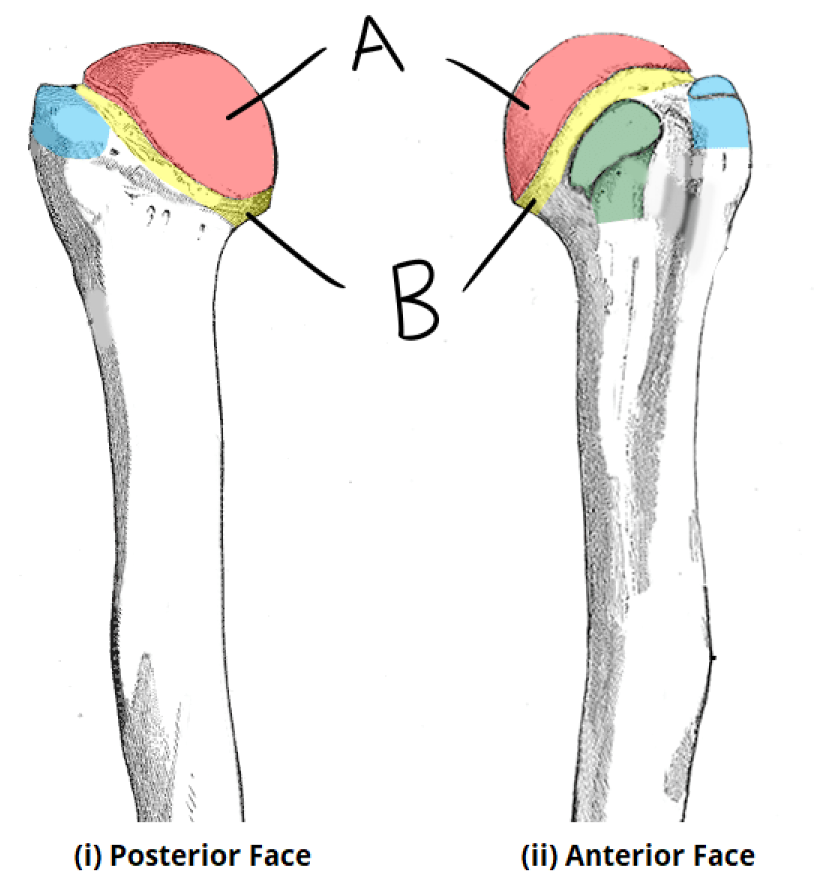

Identify B (highlighted in yellow)

(anatomical) neck of humerus

Identify A (anterior distal humerus)

Capitulum

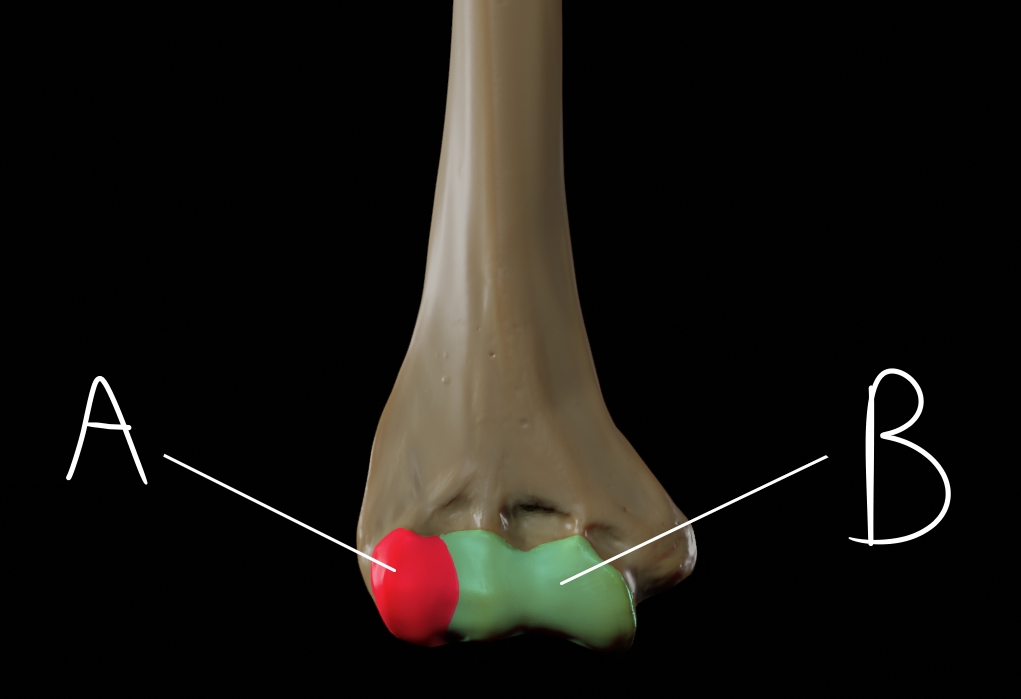

Identify B (anterior distal humerus)

Trochlea

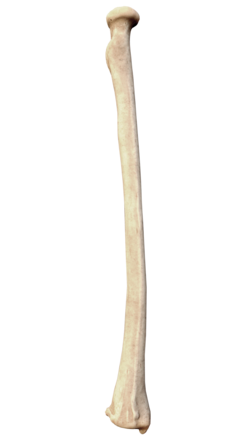

Identify this bone

Radius

Identify this bone

Ulna

Identify the area highlighted in green

Olecranon (ulna)

Identify the area highlighted in red

Coronoid process (ulna)

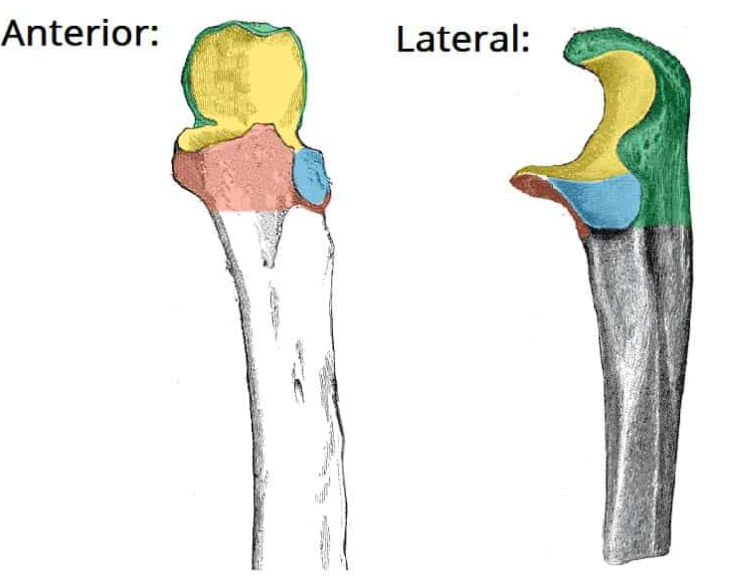

Identify the area highlighted in yellow

Trochlear notch

Identify the bones highlighted in yellow

Carpals

Identify the bones highlighted in orange

Metacarpals

Identify the bones highlighted in green

Proximal phalanges

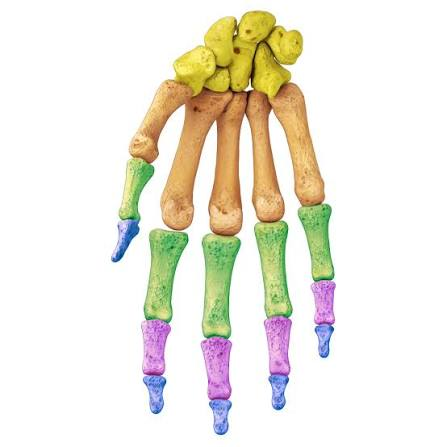

Identify the bones highlighted in purple

Middle phalanges

Identify the bones highlighted in blue

Distal phalanges

What numeral corresponds to the bones highlighted in green?

I

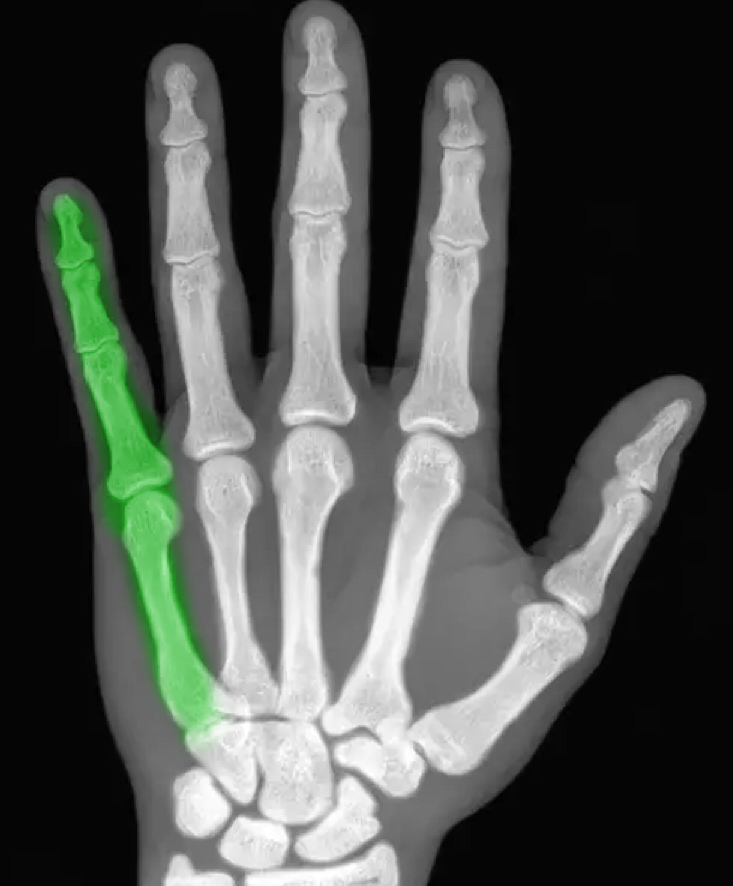

What numeral corresponds to the bones highlighted in green?

V

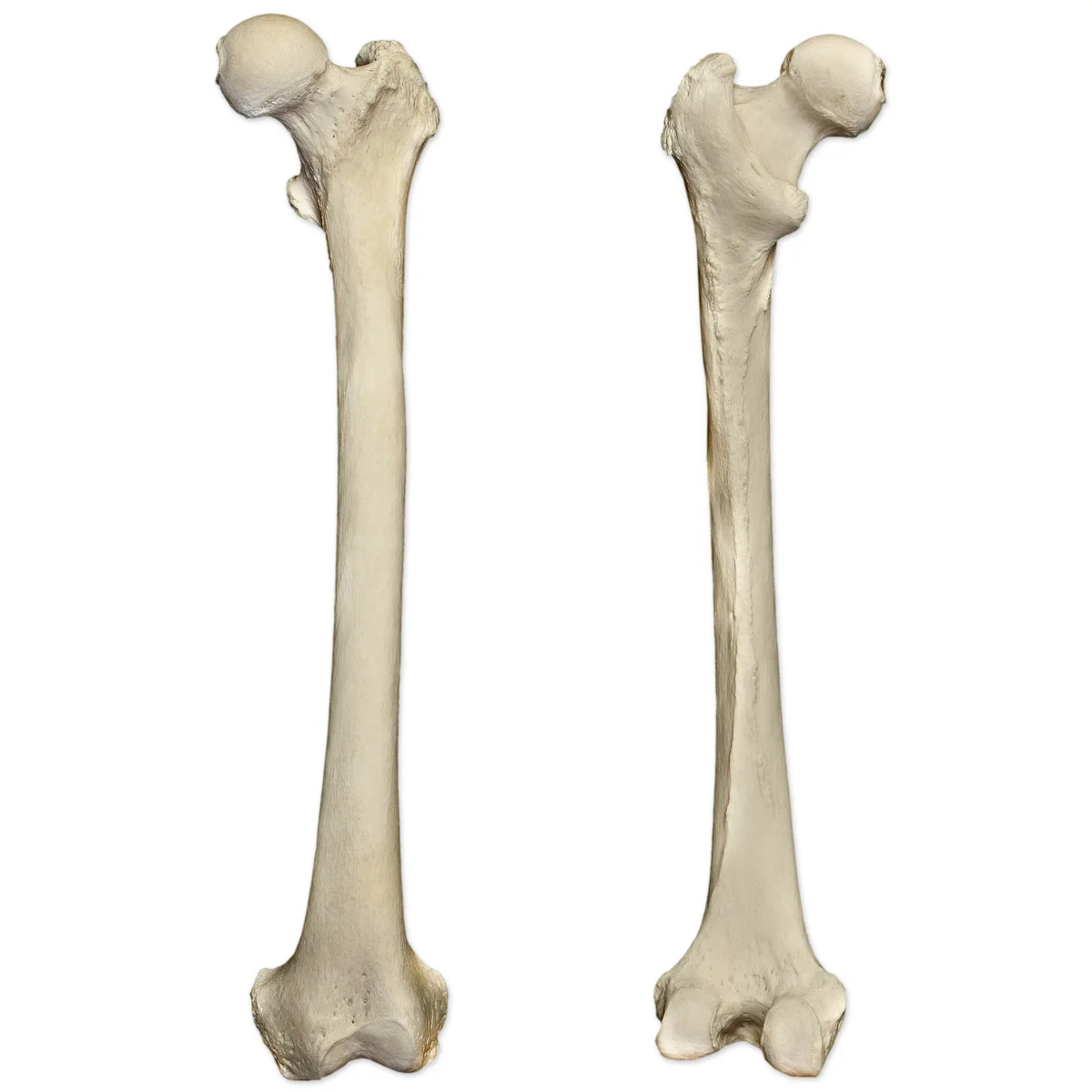

Identify this bone (anterior/posterior)

Femur

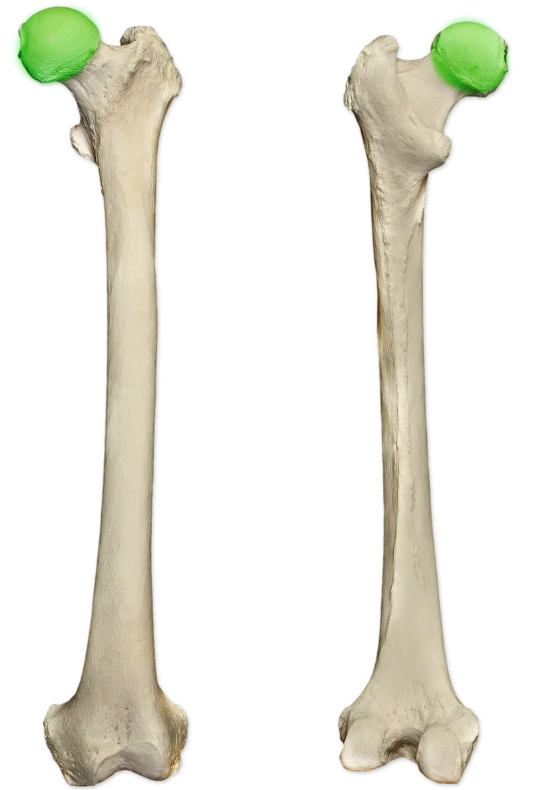

Identify the area in green (anterior/posterior)

Head of femur

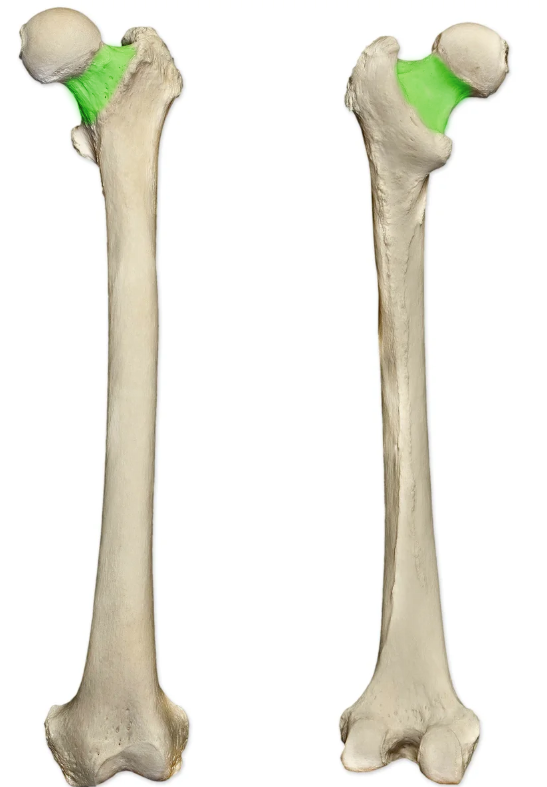

Identify the area in green (anterior/posterior)

Neck of femur

Identify the area highlighted in green

Patellar surface (anterior femur)

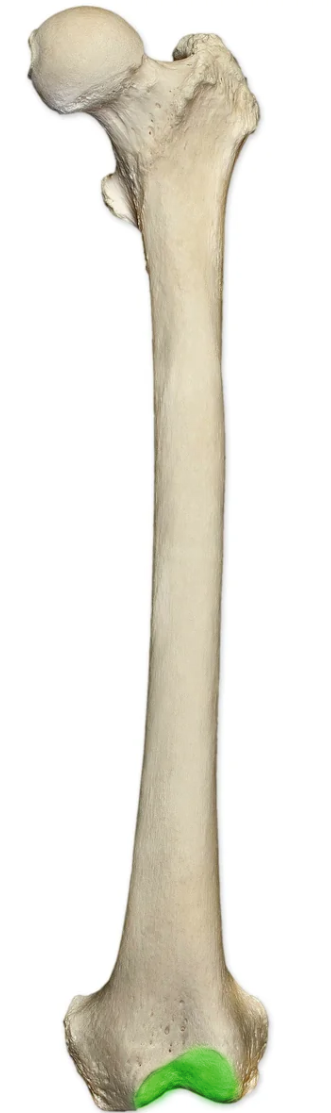

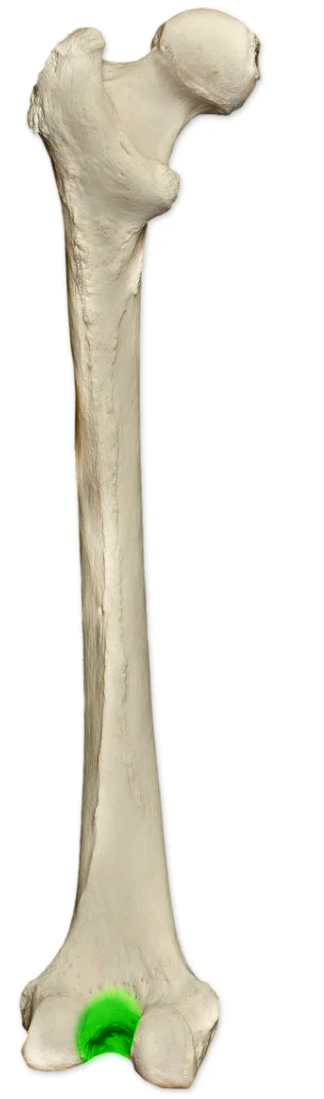

Identify the area highlighted in green

Intercondylar fossa (posterior femur)

Identify the bone

Tibia

Identify the bone

Fibula

Identify the bone in yellow (inferior/superior views)

Talus

Identify the bone in green (inferior/superior views)

Navicular bone

Identify the three bones in red (inferior/superior views)

Lateral, intermediate and medial cuneiforms

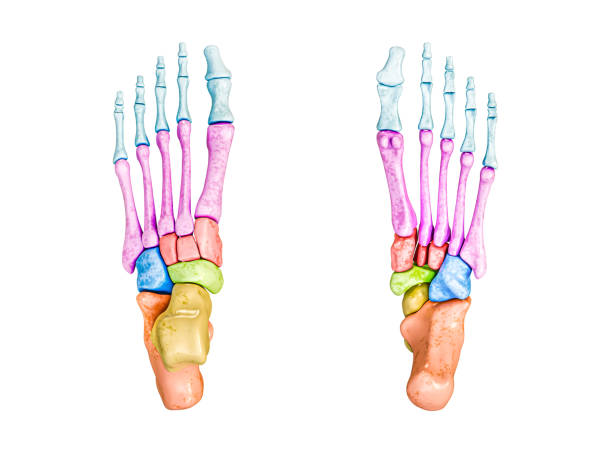

Identify the bone in dark blue (inferior/superior views)

Cuboid

Identify the bones in purple

Metatarsals

Identify the bones in light blue

Phalanges

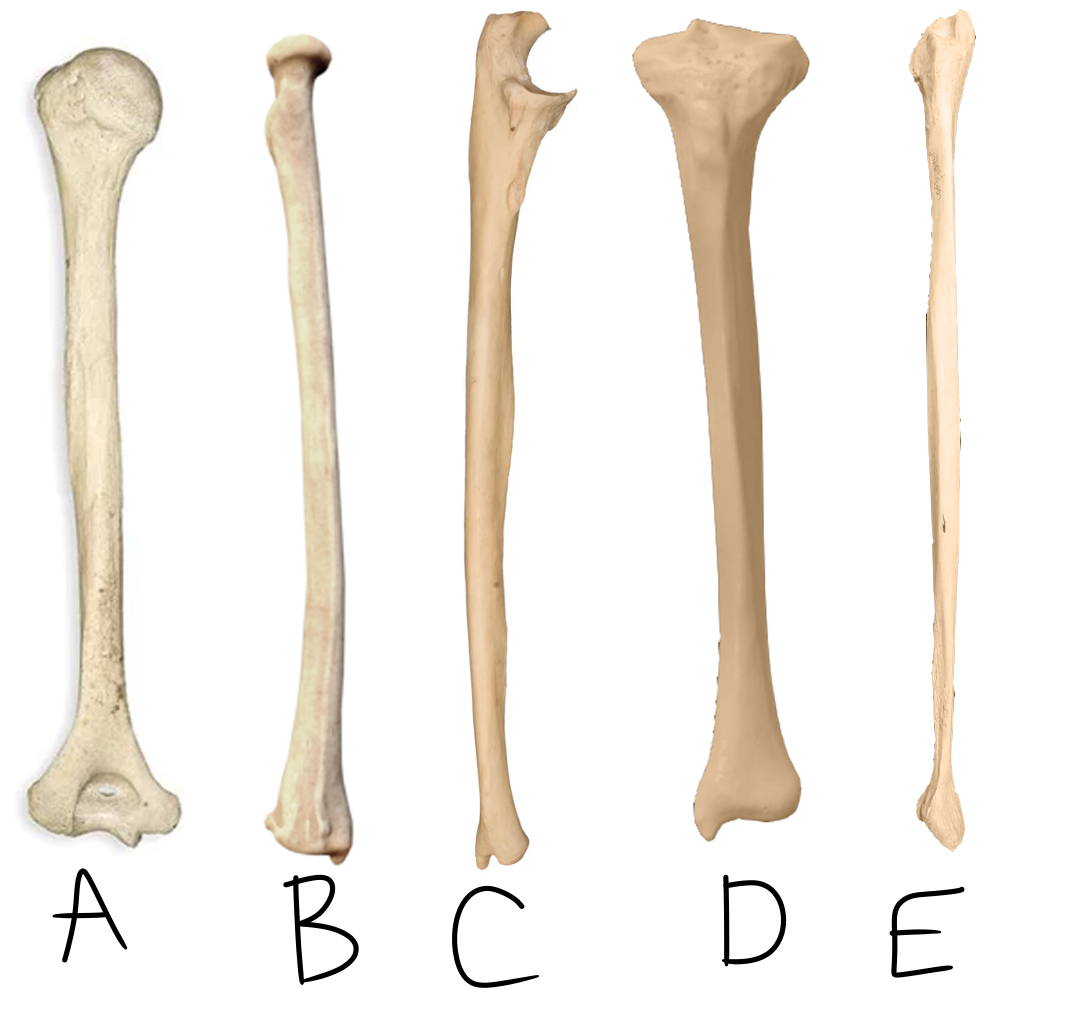

Identify each bone (not to scale)

A: Humerus; B: Radius; C: Ulna; D: Tibia; E: Fibula
