Heterogenous Catalysis

Outline the basic steps to heterogenous catalysis

1. Diffusion of the reactants through to fluid to the catalyst.

2. Diffusion of the reactant into the catalyst pore system

3. Adsorption of the reactant onto the catalyst surface.

4. Conversion of the reactant on the catalyst surface.

5. Desorption of the product from the catalyst surface.

6. Diffusion of the product through the catalyst pore system.

7. Diffusion of the product from the catalyst to the fluid.

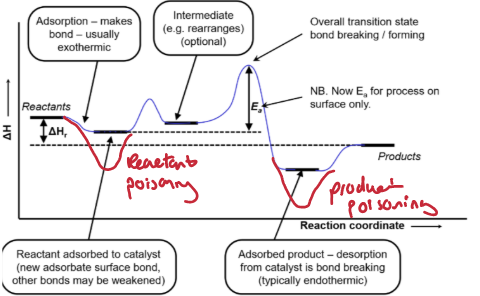

What are the two ways catalytic poisoning can occur?

1. Reactant adsorbs to catalyst too strongly - reactant posioning.

2. Product poisoning

Outline the steps in a water-gas shift reaction

CO + * → CO* (CO adsorption)

H₂O + 2* → H* + OH* (dissociative H₂O adsorption)

OH* + CO* → HCOO* + * (formate formation)

HCOO* + → CO₂* + H* (formate decomposition)

CO₂* → CO₂ + * (CO₂ desorption)

2H^* → H₂ + 2* (H₂ desorption)

What is water-gas shift reactions beneficial for?

WGS is used to adjust the syngas to the desired ratio – very important for efficient use of carbon feedstock/energy used in syngas production (CO/H₂)

Syn-gas formed used in MeOH synthesis, FT synthesis, methanation.

Draw a reaction bed profile, explaining what it shows.

• Start of bed: low/no product concentration. Bulk of product formation. High initial rate as forwards reaction only

• Middle: Forward reaction dominants but reverse reaction also occurring.

• End of bed: thermodynamic equilibrium achieved, observed rate of products forming appears to slow down. Forwards and backward reaction are equal.

Outline temperature programmed desorption experiments - what can this technique be used to study?

Catalyst is exposed to an adsorbate at low T, which binds to available surface sites. Temperature is linearly increased → desorption. Amount desorbing monitored by mass spec → TDP spectrum of desorption rate vs T.

• Area under peak is proportional to the number of desorbed molecules.

• Desorption temperature tells you about interaction/binding strength (chemisorbed vs physiosorbed)

• Desorption shape can tell you about the mechanism.

Outline XPS experiments - what can this technique be used to study?

Core electrons excited and ejected. KE of electrons detected → binding energy. Can tell us which elements and their oxidation states.

• Surface specific however cannot be done in situ.

Outline X-ray absorption experiments - what can this technique be used to study?

Excite electrons → edge jump in the X-ray absorption. Further energy → electrons ejected.

Element specific but bulk analysis

NEXAFS (Near-edge X-ray absorption fine structure): atomic chemical environment - can give MO information, oxidation state.

EXAFS: near neighbour environment - can give information about coordination number and bond lengths.

Can be used in situ

What is X-ray diffraction used for in catalysis?

X-rays produce a diffraction pattern that can be used to determine the crystal structure, and crystallite particle sizes.

Bulk-analysis, and requires long range order (i.e. cannot be used for very small or amorphous crystals).

How do TEM, SEM and SPM microscopic techniques all differ (i.e. when should you use each).

• Transmission Electron Microscopy: scattering by electron dense atoms gives contrast (darker areas of image = heavier atoms, easy to pick out the metal particles of catalyst). Spot-type analysis of nanostructure.

• Scanning Electron Microscopy: surface electron scattering. Wider field of view compared to TEM. Electron dense atoms gives a signal. Good at looking at morphology and support structure.

• Scanning Probe Microscopy: gives information about the electronic structure at surface. Finer resolution.

Explain what information is given by IR and DRIFTS - why is this useful compared to other techniques?

Can be employed under reactor conditions/in situ.

DRIFTS measure IR absorption by molecules adsorbed to the surface, giving information on the vibrational modes of surface species. Can be used to monitor changes e.g. with temperature changes. Shows:

• whether adsorption is molecular or dissociative.

• how strongly bound a species is.

What is BET analysis used for in heterogenous catalysis

Determines the specific external and internal surface area of a catalyst by measuring amount of gas (N₂) adsorbed onto the surface.

• Gives information on the pore system and pore diameters.

• Can indicate sintering or coking.

How does gas chemisorption work and what information does it provide?

Treats catalyst with H₂ or CO for adsorption. Remove physisorbed molecules e.g. by increasing temperature to get only chemisorbed. Can plot pressure vs V absorbed → chemisorbed appears linear, since we can only get a chemisorbed monolayer.

Outline the mechanism for ammonia synthesis - state the RDS. Name the catalyst.

H₂(g) + 2* → 2H* (dissociative adsorption).

N₂(g) + 2* → N₂* + * → 2N* (RDS for N₂ dissociation)

N* + H* → NH* + *

NH* + H* → NH₂* + *

NH₂* + H* → NH₃* + *

NH3* → NH₃(g) + *

Catalyst = Fe₂O₃ with K₂O , Al₂O₃ and CaO

Explain using d electron count why Ru and Fe are optimal for ammonia synthesis.

• Electron density in d-orbitals -> pi backbonding into N2, weakening N2 bond for dissociation.

• H, start to populate antibonding orbital once d-orbitals are more than half fill -> N2 won’t want to stay absorbed to surface.

• Fe and Ru give optimal d electron count for adsorption and dissociation - balanced. Ru = higher activity but more expensive.

Explain how Al₂CO₃ and CaO act as structural promoters, and how K₂O acts as an electronic promoter.

Al₂O₃ and CaO reduces sintering (sticking together) of Fe₂O₃. Helps maintain high surface area of iron therefore high activity.

K₂O = K⁺ provider which uses dipole-dipole interactions to favour back donation, aiding N₂ dissociation and NH₃ removal.

What is the advantage of using heat exchangers in the reaction bed?

• Ammonia syntehsis = exothermic → increases temperature as produced, shifting equilibrium against NH3.

• Intermittent cooling not in presence of catalyst.

• Catalysis → Cool → Catalysis → Cool etc.... Allowing for higher overall conversion.

Give the mechanism for methanol synthesis after WGS has occurred.

CO₂* + H* → HCOO*

HCOO* + H* → H₂COO* + *

H₂COO* + H* → H₃CO* + O* RDS, breaking C-O bond.

H₃CO* + H* → H₃COH* + *

CH₃OH* → CH₃OH + *

What is the role of zinc in the Cu/ZnO/Al₂O₃ catalyst for methanol synthesis

ZnO acts as a support for the Cu. Stabilises Cu surface area and can act as a chemical promoter, helping adsorption by withdrawing electron density from Cu by alloying

How is the surface area of Cu metal measured (chemisorption only)

Uses N₂O, which reacts with Cu to form N₂ and CuO. Binds to Cu only (Chemisorption only). Can use low T to look at reactive sites only. Monitor the amount of N₂ formed

What is the role of CO (other than for WGS formation of syngas) in methanol synthesis

CO helps with (some) reduction of ZnO, leading to better Cu wetting (flattening over surface) increasing surface area for reaction.

Outline a basic description for Fischer Tropsch synthesis

1. intitiation - either CO dissociates to surface CH_x*, then chain growth OR CO initially hydrogenated to surface hydroxymethane type intermediates, then chain growth.

2. Chain growth. Process analogous to polymerisation.

3. Termination → alkene, alkane and alcohol products.

How does Fe and Co catalysts control the length of the chain formed.

• Chain growth probability = alpha.

• Typical Fe catalyst, alpha = 0.65-0.70 I.e. making lighter (shorter chain) molecules.

• Typical Co catalyst, alpha = 0.75-0.85, makes longer chains typically.

Why do longer residence times lead to less alkenes formed?

• Surface alkene chain termination can occur via reaction with hydrogen or via beta-hydrogen abstraction.

• Alkene product can easily reabsorb which may reinitiate chain growth or hydrogenate therefore longer residence time often leads to less alkenes (more likely to be hydrogenated to alkane)

What is the role of precious metal promoters and alkali promoters in FT synthesis.

• Precious metal promoter aids hydrogen dissociation/reducibility.

• Alkali promoters increase chain growth probability.

How can WGS sometimes be an advantage to FT synthesis?

Can help to improve amounts of H₂ in H₂ poor feeds. Occurs more in Fe catalysts. Happens because H₂O = product.

Which technique can be used to look at the build up of hydrocarbonaceous surface layer formation in Fe catalysts in FT synthesis?

Use temperature-programmed oxidation - CO₂ evolution as temperature increases → bulk iron carbide peaks at higher T.

What are some poisons to FT synthesis? How are these managed?

E.g. sulfur, nitrogen, oxidation of Co, sintering.

Can be controlled using redox cycles: oxidise to burn off poison, then re-reduce.

Outline the process of heterogenous methanation

CO + 3H₂ → CH₄ + H₂O

Uses a Ni catalyst. May use promoters to influence during catalysis or catalyst prep, e.g. ZrO2 to get finely dispersed Ni catalyst.

Mechanism:

CO + * → CO*

H₂ + 2* → 2H*

CO* + * → C* + O*

C* + H* → CH* + H* → CH₂* + H* → CH₃* + H* → CH₄*

CH₄* → CH₄ + *

Explain why we might use methanation, and why it is not typically used to make methane.

Not typically used since a very exothermic reaction and therefore hard to control. Also methane = lower value chemically than the syngas used to form it.

Used e.g. to purify feedstreams.
