Control Module User Manual

This set of flashcards is designed to help students review key concepts, safety precautions, operating procedures, and maintenance schedules for the Control Module User Manual from National Oilwell Varco.

bolt

operating

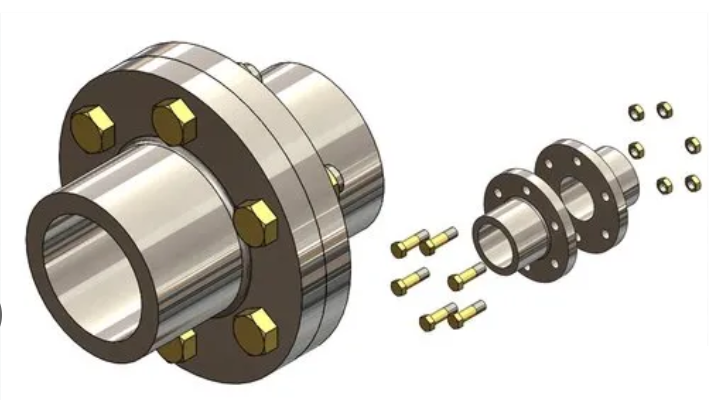

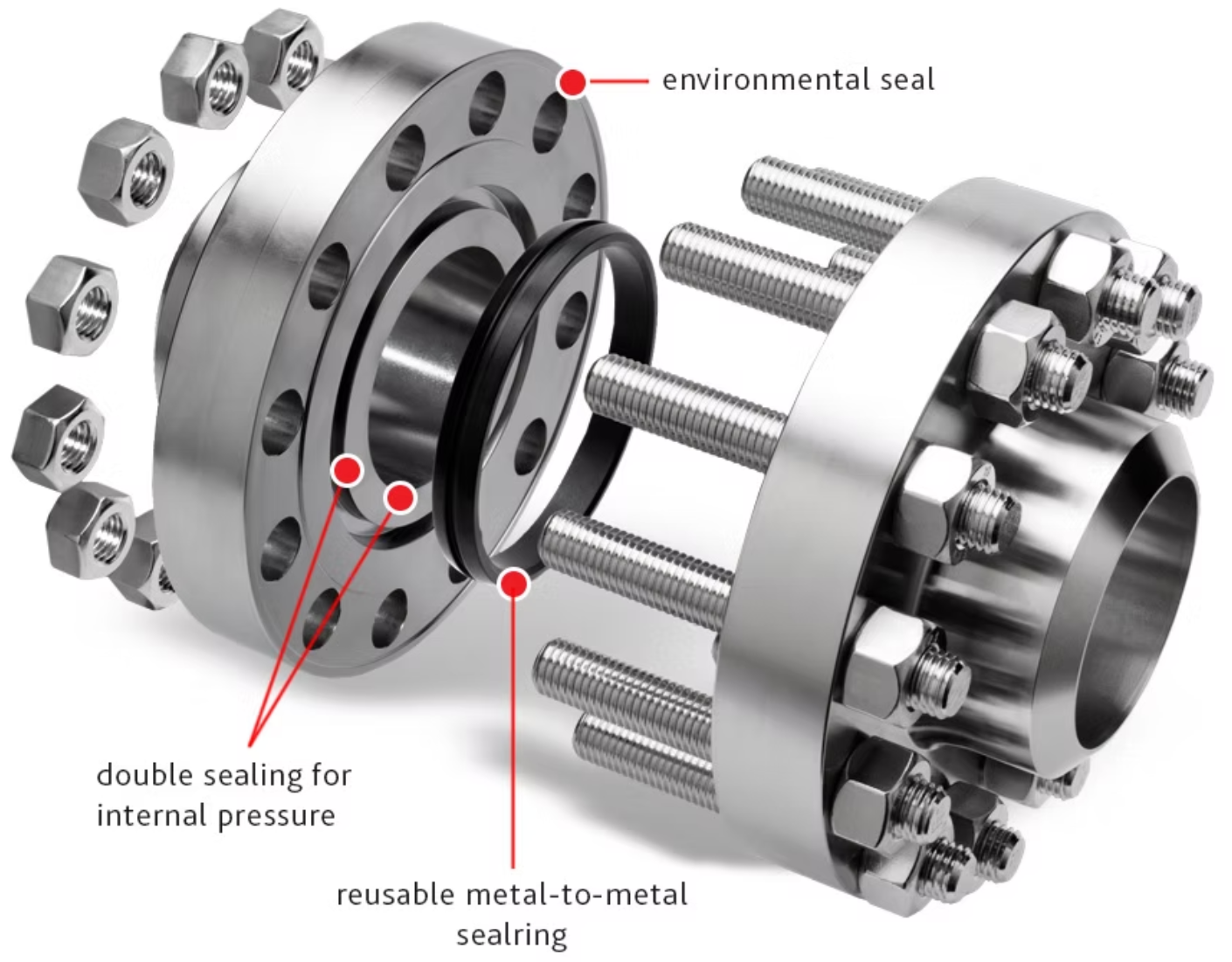

flange assembly

conjunto de brida

flange seal groove

alojamiento de la brida

make up tight

enroscar a tope

nut

tuerca

quicklatch adapter flange assembly

Conjunto de brida adaptadora del Quicklatch

assembly

conjunto o montaje

adapter flange

brida adaptadora

Inverted Quicklatch

sistema de conexión rápida invertido

Only qualified personnel are allowed to __________ this equipment.

operate

A __________ is used to engage and disengage the QuickLatch.

control module

Remove all tools from the work area after __________ tasks are completed.

maintenance

When dealing with hazardous parts of the unit, ensure it is fully __________.

shut down

The QuickLatch control valve must be in the __________ position when not in use.

Neutral

The weekly maintenance is based on __________ hours of running.

running

Equipment handling may involve __________ risks which cannot be reasonably reduced by design alterations.

residual

Hydraulic oils must be selected based on the __________ temperature.

ambient

Record any unit damage in the __________ log.

running-hours

The temperature rating for high temperature applications must be __________ definition.

defined

Caution indicates that ignoring it may result in __________ to equipment.

damage

Hoses must be __________ before disconnecting.

depressurized

Components showing cracks or defects should be __________ immediately.

replaced

Personal protective equipment (PPE) must be worn where __________.

necessary

Equipment operating above its maximum working pressure can result in __________ situations.

dangerous

Do not leave operation-ready equipment __________ for safety.

unattended

Always ensure adequate __________ equipment is available during operations.

safety

Avoid causing hydraulic __________ during operations.

hammering

Every year, the entire unit should undergo a __________ test to ensure functioning.

commissioning

The control module features a __________ hydraulic tank with a 20-liter capacity.

stainless steel

Manual operations for the pre-load/test line can be performed via a __________ handle.

manual

Ensure a 'flag' is attached to any __________ equipment being rigged down.

tied down

For hydraulic connections, always check rating and __________ before pressure testing.

compatibility

Final maintenance tasks require ensuring the unit is in a __________ state.

safe

The weight of payload for this unit is __________ kg.

0

The 7" display system is stored within the __________ pelicase.

transport

It is important to never work __________ when there's a risk of an accident.

alone

The unit’s control panel allows for the operation of all __________ functions.

QuickLatch

Pressure control equipment must be pressure rated to a defined 'Maximum Working __________'.

Pressure

All emergency equipment and __________ should be verified as valid.

procedures

The various fluids used in the original assembly can be found in the unit’s __________ package.

documentation

Do not __________ or loosen connections under pressure.

tighten

Pressure testing is necessary after replacing __________ components.

key

Check connections at the wellhead for leaks before connecting the __________.

hoses

The maximum working pressure for the pre-load/test line is __________ PSI.

12,000

It is vital to read and follow all procedures and __________ in the manual.

precautions

Safety and EHSRs focus mostly on hazards such as __________, thermal, and pressure.

high voltages

Hydraulic pumps should be checked for __________ before and after operations.

corrosion

Ignoring a caution may lead to __________ of equipment.

damage

The QuickLatch unit can deliver hydraulic fluid up to __________ psi.

3,000

Make sure to keep all certifications and drawings readily available at the __________.

worksite

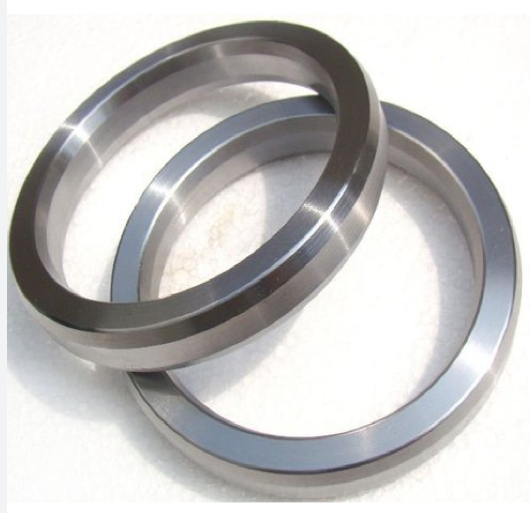

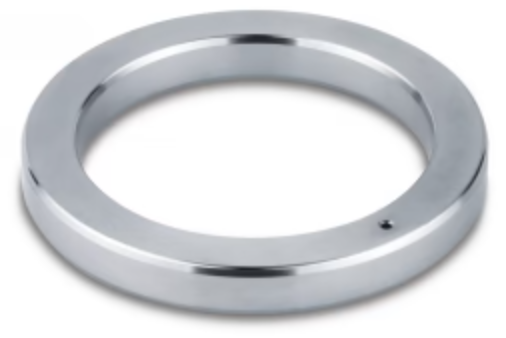

ring gasket

junta metálica tipo anillo
