11 Terms
Domain: 2
Bonding Groups: 2
Lone Pairs: 0
Linear
Bond Angle: 180
Nonpolar
Example CO2

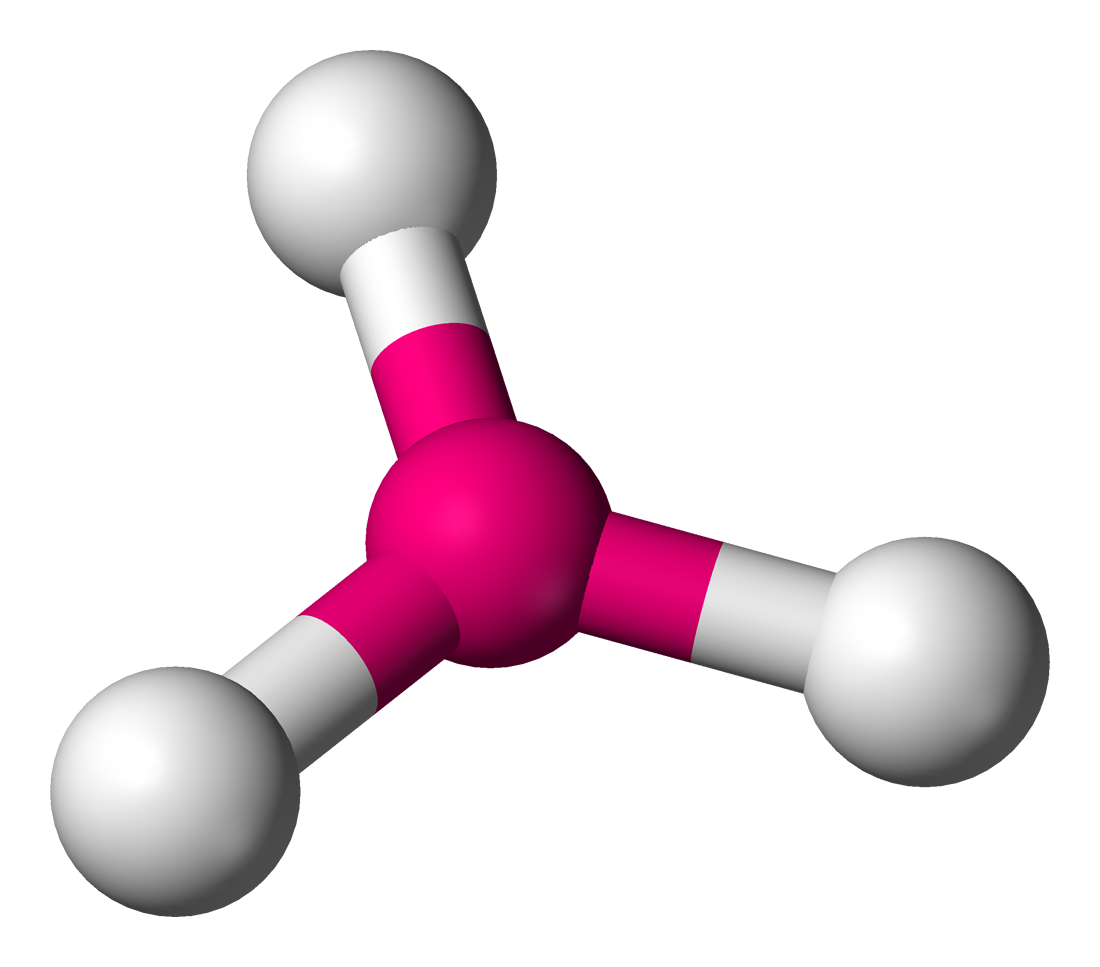

Domain: 3
Bonds: 3
Lone Pairs: 0
Trigonal Planar
Bond Angle: 120
Nonpolar
Example: BF3
Domain:3
Bonds: 2
Lone Pairs: 1
Molecular Geometry: Bent
Bond Angle: <120
Polar
Example SO2

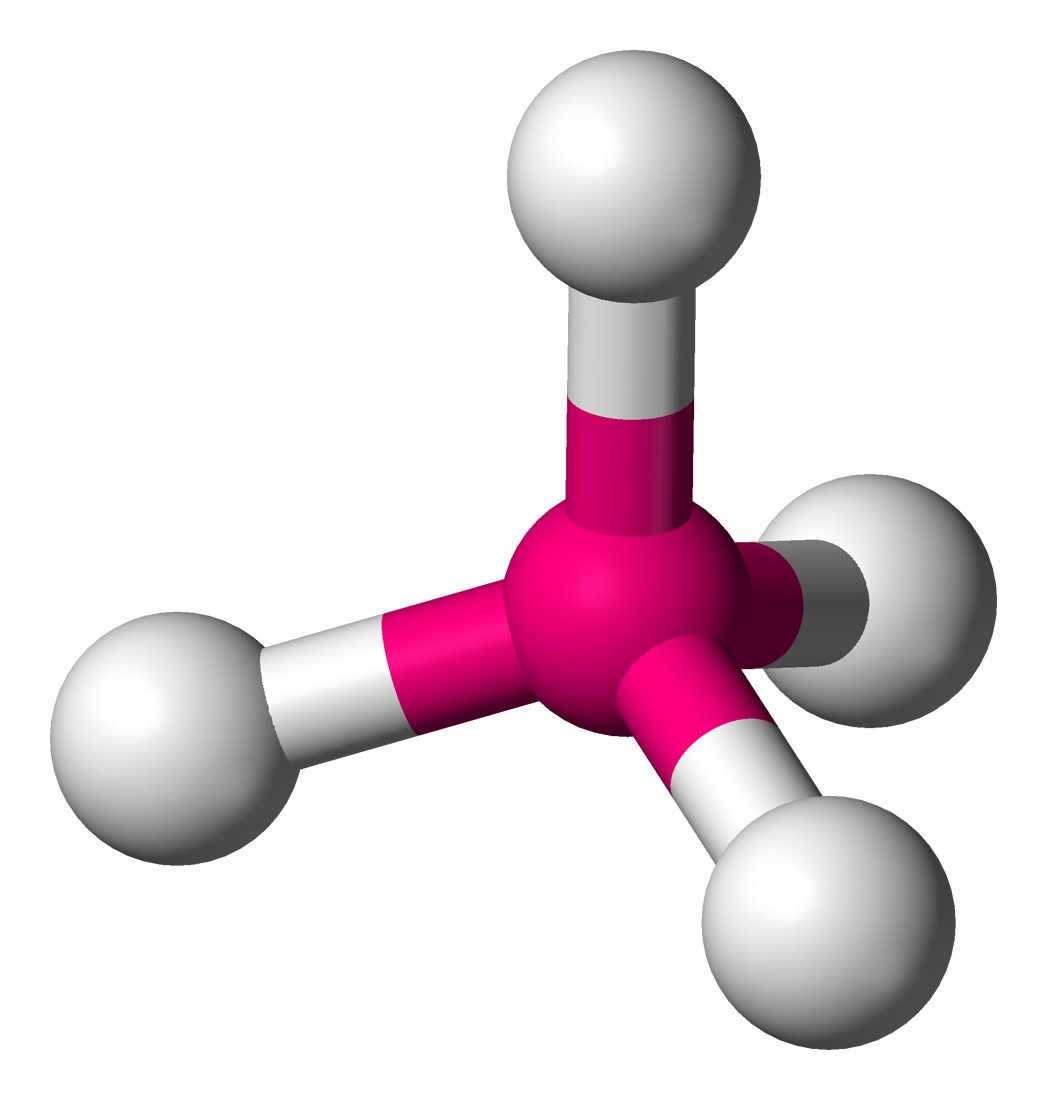

Domain: 4
Bonds: 4
Lone Pairs: 0
Molecular Geometry: Tetrahedral
Bond Angle: 109.5
Nonpolar
Example: CH4
Domain: 4
Bonds: 3
Lone Pairs: 1
Molecular Geometry: Trigonal Pyramidal
Bond Angle: <109.5
Polar
Example: NH3
Domain: 4
Bonds: 2
Lone Pairs: 2
Molecular Geometry: Bent
Bond Angle: <109.5
Polar
Example: H2O
Domain: 5
Bonds: 5
Lone Pairs: 0
Molecular Geometry: Trigonal
Bipyramidal
Bond Angle: Eq: 120 Ax: 90
Non-polar
Example: PCl5
Domain: 5
Bonds: 4
Lone Pairs: 1
Molecular Geometry: Seesaw
Bond Angle: Eq: <120 Ax: <90
Polar
Example: SF4
Domain: 5
Bonds: 3
Lone Pairs: 2
Molecular Geometry: T-shaped
Bond Angle: <90
Polar
Example: BrF3
Domain: 5
Bonds: 2
Lone Pairs: 3
Molecular Geometry: Linear
Bond Angle: 180
Non-polar
Example: XeF2
Domain: 6
Bonds: 6
Lone Pairs: 0
Molecular Geometry: Octahedral
Bond Angle: 90
Non-polar
Example: SF6
