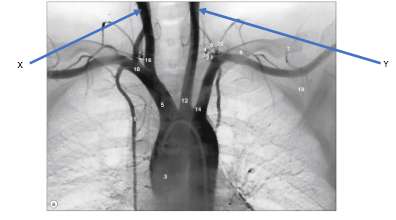

What is X?
Right common carotid
What is Y?
Left common carotid
What is 18?
Left common carotid artery
What is 35?
Right common carotid artery
What is 17?
Left common carotid artery
What is 27?
Right common carotid artery
Where does the common carotid artery bifurcate?
Superior border of the thyroid cartilage
What is 18?
Internal carotid artery
What is 11?
Internal carotid artery
What is 11?
External carotid artery

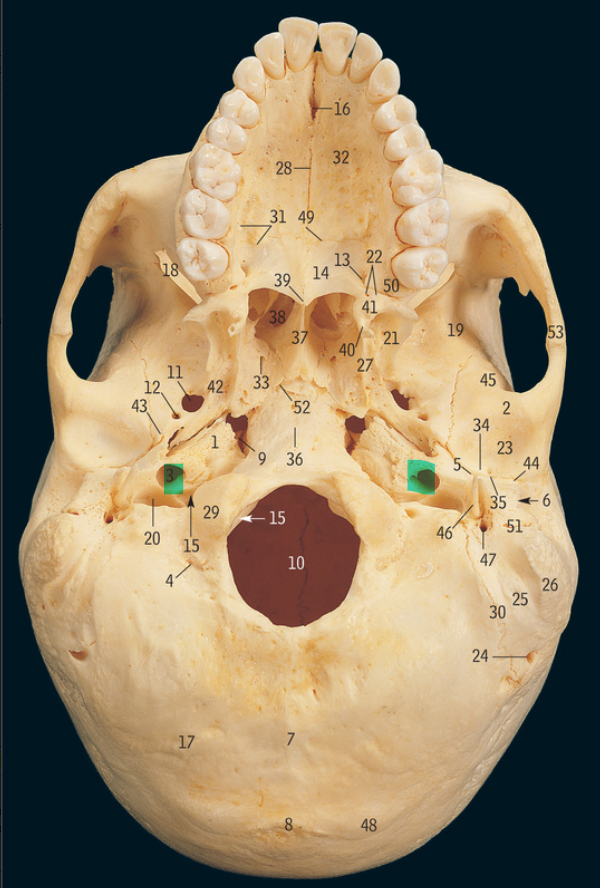

What is 3?
Carotid canal
What does the internal carotid artery supply?
Structures in cranial cavity (including brain)
What is 56?
Vertebral artery
What is the first branch of the subclavian artery?
Vertebral artery
What is 31
Subclavian artery

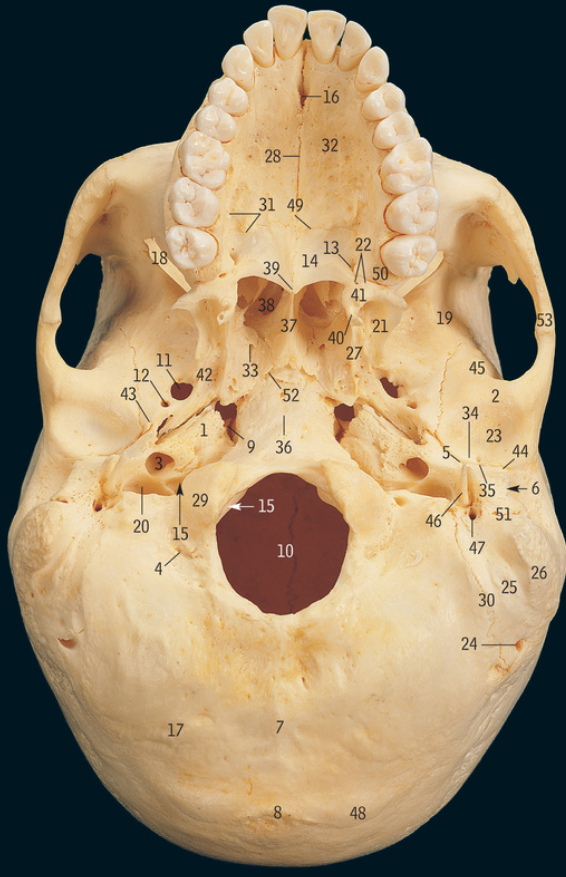

What is 4
Transverse foramen
What is 10
Foramen magnum

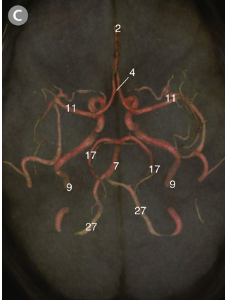

What is this called?
Circle of willis
What is this called
Circle of willis
What is this called
Circle of willis
What do venous sinuses do?
Collect arterial blood from the brain
Where do the venous sinuses drain into?
Internal jugular veins
What do the internal jugular vein and subclavian vein join into?
Brachiocephalic vein
What do the left brachiocephalic and right brachiocephalic vein unite to form?
Superior vena cava
What is 13?
External jugular vein
What is 10?
External jugular vein
What is 13?
Left external jugular vein
What is 28?
Right external jugular vein
What does the external jugular vein drain into
Subclavian vein
What does the external jugular vein drain?
Scalp, deep parts of face
What is 15?
Sternocleidomastoid muscle
What is 24?
Sternocleidomastoid muscle
Where is the femoral artery palpated?
Halfway between pubic tubercle/pubic symphysis and ASIS
Where is the popliteal artery palpated?
Left and right thumb on tibial tuberosity, fingertips in lower part of popliteal fossa, press poplitea artery against head of tibia
Where is the posterior tibial artery palpated?
Between medial malleolus and attachment of calcaneal tendon to calcaneus
Where is the dorsalis pedis artery palpated
Dorsum of the foot, lateral to the tendon of long extensor of big toe
Where is the common carotid artery palpated?
Between trachea and sternocleidomastoid muscle
What is highlighted in red
Thyroid cartilage
What is 22
Trachea
Where is the brachial artery palpated
Anterior aspect of cubital fossa, medial to tendon of bicheps brachii muscle
Where is the radial artery palpated?
Distal end of the radius

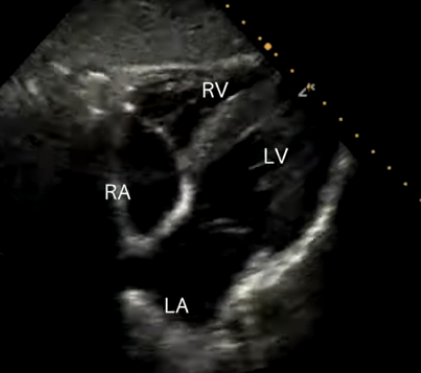

What view is this
Apical 4 chamber

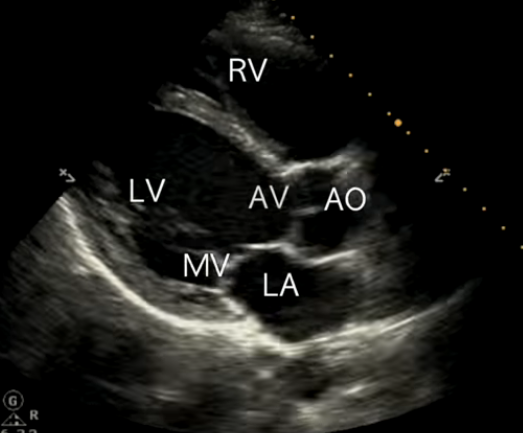

What view is this
Parasternal long axis

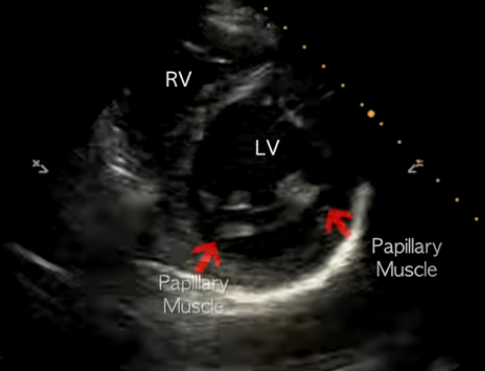

What view is this
Parasternal short axis
What view is this
Subcostal view

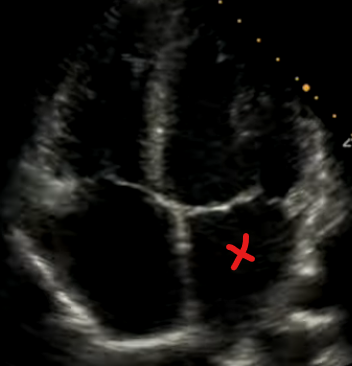

What is X
Left ventricle
What is X
Left atrium
What is X
Right ventricle
What is X
Right atrium
What valve is circled
Mitral valve
What valve is circled
Tricuspid valve

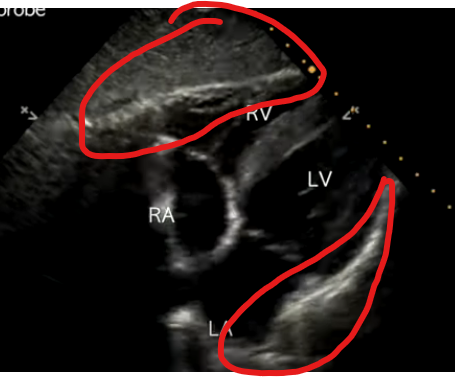

What is circled
Pericardium
What does a dilated IVC mean?
High right atrial pressure
What does a small IVC mean
Low blood volume

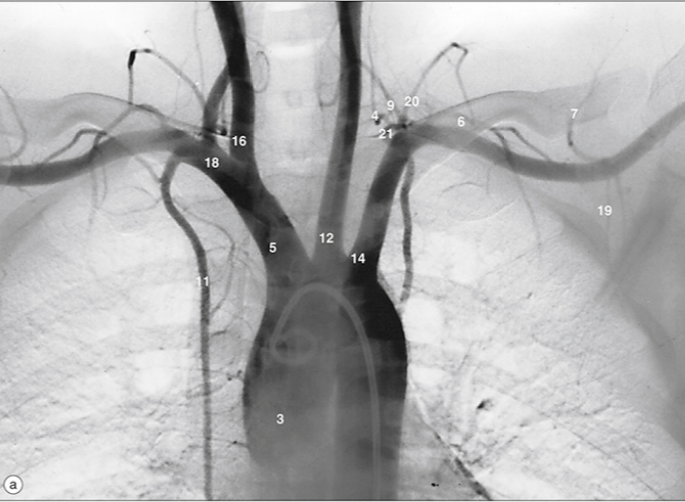

What is 18
Internal thoracic artery
What vessels branch off from the internal thoracic artery?
Anterior intercostal arteries and pericardiophrenic artery
What is 11
Internal thoracic artery
What is 19
Internal thoracic vein
What does the internal thoracic vein drain?
Anterior thoracic wall and anterior intercostal veins
What is 1
Azygos vein
What vein does the arch of the azygos vein terminate
Superior vena cava
What is 8
Hemi-azygos vein
What is 1
Accessory hemi azygos vein
Wnat is 4
Azygos vein
What is 9
Hemi azygos vein
What is 5
Brachioephalic trunk
What is 13
Left subclavian artery
What is 21
Superior vena cava
What is the role of the azygos venous system
drain deoxygenated blood into superior vena cava
What is the role of the azygos vein
Pathway for deoxygenated blood from posterior walls of chest and abdomen
What does the hemi azygos vein drain
Inferior Left hemithorax
What does the accessory hemiazygos vein drain
Superior left hemithorax
What is 1
Aortic arch
What is 5
Brachiocephalic trunk
What is 12
Left common carotid artery
What is 14
Left subclavian artery
What is 13
Inferior vena cava
What is 37
Superior vena cava
What is 24
Pulmonary vein
What is 23
Right pulmonary artery
What is 4
Azygos vein
What is 1
Abdominal aorta
At what vertebral level is the aortic hiatus
T12
What is 9
Right renal artery
What is 6
Right renal artery
What is 11
Left renal artery
What is the IVC formed by
Left and right common iliac veins
What is 7
Left common iliac vein
What is 31
Right common iliac vein
What is 5
Inferior vena cava
What is 8
Left external iliac artery
What is 17
Left internal iliac artery
What is 21
Left renal vein
What is 45
Right renal vein
What is 3
Common iliac artery
What is 4
Common iliac vein
What is 7
External iliac artery
What is 8
External iliac vein
What is 23
Inferior vena cava
