7 Terms

1
New cards
<p>Inverting OpAmp</p>

Inverting OpAmp

Gain: A = - Rf / Rin

Vout: A * Vin

2
New cards

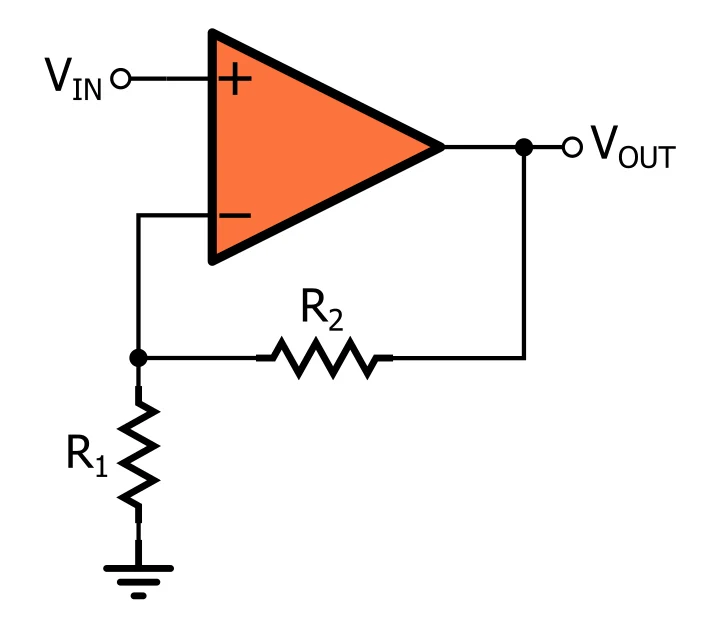

<p>Non-Inverting OpAmp</p>

Non-Inverting OpAmp

Gain: A = 1 + ( Rf / Rin )

Vout: A * Vin

3
New cards

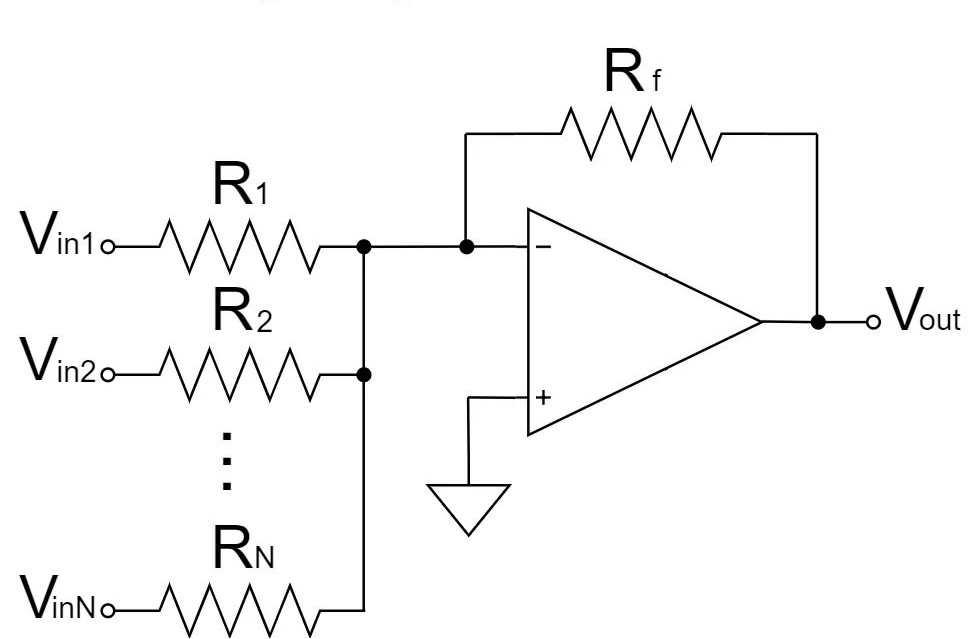

<p>Inverting Sum OpAmp</p>

Inverting Sum OpAmp

Gain:

A1 = - ( Rf / R1 )

A2 = - ( Rf / R2 )

An = - ( Rf / Rn )

Vout: (A1 * V1) + (A2 * V2) + (An * Vn)

4
New cards

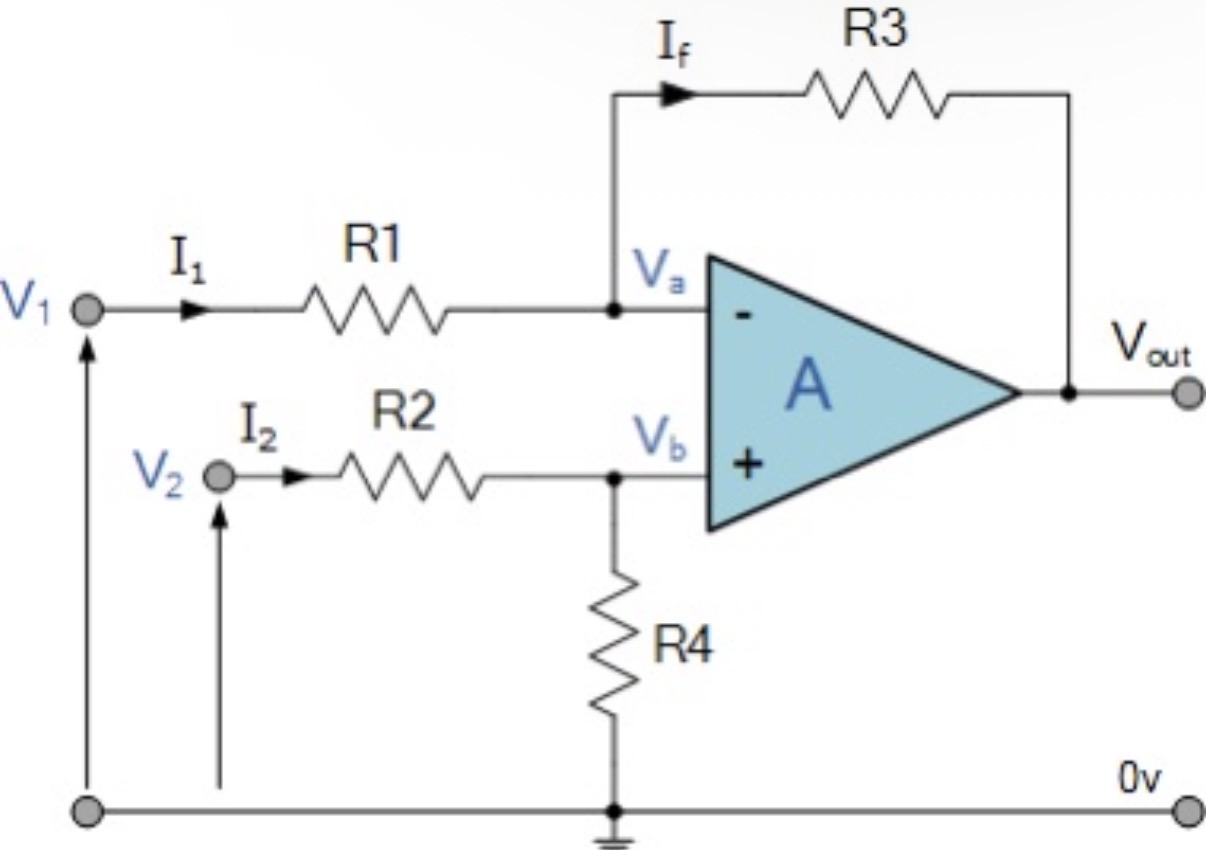

<p>Subtractor OpAmp</p>

Subtractor OpAmp

Gain: A = ( R2 / R1 )

Vout: A * (V2 - V1)

5
New cards

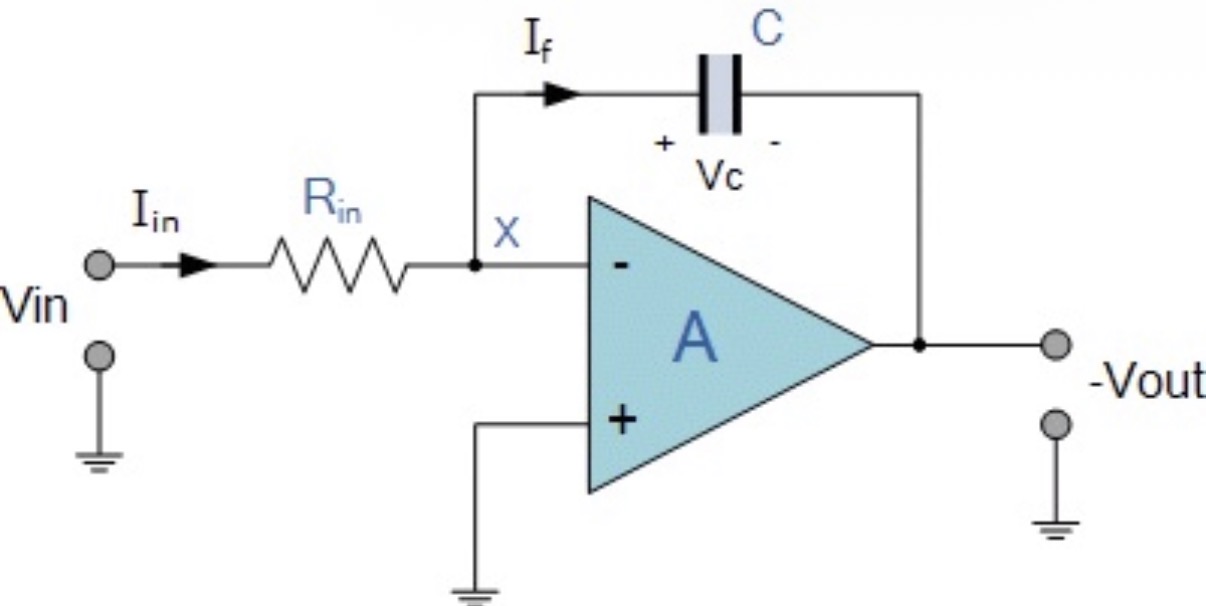

<p>Integrator OpAmp</p>

Integrator OpAmp

Gain: A = - ( 1 / Rin CF )

Vout: A∫VindtA\int Vin dt

6
New cards

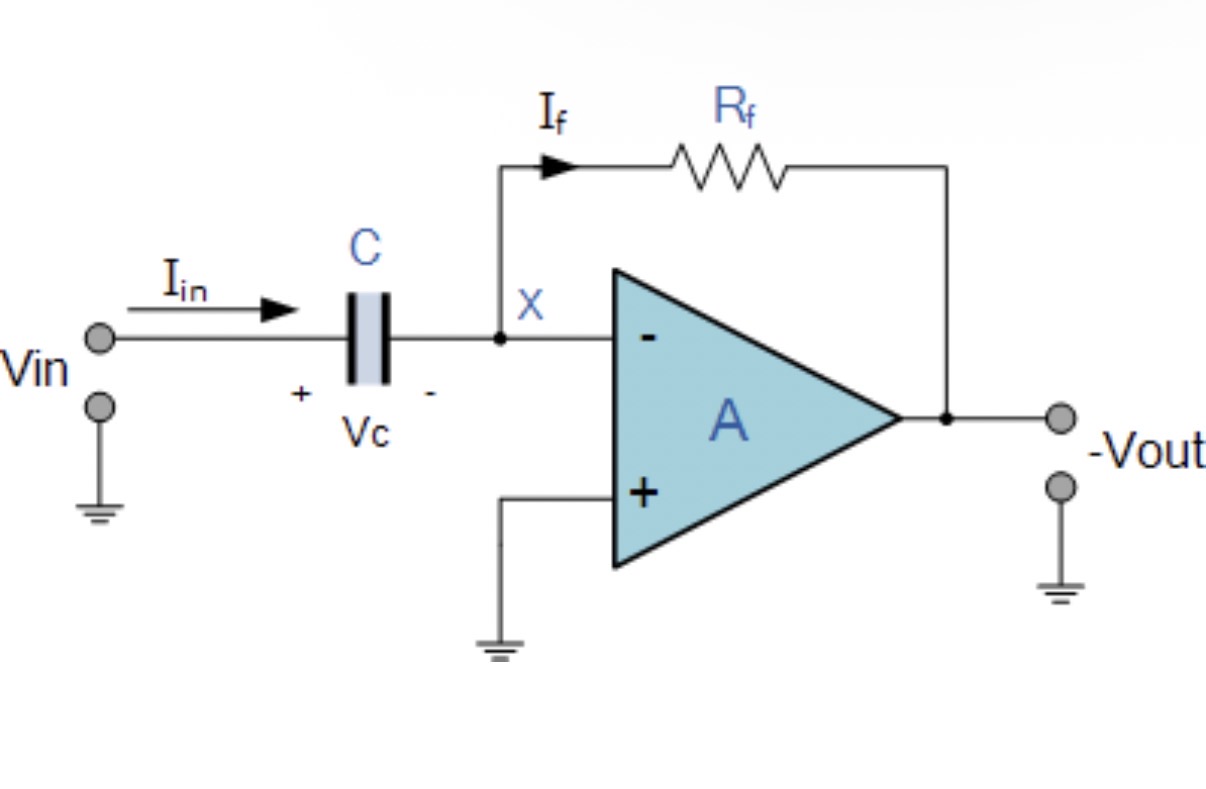

<p>Differentiator OpAmp</p>

Differentiator OpAmp

Gain: A = - ( Rf * Cin )

Vout: A (dVin / dt)

7
New cards

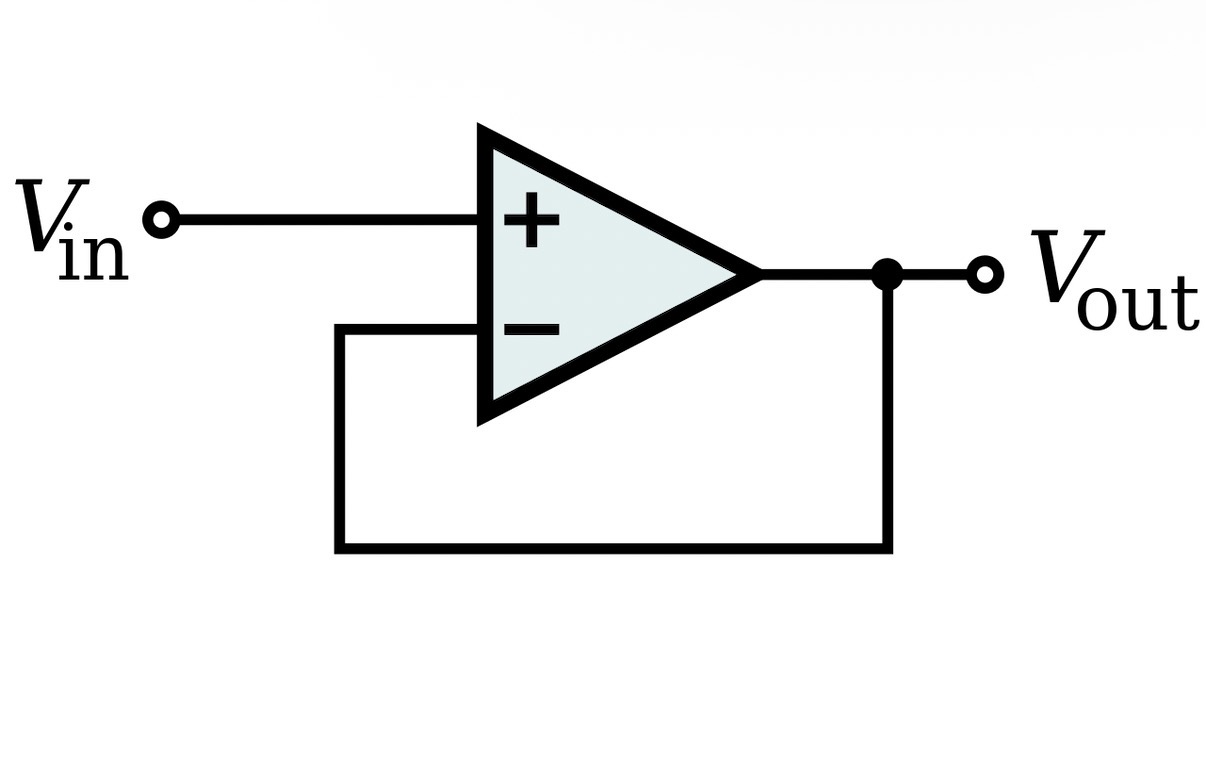

<p>Buffer OpAmp</p>

Buffer OpAmp

Gain: No Gain

Vout: Vin
