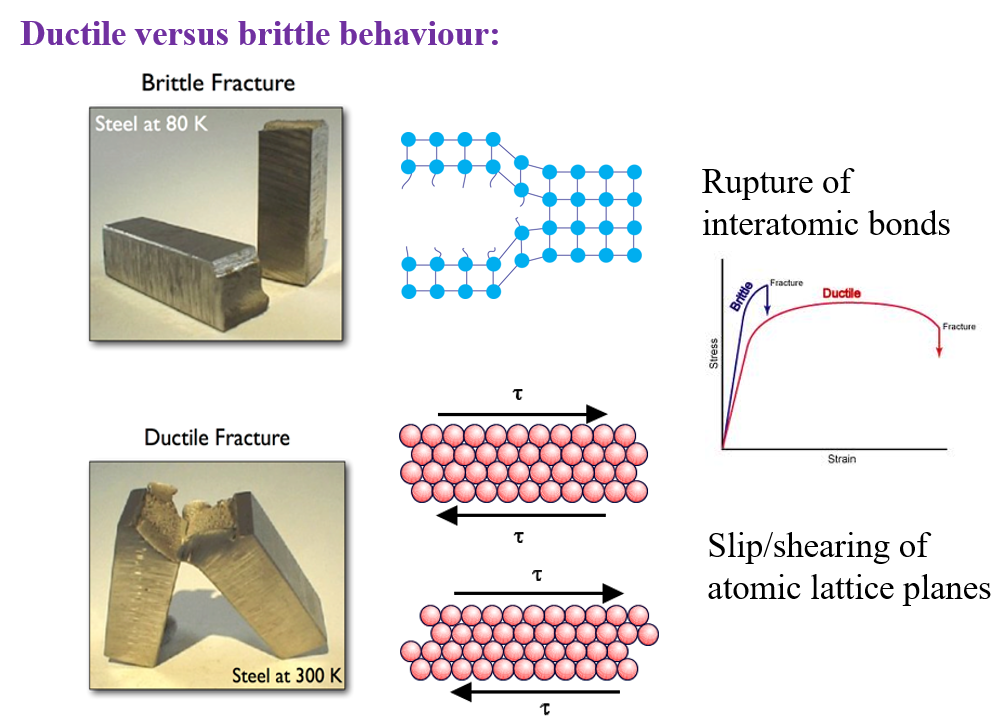

Define 2 forms of material failure

  • Brittle fracture - little plastic deformation (ceramics, high strength metals)

  • Ductile fracture - extensive plastic defromation prior to fracture (most of metals and polymers)

<ul><li><p><strong>Brittle fracture</strong> - little plastic deformation (ceramics, high strength metals)</p></li><li><p><strong>Ductile fracture</strong> - extensive plastic defromation prior to fracture (most of metals and polymers) </p></li></ul><p></p>
2
New cards

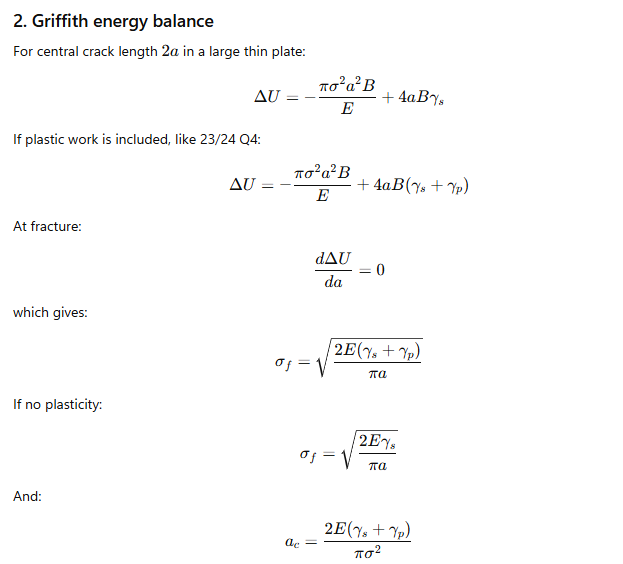

Griffith energy balance equation

knowt flashcard image
3
New cards

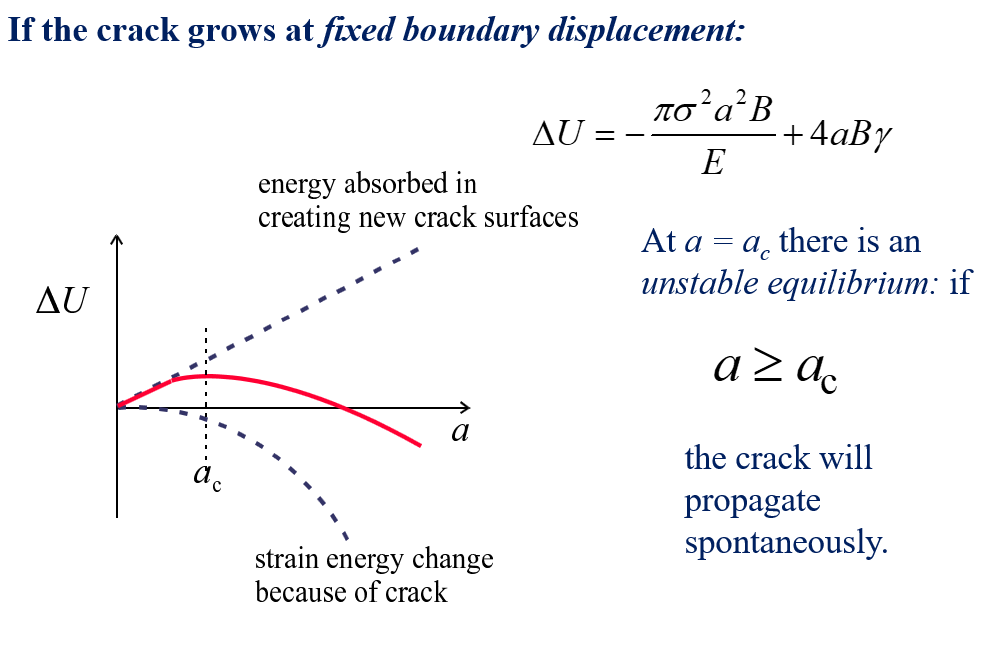

Sketch the change of the potential energy terms with respect to the crack length.Identify the point of unstable equilibrium and state the condition for a spontaneouspropagation of the crack.

knowt flashcard image
4
New cards

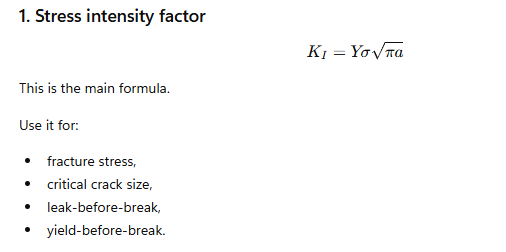

Stress intensity factor formula

knowt flashcard image
5
New cards

Fracture condition for K

knowt flashcard image
6
New cards

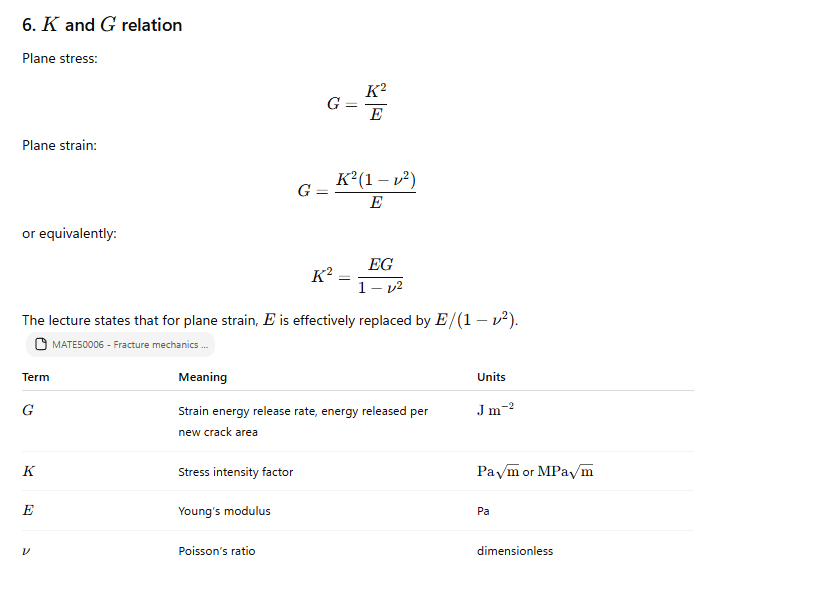

What is the relationship between K and G

knowt flashcard image
7
New cards

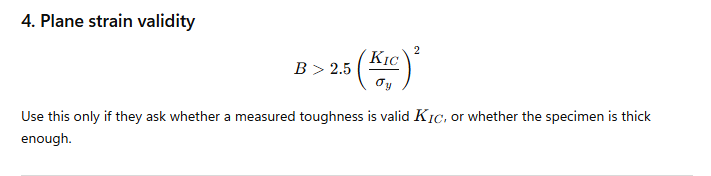

How to check if the specimen is thick enough

knowt flashcard image
8
New cards

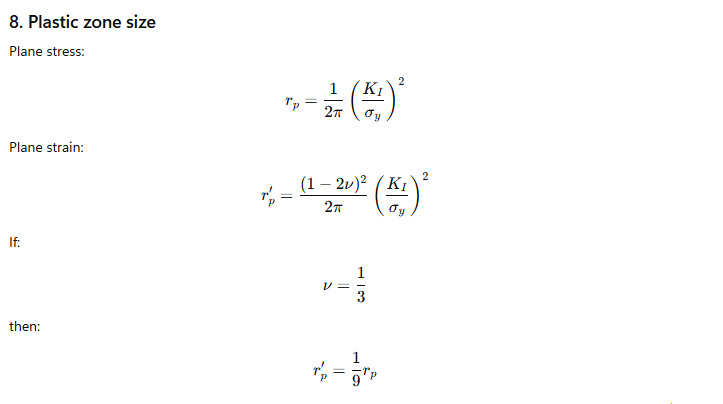

How to find plastic zone size

knowt flashcard image
9
New cards

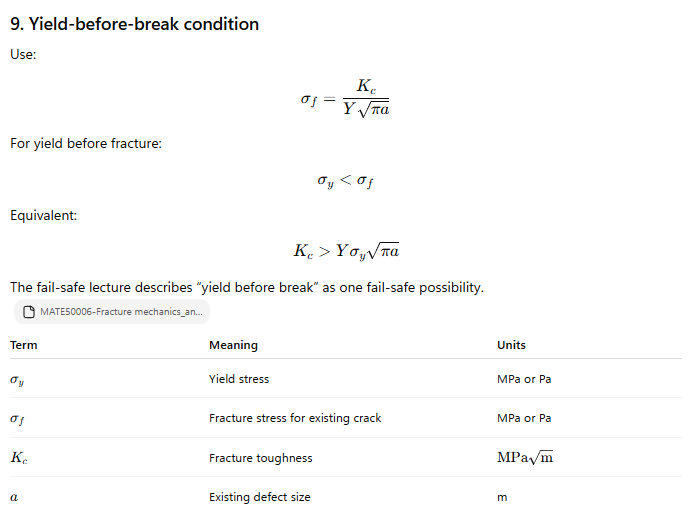

Yield-before-break condition

knowt flashcard image
10
New cards

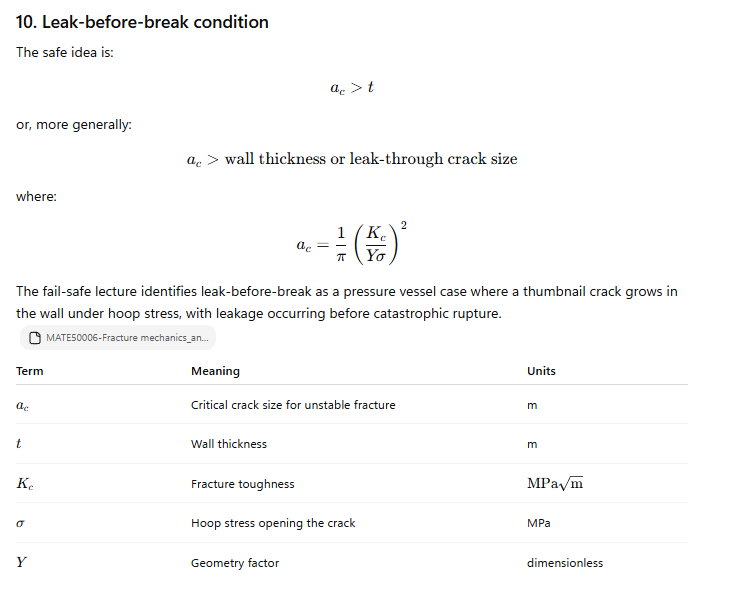

Leak-before-break condition

knowt flashcard image
