AQA Geography Paper 3 real one

Water supply

The total amount of water available from rainfall, rivers, reservoirs and groundwater.

Water demand

The total amount of water people, businesses and industries need.

Effective rainfall

Rainfall that is left after evaporation and plant use — the water available for supply.

Groundwater

Water stored underground in rocks and soil.

Groundwater recharge

The process where rainfall soaks into the ground and refills underground water stores.

Groundwater deficit

When evaporation and water use are greater than recharge, reducing groundwater levels.

Groundwater surplus

When recharge exceeds use, increasing groundwater levels.

Surface water

Water stored in lakes, rivers and reservoirs.

Water balance

The relationship between rainfall, evaporation and water stored in the ground.

Water stress

When a region does not have enough water to meet demand.

Drought

A long period of unusually low rainfall leading to water shortages.

Climate change

Long-term changes in temperature and rainfall patterns affecting water supply.

Leakage

Water lost from pipes before it reaches homes or businesses.

Greywater

Wastewater from showers, baths and washing machines that can be reused.

Water recycling

Treating wastewater so it can safely be used again.

Desalination

Removing salt from seawater to make it drinkable.

Water-efficient appliances

Equipment (showers, toilets, washing machines) that use less water.

Rainwater harvesting

Collecting and storing rainwater for garden use or flushing toilets.

Reservoir

A large artificial lake used to store water for supply.

Embankment

A raised wall around a reservoir to hold water in place.

Water transfer

Moving water from a wetter region to a drier region.

Seasonal demand

Changes in water use at different times of the year (e.g. high in summer).

Stakeholder

A person or group with an interest in a project (e.g. residents, farmers).

Investment

Money spent to improve services or infrastructure (e.g. £2.6bn for the reservoir).

Groundwater utilisation

How much of the available groundwater is used by people for things like drinking, farming and industry

Social advantages of the reservoir

Provides water for 500,000 homes; improves water security; reduces summer shortages; creates recreational opportunities such as sailing, walking and cycling; may improve quality of life.

Economic advantages of the reservoir

Could create jobs; bring £2.6 billion of direct and indirect investment; support local business growth; attract visitors; encourage regional development and support new housing.

Environmental advantages of the reservoir

New wetland habitats; increased biodiversity; restored local habitats; overflow drain may reduce flood risk; gently sloping embankments designed to fit into the landscape.

Social disadvantages of the reservoir

Over 50 families may lose homes; construction will cause disruption, congestion and stress; some people fear increased accident risk and uncertainty.

Economic disadvantages of the reservoir

Flooding farmland could damage farm businesses; some local businesses and leisure businesses may close; livelihoods may be lost.

Environmental disadvantages of the reservoir

Existing habitats may be lost during development; wildlife could be disturbed; farmland and landscape will be changed; construction may create environmental damage.

PHYSICAL FIELDWORK - aim (what did we do + why was it appropriate)

To investigate how sediment characteristics vary on North Shore pebble beach, Llandudno.

• beaches have a clear link to the spec

• the size of the are is clearly defined and realistic and not too large

• the aim is broad enough to allow for investigation but not so broad that it would be impossible to accomplish

• sediment characteristics are safe to study

key theory

Pebbles closest to the shore are regularly exposed to the sea. Attrition causes them to become small and rounded.

Largest pebbles are thrown to the back of the beach during storm vents. The sea only reaches these pebbles during the highest tides twice a month and so they are less likely to experience attrition and thus more likely to be large and angular

Location + why it’s appropriate

North Shore pebble beach, Llandudno

• Appropriate to the aims - there is a pebble beach,

• Easy to access - A55 road and promenade leading to beach, Can get there and back in a day - 1 hr drive,

• Large open spaces can accommodate a large group - 65 students in group

• Appropriate facilities nearby - toilets at both ends of promenade

• Safe - tide extends 200m from shore and tide times can be accessed.

Risk assessment

Danger from the sea – Tidal range is 8m - Visiting during low tide. Always remain 10m from sea

Exposure to cold weather – March weather can be unpredictable - Waterproofs and layers are required in anticipation of bad weather

Slips, trips and falls – pebbles can give wave underfoot - Appropriate sturdy footwear worn

Methodology - Primary Data - What did we do?

Measuring Pebble Size - measure the length of the A axis(longest) of each piece of sediment using a ruler. We will measure to the closest millimetre.

Measuring Pebble Roundness - give each piece of sediment a roundness score using Powers’ roundness index (a score of 1-6). We will compare the sediment directly against the chart and make a judgement in pairs.

Sample - complete 4 transects from shore to high tide mark. Transects are 20m. Take 3 random sediment samples at 10 sites using a systematic sample every 2 metres.

Methodology - Primary Data - Why was this appropriate?

A axis is measurable. It's easy to identify because it's the longest axis. Measuring in mm provides good accuracy which is important as changes from pebble to pebble might only be small. Using a chart for roundness makes subjective judgment more consistent. Systematic sample allows judgment of change over distance. Four transects reduces affect of anomalies. 3 pebbles at each site allows for means to reduce inaccuracies. Total of 120 pebbles is large data set which reduces affect of anomalies.

Methodology - Primary Data - How could it have been improved?

A axis is longest, making sediment seem larger than it really is - measure b and c axis in addition to a axis.

Sediment roundness judgement is subjective and there will be subconscious investigator bias - take photos of sediment and get a second opinion on roundness. Take longer to make decision on roundness.

Issues- unlikely to pick up large boulders

could miss important sections of the beach by using 4 transects,

smallest sediment (sand) may be lost between pebbles and missed

can indicate change in sediment characteristics but cannot explain why

Methodology - Secondary Data - What did we do?

Tide data - used to determine the timing of our visit and ensure the beach is accessible.

OS Map - used to see where the high and low tide marks were in order to ensure the beach was accessible and to locate key facilities and transport routes.

Weather data - used to ensure the location was safe on the day of our study

Methodology - Secondary Data - Why was this appropriate?

Accurate and reliable sources which can be trusted.

Provided information directly specific to our needs

Methodology - Secondary Data - How could this be improved?

The OS map only gave a rough idea of where the mean high and low water marks were and more accurate data would have been useful for planning our transects.

The weather data also gave us an idea of what the weather might be like though this turned out to be quite accurate. In both cases, there was no more reliable source available to provide an improvement

Data Presentation - what did we do?

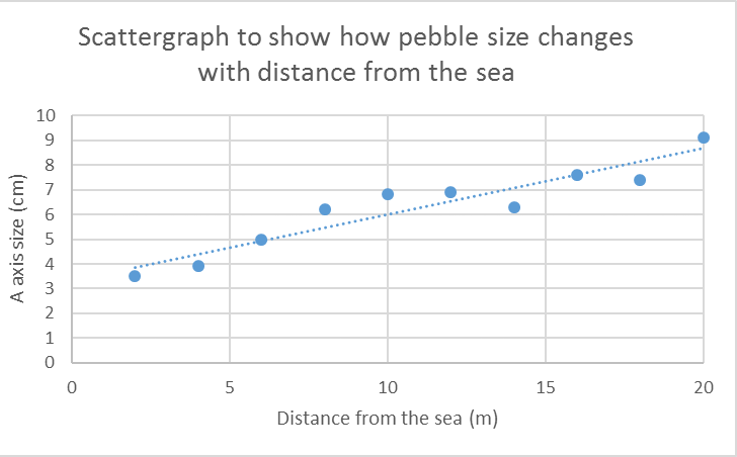

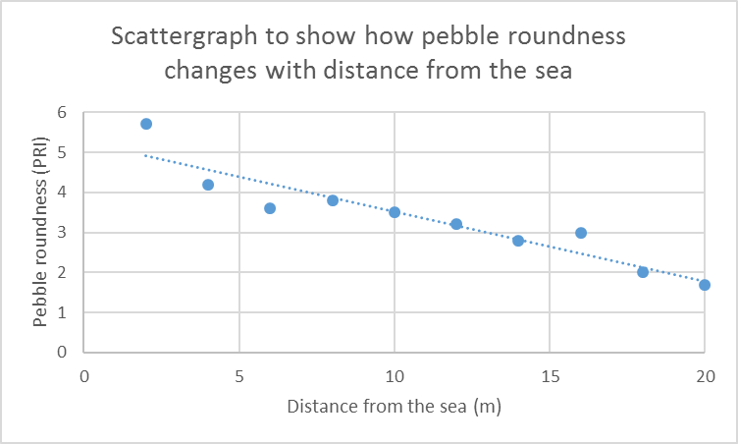

Two scatter graphs to show how mean pebble size and roundness varied. 10 points plotted. Line of best fit drawn. X-axis; distance from the beach (m), Y-axis; pebble size/roundness (cm/Powers Roundness Index)

Data Presentation - why was this appropriate?

Two sets of continuous data

Line of best fit allows us to instantly detect a trend and identify any anomalies that are far from the line

Proximity of points to LOBF helps us identify strength of trends

Allows large volumes of data to be presented neatly

Labelled axis allow us to find the exact values of each point

Data Presentation - how could it have been improved?

Only mean values were displayed. Adding all values would have improved accuracy but would have made the graph more difficult to read

Could have used colours to plot the values for the different transects separately. This would allow us to see if the trend varied from transect to transect

Data Analysis - what did we do?

Mean sediment size approximately trebles from 3cm to 9cm. Mean sediment roundness decreases from 5 (rounded) to 2 (angular)

Data Analysis - why was this appropriate?

Calculating mean reduces impact of anomalies

Line of best fit counts as analysis; see above

Use of quantitative data numerically measures extent of change

Data Analysis - how could this have been improved?

Could use a statistical test such as Spearman’s Rank which would statistically measure and validate the strength of the trend

Conclusion - what did we do?

Sediment characteristics vary with distance from the sea on the pebble beach at North Shore, Llandudno. Sediment size increases with distance from the sea. It approximately trebles in size from approximately 3cm to 9cm. The increase seems to be gradual. Pebble roundness decreases with distance from the sea. It changes from ‘rounded’ to ‘angular’. The change appears to be gradual.

Conclusion - why was this appropriate?

Based on a large sample of data

Based on methods which were well thought-out and generally accurate

Based on mean values which reduced the influence of anomalies

Supported by key theory

Conclusion - how could this be improved?

Measurement of sediment size was based on a axis which is the largest. An improvement in the method would likely lead to smaller values of sediment size and therefore slightly alter the conclusions

Bias in sediment roundness judgment may have led to exaggeration of change. Improvement in method could lead to conclusions which show a less extreme change in sediment size

Evaluation - what did we do?

Overall, study was successful. Improvements in methods could lead to improved accuracy of results and therefore conclusions, but these improvements would only cause small changes.

Evaluation - why was this appropriate?

Clear consideration was given to all parts of the study. A logical sequence of investigation was followed with possible issues highlighted an addressed before implementation

Evaluation - how could this be improved?

Study examines sediment size and shape. Other characteristics could be studied such as geology and orientation of sediment.

Study focuses on only one pebble beach. Further study could examine other beaches

HUMAN/ENVIRONMENTAL - Aim + why it was appropriate

To investigate the impact of tourism on environmental quality in Llandudno

→ Tourism has a clear link to the economic challenges specification. The size of the study area is realistic as Llandudno is a small town and not too large to study in one day. The aim is broad enough to allow for investigation (can look at aspects of environment and regions of the town) but not so broad that it would be impossible to accomplish. Environmental quality is safe to study

Key Theory

Environmental quality includes components such as noise, visual pollution, litter and presence of nature. Tourism can lead to higher levels of pollution and disorder but can also lead to greater investment in the cleanliness of key locations. Areas that have received investment for tourism will have positive environmental quality because money has been invested in making them attractive places to visit. However, the busiest areas might also negative environmental quality at peak times due to litter and traffic.

Location + why is it appropriate?

Llandudno

Appropriate to the aims – there is a range of accessible tourist areas

Easy to access – Good pedestrian access. Within 40 minute drive of the school.

Appropriate facilities nearby – public toilets available within the town and large open spaces for a big group

Safe – appropriate traffic control and good communication facilities

Risk Assessment

Getting lost – study sites were chosen and memorised before the trip. A booklet containing a map and access routes was provided

Conflict with locals – methods were none intrusive and extra care was taken to reduce conflict eg avoid congregating in busy locations

Separation from group – an emergency contact number was provided for anyone who was separated. Regular head-counts were conducted

Methodology - Primary Data - What did we do?

Measuring Environmental Quality – Environmental Quality Survey with Bi-polar scale. At each site a score from -2 to 2 is given to five different aspects of environmental quality; noise, nature, pollution, safety, business. Judgements are made in situ by the investigator.

Questionnaires–  questions are asked in order to verify EQS eg directly asking in what ways people have seen tourists impact the environment

Sample – seven sites have been selected using a stratified sample which targets a mixture of tourist and non-tourist areas for comparison

Methodology - Primary Data - Why was this appropriate?

Environmental quality is difficult to measure and is subjective so using a bi-polar scale allows for numerical values to be attached. These are more easy to analyse than words

Scale of +2 to -2 immediately shows whether overall opinion is positive or negative.

Adjectives associated with cores (eg noisy) helped reduce subjectivity by providing a guideline

Making subjective judgement on EQ is quick and easy allowing for large data sets to be collected.

Questionnaire was short and easy to understand

Tick boxes were provided to make qualitative answers more quantifiable and to provide

40 people were given questionnaires in order to provide a range of opinions and reduce impact of anomalies

Stratified sample guaranteed representation

Methodology - Primary Data - How could it have been improved?

Judgement is subjective and possible bias from investigator – could reach judgements as a group of three

Difficult to make comparisons between sites – try to make measurements as objective as possible eg noise could be objectively measured using a digital sound level meter

People don’t always tell the truth on questionnaires – collect more data in order to reduce the impact of these results

People may not be able to recall an accurate answer on the spot for the questionnaire. Give more time to complete the questionnaires and explain and key terms

Sample size (7 sites, 3 tourist locations, 3 residential) is small – use a team of people to ensure more sites can be visited

Lack of tourists on day of study would impact results

Methodology - Secondary Data - What did we do?

OS maps – used to identify different urban environments eg industrial area. Also used to determine accessibility of sites

Google Street View – cross-referenced with maps and used to pilot the sites to test their suitability to the aim

Methodology - Secondary Data - Why was this appropriate?

Accurate and reliable sources which can be trusted.

Provided information directly specific to our needs

Methodology - Secondary Data - How could this have been improved?

The OS map only gave an indication as to the land use of an area eg which areas are popular with tourists and which are residential

The photos provided by Google Street View were not up-to-date and could be misleading.

Data Presentation - What did we do?

A dispersion diagram displaying the total EQS score from a maximum of +10 to minimum of -10 for the 7 sample sites.

Bar chart to show frequency of responses to questionnaire

Data Presentation - Why was this appropriate?

Dispersion diagram allows us to quantify extent of variance of environmental quality. Labelling the points on the diagram means different urban environments can be located.

Bar chart allows comparison between different aspects of tourist impact on the environment.

Exact frequencies can be read and analysed

Data Presentation - How could this have been improved?

Hard to immediately work out which site is which on the dispersion diagram

Some points are clustered close together which make them hard to read

By only showing the total EQS score, the data does not show variance across different types of environmental quality eg noise v pollution

Doesn’t show proportions – could be converted to show percentage of respondents who had witnessed each behaviour

Data Analysis - What did we do?

The overall spread is significant. Scores range from +10 (highest possible positive score) to -7. This gives an overall range of 17 (maximum value is 20)

The mean score for environmental quality is a low positive score of 1 but there is a large spread from this mean.

Littering is the most frequent impact, 3.5x that of waste

Data Analysis - Why was this appropriate?

Calculating range shows how data varies which is directly relevant to the aim; to investigate how environmental quality varies

Analysing total EQS score gives a broad picture of the overall environmental quality

Having exact frequencies allows direct comparison of impacts so we can quantify how much more frequent on is than others

Data Analysis - How could this have been improved?

Could have analysed individual aspects of the environment eg an area  might have a neutral EQS score but have a very low score in one aspect of quality and a very high score in another

Could of used Interquartile range or median score to reduce the impact of anomalies

Could have calculated the proportion of respondents that have witnessed each behaviour

Conclusion - What did we do?

Overall, the environmental quality of Llandudno is positive and there is no direct correlation between EQS and tourism. However, questionnaire suggests many tourist behaviours do have a negative impact on environmental quality

Conclusion - Why was this appropriate?

Based on a representative sample of data

Based on methods which were well thought-out and generally accurate

Based on mean values which reduced the influence of anomalies

Supported by key theory

Conclusion - How could this have been improved?

Comparing scores with others and visiting sites at the same time would have reduced bias and probably provided different scores leading to different conclusions

Visiting on a busier day where tourists presence was felt might give a more accurate reflection of their impact

Evaluation - What did we do?

Overall, study was successful. Improvements in methods could lead to improved accuracy of results and therefore conclusions, but these improvements would only cause small changes.

Evaluation - Why was this appropriate?

Clear consideration was given to all parts of the study. A logical sequence of investigation was followed with possible issues highlighted an addressed before implementation

Evaluation - How could this have been improved?

Study looks at overall environmental quality but could look for further differences between different aspects of the environment eg noise/litter

More could be done to explain the findings such as by using questionnaires

Accuracy

How close a measurement or observation is to the true value.
In fieldwork this relates to using precise equipment and careful methods to reduce errors.

Reliability

The consistency of results when a method is repeated.
If repeating the same measurement under the same conditions gives similar results, the data is reliable.

Representativeness

•How well the data collected reflects the wider area, population, or phenomenon being studied.
Representative data avoids bias — for example, by using an appropriate sample size or sampling method.

Validity

How well the data and methods actually measure what they are intended to measure.
Data is valid if the method is appropriate for the research question and the conclusions logically follow from the evidence collected.

Stratified Sampling

• Dividing the study area or population into distinct groups (strata), then taking a proportional sample from each group.

• Ensures all important sub-groups are represented.

• Example: When surveying land use in a town, divide the town into residential, commercial, and industrial areas, then sample proportionally from each.

Random Sampling

• Selecting sample sites or people completely by chance, giving every individual an equal probability of being chosen.

• Reduces bias.

• Example: Using a random number generator to pick houses to survey in a village.

Systematic Sampling

• Choosing sample points at regular intervals across the study area.

• Simple and ensures even coverage.

• Example: Recording tree species every 10 meters along a transect in a forest.

RESERVOIR STAKEHOLDERS: Anglian Water

FOR:

Anglian Water proposed the reservoir and says it would provide good value for customers and is the best option for the environment and local community.

Environmental Agency

FOR / MIXED:

The Environment Agency is involved as a stakeholder. It is likely to support improved water security and flood management, including the overflow drain, but would also consider environmental risks.

Natural England

MIXED:

Natural England would value new habitats, wetland areas and increased diversity of wildlife, but would also be concerned about environmental damage during development.

Local authorities

FOR / MIXED:

Local authorities are likely to support the scheme because it could help meet demand from population growth, support infrastructure, and bring investment, but they would also have to consider local disruption.

Agricultural Industry

MIXED:

Farmers may benefit from increased water resources in the long term, but the development would also flood farmland and remove agricultural land.

National Farmers Union (NFU)

MIXED:

The NFU supports the need to expand water supply infrastructure because of climate change and population growth, but says large reservoirs can have a significant negative impact on local farm businesses and communities and that disruption should be minimised.

Local community groups

AGAINST / MIXED:

Some community groups are opposed, shown by the petition signed by over 2000 local people, although some may recognise the need for better water supply.

Local residents

AGAINST:

Local residents are concerned that over 50 families will lose their homes, there will be road closures, construction disruption, congestion, and an increased risk of accidents.

Local farmers

AGAINST:

Local farmers say the reservoir would flood farmland, remove their livelihood, create uncertainty, and affect mental health.

Local businesses

MIXED / AGAINST:

Some local businesses may benefit from more visitors in future, but Figure 3 also says some businesses could suffer and people could lose jobs during and after development.

Local leisure businesses

AGAINST:

A local business owner suggested some local leisure businesses will probably have to close, such as horse riding stables affected by the scheme.

Wider public

FOR:

The wider public is likely to support the scheme because it could improve water security, reduce summer shortages, and provide water for 500,000 homes.

SUSTAINABILITY: What is social sustainability?

When everyone can claim a reasonable quality of life, maximise their personal potential and maintain a healthy community now and in the future

What is economic sustainability?

When individuals and communities continue to have access to a reliable income over time without a negative impact on the environment, society or culture.

What is environmental sustainability?

When no lasting damage is done to the environment and renewable resources are managed in ways that guarantee continued use.

Socially sustainable

• Provides long‑term water security: reservoir supplies 500,000 homes and helps meet rising demand.

• Improves quality of life: new walking, cycling, sailing, visitor centre, education centre.

• Supports public health: reliable clean water as climate change reduces supply.

• Encourages responsible water use: Environment Agency wants people to reduce from 140L/day to 100L/day

Socially unsustainable

• Displaces communities: over 2000 residents signed petition; families may lose homes.

• Disrupts local lifestyles: increased traffic, construction disturbance.

• Causes social conflict: farmers “devastated”, mental health impacts, opposition from NFU.

• Inequality in water access: SE faces 50% of future demand increase, risking shortages.

Economically sustainable

• Brings £2.6 billion investment to the area.

• Creates long‑term jobs in construction, management, tourism, and recreation.

• Ensures stable water supply for businesses: reservoir provides 166 million litres/day.

• Reduces economic risk from drought: climate change makes drought restrictions twice as likely.

• Efficient resource use: storing winter water reduces pressure on rivers and groundwater.
