EGR 2800 - ECE Portion (Cumulative Update Throughout Semester)

Another name for a microcontroller

Small Computer System on Chip (SoC)

What makes up the Small Computer System on Chip (SoC)?

–a microcontroller, microprocessor or digital signal processor (DSP) core(s)

–memory blocks including a selection of ROM, RAM, EEPROM and flash memory

–timing devices: oscillators, phase-locked loops, counter-timers, real-time timers

–external interfaces: USB, Ethernet, USART, SPI, I2C communication

–Analog to Digital Converters (ADC) and Digital to Analog Converters (DAC)

–voltage regulators and power management circuits

Central Processing Unit (CPU)

The main component of a computer that performs calculations, executes instructions, and manages data flow within the system. It is often referred to as the brain of the computer.

Bootloader

A small program that initializes the hardware and loads the operating system or application into memory during the startup process.

What is the bootloader doing when it runs for a few seconds before startup?

–watches for IDE communication for downloading new code

–If no IDE present, the previous program will be executed

What is a alternative to using a bootloader

an in circuit programming pod, known as an ICSP (In-Circuit Serial Programmer)

GPIO Pin

General Purpose Input/Output Pin

General Purpose Input/Output Pins

• - pins can be configured as inputs or outputs

• ■ This is typically declared in a startup procedure.

• ■ Input values are readable. This are typically digital or a Boolean where 1 is a logical high and 0 is a logical low.

• ■ Output values are writable and readable.

• ■ have 5 V tolerant inputs without damage even when the device operates off of 3.3 V. Make sure you know the voltage levels that your device can accept. Sometimes you need to employ a logic level shifter to protect you devices.

What Arduino pin controls the yellow onboard LED

13

What does PWM stand for?

Pulse Width Modulation

Boolean Variable

Holds 2 values, TRUE (1) or FALSE (0)

How much memory does a boolean take up?

1 byte (8 bits)

char Variable

Stores a character value

How much memory does the data type char take up?

1 byte (8 bits)

How much memory does int variable take up?

2 bytes (16 bits)

What range of values does the int variable hold?

-2^15 to (2^15)-1

How much memory does the unsigned int variable take up?

2 bytes (16 bits)

What range of values does the unsigned int variable hold?

0 to (2^16)-1

How much memory does the long variable take up

4 bytes (32 bits)

What range of values does the long variable hold?

-2,147,000,000 to 2,147,000,000

Unsigned int data type

Does not store any negative values

How much memory does unsigned long data type store

4 bytes (32 bits)

What range of values does the unsigned long datatype hold?

0 to (2^32-1)

Float data type

Decimal number values

How much memory does a float hold?

4 bytes (32 bits)

What range of values does the float data type hold?

-3.4×10^38 to 3.4×10^38

How much memory does a double take up?

4 bytes (32 bits)

TRUE or FALSE: float and doubles are the same thing

TRUE

Duty Cycle Formula

dc = (T high) / (Period) * 100%

Digital to Analog Converter (DAC)

Used to produce a accurate analog voltage between 0-5 V

What is used in lieu of a digital to analog converter?

PWM

What are examples of how PWM is used to vary voltage?

1. Vary LED brightness

2. Vary the speed of a DC motor

What frequency of PWM signals is produced?

490 Hz except for pins 5 and 6 which are 980 Hz

What are the PWM pins

3, 5, 6, 9, 10, and 11

Bitwise AND Operator

&

Bitwise OR Operator

|

Bitwise XOR Operator

^

Bitwise NOR Operator

~

Boolean AND Operator

&&

Boolean OR Operator

||

Boolean XOR Operator

!=

Boolean NOT Operator

!

What type of operators are used to manipulate bits?

Bitwise

What type of operators are used in conditional statements (if, while, for)

Boolean

Local Variable

Variable declared INSIDE a function or block

Global Variable

Declared OUTSIDE of all functions (usually at top of code)

Function Call Format

k = function(i,j);

while loop

Checks the condition BEFORE running the loop body. If the condition is false at the start, the body may not run at all.

do-while loop

Runs the loop body FIRST, then checks the condition. This means the body will ALWAYS RUN AT LEAST ONCE, even if the condition is false from the beginning

Pulldown Resistor

Pullup Resistor

Pulldown Resistor

Resistor is directly connected to ground

Pullup Resistor

Resistor is directly connected to power

What are pullup and pulldown resistors used for?

Are needed to prevent the microcontroller unit input from floating

Give a example of a sensor that provides digital input

A button (ON = TRUE(1) and OFF=FALSE(0))

Give a example of a sensor that provides analog input

A thermistor/temp sensor which changes voltage based on a range of temperature values

What is a bootloader?

A small program stored in a microcontroller that starts a device and loads the main program when power turns on

What are two ways to power the arduino board?

1. USB Cord

2. Vin / 5V Arduino Pins

The GPIO pins on your board are configured as input by default. Why?

To prevent damage to the board when first powering on

Why would you want to debounce a button?

It allows you to avoid the button from looping multiple times on accident after the button is pressed due to electrical noise

What is a potentiometer?

A resistor that lets you change the resistance values by turning a knob which changes the output voltage

Suppose you have the following problematic circuit. What is the digital value of PIN 2 when the button is pressed?

The value is HIGH (1)

Suppose you have the following problematic circuit. What is the digital value of PIN 2 when the button is NOT pressed?

The value will either be HIGH or LOW since the pin is floating (its disconnected from 5V and also not connected to ground) and is unstable

Suppose you have the following problematic circuit. How would you fix the problematic circuit?

Need to add a pull-down resistor between PIN22 and GND

MEMS Capacitive Accelerometer

Detects movement and acceleration by measuring changes in capacitance

Gyroscope

Measures the angle of a piece of hardware

Thermistor

Detects changes in temperature and uses that to change the resistance values

Photoresistor

Detects changes in the amount of light and uses that to change the resistance values

Equation used to calculate how many values a ADC represents

# of Values = 2^(# of bits)

How many values can a 10 bit ADC represent?

Num of Values = 2 ^ (# of bits) = 2^10 = 1,024 Values

How many bits does a boolean variable take up in memory?

1 byte (8 bits)

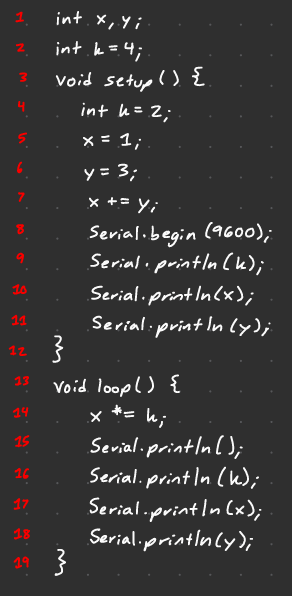

Consider the code. Is the variable x on line 14 a local or global variable?

Global since its written as x*=k

Consider the code. Is the variable k on line 14 local or global?

Global

Consider the code. Is the variable k on line 9 local or global?

Local since its initialized as int k=2

What would be the output to the serial console of the entire program, after the loop runs exactly once?

2

4

3

4

8

3

Consider the following code snippet. What would be output to the screen?

0

-2

Consider the code snippet. What would be output to the screen?

-2

It would only finish the do-loop since the while loop wont run because count = -2 which is less than 0 so the while condition is false

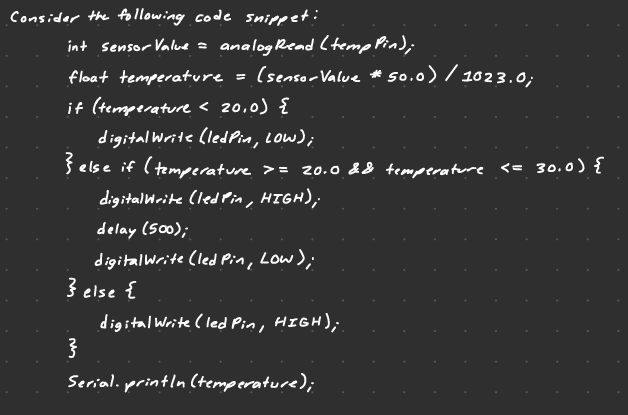

Consider the code snippet. What would be the output to the screen if the sensorValue is 475? What would the LED do?

The output would be 23.3 and the LED would blink. The LED lights, waits 500 ms, then turns off, waits 500 ms, and repeats.

Consider the code snippet. What would be the output to the screen if the sensorValue is 614? What would the LED do?

The output would be 30.0 and the LED would turn on and stay lit

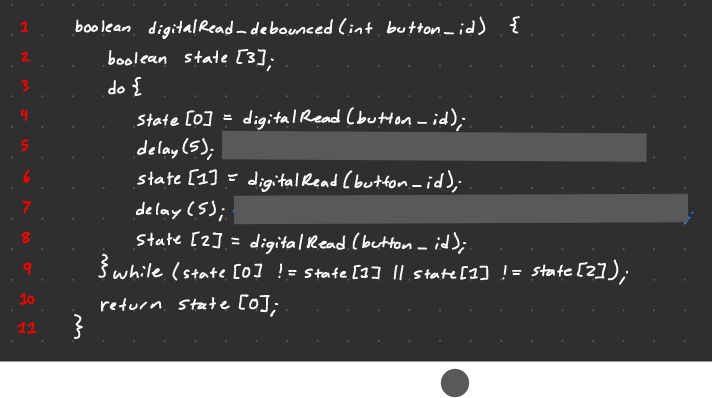

Consider the code.

Suppose you run the code above but are noticing that the debounce isnt very effective because it is too short. How would you change the code?

The debounce isnt as effective because it needs to be greater than 5 ms. To fix this, both lines 5 and 7 should be changed to say delay(100) . If its still too short, then both lines should be changed to delay(1000).

Write a code snippet (at most 5 lines that will):

1. Configure the PWM capable pin 11 as a output

2. Read a value from analog input A1

3. Linearly scale the pin A1 analog value to a value between 0-255 using the map() function

4. Write to pin 11 using analogWrite

NOTE: analogRead values are 0-1023 and analogWrite values are 0-255

pinMode(11, OUTPUT); //Set pin 11 as output

int sensorValue = analogRead(A1); //Read a Value from A1

int scaledValue = map(sensorValue, 0, 1023, 0, 255); // Scaling

analoWrite(11, scaledValue); //Write scaled result to pin 11
