Hand Pathology

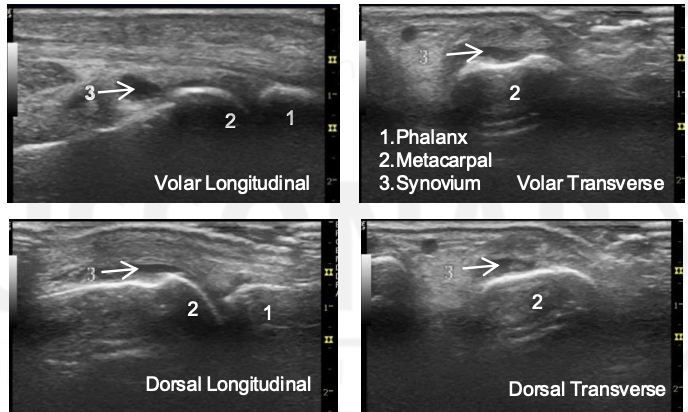

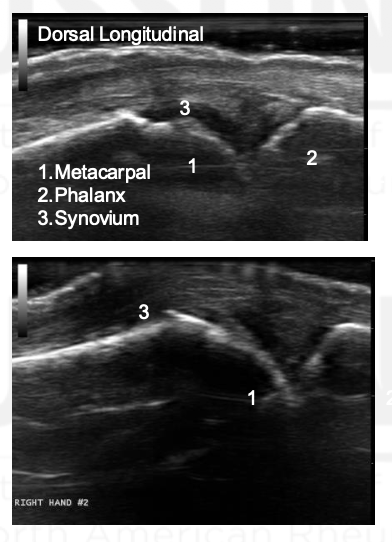

What is the arrow pointing to?

Synovial Distension

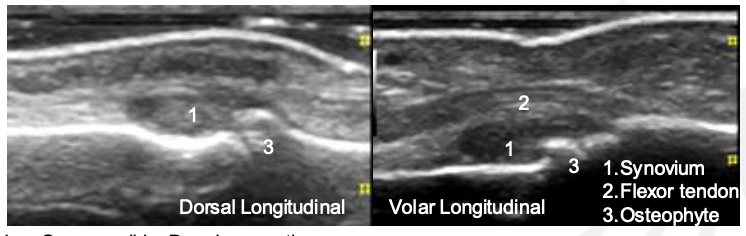

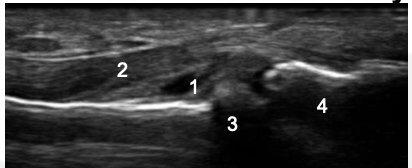

What is the abnormality?

1: Synovium, 2: Flexon Tendon, 3: Proximal Phalanx, 4: Middle Phalanx

1: Synonym, 2: Flexor Tendon; 3: Osteophyte

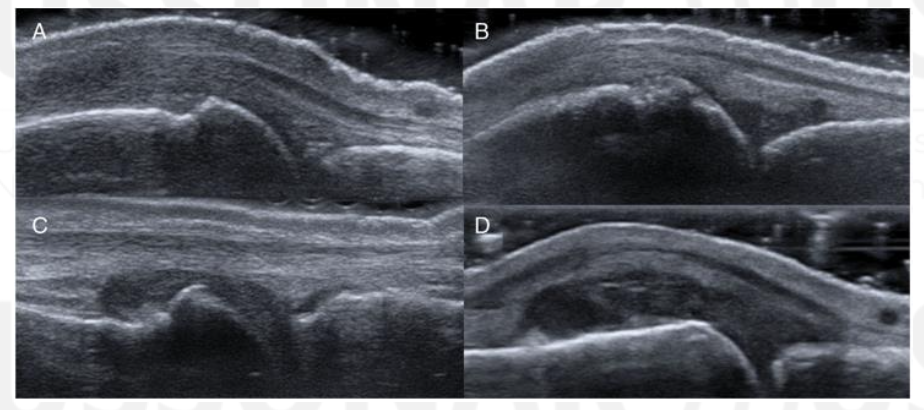

Grade The Synovial Hypertrophy

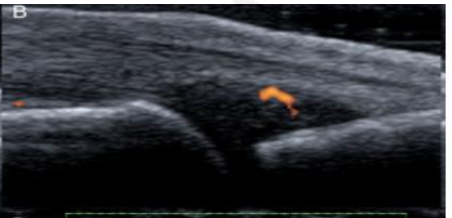

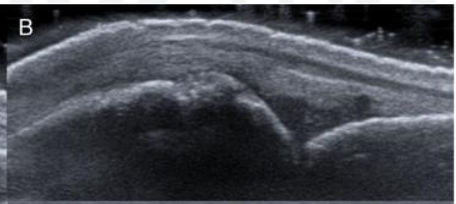

Grade this

B: grade 1 (up to 3 single signals — 1 confluent + 2 single — 2 confluent)

Minimal synovial hypertrophy up to the imaginary horizontal line connecting 2 joints; Power Doppler up to 3 single signals — 1 confluent + 2 single — 2 confluent

Grade 1: minimal

Moderate synovial hypertrophy protruding over the joint line along with concave surface; Larger than grade 1 but <50% of synovial hypertrophy covered by signals

Grade 2: moderate

Severe synovial hypertrophy producing beyond the joint line with convex surface; more than 50% of SH area covered by signals

Grade 3: Severe

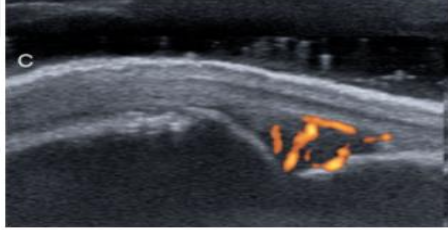

Grade this doppler

Grade 2: Larger than grade 1 + <50% of SH area

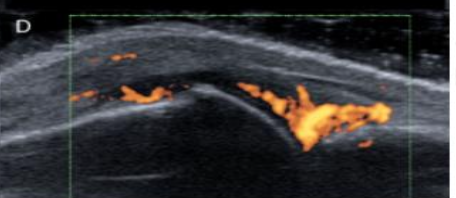

Grade this doppler

Grade 3: >50% of the synovial hypertrophy is covered by signals

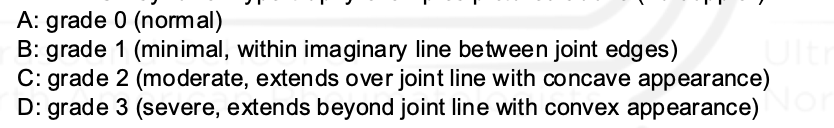

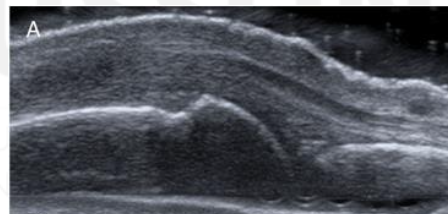

What grade is the synovial hypertrophy?

Grade 0

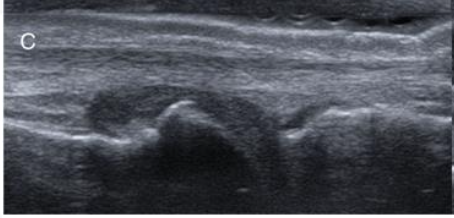

Grade this synovial hypertrophy

Grade 1: minimal within imaginary line between joint edges

Grade this synovial hypertrophy

Grade 2: moderate, extends over joint line with concave appearance

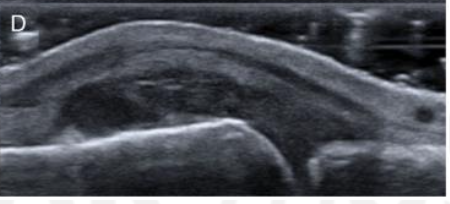

Grade this synovial hypertrophy

Grade 3: severe, extends beyond joint line with convex appearance

What is 1?

This is extensor calcification tendinopathy at the PIP.

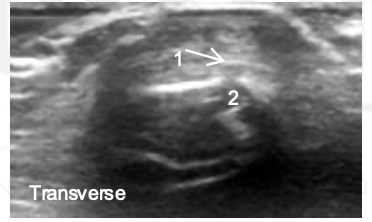

What is 1 and 2?

CPPD at the MCP

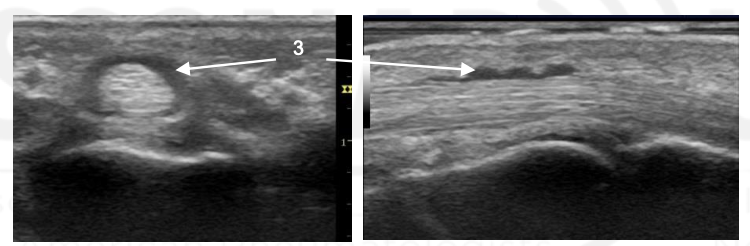

What is 3?

This is the interface sign in a normal MCP

What is the arrow pointing to?

CPPD, this is the pseudo double contour sign

What view is this? What is the arrow?

DIP, tophus

What view is this? What is the arrow?

MCP; Gout

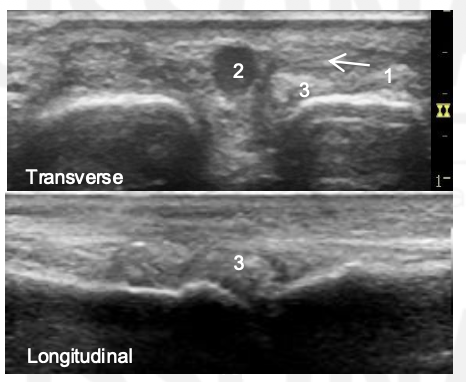

What view is this?

1. Extensor Tendon

2. Digital Vessel

3. Tophus

4. This is gouty extensor tendinopathy at the PIP.

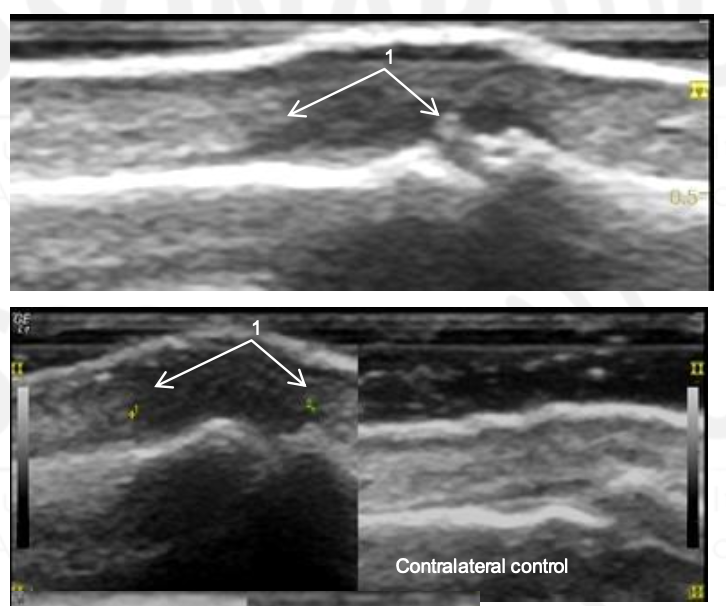

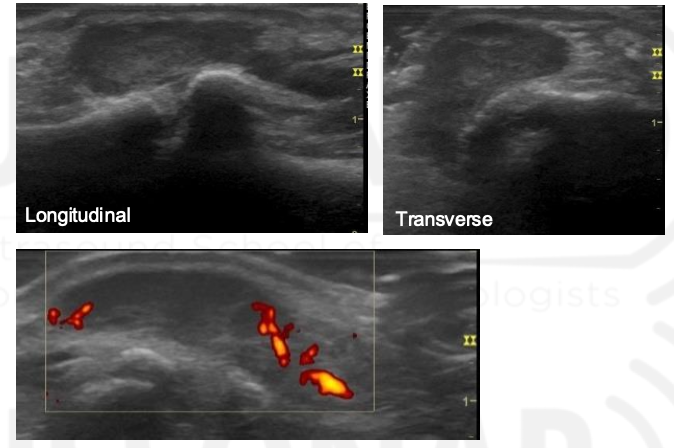

What is this?

What is this?

Rheumatoid Nodule

1. Hypoechic/anechoic center

2. More Homogeneous than tophi

3. no calcifications or shadowing

4. hypoechoic trim

No anechoic center; homogenous and hypoechoic tissue.

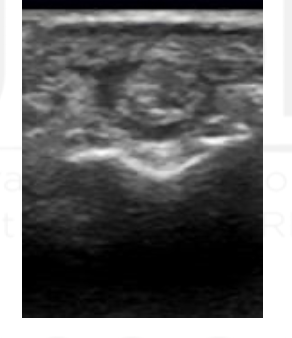

What is this?

Rheumatoid Nodule

1. Hypoechic/anechoic center

2. More Homogeneous than tophi

3. no calcifications or shadowing

4. hypoechoic trim

No anechoic center; homogenous and hypoechoic tissue.

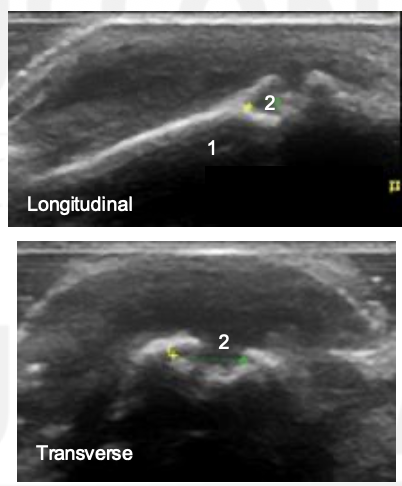

What are 1 and 2?

1 - Middle phalanx

2. Ganglionic Cyst

What is the arrow pointing to?

Ganglionic Cyst

How do you differentiate Ganglions, Neurofibromas/Schwannomas, and Giant Cell Tumors?

1. Ganglions - Anechoic + posterior acoustic enhancement + stalk from synovial cavity or tendon sheath; if nodular or doppler signal inside = cancer

2. Neurofibromas/Schwannomas - nerve tail + posterior acoustic enhancement

3. Giant Cell Tumors - Hypoechoic - posterior acoustic enhancement

What is posterior acoustic enhancement?

The region deep to a fluid collection will be relatively hypoechic as more sound waves are able to reach that tissue than the tissue to either side.

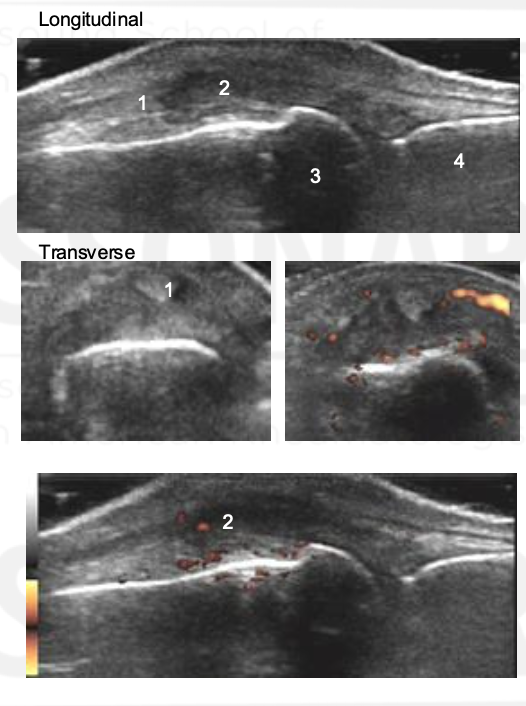

What is going on here? Name 1-4.

1. Extensor Tendon

2. Hypoechoic tendinopathic portion of tendon

3. Metacarpal

4. Phalanx

This is extensor tendinitis. Interestingly, there is no tenosynovium around the extensor tendons in teh digits, but there can still be Doppler of the tissues around the extensor tendon.

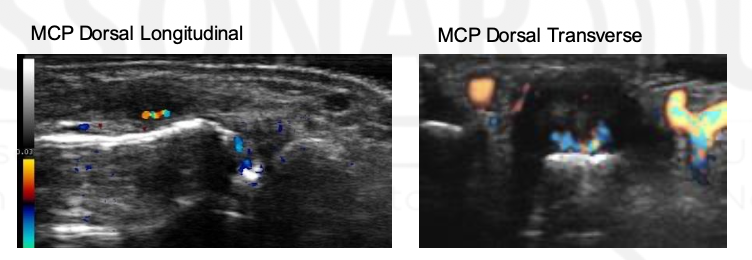

Peri-extensor tendinitis is seen here. Not common in RA. Why? Because RA is a primarily synovial disease.

How does US compare to MRI with extensor tendinitis?

US sensitivity for extensor tendonitis is 15% while it is 44% for flexor tenosynovitis.

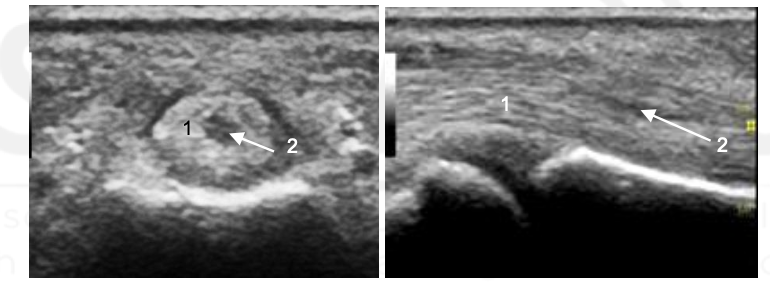

What happened here?

1. Normal flexor tendon

2. Torn fibers of tendon

What is 3?

Tenosynovial swelling

What is a normal A1 pulley thickness?

What is the thickness of trigger finger pulleys?

A1 pulley thickness: 0.24 - 0.6 mm

Trigger finger pulley thickness: 1.1 - 2.9 mm

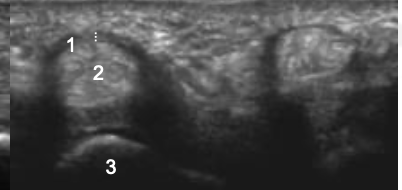

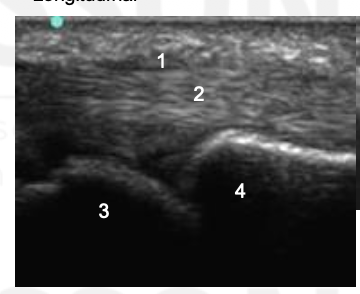

Name 1-4

1. Thickened A1 pulley

2. Tendon thickening compared to adjacent tendon. Also note tendon is thicker distal to A1 puley. On dynamic imaging, this impinged onto the A1 pulley.

3. MCP

4. Phalanx

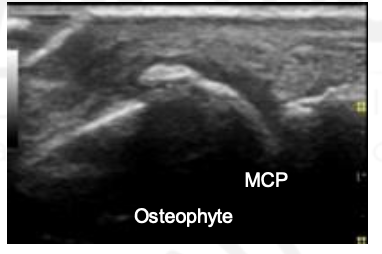

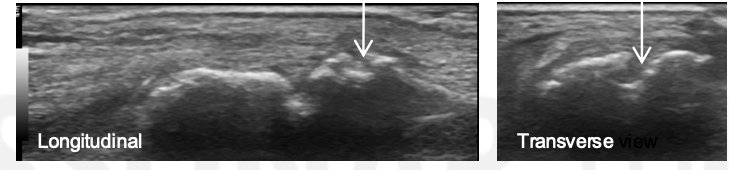

What is this?

Osteophyte

Do not be suprised to see synovial hypertrophy and effusion in OA hand joints on US exam.

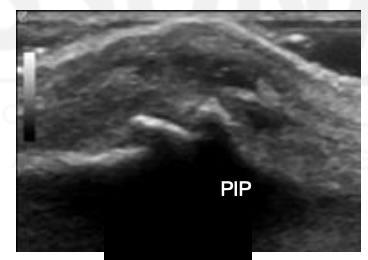

What is this?

Osteophyte

What is this?

Torn extensor tendon edges

Name 1 and 2.

1. Tendon

2. Tendon sheath effusion

Note that the tenosynovial effusion is anechoic and

compressible, and on both sides of the tendon. Compare

how the deep portion of the tenosynovial fluid is abutting

the tendon and how synovial fluid from the PIP joint

would be abutting the bone.

What is this?

Flexor tenosynovial effusion at PIP

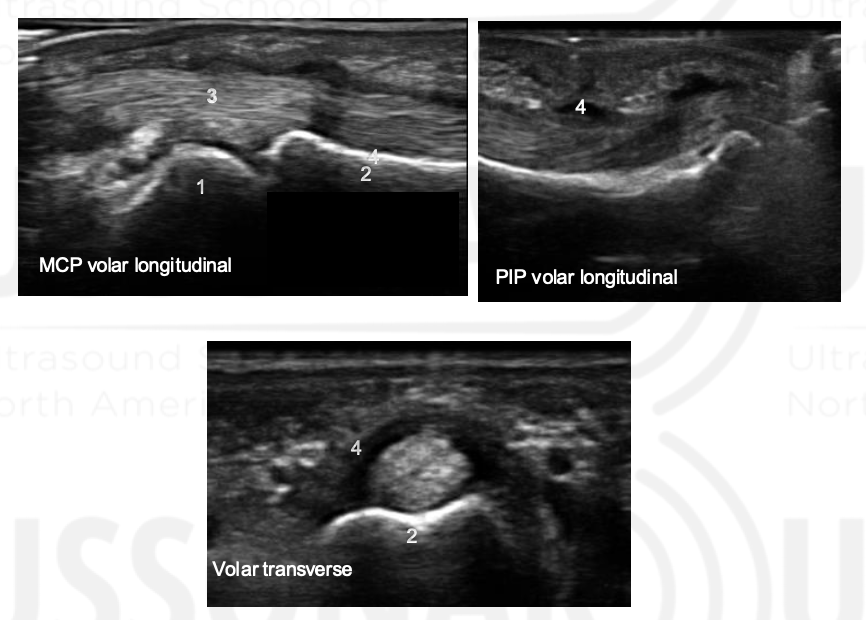

Name 1-4.

1. MCP

2. Proximal phalanx

3. Flexor tendon

4. Tendon sheath

Name 1 and 2.

1. Flexor tendons

2. Tendon sheath fluid

3. Tendosynovial hyperemia

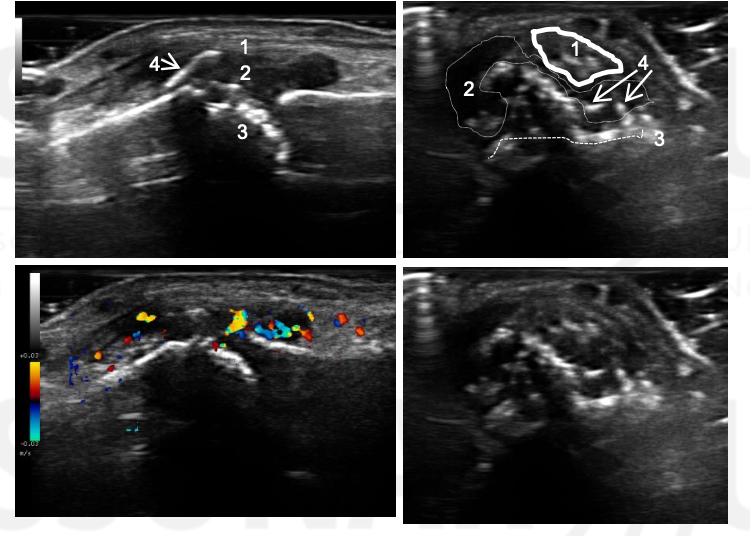

Name 1-4.

What condition is this?

IP joint of the thumb

1 - Extensor tendon

2. Synovitis

3. Proximal phalanx (eroded)

4. New bone formation

Psoriatic arthritis patient with swelling of the IP joint of the thumb.

What is this?

Erosion

Compared to the gold standard of multidetector CT, ultrasound sensitivity for

joint erosion is 42%, specificity is 91%, accuracy is 80%.

How do you define an erosion?

What are small, moderate, large sizes?

> 1 mm

or if is the volar aspect of the MCPs or PIPs, use > 2 mm

Small erosion < 2 mm

Moderate 2 - 4 mm

Large > 4 mm

Where is the US more sensitive for erosions?

Why?

2nd and 5th MCPs due to the increased ultrasound access to the lateral and medial sides of these MCPs.

The radial side of the 2nd MCP is the MOST affected by bone erosions, but in healthy people, it can have small lesions too.

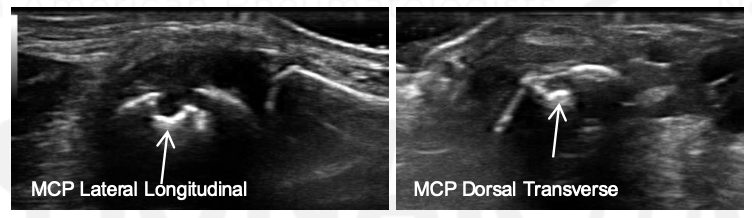

What is this?

Erosion

What is this?

Erosion

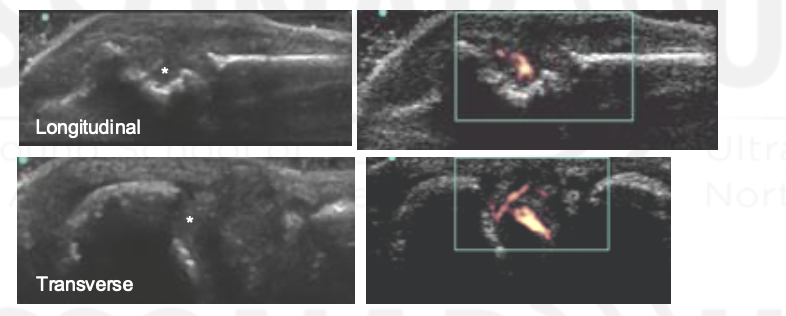

True or false:

Synovial thickness scores + Doppler pixel scores from the MCPs correlate with progression of the modified Sharp score at 1 year.

True

In patients with RA, what are the best predictors of DAS 28 in 1 year compared with inflammatory markers, clinical joint counts, and pain severity scores?

gray scale and power doppler scores

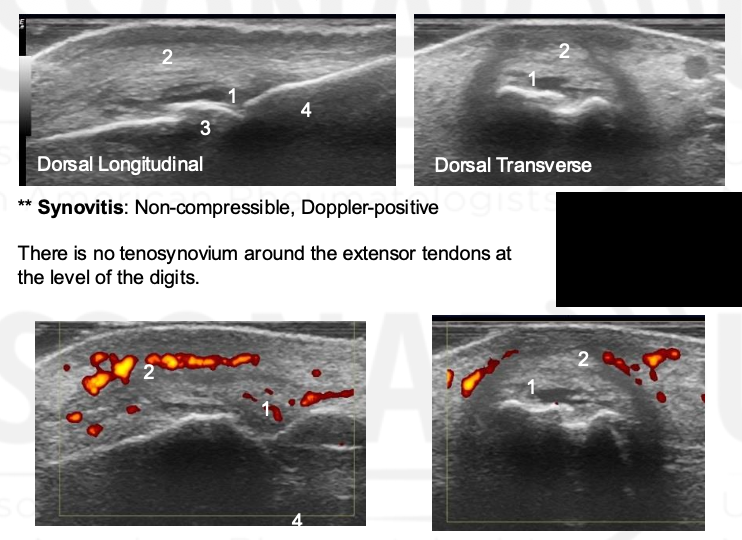

What view is this?

PIP

1. Synovium

2. Extensor Tendon

3. Proximal Phalanx

4. Middle Phalanx
