Data management :(

• Data

• information

• knowledge

• Wisdom

The DIKW pyramid

Raw data

data without context

information

data with context

knowledge

information with meaning

Wisdom

applied knowledge for better decisions

1. ask question

2. gather data

3. prepare data

4. analyze

5. make decision

from data to decision

aggregations

translate raw data into summaries that are easier to understand

data governance

ensure data is consistent, trustworthy and isn’t misused

data quality

ensure data is accurate, valid, complete and consistent

data privacy and security

ensure proper data access, use and protection

1. permission for data collection

2. transparency about the plan

3. privacy of data

4. good intentions

5. consider the outcome

5 principles of data ethics

1. planning and collecting

2. storing and managing

3. cleaning and processing

4. analyzing and visualizing

5. sharing

6. archiving/destroying

data life cycle

data literacy

the ability to read, work with, analyze, and communicate insights with data

1. problem statement

2. data collection

3. data analysis

4. communication

5. action and reflection

5 steps data-driven process

Database management system

DBMS

• extract

• transform

• load

ETL process

Structured Query Language

SQL

Dashboards

receives data from linked database and provides information at a glance. It is typically presented in a very visual way

descriptive analytics

• get to know the data

• investigated relationships

diagnostic analytics

find root causes of events

drill-down analysis

analysis where it goes from general to very deep underlaying data

Root cause analysis

To look beyond superficial actors that have a direct effect -> contributing facto

predictive analytics

identify possible outcomes and the probability that they will happen

• classificarition-based

• regression-based

machine learning models

recommendation engine

predicts interest based on past behavior

infographic

Densed summary to represent information simply

1. Define the event

2. collect relevant data

3. determine contributing factors

4. find root causes

5. recommend possible solutions

steps root cause analysis

prescriptive analytics

determine the best course of action given the outcome we want to achieve

1. introduce the visualization

2. anticipated obviouse questions

3. state the central insight

4. provide supporting evidence

5. closing statement

McCandless technique

• data

• narrative

• visuals

components of data storytelling

• focus

• structure

• form

3 keys to communicating effectively

1. introduction

   1. data problem statement

   2. context

   3. objectives

2. Body

   1. data

   2. analysis

   3. key findings

3. conclusions

   1. insights

   2. recommendations

outline storytelling

records

table rows

field

table column

string

a sequence of characters such as letters or punctuation
ex: VARCHAR

Integers

store whole numbers

ex: INT

float

store numbers that include a fractional part

ex: NUMERIC

Keywords

reserved wordt for operations

ex: SELECT, FROM

View

a virtual table that is the result of a saved SQL SELECT statement

aliasing

rename columns

COUNT()

the number of records with a value in a field

DISTINCT

removes duplicates to return only unique values

remote dictionary server

redis

PostgreSQL

SQL flavor: free and open soucre

SQL Server

SQL flavor: created by microsoft

• AVG()

• SUM()

• MIN()

• MAX()

• COUNT()

aggregate functions

Arithmetic

+, -, *, /

1. attribute constraints

2. key constraints

3. referential Integrity constraints

Integrity constraints

key

attribute that identify a record uniquely

superkey

A key ware attributes can be removed

minimal superkey or key

a key where no more attributes can be removed

primary keys

uniquely dentifies records, chosen from candidate keys

• FK constraint

• referential integrity

a record referencing another table must refer to an existing record in that table

Online transaction processing

OLTP

Online analytical processing

OLAP

• ETL

• ELT

describing data flows

database models

high-level specifications for database structure

schemas

blueprint of the database

1. conceptual data model

2. logical data model

3. physical data model

3 levels of data modeling

Dimensional modeling

adaptation of the relational model for data warehouse design

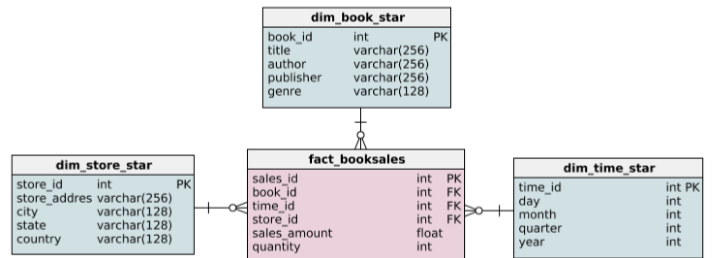

star schema

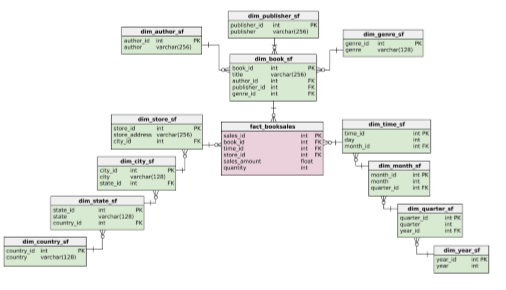

snowflake schema

normalization

divides tables into smaller tables and connects them via relationships

• First normal form (1NF)

• Second normal form (2NF)

• Third normal form (3NF)

• Elementary key normal form (EKNF)

• Boyce-Codd normal form (BCNF)

• Fourth normal form (4NF)

• Essential tuple normal form (ETNF)

• Fifth normal form (5NF)

• Domain-key normal form (DKNF)

• Sixth normal form (6NF)

Normal forms

1. update anomaly

2. insertion anomaly

3. deletion anomaly

data anomalies (normalization)

materialized views

stores the query results on a disk

Directed Acyclic Graphs

keep track of view (managing dependencies)

partitioning

split table into smaller parts

vertical partitioning

split table by columns

horizontal partitioning

split table up over rows

sharding

horizontal partitioning is applied to spread a table over several machines

Data integration

combines data from different sources, formats, technologies to provide users with a translated and unified view of that data

• data

• database schema

• database engine

DBMS manages

SQL DBMS

Relational DBMS

noSQL DBMS

Document-centered DBMS

• key-value store

• document store

• columnar database

• graph database

types of NoSQL DBMS

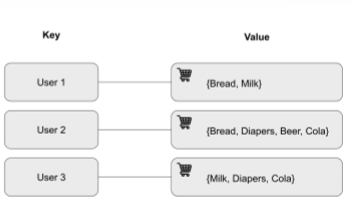

key-value store

document store

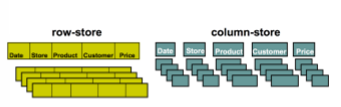

Columnar database

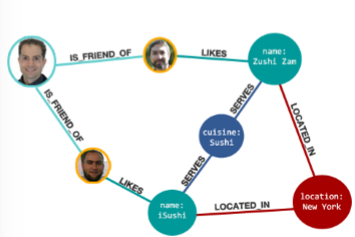

Graph database

• user profiles and user preferences

• shopping carts

• real-time recommendations

• advertizing

suitable cases key-value databases

• search data by its value

• related data

unsuitable cases key-value databases

Remoste Dictionary Server

Redis afkorting

Redis

popular key-value database

atomic operation

the operation i guaranteed to either complete fully or not at all

editoo

small business that uses Redis

JSON

most popular format document database

Polymorphic

documents within the same collection don't need to have the same structure

• catalogs

• event logging

• user profiles

• content management systems

• real-time analytics

suitable cases document databases

• very structured data

• always have consistent data

unsuitable cases document database

MongoDB

type of document database

Binary JSON

BSON

• MQL

• MongoDB Query Language

language MongoDB

• Atomicity

• Consistency

• Isolation

• Durability

ACID transactons

• MongoDB Compass

• MongoDB Atlas

• MongoDB Enterprise Advanced

• MongoDB Atlas Data Lake

• MongoDB Charts

• Realm Mobile Database

Products MongoDB

Shutterfly

company that uses MongoDB

• large volumes of data

• extreme write speeds

• event logging

• content Managing systems

• time-series data

suitable cases column family databases

• prototyping and at the beginning of a project

• complex queries and joins

• not dealing with large amounts of data

unsuitable cases

Apache Cassandra

most popular column familie databases

Cassandra Query Language (CQL)

Cassandra language
