Projections

AP Humerus

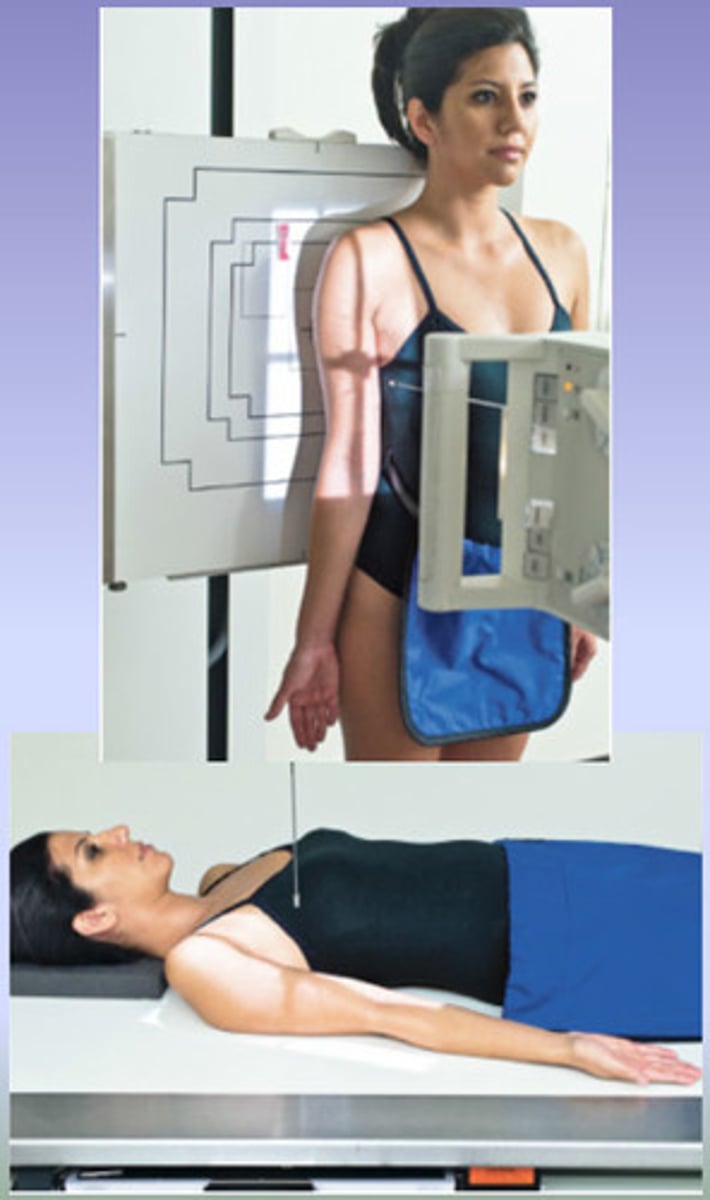

greater tubercle in profile proximally, epicondyles in profile distally (external rotation)

Mediolateral Humerus

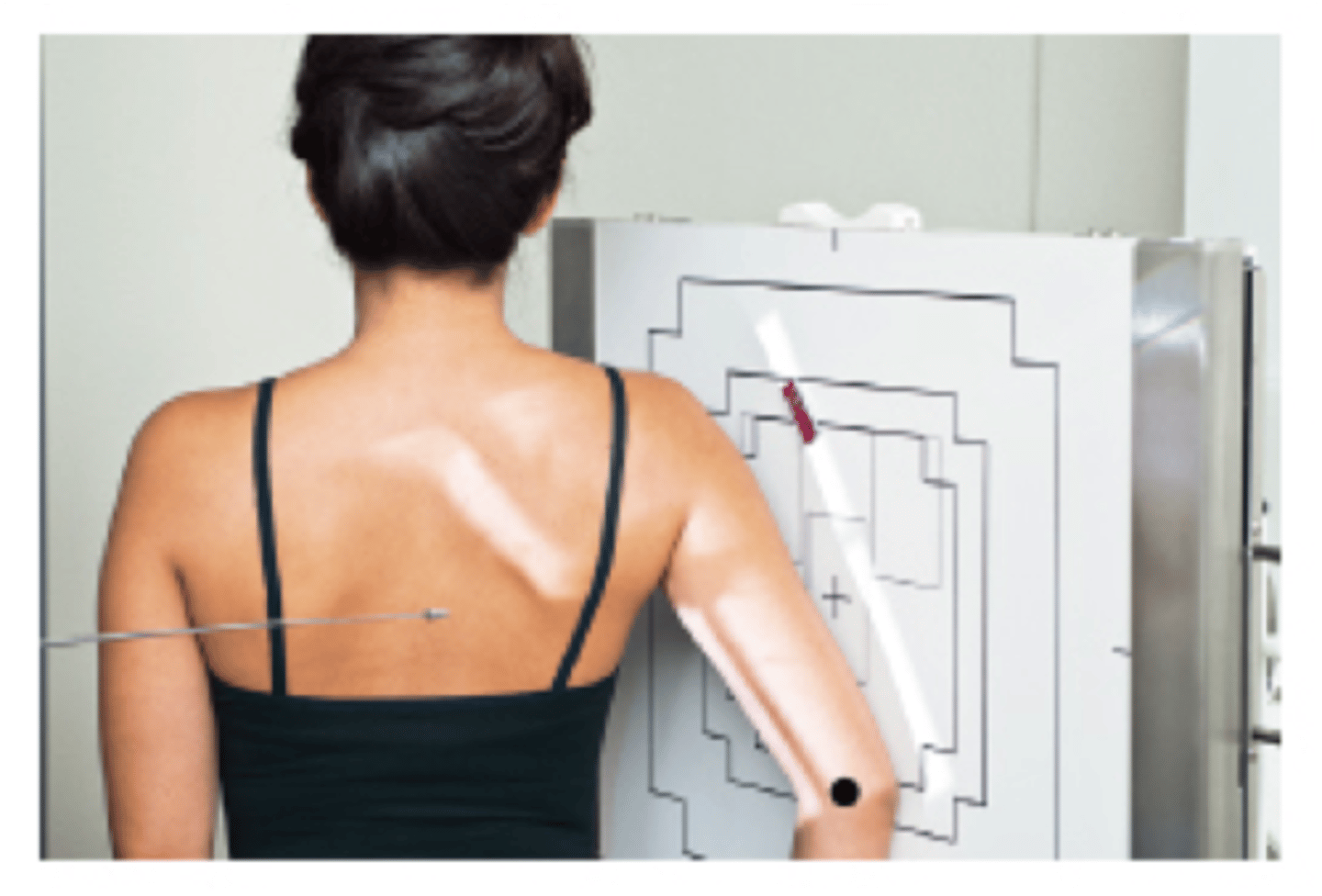

used to see top of humeral head

Lateromedial Humerus

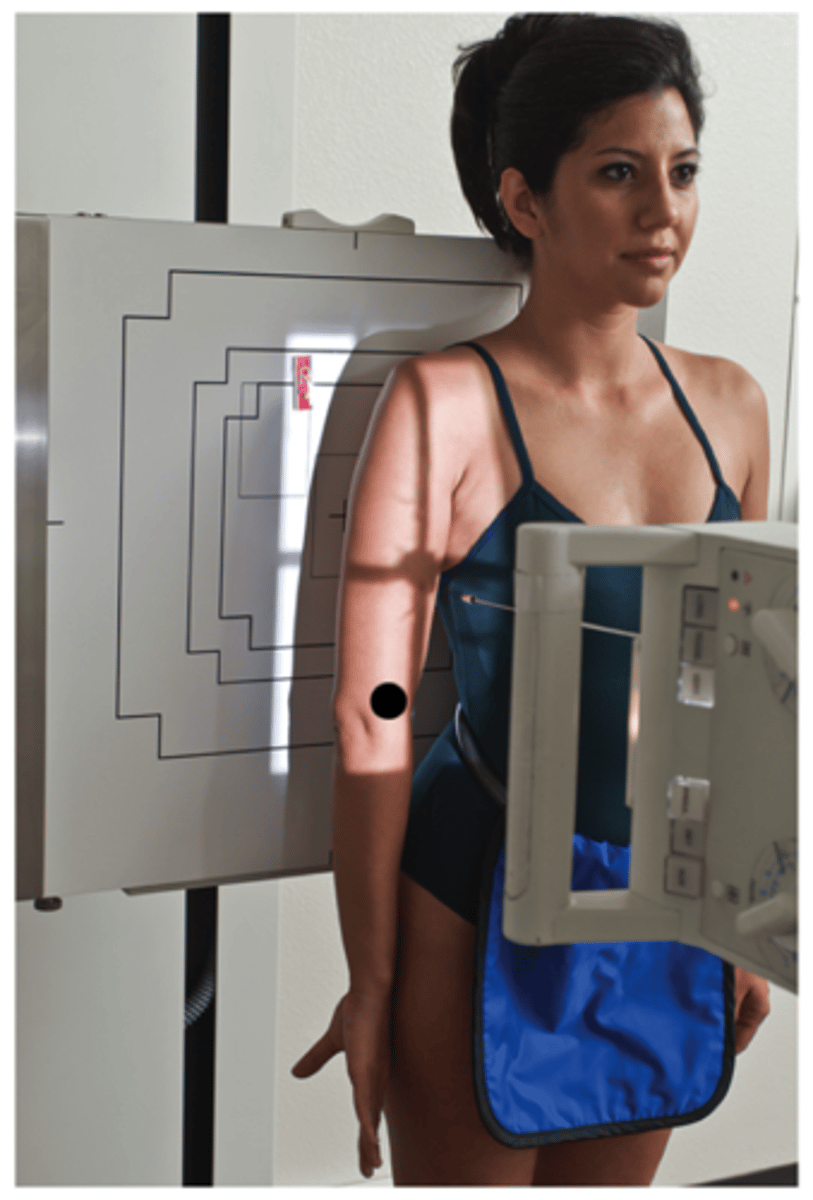

lesser tubercle in profile medially (internal rotation)

Trauma Lateral Distal Humerus

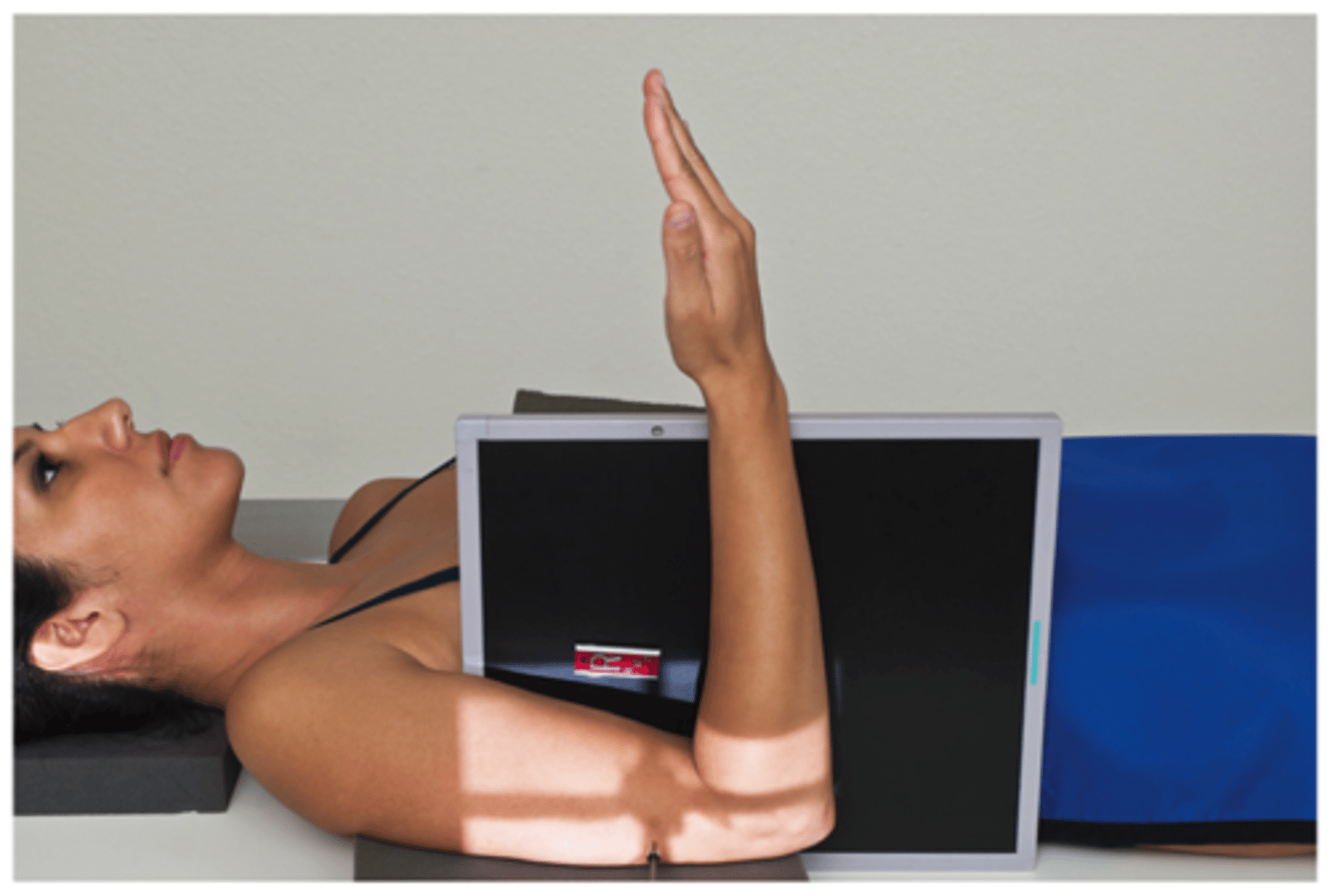

should be able to see 3 concentric circles

Trauma Transthoracic Lateral Humerus

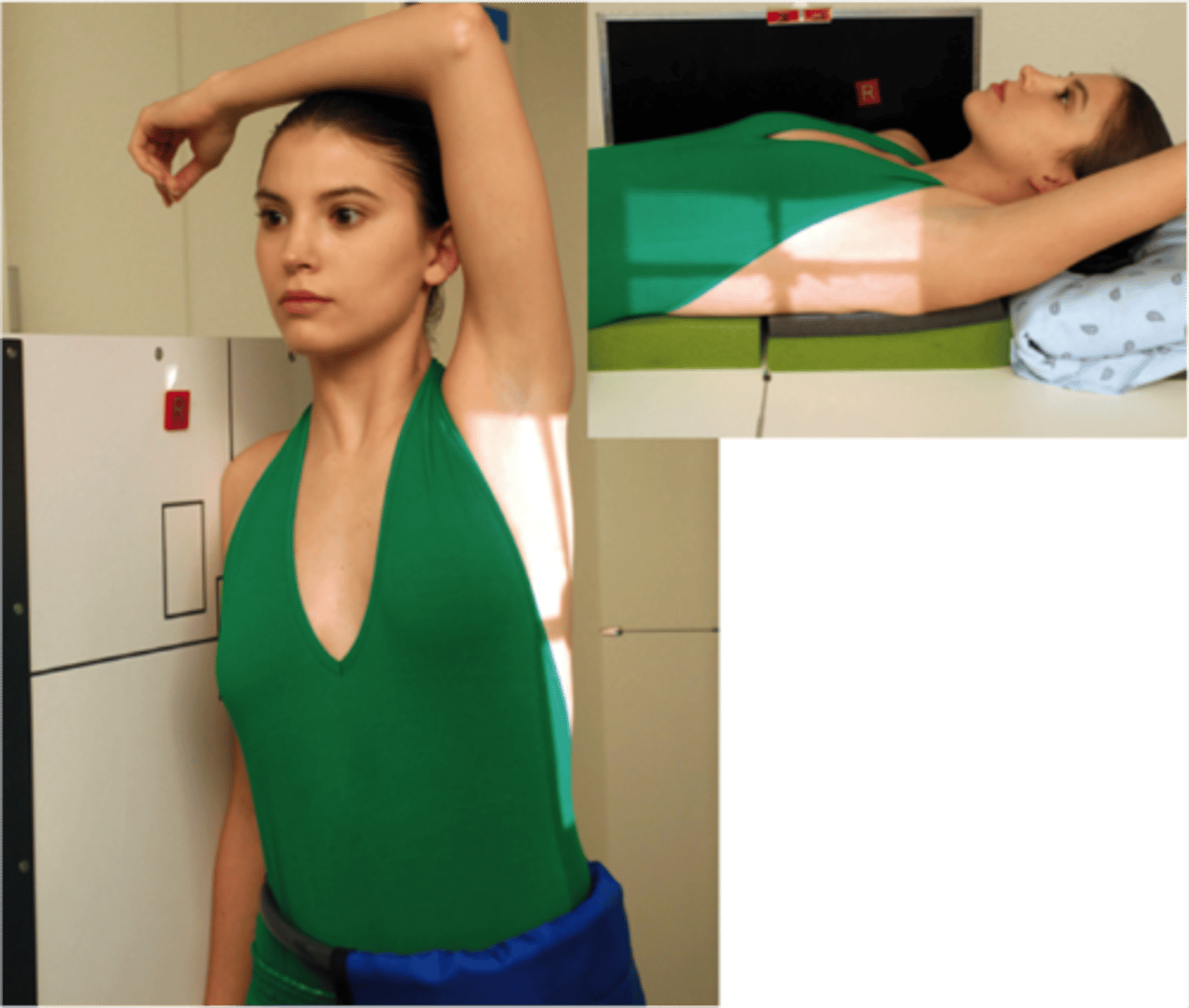

used to see shaft fractures of the humerus, orthostatic breathing technique, 10-15° cephalic angle if patient cannot raise arm

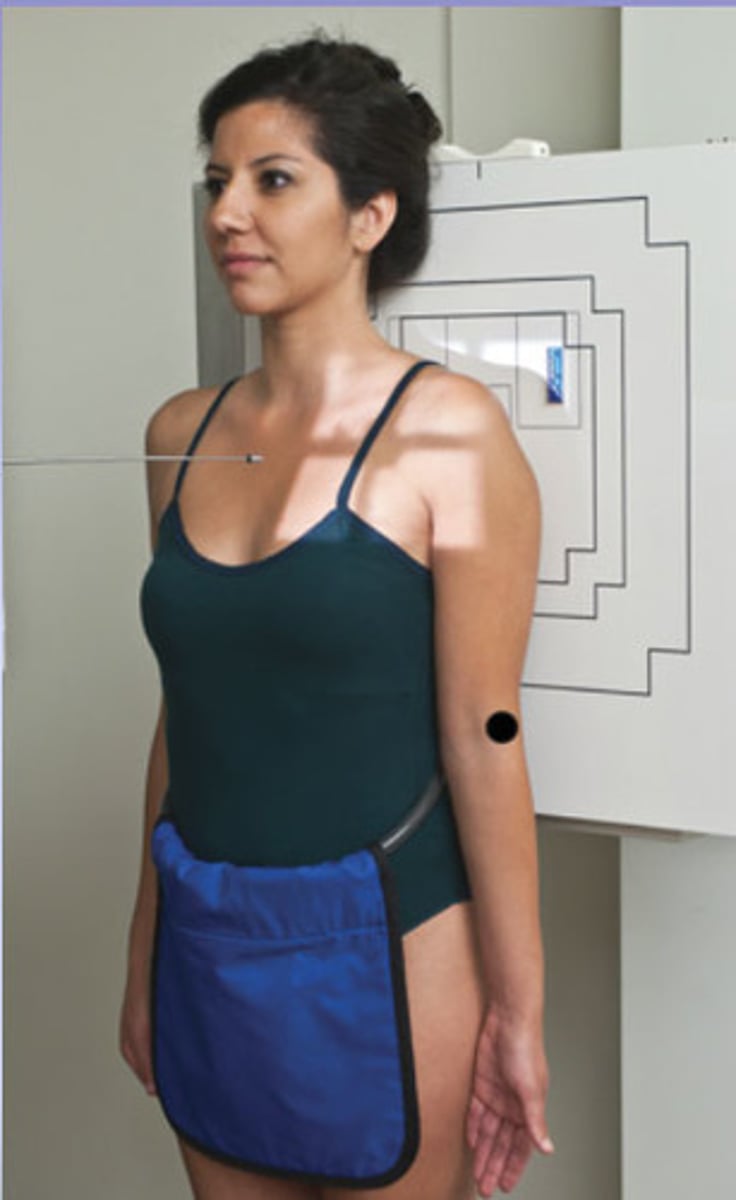

AP shoulder external rotation

used to see the relationship of the humeral head to the glenoid fossa, greater tubercle in profile on lateral humerus, lesser tubercle superimposed over humerus

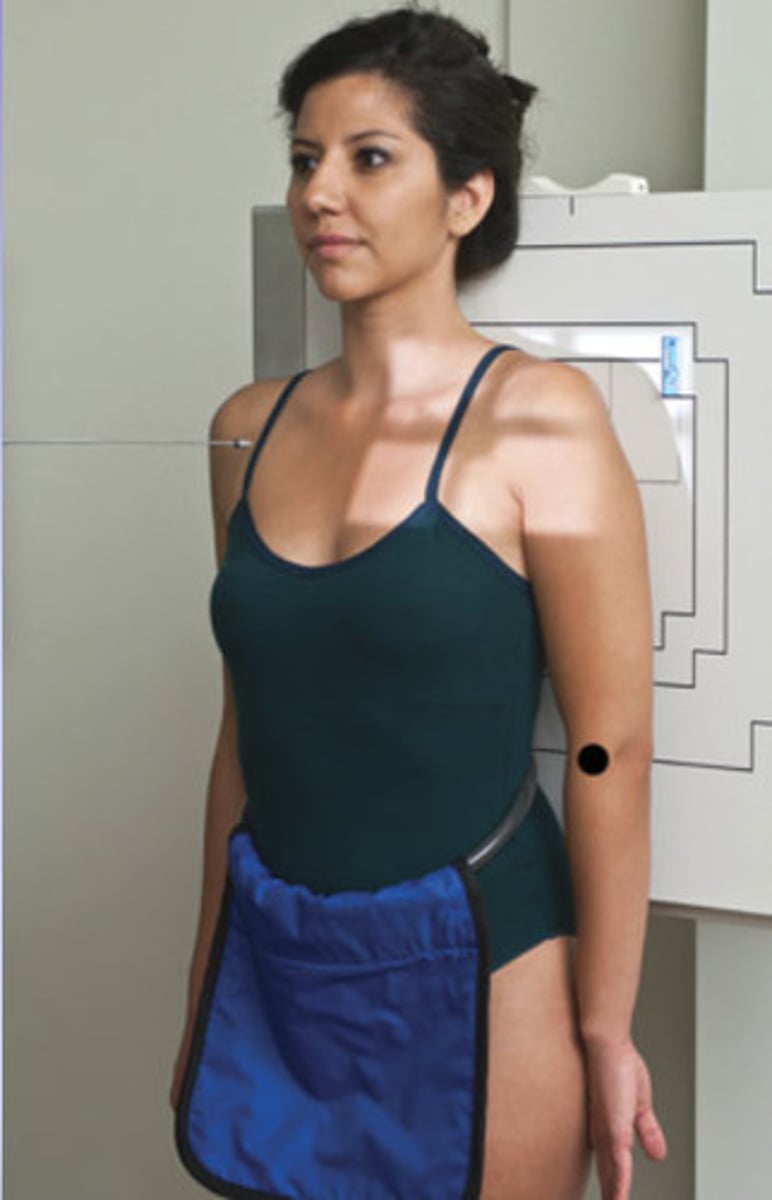

AP shoulder internal rotation

used to see the relationship of the humeral head to glenoid fossa, lesser tubercle in profile on medial humerus, greater tubercle superimposed over humerus

Lawrence Method (inferosuperior axial shoulder)

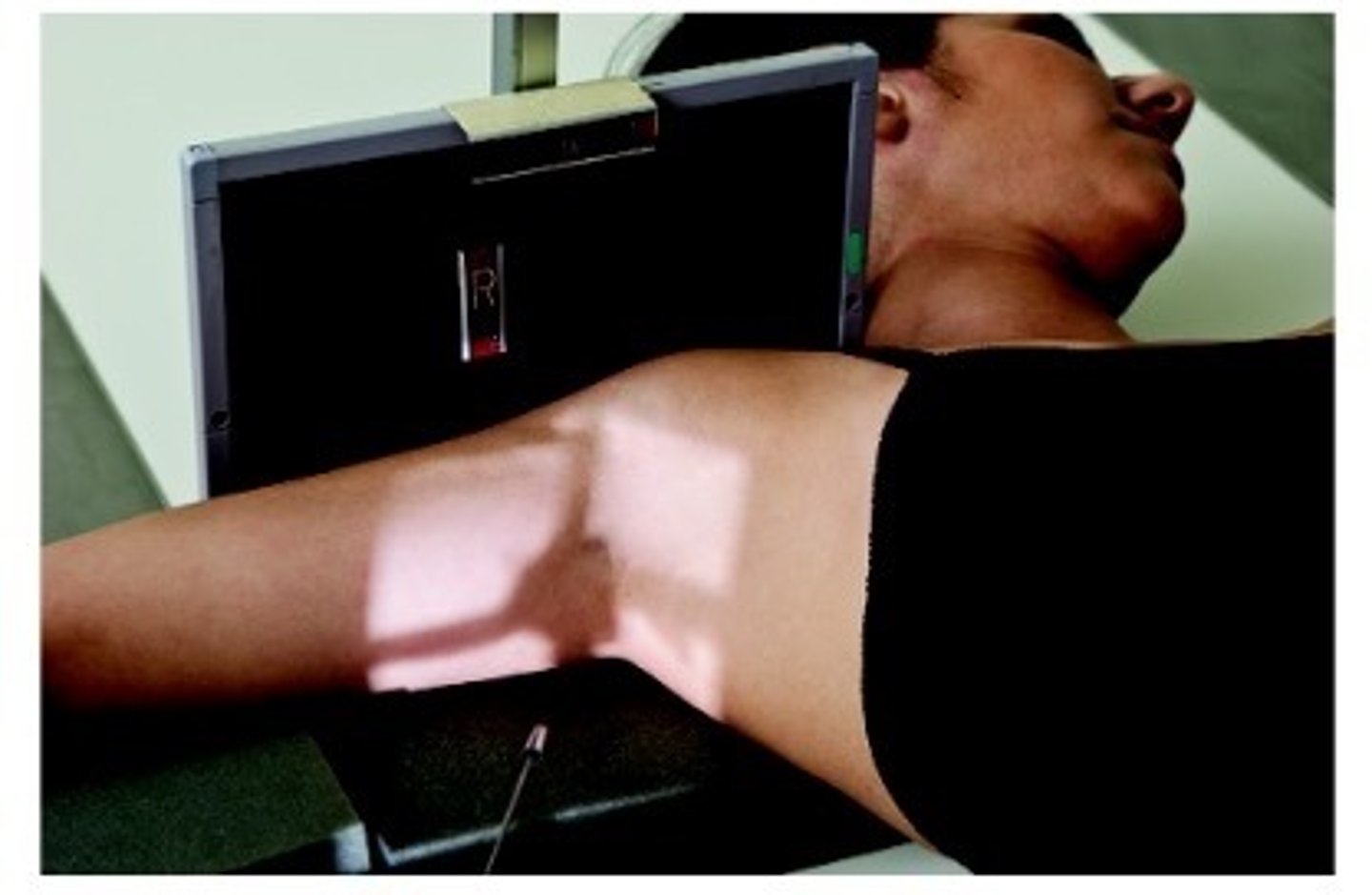

CR angled 25-30° medially, coracoid process and lesser tubercle in profile (can see Hill-Sachs defect if it is exaggerated)

Hobbs Method (PA transaxillary shoulder)

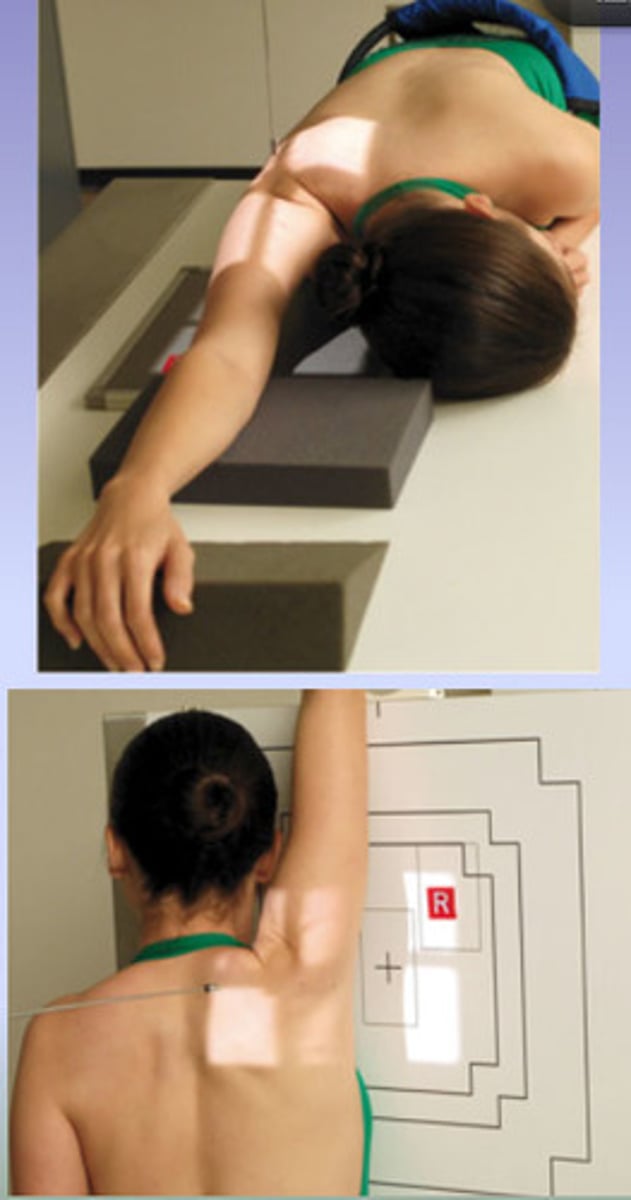

Patient is 5-10° anterior oblique, lateral proximal humerus in relation to glenohumeral joint, coracoid process seen on end

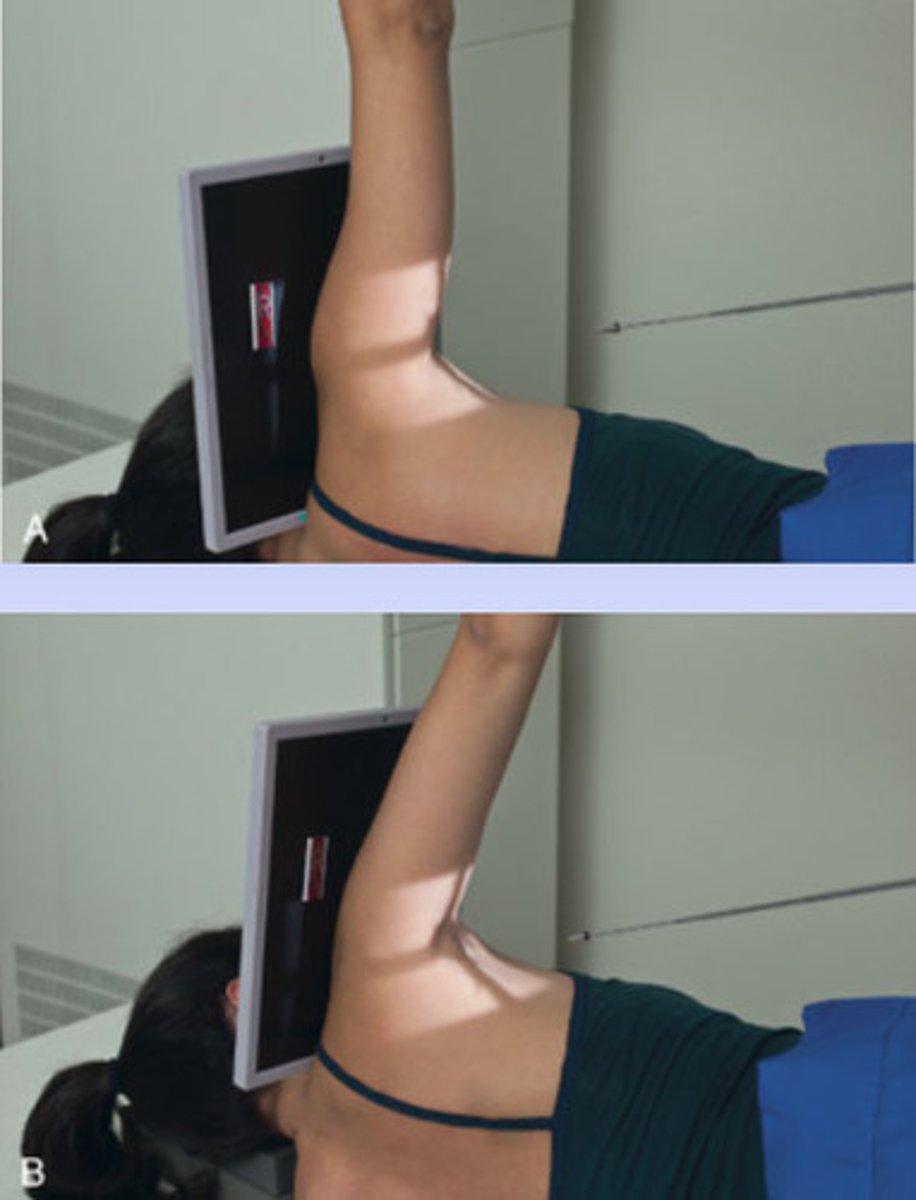

Clements Method

hill-sachs defect, if patient cannot abduct arm 90° then angle CR 5-10°

Grashey Shoulder

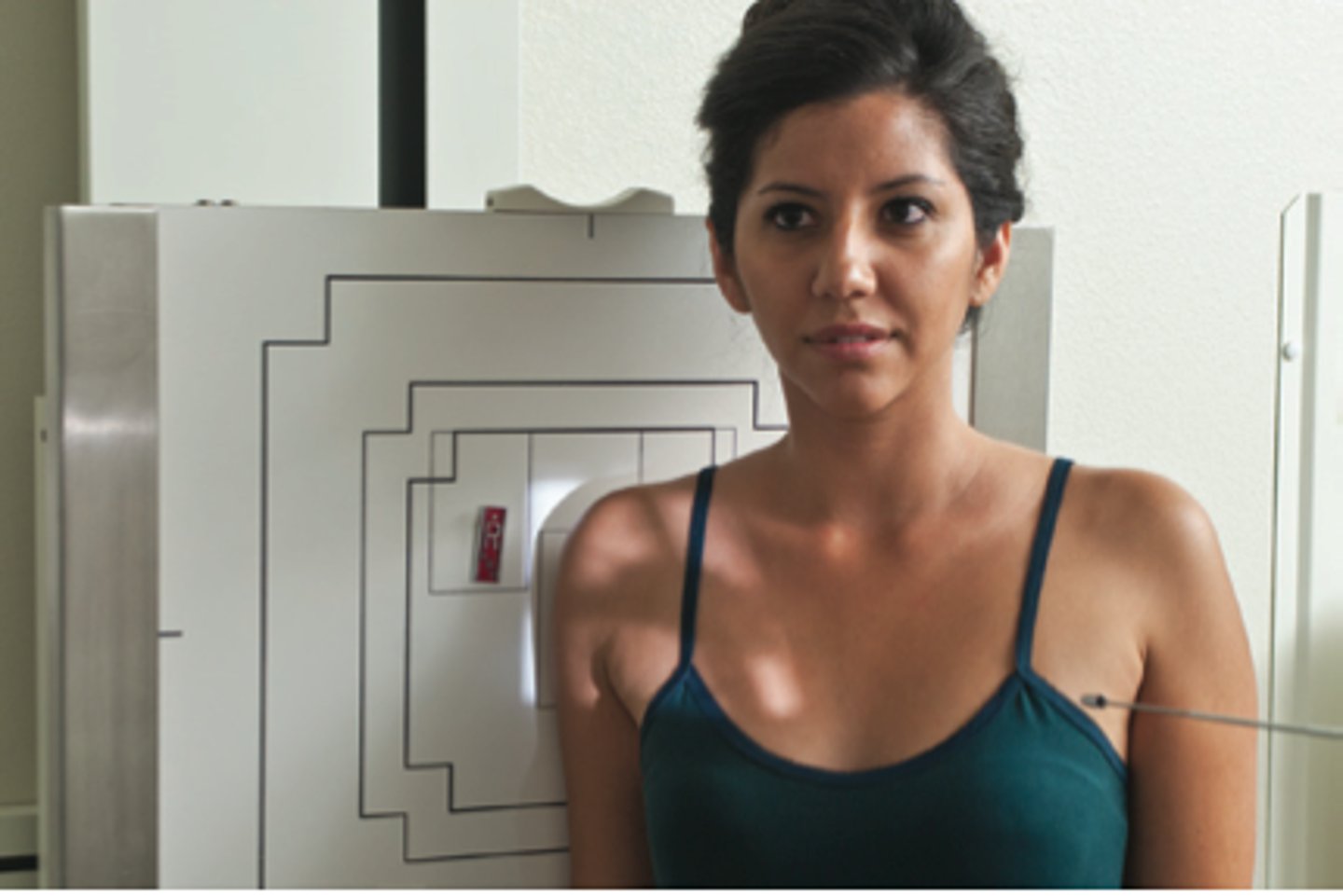

Patient angled 35-45° toward affected side, used to rule out bankart lesion, glenoid cavity in profile

Fisk method (tangential bicipital groove)

used to visualize the intertubercular groove, greater and lesser tubercle in profile with bicipital groove

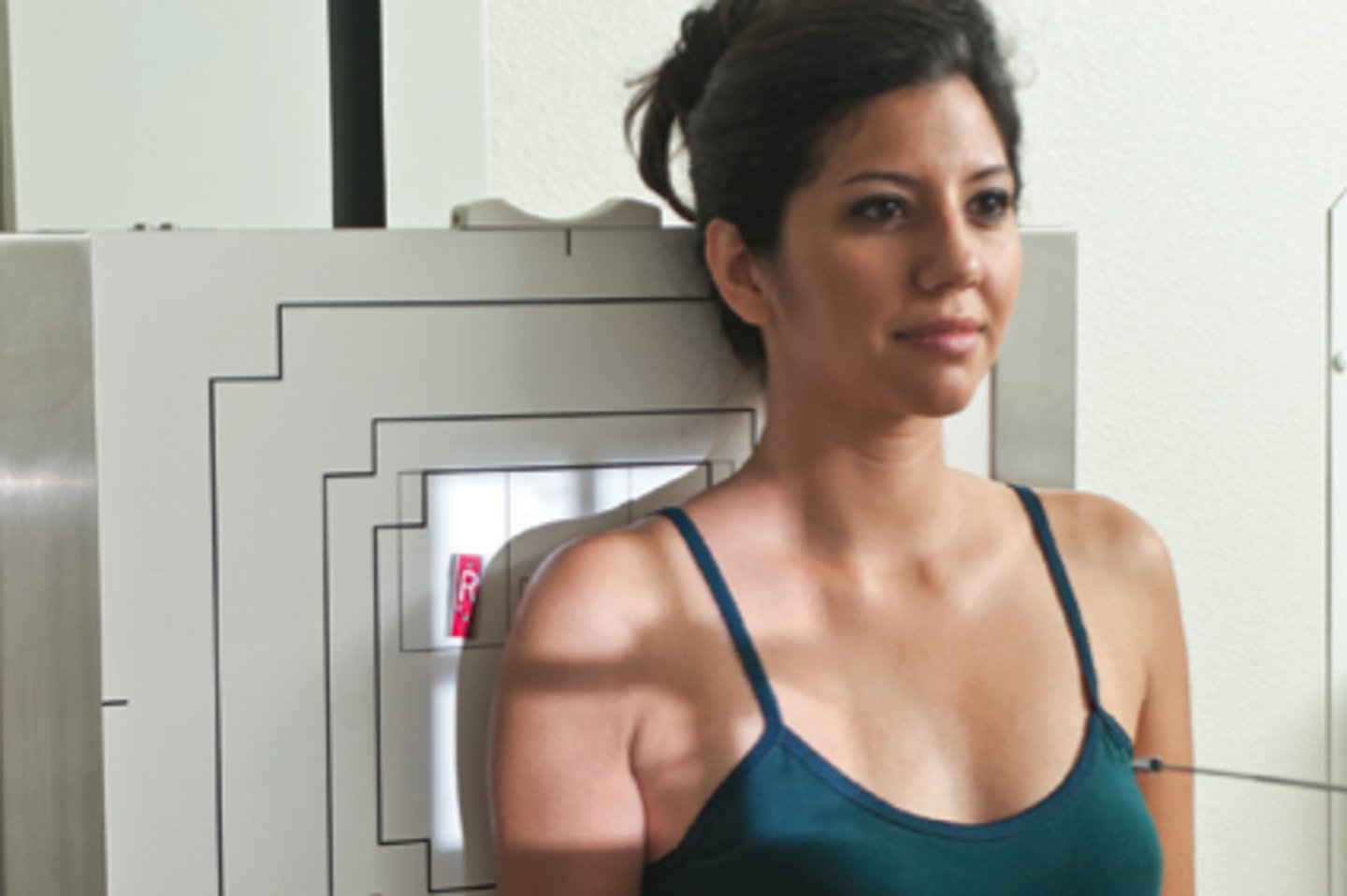

AP trauma shoulder neutral rotation

used for trauma patients, neutral rotation, proximal humerus with lateral clavicle and humeral head to glenoid fossa in profile

Lawrence Method (transthoracic lateral trauma shoulder)

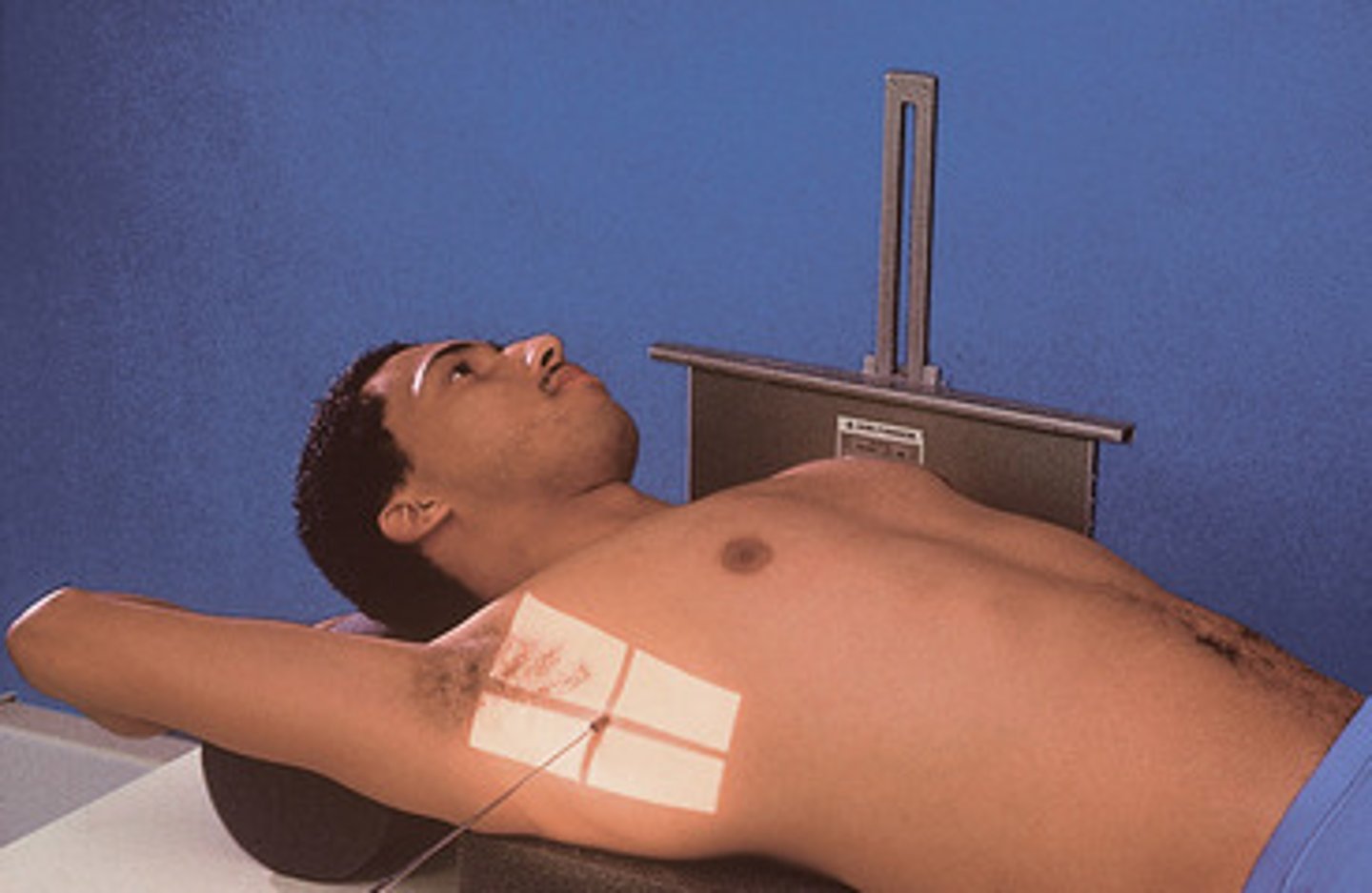

can demonstrate possible Hill-Sachs defect with CR angled 25-30° medially, orthostatic breathing used

Scapular Y Shoulder trauma

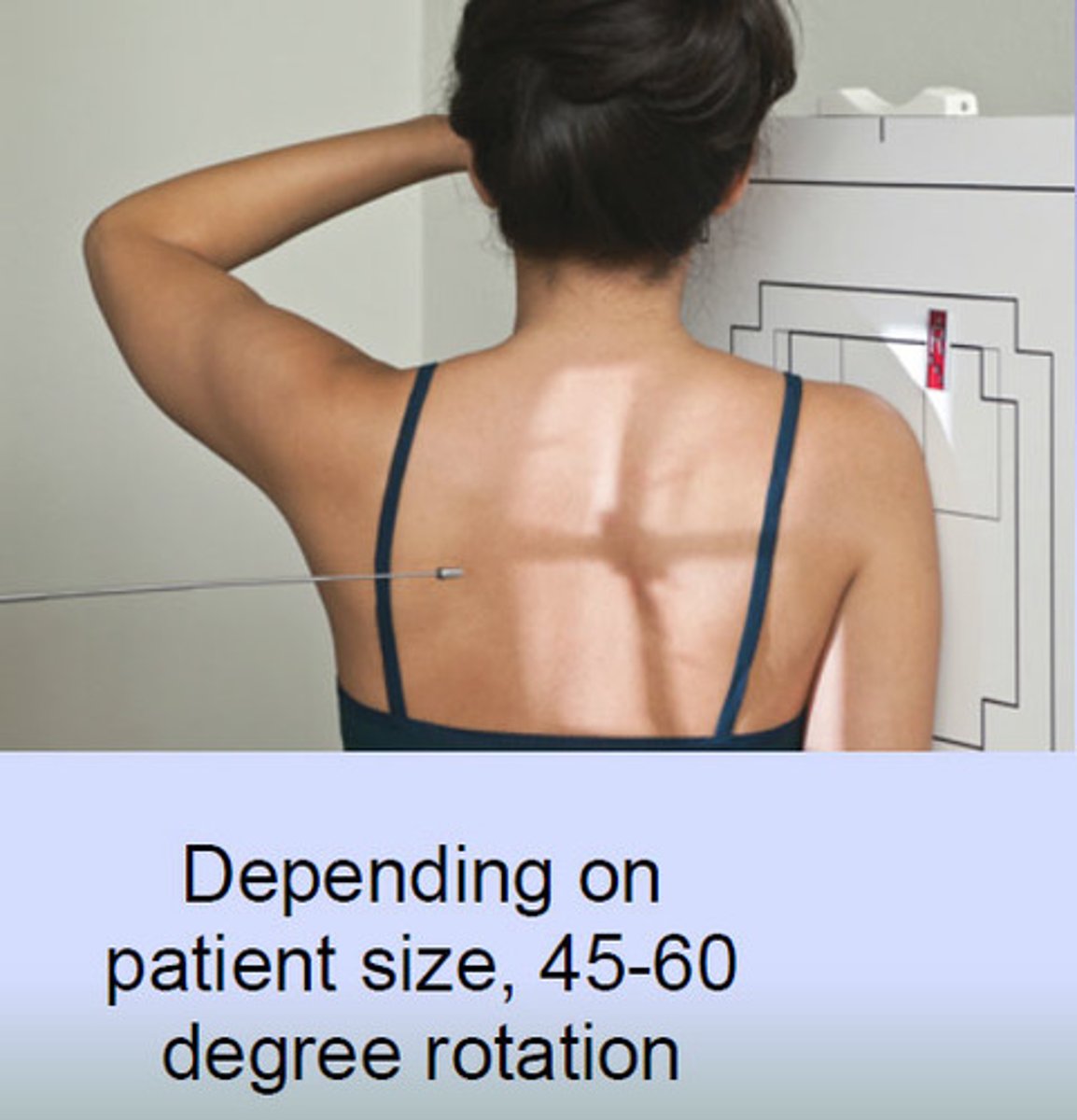

used to rule out dislocations of humeral head (posterior and anterior), PA oblique projection, center mid scapula, lateral scapula

Neer Method (tangential shoulder supraspinatus outlet)

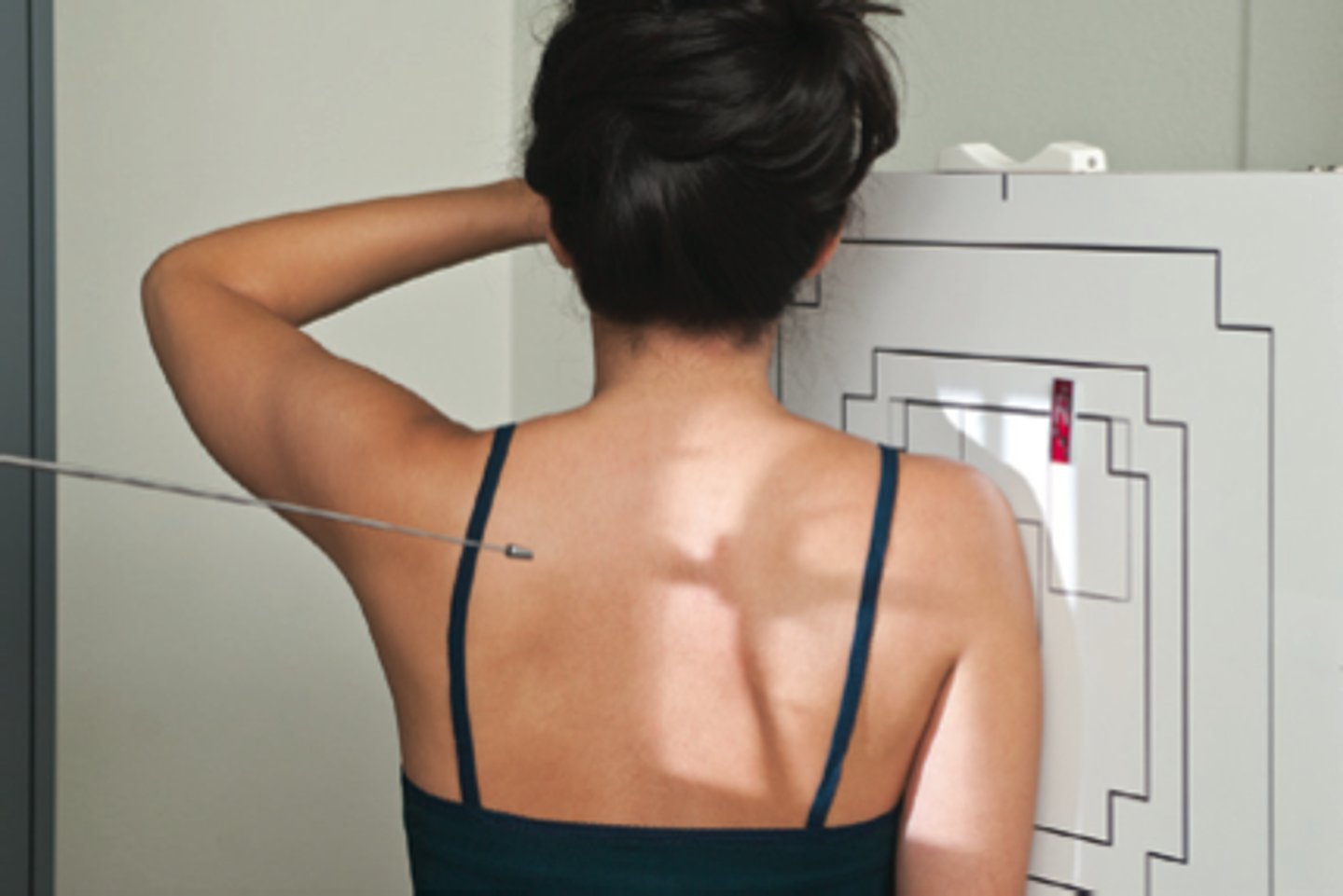

coracoacomial arch in profile, similar to lateral scapula, CR angled 10-15° caudal, suprasinatis outlet free of superimposition

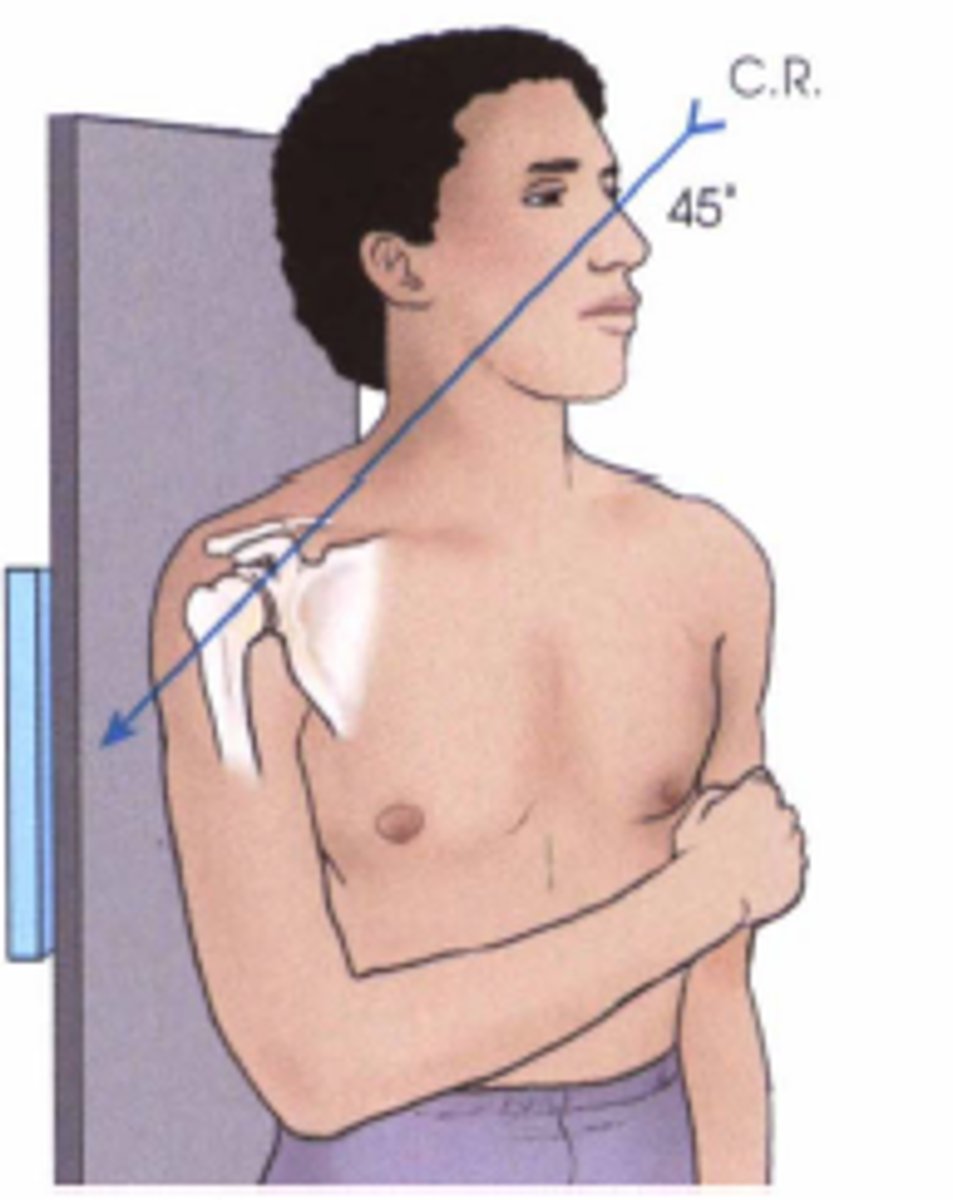

Garth Method (AP axial oblique shoulder trauma)

used to see glenoid fractures, Hill-Sachs, and humeral dislocations, posterior oblique, CR 45° caudal to scapulohumeral joint

AP clavicle

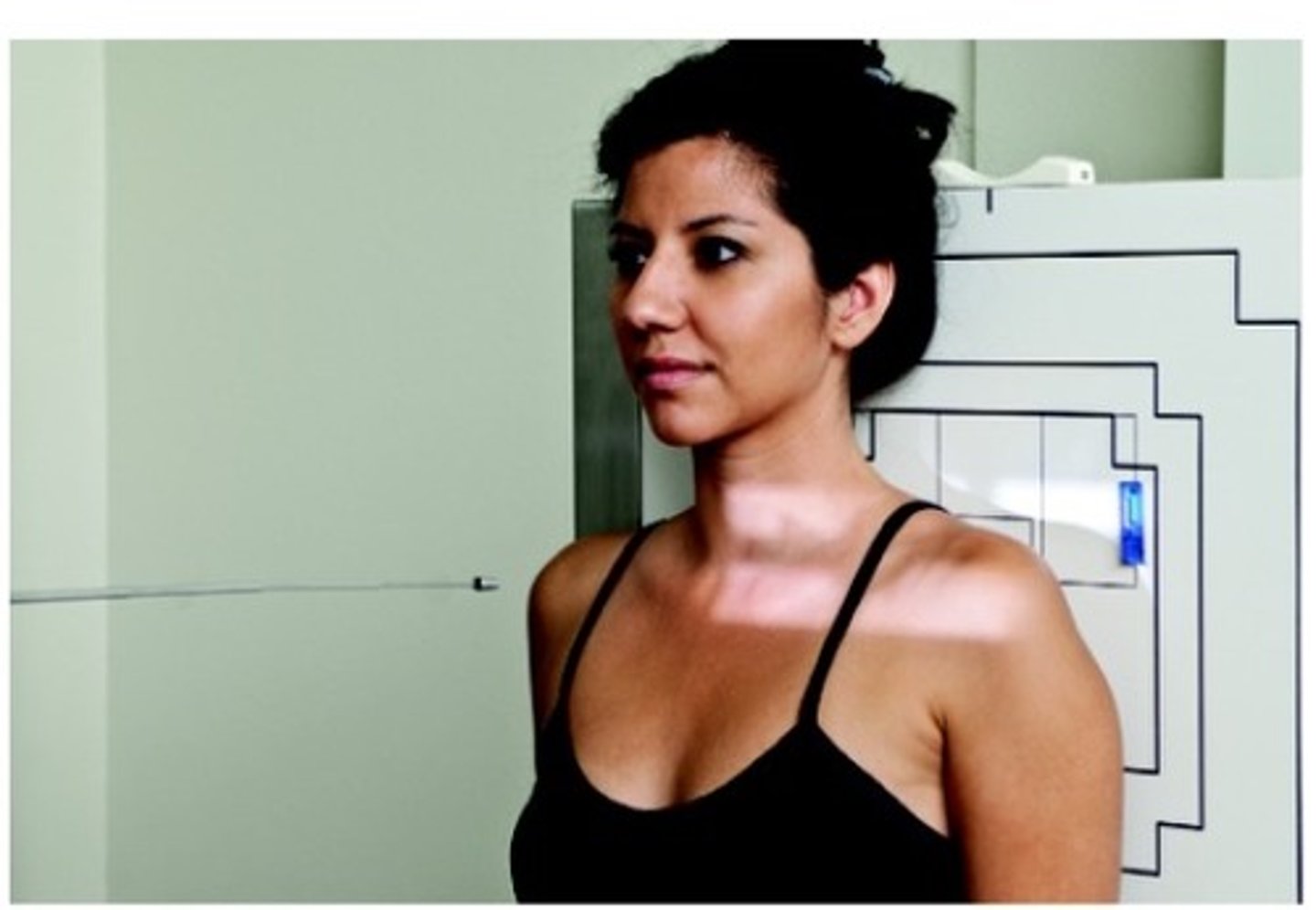

Included AC and SC joints, CR perpendicular to mid clavicle

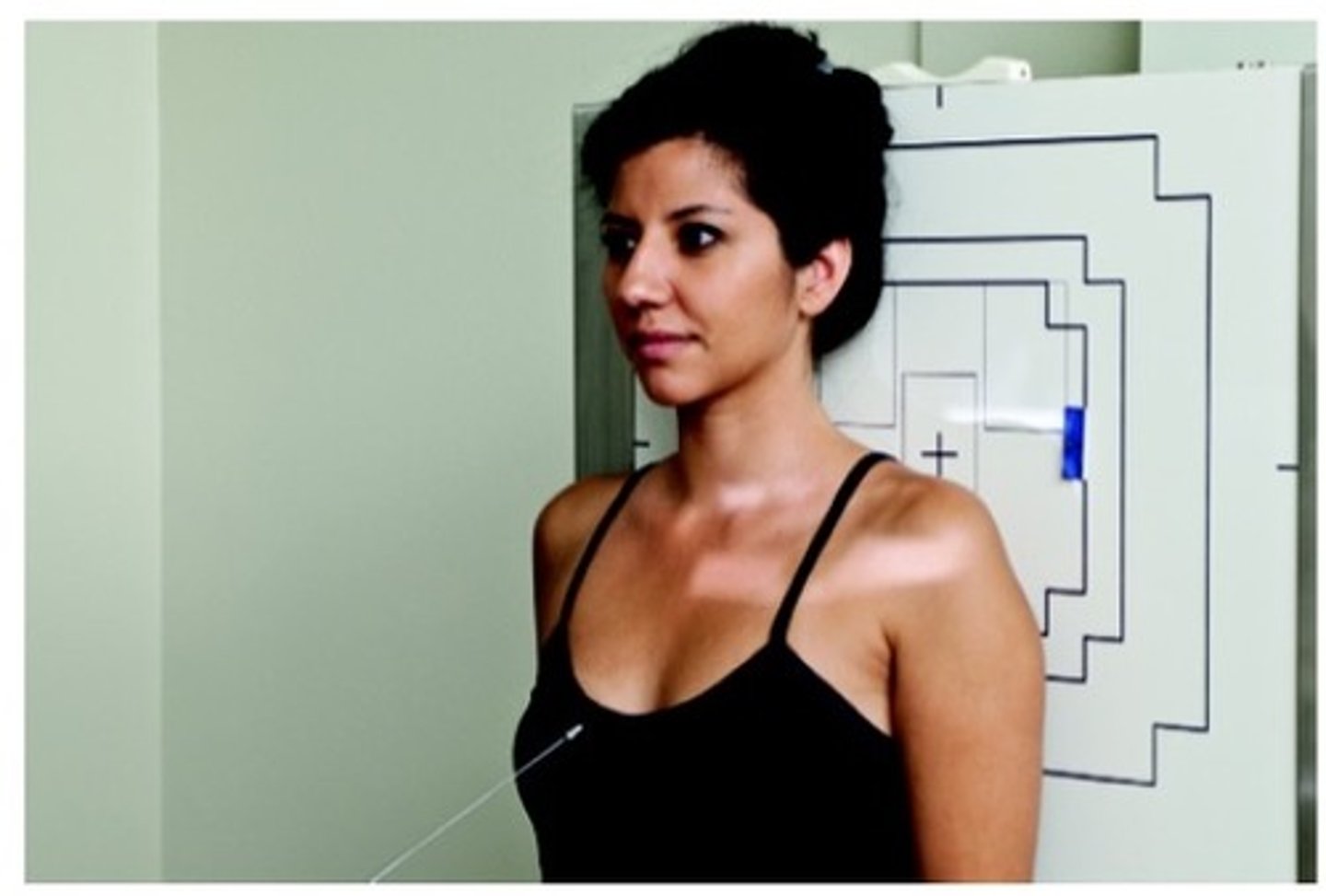

AP Axial Clavicle

include both AC and SC joints, CR angled 15-30° cephalic

AC joints bilateral w/ & w/o

weights

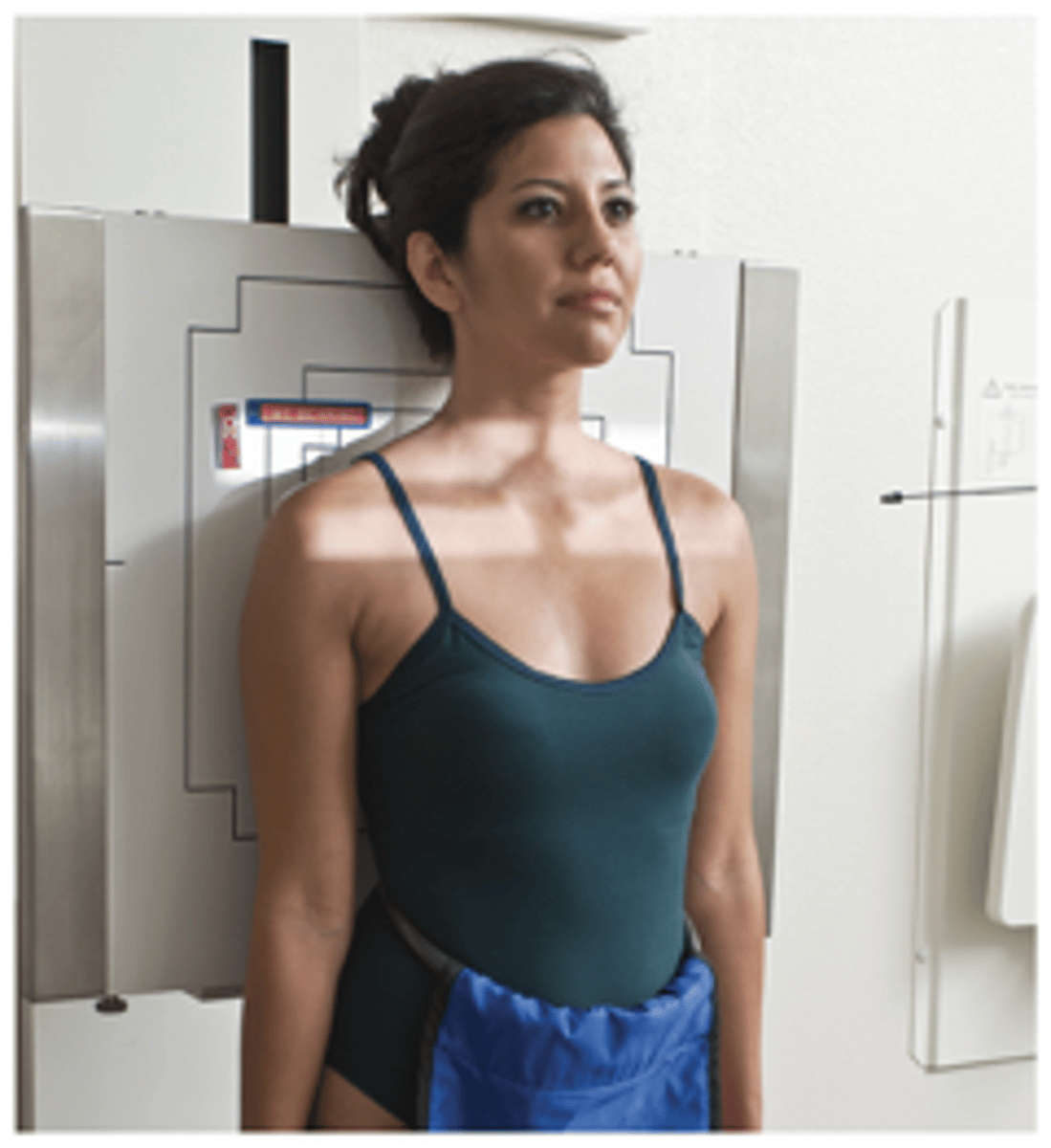

both AC joints included on one view, use 72 SID, CR perpendicular to jugular notch

AP axial AC joints

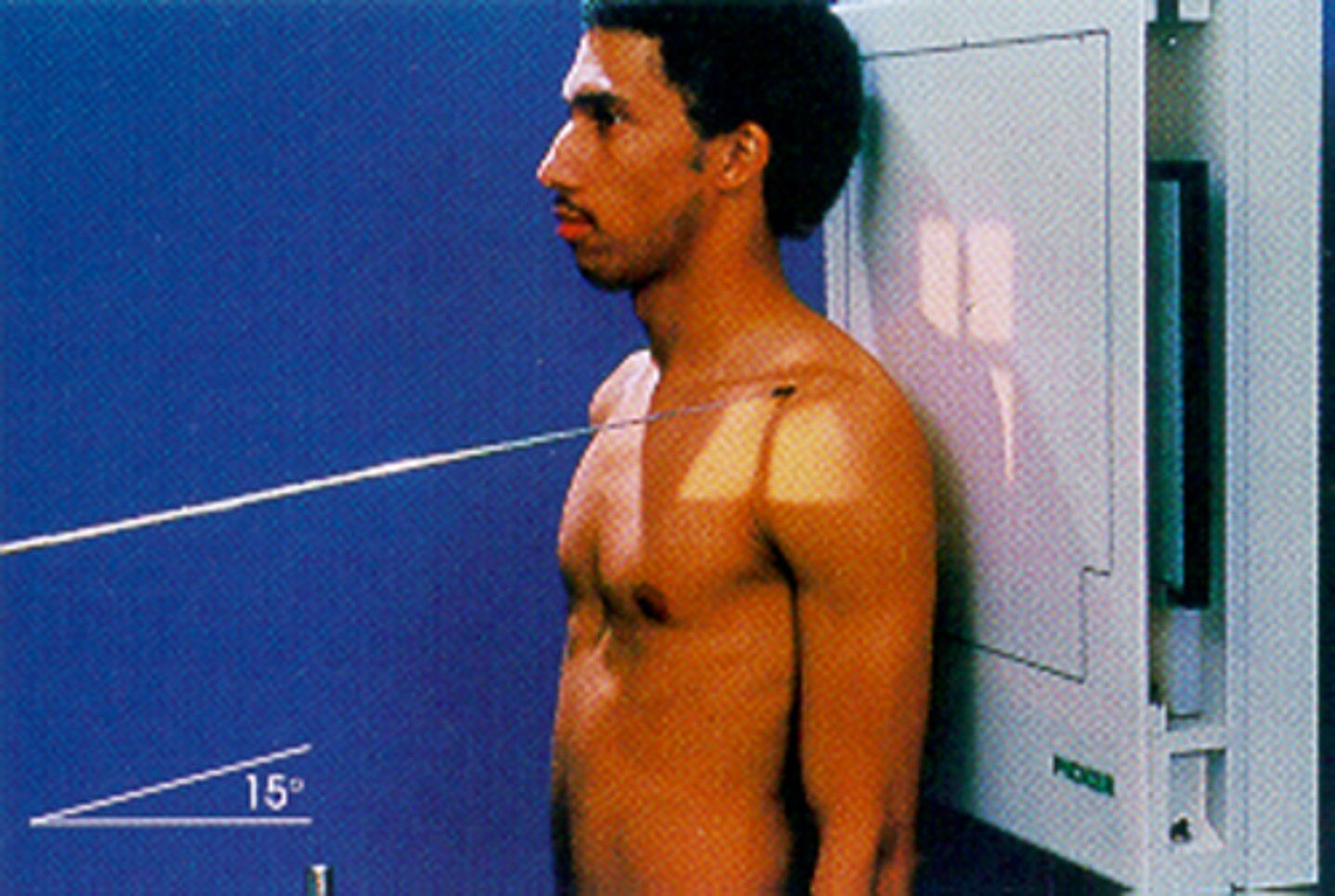

CR angled 15° cephalic, alternate to AC joint bilateral, projects AC joints superior to acromion

AP Scapula

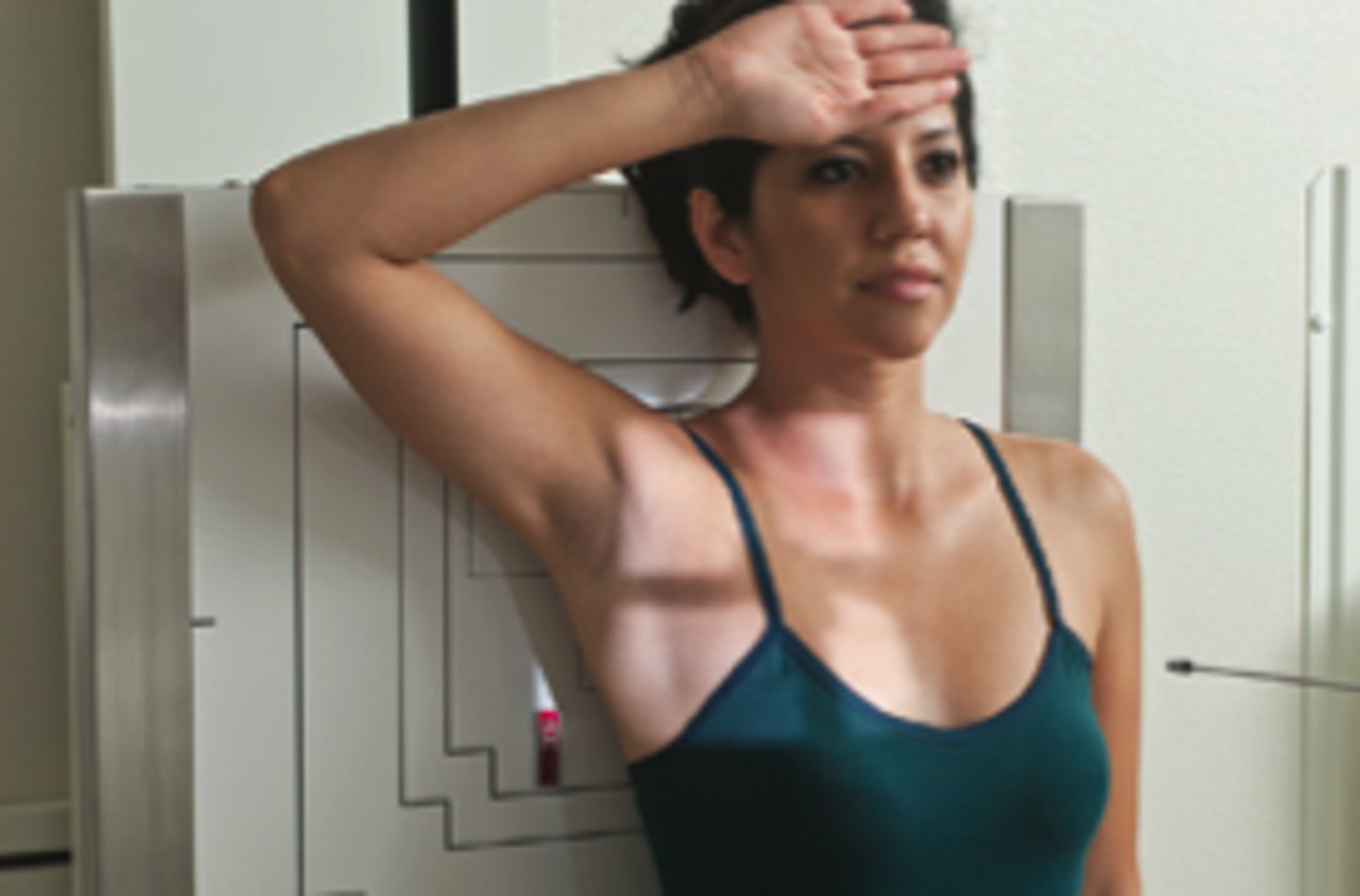

CR perpendicular to mid scapula, orthostatic breathing used, rotation towards affected side for true AP

Scapular Y Scapula (lateral scapula for body)

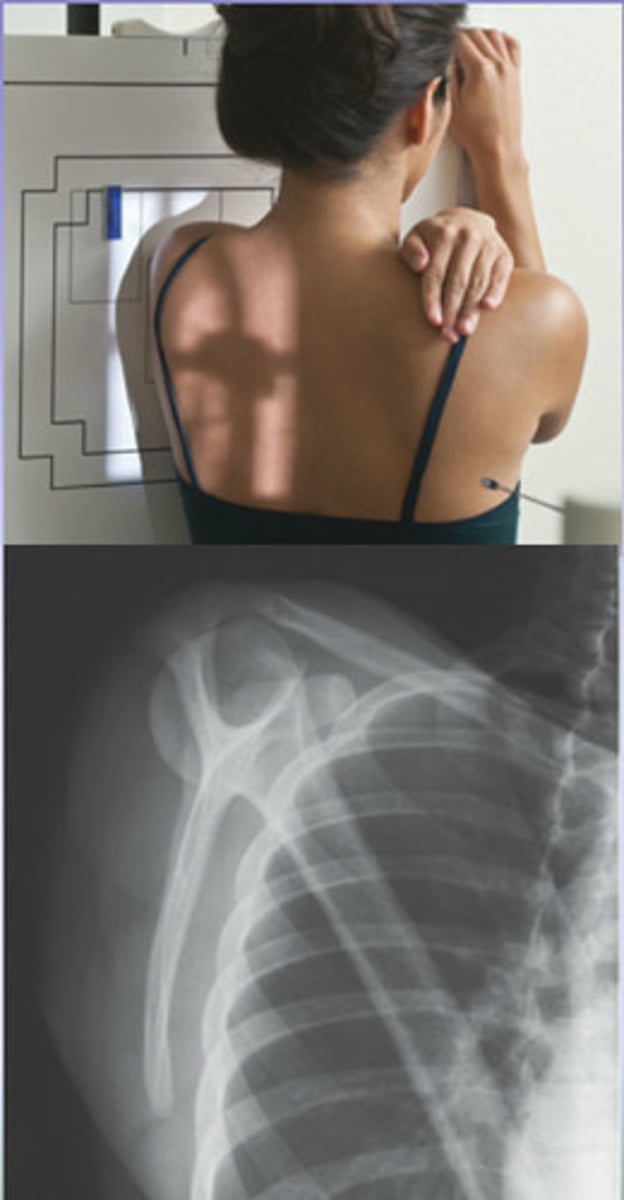

patient in 45° anterior oblique, cross affected arm onto shoulder to remove humerus from scapular body

Lateral Scapula for Acromion or Coracoid

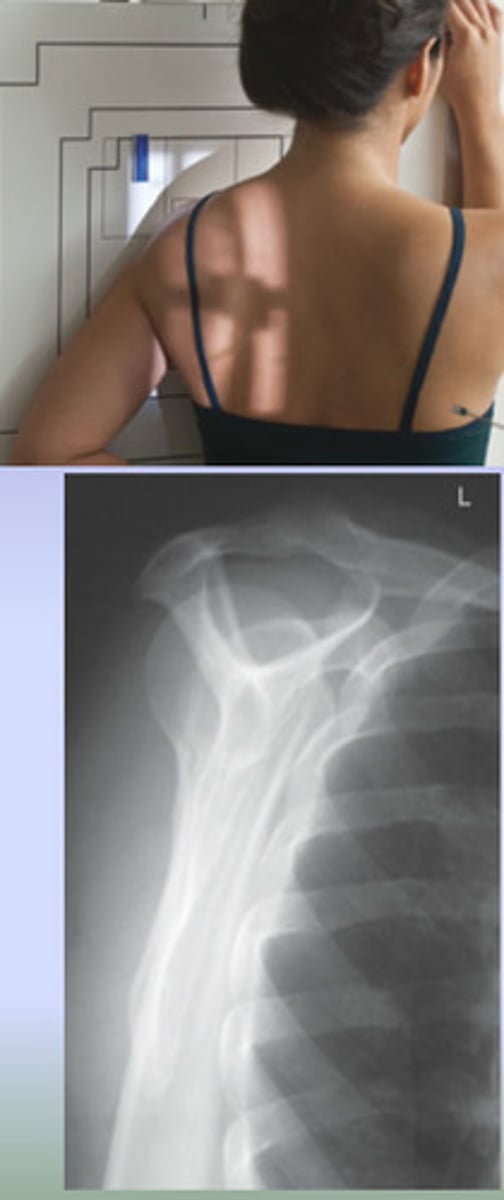

patient in 60° anterior oblique, CR perpendiclar mid body of scapula

Lateral Scapula Recumbent

Routine Scapular Y

• still lateral scapula (body perpendicular

to IR)

• 45 degree anterior oblique for body, affected arm opposite shoulder

• 60 degree anterior oblique for coracoid & acromion, affected arm behind body

• CR perpendicular to mid scapular body
