Combinational logic

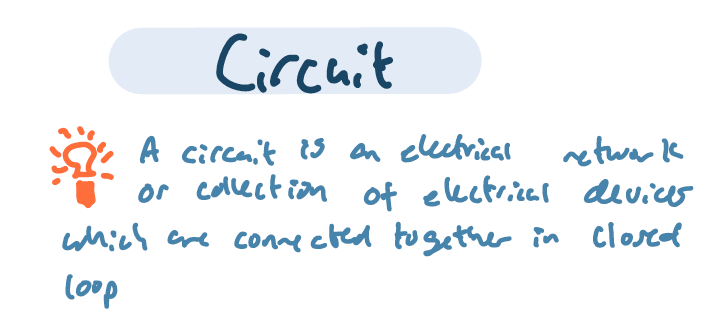

What is a circuit?

What is a digital circuit?

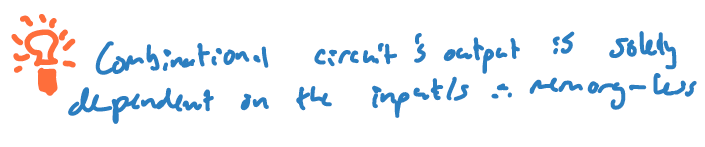

What is a combinational circuit?

What is minterms

It is the sum of the products of literals in which each literals occurs once and the output is 1

What is maxterms?

It is the product of the sums of literals in which each literals occurs once and the output is 0

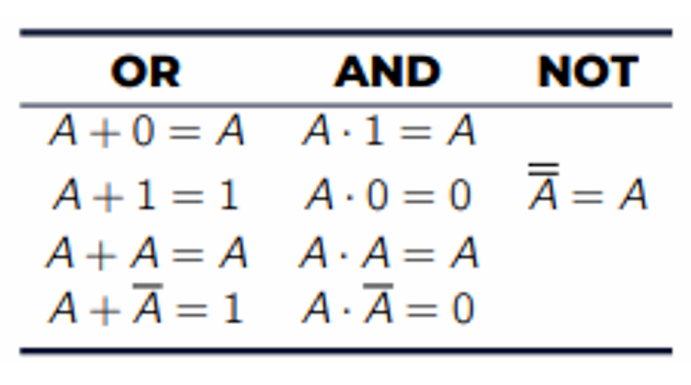

What are the basic Boolean identities?

What is the order of precedence for boolean logic?

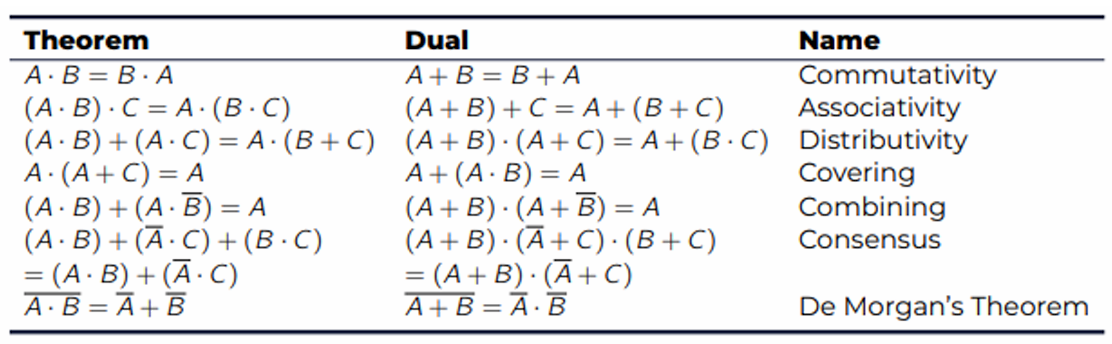

Boolean theorems for several variables

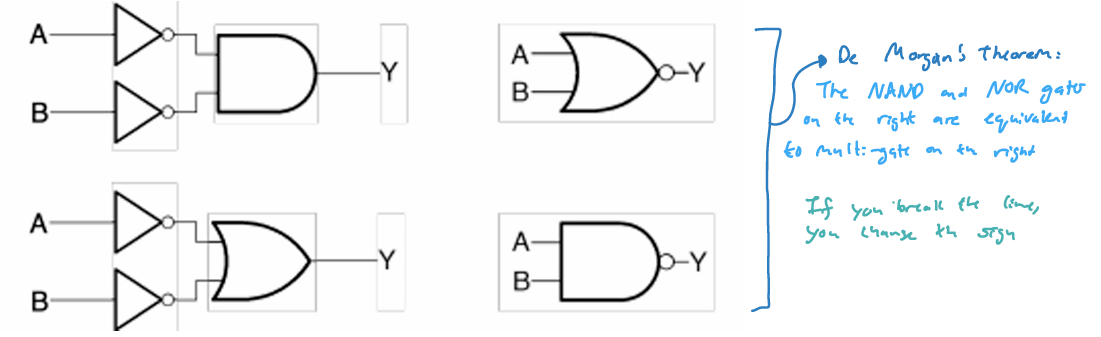

What is De Morgon’s Law

What is Karnaugh map?

What are the rules for Karnaugh map?

What are the properties of minterms and maxterms

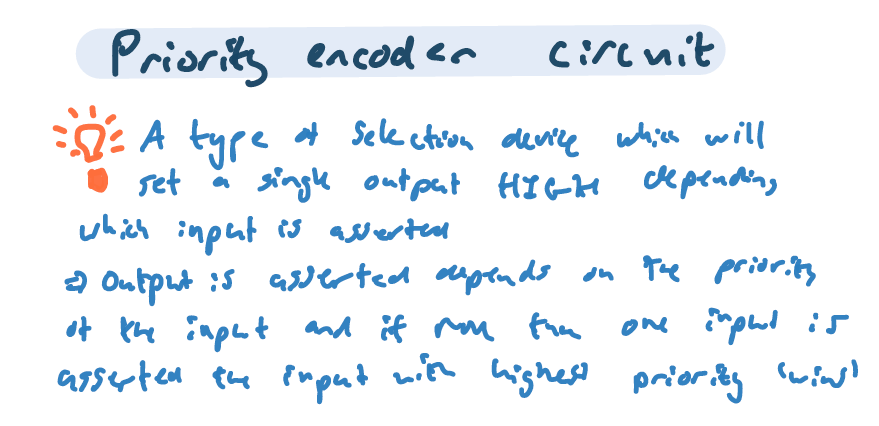

What is a priority encoder circuit?

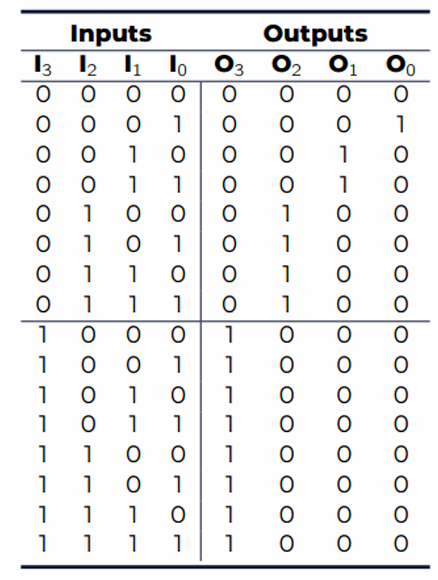

Give the un-simplified truth table for priority encoder circuit

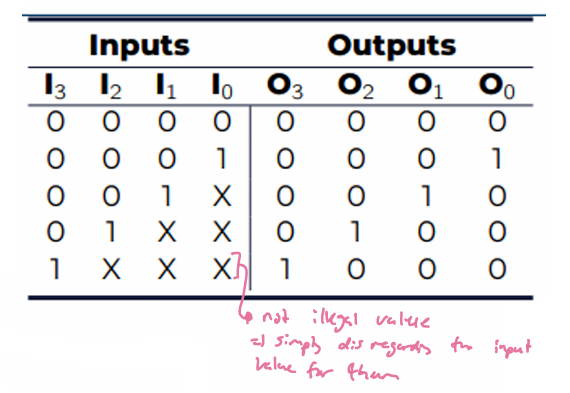

Give the simplified truth table for priority encoder circuit

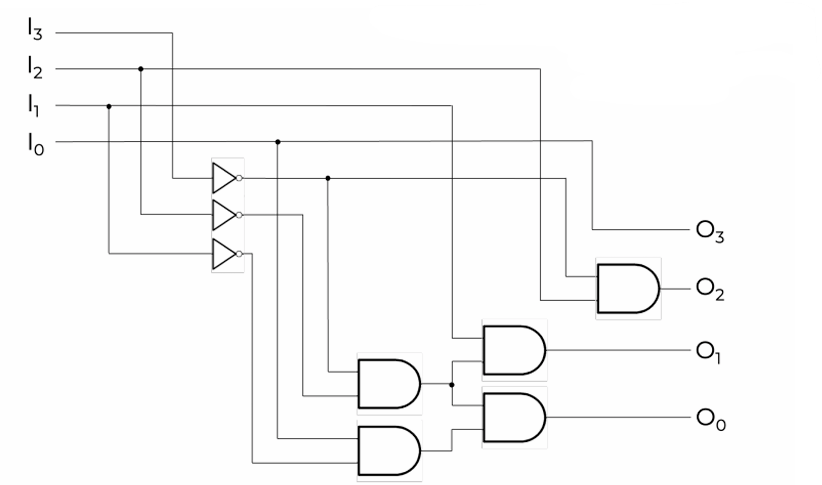

Draw the circuit diagram for priority encoder circuit

What are the application for encoder?

• Data compression

• Security

• Interfacing

What is an encoder?

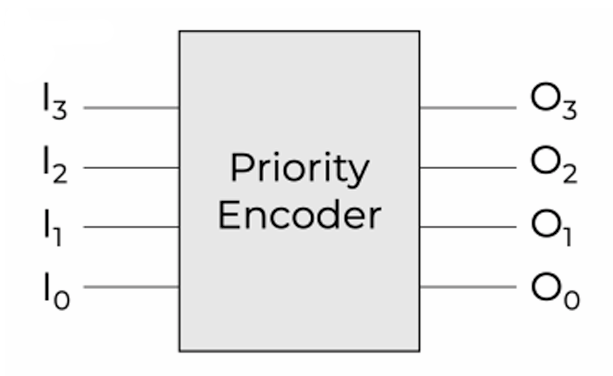

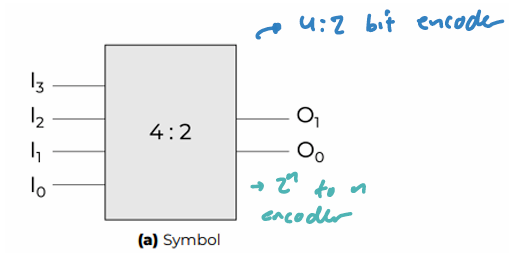

Give the symbol for priority encoder circuit

Give the symbol for encoder

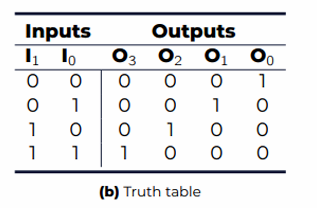

A truth-table for encoder

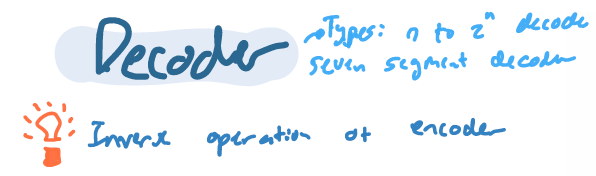

What are the different types of decoder

• n to 2ⁿ decoder

• Seven segment decoder

What is a decoder

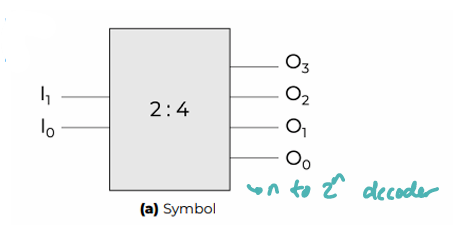

Draw a symbol for decoder

Make a truth table for a decoder

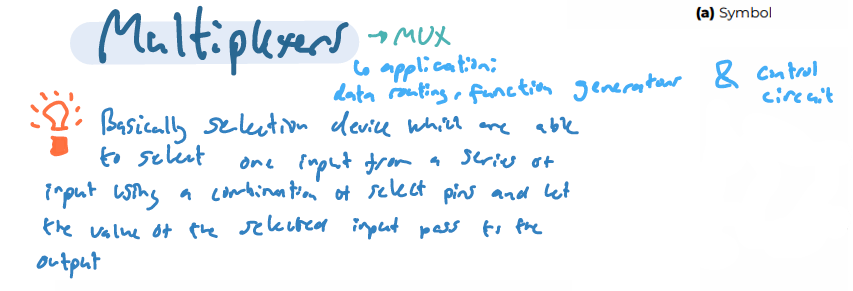

What is a multiplexer?

What are the applications of a multiplexer?

• Data routing

• Function generator

• Control circuit

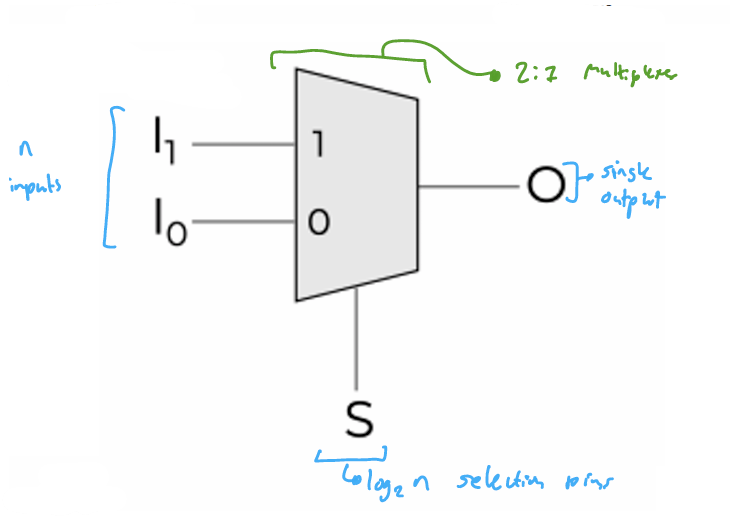

Draw a diagram for a multiplexer

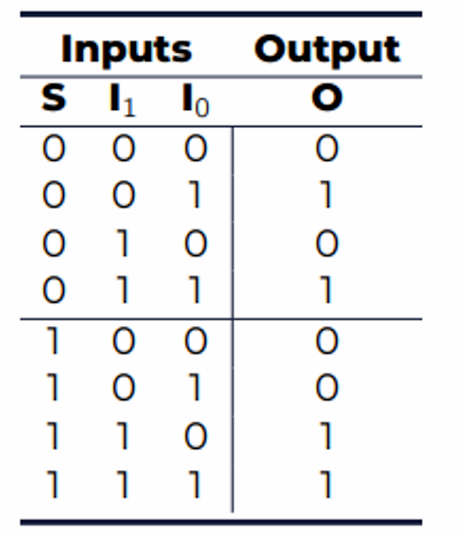

Draw a truth table for a multiplexer

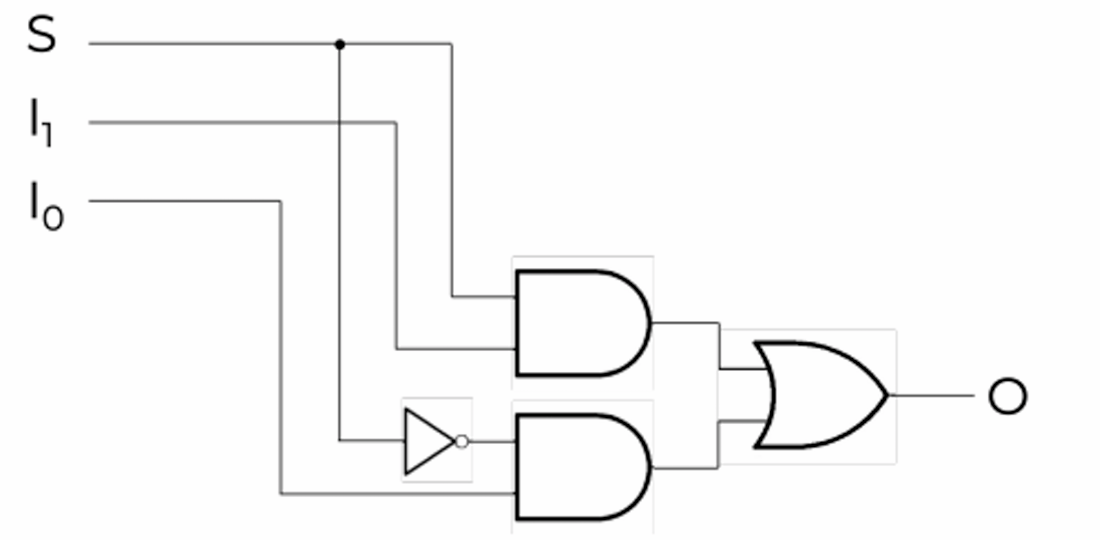

Draw a circuit diagram for a multiplexer

What is a demultiplexer?

What are the applications for a demultiplexer?

• Data distribution

• Address decoding

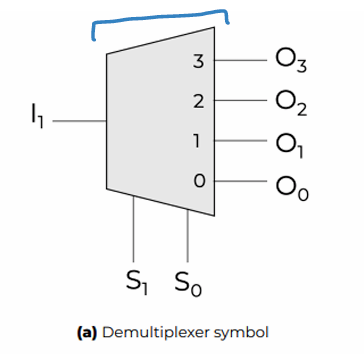

Draw a diagram for demultiplexer

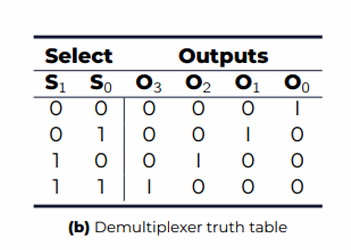

Draw a truth table for a demultiplexer

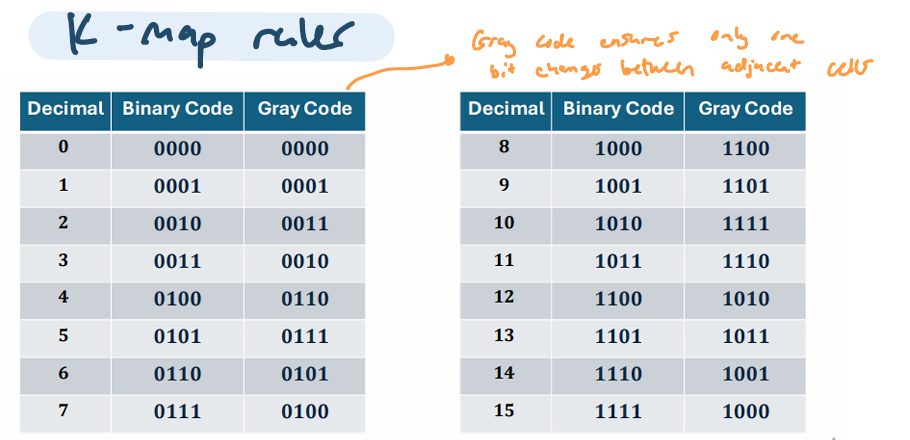

Where are graycode used?

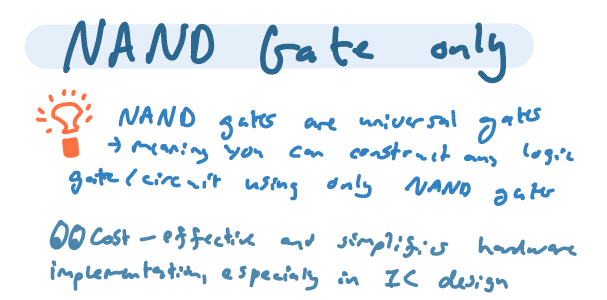

Why do we have NAND gate only representation

What are some identities you need for NAND gate only realization?

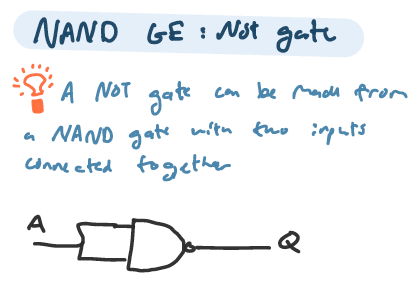

NAND gate only for NOR gate

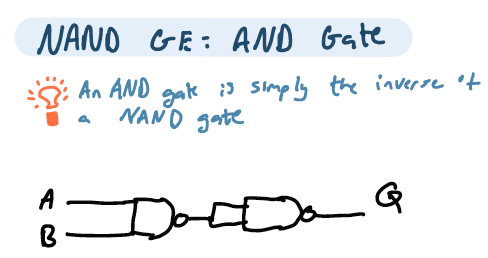

NAND gate only for AND gate

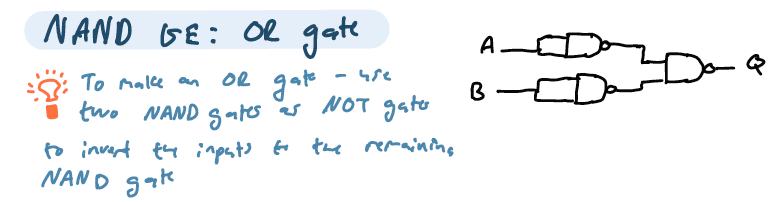

NAND gate only for OR gate
