Technology HW #8

The logic gate that will have a "1"  output when either one of its inputs is "1" is a(n):



OR gate

The format used to present the logic output for the various combinations of logic inputs to a gate is called a(n):



Truth Table

Digital numbers can identify items, and ____________.



make logical decisions

What is this digital number as a decimal:  11100



-4

What is 31 as a digital number?

011111

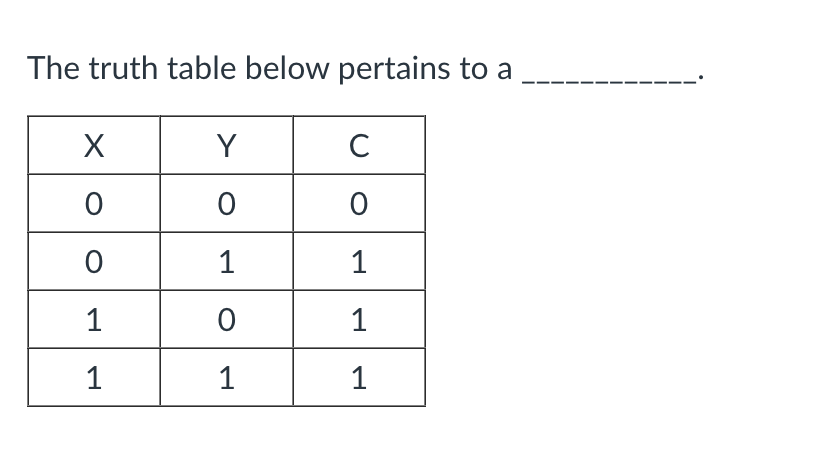

The truth table below pertains to a ____________.



An OR gate

The output of a NOR gate is "True" if             .



both inputs are "False"

What is 01111 + 1 in binary?

010000

If a material has a resistance of 2.3 x 10⁵  ohms. it is a . . .

insulator

In an electronic circuit, a transistor acts as a . . .



amplifier or switch

Silicon is a common element found in _______ and is _______ percent of the Earth's crust.



sand, 28%

A dialectic is the same thing as . . .



an insulator

The output of a NOT gate is "True" when ________.



input is "false"

A 9 v. battery is connected to a parallel circuit. The circuit has a 3 ohm resister on it, and a short circuit. How much current will go through the resister?

none

What is 13 in binary?



01101

Which of the following is not a basic Boolean operation?

FOR

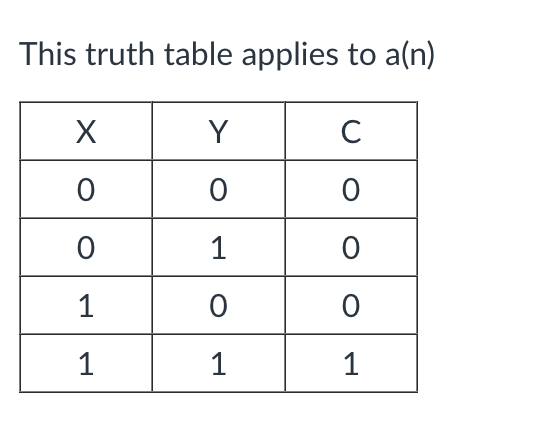

This truth table applies to a(n)



AND gate

The full adder consists of the following logic gates



XOR, AND and OR

he output of a XOR gate can be used for ___________ bits without a carry.

Adding

An AND gate produces a similar output to _____________ bits.

Carrying
