326 Pure Anatomy: Brain & Cranial Nerves

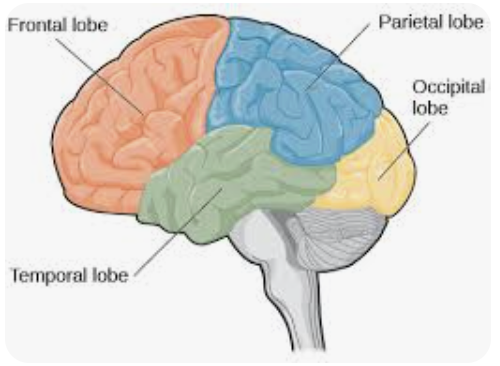

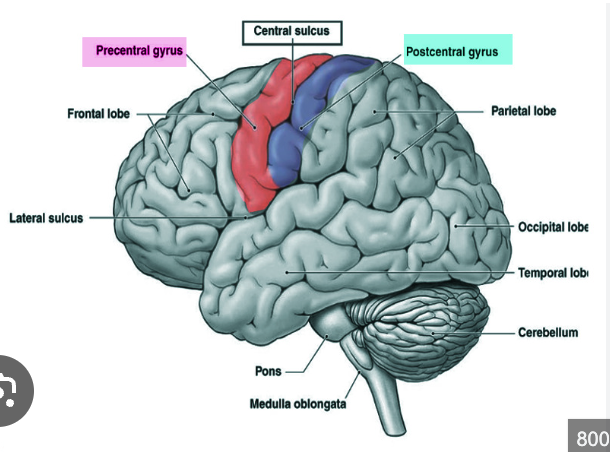

Name the 4 lobes of the brain and point out their location

Name this sulcus of the brain

Central Sulcus

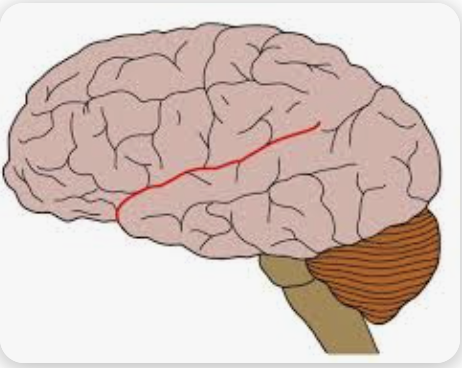

Name this fissure

Sylvian (lateral) fissure

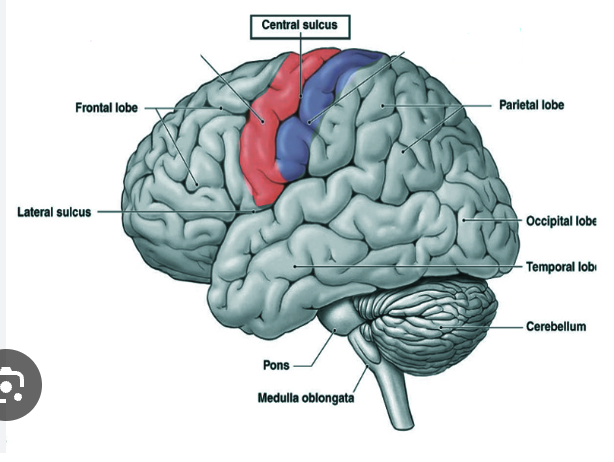

Fill in the missing labels

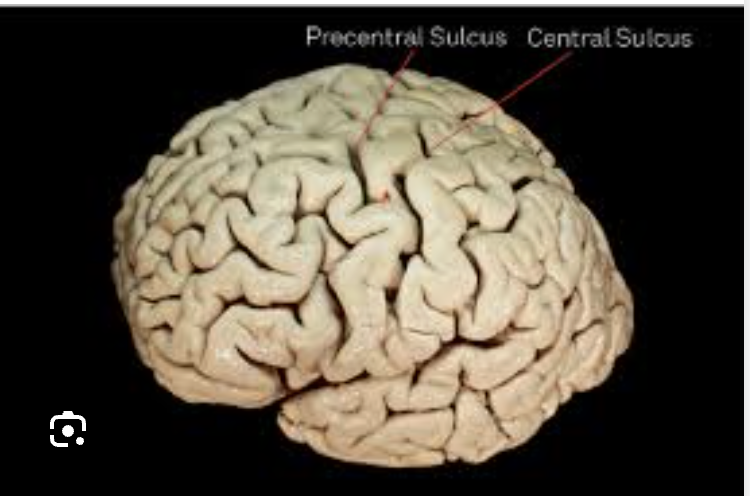

Name these two sulcus

Name this sulcus

parieto-occipital sulcus

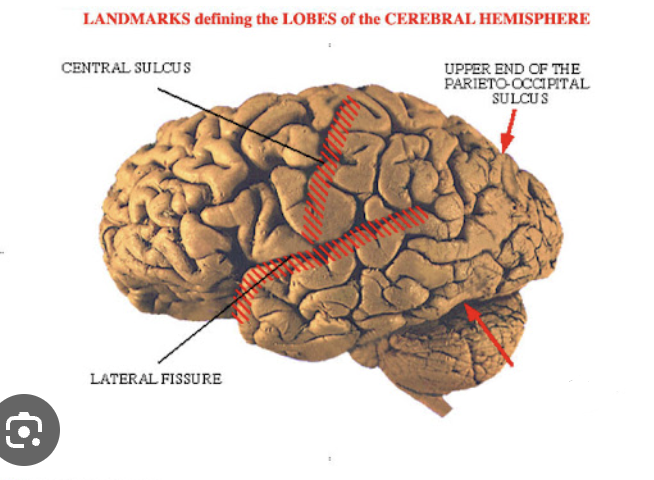

Name the missing label

Pre-occipital notch

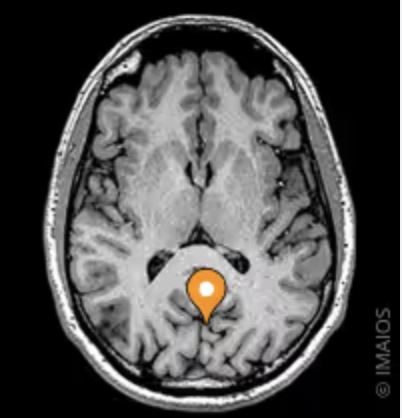

what is the modality, what is the plane, and what are we looking at

MRI, transverse, parieto-occipital sulcus

what is the modality, what is the plane, and what are we looking at

MRI, sagittal, parieto-occipital sulcus

what is the modality, what is the plane, and what are we looking at

MRI, transverse, preoccipital sulcus

Name the missing labels

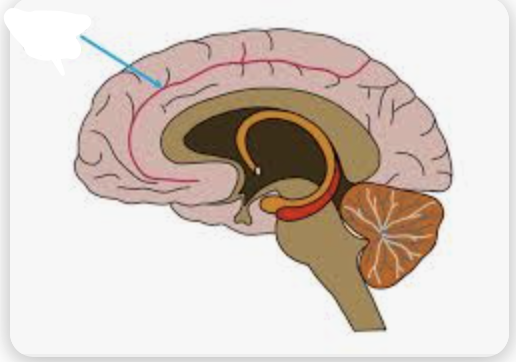

Name this sulcus

Cingulate sulcus

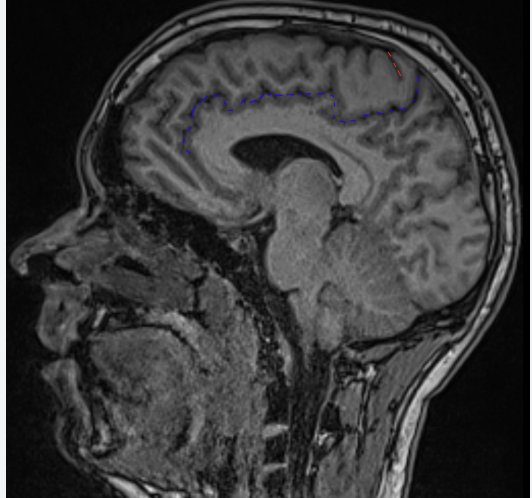

Name the sulcus highlighted in blue, and the modality and plane

cingulate sulcus, MRI, sagittal

Name the sulcus, modality, and plane

Cingulate sulcus, CT, sagittal

Name the sulcus, modality, and plane

Cingulate sulcus, MRI, transverse

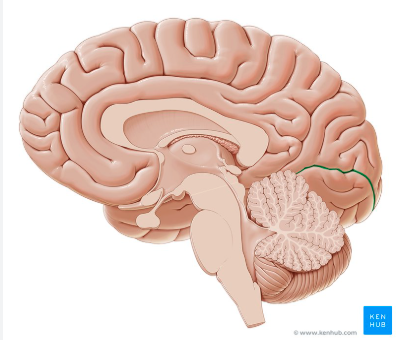

Name this sulcus

Calcarine sulcus

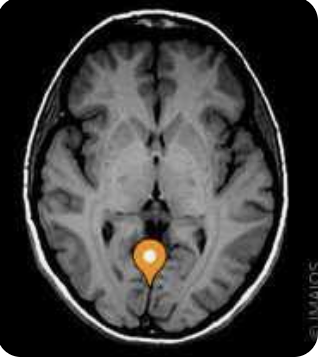

Name the sulcus, modality, and plane

Calcarine sulcus, MRI, transverse

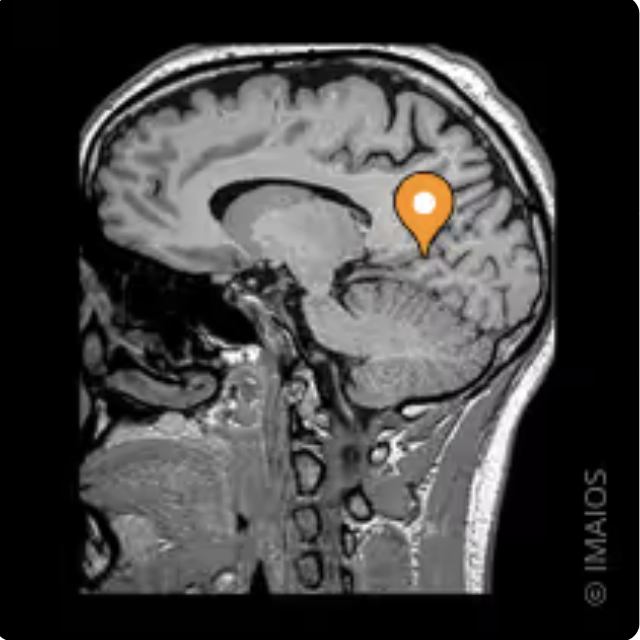

Name the sulcus, modality, and plane

Calcarine sulcus, MRI, sagittal

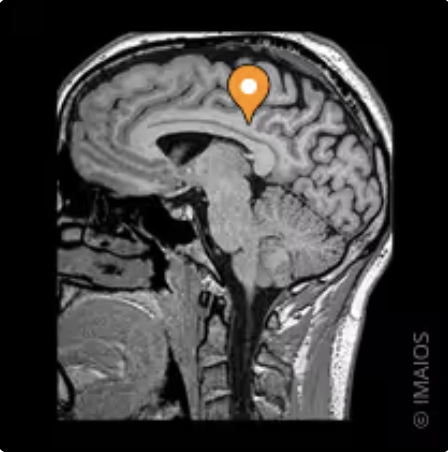

Name the gyrus, modality, and the plane

Cingulate gyrus, MRI, sagittal

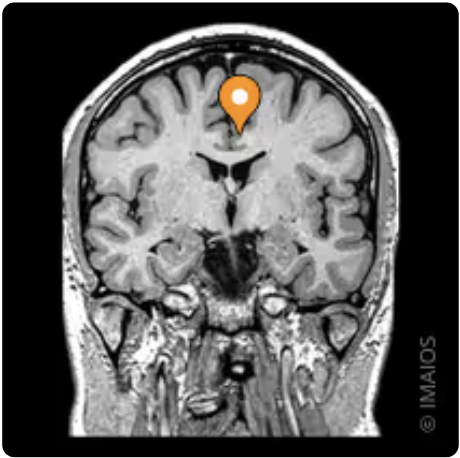

Name the gyrus, modality, and the plane

Cingulate gyrus, MRI, coronal/frontal

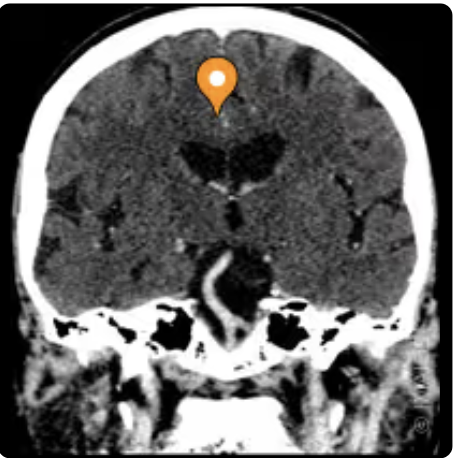

Name the gyrus, modality, and the plane

Cingulate gyrus, CT, Coronal/frontal

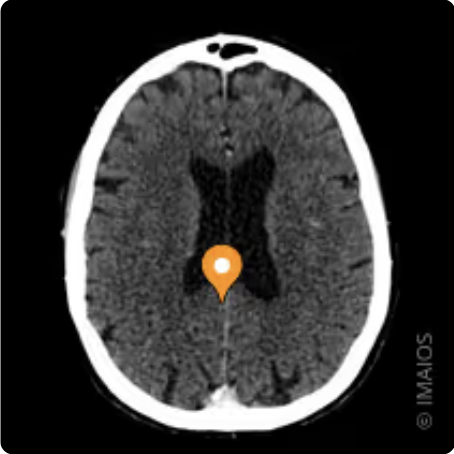

Name the gyrus, modality, and the plane

Cingulate gyrus, CT, transverse

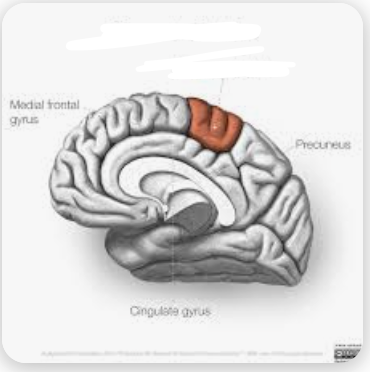

Name the highlighted area

Paracentral lobule

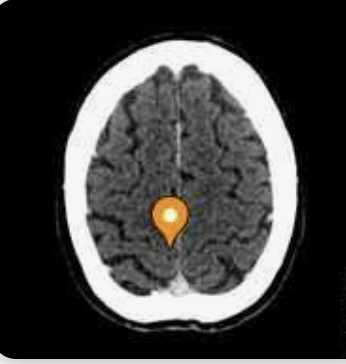

Name the area, modality, and plane

paracentral lobule, CT, transverse

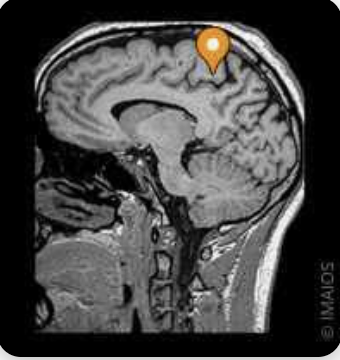

Name the area, modality, and plane

paracentral lobule, MRI, sagittal

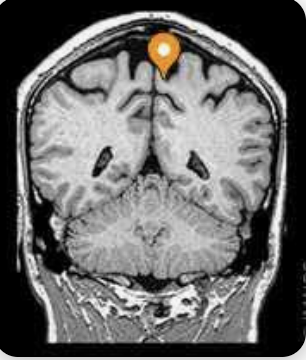

Name the area, modality, and plane

paracentral lobule, MRI, coronal/frontal

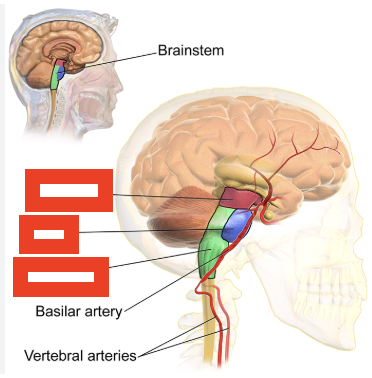

Fill in the missing labels

Red → midbrain

Blue → Pons

Green → medulla oblongata

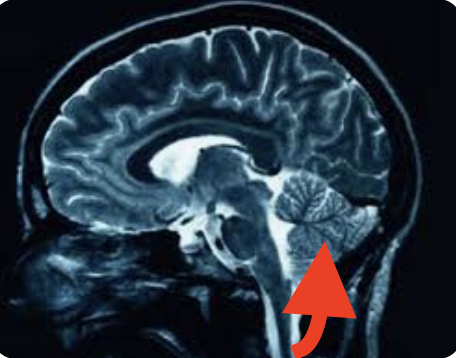

Point to where the cerebellum is

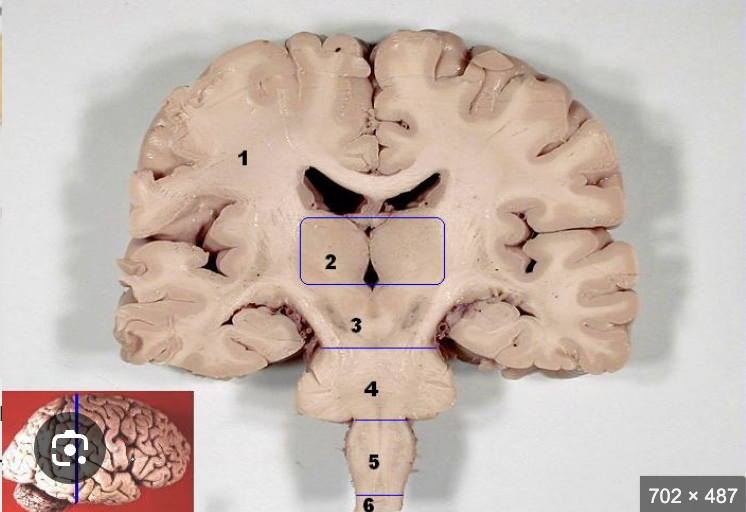

Label 2, 3, 4, 5 and 6 (brain stem)

2 → thalamus

3 → midbrain

4 → pons

5 → medulla oblongata

6 → spinal cord

Name the major white matter tract, modality, and plane

Corona radiata, MRI, sagittal

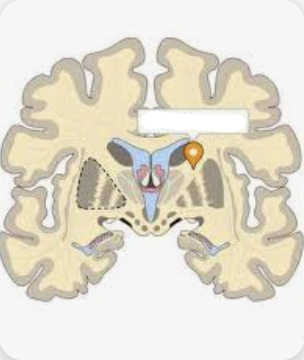

Name the major white matter tract

Corona radiata

Name the major white matter tract

Internal capsule

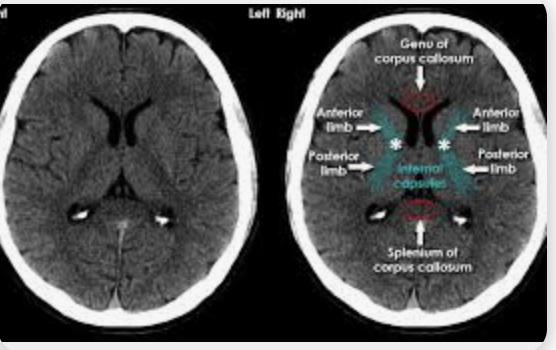

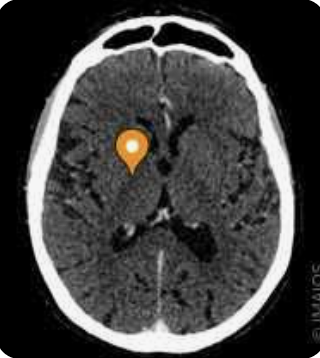

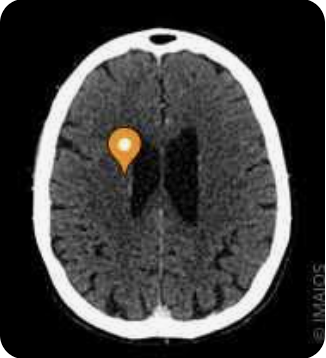

Name the major white matter tract, modality, and plane

Internal capsule, CT, transverse

Name the major white matter tract, modality, and plane

Corona radiata, CT, transverse

The corona radiata is ______ (superior/inferior) to the internal capsule

Superior

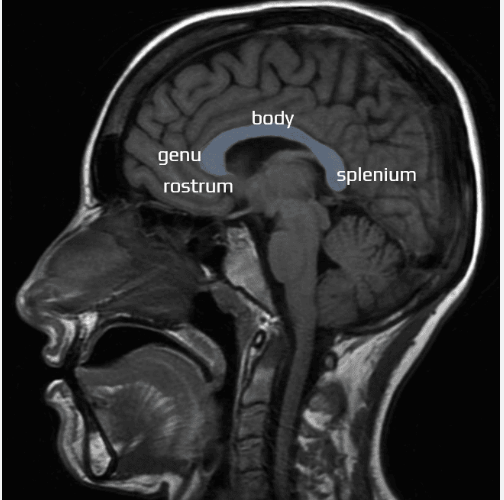

Name the highlighted part of the brain

corpus callosum

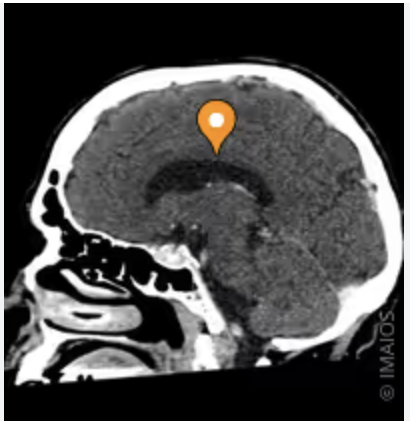

Name the part of the brain, the modality, and the plane

Corpus callosum, CT, sagittal

Name the highlighted area

Corpus callosum

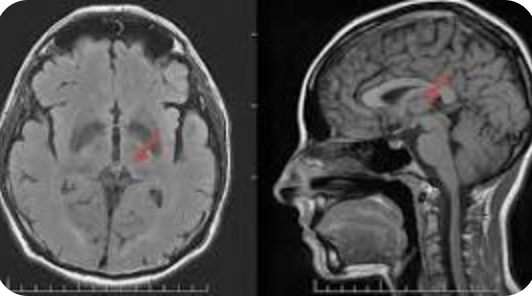

Name the part of the brain, modality, and planes

Thalamus, MRI, transverse, sagittal

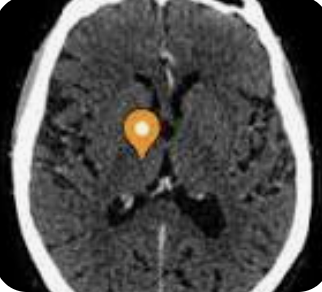

Name the part of the brain, modality, and plane

Thalamus, CT, transverse

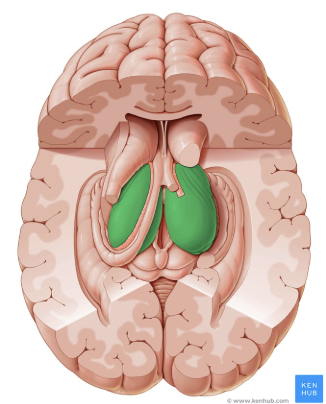

What part of the brain is this

Thalamus

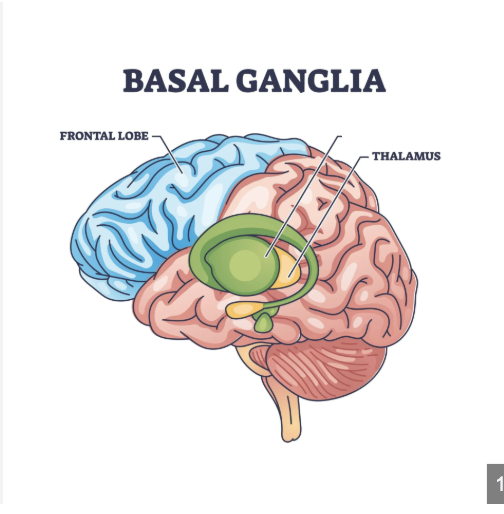

Name the missing label

Basal Ganglia

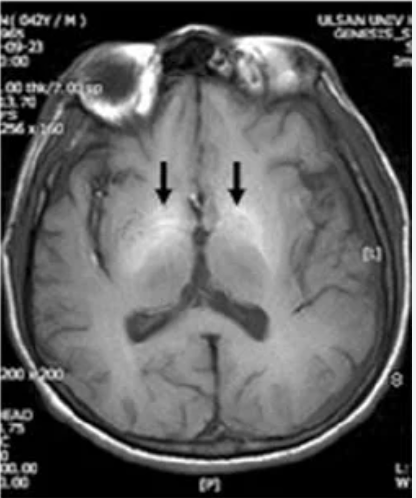

Name this part of the brain

Basal ganglia

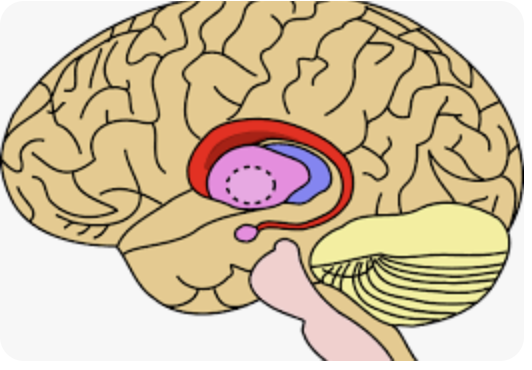

Name the red part, as well as the two pink center areas

Red → Caudate nuclei

Outer pink → Putamina (singular: putamen)

Inner pink → Globus pallidi (singular: glubus pallidus)

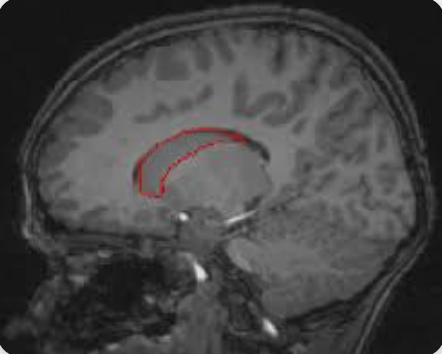

Name the highlighted area, modality, and plane

Caudate nuclei, MRI, sagittal

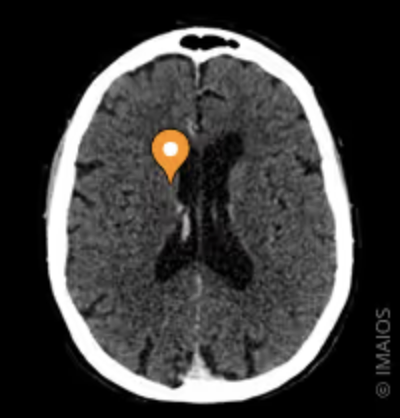

Name the highlighted area, modality, and plane

Caudate nuclei, CT, transverse

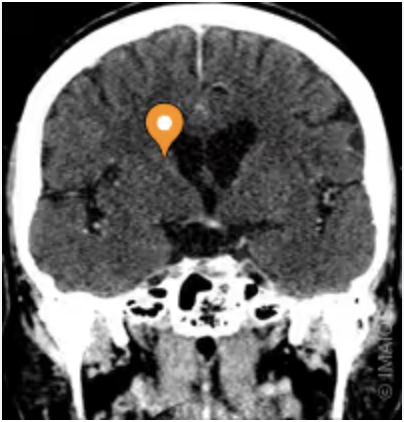

Name the highlighted area, modality, and plane

Caudate nuclei, CT, coronal/frontal

Fill in the missing labels

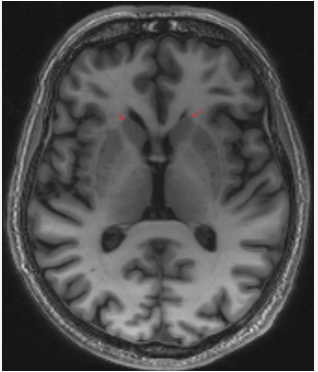

Name the part of the brain

Caudate Nuclei

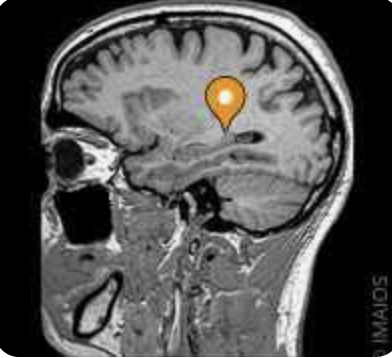

Name the part of the brain, modality, and plane

Tail of caudate nucleus, MRI, sagittal

Name the part of the brain, modality, and plane

Tail of caudate nucleus, MRI, transverse

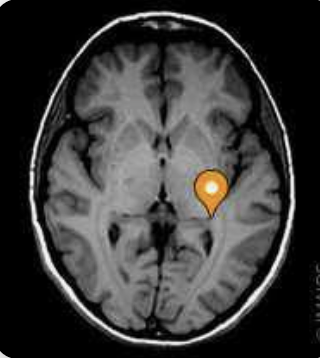

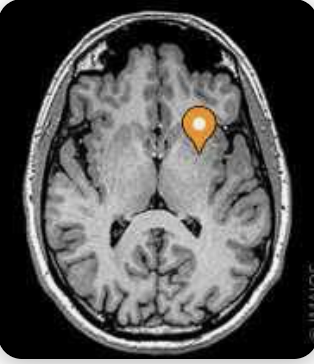

Name the part of the brain, modality, and plane

Putamen, MRI, transverse

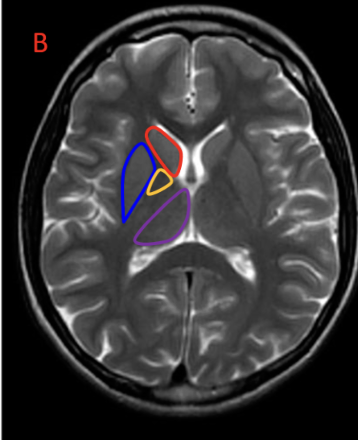

Name the highlighted areas

Red → Caudate nucleus

Yellow → Globus Pallidus

Blue → Putamen

Purple → Thalamus

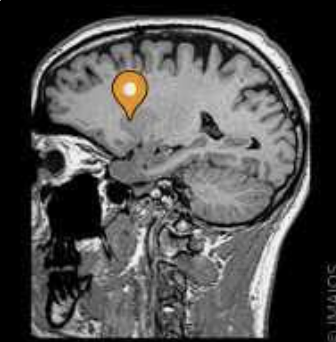

Name this part of the brain

Putamen

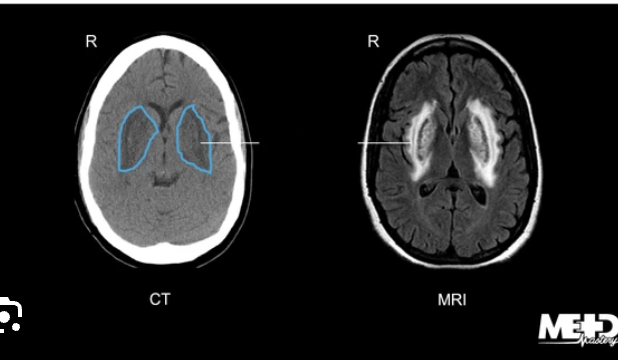

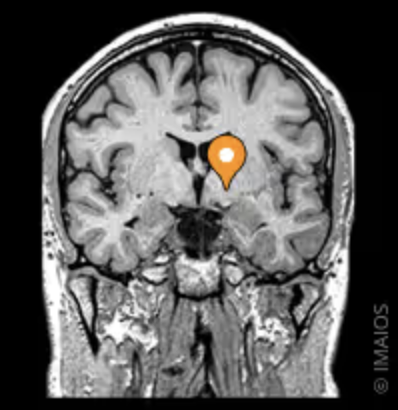

Name this area of the brain

Globus pallidus

Name this part of the brain

Globus pallidus

Name the highlighted areas and the plane of view

Green → Caudate Nucleus

Yellow → Globus Pallidus

Blue → Putamen

Name this part of the brain

Globus Pallidus
