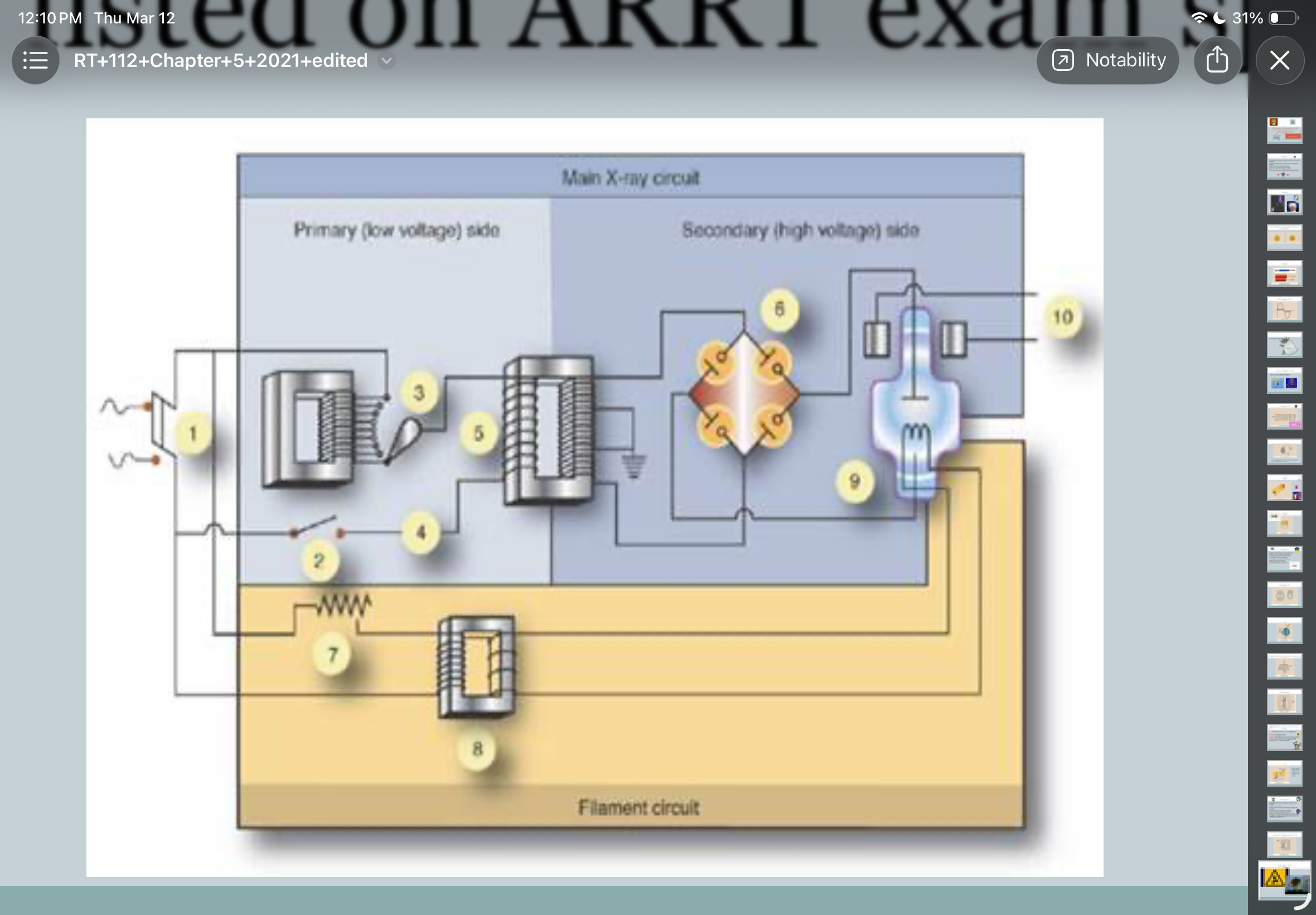

<p>What is #1?</p>

What is #1?

Main breaker/Main power switch
***Brings power supply

2
New cards
<p>What is #2?</p>

What is #2?

Exposure switch
***Starts exposure

3
New cards
<p>What is #3?</p>

What is #3?

Autotransformer
**Allows kVp/Selects kVp

4
New cards
<p>What is #4?</p>

What is #4?

Timer circuit
**Ends exposure

5
New cards
<p>What’s is #5?</p>

What’s is #5?

High voltage step-up transformer

***Increases voltage

6
New cards
<p>What is #6?</p>

What is #6?

Rectification circuit

***Converts incoming power AC to DC

7
New cards
<p>What is #7?</p>

What is #7?

Variable resistance

***Controls amperage/mA

8
New cards
<p>What is #8?</p>

What is #8?

Filament step-down transformer

***Supplies electrons to filament
***Increases thermionic emission

9
New cards
<p>What is #9?</p>

What is #9?

X-ray tube

***Produces x-rays

10
New cards
<p>What is #10?</p>

What is #10?

Rotor/Stator

***Uses AC to induce electricity

11
