Anatomy Practical 4- Human

Kidney

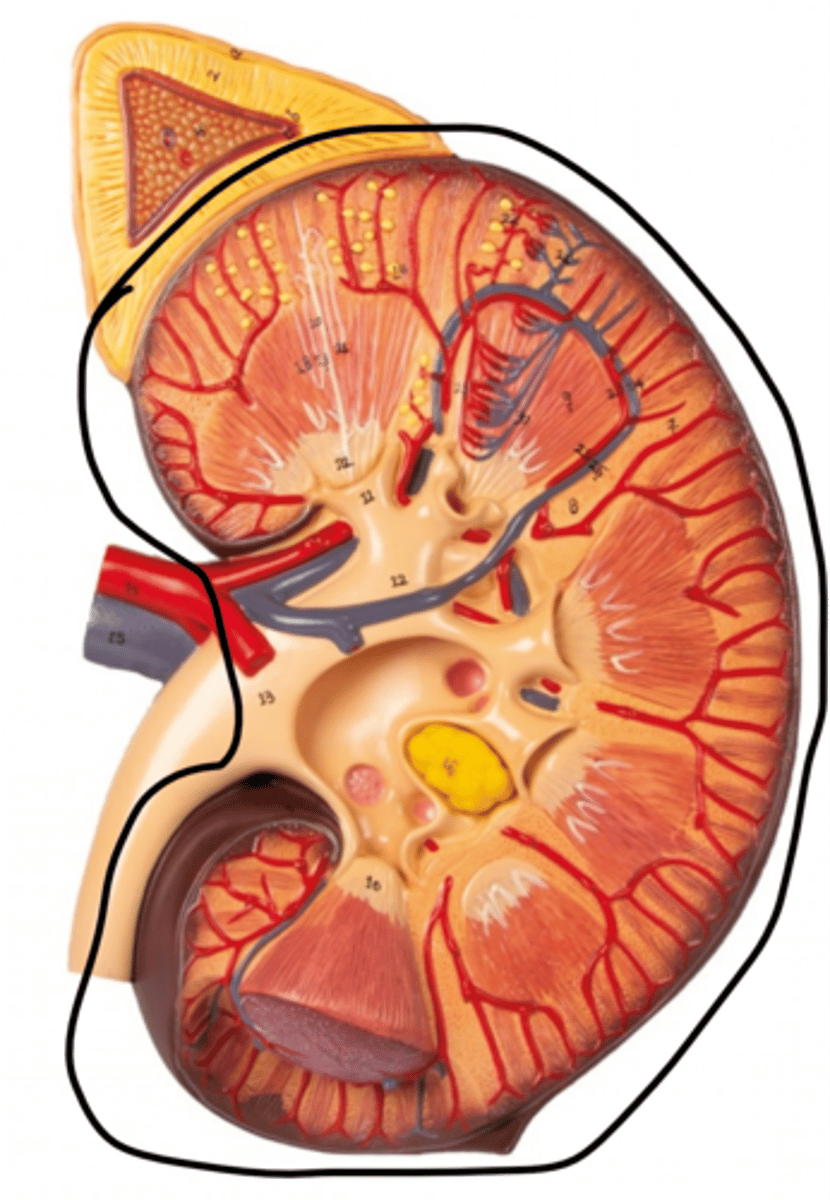

Name this organ.

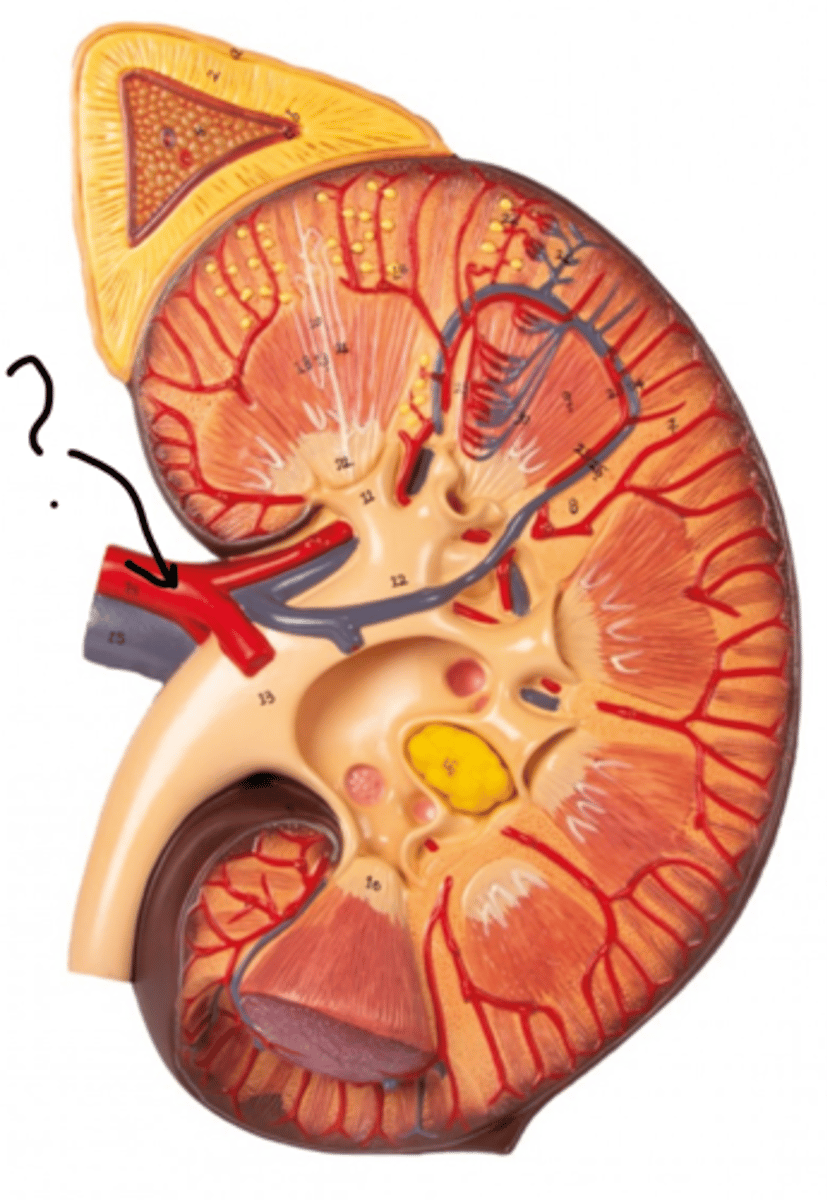

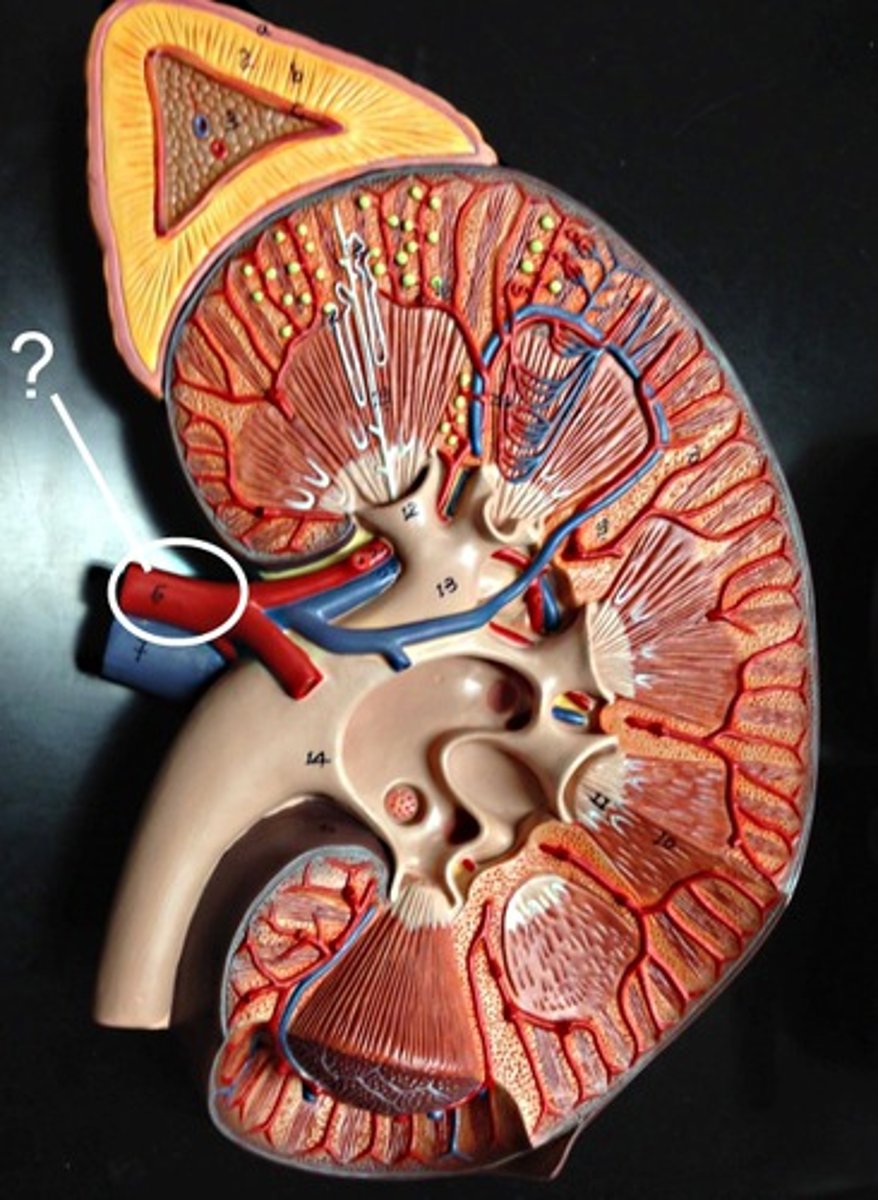

Renal artery

Name this vessel.

Renal artery

Name this vessel.

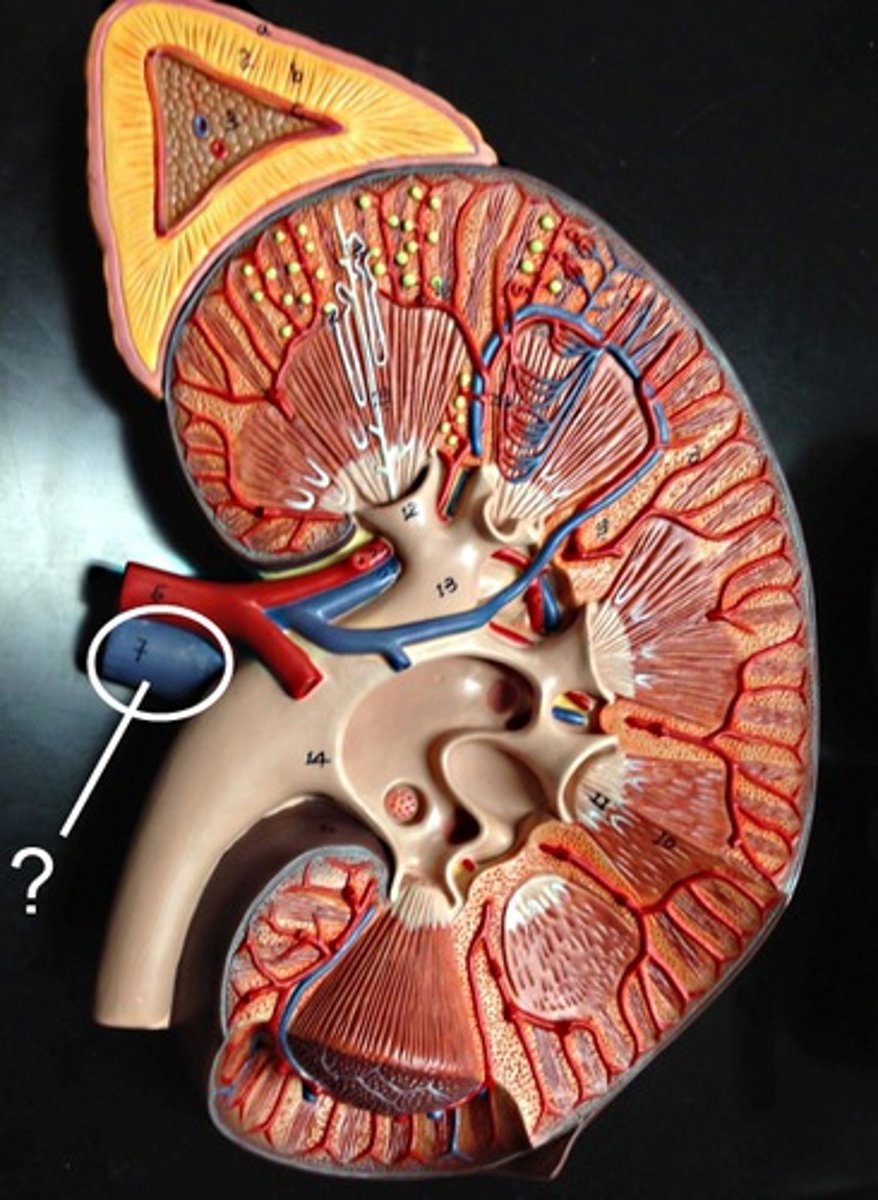

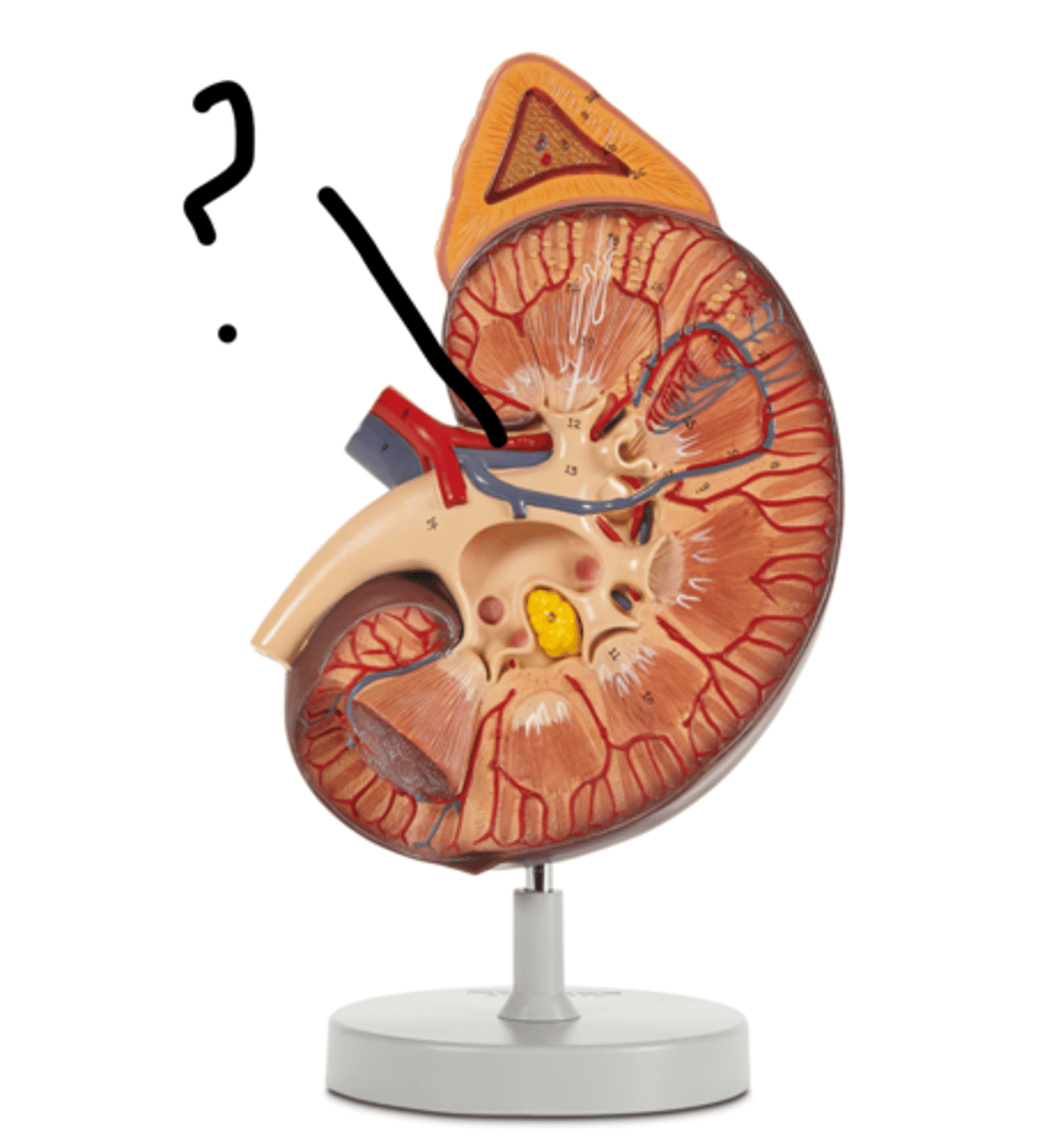

Renal vein

Name this vessel.

Renal vein

Name this vessel.

Ureter

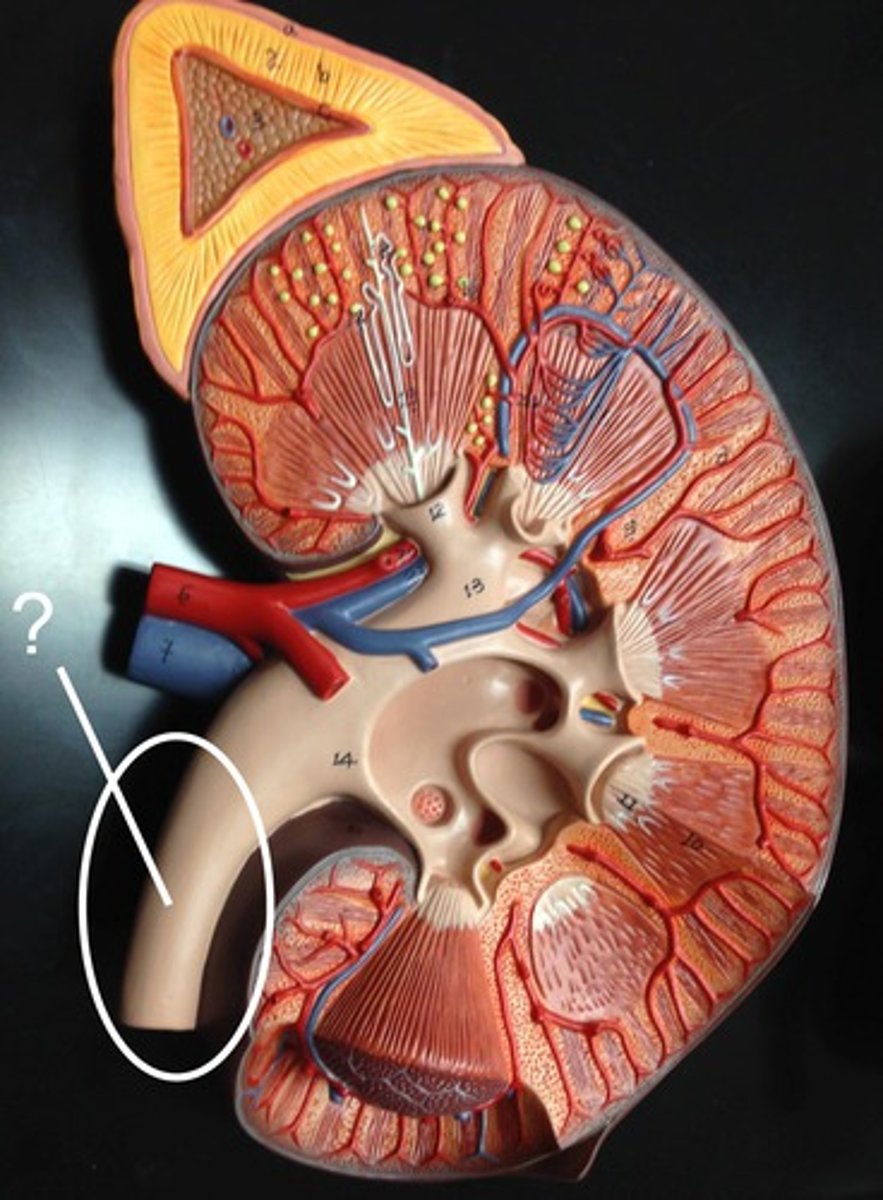

Name this tube.

Ureter

Name this tube.

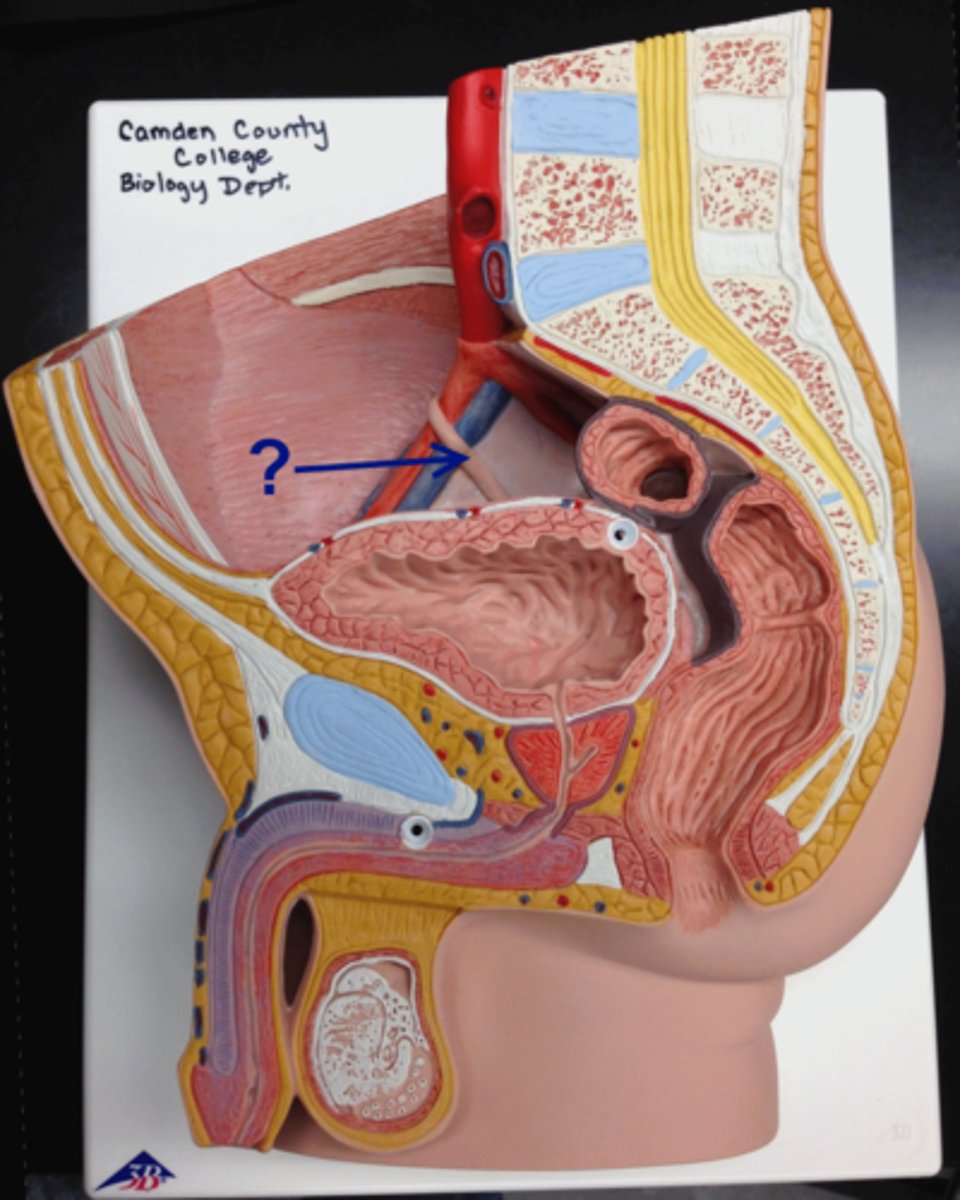

ureter

name this tube

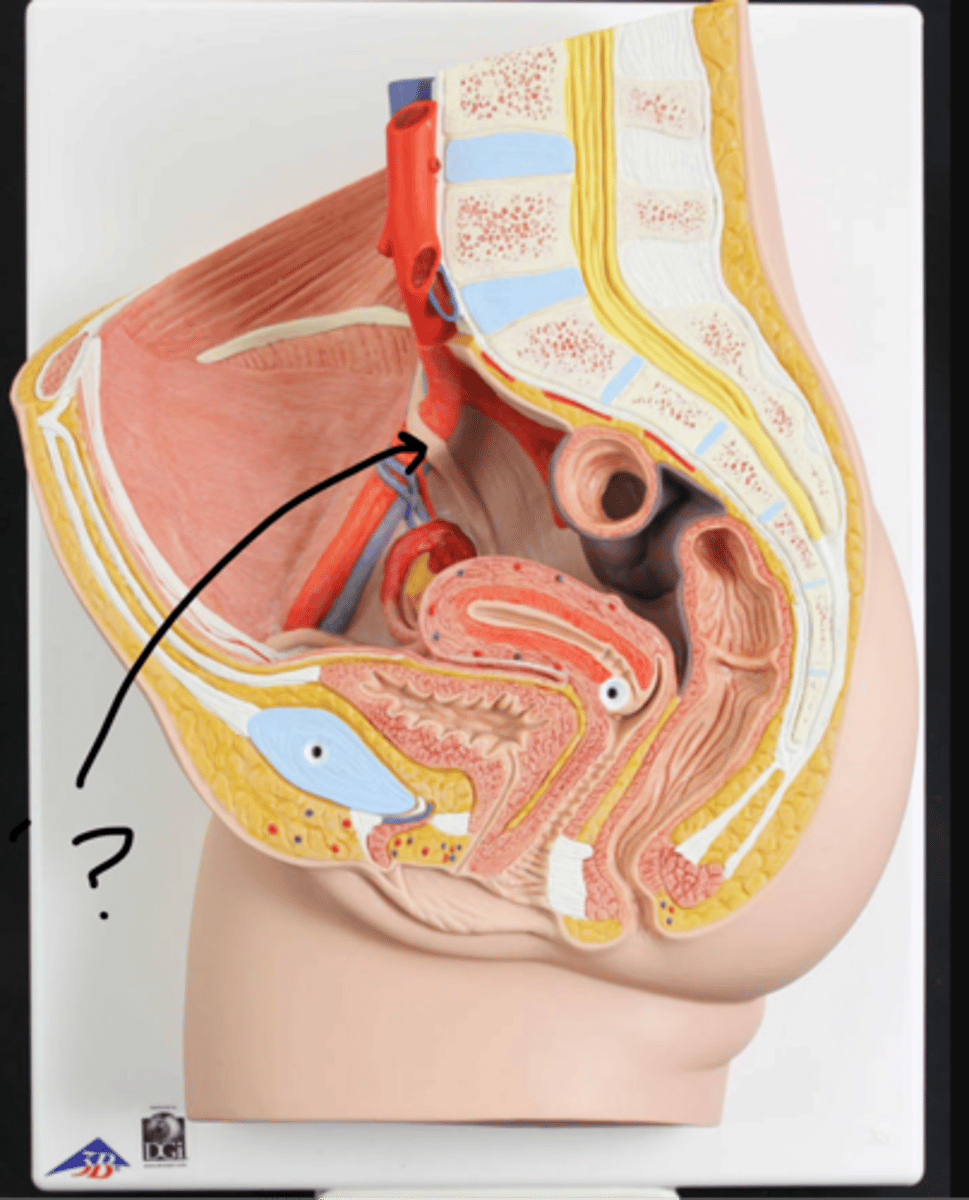

ureter

name this stube

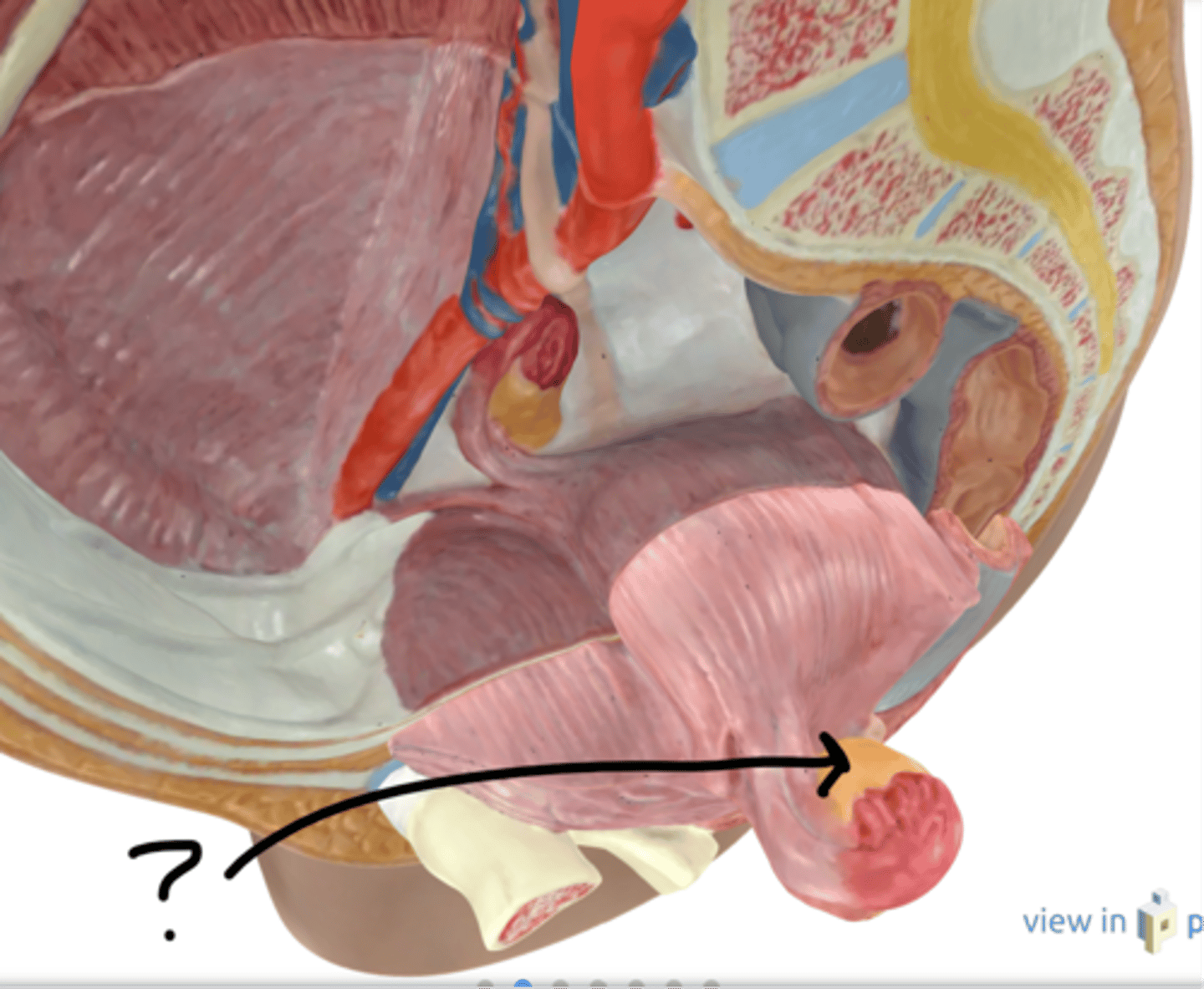

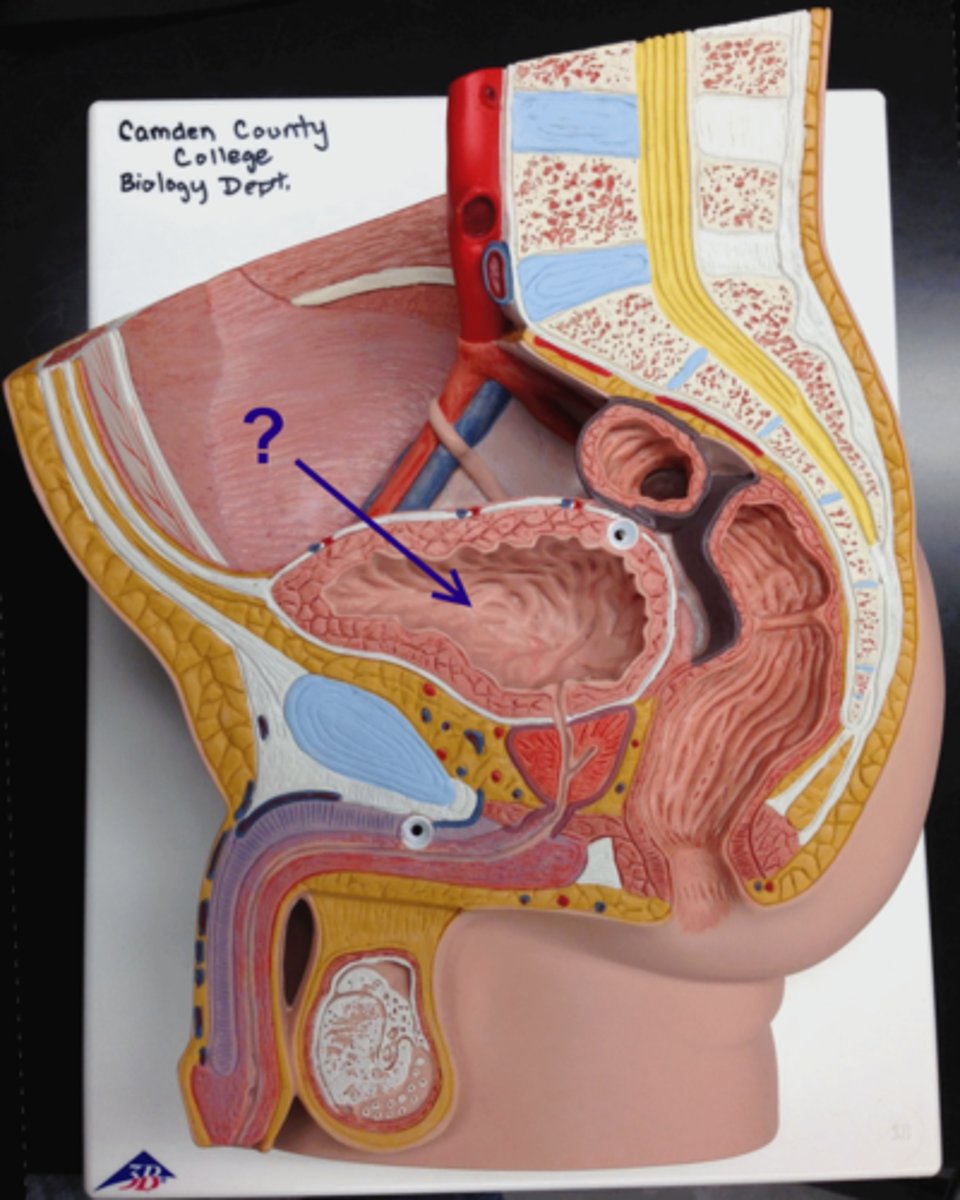

Urinary bladder

Name this organ

Urinary bladder

Name this organ

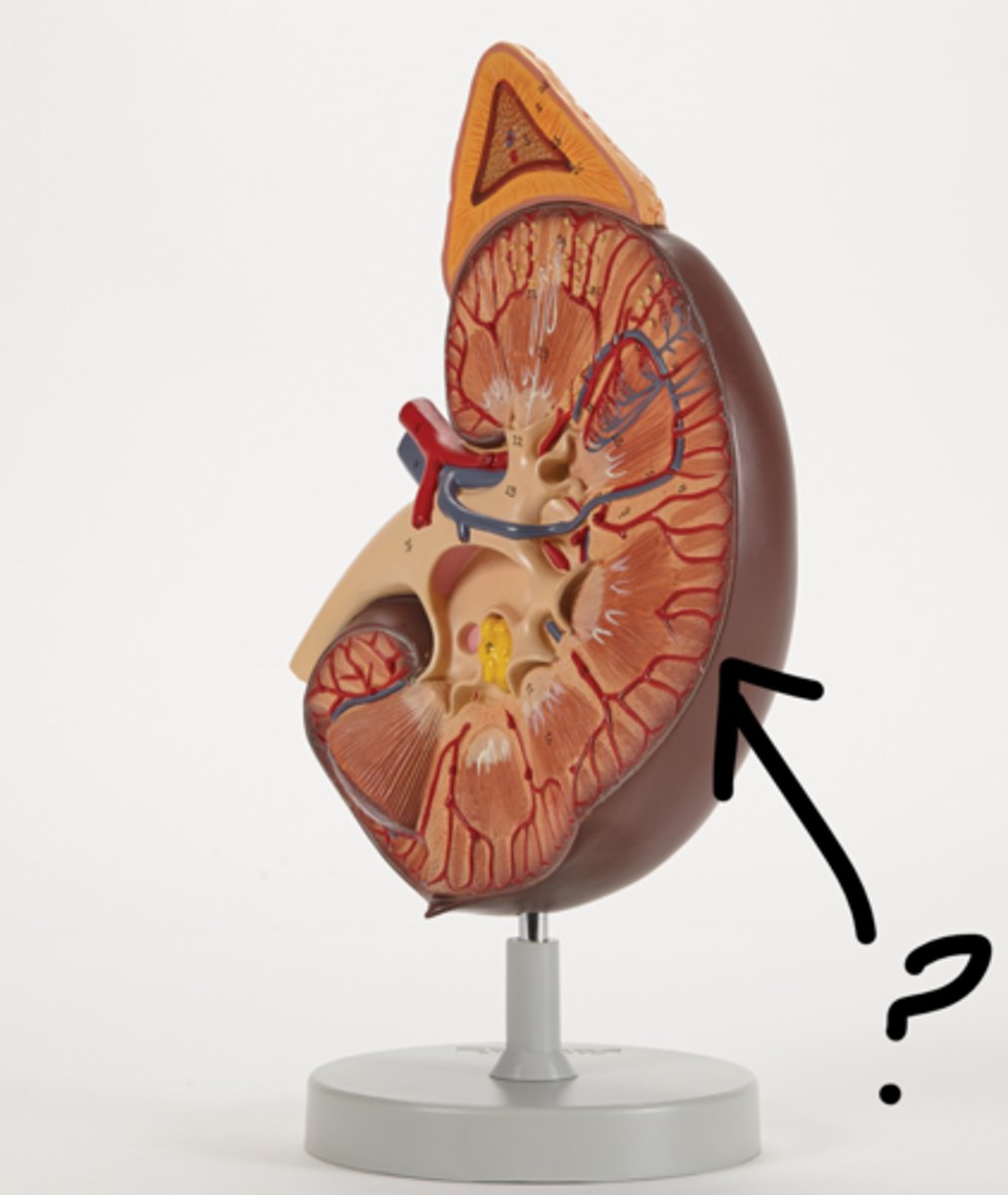

Renal capsule

Name this covering.

Renal capsule

Name this covering.

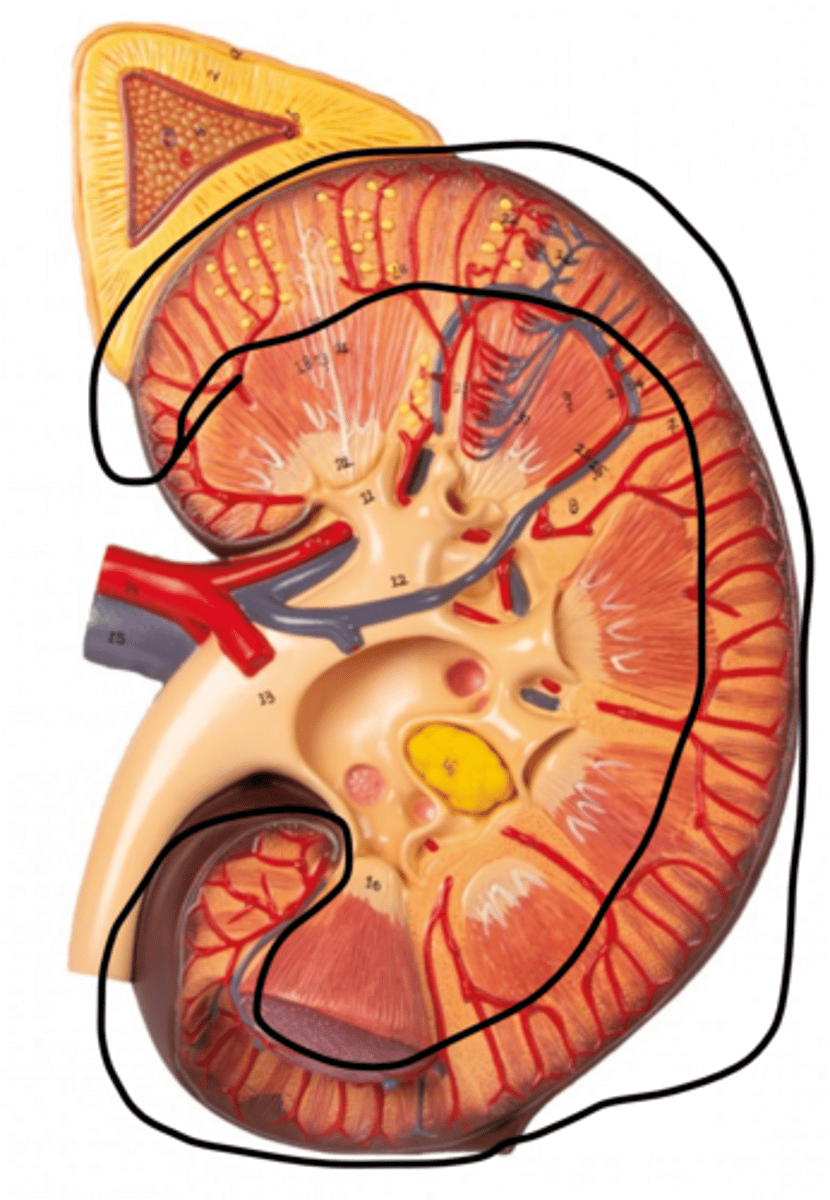

Renal cortex

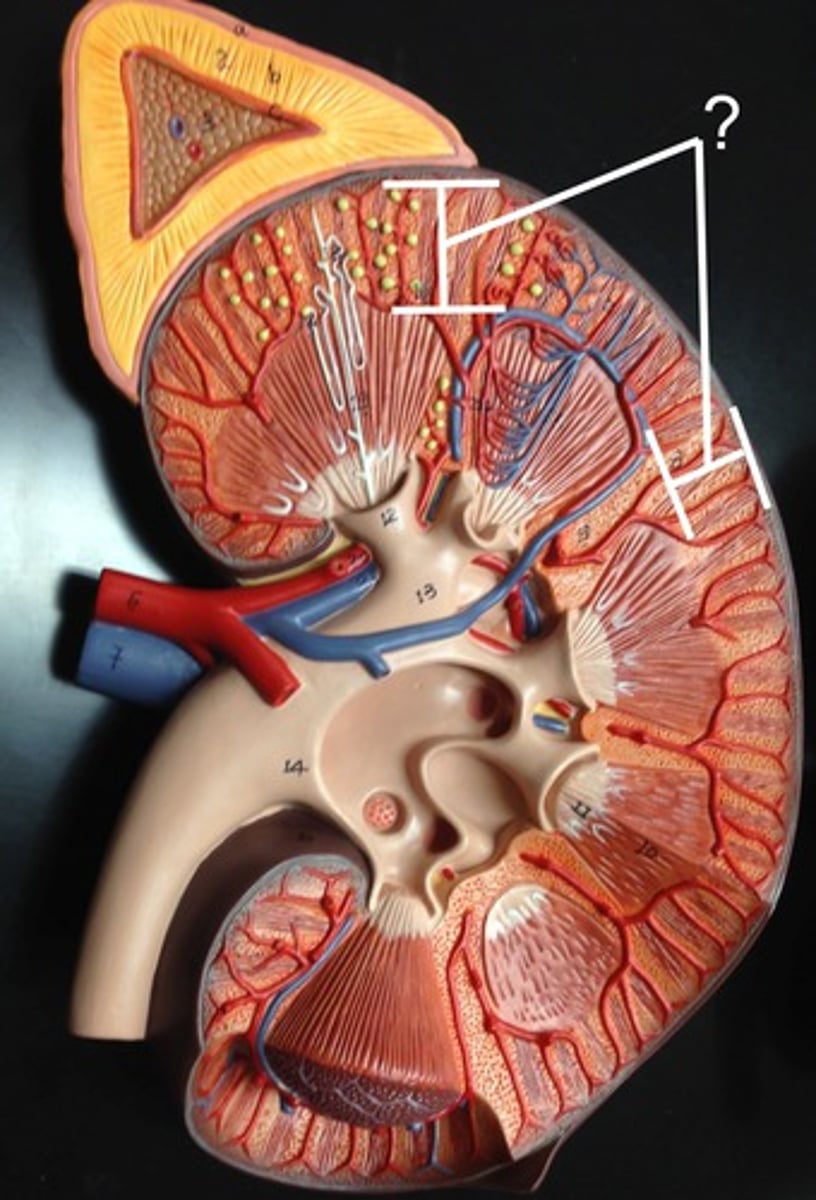

Name this region

Renal cortex

Name this region

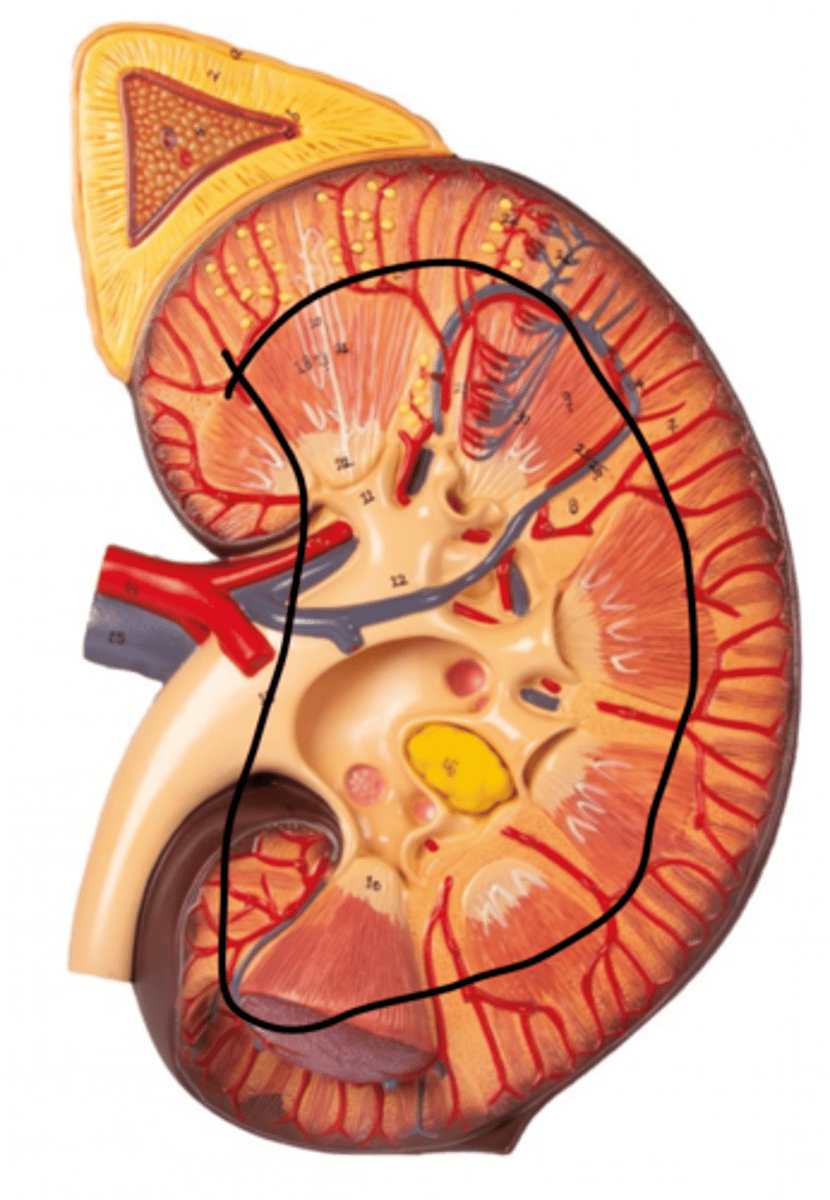

Renal medulla

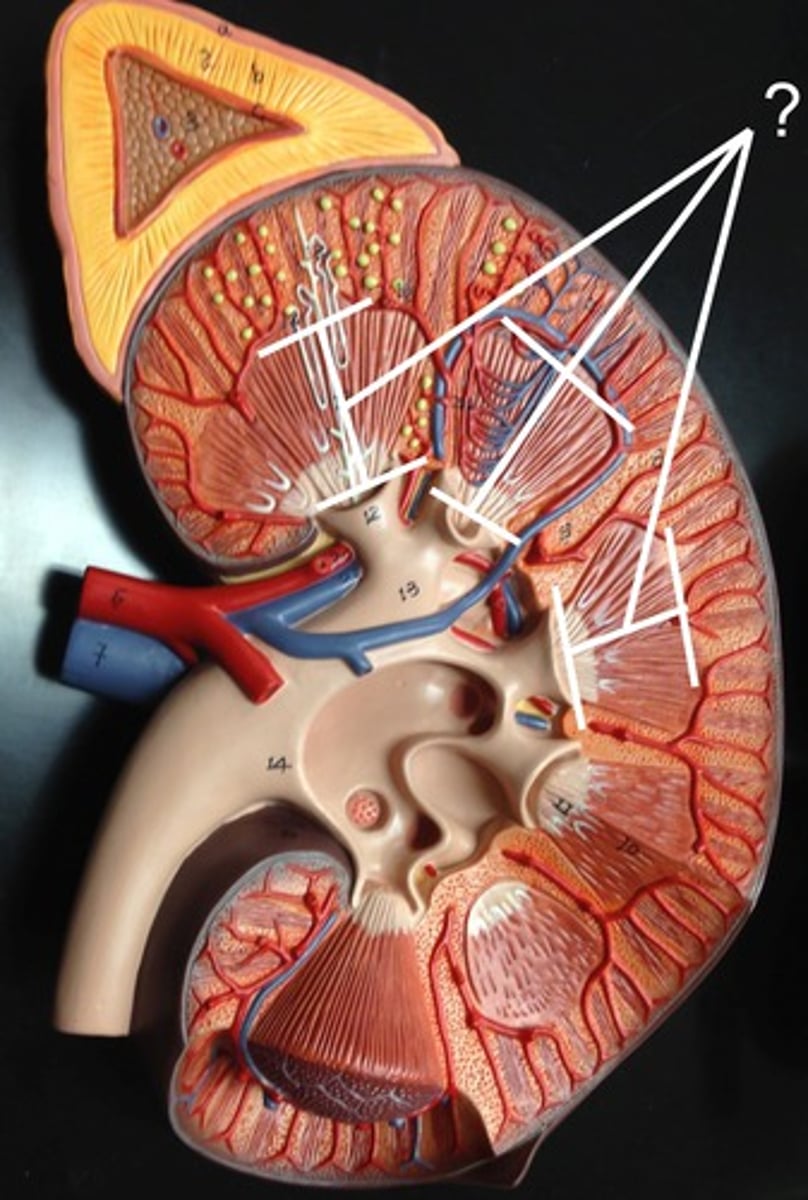

Name this region

Renal medulla

Name this region

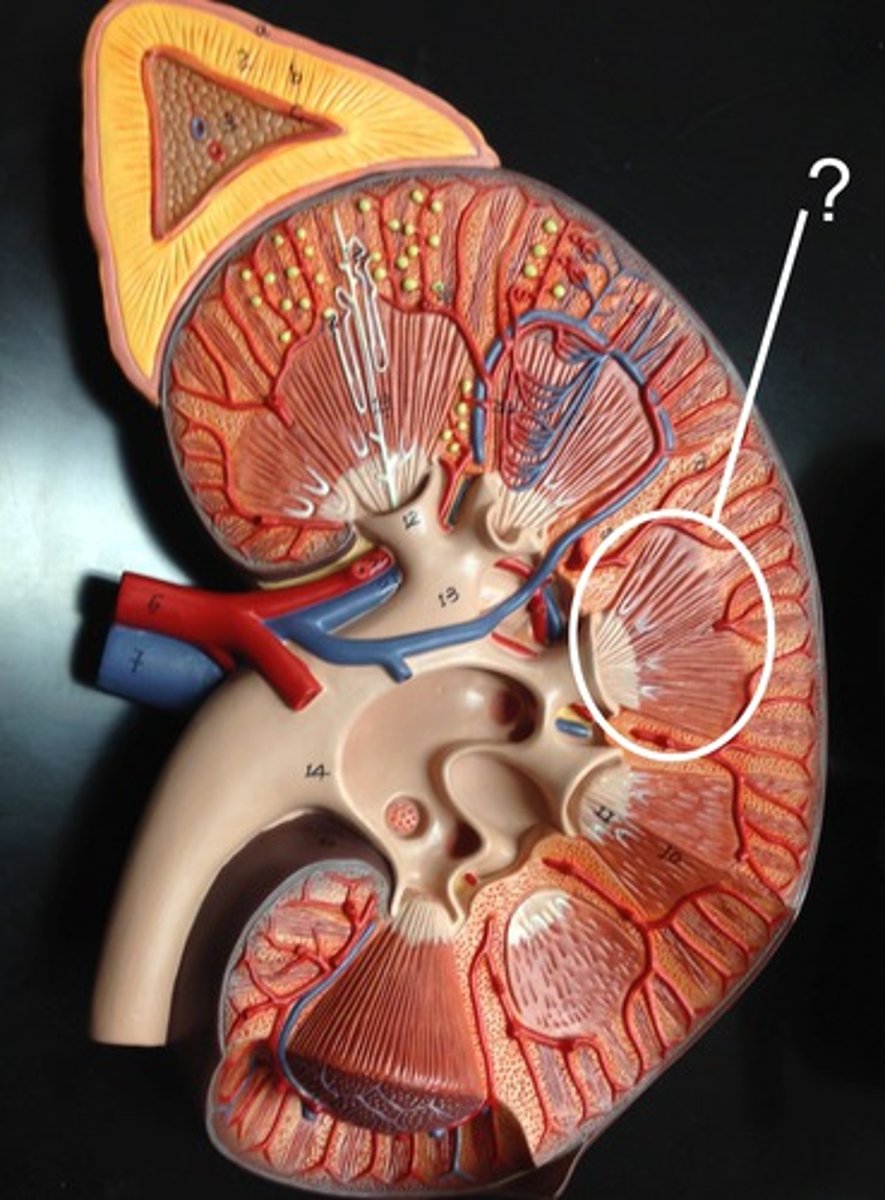

Renal pyramid

Name this triangular structure

Renal pyramid

Name this triangular structure

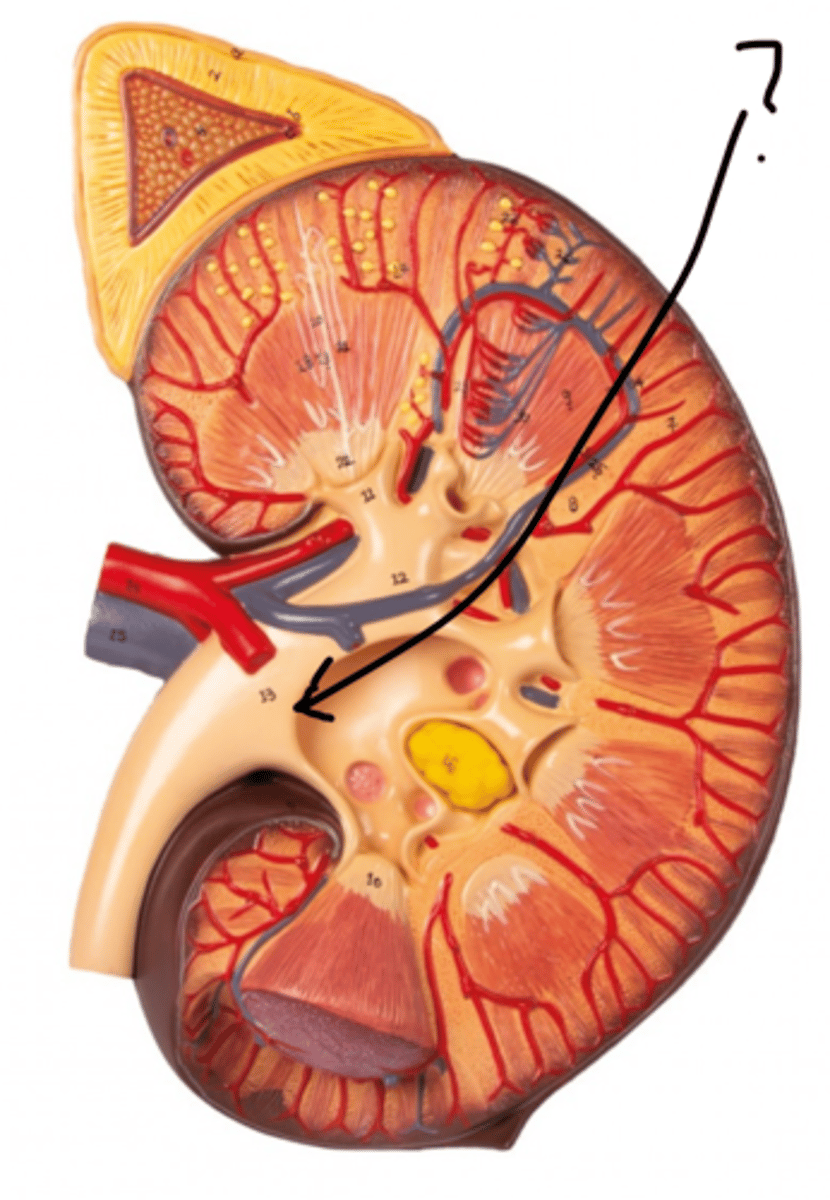

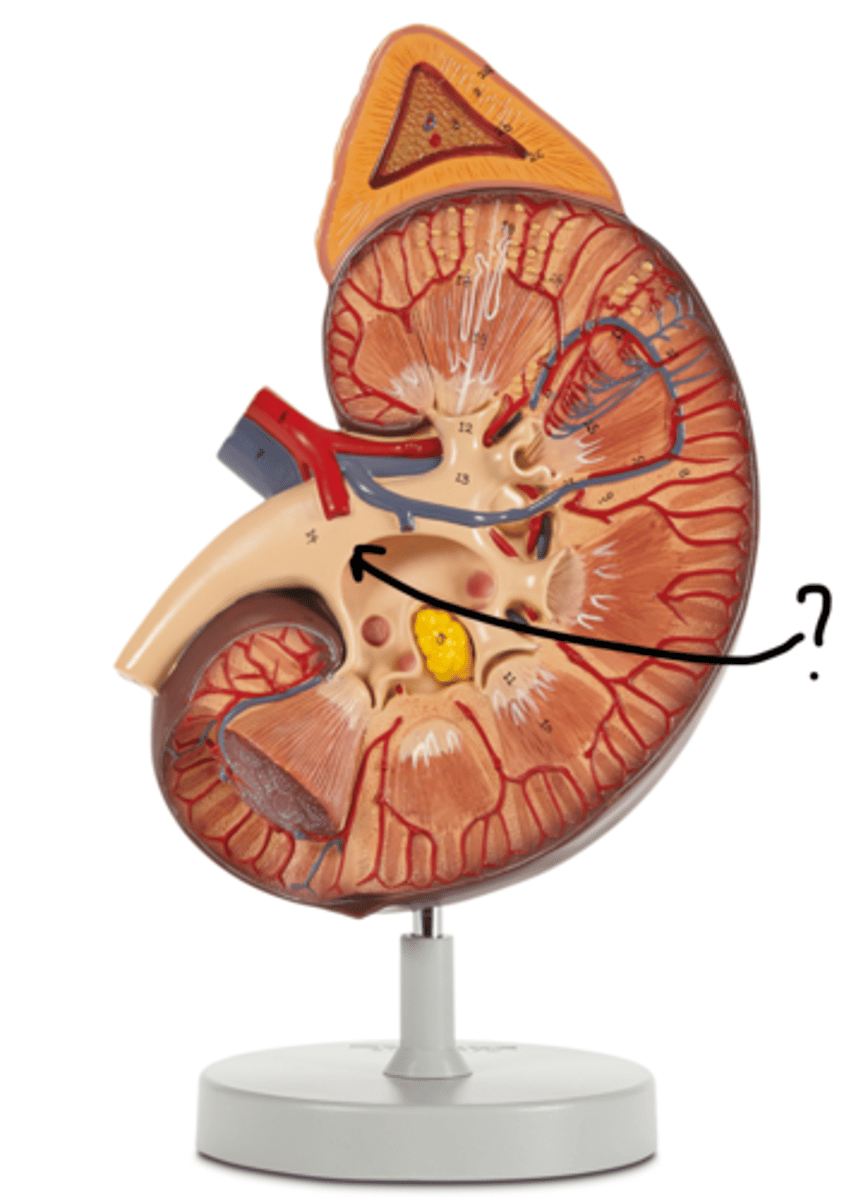

Renal pelvis

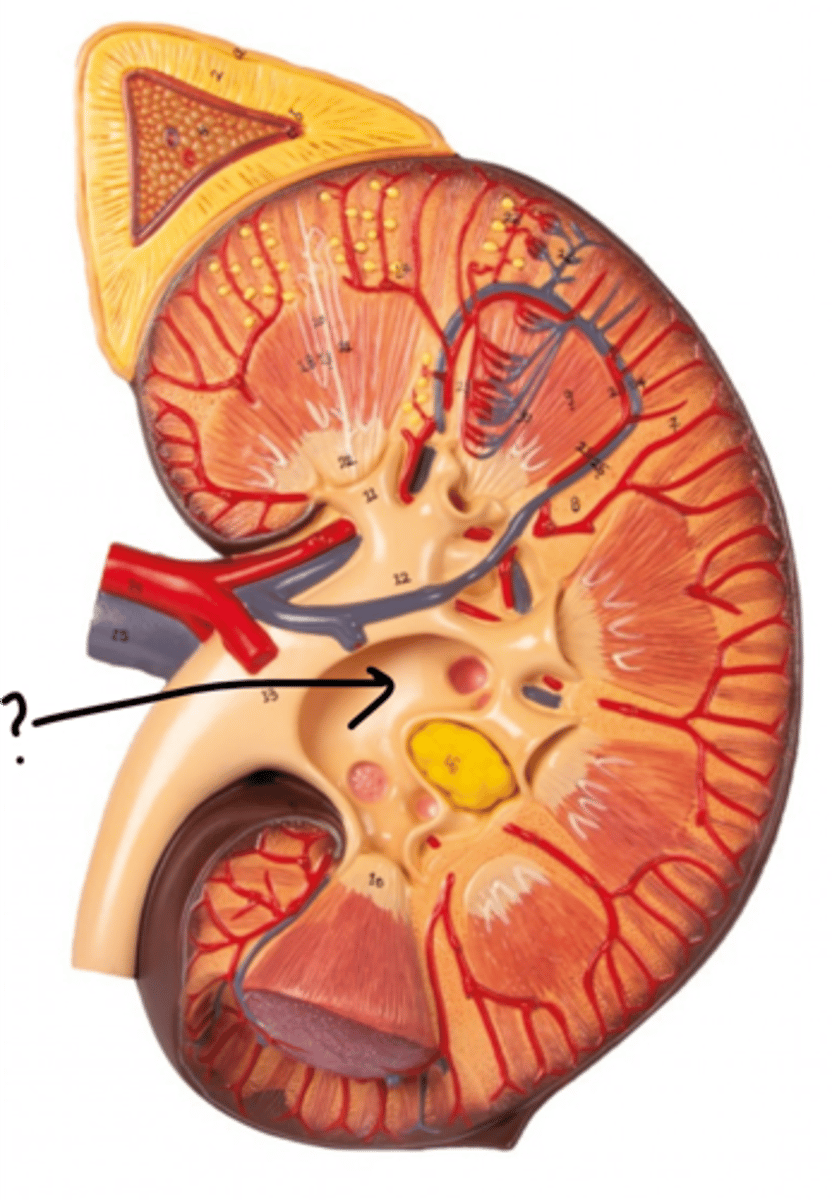

Name this space.

Renal pelvis

Name this space.

Major calyx

Name this space.

Major calyx

Name this space.

Minor calyces

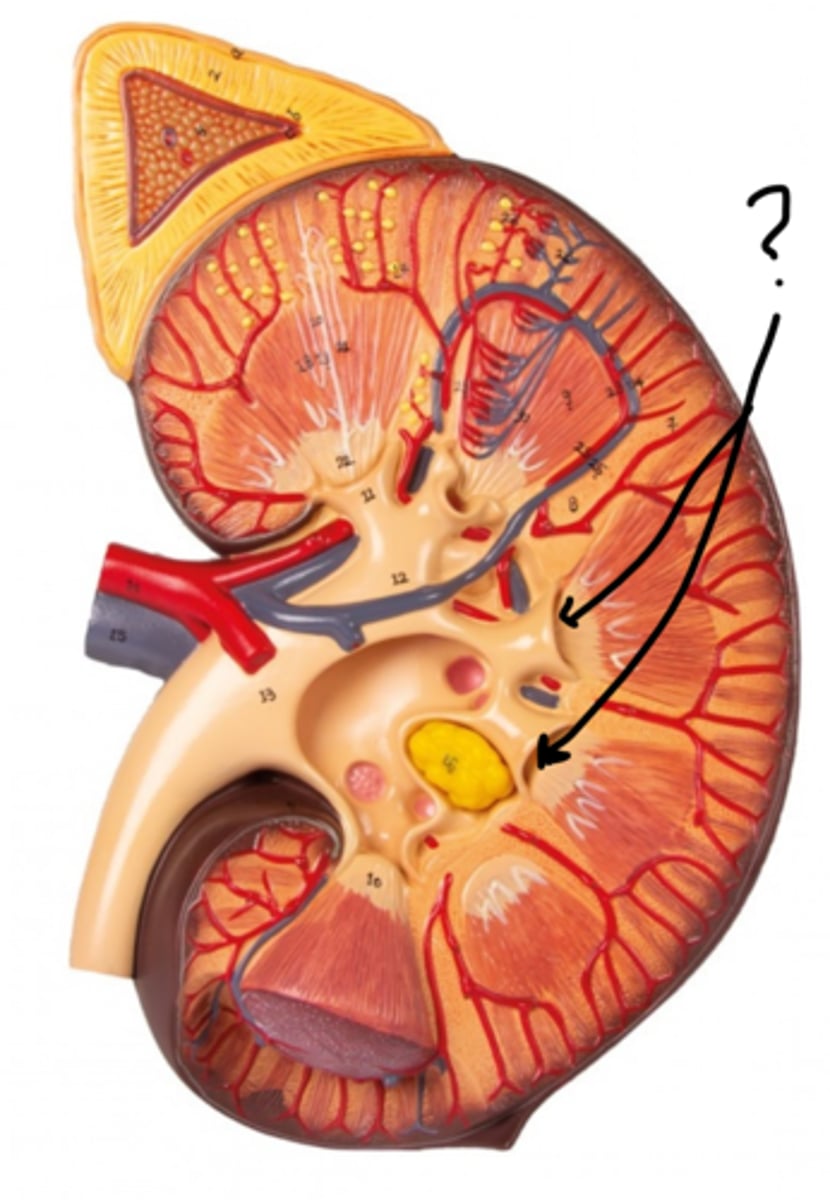

Name this space.

Minor calyces

Name this space.

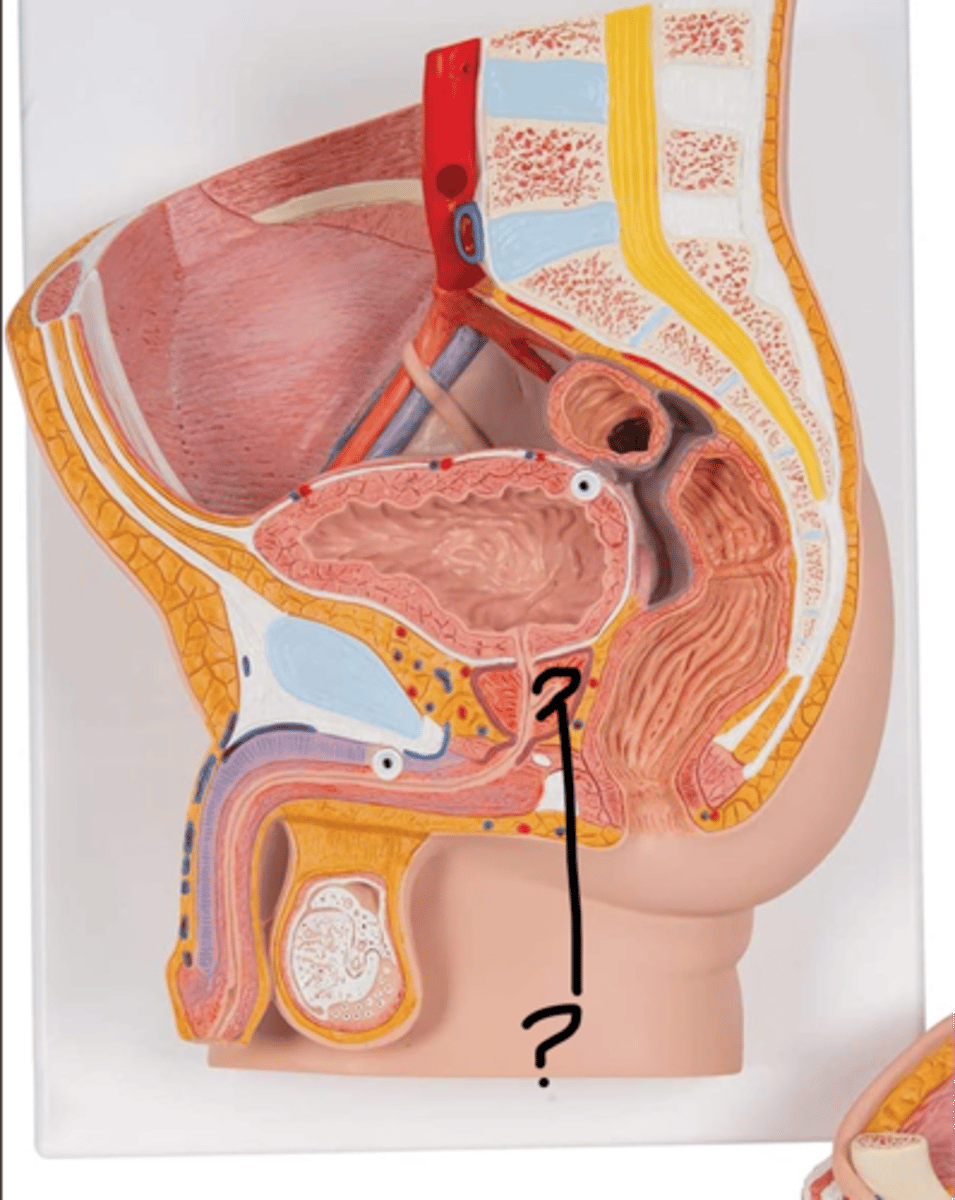

Urethra

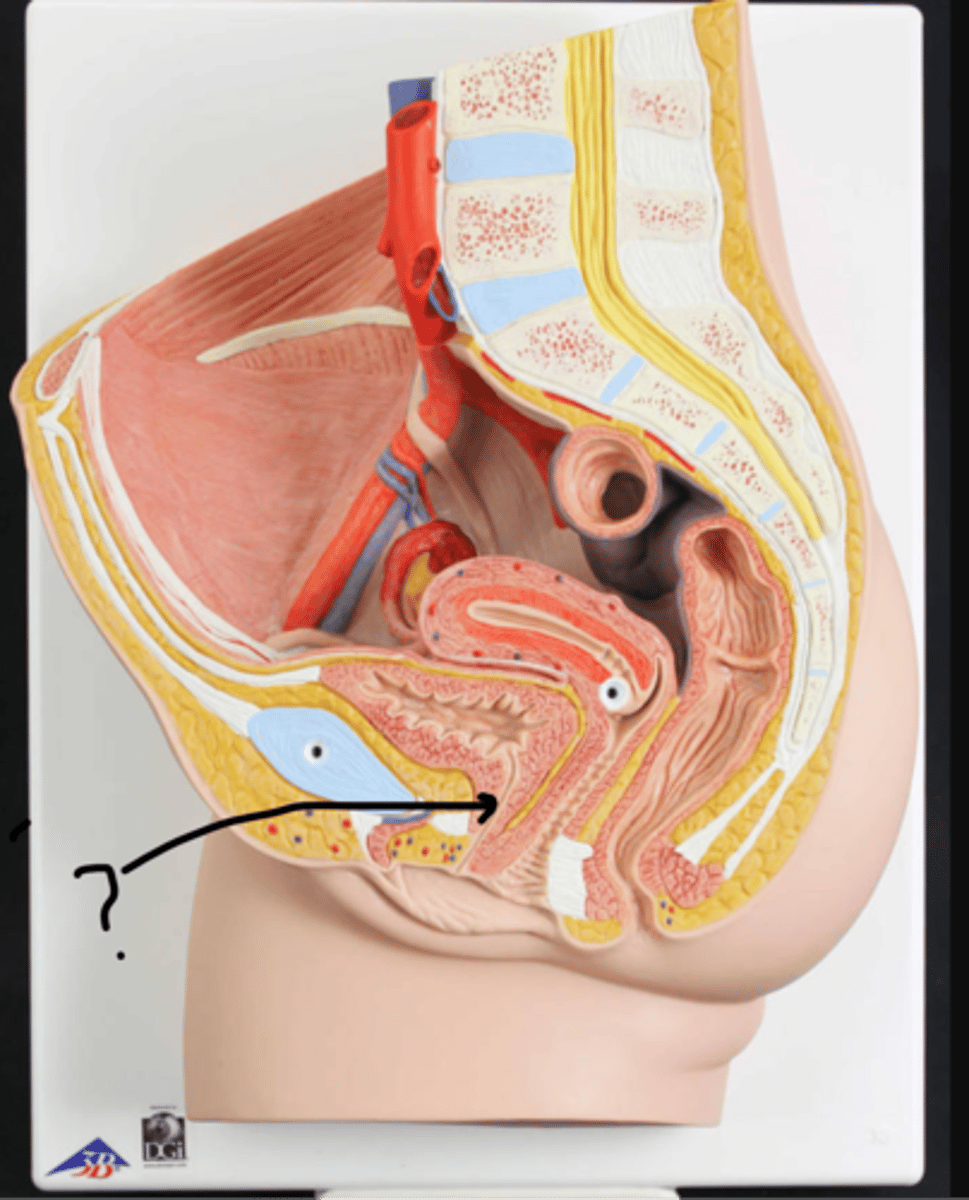

Name this tube

Urethra

Name this tube

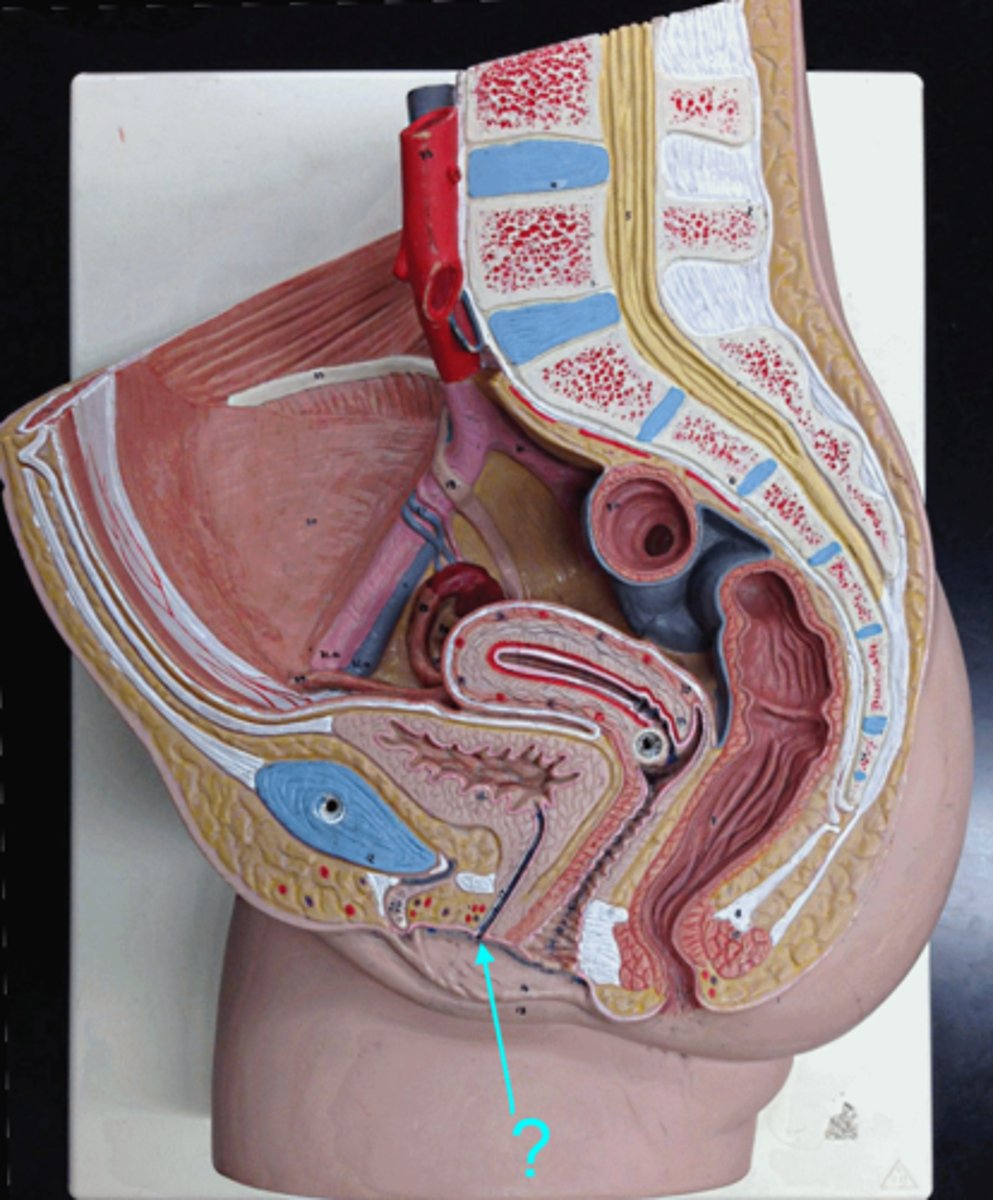

External urethral orifice

name this opening

External urethral orifice

name this opening

Renal papilla

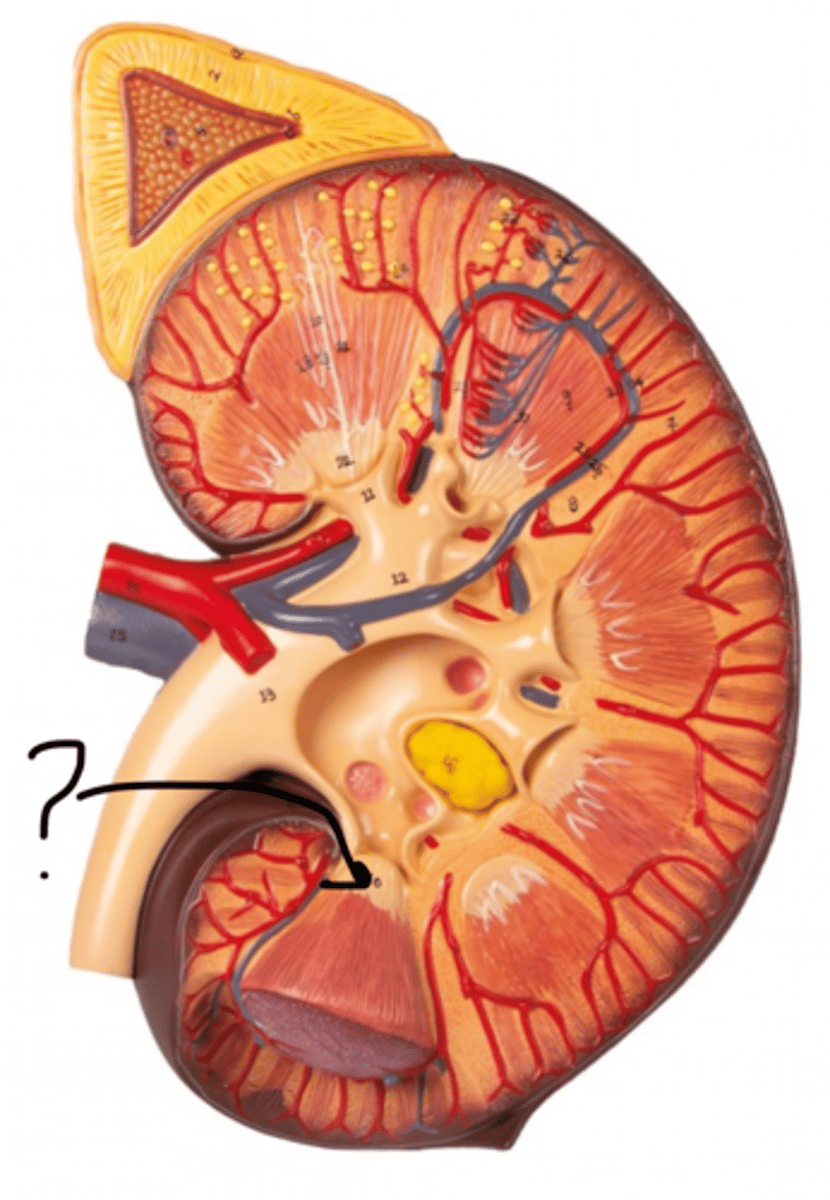

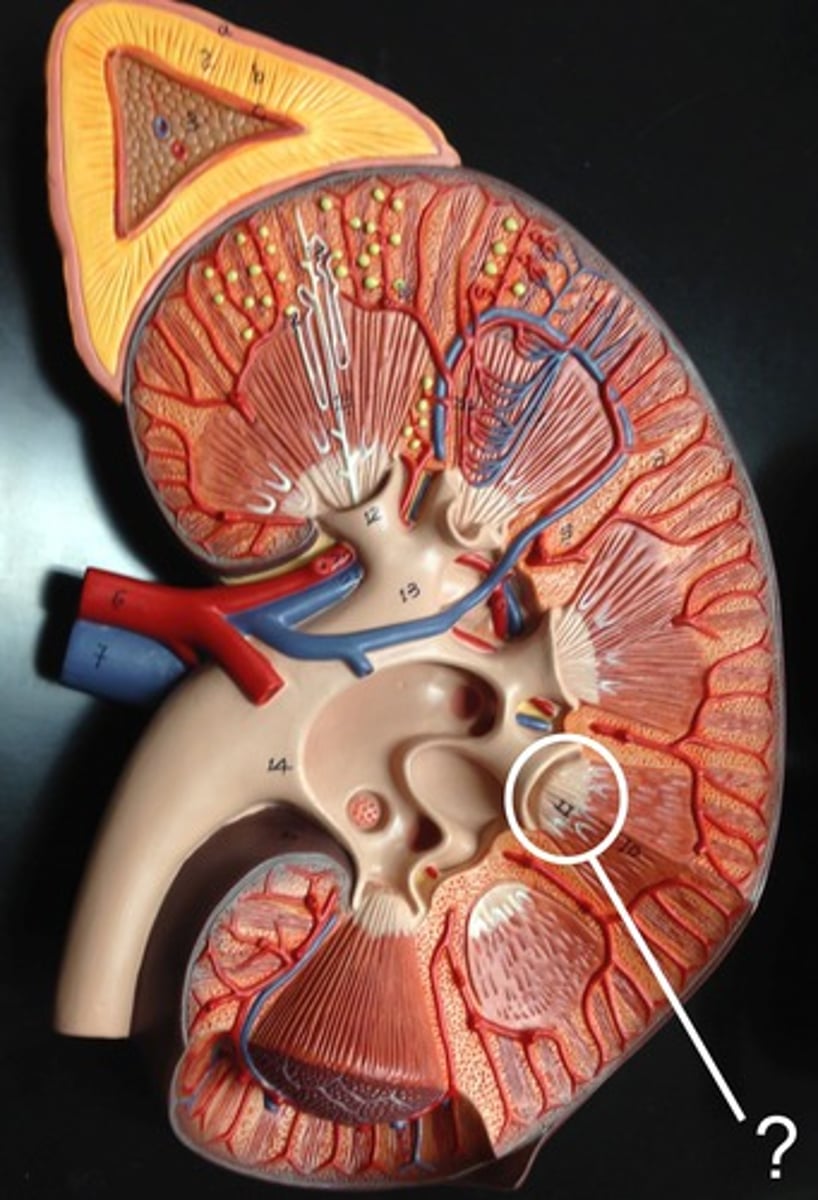

Name this structure (hint: tip of the pyramid)

Renal papilla

Name this structure (hint: tip of the pyramid)

Renal column

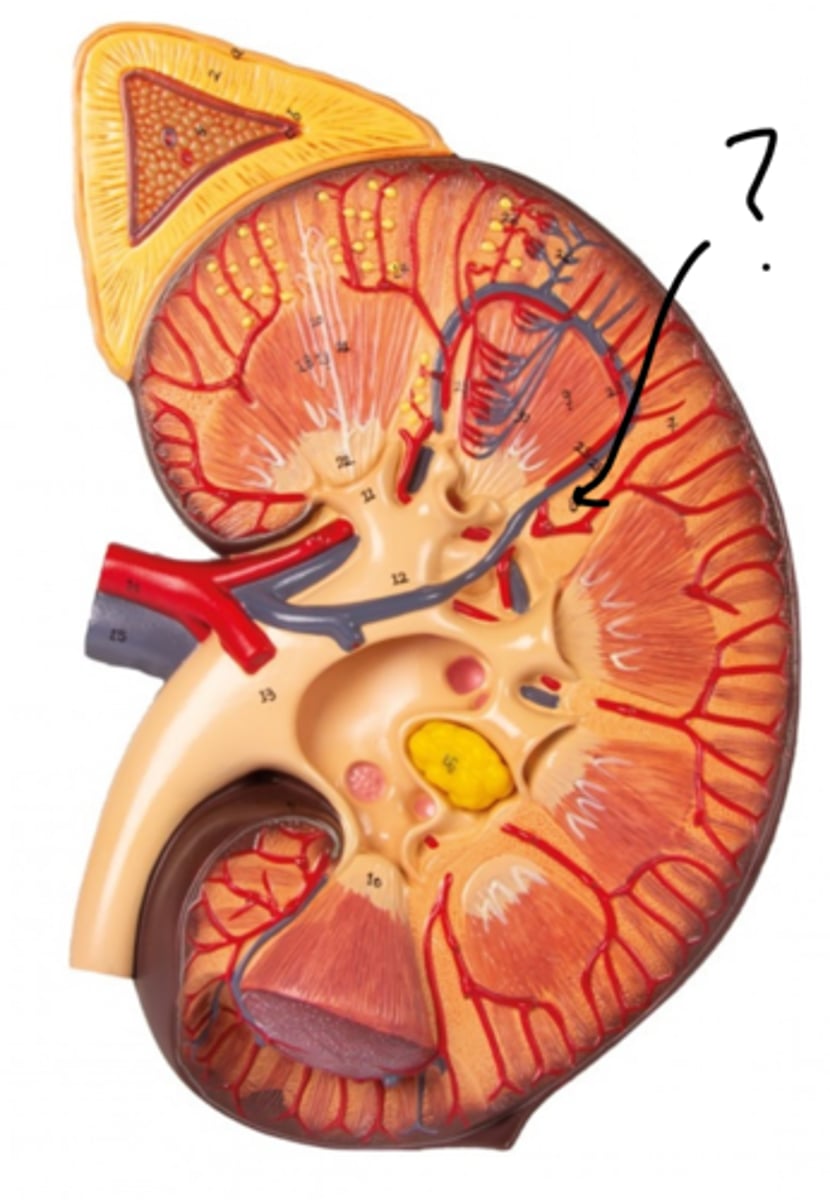

Name this structure (hint: area between pyramids)

Renal column

Name this structure (hint: area between pyramids)

Segmental artery

Name this vessel.

Segmental artery

Name this vessel.

Interlobar artery

Name this vessel

Interlobar artery

Name this vessel (red)

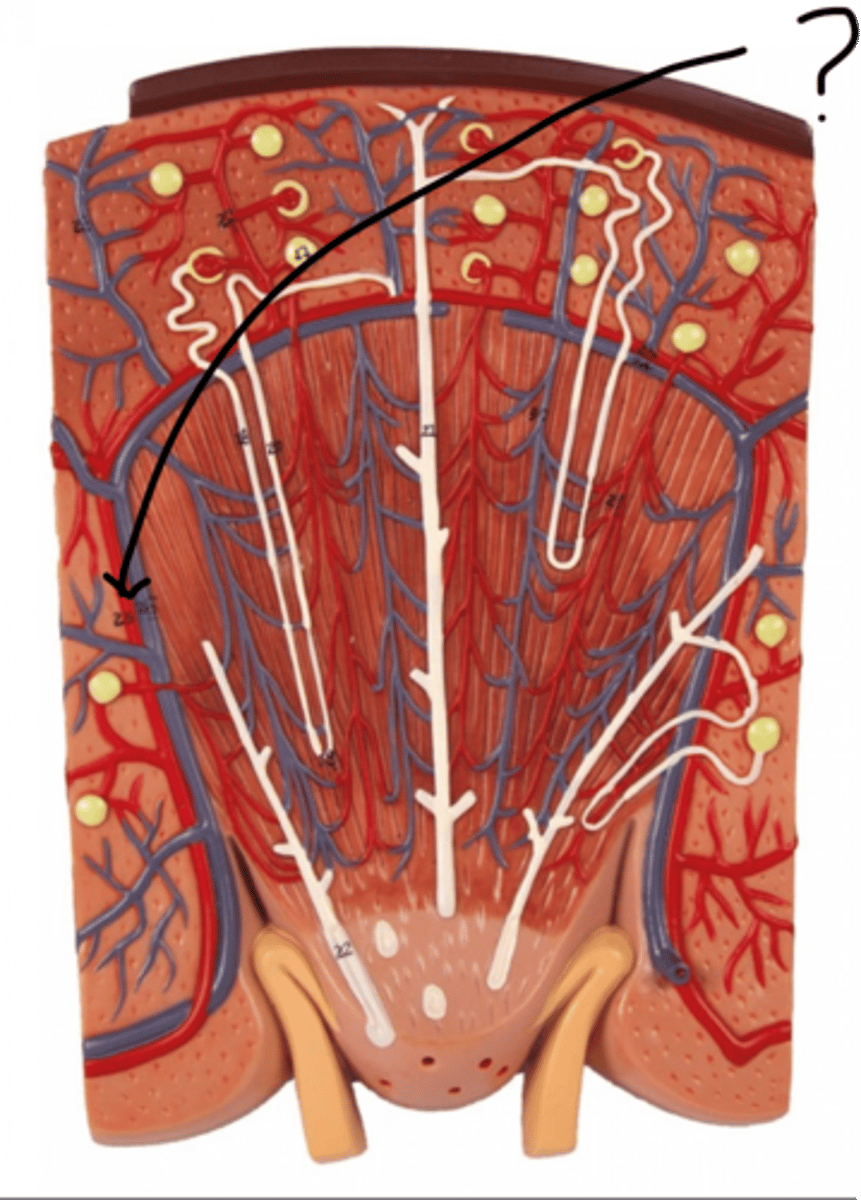

Arcuate artery

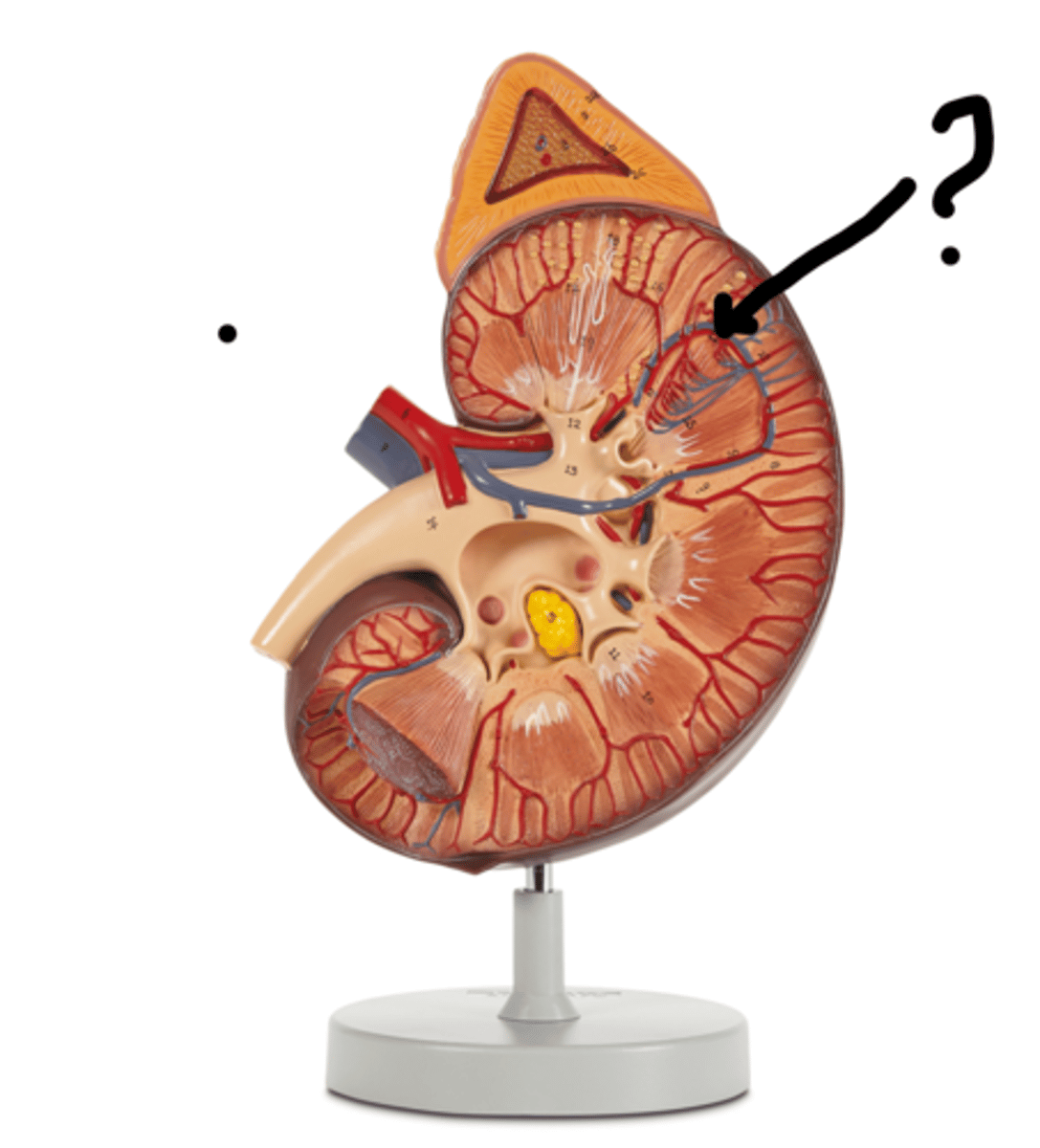

Name this vessel (red)

Arcuate artery

Name this vessel (red)

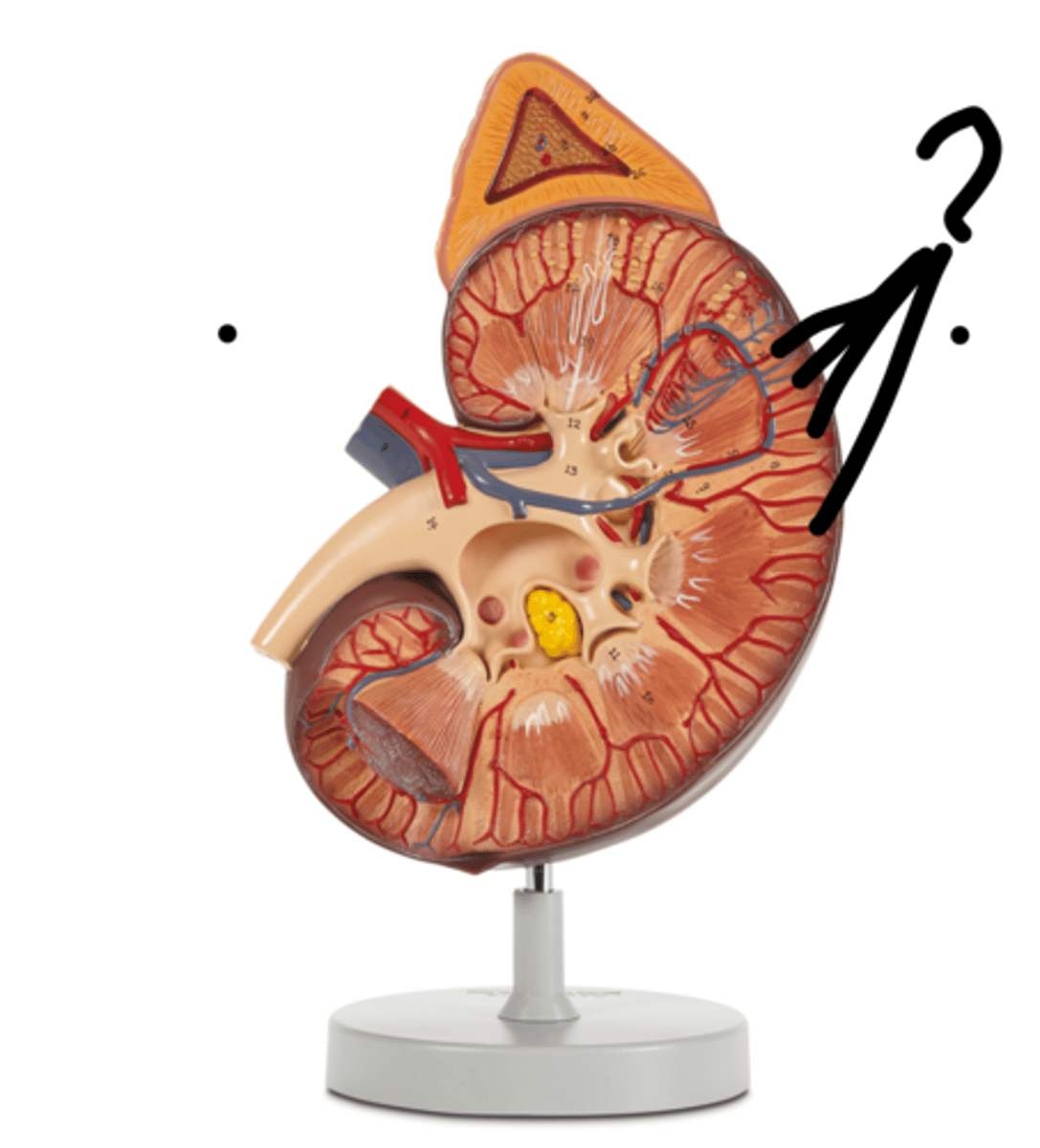

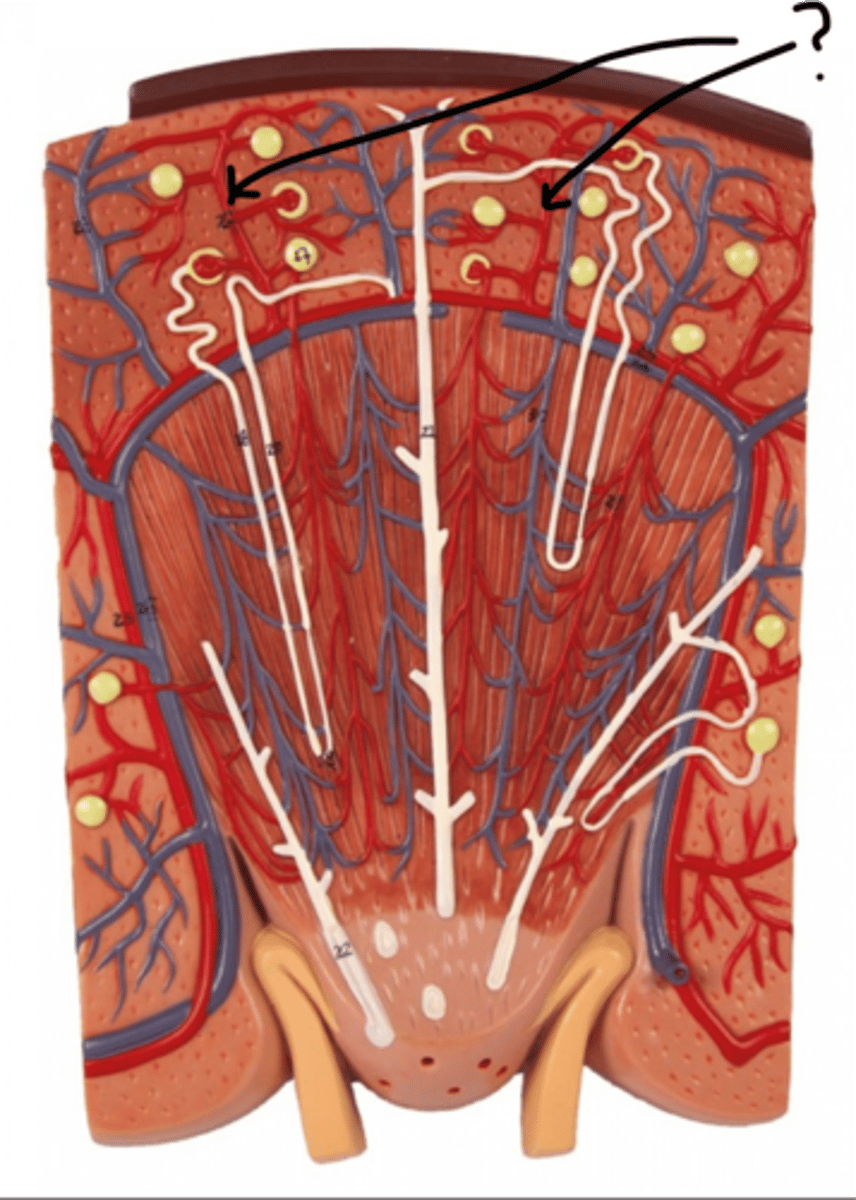

Cortical radiate arteries

Name these vessels (red)

Cortical radiate arteries

Name these vessels (red)

Afferent arteriole

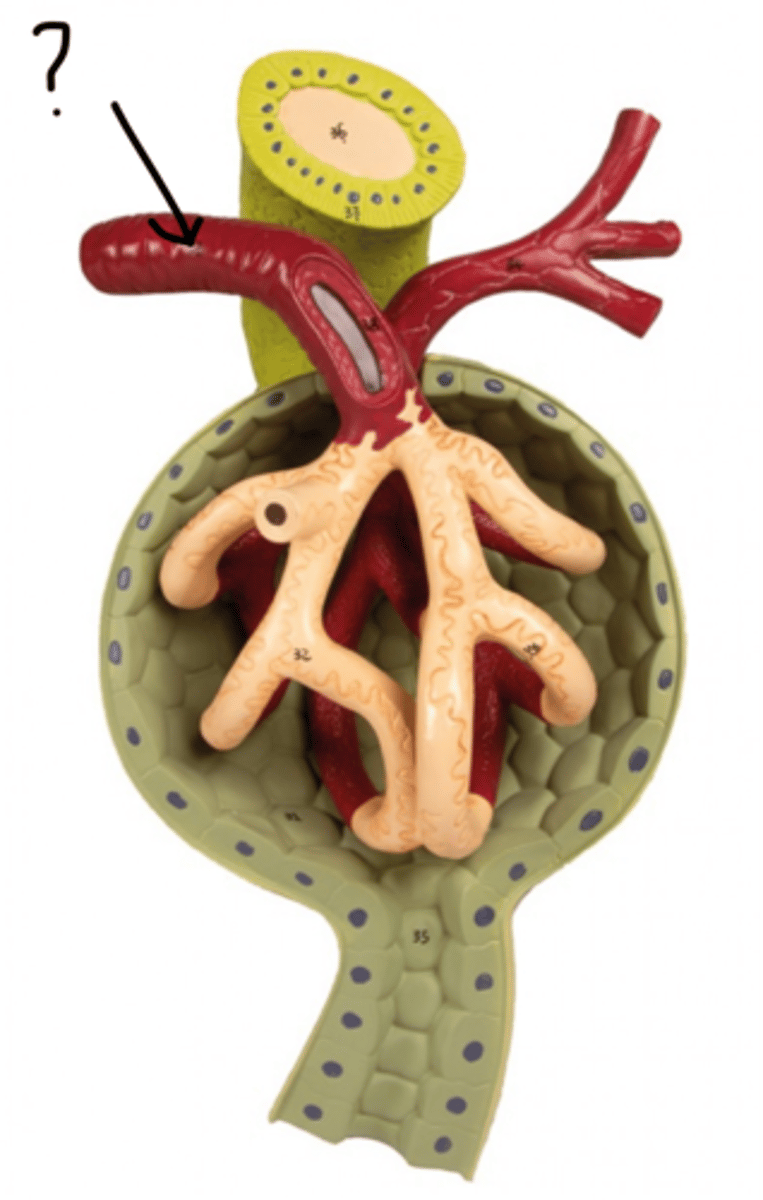

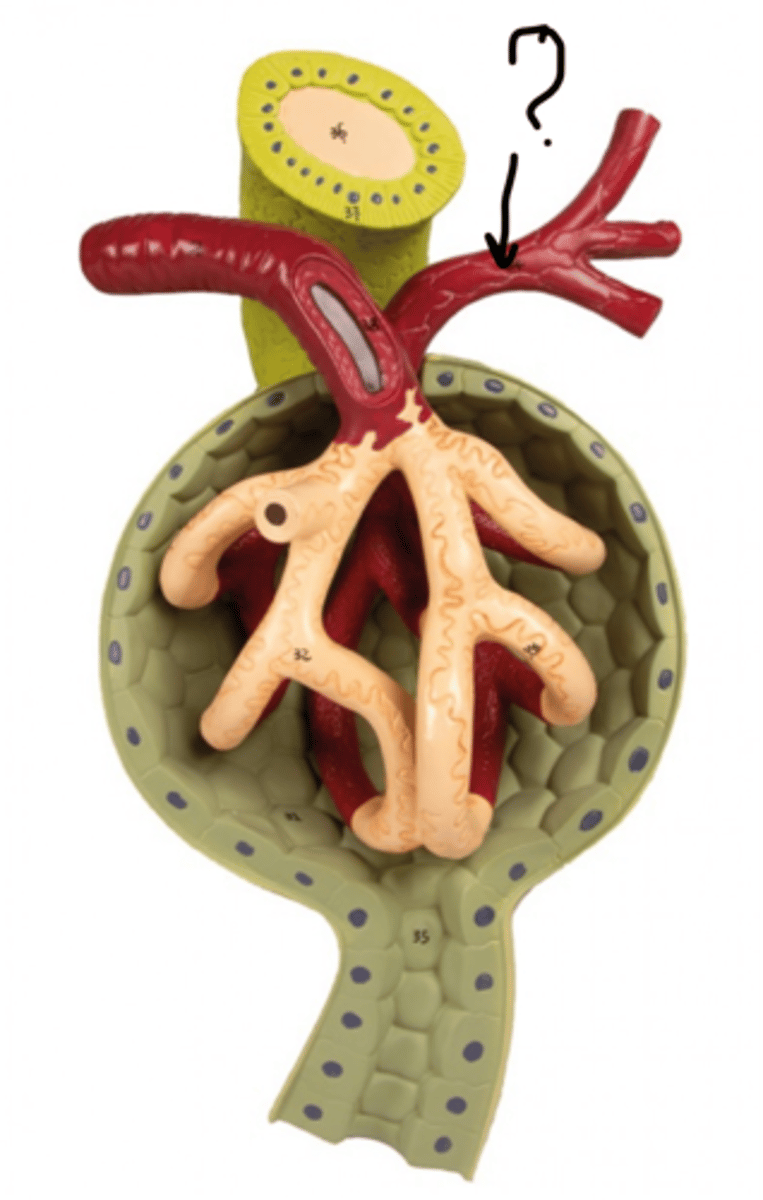

Name this vessel

Efferent arteriole

Name this vessel

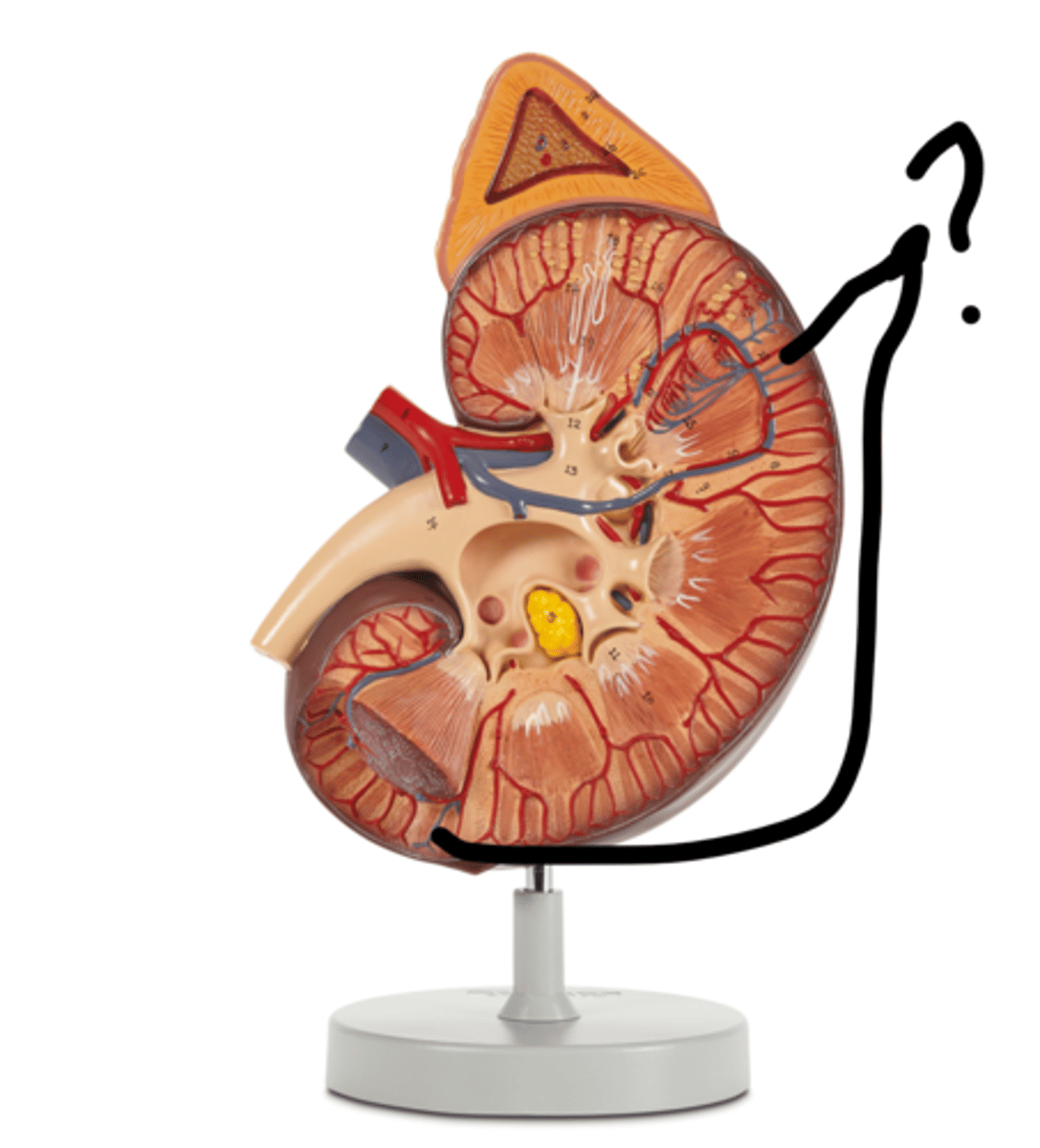

Cortical radiate veins

Name these vessels (blue)

Cortical radiate veins

Name these vessels (blue)

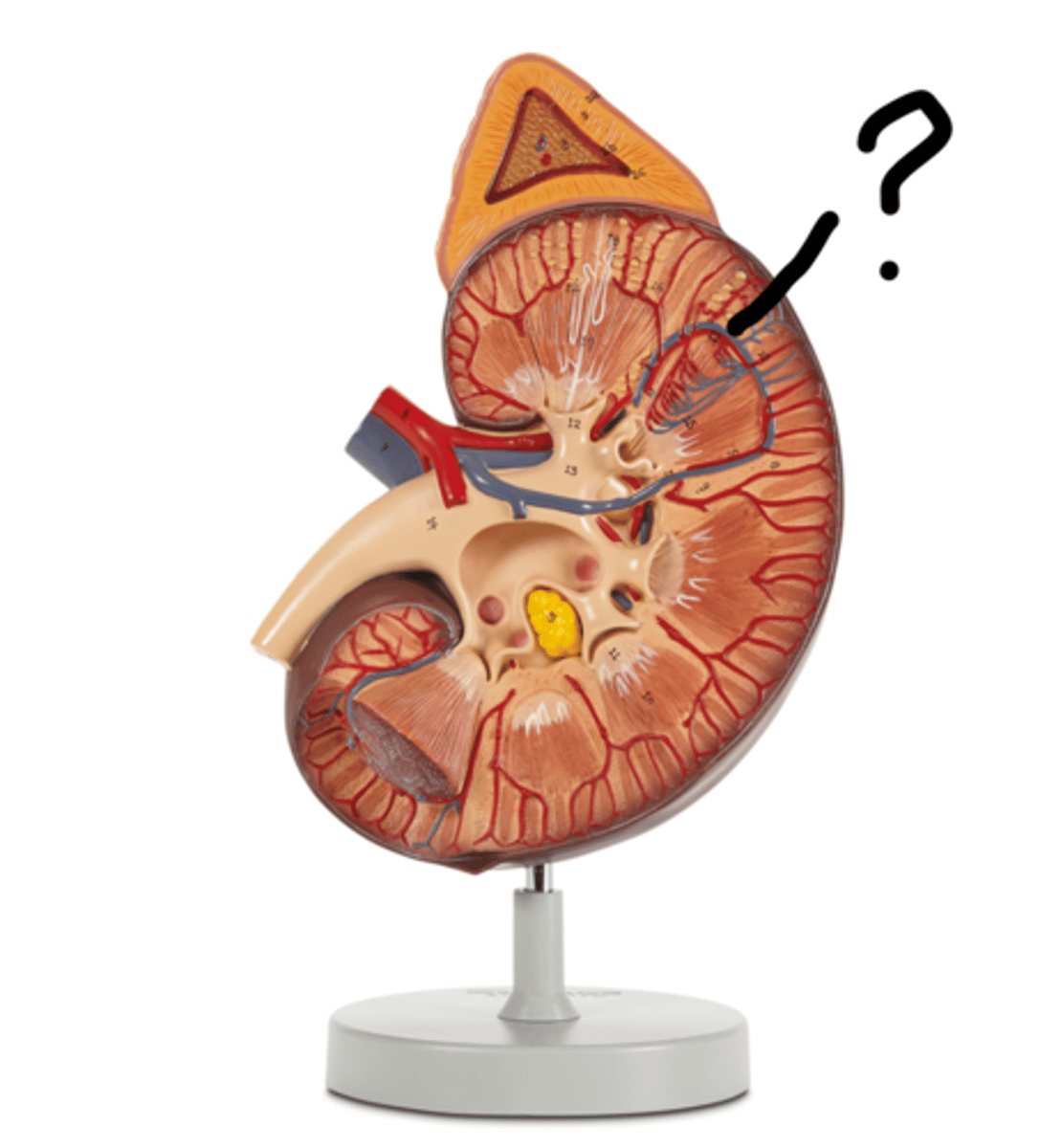

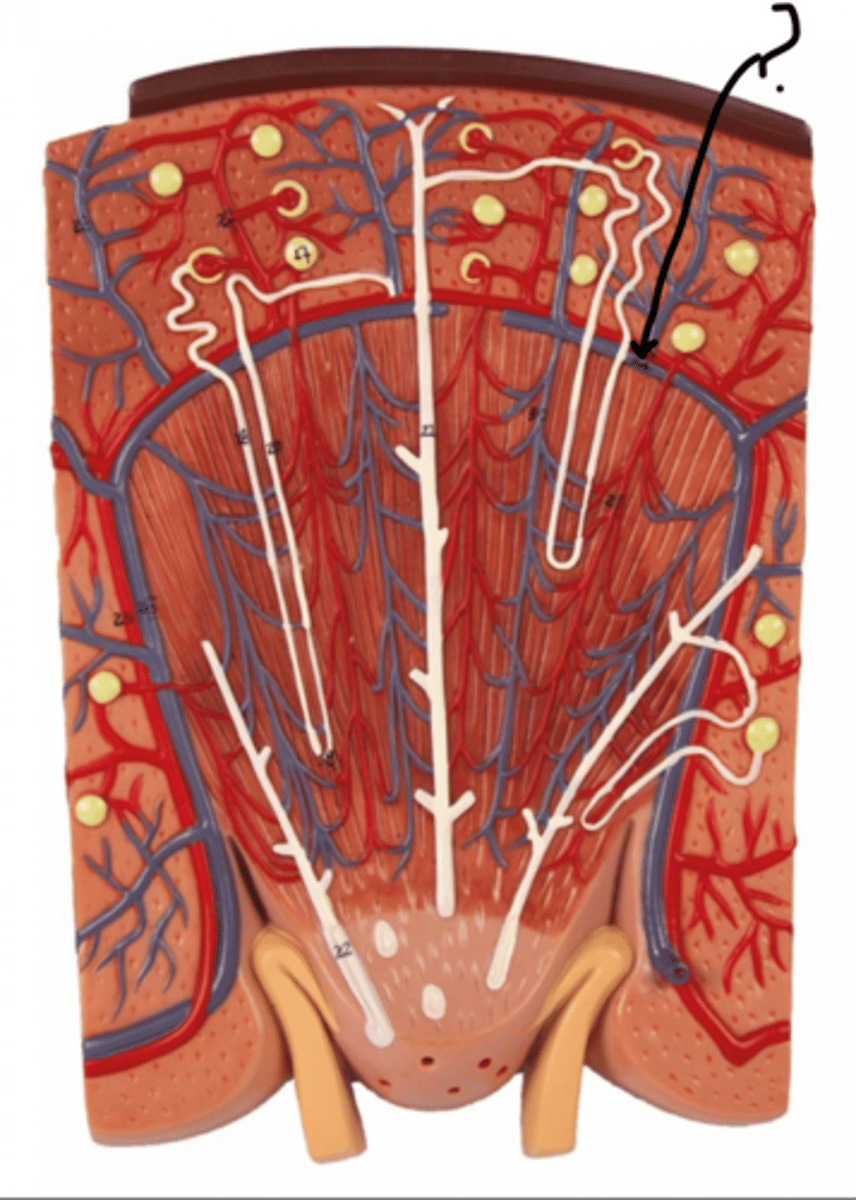

Arcuate vein

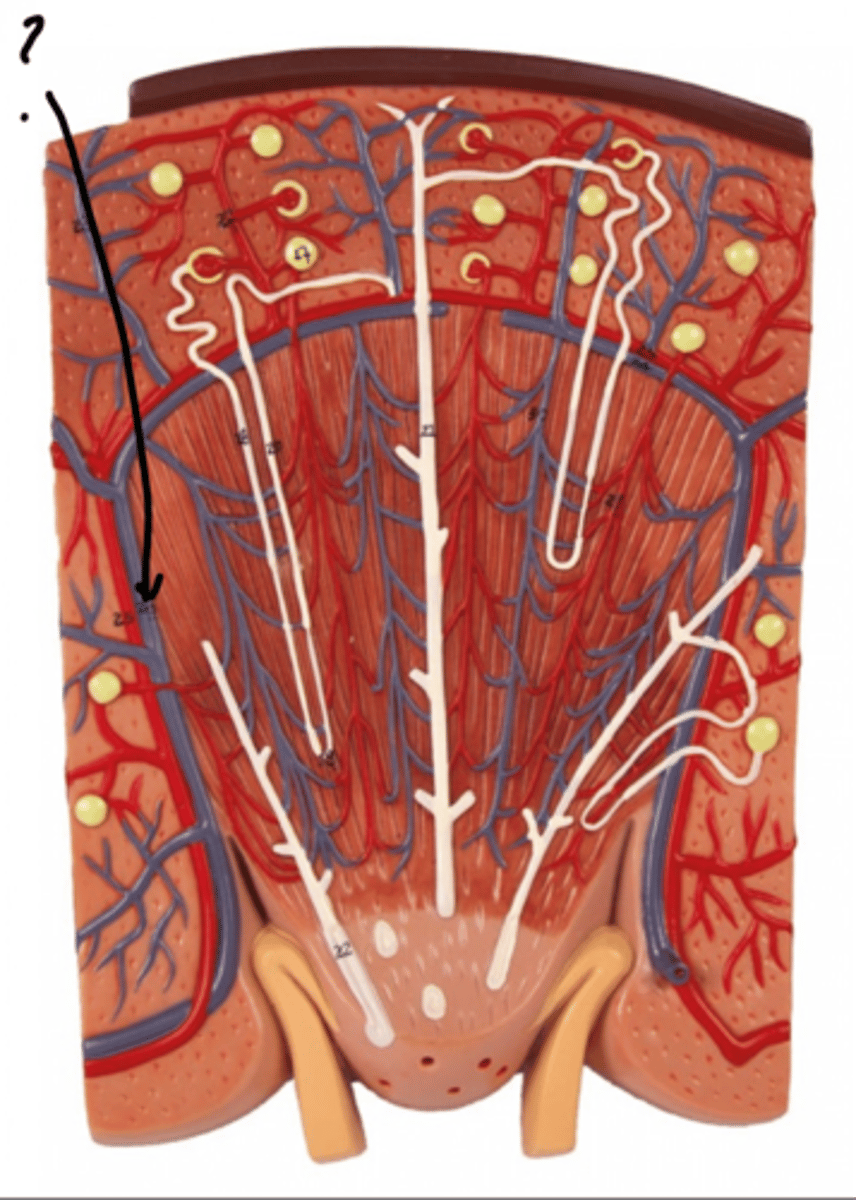

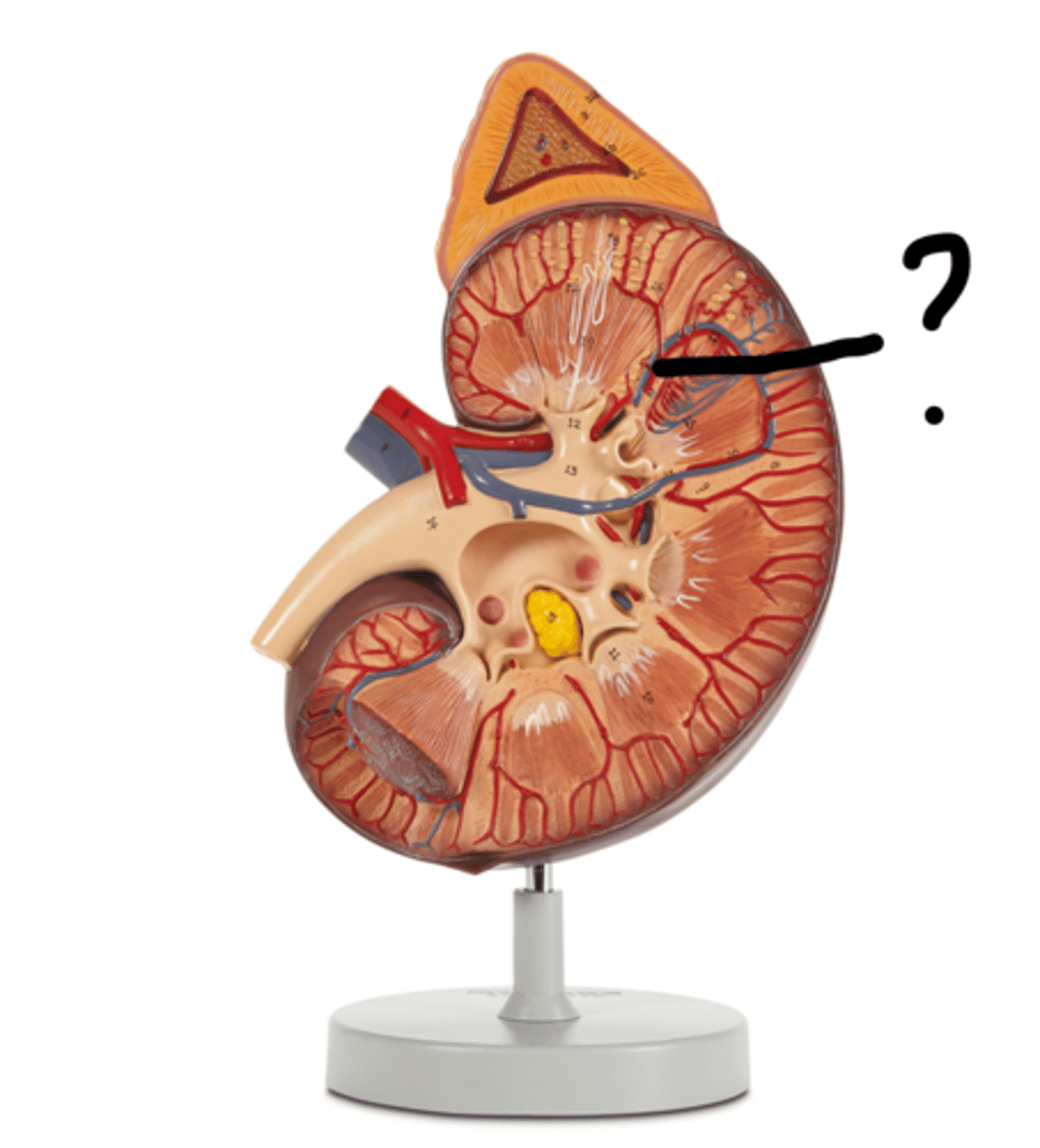

Name this vessel (blue)

Arcuate vein

Name this vessel (blue)

Interlobar vein

Name this vessel (blue)

Interlobar vein

Name this vessel (blue)

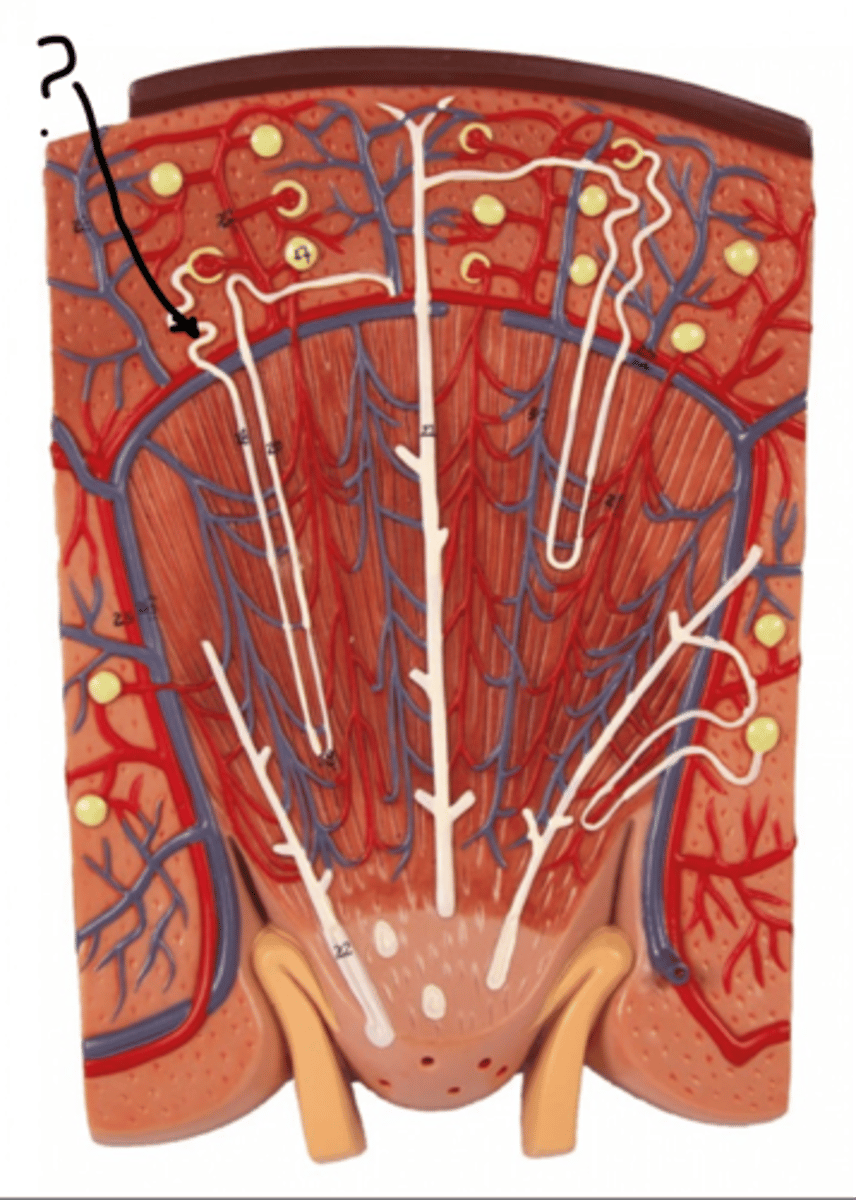

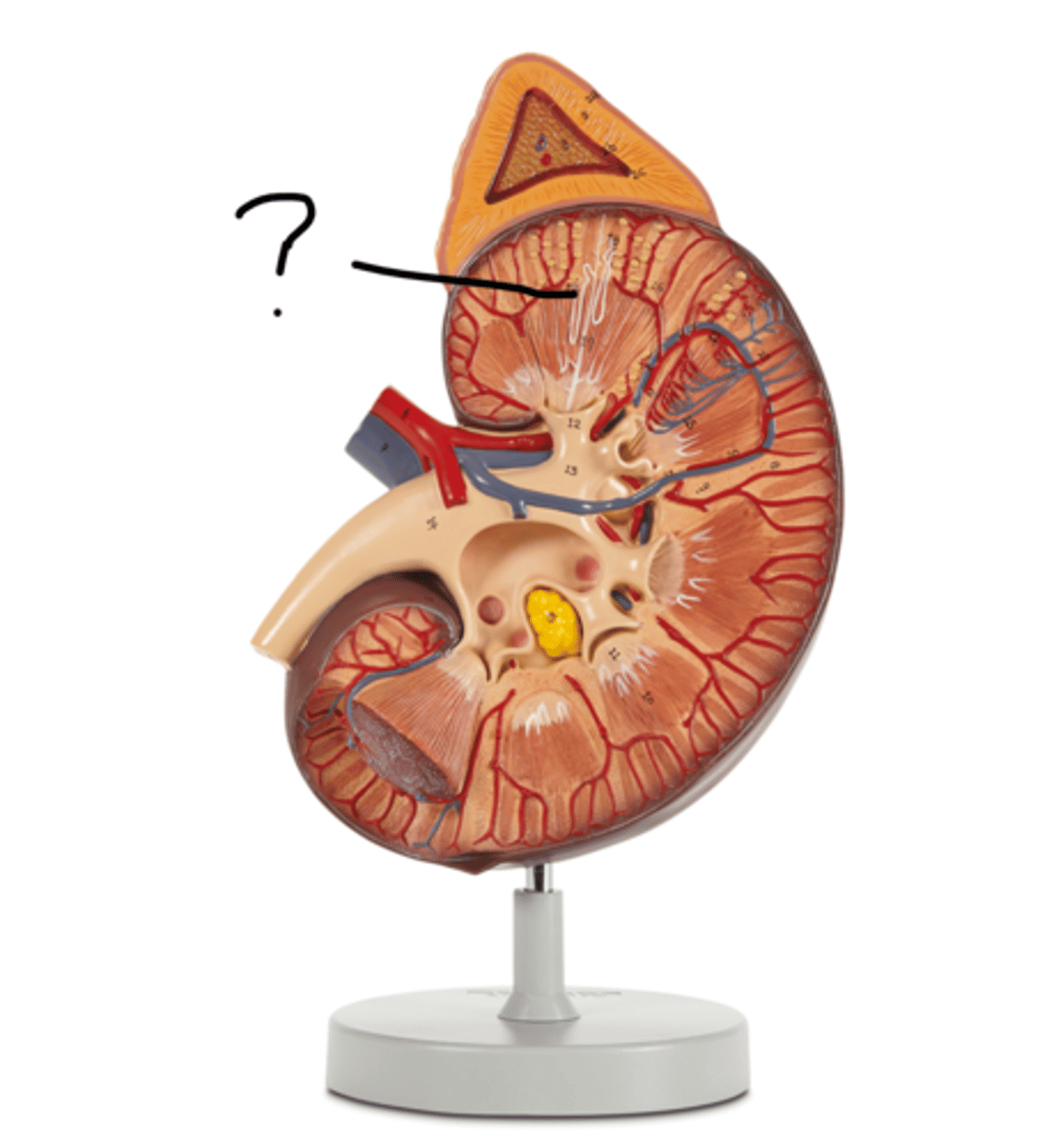

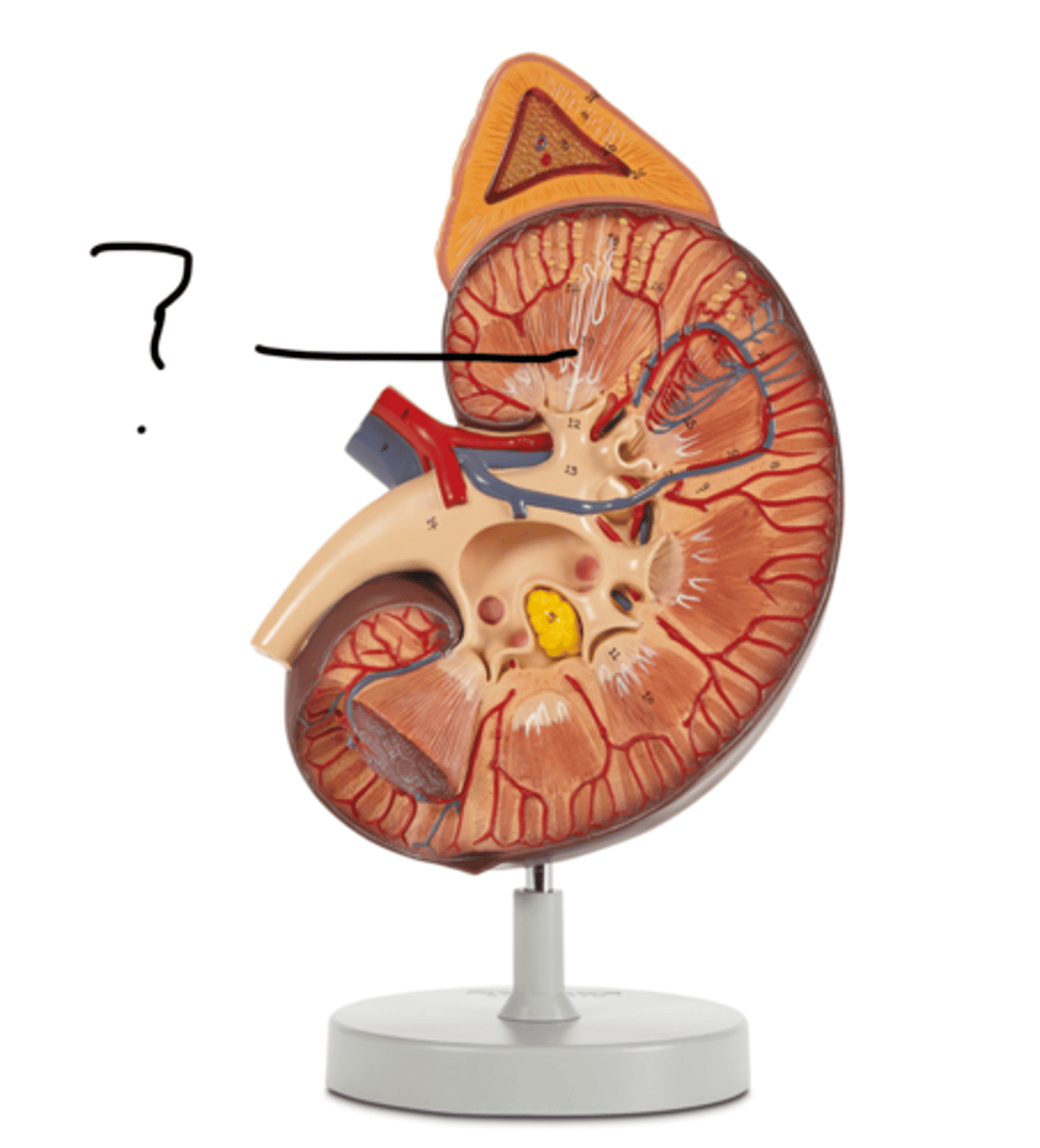

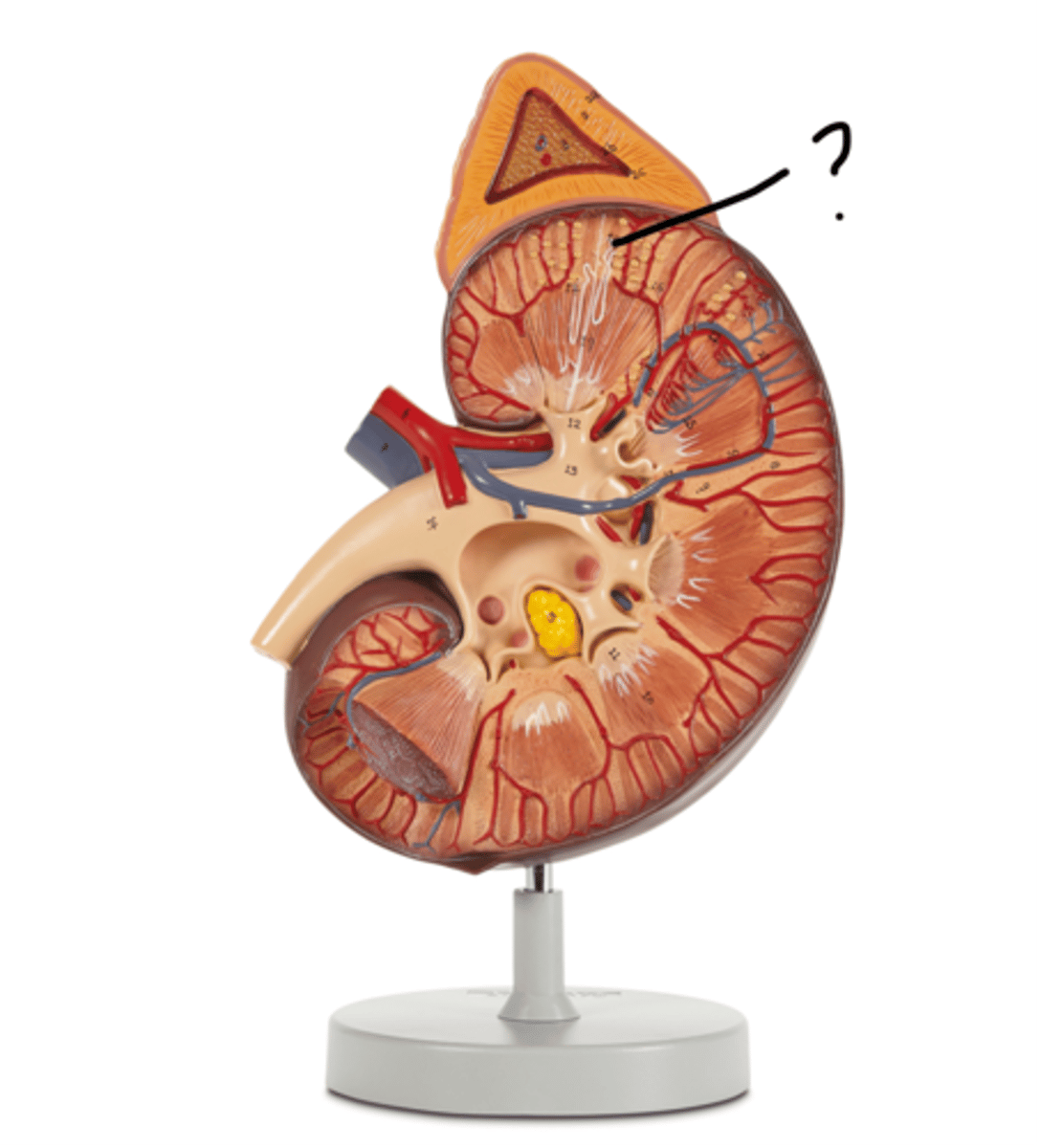

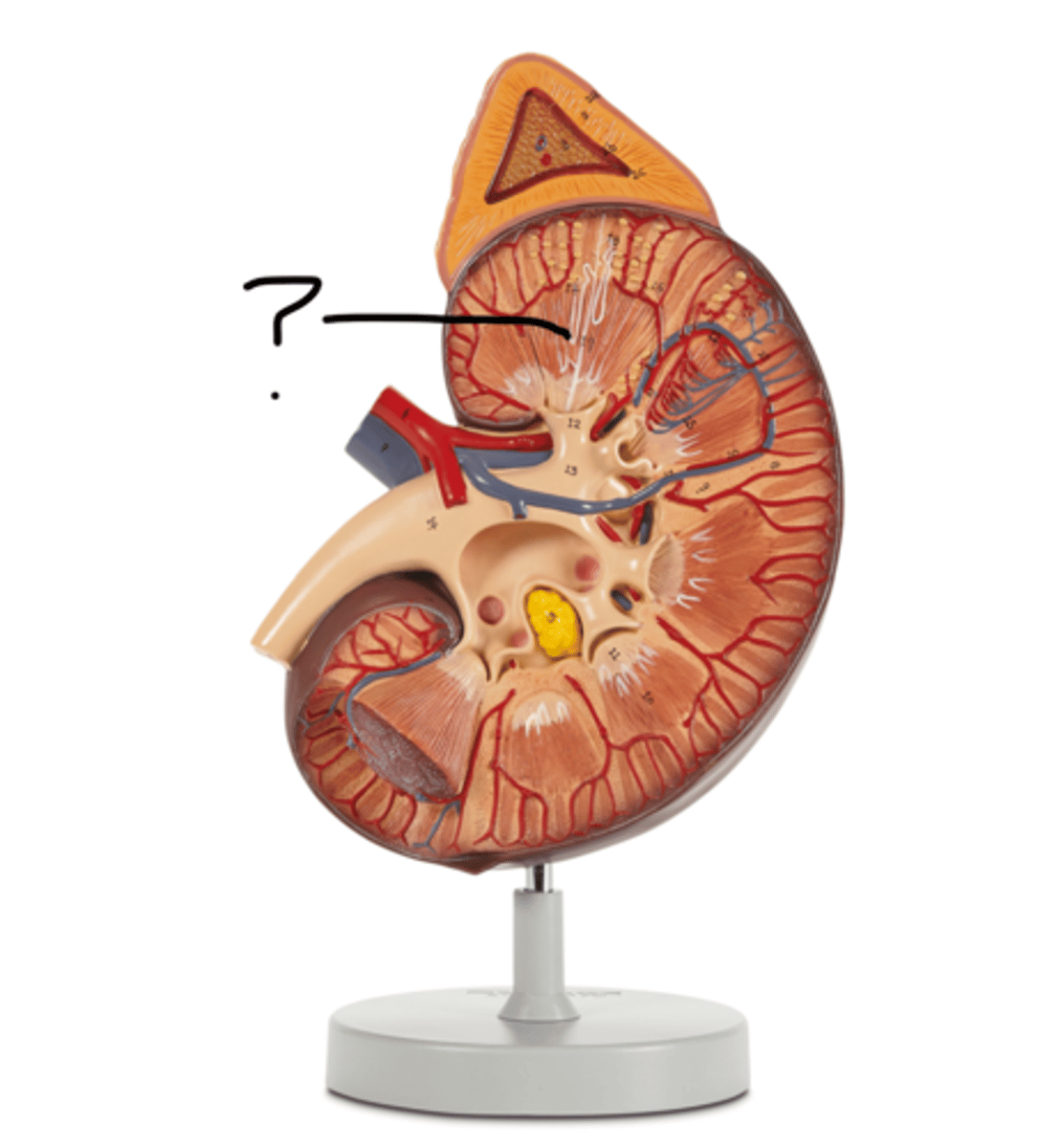

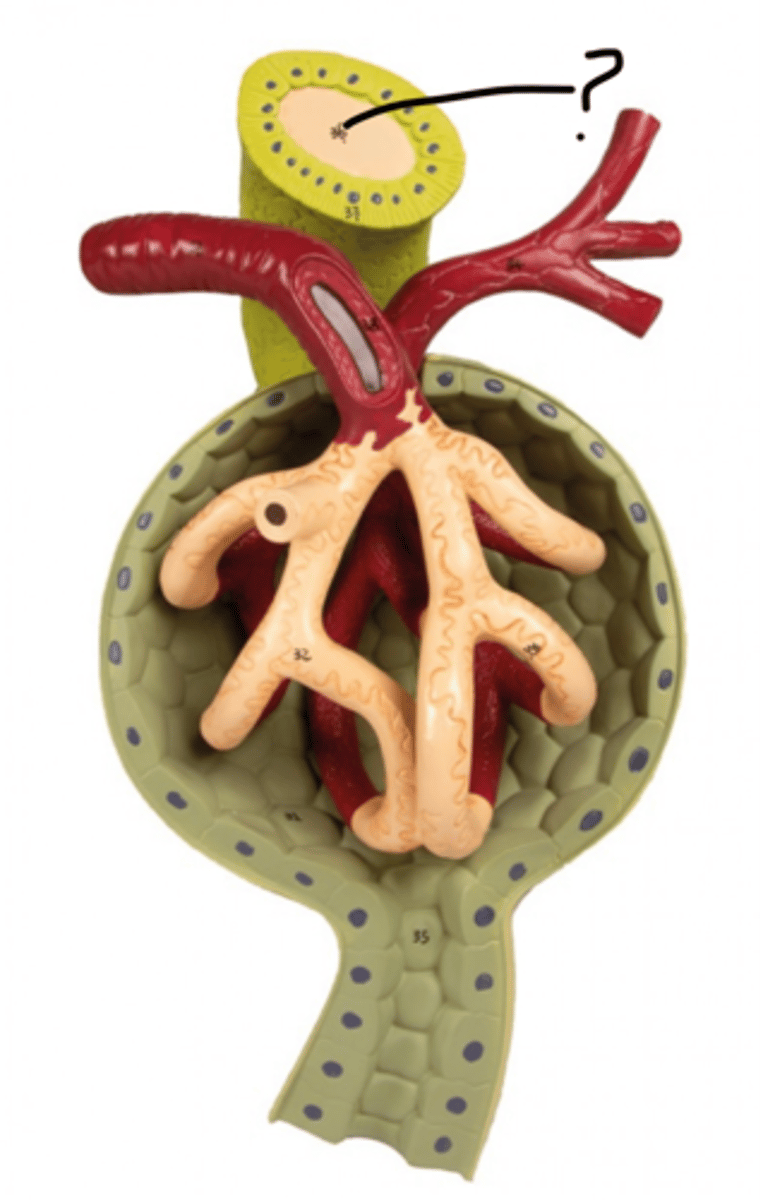

Distal convoluted tubule

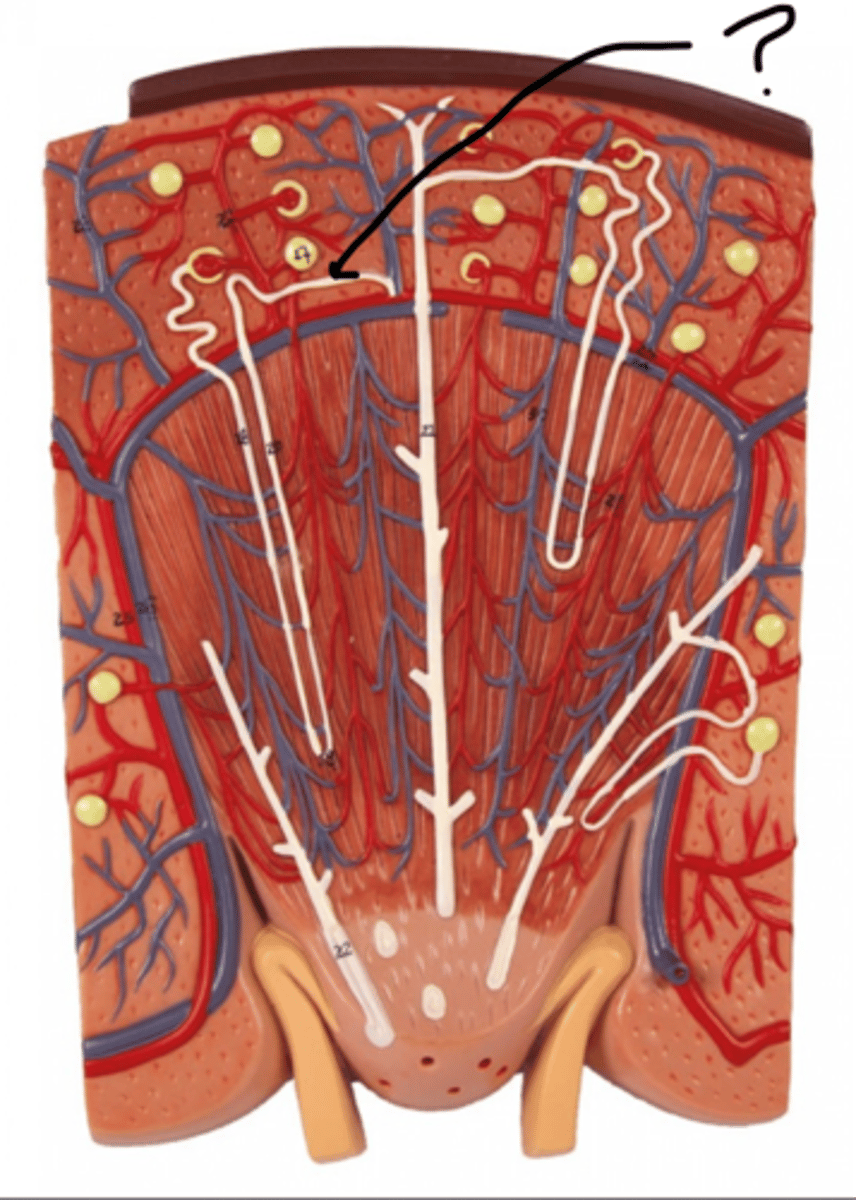

Name this segment

Distal convoluted tubule

Name this segment

Distal convoluted tubule

Name this segment

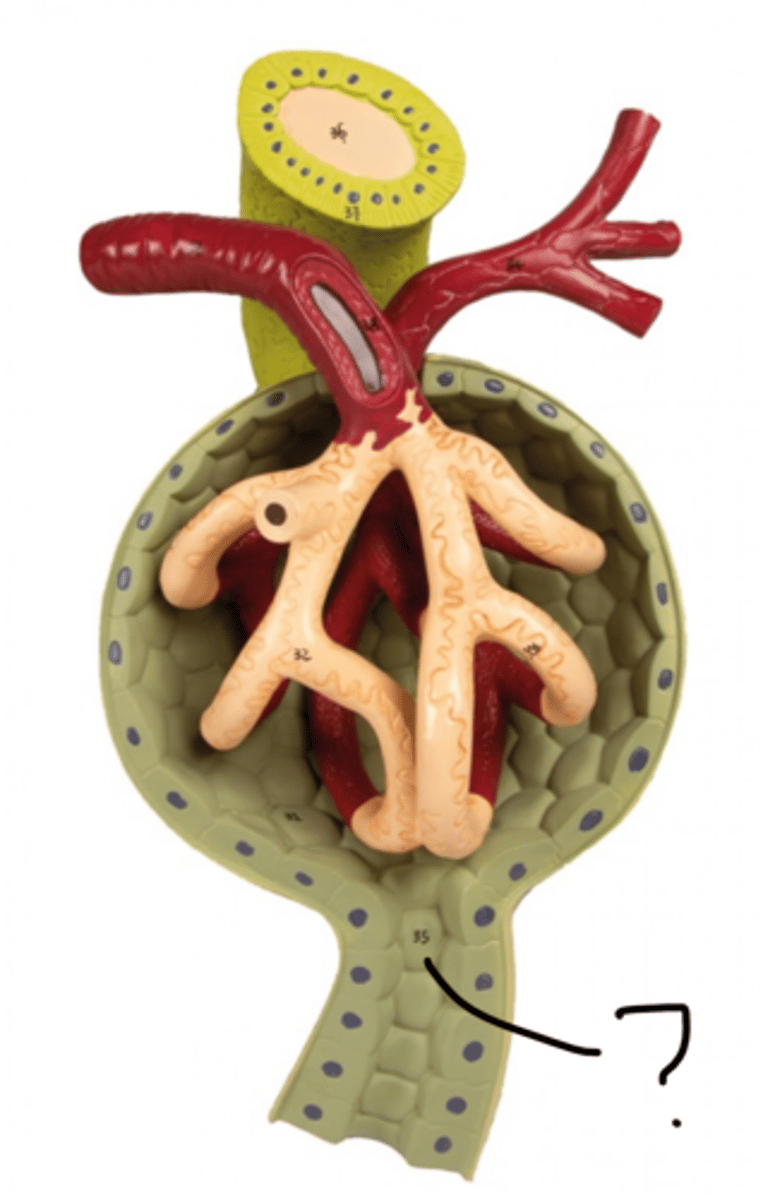

Proximal convoluted tubule

Name this segment

Proximal convoluted tubule

Name this segment

Proximal convoluted tubule

Name this segment

Loop of Henle

Name this segment

Loop of Henle

Name this segment

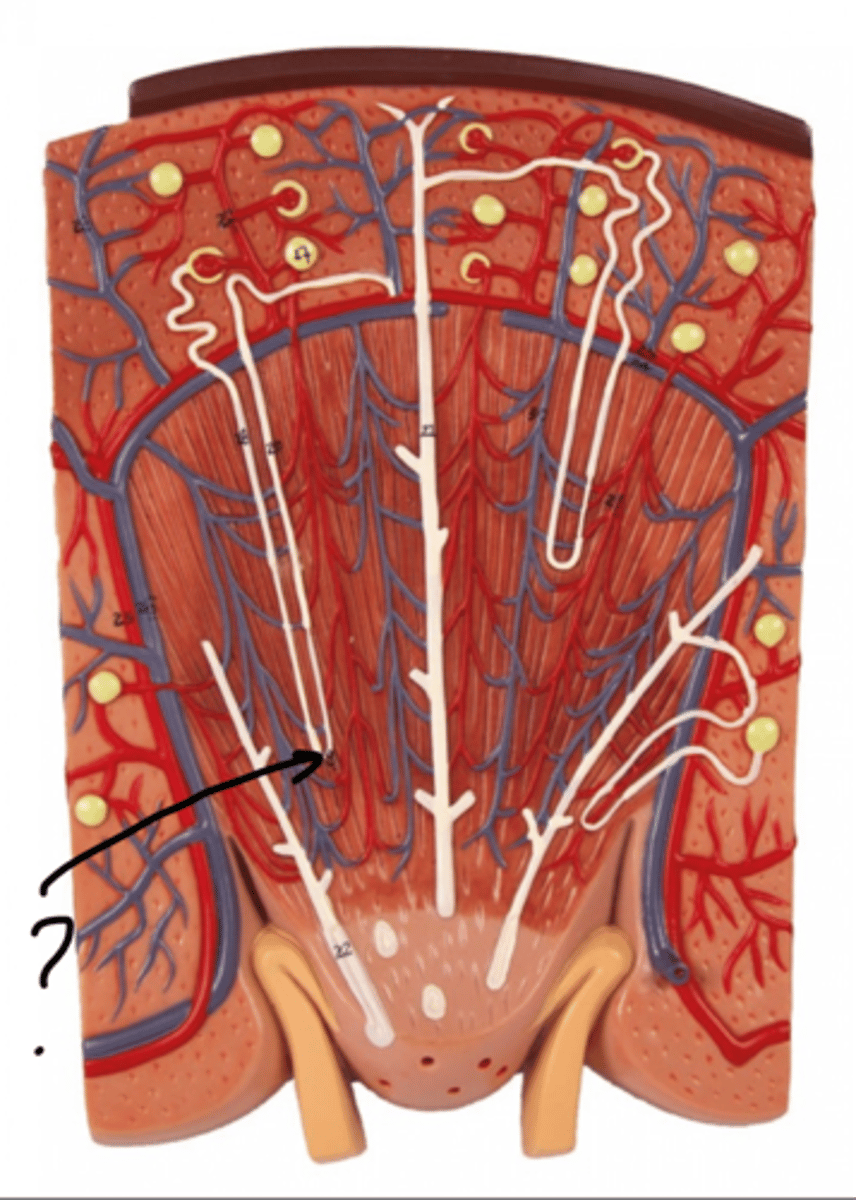

Collecting duct

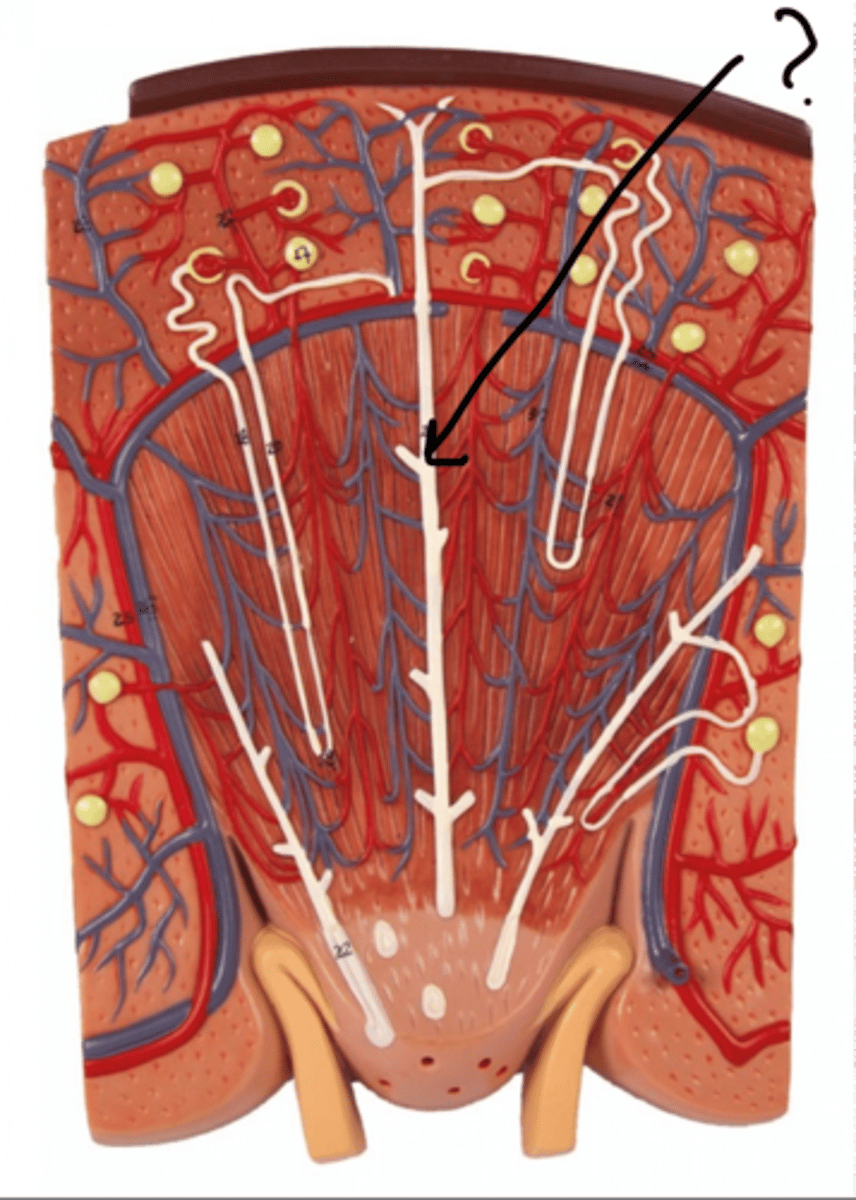

Name this segment

Collecting duct

Name this segment

Macula densa

Name these cells

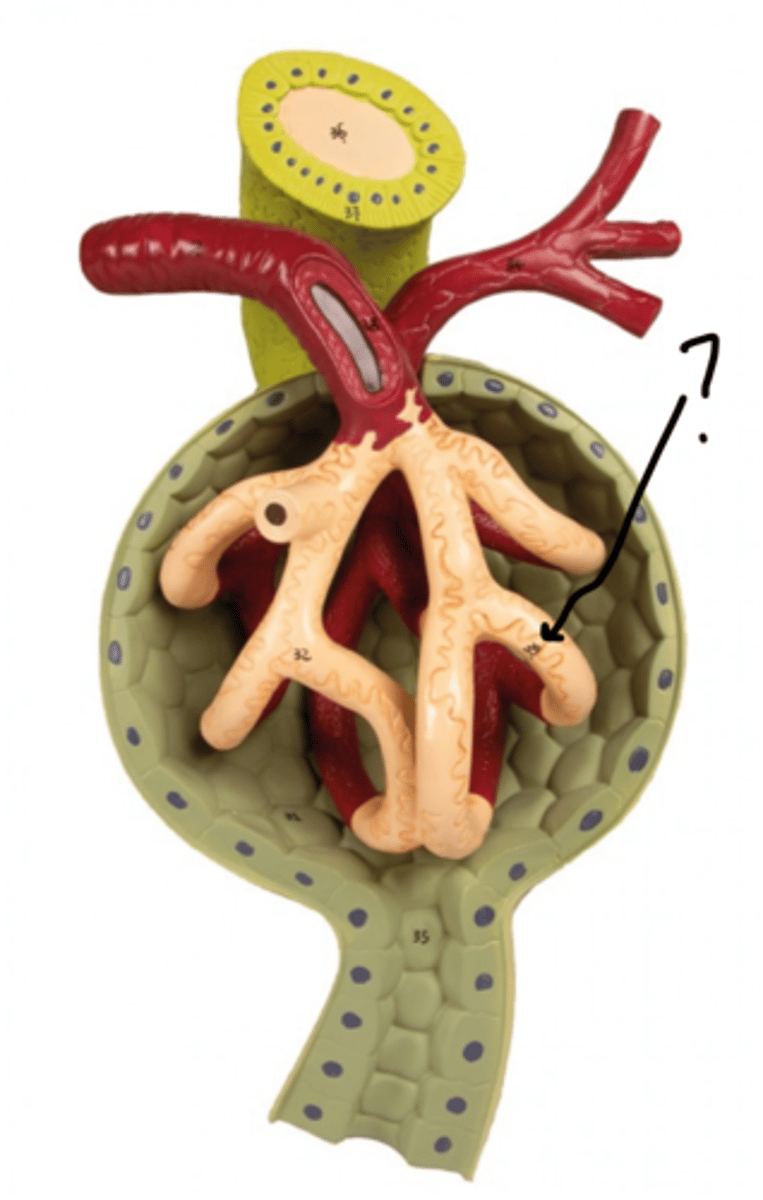

Podocytes

Name these cells

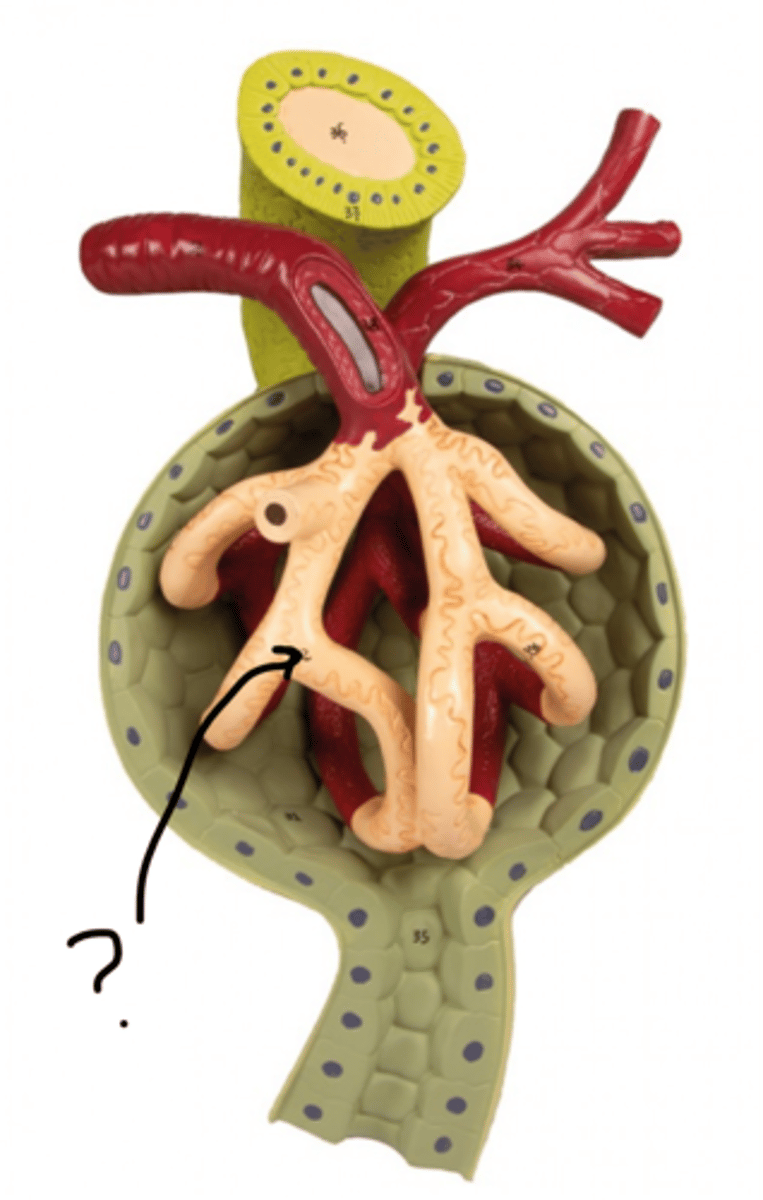

Glomerular capillaries

Name these vessels

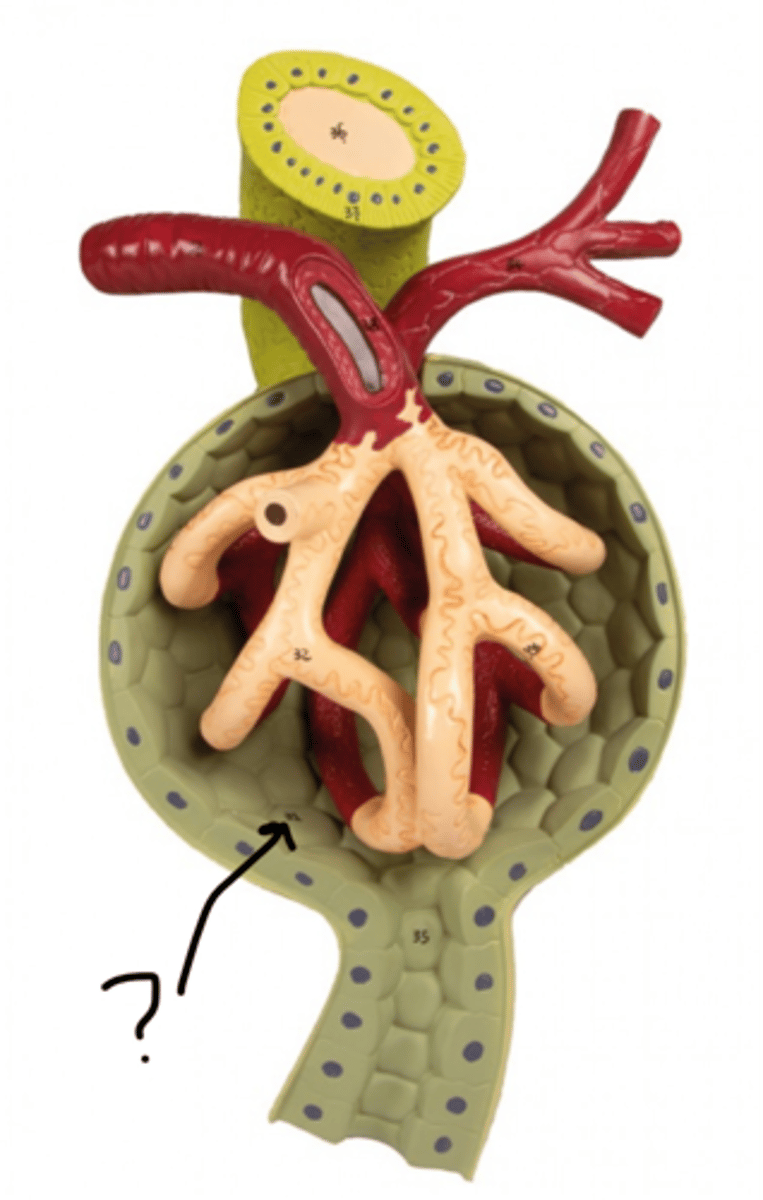

Glomerular capsule

Name this structure

Peritubular capillary bed

Name these vessels

Vasa recta

Name these vessels

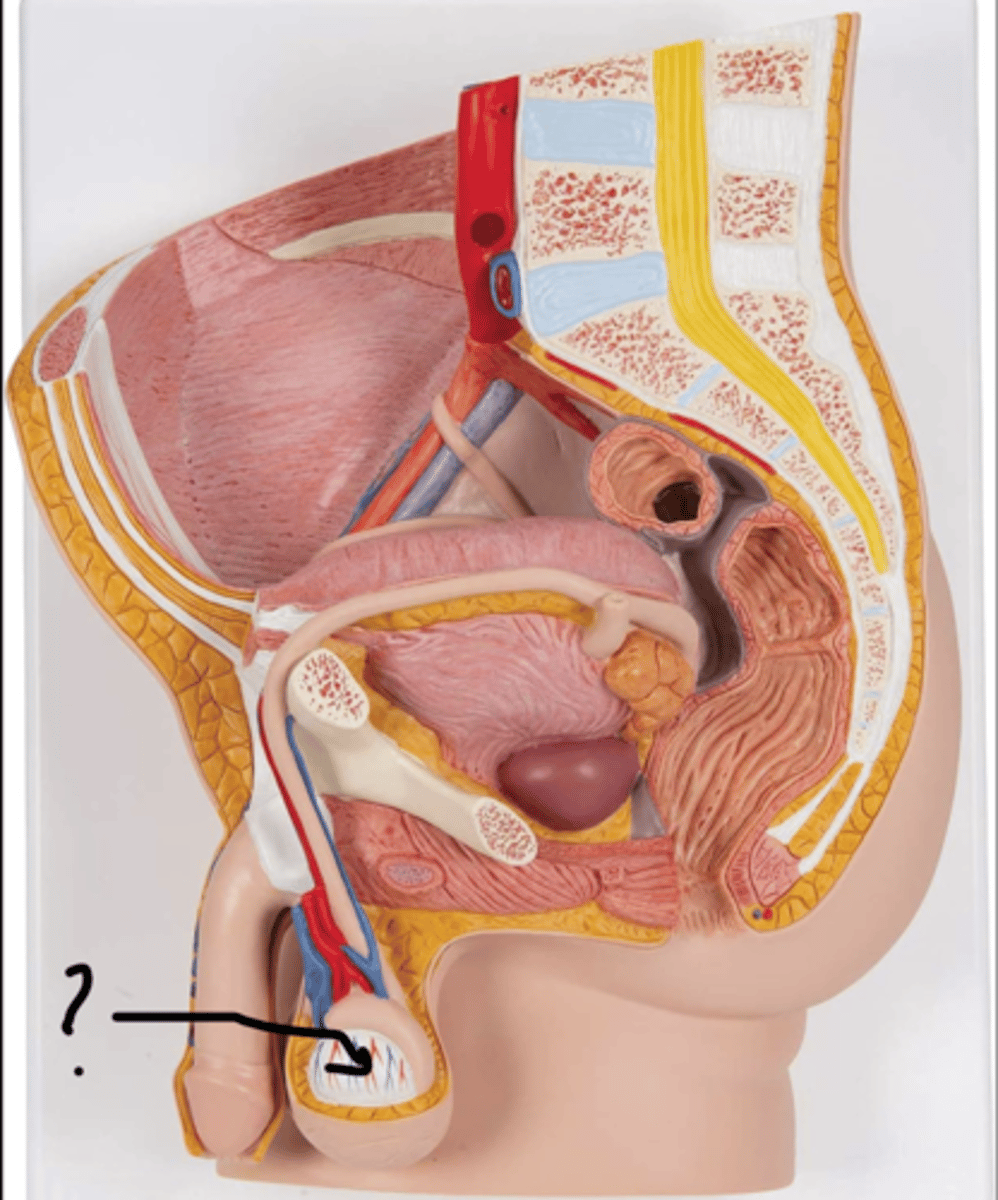

Testis

name this organ

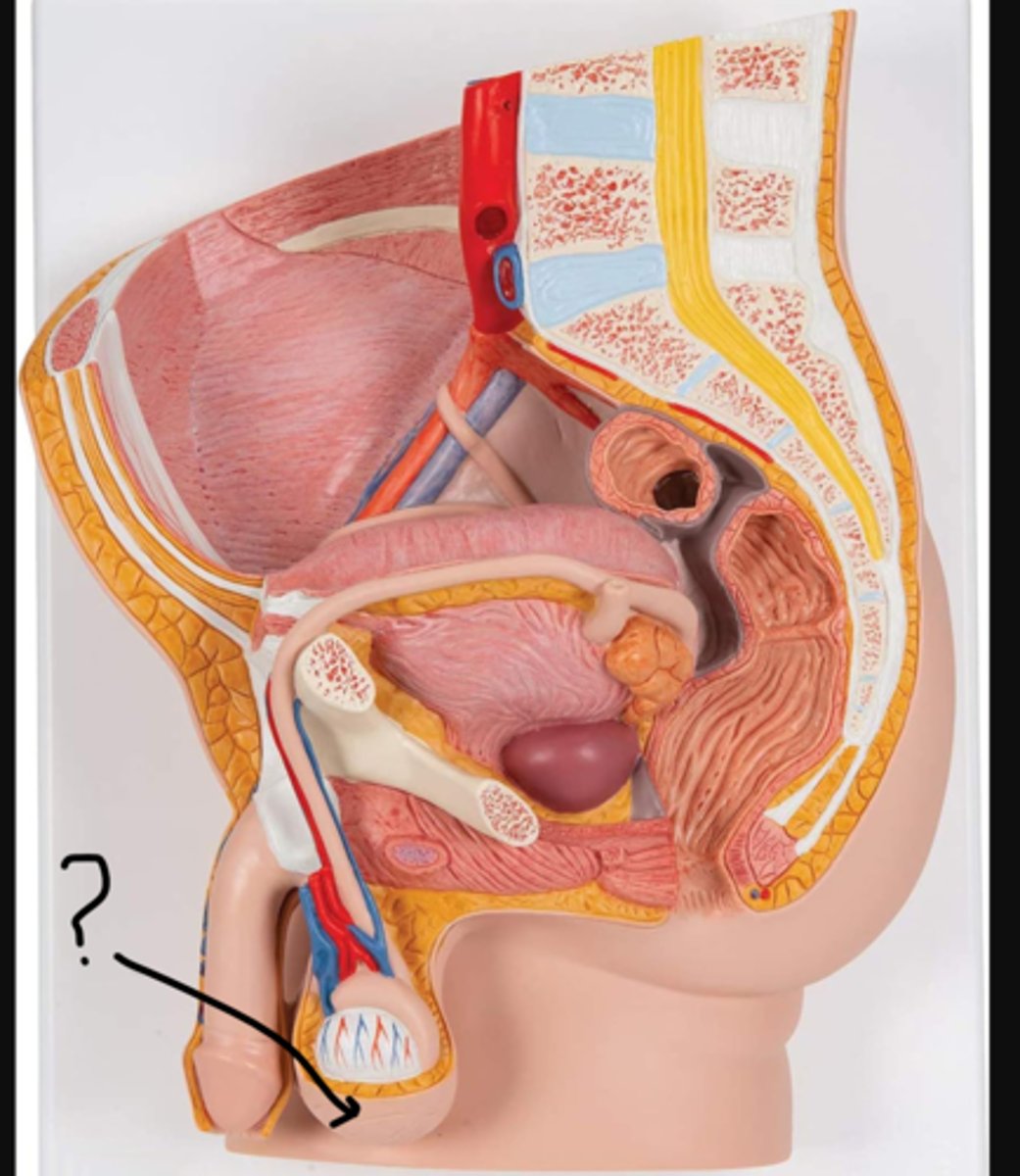

Scrotum

name this external layer

Ductus deferens (vas deferens)

Name this tube

Epididymis

name this structure

Spermatic cord

Name this bundle of structures.

Ejaculatory duct

Name this tube

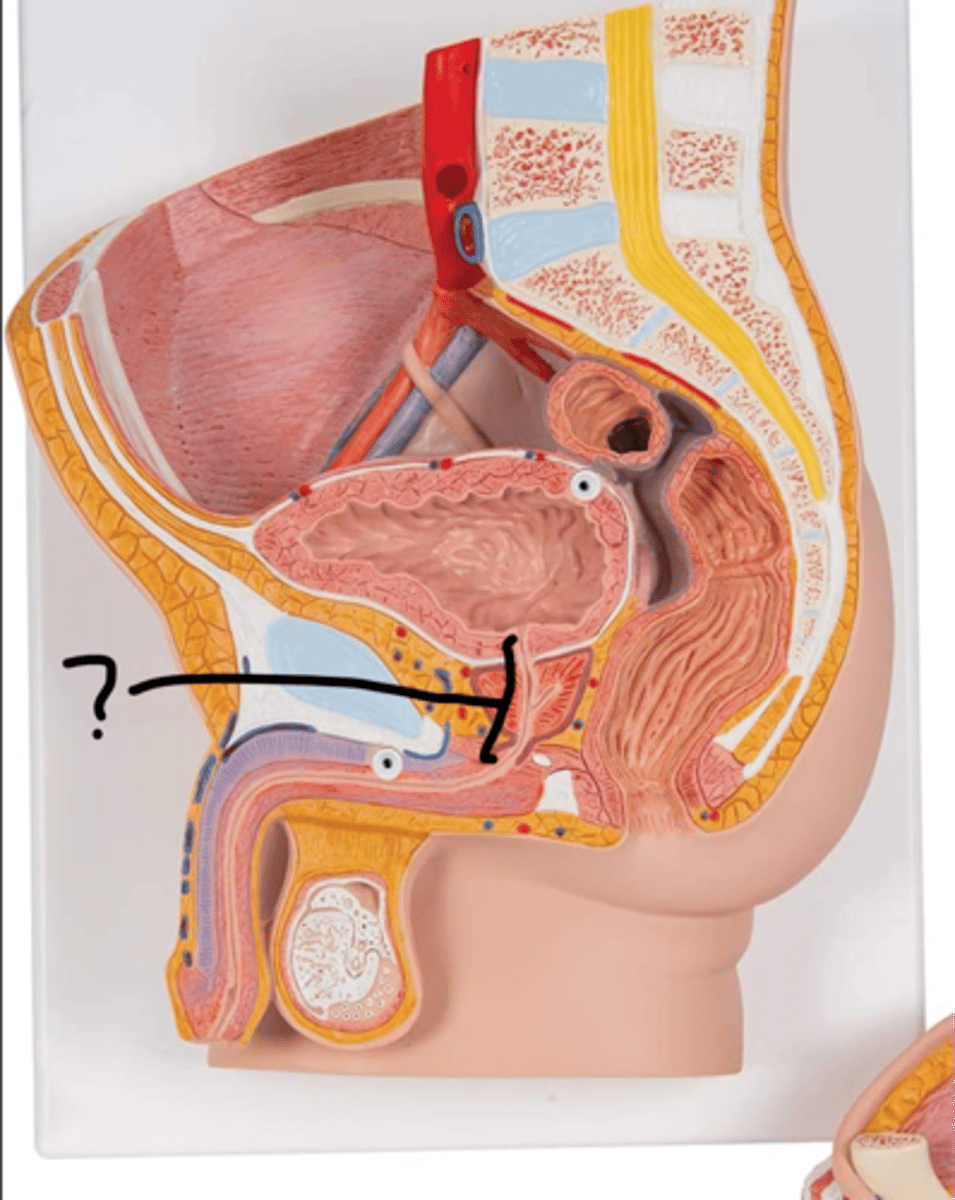

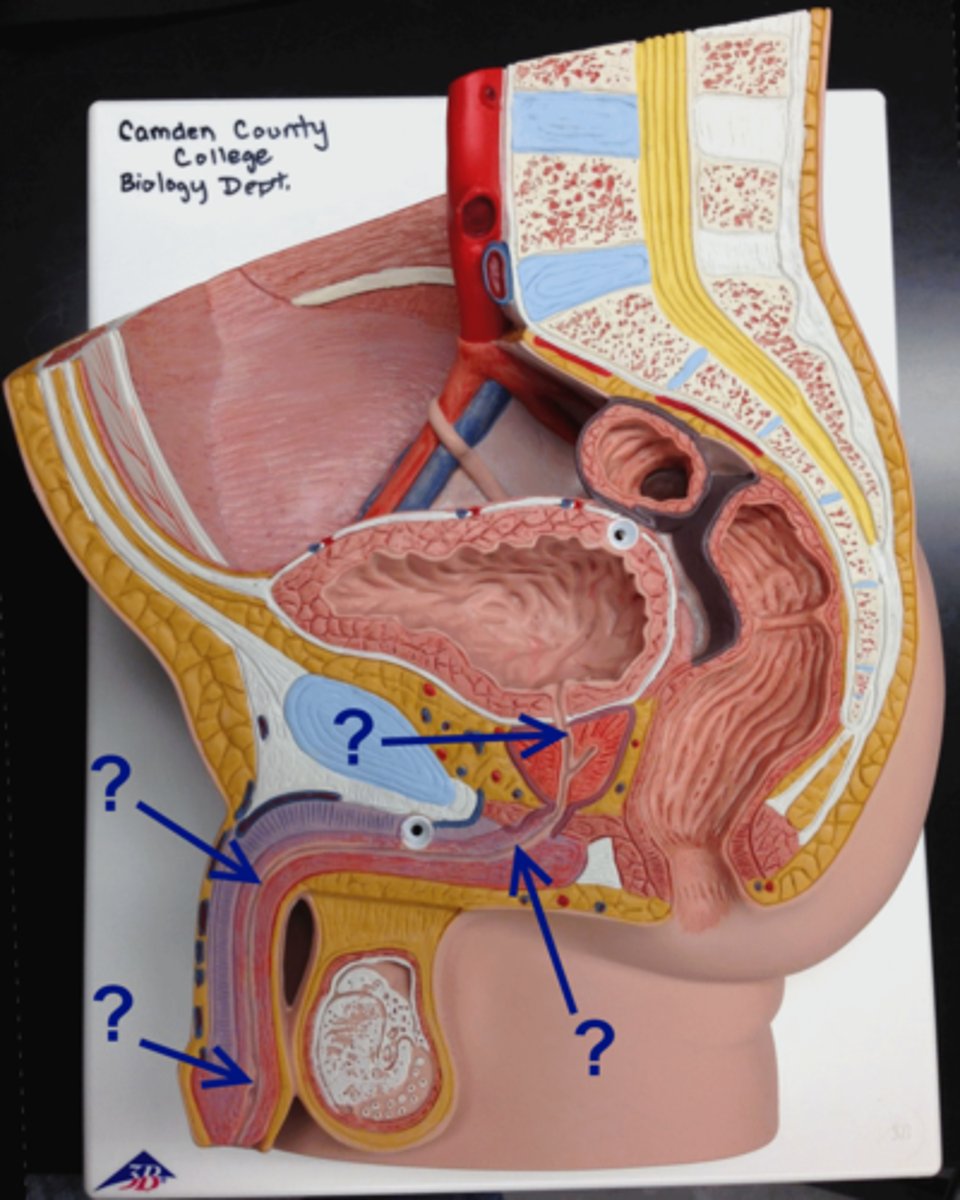

Prostatic urethra

name this portion of the tube

Membranous urethra

name this portion of the tube

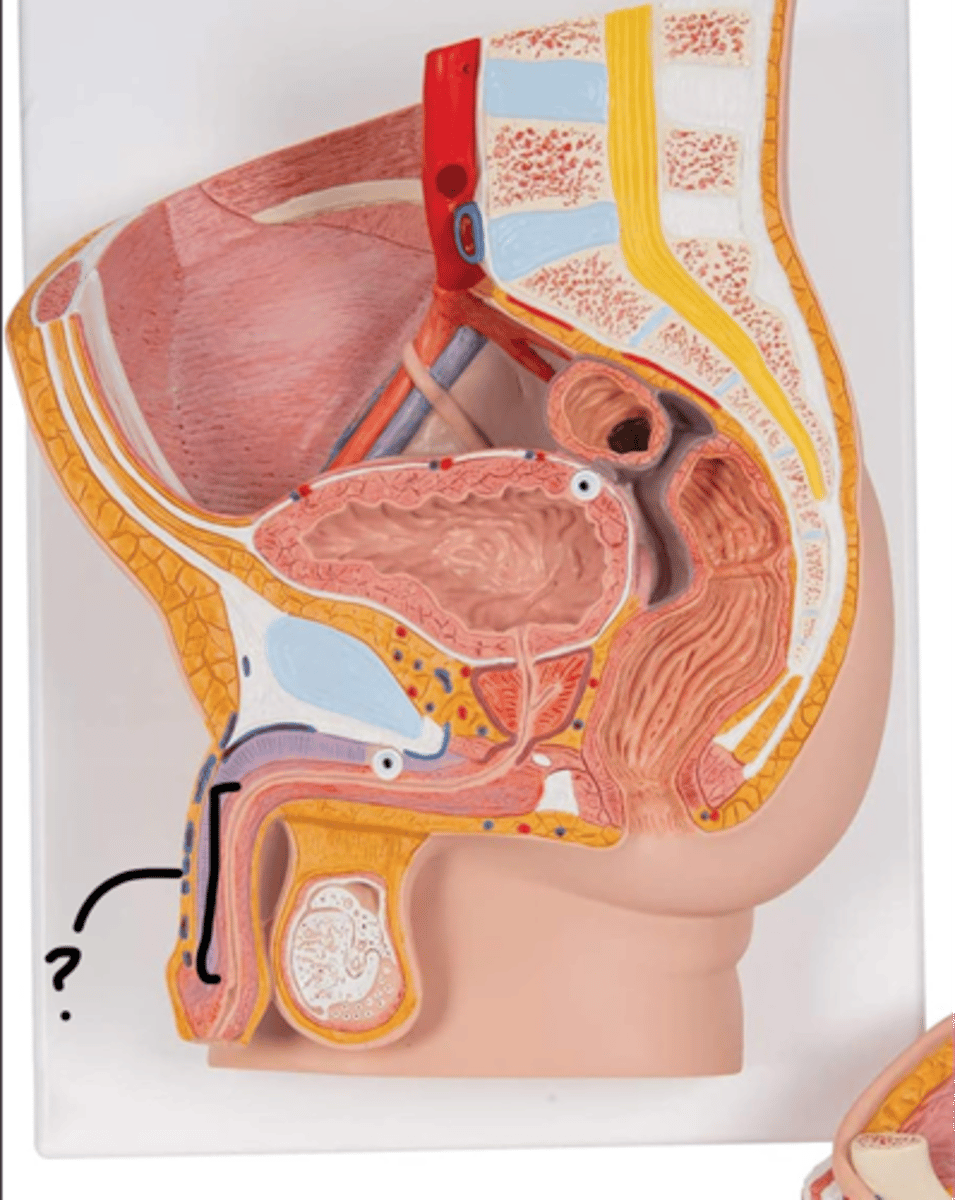

Spongy urethra (Penile urethra)

name this portion of the tube

Seminal vesicle/gland

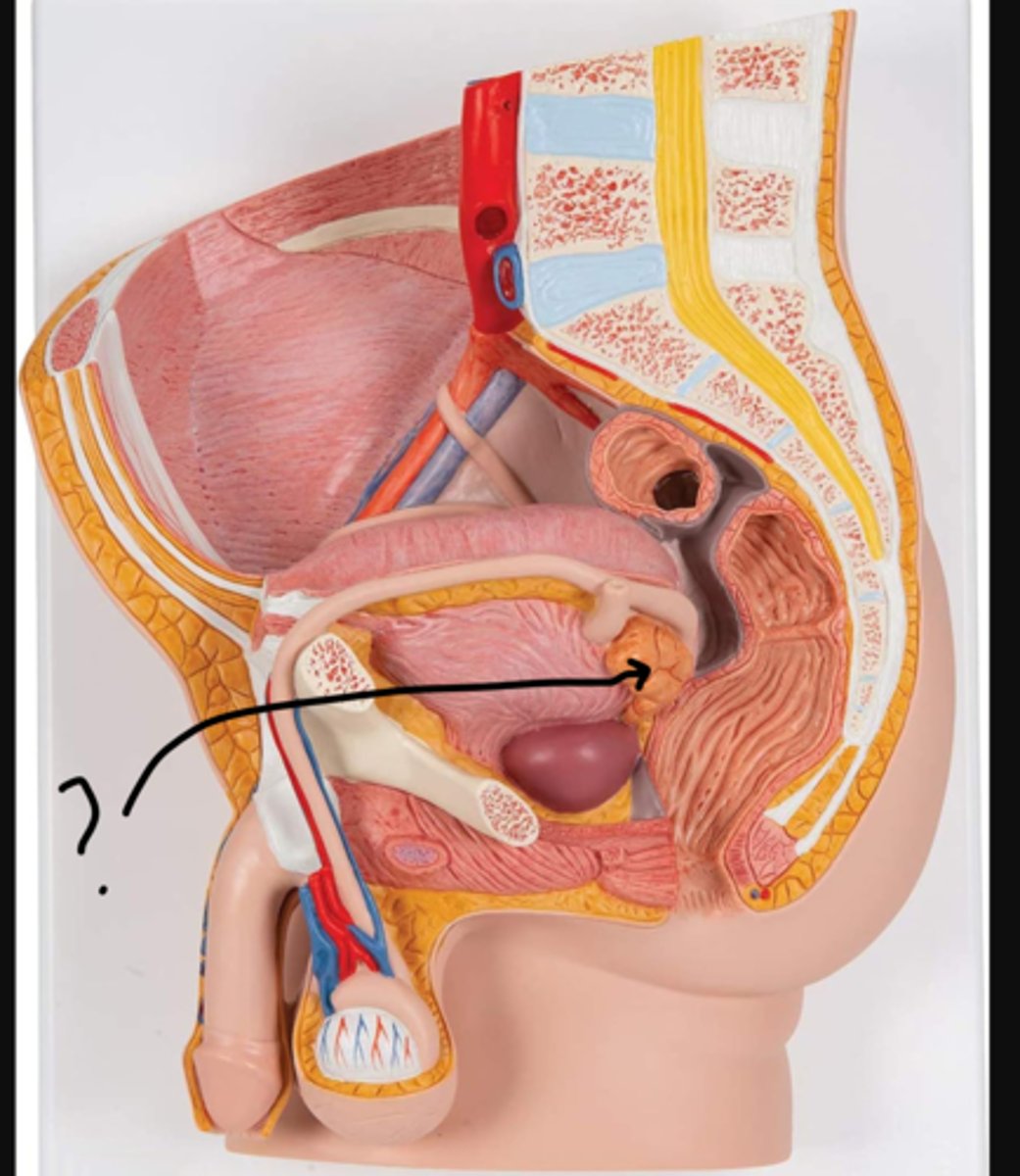

name this gland

Prostate

name this gland

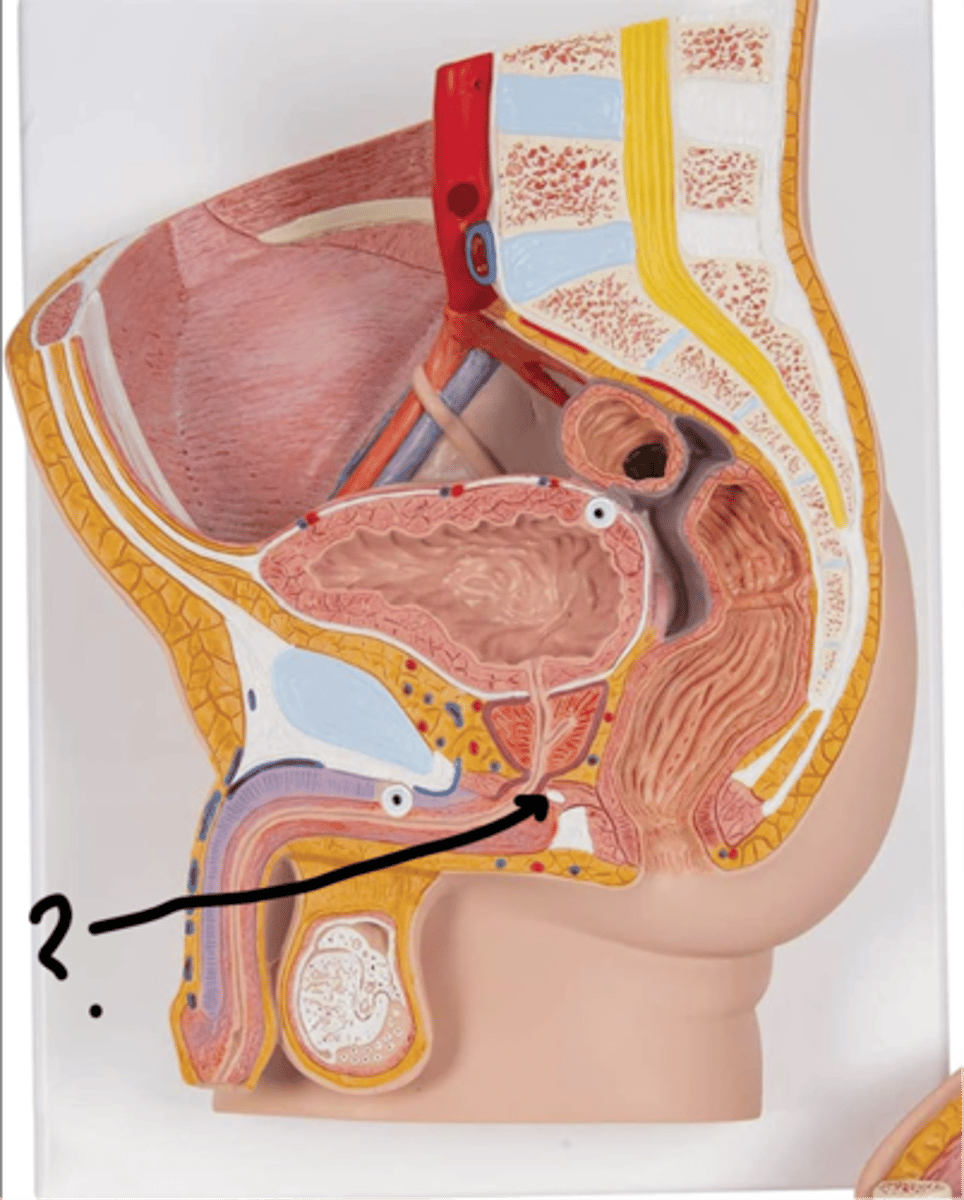

Bulbourethral gland (Cowper's gland)

name this gland

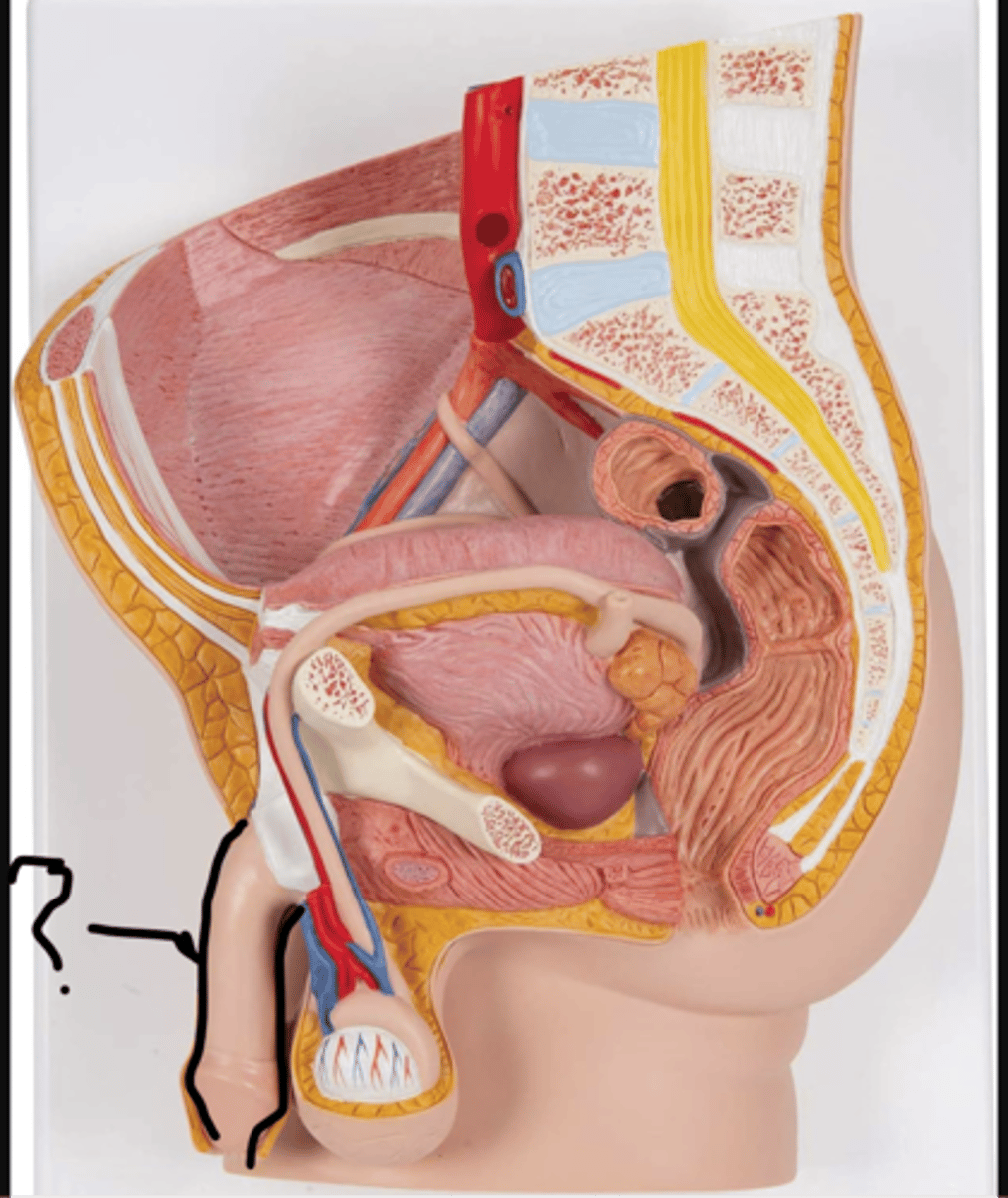

Penis

name this organ

Corpus cavernosum

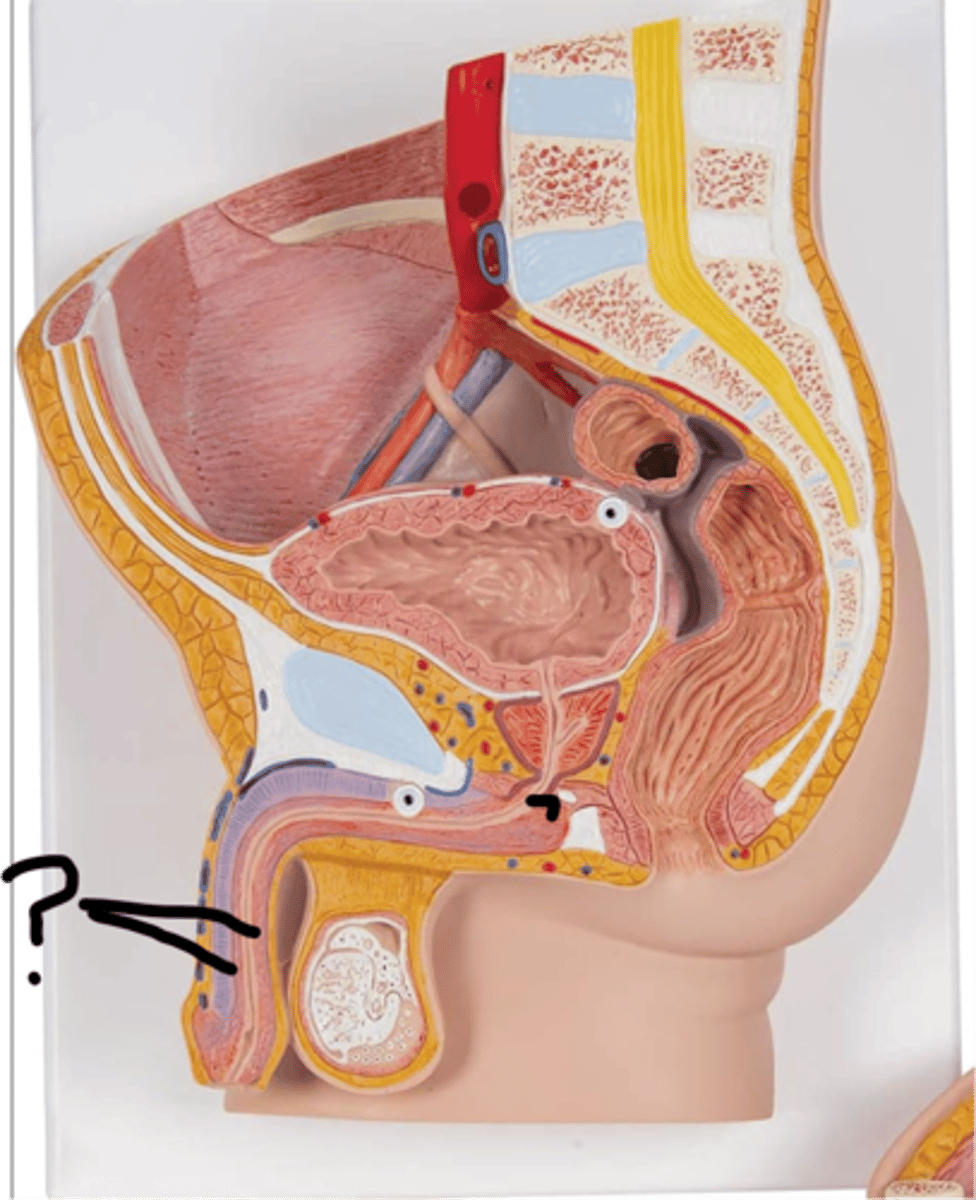

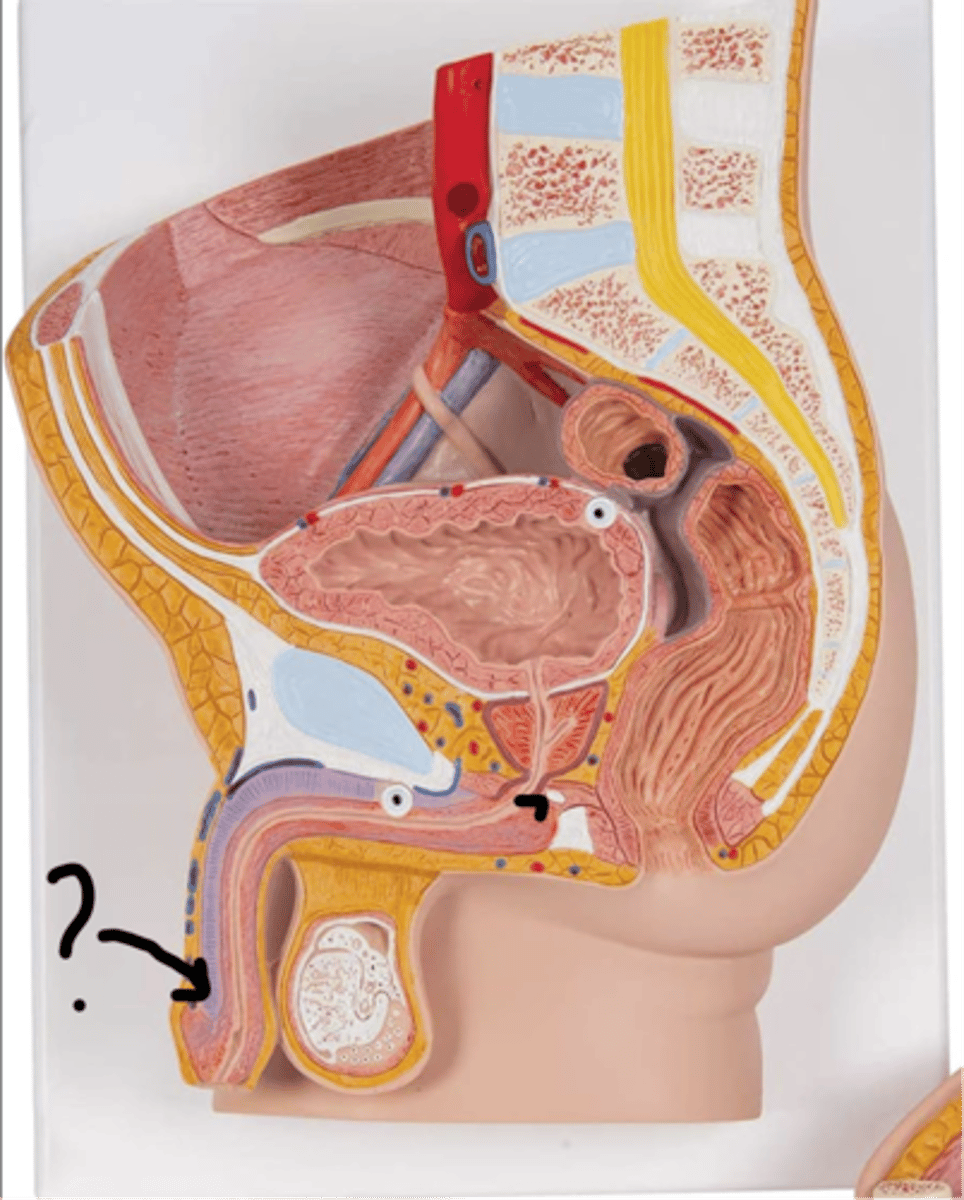

name this tissue

Corpus spongiosum

name this tissue

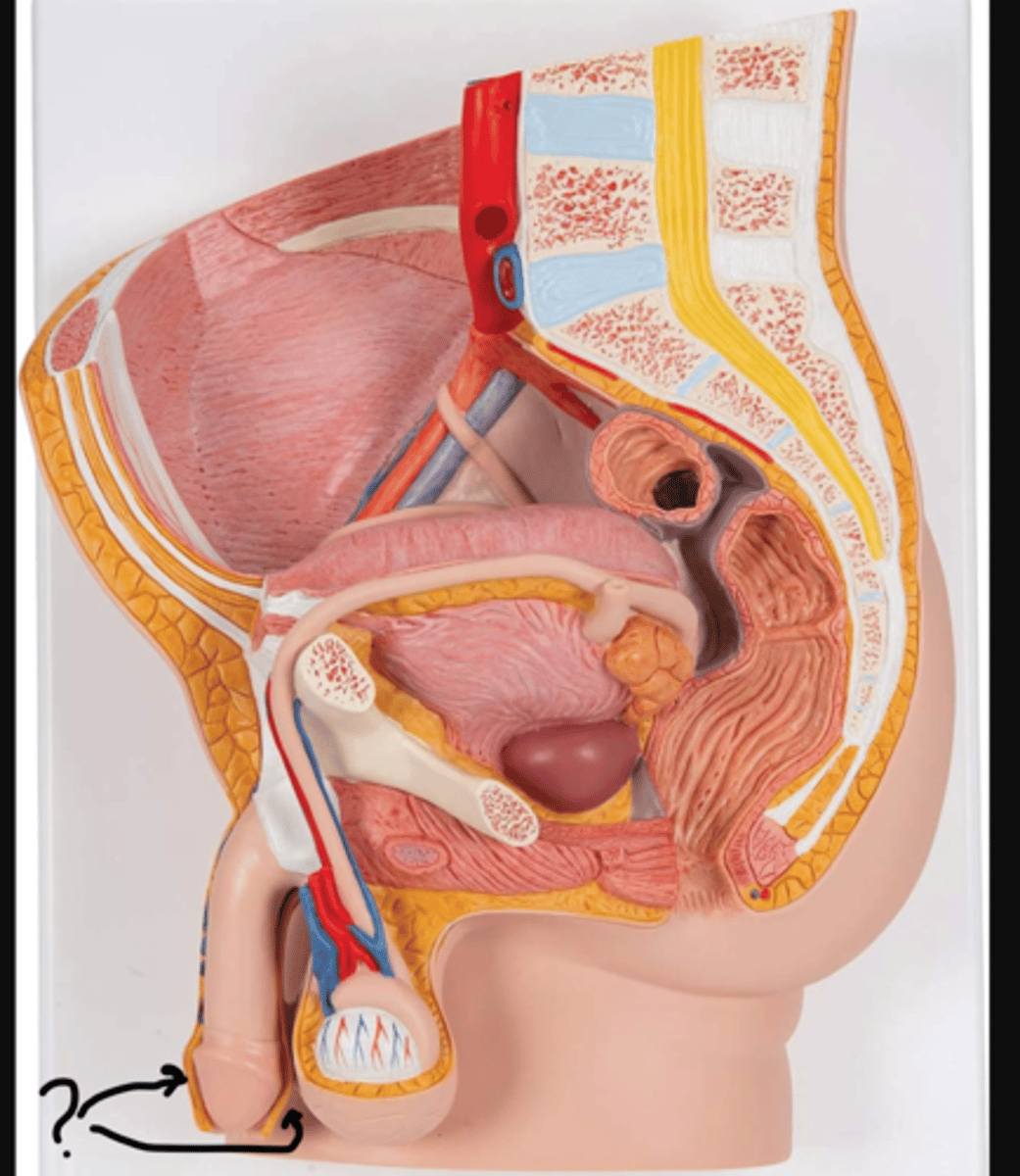

Prepuce

Name this outer yellow layer

Ampulla of ductus deferens

Name this specific section of the tube.

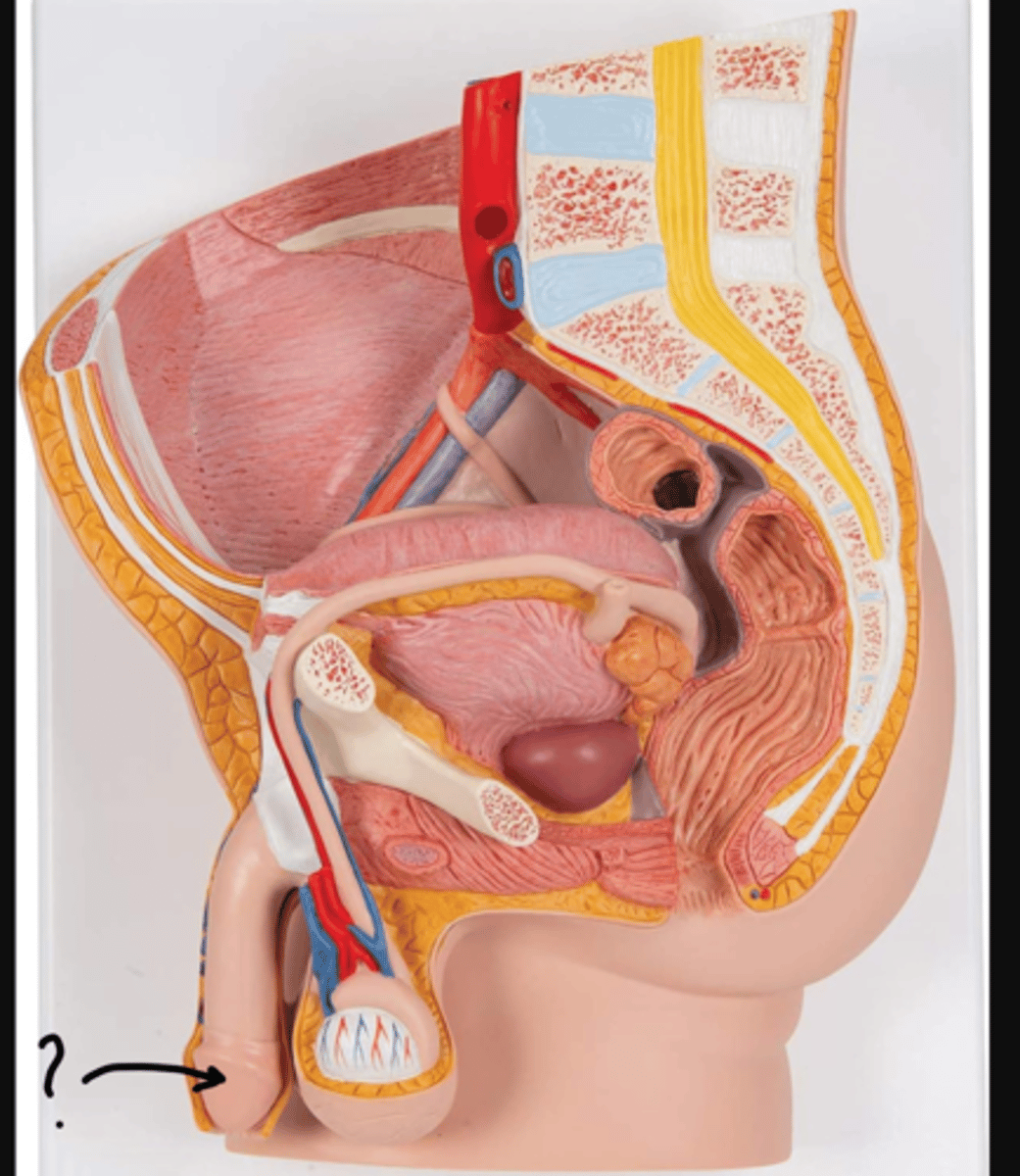

Glans penis

Name this specific part of the organ

Mons pubis

name this tissue

Labium majus

Name this fold

Labium minus

Name this fold (inner)

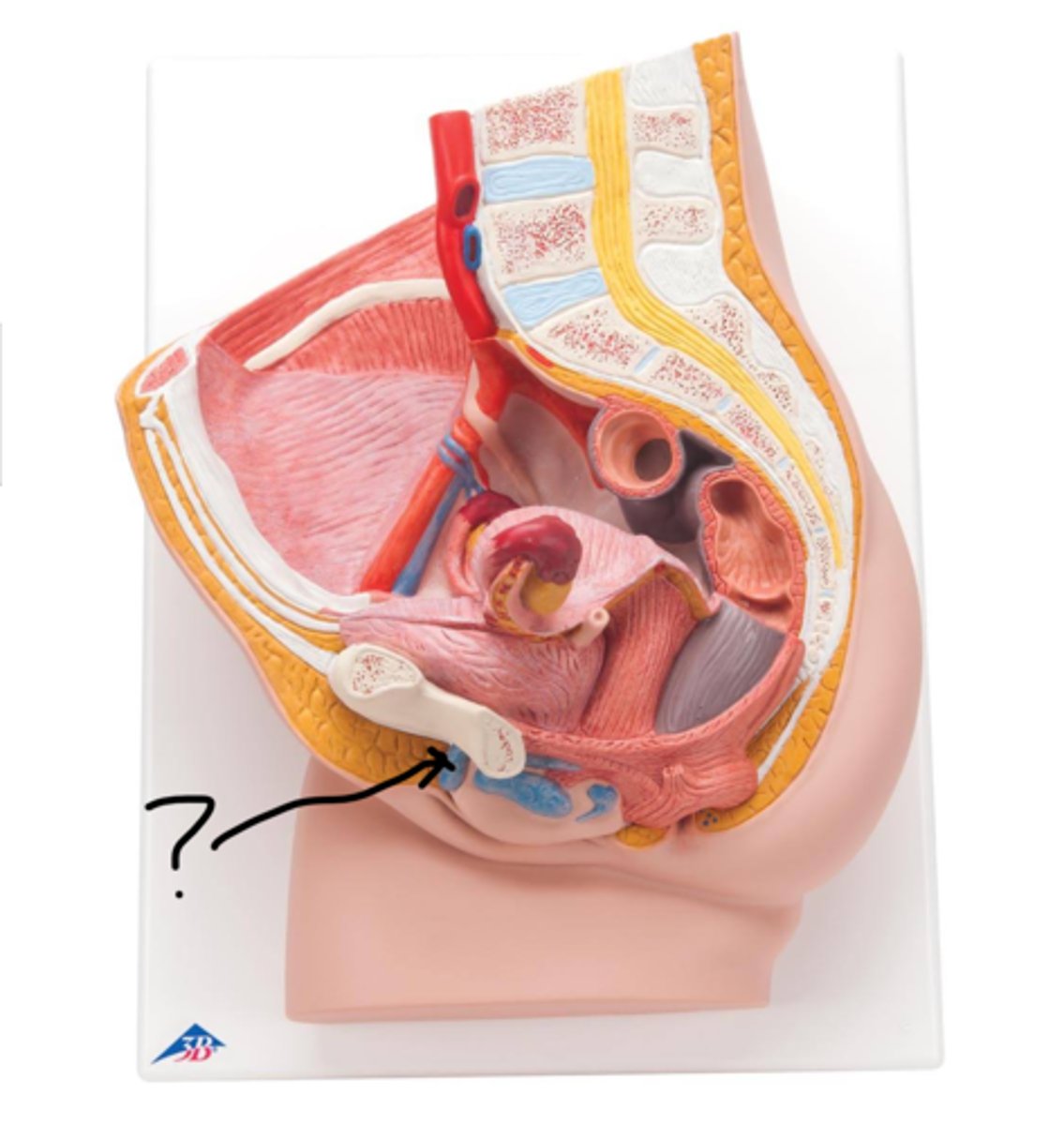

Clitoris

Name this tissue

Vagina

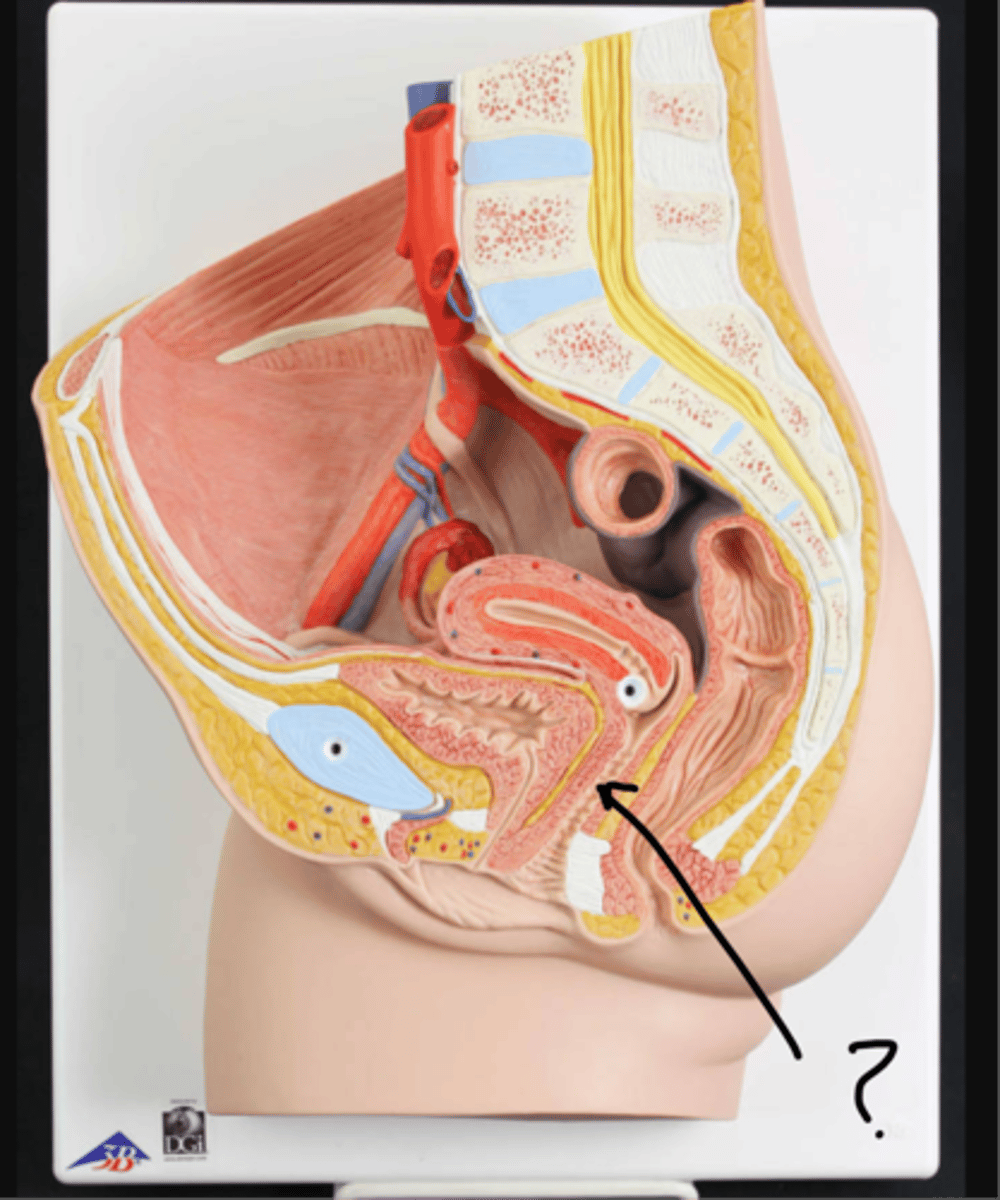

Name this space.

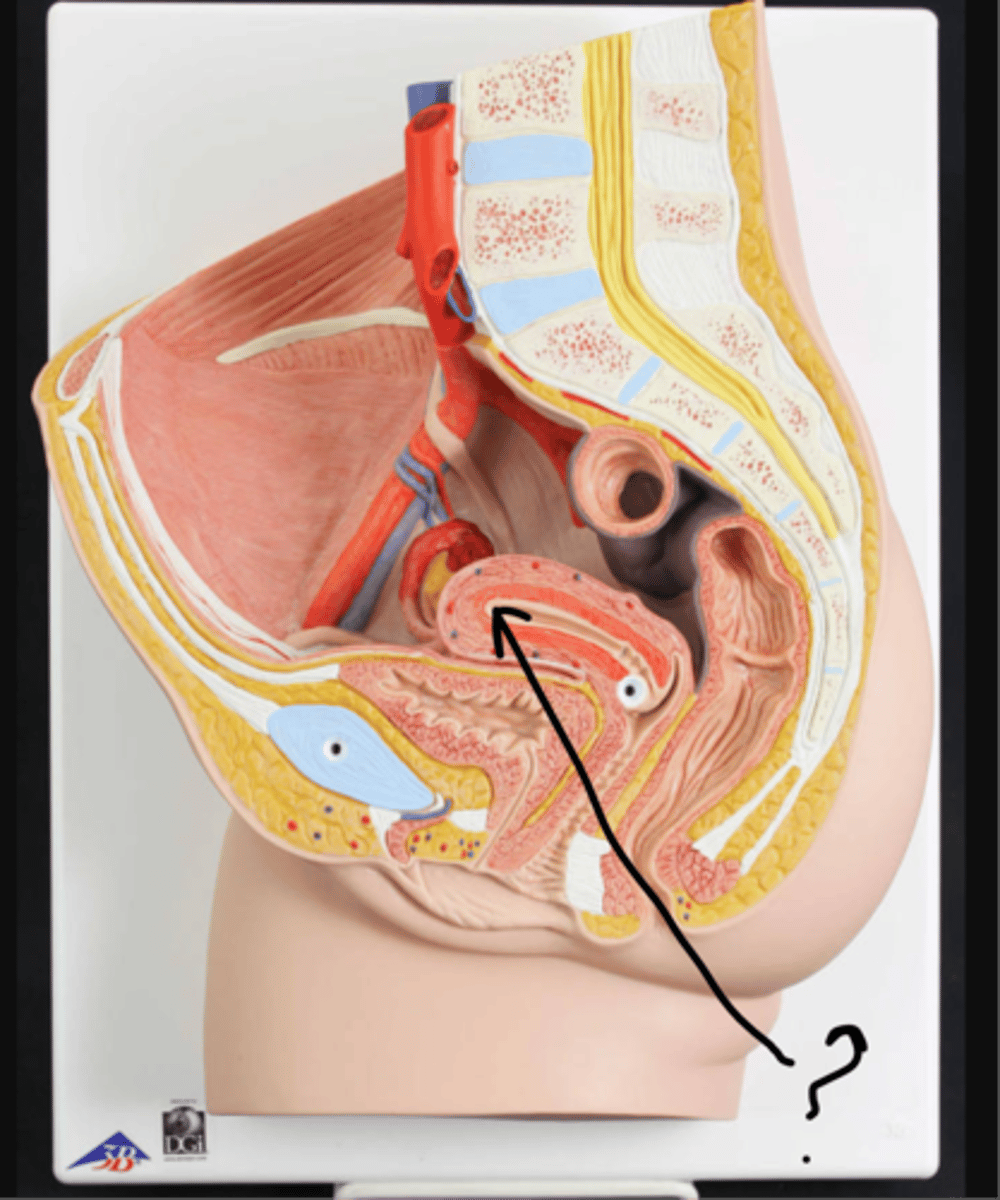

Body of uterus

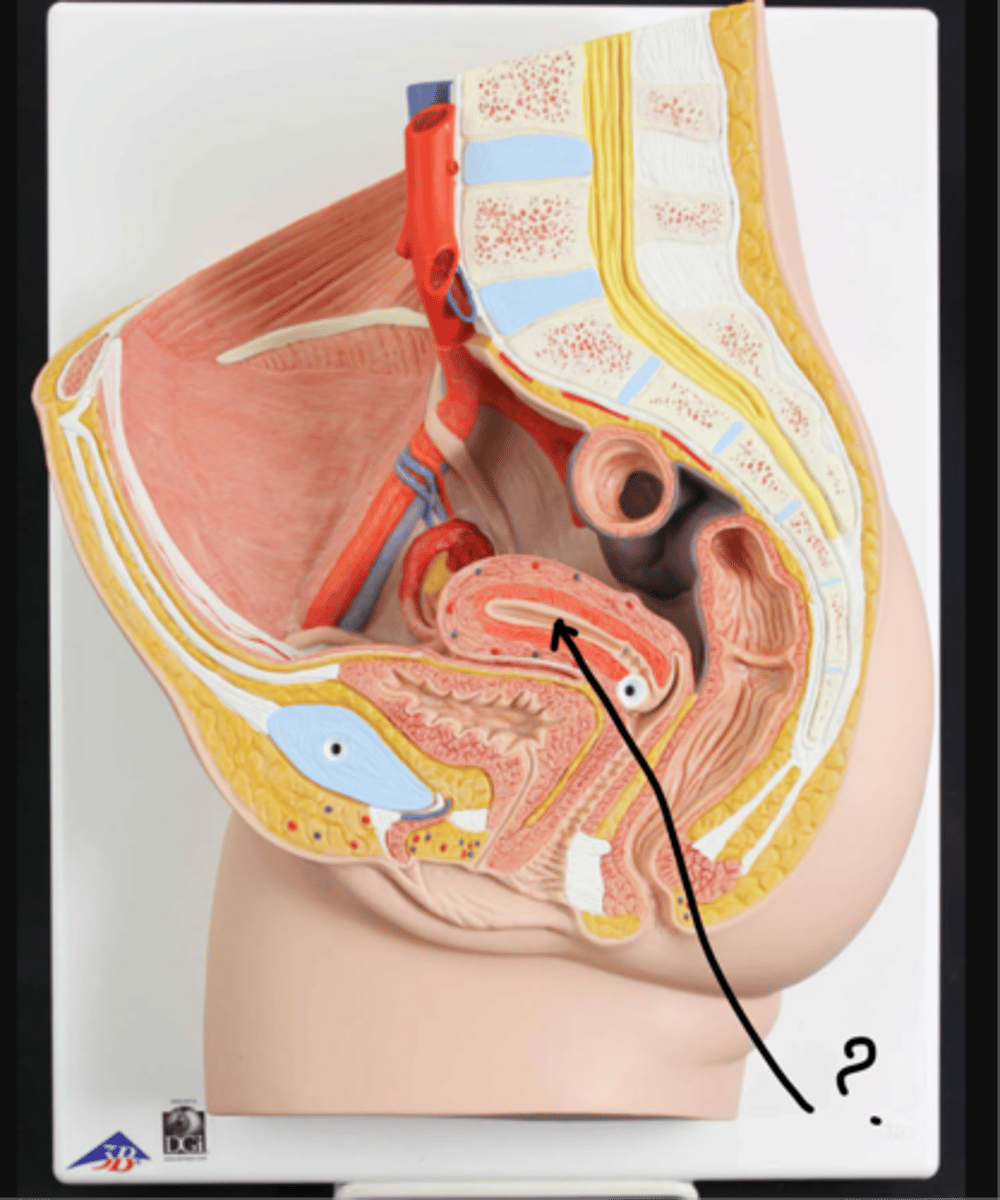

name this region of the organ

Fundus of uterus

name this region of the organ

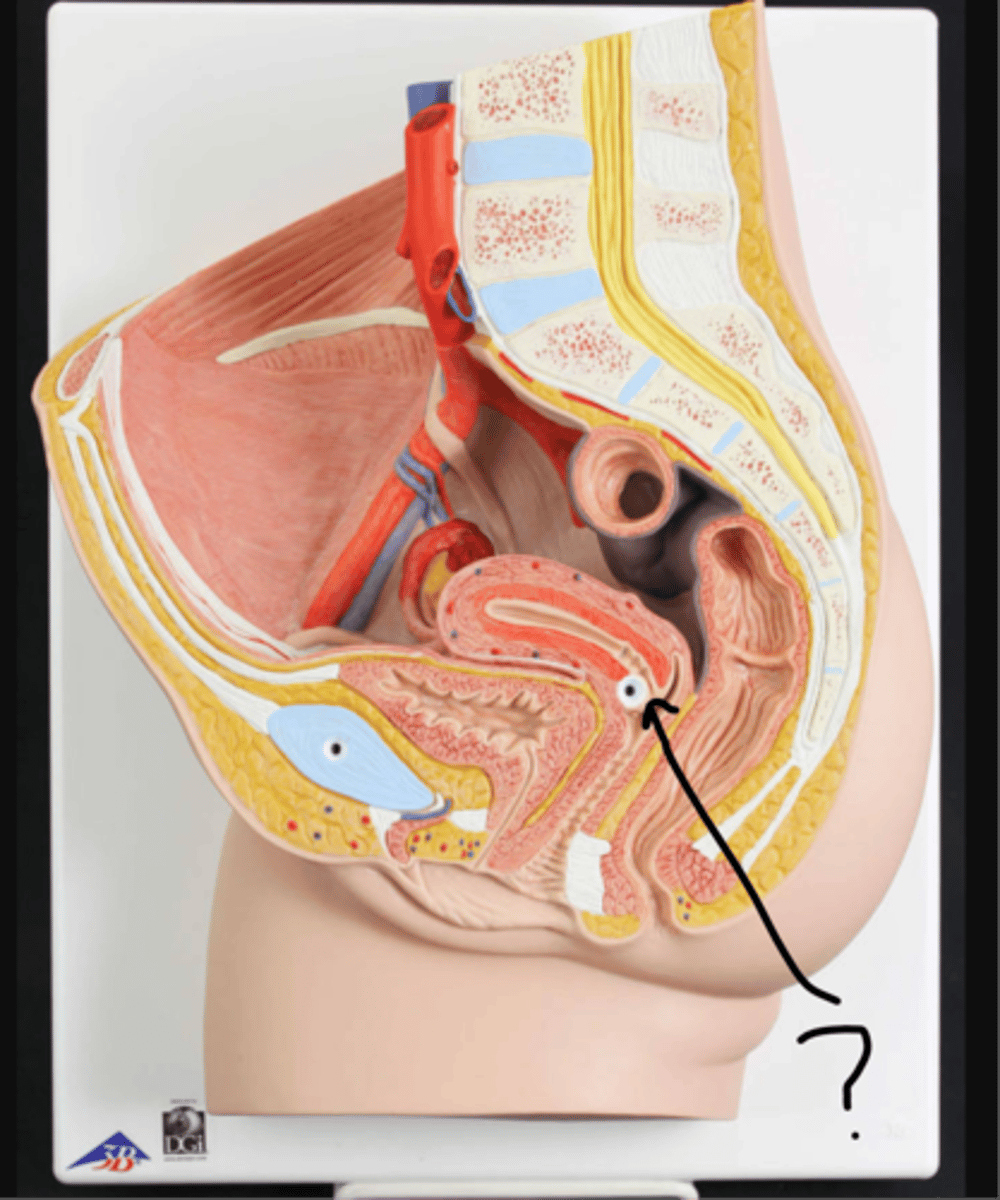

Cervix

name this structure

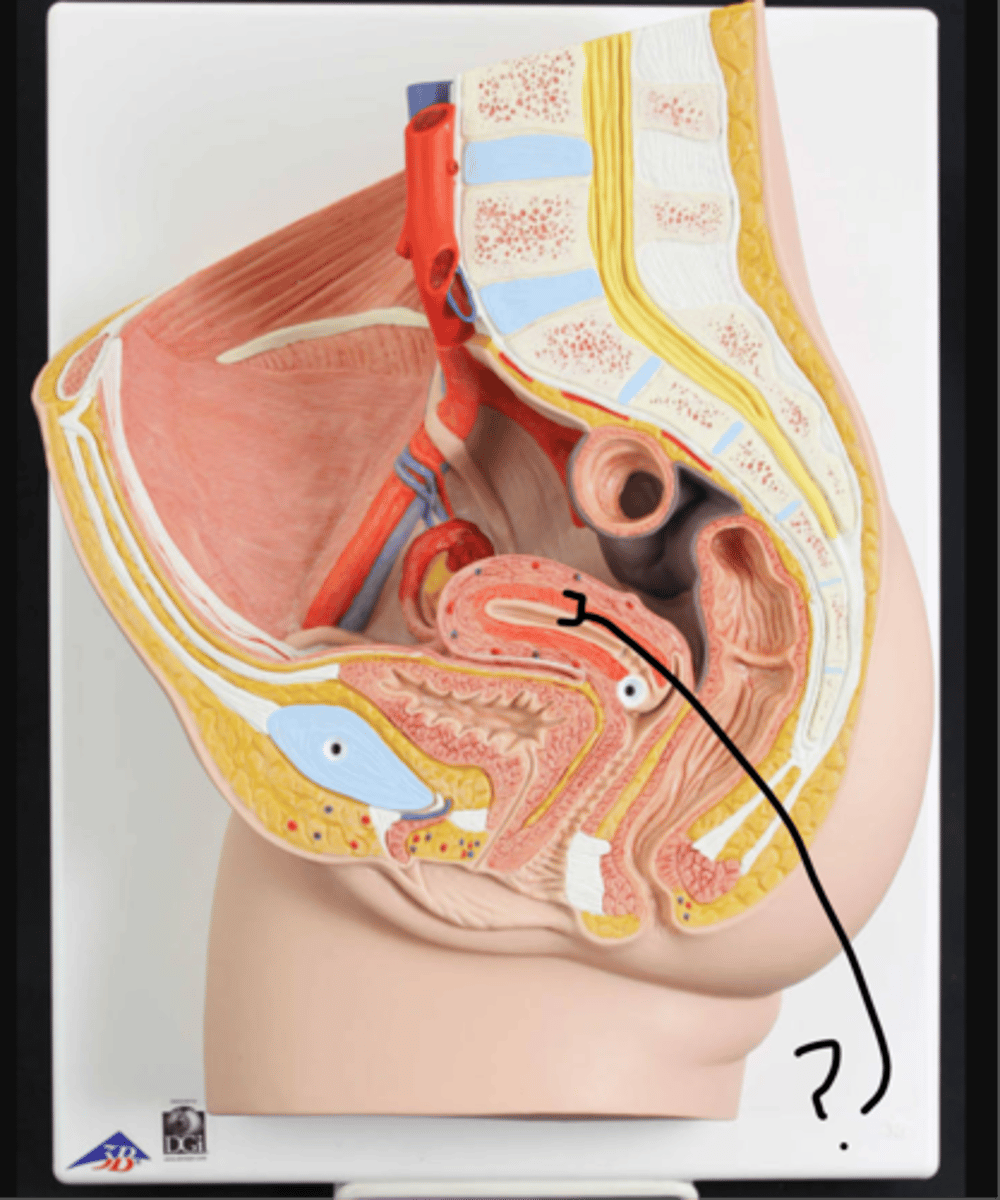

Endometrium

name this inner lining

Myometrium

name this muscular layer

Uterine tube (Fallopian tube)

Name this tube.

Fimbriae of uterine tube

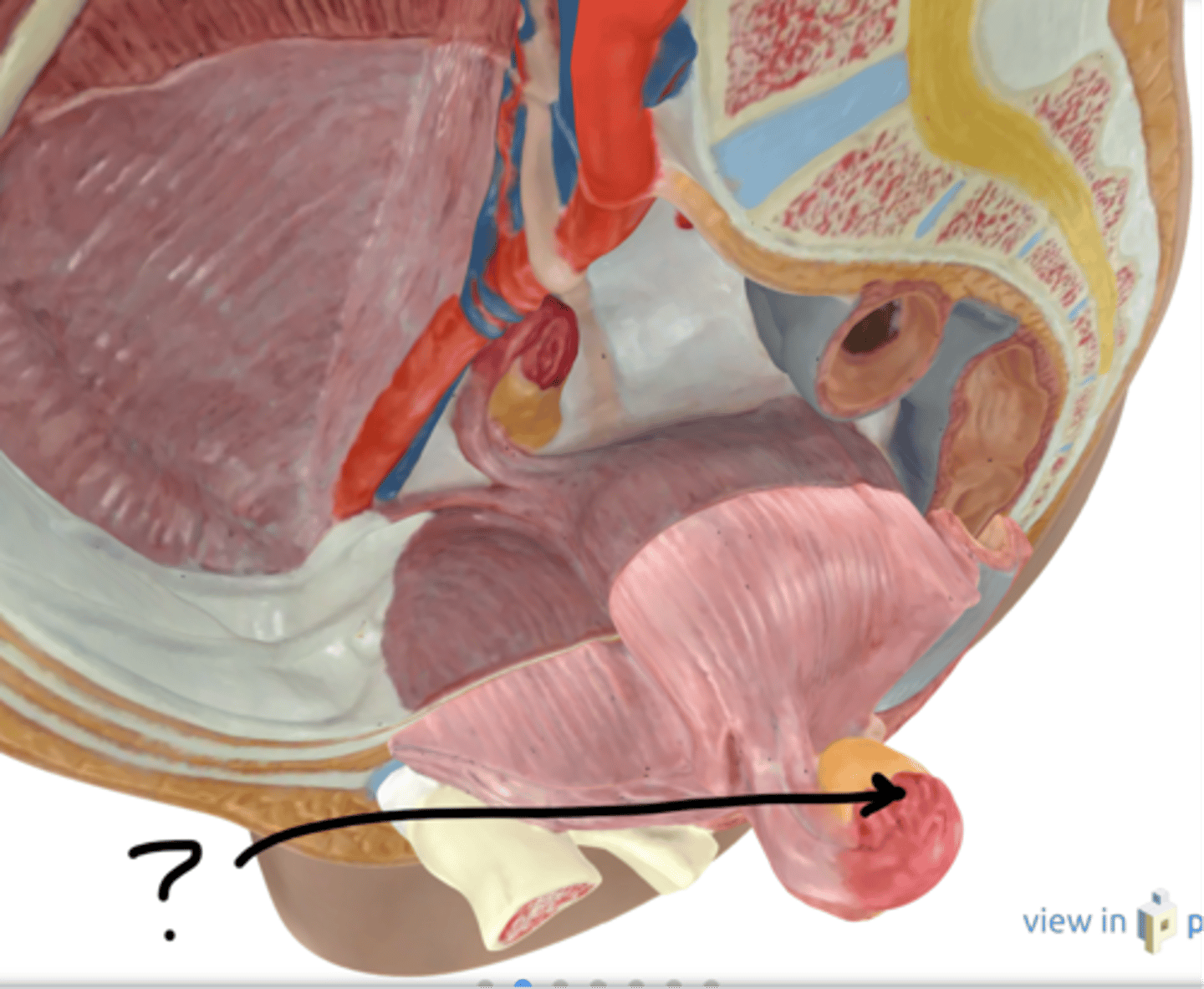

name these finger-like projections

Ovary

Name this organ

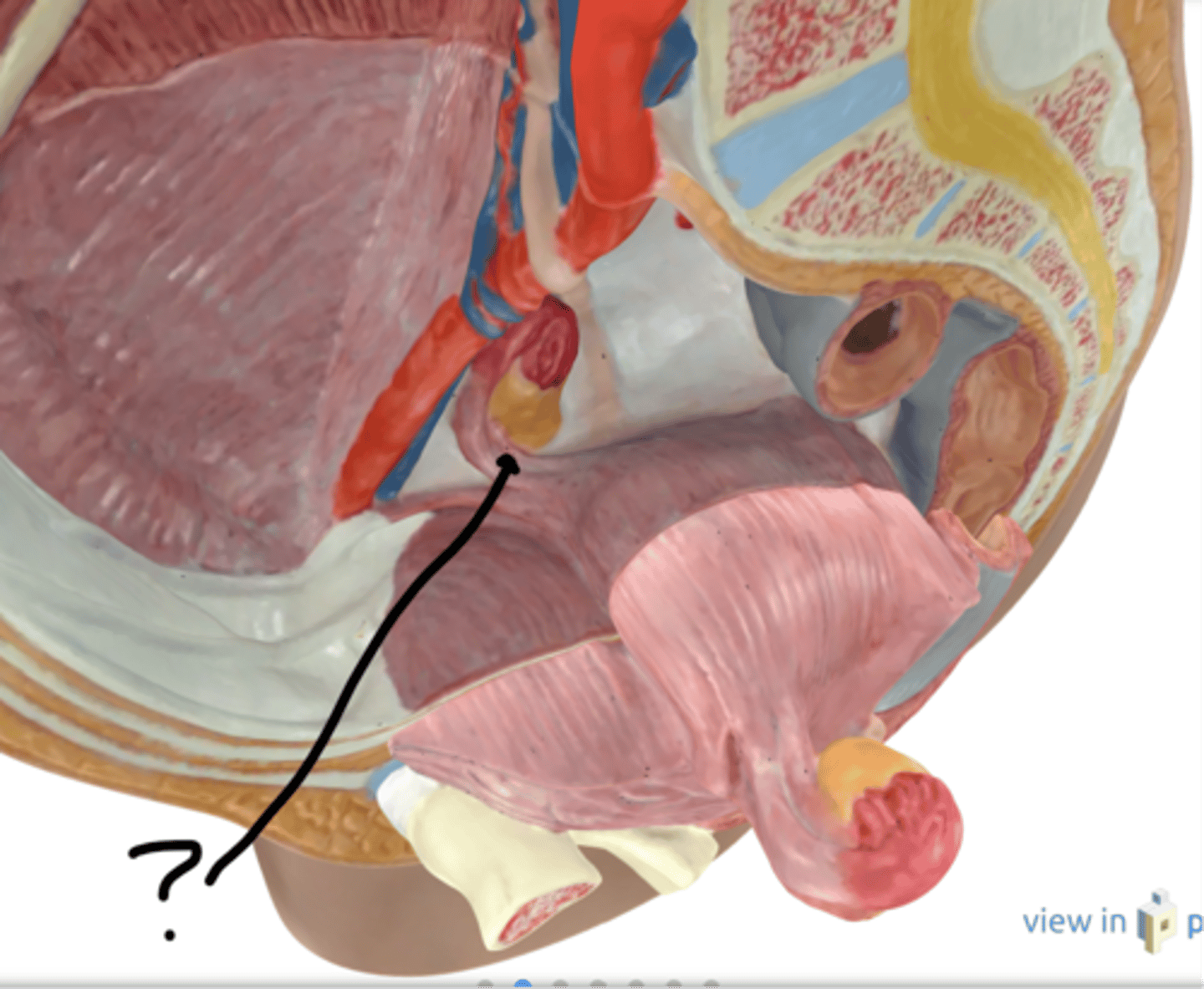

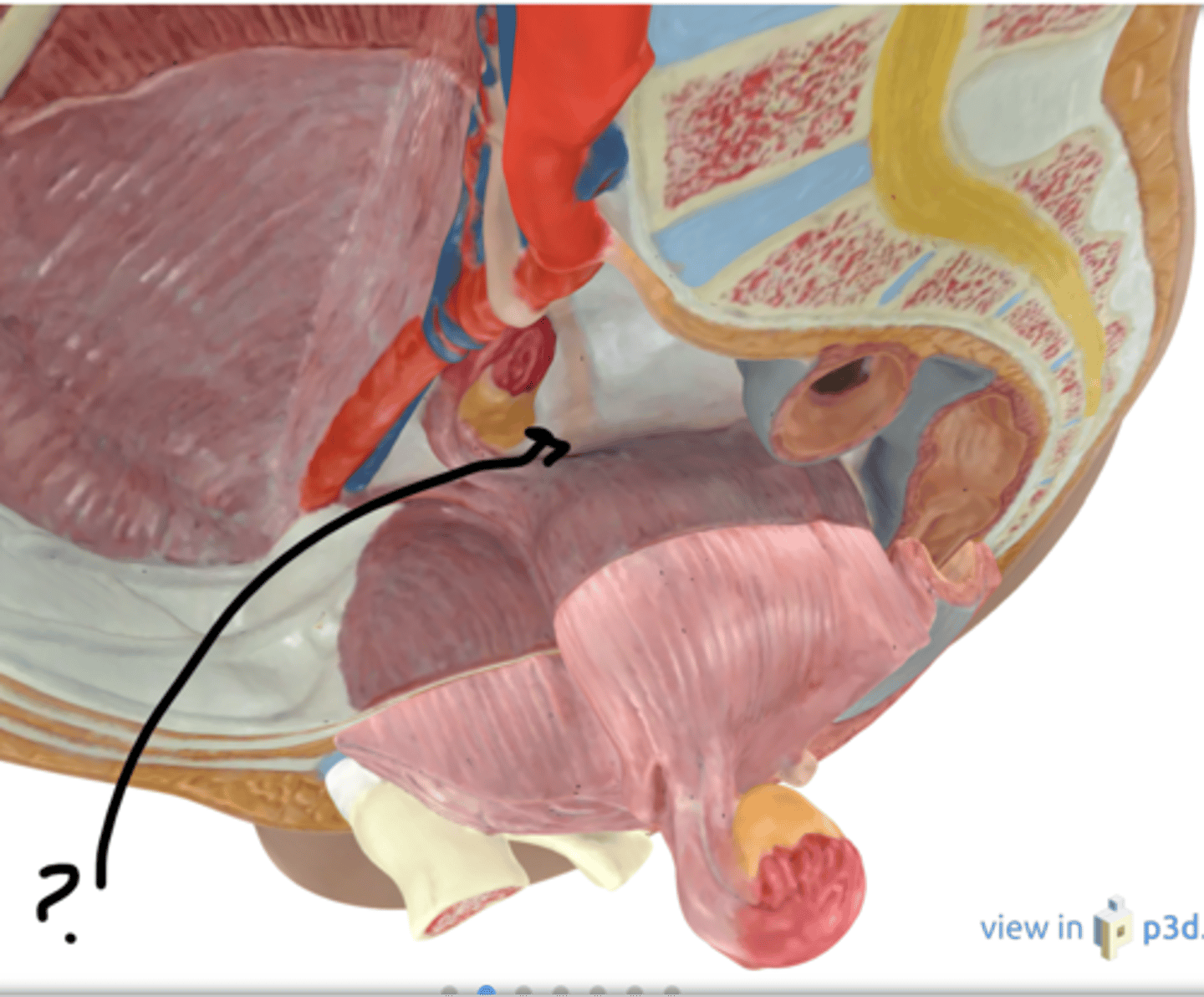

Broad ligament

Name this connective tissue

Round ligament

Name this connective tissue

Ovarian ligament

Name this connective tissue

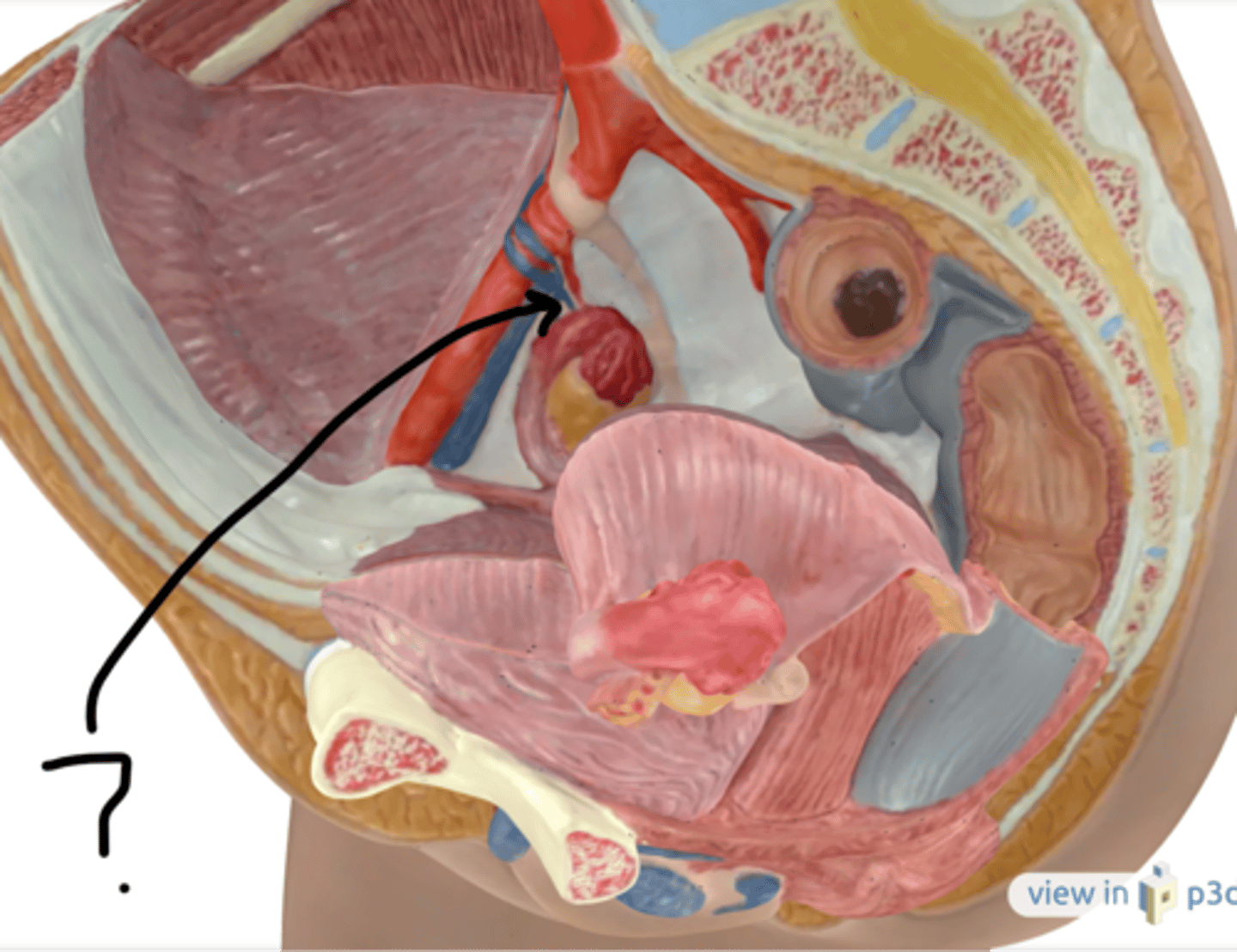

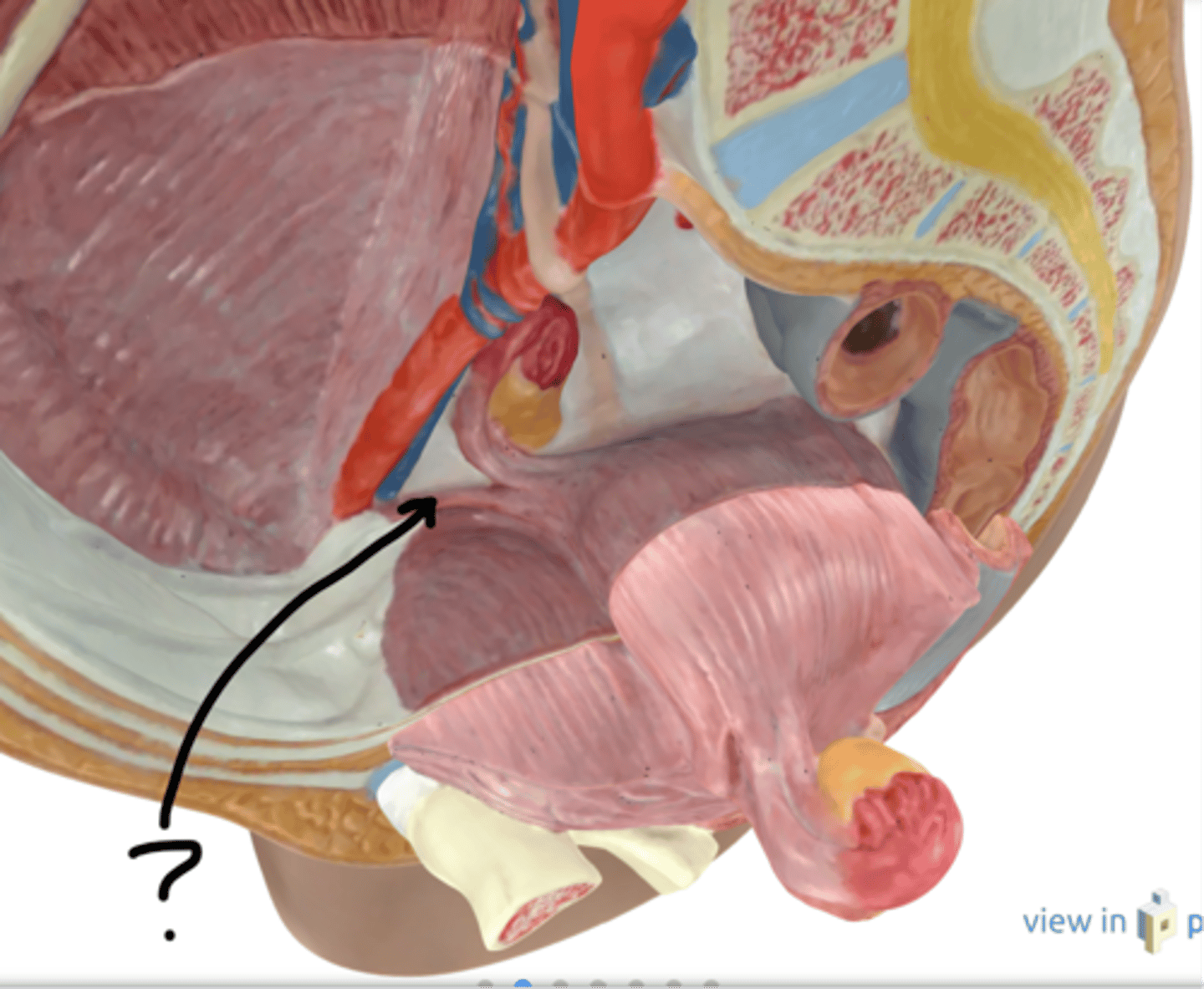

Suspensory ligament

Name this connective tissue
