Paper 1 - Unit 8 - Databases

Data redundancy

Repeated / duplicated data

DBMS

Database management system

Software that controls access to data in a database

DBA

Database administrator

A person who uses the DBMS to customise the database to suit user and programmer requirements

Data Integrity

The process of maintaining the consistency of the database.

The database must reflect the reality that it represents.

Data Security

Protection of data using passwords and different access rights for different users of the database

Prevention of data loss

Data dictionary

A file/table containing all details of the database design

It contains metadata about the data.

Hidden from view from everyone except the database administrator.

Data dictionary contents

Table name

Field name

Data type

Type of validation

Primary Key

Foreign Key

Relationships

Indexing

An index is a secondary table which is associated with an attribute that has unique values.

Contains the attribute values and pointers to the corresponding record/tuple in the original table.

The index can be on the primary/secondary key

Searching an index table is much quicker than searching the full table.

Secondary key

An attribute that is a candidate key, but is not the primary key.

An attribute that can be indexed, for faster searches.

A table can have more than one secondary key.

Generally have identifying information, but may not completely uniquely identify a record with complete accuracy

e.g. surname - there may be multiple people with the same surname

Reasons for secondary keys

The database user will frequently want to search on a secondary key

The secondary key attribute has been indexed - allows for a faster search

DBMS security measures

Issue usernames and passwords:

• stops unauthorised access to the data through strong passwords, changed regularly

Access rights / privileges:

• only relevant staff / certain usernames can read/edit certain parts of the data

• read only, full access, read, write and delete

Create (regular / scheduled) backups:

• A copy is available in case of loss/damage to the live data

Encryption of data:

• if there is unauthorised access to the data, it cannot be understood // needs a decryption key

Different views of data:

• composed of one or more tables, controls the scope of the data accessible to authorised users

Usage monitoring / logging of activity:

• creation of an audit /activity log

• records the use of the data in the database / records operations performed by all users

Flat file / file based database

Database which consists of just one table.

File based limitations

Data redundancy // data is repeated in more than one file

Data dependency // changes to data means programs accessing that data have to adapt

Lack of data integrity // entries that should be the same can be different in different places

Lack of data privacy // all users have access to all data if a single flat file

Entity

A category of object, person, event or thing of interest about which data needs to be recorded.

Represented as a table in a database.

Database table

Collection of related records that contain fields to organise data

Dataset organised in rows and columns; the columns form the structure and the rows form the content

One table should represent a single entity e.g. Customer, Event etc

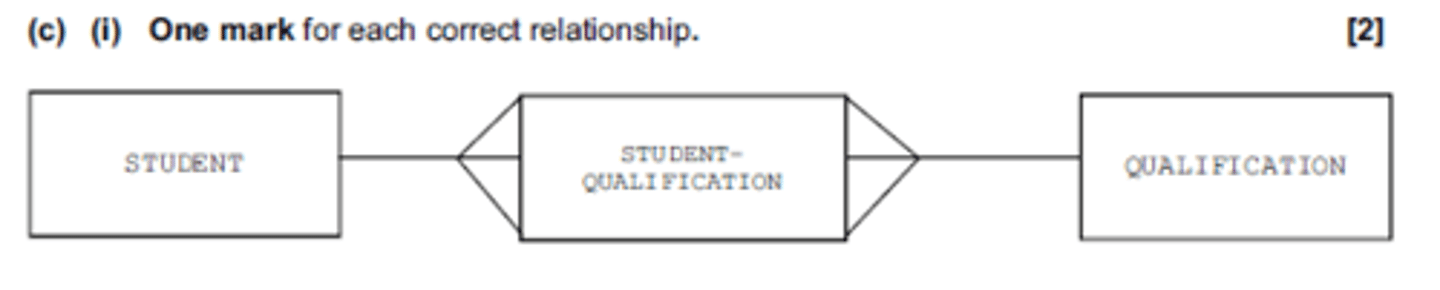

Entity-Relationship (E-R) diagram

A graphic method of representing entities and their relationships

Field

A single characteristic of data that appears in a table as a column

One piece of information about a person or thing

Record / Tuple

A collection of fields / attributes about one person or thing that appear as a row in a database or table.

Queries

Set up search criteria

Queries used to find / retrieve / return the data that matches the criteria

Explaining relationships

Types of relationship

one to one

one to many (optimal for normalised relational databases)

many to many (can't be used in normalised relational databases)

Problems if relationships do not exist

Referential integrity could be violated:

• Data becomes inconsistent

• Tables might not be automatically updated

• Records will become orphaned

Relational database benefits/features

Multiple tables are linked together:

• Reduces data redundancy or duplication

• Increases data integrity / consistency

• so reduces compatibility issues

• so data need only be updated once (associated data will be automatically updated // referential integrity can be enforced)

• so eliminates unproductive maintenance

Program-data independence:

• The structure of data can change and does not affect program

• The structure of programs can change and does not affect data

• The data can be accessed by any appropriate program

Allows concurrent access to data:

• through record locking

• by restricting over-writing changes

Complex queries can be more easily written to search / find specific data

Different users can be given different access rights, which improves security

Different users can be given different views of the data, so they do not see confidential information, and data privacy is maintained

Relational database benefits/features (Summarised)

Reduced Data Redundancy: Eliminates duplication.

Increased Data Integrity: Ensures consistency.

Improved Data Maintenance: Simplified updates through referential integrity. No unproductive maintenance.

Program-Data Independence: Flexibility for data and program structure changes.

Concurrent Access: Support for multiple users with record locking.

Complex Queries easier to write: Efficient searching.

Security: Controlled access rights and views. Maintains data privacy.

How a relational database reduces data redundancy

• Data is stored in individual tables and the tables are linked by relationships

• Each record/piece of data is stored once and is referenced by a (primary) key

• By the proper use of Primary and Foreign keys

• By enforcing referential integrity

• By going through the normalisation process

Primary key

A key in a relational database that is unique for each record.

It is a unique identifier, such as a driver license number

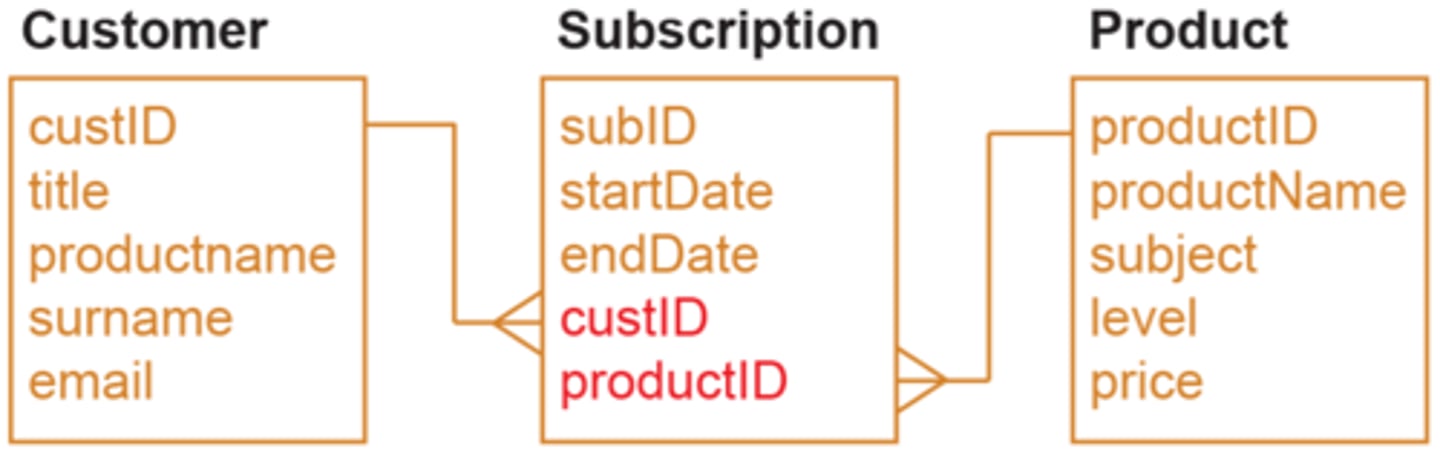

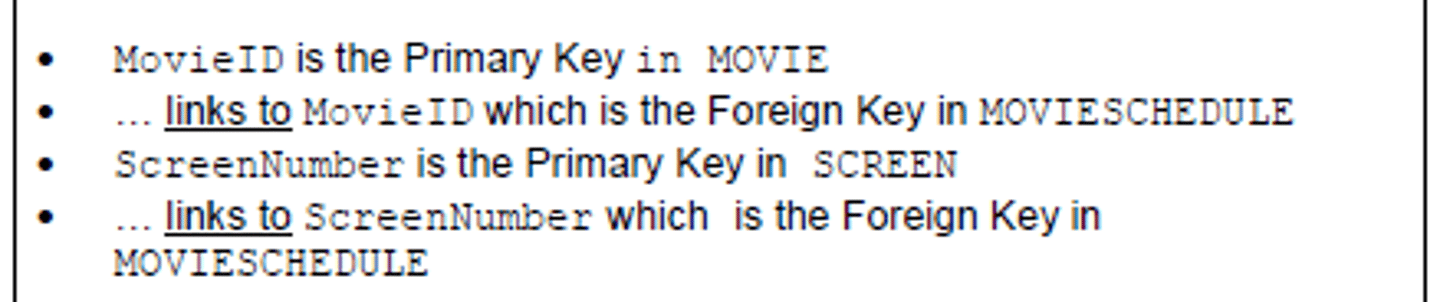

Foreign key

An attribute in one table that refers to the primary key in another table

Composite key

Two or more fields that collectively define the primary key by unique combinations of their values.

Candidate key

Any attribute or combination of attributes that can qualify as a unique key...

...but not used as one

It is a candidate to be a key

Normalisation

Process used to come up with the best possible design for a database

Tables should be organised so that data is not duplicated in the same table or in different tables

The structure should allow complex queries to be made

Referential Integrity

Ensures related data in tables are consistent

Making sure tables do not try to reference data which don’t exist:

• If one table has a foreign key (the 'foreign' table) ...

• ... then it is not possible to add a record to that table

• ... unless there is a corresponding record in the linked table with a corresponding primary key (the 'primary' table)

Cascading update / delete:

• If a record is updated / deleted in the 'primary' table ...

• … all corresponding linked records in 'foreign' tables must also be updated / deleted

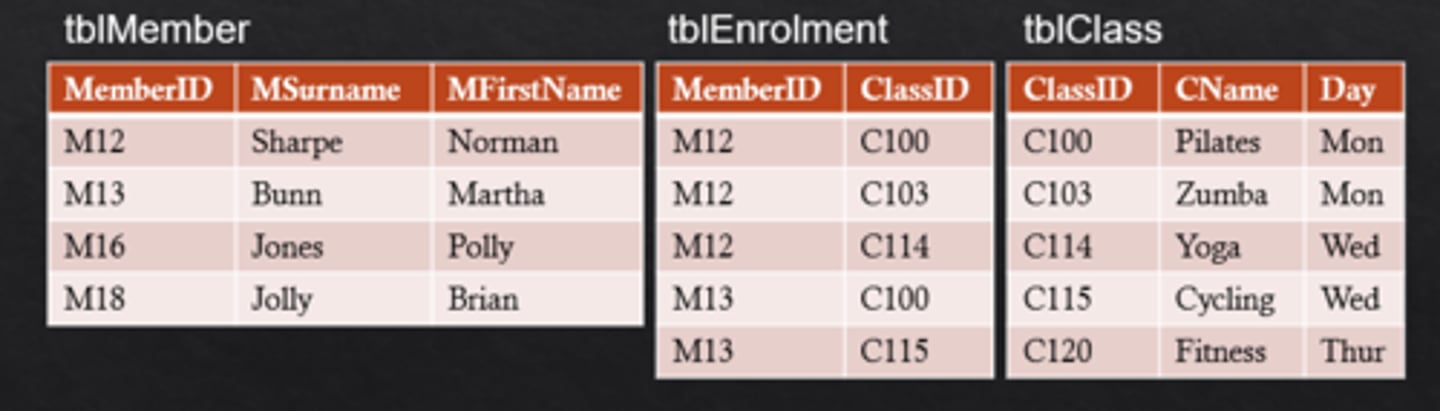

First Normal Form (1NF)

All field names unique.

No duplicate rows (identical records)

All fields (attributes) must be atomic - e.g. a single attribute cannot consist of two data items such as firstname and surname

Needs to have a primary key.

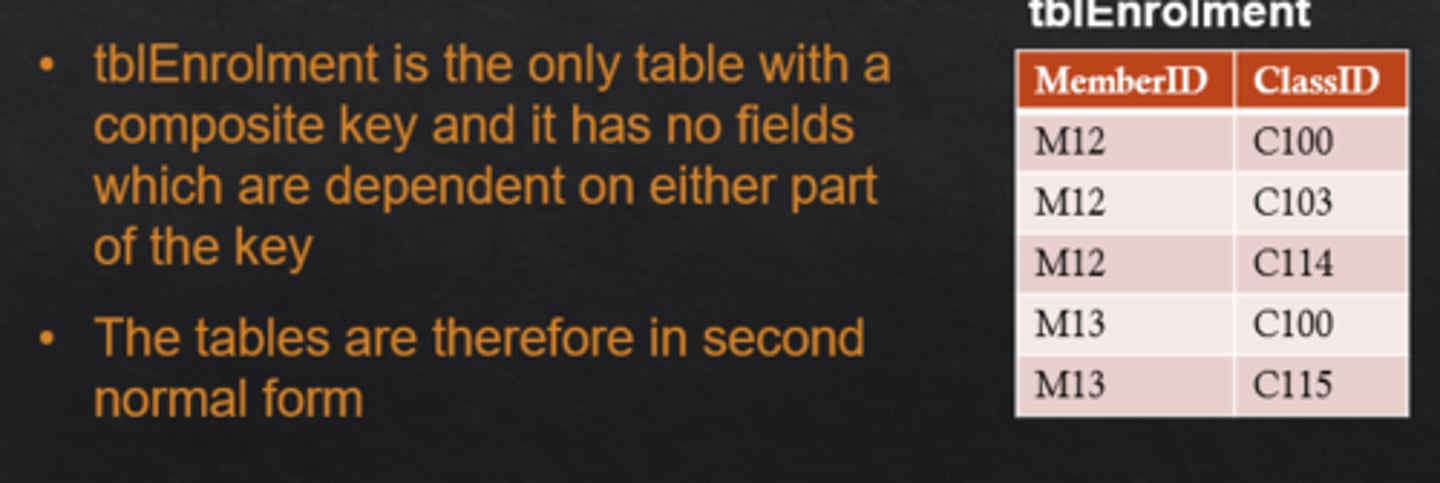

Second Normal Form (2NF)

In first normal form already

Contains no partial dependencies. Partial dependency means one or more of the fields depend on parts of the primary key, and this occurs when the primary key is composite.

If there are partial dependencies, need to separate the composite key to different tables, and move the columns that depend on each part to their respective tables.

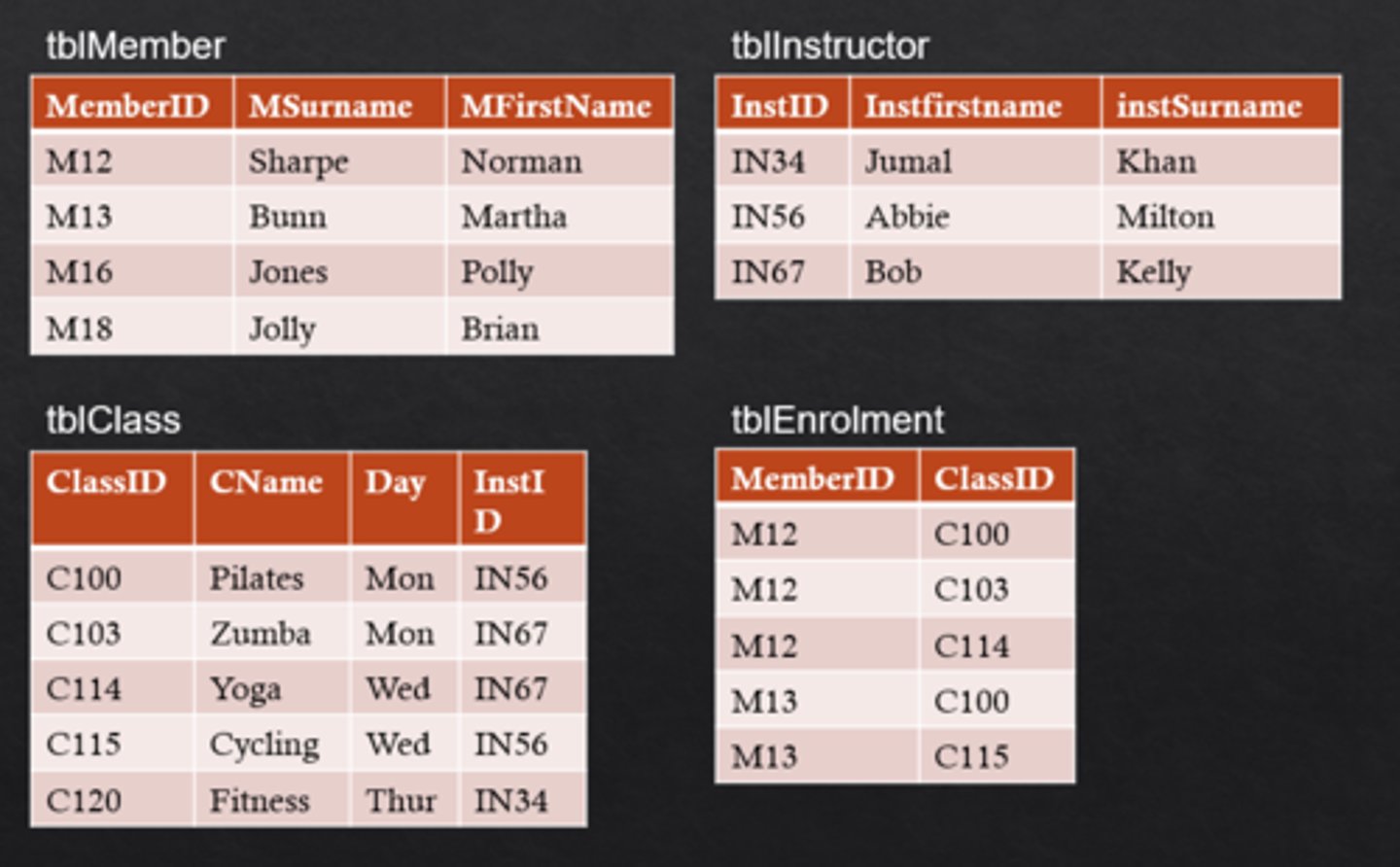

Third Normal Form (3NF)

If it is in second normal form

Contains no non-key dependencies.

Non-key dependency means some fields depend on fields that aren't part of the primary key at all.

Need to make the depended-upon fields into primary keys (by moving to separate tables).

i.e. All attributes must be fully dependent on the primary key (whole of the primary key if composite)

Importance of normalisation

Easier to maintain and change a normalised database e.g. adding a new field

There is no unnecessary duplication of data

Data integrity is maintained - if a person changes address, for example, the update need only be made once to a single table

Having smaller tables with fewer fields means faster searches and savings in storage

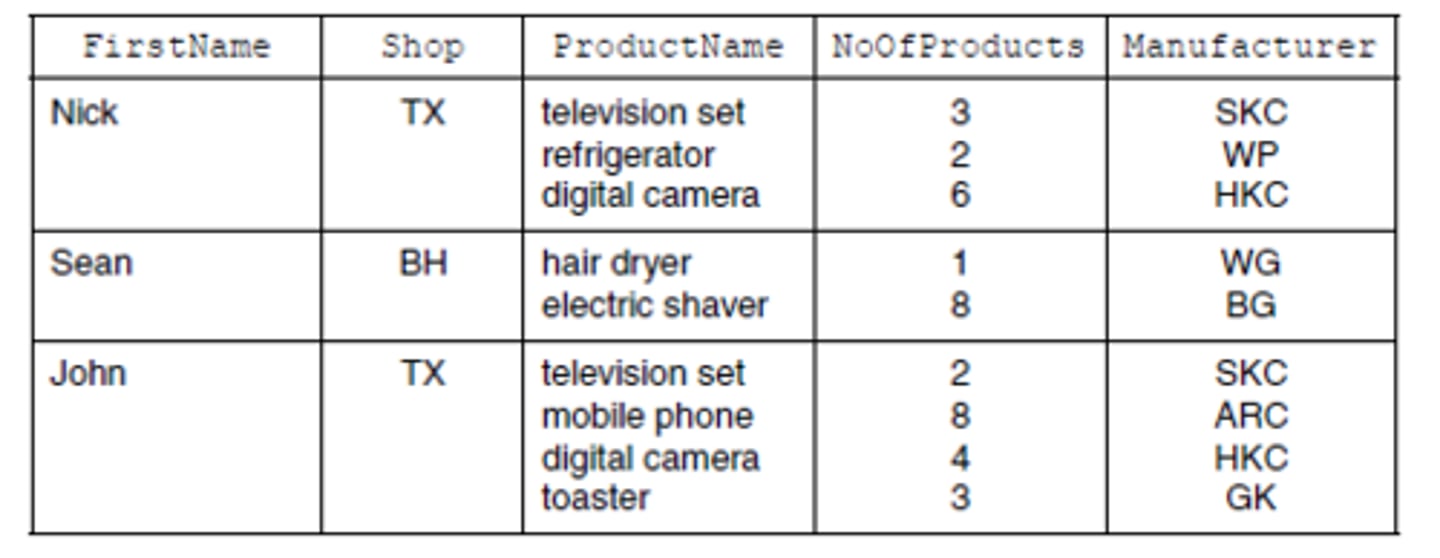

Why this table is not in 1NF

(ShopSales) table has repeated group (of attributes)

Each sales person has a number of products

FirstName, Shop would need to be repeated for each record

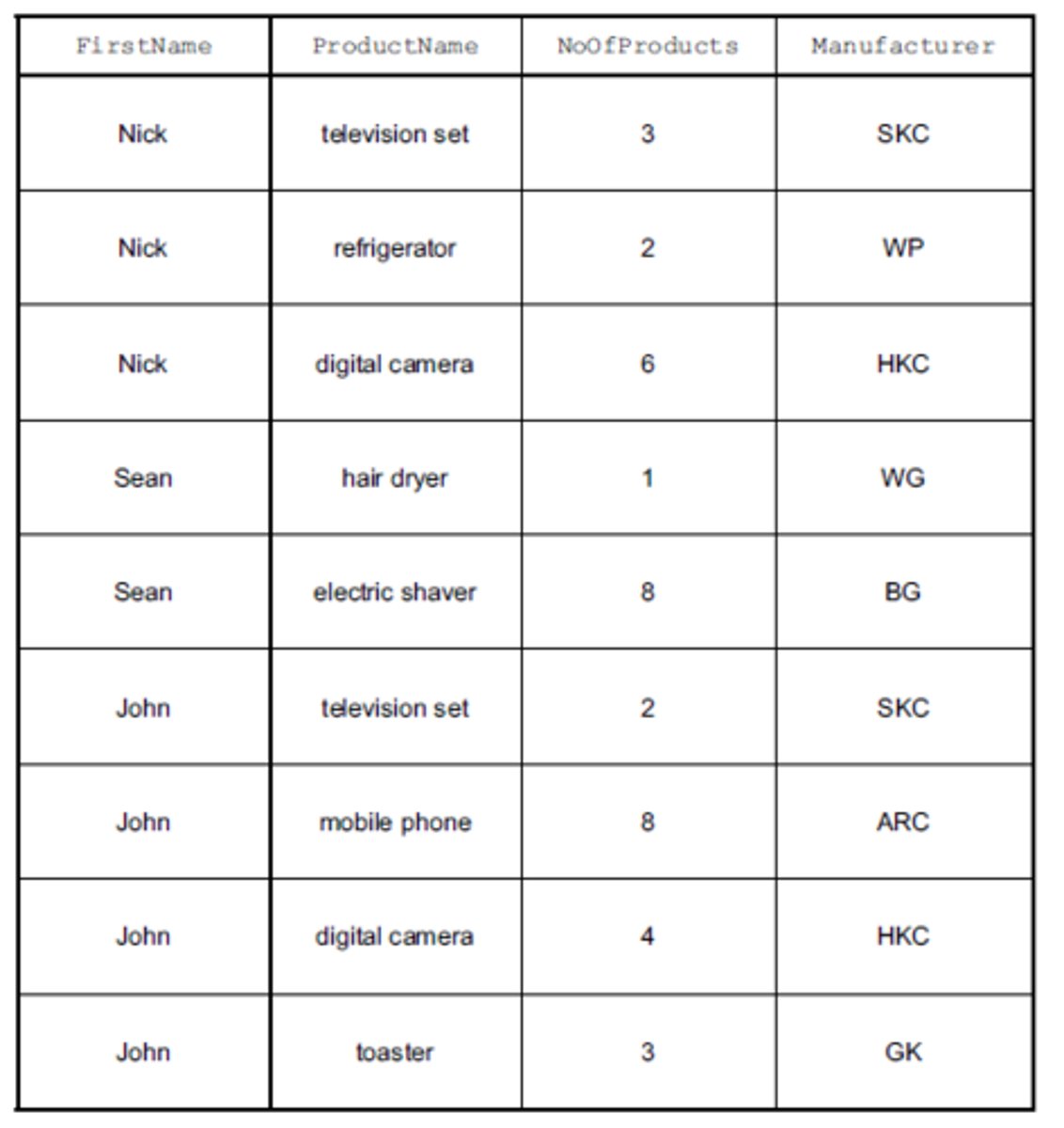

Why this table is not in 3NF

There is a non-key dependency

Manufacturer is dependent on ProductName, (which is not the primary key of the SalesProducts table)

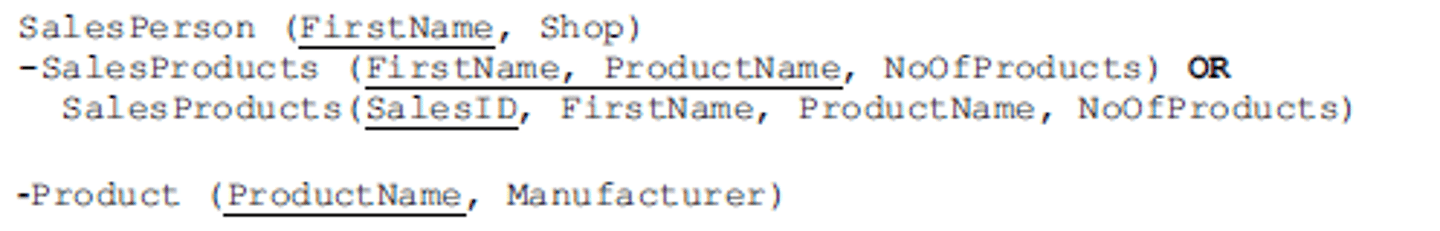

Example table definitions

Underline means primary key

Underlined multiple fields means composite primary key

SQL

Structured Query Language

Provided by a DBMS to support all of the operations associated with a relational database e.g. querying, updating etc

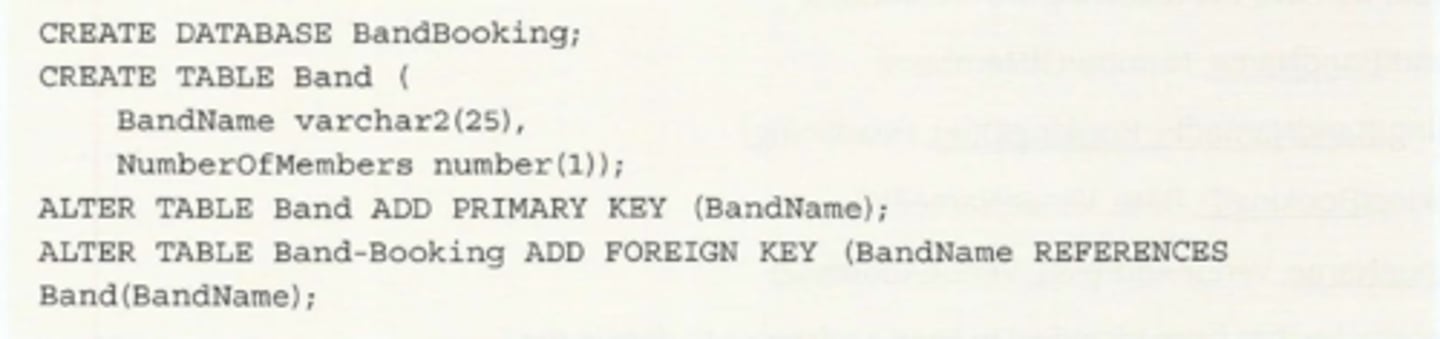

Data Definition Language (DDL)

Part of SQL provided for creating or altering tables

Only create the structure. They do not put any data into the database.

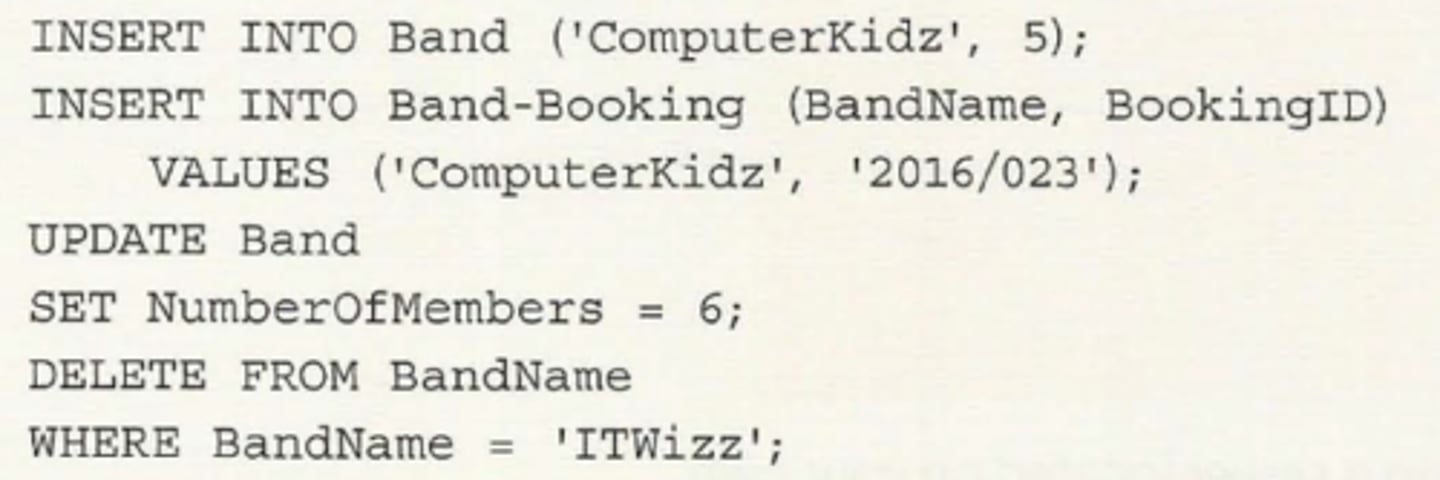

Data Manipulation Language (DML)

Used when a database is first created, to populate the tables with data. It can then be used for ongoing maintenance.

Main use is to obtain data from a database using a query

SQL data types

CHAR(size) - Fixed-length character string. Size is specified in parenthesis. Max 255 bytes.

VARCHAR(size) - Variable-length character string. Max size is specified in parenthesis.

DATE - Date value. “YYYY-MM-DD”

TIME - Time value. hh:mm:ss

INTEGER(size) - whole number. size specifies mininum display width.

real - can store non-whole numbers

BOOLEAN - True/False value

bit (seen in old syllabus) - integer data type that can take a value of 0, 1 or null - essentially a boolean

CREATE DATABASE example

CREATE DATABASE SPORTS_CLUB;

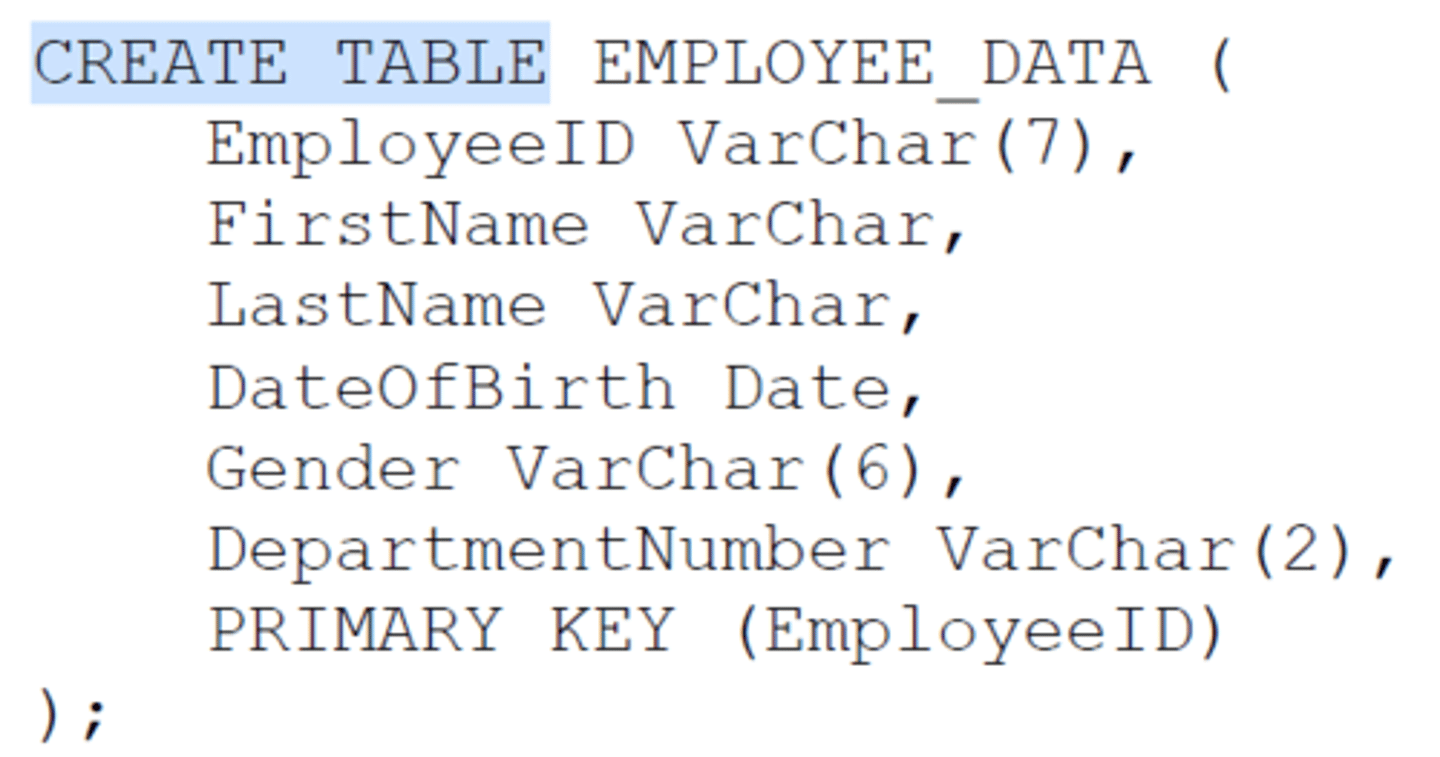

CREATE TABLE example

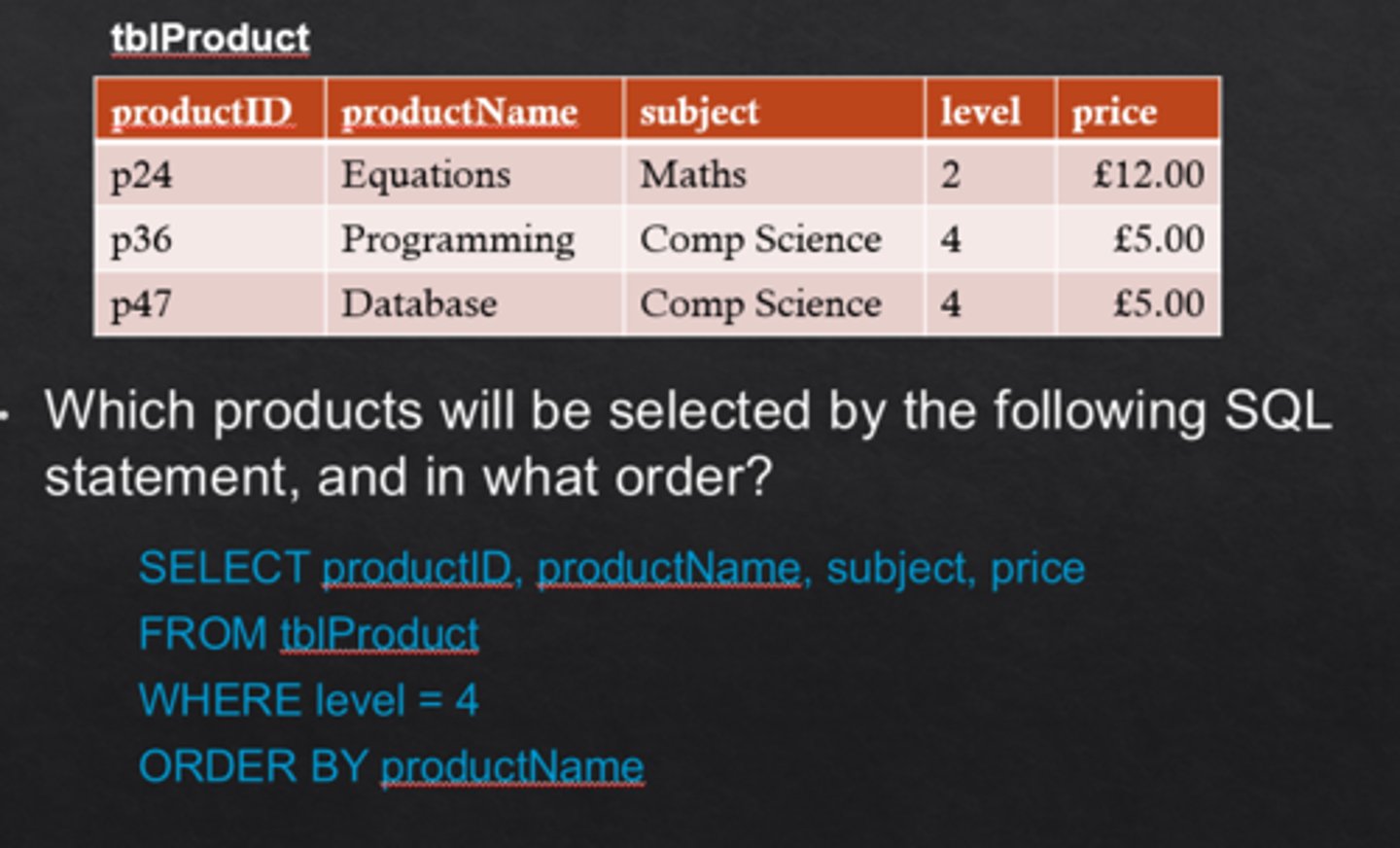

SELECT-FROM-WHERE

The SELECT statement is used to extract fields from one or more tables

SELECT list of fields to be displayed

FROM list the table or tables the data will come from

WHERE list of search criteria

ORDER BY list the fields that the data is to be sorted on (ASC or DESC, default is ASCending order)

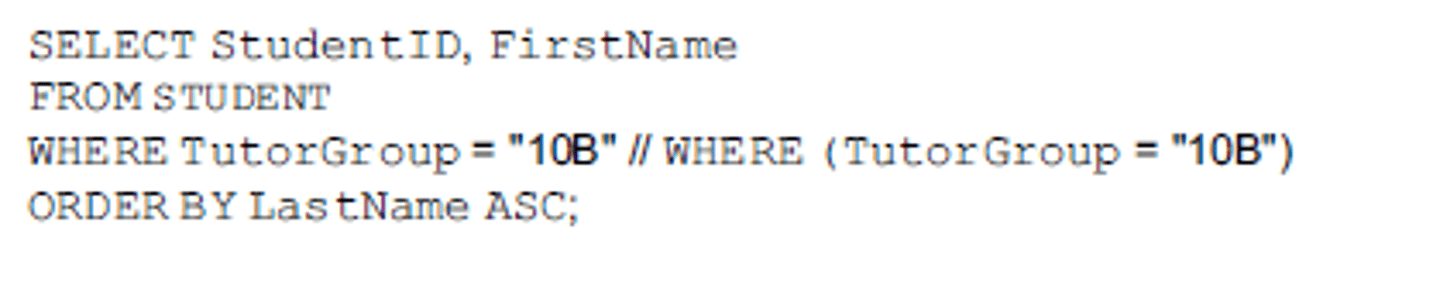

Example SELECT, FROM, WHERE, ORDER BY

SQL script to display the StudentID and FirstName of all students who are in the tutor group 10B. Display the list in alphabetical order of LastName.

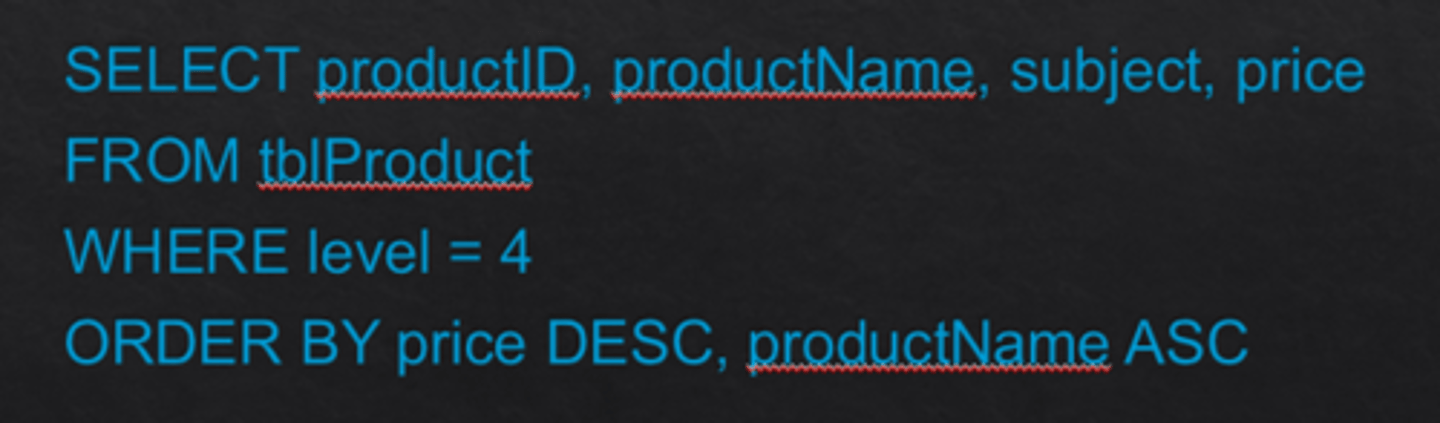

ORDER BY

A SQL clause that is useful for ordering the output of a SELECT query (in ascending or descending order).

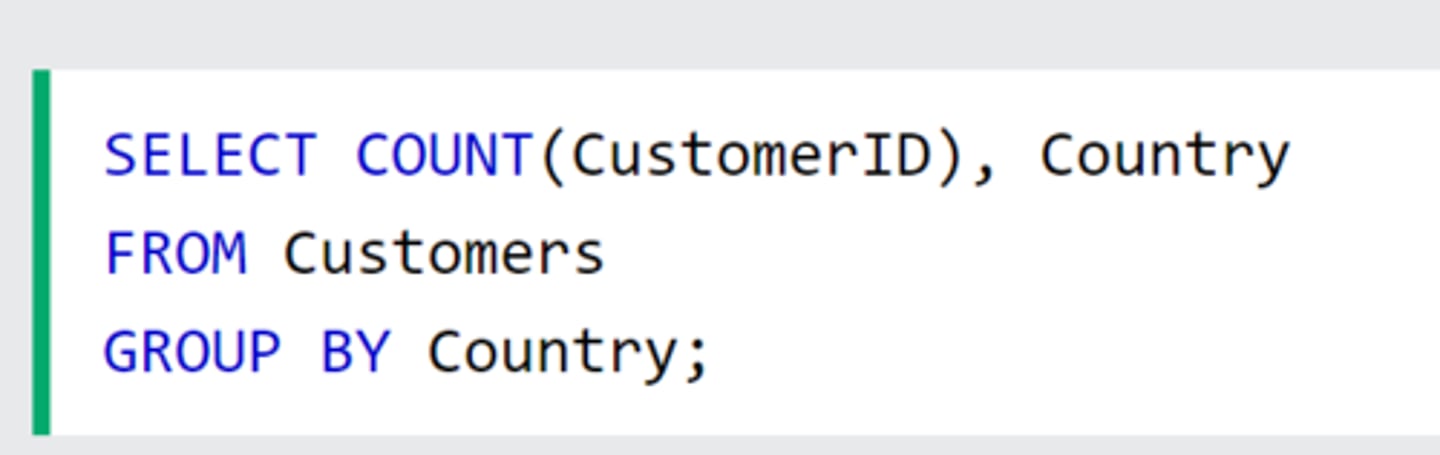

GROUP BY

A SQL clause that is useful for grouping output of a SELECT query by a particular field i.e. it groups rows that have the same values into summary rows, like "find the number of customers in each country".

The GROUP BY statement is often used with aggregate functions (COUNT(), MAX(), MIN(), SUM(), AVG()) to group the result-set by one or more columns.

Wildcard (%)

A special character that represents other characters in a search.

The % is used to represent zero or more characters.

SELECT * FROM tblProduct

WHERE subject LIKE "Comp%";

"LIKE" is used to search for a pattern

Wildcard _

A special character that represents any single character in a search.

The _ is used to represent a single character.

SELECT * FROM Customers

WHERE City LIKE '_ondon';

"LIKE" is used to search for a pattern

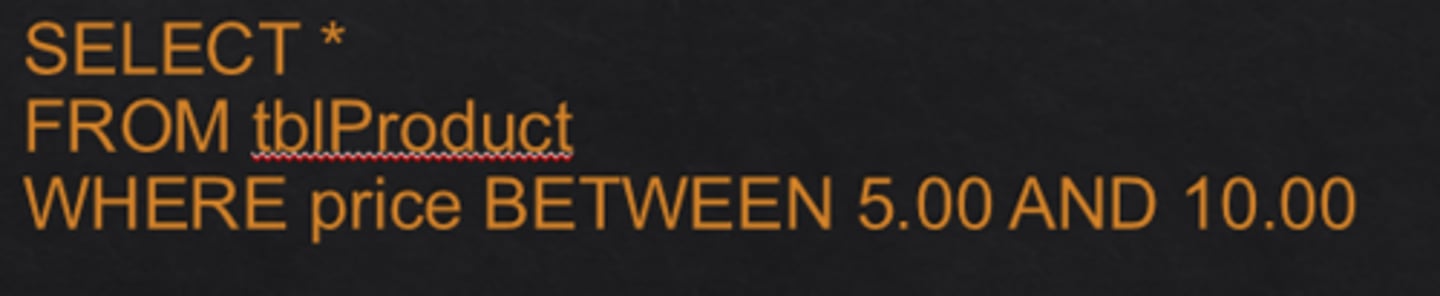

Operators in The WHERE Clause

BETWEEN - between an inclusive range

IN - specify multiple possible values for a column

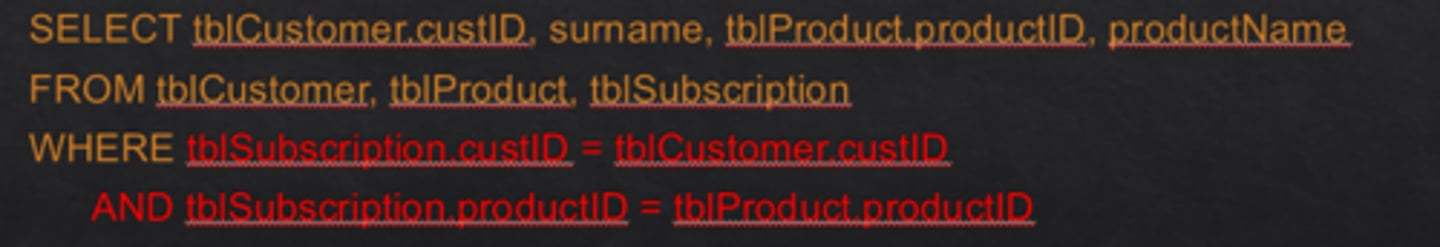

Specifying links between tables

When you are selecting attributes from linked tables, if the attribute name occurs in more than one table, you should specify the table name

If the attribute name occurs in only one table, specifying the table name is optional

Example - ALTER table

ALTER TABLE STUDENT
ADD DateOfBirth DATE;

Adds a new field column to the table and specifies its datatype

Example multi table SQL query

SELECT STUDENT.LastName
FROM STUDENT, CLASS-GROUP
WHERE ClassID = "CS1"
AND CLASS-GROUP.StudentID = STUDENT. StudentID;

SQL script to display the LastName of all students who attend the class whose ClassID is CS1.

Example UPDATE SQL

UPDATE B-NURSE

SET FamilyName = 'Chi'

WHERE NurseID = '076';

Update table B-NURSE

Change the FamilyName attribute for NurseID primary key 076 to "Chi"

Example INSERT INTO SQL

INSERT INTO SHOP-SUPPLIER (ShopID, SupplierID)

VALUES (8765, 'SUP89');

Insert new record into Shop-Supplier table

insert 8765 into shopID and SUP89 into SupplierID

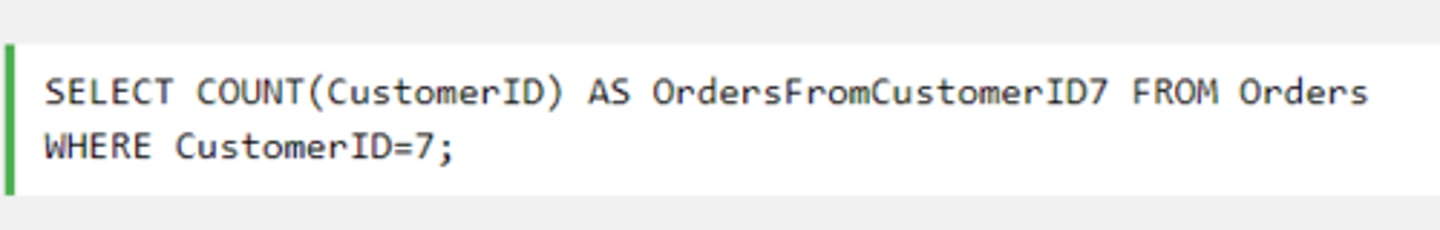

SQL AS keyword

An SQL command that allows the user to re-assign a column name (new alias) within a query.

E.g. example shows counting the number of customers with a particular ID value, and renaming the resulting column name/alias.

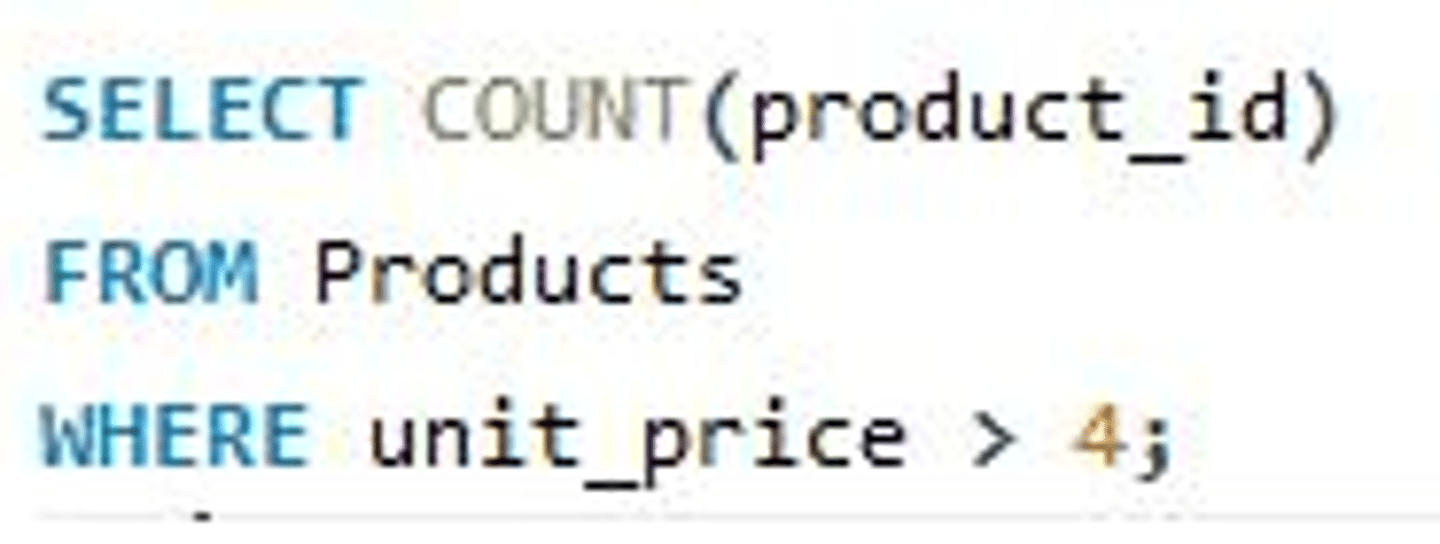

Aggregate Functions

Calculations such as Min, Max, Avg, Sum and Count that are performed on a group of records. They return a single value after calculating multiple values of a column/attribute.

Count() - Returns the number of matching records i.e the number of rows returned by the inner query (see image for usage).

Sum() - Returns the total sum of a numerical column from the matching records.

Avg() - Returns the mean average of a numerical column from the matching records.

Min() - Returns the smallest value (from a set of NON-NULL values) in the column from the matching records

Max() - Returns the largest value (from a set of NON-NULL values) in the column from the matching records

Note that aggregate functions are either used by themselves after SELECT, or if multiple columns need to be selected, a GROUP BY is required at the end.

Logical Schema

The overview of a database structure...

Models the problem / situation…

... by using methods such as an ER diagram...

... Describes relationships between the data...

... independent of any particular DBMS

Query processor

A component of a DBMS

Allows the user to enter criteria

Searches for data which meets the entered criteria

Organises the results to be displayed to the user

Developer Interface functions

A software tool found within DBMS:

• Create a table

• Set up relationships between tables

• Create / design a form

• Create / design a report

• Create / design a query (NOT run a query)
