Built-in Furniture

Furniture pieces that are permanently attached or integrated into the structure of a room or building

Closet Systems

Can be assembled from prefabricated materials cut in the field to custom fit an existing closet; Typically constructed of either solid particle board covered in plastic laminate or steel wire coated with vinyl, polyvinyl chloride, or epoxy

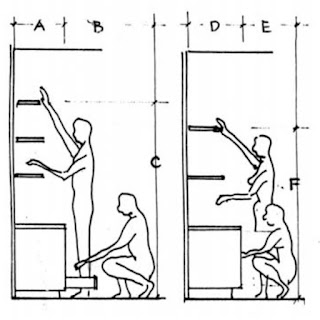

510-710

What is the range dimensions of A?

860-915

What is the range dimensions of B?

300-460

What is the range dimensions of C?

200-260

What is the range dimensions of D?

260-310

What is the range dimensions of E?

1630-1730

What is the range dimensions of F?

130-1930

What is the range dimensions of G?

1530-1780

What is the range dimensions of H?

1750-1830

What is the range dimensions of I?

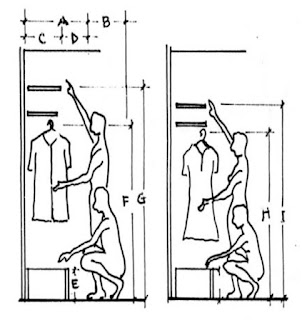

460-610

What is the range dimensions of A?

910-1220

What is the range dimensions of B?

1830-1930

What is the range dimensions of C?

460-610

What is the range dimensions of D?

760-910

What is the range dimensions of E?

1750-1830

What is the range dimensions of F?

2440

What is the minimum ceiling height for wardrobes?

1067.50

What is the dimension for hanging storage for shirts, jackets, pants, and skirts?

610

What is the standard width for drawers and baskets?

915

What is the dimension for storage for three pairs of men’s shoes and four pairs of women’s shoes?

1728.33

What is the dimension for hanging storage for dresses and full length robes?

355.83

What is the standard shelf depth?

305

What is the distance rod to be mounted from back of closet?

101.66

What is the distance from top of shelf above to centerline of rod?

152.50

What is the distance between shelves to allow for shoe storage?

610

What is the minimum required inside clear depth for a closet?

305

What is the shelf width for one stack of clothes?

152.50

What is the clearance from floor to the wardrobe to allow for vacuuming?

762.50

What is the standard height for children’s hanging clothes?

70

What is the dimension for a hanging rod to accommodate a men’s suit?

50

What is the dimension for a hanging rod to accommodate a women’s clothing?

70

What is the distance between the rod and shelf above?

Hinged

What are the most efficient and economical hinges for wardrobe doors?

Flushed Door

Door that has flat front surface; Hinges used can be butt-hinges, pivot hinges, and concealed hinges

Lipped Door

Flush-mounted doors are mounted within the openings of the face frame

Paneled Door

Door normally rabbeted at the edge so that they can be partially inset into the cabinet openings

Bifold Door

Door that allows access to wide storage space without needing a large swing-out area

Sliding Door

A door to eliminate swing-out area required by hinged doors; Elements include a track and grooves

Tongue & Groove Door

A door used to create a country or cottage look

Cleats

Shelving system that uses cleats, which are small pieces of wood or metal, attached to the wall to support the shelves

Dadoes

Shelving system where the shelves are supported by dado joints instead of using brackets or other hardware

Stopped Dadoes

Shelving system where the dado joints are stopped, meaning they do not extend the full length of the side panels but rather stop short

Dado

A rectangular groove or channel cut across the grain of a piece of wood

Shelves

Horizontal surfaces or platforms that are used for storing or displaying items

Drawers

Sliding compartments or boxes that are typically incorporated into furniture pieces such as cabinets, dressers, desks, and chests

Knob

A drawer pull consists of a small, rounded knob attached to the front panel of the drawer.

Pull

A drawer pull feature a longer, horizontal or vertical handle that protrudes from the front of the drawer or cabinet door

Channel

A drawer pull feature a long, narrow channel or groove that runs along the length of the pull

Pendant Pull

A drawer pull characterized by its decorative and ornate design that consists of a small, decorative pendant or charm attached to a mounting plate or bai

Premium Grade

A shelving grade made from high-quality materials and meticulously constructed using advanced woodworking techniques and precision engineering

Custom Grade

A shelving grade typically of higher quality compared to standard or economy-grade often crafted with premium materials and superior craftsmanship

Economy Grade

A shelving grade designed to be more budget-friendly and affordable compared to custom or premium-grade made with less expensive materials and simpler construction methods

Surface

A drawer front that is visible when the drawer is closed and often serves as a decorative element

Lipped

A drawer front where the front edge of the drawer is extended or overhangs slightly beyond the sides of the drawer box

Flush

A drawer front where the front face of the drawer is aligned evenly with the surrounding cabinet or furniture frame, creating a seamless and uniform appearance

Rabbet

Woodworking term referring to a rectangular groove or recess cut into the edge or surface of a piece of wood

Poles

Refer to adjustable or fixed rods installed within the cabinet to facilitate the hanging storage of items

5, 7

Hanging pole length could accommodate a hanger at ____ cm per men suit and ____ cm per hanger of women’s clothing

Hooks

Versatile and practical accessories commonly used in cabinet storage to hang various items

Clothes Closet

A type of closet for the bedroom and dressing room

600

What is the standard depth of a clothes closet?

Coat Closet

A type of closet located near the entrance

800

What is the standard depth of a coat closet?

Cleaning Equipment Closet

A type of closet that is large enough to accommodate any type of cleaning equipment such as vacuum cleaner, floor polisher, etc.

Bedroom Linen and Bedding Closets

A type of closet designed specifically for organizing and storing bed linens, bedding, and related items

1 sqm

What is the minimum total shelf area for 1 and 2-bedroom houses?

1.2 sqm

What is the minimum total shelf area for 3 and 4-bedroom houses?

400

What is the minimum interior width of bedroom linen and bedding closets?

300

What is the standard spacing of shelves on center vertically?

1800

What is the highest shelf dimension above the floor?

Central Storage

A type of closet for bulky and seldom used items such as boxes, trunks, and extra furniture pieces

Outdoor Storage

A type of closet for lawnmowers, wheelbarrows, garden tools and equipment, etc

Book Storage

A type of closet found in the living room, study, and bedrooms for books

200

What is the depth of shelves for 85% of books?

250

What is the depth of shelves for 10% of books?

300

What is the depth of shelves for 5% of books?

200-400

What is the vertical spacing for bookshelves?

7-8

How many volumes of books fit per 300mm of shelf?

750-900

What is the standard counter top height?

1800

What is the maximum height of wall shelves?

600

What is the height between wall cabinets and counter top?

100-450

What is the depth of wall shelves?

360-600

What is the depth of counter tops?

1/2”

What is the clearance between the back wall and condenser for ventilation of the refrigerators and freezers?
