SYSC3320 - UART, I2C, SPI

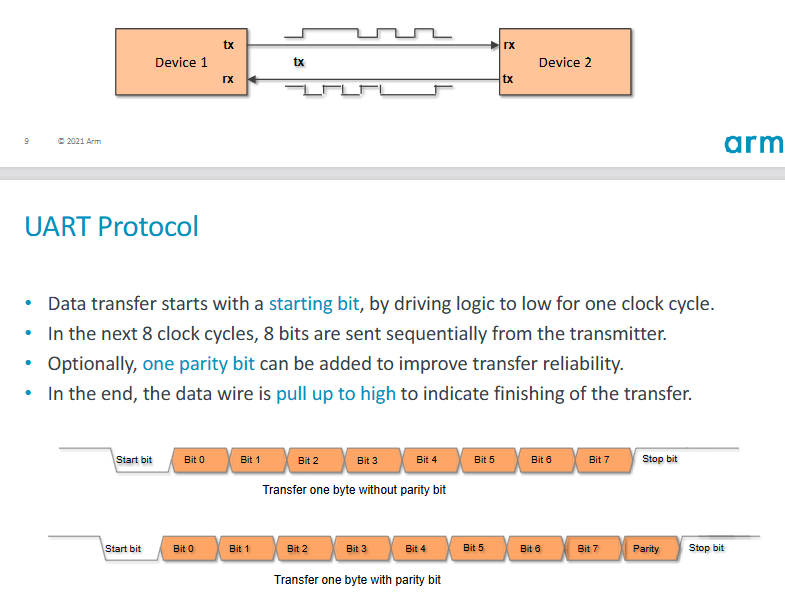

UART basics

• serial communication

• asynchrnous

• tx and rx wires

• data sent bit by bit

• Start bit (low for one clock cycle) followed by 8 bits (8 bits) + parity bit

• Stop bit is high for one cycle

• Send text in ascii

Serial communciation vs parallel

1 bit at time

Reliable (less clock skews across differnet wires and crosstalk)

Higher clock rate

Low cost and weight

Synchronous transmissions

• common clock shared by sender and receiver

• efficeint transmission since only one wire for data transfer

• More costly since an extra clock wire is needed

Asyhcnrnous tranmission

• no clock signal sent

• both must agree on a rate in advance

  • speacial bits sent to synchrnoize transmission

Simplex

Data transmitted only in one direction

Full duplex

Both direction tranmssion (UART and SPI)

Half duplex

Data can be transmitted in one direction at a time (I2C and CAN)

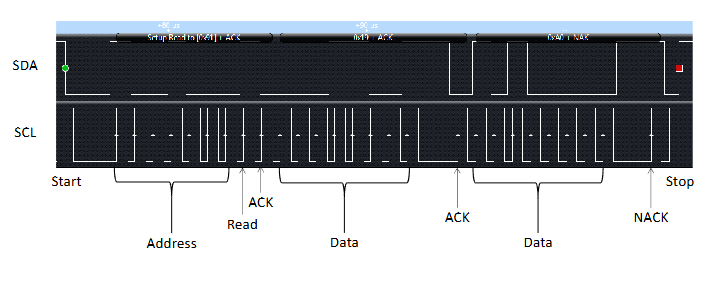

I2C overview

• SDA and SCL lines that are normally pulled high

• multiple devices share a serial bus

• subordinates respond when addressed

• Devices have 7 bit address

Sequence:

1. Generate start bit (low) then address + receive/send signal

2. Slave checks address. Slave responds with ack if match otherwise nothing.

3. Master receives or sends data depding on send/receive signal. If master is seniding the data, then the slave will ACK after each byte.

4. Master sends stop bit (high)

I2C code

LookupConfig

CfgInitialize(XIicPs_Config, Config, Config->BaseAddress);

XIicPs_SetClk(&IicInstance, IIC_SCLK_RATE);

// Send data
u8 SendBuffe3r[TEST_BUFFER_SIZE];
u8 RecvBuffer[TEST_BUFFER_SIZE];
u8 SimulatedSlaveEcho[TEST_BUFFER_SIZE]; // to simulate slave response

for (int i = 0; i < TESTBUFFERSIZE; i++) {
sendbuffer[i] = i + 1;
RecvBuffer[i] = 0;
SimulatedSlaveEcho[i] = SendBuffer[i]; //pretend slave received

print everyhting if you like
}

// Master send
Status = XIicPs_MasterSendPolled(&IicInstance, SendBuffer, TEST_BUFFER_SIZE, IIC_SLAVE_ADDR);

// wait until not busy
while (XIicPs_BusIsBusy(&IicInstance));

// Simulate receive
memcpy(RecvBuffer, SimulatedSlaveEcho, TEST_BUFFER_SIZE);

// print sent data
// print received data
// check that each byte matches otherwise return XST_FAILURE;

SPI code

lookup config
cfgintialize

XSpi_SelfTest // self test

// Setup interrupt system
SetupInterruptSystem
// Register interrupt handler for SPI
XSpi_SetStatusHandler(SpiInstancePtr, SpiInstancePtr, (XSpi_StatusHandler)SpiIntrHandler);

XSpi_SetOptions(SpiInstancePtr, XSP_MASTER_OPTION | XSP_MANUAL_SSELECT_OPTION)

// Manually select slave
XSpi_SetSlaveSelect(SPIInstancePrt, 0x01);

XSpi_Start(SPiInstancPtr);

Setup write and read buffers



TransferInProgress = TRUE; // volatile + static var

XSpi_Transfer(SpiInstancePtr, WriteBuffer, ReadBuffer, BUFFER_SIZE);

while (TransferInProgress); // Updated by interrupt handler

// Check WriteBuffer against ReadBuffer

void SpiIntrHandler(void *CallbackRef, u32 StatusEvent, unsigned int ByteCount) {

if statusevent != XST_SPI_TRANSFER_DONE: errorcount++

TransferInProgress = FALSE;

}
