51 Terms
ULS Effective stress analysis is used for what type of soil?
Coarse Grained
ULS Total stress analysis is used for what type of soil?
Fine Grained
2 failure modes for deep foundations
Local / Punching shear at the toe
Sliding friction along the side of the pile
Bearing Capacity of deep foundation is a sum of two components
Toe bearing capacity
Side friction
3 types of piles
Driven Piles
Drilled shaft
Auger Piles
2 types of driven piles
Low DIsplacement and High Displacement
Which method we use for coarse grain soil service limit State
Schemertman method
Which method we use for fine grain soil service limit state
Elogp method
Where do Schmertmann found maximum strain to be?
0.5B-B below the footing base

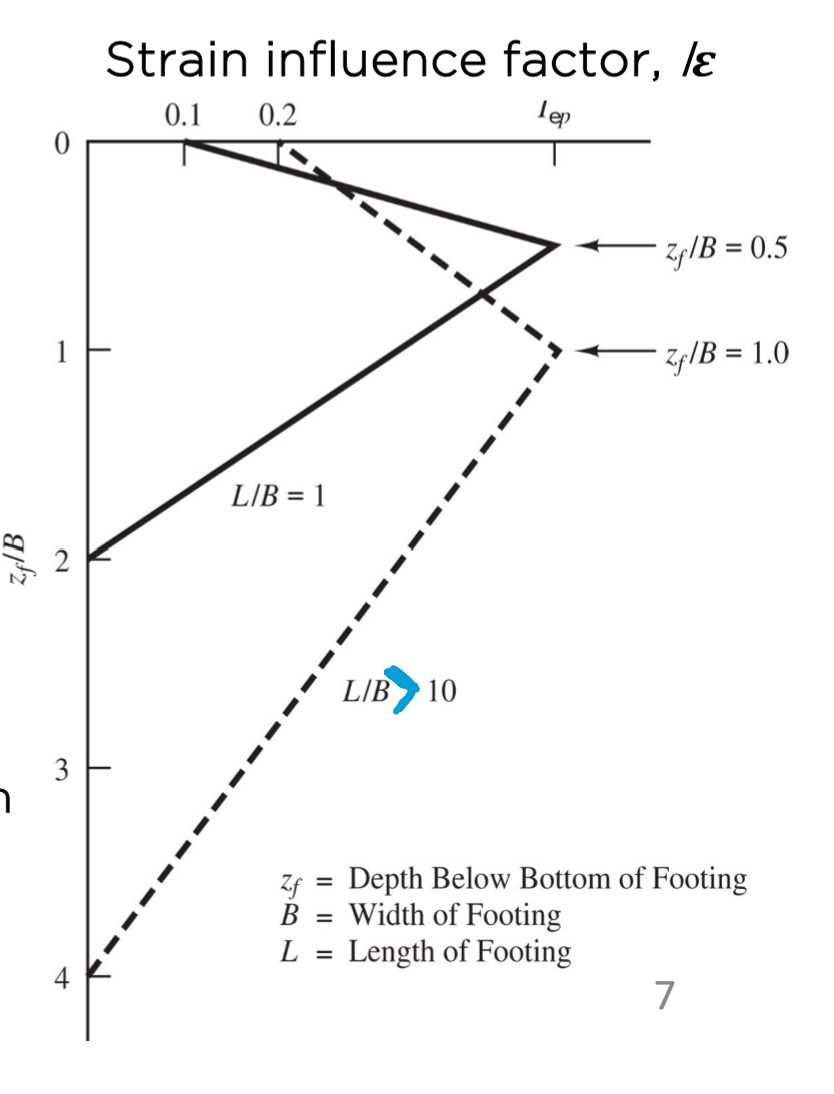

Where is the maximum strain for a square footing? When is the strain 0 for square footing
Maximum strain, Zf =0.5* B
Strain is 0 Zf=2*B

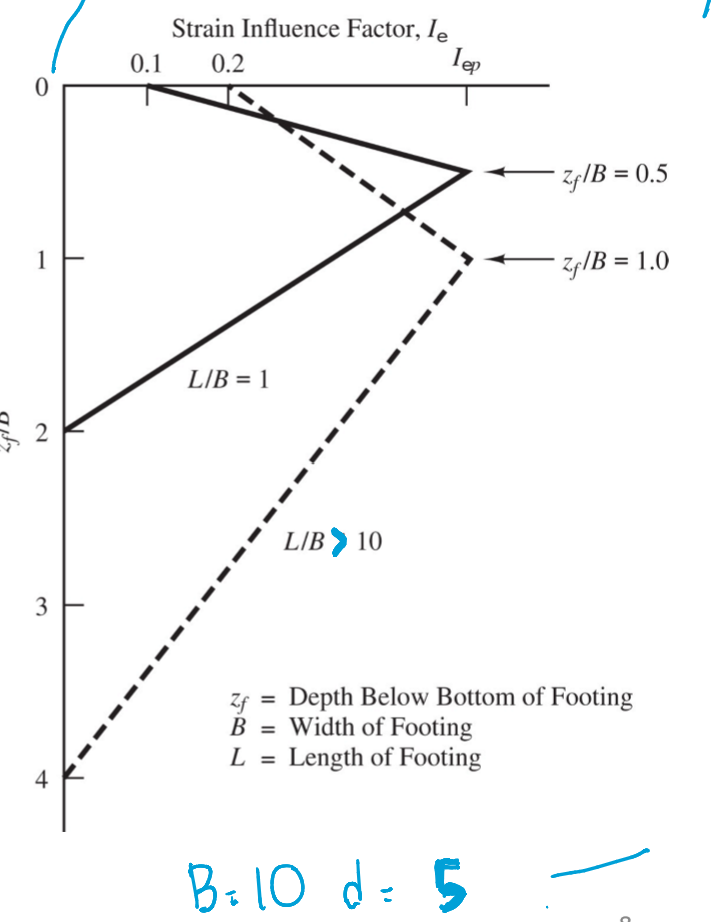

Where is the maximum strain for a continuous footing? When is the strain 0 for continuous footing?
Maximum strain, Zf =1* B
Strain is 0 when Zf=4*B

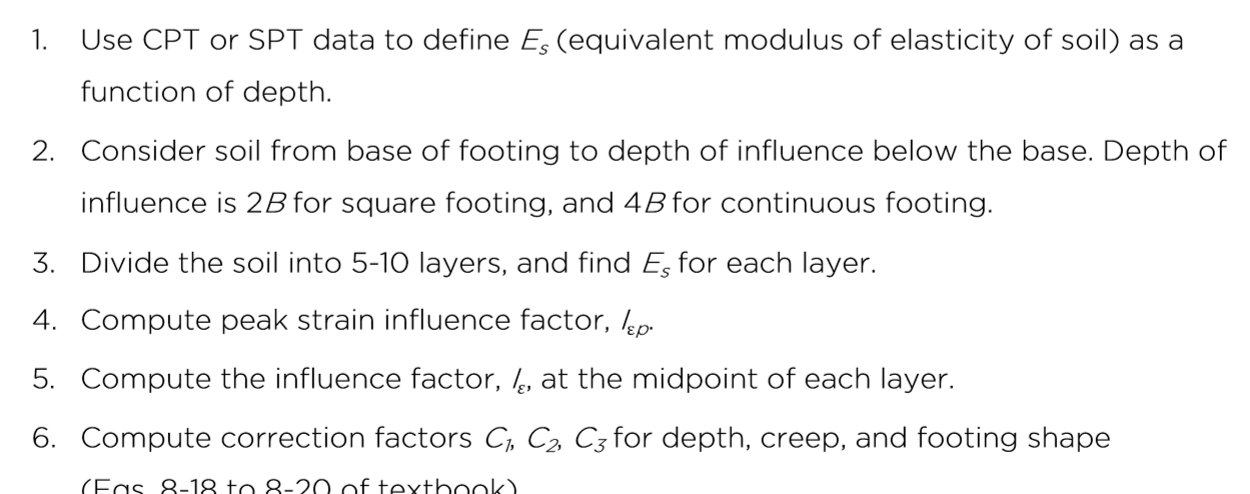

What is q?
(Load + Weight of footing)/ Area
Specific Weight of concrete in SI and English
24 KN/m3 or 150 lb/ft3
Which type of settlement controls in Fine Grained Soil? What is that?
Consolidation Settlement, It is compression of soil because water seeps out of the void.
Explain the process of consolidation settlement
When loads are applied to fine grained soil, initially all loads are carried by the water, (pore water pressure goes up).
As times passes by, water seeps out and it is transferred to the soil, effective stress increases and soil settles.

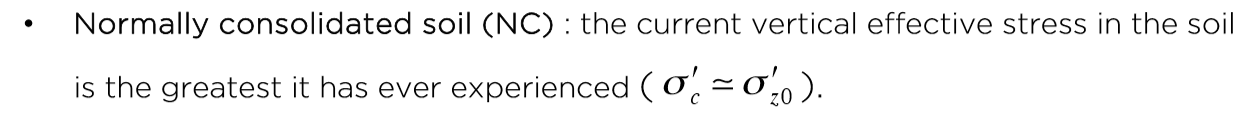

What is Normally Consolidated Soil (NC)? What is the OCR?
equal to 1

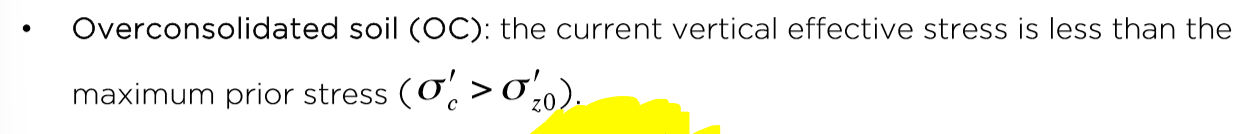

What is Overly Consolidated Soil (NC)? What is the OCR?
greater than 1
What is Cr?
Recompression curve slope
What is Cc?
Virgin Curve slope
In a consolidation chart what is y axis and what is x axis?
Y axis = e
X axis = log (σ’z)
What is the maximum allowable settlement for residential?
1 in

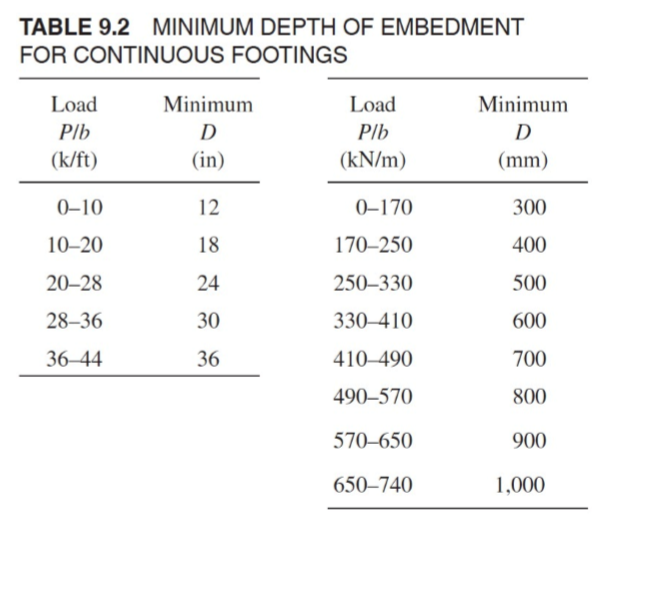

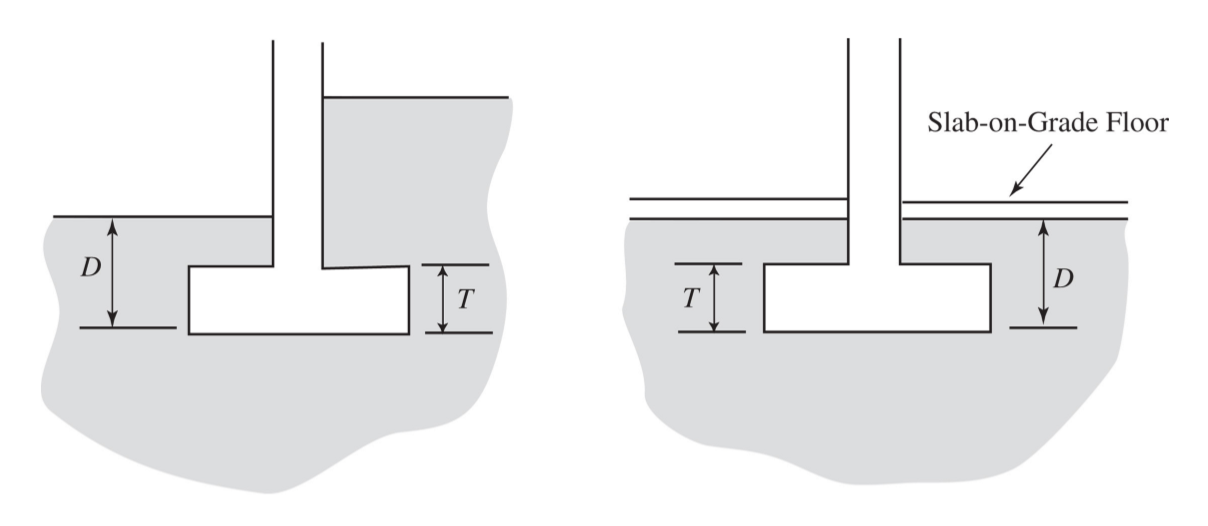

for this table D is calculated from where?
Calculated from the soil surface

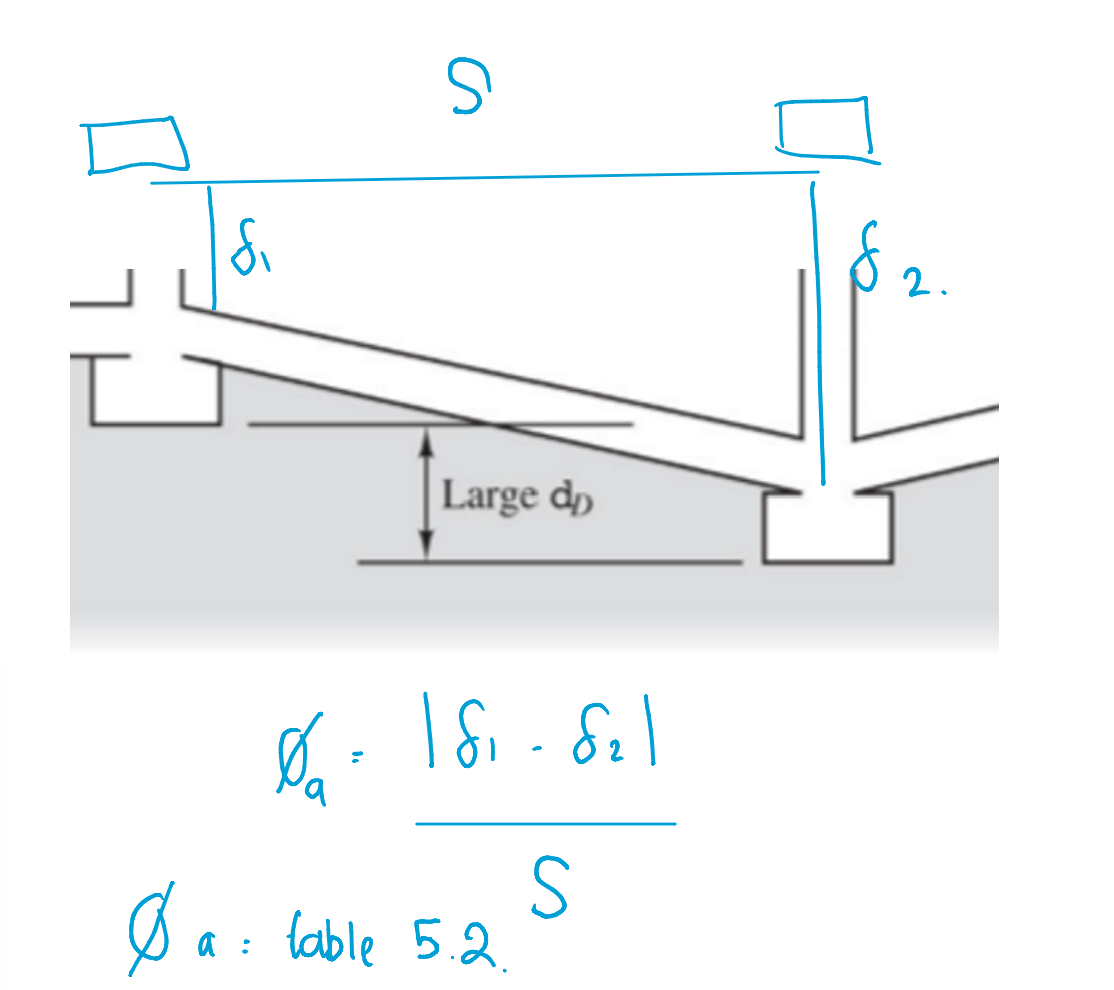

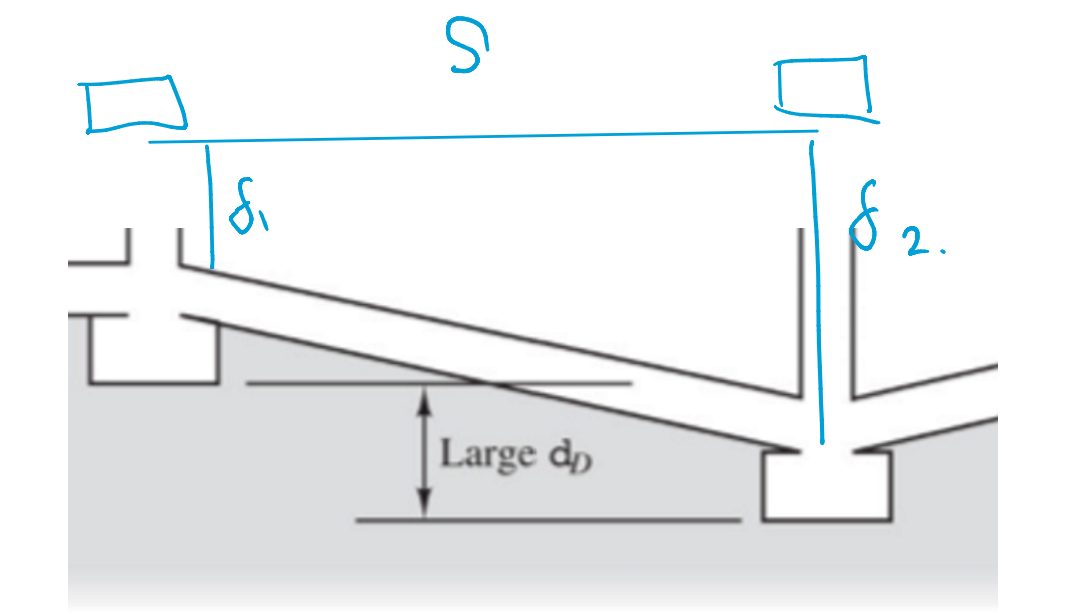

How to calculate Allowable Angular distortion
How are Driven piles categorized?
Low Displacement vs High Displacement

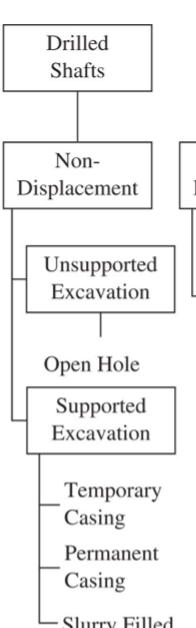

How are Drilled Shafts usually categorized?

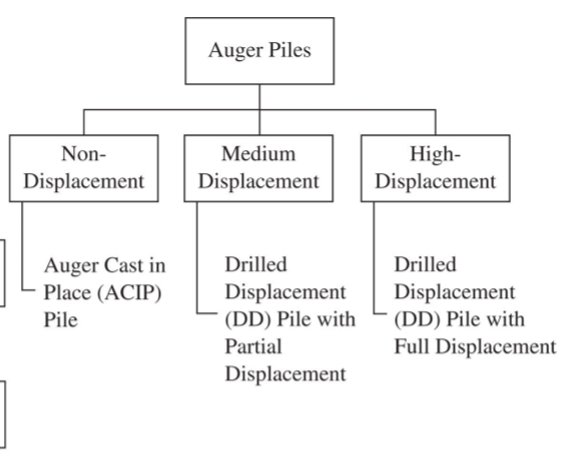

How are Auger Piles Categorized?
Can Low displacement get plugged and behace like high displacement? When?
Yes, When it gets plugged.
What are two parts of Nominal Load Capacity of a pile?
Load Capacity of the Toe and Load capacity of the side Friction
Formula for qn’ (Toe Bearing Capacity)

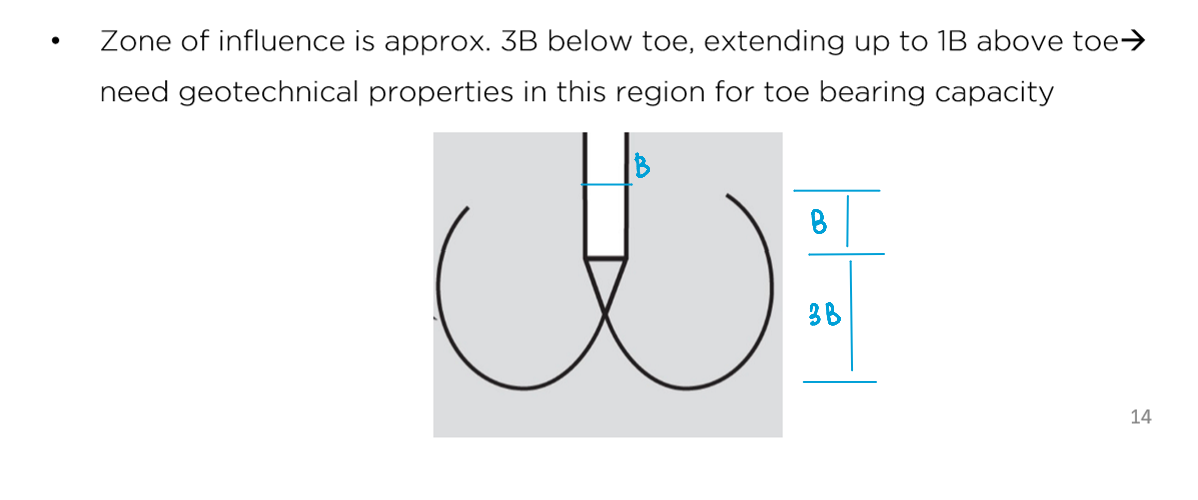

Where is Zone of Influence for driven toe bearing capacity
3B below toe and 1 B above toe
What is Beta Method for? What is Alpha method used for?
Beta: Used for Cohesionless Soil
Alpha: Used for Cohesion Soil
In clay most of the side friction is from side friction or toe capacity?
Side Friction
In sand most of the side friction is from side friction or toe capacity?
toe capacity
unit weight formula
where do you calculate the denominator? The depth, is it calculated from the bottom of the footing or the ground surface?
the Effective stress at location where Strain influence factor is 0
Ground surface
What is the value of Pa in this equation in SI and English
2000 psf/ 100KN
What is σ’zD?
It is the effective stress at the embedment Level
What is H
H is thickness of the layer
How do you fin E
find E in the middle of each alter
How do you do you find IE
Find IE in the middle of each layer
what is the unit for t?
Years
What depth do you use for σ’zp

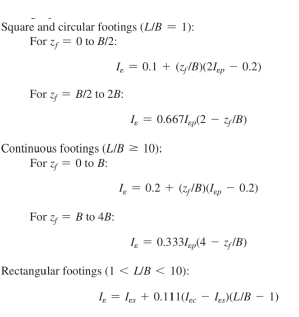

For these formulas, Wher is Zf calculated?
Middle of the layer
The answer of this equation is in what unit?
ft
What is the unit of E in this equation and what is the preferred unit for q and σ’zd?
psf

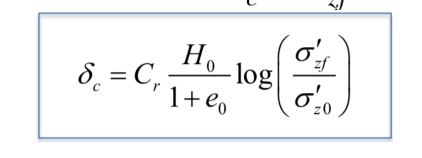

if the footing is embedded, what is the depth used to calculate σ’zo? Where is σ’zo calculated?
Depth is calculated from the ground level, before the footing is built. σ’zo is calculated in the middle of the layer
For this equation, when the foundation is embedded, when calculating σ’zf? Is the geostatic pressure calculated from the bottom of the footing or the ground surface?
ground surface
If using this equation for Toe Baring capacity, where do you calculate sima prime Z o
At the depth of the Toe

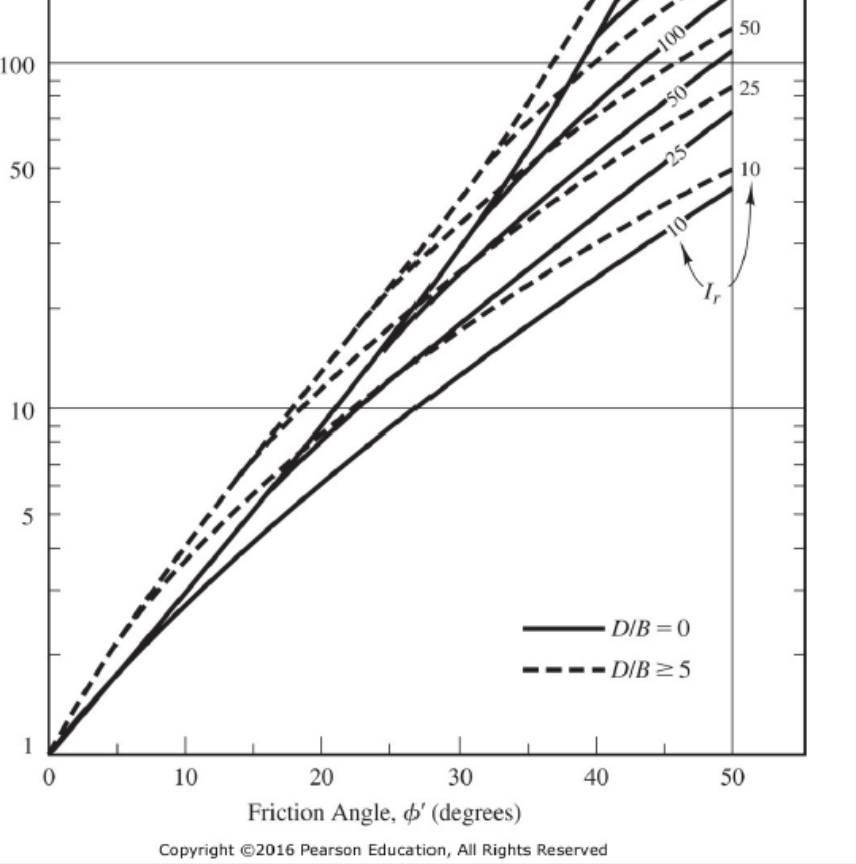

What is D and What is B in this?
In that chart, D/B represents the embedment ratio of your foundation.
Here is exactly what those two letters stand for:
D (Depth): The depth of the foundation or pile embedment.
B (Breadth/Width): The diameter or width of the foundation or pile.
what is gamma in this equation? What if it is under the GWT
Weight of the soil in the zone of influence

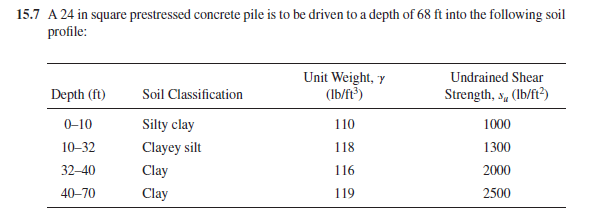

To calculate friction strength, in a cohesion soil you start at 0, but then how do you ignore the first 5 ft/1.5m
Do not account for the surface area.
