21 Terms

1
New cards

shell

a thin, curved plate structure, shaped to transmit applied forces by compressive, tensile, and shear stresses acting in the plane of the surface

2
New cards

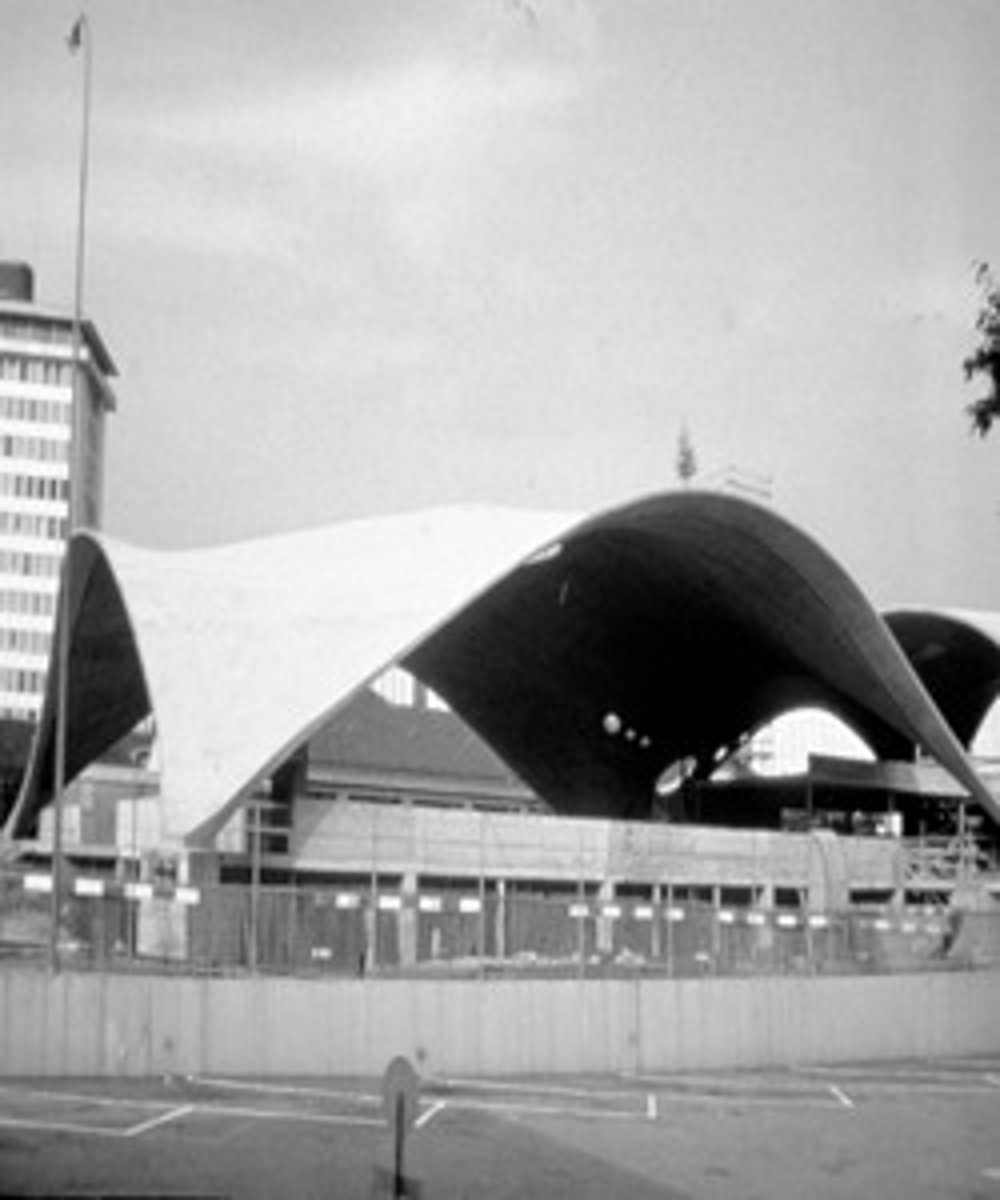

thin shell

a shell structure constructed of reinforced concrete

<p>a shell structure constructed of reinforced concrete</p>
3
New cards

translational surface

a surface generated by sliding a plane curve along a straight line or over another plane curve

4
New cards

membrane stresses

the compressive, tensile, and shear stresses acting in the plane of the surface of a shell structure

5
New cards

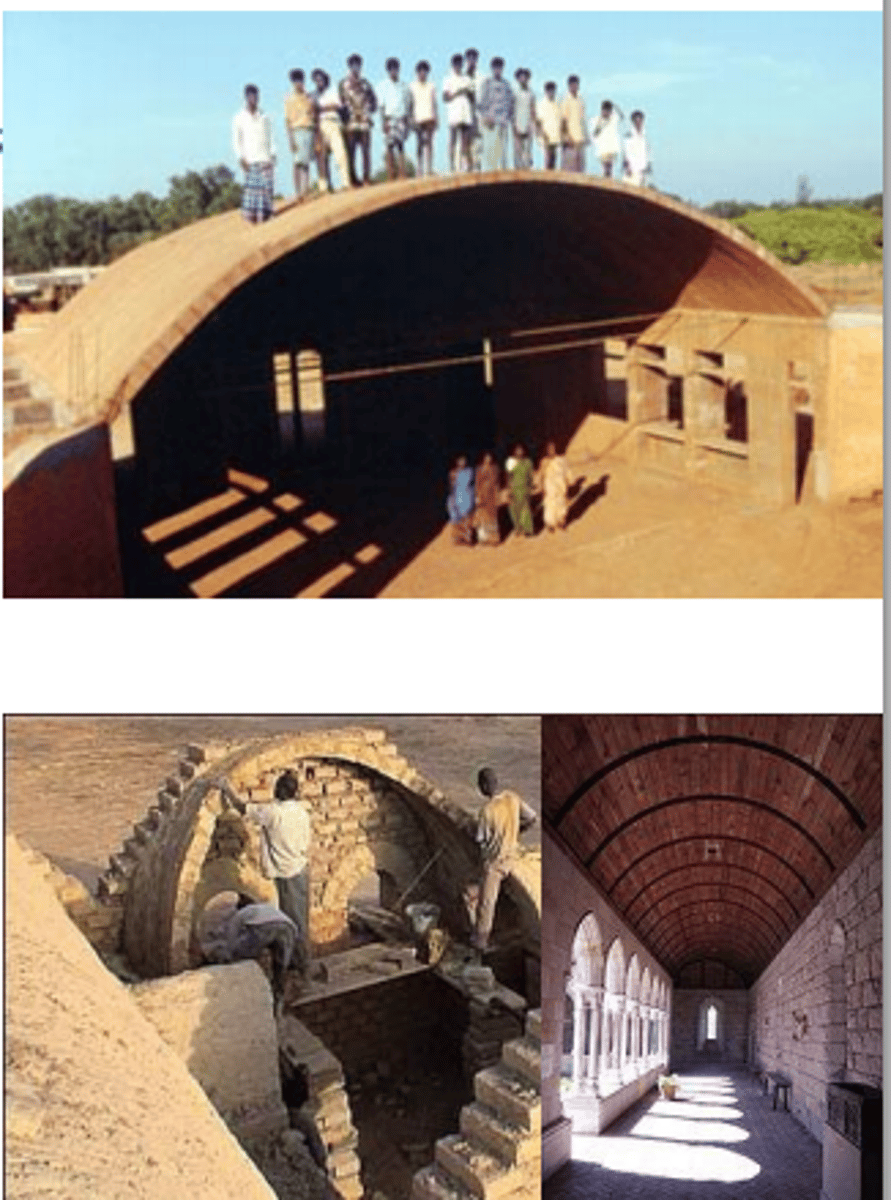

barrel shell

a rigid cylindrical shell structure

<p>a rigid cylindrical shell structure</p>
6
New cards

cylindrical surface

a surface generated by sliding a straight line along a plane curve, or vice versa

7
New cards

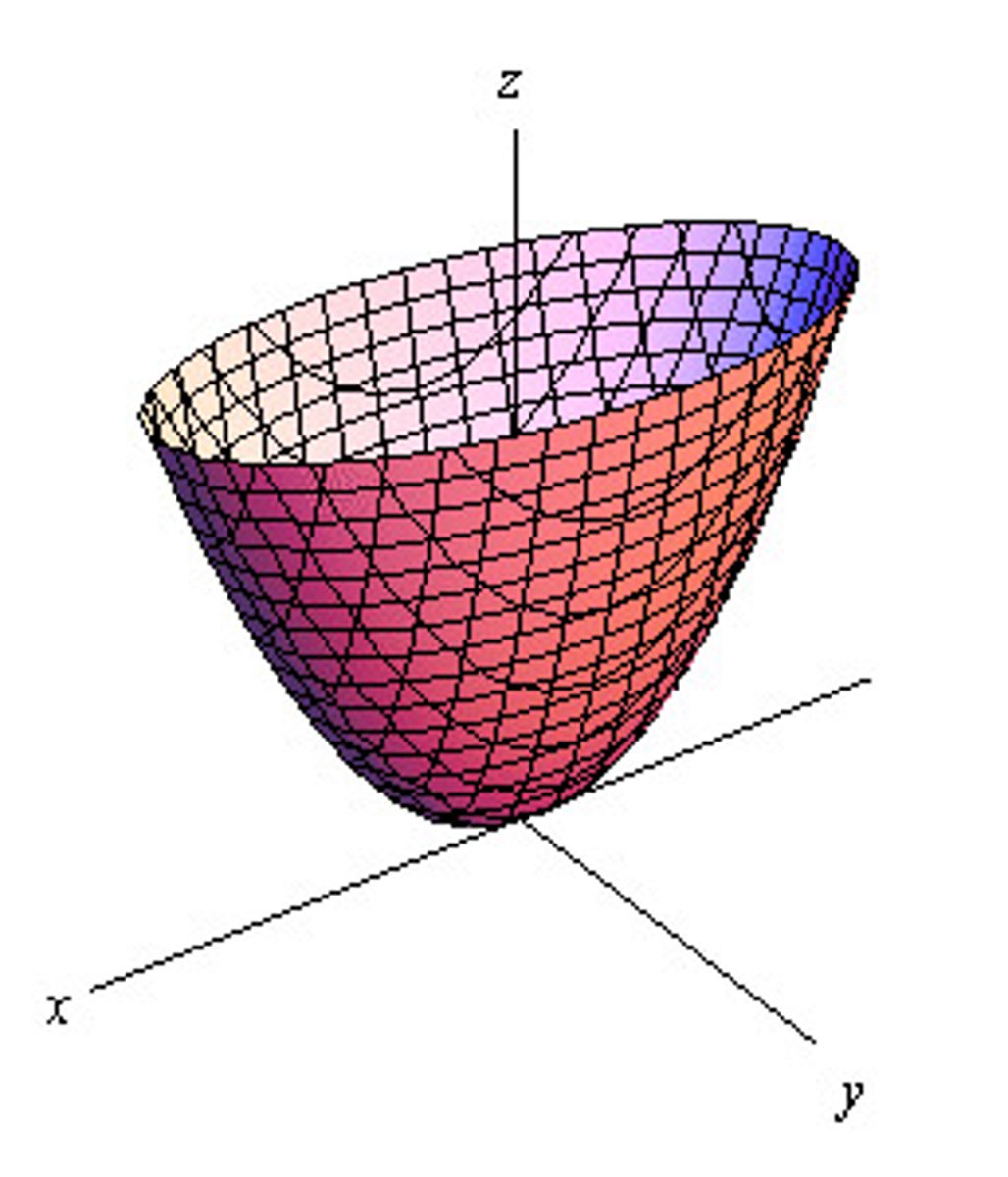

elliptical paraboloid

a surface generated by sliding a vertical parabola with downward curvature along a perpendicular parabola with downward curvature

<p>a surface generated by sliding a vertical parabola with downward curvature along a perpendicular parabola with downward curvature</p>
8
New cards

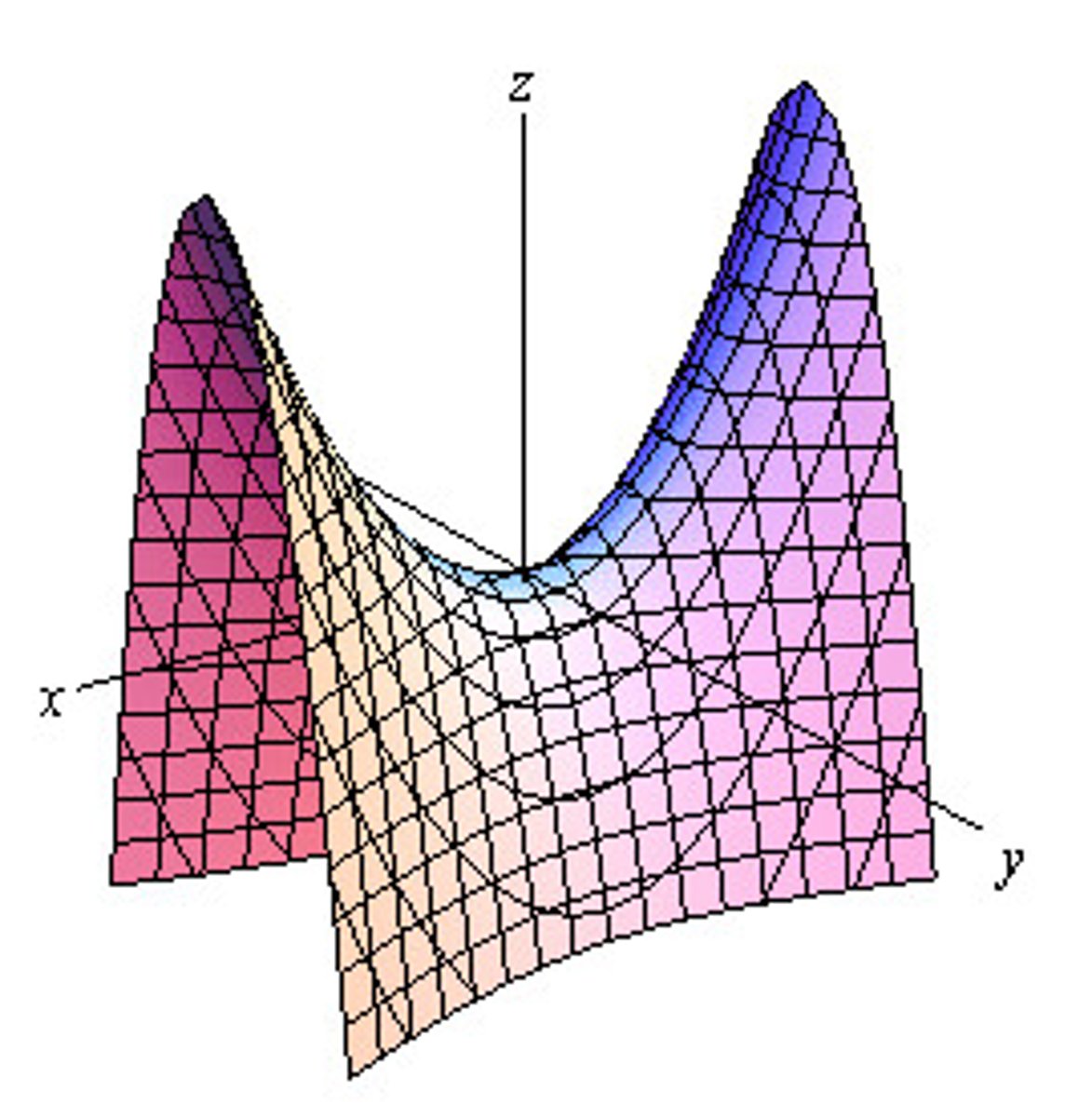

hyperbolic paraboloid

a surface generated by sliding a parabola with downward curvature along a parabola with upward curvature, or by sliding a straight-line segment with its ends on two skew lines; also called "hypar"

<p>a surface generated by sliding a parabola with downward curvature along a parabola with upward curvature, or by sliding a straight-line segment with its ends on two skew lines; also called "hypar"</p>
9
New cards

paraboloid

a surface all of whose intersections by planes are either parabolas and ellipses or parabolas and hyperbolas

10
New cards

saddle surface

a surface having an upward curvature in one direction and a downward curvature in the perpendicular direction

11
New cards

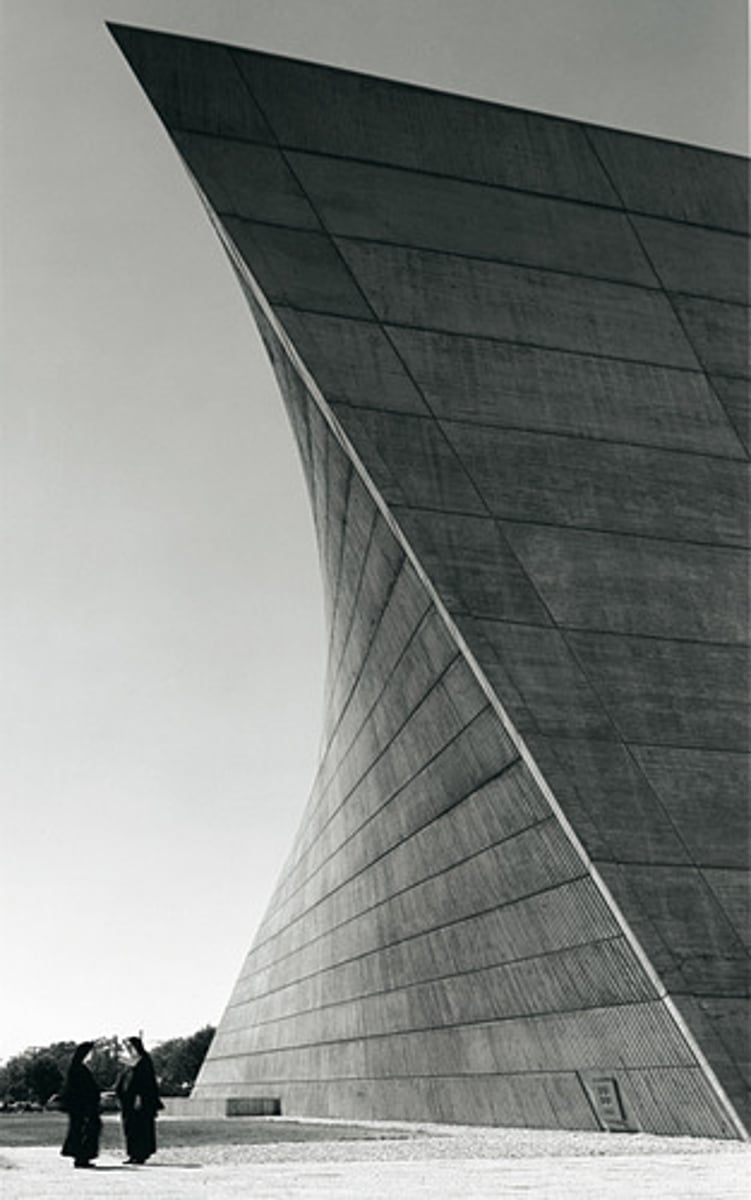

anticlastic

having opposite curvatures at a given point

<p>having opposite curvatures at a given point</p>
12
New cards

ruled surface

a surface generated by the motion of a straight line

13
New cards

conoid

a ruled surface generated by sliding a straight line with one end on a straight-line segment and the other on a plane curve

14
New cards

hyperboloid

a surface having a finite center with certain plane sections that are hyperbolas and others that are circles or ellipses

15
New cards

rotational surface

a surface generated by rotating a plane curve about an axis

16
New cards

synclastic

having similar curvatures at a given point

17
New cards

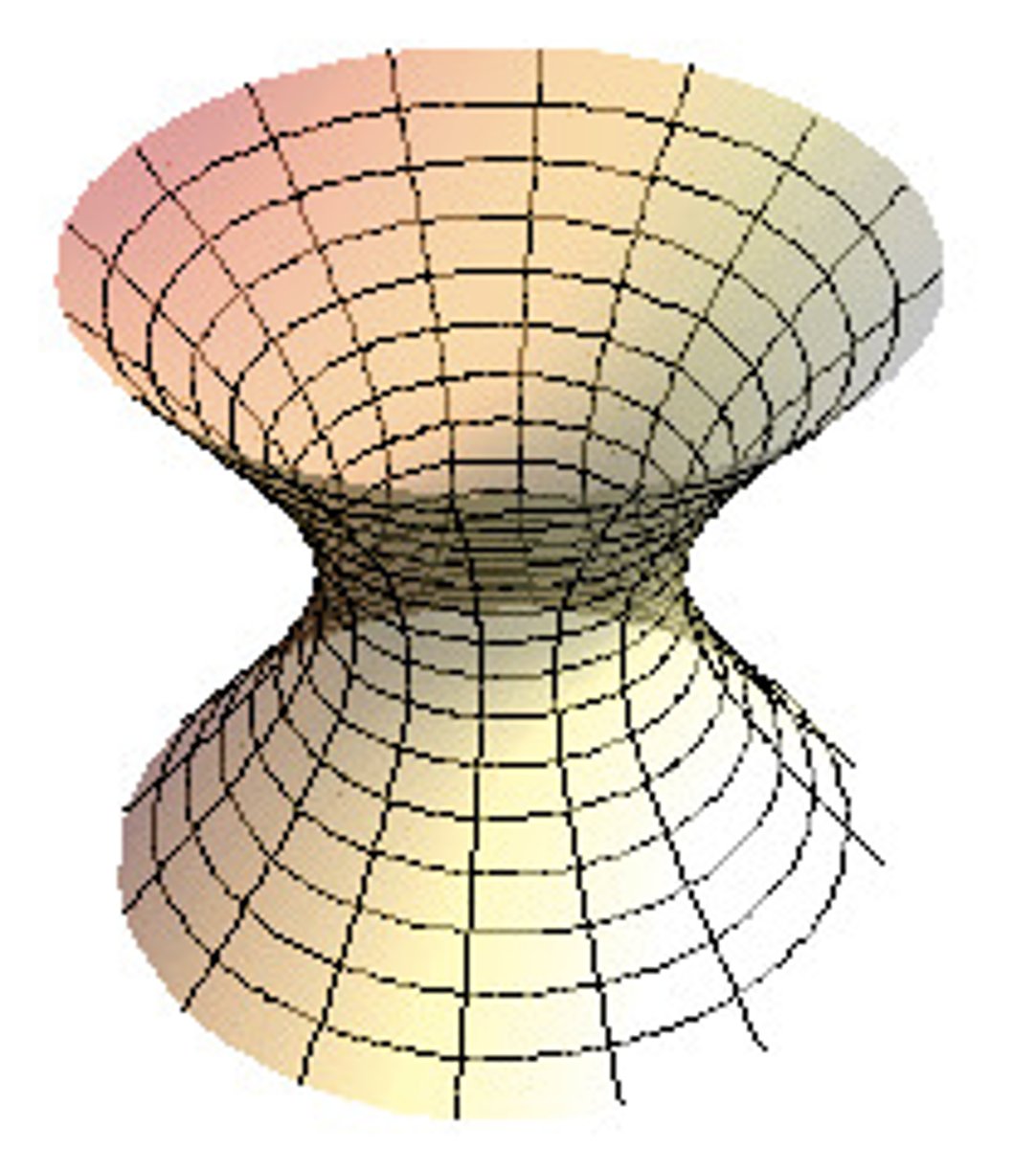

one-sheet hyperboloid

a ruled surface generated by sliding an inclined line segment on two horizontal circles

<p>a ruled surface generated by sliding an inclined line segment on two horizontal circles</p>
18
New cards

spherical surface

a rotational surface generated by the revolution of a circular arc about a vertical axis

19
New cards

elliptical surface

a rotational surface generated by the revolution of a half ellipse about a vertical axis

20
New cards

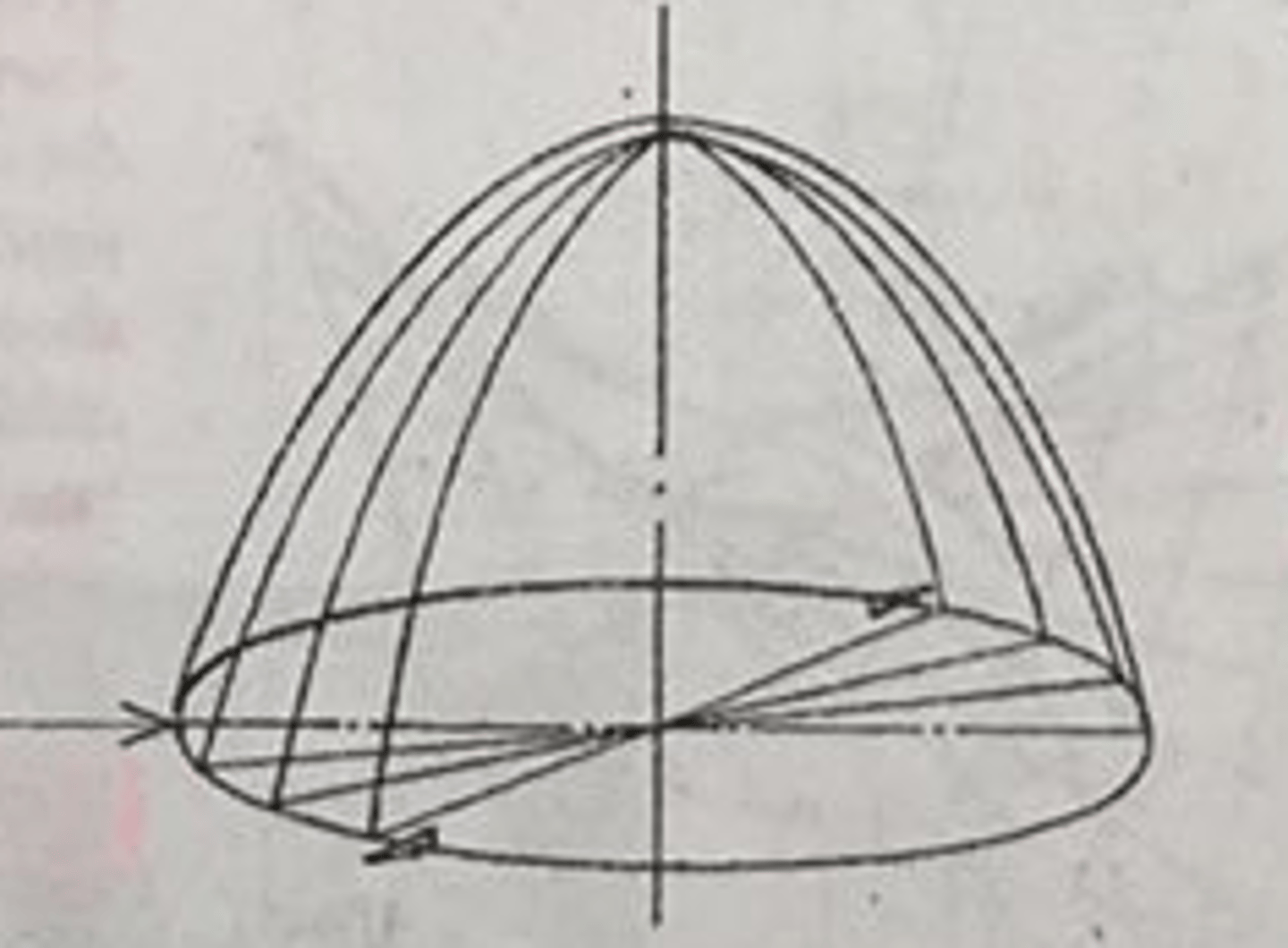

parabolic surface

a rotational surface generated by the revolution of a parabola about a vertical axis

<p>a rotational surface generated by the revolution of a parabola about a vertical axis</p>
21
New cards

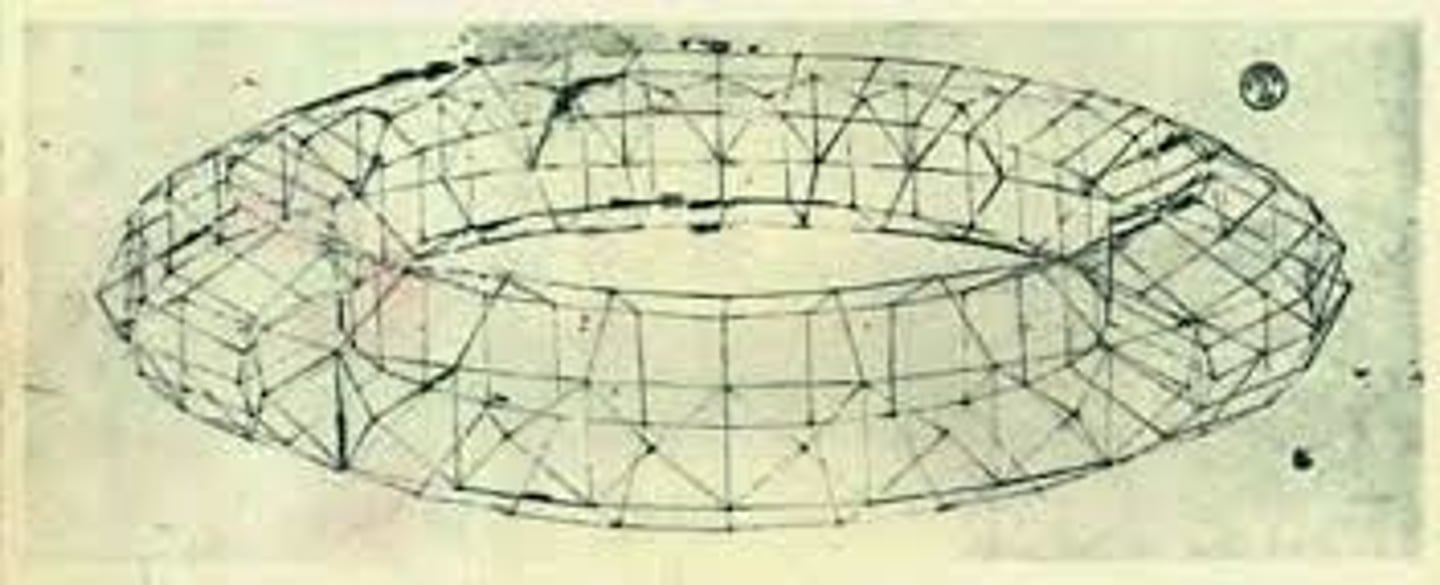

torus

a doughnut-shaped surface generated by the revolution of a circle about an exterior line lying in its plane

<p>a doughnut-shaped surface generated by the revolution of a circle about an exterior line lying in its plane</p>
